JSR-CL802 - Heat gun Jocel - Free user manual and instructions

Product Type	Heat Gun
Brand	Jocel
Model	JSR-CL802
Power Supply	Mains 220-240 V ~ 50/60 Hz
Rated Power	2000 W
Temperature Range	50°C to 650°C
Air Flow	250 L/min (adjustable)
Temperature Adjustment	By continuous dial
Cold Blow	Yes
Automatic Shut-off	Yes (overheat protection)
Rest Base	Integrated
Cable Length	1.8 m
Weight	0.8 kg
Dimensions (L x W x H)	260 x 190 x 80 mm
Housing Material	Heat-resistant ABS plastic
Maintenance	Clean with a dry, lint-free cloth
Safety	Overheat protection and thermal cut-off
Spare Parts	Concentrator nozzles and reflector attachments available
Repairability Index	8.5/10
Warranty	2 years

Frequently Asked Questions - JSR-CL802 Jocel

How to adjust the temperature on the Jocel JSR-CL802?

Use the dial located on the handle. Turn it clockwise to increase the temperature and counterclockwise to decrease it. The temperature range is from 50°C to 650°C.

What is the cold blow button for?

This button allows switching to cold blow to quickly cool the workpiece or nozzle after use, or for applications requiring room temperature air.

How to use the heat gun safely?

Always place the device on its integrated rest base when not in use. Never direct the hot air flow towards people or flammable materials. Wear protective gloves and work in a well-ventilated area.

Can the heat gun be used outdoors?

Yes, but avoid humid or rainy conditions. Use a suitable extension cord if necessary and protect the device from weather.

How to clean the device?

Unplug the device and let it cool down. Clean the housing with a dry, lint-free cloth. Never immerse the device in water. For air vents, use a soft brush.

What to do if the gun no longer heats?

Check the power outlet and the power cord. Ensure the temperature setting is not at minimum. If the problem persists, the safety thermostat may have tripped; let the device cool for 15 minutes before trying again.

What accessories are available for this model?

Concentrator nozzles (for precise airflow) and reflectors (for stripping paint from flat surfaces) are available as options.

What is the lifespan of the device?

With regular maintenance and proper use, the Jocel JSR-CL802 can last several years. The 2-year warranty covers manufacturing defects.

Can the heat gun be used for paint stripping?

Yes, it is one of its main uses. Use a reflector nozzle to concentrate heat on the surface to be stripped and a suitable scraper.

Where to find spare parts?

Contact Jocel customer service or check the list of authorized dealers. Parts such as nozzles and attachments are generally available on the manufacturer's website.

USER MANUAL JSR-CL802 Jocel

Read the Instruction Manual carefully.

Diagram showing a device with three vertical rods and a circular component being added to a tripod-mounted sensor (no text or symbols present)

Diagram showing two vertical bars with a rightward arrow and a circular arrow indicating rotation (no text or symbols)

Diagram showing a vertical tube and a rotating sensor mounted on a tripod base, with an arrow indicating rotation direction (no text or symbols)

Diagram showing a vertical tube mounted on a tripod base with a rotating base, before and after assembly (no text or symbols)

Simple line drawing of a scientific apparatus with a vertical rod and base, labeled '-4-' (no text or symbols on the diagram itself)

H. DESMONTAGEM

Diagram showing a device with three vertical rods and a base mount, before and after transformation (no text or symbols)

Diagram showing two vertical bars with a circular arrow indicating rotation or movement (no text or symbols)

Diagram showing a rotating scientific instrument with a pointer and base, no text or symbols present

Diagram showing a mechanical device with rotating and rotating arms, no text or symbols present

Line drawing of a scientific instrument with a vertical rod and three tripod base (no text or symbols)

H. DESMONTAJE

A. Caution
B. Features
C. Working principle
D. Structure
E. Specification
F. Parts and components
G. Installation
H. Disassembling
I. Operation instruction
J. Trouble shooting
K. Cautions

A. CAUTIONS

1. Whenever this machine is being using or not, make sure to keep it at least 1.5M away from water or fire source. Clean with damp cloth insteading water rinsing.
2. Make sure the power supplying socket is earth contact.
3. When using, please make sure clothes have already been spin-dried by washing machine or screw-dried by hands, so as to reduce water dews dropping down to make floor dap. Meanwhile, less water also ensures improving electricity isolate status, and shorten clothes drying period to save energy.
4. Never touch the metals parts on the wind-outlet so as to avoid getting burn.
5. Keep children and disabilities away from this machine when it is working.
6. Clothes to be dried should be able to endure 70 degree above,
7. Drying capacity up to 10Kg maximum.
8. Wind-outlet and entry should keep good ventilation.
9. This machine is no suitable for repairing by non-professionals.

B. FEATURES

1. This appliance avoids clothes friction, goffer or damage.
2. PTC heating-element, different from tradition heating method, to ensure maximum safety. Double heating protection.
3. Avoid re-pollution: clothes isolated from outside space, exempt from dust and insects contacts, eliminate bacilli.

4. Multi function in one: clothes dryer, room warmer and clothes bureau.

5. Energy saving: save energy up to compare with traditional similar appliance.

6. High efficiency: it takes 1 to 3 hours to dry clothes up.
7. Convenient to carry: small, light, easy disassembly and convenient to carry for travel.

C. WORKING PRINCIPLE

PTC heating element features safe, energy saving, long using life and erosion proof.

This appliance adopts working principle of:

• Fan to form a positive air pressure inside the cover.
- Entering air to be heated by the PTC element, then come inside the cover.
- Clothes, in static status, processed by hot wind, then moistore be get rid of and impel out side the cover.

D. STRUCTURE

E. SPECIFICATIONS

Gift box size (1pc): A 250 x A 368 x P 290mm

Master carton size (4pc): A 520 x A 600 x P 390mm

Appliance gross weight: 3.50Kg

Appliance net weight: 3.35Kg

Rated voltage: 220V

Rated frequency: 50Hz

Rated power: 1000W

Rated clothes to be dried <10Kg

Clothes drying period: 0 – 180min

F. PARTS AND COMPONENTS TABLE

Name	Quantity	Unit
Motor unit	1	Pcs
Water proof plate	1	Pcs
Upper supporting groupware	1	Set
Lower supporting tuve	1	Pcs
Connector	1	Pcs
Standing feet	3	Pcs
Cover	1	Pcs
User manual	1	Pcs

G. INSTALLATION

★Insert 3 pcs of standing feet into correspond holes on the bottom of the motor unit.

Diagram showing a lamp fixture transforming into a tripod-mounted sensor or camera (no text or symbols present)

★Fit the connector on to the upper supporting tube (groupware), screw it clockwise until reach position.

☆Fit the water-proof plate on to the lower supporting tube, then fix the lower supporting tube, then fix the lower supporting feet onto the motor unit, screw it clockwise to ensure reaching the position

Diagram of a scientific apparatus with rotating and unrolled components, no text or symbols present

★Insert the hanger groupware into the upper supporting tube, then put down the aluminum hangers to level position.

Diagram showing a mechanical device with rotating components and a side view of a vertical rod (no text or symbols present)

☆Put the clothes onto the clothes racks, put on the cover and close with zipper.

Line drawing of a scientific instrument with a central vertical rod and three tripod legs (no text or symbols)

H. DISASSEMBLING

To disassemble this machine, just follow the above installation steps contrarily.

1. Insert the power plug into power socket that should be with earth contact.

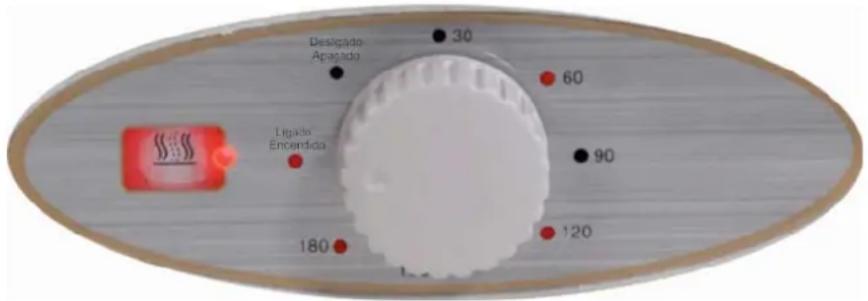

2. Rotate the switch, machine go on working, ate the meantime, power indicator illuminate.

1. Rotate the switch to LIGADO (on) position and set time for drying clothes.
2. Rotate the switch to DSLIGADO (off) to turn off the motor.
3. Rotate switch knob anti-clockwise to set it work without time limit.

J. TROUBLE SHOOTING

No	Problem	Possible cause
1 Drying time too long (>180mn)		Clothes too thick.Clothes not spin-dried by washing machine or screw-dried by hand.Cover not close appropriately wind leaking.
2 Machine suddenly stop when working		Wind-entry or outlet blocked by clothes or other things, machine startup protection process.Having exceeded set time
3	Power indicator doesn’t illuminate, machine do not work.	Power cut.Power socket fuse melt break.Machine fuse melt break.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.

4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..

5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240Volts.

6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY BECOMES VOID

1. With the modification or disappearance of the nameplate of the appliance.

2. Exceeded 24 months for home appliances and 06 months for industrial appliances date of acquisition, warranty expires and assistance will be made by debiting the costs of manpower, according to the task force.

TECHNICAL ASSISTANCE

1. To get any information our TECHNICAL SERVICES available to help the users of our products.

2. When prompted, elaborate prior estimate of repair.

WARRANTY PERIOD:

• 02 YEARS FOR DOMESTIC APPLIANCES
• 06 MONTHS FOR INDUSTRIAL APPLIANCES
