USER MANUAL EVI-H100S SONY

Operating Instructions ____ GB

使用说明书 CS

© 2011 Sony Corporation

安全のために

Technical line drawing of a mechanical component with a spherical top and flanged base (no text or symbols)

Line drawing of a rectangular electronic device with coiled cable and connector (no text or symbols)

電源コード (1)

Line drawing of a cord with three leads, no text or symbols present

リモコン（RM-EV100）（1）

Line drawing of a remote control device with buttons and dials (no text or symbols)

シーリングブラケット (A) (1)

Technical line drawing of a mechanical component with mounting holes and internal cavity (no text or symbols)

シーリングブラケット (B) (1)

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

ワイヤーロープ (1)

Line drawing of a coiled medical or electrical device with two connectors (no text or symbols)

Simple line drawing of a screw with a central nut (no text or symbols)

Isometric line drawing of a 3-pin electrical connector (no text or symbols)

取扱説明書（1）

各部の名称と働き

カメラ本体

前面

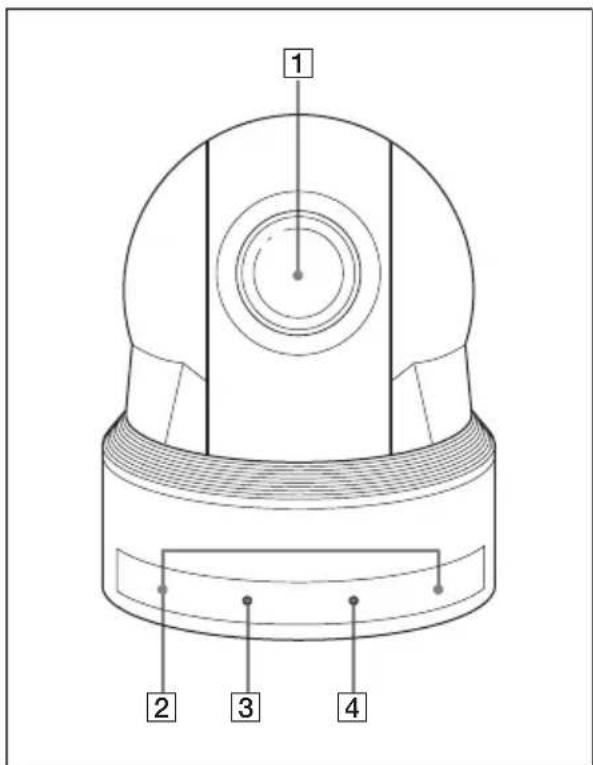

①レンズ

光学 20 倍ズームレンズです。

②リモコン受光部

付属のリモコンの受光部です。

③POWER ランプ

単 3 形乾電池 2 個（別売り）

電池の使用について

ご注意

ご注意

Technical line drawing of a mechanical component with a dome-shaped top and textured base (no text or symbols)

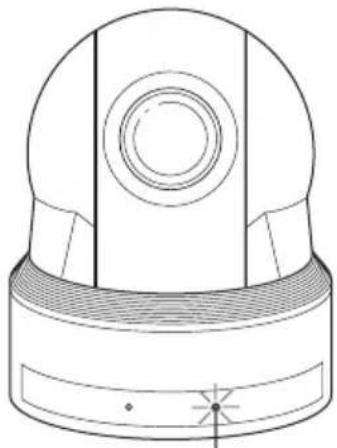

STANDBY 点滅

Line drawing of a desktop computer setup with monitor, keyboard, mouse, and globe (no text or symbols)

ご注意

Illustration of hands holding a mechanical component with a cross mark, no text or symbols present

Illustration of a hand holding a device with a cross symbol (no text or labels)

Illustration of hands using a tool to clean or adjust a circular object, with a 'X' symbol indicating no text or labels.

Illustration of hands holding a mechanical device with a circular ring (no text or symbols)

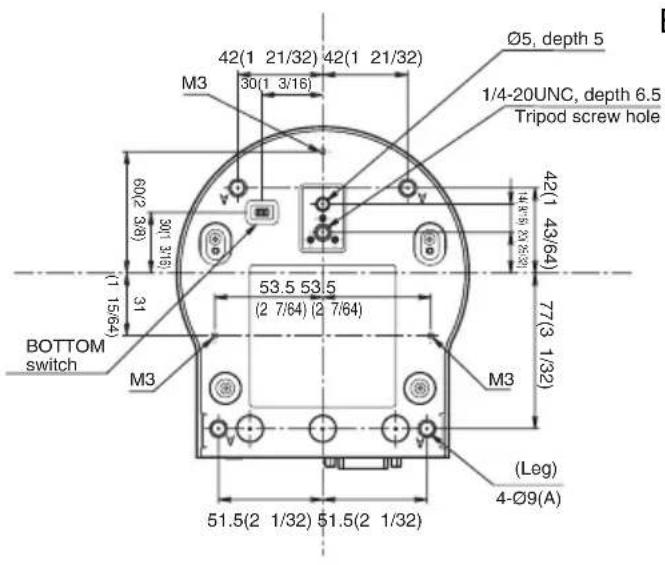

三脚に取り付ける

Technical line drawing of a mechanical component with mounting holes and a central square hole (no text or symbols)


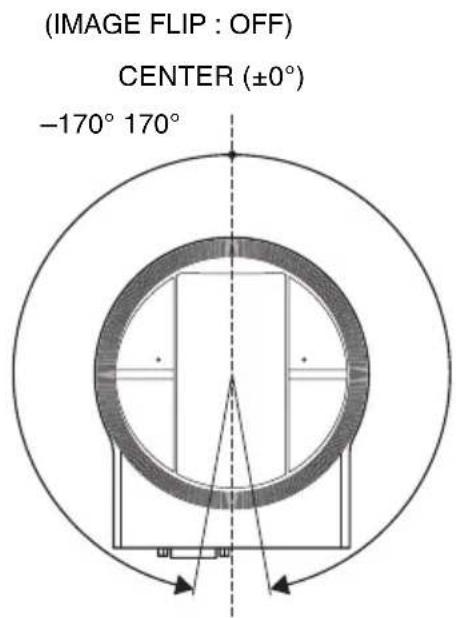

    A["PAN TILT ZOOM (23 ページ)"] --> B["PAN/TILT LIMIT —— ON,OFF"]
    B --> C["RIGHT —— 0 ~ 170 DEG"]
    B --> D["LEFT —— -170 ~ 0 DEG"]
    B --> E["UP —— 0 ~ 90 DEG [IMAGE-FLIP OFF"]]
    E --> F["20 ~ 0 DEG [IMAGE-FLIP ON"]]
    B --> G["DOWN —— -20 ~ 0 DEG [IMAGE-FLIP OFF"]]
    G --> H["0 ~ -90 DEG [IMAGE-FLIP ON"]]
    B --> I["D-ZOOM —— OFF, ON"]

プリセットできる項目 プリセットポジション番号
E	X	P	O	S	U	R	E		M	O
SLOW SHUTTER
A	E		G	A	I	N		L	I	M
B	R	I	G	H	T		L	E	V	E
S	P	E	E	D						◎
I	R	I	S						◎	○
G	A	I	N						◎	○
E	X	-	C	O	M	P		O	N	/
E	X	-	C	O	M	P		L	E	V
W	H	I	T	E		B	A	L	A	N
O	N	E		P	U	S	H		W	B
M	A	N	U	A	L		R	/	B
A	P	E	R	T	U	R	E		◎	○
P	I	C	T	U	R	E		E	F	F
H	I	G	H		R	E	S	O	L	U
N	O	I	S	E		R	E	D	U	C
W	I	D	E		D					◎
P	A	N	/	T	I	L	T		L	I
D	-	Z	O	O	M					◎
D	I	S	P	L	A	Y		I	N	F

• Focus Near Limit
• IR Receive
• IR Receive Return

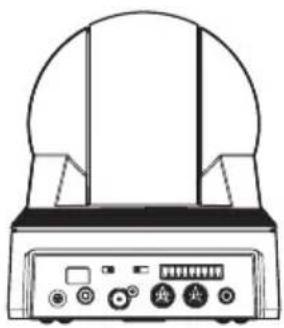

背面

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

EVI-H100VEVI-H100S

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

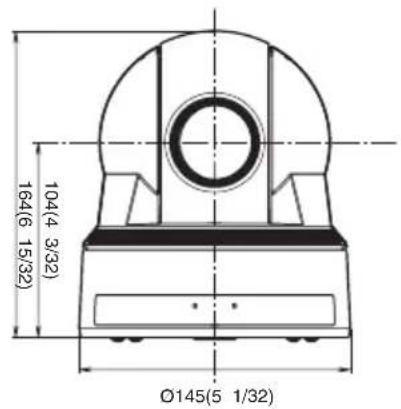

正面 側面

EVI-H100S

底面

EVI-H100V

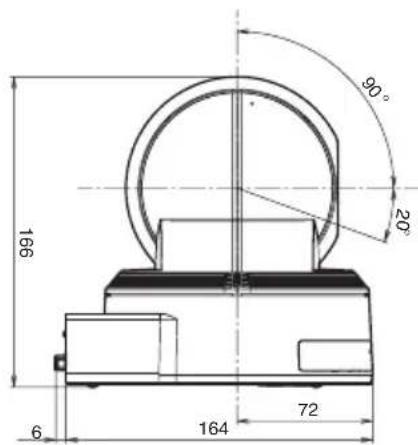

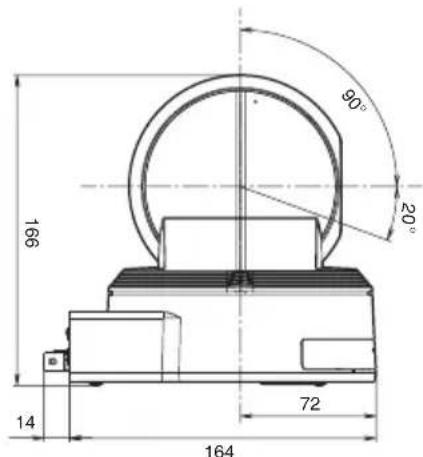

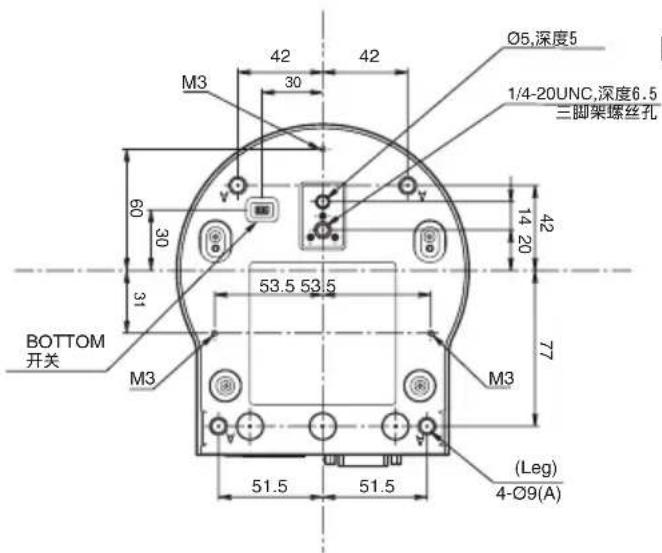

单位：mm

端子のピン配列

VISCA IN 端子

(8 ピンミニ DIN、凹)

VISCA IN

The model and serial numbers are located on the bottom. Record these numbers in the spaces provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. Serial No.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

This unit has no power switch.

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

IMPORTANT

The nameplate is located on the bottom.

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of part 15 of FCC Rules.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe, Australia and New Zealand

WARNING

This is a Class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. In the case that interference should occur, consult your nearest authorized Sony service facility.

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

This apparatus shall not be used in the residential area.

For the customers in the U.S.A. SONY LIMITED WARRANTY - Please visit http://www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada SONY LIMITED WARRANTY - Please visit http://www.sonybiz.ca/solutions/Support.do for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Professional Solutions Europe - Standard Warranty and Exceptions on Standard Warranty. Please visit http://www.pro.sony.eu/warranty for important information and complete terms and conditions.

For the customers in Korea SONY LIMITED WARRANTY - Please visit http://bpeng.sony.co.kr/handler/BPAS-Start for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

AVERTISSEMENT

Phenomena Specific to CMOS Image Sensors ....60

Overview

Features 61

Supplied Accessories ......61

Location and Functions of Parts and Controls ....63

Camera 63

Remote Commander (supplied) ...66

Adjusting and Setting with Menus

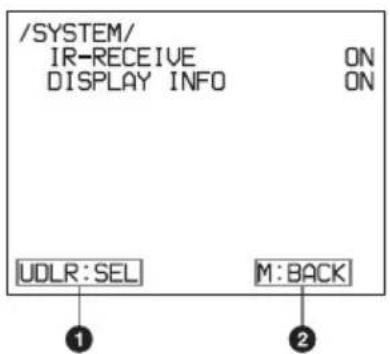

About On-Screen Menus...... 69

Main Menu 69

Setting Menus ......69

Control Button Display Section ....69

Operating the Camera Using Menus ....70

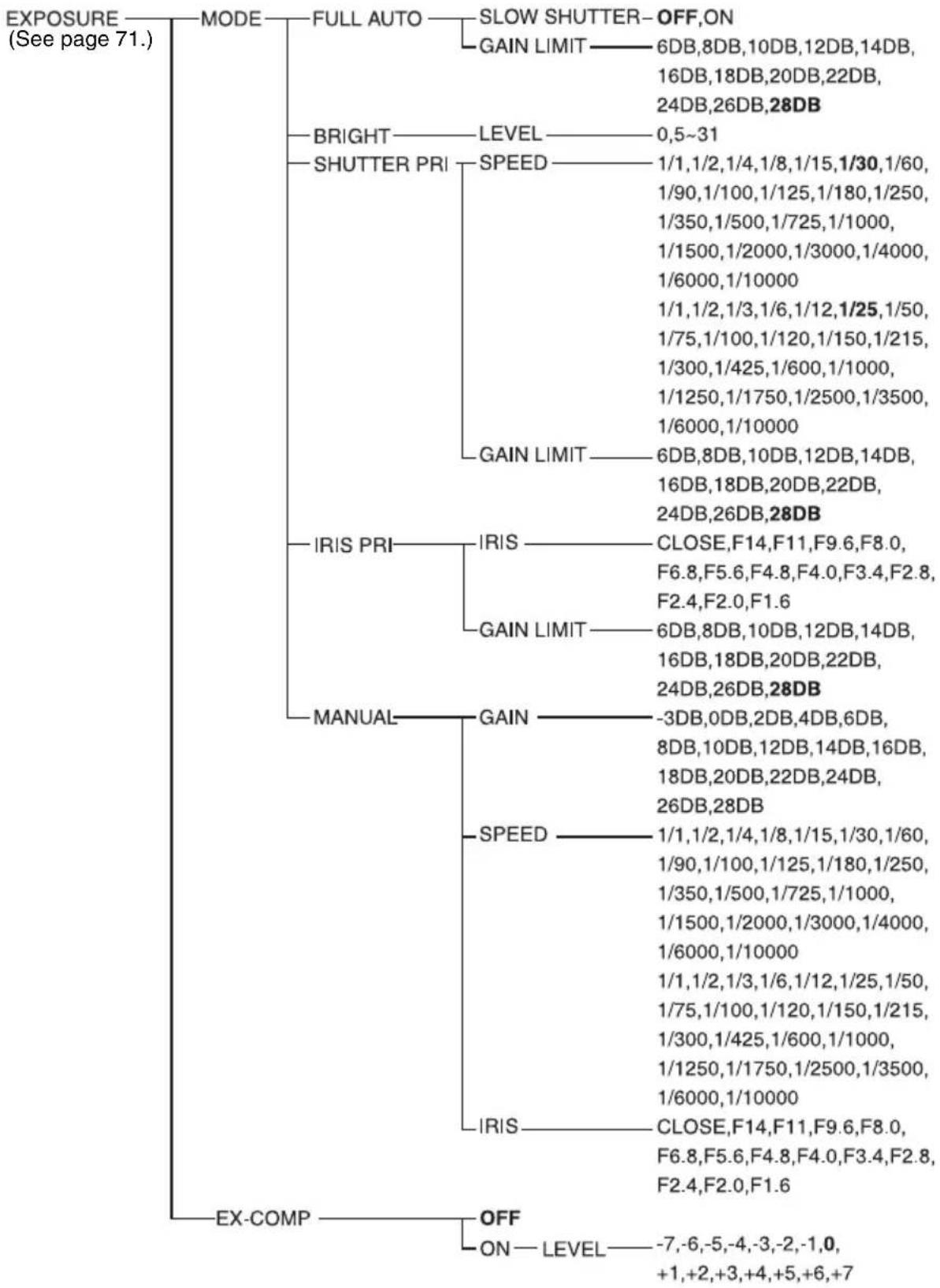

EXPOSURE Menu ....71

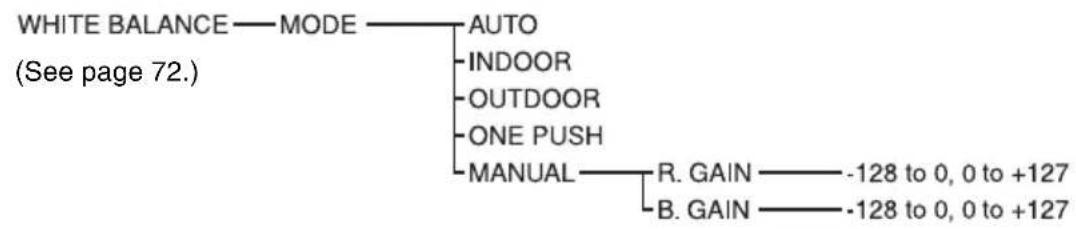

WHITE BALANCE Menu .....72

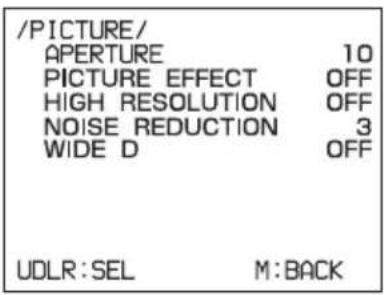

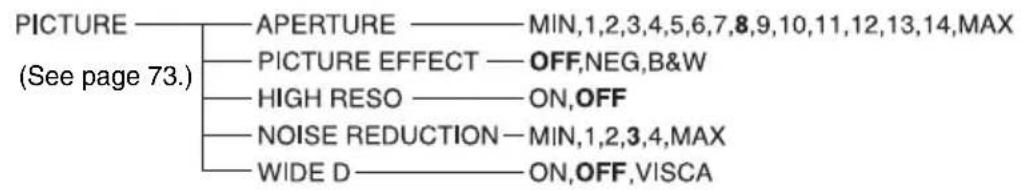

PICTURE Menu 73

PAN TILT ZOOM Menu ....73

SYSTEM Menu 75

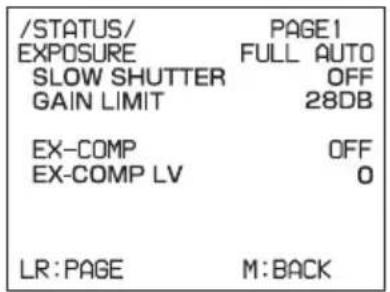

STATUS Menu 76

Operation Using the Supplied Remote Commander

Before Operating.... 77

Turning on the Power .....77

Pan/Tilt and Zoom Operation .....78

Panning and Tilting .....78

Zooming 80

Operating Multiple Cameras with the Remote Commander .....80

Adjusting the Camera 80

Focusing on a Subject 80

Shooting with Back Lighting ..... 80

Storing the Camera Settings in Memory — the Presetting Feature .... 81

Installation and Connection

Installing the Camera.... 83

Installing the Camera on a Desk 83

Attaching the Camera to a Tripod 83

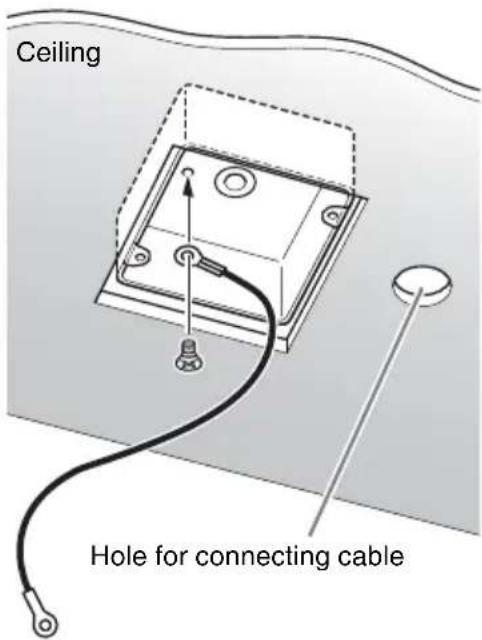

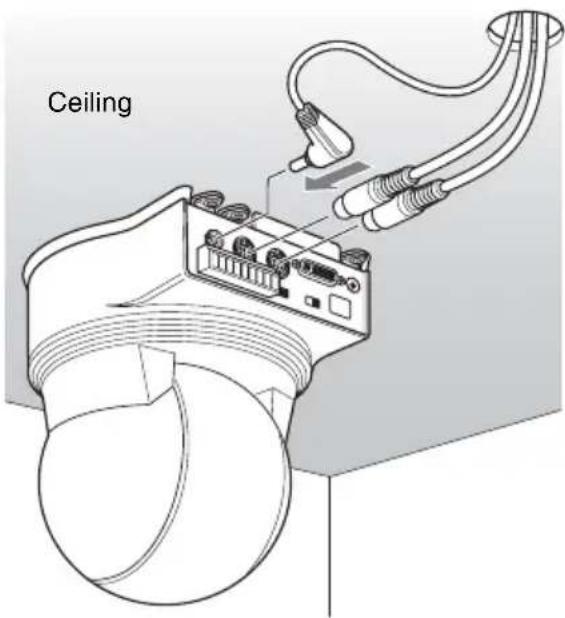

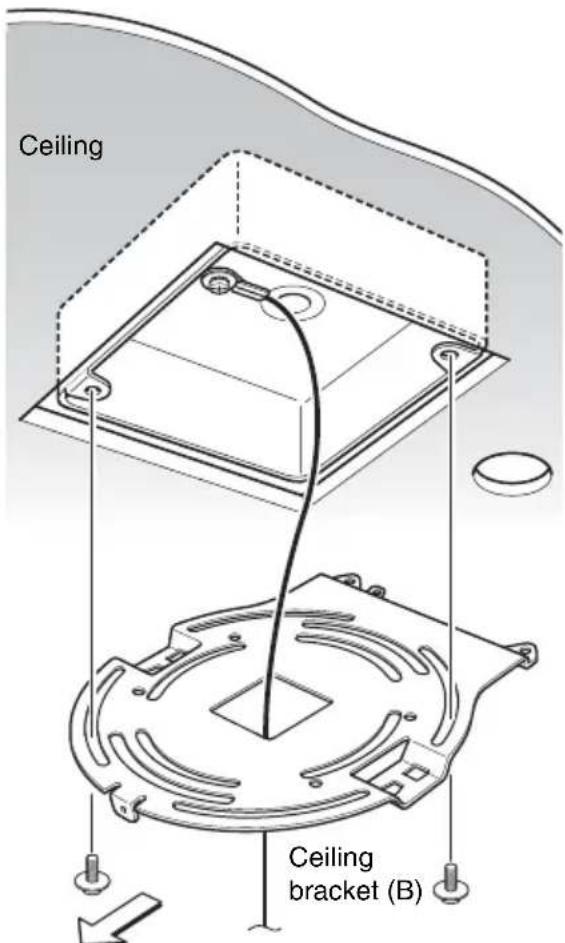

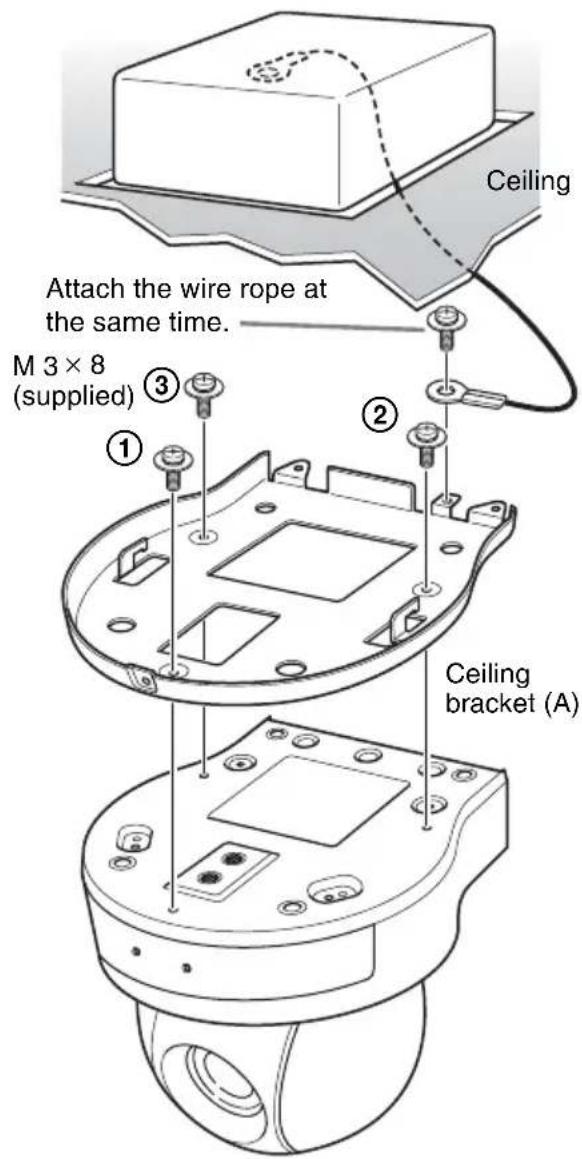

Installing the unit on the ceiling 83

Installing the Camera Using the M3 Fixing Screw Holes ...... 87

Connections 87

Connecting to an AC Outlet ..... 87

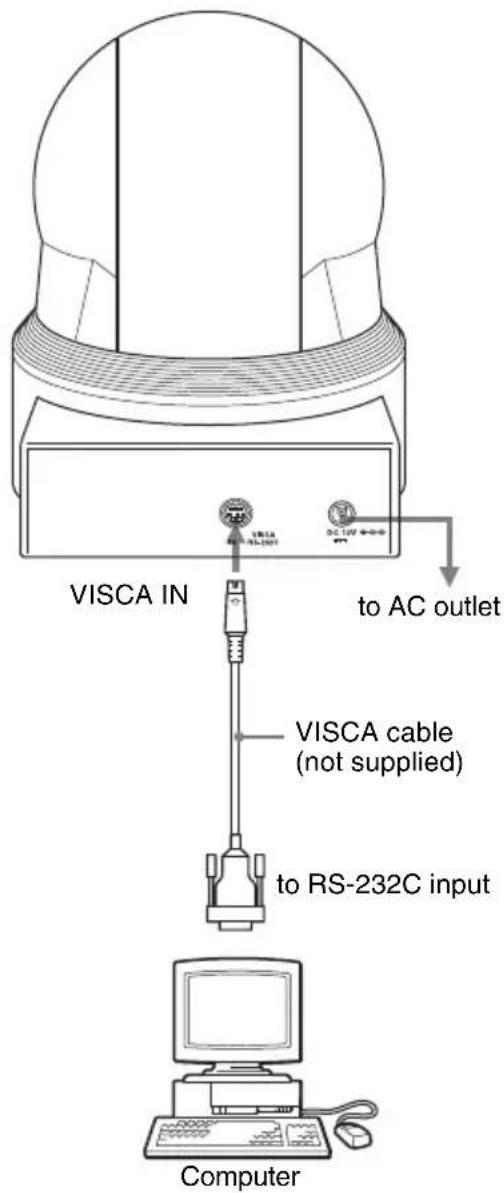

Connecting a Computer 88

Connecting a Video Monitor, etc., Equipped with an Analog Component Input Connector 89

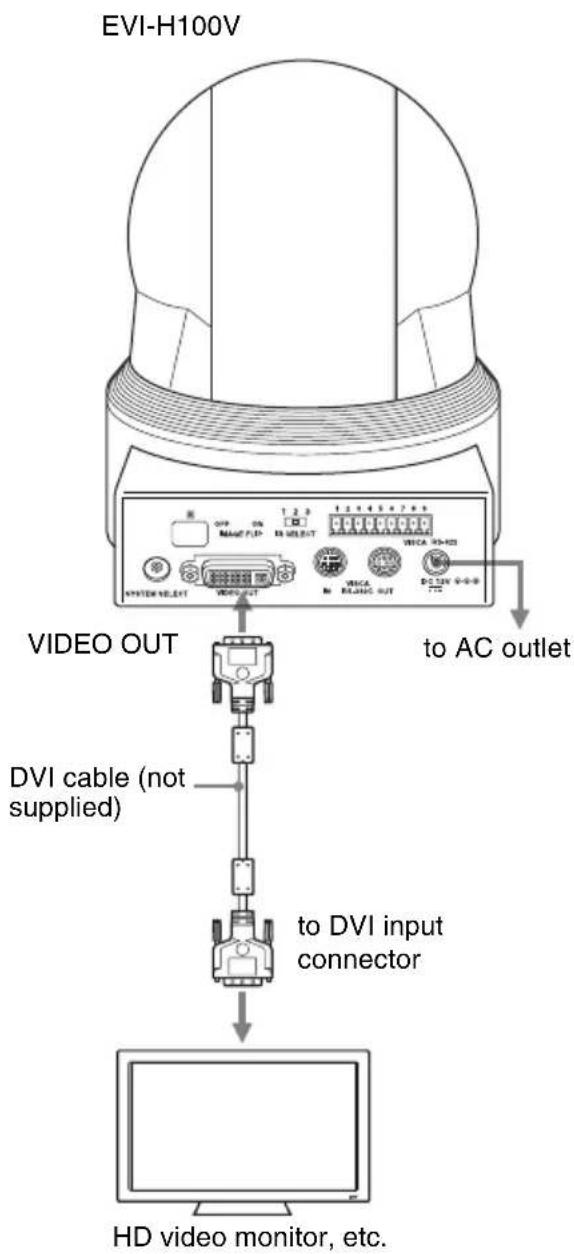

Connecting a Video Monitor, etc., Equipped with DVI Input Connector 89

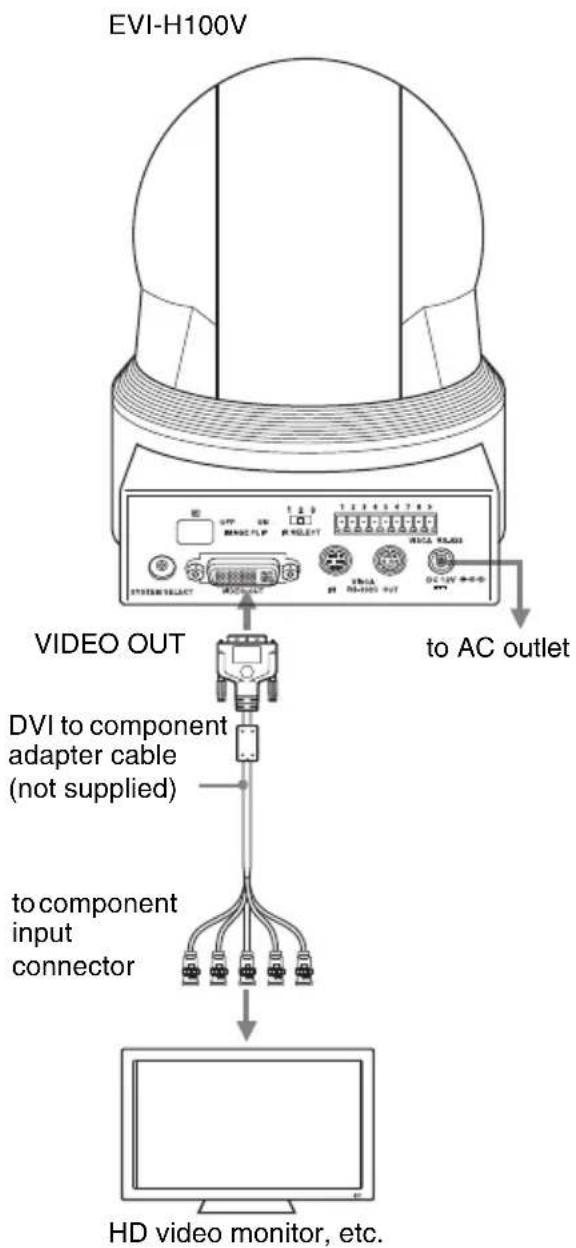

Connecting a Video Monitor, etc., Equipped with a Composite video Input Connector .... 90

Connecting a VTR, etc., Equipped with HD-SDI Input Connector 90

Appendix

Message List.... 91

Troubleshooting.... 92

Menu Configuration 93

Preset Items 96

Specifications 98

Using the VISCA RS-422 connector pin assignments ...... 102

Precautions

Operating or storage location

Operating or storing the camera in the following locations may cause damage to the camera:

• Extremely hot or cold places (Operating temperature: 0^ to 40^ [32°F to 104°F])
• Exposed in direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
• Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
• Locations subject to vibration or shock

Ventilation

To prevent heat buildup, do not block air circulation around the camera.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials equal in quality.

Cleaning the main unit

• When the body of the camera is dirty, clean it with a soft cloth that is soaked with a diluted neutral detergent and tightly wrung. Then finish with a dry cloth.
• Do not use any type of solvents, which may damage the finish.
• When you use a chemical cloth, follow its instructions.
• Do not sprinkle volatile matter such as pesticide over your camera nor allow rubber or vinyl to come in contact with the camera for a long period of time. Doing so may damage the finish.

Replacing the batteries of the Remote Commander

If the remote commander does not operate from a long distance, the batteries may be worn out. Replace the batteries with new ones (AA × 2).

Maintenance

The camera mechanism may cause abnormal noise due to wear and lubrication loss after a long period of use. To maintain optimum performance, we recommend periodical maintenance. If abnormal noise occurs, consult your Sony dealer.

Note on laser beams

Laser beams may damage the CMOS image sensors. If you shoot a scene that includes a laser beam, be careful not to let a laser beam become directed into the image sensors of the camera.

Phenomena Specific to CMOS Image Sensors

The following phenomena that may appear in images are specific to CMOS (Complementary Metal Oxide Semiconductor) image sensors. They do not indicate malfunctions.

White flecks

Although the CMOS image sensors are produced with high-precision technologies, fine white flecks may be generated on the screen in rare cases, caused by cosmic rays, etc. This is related to the principle of CMOS image sensors and is not a malfunction.

White flecks tend to be seen particularly in the following cases:

• during operation at a high environmental temperature
- when you have raised the gain (sensitivity)

This phenomena may be improved by turning the camera off and then on again.

Aliasing

When fine patterns, stripes, or lines are shot, they may appear jagged or flicker.

Features

• The 1/2.8 type Exmor CMOS camera (utilising approximately 2 million valid pixels) allows for high-definition shooting with superior picture quality.
• Adopts 20 times optical magnification, F1.6 high power and luminous zoom lens.
• By adopting its wide and dynamic range functions, you can see the optimised shooting image which incorporates bright and dark subjects at the same time.
• The camera has a variety of HD video format choices and digital and analogue interface connectors. The EVI-H100S camera has HD-SDI (High Definition-Serial Digital Interface) output, suitable for long-distance transmission. The EVI-H100V camera has a DVI-I (VIDEO OUT) connector supporting both digital and analogue output.
• The camera can be used for NTSC and PAL output in letter box size (EVI-H100S).
• Adopts the industry standard RS-232C interface of VISCA camera protocol in external communication. It is possible to operate from long distances by using both RS-232C and RS-422.
• You can install the camera on ceilings due to the functions of high-speed and wide range pan/tilt action and vertical image flip.
• You can use the infrared remote commander to set the camera and also to select panning, tilting and zooming from the setting menu.
• You can store up to 6 kinds of camera direction and camera status into the camera.

Supplied Accessories

When you unpack, check that all the supplied accessories are included.

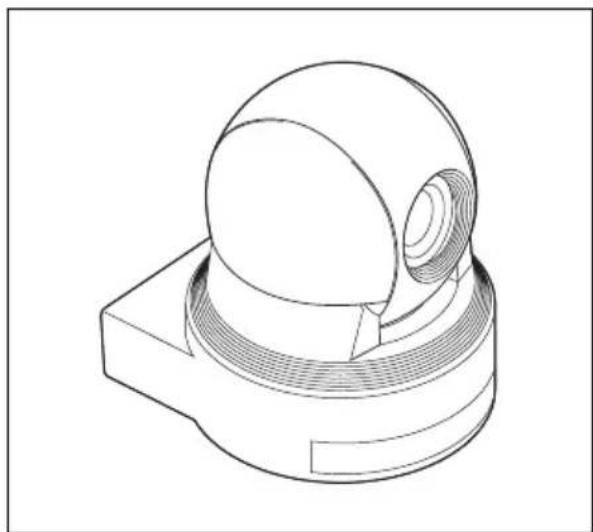

Camera (1)

Technical line drawing of a mechanical component with a spherical top and flanged base (no text or symbols)

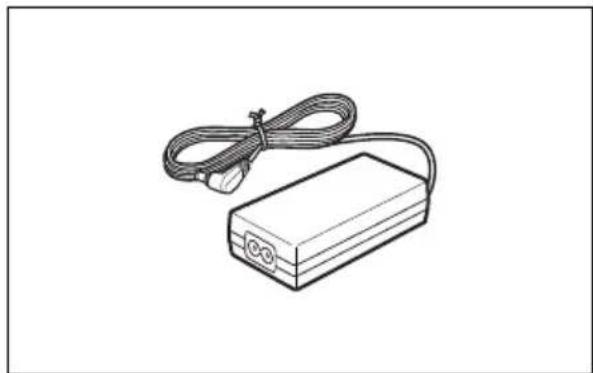

AC power adaptor (MPA-AC1) (1)

Line drawing of a rectangular electronic device with coiled cable and connector (no text or symbols)

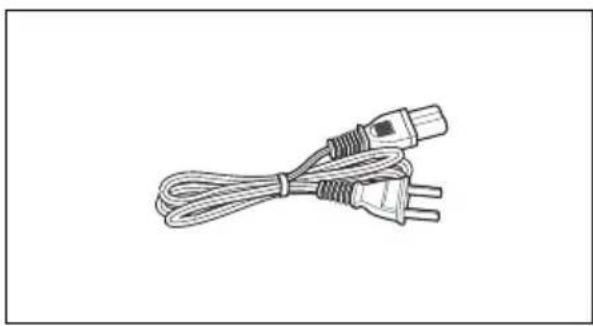

AC power cord (1)

USA and Canadian model

Line drawing of a cable with two plug connectors (no text or symbols)

European model

Line drawing of a black electrical plug with a coiled cable (no text or symbols)

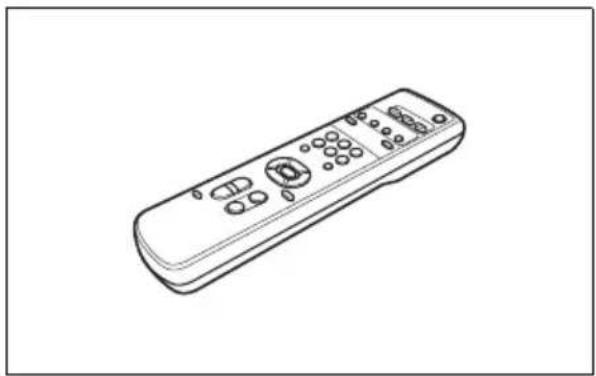

Remote commander (RM-EV100) (1)

Line drawing of a remote control device with buttons and dials (no text or symbols)

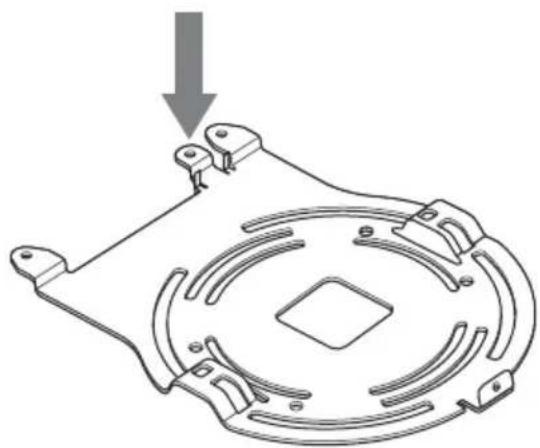

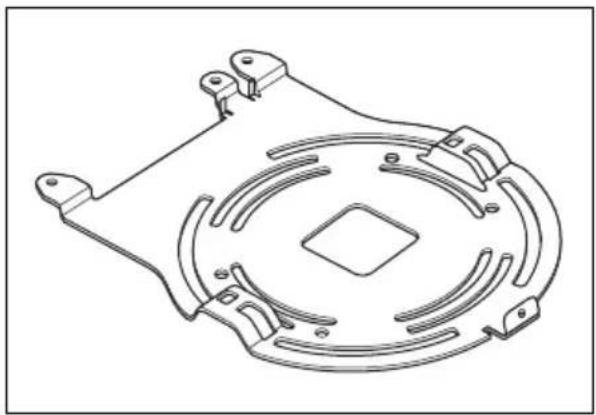

Ceiling bracket (A) (1)

Technical line drawing of a mechanical component with mounting holes and internal cavity (no text or symbols)

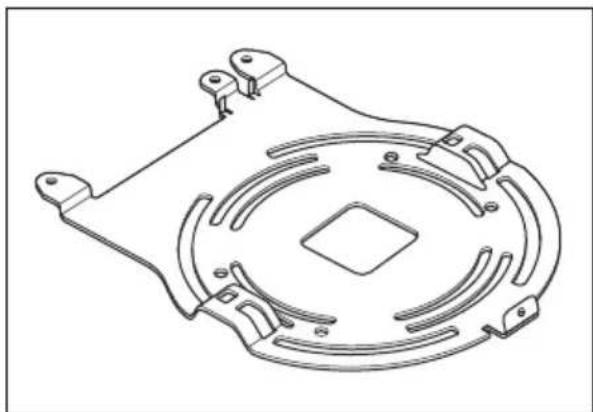

Ceiling bracket (B) (1)

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

Wire rope (1)

Line drawing of a coiled electrical cable with two terminal connectors (no text or symbols)

Screw +M 3×8 (8)

Technical line drawing of a bolt and nut assembly (no text or symbols)

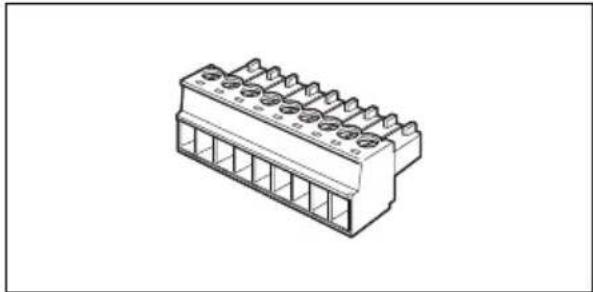

VISCA RS-422 connector plug (1)

Isometric line drawing of a 12-pin electrical connector (no text or symbols)

Operating Instructions (1)

Location and Functions of Parts and Controls

Camera

Front

1 Lens

This is a 20-magnification optical zoom lens.

2 Remote sensors

These are sensors for the supplied remote commander.

3 POWER lamp

Lights when the camera is connected to an AC outlet using the supplied AC power adaptor and AC power cord. Flashes in green when the camera receives an operation command from the supplied remote commander. It takes about 7 to 16 seconds to display the image after the lamp lights.

4 STANDBY lamp

Lights when the camera is turned off using the remote commander.

Rear

5 Remote sensors

These are sensors for the supplied remote commander.

6 IMAGE FLIP switch

Flips the image upside down. Normally set this to OFF when you use the camera. When the camera is attached to the ceiling, set this to ON. Before you set the IMAGE FLIP switch, turn off the unit (or set to standby mode) and then, turn the power on by connecting the power adaptor, by VISCA control or the remote

commander. When you switch this, the preset setting is returned to the initial setting.

7 IR SELECT switch

Select the camera number when you operate multiple cameras with the same remote commander.

8 VISCA RS-422 connector

To communicate via RS-422, use this connector. Use the supplied VISCA RS-422 connector plug.

9 SYSTEM SELECT switch

Used for selecting the video format of the signal to be output from the VIDEO OUT connectors.

For details, see "Setting of the SYSTEM SELECT switch" (page 64).

10 SD OUT VIDEO connector

Supplies the images as an analog component signal.

11 HD OUT HD-SDI connector (EVI-H100S)

Supplies the images as HD-SDI signal (compliant with SMPTE 292M).

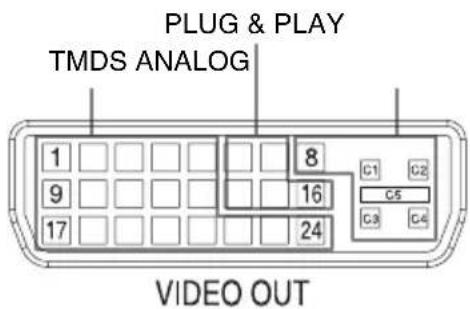

VIDEO OUT connector (EVI-H100V)

Supplies the image as digital signals. An analog component signal is also output from this connector.

12 VISCA IN connector

Connect to a computer via an RS-232C interface. When you connect multiple cameras, connect it to the VISCA OUT connector of the previous camera in the daisy chain connection.

13 VISCA OUT connector

When you connect multiple cameras, connect it to the VISCA IN connector of the next camera in the daisy chain connection.

14DC 12 V connector

Connect the supplied AC power adaptor.

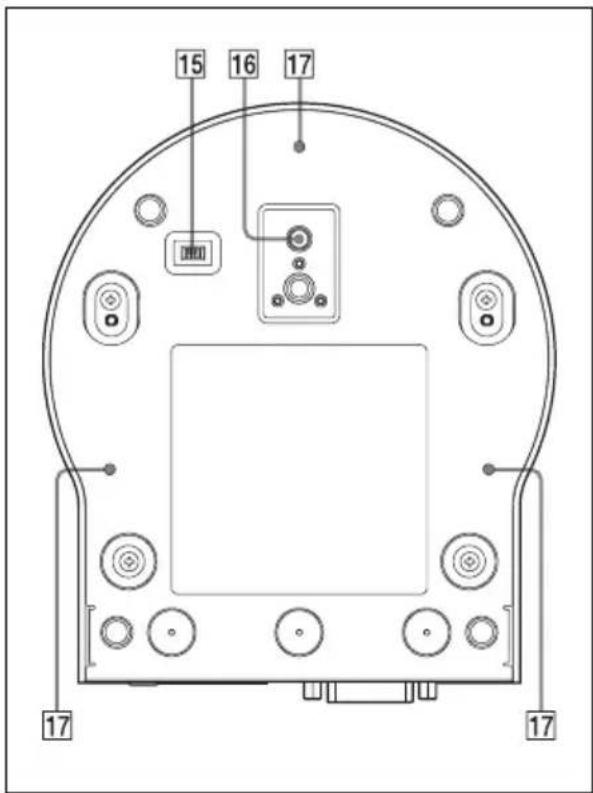

Bottom

15 BOTTOM switches

Used for RS-232C and RS-422 switching, 9,600bps and 38,400bps baud rate selection, D70 mode switching and IR signal output setting. For detailed information, refer to the Technical Manual of the camera.

16 Tripod screw hole

17 Ceiling bracket mounting screw holes

Setting of the SYSTEM SELECT switch

This switch allows you to select the video format of the signal to be output from the VIDEO OUT connectors.

Notes

- Be sure to set this switch before you turn on the power of the camera. You can also set this switch in the standby mode of the camera. After completing the setting, turn on the power of the camera by connecting it to an AC outlet using the supplied AC power adaptor and AC power cord, by using the VISCA command or remote commander.

• Be sure to use a Phillips-head screwdriver when changing the switch position. If you use a tool other than the designated screwdriver, the crossed groove may be damaged.
• This camera does not include a function that automatically selects video output signals based on the DVI monitor's resolution. Be sure to configure settings based on the monitor manually. (EVI-H100V)
• HDTV video signal outputs display without distortion on monitors with 16:9 aspect ratios.

EVI-H100S/H100V

Switch position	Video format	EVI-H100V support	EVI-H100S support
0	1080i/59.94(29.97 PsF)	Yes Yes		59.94 Hz system
1	1080p/29.97	Yes Yes
2	720p/59.94	Yes Yes
3	720p/29.97	Yes Yes
4	NTSC(LB)	No	Yes (SD OUT)
5	No output	-	-	-
6	No output	-	-	-
7	VISCA Control	Yes Yes-
8	1080i/50(25PsF)	Yes Yes		50 Hz system
9	1080p/25	Yes Yes
A	720p/50	Yes Yes
B	720p/25	Yes Yes
C	PAL(LB)	No	Yes (SD OUT)
D	No output	-	-	-
E	No output	-	-	-
F	No output	-	-	-

Yes: Outputs the image signal.

No: Does not output the image signal.

LB: Abbreviation of LETTER BOX. A video signal with the 16:9 aspect ratio is output by adding a blank area (no signal, black) top and bottom to display the image without distortion on a monitor that uses the 4:3 aspect ratio.

Notes

• If the switch position is set to “no output,” the POWER lamp and STANDBY lamp will both remain lit. In such cases, control via the remote commander and VISCA commands is disabled.
• The VISCA Control switch position allows you to configure the video format via external communication. However, video output will take longer compared to other switch positions.

- When starting up the camera in 720p/59.94 or 720p/50 mode, some monitor screens may become dark for a short time immediately after turning on. This is caused by the application of internal camera settings immediately after starting up the camera, and is not a malfunction. (EVI-H100S)

For detailed information, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

Setting of the BOTTOM switches

①D70 mode switch

Set to ON to use the VISCA command for EVI-D70/D70P.

②IR OUT switch

Set to ON to enable output of the receiver signals, which are transmitted from the infrared remote commander via the VISCA IN connector (page 101), or set it to OFF to disable the output.

③RS-232C/RS-422 select switch

Set to ON to operate colour video camera using the VISCA command via the RS-422 interface. To change the mode, turn off the camera (not including standby mode) first, set the switch and then turn on the camera again. The mode cannot be switched while the camera is turned on.

④Baud rate select switch

Set to ON for 38,400 bps or OFF for 9,600 bps. To change the mode, turn off the camera (not including standby mode) first, set the switch and then turn on the camera again. Mode switching is not possible while the camera is turned on.

⑤Switch 5 (Not used)

Be sure to set this switch to OFF.

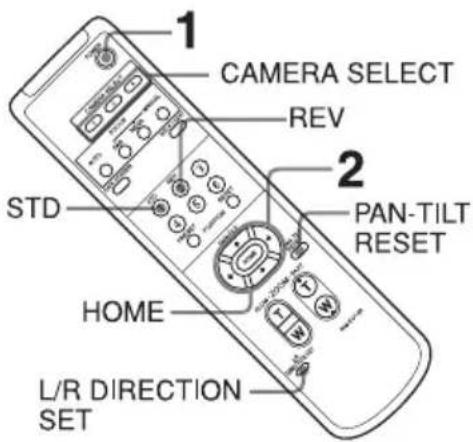

Remote Commander (supplied)

1 CAMERA SELECT buttons

Press the button corresponding to the camera you want to operate with the remote commander. The camera number can be set using the IR SELECT switch on the rear of the camera.

Note

If two or more cameras are adjacent and have the same camera number, they are operated simultaneously with the same remote commander. When you install the cameras close to each other, set different camera numbers.

For the camera number setting, see "Operating Multiple Cameras with the Remote Commander" (page 80).

2FOCUS buttons

Used for focus adjustment. Press the AUTO button to adjust the focus automatically. To adjust the focus manually, press the MANUAL button, and adjust it with the FAR and NEAR buttons.

Note

Press the MANUAL button and adjust the focus manually when shooting the following objects.

• White walls and other objects without contrast
• Objects behind glass
• Objects with horizontal stripes
• Objects on which bright lights are cast or reflected
  • Nightscapes and other dark objects with blinking lights
• Lit objects shot with darkened exposure adjustment or exposure compensation settings

3 DATA SCREEN button

Press this button to display the main menu. Press it again to turn off the menu. If you press the button when a lower-level menu is selected, the display goes back to a higher-level menu.

Note

Pan/tilt operations are disabled when the menu is displayed.

4 PAN-TILT buttons

Press the arrow buttons to perform panning and tilting. Press the HOME button to face the camera back to the front. When the menu is displayed, use ↑ or ↓ to select the menu items and ← or → to change the set values. The selected setting menu is displayed, by pressing the HOME button when the main menu is displayed.

5 L/R DIRECTION SET button

Hold down this button and press the REV button to change the direction of the camera movement opposite to that indicated by the arrow of the ◀/► buttons. To reset the direction of the camera movement, press the STD button while holding down this button.

6 POWER switch

Press this button to turn on/off the camera when the camera is connected to an AC outlet.

7 BACK LIGHT button

Press this button to enable the backlight compensation. Press it again to disable the backlight compensation.

8 POSITION buttons

Hold down the PRESET button and press button 1 to 6 to store the current camera direction, zooming, focus adjustment and backlight compensation in the memory of the pressed number button.

To erase the memory contents, hold down the RESET button and press button 1 to 6.

Note

These buttons do not function when the menu is displayed.

9 PAN-TILT RESET button

Press this button to reset the pan/tilt position.

10 ZOOM buttons

Use the SLOW button to zoom slowly, and the FAST button to zoom quickly. Press the T (telephoto) side of the button to zoom in, and the W (wide angle) side to zoom out.

To install batteries

Two R6 (size AA) batteries (not supplied)

Installing batteries

Two R6 (size AA) batteries are supplied for Remote Commander (RM-EV100).

To avoid risk of explosion, use R6 (size AA) manganese or alkaline batteries.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

When you dispose of the battery, you must obey the law in the relative area or country.

ATTENTION

You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected monitor.

This section explains how to read the on-screen menus before starting menu operations.

For the overall menu configurations, see "Menu Configuration" (page 93).

Note

You cannot perform pan/tilt operations while the menu is displayed.

Main Menu

To display the main menu, press the DATA SCREEN button on the supplied remote commander.

①Selected item

Selects a setting menu.

The selected item is displayed in red characters. The selected item moves up or down by pressing the ↑ or ↓ button on the remote commander.

②Menu items

To display a setting menu, select one using the ↑ or ↓ button on the remote commander and press the HOME button on the remote commander.

Setting Menus

The setting menu selected on the main menu is displayed.

①Setting menu

The name of the setting menu currently selected is displayed here.

②Selected item

The selected item is displayed in red characters.

Selects a setting item.

Move the cursor up or down by pressing the ↑ or ↓ button on the remote commander.

③Setting items

The setting items for this setting menu are displayed.

Select the setting item using the ↑ or ↓ button on the remote commander.

④Set value

The currently set values are displayed. To change a set value, use the ◆ or ➤ button on the remote commander.

For the default value of each setting item, see “Menu Configuration” (page 93).

Control Button Display Section

Names of buttons displayed on the monitor are different from buttons on the remote commander to be used.

Use the proper buttons on the remote commander, referring to the following pictures.

Main menu

① Indicates that you can select a menu item by ↑ or ↓ button on the remote commander. The selected item is displayed in red characters.
②Indicates that you can move to the next layer by pressing the HOME button.
③ Indicates that you can return to the normal display by pressing the DATA SCREEN button.

Setting menu

① Indicates that you can select the setting item by using the ↑ or ↓ button and you can change the set value by using the ← or → button.
② Indicates that you can return to the main menu by pressing the DATA SCREEN button.

Operating the Camera Using Menus

This section explains how to perform operations using the supplied remote commander.

For details on each menu, see page 71 to page 76.

1 Press the DATA SCREEN button. The main menu appears.

2 Select the menu item by pressing or . The selected item is displayed in red characters.
3 Press the HOME button. The selected menu appears.

4 Select the menu item by pressing or . The selected item is displayed in red characters.
5 Change the value by pressing the or button.

Note

When you are operating the menu using the supplied remote commander, you cannot set IR-RECEIVE in the SYSTEM menu to OFF. To set IR-RECEIVE to OFF, use the appropriate VISCA command.

For detailed information on how to connect and VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

To return to the main menu

Press the DATA SCREEN button.

To return to the normal display

Press the DATA SCREEN button when the main menu is displayed.

EXPOSURE Menu

The EXPOSURE menu is used to set the items related to the exposure.

MODE (exposure mode)

FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris.

BRIGHT: Adjust the brightness level (LEVEL) manually.

SHUTTER PRI: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. Adjust the electronic shutter speed (SPEED) manually.

IRIS PRI: Iris Priority mode. The exposure is adjusted automatically using the sensitivity and electronic shutter speed. Adjust the iris (IRIS) manually.

MANUAL: Adjust the sensitivity (GAIN), electronic shutter speed (SPEED) and iris (IRIS) manually.

When you select one from among the various exposure modes, some of the following setting items that are required for the selected mode appear.

GAIN: Select the gain from among the following: -3, 0, 2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28 dB

SPEED: Select the electronic shutter speed from among the following:

For the 59.94/29.97 video format:

1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/6000, 1/10000 sec.

For the 50/25 video format:

1/1, 1/2, 1/3, 1/6, 1/12, 1/25, 1/50, 1/75, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 sec.

IRIS: Select the iris from among the following:

CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, F2.0, F1.6

LEVEL: Select the brightness level from among 0, 5 to 31.

GAIN LIMIT: Select the upper limit of the gain rise in FULL AUTO, SHUTTER PRI and IRIS PRI modes. Select from among 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26 or 28 dB.

EX-COMP (exposure compensation)

When MODE is set to one of FULL AUTO, SHUTTER PRI or IRIS PRI, set this item to ON to enable exposure compensation.

When you set EX-COMP to ON, LEVEL appears and you can select the exposure compensation level from among the following:

$$ \begin{array}{l} - 7, - 6, - 5, - 4, - 3, - 2, - 1, 0, + 1, + 2, + 3, + 4, \ + 5, + 6, + 7 \end{array} $$

If you set the level to 0, exposure compensation will be disabled. Level +7 is the brightest and -7 is the darkest compensation value.

When EX-COMP is set to OFF, exposure compensation does not function.

SLOW SHUTTER

When you set the mode to ON, the camera automatically uses slow shutter speed for exposure as the illumination of the object to be shot decreases. This mode is only available when AE mode is set to FULL AUTO.

WHITE BALANCE Menu

The WHITE BALANCE menu is used to select the white balance mode.

MODE (white balance mode)

Select the white balance mode from among the following:

AUTO, IN DOOR, OUT DOOR, ONE PUSH, MANUAL

When you select MANUAL, R.GAIN (red gain) and B. GAIN (blue gain) appear. You can select each item in the range from -128 to +127.

When you select the ONE PUSH mode

Perform the following operation.

1 Zoom in on a white subject in the center of the screen.

2 Press the HOME button of the supplied remote commander.

The one-push white balance adjustment is activated.

When DISPLAY INFO (page 75) is set to ON on the SYSTEM menu, the result of the white balance adjustment is displayed on the monitor.

PICTURE Menu

APERTURE (aperture compensation)

Select the aperture compensation level from among MIN, 1 to 14 and MAX.

PICTURE EFFECT

You can set this mode to OFF, NEG (negative-positive inverted) or B&W (black and white image).

HIGH RESOLUTION

You can set this mode to ON or OFF. When set to ON, you can enjoy emphasised edge and high-resolution images.

NOISE REDUCTION

You can enjoy clearer images by removing unnecessary noise (fixed pattern and randomised noise). You can select 6 levels from OFF (MIN) to 5 (MAX).

WIDE D (Wide dynamic range mode)

The camera adjusts the exposure depending on luminance levels. Even if the subjects are shot when facing the light or in places of high luminance, the camera produces images clearly differentiating between light and dark areas.

OFF: WIDE-D OFF

ON: WIDE-D ON

VISCA: Select mode except for ON/OFF by VISCA control. In this mode, control from the menu is not possible. For detailed information, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

PAN TILT ZOOM Menu

The PAN TILT ZOOM menu is used to select the pan/tilt/zoom mode.

PAN/TILT LIMIT

When you set PAN/TILT LIMIT to ON, you can select the limit of pan/tilt operation. You can select the following values:

RIGHT: +170° to 0°, selectable with an interval of 1°

LEFT: 0^ to -170^ , selectable with an interval of 1^

UP: +90° to 0° (IMAGE FLIP:OFF) +20° to 0° (IMAGE FLIP:ON) selectable in 1° steps.

DOWN: 0^ to -20^ (IMAGE FLIP:OFF) 0^ to -90^ (IMAGE FLIP:ON) selectable in 1^ steps.

Note

The indicated value is changed when the or ➤ button is released. When the pan/tilt function is in motion, the indicated value does not change.

Setting the range of LEFT/RIGHT movement

Note

The limit of pan/tilt operation becomes effective promptly after you set the range of PAN/TILT LIMIT. When you want to make the camera start with the ranges set, before turning off the power, store those values in POSITION 1.

For details, see "Storing the Camera Settings in Memory — the Presetting Feature" (page 81).

Setting the range of UP/DOWN movement

(IMAGE FLIP : OFF)

Note

When you turn the camera to the right or left beyond the 120^ with the camera pointed downward by 20^ , the camera may be caught on the lens, depending on the zoom position of the lens.

D-ZOOM (digital zoom)

You can set digital zoom to ON or OFF. When set to OFF, digital zoom does not operate, and only optical zoom is available. When set to ON, digital zoom takes over after optical zoom reaches MAX (×20). Up to ×240 can be zoomed digitally.

SYSTEM Menu

IR-RECEIVE (infrared signal reception)

When this is set to OFF, the camera does not receive the signal from the supplied remote commander.

Be sure to keep it set to ON when you use the supplied remote commander.

Note

You cannot set IR-RECEIVE to OFF when you operate the menu using the supplied remote commander. To set it to OFF, use the appropriate VISCA command.

DISPLAY INFO

When this item is set to ON, the message automatically appears for about 3 seconds on the monitor screen, when you perform the following operations using the supplied remote commander.

Message When
PRESET n : OK(“n” is a preset position number between 1 and 6)	You have stored the camera settings to POSITION 1 to 6.
RESET n : OK(“n” is a reset position number between 1 and 6)	You have reset the camera settings stored in POSITION 1 to 6 to the default settings.
ONE PUSH WB : OP	During the white balance adjustment in the ONE PUSH white balance mode, the message blinks on the screen.

Message When
ONE PUSH WB : OK	When white balance adjustment is correctly performed in ONE PUSH white balance mode, this message appears on the screen.
ONE PUSH WB : NG	If white balance adjustment is incorrectly performed in ONE PUSH white balance mode, this message flashes on the screen.

STATUS Menu

The STATUS menu is used to display the settings selected with the menus.

The STATUS menu consists of PAGE1 to PAGE4. This menu only displays the current menu settings, and you cannot change them with this menu.

PAGE1: Shows the settings selected with the EXPOSURE menu.

PAGE2: Shows the settings selected with the PICTURE menu and the WHITE BALANCE menu.

PAGE3: Shows the settings selected with the PAN TILT ZOOM menu.

PAGE4: Shows the settings selected with the SYSTEM menu, supplied remote commander channel, VISCA communication baud rate, D70 mode, cooling fan status and the currently selected video output format.

Note

The current video format and the VISCA baud rate communication for the camera are displayed. Even if you change the settings after turning on the power, those settings are ignored and are not changed on the display.

Before Operating

Before operating the camera, check that the camera and peripheral devices are properly installed and connected.

For details, see “Setting of the SYSTEM SELECT switch” (page 64), “Installing the Camera” (page 83) and “Connections” (page 87).

Notes

• The supplied remote commander may not work correctly near the inverter lighting fixtures. In such a case, try to install the camera far from the inverted luminaire.
• You can check whether or not the installed location is good for the usage of the remote commander.

For detailed information on how to check, refer to the Technical Manual. For details on obtaining a Technical Manual, consult your Sony dealer.

Turning on the Power

1 Connect the camera to an AC outlet using the supplied AC power adaptor and power cord.

The power is turned on and the POWER lamp lights.

The camera will automatically pan and tilt and be reset to the position stored in POSITION 1 (Pan/tilt reset action).

2 Turn on the peripheral devices.

To turn on/off the camera using the remote commander

As long as the camera is connected to an AC outlet, you can turn the camera on or off with the POWER switch on the remote commander.

When you turn the power off using the remote commander, the POWER lamp turns off and the STANDBY lamp lights on the camera.

Pan/Tilt and Zoom Operation

Panning and Tilting

1 Press the POWER switch.

The camera will turn on and perform the pan/tilt reset operation automatically.

2 Press the arrow button to pan or tilt the camera.

While checking the picture on the screen, press the desired arrow button.

To move the camera little by little, press the button just for a moment.

To move the camera in a wide range, press and hold the button.

To move the camera diagonally, press the ◀ or ➤ button while holding down the ↑ or ↓ button.

To face the camera back to the front

Press the HOME button.

If the camera moves in a different direction from the one you intended

The camera is preset so that the image output from the camera is rotated toward the right whenever you press the ➤ button.

To face the camera toward the opposite direction:

You might wish to face the camera toward the opposite direction from that of the button you pressed, for example, when you change the direction of the camera while checking the picture on the screen. In such a case, press the 2 (REV) button while holding down the L/R DIRECTION SET button.

Arrow button	Movement of the camera	Setting
		While holding downPress

While holding down
Press

To reset the setting

To reset the setting, press the 1 (STD) button while holding down the L/R DIRECTION SET button.

Arrow button	Movement of the camera	Setting
		While holding downPress

While holding down
Press

Note

The setting above only changes the signal emitted from the remote commander, and does not change the setting of the camera itself. Therefore, repeat the setting for each remote commander if you are using more than one remote commander.

When the STANDBY lamp is blinking

Technical line drawing of a mechanical component with a circular top and textured base (no text or symbols)

The STANDBY lamp blinks.

If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera's built-in processor may fail to memorize the pan/tilt position. Press the PAN-TILT RESET button to reset the pan/tilt position.

Zooming

Press either of the ZOOM buttons.

Note

When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky.

Operating Multiple Cameras with the Remote Commander

1 Set the IR SELECT switch on the rear of the camera you want to operate to 1, 2 or 3.

2 Press the CAMERA SELECT button on the remote commander that corresponds to the number set in step 1.

Then, you can operate the camera(s) specified by number. Every time you operate the camera(s) using the remote commander, the CAMERA SELECT button pressed in step 2 lights.

Adjusting the Camera

Focusing on a Subject

Focusing the camera on a subject automatically

Press the AUTO button.

The camera focuses on the subject at the center of the screen automatically.

Focusing the camera on a subject manually

After pressing the MANUAL button, press either the FAR or the NEAR button to have the camera focus on the subject.

Shooting with Back Lighting

When you shoot a subject with a light source behind it, the subject becomes dark. In such a case, press the BACK LIGHT button.

To cancel the function, press the BACK LIGHT button again.

Subject appears brighter.

Note

The BACK LIGHT function is not effective if MODE is set to MANUAL in the EXPOSURE menu of the camera.

Storing the Camera Settings in Memory — the Presetting Feature

Up to six combinations of settings (six positions) including camera position, zooming, focusing, and backlighting, can be preset.

For details of the camera settings to be preset, see “Preset Items” (page 96).

1 Press the PAN-TILT RESET button to reset the pan/tilt position.
2 Adjust the position, zooming, focusing and backlighting of the camera (page 78 to page 80).
3 While holding down the PRESET button, press any of the POSITION buttons, 1 to 6, in which you want to store the settings.

Press a POSITION button.

While holding down this button

When you set DISPLAY INFO to ON on the SYSTEM menu, the message "PRESET n : OK" automatically appears for about 3 seconds on the monitor screen.

Recalling the stored settings

Press any of the POSITION buttons, 1 to 6, in which you have stored the settings.

Cancelling the preset memory

While holding down the RESET button, press the POSITION button from which you want to cancel the settings.

Press a POSITION button.

While holding down this button

When you set DISPLAY INFO to ON on the SYSTEM menu, the message "RESET n : OK" automatically appears for about 3 seconds on the monitor screen.

Notes

• When the power is turned on, the camera starts with the settings stored in POSITION 1.
• If you want to retain the previous pan and tilt positions, etc. before the power is turned off and turned on again, store those positions in POSITION 1.
• When you are storing or cancelling the settings in one POSITION, you cannot call up, store or cancel the settings in another POSITION.

- When the menu is displayed on the screen, you cannot perform the operation for storing, recalling, or cancelling the setting. Be sure to return to the normal display before starting these operations.

Installing the Camera

Installing the Camera on a Desk

Place the camera on a flat surface. If you have to place the camera on an inclined surface, make sure that the inclination is less than ±15 degrees to guarantee pan/tilt performance, and take measures to prevent it from falling.

Line drawing of a desktop computer setup with monitor, keyboard, mouse, and spherical device (no text or symbols)

Notes

• Do not grasp the camera head when carrying the camera.
• Do not turn the camera head by hand. Doing so may result in a camera malfunction.
• If you turn the camera head by hand without AC power adaptor connected, the lamps on the front may light. This is not a malfunction.

Illustration of hands holding a mechanical component with a cross mark, no text or symbols present

Illustration of a hand holding a device with a cross mark, no text or symbols present

Illustration of hands using a tool to press or install a device, with no visible text or symbols

Illustration of hands holding a mechanical component with a ring (no text or symbols)

Attaching the Camera to a Tripod

Attach a tripod to the screw hole used for attaching a tripod on the bottom of the camera.

The tripod must be set up on a flat surface and its screws tightened firmly by hand. Use a tripod with screws of the following specifications.

$$ \begin{array}{l} \ell = 4. 3 - 5 \mathrm{mm} \ \ell = 0. 1 7 - 0. 2 0 \text { inches } \ \end{array} $$

Caution

Installation of the camera using the tripod screws and screw holes should not be done for installation on a ceiling or a shelf, etc., in a high position.

Installing the unit on the ceiling

Using the ceiling bracket, wire rope, and retaining screws supplied, you can utilize existing junction boxes, etc., to attach the camera to the ceiling.

When you install the unit, always install it on a level ceiling. If you have to install it on a sloping or uneven ceiling, make sure that the place where you install it is within ±15 degrees of the horizontal.

CAUTION

• Entrust installation to an experienced contractor or installer when installing the unit on ceilings or other high locations.
• When installing the unit in a high location, be sure that the location and installation components (excluding the supplied accessories) are strong enough to withstand at least 20 kg of weight, and install the unit securely. If the components are not strong enough, the unit may fall and cause serious injury.

• Always install the supplied wire rope to prevent the unit from falling.
- If you install the unit in a high location, check periodically, at least once a year, to ensure that the connection has not loosened. If conditions warrant, make this periodic check more frequently.

Before installation

After deciding the direction in which the camera will shoot, make the required holes for the junction box, and connecting cables.

Note

The connecting cables cannot be passed through ceiling bracket (A). A hole for the wiring is required in the ceiling at the back of the unit where it is attached to the ceiling.

Installation

1 Set the IMAGE FLIP switch on the rear panel to ON.

Notes

• Make sure that the BOTTOM switch is set to the correct position. See “Setting of the BOTTOM switches” (page 66).
• If you set the IMAGE FLIP switch to ON after turning on the power, the image will not be flipped. Turn the power off once, then on again, and the image will be flipped. It takes about 7 to 16 seconds to display the image.
• When you toggle the IMAGE FLIP switch, the pre-set settings will all be returned to the initial settings.

2 Attach the wire rope to the junction box in the ceiling.

Use a screw hole and a screw (not supplied) in the junction box to attach the wire rope.

3 Attach the ceiling bracket (B) to the junction box on the ceiling.

Align the holes in the bracket with those in the junction box, and use appropriate screws (not supplied).

There are elongated holes for the screws along the rounded edges of the ceiling bracket (B). Later, the front of the camera will be positioned along this edge. Face the camera to the front, adjust the aim, and attach it securely.

Front of the camera

4 Attach the ceiling bracket (A) to the bottom of the camera using the 3 screws (M 3 × 8) supplied.

Align the screw holes on the bottom of the camera with those in the ceiling bracket, and attach the bracket to the camera.

Tighten the screws a bit at a time in the numbered order shown in the illustration. Attach the wire rope using the screw designated as number ③ above. After all of the screws are inserted and temporarily tightened properly, securely tighten each one in turn.

Note

For assembly, use only the screws supplied with the unit. Using other screws may damage the unit.

5 Insert the protrusions raised on the ceiling bracket (A) into the spaces prepared in the ceiling bracket (B), and temporarily attach them by pushing the ceiling bracket (A) to the rear.

5-2 If the wire cannot be attached to the junction box, attach to the position on the ceiling bracket (B) in the illustration.

Technical line drawing of a mechanical component with mounting holes and a central square hole (no text or symbols)

6 While pushing up on the front part of the camera, attach it using the three screws provided (M 3 × 8), starting with the screw at position ①.

7 Connect the cables to the connectors on the rear of the camera.

Note

Take the proper steps to ensure that the load of the cables connected does not cause problems.

Removing the camera

1 Remove the 3 screws used to attach the camera in step 6 of "Installation."

2 While pushing the entire camera up towards the ceiling, move the camera to the front.

The hooks will disengage, and you can remove the camera.

Installing the Camera Using the M3 Fixing Screw Holes

Attach the camera using 3 M3 fixing screw holes located on the bottom of the camera. Attach the camera to a fitting with a flat surface using M3 screws with the following specifications.

Connections

Connecting to an AC Outlet

Use the supplied AC power adaptor and AC power cord to connect the camera to an AC outlet.

Connecting a Computer

RS-232C Connections EVI-H100S/EVI-H100V

Notes

• When you connect a computer to the camera using the VISCA cable (RS-232C cross cable), you can control the camera from a computer instead of the supplied remote commander.
• In the case of VISCA RS-232C connection, make sure that the BOTTOM switch is set to RS-232C (page 66).
• It is not possible to connect both VISCA RS-232C and VISCA RS-422 simultaneously.

- Do not mix VISCA RS-232C (cross) and VISCA RS-422 cables. Using these cables at the same time may result in malfunction.

To obtain a cable, consult your Sony dealer. For detailed information on how to connect the camera and the VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

RS-422 Connections EVI-H100S/H100V

Notes

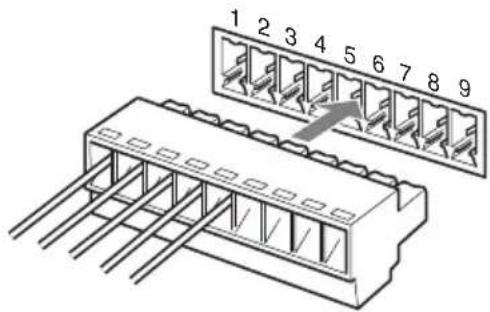

- Make up the cable using the supplied VISCA RS-422 connector plug. See "Using the VISCA RS-422 connector pin assignments" (page 102).

• In the case of VISCA RS-232C connection, make sure that the BOTTOM switch is set to RS-232C (page 66).
• It is not possible to connect both VISCA RS-232C and VISCA RS-422 simultaneously.
• Do not mix VISCA RS-232C (cross) and VISCA RS-422 cables. Using these cables at the same time may result in malfunction.

Connecting a Video Monitor, etc., Equipped with an Analog Component Input Connector

Notes

• Configure the, VIDEO FORMAT, based on the specifications of the HD monitor.
• It takes about 7 to 16 seconds to display the image.

Connecting a Video Monitor, etc., Equipped with DVI Input Connector

Notes

• Configure the, VIDEO FORMAT, based on the specifications of the HD monitor.
• Depending on the performance capabilities of the DVI cable, some picture noise may occur. In particular, be sure to

use a cable for which performance is guaranteed.

- It takes about 7 to 16 seconds to display the image.

Connecting a Video Monitor, etc., Equipped with a Composite video Input Connector

Notes

• Set the SYSTEM SELECT switch to output the SD video format.
• It takes about 7 to 16 seconds to display the image.

Connecting a VTR, etc., Equipped with HD-SDI Input Connector

Notes

• Set the SYSTEM SELECT switch to output the SD video format. For details, see “Setting of the SYSTEM SELECT switch” (page 64).
• It takes about 7 to 16 seconds to display the image.

Message List

The following messages and indications may appear for this camera. Perform the following as necessary.

Lamp display

Lamp Meaning and solution
The STANDBY lamp and POWER lamp flash slowly in alternation.	Operating the camera in this state may result in malfunction. In this case, “COOLING FAN:NG” appears on PAGE4 of the STATUS menu. Turn off the camera, and consult your Sony dealer.
The STANDBY lamp and POWER lamp are lit.	The SYSTEM SELECT switch is set to “no output” (page 64). Set BOTTOM switch (5) to ON.
The STANDBY lamp is lit.	If the camera is moved forcibly, or a finger or other object interferes with camera movement, the camera’s built-in processor may fail to memorize the pan/tilt position.Press the PAN-TILT RESET button to reset the pan/tilt position.

Screen display

Message Meaning and solution
CAUTION COOLING FAN STOPPED!(appears immediately after startup)	Operating the camera in this state may result in malfunction. Turn off the camera, and consult your Sony dealer.
PRESET n:OK(“n” is a preset position number between 1 and 6)	This message appears for about 3 seconds when you store camera settings to POSITION 1 to 6.
RESET n:OK(“n” is a reset position number between 1 and 6)	This message appears for about 3 seconds when you reset camera settings stored in POSITION 1 to 6.
ONE PUSH WB:OP During the white balance adjustment in the ONE PUSH white balance mode, this message blinks on the screen.
ONE PUSH WB:OK When the white balance adjustment has been done correctly in the ONE PUSH white balance mode, this message is lit on the screen.
ONE PUSH WB:NG When the white balance adjustment has failed in the ONE PUSH white balance mode, this message blinks on the screen.

Troubleshooting

Before bringing in your camera for service, check the following as a guide to troubleshooting the problem. If the problem cannot be corrected, consult your Sony dealer.

Symptom Cause Remedy
The power of the camera is not turned on.	The AC power adaptor is not connected to the DC 12 V connector firmly.	Insert the power cord firmly as far as it will go.
	The AC power cord is not inserted firmly into the AC power adaptor or the AC outlet.	Insert the power cord firmly as far as it will go.
The picture is not displayed on the video monitor connected to the camera.	The video cable is not connected properly.	Check the connection between the camera and video monitor.
	The exposure is not set correctly on the camera.	Set the exposure correctly on the EXPOSURE menu (page 71).
	The SYSTEM SELECT switch on the rear of the camera is not set correctly.	Check the selected output signal format of the camera and the input signal format of the connected monitor.
Pan, tilt, or zoom cannot be operated.	A menu is displayed on the monitor screen.	Press the DATA SCREEN button on the supplied remote commander to remove the menu from the monitor screen.
	The panning or tilting range is limited.	Change the PAN/TILT LIMIT setting on the PAN TILT ZOOM menu (page 73).
The remote commander does not work.	The CAMERA SELECT button you pressed on the remote commander does not match the number set with the IR SELECT switch on the camera.	Press the CAMERA SELECT button corresponding to the IR SELECT switch setting on the camera (page 80).
The VISCA control is not available with a computer connected to the camera.	The computer is not correctly connected to the camera.	Make sure the connection between the computer and camera is made correctly.
		Check that the baud rate setting (9,600 bps or 38,400 bps) is properly made with the BOTTOM switch on the bottom of the camera (page 66).
		Check that the SYSTEM SELECT switch (page 64) is set to a position in which video signals are output.
The camera cannot be operated at all.	- Pull out the plug of the power	cord from the AC outlet, then reinsert it into the AC outlet after waiting a while.

Menu Configuration

The menus of the camera are configured as described below.

The initial settings of each item are in bold.

Preset Items

The following items set by using the remote commander and menu items can be stored in the memory of the camera.

Items adjusted with the remote commander

• :Setting items retained in memory when the power is turned off and then on again. The camera starts with these settings stored in POSITION 1.
  ○ :Setting items retained in memory when the power is turned off and then on again.

- :Setting items cleared from the memory when the power is turned off and then on and reset to the initial settings.

For detailed information on POSITION 1, see “Storing the Camera Settings in Memory — the Presetting Feature” (page 81).

You can store the following items in the memory (POSITION 1), but you can set them only by using the appropriate VISCA command.

• Focus Near Limit
• IR Receive
• IR Receive Return

For detailed information on the VISCA command list, refer to the Technical Manual of the camera. For details on obtaining a Technical Manual, consult your Sony dealer.

Specifications

System

Video signal EVI-H100V:

1920 × 1080p/29.97,

1920×1080p/25,

1920×1080i/59.94 (29.97PsF),

1920×1080i/50(25PsF),

1280×720p/59.94,

1280×720p/50,

1280×720p/29.97,

1280×720p/25,

VISCA CONTROL (switched

with the SYSTEM SELECT switch)

EVI-H100S:

1920 × 1080p/29.97,

1920 × 1080p/25,

1920 × 1080i/59.94 (29.97PsF),

1920 × 1080i/50 (25PsF),

1280 × 720p/59.94,

1280×720p/50,

1280 × 720p/29.97,

1280 × 720p/25,

NTSC(Letter Box),

PAL(Letter Box),

VISCA CONTROL (switched

with the SYSTEM SELECT

switch)

Synchronization

Internal synchronization

Image device 1/2.8 type Exmor CMOS

Lens 20× (optical), 12× (digital)

f = 4.7 - 94.0 ~mm, F1.6 - F3.5

Horizontal angle:

2.9 (TELE end) to 55.4 degrees (WIDE end) (1080 line mode)

2.0 (TELE end) to 37.6 degrees (WIDE end) (720 line mode)

Minimum object distance

10 mm (0.4 inches) (WIDE end) to 800 mm (31.5 inches) (TELE

end) 290 mm (11 27/64 inches) (Default)

Minimum illumination

Less or equal to 1.7 lux (50 IRE, high-sensitivity mode off)

Less or equal to 0.5 lux (50 IRE, high-sensitivity mode on)

Shutter speed 1 to 1/10,000 sec. (22 steps)

Video S/N 50 dB

Pan/tilt action Horizontal: ±170 degrees Maximum panning speed: 100 degrees/sec.

Vertical: +90, -20 degrees

Maximum tilting speed:

90 degrees/sec.

Input/output connectors

Video output EVI-H100V:

COMPONENT (VIDEO OUT):

DVI-I connector

Y: 1 Vp-p (sync, at 75-ohm

termination)

Pb/Pr: ±350 mVp-p

(75-ohm termination)

3 values Sync : ±300mV p-p

(75-ohm termination)

HD/VD Sync: 3.3 Vp-p

DVI Digital VIDEO (VIDEO

SMPTE292M compliant with serial interface

Control input/output

VISCA IN: Mini DIN 8-pin type, RS-232C

VISCA OUT: Mini DIN 8-pin type, RS-232C

VISCA RS-422: 9-pin

Power connector

JEITA type4 (DC 12 V)

General

Input voltage 12 V DC (10.8 to 13.2 V DC)

Current consumption

EVI-H100S : 1.0 A max. (at 12 V DC)

EVI-H100V : 0.92 A max. (at 12 V DC)

Operating temperature

0^ to 40^ (32°F to 104°F)

Storage temperature

20^ C to +60^ C (-4^ F to 140^ F)

Dimensions Video camera:

145 × 164 × 164 ~mm

(5 1/32 × 6 15/32 × 6 15/32

inches, excluding protruding parts) (w/h/d)

Remote Commander: 56 × 26 ×

210 mm (2 1/4 × 1 1/16 ×

8 3/8 inches) (w/h/d)

Mass Video camera: Approx. 1550g

(3 lb 6 5/8 oz)

Remote Commander: 110 g (3 7/8 oz)

Supplied accessories

AC power adaptor (MPA-AC1) (AC 100 V to 240 V, 50/60 Hz) (1)

AC power cord (1)

Remote Commander (RM-EV100) (1)

Ceiling bracket (A) (1)

Ceiling bracket (B) (1)

Wire rope (1)

Screw M3×8 (8)

VISCA RS-422 connector plug (1)

Operating Instructions (1)

Design and specifications are subject to change without notice.

Note

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.

Dimensions

Top

Back
EVI-H100VEVI-H100S

Line drawing of a portable electronic device with a dome-shaped top and control buttons (no text or symbols)

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

Front Side

EVI-H100S

Bottom

EVI-H100V

Pin assignments

VISCA IN connector (mini-DIN 8-pin, female)

VISCA IN

Pin No. Function
1	D	T	R
2	D	S	R
3 TXD IN
4 GND
5 RXD IN
6 GND
7 IR OUT*
8 Not used

* The IR OUT function of pins 7 is selectable with the BOTTOM switch on the bottom of the camera.

VISCA OUT connector (mini DIN 8-pin, female)

VISCA OUT

Pin No. Function

1 DTR OUT

2 DSR OUT

3 TXD OUT

4 GND

5 RXD OUT

6 GND

7 No connection

8 No connection

VIDEO OUT connector (DVI 29-pin)

Pin No. Function
1 Data_2	-
2 Data_2+
3 Shield (2, 4)	N
4 No connection	N
5 No connection
6 No connection
7 No connection
8 Analog Vertical Sync
9 Data_1	-
10 Data_1+
11 Shield (1, 3)
12 No connection
13 No connection
14 Power_+5 V
15 GND
16 Hot Plug
17 Data_0	-
18 Data_0+
19 Shield (0, 5)
20 No connection
21 No connection
22 Shield Clock
23 Clock+
24 Clock	-
C1 Analog	Pr
C2 Analog	Y
C3 Analog	Pb
C4 Analog	Horizontal Sync
C5 Analog	GND

Using the VISCA RS-422 connector pin assignments

The VISCA RS-422 connector pin assignments

Pin No. Function
1	T	X	D	I	N
2	T	X	D	I	N
3	R	X	D	I	N
4	R	X	D	I	N
5 GND
6 TXD OUT+
7 TXD OUT-
8 RXD OUT+
9 RXD OUT-

Using the VISCA RS-422 connector plug

1 Insert a wire (AW G Nos. 28 to 18) into the desired wire opening on the supplied VISCA RS-422 connector plug, and tighten the screw for that wire using a flat-head screwdriver.

2^+ Insert the VISCA RS-422 connector plug into the VISCA RS-422 connector on the rear of the camera.

Notes

• In order to stabilize the voltage level of the signal, connect both ends to GND.
• Do not make a VISCA RS-232C connection when there is already an existing VISCA RS-422 connection.

警告

EXPOSURE 菜单 .....115

WHITE BALANCE 菜单 .....116

PICTURE 菜单 .....117

PAN TILT ZOOM 菜单 ..... 117

SYSTEM 菜单 ..... 118

STATUS 菜单 ..... 119

使用附送的遥控器操作

操作以前 120

打开电源 120

跟拍/倾斜和变焦操作 121

跟拍和倾斜 121

变焦 122

Technical line drawing of a mechanical component with a spherical top and flanged base (no text or symbols)

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

交流电源线 (1)

Line drawing of a cord with three leads, no text or symbols present

遥控器 (RM-EV100) (1)

Line drawing of a remote control device with buttons and dials (no text or symbols)

天花板托架 (A)(1)

Technical line drawing of a mechanical component with mounting holes and internal cavity (no text or symbols)

天花板托架 (B)(1)

Technical line drawing of a mechanical component with circular and rectangular features (no text or symbols)

钢丝绳 (1)

Line drawing of a coiled cable or wire with two terminal connectors (no text or symbols)

螺丝 +M 3×8 (8)

Technical line drawing of a bolt and nut assembly (no text or symbols)

VISCA RS-422 连接器插头 (1)

Isometric line drawing of a 12-pin electrical connector (no text or symbols)

使用说明书 (1)

部件和控制器的位置和功能

摄像机

正面

1镜头

该镜头为 20 倍光学变焦镜头。

2 遥控感应器

这些感应器用于配合附送的遥控器使用。

3 POWER 指示灯

Technical line drawing of a dome-shaped mechanical component with a base and mounting bracket (no text or symbols)

SYSTEM SELECT

将此箭头指向所需的视频格式。

两节 R6（AA）电池（未附送）

安装电池

UP: +90° 到 0° (IMAGE FLIP:OFF) +20° 到 0° (IMAGE FLIP:ON)

DOWN: 0° 到 -20° (IMAGE FLIP:OFF)

0° 到 -90° (IMAGE FLIP:ON)

注意

注意

Technical line drawing of a mechanical component with a dome-shaped top and textured base (no text or symbols)

STANDBY 指示灯闪烁。

拍摄对象显得较近。 (望远)

拍摄对象显得较远。 (广角)

快速放大或缩小 (FAST 侧)

慢速放大或缩小 (SLOW 侧)

注意

Line drawing of a desktop computer setup with monitor, keyboard, mouse, and globe (no text or symbols)

注意

Illustration of hands holding a mechanical component with a cross mark, no text or symbols present

Illustration of a hand holding a device with a cross mark above it (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a mechanical component with hands holding it (no text or symbols)

将摄像机安装到三脚架

Technical line drawing of a mechanical component with mounting holes and a central square hole, no text or symbols present.

连接

连接到交流电源插座

• Focus Near Limit
• IR Receive
• IR Receive Return

1080/29.97PsF, F1.6,

50 IRE, AGC MAX)

29.97PsF, F1.6, 50 IRE,

AGC MAX)

背面

EVI-H100S EVI-H100V

Line drawing of a portable electronic device with control buttons and a dome-shaped top (no text or symbols)

Line drawing of a portable electronic device with front panel and control buttons (no text or symbols)

正面 侧面

EVI-H100S

底部

EVI-H100V

单位：mm

针脚指定
