USER MANUAL MWHA212 INDESIT

Notices to the user, 11

Notices to the user, 12

Installing your appliance, 13

General Description, The grilling rack *, 14

Using your microwave oven, 15

Microwave power settings, 16

The grill function / The microwave + grill function *, 17

Care & Cleaning, 18

Important safety instructions.

Read carefully and keep for future reference.

Important: Keen this !

• Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others.

SAFETY RECOMMENDATIONS

Your appliance is designed for standard household use for cooking, reheating and defrosting foods. The manufacturer declines any responsibility in the case of inappropriate use.

The appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities, or persons lacking experience or awareness, unless using it with the help of a person responsible for their safety, or under supervision and with prior instruction in its use.

Ensure that the cookware is suitable for use in a microwave oven.

To avoid damaging your appliance, never operate it while empty or without the turntable.

Do not interfere with the openings on the lock on the front of the appliance; this could cause damage to your appliance that would require a service call.

The seal and frame of the door must be regularly examined to ensure that they have not deteriorated. If these areas are damaged, discontinue use of the appliance and have a specialised technician check it.

While heating food items in plastic or paper containers, monitor the microwave's contents for there is a risk of spontaneous combustion.

For the microwave and microwave + fan heating functions, the use of metallic cookware, forks, spoons, knives or metal staples or fasteners for frozen foods is not recommended.

The contents of baby bottles and baby food jars should be shaken or stirred and their temperature checked before consumption to avoid burns.

Never heat a baby bottle with the nipple on (risk of explosion).

Make sure children do not play with the appliance. Do not allow children to use the microwave oven without supervision, unless appropriate instructions have been given so that the child can use the oven safely and understands the dangers of incorrect operation.

Always use oven mitts to remove dishes from the oven. Some dishes absorb the heat of foods and, therefore, are very hot.

Liquids and other foods should not be heated in sealed containers because they may explode.

It is recommended that you avoid heating eggs in their shells and whole hard-boiled eggs in the microwave oven because they run the risk of explosion, even after cooking is complete.

Heating beverages in the microwave oven can cause sudden and/or delayed splattering of boiling liquid, so precautions must be taken when handling their containers.

In the case of small quantities (a sausage, a croissant, etc.) place a glass of water next to the food.

Excessive cooking times may dry out foods and carbonise them. To avoid such incidents, never use the same times recommended for cooking in a traditional oven.

If smoke appears, stop or unplug the oven and leave the door closed to smother any flames that may appear.

Notices to the user

OPERATING PRINCIPLE

The microwaves used for cooking are electromagnetic waves. They are commonly found in our environment in the form of radio-electric waves, light or infrared rays.

Their frequency is in the 2450 MHz range.

Their behaviour:

• They are reflected by metals.
• They travel through all other materials.
• They are absorbed by water, fat and sugar molecules.

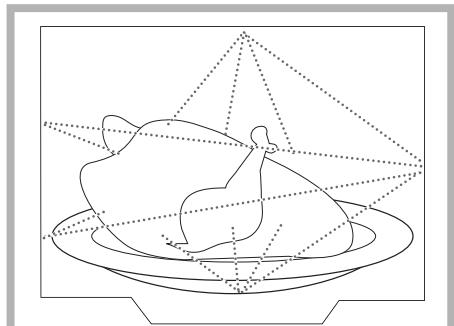

When food is exposed to microwaves, its molecules begin moving rapidly, which causes heating.

The penetration depth of waves into the food is approximately 2.5cm ; if the food is thicker, the core of the food will be cooked by conduction, as in traditional cooking.

It is valuable to note that the microwaves trigger within the food a simple thermal phenomenon and that they are not harmful to one's health.

- PROTECTING THE ENVIRONMENT

This appliance's packing materials are recyclable. Recycle them and play a role in protecting the environment by disposing of them in municipal containers provided for this purpose.

Your appliance also contains various recyclable materials. Thus it is stamped with this logo to indicate to you that used appliances should be mixed with other waste. The recycling of appliances organised by your manufacturer will take

place under the best conditions, in compliance with European directive 2002/96/CE concerning electrical and electronic equipment waste. Consult your city hall or your retailer to find the drop-off points for used appliances that is nearest to your home. We thank you for your help in protecting the environment.

Fig.01

BEFORE HOOK-UP

Warning:

Ensure that your appliance has not suffered any damage during transport (deformed seal or door, etc...). If you see any kind of damage, before doing anything else, contact your retailer.

In order to easily locate the reference information for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relations" page.

ELECTRICAL CONNECTION

Ensure that:

• The electrical installation has sufficient voltage.
• The electrical wires are in good condition.
• The dia meter of the wires complies with the installation requirements.
• Your electrical installation is equipped with 16- ampere thermal-sensitive protection.

In case of doubt, consult your electrician-installer.

The electrical connections are made before the appliance is installed in its housing.

Electrical safety must be provided by a correct build-in. During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed.

The oven must be connected with a power cable (standardized) with three 1.5 mm2 conductors (1 ph + 1 N + ground) that must be connected to a monophase 220-240 V network via a CEI 60083 standardised receptacle (1 ph + 1 N + ground lead) or in accordance with installation rules. The safety wire (green-yellow) is connected to the appliance's terminal and must be connected to the ground lead of the electrical set-up.

In the case of connections with an electric receptacle, it must remain accessible after installation of the appliance.

The oven's neutral conductor (blue wire) must be connected to the network's neutral conductor.

In your electrical installation, allow for a user-accessible device that must be able to separate the appliance from the main power supply and whose contact opening is at least 3 mm above all the terminals.

If the power cable is damaged, it should be replaced by the manufacturer, its after-sales service department or by a qua lified person to avoid danger.

Warning:

We cannot be held responsible for any incident resulting from an inexistent, defective, incorrect ground lead.

If the oven malfunctions in any way, unplug the appliance or remove the relevant fuse at the oven's connection lead-in.

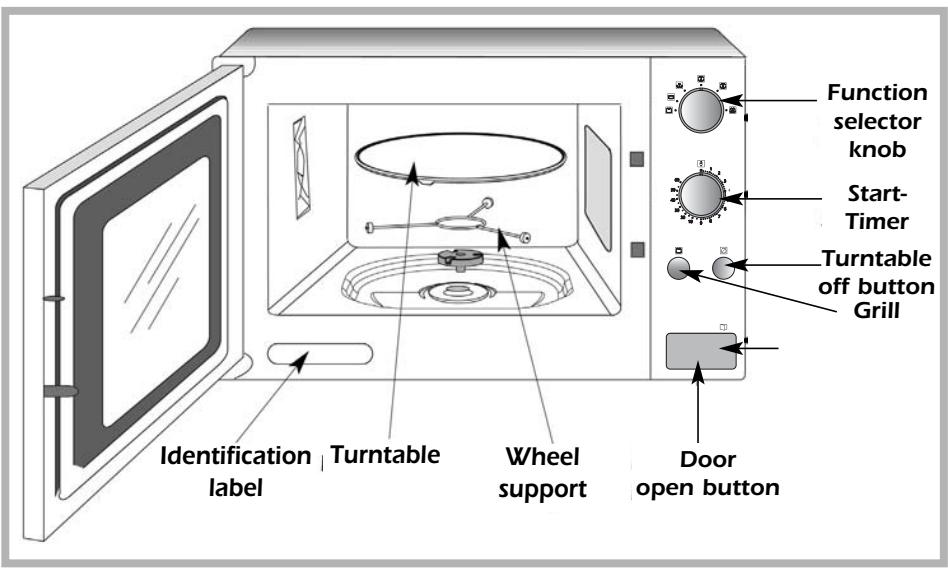

General description

- THE TURNTABLE :

ensures equal cooking of food throughout with no need to intervene.

• It may be used as a cooking dish.
• Rotation is controlled by the drive shaft and the wheel support.
• The turntable rotates in both directions.
• If it does not turn, verify that all components are properly positioned.

- THE WHEEL SUPPORT :

• Do not try to rotate the roller ring manually, as you could damage the drive system. If it does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

- MICROWAVE OUTPUT POWER : 900 W

- The GRILL : *

may be used for browning foods such as gratin dishes or meat.

The grilling rack *

Make sure that the rack is always well centered on the turntable.

Never use any metal dish with the rack with the microwave, grill + microwave or fan + microwave functions.

Nevertheless you may heat up food in an aluminium tray if you place a plate between the tray and the rack.

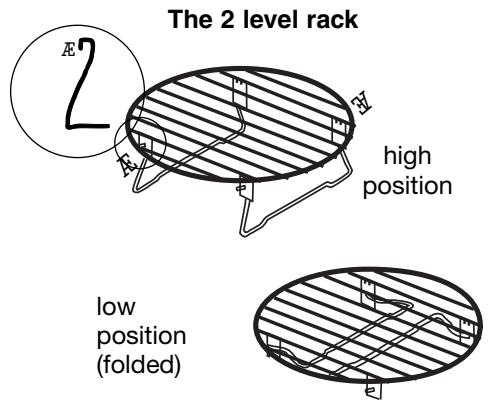

The folding rack :

To fold down the rack :

push in on the protruding hooks and fold in the stands

with the Grill or Grill + Microwave functions :

choose the rack level according to the dish you wish to grill

• high position to brown dishes which are rather flat
• low position as required for other dishes.

with the fan or fan + microwave functions : always set your dishes on the rack folded down to the low position.

• for certain models

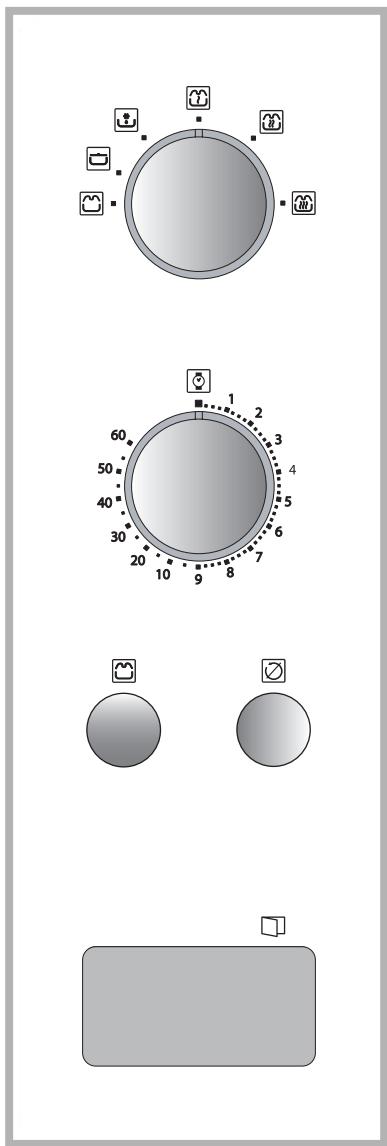

Program your microwave oven using the function selector knob, together with the start-timer.

After connecting your microwave oven:

• Open the door, place the food to be cooked inside the microwave oven and close the door. Make sure the door is properly closed otherwise the oven will not operate.
• Select the power setting with the function selector knob.
• Select the time using the start-timer

When you wish to program less than two minutes, turn the timer beyond 2, then come back to the desired setting.

• If using a large dish, press the turntable off button
  When off, remember to turn the recipient or stir the contents. After use, remember to press again to unlock the turntable.
• Close the door, the turntable revolves, the oven light comes on, the program begins. The end of the program is indicated by a bell. The oven stops, the light goes off.
• If you open the door before the end of a program :

if the dish is ready, turn the start-timer back to the "0" position before closing the door. Otherwise, close the door if you wish the program to continue.

Never operate the oven when empty.

Microwave power settings

GB

Symbol	Function	Application
*	TIMER	Set the function selector knob to this position to use the timer function (sans cuisson).
	KEEP WARM 150 W	To keep dishes warm, bring butter, cream, cheese, ice cream, or any other delicate food to the right temperature, or defrost it.
*	DEFROST or VERY LOW COOK 300 W	To defrost all frozen food, to top off cooking of deli-cate dishes or to cook very slowly.
*	SIMMER 500 W	To cook fish or poultry. To finish programs begun with the HIGH COOK power setting, for in-stance beans, lentils, or dairy products.
*	LOW COOK 700 W	To heat up all liquids and all fresh or frozen pre-cooked dishes.
*	HIGH COOK 900 W	To cook vegetables and soup.

TROUBLESHOOTING GUIDE

The microwave oven is noisy when operating The turntable does not revolve correctly

The food is not heated up

The appliance produces sparks

• Clean the wheels and the well area beneath the turntable.
• Make sure that you use only containers which are adapted to microwave cooking.
• Check whether the wheel support is correctly positioned. Thoroughly clean the appliance: remove any greasy deposits, cooking residue, etc...

• Move any metal objects away from the oven walls.

• for certain models

This function enables you to brown dishes such as fish or meat.

After grilling, make sure to use an oven mitt to handle dishes, and remember to use only ovenproof cookware such as ceramic dishes or heat-resistant glass.

WARNING : Do not allow children near the oven when the grill is in use as certain exposed parts may become hot.

After use, allow the grill to cool down for 25 minutes before touching it.

Example : SARDINES 6-8

• Place the sardines on the rack.

Press the grill key.

Set the function selector knob to the grill position

Set the grill time, 16 / 18 min, with the timer.

• Close the door, the turntable revolves, the oven light comes on, the programme begins.

The microwave + grill function *

This function enables you to use the microwaves and grill simultaneously, for rapid cooking.

Example: SIRLOIN STEAK (800 g)

• Place the dish in a roasting pan on the turntable.

Press the grill key.

Select the LOW COOK power setting with the function selector knob.

Set the time, 25 / 30 min, with the timer.

• Close the door, the turntable revolves, the oven light comes on, the programme begins.

• for certain models

Care & cleaning

WARNING : It is recommended to clear the oven regularly and to take any food deposit inside and outside the appliance.Use a soapy and wet cloth. If the appliance is not kept clean, its surface could deteriorat and adversely affect its life and possibly result in a hazardous situation. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
- A steam cleaner is not to be used.

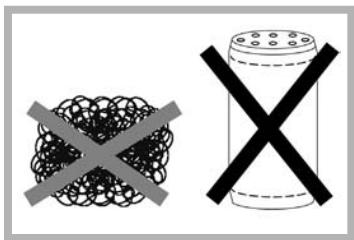

- Do not use abrasives, alcohol or solvents as they are liable to damage the oven.
- On the event of unsavory odors or caked-on dirt, boil water containing lemon juice or vinegar in a cup for 2 minutes and clean the walls with a little dishwashing liquid.
- The turntable can be removed for cleaning. Wells are provided on both sides for easy access. If you remove the drive shaft, do no shaft hole. Be sure shaft and the whee place.

• If the equipment has sustained any damage : - Check that the door is not deformed.
• If the oven does not operate, before calling the repairman:
• Check the electrical supply.
• Check that the door is properly closed.
• Check your programming.

CAUTION : never attempt to repair your oven yourself.

WARNING : it is dangerous for anyone other than qualified personnel to make any repairs requiring removal of the cover providing protection from exposure to microwave energy.

Only a specially trained technician is qualified to repair your microwave oven.
