Product Type	Canister Vacuum Cleaner
Brand	DOMO
Model	DO7277S
Color	Grey and Red
Dimensions (L x W x H)	280 x 260 x 420 mm
Weight	4.8 kg
Collection Type	Bagged
Bag Capacity	3.5 liters
Filter Type	HEPA H13
Noise Level	76 dB(A)
Maximum Power	800 W
Power Supply	Mains, 220-240 V
Cable Length	6 meters
Operating Range	8 meters
Main Functions	Floor and carpet vacuuming, parquet brush, crevice tool, upholstery nozzle
Maintenance and Cleaning	Clean the filter regularly, replace the bag when the indicator lights up
Safety	Thermal protection, automatic shutoff in case of overheating
Spare Parts and Repairability	Bag, filter, brush, crevice tool available. Repairability index: 7.5/10
Warranty	2 years

Frequently Asked Questions - DO7277S DOMO

How to replace the bag of the Domo DO7277S vacuum cleaner?

Open the bag compartment, remove the full bag, insert a new bag compatible with DO7277S following the markings. Close the lid.

How to clean the HEPA filter?

Remove the filter, gently tap to remove dust or wash with lukewarm water (mild soap) once a month. Let it dry completely before reinstalling.

What to do if the vacuum cleaner loses power?

Check if the bag is full, if the filter is clogged, or if there is a blockage in the tube or brush. Clean or replace the obstructed parts.

How to use the parquet brush?

Connect the parquet brush to the telescopic tube. It is designed for hard floors, avoid using it on thick carpets. Adjust the height if necessary.

The vacuum cleaner stops suddenly, what should I do?

This may be due to overheating. Let the appliance cool down for 30 minutes, then check that no obstruction is blocking the air. Reset the thermal protection button if accessible.

How to rewind the cable?

Press the rewinding pedal located at the rear of the vacuum cleaner. Hold the plug to prevent it from whipping. The cable retracts automatically.

What accessories are included?

The vacuum cleaner comes with a main brush, a parquet brush, a crevice tool, and an upholstery nozzle. Check the manual for the complete list.

Where to find spare parts for the DO7277S?

Spare parts such as bags, filters, and brushes are available from authorized DOMO dealers or online. Use the model number to find compatible parts.

What is the repairability index?

The repairability index of the Domo DO7277S is 7.5 out of 10, meaning it is fairly easy to repair. Spare parts and manuals are available.

What is the noise level of this vacuum cleaner?

The noise level is about 76 dB(A), which is typical for a vacuum cleaner of this power. Prefer using it during the day.

USER MANUAL DO7277S DOMO

Three different vacuum cleaner models in black, red, and blue colors (no visible text or symbols on the devices themselves)

DO7276-7-8S

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved wire (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

MONTAGE

Close-up of a blue vacuum cleaner with a black hose attached, showing airflow direction (no text or symbols visible)

Telescopische buis

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Three black plastic push-button covers arranged horizontally, no text or symbols visible

GEBRUIK

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ONDERHOUD

Close-up of a blue robotic vacuum cleaner's head panel with a black handle and circular vent, showing a black arrow pointing to the component (no text or symbols visible)

Close-up of a car's front bumper showing a cardboard box with arrows indicating movement or force (no text or symbols)

Top-down view of a blue car's front bumper with ventilation grilles and airflow arrows (no text or symbols)

De luchtfilter of HEPA-filter schoonmaken

Close-up of a blue industrial vacuum cleaner's back panel with a white arrow pointing to the vent and handle (no text or symbols visible)

Blue robotic device with grid panel and mesh cover, no visible text or symbols

OPGELET:

MONTAGE

Close-up of a blue vacuum cleaner with a black hose attached to its neck (no text or symbols visible)

Tube télescopique

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a measuring tool with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Three black plastic push-button buttons arranged on a white background, with circled numbers 1, 2, 3 and empty circles (no text or symbols on buttons)

UTILISATION

Technical line drawing of a handheld device with labeled parts A and B (no text or symbols beyond labels)

ENTRETIEN

Close-up of a blue robotic vacuum cleaner's face panel with a black arrow pointing to the button (no text or symbols visible)

Top-down view of a car's front bumper showing internal components and directional arrows (no text or symbols)

Top-down view of a blue car's front compartment showing internal air vent and ventilation duct (no text or symbols)

Close-up of a blue vacuum cleaner's front panel with a white arrow pointing to the grille (no text or symbols visible)

Blue robotic device with grid screen and mesh cover, next to a blue textured surface (no visible text or symbols)

ATTENTION:

MONTAGE

Close-up of a blue vacuum cleaner with black hose and black handle (no visible text or symbols)

Teleskoprohr

Line drawing of a hand holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating force direction (no text or symbols)

Simple line drawing of a syringe and a mechanical device inside a rounded square frame (no text or symbols)

Zubehör

Three black plastic push-button buttons arranged horizontally, no text or symbols present

BENUTZUNG

Technical line drawing of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

Close-up of a blue robotic vacuum cleaner's pocket with a black arrow pointing to the handle (no text or symbols visible)

Close-up of a blue car's front bumper showing a cardboard box with arrows indicating movement or assembly (no text or symbols)

Top-down view of a blue car hood with internal air vent and directional arrows indicating airflow or movement (no text or symbols)

Close-up of a blue vacuum cleaner's front panel with a white arrow pointing to the grille (no text or symbols visible)

Blue robotic vacuum cleaner with grid screen and mesh cover, partially placed next to a blue mesh filter (no text or symbols visible)

ACHTUNG:

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

• Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.

• Before use, remove all packaging materials and any promotional stickers.

• To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

• Only use the vacuum cleaner as described in this instruction booklet. Only use accessories recommended by the manufacturer.
• Do not use the appliance when the plug or cord is damaged, when the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left outside or has been dropped in water. In that case, take your vacuum cleaner to a service center for a check-up and/or repair.
• Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum

cleaner over the cord. Keep the cord away from hot surfaces.

1. Do not touch the plug or the vacuum cleaner when you have wet hands.
2. Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.
3. Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.
4. Be extra careful when cleaning stairs.
5. Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.
6. Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
7. Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
8. Unplug the appliance before connecting the hose.
9. Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
10. Do not use the vacuum cleaner without dust bag and/or filter.
11. Always connect the appliance to an earthed socket.

SAVE THESE INSTRUCTIONS

PARTS

1. Floor nozzle

2. Button to pull out or retract brushes

3. Slide button to set length of tube

4. Telescopic tube

5. Hose

6. Connection for hose

7. Handle

8. Handle lid dust bag compartment

9. Full dust bag indicator

10. Button for automatic cord rewinding

11. Button to set the suction power

12. On/off button

13. HEPA filter underneath grid

14. Dust bag: 3 l

15. Dust bag frame

ASSEMBLY

Always unplug the vacuum cleaner before (dis)assembling any parts.

Hose

Assembly: Put black ring at the end of the hose into the hose connection in the vacuum cleaner and turn to the right so that it is locked into place.

Disassembly: Unplug the vacuum cleaner. Turn the black ring at the end of the hose to the left and remove from the hose connection.

Close-up of a blue vacuum cleaner with black hose and handle (no visible text or symbols)

Telescopic tube

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.

3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessories

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...
2. Dust brush: for furniture, shelves,...
3. Small upholstery nozzle: for furniture, fabrics,...

Three black plastic push-button clips with circular annotations (1, 2, 3) above them, no text or symbols on the clips themselves.

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length (7m) of the cord, that should not be exceeded.
2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐsymbol.
3. To set the suction power, slide the suction power button to the left or right in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.
4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down.
5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted.
6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the 🔍 symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

MAINTENANCE

Check the hose, dust bag and filters regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filters when they are dirty.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

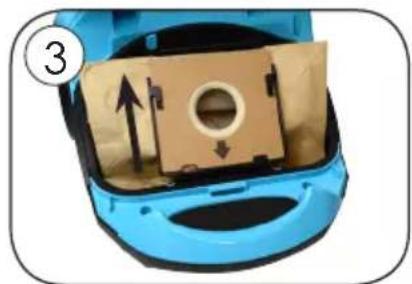

Replacing the dust bag and cleaning the motor filter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or cleaning the filter. Never vacuum without the dust bag or filter in place.

1. Turn off and unplug the vacuum cleaner.
2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.

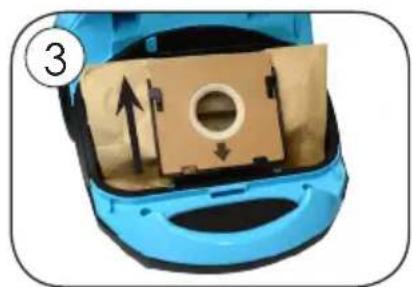

3. Slide the dust bag out of the frame and remove the dust bag from the dust bag compartment.
4. If at this point you want to clean the motor filter, take out the filter in its frame by sliding it upwards. Remove the filter from its plastic frame Clean the filter by rinsing it under warm water. Let the filter air dry completely before reinstalling it. Reinstall the filter before placing the dust bag into the dust bag compartment.
5. Slide a new dust bag (3 l) in the dust bag frame.
6. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Close-up of a blue robotic vacuum cleaner's head panel with a black vent and arrow pointing to the button (no text or symbols visible)

Top-down view of a car's front bumper showing internal components and directional arrows (no text or symbols)

Top-down view of a blue electric scooter front bumper with visible internal compartments and airflow arrows (no text or symbols)

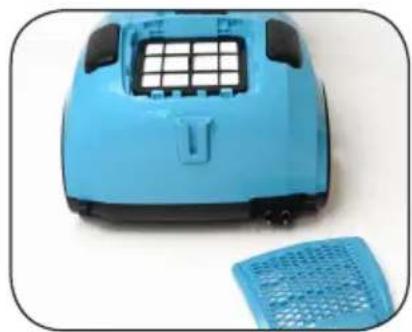

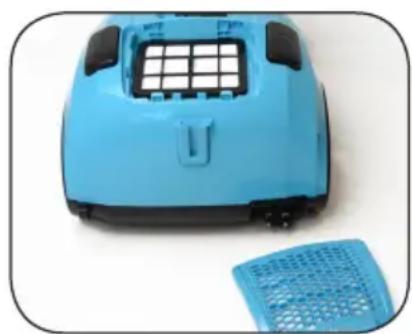

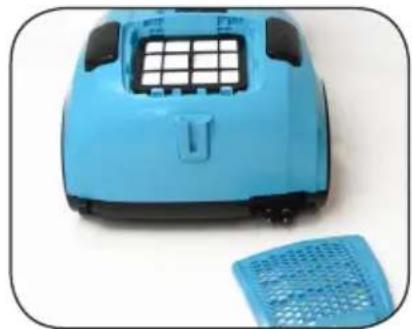

Cleaning the air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

2. Open the grid that covers the filter by pushing it upwards at the clip. The filter is visible when the grid is removed.

3. Take out the filter.

4. Rinse the filter under cold water and let it air dry completely.

5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.

6. Seal with the grid. Make sure that the grid clicks into place.

Close-up of a blue industrial vacuum cleaner's back panel with a white arrow pointing to the component (no text or symbols visible)

Blue robotic device with grid panel and perforated base (no visible text or symbols)

CAUTION:

• Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor.

- Remove the plug from the socket before cleaning the filters.

- Do not place the filters in the dishwasher.

- Do not use a hair dryer to dry the filters.

PRECAUCIONES IMPORTANTES

MONTAJE

Close-up of a blue vacuum cleaner with black hose and handle (no visible text or symbols)

Tubo telescópico

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands holding a measuring tape with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

Accesorios

Three black plastic push-button covers and a circular outline, no text or symbols present

Uso

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

MANTENIMIENTO

Close-up of a blue ergonomic device with a black handle and circular vent, showing a button or port (no text or symbols visible)

Blue car interior with cardboard box and directional arrows indicating movement (no text or symbols)

Top-down view of a blue car hood with internal air vent and ventilation slots (no text or symbols visible)

Close-up of a blue industrial vacuum cleaner with a white arrow pointing to the vent and handle (no text or symbols visible)

Blue robotic device with grid panel and mesh cover, shown against white background (no text or symbols)

ATENCIÓN:

POSTUP SESTAVENÍ

Close-up of a blue vacuum cleaner with black hose and handle (no visible text or symbols)

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Příslušenství

Three black plastic push-button covers with circular indicators (1, 2, 3) above, no text or symbols on the covers themselves.

POUŽITÍ

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ÚDRŽBA

Close-up of a blue robotic vacuum cleaner's head panel with a black arrow pointing to the button (no text or symbols visible)

Top-down view of a car's front bumper showing internal components and directional arrows (no text or symbols)

Top-down view of a blue electric scooter front bumper with visible air vent and airflow arrows (no text or symbols)

Close-up of a blue vacuum cleaner's front panel with a white arrow pointing to the button (no text or symbols visible)

Blue robotic device with grid panel and perforated base (no visible text or symbols)

DOMOWebshop

Stofzakken op? Antikalkcassette nodig?

Out of dust bags? Need an anti-scale cartridge?

You can now also order our accessories and parts in the

Domo Webshop

Webshop Domo

Domo- Webshop

Domo Webshop

Surf naar:

Rendez-vous sur:

Einfach unter:

Surf to:

webshop.domo-elektro.be

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
