Product Type	Built-in Microwave
Model	MFD2025S-M
Brand	AEG
Capacity	25 L
Microwave Power	1000 W
Grill Power	1100 W
Combination Modes	Microwave + Grill
Display Type	LED
Control Type	Touch Control
Defrost Function	Yes, by time or weight
Quick Start	Yes
Cavity Light	Yes
Child Lock	Yes, button lock
Installation Type	Built-in (niche)
Dimensions (HxWxD)	455 x 595 x 385 mm
Net Weight	15 kg
Power Supply	230 V, 50 Hz
Energy Efficiency Class	A+
Cleaning	Enamel cavity – easy wipe
Safety Features	Child lock, overheating protection

Frequently Asked Questions - MFD2025S-M AEG

How do I set the clock on my AEG MFD2025S-M microwave?

Press the Clock button, then use the numeric keypad to enter the time (24-hour format). Confirm by pressing the Clock button again.

How can I clean the microwave cavity?

Wipe the interior with a damp cloth and mild detergent. For stubborn stains, heat a cup of water with lemon juice for a few minutes to loosen residues. Avoid abrasive cleaners.

Can I use metal containers in this microwave?

No, do not use metal containers or aluminum foil during microwave operation. Only use microwave-safe glass, ceramic, or plastic. Metal can cause sparks and damage.

What is the maximum microwave power level?

The maximum microwave power is 1000 W. You can adjust power levels from 100 W to 1000 W using the Power button.

How do I use the grill function?

Press the Grill button, then set the cooking time using the numeric keypad. Press Start to begin. The grill element will heat up for browning.

What are the dimensions required for built-in installation?

The required niche dimensions are approximately height 455 mm, width 595 mm, depth 385 mm. Ensure proper ventilation around the appliance as per the installation manual.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds until the lock icon appears on the display. Repeat to deactivate.

Can I defrost frozen food automatically?

Yes, select the Defrost function, then enter the weight of the food. The microwave will automatically set the appropriate time and power.

What type of guarantee does the AEG MFD2025S-M have?

AEG offers a standard 2-year manufacturer's guarantee. Register your product on the AEG website to extend the warranty.

How to replace the microwave oven light?

The interior light is a LED lamp. If it fails, contact AEG service for replacement. Do not attempt to replace it yourself as it requires professional tools.

USER MANUAL MFD2025S-M AEG

Simple line drawing of a microwave oven with two circular buttons (no text or symbols)

OBSAH

1. BEZPEČNOSTNÍ INFORMACE....2
2. BEZPEČNOSTNÍ POKYNY 5
3. POPIS SPOTŘEBIČE....7
4. PŘED PRVNÍM POUŽITÍM....8
5. DENNÍ POUŽÍVÁNÍ......9
6. AUTOMATICKÉ PROGRAMY....12
7. POUŽITÍ PŘÍSLUŠENSTVÍ......13
8. DOPLŇKOVÉ FUNKCE....14
9. TIPY A RADY....14
10. ČIŠTĚNÍ A ÚDRŽBA....15
11. ODSTRAŇOVÁNÍ ZÁVAD.... 16
12. INSTALACE.... 17

PRO DOKONALÉ VÝSLEDKY

Technical line drawing of two circular components with rings and mounting feet (no text or symbols)

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Používá se pro:

Diagram of a circular mechanical component with a central hub and a base, showing internal structure and assembly (no text or symbols)

Line drawing of a circular heating element with a grating and mounting base (no text or symbols)

8. DOPLŇKOVÉ FUNKCE

1. SAFETY INFORMATION.... 18
2. SAFETY INSTRUCTIONS.... 21
3. PRODUCT DESCRIPTION....23
4. BEFORE FIRST USE....24
5. DAILY USE....25
6. AUTOMATIC PROGRAMMES....28
7. USING THE ACCESSORIES....29
8. ADDITIONAL FUNCTIONS....30
9. HINTS AND TIPS....30
10. CARE AND CLEANING....31
11. TROUBLESHOOTING....31
12. INSTALLATION....32

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the

result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
  • Children of less than 3 years of age should be kept away unless continuously supervised.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- This appliance is intended to be used in household and similar applications such as:

– Farm houses, staff kitchen areas in shops, offices and other working environments

- By clients in hotels, motels, bed and breakfast and other residential type environments.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

- Do not use a steam cleaner to clean the appliance.

- Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

- If the door or door seals are damaged, the appliance must not be operated until it has been repaired by a qualified person.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- Only a qualified person can carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- Do not operate the appliance by means of an external timer or separate remote-control system.

- Do not heat liquids and other foods in sealed containers. They are liable to explode.

- Metallic containers for food and beverages are not allowed during microwave cooking. This requirement is not applicable if the manufacturer specifies size and shape of metallic containers suitable for microwave cooking.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the appliance due to the possibility of ignition.

- The appliance is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

• Microwave heating of beverages can result in delayed eruptive boiling. Care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode, even after microwave heating has ended.
• The appliance should be cleaned regularly and any food deposits removed.
• Failure to maintain the appliance in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• The temperature of accessible surfaces may be high when the appliance is operating.
• The microwave oven shall not be placed in a cabinet unless it has been tested in a Cabinet.
• The rear surface of appliances shall be placed against a wall.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.
• Do not activate the appliance when it is empty. Metal parts inside the cavity can create electric arcing.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• The appliance can be placed almost anywhere in the kitchen. Make sure the oven is placed on a flat, level

surface and that vents as well as the surface underneath the appliance are not blocked (for sufficient ventilation).

2.2 Electrical Connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the appliance is connected to the socket via an extension cord, make sure the cord is earthed.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Do not let the appliance stay unattended during operation.
• Do not apply pressure on the open door.
• Make sure that the ventilation openings are not blocked.
• Do not use the appliance as a work surface and do not use the cavity for storage purposes.

2.4 Care and Cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Clean regularly the appliance to prevent the deterioration of the surface material.

• Do not allow food spills or cleaner residue to accumulate on door sealing surfaces.

• Fat and food remaining in the appliance can cause fire and electric arcing when the microwave function operates.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.

2.5 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.6 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. PRODUCT DESCRIPTION

3.1 General overview

1 Lamp
2 Safety interlock system
3 Display
4 Control panel
5 Waveguide cover
6 Grill
7 Turntable shaft

3.2 Control Panel

Symbol Function Description
1	— Display Shows the settings and current time.
2		Time defrosting button To defrost food by time.
3		Clock button To set the clock.
4		Auto cook button To use Auto cooking.
5		Clear button To deactivate the microwave or to delete the cooking settings.
6		Function button To set the microwave / grill / combi cooking function.
7		Setting knob To set the cooking time or weight or function.
8		Start button To start the appliance or increase the cooking time for 60 seconds at full power.
9		Weight defrosting but- ton To defrost food by weight.

3.3 Accessories

Turntable set

Always use the turntable set to prepare food in the microwave.

Technical line drawing of a circular component with a flanged base and a small protrusion, no text or symbols present.

Glass cooking tray and roller guide.

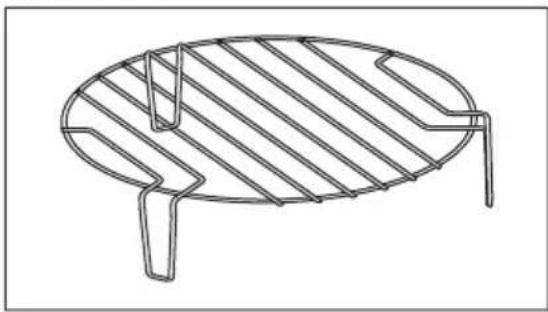

Grill Rack

Line drawing of a simple oval-shaped metal grate with three legs and a central slot (no text or symbols)

Use for:

• grilling food
• combi cooking

4. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

4.1 Initial Cleaning

WARNING!

Refer to "Care and cleaning" chapter.

• Remove all the accessories from the microwave.
• Clean the appliance before the first use.

4.2 Setting the time

When you connect the appliance to the electrical supply or after a power cut, the display shows 0:00 and an acoustic signal sounds.

1. Repeatedly press ⏻ to choose a 12 or 24 hour clock system.
2. Turn the Setting knob to set the hours.

3. Press to confirm.

4. Turn the Setting knob to set the minutes.

5. DAILY USE

WARNING!

Refer to Safety chapters.

5.1 General information about using the appliance

• After you deactivate the appliance, let the food stand for several minutes.
- Remove the aluminium foil packaging, metal containers, etc. before you prepare the food.

Cooking

- If possible, cook food covered with a material suitable for use in the microwave. Only cook food without a cover if you want to keep it crusty

- Do not overcook the dishes by choosing too high a power setting and too long a time. The food can dry out, burn or catch fire in some places.

- Do not use the appliance to cook eggs or snails in their shells as they may explode. With fried eggs, pierce the yolks first.

- Pierce the skin or peel of potatoes, tomatoes, sausages and similar types of food with a fork several times before cooking so that the food does not burst.

- For chilled or frozen food, set a longer cooking time.

- Dishes which contain sauce must be stirred from time to time.

• Vegetables that have a firm structure, such as carrots, peas or cauliflower, must be cooked in water.

- Turn larger pieces of food halfway through the cooking process.

- If possible, cut vegetables into similar-sized pieces.

- Use flat, wide dishes.

- Do not use cookware made of porcelain, ceramic or earthenware

1. Press

to confirm.

with unglazed bottoms or small openings, for example, on handles.

Moisture may get into these openings causing the cookware to crack when heated up.

• The glass cooking tray is necessary for the operation of the microwave. Place the food or liquids on it.

Defrosting meat, poultry, fish

- Put frozen, unwrapped food on a small angled plate with a container below so that the defrosting liquid collects in the container.

- Turn the food halfway through the defrosting time. If possible, separate and then remove the pieces that started to defrost.

Defrosting butter, portions of gateau, quark

- Do not fully defrost the food in the appliance, but let it defrost at room temperature. It gives a more even result. Remove all metal or aluminium packaging before defrosting.

Defrosting fruit, vegetables

- If fruit and vegetables should remain raw, do not defrost them fully in the appliance. Let them defrost at room temperature.

- To cook fruit and vegetables without defrosting them first use a higher microwave power.

Ready meals

- You can prepare ready meals in the appliance only if their packaging is suitable for microwave use.

- You must follow the manufacturer's instructions printed on the packaging (e.g. remove the metal cover and pierce the plastic film).

Suitable cookware and materials

Cookware / Material Microwave Grilling
	Defrosting	Heating	Cooking
Ovenproof glass and porcelain with no metal components, e. g. Pyrex, heat-proof glass	✓	✓	✓	✓
Non-ovenproof glass and porcelain 1)	✓	X X X
Glass and glass ceramic made of oven-proof/frost-proof material (e. g. Arco-flam), grill shelf	✓	✓	✓	✓
Ceramic 2), earthenware 2)	✓	✓	✓	X
Heat-resistant plastic up to 200 °C 3)	✓	✓	✓	X
Cardboard, paper X X X	✓
Clingfilm X X X	✓
Roasting film with microwave safe closure 3)	✓	✓	✓	X
Roasting dishes made of metal, e. g. enamel, cast iron	X X X			✓
Baking tins, black lacquer or silicon-coated 3)	X X X			✓
Baking tray X X X				✓
Browning cookware, e. g. crisp pan or crunch plate	X	✓	✓	X
Ready meals in packaging 3)	✓	✓	✓	✓

1) With no silver, gold, platinum or metal plating / decorations

2) Without quartz or metal components, or glazes which contain metals

3) You must follow the manufacturer's instructions about the maximum temperatures.

√ suitable

X not suitable

5.2 Activating and deactivating the microwave

CAUTION!

Do not let the microwave operate if there is no food in it.

1. Press the Function button.
2. Turn the Setting knob to set the desired function.
3. Press the Function button to confirm.
4. Turn the Setting knob to set the time.
5. Press to confirm and activate the microwave.

To deactivate the microwave:

- wait until the microwave deactivates automatically, when the time comes to an end.

- open the door. The microwave stops automatically. Close the door and press to continue to cook. Use this option to inspect food.

- press .

When the microwave deactivates automatically, an acoustic signal sounds.

5.3 Power setting table

Power setting Approximate Percentage of Power	Power
P100 100 % 800 Watt
P80 80 % 640 Watt
P50 50 % 400 Watt
P30 30 % 240 Watt
P10 10 % 80 Watt
Other functions
Power setting Function mode
Grill
G Full Grill
Combi Cooking
C – 1 55 % Microwaves, 45 % Grill
C – 2 36 % Microwaves, 64 % Grill

5.4 Quick Start

The maximum cooking time is 95 minutes.

Press to activate the microwave for 60 seconds at full power. The cooking time increases by 60 seconds with each additional press of the button.

5.5 Defrosting

You can choose between 2 defrosting modes:

- Weight defrosting

- Time defrosting

Do not use weight defrosting on food that is left out of the freezer for more than 20 minutes, or for frozen ready-made food.

To activate weight defrosting you must use more than 100 g of food and less than 2000 g.

To defrost less than 200 g of food place it on the edge of the turntable.

1. Press for weight defrosting or for time defrosting.
2. Turn the Setting knob to set the weight or time. For weight defrosting the time is set automatically.

1. Press to confirm and activate the microwave.

5.6 Multistage cooking

If one stage is defrosting, set it as the first stage.

You can cook food in maximum 3 stages.

1. Press 📄 for weight defrosting or 🌐 for time defrosting.
2. Turn the Setting knob to set the defrosting time or weight.
3. Press to confirm.
4. Turn the setting knob to set the power level.

5. Press to confirm.

6. Turn the Setting knob to set the time.

7. Press to confirm and activate the microwave. After each step an acoustic signal sounds.

5.7 Grilling and Combi Cooking

1. Press .
2. Turn the Setting knob to set the desired function
3. Press to confirm.
4. Turn the Setting knob to set the time.
5. Press to confirm and activate the microwave.

6. AUTOMATIC PROGRAMMES

WARNING!

Refer to Safety chapters.

6.1 Auto cooking

Use this function to easily cook favourite food. The microwave automatically sets the optimum settings.

1. Press .

2. Turn the Setting knob to set the desired menu.

3. Press to confirm.
4. Turn the Setting knob to set the weight of the menu.
5. Press to confirm and activate the microwave.

Symbols Menu Amount
	Reheat 200 g	400 g
		600 g
[A-2]	Vegetable 200 g	300 g
		400 g
	Fish 250 g	350 g
		450 g
[A-4]	Meat 250 g	350 g
		450 g
	Pasta 50 g (add 450 ml of water)	100 g (add 800 ml of water)

Symbols Menu Amount
		Potato 200 g	400 g
A-6			600 g
		Pizza 200 g	400 g
A-7
		Soup 200 ml	400 ml
A-8

6.2 Delayed Start

You can programme the microwave for maximum 3 stages.

1. Press
2. Turn the Setting knob to set the power level
3. Press ☐☐☐ to confirm.
4. Turn the Setting knob to set the cooking time.

5. Press to programme the activation of the microwave.

6. Turn the Setting knob to set the hours.

7. Press to confirm.
8. Turn the Setting knob to set the minutes.
9. Press to end the settings. The microwave activates automatically when the set time is reached.

7. USING THE ACCESSORIES

WARNING!

Refer to Safety chapters.

7.1 Inserting the turntable set

CAUTION!

Do not cook food without the turntable set. Use only the turntable set provided with the microwave.

Never cook food directly on the glass cooking tray.

1. Place the roller guide around the turntable shaft.
2. Place the glass cooking tray on the roller guide

Diagram of a circular mechanical component with a central hub and a base, showing internal structure without any text or symbols.

7.2 Inserting the grill rack

Place the grill rack on the turntable set.

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

8. ADDITIONAL FUNCTIONS

8.1 Child Safety Lock

The Child Safety Lock prevents an accidental operation of the microwave.

Press and hold ▽ for 3 seconds. An acoustic signal sounds.

When the Child Safety Lock is active the

display shows

To deactivate the Child Safety Lock

Press and hold ⓑ for 3 seconds.

9. HINTS AND TIPS

WARNING!

Refer to Safety chapters.

9.1 Tips for the microwave cooking

Problem Remedy
You cannot find details on the amount of food prepared.	Look for a similar type of food. Increase or short-en the length of the cooking times according to the following rule:• Double the amount almost double the time.• Half the amount is a half time.
The food got too dry. Set a shorter cooking time or select a lower mi-crowave power.
The food is not defrosted, hot or cooked when the time ends.	Set a longer cooking time or a higher power. Note that large dishes need a longer time.
After the cooking time ends, the food is overheated on the outside, but still not ready inside.	Next time set a lower power and a longer time. Stir liquids halfway through, e.g. soup.
Rice cooking results are poor. To get better results for rice use a flat, wide dish.

9.2 Defrosting

Always defrost roast fat side down.

Do not defrost covered meat as it may cause cooking instead of defrosting.

Always defrost whole poultry breast side down.

9.3 Cooking

Always remove chilled meat and poultry from the refrigerator at least 30 minutes before cooking.

Let the meat, poultry, fish and vegetables stay covered after cooking.

Brush a little oil or melted butter over the fish.

All vegetables should be cooked at the full microwave power.

Add 30 - 45 ml of cold water for every 250 g of vegetables.

Cut fresh vegetables into even sized pieces before cooking. Cook all vegetables with a cover on the container.

9.4 Reheating

When you reheat packed ready meals always follow the instruction written on the packaging.

9.5 Grilling

Grill flat food items in the middle of the grill rack.

Turn the food over halfway through the set time and continue grilling.

9.6 Combi Cooking

Use Combi Cooking to keep the crispness of certain foods.

Halfway through the cooking time turn the foods over and then continue cooking.

There are 2 modes for Combi Cooking. Each mode combines the microwave and the grill functions at different time periods and power levels.

10. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

10.1 Notes and tips on cleaning

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
• To clean metal surfaces, use a usual cleaning agent.

• Clean the interior of the appliance after each use. The dirt does not burn and can be removed easily.

• Clean stubborn dirt with a special cleaner.

• Clean all accessories regularly and let them dry. Use a soft cloth with warm water and a cleaning agent.
• To soften the remains that are hard to remove boil a glass of water at the full microwave power for 2 to 3 minutes.
• To remove odours, mix a glass of water with 2 tsp of lemon juice and boil at full microwave power for 5 minutes.

11. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

11.1 What to do if...

Problem Possible cause Remedy
The appliance does not operate.	The appliance is deactivated. Activate the appliance.
The appliance does not operate.	The appliance is not plugged in. Plug in the appliance.
The appliance does not operate.	The fuse in the fuse box is blown.	Check the fuse. If the fuse blows more than once, contact a qualified electrician.
The appliance does not operate.	The door is not closed properly. Make sure that nothing blocks the door.
The lamp does not operate.	The lamp is defective. The lamp has to be replaced.
There is sparking in the cavity.	There is a metal dish or a dish with a metal trim inside.	Remove the dish from the appliance.
There is sparking in the cavity.	There is a metal skewer or some aluminium foil inside that touches the interior walls.	Make sure that the skewer or foil does not touch the interior walls.
The turntable set makes a scratching or grinding noise.	There is an object or dirt below the glass cooking tray.	Clean the area below the glass cooking tray.
The appliance stops operating without a clear reason.	There is a malfunction. If this situation repeats itself, call the Authorised Service Centre.

11.2 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the appliance. Do not remove the rating plate from the appliance.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ......

Serial number (S.N.) ......

12. INSTALLATION

WARNING!

Refer to Safety chapters.

12.1 General Information

CAUTION!

Do not block the air vents. If you do that, the appliance can overheat.

CAUTION!

Do not connect the appliance to adapters or extension leads. This can cause overloading and risk of fire.

CAUTION!

The minimum installation height is 85 cm.

• The microwave is for a kitchen counter top use only. It must be placed on a stable and flat surface.
• Put the microwave far away from steam, hot air and water splashes.
• If the microwave is too close to a radio or TV set it may cause interference in the received signal.
• If you transport the microwave in the cold weather, do not activate it immediately after the installation. Let is stand in the room temperature and absorb the heat.

12.2 Electrical installation

WARNING!

Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter "Safety Information".

This microwave is supplied with a main cable and main plug.

The cable has an earth wire with an earthing plug. The plug must be plugged into an outlet that is properly installed and earthed. In the event of an electrical short circuit, earthing reduces the risk of electric shock.

Dimension mm
A1)	300
B 200
C	0

1) The minimum height of free space necessary above the top surface of the oven.

12.3 Minimal distances

13. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 🌿 Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol ⚙️ with the household waste. Return the product to your local recycling facility or contact your municipal office.

SISUKORD

1. OHUTUSINFO....34
2. OHUTUSJUHISED....37
3. TOOTE KIRJELDUS....38
4. ENNE ESIMEST KASUTAMIST.... 40
5. IGAPÄEVANE KASUTAMINE....40
6. AUTOMAATPROGRAMMID....44
7. TARVIKUTE KASUTAMINE....45
8. LISAFUNKTSIOONID....45
9. VIHJEID JA NÄPUNÄITEID....46
10. PUHASTUS JA HOOLDUS....47
11. VEAOTSING....47
12. PAIGALDAMINE....48

PARIMATE TULEMUSTE SAAVUTAMISEKS

Technical line drawing of a circular component with a flanged base and top view (no text or symbols)

Line drawing of a simple oval-shaped metal grate with three legs and a central slot (no text or symbols)

Kasutage:

Diagram of a circular mechanical component with a central hub and a base, showing internal structure without any text or symbols.

8. LISAFUNKTSIOONID

8.1 Lapselukk

Line drawing of a circular heating element with a grating and mounting base (no text or symbols)

Technical line drawing of a circular component with a flanged base and top view (no text or symbols)

Stikla gatavošanas plātne un rullīša vadotne.

Grila restes

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Izmantojiet:

Technical diagram of a circular mechanical component with a base and top view, showing internal structure and mounting point (no text or symbols)

Technical line drawing of a circular heating element with heat sink and cooling fins (no text or symbols)

8. PAPILDFUNKCIJAS

Technical line drawing of two circular components with rings and mounting feet (no text or symbols)

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Naudokite:

• maisto kepimui ant grotelių;
- kombinuotajam gaminimui;

4. PRIEŠ NAUDOJANTIS PIRMAKART

ISPÉJIMAS!

Žr. saugos skyrius.

4.1 Pradinis valymas

ISPÉJIMAS!

Diagram of a circular mechanical component with a central hub and a base, showing internal structure without any text or symbols.

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

8. PAPILDOMOS FUNKCIJOS

Line drawing of two circular objects with concentric rings, one above and one below, both without any text or symbols.

Line drawing of a simple outdoor table with slatted top and legs (no text or symbols)

Používa sa na:

Diagram of a circular mechanical component with a central hub and a base, showing internal structure without any text or symbols.

Line drawing of a circular heating element with a grating and wheels (no text or symbols)

8. DOPLNKOVÉ FUNKCIE

8.1 Detská poistka
