DV70_DV15011 - Vacuum Cleaner HOOVER - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Hoover
Model	DV70_DV15011
Rated power	800 W
Suction type	Cyclonic
Container capacity	2.5 L
Filtration	Washable HEPA filter
Cord length	8 m
Operating radius	12 m
Weight	6.2 kg
Dimensions (L x W x H)	40 x 28 x 32 cm
Noise level	78 dB(A)
Motorized brush	Yes, for carpets and hard floors
Included accessories	Hard floor brush, crevice tool, upholstery tool
Power adjustment	Electronic speed controller
Collection type	Bagless, easy emptying
Energy class	A+
Automatic shut-off	No
Warranty	2 years
Country of manufacture	China
Filter maintenance	Wash every 3 months
Spare parts available	Yes, on the Hoover website

Frequently Asked Questions - DV70_DV15011 HOOVER

How to empty the dust container of the Hoover DV70_DV15011 vacuum cleaner?

Press the unlock button on top of the container to remove it. Hold it over a trash can and open the bottom lid to empty the dust. Close and replace the container.

How often should the HEPA filter be washed?

Wash the HEPA filter every 3 months with cold water and let it dry completely for 24 hours before reinstalling. Do not use detergent.

What to do if the vacuum loses suction?

Check if the container is full, if the filter is clogged, or if there is a blockage in the hose or brush. Clean or replace parts as needed.

Does the motorized brush work on all floor types?

Yes, the brush can be used on carpets and hard floors. For hard floors, you can also use the specific brush included to avoid scratches.

How to replace the motorized brush belt?

Unplug the vacuum. Remove the brush, then remove the belt cover. Replace the worn belt with a new one, then reassemble the cover and brush.

Is the Hoover DV70_DV15011 vacuum loud?

The noise level is about 78 dB, which is similar to the average vacuum cleaner. To reduce noise, make sure filters are clean and there are no blockages.

Can I use dust bags with this vacuum?

No, it is a bagless model. It uses a transparent plastic container that you empty directly.

Where can I buy spare parts for the DV70_DV15011?

Spare parts are available on the official Hoover website (hoover.com) or from authorized dealers. You can also contact customer service.

How to clean the motorized brush?

Unplug the vacuum, remove the brush and cut any threads or hair wrapped around the brush with scissors. Use a damp cloth to clean the housing.

My vacuum won't turn on. What should I do?

Check that the outlet works and the cord is plugged in. Check the appliance fuse (if accessible) and replace it if necessary. If the problem persists, contact after-sales service.

USER MANUAL DV70_DV15011 HOOVER

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as described in this user guide. Please ensure that this guide is fully understood before operating the appliance.

Do not leave the appliance plugged in. Always switch off and remove the plug from the socket after use, or before cleaning the appliance or any maintenance task.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged stop using the appliance immediately. To avoid a safety hazard, an authorised HOOVER service engineer must replace the power cord.

Keep hands, feet, loose clothing and hair away from rotating brushes.

Use only attachments, consumables or spares recommended or supplied by HOOVER.

Static electricity: Some carpets can cause a small build up of static electricity. Any static discharge is not hazardous to health.

Do not use your appliance out of doors or on any wet surface or for wet pick up.

Do not pick up hard or sharp objects, matches, hot ashes, cigarette ends or other similar items.

Do not spray with or pick up flammable liquids, cleaning fluids, aerosols or their vapours.

Do not run over the power cord when using your appliance or remove the plug by pulling on the power cord.

Do not continue to use your appliance if it appears faulty.

HOOVER service: To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised HOOVER service engineer.

Do not stand on or wrap the cord around arms or legs when using your appliance.

Do not use the appliance to clean animals or people.

Do not position the appliance above you when cleaning the stairs.

The Environment

The symbol on this appliance indicates that this appliance may not be treated as household waste. Instead it must be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this appliance, please contact your local city office, your household and waste disposal service or the shop where you purchased the appliance.

This appliance complies with the European Directives 2006/95/EC, 2004/108/EC and 2011/65/EU.

HOOVER Limited, Pentrebach, Merthyr Tydfil, Mid Glamorgan, CF48 4TU, UK

GETTING TO KNOW YOUR CLEANER

A. Stretch Flexi Tube B. Integrated Flexi Tube Handle C. Main Handle D. Power Control Knob E. Dusting Brush F. Long Crevice Tube / Lance G. Bag Door H. Bag Door Release Button I. Hard Floor Nozzle (HF) 11. Carpet Nozzle (CA) 12. Hard Floor Nozzle (HF)** J. Permanent Exhaust Filter K. Carry Handle / Accessories Mode Activator L. Floor Mode Button M. Rotating Upper Cord Hook N. Lower Cord Hook O. Power Nozzle Connector P. Dust Bag With Hygienic Closure Q. Pre-Motor Filter R. Parquet Nozzle* S. Grand Turbo Nozzle*

PREPARING YOUR CLEANER

1. Remove the accessories from the main packaging. You will find the following:

- Cleaner body

• Cleaner handle
• Parquet nozzle*
• Hard Floor Nozzle (HF) **
• Carpet Nozzle (CA) **
• Mini Turbo Nozzle 1
• Grand Turbo Nozzle*
• Assemble the cleaner handle and fix it in position with the supplied screw. [1a]
• Secure the flexible hose handle to the rear of the cleaner handle. [1b]
• Secure the nozzle to the product [1c], and place the product in the upright position.

For models equipped with Parquet nozzle*:

Secure the nozzle to the product in the same way as the Hard Floor nozzle. For parquet floors and other delicate floors.

*Certain models only. **Certain models only; nozzles may vary according to model.

For models equipped with mini-turbo nozzle*:

Ideal for cleaning soft furnishings and removing pet hair.

1. The mini-turbo nozzle can be connected directly to the flexible hose handle or the extension tube. [2a]
2. If any blockages are encountered, open the inspection cover on the underside. [2b]

For models equipped with Grand Turbo Nozzle*:

Secure the nozzle to the product in the same way as the hard floor nozzle. Use the turbo nozzle for deep cleaning on carpets.

Cord storage:

To store the cord after cleaning, wrap the cord around the two cord hooks. [3]

USING YOUR CLEANER

Power switch:

1. To switch the cleaner on, rotate the power control knob. [4]
2. Rotate the knob to the correct power level.*
3. To switch off the product, rotate the same knob.

Using the flexi tube with accessories:

The flexi tube gives you maximum flexibility of usage. It can be used alone or combined with the accessories, as desired. To vacuum with the supplied accessories:

1. Select accessory mode by rotating the carry handle/accessory mode activator to the accessory position until it locks into place. [5]
2. Remove the flexi tube from its location at the back of the cleaner handle. [6]
3. To use the extension tube: remove the tube from the door by unclipping it from the top. [7] Attach it to the flexi tube. [8a]
4. To use the dusting brush: remove the tool from its location in the body of the product by pressing the middle of the component [9a] then unclipping it from the top. [9b] Attach it to the flexi tube. [8b]
5. To return to floor vacuuming, press the floor mode button. [10]

IMPORTANT - When using cleaning tools, the cleaner must be kept in the upright position and held. It must not be used in the stand-alone position without the user holding the product. [11]

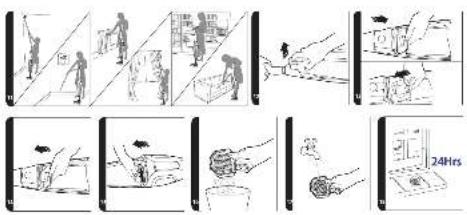

CLEANER MAINTENANCE

Replacing the disposable bag

1. Lay the cleaner on a flat surface, pull back the door release button, and remove the bag door. [12]
2. Remove the disposable bag, close the flap to lock the contents, and dispose of it. [13]
3. Take a new bag and fit the collar with the location in the main body, and rotate until fixed. [14]
4. Locate the tabs on the door as shown and close the door.

Attention: This product is fitted with a mechanism that prevents the door from closing when there is no bag fitted.

NOTE: The bag may need to be changed frequently when picking up material such as powder or fine dust, or when cleaning new carpets.

Cleaning the washable pre-motor filter

1. Lay the cleaner on a flat surface, pull back the door release button, and remove the bag door. [12]
2. Remove the old pre-motor filter by pressing the finger tab to release it. [15]
3. Gently tap the filter against the side of a bin to release excess dust.
4. If deeper cleaning is required: Wash the filter thoroughly under hand warm water until the water runs clean.
5. Remove excess water by shaking and leave to dry for 24 hours. DO NOT USE HOT WATER OR DETERGENTS.
6. Refit bag door as above.

IMPORTANT - For optimum performance, shake off excess dust from the filters regularly. We recommend that the filter is washed every 3 months.

NOTE: Do not use the cleaner without filters assembled.

ACCESSORIES

To obtain the best performance and energy efficiency, it is recommended that the correct nozzles are used for the main cleaning operations. These nozzles are indicated in the diagrams by the letters GP, HF or CA.

A nozzle type GP can be used to clean both carpet and hard floor.

A nozzle type HF is suitable for use only on hard floor.

A nozzle of type CA is suitable for use only on carpet.

The other nozzles are accessories for specialist cleaning tasks and are recommended for occasional use only.

It is important to note that this vacuum cleaner is supplied with an Energy Label as required by European Regulation (EU) 665/2013.

If the label shows a red prohibition circle on the left covering the carpet symbol, then this indicates that the vacuum cleaner is not suitable for use on carpets.

If the label shows a red prohibition circle on the right covering the hard floor symbol, then this indicates that the vacuum cleaner is not suitable for use on hard floors.

*Certain Models Only ** Certain models only, nozzles may vary according to model

1 NOTE: Dust pick up ability carpet, dust pick up ability hard floor, and energy efficiency in accord with Commission Regulations (EU) 665/2013 and (EU) 666/2013.

All accessories can be fitted to the end of the handle or the end of the telescopic tube.

Parquet Nozzle* – For parquet floors and other delicate floors.

Mini Turbo Nozzle* – Use the mini turbo nozzle on stairs or for deep cleaning on textile surfaces and other hard to clean areas. Particularly suitable for allergen removal.

IMPORTANT: Do not use the turbo and mini turbo nozzles on rugs with long fringes, animal hides and carpet pile deeper than 15mm. Do not keep the nozzle stationary while the brush is rotating.

USER CHECKLIST

Should you have a problem with your product, complete the simple user checklist before calling the Hoover customer service.

• Is there a working electricity supply to the product? Check with another electrical product.
• Is the bag full? Inspect and replace.
• Is the hose blocked? Check by stretching to the full length.
• Is the product inlet blocked? Check by removing the bag and checking the bag inlet.
• Is the filter blocked? Check by removing and clean.

IMPORTANT INFORMATION

Hoover spares and Consumables

Always replace parts with genuine Hoover spares. These are available from your local Hoover dealer or direct from Hoover. When ordering parts always quote your model number.

Consumables

Microfiber bag (x4) H68 - 35601148

Pre-motor filter 101 - 35601149

Spare parts

Hard Floor Extra Nozzle G216EE - 35601609

Hard Floor Smart Nozzle G218SE - 35601618

Carpet & Floor Plus Nozzle G226PE - 35601647

Carpet Extra Nozzle G215EE - 35601608.

Parquet Extra Nozzle G87PC - 35600655

Allergy Remover Nozzle J49 - 35601152

Grand Turbo Nozzle J48 - 35601151

Hoover Service

Should you require service at any time, please contact your local Hoover Service Office.

Quality

BSI ISO 9001: Hoover's factories have been independently assessed for quality. Our products are made using a quality system which meets the requirements of ISO 9001.

Your Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Subject to change without notice.
