USER MANUAL T23R46N0 NEFF

Abstract black-and-white geometric symbol resembling a stylized letter 'N' enclosed in a circle, with no text or symbols present.

EFF

en Operating instructions
de Gebrauchsanweisung
fr | Mode d'emploi
it Avvertenze per l'uso

Neff GmbH

Carl-Wery-Straße 34

81739 München

Cod. 9000388241 H

EFF

www.neff-international.com

Table of contents

Safety precautions....5

Your new appliance 7

Burners 8

Switching on manually 8

Switching on automatically 8

Operating and residual heat indicator. 9

Automatic on function 9

Safety system 9

Switching off a burner 9

Power levels 9

Warnings 10

Suitable pans 11

Accessories 12

Additional wok pan support. Wok pan ..... 12

Additional coffee maker support. 12

Simmer plate 12

Cooking recommendations. 12

Precautions for use. 13

Cleaning and maintenance 14

Cleaning 14

Unsuitable products 14

Maintenance 14

Faults 15

Technical Assistance Service ..... 16

Warranty conditions 16

Used appliances and packaging.....16

Environmentally-friendly waste management . . 16

Dear customer,

Congratulations on your choice and thank you for purchasing one of our appliances. This practical, modern and functional appliance is manufactured using materials of the highest quality which are subject to strict quality control checks throughout the entire manufacturing process. The appliance is meticulously tested to ensure that it meets your demands and produces perfect cooking results.

Do not remove the appliance from its protective packaging until it is installed in the unit.

Please read these instructions carefully before proceeding to install and use the appliance. The information contained in these instructions is essential for the correct operation of the appliance and, more importantly, for your safety.

The packaging of your appliance has been manufactured using only the materials which are strictly necessary to guarantee efficient protection during transport.

These materials are 100% recyclable, thus reducing the environmental impact. You can also contribute to caring for the environment, by following the advice below:

• dispose of the packaging in the appropriate recycling bin
• before you get rid of an old appliance, make sure you disable it. Contact your local authority to find out the address of your nearest recycling centre to dispose of your appliance
• do not pour used oil down the sink. Collect it in a sealed container and take it to an appropriate collection point or, failing that, place it in the rubbish bin (it will end up in a controlled dump; this is probably not the best option, but it will avoid contaminating ground water).

IMPORTANT:

In the unlikely event that the appliance should be damaged or not meet your expectations in terms of quality, please inform us as soon as possible. For the warranty to be valid, the appliance must not have been tampered with, or used inappropriately.

Safety precautions

Read these instructions carefully. Reading these instructions will enable you to use your appliance safely and effectively.

All operations relating to installation, regulation and conversion to other types of gas must be carried out by an authorised installation engineer, respecting applicable regulations, standards and the specifications of the local gas and electricity providers. You are recommended to contact the Technical Assistance Service to convert to another type of gas.

Before installing your new hob, ensure that it is being installed according to the assembly instructions.

This appliance can only be installed in a well-ventilated place in accordance with existing regulations and ventilation specifications. The appliance must not be connected to a combustion product removal device.

This appliance has been designed for home use only, not for commercial or professional use. This appliance cannot be installed on yachts or in caravans. The warranty will only be valid if the appliance is used for the purpose for which it was designed.

The place in which the appliance is installed must have fully-functioning ventilation, in accordance with the regulations.

Do not subject the appliance to draughts. These might blow out the burners.

This appliance leaves the factory set to the type of gas that is indicated on the specifications plate. If this must be changed, read the Assembly instructions.

Do not tamper with the appliance's interior. If necessary, call our Technical Assistance Service.

These operating and installation instructions should be retained, and passed onto the buyer if the appliance is sold.

Do not switch on the appliance if it is damaged in any way. Contact our Technical Assistance Service.

The surfaces of cooking appliances heat up during use. Care must be taken when using these appliances. Keep children well away from this appliance.

This appliance is only intended for cooking purposes, not as a heating system.

Fat or oil which is overheated can catch fire easily. Do not leave oil or fats to heat up unattended. If oil or fats do

catch fire, never use water to put the fire out. Risk of burns! Put the fire out by covering the pan with a lid and switch off the hotplate.

In the event of a malfunction, turn off the appliance's gas and electricity supply. For repairs, call our Technical Assistance Service.

If one of the control knobs will not turn, do not force it. Call the Technical Assistance Service immediately, so that they can repair or replace it.

Never place unstable pans on the hob or the burners, as they may accidentally tip over.

Do not clean the hob using a steam cleaner. Risk of electrocution!

This appliance is class 3 type, according to the EN 30-1-1 standard for gas appliances: built-in appliance.

Do not store or use corrosive chemicals, steamers, flammable materials or non-food products below or near this domestic appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Never leave the appliance unattended during operation.

The graphics in this instruction manual are given as a guide only.

The manufacturer is exempt from all responsibility if the requirements of this manual are not complied with.

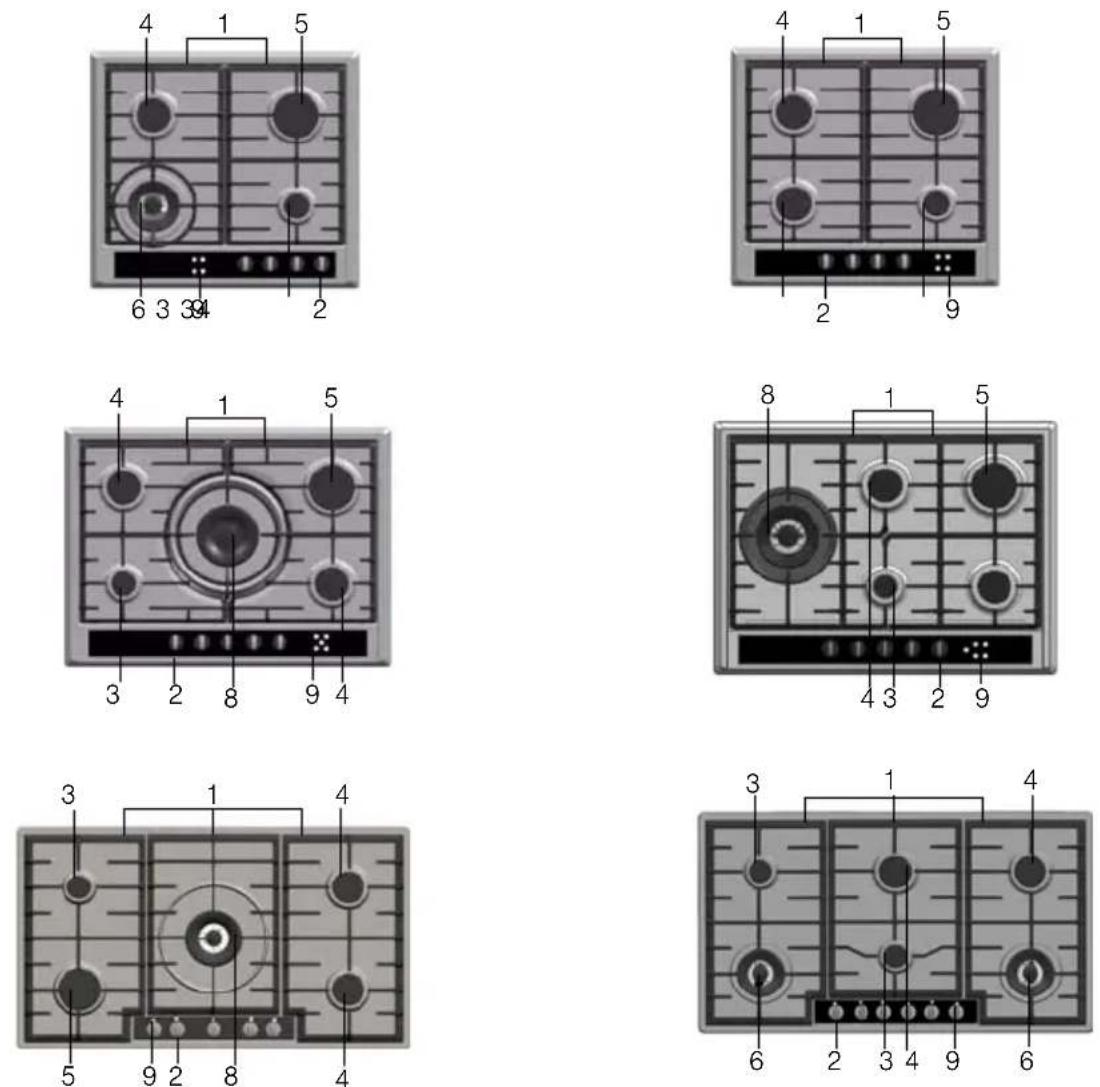

Your new appliance

1 Pan supports
2 Control knobs
3 Auxiliary burner (up to 1 kW)
4 Semi-rapid burner (up to 1,75 kW)
5 Rapid burner (up to 3 kW)
6 Double-flame burner (up to 3,3 kW)
7 Triple-flame burner (up to 4 kW)
8 Dual double-flame burner (up to 5 kW)
9 Hotplate operating indicators

Gas burners Operation

Fig. 1

Abstract grayscale circular shape with gradient shading and scattered small dots (no text or symbols)

Fig. 2

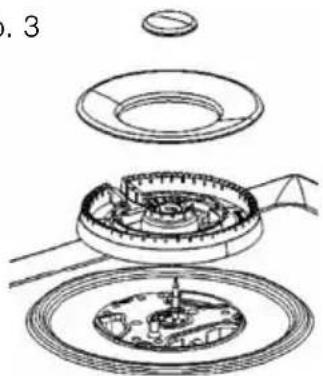

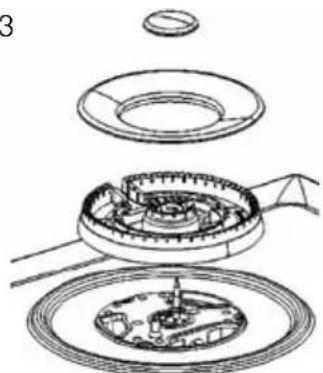

Fig. 3

Exploded view diagram of a mechanical assembly showing internal components and assembly steps (no text or labels)

There are indications to show which burner each control knob operates. Fig. 1.

It is essential to ensure that all the burner parts and pan supports are correctly installed for the appliance to work correctly. Fig. 2-3.

Switching on manually

Switching on automatically

1. Press the chosen burner control knob and turn it anticlockwise to the required setting.
2. Use any type of lighter or flame (cigarette lighter, matches, etc.) and bring it close to the burner.

If your hob can be switched on automatically (ignition sparkers):

1. Press the chosen burner control knob and turn it anticlockwise to the maximum power setting.
   While the control knob is still pressed down, sparks are produced on all burners. The flame ignites. Hold it down for a few seconds with the flame already lit.
2. Turn the control knob to the required setting.

If it does not come on, turn the control knob to the off setting and repeat the steps above. This time, press and hold the control knob for longer (up to 10 seconds).

Warning! If after 15 seconds the flame does not ignite, switch off the burner and open a nearby window or door. Wait at least one minute before trying to switch the burner on.

Operating and residual heat indicator

All the hobs have an operating and residual heat indicator which comes on when the flame on the corresponding hotplate is lit.

Once the hotplate is switched off, the residual heat indicator remains on indicating that the hotplate temperature is too high. Do not touch the hotplate while the indicator light is on.

After some time the residual heat indicator light will go off, indicating that the temperature of the hotplate has dropped and is no longer too high. Care must still be taken when touching the appliance to avoid burns, since the hotplate may not have completely cooled down.

Automatic on function

All the hotplates have an automatic on function which is activated when the flame of a hotplate that is in use accidentally goes out. The system will try to switch the hotplate on again after 10 seconds.

If after this time the hotplate has not come on again, the operating indicator light will flash and the burner will remain blocked.

To unblock it, turn the control knob to the 0 setting.

Safety system

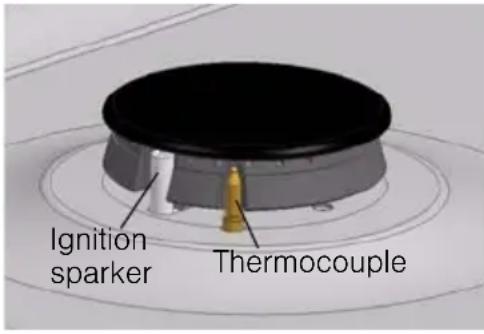

Depending on the model, your hob may have a safety system (thermocouple) that prevents the flow of gas if the burners accidentally switch off. To ensure that this device is active, switch on the burner as usual and, without releasing the control knob, press and hold it down firmly for 4 seconds after lighting the flame.

Switching off a burner

Turn the corresponding control knob clockwise to the 0 setting.

Power levels

The progressive control knobs can be used to control the power needed, from minimum to maximum power.

Setting

High flame

Low flame

Control knob off

Maximum capacity or aperture and electricity on

Minimum capacity or aperture

Diagram of a celestial body with orbital paths and marked points (no text or labels)

Four-panel illustration showing a cake with decorative patterns and a circular diagram, all without any text or symbols.

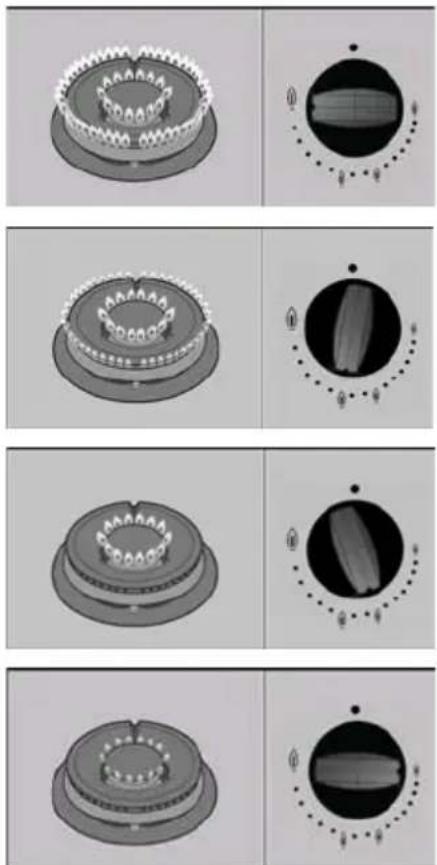

For dual double-flame burners, the inner and outer flames can be controlled separately.

The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on minimum, inner flame on full power.

Inner flame on full power.

Inner flame on minimum power.

Warnings

It is normal to hear a slight whistling noise while the burner is operating.

When it is first used, it is normal for the burner to give off odours; this does not pose any risk and does not indicate a malfunction; they will disappear in time.

A few seconds after the burner is switched off, a sound (thud) will be produced. This is not a fault - this means that the safety device is no longer operating.

Keep the burner as clean as possible. If the ignition sparkers are dirty they will not light properly. Clean them periodically using a small non-wire brush. Bear in mind that the ignition sparkers must not suffer any serious impacts.

An orange-coloured flame is normal. This is caused by the presence of dust in the atmosphere, spilt liquids, etc.

The kitchen will become hot and humid when this gas appliance is used.

You must therefore ensure that the kitchen is well ventilated:

either keep the natural ventilation apertures open, or install a ventilation system (extractor hood).

If using the appliance intensively for prolonged periods, you may require additional ventilation (e.g. by opening a window) or more effective ventilation (e.g. by increasing the hob's ventilation, if possible).

If the burner flames are accidentally blown out, switch off the burner operating control knob and do not try to relight it for at least one minute.

Suitable pans

Illustration of a cooking pan with three pots and a dark liquid, no text or symbols present.

Wok pan

Illustration of a stainless steel cooking pot with lid and two side handles (no text or symbols)

Burner Minimum pan diameter	Maximum pan diameter
Double or triple flame burner	22 cm
Rapid burner 22 cm 26 cm
Semi-rapid burner	14 cm 20 cm
Auxiliary burner 12 cm 16 cm

A wok is a cooking vessel originating in China; it is a kind of deep, round, lightweight pan with handles and a flat or concave base.

Food can be prepared in various ways in a wok: it can be stewed, stir fried, cooked on a low heat, pan-fried or steamed. It could be said that woks serve as both as a saucepan and a frying pan and, owing to their shape and size, they can be used to cook quite large ingredients.

When cooking with a wok, heat is diffused more uniformly and gently; the intense heat which accumulates means that food takes less time to cook and also requires less oil, making it one of the quickest and healthiest ways of cooking.

Always follow the manufacturer's instructions when cooking with a wok pan.

Accessories

Additional wok pan support

Illustration of a frying pan on a gas stove with cooling arrows (no text or symbols)

Additional coffee maker support

Simmer Plate

Illustration of a cooking pot and a pot on a stove (no text or symbols)

Depending on the model, the hob may include the following accessories. These are also available from the Technical Assistance Service.

Additional wok pan support: to be used exclusively on double and triple-flame burners with concave-based pans.

Using these pans may cause some temporary deformation of the grease splash tray. This is normal and does not affect the operation of the appliance.

Cast iron pan support (4/5 kW): code Z2480X0.

Cast iron pan support (3.3 kW): code Z2472X0.

Only for use on the auxiliary burner with pans which are no more than 12 cm in diameter.

Code Z2402X0.

This accessory has been designed to reduce the level of heat at the lowest power setting.

Place the accessory directly on the pan support with the cones facing upwards, never directly over the burner.

Centre the pan over the accessory.

Code Z2480X0.

The manufacturer accepts no liability if these accessories are not used or are used incorrectly.

Cooking recommendations

Burner Very high,	high Medium Low
Double or triple flame burner	Boiling, steaming, griddling, toasting, paellas, Asian food (wok).	Reheating and keeping things hot: cooked and pre-cooked dishes.
Rapid burner Escalopes, steaks, omelettes, frying.		Rice, white sauce and ragout.	Steaming: fish, vegetables.
Semi-rapid burner	Steamed potatoes, fresh vegetables, stews, pasta.	Reheating and keeping things hot: pre-cooked dishes and delicate casseroles.
Auxiliary burner Cooking: casseroles, rice pudding and caramels.		Defrosting and slow cooking: vegetables, fruits and frozen products.	Melting: butter, chocolate, gelatine.

Precautions for use

The following advice is intended to help you save energy and prevent pan damage:

Two diagrams showing a cooking pot and a windmill on their respective pots, with no text or symbols present.

Use pans which are the right size for each burner.

Do not use small pans on large burners. The flame should not touch the sides of the pan.

Two identical illustrations of a cooking pot on a stove, one with a lid and the other with a crossed-out pan (no text or symbols)

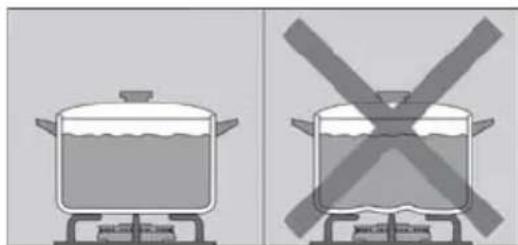

Do not use damaged pans, which do not sit evenly on the hob. Pans may tip over.

Only use pans with a thick, flat base.

Two-panel illustration: left shows a cooking pot on a stove with water, right shows a cooking pot with steam rising and crossed out by a crossed-out box (no text or symbols)

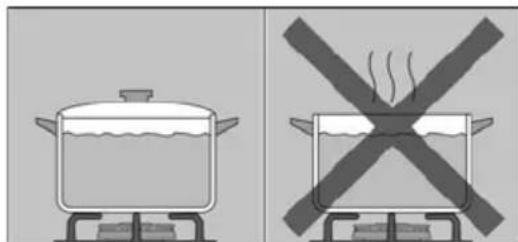

Do not cook without using a lid and make sure the lid is properly fitted to avoid wasting energy.

Two identical illustrations of cooking pots: one with a lid, the other with a crossed-out basket (no text or symbols)

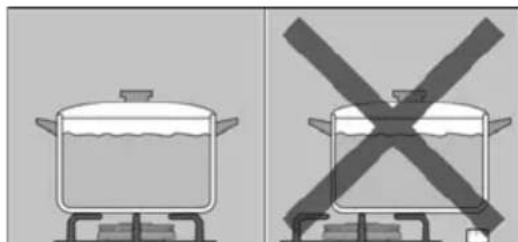

Always place the pan right over the burner, not to one side. Otherwise it could tip over.

Do not place large pans on the burners near the control knobs. These may be damaged by the very high temperatures.

Two-panel illustration showing a cooking pot and a crossed-out watermill (no text or symbols)

Place the pans on the pan supports, never directly on the burner.

Pans should be placed on the hob carefully.

Warning symbol with crossed-out triangle and downward arrows, no text or symbols present

Do not strike the hob and do not place excessive weight on it.

Make sure that the pan supports and burner covers are correctly positioned before using the appliance

Cleaning and maintenance

Cleaning

Diagram showing a hand holding a textured object above a base with downward arrows indicating force or movement (no text or symbols)

Once the appliance is cool, use a sponge to clean it with soap and water.

After each use, clean the surface of the respective burner parts once they have cooled down. If any residue is left (baked-on food, drops of grease etc.), however little, it will become stuck to the surface and more difficult to remove later. The holes and grooves must be clean for the flame to ignite properly.

The movement of some pans may leave metal residue on the pan supports.

Clean the burners and pan supports using soapy water and scrub with a non-wire brush.

If the pan supports are fitted with rubber rests, ensure that these are also cleaned. The rests may come loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely. Water droplets or damp patches on the hob at the start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the burner covers are correctly placed on the diffuser.

Unsuitable products

Do not use steam cleaners. This could damage the hob.

If your hob is fitted with a glass or aluminium panel, never use a knife, scraper or similar to clean the point where it joins the metal.

Maintenance

Diagram showing a crossed-out device with downward arrows indicating force or damage (no text or symbols present)

Always clean off any liquid as soon as it is spilt: you will save yourself any unnecessary effort.

Do not leave acidic liquids (e.g. lemon juice, vinegar, etc.) on the hob.

Where possible, do not allow salt to come into contact with the surface of the electric hob.

The ring cover of the double or triple flame burner and stainless steel parts such as hotplate rings, top sheet and the area around the burners may become discoloured over time. This is normal because of the high temperatures. Each time the appliance is used these parts should be cleaned with a product that is suitable for stainless steel.

The stainless steel cleaner must not be used in the area around the controls. The (printed) symbols may be wiped off.

Faults

Sometimes certain faults detected can be easily resolved. Before calling the Technical Assistance Service, bear in mind the following advice:

Fault Possible cause Solution
The residual heat indicator lights are on when the hob is connected for the first time or when it is switched on after a power failure.	This is correct operation. The indicator lights should remain on for 30 mins.	Wait 30 mins and the lights will switch off automatically.
The general electrical system is malfunctioning.	Defective fuse.The automatic safety switch or circuit breaker has tripped.	Check the fuse in the main fuse box and change it if it is damaged.Check the main control panel to see if the automatic safety switch or circuit breaker has tripped.
The automatic on function does not work and the indicator light for the activated burner is flashing.	There may be food or cleaning products stuck between the ignition sparkers and the burners.The burners are wet.The burner covers are not correctly positioned.The appliance is not earthed, is not correctly connected or the earth wire is faulty.	The space between the ignition sparker and the burner must be clean.Dry the burner covers carefully.Check that the covers are correctly positioned.Contact the electrical installer.
The burner is lit but the automatic on function continues working.	The burner covers are not correctly positioned.	Check that the covers are correctly positioned.
The burner flame is not uniform.	The burner components are not correctly positioned.The grooves on the burner are dirty.	Ensure the components are correctly positioned.Clean the grooves on the diffuser.
The flow of gas does not appear normal or no gas comes out.	The gas supply is blocked via intermediary valves.If the gas is supplied from a gas cylinder, check that this is not empty.	Open all intermediary valves.Change the gas cylinder.
The kitchen smells of gas.	A gas tap has been left on.There may be a leak in the gas cylinder coupling.	Turn off the gas taps.Check that the coupling is sound.
The safety valves on one of the burners are not working.	The control knob was not held down for long enough.The grooves on the diffuser are dirty.	Once the burner is lit, hold the control knob down a few seconds longer. Clean the grooves on the diffuser.

Technical Assistance Service

When contacting our Technical Assistance Service, please provide the product number (E-No.) and production number (FD) of the appliance. This information is given on the specifications plate located on the lower section of the hob and on the label in the user manual.

Warranty conditions

The applicable warranty conditions are those set out by the company's representative office in the country of purchase. Detailed information is available from retail outlets. Proof of purchase must be presented to obtain the benefits of the warranty.

We reserve the right to introduce changes.

Used appliances and packaging

If the ⚙ symbol is shown on the specifications plate, bear in mind the following instructions.

Environmentally-friendly waste management

Unpack the appliance and dispose of the packaging by environmentally-friendly means.

This appliance complies with European directive 2002/96/CE on electrical and electronic equipment identified as WEEE (waste electrical and electronic equipment).

Inhalt

Abstract grayscale circular shape with gradient shading, no text or symbols present

Abb. 2

Abb. 3

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Diagram of a celestial body with orbital paths and marked points (no text or labels)

Two diagrams showing a circular object with internal structure and a spherical object with angular measurement (no text or symbols)

Diagram showing a circular structure with internal components and a separate circular diagram with arrows indicating direction (no text or symbols)

Two technical diagrams showing a mechanical component and its circular cross-section with labeled points (no text or symbols present)

Two technical diagrams showing a circular component with internal features and a spherical object with internal lines, both without any text or symbols.

Warnhinweise

Illustration of a cooking pan with three pots and a frying pan (no text or symbols)

Illustration of a stainless steel wok with lid and side handles (no text or symbols)

Illustration of a frying pan on a gas stove with arrows indicating heating process (no text or symbols)

Illustration of a cooking pot and a dish (no text or symbols)

Two diagrams showing a cooking pot and a windmill on their respective pots, with no text or symbols present.

Two identical illustrations of a cooking pot on a stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration: left shows a cooking pot on a stove with water, right shows a cooking pot with steam rising and crossed out by a crossed-out box (no text or symbols)

Two identical illustrations of cooking pots: one with a lid, the other with a crossed-out basket (no text or symbols)

Two-panel illustration showing a cooking pot and a crossed-out watermill (no text or symbols)

Warning symbol with crossed-out triangle and downward arrows, no text or symbols present

Diagram showing a hand pressing down on a device with downward arrows indicating motion (no text or symbols)

Diagram showing a crossed-out device with downward arrows indicating force or damage (no text or symbols present)

Service Technique 46

Conditions de garantie 46

Abstract grayscale circular shape with internal vertical division, no text or symbols present

Fig. 2

Fig. 3

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Allumage manuel

Diagram of a celestial body with orbital paths and marked points (no text or labels)

3D rendering of a mechanical gear assembly with concentric rings and central bore (no text or symbols)

3D rendered mechanical component with concentric rings and a base plate (no text or symbols)

3D rendered mechanical component with concentric rings and a central slot (no text or symbols)

3D rendered mechanical component with concentric rings and central slots (no text or symbols)

Avertissements

Illustration of a cooking pan with three pots and a frying pan (no text or symbols)

Illustration of a stainless steel wok with lid and side handles (no text or symbols)

Illustration of a frying pan on a gas stove with cooling arrows (no text or symbols)

Illustration of a cooking pot and a dish on a stove (no text or symbols)

Two diagrams showing a cooking pot and a windmill on their respective pots, with no text or symbols present.

Two identical illustrations of a cooking pot on a stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration: left shows a cooking pot on a stove with water, right shows a cooking pot with steam rising and crossed out by a crossed-out box (no text or symbols)

Two identical illustrations of cooking pots: one with a lid, the other with a crossed-out basket (no text or symbols)

Two-panel illustration showing a cooking pot and a crossed-out watermill (no text or symbols)

Warning symbol with crossed-out arrow and downward arrows, no text or symbols present

Two-panel diagram showing a kitchen sink with a triangular object and a close-up of a food item being processed into a container (no text or symbols)

Diagram showing a crossed-out device with downward arrows indicating force or damage (no text or symbols present)

Recipiente adeguati 55

Accessori 56

Griglia supplementare wok. Recipiente wok. . 56

Abstract grayscale circular shape with internal dark bands, no text or symbols visible

Fig. 2

Fig. 3

Exploded view diagram of a mechanical assembly showing internal components (no text or labels)

Diagram of a celestial body with orbital paths and marked points (no text or labels)

Two abstract diagrams: one showing a circular structure with repeating patterns, the other depicting a spherical object with internal lines and angles (no text or symbols)

Two grayscale diagrams showing a circular object with internal patterns and a spherical object with internal structure, both without any text or symbols.

Two technical diagrams showing a mechanical component and its circular cross-section with internal features (no text or symbols)

Two technical diagrams showing a layered mechanical component and its corresponding circular cross-section with labeled points (no text or symbols present)

Avvertenze

Illustration of a cooking pan with three pots and a frying pan (no text or symbols)

Illustration of a stainless steel wok with lid and side handles (no text or symbols)

Illustration of a frying pan on a gas stove with cooling arrows indicating heating (no text or symbols)

Illustration of a cooking pot and a dish on a stove (no text or symbols)

Two diagrams showing a cooking pot and a windmill on their respective pots, with no text or symbols present.

Two identical illustrations of a cooking pot on a stove, one with a lid and the other with a crossed-out pan (no text or symbols)

Two-panel illustration: left shows a cooking pot on a stove with water, right shows a cooking pot with steam rising and crossed out by a crossed-out box (no text or symbols)

Two identical illustrations of cooking pots: one with a lid, the other with a crossed-out basket (no text or symbols)

Two-panel illustration showing a cooking pot and a crossed-out watermill (no text or symbols)

Warning symbol with crossed-out arrow and downward arrows, no text or symbols present

Two-panel diagram showing a kitchen sink with a triangular object and a close-up of a food item being placed on a surface, with arrows indicating downward motion (no text or symbols)

Diagram showing a crossed-out device with downward arrows indicating force or damage (no text or symbols present)
