Product type	Front-loading washing machine
Brand	Saivod
Model	Top Line 803
Washing capacity	8 kg
Maximum spin speed	1200 rpm
Energy class	A+++
Annual water consumption	10,500 L/year
Annual energy consumption	150 kWh/year
Noise level (wash/spin)	52 dB / 76 dB
Dimensions (H x W x D)	85 x 60 x 60 cm
Net weight	70 kg
Power supply	230 V / 50 Hz
Rated power	2200 W
Installation type	Freestanding
Wash programs	Cotton, synthetics, delicates, wool, quick 30 min, prewash, rinse, spin
Special functions	Delayed start, stop with water in drum, cold wash, child lock
Maintenance and cleaning	Drum cleaning, lint filter, removable detergent drawer
Safety	Leak protection, door locked during cycle, imbalance protection
Spare parts and repairability	Door gasket, drain pump, electronic board, belt
Manual content	Installation, use, programs, maintenance, troubleshooting, warranty

Frequently Asked Questions - Top Line 803 Saivod

How to clean the drain pump filter?

To clean the pump filter, unplug the appliance, open the lower panel, unscrew the filter and remove residues. Reinstall the filter correctly before restarting.

What to do if error code E01 appears?

Code E01 indicates a door lock problem. Check that the door is properly closed, clean the contacts or contact customer service.

How to install the washing machine correctly?

Remove the transit bolts at the back, place the appliance on a flat and hard surface, adjust the feet to level it, connect the water inlet and drain hoses, then plug in.

What is the maximum washing capacity?

The maximum capacity is 8 kg for the cotton program. Do not exceed this load to avoid premature wear and ensure effective washing.

How to reduce energy consumption?

Use eco programs at low temperature (30-40°C), wash with full load, clean the filter regularly, and use the delayed start function to take advantage of off-peak hours.

The washing machine makes an abnormal noise during spinning, what to do?

Check that the appliance is level by adjusting the feet. Make sure there are no foreign objects in the drum or filter. A dull noise may indicate a bearing problem.

How to activate child lock?

Press and hold the Delayed start button for 3 seconds. A padlock symbol appears on the screen. To deactivate, repeat the operation.

What type of detergent to use?

Use a detergent suitable for front-loading machines. Avoid overly foaming detergents. Follow the dosages indicated on the packaging according to water hardness and load.

How to perform drum cleaning?

Run an empty Drum cleaning program with a descaling product or white vinegar. You can also use the cotton cycle at 90°C without laundry.

What to do if the washing machine does not drain?

Check that the drain hose is not kinked or blocked. Clean the pump filter and the siphon. If the problem persists, the drain pump may be defective.

USER MANUAL Top Line 803 Saivod

- Instructions for use

GB

- Mode d'emploi

FR

Thank you for choosing our product.

Please read these instructions carefully before connecting and using the machine. An awareness of how the machine operates will help guarantee its correct and safe use. The instructions also contain some useful information on the machine's functions that will help you get the most out of its use.

If you decide to sell or give the washing machine to someone else, remember to give the instruction book to the new owner.

INDEX

NOTES AND ADVICE FOR THE USER 6-7 DESCRIPTION OF THE MACHINE 7

INSTALLING THE MACHINE 8-10

• Unpacking and unblocking the machine 8
• Positioning and levelling the machine 9
• Connecting to the water supply system 9
• Connecting to the power supply 10

USING THE WASHING MACHINE 10-12

• Using the machine 10
- Use of detergents 11
• How to eliminate stains 12
• International clothing care symbols 12

MAINTENANCE 13-14

• Cleaning the machine 13
• Cleaning the filter 13
• Troubleshooting 14

MODEL:

PRODUCTION CODE:

DATE OF PURCHASE:

6

NOTES AND USEFUL ADVICE FOR THE USER

* The washing machine has been designed for domestic use only, and as such any other use is regarded as improper and therefore potentially dangerous.
* Any modifications or attempts to alter the equipment in any way may be dangerous for the user and cause damage to the washing machine.
* Due to the weight of the machine, special safety standards must be observed during handling.
* The machine must not be used by unsupervised children.
* Any modifications to the water or electrical system must be carried out by authorised specialists.
When positioning the appliance, make sure that the power supply cable is not bent or squashed and that it is accessible.
* Before operating the machine, remove all packing materials and the locking device used for protection during transport (protection screws). Failure to do this may result in serious damage to the machine and to your home.
If the machine is installed on a carpeted floor, make sure that air is free to circulate between the machine and the floor.

Cartoon illustration of a distressed washing machine with steam rising, being comforted by a person holding a device (no text or symbols present)

Do not plug-in or unplug the machine with wet hands.

Cartoon illustration of a washing machine with a person reacting to its side, no text or symbols present

The power supply socket to which the machine is connected must be earthed and must comply with the safety requirements

Cartoon illustration of a smiling character holding a large '000' sign next to a stopwatch with a clock face (no text or symbols on the character or background)

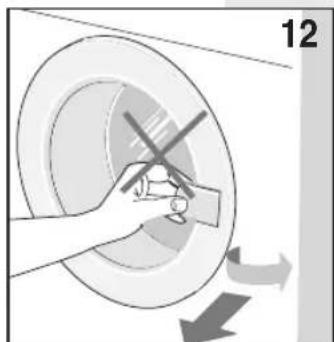

The door can only be opened approximately three minutes after the end of each wash, as a safety device has been fitted to protect from accidental opening.

Cartoon illustration of a smiling washing machine with tools and a close-up of its mouth (no text or symbols)

Unplug the washing machine from the power supply before servicing and cleaning.

* The washing machine must never be overloaded.
* When the machine is in operation, avoid any contact with the water coming out of the drain hose, as this may be hot. Do not touch the door glass as this may also heat up during the wash
* Only wash clothes that are machine washable. In case of doubt, check the manufacturer's instructions found on the label attached to the clothes (see "Clothing cares symbols").
Before loading clothes into the washing machine, check that all the pockets are empty. Hard or pointed objects such as coins, pins, nails, screws or even stones can cause serious damage.
Clothes that have been dirtied with substances containing petroleum cannot be washed in the machine. If stains have been removed using vaporising products, before loading the clothes in the washing machine, wait until the substances have completely evaporated from the material.
* Do not use detergents formulated for hand washing, in that the excessive lather produced could damage the internal components.
* After washing rugs, blankets or any other long

Cartoon illustration of a person washing a washing machine with steam rising (no text or symbols)

Extension leads or multiple adapters must not be used to connect the washing machine to the mains supply.

Cartoon illustration of a person reacting to a large screen with falling water droplets (no text or symbols)

Do not expose the appli- ance to atmospheric agents.

Cartoon illustration of a distressed washing machine with steam rising, while a person is lit by using a power plug (no text or symbols)

To disconnect the machine from the power supply, pull the plug and not the cable.

Cartoon illustration of a smiling character holding a dollar bill, with a faucet and water droplet (no text or symbols)

After the end of each washing cycle it is advisable to unplug the machine and shut-off the water supply.

fibre fabrics, remember to check the filter and, if necessary, clean it.

It is advisable to leave the door open at the end of the wash cycle.
* Under no circumstances should any repairs to the machine be attempted by unqualified persons as this could result in serious damage and will invalidate the guarantee.
* Repairs to the washing machine must only be carried out by persons authorised to do so by the service centres. Only original spare parts may be used for repairs.
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ☒ on the product, or on the docu-

ments accompanying the product, indicates that this appliance may not be treated as household waste.

Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

THE MANUFACTURER WILL NOT BE HELD RESPONSIBLE FOR ANY ACCIDENTS THAT MAY RESULT FROM NON-COMPLIANCE WITH THE REQUIREMENTS OF SAFETY STANDARDS OR THIS INSTRUCTION MANUAL

DESCRIPTION OF THE MACHINE

The washing machine is a household appliance that can wash any type of fabric whenever you want.

The structure of the machine is fabricated in steel sheet, which has been worked using a special process and then enamelled in order to maintain its external appearance and protect it against corrosion.
The motor and all the other moving parts are built to ensure noiseless machine operation.
The large stainless steel drum is well placed to guarantee a good wash quality and prolong the life of the washing.
▼ The easy to use control panel makes the selection of any wash or dry programme quick and simple (see control panel and table of programmes).
▼ The ample glass door makes loading and unloading easier.
The perfect machine balance is the result of many years of research aimed at finding the correct balance between the various moving parts.

A - Glass door
B - Filter
C - Adjustable feet
D - Top cover
E - D r u m
F - Control panel

The machine must be installed by professionally qualified technicians, according to the manufacturer's indications. Incorrect installation may result in damage to persons and property.

The machine can be installed anywhere, provided the temperature in the place of installation is not below 3^irc C and the cables and hoses at the rear of the machine are not crushed in any way.

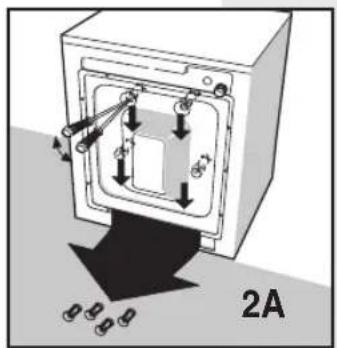

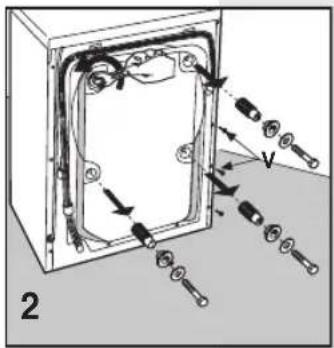

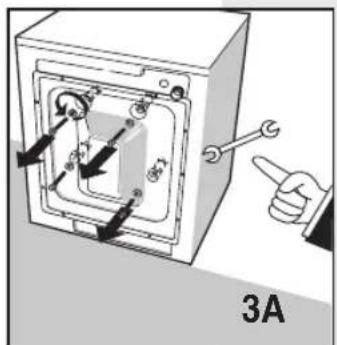

For transport purposes the swinging unit in the machine is blocked using 4 spacers with screws. Before starting the machine these spacers and lock screws must be removed, and stored for use in the event of a possible change of location.

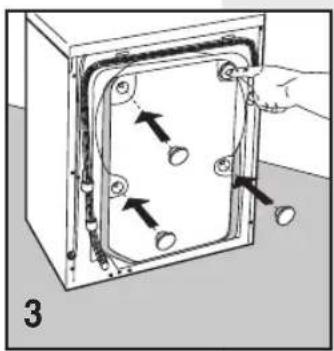

Block off the holes with the plugs provided, which can be found in the bag containing the documents.

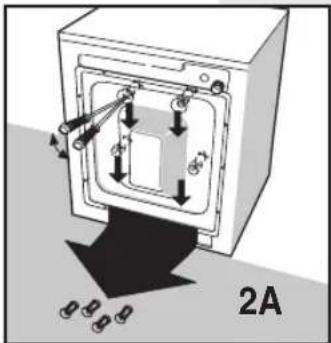

For transport purposes the swinging unit in the machine is blocked using 4 spacers with screws. Before starting the machine these screws must be removed using a screwdriver.

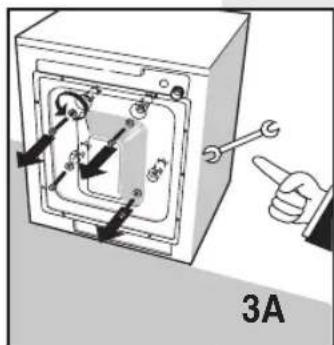

Insert a screwdriver in the holes and proceed as shown in the figure to recover the 4 plastic spacers.

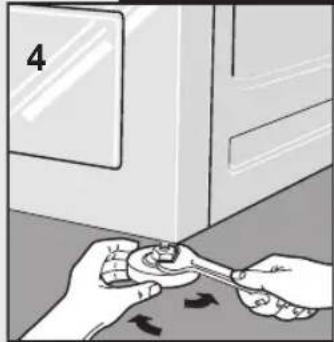

TTING THE MACHINE LEVEL

Illustration of hands using a wrench to adjust or install a component near a door (no text or symbols visible)

After selecting a suitable position, level the machine carefully using the adjustable feet (Fig. 4). Particular care must be taken when selecting the position, levelling the washing machine and ensuring the safety of lock nuts.

If levelling is not carried out correctly, the washing machine will be unstable and noisy during operation, which may result in damage.

If the machine stands on a carpet floor, make sure that air can circulate freely between the washing machine and the floor itself.

It is not recommended that the machine be installed in locations where the temperature is liable to drop below freezing.

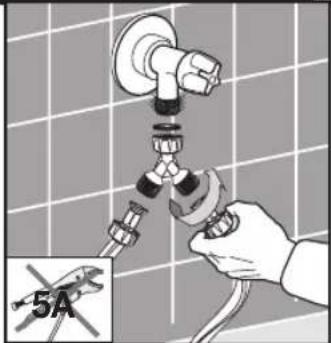

CONNECTION TO THE WATER SUPPLY SYSTEM

Illustration of a hand holding a pipe fitting with a valve, showing a rotating mechanism (no text or symbols)

Illustration of a hand using a tool to connect a pipe fitting into a faucet, with a magnified inset showing the valve labeled '5A' (no text or symbols on the diagram itself)

▼ The mains water pressure must be between 0.05 and 1.00 MPa (0.5 - 10 bar.)
Before connecting the water fill hose, open the valve and allow a quantity of water to flow. This will censure that the supply pipes are free from impurities, such as sand or rust (this operation is very important when the washing machine is being connected to a new supply system or if the system has not been used for a long period of time).
▼ Connect the water fill hose to a 3/4 threaded cold water outlet.

Hand holding a cable with a knob, showing rotational motion (no text or symbols)

N.B. On electronic washing machines fitted with a dual solenoid valve (hot and cold water), connect the red hose to the hot water supply valve and the other hose to the cold water supply valve.

If a hot water supply is not available, both hoses must be connected to the cold supply using the fitting supplied (see fig. 5A)

▼ Place the filter washer supplied between the hose and the valve and hand tighten the connection as much as possible (fig. 5).

N.B.: Use the new pipe supplied with the machine and do not re-use the old one.

▼ Fit the washer on the other end of the supply hose, and screw it onto the washing machine (fig. 6).
▼ The water supply tap must be fully open when washing.
▼ The water drain hose must be placed at least 60 cm and not more than 90 cm from the floor (fig. 7).
▼ If the drain hose is connected to a fixed drainage system, the free end must be inserted in a pipe of minimum internal diameter 40 mm.
▼ The drain hose water connection to the drainage system must not be hermetically sealed, as this would cause air to accumulate and the water to siphon out.
If the waste water is to be discharged into a sink or washbasin, insert the hose in the special bracket supplied and hook it over the edge of the sink or washbasin. Then tie the hose and bracket to a tap or similar (fig. 8). To avoid overflowing, the sink drain must be clear of obstructions and must be able to empty quickly.

Illustration of a bathtub with a hose and faucet, no text or symbols present

CONNECTING TO THE POWER SUPPLY

▼ Check that the voltage indicated on the technical data plate on the back of the washing machine is the same as that of the mains power supply (fig. 9).
▼ The fuses, electric cables and wall socket must be rated to withstand the maximum power load indicated on the data plate.
▼ On completion of the installation, the appliance must be connected to the mains supply through a two-pole switch.

The power supply socket into which the washing machine will be plugged must be earthed. Otherwise, the manufacturer will not be held responsible for any accidents (fig. 10).
▼ If the socket to which the machine will be connected is faulty or does not comply with the requirements, it must be replaced by a qualified electrician.
▼ The washing machine must not be connected to the electricity supply using extension leads or multi-plug adapters.
During maintenance the washing machine must be unplugged from the power supply socket.
▼ Do not plug-in or unplug the machine with wet hands.
▼ If the power cable is damaged in any way, contact the specialised technical service centre.
▼ Position the appliance so that the power supply cable can be accessed with ease, enabling it to be disconnected when required.

USING THE MACHINE

ADVICE BEFORE USING

Attention: Before running the machine loaded for the first time, we recommend that you run a short washing cycle with the machine empty.

This makes it possible to check operation of the machine and clean the drum.

Each time you use the machine:

▼ check that all water connections are tight, the drain hose is positioned correctly (see connection to the water supply) and the supply tap is open.
▼ make sure that your hands are dry, then insert the plug into the power socket.
▼ divide the washing according to fabric type (check the labels on the clothes).
▼ check that the clothes to be washed have nothing in their pockets that might damage the washing, the washing machine or the filter

Illustration of a hand holding a circular object with a cross mark and directional arrows, no text or symbols present.

USE OF DETERGENTS

The washing machine has a three-compartment detergent drawer.

compartment for pre-wash or soak powder detergent (1)

|| compartment for normal wash powder detergent (2)

compartment for fabric softener, perfume, starching (3)

use a low-foam detergent and softener (if necessary), of the type indicated for automatic washing machines. Use the doses recommended on the package.

N.B. Excessive amounts of detergent may result in too much foam, and give a poor quality wash.

Insufficient amounts of detergent may mean that the washing does not come properly clean.

N.B. When filling the detergent compartment it is important that the detergent does not overflow into the compartment used for fabric softener, as this would result in a rinse cycle containing soap, which might leave the washing with white stains. Equally, do not allow the fabric softener to overflow into the detergent compartment, as this would reduce the cleaning capacity.

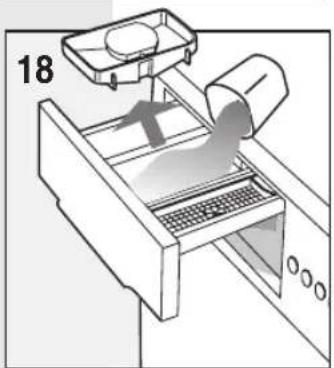

IF THE MODEL HAS A LIQUID DETERGENT COMPARTMENT

N.B. When using liquid detergent (recommended for programs that do not use the pre-wash cycle), insert the special container (if there is one) in centre compartment "2" (as shown opposite), then pour in liquid detergent up to the maximum level indicated.

Remember to remove the liquid detergent compartment when using powder detergent.

▼ close the detergent drawer before starting the wash.

Technical line drawing of a mechanical device with a cylindrical component and a tray, no visible text or symbols

Attention! Never remove the detergent drawer when the machine is running, as water may come out of it.

Diagram of a mechanical device with a handle and internal structure, showing directional arrows (no text or symbols)

HOW TO REMOVE STAINS

Some stains cannot be removed by just washing in a washing machine. Before trying to remove any type of stain by hand, first try the removal procedure on a small area of hidden fabric starting from the edge of the stain and working inwards, this will prevent a dark ring from forming around the site of the stain. A few methods for removing stains are reported below.

• W_AX : scrape the wax using a blunt point in order not to damage the fabric. Then, with the fabric placed between two pieces of absorbent paper, run a hot iron over the stain.
• BALL-POINT PENS AND FELT-TIP PENS: clean using a soft cloth soaked in ethyl alcohol. Take care not to spread the mark.
  ● DAMP AND MOULD: if the fabric supports the use of bleach, perform a wash cycle adding bleach to the appropriate compartment in the dispenser (see table of programmes). Otherwise, soak the soiled part in hydrogen peroxide (10 volumes) and leave for 10 to 15 minutes.
  ● LIGHT SCORCH MARKS CAUSED BY IRONING: follow the instructions for mould and damp.
• Rust: use products specially designed for rust stains, following the manufacturer's instructions written on the packet.
  CHEWING GUM: rub ice over the mark, scrape away as much as possible and then rub with a cotton cloth soaked in acetone (alternatively, use nail varnish remover).

● PAINT: do not allow the paint to dry. Rub the area with the solvent recommended by the paint manufacturer (e.g. water, turps, trichloroethylene), apply soap and then rinse.
● LIPSTICK: stains on cotton or wool can be eliminated using a cloth soaked in ether. Stains on silk require the use of trichloroethylene.
● NAIL VARNISH: place a sheet of absorbent paper on the stained material, then dampen the back of the fabric with acetone, frequently changing the paper placed over the stain. Continue like this until the stain has disappeared.
● TAR OR DIRT: spread some fresh butter over the stain, allow to stand and then wash with oil of turpentine.
● Grass: delicately soap the stain, use diluted bleach. Good results can be obtained on woollen fabrics using 90% alcohol.
● Blood: put into soak in cold water with added salt, then wash with washing soap.

INTERNATIONAL CLOTHING CARE SYMBOLS

Before placing the clothes in the washing machine and selecting the wash programme, examine the symbols on the manufacturer's label. The table reported below will provide a useful guide to reading the symbols.

	Normal wash	Iron at up to max 200°	Dry flat
	Delicate wash	Iron at up to max 150°	Dry hanging
	Wash at max 95°C	Iron at up to max 100°	Dry on hanger
	Wash at max 60°C	Do not iron	Dry in tumble dryer at normal temperature
	Wash at max 40°C	Dry-clean using solvent
	Wash at max 30°C	Dry-clean using benzine, pure alcohol and R113 only	Dry in tumble dryer at low temperature
	Hand wash
	Dry-clean only	Dry-clean using ethyl perchlorate, benzine, pure alcohol, R111 and R113.	Do not tumble-dry
	Bleach in cold water
	Do not bleach	Do not dry-clean

The washing machine has been designed to reduce maintenance to a minimum. However, it is important that you remember to clean it regularly.

Before cleaning, make sure that the appliance has been disconnected from the power supply and that the water supply tap has been turned off.

CLEANING THE WASHING MACHINE

Illustration of hands cleaning a washing machine with a cloth cover (no text or symbols)

The external structure and the parts of the washing machine in plastic must be cleaned with a soft damp cloth only.

WARNING!! Never use chemicals, abrasive products, alcohol, soap, petrol or other solvents to clean the appliance as these may cause damage. (fig.20)

Illustration of a hand cleaning a circular object with a brush (no text or symbols)

After washing, leave the door open for a little while to allow rubber parts to dry.

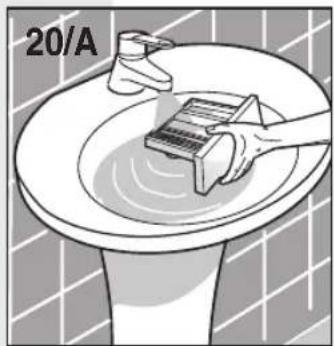

Wash out the detergent compartments from time to time. To do this, extract the detergent compartment and rinse it under running water, (fig. 20/A) then replace it.

Removing the detergent drawer (fig. A or B, according to the model).

Illustration of hands using a tool to cut or install a component, labeled 'A' (no text or symbols on the diagram itself)

- If the softener compartment "3" has the word "PUSH" written on it:

- open the detergent drawer;

- press on the word "PUSH" with the right hand and pull out the drawer with the left hand (fig. A)

Illustration of hands installing or removing a device into a machine (no text or symbols visible)

• If the softener compartment "3" does not have the word "PUSH" written on it:
• open the detergent drawer;
• grasp it with both hands, push down slightly and pull the drawer outwards (fig. B).

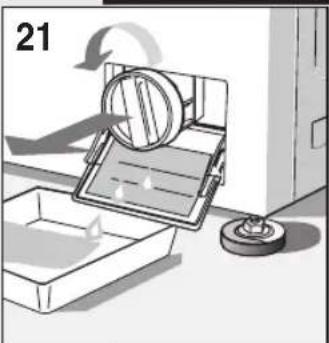

CLEANING THE FILTER

Illustration of a mechanical device with a magnifying glass and rotating arrow, no text or symbols present

ATTENTION!! Before starting the operations described below, make sure that the washing machine is empty. Do not remove the filter while the machine is running, or when full of water.

Place a cloth or flat plate under the filter to collect any water that may still be inside it. Open the filter door, unscrew the filter and remove it, turning in an anticlockwise direction (fig.21).

The filter must be cleaned periodically.

Rinse the filter under running water to eliminate all waste. Replace the filter, screwing in a clockwise direction and making sure it is hermetically sealed.

TROUBLESHOOTING

If the appliance is not working properly, check through the following troubleshooting list before calling for technical assistance.

The washing machine does not work (warning lights are off)

- check that:

1) The mains power supply is working
2) The plug is inserted correctly in the socket
3) The On/Off button is pressed or, if there is no On/Off button, the programmer knob is pulled outwards.

The washing machine does not work (warning lights are off)

- check that:

1) The programmer knob is set to the selected program
2) The glass door is properly closed
3) The "Start" button has been pressed (electronic models only)
4) check the indications provided under "The washing machine does not fill with water"

The washing machine does not fill with water

- check that:

1) There is water in the water supply system
2) The water supply hose is connected to the washing machine
3) The water supply tap is open
4) The filter is not blocked. If it is, clean the filter after unplugging the appliance from the power supply

The washing machine continuously fills and drains the water:

- check that:

1) The drain hose has been installed at the proper height (60-90 cm)
2) The end of the drain hose is not under water

The washing machine does not drain or spin

- check that:

1) The drain hose is properly connected
2) The drain hose is not bent
3) The drainage filter is not blocked
4) The no-spin function has not been selected

The washing machine vibrates and is noisy

- check that:

1) All the blocking elements used for transportation have been removed.
2) the washing machine is level

3) Bulky items such as sheets, tablecloths etc. are not all in one part of the drum

The glass door does not open

1) Wait for 3 minutes after the end of the cycle or, in the case of electronic machines, until the "End" indicator lights up

The washing has not been properly spun

- check that:

1) The washing is evenly distributed in the drum
2) The correct spin speed has been selected

The washing machine stops during the wash

- check that:

1) The mains power supply is working

There is still a lot of detergent in the compartment

- check that:

1) The water supply tap is open
2) The filter between the tap and the supply hose is clean

The washing is not clean at the end of the wash cycle

- check that:

1) The drum is not overloaded
2) The correct amount of detergent has been used
3) The correct programme has been selected

The washing has shrunk or faded

- check that:

1) The correct washing programme has been selected
2) The correct washing temperature has been selected

The washing machine does not dry (washer-dryer models only)

- Make sure that:

1) The water supply tap is open
2) The drainage filter is clean
3) The washing machine is turned on (control light on)
4) The program dial is positioned on one of the stop points with the dryer symbol.
5) The drying time regulator dial is not set to "0"
6) The "Half Load" button is pressed.
7) The "No Spin" button is not pressed

If, after trying the above remedies, the machine still does not work, refer the fault to the nearest authorised service centre.

When calling the service centre, inform them of the machine model, the serial number and the type of fault. The data relating the appliance can be found on the rating plate affixed to the filter door.

This information will allow the technical service staff to select the appropriate spare parts, thus making the repair service quicker and more efficient.

Cher Client,

Cartoon illustration of a distressed paper sheet with steam rising, being hit by a person holding a phone (no text or symbols)

Cartoon illustration of a washing machine with a surprised face and a pointing hand (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by medical equipment (no text or symbols)

Cartoon illustration of a distressed person reacting to falling water droplets (no text or symbols)

Cartoon illustration of a smiling character holding coins next to a stopwatch and dollar bill (no text or symbols)

Cartoon illustration of a smiling washing machine with tools and a close-up of a person holding a wrench (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, next to a plug and a falling electrical socket (no text or symbols)

Cartoon illustration of a person washing hands with a faucet and a magnifying glass (no text or symbols)

NIVELLEMENT DE LA MACHINE À LAVER LE LINGE

Illustration of hands using a wrench to adjust or install a component near a door (no text or symbols visible)

Illustration of a hand holding a pipe fitting with a valve, showing a mechanical assembly and a magnified view of the valve (no text or symbols)

Illustration of a hand connecting a pipe fitting to a faucet, with a magnified inset showing a 5A tool (no text or symbols present)

Hand holding a cable with a knob, showing rotational motion (no text or symbols)

Illustration of a bathtub with a hose and faucet, no text or symbols present

BRANCHEMENT ÉLECTRIQUE

Hand holding a circular object with a cross mark and directional arrows, no visible text or symbols

UTILISATION DES DÉTERGENTS

Technical line drawing of a mechanical device with a cylindrical component and a tray, no visible text or symbols

Diagram of a drawer with an arrow indicating direction, no text or symbols present

COMMENT ÉLIMINER CERTAINES TACHES

Illustration of hands cleaning a washing machine with a cloth cover (no text or symbols)

Illustration of a hand cleaning a circular object with a brush (no text or symbols)

Illustration of hands using a tool to cut or install a component, labeled 'A' (no text or symbols on the diagram itself)

Illustration of hands inserting a device into a drawer (no text or symbols)

Illustration of a mechanical device with a magnifying glass and rotating arrow, no text or symbols present

Cartoon illustration of a distressed paper sheet with steam rising, being hit by a person holding a phone (no text or symbols)

Cartoon illustration of a washing machine with a surprised face and a pointing hand (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising from its side, surrounded by other devices (no text or symbols)

Cartoon illustration of a distressed person reacting to falling water droplets (no text or symbols)

Cartoon illustration of a smiling character holding a magnifying glass, next to a dollar bill and stopwatch (no text or symbols)

Cartoon illustration of a smiling computer with tools and a phone, no text or symbols present

Cartoon illustration of a distressed washing machine with steam rising, next to a person charging plug (no text or symbols)

Cartoon illustration of a smiling character holding a magnifying glass and a water faucet, with no text or symbols present.

Illustration of hands using a wrench to adjust a component on a surface, with no visible text or symbols

Illustration of a hand holding a pipe fitting with a valve, showing a mechanical assembly and a magnified view of the valve (no text or symbols)

Illustration of a hand holding a pipe fitting with a valve, against a grid background (no text or symbols)

Hand holding a cable with a knob, showing a rotation arrow (no text or symbols)

Illustration of a bathtub with a hose and water outlet, no text or symbols present

CONEXIÓN ELÉCTRICA

Hand inserting a plug into an electrical outlet, with a symbol indicating the power source (no text or labels present)

USO DE LA LAVADORA

Illustration of a hand holding a circular object with a cross mark, showing motion arrows (no text or symbols)

USO DE LOS DETERGENTES

Illustration of a mechanical device with a tray and lever mechanism, labeled with number 18 (no text or symbols on the diagram itself)

Diagram of a drawer with an arrow indicating direction, no text or symbols present

COMO ELIMINAR ALGUNAS MANCHAS

Illustration of hands cleaning a washing machine with a cloth cover (no text or symbols)

Illustration of a hand cleaning a circular object with a brush (no text or symbols)

Illustration of hands using a tool to cut or install a component, labeled 'A' (no text or symbols on the diagram itself)

Illustration of hands inserting a device into a drawer (no text or symbols)

Illustration of a mechanical device with a magnifying glass and rotating arrow, no text or symbols present

Cartoon illustration of a distressed machine with steam rising, being struck by a person holding a device (no text or symbols)

Cartoon illustration of a smiling washing machine with a hand holding a wall-mounted device (no text or symbols)

Cartoon illustration of a smiling character holding a large dollar bill and a stopwatch, with no readable text or symbols.

Cartoon illustration of a smiling computer with tools and a person holding a wrench (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by other devices (no text or symbols)

É proibido ligar a máquina de lavar roupa à tomada eléctrica utilizando extensões ou fichas múltiplas.

Cartoon illustration of a distressed person reacting to falling water, with no visible text or symbols

Cartoon illustration of a distressed washing machine with steam rising, next to a person holding a power cord (no text or symbols)

Cartoon illustration of a smiling character holding a large document with a faucet and water droplet (no text or symbols)

COMO COLOCAR A MÁQUINA DE LAVAR ROUPA EM POSIÇÃO PERFEITAMENTE HORIZONTAL

Illustration of hands using a wrench to adjust or install a component, with no visible text or symbols

Illustration of a hand holding a pipe fitting with a valve, showing a mechanical assembly and a close-up view of the valve (no text or symbols)

Hand holding a pipe fitting with a valve, against a grid background (no text or symbols visible)

Hand holding a cable with a knob, showing rotational motion (no text or symbols)

Illustration of a bathtub with a hose and sink, no text or symbols present

LIGAÇÃO ELÉCTRICA

Illustration of a hand holding a circular object with a cross mark and directional arrows, no text or symbols present.

Illustration of a mechanical device with a cylindrical component and a tray, no visible text or symbols

Diagram of a mechanical device with a handle and internal structure, showing directional arrows (no text or symbols)

COMO ELIMINAR CERTAS NÓDOAS

Illustration of hands cleaning a washing machine with a cloth cover (no text or symbols)

Illustration of a hand using a tool to clean or wash material on a circular platform, with no visible text or symbols.

Illustration of hands using a tool to cut or install a component, labeled 'A' (no text or symbols on the diagram itself)

Illustration of hands installing or removing a device into a machine (no text or symbols present)

Illustration of a cleaning machine with a magnifying glass and base, no text or symbols present

Cartoon illustration of a distressed open book character with steam rising, being hit by a person holding a phone (no text or symbols)

Cartoon illustration of a person reacting to a washing machine with a close-up of the screen (no text or symbols)

Cartoon illustration of a distressed refrigerator with steam rising, surrounded by medical equipment (no text or symbols)

Cartoon illustration of a distressed person reacting to falling water, with no visible text or symbols

Cartoon illustration of a smiling character holding a large dollar bill and a stopwatch, with no readable text or symbols.

Cartoon illustration of a smiling washing machine with tools and a close-up of the front panel (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, next to a person holding a power cord (no text or symbols)

Cartoon illustration of a smiling character holding a newspaper with a faucet, no text or symbols present

Illustration of hands using a wrench to adjust a component near a door (no text or symbols visible)

Illustration of a hand holding a pipe fitting with a valve, showing a rotating mechanism (no text or symbols)

Hand holding a cable with a coiled tube, no text or symbols visible

Illustration of a bathtub with a hose and faucet, no text or symbols present

ELEKTROANSCHLUSS

Hand inserting a plug into an electrical socket, with a symbol below (no text or labels)

Illustration of a hand holding a circular object with a cross mark and directional arrows, no text or symbols present.

WASCHMITTEL

Technical line drawing of a mechanical device with a cylindrical component and a tray, no visible text or symbols

Diagram of a mechanical drawer with a slot and handle, showing an arrow indicating direction (no text or symbols)

FLECKENENTFERNUNG

Illustration of a hand cleaning a washing machine with a helicopter (no text or symbols)

Illustration of a hand using a tool to clean or wash material on a circular platform, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands installing or removing a device into a machine (no text or symbols present)

Illustration of a cleaning machine with a magnifying glass and base, no text or symbols present

A Table of programmes

B Buttons

S Machine "on" indicator light

T Thermostat dial **

P Programmer dial

DESCRIPTION OF FUNCTIONS (Available according to the model)

▼ON/OFF KNOB OR BUTTON

To start the machine, pull programmer knob or if the machine has push-button, press the start push-button.

The indicator light will be illuminated.

▼NO-DRAIN BUTTON:

When this button is pushed, the washing machine will stop automatically at the end of the last rinse cycle and before draining the water. In this case, the washing is held in the water-filled drum to prevent creasing. This function only works for the delicate wash cycle.

▼NO-SPIN BUTTON:

Pushing this button the washing machine carries out a normal wash cycle but does not spin.

▼HALF-LOAD BUTTON:

Pressing this button reduces the quantity of water used during the wash, thus saving both water and energy.

Use this function when the quantity of items to wash is equal to half the maximum recommended load (see table "Maximum recommended loads")

EXTRA RINSE BUTTON:

The washing machine has been designed to reduce water consumption to a minimum. Three rinse cycles are normally sufficient. For very soft water zones or for those who are allergic to detergent residues, press this button and the machine will carry out an extra rinse.

▼550/MAX SPIN SPEED BUTTON:

Push the button to vary the speed of the spin-dryer from maximum to minimum (the spin-dryer's maximum speed varies depending on the model). If the machine has a speed adjustment knob, rotate until the desired speed is reached.

Warning: This is only available during intensive wash programmes. For delicates and wool, the spin speed is 550 rpm regardless of the speed setting.

▼ TEMPERATURE LIMIT BUTTON:

Pushing this button will limit the temperature to 60^irc when the temperature dial is set at a higher temperature.

▼ TEMPERATURE CONTROL(according to the model)

Rotate this knob to set the required temperature.

In order to select the correct wash temperature, refer to the "Programme Table". Important: programme changes or the selection of the above functions must always be carried out with the appliance switched off.

The washing cycle:

(By following these instructions, the washing machine will carry out the washing cycle, which has been imposed).

1. Open the door of the machine.
2. Load the laundry into the tub and close the door.

WARNING: It is prohibited to overload the machine. It is advisable to hand wash garments that absorb an enormous amount of water (for example: rugs).

1. Pour the washing powder (which must not produce too much foam) and the fabric softener for automatic washing machines into the respective drawers (see chapter entitled: "Use of Detergent")
2. Close the detergent drawer.

N.B. Do not remove the detergent drawer while the machine is in use, because this may cause the water to flow out).

1. Choose and set the desired washing cycle program and temperature using the relative knobs.

WARNING!! Do not turn the programming knob to the left. If you pass the desired program, continue to turn to the right until you reach the desired position again.

1. Press the pushbuttons that correspond to the selected functions.
2. To start the wash, turn on the machine by pulling out the programming knob or (if present on the washing machine) by pressing the On/Off pushbutton (the indicator light will turn on).

At the end of the washing cycle, the washing machine will stop at one of the STOP points on the programming knob.

1. Turn off the washing machine by pushing the programming knob in or (if present on the washing machine) by pressing the On/Off pushbutton.
2. Take out the laundry
3. With dry hands, unplug the machine
4. Close the water tap.

WASHING PROGRAMMES

Knob (P)*	Knob (T)**	Program-me	Care label symbol	Dispenser compartment	Examples and degree of soiling	Program description	Use of supplementary buttons (Available according to the model)
INTENSIVE PROGRAMS FOR COTTON FABRICS
1	Max	Cotton linen hemp			Sheets, white and solid colour tablecloths, towels, underwear;heavy soil	Prewash, main wash, rinses, softener, empty and final spin	—	As required	As required	As required
2	Max	Cotton linen,resistent mixes			Coloured, underwear, shirts, bath robes, cotton knits, sheets; normal soil	Main wash, rinses, softener, empty and final spin	—	As required	As required	As required
3	60°	Cotton linen hemp			Sheets, white and solid colour tablecloths, towels, underwear; heavy soil	Main wash, rinses, softener, empty and final spin	—	As required	As required	As required
4	40°	Cotton delicate mixes			Coloured, underwear, shirts, bath robes, cotton knits, sheets; normal soil	Main wash, rinses, softener, empty and final spin	—	As required	As required	As required
5	40°	Cotton delicate mixes SHORT			Sheets, white and solid colour tablecloths, towels, underwear; light soil	Main wash, rinses, softener, empty and final spin	—	As required	As required	As required
6INTENSIVE PROGRAMS FOR COTTON FABRICS	Any position	Cotton, linen, hemp and resistant mixes			Fast rinse	Rinses, softener, empty and final spin	—	As required	As required	As required
7	Any posi- tion	Cotton, linen, hemp and resistent mixes	—		Whitener, schented softener	Rinse, softener, empty and final spin	—	As required	As required	—
8	Any posi- tion	Cotton, linen, hemp and resistent mixes	—		Fast spin	Empty and final spin	—	As required	—	—
GENTLE ACTION PROGRAMS FOR SYNTHETICS
9	60°	Resistant mixes			Shirts, sheets, baby wear, nappies; heavy soil	Prewash, main wash, rinses, softener, empty and final spin	Recommended	As required	As required	—
10	60°	Resistant mixes			Shirts, sheets, baby wear, nappies; heavy soil	Main wash, rinses, softener, empty and final spin	Recommended	As required	As required	—
11	—	Fast colours	—		Shirts, sheets, baby wear, nappies; light soil	Main wash, rinses, softener, empty and final spin	—	As required	As required	—
12	—	Delicates synthetics	—		For colored synthetics fabric that are not run-resistant	Main wash, rinses, softener, empty and final spin	—	As required	As required	—
13	—	Mixes, delicate synthetics	—		Gentle rinse	Rinses, softener empty and final spin	—	As required	—	—
AUSILIARY PROGRAMS FOR SYNTHETICS AND WOOL
14	40°	Pure wool		1 2 3	Machine washable wool	Main wash, rinses, softener, empty and final spin	As required	As required	As required	—
15	—	Mixes, delicate synthetics	—		Drain and final short spin	Softener empty and final spin	As required	As required	—	—

Reference program for power classification, in accordance with EN 60456/A 11

INTENSIVE PROGRAMS

GENTLE ACTION PROGRAMS

PROGRAMS FOR WOOL

TECHNICAL DATA

Dimensios:	width cm.:	59.5
	height cm.:	85.0
	depth cm.:	53.0
Maximum recommended washing load:		5 Kg
		2,5 Kg
		1 Kg
Max spin.: (rpm)		800
Total power consumption/ Power supply		see plate with technical feature

Top Line 803 - 1003
