DO7273S - Vacuum Cleaner DOMO - Free user manual and instructions

Product type	Canister vacuum
Brand	DOMO
Model	DO7273S
Power	800 W
Bag capacity	2 L
Weight	5 kg
Dimensions (L x W x H)	40 x 30 x 30 cm
Power cord length	6 m
Operating radius	8 m
Filter type	HEPA
Noise level	75 dB
Supply voltage	220-240 V
Power adjustment	Yes, variable
Overheat protection	Yes, automatic shut-off
Included accessories	Floor nozzle, furniture nozzle, dusting brush
Spare parts available	Replacement bags, HEPA filters
Filter cleaning	Every 3 months
Bag maintenance	Empty or replace when full
Repairability index	7.5 / 10

Frequently Asked Questions - DO7273S DOMO

How do I empty the bag of the DO7273S vacuum cleaner?

Disconnect the appliance from the mains. Open the bag compartment and remove the full bag. Replace it with a new replacement bag (compatible model). Close the compartment.

How do I clean the HEPA filter?

Unplug the vacuum. Remove the filter and tap it gently to remove dust. If very dirty, wash it with cold water and let it dry completely for 24 hours before reinstalling.

Why is the vacuum losing suction power?

Check if the bag is full or the filter is clogged. Make sure the hose is not blocked. Clean or replace components if necessary.

How do I use the included accessories?

To change accessories, unplug the vacuum. Attach the floor nozzle for hard floors, the furniture nozzle for fabrics, and the dusting brush for delicate surfaces.

What should I do if the vacuum overheats and stops?

The appliance is equipped with thermal protection. Turn it off and unplug it. Let it cool down for at least 30 minutes. Check that the bag and filter are not blocked before restarting.

Where can I buy replacement bags for the DO7273S?

You can find compatible replacement bags on the DOMO website or in appliance stores. Check the model reference to ensure compatibility.

How do I maintain the HEPA filter to extend its life?

Clean the filter every 3 months. If you vacuum in a very dusty environment, clean it more often. Replace the filter every 6 to 12 months for optimal performance.

What is the warranty for the DO7273S vacuum?

The standard warranty is 2 years from the date of purchase. Keep your receipt and manual for any claims. Wear parts (bag, filter) are not covered.

How do I adjust the suction power?

Use the power control located on the vacuum body or on the handle depending on the model. Turn the dial to increase or decrease suction according to floor type.

How do I properly store the vacuum?

Unplug the appliance. Wind the power cord around the provided hooks. Store the hose and accessories in the storage compartment or on the holder. Keep the appliance in a dry place away from dust.

USER MANUAL DO7273S DOMO

Purple and gray vacuum cleaner with attached pipe fitting (no visible text or symbols)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

* Enkel in België, Nederland, Luxemburg, Frankrijk en Duitsland.
* Seulement dans la Belgique, le Pays-Bas, le Luxembourg, la France et l'Allemagne.
* Nur in Belgien, die Niederlande, Luxemburg, Frankreich und Deutschland.
* Only in Belgium, the Netherlands, Luxemburg, France and Germany.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

MONTAGE

Close-up of a purple vacuum cleaner with a metallic screw, showing surface texture and mounting points (no text or symbols visible)

Telescopische buis

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a tool and device (no text or symbols)

Accessoires

Close-up of a pink medical device with labeled parts (1 and 2), showing internal components like tubing and connectors (no text or symbols beyond labels)

Two-step diagram showing a mechanical component being inserted into a vertical rod, with an arrow pointing to the component and a numbered step 3 (no text or symbols on the components themselves)

1. Parketborstel

Close-up of a black vacuum cleaner on a wooden surface, labeled with number 4 (no text or symbols on the device itself)

GEBRUIK

Technical line drawing of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

ONDERHOUD

Close-up of a white computer mouse with a black handle and circular head, labeled with number 2 (no text or symbols on the mouse itself)

Close-up of a beige electronic device with a circular component and a labeled section (3), no visible text or symbols on the device itself.

Close-up of a beige electric heater with a mesh grille and three black buttons (no visible text or symbols)

Two electronic devices: a beige and black device with a grid screen and a gray textured base (no visible text or symbols)

PRÉCAUTIONS

Close-up of a purple hairdryer with metal fittings and a threaded handle (no visible text or symbols)

Tube télescopique

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accessoires

Close-up of a pink plastic medical device with labeled parts (no visible text or symbols)

Two-step diagram showing a mechanical component being inserted into a vertical rod, with an arrow pointing to the part and a numbered label (3) in the corner.

4. Brosse de parquet

Close-up of a black vacuum cleaner on a wooden floor, labeled with number 4 (no text or symbols on the device itself)

UTILISATION

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ENTRETIEN

Close-up of a white computer mouse with a black handle and circular head, labeled with number 2 (no text or symbols on the mouse itself)

Close-up of a beige electronic device with a square component and circular housing, labeled with number 3 (no text or symbols on the device itself)

Close-up of a car interior showing a fan installation with a highlighted component (no text or symbols visible)

Close-up of a white electric shaver with mesh grille and two black arrows pointing to its side (no text or symbols visible)

Exterior view of a beige and black electronic device with a grid screen, alongside a small gray mesh component (no text or symbols visible)

Close-up of a purple and maroon hairless machine with a threaded handle (no visible text or symbols)

Teleskoprohr

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a syringe and clamp (no text or symbols)

Zubehör

Close-up of a pink medical device with two labeled parts (1 and 2), showing internal components like tubing and connectors (no text or symbols beyond labels)

Two-step diagram showing a mechanical component being adjusted, with no visible text or symbols.

4. Parkettsaugfuss

Close-up of a black vacuum cleaner on a wooden floor, labeled with number 4 (no text or symbols on the device itself)

BENUTZUNG

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

Close-up of a white computer mouse with a black arrow pointing to the side (no text or symbols visible)

Close-up of a beige square electronic device with a circular hole, mounted on a black tray (no visible text or symbols)

Close-up of a car air vent with a highlighted fan component (no text or symbols visible)

Close-up of a beige electric heater with a mesh grille and control buttons (no visible text or symbols)

Exterior view of a portable electronic device with a grid screen and a small mesh component nearby (no text or symbols visible)

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

WHEN USING AN ELECTRICAL APPLIANCE, SEVERAL BASIC PRECAUTIONS SHOULD BE CONSIDERED. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURIES.

• Do not leave the vacuum cleaner unattended when the plug is still plugged in. Unplug the vacuum cleaner when it is not in use and before carrying out any maintenance or cleaning.
• Do not use the appliance outdoors or on wet surfaces. Keep the appliance away from heat sources.
• Only use the vacuum cleaner as described in this instruction manual.
• Only use accessories that have been recommended by the manufacturer.
• This appliance is not a toy. Strict supervision is necessary when the vacuum cleaner is being used near children.
• Do not use the appliance when the cord or plug has been damaged. If the vacuum cleaner does not seem to function properly or if it has been dropped, damaged, left outside or dropped in water, take your appliance to a service center.
• Do not carry the appliance by the cord, do not use the cord as a handle, do not close a door on the cord or do not wrap the cord around sharp edges or corners. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.
• Do not pull the plug out of the socket by pulling the cord. Always pull the plug itself.
• Do not use the appliance or the plug with wet hands.
• Do not put any objects into the openings of the vacuum cleaner. Do not use the vacuum cleaner when an opening

is blocked. Keep the openings in the appliance free of dust, lint, hair and other objects that may reduce the air flow.

• Immediately switch off the vacuum cleaner when the air supply, the floor brush or the telescopic tube is blocked. Remove the objects that cause the blockage before turning your vacuum cleaner back on.
• Keep hair, loose clothes, fingers and other body parts away from any openings and moving parts.
• Switch off the appliance before removing the plug from the socket.
• Be extra careful when cleaning stairs.
• Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.
• Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.
• Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.
• Unplug the appliance before connecting the hose.
• Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.
• Do not use the vacuum cleaner without dust bag and/or filter.
• Before use, remove all packaging materials and any promotional stickers.

SAVE THESE INSTRUCTIONS

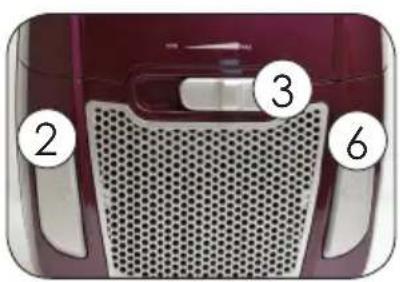

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Slide button to set length of tube
4. Telescopic tube
5. Hose
6. Connection for hose
7. Handle

8. Handle lid dust bag compartment

9. Storage space for 2 accessories

10. Full dust bag indicator
11. Button for automatic cord rewinding
12. Button to set the suction power
13. On/off button
14. HEPA filter underneath grid
15. Dust bag: 41
16. Dust bag frame

ASSEMBLY

Always unplug the vacuum cleaner before (dis)assembling any parts.

Hose

Assembly: Put the hose into the hose connection in the vacuum cleaner. Push the hose in until it clicks into place.

Disassembly: Unplug the vacuum cleaner. Push the ribbed release buttons to pull the hose out of the hose connection.

Close-up of a purple iron (£) with a coiled screw, showing mechanical components (no text or symbols visible)

Telescopic tube

1. Put the handle of the hose into the telescopic tube.
2. Set the telescopic tube to the desired length. To do this, push the slide button forward and pull out the bottom part of the tube to make it longer. Release the slide button and let the tube snap into place.
3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a measuring tool with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

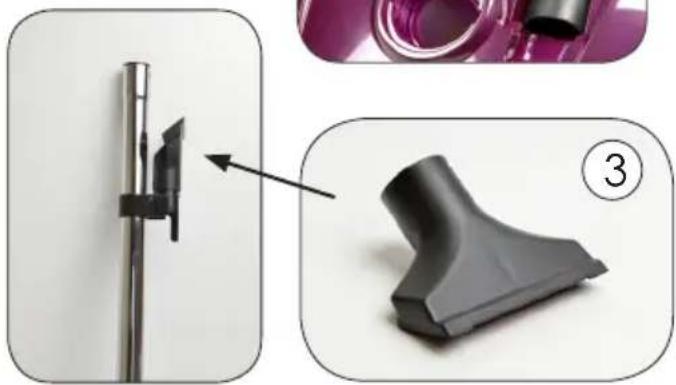

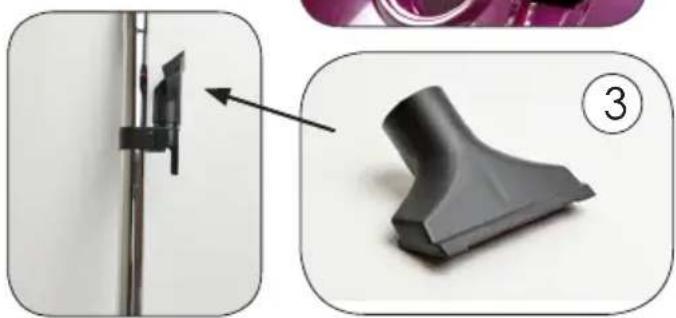

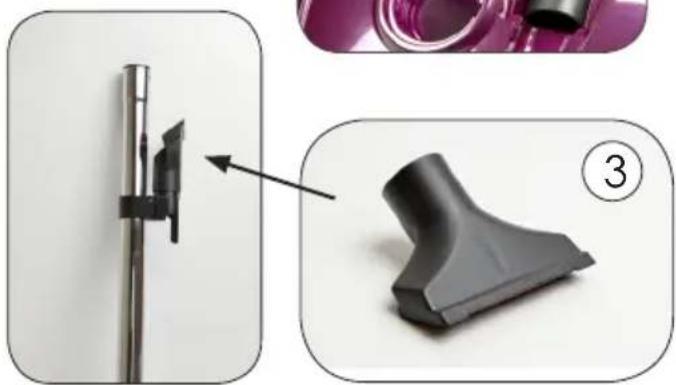

Accessories

The vacuum cleaner comes with 2 accessories that can be stored in the storage space inside the vacuum cleaner itself.

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...
2. Dust brush: for furniture, shelves,...

Extra accessories

1. Small floor nozzle

Close-up of a pink plastic electronic device with internal components and labeled parts (no text or symbols visible)

Two-step diagram showing a mechanical component being inserted into a vertical rod, with an arrow pointing to the part and a numbered label (3) in the corner.

1. Parquet brush

Close-up of a black vacuum cleaner on a wooden floor, labeled with number 4 (no text or symbols on the device itself)

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length (6m) of the cord, that should not be exceeded.
2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐsymbol.
3. To set the suction power, slide the suction power button to the left or right in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.

4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down.

5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted.

6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

Technical line drawing of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

MAINTENANCE

Check the hose, dust bag and filter regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filter when it is dirty.

Disposable dust bags and filters

The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.

To keep the cleaner operating at maximum efficiency, change the dust bag frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

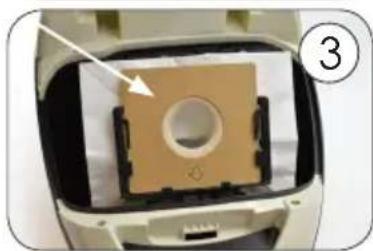

Replacing the dust bag and cleaning the motor filter

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or cleaning the filter. Never vacuum without the dust bag or filter in place.

1. Turn off and unplug the vacuum cleaner.
2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.
3. Slide the dust bag out of the frame and remove the dust

Two-step diagram showing a white vacuum cleaner's internal structure, with numbered annotations (2 and 3) indicating different states or components.

bag from the dust bag compartment.

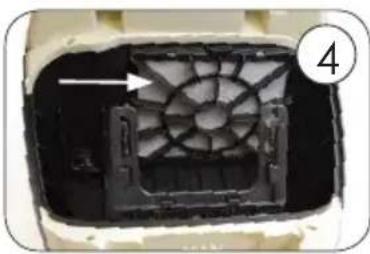

1. If at this point you want to clean the motor filter, take out the filter in its frame by pressing the frame down a bit. Remove the filter from its plastic frame by pulling apart the front and back side of the frame at the top.

Clean the filter by rinsing it under warm water. Let the filter dry completely before reinstalling it. Reinstall the filter before placing the dust bag into the dust bag compartment.

Close-up of a mechanical component with a fan-like structure inside a rectangular opening, no visible text or symbols.

1. Slide a new dust bag (4 l) in the dust bag frame.

2. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Cleaning the air filter or HEPA filter

The exhaust air filter or HEPA filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.

2. Open the grid that covers the filter by lifting up the two clips on the grid, one by one. The filter is visible when the grid is removed.

3. Take out the filter.

4. Rinse the filter under cold water and let it dry completely.

5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.

6. Seal with the grid. Make sure that the grid clicks into place.

Close-up of a white electronic device with a mesh grille and three buttons, no visible text or symbols.

Two electronic devices: a beige and black device with a grid screen and a gray meshed base (no visible text or symbols)

PRECAUCIONES IMPORTANTES

MONTAJE

Close-up of a purple iron shaver with a metal screw and white base (no visible text or symbols)

Tubo telescópico

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Accesorios

Close-up of a pink plastic mechanical device with internal components (no visible text or symbols)

Close-up of a hairdryer tool with a black plastic clip and a gray plastic cover, showing a step to process (no text or symbols visible)

1. Cepillo de parquet

Close-up of a black vacuum cleaner on a wooden floor, labeled with number 4 (no text or symbols on the device itself)

Uso

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

MANTENIMIENTO

Close-up of a white computer mouse with a black handle and circular head, labeled with number 2 (no text or symbols on the mouse itself)

Close-up of a beige square electronic device with a circular hole, mounted on a black tray (no visible text or symbols)

Close-up of a black plastic fan component with an arrow pointing to the center, labeled with number 4 (no text or symbols on the fan itself)

Close-up of a beige electronic device with a mesh grille and three black arrows pointing to its side (no visible text or symbols)

Two electronic devices: a beige and black device with a grid screen and a gray grid-patterned base (no visible text or symbols)

DŮLEŽITÉ

Close-up of a purple iron steam iron with a threaded handle (no visible text or symbols)

Line drawing of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with an arrow indicating motion (no text or symbols)

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

Příslušenství

Close-up of a mechanical device with two labeled parts (1 and 2), showing internal components like tubing and connectors (no text or symbols beyond labels)

Close-up of a hairdryer tool with a black handle and arrow indicator, alongside a close-up of the product's tip (no text or symbols)

Close-up of a black vacuum cleaner on a wooden floor, labeled with number 4 (no text or symbols on the device itself)

POUŽITÍ

Technical line drawing of a mechanical component with labeled parts A and B (no text or symbols beyond labels)

ÚDRŽBA

Two views of a portable electronic device with grid and control buttons, shown from top and side (no text or symbols visible)

DOMOWebshop

Stofzakken op? Antikalkcassette nodig?

Out of dust bags? Need an anti-scale cartridge?

You can now also order our accessories and parts in the

Domo Webshop

Webshop Domo

Domo- Webshop

Domo Webshop

Surf naar:

Rendez-vous sur:

Einfach unter:

Surf to:

webshop.domo-elektro.be

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
