DT 325 TV - TV receiver Trevi - Free user manual and instructions

Product type	TV receiver (LED TV)
Brand	Trevi
Model	DT 325 TV
Screen diagonal	32 inches (81 cm)
Resolution	HD Ready (1366 x 768)
Dimensions (W x H x D)	73 x 43 x 7 cm (without stand)
Net weight	5.5 kg
Power supply	220-240 V, 50 Hz
Power consumption	60 W (standby < 0.5 W)
Main functions	HD DTT reception, HDMI, USB, stereo speakers
Connectivity	1 x HDMI, 1 x USB, antenna input, headphone output
Remote control	Included, AAA batteries
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive or liquid products
Safety	Do not expose to moisture, do not open the casing
Spare parts and repairability	Contact Trevi after-sales service. Repairability index: 7.4/10
General information	User manual available online in PDF format

Frequently Asked Questions - DT 325 TV Trevi

How to connect a DTT antenna?

Plug the antenna cable into the ANT IN socket at the back of the TV. Then start the automatic channel search via the menu.

How to set up channels automatically?

Press MENU, go to 'Installation' or 'Settings', then select 'Automatic channel search'. Confirm and wait for the search to finish.

Why is there no picture?

Check that the TV is on, the input source is correct (HDMI, TV) and that the cables are properly connected. If the screen remains black, try unplugging and replugging the device after 1 minute.

How to connect an HDMI device?

Plug the HDMI cable from your device (Blu-ray player, console, etc.) into an HDMI port on the TV. Then select the corresponding HDMI source using the SOURCE button on the remote control.

How to use the USB port?

Insert a USB flash drive into the USB port. The TV automatically detects media files. Use the MEDIA menu to play photos, videos, or music.

How to adjust the volume or sound?

Use the VOL+/- buttons on the remote control or the side panel. To change sound settings (bass, treble), go to MENU > Sound.

The TV does not turn on, what to do?

Check that the power cord is properly plugged in and that the socket works. If the indicator remains off, contact after-sales service.

How to clean the screen?

Use a slightly damp microfiber cloth (no chemicals). Wipe gently without pressing to avoid damaging the screen.

Where to find the full manual?

The manual is available free of charge in PDF format on the notice-facile.com website. You can download it or request a translation.

How to activate standby mode?

Press the POWER button on the remote control or the TV. The indicator turns red. For complete shutdown, unplug the device.

USER MANUAL DT 325 TV Trevi

DT 325 TV

Interfaccia micro-USB 2.0

Dimensioni 31.4 x 22 x 9mm

Thank you for choosing Trevi DT 325 TV Mini DVB-T TV Tuner for Android tablets and smartphones. Please read this manual carefully to learn how to use the device and appreciate its features and usability.

- Our company reserves the right to change the contents of this manual without prior notice.

DEVICE COMPATIBILITY: COMPATIBLE WITH MOST TABLETS AND SMARTPHONES AVAILABLE. SEE UPDATED LIST OF COMPATIBLE DEVICES ON http://www.trevi.it/ENG/home.html

• As The Android operating system is an open source system, it is in continuous development and is used in different devices. Therefore, the words Phone, Mobile Phone, MID or TABLET, Device that may appear on the display, indicate “Device”.
• The settings described in this manual are the default settings of the device.
• TREVI is not responsible for problems in speed and performance caused by third-party software.
• TREVI is not responsible for incompatibility or performance issues caused by changes to the device system settings made by the user.
• TREVI is not responsible for any “virus” or “damage” to the software caused by the user’s internet browsing.
• TREVI declines any liability for the violation of the copyright laws by the user.
• Make sure the product is not damaged, if so please contact the seller.
• Check that you have all the accessories.
• Do not open the device: there are no controls that can be manipulated by the user or spare parts inside. For all operations contact a Trevi Authorized Service Center.
• All trademarks and copyrights are property of their respective owners.

PACKAGE CONTENT:

In the package are included:

• Appliance
• Telescopic antenna
  • 75 Ohm Antenna adapter
• Instruction manual

NOTES ON USE

This is a high-precision electronic device; avoid using it in the following cases:

• Near strong heat sources, such as central heating plants or stoves.
  • In an environment that is too cold or too hot.
  • In very humid places such as bathrooms, swimming pools, etc.
  • In very dusty places.
  • In places with strong magnetic fields.
  • In places subject to strong vibrations.

WARNING

• Do not use the device near flammable or explosive gases. This could cause a malfunction or a fire hazard.
• Keep the device away from children. The device is not a toy. The device is made of small removable parts that, if ingested, can cause suffocation.
• Do not place the machine on unstable or uneven surfaces.
• If any liquid gets into the device, unplug it from the USB port immediately and take it to the nearest TREVI authorised service centre.
• Use only accessories provided in the package, other products may cause overheating, explosion or fire.
• Switch off your device in areas where the device is not permitted, such as airports or hospitals.
• Do not use the device in places where it can affect the normal operation of electronic devices and medical instruments.
• Please do not use this appliance near high-precision electronic devices. RF interference may cause malfunctions of electronic devices (hearing aids, pacemakers and other electronic medical devices) and create other problems.

CAR SAFETY

Refer to the laws and regulations on the use of mobile phones in the car when you are driving on road networks.

• Avoid using your device while driving, as the decreased ability to focus caused by the use of the device is able to significantly increase the risk of road accidents.
• The proper functioning of the device when the vehicle is in motion is not guaranteed.
• RF can affect electronic devices in the vehicle, such as car stereos and safety equipment.
• If the vehicle is equipped with an air bag do not obstruct with portable wireless equipment in order to avoid serious injury caused by a malfunction of the air bag.

CARE AND MAINTENANCE

Use a slightly damp soft cloth for cleaning. Do not use solvents and abrasive substances.

IMPORTANT

This appliance has been carefully built to ensure long-lasting perfect performance. However, should any inconvenience occur, please contact your local authorised TREVI Service Centre.

1. CONNECTING TREVI DT 325 TV TO SMARTPHONES AND TABLETS WARNING: THIS DEVICE IS COMPATIBLE WITH MOST OF TABLETS AND SMARTPHONES. SEE UPDATED LIST OF COMPATIBLE DEVICES ON http://www.trevi.it/ENG/home.html

Make sure your smartphone or tablet is switched off before doing the following:

1. Insert the telescopic antenna into the input and connect the device to your smartphone or tablet.

1. Download the AIR DTV application from Play Store.

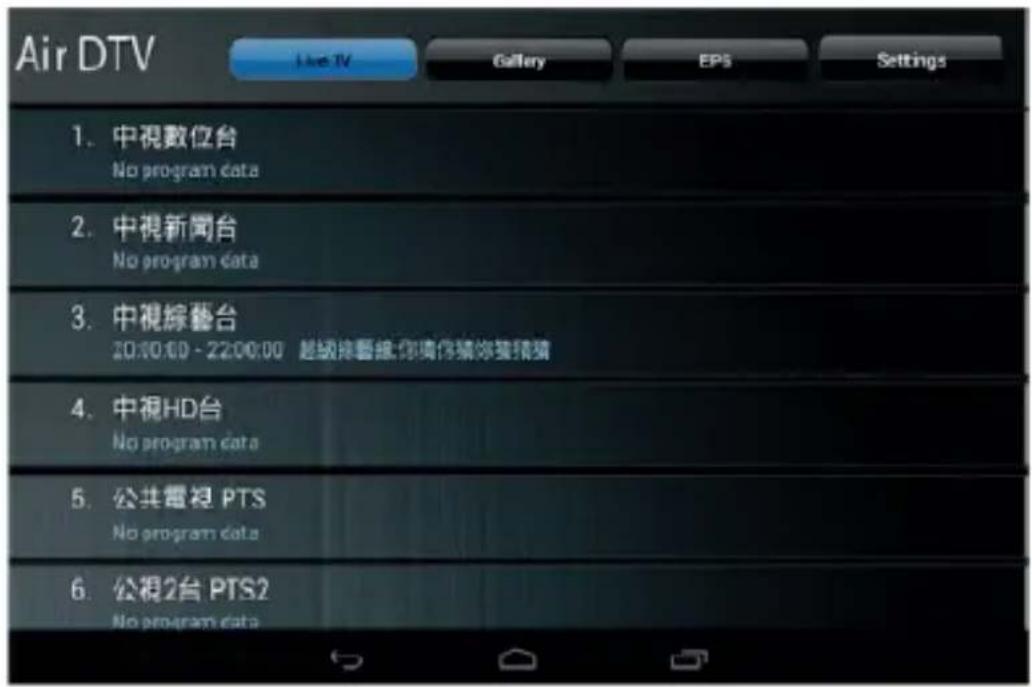

1. Click on the AIR DTV Application and select the "Country" in which you are located and launch a channel search through the "Scan" button.

1. Once the channel search is completed you will be able to view the TV channels.

BACK: Allows you to return to the main screen of the program.

CHANNEL INFORMATION: Displays the name of the channel and program information.

SIGNAL: Indicates the received TV signal level.

CHANNEL LIST: Allows access to the channel list.

SOUND: Allows adjusting the volume.

RECORD: Allows recording programs and save them in the Air DTV Application gallery.

FULL SCREEN: Allows Full Screen view.

CAPTURE: Captures an image from the received transmission.

SETTINGS: Allows adjusting the settings (subtitles and language).

4. TECHNICAL SPECIFICATIONS

Interface micro-USB 2.0

Size 31.4 x 22 x 9mm

TV tuner Input Signal: 75 ohm (VHF / UHF)

Received Frequency: VHF 174\~230MHz

UHF 470\~862MHz

System Requirements: Dual Core Processor or higher, O.S. Android 4.0.3 or higher.

5. TROUBLESHOOTING

This chapter lists some problems that may occur when using the device.

Problem Causes Possible solutions
The device does not turn on	Is not compatible with your smartphone or tablet or does not meet the system requirements.	Check that the device is properly connected to your smartphone or tablet.http://www.trevi.it/ENG/home.html
No signal is received The device was not properly connected to your smartphone or tablet.		Make sure the device is properly connected to your smartphone or tablet.
Still picture The Telescopic Antenna is not inserted correctly		Insert the telescopic antenna in the device correctly

1. PRÉFACE ET AVERTISSEMENTS

Interface micro-USB 2.0

Dimensions 31.4 x 22 x 9mm

Syntoniseur Tv Signal en Input: 75 ohm (VHF / UHF)

Interfaz micro-USB 2.0

Dimensiones 31.4 x 22 x 9mm

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.
