USER MANUAL SELECT CAT & DOG MIELE

Vacuum cleaner operating instructions

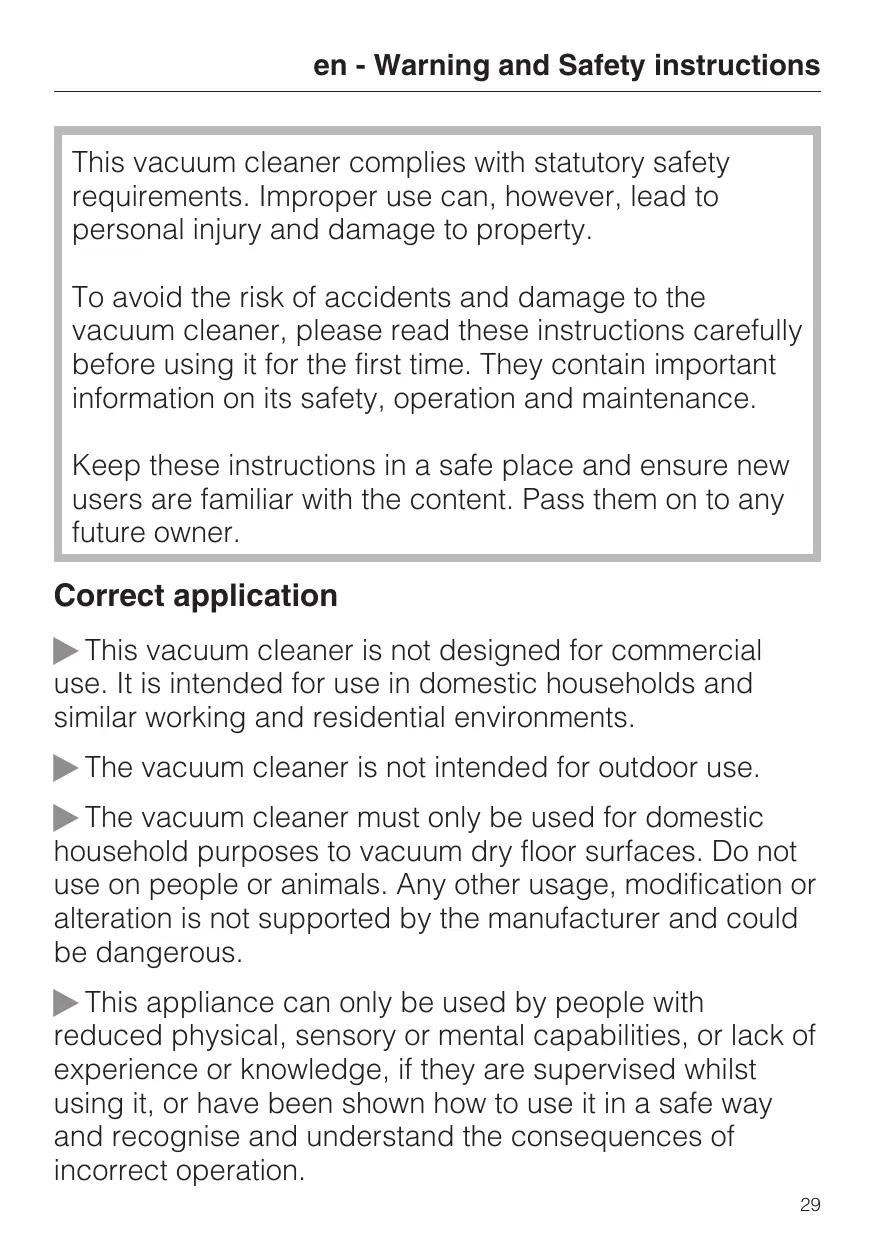

en - Warning and Safety instructions This vacuum cleaner complies with statutory safety requirements. Improper use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the vacuum cleaner, please read these instructions carefully before using it for the first time. They contain important information on its safety, operation and maintenance. Keep these instructions in a safe place and ensure new users are familiar with the content. Pass them on to any future owner. Correct application ~ This vacuum cleaner is not designed for commercial use. It is intended for use in domestic households and similar working and residential environments. ~ The vacuum cleaner is not intended for outdoor use. ~ The vacuum cleaner must only be used for domestic household purposes to vacuum dry floor surfaces. Do not use on people or animals. Any other usage, modification or alteration is not supported by the manufacturer and could be dangerous. ~ This appliance can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation.

en - Warning and Safety instructions Safety with children ~ Children under 8 years of age must be kept away from the appliance unless they are constantly supervised. ~ Children 8 years and older may only use the vacuum cleaner unsupervised if they have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation. ~ Children must not be allowed to clean or maintain the appliance unsupervised. ~ Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it. ~ Models with radio controls on the handle: Keep batteries out of the reach of children. Technical safety ~ Before using the vacuum cleaner, check for any visible signs of damage. Do not use a damaged appliance. ~ Ensure that the connection data on the data plate (voltage and frequency) match the mains electricity supply exactly ~ The plug must be fitted with a 13 A fuse (UK). ~ While the vacuum cleaner is under guarantee, repairs should only be undertaken by a Miele authorised service technician. Otherwise the guarantee will be invalidated.

en - Warning and Safety instructions ~ Do not pull or carry the appliance by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it be squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage. A damaged cable, plug or socket is a safety hazard. ~ Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this work must be done by the Miele Service Department or a Miele authorised service technician. ~ The socket on the vacuum cleaner (depending on model) must only be used for the Miele Electrobrush specified for use with this appliance. ~ When vacuuming especially fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming.

en - Warning and Safety instructions ~ Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch the vacuum cleaner off at the wall socket and unplug it. ~ Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply. ~ Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons can cause considerable danger to users. Correct use ~ To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place. ~ If the dustbag is not fitted correctly, the dust compartment cover does not normally close. Do not force it. ~ Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished. ~ Do not vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before attempting to vacuum. ~ Do not vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.

en - Warning and Safety instructions ~ Do not vacuum up any inflammable or combustible matter or gases and do not vacuum in areas where such substances are stored. ~ Floor attachments, accessories and tubes must not be used at head level to avoid the risk of injury, e.g. to eyes and ears. ~ Important information on the handling of batteries (for models with radio controls on the handle): – Do not short circuit or recharge the battery, or throw it into a fire. – Disposing of batteries: Remove the battery from the radio control handle and dispose of it in your recycling bin. Do not dispose of it with the normal household waste. Accessories ~ To avoid the risk of injury when vacuuming with a Miele Electrobrush or Turbobrush, do not touch the rotating roller brush. ~ It is not advisable to vacuum directly with the handle, i.e. without an accessory attached, as the rim could get damaged and you could hurt yourself on sharp edges. ~ Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. This will ensure optimum performance of the appliance throughout its life. Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

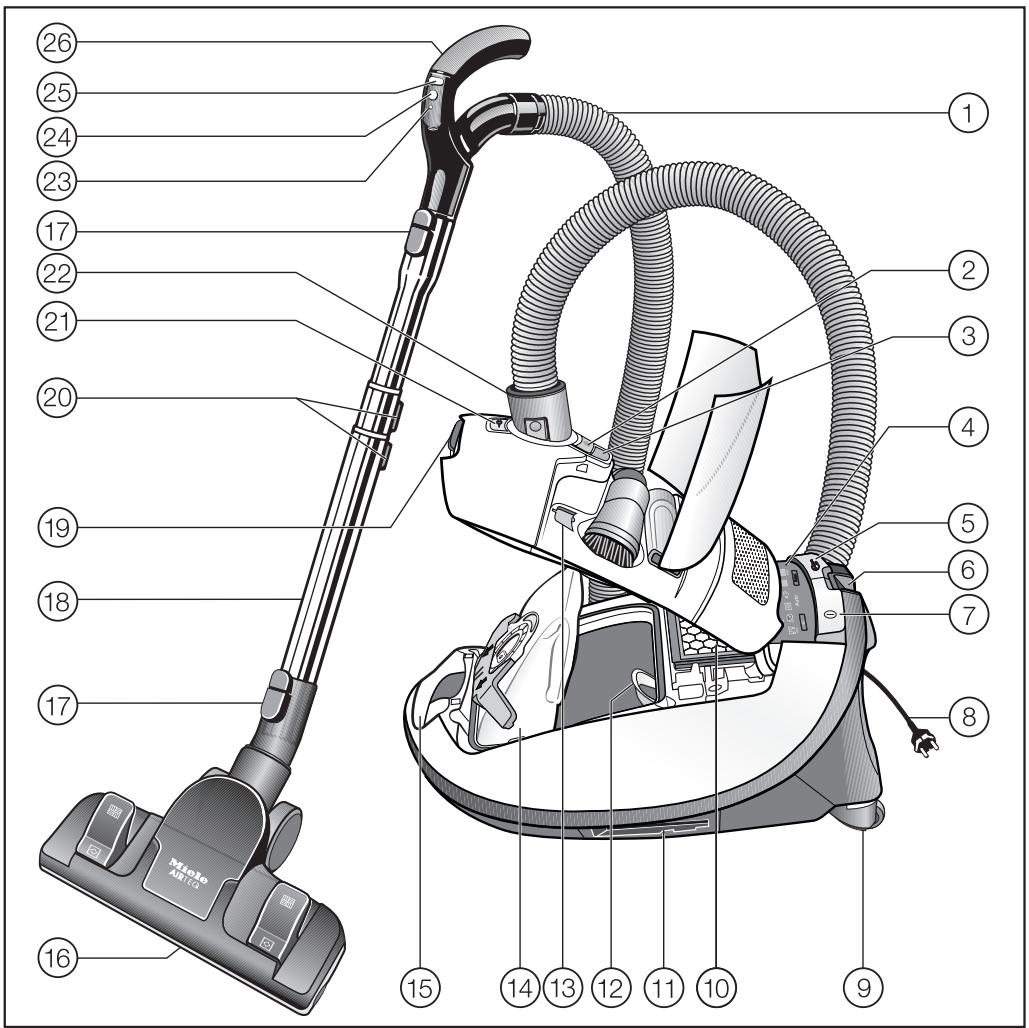

en - Description of the appliance The illustration shows the maximum number of features available on these Miele vacuum cleaners. a Suction hose b Release button for accessories compartment c Dustbag change indicator d Display * e Foot control for automatic cable rewind f Parking system for pauses in vacuuming g On/Off foot control s h Mains cable i Roller wheels * j Exhaust filter * k Parking attachment (on both sides of the vacuum cleaner) l Dust compartment filter (for motor protection) m Electrobrush socket cover holder n Original Miele dustbag o Carrying handle p Floorhead * q Release buttons r Telescopic or triscopic tube * s Dust compartment release catch t Release buttons for the telescopic or triscopic tube * u Socket for Electrobrush * v Connection socket w LED * x Stand-by button for pauses in vacuuming * y Suction power selector + / - * z Handle (some models have an air inlet valve in the handle) * { Overheating warning light § * | Restart button * } Stand-by indicator light * ~ Maintenance indicator with reset button * Those features marked * depend on model, and may vary or not be available on your model.

en - Caring for our environment Disposal of packing material The packaging is designed to protect the vacuum cleaner from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled. Recycling the packaging reduces the use of raw materials in the manufacturing process and also reduces the amount of waste in landfill sites. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation. Disposing of your old appliance Before disposing of your old appliance remove the dustbag and all the filters and dispose of them with your normal household waste. Electrical and electronic appliances often contain valuable materials. They also contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste. Disposing of the dustbag and filters These are made from environmentally friendly materials. The filters can be disposed of with the normal household waste. The dustbag can also be disposed of in this way if it has been used exclusively for general household dust. Please dispose of it at your local community waste collection/recycling centre, or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.

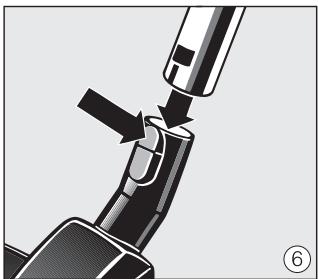

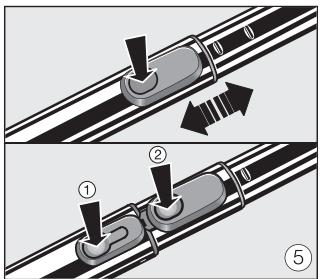

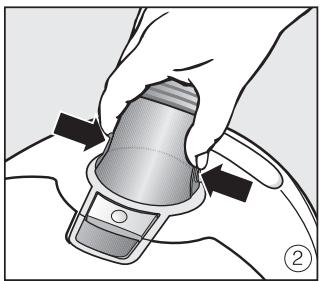

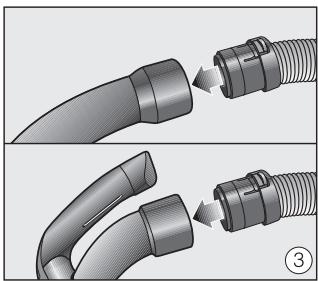

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions. Preparing for use Attaching the suction hose (dia. 1) ^ Insert the hose connector into the socket on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces. Removing the suction hose (dia. 2) ^ Press the release buttons at the side of the hose connector and lift the hose from the socket. Connecting the handle to the suction hose (dia. 3) ^ Insert the suction hose into the handle until it clicks into position. Connecting the handle to the suction tube (dia. 4) ^ Insert the handle into the suction tube until it clicks into position. To do this, line up the guides on the two pieces. ^ To release the handle from the suction tube, press the release button and pull the handle away from the suction tube. Your vacuum cleaner is fitted with one of the following telescopic tubes, depending on the model: Adjusting the telescopic suction tube (dia. 5) One part of the telescopic tube is packed inside the other and can be adjusted to suit your height for comfortable vacuum cleaning. ^ Press the release button to release the tubes and adjust to the required height. Adjusting the triscopic suction tube (dia. 5) The triscopic tube has three sections. Two sections are packed together inside a third outer tube. a Press the release button to release the lower tube and pull it right out until it clicks. Press the button again when you want to retract the tube. The tube will click into place. b Press the release button to release the tubes and adjust to the required height. Fitting the floorhead (dia. 6) ^ Push the suction tube into the floorhead and turn it clockwise or anti-clockwise until it clicks into position. ^ To release the floorhead from the suction tube, press the release button and pull the suction tube away from the floorhead. – Telescopic tube – Triscopic tube

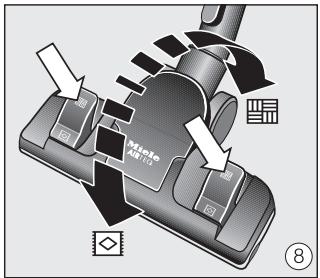

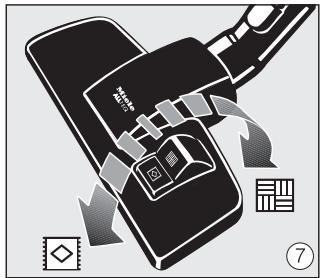

Adjusting the floorhead (dia. 7 + 8) The floorhead can be used for all normal cleaning of carpets and rugs. It can also be used with the brush protruding to vacuum hard flooring. For hard flooring, such as stone and parquet, we recommend using one of the special Miele floor brushes (see "Optional accessories"). It is important to observe the flooring manufacturer's cleaning and care instructions. Vacuum carpets and rugs with the brush retracted: ^ Press the foot control %. Clean hard flooring which is not susceptible to scratching with the brush protruding: ^ Press the foot control ). Clean flooring which has deep crevices or grooves with the brush protruding. AirTeQ floorhead (dia. 8) This floorhead has been specially developed to achieve excellent cleaning results using low energy. It has particularly low power consumption and high suction capability. ,Warning: If the suction power of the AirTeQ floorhead seems too high, reduce the suction until the floorhead is easier to manouevre (see "Use - regulating the suction").

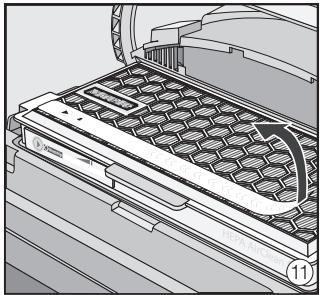

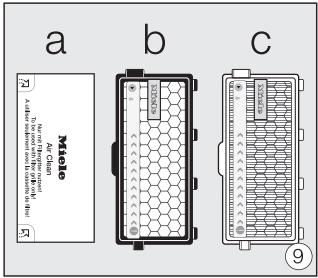

Activating the exhaust filter change indicator Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 9): a Air Clean b ActiveAirClean 50 (black) c HEPA AirClean 50 (white) If your vacuum cleaner is fitted with filter b or c, the exhaust filter change indicator needs to be activated. ^ Lift the release catch for the dust compartment lid and raise the lid as far as it will go (dia.10). ^ Remove the label (dia.11). ^ Press the exhaust filter change indicator ~ (dia. 12). ^ After approx. 10 - 15 seconds a thin red stripe will appear in the left hand side of the strip (dia. 13). ^ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so. The exhaust filter change indicator The exhaust filter change indicator shows the remaining functional life of the exhaust filter. After approx. 50 operating hours, or approx. one year of average use, the strip will be completely red (dia. 14).

Using the accessories supplied (dia. 15) The following accessories are supplied: a Crevice nozzle For cleaning in folds, crevices or corners. b Dusting brush with natural bristles (only available in selected countries) For cleaning skirting boards, ornate or carved objects. The head can be swivelled to adjust the angle. c Upholstery nozzle For cleaning upholstery, mattresses, cushions, curtains, covers etc. Certain models are supplied as standard with the following accessories which are not illustrated on this page. – Electrobrush – Turbobrush – Classic Allergotec floorhead Floorhead (dia. 17) For general use and also for vacuuming stairs. ,For safety reasons when vacuuming stairs it is best to start at the bottom of the stairs and move upwards. Use Unwinding the cable (dia. 18) ^ Pull the mains cable out to the required length (max. approx. 7.5 m). ^ Insert the plug in the socket correctly and switch on. ,If vacuuming for longer than 30 minutes, the mains cable must be pulled out to its fullest extent. Otherwise there is a danger of overheating and damage. These floorheads and brushes are supplied with their own operating instructions. Rewinding the cable (dia. 19) Removing the accessories (dia. 16) ^ Press the rewind foot switch briefly. The cable will rewind automatically. ^ Press the release button to open the accessories compartment lid. ^ Switch the vacuum cleaner off at the wall socket and unplug it. Switching on and off (dia. 20) The accessories compartment will then open. ^ Press the On/Off foot control s. ^ Take out the accessory you require. Regulating the suction ^ Press down firmly on the lid to close it. The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to manoeuvre the floorhead.

Some models also have symbols on the controls. The symbols indicate the type of use the settings are suitable for. The setting selected will light up yellow. # - curtains, lightweight fabrics $ - upholstery, cushions % - thick pile carpets, rugs and runners

• - for energy-saving vacuuming (this setting is also very quiet) ( - loop-pile carpets ) - heavily soiled hard flooring and for intensive cleaning of carpets ,When using the AirTeQ floorhead, if the suction seems too high, reduce the suction until the floorhead is easier to manouevre. Depending on the model, your vacuum cleaner will be fitted as standard with one of the following suction power selectors: + /- foot controls (dia. 21) The first time the vacuum cleaner is switched on, the highest power setting will be selected automatically. After that, the vacuum cleaner will switch on at the setting which was used previously. ^ Press the + foot control to select a higher setting. ^ Press the - foot control to select a lower setting.

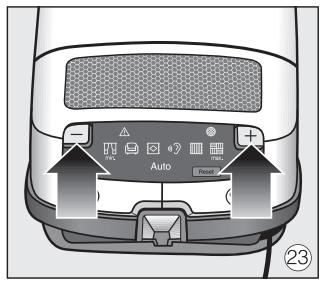

Foot controls with Automatic (dia. 22 + 23) The first time the vacuum cleaner is switched on, the "Auto" power setting will be selected automatically. Auto = suction power is automatically adjusted for the type of floor being vacuumed ,Do not use the "Auto" setting to vacuum lightweight materials or curtains. These could be sucked in and possibly damaged. ^ Press the + control to change to "Turbo", the highest power setting. ^ Press the - foot control to change to "Min.", the lowest power setting. After that, the vacuum cleaner will switch on at the setting which was used previously. Radio-control handle with Automatic (dia. 24) When the vacuum cleaner is switched on with the On/Off foot control s, the Stand-by - indicator on the vacuum cleaner will light up yellow. ^ Press the Stand-by button - on the handle. The Stand-by indicator - on the vacuum cleaner will go out. The first time the vacuum cleaner is switched on, the highest power setting will be selected automatically. After that, the vacuum cleaner will switch on at the setting which was used previously.

^ Press the + button to select a higher suction power level. ^ Press the - button to select a lower suction power level. Auto = suction power is automatically adjusted for the type of floor being vacuumed (dia. 22) ,Do not use the "Auto" setting to vacuum lightweight materials or curtains. These could be sucked in and possibly damaged. Opening the air inlet valve (dia. 25 + 26) (not on models with radio-controls on the handle) It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other objects being sucked into the vacuum cleaner. ^ Open the air inlet valve far enough to reduce the suction power. The floorhead will be easier to manoeuvre. Close the valve when you are ready to use full power again. During vacuuming (dia. 27 + 28) ^ When vacuuming, pull the cleaner behind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc. ,When vacuuming especially fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming. Pauses in use (dia. 24) (for models with radio controls on the handle) To pause the vacuum cleaner during operation: ^ Press the Stand-by button - on the handle. ,The Stand-by button is designed to pause the vacuum cleaner for short periods of time whilst vacuuming. After vacuuming, the vacuum cleaner must be switched off and unplugged from the mains electricity supply. Otherwise there is a danger of overheating and damage. The LED will light up each time a button is pressed on the handle.

At the end of the pause, you can do one of the following: ^ Press the Stand-by button again to switch the vacuum cleaner back on at the setting you were using before pausing it. ^ Press the + button to switch the vacuum cleaner back on using the highest power setting. When the floorhead is removed from the parking system the vacuum cleaner switches back on at the last selected power level (not on models with radio-operated handle). Parking system for storage (dia. 30 + 31) ,Always disconnect the vacuum ^ Press the - button to switch the vacuum cleaner back on using the lowest power setting. cleaner from the electrical supply when you have finished using it. Switch the vacuum cleaner off at the wall socket and unplug it. Setting down, transportation and storage ^ Stand the vacuum cleaner upright when it is not being used and when it is being stored. Parking system for pauses in vacuuming (dia. 29) (cannot be used with the SEB 234 L Electro Premium Electrobrush) A parking system has been designed for conveniently parking the suction tube and floorhead during pauses. ^ Slot the floorhead into the parking attachment at the back of the vacuum cleaner. If the vacuum cleaner is on a sloping surface, e.g. a ramp, retract the telescopic tube fully. Retract the telescopic tube fully. ^ Slot the floorhead downwards into one of the parking attachments on either side of the vacuum cleaner (the parking attachments cannot be used with the SEB 234 L Electro Premium Electrobrush). This makes the vacuum cleaner easier to carry or store. If your vacuum cleaner has an XXL handle, you can detach this so that the vacuum cleaner requires less storage space. Switching on and off with the parking system ^ Detach the XXL handle from the retracted suction tube. Some models are fitted with an On/Off switch in the parking system. ^ Wind the suction hose around the suction tube and then slot the XXL handle into the second parking attachment. The vacuum cleaner switches off automatically when the floor head is slotted into the parking system with the parking attachment.

Maintenance ,Always disconnect the vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it. The Miele filtration system consists of three filters which must be replaced from time to time to ensure that your vacuum cleaner performs efficiently. – Dustbag – Dust compartment filter (for motor protection) – Exhaust filter Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. Only this will ensure that the suction power of the vacuum cleaner is maintained, giving the best possible cleaning results. ,The use of dustbags made from paper or paper-based materials, or dustbags with a cardboard collar, or dustbags that do not carry the "Original Miele" logo, can seriously damage the vacuum cleaner and invalidate the warranty. Purchasing new dustbags and filters Original Miele dustbags and filters can be ordered from your Miele retailer, from Miele or online at: Ordering the correct dustbags and filters Only use original Miele G/N dustbags with a blue collar. Using any other dustbags will damage the vacuum cleaner. Original Miele dustbags are identified by the "Original Miele" logo on the packaging or directly on the dustbag. An Air Clean filter and a dust compartment filter are supplied with every packet of Miele dustbags. These can also be purchased separately. When to change the dustbag (dia. 32) Change the dustbag when the colour marker in the dustbag change indicator fills the display, or sooner if it is no longer effective (see possible reasons for this below).

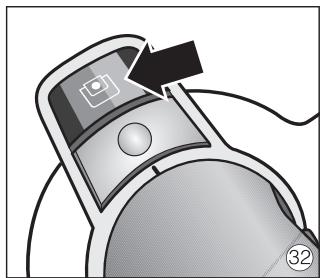

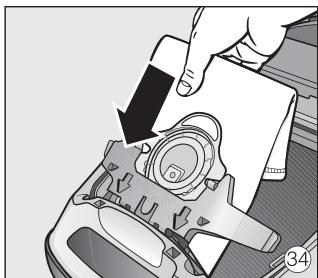

Miele dustbags are disposable and designed for single use only. Dispose of the dustbag when it is full. Do not attempt to reuse as suction would be reduced. Checking the dustbag change indicator ^ Attach the standard floorhead to the suction tube. ^ Switch the vacuum cleaner on and select the maximum power setting. ^ Lift the floorhead off the floor a little. How the dustbag change indicator works The dustbag change indicator is set for normal household dust. This generally contains a mixture of: dust, hair, threads, carpet fluff, grit etc. However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly. This affects the air permeability of the bag, and the marker will indicate that the bag is "full" even when it is not. If this happens you must still change the dustbag because suction power will be greatly reduced by blocked pores in the dustbag. If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur. How to replace the dustbag (dia. 33 + 34) ^ Lift the release catch for the dust compartment lid and raise the lid as far as it will go. The dustbag has a closing flap which closes automatically when the dust compartment lid is raised to prevent any dust escaping. ^ Pull the dustbag out by the grip on the collar. ^ Insert the new dustbag into the blue holder as far as it will go. Leave it folded up when you take it out of the box. ^ It should be unfolded as far as possible in the dust compartment. ^ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so.

Warning: The lid will not close

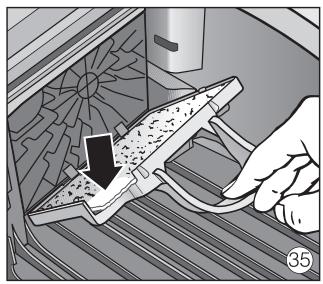

without a dustbag in place. Do not use force. When to change the dust compartment filter (for motor protection) Replace this filter every time you start a new packet of dustbags. A dust compartment filter is supplied with every packet of Miele dustbags. How to change the dust compartment filter (dia. 35) ^ Open the dust compartment lid. ^ Pull the dustbag out by the grip on the collar.

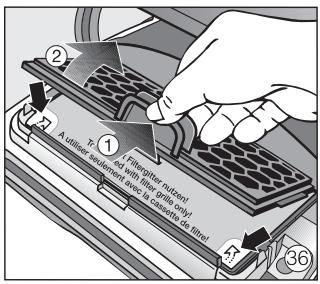

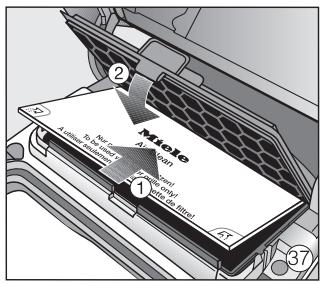

^ Open the blue filter frame and remove the old filter. Hold by the clean, unsoiled section to remove it. ^ Replace with a new dust compartment filter. How to replace the Air Clean filter (dia. 36 + 37) Do not use more than one exhaust filter at a time. ^ Close the filter frame. ^ Open the dust compartment lid. ^ Insert the dustbag into the holder as far as it will go. ^ Press the release catch on the filter grille and open the grille until it clicks. ^ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so. ^ Hold the used Air Clean filter by one of the clean, unsoiled sections. When to change the exhaust filter Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 9): a Air Clean Replace this filter every time you start a new packet of Miele dustbags. An Air Clean exhaust filter is supplied with every packet of Miele dustbags. b ActiveAirClean 50 (black) c HEPA AirClean 50 (white) Replace the exhaust filter if the exhaust change filter indicator is completely red (dia. 14). This occurs after approx. 50 operating hours, or approx. one year of average use. The vacuum cleaner can still be used. However, the suction power will be reduced as will the effectiveness of the filter if it is not replaced in good time. ^ Replace it with a new Air Clean filter. If you wish to replace the Air Clean filter with an ActiveAirClean 50 filter or with an HEPA AirClean 50 filter, see "Replacing one type of exhaust filter with another". ^ Close the filter grille. ^ Close the dust compartment lid. How to replace an ActiveAirClean 50 filter or a HEPA AirClean 50 filter (dia. 38 + 39) Do not use more than one exhaust filter at a time. ^ Open the dust compartment lid. ^ Lift the filter and remove it. ^ Replace with a new filter, and push it down into place. ^ Press the exhaust filter change indicator ~ (dia. 12). ^ After approx. 10 - 15 seconds a thin red stripe will appear in the left hand side of the strip (dia. 13).

If you wish to use an Air Clean filter, see "Replacing one type of exhaust filter with another". Maintenance indicator with reset button (dia. 40) Some models are fitted with a maintenance indicator. a Air Clean The indicator lights up after approx. 50 hours of operation, which is equivalent to about a year of average use. The level of soiling of the dust compartment filter and the exhaust filter must be checked at this point and if the filters are replaced, the indicator must be reset. To do this the vacuum cleaner must be switched on. b ActiveAirClean 50 (black) ^ Press the reset button. c HEPA AirClean 50 (white) The maintenance indicator and reset button will go out and reset to zero. ^ Close the dust compartment lid. Replacing one type of exhaust filter with another Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 9): Please note:

1. If you wish to replace the Air Clean

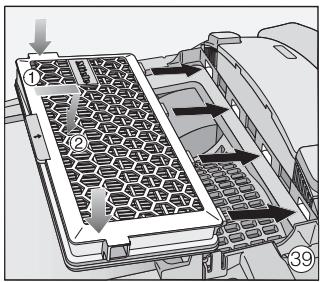

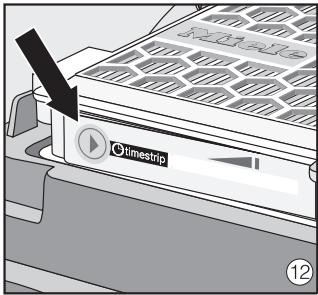

filter a with an ActiveAirClean 50 filter b or an HEPA AirClean 50 filter c, it is essential that you remove the filter grille before fitting the new type of filter (dia. 39). Press the reset button ~ for the exhaust filter change indicator (dia. 12).

2. If you wish to replace the ActiveAirClean 50 filter b or the HEPA AirClean

50 filter c with an Air Clean filter a, then it is essential that you also fit the filter grille *, see dia. 37.

• Filter grille - see "Optional accessories". Do not use more than one exhaust filter at a time. The indicator can only be reset by pressing the reset button after the light has come on. Pressing the button at any other time will have no effect. When to change the battery in the radio-operated handle Approx. every 18 months. One 3 V battery (CR 2032) is required. The vacuum cleaner can still be used when the battery has run out or if there is no battery fitted. ^ Switch the vacuum cleaner on using the On/Off foot control s. The Stand-by indicator - on the vacuum cleaner will light up yellow. ^ Press the restart button on the vacuum cleaner (dia. 41). The vacuum cleaner can continue to be used, but only at maximum power.

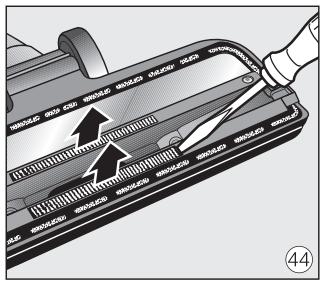

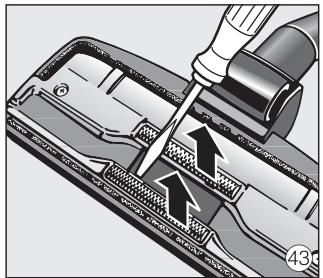

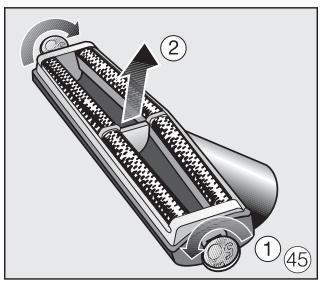

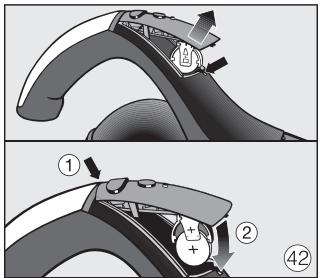

How to change the battery in the radio-operated handle (dia. 42) ^ Open the cover to the battery compartment using a screwdriver. ^ Replace with a new battery, making sure the polarity is correct. ^ Replace the cover. ^ Dispose of the old battery responsibly. When to change the thread lifters The thread lifters on the suction inlet of the floorhead can be replaced. Check them from time to time and replace them if the pile has worn down. How to replace the thread lifters (dia. 43 + 44) ^ Use a suitable screwdriver to remove the thread lifters from the slots. ^ Fit new thread lifters. Upholstery nozzle SPD 10 (dia. 45) ^ Disengage the thread lifter unit at each side of the upholstery nozzle using a coin. ^ Fit a new thread lifter unit and lock into position. Cleaning the roller on the floorhead (dia. 46) (Not necessary for the AirTeQ floorhead) ^ Remove any threads and hair, replace the roller and refit the bearing. Replacement parts are available from your Miele retailer or from Miele (see back cover for contact details). Cleaning and care ,Always disconnect the vacuum cleaner from the electrical supply before cleaning it. Switch off at the wall socket and unplug it. Vacuum cleaner and accessories External surfaces of the vacuum cleaner and of the accessories can be cleaned with a proprietary cleaner suitable for plastic. ,Do not use abrasive cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents. Dust compartment The dust compartment can, if necessary, be cleaned using a dry duster, brush or, if available, a second vacuum cleaner to vacuum the dust out. ,Do not let the vacuum cleaner get wet. If moisture gets into the appliance, there is a risk of electric shock. a Release the bearing (with bayonet fitting) using a coin. b Press the bearing out, and remove it. c Take out the roller.

Problem solving guide The vacuum cleaner switches off automatically. On certain models, the overheating warning light also comes on ,. A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. Some models also have a warning light , which comes on to indicate that it has overheated. This can occur if, for instance, large articles block the suction tube or when the filter bag is full or contains particles of fine dust. A heavily soiled dust compartment or exhaust filter can also be the cause of overheating. Switch the vacuum cleaner off immediately using the On/Off foot control s. Disconnect it from the electricity supply. Switch it off at the wall socket and unplug it. After removing the cause, wait for approx. 20 - 30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again. After sales service In the event of a fault that you cannot easily remedy, please contact Guarantee For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details. In the U.K. your appliance is guaranteed for 2 years from the date of purchase. However, you must activate your cover by calling 0845 365 6640 or registering online at www.miele.co.uk. Optional accessories Please observe the flooring manufacturer's cleaning and care instructions. Miele accessories, including floorheads, filters and dustbags are available to order through your Miele retailer, Miele or online at: Certain models are supplied as standard with one or more of the following accessories: Electrobrushes

Electrobrushes can only be used on models fitted with an electrobrush socket. – Miele (see back cover for contact details). Electrobrush Electro Comfort (SEB 216-3) Please note that telephone calls may be monitored or recorded for training purposes (UK only). This electrobrush is particularly suitable for intensive vacuuming of carpets which are subject to hard wear. It is very effective at removing deep seated dirt and preventing areas of frequent use being trodden into a path. – your Miele Dealer

Electrobrush Electro Premium (SEB 234-L) Hard floor Twister swivel-action floor brush (SBB 300-3) This electrobrush is 60 mm wider than the SEB 216-3, and is more powerful, making it ideal for cleaning larger floor areas. This brush is suitable for a variety of hard floor surfaces and has a swivel joint enabling it to get into awkward corners. It has the following additional features compared to the SEB 216-3: – Adjustable height settings – LEDs to light up the area being vacuumed – A multi-function indicator light Parquet Twister XL swivel-action floor brush (SBB 400-3) (only available in selected countries) This brush is extra wide making it suitable for large areas of flooring and has a swivel joint enabling it to get into awkward corners. Floorheads / brushes Other accessories Classic Allergotec floorhead (SBDH 285-3) MicroSet (SMC 20) This floorhead is suitable for daily hygienic cleaning of all floor surfaces. The level of cleanliness of the floor shows in a colour "traffic light" display when vacuuming. This set is specially designed for cleaning small objects and difficult to reach areas (such as PC keyboards, stereo equipment, intricately carved furniture and ornaments, models etc). Turbo Comfort Turbobrush (STB 205-3) CarCare Set (SCC 10) This turbobrush is ideal for cleaning cut pile carpet. Hard floor brush (SBB 235-3) This brush is designed for use on hard flooring such as tiled or stone floors. Parquet floor brush (SBB Parquet-3) (only available in selected countries) This brush has natural bristles and is designed for use on parquet floors and other surfaces which are susceptible to scratching such as laminate flooring. For valeting the interior of cars. Cat&Dog Set (SCD 10) Especially for households with pets. HomeCare Set (SHC 10) Accessories for cleaning the living areas of your home. Hand Turbobrush Turbo Mini Compact (STB 20) For cleaning upholstery, mattresses, car seats etc.

Universal brush (SUB 20) (only available in selected countries) For dusting books, shelves, etc. Radiator brush (SHB 30) For cleaning radiators, narrow shelves and crevices. Mattress nozzle (SMD 10) Filters ActiveAirClean 50 exhaust filter (SF-AA 50) This filter absorbs odours from the dirt collected in the dustbag. HEPA AirClean 50 exhaust filter (SF-HA 50) For cleaning upholstery, mattresses, cushions, curtains, covers etc. Excellent filtration level for very clean exhaust air. This filter is particularly suitable for allergy sufferers. Crevice nozzle, 300 mm (SFD 10) Filter grille Extra long crevice nozzle for cleaning in folds, crevices or corners. The filter grille is required if you wish to fit an Air Clean filter instead of an ActiveAirClean 50 filter or an HEPA AirClean 50 filter. Crevice nozzle, 560 mm (SFD 20) Flexible crevice nozzle for accessing awkward to reach areas. Upholstery nozzle, 190 mm (SPD 10) Extra wide nozzle for cleaning upholstery, mattresses, car seats etc. Flexible extension hose (SFS 10) For extending the suction hose by approx. 1.5 m. Hygiene seal with active charcoal Helps prevent dust and odours escaping when the suction hose has been removed from the cleaner. Comfort handle with lighting (SGC 20) For lighting up the work area.

Electrical connection for the All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply. Non-rewireable plugs BS 1363 The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words on the base of the plug, (as applicable to the design of plug fitted). Electrical connection AU, NZ All work should be carried out by a suitably qualified and competent person in strict accordance with national and local safety regulations. The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230V/50Hz AC single phase supply. Test Marks Electrical safety RCM Mark Electrically suppressed according to AS/NZS 1044 Replacement fuses should be ASTA approved to BS1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.
