USER MANUAL S6210 POWER, S6310 PARQUET MIELE

Vacuum cleaner operating instructions

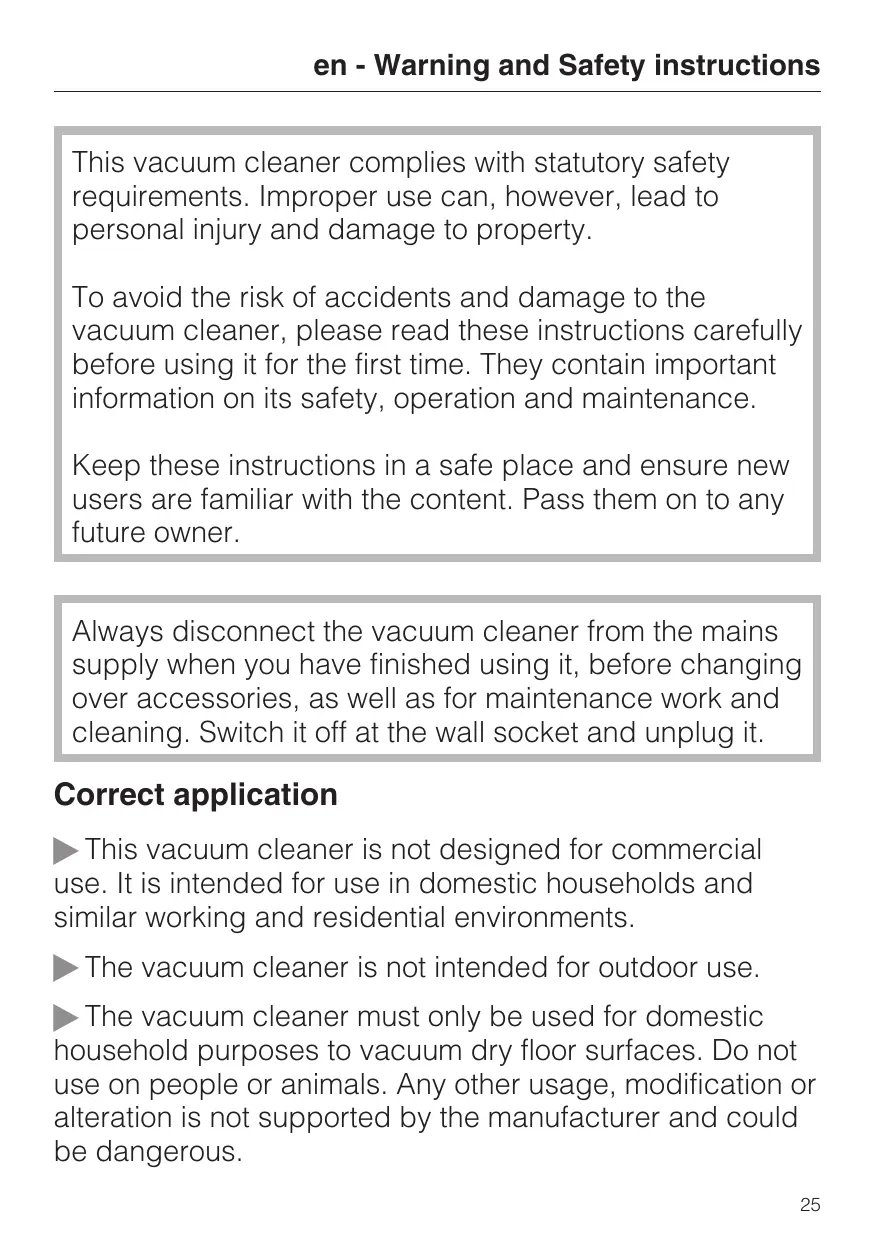

en - Warning and Safety instructions This vacuum cleaner complies with statutory safety requirements. Improper use can, however, lead to personal injury and damage to property. To avoid the risk of accidents and damage to the vacuum cleaner, please read these instructions carefully before using it for the first time. They contain important information on its safety, operation and maintenance. Keep these instructions in a safe place and ensure new users are familiar with the content. Pass them on to any future owner. Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch it off at the wall socket and unplug it. Correct application ~ This vacuum cleaner is not designed for commercial use. It is intended for use in domestic households and similar working and residential environments. ~ The vacuum cleaner is not intended for outdoor use. ~ The vacuum cleaner must only be used for domestic household purposes to vacuum dry floor surfaces. Do not use on people or animals. Any other usage, modification or alteration is not supported by the manufacturer and could be dangerous.

en - Warning and Safety instructions ~ This appliance can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and understand the hazards involved. Safety with children ~ Children under 8 years of age must be kept away from the appliance unless they are constantly supervised. ~ Children 8 years and older may only use the vacuum cleaner unsupervised if they have been shown how to use it in a safe way and recognise and understand the consequences of incorrect operation. ~ Children must not be allowed to clean or maintain the appliance unsupervised. ~ Please supervise children in the vicinity of the vacuum cleaner and do not let them play with it. Technical safety ~ Before using the vacuum cleaner, check for any visible signs of damage. Do not use a damaged appliance. ~ Ensure that the connection data on the data plate (voltage and frequency) match the mains electricity supply exactly. ~ The plug must be fitted with a 13 A fuse (UK).

en - Warning and Safety instructions ~ While the vacuum cleaner is under guarantee, repairs should only be undertaken by a service technician authorised by Miele. Otherwise the guarantee will be invalidated. ~ Do not pull or carry the appliance by the cable, and be careful not to damage the cable when withdrawing the plug from the socket. Keep the cable away from sharp edges and do not let it be squashed, for example, under a door. Avoid running the vacuum cleaner over the cable. This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage. ~ Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this work must be done by the Miele Service Department or a Miele authorised service technician. ~ When vacuuming especially fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming. ~ Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply.

en - Warning and Safety instructions ~ Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons could be dangerous. Correct use ~ To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place. ~ If the dustbag is not fitted correctly, the dust compartment cover does not normally close. Do not force it. ~ Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished. ~ Do not vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before attempting to vacuum. ~ Do not vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity. ~ Do not vacuum up any inflammable or combustible matter or gases and do not vacuum in areas where such substances are stored. ~ Floor attachments, accessories and tubes must not be used at head level to avoid the risk of injury, e.g. to eyes and ears.

en - Warning and Safety instructions Accessories ~ To avoid the risk of injury when vacuuming with a Miele Turbobrush, do not touch the rotating roller brush. ~ It is not advisable to vacuum directly with the handle, i.e. without an accessory attached, as the rim could get damaged and you could hurt yourself on sharp edges. ~ Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. This will ensure optimum performance of the appliance throughout its life. Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

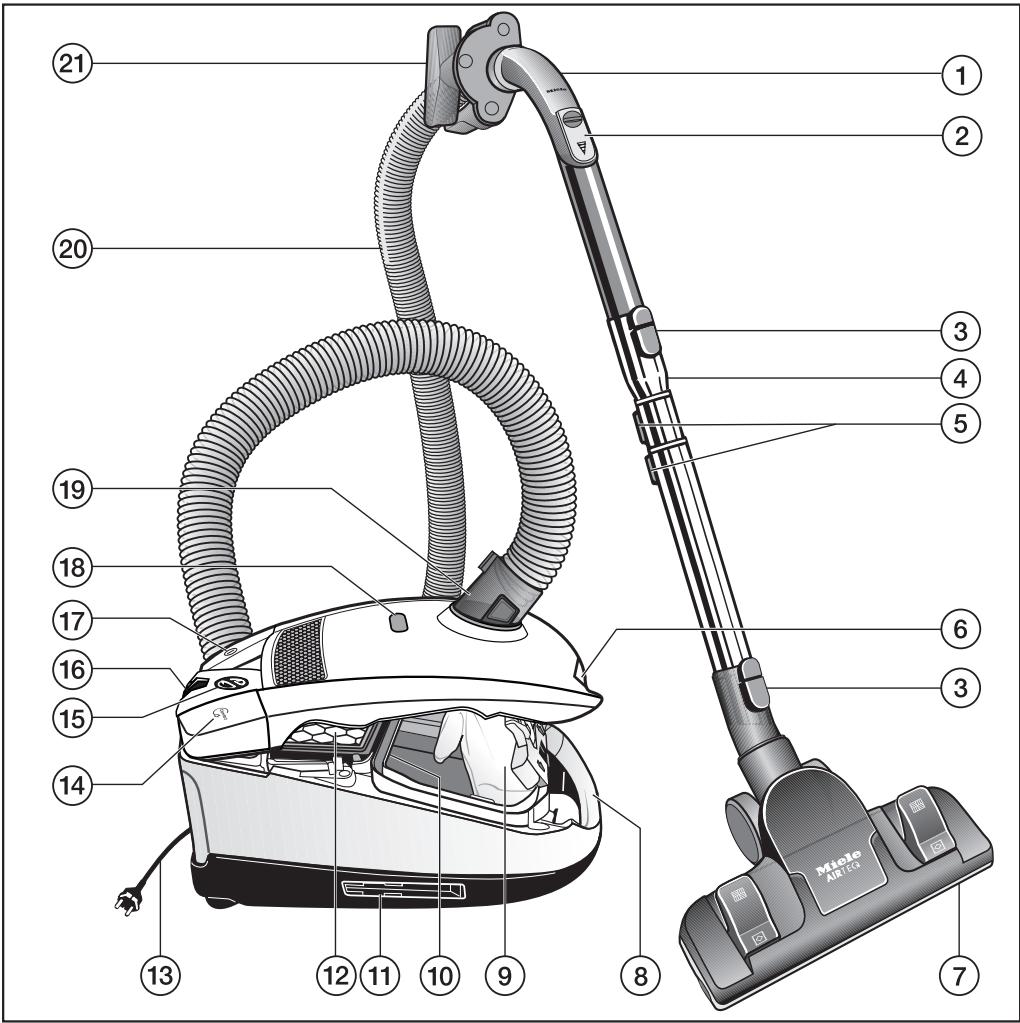

en - Description of the appliance The illustration shows the maximum number of features available on these Miele vacuum cleaners. a XXL handle * b Air inlet valve * c Release buttons d Telescopic or triscopic tube * e Release buttons for the telescopic / triscopic tube * f Dust compartment release catch g Floorhead * h Carrying handle i Dustbag j Dust compartment filter (for motor protection) k Parking attachment (on both sides of the vacuum cleaner) l Exhaust filter * m Mains cable n Foot switch for automatic cable rewind ! o Suction power selector p Parking system for pauses in vacuuming q On/Off foot control s r Dustbag change indicator s Connection socket t Suction hose u Accessories holder Those features marked * depend on model, and may vary or not be available on your model.

en - Caring for our environment Disposal of packing material The packaging is designed to protect the vacuum cleaner from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled. Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation. Disposing of the dustbag and filters Disposing of your old appliance Before disposing of your old appliance remove the dustbag and all the filters and dispose of them with your normal household waste. Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste. These are made from environmentally friendly materials. The filters can be disposed of with the normal household waste. The dustbag can also be disposed of in this way if it has been used exclusively for general household dust. Please dispose of it at your local community waste collection/recycling centre, or contact your dealer for advice. Ensure that it presents no danger to children while being stored for disposal.

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions. Preparing for use Attaching the suction hose (dia. 1) ^ Insert the hose connector into the socket on the vacuum cleaner until it clicks into position. To do this, line up the guides on the two pieces. Removing the suction hose (dia. 2) ^ Press the release buttons at the side of the hose connector and lift the hose from the socket. Connecting the handle to the suction hose (dia. 3) ^ Insert the suction hose into the handle until it clicks into position. Connecting the handle to the suction tube (dia. 4) ^ Insert the handle into the telescopic / triscopic suction tube until it clicks into position. To do this, line up the guides on the two pieces. ^ To release the handle from the suction tube, press the release button and pull the handle away from the tube. Your vacuum cleaner is fitted with one of the following telescopic tubes, depending on the model: Adjusting the telescopic suction tube (dia. 5) One part of the telescopic tube is packed inside the other and can be adjusted to suit your height for comfortable vacuum cleaning. ^ Press the release button to release the tubes and adjust to the required height. Adjusting the triscopic suction tube (dia. 6) The triscopic tube has three sections. Two sections are packed together inside a third outer tube. a Press the release button to release the lower tube and pull it right out until it clicks. Press the button again when you want to retract the tube. The tube will click into place. b Press the release button to release the tubes and adjust to the required height. Fitting the floorhead (dia. 7) ^ Push the suction tube into the floorhead and turn it clockwise or anti-clockwise until it clicks into position. ^ To release the floorhead from the suction tube, press the release button and pull the suction tube away from the floorhead. – Telescopic tube – Triscopic tube

Fitting the floorhead (dia. 8, 9 + 10) The floorhead can be used for all normal cleaning of carpets and rugs. It can also be used with the brush protruding to vacuum hard flooring. For hard flooring, such as stone and parquet, we recommend using one of the special Miele floor brushes (see "Optional accessories"). It is important to observe the flooring manufacturer's cleaning and care instructions. Depending on model, the floorhead will have the following symbols:

Warning: If the suction power of the

AirTeQ floorhead seems too high, reduce the suction until the floorhead is easier to manouevre (see "Use - regulating the suction"). Using the accessories supplied (dia. 11) The following accessories are supplied: a Dusting brush with natural bristles For cleaning skirting boards, ornate or carved objects. The head can be swivelled to adjust the angle. – % and ) b Upholstery nozzle For cleaning upholstery, mattresses, cushions, curtains, covers etc. Vacuum carpets and rugs with the brush retracted: ^ Press the ö or % foot control. c Crevice nozzle For cleaning in folds, crevices or corners. Clean hard flooring which is not susceptible to scratching with the brush protruding: ^ Press the ä or ) foot control. d Accessories holder for the above accessories (dia. 12) Symbols on the holder show where to attach the different accessories. – ö and ä Clean flooring which has deep crevices or grooves with the brush protruding. AirTeQ floorhead (dia. 10) This floorhead has been specially developed to achieve excellent cleaning results using low energy. It has particularly low power consumption and high suction capability.

^ Attach the accessories holder to the suction hose where it joins the handle or to hose connector socket. Make sure it clicks into position. Certain models are supplied as standard with the following accessories which are not illustrated on this page. – Classic Allergotec floorhead – Turbobrush These floorheads and brushes are supplied with their own operating instructions.

Floorhead (dia. 13) For general use and also for vacuuming stairs. Some models also have symbols on the controls. The symbols indicate the type of use the settings are suitable for. # - curtains, lightweight fabrics

Warning: For safety reasons when

vacuuming stairs it is best to start at the bottom of the stairs and move upwards. $ - upholstery, cushions % - thick pile carpets, rugs and runners Use

• - for daily energy-saving vacuuming (this setting is also very quiet) Unwinding the cable (dia. 14) ( - loop-pile carpets ^ Pull the mains cable out to the required length (max. approx. 6.5 m). ) - hard flooring and for intensive cleaning of carpets ^ Insert the plug in the socket correctly and switch on.

Warning: If vacuuming for longer

than 30 minutes, the mains cable must be pulled out to its fullest extent. Otherwise there is a danger of overheating and damage.

Warning: When using the AirTeQ

floorhead, if the suction seems too high, reduce the suction until the floorhead is easier to manouevre. Rotary selector (dia. 17) Rewinding the cable (dia. 15) ^ Turn the suction power selector manually to the suction power setting you require. ^ Switch the vacuum cleaner off at the wall socket and unplug it. Opening the air inlet valve (dia. 18 + 19) ^ Press the rewind foot switch briefly. The cable will rewind automatically. Switching on and off (dia. 16) ^ Press the On/Off foot control s. Adjusting the suction power The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power reduces the amount of effort required to manoeuvre the floorhead. It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other objects being sucked into the vacuum cleaner. ^ Open the air inlet valve far enough to reduce the suction power. The floorhead will be easier to manoeuvre. Close the valve when you are ready to use full power again.

During vacuuming (dia. 20) ^ When vacuuming, pull the cleaner behind you on its wheels. You can stand it upright for vacuuming stairs and curtains etc.

Warning: When vacuuming especially

fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming. Setting down, transportation and storage Parking system for pauses in vacuuming (dia. 21) The parking system allows you to conveniently park the vacuum cleaner during pauses. ^ Slot the floorhead into the parking attachment at the back of the vacuum cleaner. If the vacuum cleaner is on a sloping surface, e.g. a ramp, retract the telescopic tube fully.

Parking system for storage (dia. 22 + 23) Warning. Always disconnect the vacuum cleaner from the electrical supply when you have finished using it. Switch the vacuum cleaner off at the wall socket and unplug it. ^ Stand the vacuum cleaner upright when it is not being used and when it is being stored. Retract the telescopic tube fully. ^ Then slot the floorhead downwards into one of the parking attachments on the side of the vacuum cleaner. This makes the vacuum cleaner easier to carry or store. If your vacuum cleaner has an XXL handle, you can detach this so that the vacuum cleaner requires less storage space. ^ Detach the XXL handle from the retracted suction tube. ^ Wind the suction hose around the suction tube and then slot the XXL handle into the second parking attachment.

Warning: Always disconnect the

vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it. The Miele filtration system consists of three filters which must be replaced from time to time to ensure that your vacuum cleaner performs efficiently. – Dustbag – Dust compartment filter (for motor protection) – Exhaust filter Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. Only this will ensure that the suction power of the vacuum cleaner is maintained, giving the best possible cleaning results.

Warning: The use of dustbags made

from paper or paper-based materials, or dustbags with a cardboard collar, or dustbags that do not carry the "Original Miele" logo, can seriously damage the vacuum cleaner and invalidate the warranty. Purchasing new dustbags and filters Original Miele dustbags and filters can be ordered from your Miele retailer, from Miele or online at: Ordering the correct dustbags and filters Only use original Miele F/J/M dustbags with a red collar. Using any other dustbags will damage the vacuum cleaner. Original Miele dustbags are identified by the "Original Miele" logo on the packaging or directly on the dustbag. An Air Clean exhaust filter and a dust compartment filter are supplied with every packet of Miele dustbags. If you wish to purchase original Miele exhaust filters separately, please quote the model number of your appliance when ordering to ensure you get the correct items. When to change the dustbag (dia. 24) Change the dustbag when the colour marker in the dustbag change indicator fills the display, or sooner if it is no longer effective (see possible reasons for this below).

Miele dustbags are disposable and designed for single use only. Dispose of the dustbag when it is full. Do not attempt to reuse as suction would be reduced. Checking the dustbag change indicator ^ Attach the standard floorhead to the suction tube. ^ Switch the vacuum cleaner on and select the maximum power setting. ^ Lift the floorhead off the floor a little. How the dustbag change indicator works The dustbag change indicator is set for normal household dust. This generally contains a mixture of: dust, hair, threads, carpet fluff, grit etc. However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly. This affects the air permeability of the bag, and the marker will indicate that the bag is "full" even when it is not. If this happens you must still change the dustbag because suction power will be greatly reduced by blocked pores in the dustbag. If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur.

How to replace the dustbag (dia. 25, 26 + 27) ^ Lift the release catch for the dust compartment lid and raise the lid as far as it will go. The dustbag has a closing flap which closes automatically when the dust compartment lid is raised to prevent any dust escaping. ^ Pull the dustbag out by the grip on the collar. ^ Fit the new dustbag into the red holder as far as it will go. Leave it folded up when you take it out of the box. ^ It should be unfolded as far as possible in the dust compartment. ^ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so.

Warning: The lid will not close

without a dustbag in place. Do not use force. When to change the dust compartment filter (for motor protection) Replace this filter every time you start a new packet of dustbags. A dust compartment filter is supplied with every packet of Miele dustbags.

How to change the dust compartment filter (dia. 28) ^ Open the dust compartment lid. ^ Pull the dustbag out by the grip on the collar. ^ Lift up the filter frame until it clicks and remove the old filter. Hold by the clean, unsoiled section to remove it. How to replace the Air Clean filter (dia. 30 + 31) Do not use more than one exhaust filter at a time. ^ Open the dust compartment lid. ^ Press the release catch on the filter grille and open the grille until it clicks. ^ Replace with a new dust compartment filter. ^ Hold the used Air Clean filter by one of the clean, unsoiled sections. ^ Close the filter frame. ^ Replace it with a new Air Clean filter. ^ Fit the dustbag into the holder as far as it will go. ^ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so. If you wish to replace the Air Clean filter with an Active Air Clean filter or with an Active HEPA filter, see "Replacing one type of exhaust filter with another". ^ Close the filter grille. When to change the exhaust filter Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 29): a Air Clean Replace this filter every time you start a new packet of Miele dustbags. An Air Clean exhaust filter are supplied with every packet of Miele dustbags. b Active Air Clean SF-AAC 50 (black) c Active HEPA SF-AH 50 (blue) Change these types of filter approx. once a year. Make a note of the date on the filter. ^ Close the dust compartment lid. How to replace an Active Air Clean filter or an Active HEPA filter (dia. 32 + 33) Do not use more than one exhaust filter at a time. ^ Open the dust compartment lid. ^ Lift the filter and remove it. ^ Replace with a new filter, and push it down into place. If you wish to use an Air Clean filter, see "Replacing one type of exhaust filter with another". ^ Close the dust compartment lid.

Replacing one type of exhaust filter with another How to replace the thread lifters (dia. 34 + 35) Depending on model, your vacuum cleaner will be fitted as standard with one of the following exhaust filters (dia. 29): ^ Use a suitable screwdriver to remove the thread lifters from the slots. a Air Clean Upholstery nozzle SPD 10 (depending on model) (dia. 36) b Active Air Clean SF-AAC 50 (black) c Active HEPA SF-AH 50 (blue) Please note:

1. If you wish to replace the Air Clean

filter a with an Active Air Clean filter b or an Active HEPA filter c, it is essential that you remove the filter grille before fitting the new type of filter.

2. If you wish to replace the Active Air

Clean filter b or the Active HEPA filter c with an Air Clean filter a, then it is essential that you also fit the filter grille *, see dia. 31.

• Filter grille – see "Optional accessories". Do not use more than one exhaust filter at a time. When to change the thread lifters The thread lifters on the suction inlet of the floorhead can be replaced. Check them from time to time and replace them if the pile has worn down.

^ Fit new thread lifters. a Disengage the thread lifter unit at each side of the upholstery nozzle using a coin. b Fit a new thread lifter unit and lock into position. Cleaning the roller on the floorhead (dia. 37) (not necessary for FiberTeQ and AirTeQ floorheads) a Release the bearing (with bayonet fitting) using a coin. b Press the bearing out, and remove it. c Take out the roller. ^ Remove any threads and hair, replace the roller and refit the bearing. Replacement parts are available from your Miele retailer or from Miele (see back cover for contact details).

Warning: Always disconnect the

vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it. Vacuum cleaners with textile velvet finish Clean the vacuum cleaner casing with the dusting brush or a slightly damp cloth. Vacuum cleaner and accessories External surfaces of the vacuum cleaner and of the accessories can be cleaned with a proprietary cleaner suitable for plastic.

Warning: Do not use abrasive

cleaning agents, glass cleaning agents, all-purpose cleaners or oil-based conditioning agents. Dust compartment The dust compartment can, if necessary, be cleaned using a dry duster, brush or, if available, a second vacuum cleaner to vacuum the dust out.

Warning: Do not let the vacuum

cleaner get wet. If moisture gets into the appliance, there is a risk of electric shock. Problem solving guide The vacuum cleaner switches off automatically A temperature limiter switches the vacuum cleaner off automatically if it gets too hot. This can occur if, for instance, large articles block the suction tube or when the filter bag is full or contains particles of fine dust. A heavily soiled exhaust or dust compartment filter can also be the cause of overheating. Switch the vacuum cleaner off immediately using the On/Off foot control s. Disconnect it from the electricity supply. Switch it off at the wall socket and unplug it. After removing the cause, wait for approx. 20 - 30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again. After sales service In the event of a fault that you cannot easily remedy, please contact – your Miele Dealer – Miele (see back cover for contact details). Please note that telephone calls may be monitored or recorded for training purposes (UK only).

Guarantee For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details. In the U.K. your appliance is guaranteed for 2 years from the date of purchase. However, you must activate your cover by calling 0845 365 6640 or registering online at www.miele.co.uk. Optional accessories Please observe the flooring manufacturer's cleaning and care instructions. Miele accessories, including floorheads, filters and dustbags are available to order through your Miele retailer, Miele or online at: Floorheads / brushes Classic Allergotec floorhead (SBDH 285-3) This floorhead is suitable for daily hygienic cleaning of all floor surfaces. The level of cleanliness of the floor shows in a colour "traffic light" display when vacuuming. Turbo Comfort Turbobrush (STB 205-3) This turbobrush is ideal for cleaning cut pile carpet. Hard floor brush (SBB 235-3) This brush is designed for use on hard flooring such as tiled or stone floors. Parquet floor brush (SBB Parquet-3) This brush has natural bristles and is designed for use on parquet floors and other surfaces which are susceptible to scratching such as laminate flooring. or from your retailer or Miele. Certain models are supplied as standard with one or more of the following accessories: Parquet Twister swivel-action floor brush (SBB 300-3) This brush is suitable for a variety of hard floor surfaces and has a swivel joint enabling it to get into awkward corners. Parquet Twister XL swivel-action floor brush (SBB 400-3) This brush is extra wide making it suitable for large areas of flooring and has a swivel joint enabling it to get into awkward corners.

Other accessories Crevice nozzle, 560 mm (SFD 20) MicroSet (SMC 20) Flexible crevice nozzle for accessing awkward to reach areas. This set is specially designed for cleaning small objects and difficult to reach areas (such as PC keyboards, stereo equipment, intricately carved furniture and ornaments, models etc). CarCare Set (SCC 10) For valeting the interior of cars. Cat&Dog Set (SCD 10) Especially for households with pets. HomeCare Set (SHC 10) Upholstery nozzle, 190 mm (SPD 10) Extra wide nozzle for cleaning upholstery, mattresses, car seats etc. Flexible extension hose (SFS 10) For extending the suction hose by approx. 1.5 m. Hygiene seal with active charcoal Helps prevent dust and odours escaping when the suction hose has been removed from the cleaner. Accessories for cleaning the living areas of your home. Filters Hand Turbobrush Turbo Mini Compact (STB 20) Active Air Clean exhaust filter SF-AAC 50 For cleaning upholstery, mattresses, car seats etc. This filter absorbs odours from the dirt collected in the dustbag. Universal brush (SUB 20) Active HEPA filter (SF-AH 50) For dusting books, shelves, etc. Excellent filtration level for very clean exhaust air. This filter is particularly suitable for allergy sufferers. Radiator brush (SHB 20) For cleaning radiators, narrow shelves and crevices. Filter grille Mattress nozzle (SMD 10) The filter grille is required if you wish to fit an Air Clean filter instead of an Active Air Clean filter or an Active HEPA filter. For cleaning upholstery, mattresses, cushions, curtains, covers etc. Crevice nozzle, 300 mm (SFD 10) Extra long crevice nozzle for cleaning in folds, crevices or corners.

Electrical connection for the All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK). The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug. The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply. Non-rewireable plugs BS 1363 The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words on the base of the plug, (as applicable to the design of plug fitted). Replacement fuses should be ASTA approved to BS1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.
