1524 - Weather Station Taylor - Free user manual and instructions

Product Type	Wireless Weather Station
Brand	Taylor
Model	1524
Dimensions (Main Unit)	Approx. 7.5 x 4.5 x 1.0 inches (19 x 11.5 x 2.5 cm)
Weight (Main Unit)	Approx. 0.3 lbs (130 g)
Power Supply	2 AA batteries (not included) for indoor display; outdoor sensor uses 2 AA batteries (not included)
Outdoor Sensor	Wireless remote sensor with 433 MHz transmission, range up to 100 ft (30 m)
Indoor Temperature Range	32°F to 122°F (0°C to 50°C)
Outdoor Temperature Range	-40°F to 158°F (-40°C to 70°C)
Humidity Measurement	Indoor and outdoor humidity, range 1% to 99% RH
Barometric Pressure	Display with trend indicator (rising/falling/steady)
Clock Functions	Atomic time sync (WWVB) or manual setting, 12/24 hour format
Calendar	Date display with day of week (auto-set via atomic time)
Weather Forecast	3-12 hour personalized forecast icons (sunny to stormy)
Alarm	Single alarm with snooze function
Backlight	Blue backlight for low light viewing (adjustable or always on)
Mounting Options	Table stand or wall mount
Cleaning	Wipe display with soft dry cloth; avoid liquids
Safety Warnings	Keep away from water and extreme heat; use only specified batteries
Spare Parts Availability	Contact Taylor customer service for replacement sensors or accessories
Repairability	No user-serviceable parts; refer to manual for troubleshooting

Frequently Asked Questions - 1524 Taylor

How do I set up the Taylor 1524 weather station?

Insert 2 AA batteries into the display unit and 2 AA batteries into the outdoor sensor. Place the sensor within 100 ft of the display. Wait for the sensor signal to sync automatically.

Where should I place the outdoor sensor?

Mount the sensor in a shaded, dry location out of direct sunlight and rain. Ensure it is at least 5 ft off the ground for accurate readings.

How does the atomic time synchronization work?

The display automatically receives the WWVB time signal each night (during low interference). If the signal is weak, you can set time manually.

What is the battery life for the display and sensor?

Battery life is approximately 12 months for both units under normal conditions. Use high-quality alkaline batteries for best performance.

How accurate are the temperature and humidity readings?

Temperature accuracy is within ±2°F (±1°C) and humidity within ±5% RH. Calibration is not required.

Why is my outdoor sensor not connecting?

Ensure both units have fresh batteries and are within range. Press the 'RESET' button on the sensor and then search on the display (hold 'CHANNEL' button). Avoid metal obstructions.

Can I add extra sensors?

This model supports up to 3 outdoor sensors. Press the 'CHANNEL' button to cycle through sensors.

How do I set the alarm?

Press the 'ALARM' button once to view the alarm time. Hold it to set the hour, then minutes. Press 'ALARM' again to enable/disable.

What does the weather forecast icon mean?

Icons predict weather for the next 12 hours based on pressure changes: sunny, partly cloudy, cloudy, rainy, or stormy. They do not guarantee exact conditions.

How do I clean the display?

Wipe the display gently with a soft, lint-free cloth. Do not use chemical cleaners or submerge in water.

USER MANUAL 1524 Taylor

Welcome to the Taylor®WeatherGuide System. Simple, reliable, accurate...it allows you to monitor indoor or outdoor locations one room.The base unit reads indoor conditions, while the rer sensor wirelessly reports outdoor weather conditions back to t unit for an all-in-one weather display.

Plan your work day, play day, every day. Now that's smart!

Table of Contents

Powering the WeatherGuide™ 3

How to Set Up the WeatherGuide™

How to Display the WeatherGuide™

How to Read the WeatherGuide™

Temperature Displays ....7

Minimum/Maximum Records....8

Temperature Trends....9

°F/°C Switch 9

Low Battery Display 9

TroubleShooting

Disconnected Signals....10

Transmission Collision ....II

Problem Solving ......II

Precautions ......12

To Power your WeatherGuide™

Base Unit

Your WeatherGuide™ base unit is powered by 2 AAA batteries (included).

Remove the battery compartment cover located on the back the unit. Install 2 AAA batteries. Replace the battery compartment cover.

Important: Power the base unit before installing batteries in mote sensor, or the units' transmissions may not properly

Remote Sensor

Unscrew the 4 screws securing the remote sensor's battery comment cover located on the back of the unit. Install 2 AAA b (Tip: Lithium batteries are recommended in extremely cold or cations.)

How to Set up Your WeatherGuidSystem

First, power up the base unit, using 2 AAA batteries. Next, insta batteries into the remote sensor. Place the base unit as close ble to the remote unit.

Move channel switch to Channel I

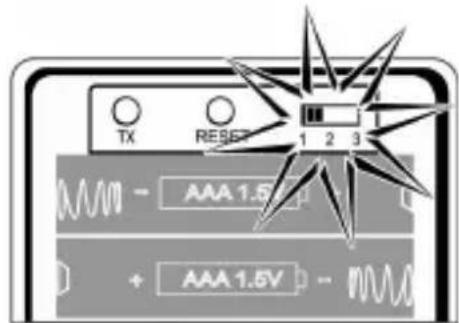

There is a Channel switch in the remc sensor battery compartment. Move the switch to Channel I.

Press the Tx button to send transmission signal to base unit

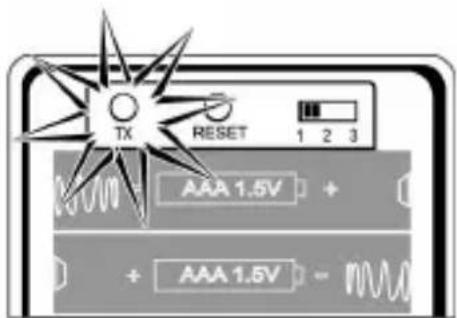

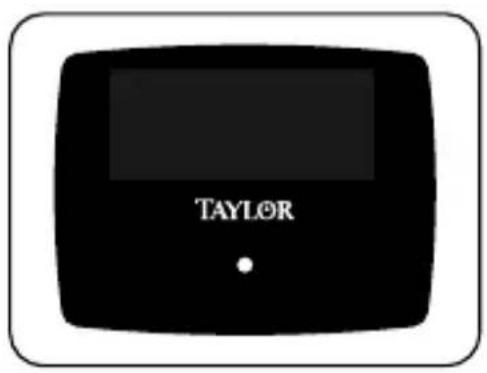

Press the “TX” button located inside the remote sensor battery compartment. This will send a transmission signal to the b unit. The red LED Indicator light will flash when a signal is transmitted.

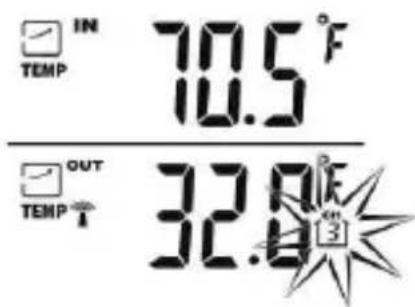

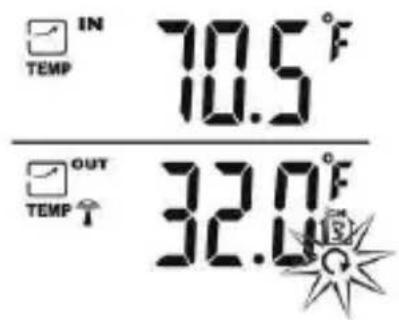

Transmission successful

If the transmission is successful, the remote sensor readings and a icon will appear on the base unit. If dashes are still dis on the receiver unit, press the Tx but again.

Replace the remote's battery compartment cover.

The remote will automatically transmit readings to the base un

• The first remote registered will transmit every 53 seconds.
• If a second remote is registered, it will transmit every 56
• If a third remote is registered, it will transmit every 59 se

Note: A maximum of 3 remote sensor units can be registered. Should you purchase one or two additional remote units (Mod sold separately) to expand your thermometer monitoring capability to multiple locations, slide the CH switch to Channel 2 to resecond sensor and select Channel 3 to register the third sens Channel number assigned will appear on the base unit's LCD

How to Display your WeatherGuide™

Table top – use the Table Stand on the back of the base a sensor units

Wall - use the keyhole on the back of the base and remote

Table Stand

Base unit location -

Place the unit indoors in a well-ventilated location away from dire

Remote sensor location –

The transmission range of the remote sensor is 100 feet. The transmission range is vastly affected by obstacles such as walls, trees, etc. Try various set ups for the best results. Shorten the between receiver and remote units when necessary. Place indoor well ventilated location away from direct sunlight. Place the ser a dry, shaded area. Direct sunlight will heat the casing and in peratures readings.

Important: Though the remote unit is weather proof, it should placed away from direct sunlight, rain, snow and should never merged in water.

A maximum of 3 remote sensor units can be registered. One remote sensor is included.To purchase additional Remote Sensors (Taylor model 1534), please visit www.partshelf.com.

How to Read Your WeatherGuide™

The base unit displays indoor conditions from its location.

The remote unit will transmit weather readings from its location to the base unit.

Alternately, the remote sensor's probe cord may be used. Plug probe cord into the rubber plug on the remote sensor.Allow to hang where you wish to measure temperatures (out of a aquariums, swimming pools, etc.)

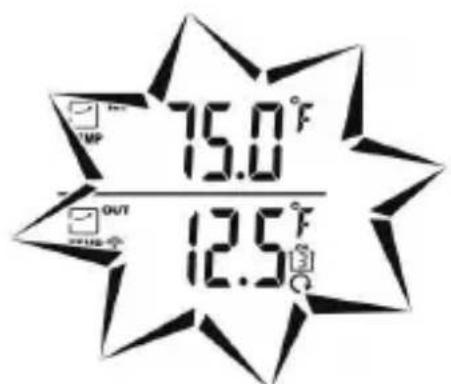

Base unit – Indoor and Outdoor readings

Remote unit – outdoor readings

Press Channel to see different remote sensor readings

If more than one remote sensor is in press the “CHANNEL” button on the bit of the base unit to toggle between send displays.

Channel icon indicates which channel is displayed.

A Channel icon on the base unit indicates which remote sensor readings are displayed.

Auto scroll will toggle between different remote sensor readings

Auto Scroll feature – the base unit can be set to automatically scroll through readings. To activate Auto Scroll, press the "Channel" button on the back of the bunit until the auto scroll symbol appear the LCD. The base unit will automatically display base and remote readings for 10 seconds each.

Temperature Readings

Outdoor Temperature

Indoor temperature readings – these are temperatures at the base unit's location.

Outdoor temperature readings – these are temperatures that are measured by the remote sensor.

Alternately, the remote sensor's probe cord may be used. Plug the probe cord the rubber plug on the remote sensor. Allow the end to hang where you wish measure temperatures (out of a window aquariums, swimming pools, etc.)

Press MIN/MAX to see high and low daily temperature

Minimum or Maximum readings

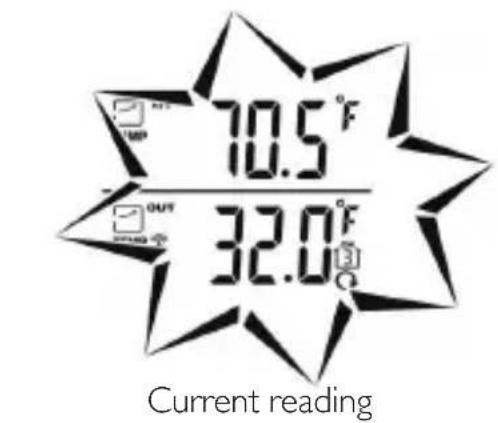

Back to current readings

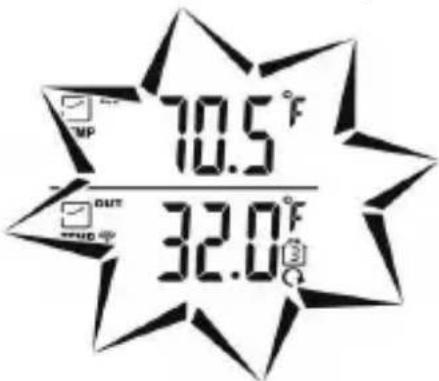

Minimum or Maximum readings on screen

To View Minimum/Maximum temperature readings

Your WeatherGuide™ will store the last recorded high and low temperatures over 24 hour period. The 24 hour period star when the batteries are installed.

I. Press the “Min/Max” button once to the highest temperature of the day.

1. Press the “Min/Max” button again to the lowest temperature of the day.

2. Press the "Min/Max" button a third time to see current temperatures again.

To Clear the minimum or maximum readings, press and hold the “Min/Max” and “C/F” buttons at the same time while those readings are on the screen. The reading will reset to the current temperature

Press and hold Min/Max and C/F at the same time to reset high/low temperatures when they are on the screen

Min/Max readings are cleared.

Temperature Trend Indicators

Your WeatherGuide™ will indicate if temperatures are rising, fa or steady.

indicates Rising Temperatures readings (temperatures have gone up more than degrees in an hour)

indicates Steady Temperature readings

indicates Falling Temperatures (temperatures have gone down more than 2 de in an hour)

To Switch Between °F and °C

Press the“+C/F” button to switch between Fahrenheit and Celsius temperature displays.

Low Battery Indicator

A on the LCD indicates the batteries are running low and sh soon be replaced.

• A by the indoor temperature display indicates the base unit teries are low.
• A by the outdoor temperature display indicates the remote teries are low.

Base unit batteries low Remote sensor batteries low

Disconnected Signals

If the receiver unit does not receive a transmission from a re nel for 1 hour, the display will show dashes. To correct this p

I. Check that the remote is properly positioned, within the appropriate transmission range. Transmissions are vastly affected by building materials and where the receiver and remote units positioned. Try various set ups for the best results. Shorten distance between receiver and remote units when necessary
2. Check to make sure the transmission path is clear of obst and interference.
3. If new batteries are faulty on the initial installation, install the batteries. If you did not notice the Low Battery icon want the product performed correctly after initial set up, the battery have lost their charge. Replace batteries (see the Power S section of this manual.)
4. Press the “Tx” button in the battery compartment of the to send a transmission signal to the base unit.
5. Press and hold the “Channel” button on the back of the This will clear the channel setting and the base unit will searching for remote sensor transmissions. Press the “Tx” in the battery compartment of the remote to send a transion signal to the base unit.
6. Press the “RESET” button in the remote sensor’s battery compartment to reset all sensor settings.

Transmission Collision

Signals from other household devices, such as doorbells, home systems and entry controls, may interfere. This is normal and do affect the general performance of this product. The transmission resume once the interference recedes.

Note: This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the These limits are designed to provide reasonable protection again harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this instrument does cause harmful interference to radio or television receiver which can be determined by turning the equipment off and or is encouraged to try to correct the interference by one or no following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver. Modifications not authorized by the manufacturer may void user authority to operate this device.

Problem Solving

I. If the LCD readout is faint, replace the batteries.
2. If outdoor temperature does not display on the base unit:
a) Remove and reinstall all batteries;
b) Use fresh batteries
c) Place the remote sensor closer to the base unit;
d) Position the base and remote so that the transmission path is free of any obstacles, such as buildings, trees, etc. have no more than 2 or 3 walls between the units.

1. The temperature sensors are manufactured to the accurate plus or minus one degree, so 2 units placed next to each may report different readings. This is a normal occurrence of digital sensors and should not be considered a defect.

Precautions

I. The receiver is intended for indoor use only. It is not seen against moisture and could be damaged if used outdoors.
2. Do not immerse the unit in water. If you spill liquid on mediately with a soft, lint-free cloth.
3. Do not clean the unit with abrasive or corrosive materials. may scratch plastic parts and corrode electronic circuits.
4. Do not subject unit to excessive force, shock, dust, temper or humidity. This may result in malfunction, shorter electron span, damaged battery or distorted parts.
5. Do not tamper with the unit's internal components. Doing invalidate the warranty on this product and may cause dar The unit contains no user-serviceable parts.
6. Do not mix old and new batteries. Do not mix Alkaline, zinc (standard) or Nickel-Cadmium (rechargeable) batteries. I not dispose of batteries in fire. Batteries may explode or move the batteries if the units will not be used for a lot of time.
7. Always read the instruction manual before operating this process
8. Due to continuous product improvements, the displays show this manual may differ from the actual display.

Important: Though the remote unit is weather proof, it should be placed away from direct sunlight, rain, snow and should never be submerged in water.

Specifications

Range of temperature measurement:

Receiver unit (indoor only): 14°F to 158°F (-10°C to 70°C)

Remote unit: -40^ to 158^ ( -40^ to 70^ )

Resolution: 0.1 degree for temperature

Temperature trends – rising, falling or steady

Minimum/Maximum daily temperature records

Low Battery Indicator

Channels: maximum of 3 remote sensors

Transmission: Max. 100 ft (30m) open area

Power: 2AAA alkaline batteries (not included) for base unit and alkaline batteries for remote sensor (not included)

One Year Warranty

This product is warranted against defects in materials or works for one (1) year from date of original purchase. It does not damages or wear resulting from accident, misuse, abuse, commercial use, or unauthorized adjustment and/or repair. Should this product require service (or replacement at our option) while under warranty not return to retailer. Please pack the item carefully and return paid, along with store receipt showing date of purchase and a explaining reason for return to:

Taylor Precision Products 2220 Entrada Del Sol, Suite A Las Cruces, New Mexico 88001 www.taylorusa.com

There are no express warranties except as listed above. This w gives you specific legal rights, and you may have other rights vary from state to state.

For additional product information, or warranty information in (or elsewhere outside the USA, please contact us through www.taylorusa.com.

Made to our exact specifications in China.

© 2008Taylor Precision Products and its affiliated companies, all reserved. Taylor® and Leading the Way in Accuracy® are registered trademarks of Taylor Precision Products and its affiliated companies. WeatherGuide™ is a trademark of Taylor Precision Products and affiliated companies. All rights reserved.
