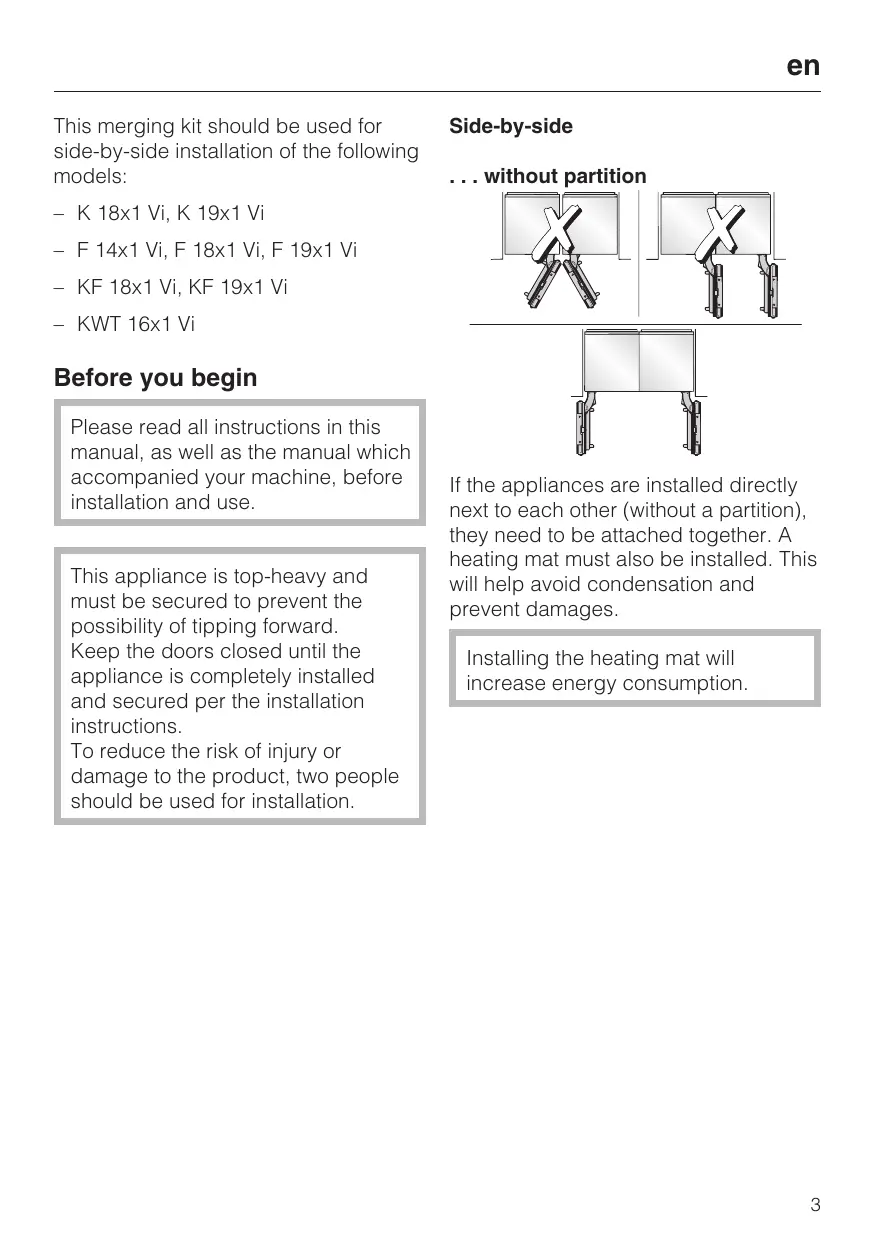

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 Vi, K 19x1 Vi
• F 14x1 Vi, F 18x1 Vi, F 19x1 Vi
• KF 18x1 Vi, KF 19x1 Vi
• KWT 16x1 Vi

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

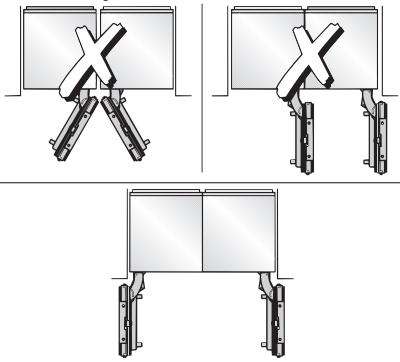

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

... with partition

The minimum thickness of the partition is 58 (16 mm).

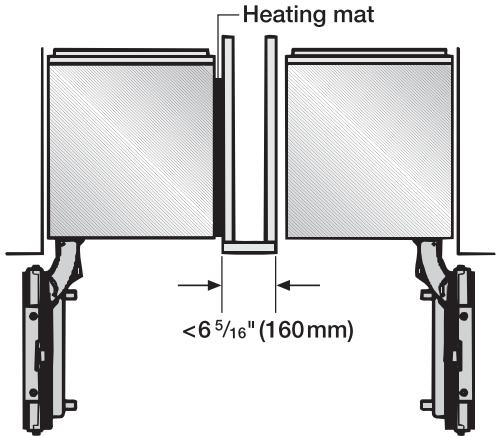

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

• Place the appliances next to each other in the intended configuration.

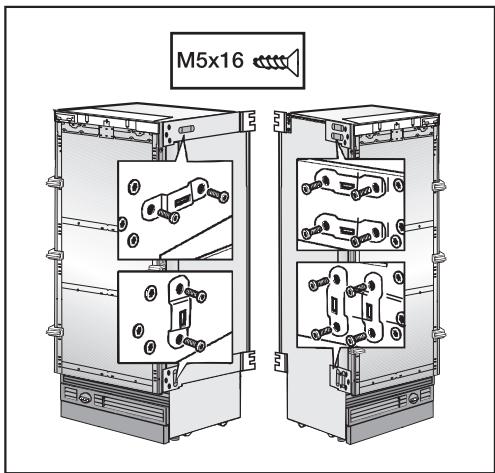

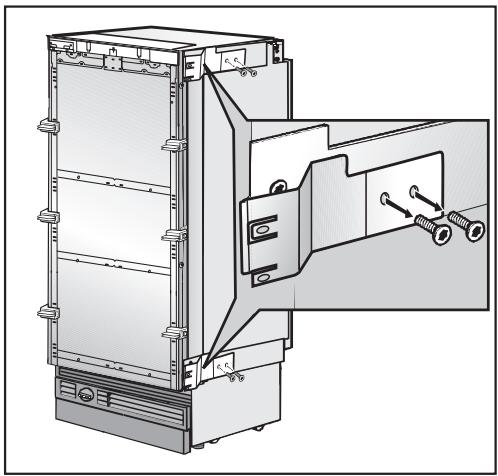

On the handle side of the housing, remove the side attachment plates.

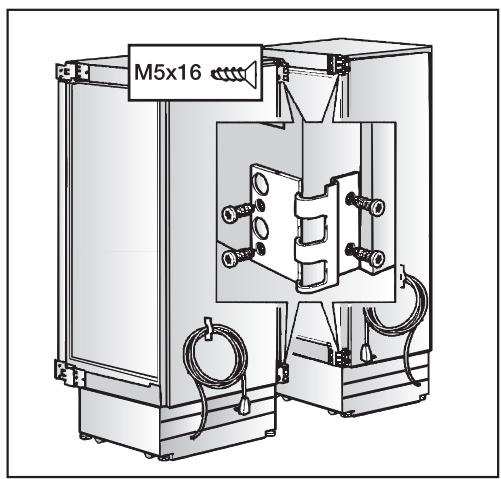

Take the hinge halves from the side-by-side kit and screw them to both appliances.

• Screw the side plates to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

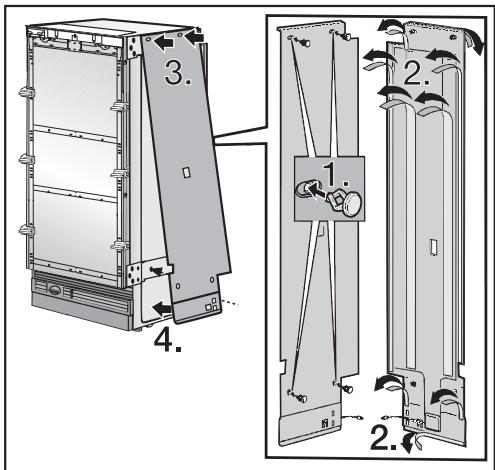

Insert pins through the prepared holes ①.

Pull the protective strip off of the adhesive tape ②.
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ③.
Press on the heating mat from top to bottom, and insert the lower pins into the holes ④.

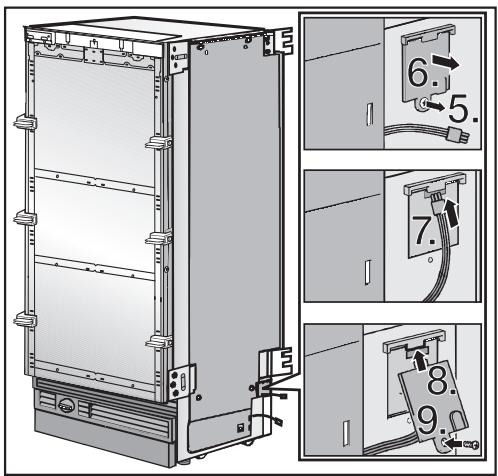

Loosen the screws from the connection box ⑤.
Open the connection box 6
- Attach the cable ⑦.
Close the connection box lid 8.
- Secure the connection box screws ⑨

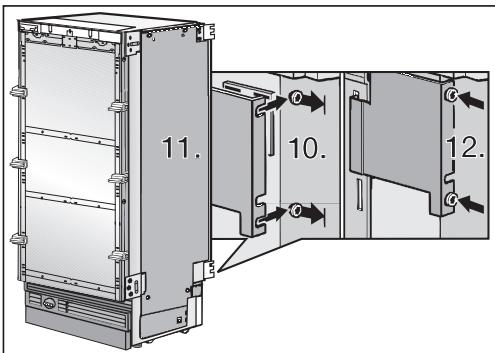

• Loosen the screws on the rear side of the appliance ⑩ . Do not unscrew completely.
• Hang the cable cover by its hinge on the heating mat and, from below, push into the screws (11).
  Tighten the screws 12.

Connect the appliances

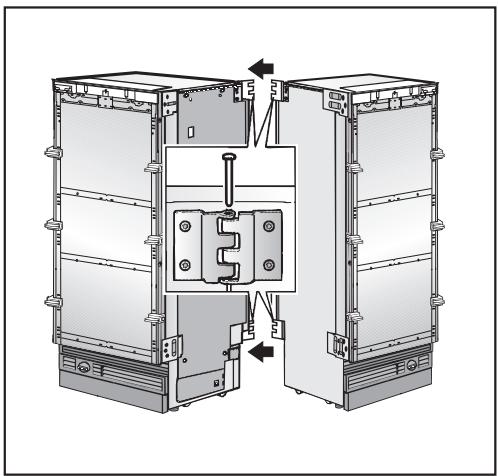

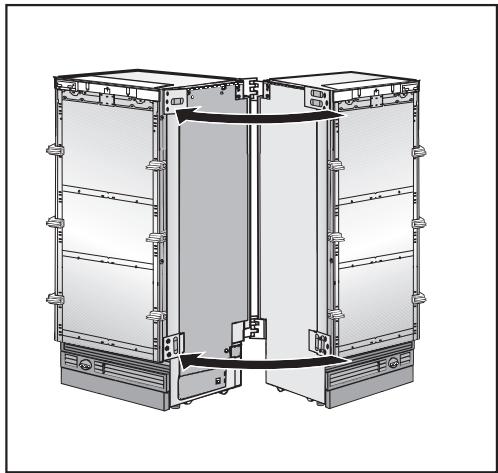

Push the appliances together until the hinge halves interlock.

Insert the pins into the hinges.

Push the appliances together at the front as far as possible.

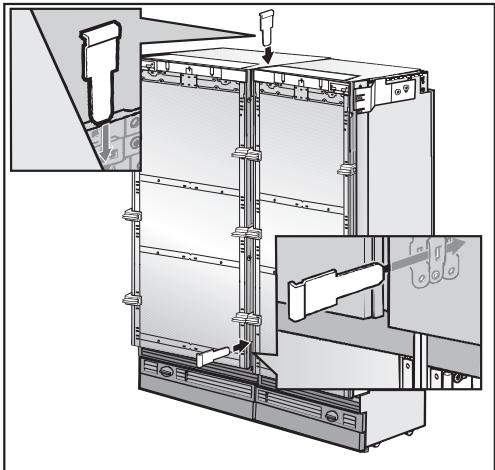

Once the appliances have been pushed together, insert the metal bracket into the upper and lower plates. Use a tool to push the bracket in all the way.

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

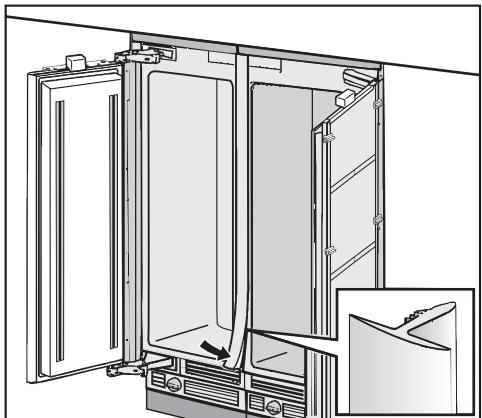

Insert the cover strip into the seam between the appliances.
