DAP 700 E - Air purifier DELONGHI - Free user manual and instructions

Product Type	Air Purifier
Brand	DeLonghi
Model	DAP 700 E
Dimensions (H x W x D)	45 x 25 x 25 cm
Weight	4.5 kg
Power Supply	220-240 V AC, 50 Hz
Power Consumption	35 W max
Noise Level	25-45 dB(A)
Coverage Area	Up to 40 m²
Filtration System	Pre-filter + HEPA filter + Activated carbon filter
Air Flow Rate	150 m³/h
Fan Speeds	3 speeds + Auto mode
Timer	1-8 hours
Filter Replacement Indicator	Yes
Maintenance	Vacuum pre-filter every 2 weeks; replace HEPA filter every 6-12 months
Safety Features	Automatic shut-off when front cover removed, overload protection
Spare Parts	Replacement filters (part number: DAP 700 F)
Certifications	CE, RoHS

Frequently Asked Questions - DAP 700 E DELONGHI

How often should I replace the filters?

The pre-filter should be cleaned every 2 weeks. The HEPA and carbon filters typically need replacement every 6-12 months, depending on usage and air quality. Check the filter replacement indicator on the unit.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. It must be replaced when dirty. Only the pre-filter is washable with water.

What is the recommended room size for this purifier?

The DAP 700 E is suitable for rooms up to 40 m². For optimal performance, use in a room of that size or smaller.

How noisy is the purifier?

Noise levels range from 25 dB on low speed to 45 dB on high speed. It is quiet enough for bedroom use during the night.

Does it have a timer function?

Yes, the unit features a timer that can be set from 1 to 8 hours. After the set time, the purifier automatically switches off.

What does the filter replacement indicator mean?

When the indicator lights up, it signals that the filters need to be checked and likely replaced. Reset the indicator after replacing filters.

Can I use the purifier continuously 24/7?

Yes, the purifier is designed for continuous operation. It uses low power (35W max) and is safe to run all day.

How do I clean the pre-filter?

Remove the front cover, take out the pre-filter, and vacuum it or wash it with water. Let it dry completely before reinstalling.

What type of filter does the DAP 700 E use?

It uses a three-stage filtration: a washable pre-filter, a HEPA filter, and an activated carbon filter. The HEPA removes 99.97% of particles.

Is there an auto mode?

Yes, the purifier has an auto mode that adjusts fan speed based on the air quality detected by a built-in sensor.

USER MANUAL DAP 700 E DELONGHI

Instructions for use

Mode d'emploi

Gebrauchsanweisung

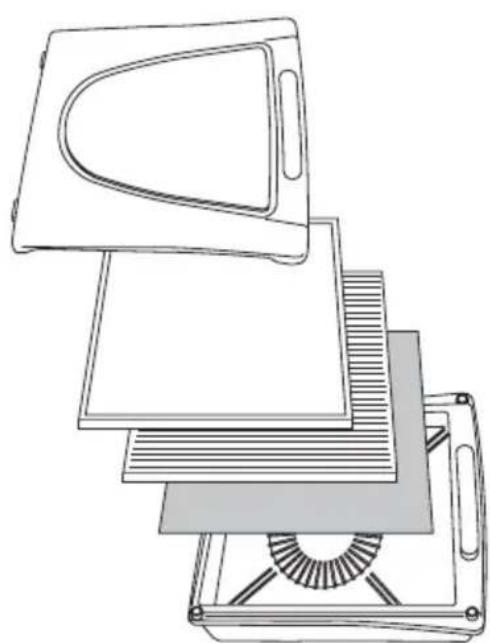

Fig.1

Stacked diagram of electronic devices with no visible text or symbols

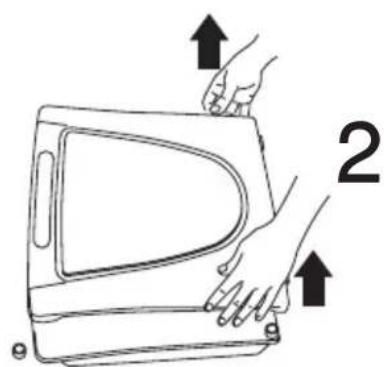

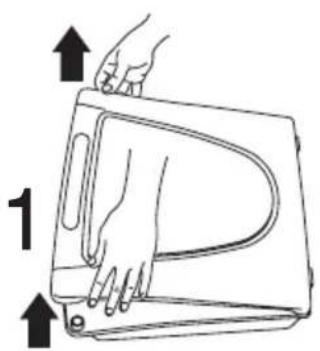

Fig. 2 Fig. 3

Illustration of a hand pressing down on a curved object, with arrows indicating force direction (no text or symbols)

GENERAL INSTRUCTIONS

• This appliance must be used exclusively for the purpose for which it was expressly conceived, namely as a domestic air purifier. Any other use is considered improper and thus dangerous. Improper, incorrect or irresponsible use and/or repairs performed by unqualified personnel absolve the manufacturer from all liability for resulting damage.
• After unpacking, make sure the appliance is complete and undamaged. If in doubt, do not use and consult a qualified electrician.
• The plastic bag containing the appliance must not be left within reach of children as it could represent a hazard.
• Before plugging the appliance into the mains electricity supply, make sure the mains voltage corresponds to the voltage indicated on the rating plate.
• If the plug fitted to the appliance does not match the power socket, have the socket replaced with a suitable type by a qualified professional.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Children or infirm persons should not be allowed to use this product unsupervised
• Children should not be allowed to play with this appliance
• Never immerse the appliance in water.
• When the appliance is plugged into the mains, always respect the following fundamental safety rules:
• never touch the appliance with damp or wet hands;
• do not use the appliance with bare or damp feet;
• do not pull the power cable or appliance itself to unplug from the mains;
• keep the appliance out of reach of children;
• do not insert foreign bodies into the appliance;
• protect the appliance from atmospheric agents and do not use out of doors;
• do not obstruct the air intake and outlet grills;
• If the power cable is damaged, it must be replaced at once by specialist personnel authorised by the manufacturer only.
• If the appliance is to be disposed of definitively, after unplugging from the mains socket, you are recommended to remove the power cable to make it unusable.
• Before cleaning or maintenance of any sort, always unplug the appliance from the mains socket.
• In the event of breakdown and/or malfunction, turn the appliance off. Do not attempt to repair it.
• For all repairs, contact professional service centres only and insist on the use of original spare parts and accessories.
• Before use, always check that the power cable is undamaged.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE

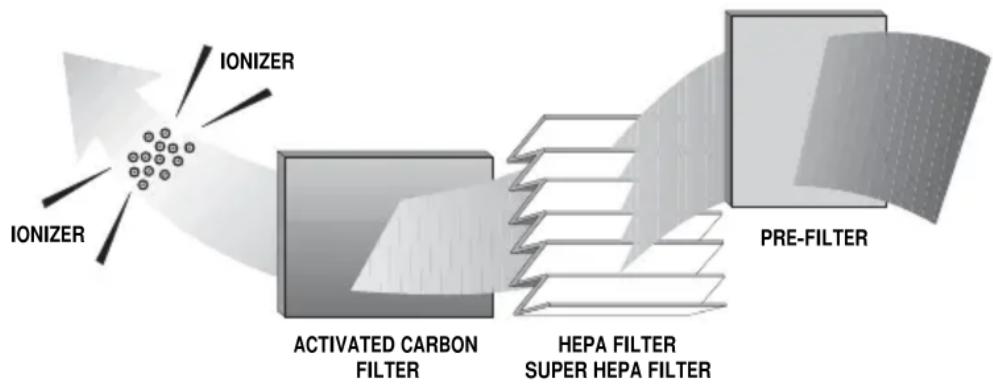

FEATURES

1. De'Longhi air purifiers incorporate the latest technology in domestic air filtration;
2. A powerful silent fan motor draws in the air from the front panel;
3. The contaminated air passes through a washable prefilter which removes the larger impurities such as dust and pollen. The partially filtered air is then passed through a long-lasting HEPA filter with a large filtering surface. This is easily recognisable as it is made with special folded paper. This HEPA (High Efficiency Particulate Air) filter removes impurities down to 0.1 micron in size, filtering all types of particles and even bacteria.
4. The air then passes through an activated carbon filter which removes odours. The filter is dark grey and is easily distinguished by its highly porous appearance;

1. Purified air is then returned to the room through the top mounted grill. The upward movement of filtered air promotes efficient circulation without causing unpleasant drafts;
2. When switched on, an independently controlled ionizer releases a cloud of negative ions into the outgoing filtered air;
3. When coming into contact with the negative ions, small airborne particles become negatively charged. These can then combine with positively charged particles to form larger particles which are subsequently filtered by the purifier; otherwise, the negative particles will be attracted to positively charged surfaces such as walls or floors;
4. The negative ions help create a better balance of ions in the room as, generally, there is a predominance of positive ions over negative ones. So ionizing helps reduce the static electricity created by rugs, carpets, televisions and computer screens.

GENERAL FEATURES

VoltageFrequency see rating labelAbsorbed powerSuitable for rooms of up to 30 mNumber of fans 1Fan speed 3Ioniser control •

3

DESCRIPTION OF APPLIANCE

A) Front panel

D) Anti-odour activated carbon filter

E) Filtered air outlet grill

F) Handle

G) Power cable

H) Plug

I) Timer light

L) Timer button

M) Ionising button

N) Silent light

0) Standard light

P) Turbo light

1. Unpack the air purifier and place it on a flat, stable surface so that the air inlet (front grill) and air outlet (top grill) are not blocked A good place to position the appliance could be at least a metre away from a wall.
2. Remove the front grill (A). Inside you will find the filters packed in plastic bags;
3. Remove the filter packaging. Position the filters in the order shown in the diagram: activated carbon filter (black), resting directly against the inside of the purifier so that it stays there, then the HEPA filter, resting against the activated carbon filter and finally the prefilter.
4. Replace the front panel;
5. Check that the voltage in your home corresponds to that indicated on the appliance, then plug the appliance into the mains socket.
6. Turn the appliance on by pressing the ON-OFF/fan speed button (Q), then press the button again to select the required fan speed (quiet, standard, turbo).

Quiet mode: use this mode when you want the purifier to work silently.

Standard mode: use this mode when you want the purifier to work at medium speed.

Turbo mode: use this mode when you want the purifier to work at maximum speed in smoky or particularly dusty atmospheres.

The light corresponding to the mode selected comes on.

1. To release negative ions into the room with the purified air, press the ioniser button. The light on the button comes on.
2. Programme mode:

To activate programme mode, with the appliance on, press the timer button. The appliance goes off after three hours.

CLEANING THE APPLIANCE

Clean the outside of the air purifier with a soft, clean, damp cloth to remove dust, grime and fingerprints.

The front grill and prefilter within it can be removed and washed separately in warm, soapy water (NOT in a dishwasher). Dry the components carefully before replacing. The top air emission grill can be cleaned with a small, soft brush.

WARNING: Never immerse the appliance in water to clean the purifier.

MAINTENANCE AND FILTER REPLACEMENT

1. Remember that the efficiency of your purifier depends largely on the condition of the filters. These should therefore be checked regularly.
2. Remove the front panel. Inspect the prefilter. If a considerable amount of dust and other dirt has accumulated, remove the filter from the grill and wash it by hand in warm soapy water. Dry well before replacing;
3. The life of the HEPA and activated carbon filters depends on the conditions of use. In general, with continuous 24-hour operation at medium speed in conditions with normal amounts of dust/smoke in the air, the HEPA filters last about 12-18 months and the activated carbon filters about 6-12 months.
   To change the activated carbon filter, first remove the HEPA filter, then remove the activated carbon filter and replace with a new one. Before replacing the front panel, check that the prefilter is clean. Frequent cleaning of the prefilter will help prolong the life of the HEPA filter;
4. When the white filter becomes dark grey or brown, it needs replacing.
   Do not wash the activated carbon or HEPA filters. Once exhausted, these filters can no longer be used.
5. De'Longhi replacement filters are available from our service centres and home appliance retailers.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

ELECTRICAL CONNECTION (UK ONLY)

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and an appropriate plug fitted, as below.
WARNING: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse.

WARNING - THIS APPLIANCE MUST BE EARTHED IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow: Earth

Blue: Neutral

Brown: Live

If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.

B) If your appliance is not fitted with a plug, please follow the instructions provided below:

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.
