K 1811 VI - Fridge MIELE - Free user manual and instructions

Brand	MIELE
Model	K 1811 VI
Product type	Built-in refrigerator
Dimensions (H x W x D)	177 cm x 54 cm x 55 cm
Net weight	Approximately 60 kg
Total volume	Approximately 270 L
Power supply	230 V / 50 Hz
Energy class	A++
Annual consumption	Approximately 150 kWh
Noise level	35 dB(A)
Main functions	Refrigeration, automatic defrost, LED lighting
Installation	Built-in, possibility of side-by-side installation
Maintenance and cleaning	Clean with a soft cloth and soapy water
Safety	Child lock, automatic shut-off when door is open
Spare parts and repairability	Repairability index 7.5/10
General information	2-year warranty, Miele after-sales service

Frequently Asked Questions - K 1811 VI MIELE

What is the ideal temperature for the K 1811 VI refrigerator?

The recommended temperature is 4°C for the refrigerator compartment. Use the built-in thermostat to adjust.

How to clean my Miele K 1811 VI refrigerator?

Unplug the appliance, remove the shelves and clean with a soft cloth soaked in warm water and dish soap. Rinse and dry. Do not use abrasive products.

How to reverse the door opening direction?

The reversible door requires professional intervention. Consult the installation manual or contact Miele service.

What to do if the refrigerator no longer cools?

Check that the appliance is plugged in and the temperature is not set too low. Clean the condenser at the back. If the problem persists, contact customer service.

The refrigerator makes noise, is it normal?

A slight noise of the compressor or fluid circulation is normal. If the noise is loud or irregular, check the balancing and fixings.

How to install the refrigerator side by side with another appliance?

Use the provided juxtaposition kit. Follow the steps in the manual: attach the half-hinges, install the heating plate and connect the appliances. Two people are required.

What is the electrical consumption of the K 1811 VI?

The annual consumption is approximately 150 kWh, which corresponds to energy class A++. This may vary depending on use.

How to replace the refrigerator bulb?

The K 1811 VI is equipped with LED lighting which must be replaced by an authorized technician. Contact Miele service.

Where to find spare parts for this model?

Spare parts are available from Miele after-sales service or on their website. Use the model number K 1811 VI.

The door gasket is dirty, how to clean it?

Clean the gasket with a damp cloth and a little white vinegar. Avoid chemicals. Dry it well to prevent mold.

USER MANUAL K 1811 VI MIELE

To prevent misuse read these instructions before installation or use.

Side-by-side 3
. without partition. 3
with partition 4

Required accessories and tools 4

Tools 4
Other. 4

Prepare the appliances 5

Installing the heating mat. 5

Connect the appliances. 7

fr 9

This merging kit should be used for side-by-side installation of the following models:

• K 18x1 Vi, K 19x1 Vi
• F 14x1 Vi, F 18x1 Vi, F 19x1 Vi
• KF 18x1 Vi, KF 19x1 Vi
• KWT 16x1 Vi

Before you begin

Please read all instructions in this manual, as well as the manual which accompanied your machine, before installation and use.

This appliance is top-heavy and must be secured to prevent the possibility of tipping forward. Keep the doors closed until the appliance is completely installed and secured per the installation instructions.

To reduce the risk of injury or damage to the product, two people should be used for installation.

Side-by-side

... without partition

If the appliances are installed directly next to each other (without a partition), they need to be attached together. A heating mat must also be installed. This will help avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

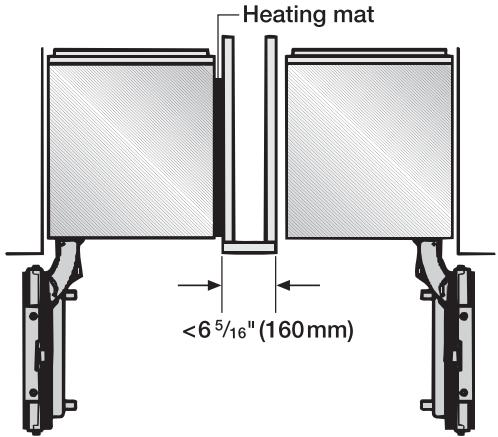

... with partition

The minimum thickness of the partition is 58 (16 mm).

If there is a partition with a thickness from 5 / 8'' (16 mm) to 6^5 /_16'' (160 mm) between the adjacent appliances, then each appliance should be individually installed within its own niche using the mounting accessories included.

In this case, you will only need the heating mat from the "Merging Kit" to avoid condensation and prevent damages.

Installing the heating mat will increase energy consumption.

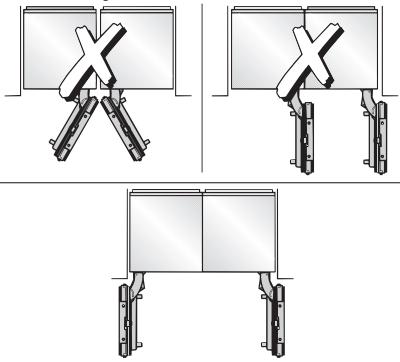

When finding the dimensions for the partition in model 4, note the thickness of the custom door panels and the door handles. This will prevent damage to the doors if they are opened at the same time.

Required accessories and tools

Tools

• T 20 Torx screwdriver
• T 20 Torx bit + magnetic holder
• Adjustable wrench

Other

• Various bit sizes, suitable for material
• Piece of thin material (for example, linoleum) to protect the floor from damage
• Adhesive tape

Prepare the appliances

• Place the appliances next to each other in the intended configuration.

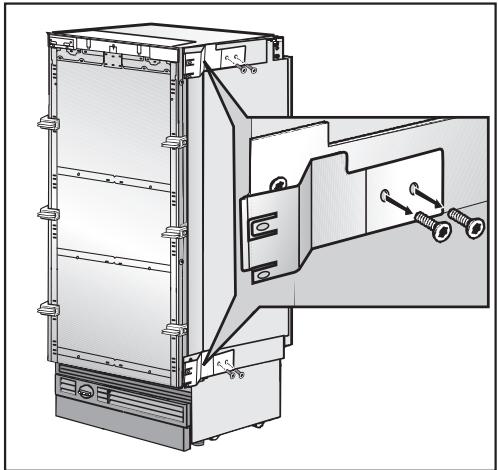

• On the handle side of the housing, remove the side attachment plates.

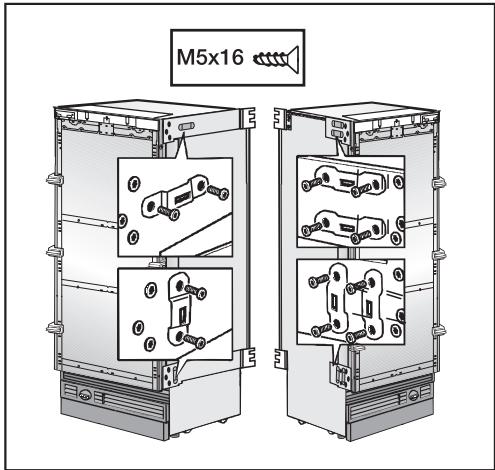

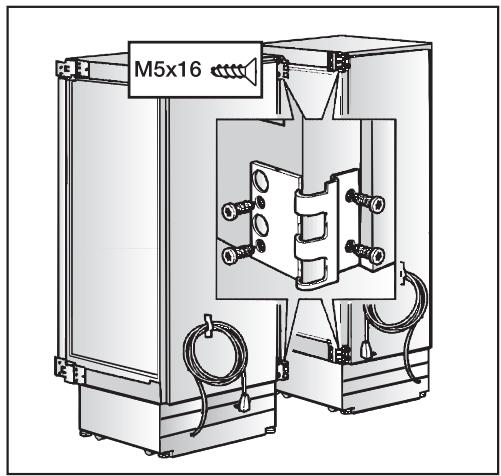

Take the hinge halves from the side-by-side kit and screw them to both appliances.

• Screw the side plates to both appliances. Check the position of both appliances!

Installing the heating mat

The heating mat has to be secured on the right side of the left-standing appliance.

Insert pins through the prepared holes ①.

Pull the protective strip off of the adhesive tape ②.
Insert the pins into the upper holes, while keeping the heating mat away from the bottom of the appliance ③.
Press on the heating mat from top to bottom, and insert the lower pins into the holes ④.

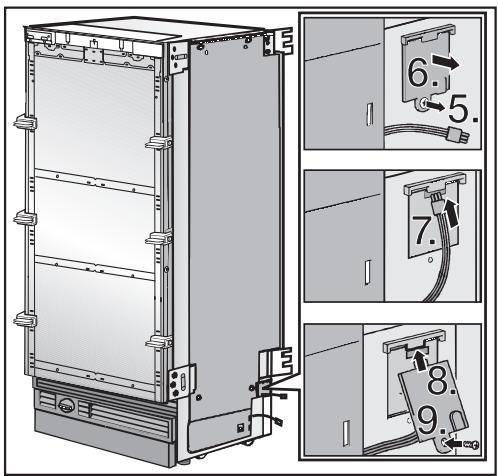

Loosen the screws from the connection box ⑤.
Open the connection box 6
- Attach the cable ⑦.
Close the connection box lid 8.
- Secure the connection box screws ⑨

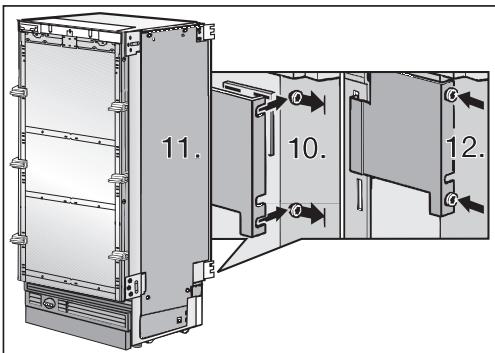

• Loosen the screws on the rear side of the appliance ⑩ . Do not unscrew completely.
• Hang the cable cover by its hinge on the heating mat and, from below, push into the screws (1).
  Tighten the screws 12.

Connect the appliances

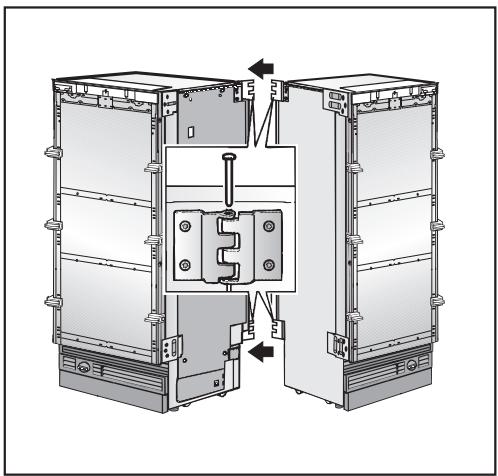

Push the appliances together until the hinge halves interlock.

Insert the pins into the hinges.

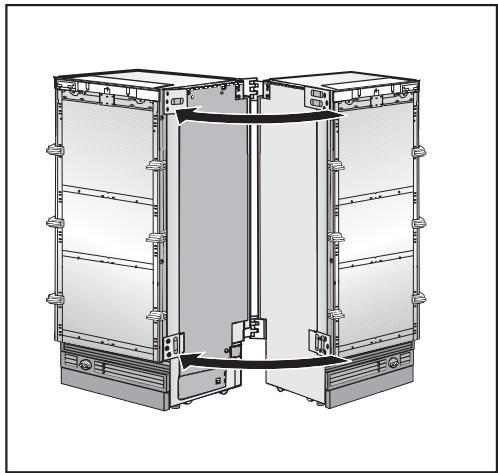

Push the appliances together at the front as far as possible.

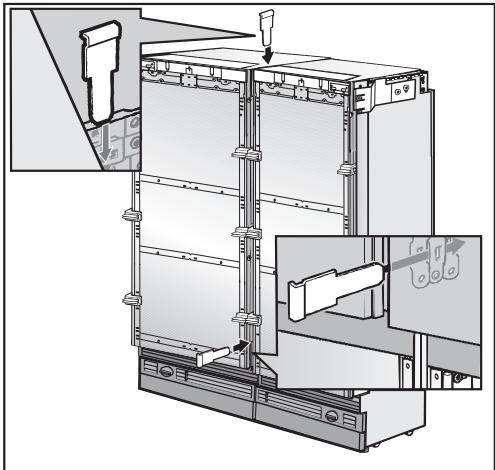

Once the appliances have been pushed together, insert the metal bracket into the upper and lower plates. Use a tool to push the bracket in all the way.

Now attach the appliance combination to the installation niche. For instructions, refer to the installation instructions for each appliance.

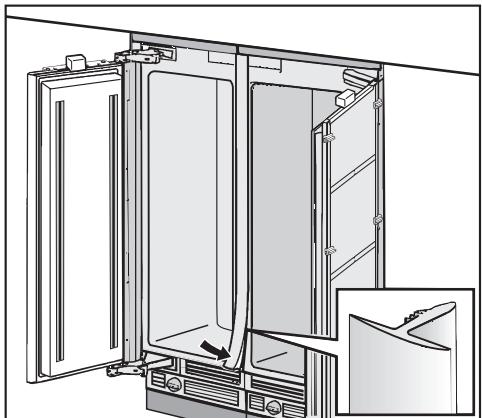

Insert the cover strip into the seam between the appliances.
