USER MANUAL SNTEX154 SONY

Video Network Station

User's Guide

Software Version 1.0

Before operating the unit, please read this manual thoroughly and retain it for future reference.

SNT-EX101

SNT-EX104/SNT-EP104

SNT-EX154/SNT-EP154

SNT-RS1U/SNT-RS3U

IPELA

Overview

Features 4

How to Use This User's Guide .... 5

System Requirements .... 5

Preparation

Assigning the IP Address to the unit 6

Assigning an IP address using SNC toolbox ..... 6

When using Windows XP Service Pack 2 or later .... 8

When using Windows Vista 10

Accessing the System Using the Web

Browser 13

Basic Configuration by the Administrator ..... 15

Operating the unit

Administrator and User 16

Logging in to System 17

Logging in as a user 17

About Viewers 17

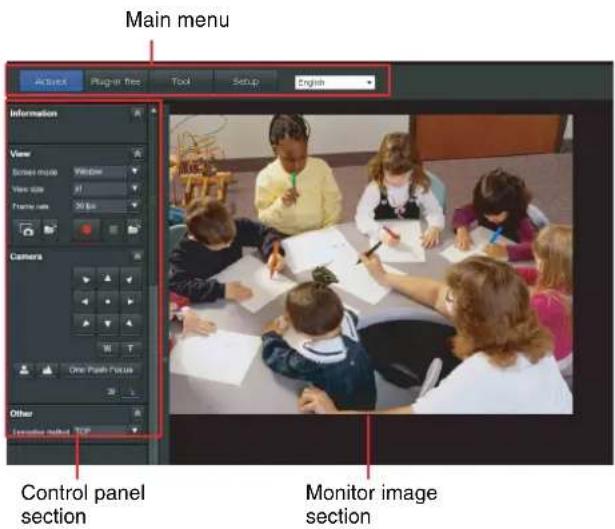

Configuration of Main Viewer 18

Main menu 18

Control panel section 18

Monitor image 20

Plug-in free Viewer 20

Operating the Camera 21

Controlling via the control panel 21

Moving the camera to a preset position ..... 22

Using the Trigger Button 22

Sending a monitor image via e-mail 22

Sending a monitor image to an FTP server ..... 22

Recording a camera image as a still image ..... 22

Controlling alarm output 23

Playing an audio file stored in the system ..... 23

Switching TCP/UDP Transmission Mode ..... 23

Using the System Utility 24

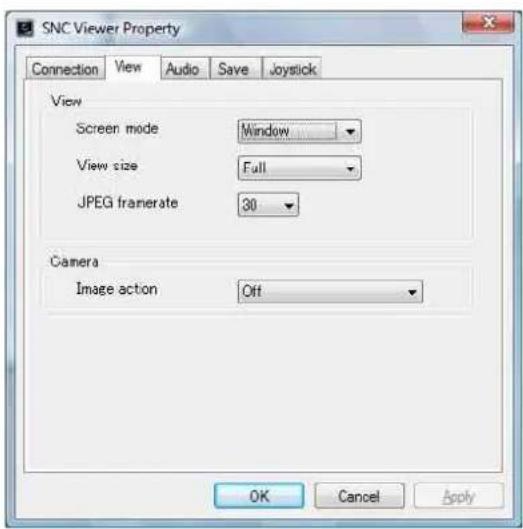

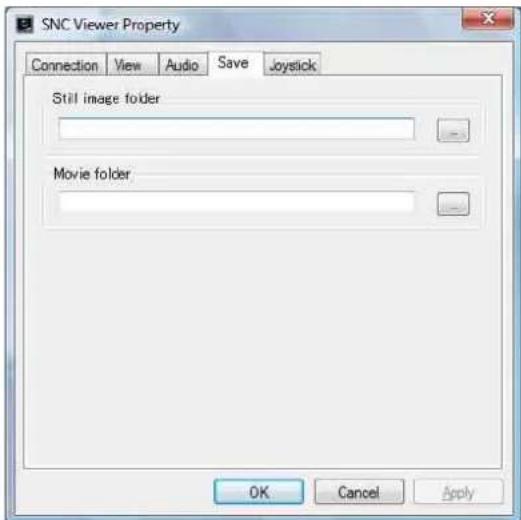

SNC Viewer 24

SNC Desktop Viewer 26

Administrating the unit

Basic Operations of the Administrator Menu ...27

How to set up the Administrator menu .....27

Configuration of the Administrator menu .....28

Configuring the System — System Menu ......29

System Tab 29

Date & time Tab 30

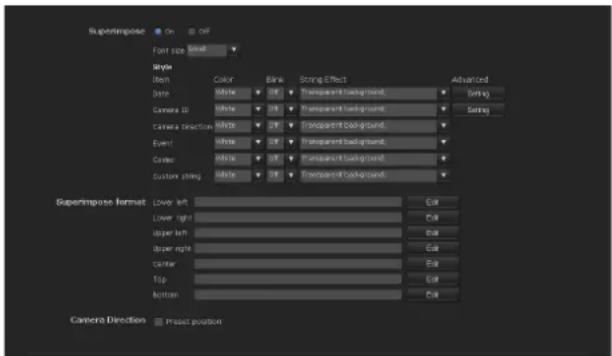

Superimpose Tab 31

Initialize Tab 32

System log Tab 33

Access log Tab 33

Setting the Camera Image and Audio

— Camera Menu ....34

Common Tab 34

Picture Tab 35

Privacy Masking tab 35

Video codec Tab 36

Streaming Tab 37

Configuring the Network — Network Menu .....38

Network Tab 38

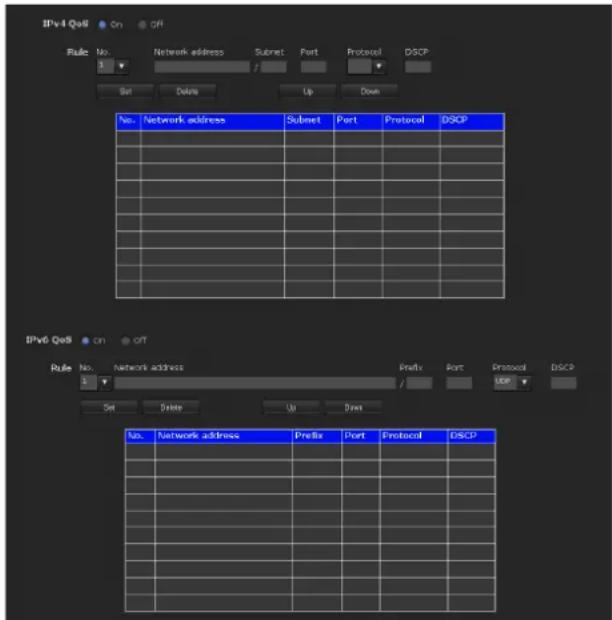

QoS Tab 39

Dynamic IP address notification Tab — Notifying the IP Address ....40

Setting the SSL function — SSL Menu ......42

SSL tab 42

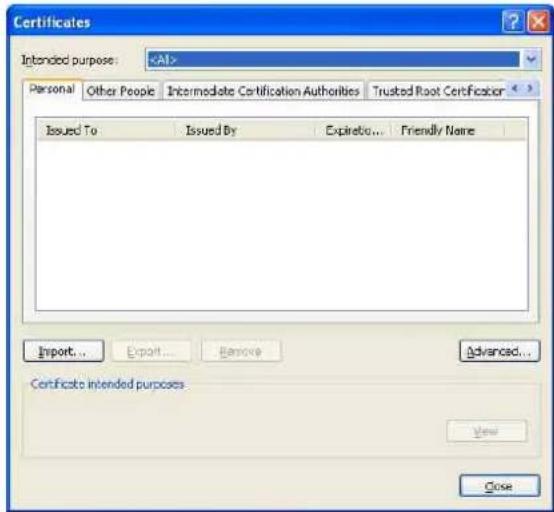

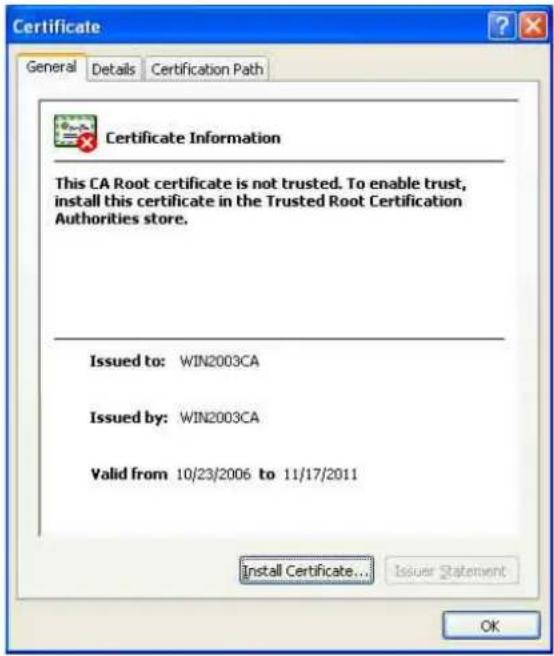

CA certificate tab — Adding the CA certificate for client authentication ....44

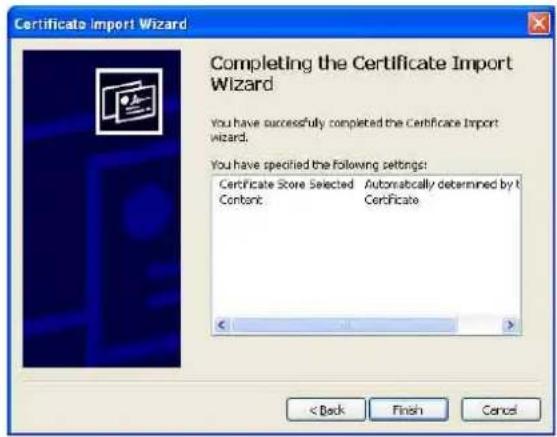

How to install the CA certificate 45

To remove an installed CA certificate .....46

Using the 802.1X Authentication Function

— 802.1X Menu ....47

System configuration of 802.1X network .....47

Common Tab - Basic setting of 802.1X authentication function .....47

Client certificate Tab 48

CA certificate Tab 49

Setting the 802.1X authentication function – Example of Windows Server 2003 ....50

Setting the User — User Menu ....53

Setting the Security — Security Menu ....54

Saving the Camera Position and Action — Preset position Menu ....54

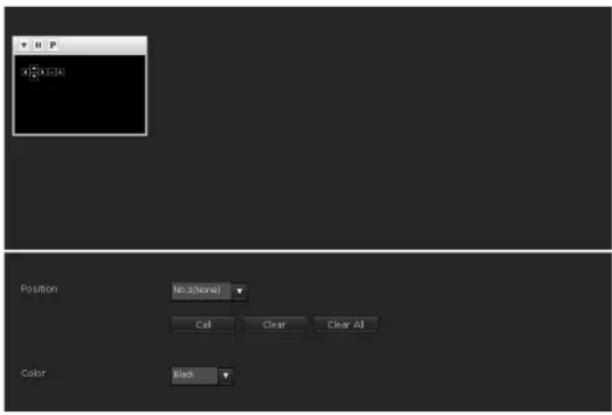

Position Tab — Saving pan/tilt/zoom position ....54

Position Tour Tab — Setting a position tour ....56

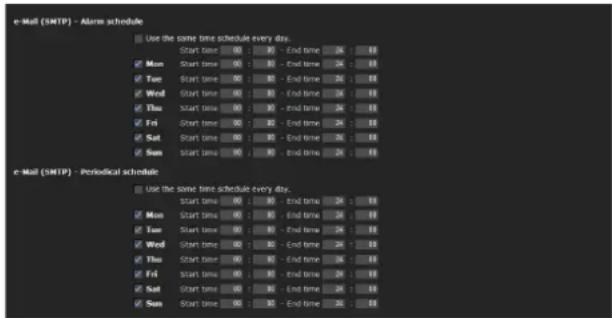

Sending an Image via E-mail — e-Mail (SMTP) Menu 57

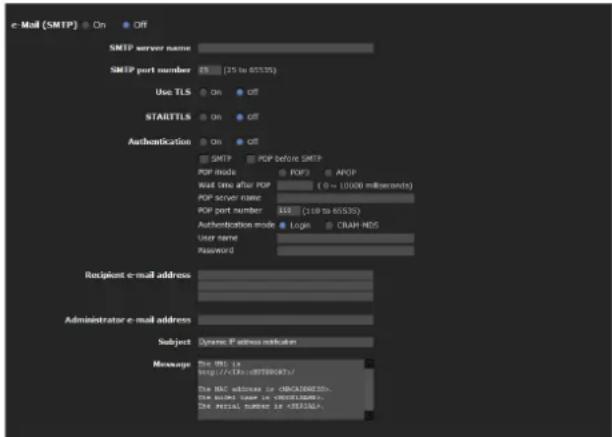

Common Tab — Setting the e-Mail (SMTP) Function .... 57

Alarm sending Tab — Setting the e-mail sending mode when detecting the alarm .... 58

Periodical sending Tab — Setting the periodical e-mail sending mode .... 59

Sending Images to FTP Server — FTP client Menu 60

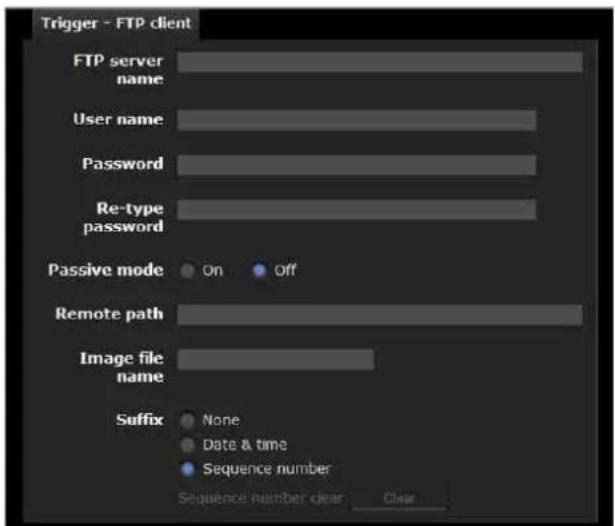

Common Tab — Setting the FTP client function 60

Alarm sending Tab — Setting the FTP client action when detecting the alarm .... 61

Periodical sending Tab — Setting the periodical FTP client activity 62

Recording Images in Memory — Image memory Menu 63

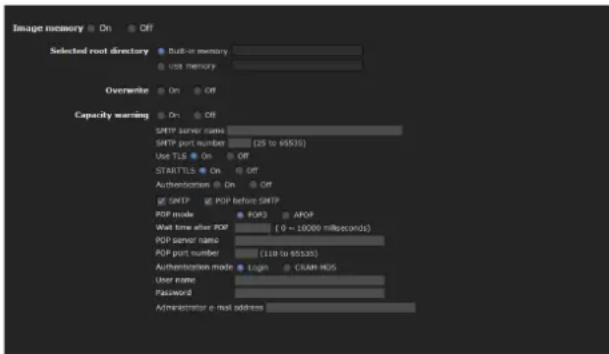

Common Tab — Setting the image memory function 63

Alarm recording Tab — Setting the Image memory function when detecting the alarm 64

Periodical recording Tab — Setting the periodical recording mode .... 65

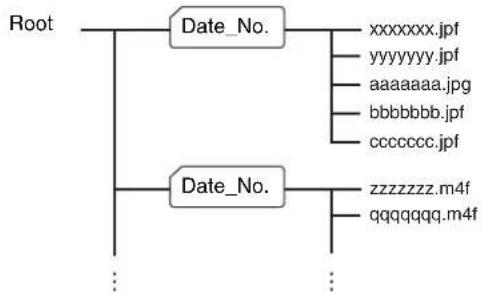

Folder structure of image memory 66

Downloading Images from the system — FTP server Menu 67

Setting the Alarm Output — Alarm output Menu .... 67 Alarm output Tab .... 67

Outputting Audio Linked to Alarm Detection — Voice alert Menu ....69 Voice alert 1, 2, 3 Tab ....69

Setting the Operations from the Viewer — Trigger Menu .... 70

Setting the Schedule — Schedule Menu .... 72 Setting the Alarm Buffer — Alarm buffer Menu .... 73

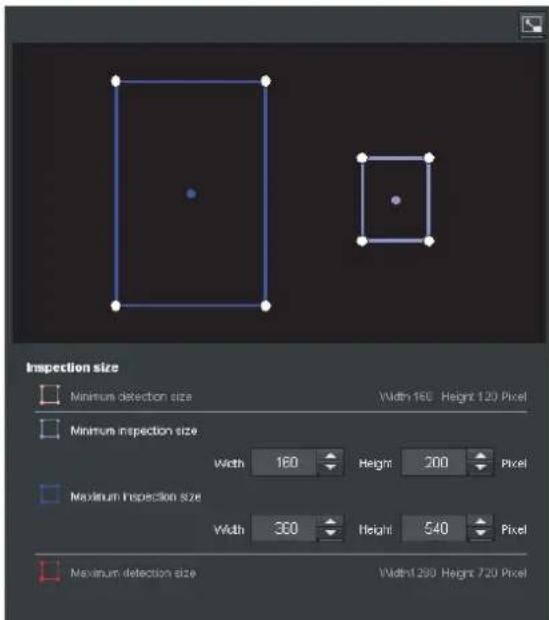

Setting the Motion Detection/VMF Function — Motion detection Menu .... 73 What are VMF functions-Video Motion Filter .... 73 Setting items for motion detection .... 74 VMF setting items .... 76 Simple motion detection function .... 79

Transmitting with External Equipment — PTZ control I/F Menu 80

Configuring the Viewer — Viewer Menu .... 81 Layout tab .... 81 HTML output tab .... 83

Others

Using the Supplied SNC toolbox ....84

Starting SNC toolbox 84

How to use SNC toolbox 84

Registering in My device 86

Changing the Device list display method .....87

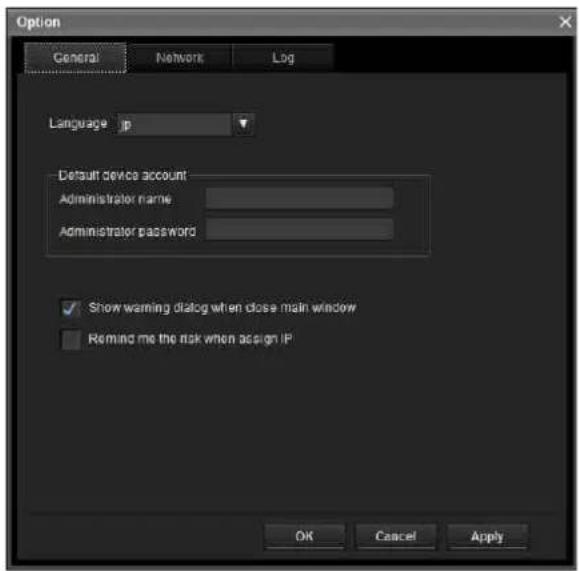

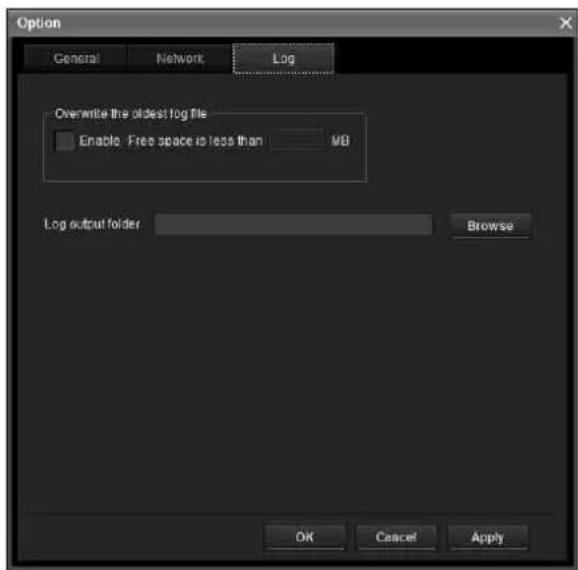

Setting SNC toolbox options ....88

Using Privacy Masking — Masking a Camera Image ....89

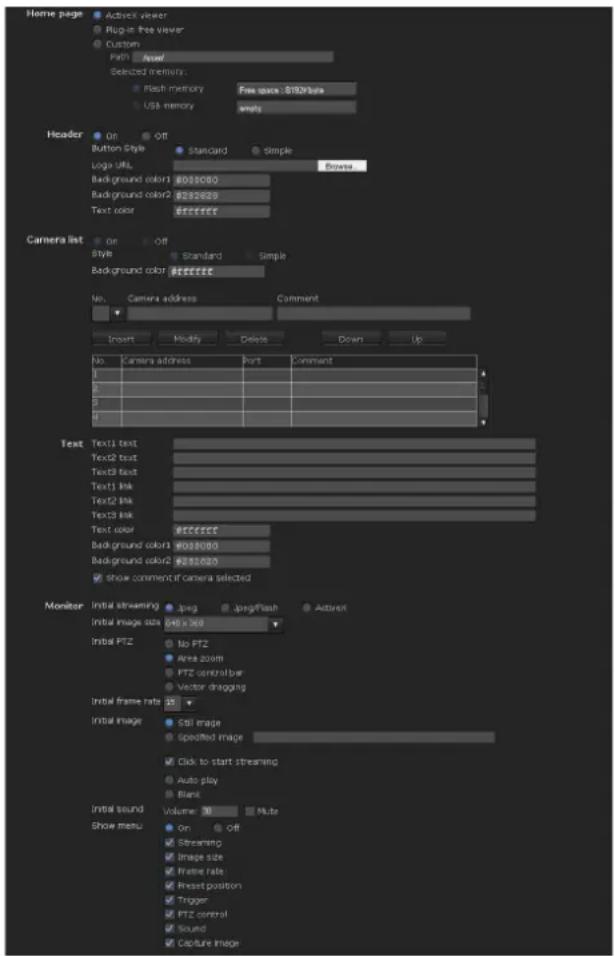

Using the Custom Homepage .....90

Using the Firmware Upgrade ....91

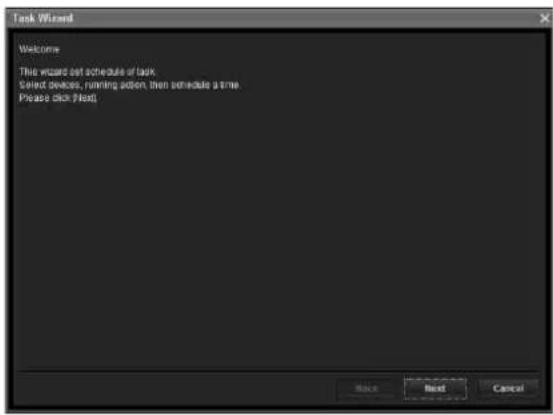

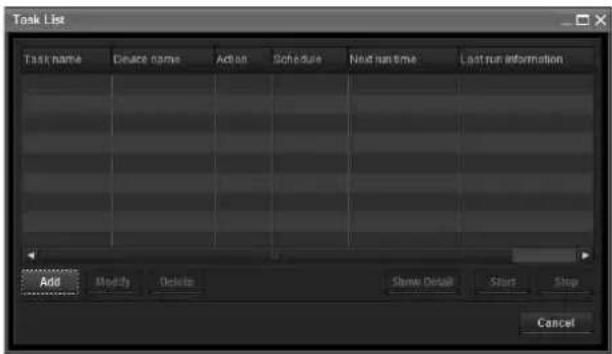

Using the Schedule Task ....91

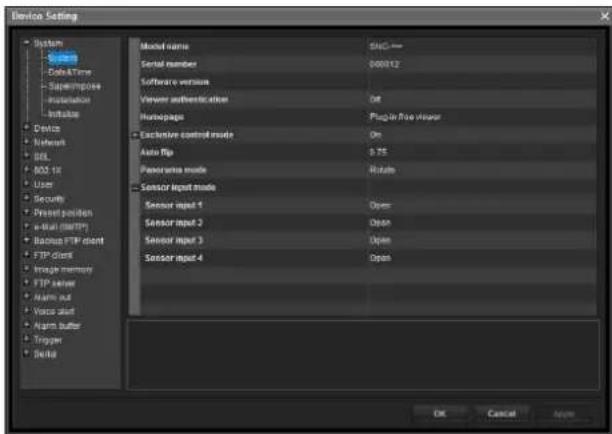

Configuring the device setting .....93

Device restart and initialization .....94

Using the SNC audio upload tool — Transmitting Audio to unit ....95

Installing the SNC audio upload tool .....95

Connecting the unit to the Computer .....95

Using the SNC audio upload tool .....96

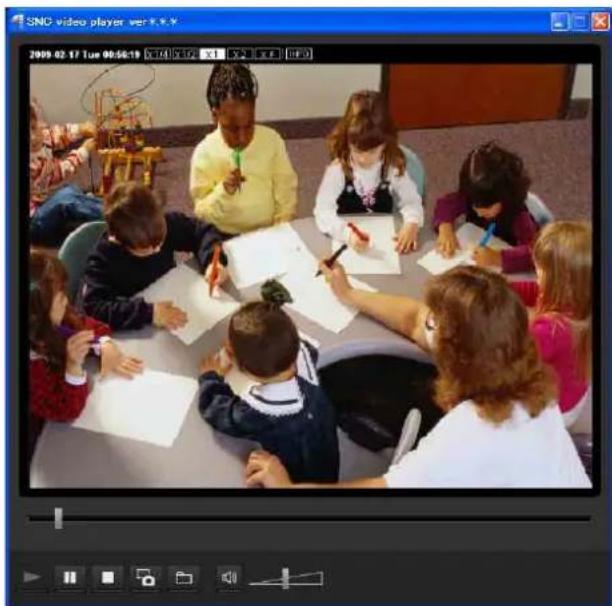

Using the SNC video player — Playing a Video/

Audio File Recorded with the unit ....100 Installing the SNC video player ....100 Using the SNC video player ....101

Assigning the IP Address to the unit using ARP Commands ....102

Using the SNMP ......102

Inquiry Commands ......102
Setting Commands ....103

Glossary ....104

Index 107

Overview

Features

High-quality live images from camera can be monitored at a maximum frame rate of 30 fps.
XDNR and Visibility Enhancer enable clearer images for streaming.
Three video compression modes (video codecs) JPEG/MPEG4/H.264 are supported.
Single codec mode and dual codec modes are available.
The motion detection function is provided on the SNT-EX101, SNT-EX104 and SNT-EX154. The simple motion detection function is provided on the SNT-EP104 and SNT-EP154. The camera tampering detection alarm function is provided on the SNT-EX101, SNT-EX104 and SNT-EX154.
Up to 10 users can view images from one camera at the same time.
Date/time can be superimposed on the image.

NOTICE TO USERS

© 2009 Sony Corporation. All rights reserved. This manual or the software described herein, in whole or in part, may not be reproduced, translated or reduced to any machine readable form without prior written approval from Sony Corporation.

SONY CORPORATION PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL SONY CORPORATION BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.

Sony Corporation reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement.

“IPELA” and are trademarks of Sony Corporation.
Microsoft, Windows and Internet Explorer are registered trademarks of Microsoft Corporation in the United States and/or other countries.
Java is a trademark of Sun Microsystems, Inc. in the United States and other countries.
Intel and Pentium are registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
Adobe, Adobe Reader and Adobe Flash are trademarks of Adobe Systems Incorporated in the United States and/or other countries.

All other company and product names are trademarks or registered trademarks of the respective companies or their respective makers.

How to Use This User's Guide

This User's Guide explains how to operate the video network station from a computer.

The User's Guide is designed to be read on the computer display.

This section gives tips on making the most of the User's Guide-read it before you operate the camera.

When you read the User's Guide on the computer display, you can click on a sentence to jump to a related page.

Software display examples

Note that the displays shown in the User's Guide are explanatory examples. Some displays may be different from the ones that appear in actual use.

The illustrations of the camera and menu display in the User's Guide show the SNC-RH124, SNC-RH164 or SNT-EX104 video network station as an example.

Printing the User's Guide

Depending on your system, certain displays or illustrations in the User's Guide, when printed out, may differ from those that appear on your screen.

Installation Manual (printed matter)

The supplied Installation Manual describes the names and functions of parts and controls of the video network station, connection examples, and how to set up the camera. Be sure to read the Installation Manual before hand.

System Requirements

The following computer environment is necessary for the computer to display images and the controls of the camera.

(August 2009)

CPU

Intel Core 2 Duo, 1.8 GHz or higher.

Memory

1 GB or more.

os

Microsoft Windows XP, Windows Vista

Web Browser

Microsoft Internet Explorer Ver 6.0 or 7.0

Display

1280 × 1024 pixels or higher.

Preparation

The Preparation section explains what the administrator has to prepare for monitoring images after installation and connection of the unit.

Assigning the IP Address to the unit

To connect the unit to a network, you need to assign a new IP address to the unit when you install it for the first time.

You can assign an IP address in two ways:

Using SNC toolbox stored in the supplied CD-ROM (see this page)
Using the ARP (Address Resolution Protocol) commands (see page 102)

This section explains how to assign an IP address to the unit using the supplied setup program and how to configure the network.

Before starting, connect the unit, referring to "Connection" in the supplied Installation Manual.

Consult the administrator of the network about the assigned IP address.

Notes

SNC toolbox may not operate correctly if you use a personal firewall or antivirus software in your computer. In that case, disable the software or assign an IP address to the camera using another method. For example, see “Assigning the IP Address to the unit using ARP Commands” on page 102.

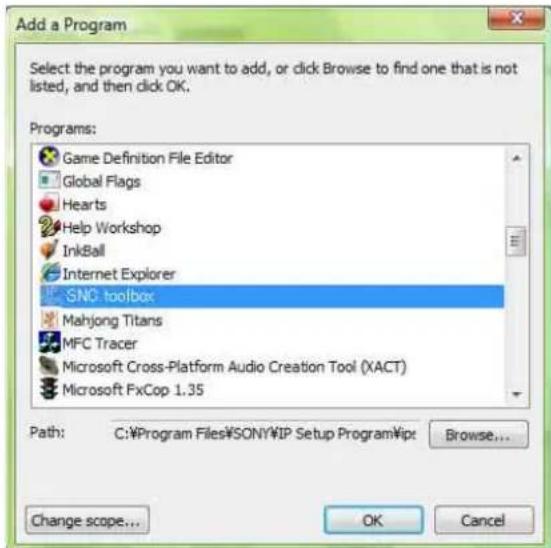

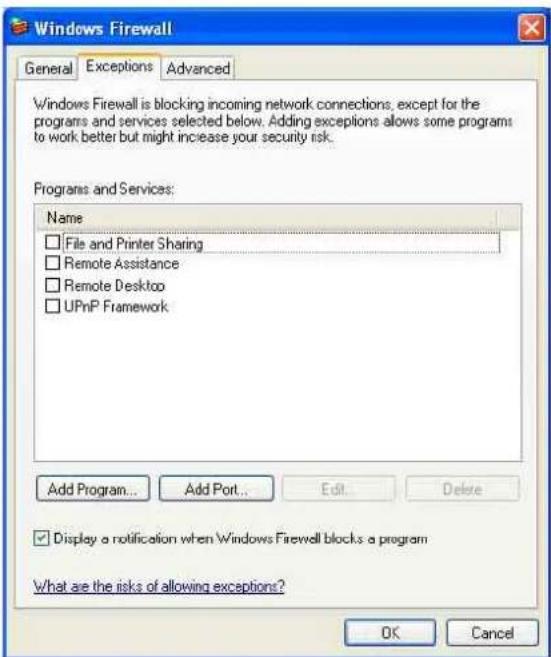

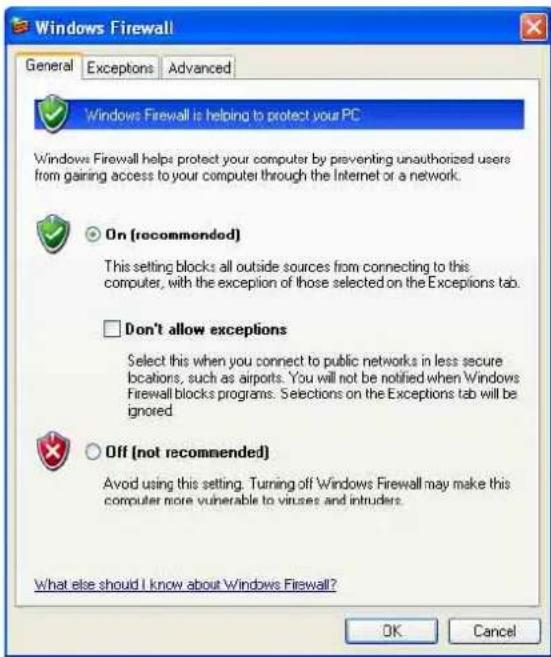

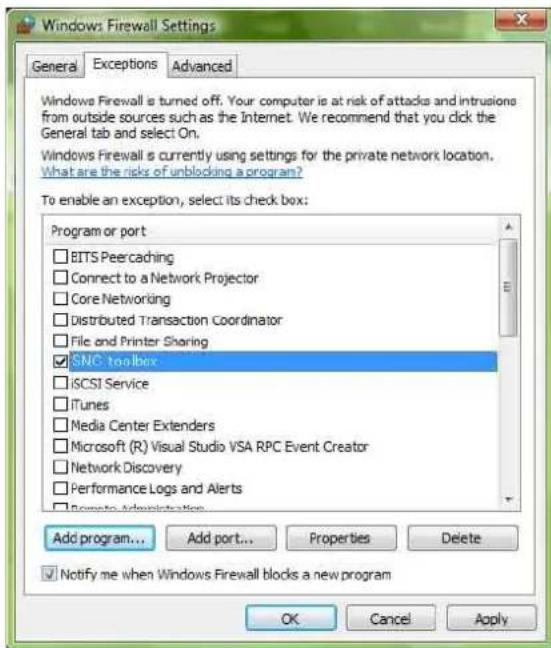

If you are using Windows XP Service Pack 2 or later, or Windows Vista, disable the Windows Firewall function. Otherwise SNC toolbox will not operate correctly. For the setting, see “Configuring Windows Firewall” in “When using Windows XP Service Pack 2 or later” on page 9 or “Configuring Windows Firewall” in “When using Windows Vista” on page 11.

Assigning an IP address using SNC toolbox

1 Insert the CD-ROM in your CD-ROM drive. A cover page appears automatically in your Web browser.

If it does not appear automatically in the Web browser, double-click the index.htm file on the CD-ROM.

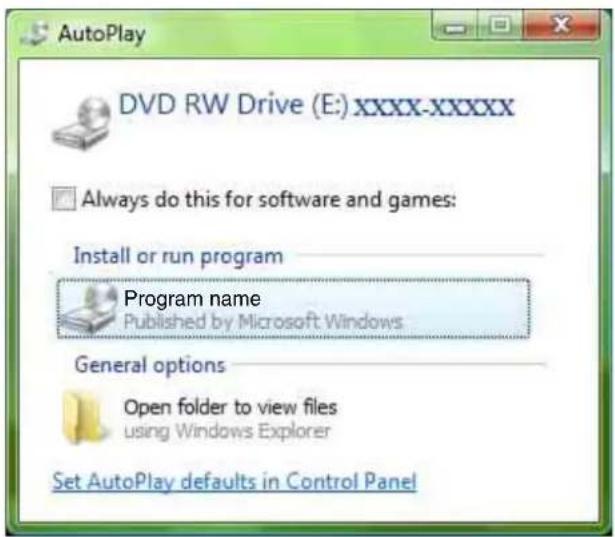

When you are using Windows Vista, the “Auto play” pop-up may appear. For details, see “Installing software” in “When using Windows Vista” on page 10.

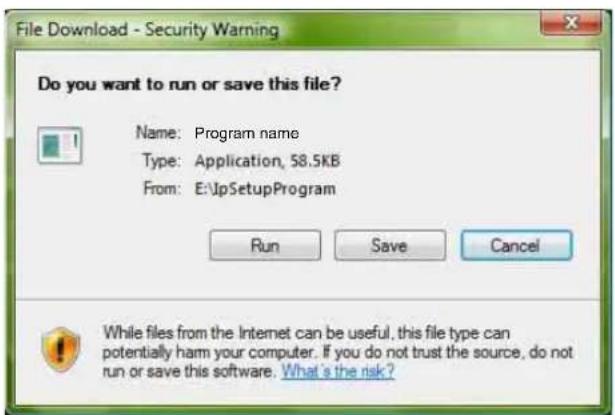

2 Click the Setup icon of SNC toolbox. The File Download dialog opens.

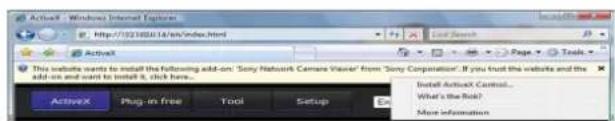

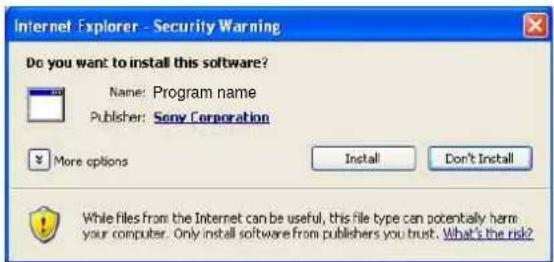

When you are using Windows XP Service Pack 2 or later, or Windows Vista, a message regarding the active contents may appear. For details, see “Installing software” in “When using Windows XP Service Pack 2 or later” on page 8 or “Installing software” in “When using Windows Vista” on page 10.

3 Click File Open.

Note

If you click "Save" on the "File Download" dialog, you will not be able to perform set up correctly. Delete the downloaded file, and click the Setup icon again.

4 Install SNC toolbox on your computer using the wizard.

If the Software License Agreement is displayed, read it carefully and click Accept to continue with the installation.

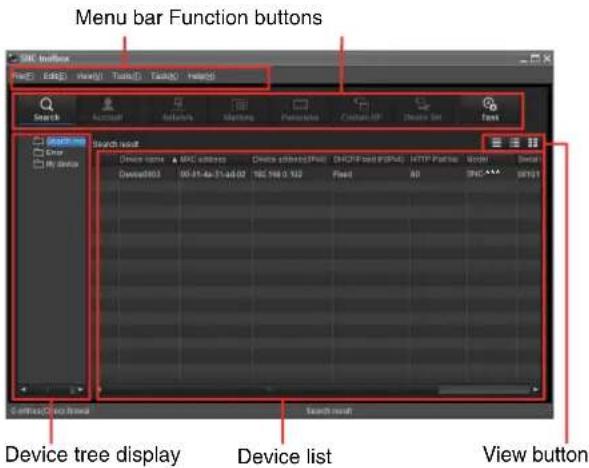

5 Start SNC toolbox.

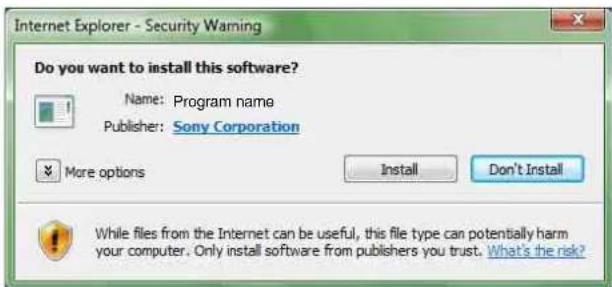

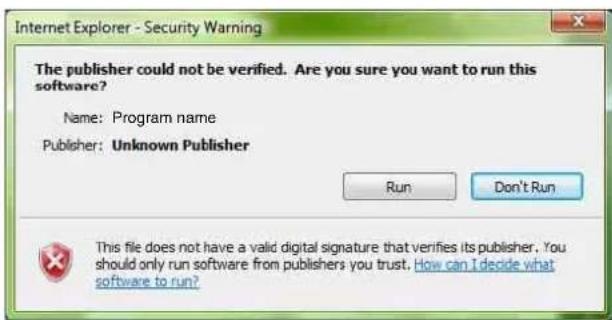

When you are using Windows Vista, the message "User Account Control – An unidentified program wants access to your computer" may appear. In this case, click Allow.

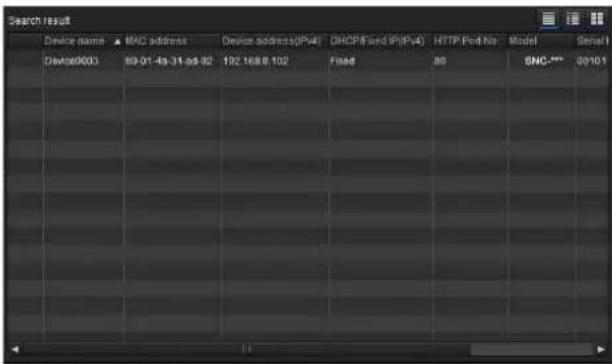

6 Click Search. SNC toolbox detects the video network stations connected to the local network and lists them.

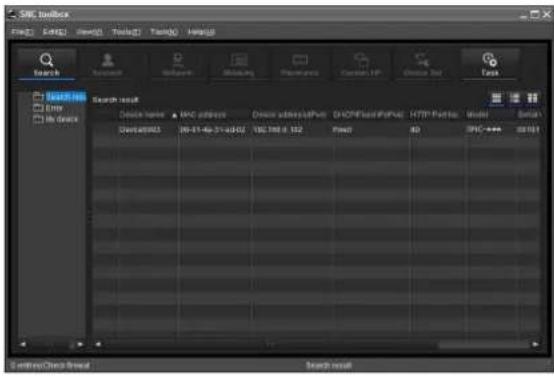

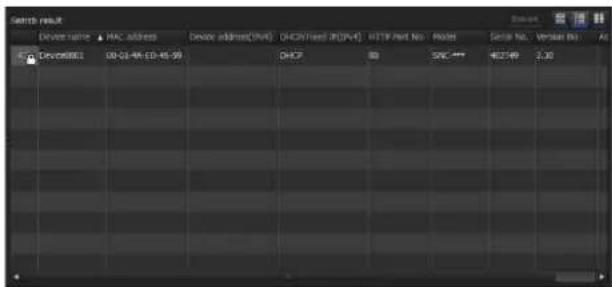

SNC database Search Enter By device Search result Database name: SNC address Database addressName: EXONFluidFormat Database ID: 00-51-46-37-4822 SQL Server ID: 192 File: 82 SNC --- 00101

Tip

The factory setting of the unit network is DHCP mode.

7 Select a unit you want to assign an IP address from the list and click Network.

The account settings screen is displayed.

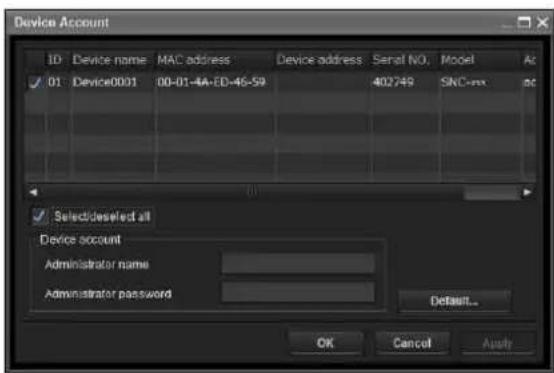

Device Account ID Device name MAC address Device address Serial NO. Model Ac ✓ 01 Device0001 00-01-4A-ED-46-59 402749 SNC-rx ac ✓ Select/deselect all Device account Administrator name Administrator password Default... OK Cancel Apply

8 Register the name and password of the administrator and click OK.

The factory settings for both items are "admin." The Network Setting screen is displayed.

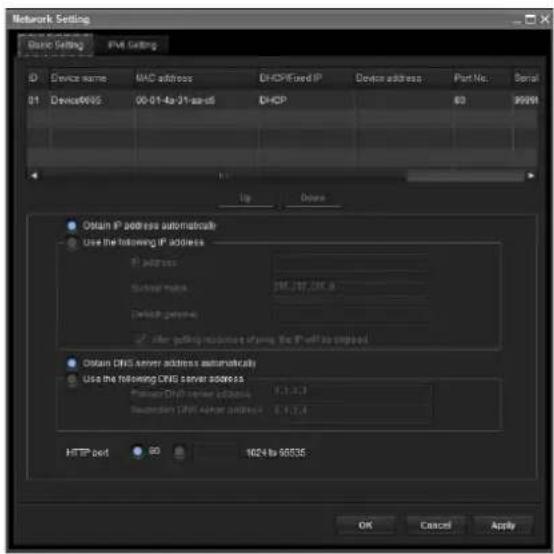

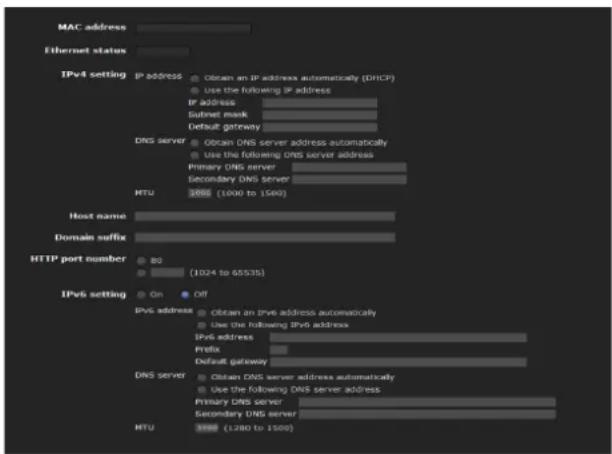

9 Set the IP address.

To obtain the IP address automatically from a DHCP server:

Select Obtain an IP address automatically. The IP address, Subnet mask and Default gateway are assigned automatically.

Note

When you select Obtain an IP address automatically, make sure that the DHCP server is operating on the network.

To specify the IP address manually:

Select Use the following IP address, and type the IP address, Subnet mask and Default gateway in the relevant boxes.

10 Set the DNS server address.

To obtain the DNS server addresses automatically:

Select Obtain DNS server address automatically.

To specify the DNS server addresses manually: Select Use the following DNS server address, and type the Primary DNS server address and Secondary DNS server address in the relevant boxes.

11 Set the HTTP port No.

Normally, select 80 for the HTTP port No. To use another port number, type a port number between 1024 and 65535 in the text box.

Note

When using a port number other than 80, check with the network administrator first.

12 Confirm that all items are correctly set, then click OK.

If "Setting OK" is displayed, the IP address is correctly assigned.

13 When setting is finished, to access the unit directly, double-click the unit name in the list.

Device name ▲ MFC address Device add code(PV) DHCPFeed(RP)VH HTTP Partners Model Serial Device0002 00-01-4a 31-end-02 192 188.0.102 Fixed 80 SNC *** 90/101

The viewer screen of the video network station is displayed on the Web browser.

Display sample
Screenshot of a photo editing software interface showing a group of children in a classroom setting with visible text and toolbars.

Note

If the IP address is not set correctly, the viewer does not appear after step 13. In that case, try to set the IP address again.

When using Windows XP Service Pack 2 or later

Installing software

A warning message regarding the active contents may appear when you install software such as SNC toolbox from CD-ROM. In this case, operate as follows:

Example: In case of SNC toolbox

If message "Internet Explorer" appears, click Yes.

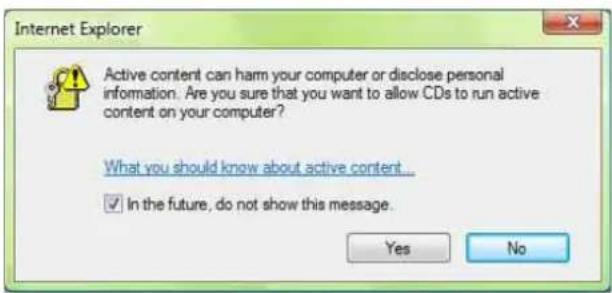

Internet Explorer Active content can harm your computer or disclose personal information. Are you sure that you want to allow CDs to run active content on your computer? What you should know about active content... ✓ In the future, do not show this message. Yes No

If the message "File Download – Security Warning" appears, click Run.

$File Download - Security Warning Do you want to run or save this file? Name: Program name Type: Application, 58.5 KB From: G:\IpSetupProgram Run Save Cancel While files from the Internet can be useful, this file type can potentially harm your computer. If you do not trust the source, do not run or save this software. What's the risk?$

Note

If you select Save in the "File Download – Security Warning" dialog, you will not be able to perform the installation correctly. Delete the downloaded file, and click the Setup icon again.

If the message "Internet Explorer – Security Warning" appears, click Run.

Internet Explorer - Security Warning The publisher could not be verified. Are you sure you want to run this software? Name: Program name Publisher: Unknown Publisher Run Don't Run This file does not have a valid digital signature that verifies its publisher. You should only run software from publishers you trust. How can I decide what software to run?

The software installation starts.

Installing ActiveX Control

During installation of ActiveX Control, the "Information Bar" or "Security Warning" may appear. In this case, operate as follows:

If the message "Information Bar" appears, click OK.

Information Bar Did you notice the Information Bar? The Information Bar alerts you when Internet Explorer blocks a pop-up window or file download that might not be safe. If a Web page does not display properly, look for the Information Bar (near the top of your browser). □ Do not show this message again. Learn about the Information Bar... OK

If the information bar appears, click on the bar and select Install ActiveX Control....

Windows Internet Explorer File Edit View Insert Tools Help Access Project Path Test Setup Google IPELA 2017-04-23

If "Internet Explorer – Security Warning" appears, click Install.

Internet Explorer - Security Warning Do you want to install this software? Name: Program name Publisher: Sony Corporation More options Install Don't Install While files from the Internet can be useful, this file type can potentially harm your computer. Only install software from publishers you trust. What's the risk?

The installation of ActiveX Control starts. When installation is completed, the main viewer or the Motion detection menu appears.

Configuring Windows Firewall

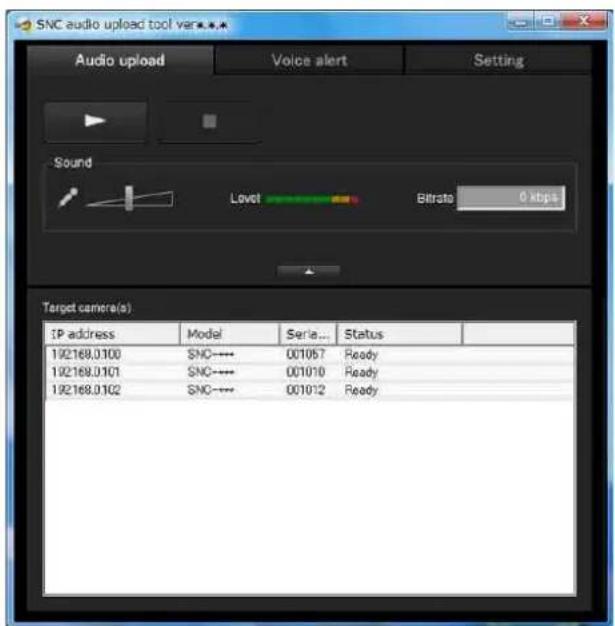

SNC toolbox or SNC audio upload tool may not operate correctly depending on the configuration of Windows Firewall. (No video network stations are shown in the list even if they are detected.) In this case, confirm the Windows Firewall configuration as follows:

Example: In case of SNC toolbox

1 Select Control Panel from the Start menu of Windows.

2 Select Security Center of the working field.

3 Select Windows Firewall and select Off in the Windows Firewall dialog.

The video network station will be displayed in the list.

If you want to keep Windows Firewall On, continue with the following steps.

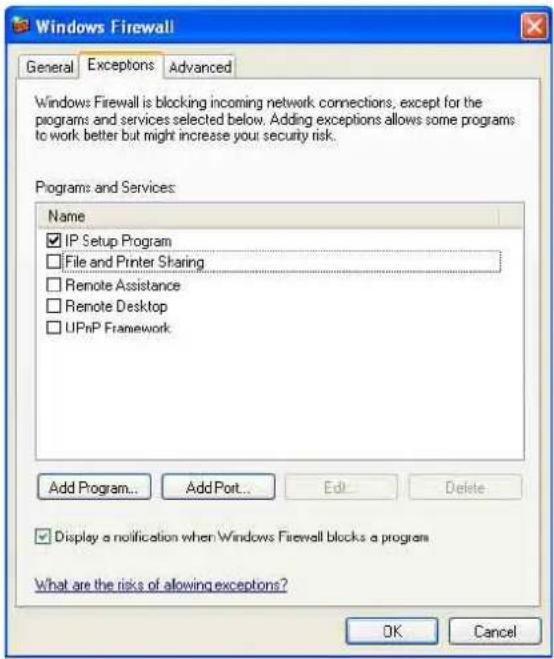

4 Select the "Exceptions" tab.

5 Click Add Program....

6 In the Add Program dialog, select SNC toolbox and click OK.

SNC toolbox is added to the Programs and Services list.

7 Click OK.

When the above procedure is completed, the video network station connected in the local network are displayed in SNC toolbox.

When using Windows Vista

Installing software

A warning message regarding the active contents may appear when you install software such as SNC toolbox from the CD-ROM. In this case, operate as follows:

Example: In case of SNC toolbox

If the pop-up "AutoPlay" appears when a CD-ROM is inserted into the CD-ROM drive, click Install or run program.

AutoPlay DVD RW Drive (E:) XXXX-XXXXX Always do this for software and games: Install or run program Program name Published by Microsoft Windows General options Open folder to view files using Windows Explorer Set AutoPlay defaults in Control Panel

Note

If you click Open folder to view files, the Web browser will not open automatically. In this case, double-click the "index.htm" file in the CD-ROM.

If the message "Internet Explorer" appears, click Yes.

If the message "File Download – Security Warning" appears, click Run.

$File Download - Security Warning Do you want to run or save this file? Name: Program name Type: Application, 58.5KB From: E:\UpSetupProgram Run Save Cancel While files from the Internet can be useful, this file type can potentially harm your computer. If you do not trust the source, do not run or save this software. What's the risk?$

Note

If you select Save in the "File Download – Security Warning" dialog, you will not be able to perform installation correctly. Delete the downloaded file, and click the Setup icon again.

If the message “Internet Explorer – Security Warning” appears, click Run.

If the message "User Account Control – An unidentified program wants access to your computer" appears, click Allow.

The software installation starts.

Starting the software

When you start software such as SNC toolbox, the message "User Account Control – An unidentified program wants access to your computer" may appear. In this case, click Allow.

Installing ActiveX Control

During installation of ActiveX Control, the information bar or "Security Warning" may appear. In this case, operate as follows:

If the message "Information Bar" appears, click Close.

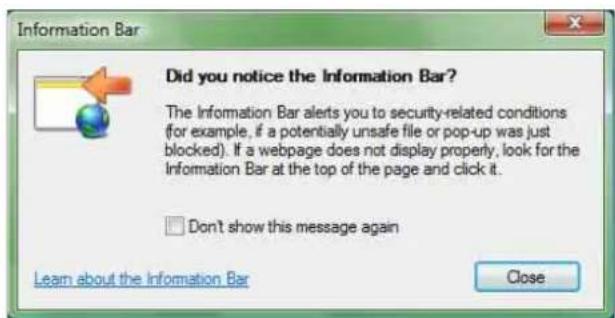

Did you notice the Information Bar? The Information Bar alerts you to security-related conditions (for example, if a potentially unsafe file or pop-up was just blocked). If a webpage does not display properly, look for the Information Bar at the top of the page and click it. □ Don't show this message again Learn about the Information Bar Close

If the information bar appears, click on the bar and select Install ActiveX Control....

ActiveX - Windows Internet Explorer http://021850.14/8/index.html Last Search Page Tools This website wants to install the following add-on: 'Sony Network Camera Viewer' from 'Sony Corporation'. If you trust the website and the add-on and want to install it, click here... Install ActiveX Control... What's the risk? More information

If the message "User Account Control – Windows needs your permission to continue" appears, click Continue.

If "Internet Explorer – Security Warning" appears, click Install.

The installation of ActiveX Control starts. When installation is completed, the main viewer or the Motion detection menu appears.

Configuring Windows Firewall

SNC toolbox or SNC audio upload tool may not operate correctly depending on the configuration of Windows Firewall. (No cameras are shown in the list even if they are detected.) In this case, confirm the Windows Firewall configuration as follows:

Example: In the case of SNC toolbox

1 Select Control Panel from the Start menu of Windows.

2 Click Windows Firewall.

3 Select Turn Windows Firewall on or off. "User Account Control – Windows needs your permission to continue" may appear. In this case, click Continue.

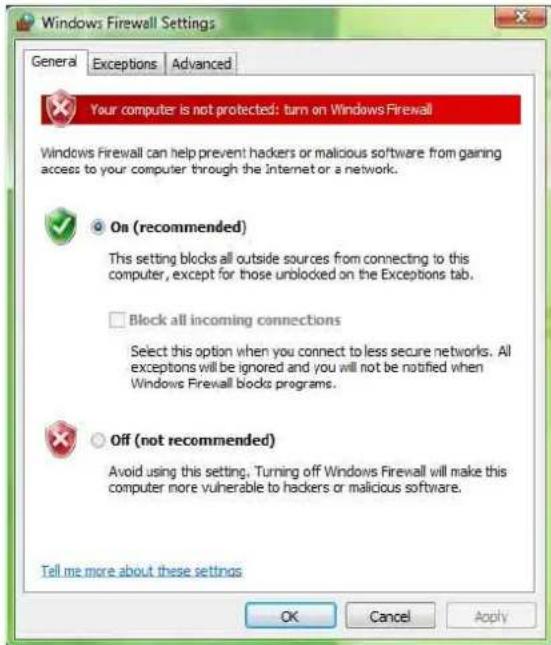

4 Select Off in the "General" tab.

The video network station will be displayed in the list.

If you want to keep Windows Firewall On, continue with the following steps.

5 Select the "Exceptions" tab.
6 Click Add a Program....
7 If the Add a Program dialog appears, select SNC toolbox and click OK.

$Add a Program Select the program you want to add, or click Browse to find one that is not listed, and then click OK. Programs: Game Definition File Editor Global Flags Hearts Help Workshop InkBall Internet Explorer SNC toolbox Mahjong Titans MFC Tracer Microsoft Cross-Platform Audio Creation Tool (XACT) Microsoft FxCop 1.35 Path: C:\Program Files\SONY\P Setup Program\Pip Browse... Change scope... OK Cancel$

SNC toolbox is added to the Program or port list.

8 Click OK.

When the above procedure is completed, the video network station connected in the local network are displayed in SNC toolbox.

Accessing the System Using the Web Browser

After the IP address has been assigned to the unit, check that you can actually access the system using the Web browser installed on your computer. Use Internet Explorer as a Web browser.

1 Start the Web browser on the computer and type the IP address of the unit in the URL address bar.

SONY SNTEX154 - Accessing the System Using the Web Browser - 1

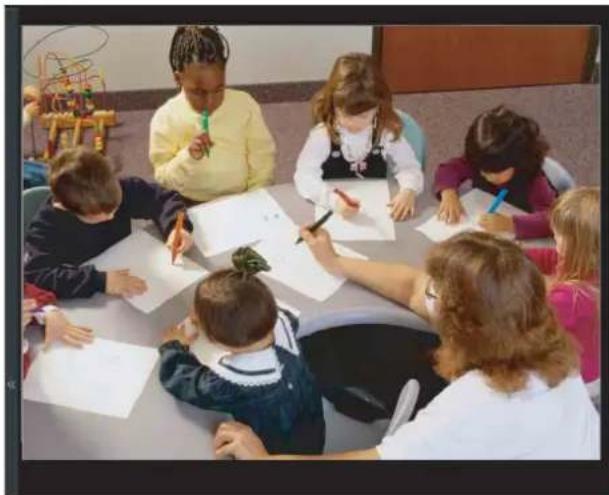

The viewer window is displayed.

Display sample
SONY SNTEX154 - Accessing the System Using the Web Browser - 2

Using the SSL function

Note

The model on sale in China does not support the SSL function.

When Internet Explorer 6 is used

"Security Alert" dialog may appear according to the status of the certificate. In this case, click Yes to continue. The viewer window is displayed (in SSL communication).

When Internet Explorer 7 is used

When you enter the unit IP address, "Certificate Error" may appear according to the status of the certificate set on the system. In this case, click Continue to this website (not recommended), to continue.

The welcome page appears (in SSL communication).

When "Allow HTTP connection for some clients" (page 42) is checked

To use HTTP and SSL connections separately to access, enter the following in the address box of the browser.

For HTTP connection

Address

SONY SNTEX154 - For HTTP connection - 1

http://192.168.0.100/en/index.html

For SSL connection

Address

SONY SNTEX154 - For SSL connection - 1

https://192.168.0.100/en/index.html

When the viewer of the unit is displayed for the first time

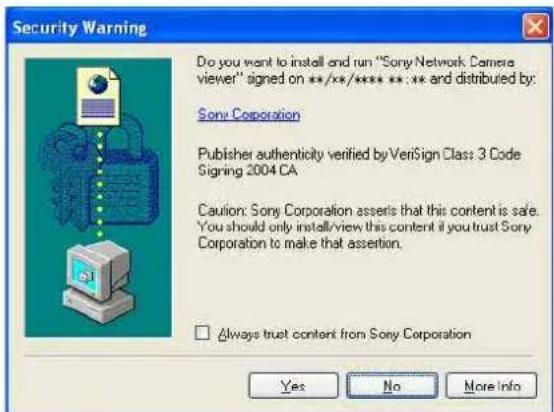

"Security Warning" is displayed. When you click Yes, ActiveX control is installed and the viewer is displayed.

Notes

If Automatic configuration is enabled in the Local Area Network (LAN) settings of Internet Explorer, the image may not be displayed. In that case, disable Automatic configuration and set the Proxy server manually. For the setting of the Proxy server, consult your network administrator.
When you install ActiveX Control, you should be logged in to the computer as Administrator.
If you are using Windows XP Service Pack 2 or later, or Windows Vista, the information bar or “Security Warning” may appear. For details, see “Installing ActiveX Control” in “When using Windows XP Service Pack 2 or later” on page 8 or “Installing ActiveX Control” in “When using Windows Vista” on page 11.

Tip

The software is optimized for Internet Explorer using medium font.

To display the viewer correctly

To operate the viewer correctly, set the security level of Internet Explorer to Medium or lower, as follows:

1 Select Tools from the menu bar for Internet Explorer, then select Internet Options and click the Security tab.
2 Click the Internet icon (when using the camera via the Internet), or Local intranet icon (when using the camera via a local network).
3 Set the slider to Medium or lower. (If the slider is not displayed, click Default Level.)

When using antivirus software, etc., on the computer

When you use antivirus software, security software, personal firewall or pop-up blocker on your computer, the system performance may be reduced, for example, the frame rate for displaying the image may be lower.
The Web page displayed when you log in to the camera uses JavaScript. The display of the Web page may be affected if you use antivirus software or other software described above on your computer.

Basic Configuration by the Administrator

You can monitor the camera image by logging in with the initial conditions set for this video network station.

You can also set various functions according to the installing position, network conditions or purpose of the camera.

We recommend you configure the following items before monitoring images from the camera.

Setting contents Setting menu
Set the format of the image sent from the unit. Video codec Tab (page 36)
Select the brightness of the image sent from the unit. Brightness (page 35)
Select the quality of the image sent from the unit. Video codec Tab (page 36)
Select the view size of the image. View size (page 18)
Select whether the audio from the external microphone is sent or not. Microphone (page 34)

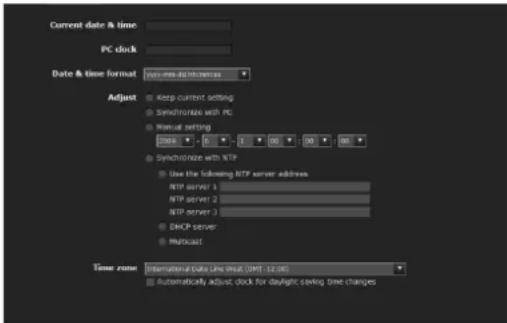

Synchronize the date and time of the unit with those of the computer.	Date & time Tab (page 30)
Make the setting for sending the monitor image attached to an e-mail.	e-Mail (SMTP) Menu (page 57)
Set the user access right for the unit. User Menu (page 53)
Set a place to be watched beforehand. Preset position Menu (page 54)

Operating the unit

This section explains how to monitor the image from the camera using your Web browser (Internet Explorer).

The functions of the unit should be set by the Administrator. For the setting of the unit, see “Administrating the unit” on page 27.

Administrator and User

This video network station identifies those who log in as the Administrator or User.

The Administrator can use all the functions of this video network station, including camera settings. The User can use the functions for monitoring the image and audio from the camera, and control the camera. The

Viewer mode setting is used to restrict the user's access rights. There are five types of users.

Each type of user can use the corresponding functions below.

Function Administrator		User
Function Administrator		Full Pan/Tilt Preset		position	Light View
Monitor a live image ● ●	● ●	●	●
View the date and time ● ●	● ●	●	●
Control the frame rate (JPEG mode only) ●	● -	-	-	-
Control the image view size ● ●	●	●	●	-
Save a still image and movie in the computer	●	●	●	●	●	-
Send an image file to the FTP server	●	●	-	-	-	-
Send an image attached to an e-mail	●	●	-	-	-	-
Record an image in the memory	●	●	-	-	-	-
Control the alarm output of the I/O port on the unit	●	●	-	-	-	-
Play an audio file (Voice alert) *	●	●	-	-	-	-
Switch the TCP/UDP transmission mode (Available in MPEG4/H.264 mode only)	●	●	-	-	-	-
Call the preset position *	●	●	●	●	-	-
Perform the pan/tilt/zoom operation *	●	●	●	-	-	-
Receive audio *	●		●	●	●	●
Select the codec mode	●	●	●	●	●	-
Control the setting menu	●	-	-	-	-	-

●Usable function
- Not usable function
* SNT-EX101/SNT-EX104/SNT-EX154 only

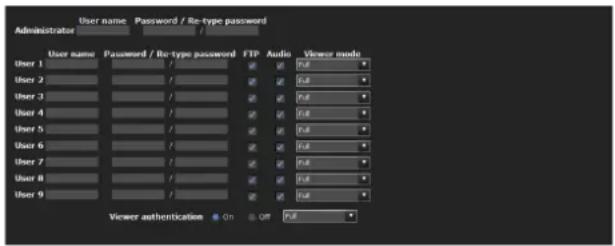

The access rights of the administrator and the user can be set in “Setting the User — User Menu” of the Administrator menu on page 53.

Logging in to System

Logging in as a user

1 Start the Web browser on your computer and type the IP address of the system you want to monitor.

Address

http://192.168.0.100

The viewer is displayed.

Display sample:

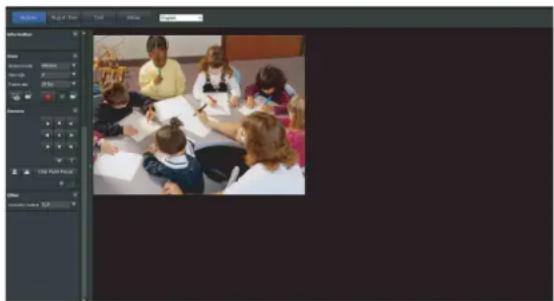

Screenshot of a video editing software interface showing a group of children writing on paper at a table.

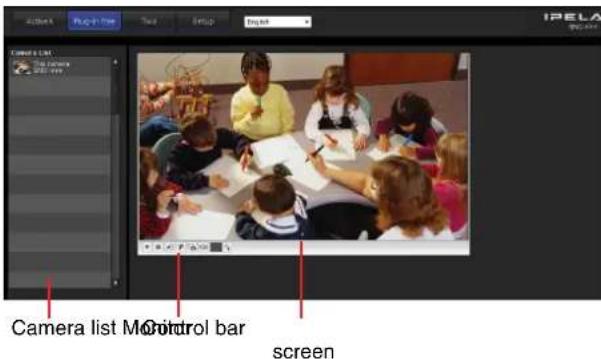

Three types of viewer are available: ActiveX Viewer, Plug-in free Viewer and custom homepage. By default, ActiveX Viewer is displayed. To switch the viewer, make changes to the Viewer menu (page 81).

Note

If the main viewer does not start correctly, the security level of the Internet Explorer may be set to higher than Medium. See “To display the viewer correctly” on page 14 and check the security level.

About Viewers

You can use the following viewers.

ActiveX Viewer

This viewer can monitor the camera image in any of the JPEG, MPEG4 and H.264 video codecs.

You must install this viewer when you access the main viewer for the first time.

When you display the main viewer of the unit for the first time

When you access the video network station using ActiveX Viewer for the first time, the Security Warning appears. Click Yes and install ActiveX Control. You can use all the functions of the viewer with ActiveX Control.

Plug-in free Viewer

This viewer allows the user to select from three image display methods: JPEG, JPEG/FLASH or ActiveX Viewer.

JPEG method: JPEG images will be displayed in sequence.

JPEG/FLASH method: JPEG images will be displayed in sequence.

ActiveX Viewer method: The image can be viewed when the image display is set to JPEG, MPEG4 or H.264.

Notes

If Automatic configuration is enabled in the Local Area Network (LAN) Settings of Internet Explorer, the camera image may not be displayed. In that case, disable Automatic configuration and set the Proxy server manually. For the setting of the Proxy server, consult your network administrator.
When you install ActiveX Control, you should be logged in to the computer as the Administrator.

Tip

Every page of this software is optimized for Internet Explorer in Medium font.

Configuration of Main Viewer

This section explains the functions of the parts and controls of the main viewer. For a detailed explanation on each part or control, see the specified pages.

Main viewer using ActiveX Viewer
Main menu Action Plug-in fees Tool Setup English Information View Screen mode Window View size 32 Frame size 30 fps Camera One Pulse Focus Other Lemonial icon TCP Control panel section Monitor image section

ActiveX

Displays the ActiveX viewer.

Plug-in free

Displays the Plug-in free viewer.

Tool

You can download system utility from here. (page 24) This operation is only available when you are logged in as administrator.

Set up

Click to display the Administrator menu. (page 27) You can operate this function only when logging in as the administrator.

Language

Set language from pull-down.

Control panel section

Information panel

SONY SNTEX154 - Information panel - 1

Check the date and time here.

View panel
View Screen mode Window View size Full Image codec Image 1 Frame rate 30 fps

You can change the screen mode, size of the image, image codec mode and frame rate. Also, still images and movies can be saved (movie saving can also be stopped) from here. Microphone and audio output levels can be adjusted.

Screen Mode

Select Window or Full Screen.

View size

Selects the view size to be displayed. Click View size list box to select the view size. Full is determined by the image size specified in the Camera menu (page 36).

Image Codec

Select an image codec mode.

Frame rate

(Displayed only when the camera image is in JPEG.) Selects the frame rate to transmit images.

(Capture)

Click to capture a still image shot by the camera and to store it in the computer. Click to open the folder to be saved.

(Run)/ (Stop Save Video)

Runs and stops Save Video. Click to open the folder to be saved.

Volume

(Displayed when Microphone (page 34) is set to On.)

SONY SNTEX154 - Volume - 1

Adjust the microphone volume by moving the each slider bar.

When you click 📄 the icon changes to an 📋 the microphone input stops. To input the microphone, click ✗ again.

When you click the icon changes to and the microphone output stops. To output the microphone, click again.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

Camera control panel

Camera W T One Push Focus 28

On this panel, you can control the pan/tilt/home position of the camera, adjust the zoom and switch focus mode (page 21). In addition, you can obtain authority to operate the camera when the exclusive control mode is on.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
• To operate the camera, it is necessary to have a camera connected, and the connection/setting set correctly.

Pan/Tilt control

Click the arrow button the direction in which you want to move the camera. Keep it pressed to move the camera continuously.

Zoom control

Press to zoom out, and press to zoom in. Zooming continues while the button remains pressed.

Focus control

To focus on a nearby object, press 📁 to focus on a distant object, press 🙏 By pressing One Push Focus to the optimum position.

Note

To control the focus manually, set Focus mode of the Camera menu to Manual (page 34).

SONY SNTEX154 - Note - 1

(Exclusive control)

Click this button to display the time remaining for operation authority. However, if operation authority has not been obtained, the waiting time is displayed.

Trigger panel

Trigger Image memory e-Mail FTP Alarm output 1 Alarm output 2 Voice alert 1 Voice alert 2 Voice alert 3

The above is displayed only when Viewer mode (page 53) is set to Full, and one or more triggers are enabled in the Trigger menu (page 70).

The configured functions are displayed as buttons on this panel.

Click the function button you want to use on the Trigger panel. The selected function is activated. The selectable functions are as follows:

send still image files attached to an e-mail (page 22)
send still image files to an FTP server (page 22)
record still image files in the built-in memory or USB memory (not supplied) (page 22)
• control the alarm output (page 23)
play the audio file stored in the system (page 23)

SONY SNTEX154 - Trigger panel - 2

Preset position panel

Preset position No group test01 test02

The above is displayed only when one or more preset positions are stored in memory.

The registered preset position is displayed with a thumbnail.

Select the Preset position name from the list. The camera will move to the preset position that you have stored in memory using the Preset position menu.

Notes

• This operation is not available on the SNT-EP104 or SNT-EP154.
• To operate the camera, it is necessary to have a camera connected, and the connection/setting set correctly.

Others panel

SONY SNTEX154 - Others panel - 1

(Displayed only when the camera image is in MPEG4 or H.264, and the ActiveX Viewer is used.)

You can switch between TCP and UDP (Unicast/Multicast).

Each click switches the transmission mode of the video/audio data between TCP mode, UDP (Unicast) mode, and UDP (Multicast) mode (page 23).

The last selected mode is saved in the computer, and will stay selected for the next startup.

Monitor image

SONY SNTEX154 - Monitor image - 1

The image shot by the camera is shown here.

You can use the camera control panel bar to pan or tilt.

Plug-in free Viewer

Main viewer using Plug-in free Viewer

Camera list The camera Control bar screen

Monitor screen

You can use the tool bar to pan or tilt.

Control bar

The following operation buttons are available.

SONY SNTEX154 - Control bar - 1

SONY SNTEX154 - Control bar - 2

Setting

SONY SNTEX154 - Control bar - 3

Play/Pause button

SONY SNTEX154 - Control bar - 4

Trigger run button

SONY SNTEX154 - Control bar - 5

Preset

SONY SNTEX154 - Control bar - 6

Save still image button

SONY SNTEX154 - Control bar - 7

Audio output volume slider

SONY SNTEX154 - Control bar - 8

Control waiting time and control time for exclusive control

SONY SNTEX154 - Control bar - 9

Exclusive control button

Camera list

The camera list is displayed when Camera list is set to On in the viewer menu, and at least one camera is registered in the unit list.

Operating the Camera

You can control pan/tilt, zoom and focus.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
• To operate, make sure the connected camera is configured correctly.

Controlling via the control panel

You can operate the camera direction, zoom, and focus by using the control panel for the monitor image currently displayed.

Camera W T One Push Focus 28

Pan/Tilt control

Click the arrow button in the direction in which you want to move the camera. Keep it pressed to move the camera continuously.

To return to the home position, click

Zoom control

Click w zoom out, and click to zoom in. Zooming continues while the button remains pressed.

Focus control

To focus on a nearby object, click 📄 to focus on a distant object, click 🔒

By clicking . The Film Focus set to the optimum position.

Note

To control the focus manually, set Focus mode of the Camera menu to Manual (page 34).

SONY SNTEX154 - Note - 1

Moving the camera to a preset position

Select a preset position name from the Preset position panel. The camera will move to the preset position that you have stored in memory using the Preset position menu (page 54).

Multiple preset positions can be organized by group according to setting.

Preset position No group test01 test02

Using the Trigger Button

You can execute various functions by clicking their respective buttons on the Trigger panel.

Sending a monitor image via e-mail

You can send a captured still image by attaching it to an e-mail.

To use this function, you need to make e-Mail (SMTP) active and set the address in the Trigger menu of the Administrator menu properly (page 70).

1 Click e-Mail (SMTP) on the Trigger panel.

The still image of the moment you click is captured, and your e-mail with the image file attached is sent to the specified mail address.

Sending a monitor image to an FTP server

You can send a captured still image to the FTP server. To use this function, you need to make FTP active and set the address in the Trigger menu of the Administrator menu properly (page 71).

1 Click FTP client on the Trigger panel.

The still image of the moment you click is captured, and the image file is sent to the FTP server.

Recording a camera image as a still image

You can capture a camera image as a still picture and record it.

The still images are recorded in the built-in memory or USB memory (not supplied).

To use this function, you need to make Image memory active and set the details in the Trigger menu of the Administrator menu (page 71).

1 Click Image memory on the Trigger panel.

The still image of the moment you click is captured, and the image file is recorded.

Controlling alarm output

You can control Alarm output.

To use this function, you need to make Alarm output active in the Trigger menu of the Administrator menu (page 71).

1 Click Alarm output1 or Alarm output2 on the Trigger panel.

The alarm output is switched by clicking.

The alarm output mode can be selected from

Toggle or Timer of Alarm output 1, 2 (page 71) in the Trigger menu.

Tip

For the connection of peripheral devices to the alarm output of the I/O port, see the supplied Installation Manual.
The number of alarm outputs varies by model.
The number of selectable alarm output terminals is as follows:
SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None

Playing an audio file stored in the system

You can play an audio file previously stored in the system using the SNC audio upload tool.

To use this function, you need to make Voice alert1,

Voice alert2 and Voice alert3 active in the Trigger menu of the Administrator menu (page 71).

1 Click Voice alert1, Voice alert2 or Voice alert3 on the Trigger panel.

Playback of the selected audio file starts and the playback sound is output from the speaker connected to the system.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

Switching TCP/UDP Transmission Mode

You can select TCP or UDP as the communication port for video/audio data.

This function can be used when Mode (video codec mode) is set to MPEG4 or H.264 and the ActiveX Viewer is used.

Notes

The function may not operate correctly if you use personal firewall software or antivirus software on your computer. In that case, disable the software or select the TCP mode.
If you are using Windows XP Service Pack 2 or later, or Windows Vista, disable “Windows Firewall.” For details, see “Configuring Windows Firewall” in “When using Windows XP Service Pack 2 or later” on page 9, or “Configuring Windows Firewall” in “When using Windows Vista” on page 11.

1 Select TCP, UDP (Unicast) or UDP (Multicast) from the Connection drop-down list in the Others panel.

SONY SNTEX154 - Notes - 1

TCP: This is normally selected.

When TCP is selected as the communication port, HTTP communication is adopted for video/audio communications.

HTTP is the protocol used for reading the usual Web page.

In an environment capable of reading Web pages, you can watch or listen to video/audio by selecting the TCP port.

UDP (Unicast): When UDP (Unicast) is selected as the communication port, RTP (Real-time Transport Protocol) is adopted for video/audio communications. Since RTP is the protocol for running video/audio data, the video/audio playback is smoother than when TCP (HTTP) is selected. If a firewall is installed between the system and the computer, or depending on the network environment, video/audio may not play back properly when UDP (Unicast) is selected. In this case, select TCP.

SONY SNTEX154 - Notes - 2

UDP (Multicast): This protocol is selectable when Multicast streaming (page 37) is On. When UDP (Multicast) is selected as the transmission port, RTP (Real-time Transport Protocol) and UDP multicast techniques are adopted for video/audio transmission. By selecting it, the network transmission load of the system can be reduced. If a router that does not correspond to a multicast or firewall is installed between the system and the computer, video/audio may not play back properly. In this case, select TCP or UDP (Unicast).

Using the System Utility

You can download system utility from the tools tab on the main menu.

This operation is only available when you are logged in as administrator.

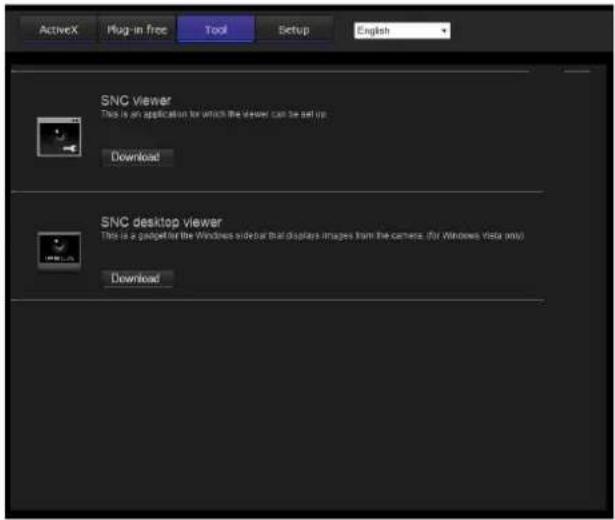

ActiveX Plug-in Free Tool Setup English SNC viewer This is an application for which the viewer can be set up. Download SNC desktop viewer This is a gadget for the Windows sidebar that displays images from the camera. (for Windows video only) Download

To use the utility, click Download to begin download.

Note

Network camera (SNC-RH124/RS46N/RS46P, SNC-RS44N/RS44P/RH164, SNC-RS86N/RS86P/RS84N/RS84P) and video network station have a common utility. For the video network station, some of the utility functions cannot be used.

SNC Viewer

SNC Viewer is an application which allows you to set the initial state of the viewer.

Connection tab

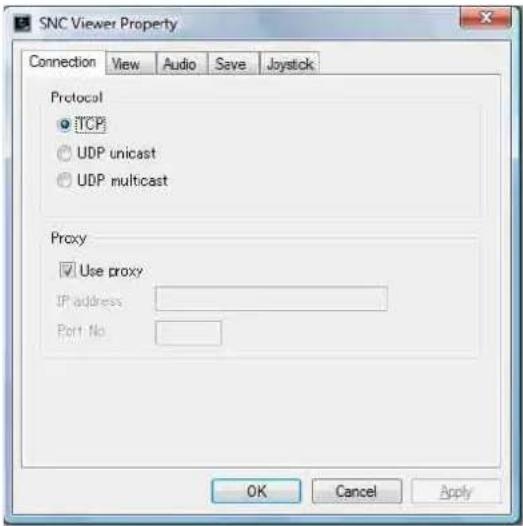

SNC Viewer Property Connection View Audio Save Joystick Protocol TCP UDP unicast UDP multicast Proxy Use proxy IP address Port No OK Cancel Apply

You can set the connection method.

Select the start-up connection from: TCP, UDP

Unicast, and UDP Multicast.

If TCP connection is selected, you can configure proxy settings by selecting Use proxy.

View tab

SNC Viewer Property Connection View Audio Save Joystick View Screen mode Window View size Full JPEG framerate 30 Camera Image action Off OK Cancel Apply

Screen mode

You can select Window or Full.

View size

You can select the view size.

JPEG framerate

You can set the frame rate for JPEG.

Image action

Select from the image operation modes Area zoom and Vector dragging.

Note

This function cannot be used with video network station.

Audio tab

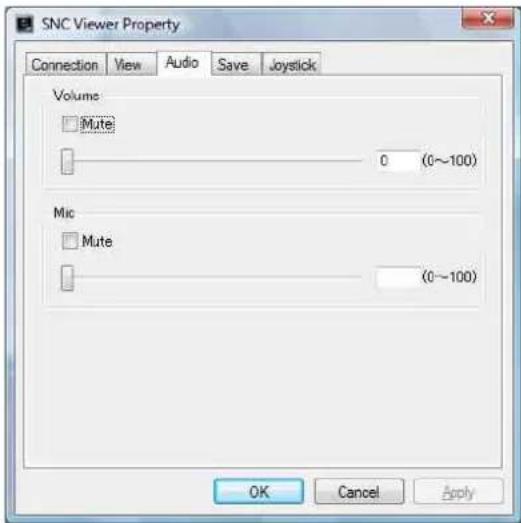

SNC Viewer Property Connection View Audio Save Joystick Volume Mute 0 (0~100) Mic Mute (0~100) OK Cancel Apply

Volume

Mute: Select this option to mute sound at start-up. Use the slide bar to set the volume for start-up sound output.

Mic

Mute: Select this option to mute microphone sound at start-up.

Use the slide bar to set the volume for start-up microphone input.

Save tab

SNC Viewer Property Connection View Audio Save Joystick Still image folder Movie folder OK Cancel Apply

Specify a folder to save the still images and movies to.

Joystick tab

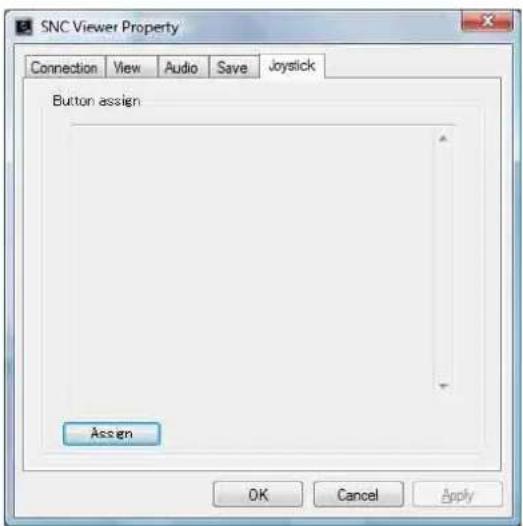

SNC Viewer Property Connection View Audio Save Joystick Button assign Assign OK Cancel Apply

You can assign the joystick buttons here.

SNC Desktop Viewer

This is a gadget that displays the camera image in the side bar of Windows Vista.

SONY SNTEX154 - SNC Desktop Viewer - 1

Click to exit Gadget.

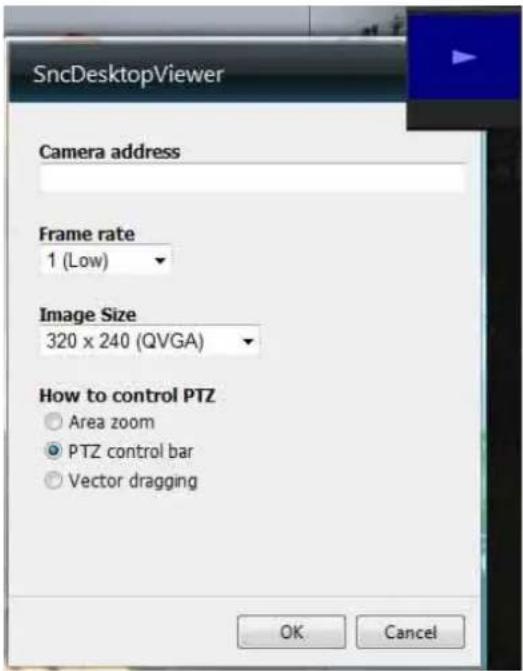

When you click 📄 you will see the following setting screen.

SncDesktopViewer Camera address Frame rate 1 (Low) Image Size 320 x 240 (QVGA) How to control PTZ Area zoom PTZ control bar Vector dragging OK Cancel

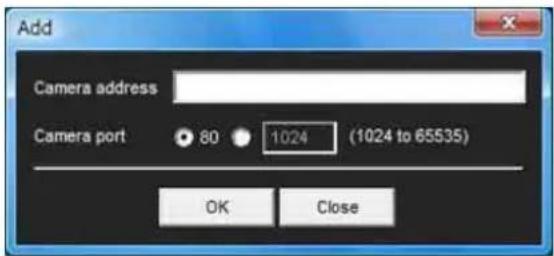

Camera address

Set the IP address for the camera to display on the Gadget.

Frame rate

Select the frame rate for the image to display on the Gadget.

Image size

Select the image size for the image to display on the Gadget.

Administrating the unit

This section explains how to set the functions of the unit by the Administrator.

For details about monitoring the camera image, see "Operating the unit" on page 16.

This section explains the basic operations and each option of the Administrator menu.

The setting menus of this unit will clearly display only the setting options that you can currently select. Grayed out options cannot be selected.

You can use the Administrator menu to set all functions to suit the user's needs.

Click Setting in the viewer to display the Administrator menu.

1 Log in to the homepage to display the viewer. For details, see "Logging in as a user" on page 17.

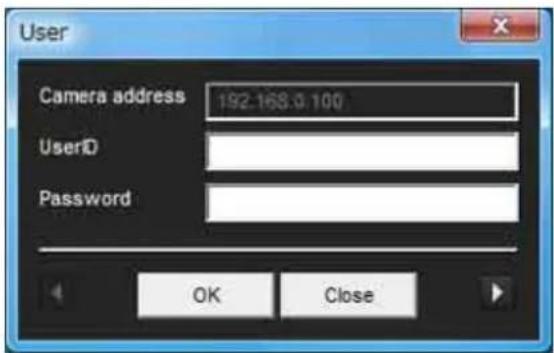

2 Click Setting on the main menu. The authentication dialog appears. Enter the user name and password for Administrator. The user name “admin” and password “admin” are set at the factory for the Administrator.

The Administrator menu appears.

Active Target first Test set Hyper System Camera Network Inst. WOS.19 User Security Project position e Mail (MARS) FTP client Image memory FTP server Alarm output Voice orbit Trigger Schedule Alarm buffer Motion Detection PTZ control Ltr Viseer

3 Click the menu name (example: System) on the left side of the Administrator menu. The clicked menu appears.

Example: "System" menu

System Camera Network System Date & Time Superimpose Installation Initiation System log Access log File bar name: Set/Internet Access 32 Numbers

4 Select the required tab above the menu, and set each setting option in the tab.

Example: "Date & time" tab of "System" menu

System Camera Network System Data & time Superimpose Installation Initiative System log Access log Current date & time 30/06/2019 10:01 PC clock 30/06/2019 10:01

See pages 29 to 83 for details of the menu tabs and setting options.

5 After setting, click OK. The settings you have made become active.

Click Cancel to nullify the set values and return to the previous settings.

The following buttons are displayed on all the menus. The functions of the buttons are the same on every menu.

SONY SNTEX154 - Buttons common to every menu - 1

Click this button to confirm the settings.

SONY SNTEX154 - Buttons common to every menu - 2

Click this button to nullify the set values and return to the previous settings.

General notes on menus

One-byte katakana character is not valid for any text field, such as User name.
After changing a setting on a menu, wait at least 10 seconds before turning off the power of the unit. If the power is turned off immediately, the new setting may not be stored correctly.
If the unit settings are changed while watching the main viewer, some settings cannot be restored. To reflect the change on the opening main viewer, click Refresh on the Web browser.

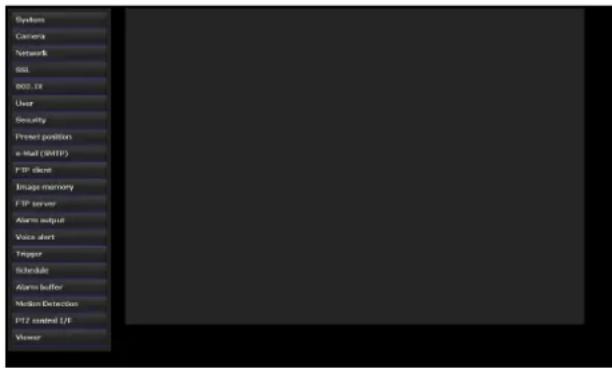

Systems Camera Network SSL BDO, EX Local Security Protect position e-Mail (SMTEP) FTP client Image memory FTP server Alarm output Voice alert Trigger Schedule Alarm buffer Medium Detection F12 control L/F Viewer

System

Displays the System menu. For details, see "Configuring the System — System Menu" (page 29).

Camera

Displays the Camera menu for setting the camera image and audio. For details, see “Setting the Camera Image and Audio — Camera Menu” (page 34).

Network

Displays the Network menu for setting the network connection. For details, see “Configuring the Network — Network Menu” (page 38).

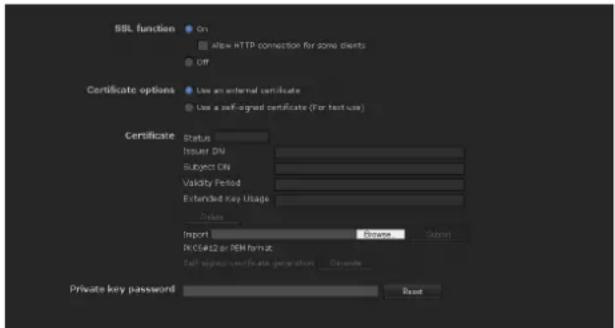

SSL

Displays the SSL menu for performing SSL communication between the client device and system. ("Setting the SSL function — SSL Menu" on page 42)

802.1X

Displays the 802.1X menu for connecting the camera to a network configured in compliance with the 802.1X standard for port authentication. (“Using the 802.1X Authentication Function — 802.1X Menu” on page 47)

User

Displays the User menu for setting the log in user name and password. (“Setting the User — User Menu” on page 53)

Security

Displays the Security menu for specifying a computer that is allowed to connect to the camera. (“Setting the Security — Security Menu” on page 54)

Preset position

Displays the Preset position menu to register a position you want to save. “Tour function,” which rotates the registered positions, is also set here. (“Saving the Camera Position and Action — Preset position Menu” on page 54)

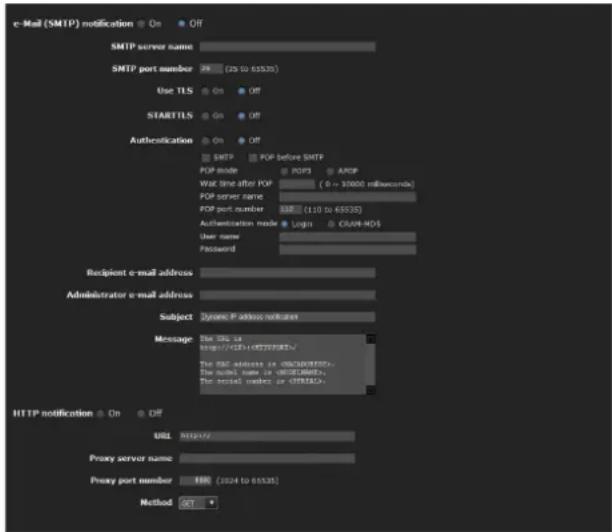

e-Mail (SMTP)

Displays the e-Mail (SMTP) menu for sending an e-mail. (“Sending an Image via E-mail — e-Mail (SMTP) Menu” on page 57)

FTP client

Displays the FTP client menu for sending an image/audio file, etc., to an FTP server. (“Sending Images to FTP Server — FTP client Menu” on page 60)

Image memory

Displays the Image memory menu for recording an image/audio file, etc., in the built-in memory or in a USB memory (not supplied) inserted in the unit. ("Recording Images in Memory — Image memory Menu" on page 63)

FTP server

Displays the FTP server menu for setting the FTP server function of the unit. (“Downloading Images from the system — FTP server Menu” on page 67)

Alarm output

Displays the Alarm output menu for setting the alarm output terminal of the unit. (“Setting the Alarm Output — Alarm output Menu” on page 67)

Voice alert

Displays the Voice alert menu for playing an audio file stored in the system in synchronization with alarm detection by the sensor input or the motion detection function. (“Outputting Audio Linked to Alarm Detection — Voice alert Menu” on page 69)

Trigger

Displays the Trigger menu for designating the operation to execute when you run a trigger. (“Setting the Operations from the Viewer — Trigger Menu” on page 70)

Schedule

Displays the Schedule menu for the Preset position function, e-Mail (SMTP) function, FTP client function, Image memory function and Alarm output function, Voice alert function, etc. (“Setting the Schedule — Schedule Menu” on page 72)

Alarm buffer

Displays the Alarm buffer menu for the buffer for storing the image and audio related to alarm detection. ("Setting the Alarm Buffer — Alarm buffer Menu" on page 73)

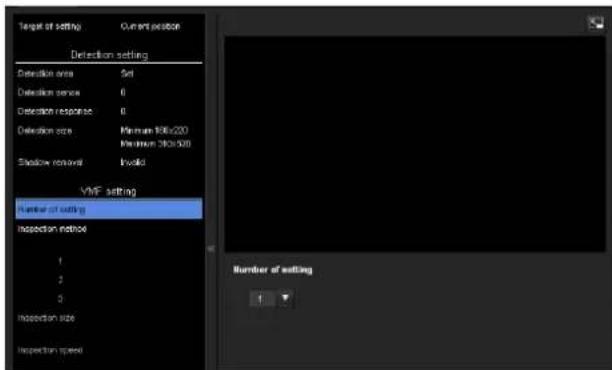

Motion Detection

Displays the Motion detection menu for the motion detection function built into the system. (“Setting the Motion Detection/VMF Function — Motion detection Menu” on page 73)

PTZ control I/F

Displays the PTZ control I/F menu for communications with external equipment through the external serial terminal. (“Transmitting with External Equipment - PTZ control I/F Menu” on page 80)

Viewer

Displays the Viewer menu from which you can select the viewer to use and configure advanced settings. ("Configuring the Viewer — Viewer Menu" on page 81)

When you click System administrator menu, the System menu appears.

Use this menu to perform the principal settings of the software.

The System menu has six tabs: System, Date & time, Superimpose, Initialize, System log and Access log.

System Tab

Title bar name

Type a name of up to 48 characters to be displayed on the title bar. The characters typed here are displayed on the title bar of the Web browser.

Serial number

The serial number of the camera is displayed.

Software version

The software version of this camera is displayed.

Exclusive control mode

Controls the authority to operate pan, tilt, zoom and some other functions of the camera.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.

On: Only one user has control authority. Set the operation time for one user in Operation time. If a user tries to operate a function during operation by another user, the authority is controlled by the settings of Operation time and Maximum wait number.

Off: Multiple users can control pan, tilt and zoom at the same time. When multiple users control these functions at the same time, the last operation has priority.

Operation time

Sets the time length for a user who has control authority. The selectable range is from 10 to 600 seconds. This is effective when Exclusive control mode is set to On.

Maximum wait number

Sets the number of users who are permitted to wait for their turn for control authority during operation by one user. The selectable number is from 0 to 10. This is effective when Exclusive control mode is set to On.

Notes

To use Exclusive control mode, the date and time of the system and the connected computer must be set correctly first.
To use Exclusive control mode, do not disable the Web browser Cookie. If it is disabled, this mode cannot be used.
When you change the Exclusive control mode setting, click Refresh on the Web browser to reflect the change when opening the main viewer page.

Sensor input mode

Set the detection mode of the signal input to the sensor input terminal of the system.

Note

Sensor input mode configuration is not available for SNT-EP104 and SNT-EP154.

Normally open: Detects the alarm when the sensor input is short-circuited.

Normally closed: Detects the alarm when the sensor input is open-circuited.

Camera tampering detection

Select On to activate the function to detect the camera shaking. When you select On, you can select the Tamper level.

Note

The camera tempering detection is not available on the SNT-EP104 and SNT-EP154.

OK/Cancel

See "Buttons common to every menu" on page 27.

Date & time Tab

Current date & time PC clock Date & time format: w-wms-diterrance Adjust Keep current setting Synchronize with PC Manual setting 2009 1 2 3 4 5 6 7 8 Synchronize with NTP Use the following RTP server address: NTP server 1 NTP server 2 NTP server 3 DHCP server Mutual Time zone: International Note Line must (GMT, 12.06) Automatically adjust clock for daylight setting time changes

Current date & time

Displays the date and time set on the unit.

Note

After you have purchased the camera, be sure to check the date and time of the camera and set as necessary.

PC clock

Displays the date and time set on your computer.

Date & time format

Select the format of date and time to be displayed in the main viewer from the drop-down list. You can select the format between yyyy-mm-dd hh:mm:ss (year-month-day hour:minutes:seconds), mm-dd-yyyy hh:mm:ss (month-day-year hour:minutes:seconds), and dd-mm-yyyy hh:mm:ss (day-month-year hour:minutes:seconds).

Adjust

Select how to set the day and time.

Keep current setting: Select if you do not need to set the date and time.

Synchronize with PC: Select if you want to synchronize the unit's date and time with the computer.

Manual setting: Select if you want to set the unit's date and time manually.

Select the year, month, date, hour, minutes and seconds from each drop-down list.

Synchronize with NTP: Select if you want to synchronize the unit's date and time with those of the time server called NTP server (Network Time Protocol).

Set the NTP server when Synchronize with NTP is selected.

Use the following NTP server address: Synchronize with the selected NTP server address.
NTP server 1: Enter the first choice for NTP server address.
NTP server 2: Enter the second choice for NTP server address.
NTP server 3: Enter the third choice for NTP server address.

DHCP server: Select DHCP server when you need to get NTP server information from DHCP server.

Multicast: Select Multicast when you search for an NTP server with Multicast.

Time zone

Set the time difference from Greenwich Mean Time in the area where the unit is installed.

Select the time zone in the area where the unit is installed from the drop-down list.

Automatically adjust the clock for daylight saving time changes

When selected, the clock is automatically adjusted according to the daylight saving time of the selected time zone.

Note

If the time zone selected in Time zone is different from that set on the computer, the time is adjusted using the time zone difference and set on the system.

OK/Cancel

See "Buttons common to every menu" on page 27.

Superimpose Tab

Select whether to superimpose the camera ID and/or date & time on the image or not.

The camera ID is also superimposed on images recorded by the Pre-alarm or Post-alarm function.

Superimpose

On/Off

When using the Superimpose function, select On.

Style

Set the items to superimpose and the format to display in. Superimpose settings are available for the following items:

Date: Set the display setting for date.
Camera ID: Configure the Camera ID display setting.
Event: Configure the display setting for when an event occurs.
Codec: Configure the bit rate and frame rate display settings.
Custom String: Set Custom String to display the text of your choice.

Display format, including color, can be individually set for each item.

Color: Select the font color of the superimposed text.

Brink: Select On to enable brinking for the superimposed text.

String Effect: Enable a string effect for displayed text.

Advanced: Detailed settings, such as formatting the display of date and time, are also available.

Superimpose format

Set the display position of superimposed text.

You can set the content to superimpose on the bottom left, bottom right, top left, top right, center, top middle, and bottom middle parts, respectively.

Preset position

Checking here will display the preset name when the camera faces the direction registered as preset.

Note

This operation is not available on the SNT-EP104 or SNT-EP154.

OK/Cancel

See "Buttons common to every menu" on page 27.

Initialize Tab

Factory default Fitsay default Restore network settings Backup setting data Size Restore setting Browse OK Format USB inventory Findt Delete custom homepage Down Delete voice alert file Down Delete thumbnails Down Delete header logo Down Delete superimpose logo Down

Reboot

Reboots the unit.

Click Reboot, and the message “This System will be rebooted. Are you sure?” appears. Click OK to reboot the unit.

Factory default

Resets the unit to the factory settings.

Restore network setting

When this item is checked, only the current network settings will be retained after reset.

Click Factory default, and the message “Setup data will be initialized. Are you sure?” appears. When you click OK, the network indicator on the unit starts to blink.

After adjustments of the default settings have finished, the unit reboots automatically. Do not turn off the camera until the unit reboots.

Tip

The unit can also be reset to the factory settings by turning on the power of this unit while pressing the reset button on the camera. For details, see the supplied Installation Manual.

Backup setting data

Saves the setting data of the unit in a file.

Click Save, and follow the instructions on the Web browser to specify the folder and save the setting data of the unit. The file name preset at the factory is "snt-ex104.cfg" for SNT-EX104.

Restore setting

Loads the stored setting data of the unit.

Click Browse and select the file in which the setting data is stored. Click OK, and the system is adjusted according to the loaded data, and restarted.

Notes

With Restore setting, some items in the Network menu (page 38) cannot be restored.
The following items cannot be stored or restored with Backup setting data or Restore setting.

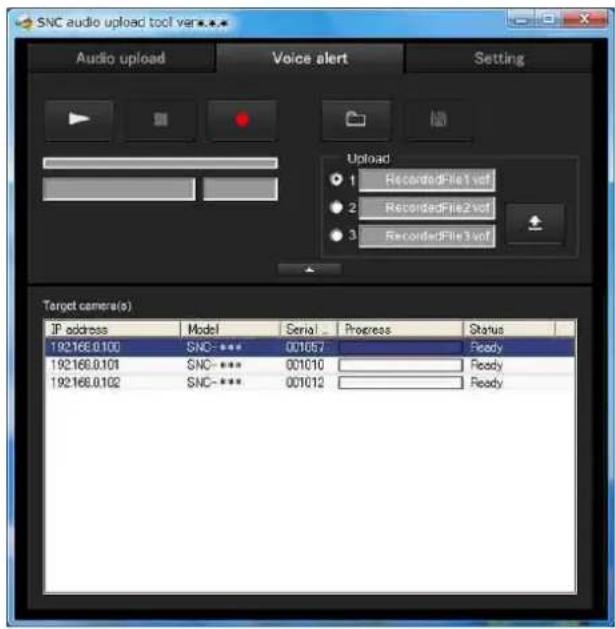

– audio files uploaded using SNC audio upload tool

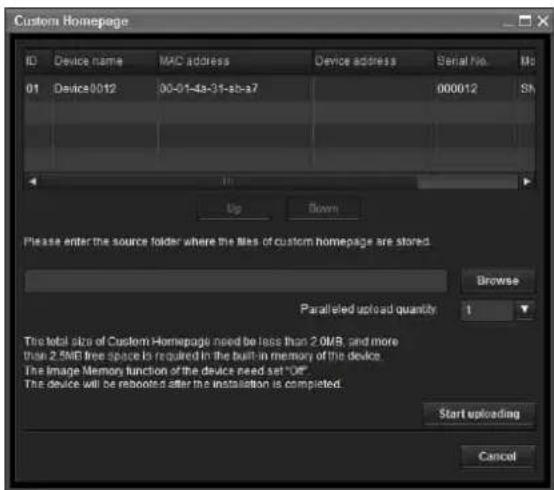

- a homepage created using Custom Homepage of SNC toolbox
- a client certificate and CA certificate to be used in the 802.1X authentication function
- Other

Format USB memory

Click Format to format the USB memory inserted into the unit. The files and folders stored in the USB memory are deleted while formatting.

Notes

Before formatting, disable the image memory function and FTP server function to protect the USB memory from writing.
Do not activate the Format USB memory function when no USB memory is inserted into the USB connector.
USB memory cannot be used with the SNT-EP104, SNT-EX154 and SNT-EP154.

Delete custom homepage

Click Delete to delete the homepages recorded in the flash memory of the camera with Custom Homepage of SNC toolbox (page 90).

Delete voice alert file

Click Delete to delete all the audio files stored in the camera using SNC audio upload tool (page 95).

Notes

C l i c k i n g Delete deletes all the stored audio files simultaneously. To delete a specified audio file only, perform deletion of the audio file in the corresponding Voice alert tab of the Voice alert menu (page 69).
Before deleting the audio file, set Voice alert to Off in each tab of the Voice alert menu (page 69).

Delete thumbnails

Click Delete to delete the thumbnails set in the Preset Setting menu.

Note

This operation is not available on the SNT-EP104 or SNT-EP154.

Click Delete to delete the header logo set in the Viewer menu.

Delete superimpose logo

Click Delete to delete the superimposed logo set in the Advance of the camera ID on the Superimpose tab of the System menu.

System log Tab

2008-06-15 21:38:44 System Started.

The data of the software activity of the unit is recorded in this log. It includes data that is useful if a problem occurs.

Click Reload to reload the latest data.

Access log Tab

The access record of the unit is displayed.

Click Reload to reload the latest data.

Setting the Camera Image and Audio

When you click Camera administrator menu, the

Camera menu appears.

Use this menu to set the functions of the camera.

The Camera menu consists of five tabs: Common,

Picture, Privacy masking, Video codec and

Streaming.

Common Tab

Notes

SNT-EP104 and SNT-EP154 do not have Common Tab.
Voice alert configuration is only available for CH1 on the SNT-EX154.

Focus mode Auto Manual Microphone On Off Mio volume 0 (+10) Audio in Microphone Line Audio codec 0.711 (44fps) Echo suppressor On Off Audio noise reduction On Off Audio upload On Off Volume 0 (+10)

Focus mode

Select the focus mode.

Auto: The focus is automatically adjusted.

Manual: The focus can be adjusted by using the 📷,

SONY SNTEX154 - Focus mode - 1

and buttons of the control panel

displayed in the main viewer.

Microphone

Select whether you are going to send audio from the microphone input connector. Select On to send the audio from the system.

Notes

When you change the Microphone setting, click Refresh on the Web browser to reflect the change on the opening main viewer page.
Microphone setting, microphone volume setting, audio input setting, audio codec and audio upload are not available on the SNT-EP104 and SNT-EP154.

Mic volume

Set the volume level of the audio input from the microphone input connector. It is adjustable from -10 to +10.

Audio

Select microphone input or line input.

Audio codec

Select the bit rate of audio from the microphone input connector. G.711 (64kbps), G.726 (40kbps), G.726 (32kbps), G.726 (24kbps) or G.726 (16kbps) can be selected.

Note

If the bit rate is set to other than G.711(64kbps), no audio is output when you use Plug-in free Viewer.

Echo suppressor

Select On to reduce echo from audio transmission.

Audio noise reduction

Select On to use Audio noise reduction.

Audio upload

Using SNC audio upload tool stored in the supplied CD-ROM, you can output audio that is input to the computer's audio input terminal from a powered speaker connected to the line output jack of the system.

Select On to output audio from the speaker.

Volume

Set the speaker volume level from -10 to +10.

OK/Cancel

See "Buttons common to every menu" on page 27.

Picture Tab

You can set the color condition, brightness, etc., of the camera.

Display sample:
Visibility Enhancer High KDFA1 Matrix Brightness 0 (45) Saturation 0 (42) Sharpness 0 (42) Contrast 0 (42)

Visibility Enhancer

Using the Visibility Enhancer function makes the darker part of the camera image brighter as well as auto-adjust brightness and contrast to show bright parts clearly without white out.

To use this function, select High, Middle or Low. If you do not use this function, select Off.

XDNR

Image noise can be reduced by using the XDNR function. The intensity of the Noise Reduction filter can be selected among High, Middle and Low. If you do not use this function, select Off.

Brightness

Adjust the brightness. A larger value brightens the image, and a smaller value darkens the image. A value from -5 to +5 can be set.

Saturation

Select the saturation in 7 steps, from -3 to +3.

Selecting +3 provides the highest image saturation.

Sharpness

Select the sharpness in 7 steps, from -3 to +3.

Selecting +3 provides the sharpest picture.

Contrast

Select the contrast in 7 steps, from -3 to +3.

Selecting +3 provides the highest contrast.

OK/Cancel

See "Buttons common to every menu" on page 27.

Privacy Masking tab

Using the privacy masking enables you to hide images by masking specified parts of the images when streaming.

Note

Performing the pan/tilt/zoom operation on the camera does not change the mask position.

Position No. 30 (None) Call Clear Clear All Color Black

Preview screen

This screen is for monitoring images and configuring privacy masking.

Control buttons

The control buttons are located at the top of the preview screen.

You can operate the camera with these buttons.

Pan/Tilt operation

Available by clicking the icon of the direction you wish to move the camera.

Zoom operation

Available by clicking - to zoom out and + to zoom in.

Position

Available to call out the privacy masks, delete them one by one or delete all at one time.

After completing the configuration, register by clicking OK.

Call: Clicks the button to turn the camera facing to the position where the privacy mask is set.

Clear: Click the button to delete the privacy mask set.

Clear all: Click the button to delete all privacy mask.

Color

Specify the color of privacy masks. This setting is common to every privacy mask.

The colors used are as follows:

Black, White, Gray, Red, Green, Blue, Cyan, Yellow, Magenta.

Setting a privacy mask

Operate according to the following procedure to set a privacy mask in the position of your choice:

1 Face the camera to the position where you want to set a privacy mask using the control button on the preview screen.
2 Specify the privacy mask area by dragging the mouse on the preview screen.
3 Select the number to register from the Position drop-down list.
4 Select the color of the mask from the Color drop-down list.

Note

The color is common to every privacy mask. The color selected last is applied.

5 Click OK.

The mask is displayed on the preview screen.

OK/Cancel

See "Buttons common to every menu" on page 27.

Video codec Tab

Use this tab to set the items for the video codec.

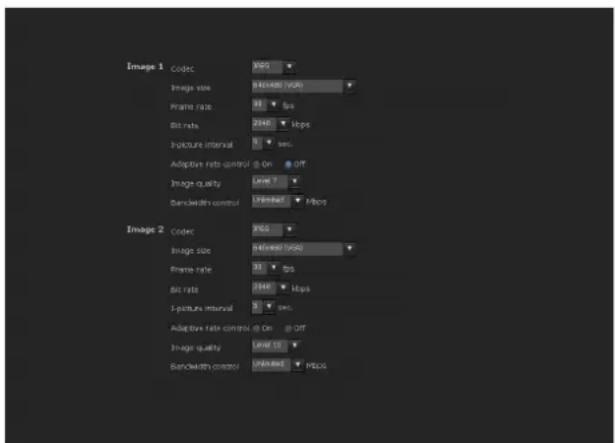

Image 1 Codec Image size 840x80 (RGB) Frame rate 43 fps Bit rate 2940 fps Capture interval 5 sec. Adoption rate control @ On Off Image quality Line 7 Bandwidth control Performance FLOPs Image 2 Codec 图像 size 840x80 (RGB) Frame rate 33 fps Bit rate 2940 fps 3-pattern interval 5 sec. Adaptive rate control @ On Off Image quality Line 10 Bandwidth control Performance FLOPs

Image 1 and Image 2

Two image codec modes can be set. Configure the following setting for each image mode.

Image Codec

Select JPEG, MPEG4, H.264 or Off.

Image size

You can select the size of the image sent from the camera.

Frame rate

Set the frame rate of the image.

“fps” is a unit indicating the number of frames transmitted per second.

Bit rate

Set the bit rate of MPEG4 or H.264 image transmission for a line. When the bit rate is set to a high level, better image quality can be enjoyed.

I-Picture Interval

Set the I-picture insertion interval.

Adaptive rate control

This function adjusts the frame rate and the bit rate automatically so that the camera plays back a smooth image to suit the connected computer environment. If On is selected, the MPEG4 or H.264 image rate is automatically adjusted.

Notes

The actual frame rate and bit rate may be different depending on the image size, shooting scene, or network condition.
When Adaptive rate control is set to On, the maximum transmission rate will be the values set in Frame rate and Bit rate.

Image quality

Set the JPEG image quality. Selectable values are from Level 1 to Level 10. When Level 10 is selected, the best image quality is achieved.

Bandwidth control

Limits the network bandwidth for the JPEG image data output from the camera.

Note

Audio may be interrupted depending on the selected bandwidth. In this case, select a wider bandwidth.

OK/Cancel

See "Buttons common to every menu" on page 27.

Streaming Tab

Use this tab to set the items for the transmission by unicast or multicast.

Unicast streaming Video port number 30008 (1024 to 65534) Audio port number 30008 (1024 to 65534) Multicast streaming On Off Multicast address 221.9,0.200 Video port number 40008 (1024 to 65534) Audio port number 40008 (1024 to 65534)

Unicast streaming

Specify the transmission port numbers of the MPEG4/H.264 video data and audio data to be used when UDP (Unicast) is selected from the Connection drop-down list in the Other panel on the main viewer.

Video port number

Specify the transmission port number of the MPEG4/H.264 video data. It is initially set to 50000. Specify an even number from 1024 to 65534. Two port numbers (the number specified here and an odd number with 1 added to the specified number) are actually used for video data communication and control.

Audio port number

Specify the transmission port number of the audio data. It is initially set to 50002. Specify an even number from 1024 to 65534. Two port numbers (the number specified here and an odd number with 1 added to the specified number) are used for audio data communication and control.

Note

Specify different numbers for the video port number and the audio port number.

Multicast streaming

Set whether the unit uses multicast streaming for MPEG4/H.264 video data and audio data or not. It reduces the transmission load on the system by having a computer of the same segment network receive the same transmitting data.

Select On to allow, or Off not to allow multicast sending.

When you select On, set Multicast address, Video port number and Audio port number properly.

Multicast address

Type the multicast address used on the multicast streaming.

Video port number

Specify the MPEG4/H.264 video transmission port number used for the multicast streaming. It is initially set to 60000. Specify an even number from 1024 to 65534. Two port numbers (the number specified here and an odd number with 1 added to the specified number) are used for video data communication and control.

Audio port number

Specify the audio transmission port number used for the multicast streaming. It is initially set to 60002. Specify an even number from 1024 to 65534. Two port numbers (the number specified here and an odd number with 1 added to the specified number) are used for audio data communication and control.

Note

Specify different numbers for the video port number and the audio port number.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Network administrator menu, the

Network menu appears.

Use this menu to configure the network to connect the camera and the computer.

The Network menu consists of three tabs: Network, QoS and Dynamic IP address notification.

Network Tab

This section provides the menus for connecting the camera through the network cable.

MAC address

Displays the MAC address of the system.

Ethernet status

Displays the current transmission rate.

IPv4 setting

Configure the IPv4 network setting.

IP address

Configure the IP address.

Obtain an IP address automatically (DHCP): Select this option when a DHCP server is installed on the network to allow IP address assignment. With this setting, the IP address is assigned automatically.

Use the following IP address: Select this option when you set a fixed IP address. With this setting, specify the IP address, Subnet mask and Default gateway manually.

Note

When you select Obtain an IP address automatically (DHCP), make sure that a DHCP server is operating on the network.

IP address

Type the IP address of the system.

Subnet mask

Type the subnet mask.

Default gateway

Type the default gateway.

DNS server

Configure the DNS server address.

Obtain DNS server address automatically: Select this option to obtain the IP address of DNS server automatically. It can be set only when Obtain an IP address automatically (DHCP) is selected in the Network tab.

Use the following DNS server address: Select this when you set a fixed address as the IP address of the DNS server. With this setting, specify the addresses on Primary DNS server and Secondary DNS server manually.

Note

When you select Obtain DNS server address automatically, make sure that a DHCP server is operating on the network.

Primary DNS server

Type the IP address of the primary DNS server.

Secondary DNS server

Type the IP address of the secondary DNS server, if necessary.

MTU

Enter the MTU value. (1000 to 1500)

Host name

Type the host name of the system to be transmitted to the DHCP server. This setting is valid only when Obtain an IP address automatically (DHCP) is selected in the Network tab.

Domain suffix

Type the domain suffix of the system to be transmitted to the DHCP server. This setting is valid only when Obtain an IP address automatically (DHCP) is selected in the Network tab.

Note

The domain suffix is sent to the DHCP server as FQDN (Fully Qualified Domain Name) information when Host name is set.

HTTP port number

Normally select 80. If you want to use a port number other than 80, select the text box and type a port number between 1024 and 65535.

Note

When you have set the HTTP port number to a number other than 80 in the Network menu or in SNC toolbox, access the system again by typing the IP address of the camera on your Web browser as follows:

Example: Setting port number 8000 when IP address is 192.168.0.100

Address

http://192.168.0.100/8000/

IPv6 setting

Configure the IPv6 network settings.

IPv6 can be used simultaneously with IPv4.

Only IPv6-specific details are explained here. For common details, see “IPv4 setting” on page 38.

On/Off

To use IPv6, select On.

Prefix

Enter the Prefix value. (0 to 128)

MTU

Enter the MTU value. (1280 to 1500)

OK/Cancel

See "Buttons common to every menu" on page 27.

QoS Tab

In the QoS tab, traffic priority can be set by configuring the number, network address, subnet (prefix), port, protocol and/or DSCP of IPv4 or IPv6.

A maximum of 10 addresses (No.1 to No.10) can be registered.

IPv4 QoS Rule No. 1 No. Network address Subnet Port Protocol DSCP Bart Delete Up Down IPv6 QoS Rule No. 1 No. Network address Subnet Port Protocol DSCP Bart Delete Up Down IPv6 QoS Rule No. 1 No. Network address Prefix Port Protocol DSCP

IPv4 QoS setting

Select On to configure the QoS setting for IPv4.

Rule

Used to register, edit and delete QoS.

No.

Select the number to use when registering on the QoS table.

When you select a registered number, the registered QoS information is displayed.

Network address

Enter the address to perform QoS.

Subnet

Enter the subnet mask.

Port

Enter the port number.

Protocol

Select the protocol.

DSCP

Enter the DSCP value.

Set

Used when registering on the QoS table.

QoS is set according to the following procedure:

1 Select No. from NO. and enter the necessary conditions for Network address, Subnet, Protocol and/or Port No..
2 Enter values in the Protocol and DSCP fields.
3 Click Set and configure the QoS.

Delete

select No. to delete the setting and click Delete.

QoS table

Displays the list of registered QoS information.

IPv6 QoS setting

Select On to configure the QoS setting for IPv6.

Rule

Used to register, edit and delete QoS.

No.

Select the number to use when registering on the QoS table.

When you select a registered number, the registered QoS information is displayed.

Network address

Enter the address to perform QoS.

Prefix

Enter the prefix.

Port

Enter the port number.

Protocol

Select the protocol.

DSCP

Enter the DSCP value.

Set

Used when registering on the QoS table.

QoS is set according to the following procedure:

1 Select the number you want to register from No. and enter the necessary conditions for Network address, Prefix and Port.

2 Select Protocol and enter values in DSCP.

3

Click Set and configure the QoS.

Delete

select No. to delete the setting and click Delete.

QoS table

Displays the list of registered QoS information.

Dynamic IP address notification Tab — Notifying the IP Address

When Obtain an IP address automatically (DHCP) is selected in the Network tab, you can send notification of completion of the network settings using the SMTP or HTTP protocol.

e-Mail (SMTP) notification

Select On to send an e-mail when the DHCP setting is completed.

SMTP server name

Type the name or IP address of the SMTP server for sending an e-mail, using up to 64 characters.

SMTP port number

Select the textbox and enter a port number from 25 to 65535.

Use TLS

To use the encryption function by TLS, set to On.

STARTTLS

To use the encryption function by STARTTLS, set to On.

Authentication

Select the authentication required when you send an e-mail.

Off: Select if no authentication is required when an e-mail is sent.

On: Select if authentication is required when an e-mail is sent. Select one of the authentication methods from the following and specify the POP server name, User name and Password as required.

SMTP: Select when SMTP authentication is required.

POP before SMTP: Select when POP before SMTP authentication is required.

Note

When you set Authentication to On, make sure to select either or both SMTP or/and POP before SMTP.

POP mode

Select POP 3 or APOP (encrypted authentication).

Waiting time after POP

Set the timeout from 0 to 10000 msec.

POP server name

It is necessary when POP before SMTP is selected for Authentication.

Type the POP (receiving mail) server name, using up to 64 characters. Or type the IP address of the POP server. This setting is necessary when the SMTP server that sends e-mails performs authentication using the POP user account.

POP port number

Enter a port number from 110 to 65535.

Authentication mode

Set the user authentication mode.

If you are not using CRAM-MD5, select Login.

User name, Password

Type the user name and password of the owner of the mail account, using up to 64 characters. This setting is necessary when the SMTP server that sends e-mails performs authentication.

Recipient e-mail address

Type the recipient e-mail address, using up to 64 characters. You can specify only one recipient e-mail address.

Administrator e-mail address

Type the e-mail address of the camera administrator, using up to 64 characters. This is used as the reply address or the address for a system mail from the mail server.

Subject

Type the subject/title of the e-mail, using up to 64 characters.

Message

Type the text of the e-mail using up to 384 characters. (A line break is equivalent to 2 characters.) You can describe the information of the acquired IP address, etc., using the special tags mentioned below.

HTTP notification

Select On to output a command to the HTTP server when the DHCP setting is completed. Using this function, you can configure a useful system, for example, to view the access log stored in the HTTP server, or start an external CGI program.

URL

Specify the URL to send an HTTP request, using up to 256 characters. The URL is normally written as follows:

$$ \text { http: / / ip_address[:port] / path?parameter } $$

ip_address: Type the IP address or host name of the host to which you want to connect.

To enter an IPv6 address:

http:// [IPv6 address]

[:port]: Specify the port number to which you want to connect. If you want to use the established port number 80, you do not need to input a value.

path: Type the command.

parameter: Type the command parameter if necessary. You can use the special tags mentioned below for the parameters.

Proxy server name

When you send an HTTP request via a proxy server, type the name or IP address of the proxy server, using up to 64 characters.

Proxy port number

Specify the port number when you send an HTTP request via the proxy server. Set a port number between 1024 and 65535.

Method

Select the HTTP method GET or POST.

OK/Cancel

See "Buttons common to every menu" on page 27.

About the special tags

You can use the following five special tags to allow notification of the settings acquired by DHCP, such as an IP address. Type the tags in the parameter section of the URL that you described in the Message field of the HTTP.

Use this tag to embed the IP address acquired by DHCP in the text or parameter.

Use this tag to embed the specified HTTP server port number in the text or parameters.

Use this tag to embed the MAC address of the interface, whose IP address was acquired by DHCP, in the text or parameter.

Use this tag to embed the camera's model name in the text or parameter.

Use this tag to embed the camera's serial number in the text or parameter.

When you click SSL the Administrator menu, the SSL menu appears.

Use this menu to configure the SSL or TLS function. (called "SSL" hereafter)

The settings allows the unit to communicate with the client PC by using SSL.

Note

The model on sale in China does not support the SSL function.

SSL tab

SSL function On allow HTTP connection for some clients Off Certificate options Use an external certificate Use a self-signed certificate (For text use) Certificate Status Issuer DVI Subject DVI Validity Period Extended key Usage Driver Import: Browse Export R/C#12 or REM format Self signed certificate generation... Divide... Private key password Load

SSL function

On: Select this to use the SSL function. When Allow HTTP connection for some clients is selected, both HTTP and SSL connections are allowed. When Allow HTTP connection for some clients is not selected, only SSL connection is allowed.

When Microsoft Internet Explorer Ver.6.0 is used When SSL session is established, 📄 appears in the status bar on your web browser.

When Microsoft Internet Explorer Ver.7.0 is used When SSL session is established, 📄 appears in the right of the address bar on your web browser.

Off: Select this to not use the SSL function. Only HTTP connection is allowed with the unit.

When you use SSL connection for the first time

When you use SSL connection only with the SSL function On, you cannot access the unit if the SSL function does not work properly.

In this case, you must reset the unit to the factory settings. (All settings will be initialized.)

To avoid this, check that SSL connection is possible by performing the following steps.

1 Set the SSL function to On, and select Allow HTTP connection for some clients.
2 Click OK to close the main viewer and the setting window.
3 Display the main viewer via SSL connection. Refer to "Using the SSL function" on page 13 for connection.
4 After checking that SSL connection is possible, cancel Allow HTTP connection for some clients selected in step 1.

Even if the setting window or the browser is closed as SSL connection is impossible, http connection will be possible if Allow HTTP connection for some clients is selected. First check the setting contents of SSL tab in http connection, then check the SSL connection again.

If Allow HTTP connection for some clients is not selected, you will not be able to access the unit if SSL connection becomes impossible. In this case, turn on the power while pressing the reset switch on the unit to initialize. For details, refer to the supplied Installation Manual.

Note

SSL connection places additional burden on the unit; therefore, not all images may be downloaded, and the ✗ mark may appear when the camera accesses the setting window from the browser. In this case, reload the window. Press the F5 key on the keyboard to reload.

Certificate options

Select an installation mode of the certificate.

Use an external certificate: Uses the certificate including private key information issued by a CA. The PKCS#12 and PEM formats are supported.

Note

Even if the SSL function is set to On, it is not active in the following cases:

- When Use an external certificate is selected in "Certificate options," and also when the certificate and the private key password are not set properly.

Use the camera's built-in certificate (For test use):

This mode uses the certificate and private key pair generated by “Generating a self-signed certificate” on page 43. Private key information corresponding to the certificate is stored in the unit. You do not need to install an external certificate. However, you cannot execute the existence proof that is one of the SSL functions for the following reasons.

The private key generated by the unit is self-signed by the camera.
A prepared value is set for a distinguished name (Common name, etc).
– The certificate is not issued by a trusted CA. For reasons of security, we recommend using this mode only when there is no problem even if perfect security is not saved.

Notes

When Use the camera's built-in certificate (For test use) is selected, the Security Alert dialog appears on the SSL connection with a browser.
For details, refer to “Using the SSL function” (page 13).
SSL connection may be impossible due to the type of certificate installed in the unit. In this case, refer to “How to install the CA certificate” on page 45 and install.

Certificates

Import, display or delete the certificate.

To import the certificate

Click Browse... to select the certificate to be imported. Click Submit to import the selected file to the unit.

Note

The import process becomes invalid if the selected file is not a certificate or the imported certificate is not allowed.

Generating a self-signed certificate

A self-signed certificate can be generated by the unit to be used when Use the camera's built-in certificate (For test use) is selected from Certificate options.

Click Generate to generate a self-signed certificate by the unit. Clicking Generate again after Generate has been clicked once will update the self-signed certificate stored in the unit.

To display certificate information

When the certificate has been set in the unit correctly, its information appears on Status, Issuer DN, Subject DN, Validity Period and Extended Key Usage.

Status

Shows if the status of the certificate is valid or invalid. The following statuses are recognised.

Valid: The certificate is correctly stored and set.

Invalid: The certificate is not correctly stored and set. Possible causes are as follows:

- Use an external certificate is selected and the private key password included in the certificate is not specified correctly.

Use an external certificate is selected and the private key password is specified in spite of the fact that the key pair in the certificate is not encrypted.
Use an external certificate is selected and the key pair is not included in the certificate.
Use the camera's built-in certificate (For test use) is selected without the self-signed certificate being generated.

Note

When the certificate to be imported is of PKCS#12 format and the private key password is not set correctly, is displayed in the boxes of Issuer DN, Subject DN, Validity Period and Extended Key Usage. Specify the correct private key password to confirm the information of the certificate.

To delete the imported certificate or self-signed certificate

Click Delete to delete the imported certificate or self-signed certificate from the unit.

Private key password

Type the password for the private key information included in the certificate using up to 50 characters. This text box is active only when Certificate options is set to Use an external certificate.

Leave the text box blank if the private key information included in the certificate is not encrypted.

If no private key password is set in the unit, an active text field is displayed and this allows a password to be entered.

If a private key password is already set, it is displayed as an inactive text field.

Reset

To change the private key password, click this button. The current password is cleared and the password text box becomes active to allow a new password entry.

Note

Click Cancel at the bottom of the menu if you want to cancel changing the private key password after clicking Reset. Doing so restores the other setting items in the Client certificate tab to the previous settings.

OK/Cancel

See "Buttons common to every menu" on page 27.

Note

When you click OK after changing SSL setting, close the main viewer and the setting window once.

CA certificate tab — Adding the CA certificate for client authentication

In this tab, you can manage the CA certificate needed for the unit to use the client authentication of the SSL function.

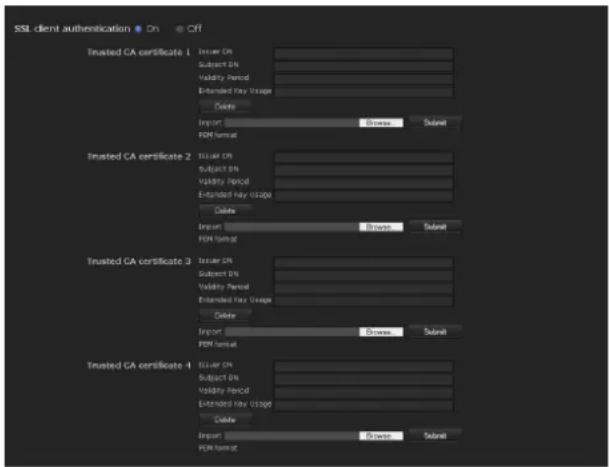

SSL client certificate

You can configure whether to enable the client authentication of the SSL function.

Trusted CA certificate 1 to 4

You can import a trusted CA certificate (route certificate, etc.) to the unit.

Up to four certificates from trusted CAs can be imported to the camera. Only PEM format is supported.

To import the CA certificate

1 Click Browse... to select the CA certificate to be saved in the unit.
2 Click Submit

The selected file will be imported to the unit.

Note

Import process will be invalid if the selected file is not a CA certificate.

To display the information of the CA certificate

When the CA certificate has been saved in the unit correctly, its information appears on Issuer DN, Subject DN, Validity Period, and Extended Key Usage for your reference.

To delete the CA certificate

Click Delete to delete the selected CA certificate from the unit.

OK/Cancel

See "Buttons common to every menu" on page 27

How to install the CA certificate

The unit may not be connected because the browser (Internet Explorer) does not display whether the certificate will be accepted or not due to the type of certificate. In this case, install the CA certificate as follows.

1 On the PC, save the certificate of the CA center that signed the certificate that is to be stored in the unit. The extension of the certificate file is normally “.cer.” Double-click this file. The following Certificate dialog appears.

Certificate General Details Certification Path Certificate Information This CA Root certificate is not trusted. To enable trust, install this certificate in the Trusted Root Certification Authorities store. Issued to: WIN2003CA Issued by: WIN2003CA Valid from 10/23/2006 to 11/17/2011 Install Certificate..."Issuer Statement OK

2 Click Installation Certificate.... The Certificate Import Wizard appears.

3 Click Next.

Certificate Import Wizard Certificate Store Certificate stores are system areas where certificates are kept. Windows can automatically select a certificate store, or you can specify a location for ○ Automatically select the certificate store based on the type of certificate ○ place all certificates in the following store Certificate Store Browse... Cancel

4 Select Automatically selects the certificate store based on the type of certificate and click Next. Completing the Certificate Import Wizard appears.

Certificate Import Wizard Completing the Certificate Import Wizard You have successfully completed the Certificate Import Wizard. You have specified the following settings: Certificate Store Selected Automatically determined by it Content: Certificate < Back Finish Cancel

5 Check the contents, then click Finish. The CA certificate will be installed.

To remove an installed CA certificate

1 In Internet Explorer, click in the order Tools, Internet options, Content tab and Certificates. The Certificates dialog appears.

Certificates Intended purpose: CAL> Personal Other People Intermediate Certification Authorities Trusted Root Certification Issued To Issued By Expiration Friendly Name Import... Export... Remove Advanced... Certificate intended purposes View Close

2 Select the certificate you want to remove. The CA certificate is usually stored in Trusted Root Certification Authorities.
3 Click Remove. Do you want to delete the certificate appears to confirm.
4 Click Yes. The certificate will be removed. There may be a case that a certificate cannot be removed by the steps above due to the type of certificate. Check the installation condition and remove it following the steps below.

Note

You need to log in as Administrator to perform these steps.

1 Open Run... of the Windows menu, then enter mmc and click OK.
2 Select File in the Console 1 window and Add/Remove Snap-in... (when Windows XP Professional is used) Add/Remove Snap-in... dialog appears.
3 Click Add to display Add Stand-alone Snap-in dialog. You need to follow this step if using Windows XP Professional.

4 Select Certificates from the list, then click Add. Certificate Snap-in is displayed.
5 Select Computer account as the certificate administrated in this Snap-in, then click Next.
6 Select Local Computer as the computer administrated in this Snap-in, then click Finish.
7 Close Add Standalone Snap-in (for Windows XP Professional only) and Add/Remove Snap-in... dialogs. The items for administrating Certificates appears in the Console Route window. Confirm the relevant certificate, then remove it.

When you click 802.1X Administrator menu, the 802.1X menu appears.

Use this menu to configure the wired port-based authentication in compliance with the 802.1X standard. The 802.1X menu consists of three tabs: Common, Client certificate and CA certificate.

Note

To use the 802.1X authentication function, you need knowledge of the 802.1X authentication (WPA and WPA2) and digital certificate. To establish an 802.1X network, you need to configure the authenticator, access point, authentication server and other elements. For details on these settings, refer to the manual of the corresponding equipment.

System configuration of 802.1X network

The following figure shows a general system configuration of an 802.1X network.

SONY SNTEX154 - System configuration of 802.1X network - 1

Supplicant

A supplicant is a device that connects to the authentication server to join the network. This unit serves as a supplicant in the 802.1X network. The supplicant can enter the 802.1X network after appropriate authentication by the authentication server.

Authenticator

An authenticator forwards certificate request data or response data that the supplicant or authentication server issues to the other party. Normally a hub, router or access point serves as an authenticator.

Authentication server

An authentication server has a database of connecting users and verifies if the supplicant is a valid user or not. It can also be called RADIUS server.

CA (Certificate Authority)

A CA issues and manages certificates of the authentication server (CA certificates) and user certificates. The CA is essential for certificate-based user authentication. Normally a CA is located inside an authentication server.

Note

This camera supports EAP mode in which the supplicant and the server authenticate using the certificate. This mode requires a CA to issue the certificate.

Common Tab – Basic setting of 802.1X authentication function

802.1X authentication function Wired interface On OT Wired interface status EAP identity EAP password Reset EAP method

802.1X authentication function

This item is used for enabling/disabling the 802.1X authentication function for wired ports. The wired interface status and the wireless interface status can also be checked here.

Wired interface

To activate the 802.1X authentication function for wired ports, select On.

Wired interface status

Shows the authentication status of the 802.1X authentication function for wired ports.

Click Refresh to update the status.

EAP identity

Type the user name to identify the client in the 802.1X authentication server using 3 to 253 characters.

EAP password

A supplicant EAP password is needed to be inputted when PEAP is selected with EAP condition. The password can contain half-width letters and the length should be between 1 to 50.

Reset

To change the once set EAP password, click Reset and clear the current password. A new password can be entered.

Note

After you click Reset, if you wish to cancel the EAP password change, click Cancel at the bottom of the screen. This will cancel other changes made to the settings.

EAP method

You can select the authentication method used with the authentication server. This device supports TLS and PEAP.

TLS: By this method, the supplicant and the server authenticate each other using a certificate. This enables secure port authentication.

PEAP: By this method, an EAP password is used for the supplicant authentication and a certificate is used for server authentication.

OK/Cancel

See "Buttons common to every menu" on page 27.

Client certificate Tab

When TLS is selected as the EAP method, import to the unit the client certificate needed for authentication by the unit.

Client certificate Status Issuer ON Subject OR Validity Period Extended Key Usage Delete Import: Remove Subnet REC56-32 or PCRFormat Private key password Reset

Client certificate request

Import, display or delete the client certificate.

To import the client certificate

Click Browse... to select the client certificate to be imported.

Then click Submit, and the selected file will be imported to the unit.

Note

The import process becomes invalid if the selected file is not a client certificate or the imported client certificate is not allowed.

To display the information of the client certificate

When the client certificate has been saved in the unit correctly, its information appears on Status, Issuer DN, Subject DN, Validity Period and Extended Key Usage.

Status: Shows if the status of the client certificate is valid or invalid.

Valid means the client certificate is correctly stored and set.

Invalid means the client certificate is not correctly stored and set.

Possible causes of Invalid are as follows:

- The private key password included in the client certificate is not specified correctly.

- The private key password is specified in spite of the fact that the key pair in the client certificate is not encrypted.

- The key pair is not included in the client certificate.

Note

When the client certificate to be imported is of PKCS#12 format and the private key password is not set correctly, "" is displayed in the boxes of Issuer DN, Subject DN, Validity Period and Extended Key Usage. Specify the correct private key password to confirm the information of the certificate.

To delete the client certificate

Click Delete, and the client certificate stored in the unit will be deleted.

Private key password

Type the password for the private key information included in the client certificate using up to 50 characters.

Leave the text box blank if the private key information included in the client certificate is not encrypted. If no private key password is set in the unit, the text box is activated to allow entering of a password.

If a private key password is already set, it is displayed as turned letters.

Reset

To change the private key password, click this button. The current password is cleared and the password text box is activated to allow new password entry.

Note

Click Cancel bottom of the menu if you want to cancel changing the private key password after clicking Reset. Doing so restores the other setting items in the Client certificate tab to their previous settings.

OK/Cancel

See "Buttons common to every menu" on page 27.

CA certificate Tab

You can import a trusted CA certificate (server certificate or route certificate) to the unit. Up to four certificates from trusted CAs can be imported to the unit. Only the PEM format is supported.

To import the CA certificate

Click Browse... to select the CA certificate to be imported.

Then click Submit, and the selected file will be imported to the unit.

Note

Import process becomes invalid if the selected file is not a CA certificate.

To display the information of the CA certificate

When the CA certificate has been saved in the unit correctly, its information appears on Issuer DN, Subject DN, Validity Period and Extended Key Usage.

To delete the CA certificate

Click Delete, and the selected CA certificate will be deleted from the unit.

Setting the 802.1X authentication function – Example of Windows Server 2003

This section explains how to configure the authentication server and CA using Microsoft Windows Server 2003.

Note

As this section describes authentication based on the user interface in English on Windows Server 2003, the UI terminology and page configuration may be different depending on the version of the Operating System or Service Pack and patch update status.

Before setting

Perform the following settings before configuring an 802.1X network.

Active Directory (domain controller)

The following setting example is based on the assumption that the Active Directory has been configured.

Windows IAS configuration

Configure Remote access/VPN server in Manage Your Server of Windows Server 2003. Open Add or Remove Programs from Control Panel of Windows menu. Install Internet Authentication Service in Add/Remove Windows Components.

CA configuration

To configure the CA, perform the following steps:

1 Open Add or Remove Programs from Control Panel of the Windows menu.
2 Select Add/Remove Windows Components.
3 Add Certificate Services in the Component menu.
4 Select Enterprise root CA on CA Type.
5 Type the CA name on Common Name for this CA, and configure the CA.

Creating a security group for Active Directory

1 Open Active Directory Users and Computers from Administrative Tools of the Windows menu.
2 Select Users of the domain with which you want to perform 802.1X connection.

3 Select New from the context menu, then select Group and configure the group for 802.1X connection. For example, the group “Wired_802.1X_Group” is assumed for explanation purposes.

Configuring the Internet Authentication Service

1 Open Internet Authentication Service from Administrative Tools of the Windows menu.
2 Click Register Server in Active Directory on the operation menu.
3 Read the displayed precautions carefully and click OK to accept them.

Then, continue to configure the EAP-TLS policy.

4 Select Remote Access Policy and right-click.

5 Select New from the context menu, and select Remote Access Policy to open “New Remote Access Policy Wizard.”

6 Select Set up a custom policy.

7 Set the following items: Policy name: Type “Allow 802.1X Access” as an example.

Policy conditions: Click Add and add the following items:

– NAS Port-Type: Ethernet, Other and Virtual (VPN)
- Windows-Groups: Wired_802.1X_Group

Permissions: Select Grant remote access permission.

Edit Profile:

– Dial-in Constraints tab: Specify the session time out period during which the client is allowed to be connected, as required.
- Authentication tab: Delete checks from all the boxes. Click EAP Method and add Smart Card or other certificates.

Then, continue to configure the RADIUS client.

8 Select RADIUS Clients and right-click.

9 Select New RADIUS Client from the context menu.

10 Set the following items:

Friendly name: Type "authenticator" as an example.

Client address (IP or DNS): IP address of the authenticator

Client-Vender: RADIUS Standard

Shared secret: Specify the shared secret to be set in the authenticator.

Adding a user

1 Open Active Directory Users and Computers from Administrative Tools of Windows menu.
2 Select Users of the domain with which you want to add a user and right-click.
3 Select New from the context menu, then select User.
4 Set the following items to configure a new user: For example, the log-on user name "1XClient" is assumed for explanation purposes.

First name: 1XClient

User logon name: 1XClient@

Password: Specify a password. Then select Password never expires in account options.

5 Select the user to be added and right-click.
6 Select Properties from the context menu.
7 Set the following items: Dial-in tab: Select Allow access in Remote Access Permission (Dial-in or VPN) Member Of tab: Add "Wired_802.1X_Group."

The preparations for configuring a 802.1X network are now completed.

Proceed to issue the certificate to be imported to the system.

Issuing the CA certificate

Prepare a Windows client PC (called "client PC" hereafter) to temporarily store the certificate, and configure so that the client PC and Windows Server 2003 computer can be connected through the network.

1 Start Internet Explorer on the client PC.
2 Type the CA's URL in the address bar, and click Go To.

The CA's URL is normally as follows:

http://

/CertSrv/

The "Microsoft Certificate Services" page opens.

Note

If the Microsoft Certificate Service page does not appear using the URL above, check the following:

– Is the service of Web site enabled on Internet Information Service (IIS)?
- Is Certificate Services enabled?
- Does the firewall or antivirus software setting on the client PC block connection?
- Are the network configuration and Internet Explorer settings on the client PC correct?

3 When Internet Explorer prompts entering the log-in user and password, type the user name as follows.

Example: when the user name is "1XClient" and the domain name "localnetwork.net"

1XClient@localnetwork.net

4 Click Download a CA certificate, certificate chain, or CRL.
5 Select Base 64 in Encoding method and click Download CA certificate.

The "File Download" dialog opens.

6 Specify the file storage location and save the CA certificate.

After saving the CA certificate, import it to the system. The CA certificate import procedure is completed.

Downloading the client certificate

The procedures of the client certificate download differs depending on the TLS mode of the camera. This section explains the procedures for each mode.

When "Use a key pair from a CA" is selected

1 Start Internet Explorer on the client PC and type the CA's URL in the address bar.

The CA's URL is normally as follows:

http://

/CertSrv/

2 Click Go To.
3 Type the log-in user name and password correctly. The "Microsoft Certificate Services" page opens.
4 Click Request a certificate, advanced certificate request and Create and submit a request to this CA in sequence.

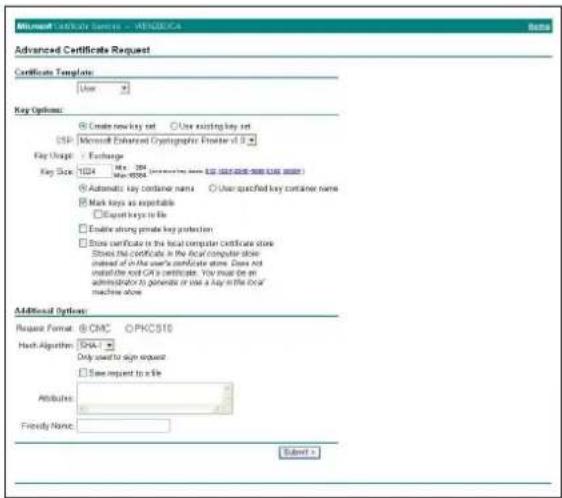

5 Set the following items.

Certificate Template: User

Key Options: Create new key set

– CSP: Microsoft Enhanced Cryptographic Provider v1.0
- Key Size: 1024
- Check Mark keys as exportable.

Additional Options: Select SHA-1 for Hash Algorithm.

6 Click Submit.
The message “The certificate you requested was issued to you.” appears.
7 Click Install this certificate. to install the certificate in the certificate store on the client PC.
8 Click Internet Options, Content and Certificates of Internet Explorer in sequence.
The new client certificate is displayed in the Personal tab.
9 Select the installed certificate and click Export.... The "Certificate Export Wizard" opens.

10 Click Next and select as follows.

Do you want to export the private key with the certificate?: Select Yes, export the private key.

Select the format you want to use: Select Personal Information Exchange – PKCS#12(PFX).

Password: Specify the private key password.

File to export: Specify the name of the file to be exported.

The certificate is exported. Import the exported file to the unit as the unit's client certificate.

For details, see "To import the client certificate" in the Client certificate tab on page 48.

Setting the User

When you click User the Administrator menu, the User menu appears.

Use this menu to set the user names and passwords of Administrator and up to 9 kinds of users (User 1 to User 9), and the access right of each user.

User name Password / Re-type password Administrator User name Password / Re-type password FTP Audio Viewer mode User 1 User 2 User 3 User 4 User 5 User 6 User 7 User 8 User 9 Viewer authentication On Off Pull

Administrator

Specify User name, Password and Re-type password.

User 1 to 9

Specify User name, Password, Re-type password, FTP, Audio and Viewer mode for each user ID.

User name

Type a user name between 5 and 16 characters.

Password

Type a password between 5 and 16 characters.

Re-type password

To confirm the password, retype the password that you typed in the Password box.

FTP

Set whether this user is allowed to log in to an FTP server or not. Check the box if the user is allowed to log in to an FTP server.

Audio

Select whether audio output to a speaker connected to the line output jack of the system is allowed or not by using the SNC audio upload tool stored in the supplied CD-ROM. Check this box to allow audio output.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

Note

To output audio using the SNC audio upload tool, set Audio upload to On in the Common tab of the Camera menu (page 34).

Viewer mode

When the user is authenticated for logging in the main viewer, select the viewer mode to be displayed after authentication.

Note

Pan/Tilt and Preset position are not available on the SNT-EP104 and SNT-EP154.

Full: The user can operate all functions in this mode.

Pan/Tilt: In addition to the Light mode, the user can operate pan/tilt/zoom.

Preset position: In addition to the Light mode, the user can perform the camera's preset position settings.

Light: In addition to the View mode, the user can select the image size of the main viewer, select codec and capture a still image.

View: The user can only monitor the camera image.

For the functions available for each viewer mode, see "Administrator and User" on page 16.

Viewer authentication

Set whether the user is authenticated or not when the main viewer is displayed.

Note

Pan/Tilt and Preset position are not available on the SNT-EP104 and SNT-EP154.

On: The main viewer is displayed in accordance with the viewer mode of the authenticated user.

Off: Select the viewer mode of the main viewer which is displayed without authentication from Full, Pan/Tilt, Preset position, Light or View.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Security administrator menu, the Security menu appears.

This allows you to control which computers can have access to the camera.

Likewise, when using IPv6, security settings can be configured for each network.

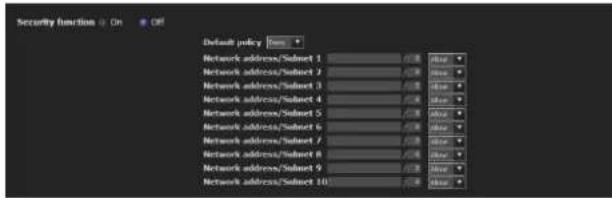

Security function Default policy Network address/Select 1 Network address/Select 2 Network address/Select 3 Network address/Select 4 Network address/Select 5 Network address/Select 6 Network address/Select 7 Network address/Select 8 Network address/Select 9 Network address/Select 10

Security function

To activate the security function, select On.

Default policy

Select the basic policy of the limit from Allow and Deny for the computers specified in the Network address/Subnet 1 to Network address/Subnet 10 menus below.

Network address/Subnet 1 to Network address/Subnet 10

Type the network addresses and subnet mask values that you want to allow or deny access to the camera.

You can specify up to 10 network addresses and subnet mask values. For a subnet mask, type 8 to 32.

(In the case of IPv6, enter a value between 8 and 128.)

Select Allow or Deny from the drop-down list on the right for each network address/subnet mask.

Tip

The subnet mask value represents the bit number from the left of the network address.

For example, the subnet mask value for "255.255.255.0" is 25.

If you set 192.168.0.0/24 and Allow, you can allow access from computers having an IP address between "192.168.0.0" and "192.168.0.255."

Note

You can access the unit even from a computer having an IP address whose access right is set to Deny, if you enter the user name and password set for the Administrator boxes in the User menu.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Preset position istrator menu, the Preset position menu appears. This allows you to save the camera's pan, tilt and zoom positions and set position tours (programmed actions of the camera).

The Preset position menu consists of 2 tabs: Position and Tour (position).

The Preview screen is displayed in the upper part.

Position Tab — Saving pan/tilt/zoom position

You can set camera positions (pan, tilt and zoom positions).

Note

These settings are not available on the SNT-EP104 or SNT-EP154.

Position at alarm Group: input 1 (SD) Group: input 2 (SD) Group: output 3 (SD) Group: output 4 (SD) Temping (TF) LIF (AF) Button position (HD) Position Project No. Name Set Cut Date Horizontal TruPontal Current Camera Image Start Group project previews 1.0x100 2.0x95 3.0x85 4.0x75 5.0x65 6.0x55 7.0x45 8.0x35 9.0x25 10.0x15 New Group Return Date

Position at alarm

The unit can synchronize a preset position with sensor input with the motion detection function.

If an alarm is detected by the sensor input or the motion detection function, the unit automatically moves to the corresponding preset position.

If you do not want to synchronize with any preset number, select none.

Tip

The number of selectable sensor input terminals is as follows:

SNT-EX101:2

SNT-EX104/SNT-EX154: 4

SNT-EP104/SNT-EP154: None

Sensor input 1 (S1)

Select a preset position to synchronize with the alarm from Sensor input 1.

Sensor input 2 (S2)

Select a preset position to synchronize with the alarm from Sensor input 2.

Sensor input 3 (S3)

Select a preset position to synchronize with the alarm from Sensor input 3.

Sensor input 4 (S4)

Select a preset position to synchronize with the alarm from Sensor input 4.

Tampering (TP)

Select the preset position to synchronize with the camera tampering detect alarm.

VMF

Select the preset position to synchronize with the VMF detection alarm.

Motion Detection (MD)

Select a preset position to synchronize with the alarm from the motion detection.

Click Detection, and the motion detection menu is displayed to allow you to set the motion detection function (page 73).

Note

In the case where the synchronized preset position is specified, an alarm event that happens when the camera moves to the preset position will be invalid.

Preset

You can save preset positions. You can also click Call to move the camera to a specified preset position.

No.

Select a preset number from 1 to 256 from the dropdown list.

Name

Type the preset position name of the selected preset number using up to 32 characters.

Set

Click to save the current camera position to the selected preset number.

To save a preset position, operate as follows:

1 Move the camera to the position to be saved, while checking the image with the preview viewer.

2 Select a preset number for saving, and type the preset position Name.

3 Click the Set button. The camera position is saved.

Call

Click to move the camera to the preset position.

Clear Thumbnail

Click to delete the thumbnail of the sepecific preset position.

Thumbnail

Checking this checkbox registers a thumbnail when you register a preset position.

Select a radio button to determine whether to register the current camera image as a thumbnail or to register with a specified image.

To specify an image, click Browse. Then click Submit.

Group preset positions

You can sort preset positions into groups.

The information of the preset positions registered in a group can be viewed from the group tree screen.

By clicking the preset position in a group, the camera moves to the preset position.

New Group

You can register a new group.

Rename

You can rename the group and preset positions.

Clear

You can delete the group and preset positions.

OK/Cancel

See “Buttons common to every menu” on page 27.

Note

The OK/Cancel buttons are effective for the Position at Alarm setting in this tab.

Position Tour Tab — Setting a position tour

Positions can be programmed, and the camera can be set to move to the programmed positions sequentially (Tour).

Up to five programs can be set as Tours A to E.

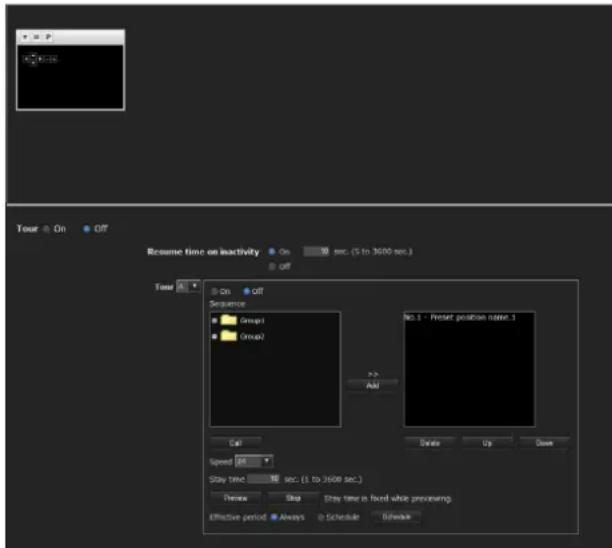

Tour On Off Resume time on inactivity On 50 sec. ($ to 3600 sec.) Off Tour On Off Sequence Group1 Group2 No. 5 - Preset position name.1 >> Add Call Speed: 0 sec. (1 to 2600 sec.) Stay time: 50 sec. ($ to 3600 sec.) Preview Stop Stay time is fixed while previewing. Effective period Always Schedule Schedule

Tour

Select On to enable the tour function.

Resume time on inactivity

This item becomes active when Tour is set to On. With this item, you can select whether you restart or stop the tour after it has stopped by manual pan, tilt or zoom operation or by camera movement to the preset position triggered by an alarm.

On: Specify the wait time before the tour restarts, between 5 and 3600 seconds. The tour restarts automatically after the specified time has elapsed.

Off: The tour does not restart.

Tour A to Tour E

Configure Tour A to Tour E respectively.

Each tour setting consists of 5 items: On/Off,

Sequence, Speed, Stay time. Effective period.

Select the tour to configure from the drop-down list.

On: The tour operates.

Off: The tour does not operate.

Sequence

Set the sequence of the tour.

The preset positions saved using the Position tab are displayed in the drop-down list at the bottom.

Select the preset position from the group-tree, then click

Add. The selected preset position is added in the Sequence list. Repeat this procedure to specify the preset positions in sequence.

You can check the preset position by clicking Call.

If you specified an unnecessary preset position, click to select it in the list and then click Delete.

To change the order in the list, select the preset position and then click Up or Down.

Note

The tour cannot be set to On if no preset position is added in the Sequence list.

Stay time

Type a period of time during which the camera is to stay at each preset position, between 1 and 3600 seconds.

Effective period

Select the period during which the tour in activated.

Always: The tour can be activated any time.

Schedule: The tour is activated according to the schedule you have set.

Click Schedule, and the menu for the effective period is displayed. ("Setting the Schedule — Schedule Menu" on page 72.)

Note

You cannot set tours if the effective periods overlap each other.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click e-Mail (SMTP) nistrator

menu, the e-Mail (SMTP) menu appears.

Using the e-Mail (SMTP) function, you can send an e-mail with an attached image file that has been shot linked with an external sensor input or with the built-in motion detection function. The image file can also be sent periodically.

The e-Mail (SMTP) menu consists of three tabs:

Common, Alarm sending and Periodical sending.

Note

The SNT-EP104 and SNT-EP154 do not have a function to send image files from external automatic sensor inputs.

Common Tab — Setting the e-Mail (SMTP) Function

e-Mail (SMTP)

Select On when you use the e-Mail (SMTP) function.

Notes

You cannot send an audio file by using the e-mail sending function.
The frame rate and operability on the main viewer may be reduced while a file is being transmitted by the e-Mail (SMTP) function.

SMTP server name

Type the SMTP server name using up to 64 characters, or the IP address of the SMTP server.

SMTP port number

Select the textbox and enter a port number from 25 to 65535.

Use TLS

To use the encryption function by TLS, select On.

STARTTLS

To use the encryption function by STARTTLS, select On.

Authentication

Select whether authentication is required when you send an e-mail.

Off: No authentication is required when an e-mail is sent.
On: Authentication is required when an e-mail is sent. Select one of the authentication methods from the following and specify the POP server name, User name and Password as required.
SMTP: Select when SMTP authentication is required.
POP before SMTP: Select when POP before SMTP authentication is required.

Note

When you set Authentication to On, be sure to select either or both SMTP or/and POP before SMTP.

POP mode

Select POP3 or APOP (encrypted authentication).

Waiting time after POP authentication

Set the timeout duration. Timeout duration can be set from 1 to 10000 msec.

POP server name

This is necessary when POP before SMTP is selected for Authentication.

Type the POP (receiving mail) server name using up to 64 characters, or type the IP address of the POP server. This setting is necessary when the SMTP server that sends e-mails performs authentication using the POP user account.

POP port number

Enter a port number from 110 to 65535.

Authentication mode

Set the user authentication mode.

If you do not use CRAM-MD5, select Login.

User name, Password

Type the user name and password of the user who owns the mail account using up to 64 characters. This setting is necessary when the SMTP server that sends e-mails performs authentication.

Recipient e-mail address

Type the recipient e-mail address using up to 64 characters.

You can specify up to three recipient e-mail addresses.

Administrator e-mail address

Type the Administrator e-mail address using up to 64 characters.

This address is used for reply e-mails and sending system messages from the mail server.

Subject

Type the subject/title of the e-mail using up to 64 characters.

When Alarm sending of the Alarm sending tab is set to On, an e-mail sent in response to alarm detection will indicate the type of alarm in the subject. S1 is added for sensor input 1 detection, S2 for sensor input 2 detection, S3 for sensor input 3 detection, S4 for sensor input 4 detection, MD is added for the motion detection.

Message

Type the text of the e-mail using up to 384 characters. (A line break is equivalent to 2 characters.)

OK/Cancel

See “Buttons common to every menu” on page 27.

Alarm sending Tab — Setting the e-mail sending mode when detecting the alarm

Set to send an e-mail linked with alarm detection by the external sensor input or by the built-in motion detection function.

Alarm sounding On Off File attachment On Off Image file name Suffix: Power Date & time Sequence number Sequence number clear Clear Alarm Sensor input 1 Sensor input 2 Sensor input 3 Sensor input 4 VNF Tampering Motion detection Detection Effective period Always Schedule Schedule

Alarm sending

Select On to set sending an e-mail linked with alarm detection.

File attachment

Set whether an image file (JPEG file) is to be attached to the e-mail or not.

When On is selected, the image file made using the settings below is attached. When Off is selected, only the message is sent.

Image file name

Type the file name you want to assign to the image to be attached to an e-mail. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming.

Suffix

Select a suffix to be added to the file name.

None: No suffix is added. The image file name is assigned to the image to be sent via e-mail.

Date & time: The date & time suffix is added to the image file name.

The date/time suffix consists of lower two-digits of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits), and sequential number (2 digits), thus adding 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 are added to the image file name.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the alarm to be linked with e-mail notification.

Tip

The number of selectable input terminals is as follows: SNT-EX101: 2

SNT-EX104/SNT-EX154: 4

SNT-EP104/SNT-EP154: None *

* Alarm sending is available only for the simple motion detection function.

Sensor input 1: The external sensor that is connected to sensor input1 of the I/O port.

Sensor input 2: The external sensor that is connected to sensor input 2 of the I/O port.

Sensor input 3: The external sensor that is connected to sensor input 3 of the I/O port.

Sensor input 4: The external sensor that is connected to sensor input 4 of the I/O port.

Tampering: An alarm that is triggered when the camera detects vibration or shaking.

VMF: An alarm of the VMF detection function.

Motion detection: The alarm detected by the motion detection function.

Click Detection, and the motion detection menu is displayed to allow you to set the motion detection function (page 73).

Note

In the case that the synchronized preset position is specified in Position at alarm in the Preset position menu, an alarm event that happens when the camera moves to the preset position will be invalid.

Effective period

Set the period during which alarm detection is effective.

Always: Alarm detection is always effective.

Schedule: You can specify the period during which alarm detection is effective.

Click Schedule and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

Periodical sending Tab — Setting the periodical e-mail sending mode

You can set to send e-mails periodically.

Periodical seeding On Diff Image file name M: responder Suffix None DNA & ctrl Sequence number Sequence number clear Clear Interval R: 0.01 to 0.05 M (MHz : 30 min, MAX : 24 hour interval) Effective period Alstys Schedule Schedule

Periodical sending

Select On when you want to use periodical e-mail sending.

Image file name

Type the file name of the image attached to the e-mail using up to 10 alphanumeric characters, - (hyphen) and _ (under score).

The actual image file name will be the specified image file name with a suffix and the extension .jpg.

Suffix

Select a suffix to be added to the file name used when the e-mail is sent.

None: The name of the sent file will be the image file name.

Date & time: The date & time suffix is added to the image file name.

The date & time suffix consists of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minutes (2 digits) and seconds (2 digits), and sequential number (2 digits), thus adding a 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 are added to the image file name.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Interval

Type the interval at which you want to send an e-mail periodically. You can set the hour (H) and minutes (M) between 30 minutes and 24 hours (one day).

Effective period

Set the period during which periodical sending will be effective.

Always: Periodical sending is always effective.

Schedule: You can specify the period during which periodical sending is effective.

Click Schedule and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

Sending Images to FTP Server

When you click FTP client administrator menu, the FTP client menu appears.

Use this menu to set up for capturing and sending still images to an FTP server. Using FTP client function, you can send an image and audio file that has been shot and recorded linked with the external sensor input or with the built-in motion detection function to an FTP server. The image file can also be sent periodically.

The FTP client menu consists of three tabs: Common,

Alarm sending and Periodical sending.

Common Tab — Setting the FTP client function

FTP client function On Off FTP server items User status Password Bi-type password Passive status: 0 > Off

FTP client function

To activate the FTP client function, select On.

Note

The frame rate and operability on the main viewer may be reduced while a file is being transmitted by the FTP client function.

FTP server name

Type either the FTP server name to upload still images using up to 64 characters, or the IP address of the FTP server.

User name

Type the user name for the FTP server using up to 64 characters.

Password

Type the password for the FTP server using up to 64 characters.

Re-type password

To confirm the password, type the same characters as you typed in the Password box.

Passive mode

Set whether you use the passive mode of FTP server or not when connecting to the FTP server. Select On to connect to the FTP server using the passive mode.

OK/Cancel

See “Buttons common to every menu” on page 27.

Alarm sending Tab — Setting the FTP client action when detecting the alarm

Set to forward an image and audio file to the specified FTP server linked with alarm detection by the external sensor input or by the built-in motion detection function.

Alarm sending On Off Remote path Image file name Buffer Data & time Sequence number Aggregate Injected Key Clear Alarm Sensor input 1 Sensor input 2 Sensor input 3 Sensor input 4 Temping VAP Motion detection Decision Effective period Always Schedule Buffer Alarm buffer Use warm buffer warm buffer

Alarm sending

Select On to send the image and audio file to the FTP server linked with alarm detection.

Remote path

Type the path to the destination using up to 64 characters.

Image file name

Type the file name you want to assign to the images when sending to the FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming.

Suffix

Select a suffix to be added to the file name.

Date & time: The date & time suffix is added to the image file name.

The date/time suffix consists of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and sequential number (2 digits), thus adding a 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and a sequential 2-digit number are added to the image file name.

Tip

A sequential number added to Date & time and Sequence number is used to identify individual files created with consecutive alarm events.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the alarm to be linked with the file to be forwarded to the FTP server.

Tip

The number of selectable input terminals is as follows:

SNT-EX101:2

SNT-EX104/SNT-EX154: 4

SNT-EP104/SNT-EP154: None *

* Alarm sending is available only for the simple motion detection function.

Sensor input 1: The external sensor that is connected to sensor input 1 of the I/O port.

Sensor input 2: The external sensor that is connected to sensor input 2 of the I/O port.

Sensor input 3: The external sensor that is connected to sensor input 3 of the I/O port.

Sensor input 4: The external sensor that is connected to sensor input 4 of the I/O port.

Tampering: An alarm that is triggered when the camera detects vibration or shaking.

VMF: An alarm of the VMF detection function.

Motion detection: The alarm detected by the motion detection function.

Click Detection, and the Motion detection menu is displayed to allow you to set the motion detection function (page 73).

Note

Effective period

Set the period during which alarm detection is effective.

Always: Alarm detection is always effective.

Schedule: You can specify the period during which alarm detection is effective.

Click Schedule and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

Alarm buffer

Select Use alarm buffer to forward the image/audio at a specified time before or after alarm detection (pre-alarm, post-alarm).

If you do not select the alarm buffer, only the image at the moment of alarm detection is forwarded.

Click Alarm buffer to display the Alarm buffer menu. For details, see “Setting the Alarm Buffer — Alarm buffer Menu” on page 73.

OK/Cancel

See "Buttons common to every menu" on page 27.

Periodical sending Tab — Setting the periodical FTP client activity

You can set to send image files (JPEG files) to an FTP server periodically.

Periodical sending On Off Remote path Image file name Suffix None Date & time Sequence number Sequence number clear Clear Mode Periodical mode Tour mode Interval H M S (MIN : 1 sec, MAX : 24 hour interval) Effective period Always Schedule Schedule

Periodical sending

Select On when you want to use periodical sending.

Remote path

Type the remote path using up to 64 characters.

Image file name

Type the file name of the image sent to the FTP server using up to 10 alphanumeric characters, - (hyphen) and _ (under score).

The actual image file name will be the specified image file name with a suffix and extension .jpg.

Note

You cannot send an audio file using periodical sending of the FTP client function.

Suffix

Select a suffix to be added to the file name sent to the FTP server.

None: The name of the sent file will be the image file name.

Date & time: The date & time suffix is added to the image file name.

The date & time suffix consists of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits) and second (2 digits), and sequential number (2 digits), thus adding a 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 are added to the image file name.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Mode

Select the periodical sending mode.

Periodical mode: An image file is sent periodically according to the specified Interval and Effective period.

Tour mode: An image file is sent each time the camera is moved to a preset position during the tour.

Note

Periodical mode and Tour mode are not available on the SNT-EP104 and SNT-EP154.

Interval

Type the interval at which you want to send images to the FTP server periodically. You can set the hour (H), minutes (M) and seconds (S) between 1 second and 24 hours (one day).

Note

The actual interval may be longer than the set value, depending on the image size, image quality setting, bit rate and the network environments.

Effective period

Set the period during which periodical sending is effective.

Always: Periodical sending is always effective.

Schedule: You can specify the period during which periodical sending is effective.

Click Schedule to display the menu for the effective period. (“Setting the Schedule — Schedule Menu” on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Image memory istrator menu, the Image memory menu appears.

By using the image memory function, you can record an image and audio file (shot being linked with the external sensor input or built-in motion detection function) in the built-in memory (approx. 8 MB), or in a USB memory (not supplied) inserted in the unit. Image files can also be recorded periodically.

The recorded image and audio files can be searched or downloaded via a computer using the FTP server function. (See “Downloading Images from the system — FTP server Menu” on page 67.)

The Image memory menu consists of three tabs:

Common, Alarm recording and Periodical recording.

Notes

The image and audio files recorded in the built-in memory are deleted when the power of the camera is turned off, or the Selected root directory setting is changed.
The frame rate and operability on the main viewer may be reduced during image storage.
Set the image memory function to Off when you remove the USB memory from the camera, or when you turn off the power of the unit.
Before using a USB memory, format it using the computer, or by Format USB memory in the Initialize tab (page 32).

Common Tab — Setting the image memory function

Image memory

To use the image memory function, select On.

Selected root directory

Select a memory in which you want to save an image. The current memory space is displayed on the right.

Built-in memory: Built-in memory of this unit USB memory: USB memory inserted into the unit

Notes

The image and audio files recorded in the built-in memory are deleted when the Selected root directory setting is changed.
When Selected root directory is set to an option other than Built-in memory, “empty” is displayed in the memory space box and you cannot access the built-in memory.
The USB memory option is not available on the SNT-EP104, SNT-EX154 and SNT-EP154.

Overwrite

Select On to overwrite the file when there is insufficient memory space to record the image in the built-in memory or USB memory.

On: Overwrite is enabled and old files will be overwritten in the order of date.

Off: Overwrite is prohibited. No recording will be performed.

Capacity warning

Select On to send a warning mail to the Administrator when the memory space of the built-in memory or CF memory card is low or the memory is full. Select Off if you do not want to send a warning mail.

On: A warning mail is sent to the Administrator.

Off: A warning mail is not sent to the Administrator.

Note

When Overwrite is set to On, a warning mail is not sent to the Administrator.

SMTP server name

Type the name of the SMTP server for sending an e-mail, using up to 64 characters.

Otherwise type the IP address of the SMTP mail server.

SMTP port number

Select the textbox and enter a port number from 25 to 65535.

Use TLS

To use the encryption function by TLS, select On.

STARTTLS

To use the encryption function by STARTTLS, select On.

Authentication

Select whether authentication is required when you send an e-mail.

Off: No authentication is required when an e-mail is sent.

On: Authentication is required when an e-mail is sent. Select one of the authentication methods from the following and specify the POP server name, User name and Password as required.

SMTP: SMTP authentication is required.

POP before SMTP: POP before SMTP authentication is required.

Note

When you set Authentication to On, be sure to select either or both SMTP or/and POP before SMTP.

POP mode

Select POP3 or APOP (encrypted authentication).

Waiting time after POP authentication

Set the timeout duration. Timeout duration can be set from 1 to 10000 msec.

POP server name

This is necessary when POP before SMTP is selected for Authentication.

Type a POP (receiving mail) server name using up to 64 characters, or type the IP address of the POP server. This setting is necessary when the SMTP server that sends e-mails performs authentication using the POP user account.

POP port number

Enter a port number from 110 to 65535.

Authentication mode

Set the user authentication mode.

If you do not use CRAM-MD5, select Login.

User name, Password

Type the user name and the password of the user who owns the e-mail account. This setting is necessary when the SMTP server that sends e-mails performs authentication.

Administrator e-mail address

Type the e-mail address for the recipient of a warning mail (e-mail address of the Administrator), using up to 64 characters.

OK/Cancel

See "Buttons common to every menu" on page 27.

Alarm recording Tab — Setting the Image memory function when detecting the alarm

You can set to record image and audio file to the memory linked with an external sensor input or built-in motion detection function.

Alarm recording On Off Image file name Suffix Date & time Sequence number Trigger current user On Alarm Sensor input 1 Sensor input 2 Sensor input 3 Sensor input 4 Tampering VWF Motion detection Solution Effective period Always Schedule Schedule Alarm buffer Use alarm buffer Alarm buffer

Alarm recording

Select On to automatically record the image and audio files from alarm detection to the built-in memory or USB memory.

Image file name

Type the file name you want to assign to the image(s) to be recorded. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underscore) for naming.

Suffix

Select a suffix to be added to the file name.

Date & time: The Date & time suffix is added to the image file name. The Date & time suffix consists of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits) and sequential number (2 digits), thus adding a 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and an sequential 2-digit number is added to the image file name.

Tip

A sequential number added to Date & time and Sequence number is used to identify individual files created with consecutive alarm events.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Alarm

Select the alarm to be linked with the recording of image and audio files.

Tip

Number of selectable input terminals is as follows:

SNT-EX101:2

SNT-EX104/SNT-EX154: 4

SNT-EP104/SNT-EP154: None *

* Alarm sending is available only for the simple motion detection function.

Sensor input 1: The external sensor that is connected to sensor input 1 of the I/O port.

Sensor input 2: The external sensor that is connected to sensor input 2 of the I/O port.

Sensor input 3: The external sensor that is connected to sensor input 3 of the I/O port.

Sensor input 4: The external sensor that is connected to sensor input 4 of the I/O port.

Tampering: An alarm that is triggered when the camera detects vibration or shaking.

VMF: An alarm of the VMF detection function.

Motion detection: The alarm by the motion detection function.

Click Detection, and the Motion detection menu is displayed to allow you to set the motion detection function (page 73).

Note

In the case that the synchronized preset position is specified in Position at alarm in the Preset position menu, the alarm event that happens when the camera moves to the preset position will be invalid.

Effective period

Set the period during which alarm detection is effective.

Always: Alarm detection is always effective.

Schedule: You can specify the period during which alarm detection is effective.

Click Schedule to display the setting menu for the effective period. ("Setting the Schedule — Schedule Menu" on page 72)

Alarm buffer

Select Use alarm buffer when you record the image/audio at a specific time before or after alarm detection (pre-alarm, post-alarm).

If you do not select the alarm buffer, only the image at the moment of alarm detection is recorded.

Click Alarm buffer to display the Alarm buffer menu.

For details, see "Setting the Alarm Buffer — Alarm buffer Menu" on page 73.

OK/Cancel

See "Buttons common to every menu" on page 27.

Periodical recording Tab — Setting the periodical recording mode

You can set to record an image file (JPEG file) to the built-in memory or USB memory periodically.

Periodical recording On Off Image file name: Suffix Music Data & time Sequence number Sequence number clear One Mode Personal mode Test mode Internal i = 1 sec. max (24 hour Internet) (0KB - 1 sec. MAX - 24 hour Internet) Effective period Always Schedule Schedule

Periodical recording

Select On when you want to use periodical recording.

Image file name

Type the file name of the image to be recorded to the memory using up to 10 alphanumeric characters, -(hyphen) and _ (under score).

The actual image file name will be the specified image file name with a suffix and the extension .jpg.

Note

You cannot record an audio file using the periodical recording function.

Suffix

Select a suffix to be added to the file name.

None: The recording file name will be the image file name.

Date & time: The date & time suffix is added to the image file name.

The date/time suffix consists of the year (2 digits), month (2 digits), date (2 digits), hour (2 digits), minute (2 digits), second (2 digits), and sequential number (2 digits), thus adding a 14-digit number to the image file name.

Sequence number: A sequential number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 are added to the image file name.

Sequence number clear

Click Clear to reset the Sequence number suffix to 1.

Mode

Select the periodical recording mode.

Periodical mode: An image file is recorded periodically according to the specified Interval and Effective period.

Tour mode: An image file is recorded when the camera is moved to each preset position during the tour.

Note

Periodical mode and Tour mode are not available for SNT-EP104 and SNT-EP154.

Interval

Type the interval at which you want to record an image in the memory periodically. You can set the hour (H), minutes (M) and seconds (S) between 1 second and 24 hours (one day).

Note

The actual interval may be longer than the set value depending on the image size, image quality, bit rate, or recording media.

Effective period

Set the period during which periodical recording is effective.

Always: Periodical recording is always effective.

Schedule: You can specify the period during which periodical recording is effective.

Click Schedule and the menu for the effective period is displayed. ("Setting the Schedule — Schedule Menu" on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

Folder structure of image memory

When the image memory function is used, images are recorded with the following folder structure.

SONY SNTEX154 - Folder structure of image memory - 1

A represents a folder created automatically.

The Date_No. folder has an 11-digit name consisting of the year (last 2 digits), month (2 digits), day (2 digits), underscore and sequential number (4 digits).

In the built-in memory, one folder automatically created can store image files of about 1 MB. If the size of the image files exceeds that value, a new folder is created automatically to continue recording.

Note

USB memory folder size varies depending on capacity.

About the extension of a file

A file to be recorded/sent using the image memory function or the FTP client function has one of the following four extensions depending on the operation mode setting and the recording/sending settings of the unit.

.m4f: MPEG4 image files (including sound)

.jpf: JPEG image files (including sound)

.jpg: JPEG still image files

.maf: H.264 image files (including sound)

The SNC video player (page 100) allows playback of “.m4f”, “.maf” and “.jpf” files.

When you click FTP server ministrator menu, the FTP server menu appears. This allows you to set up for the FTP server function, which finds a specified image and audio file stored in the built-in memory (about 8 MB) or USB memory (not supplied) inserted in the camera, or downloads a file from the camera.

FTP server function • On Off Selected root directory Built-in memory Free space: 815Kyla USB memory imply

FTP server function

To activate the FTP server function, select On.

Selected root directory

Select the memory that contains the file you want to download.

The current memory space is displayed on the right.

Built-in memory: Built-in memory of this unit USB memory: USB memory inserted into the unit

Notes

When Selected root directory is set to an option other than Built-in memory in the Common tab of the Image memory menu, “empty” is displayed in the memory space box and you cannot access the built-in memory.
The frame rate and operability on the main viewer may be reduced when you logged in to the FTP server of this unit using the FTP client software installed in the computer.
USB memory cannot be used on the SNT-EP104, SNT-EX154 and SNT-EP154.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Alarm output inistrator menu, the Alarm output menu appears.

You can perform setting in this menu to control the alarm output of the I/O port on the rear of the system in conjunction with alarm detection and the timer.

The Alarm output menu consists of four tabs: Alarm output 1, Alarm output 2, Alarm output 3 and Alarm output 4.

Tip

For details on connection of peripheral devices to the alarm output of the I/O port, refer to the supplied Installation Manual.
The number of selectable input terminals is as follows: SNT-EX101: 2
SNT-EX104/SNT-EX154: 4
SNT-EP104/SNT-EP154: None *
* Alarm sending is available only for the simple motion detection function.

Note

This operation is not available on the SNT-EP104 or SNT-EP154.

Alarm output Tab

Alarm output On Off Mode Alarm Sensor input 1 Sensor input 2 Sensor input 3 Sensor input 4 Transpeing VNR Motion detection Defective Alarm duration 100 sec (1 to 10 sec.) Effective period Always Schedule Schedule Timer Schedule

Alarm output

To activate the alarm output function, select On.

Mode

Select the mode of the alarm output function.

Alarm: Controls alarm output by synchronizing it with an external sensor input or the built-in motion detection function.

When Alarm is selected, the items Sensor input 1, Sensor input 2, Sensor input 3, Sensor input 4, Tampering, VMF, Motion detection, Alarm duration and Effective period become active.

Timer: Controls alarm output using the timer. Click Schedule and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

Sensor input 1

Select this option when you link the alarm output to an external sensor that is connected to sensor input 1 of the I/O port.

Sensor input 2

Select this option when you link the alarm output to an external sensor that is connected to sensor input 2 of the I/O port.

Sensor input 3

Select this option when you link the alarm output to an external sensor that is connected to sensor input 3 of the I/O port.

Sensor input 4

Select this option when you link the alarm output to an external sensor that is connected to sensor input 4 of the I/O port.

Camera tampering detect

Select this option when you link the alarm output to the vibration/shaking detection of the camera.

VMF

Select this option when you link the alarm output to the VMF detection function.

Motion detection

Select this option when you link the alarm output to the motion detection function.

Click Detection, and the Motion detection menu is displayed to allow you to set the motion detection function (page 73).

Note

Alarm duration

Select the duration for which the alarm is output, between 1 and 60 sec.

Effective period

This item becomes active when Mode is set to Alarm. Set the period during which the alarm detection is effective.

Always: Alarm detection is always effective.

Schedule: You can specify the period during which alarm detection is effective. Click Schedule and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

Outputting Audio Linked to Alarm Detection

Click Voice alert ministrator menu to display the Voice alert menu.

Use this menu to set the Voice alert function to output audio from the line output jack of the unit when an alarm is detected by the sensor input or motion detection function.

You can output the audio from the speaker connected to the unit in synchronization with an alarm event triggered by the sensor input or the motion detection function.

The Voice alert menu consists of 3 tabs: Voice alert 1, Voice alert 2 and Voice alert 3. You can configure an individual audio file on each tab.

Notes

Before using the Voice alert function, you need to save the audio file to the unit using the SNC audio upload tool stored in the supplied CD-ROM.
For details on use of the SNC audio upload tool, see page 95.
This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

Voice alert 1, 2, 3 Tab
File Text Play Voice alert On Off Repeat Alarm Sensor input 1 Sensor input 2 Sensor input 3 Sensor input 4 VHF Tampering Motion detection Duration Effective period Always Schedule Schedule

File

Displays the name of the audio file saved in the unit. "Not uploaded" is displayed dimly if no audio file is saved.

To delete the audio file saved in the unit, click Delete.

Note

Before deleting an audio file, set Voice alert to Off.

Test

When an audio file is saved in the unit, you can check it by playing it back.

Click Play to play back the audio file.

Voice alert

To use the voice alert function linked with the sensor input or the motion detection function, select On.

Repeat

Select playback repeat time from 1 to 3.

Alarm

Select the alarm to be linked with the voice alert function.

Tip

The number of selectable input terminals is as follows: SNT-EX101: 2

SNT-EX104/SNT-EX154: 4

SNT-EP104/SNT-EP154: None *

* Alarm sending is available only for the simple motion detection function.

Sensor input 1: The external sensor that is connected to sensor input 1 of the I/O port.

Sensor input 2: The external sensor that is connected to sensor input 2 of the I/O port.

Sensor input 3: The external sensor that is connected to sensor input 3 of the I/O port.

Sensor input 4: The external sensor that is connected to sensor input 4 of the I/O port.

Tampering: An alarm that is triggered when the camera detects vibration or shaking.

VMF: An alarm of the VMF detection function.

Motion detection: The alarm detected by the motion detection function.

Click Detection to display Motion detection menu to allow you to set the motion detection function (page 73).

Notes

If voice alert is actively linked with a different alarm event while another voice alert is occurring, the first voice alert is canceled and the second is output.
If two or three audio files are set to be output simultaneously linked with the same alarm event, priority is given in the order Voice alert 1, 2 then 3.
In the case where a preset position is specified in Position at alarm in the Preset position menu, the alarm event that occurs when the camera moves to the preset position will be invalid.

SONY SNTEX154 - Notes - 1

Effective period

Set the period during which alarm detection is effective.

Always: Alarm detection is always effective.

Schedule: You can specify the period during which alarm detection is effective.

Click Schedule, and the menu for the effective period is displayed. (“Setting the Schedule — Schedule Menu” on page 72)

OK/Cancel

See "Buttons common to every menu" on page 27.

Click Trigger Administrator menu to display the Trigger menu.

This allows you to select the activities that can be performed when the button on the Trigger panel is clicked on the main viewer.

e-Mail (SMTP) FTP client Image memory Alarm output 1 Alarm output 2 Voice alert 1 Voice alert 2 Voice alert 3 e-Mail (SMTP) FTP client Image memory Toggles Timer Duration: 1 sec (1 to 200) Toggles Timer Duration: 1 sec (1 to 200) File: Not applicable File: Not above File: Not below

e-Mail (SMTP)

Checking this box allows you to select e-Mail (SMTP) on the Trigger panel in the main viewer.

By clicking e-Mail (SMTP) a still image of the moment you click is captured, and your e-mail with the image file attached is sent to the specified mail address.

When you click e-Mail (SMTP), the Trigger-e-Mail (SMTP) menu is displayed. You can set the necessary options here. The setting options and setting procedures are the same as those of the e-Mail (SMTP) menu (page 57).

FTP client

Checking this box allows you to select FTP client on the Trigger panel in the main viewer.

By clicking FTP client a still image of the moment you click is captured, and the image file is sent to the FTP server.

When you click FTP client, the Trigger-FTP client menu is displayed. You can set the necessary options here. The setting options and setting procedures are the same as those of the FTP client menu (page 60).

Trigger - FTP client FTP server name User name Password Re-type password Passive mode On Off Remote path Image file name Suffix None Date & time Sequence number Sequence number clear Clear

Image memory

Checking this box allows you to select Image memory on the Trigger panel in the main viewer.

By clicking Image memory a still image of the moment you click is captured, and the image file is recorded in the built-in memory or USB memory (not supplied).

Click Image memory to display the Trigger-Image memory menu. You can set the necessary options here. The setting options and setting procedures are the same as those of the Image memory menu (page 63).

Alarm output

Checking this box allows you to select Alarm output 1, Alarm output 2, Alarm output 3 and Alarm output 4 on the Trigger panel in the main viewer. You can control the alarm output by clicking Alarm output 1, Alarm output 2, Alarm output 3 or Alarm output 4.

Note

This operation is not available on the SNT-EP104 or SNT-EP154.

Select the alarm output control mode from Toggle or Timer.

Toggle: Each time you run a trigger, On (short circuit) or Off (open) is switched.

Timer: When you run a trigger, the alarm output is switched to On, and will automatically set to Off after the time specified in Duration has elapsed.

Duration

When Timer is selected, specify the time for which the alarm output remains off, from 1 to 300 seconds.

Voice alert 1, 2, 3

Checking this box allows you to select Voice alert 1, Voice alert 2 or Voice alert 3 on the Trigger panel in the main viewer. You can output audio from the audio file saved in the system by clicking Voice alert 1, 2 or 3.

Audio file

Displays the name of the audio file saved in the system. "Not uploaded" is displayed dimly if no audio file is saved.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Schedule administrator menu, the Schedule menu appears.

The Schedule menu consists of six tabs.

This is the same menu as the Schedule menu that is displayed when you click Schedule to set the Effective period in the following menus.

Preset position: Schedule in the Position Tour of the Preset position menu

e-Mail: Schedule in the Alarm sending or Periodical sending tab of the e-Mail (SMTP) menu

FTP: Schedule in the Alarm sending or Periodical sending tab of the FTP client menu

Image memory: Schedule in the Alarm recording or Periodical recording tab of the Image memory menu

Alarm output: Schedule in the Alarm output 1 \~ Alarm output 4 tab of the Alarm output menu

Voice alert: Schedule in the Voice alert 1, 2 or 3 tab of the Voice alert menu

Note

Preset position and Voice alert are not available for SNT-EP104 and SNT-EP154.

Example: When setting e-Mail (SMTP) (Periodical sending) in the Schedule menu

Use the same time schedule every day

When this item is checked, the same Start time and End time are applied to all days. In that case, the Start time and End time of the day from Mon (Monday) to Sun (Sunday) cannot be input.

Mon (Monday) to Sun (Sunday)

The time period on the right of the checked day is the effective period of the schedule.

Start time, End time

Specify the start time and the end time.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Alarm buffer inistrator menu, the Alarm buffer menu appears.

You can set the Pre-alarm image and audio (the image and audio before alarm detection) and the Post -alarm image and audio. These can be set when Alarm sending of FTP client menu or Alarm recording of the Image memory menu is set to On, besides when Use alarm buffer is selected.

Coder Image1 Image2 Image3 A still image is recorded if the selected image is set to OFF in "video coder" tab of "Camera" mini. Recording capacity sec. Recording time: Pre-alarm duration sec. Post-alarm duration sec.

Codec

Select the video codec to be used for the alarm buffer.

Recording capacity

Displays the maximum recording capacity of the alarm buffer in the present system setting of the video mode, image size, bit rate and frame rate.

Recording time

Set the recording time for the Pre-alarm image/audio and Post alarm image/audio.

Pre-alarm duration: Type the recording time of the image/audio before alarm detection.

Post-alarm duration: Type the recording time of the image/audio after alarm detection.

Note

The value of Recording capacity differs depending on the image size and image quality settings in the Camera menu.

OK/Cancel

See "Buttons common to every menu" on page 27.

When you click Motion detection strator menu, the Motion detection menu appears.

Using this menu, you can set the conditions for activating the built-in “Motion detection” function. Motion detection detects moving objects in the camera image and outputs an alarm. In VMF, an alarm is set off when a motion detected under the motion detection setting passes, appears in or disappears from a specified area or inspection line.

The motion detection function and the VMF function can independently set off an alarm at the time of detection.

Note

The simple motion detection function is available for SNT-EP104 and SNT-EP154.

See “The simple motion detection function” on page 79.

What are VMF functions-Video Motion Filter

VMF functions are for inspecting whether a moving object detected under the motion detection settings passed, appeared in or disappeared from a specified area or inspection line.

The inspection method is selected from Pass/Presence/Appear/Disappear/Volume, and also allows for a maximum combination of three, which can be simultaneously or sequentially executed. In the VMF setting, up to three patterns can be kept for each preset for the current camera position.

Pass

A reference passage line is determined, and when a moving object passes the setting line, an alarm is set off. FTP client alarm sending, image memory alarm recording and/or audio file playback can be performed in synchronization with this alarm.

Presence

When the reference object acknowledged by the system is present after a certain period of time has elapsed, an alarm will be set off. FTP client alarm sending, image memory alarm recording and/or audio file playback can be performed in synchronization with this alarm.

Appearance

When an object that did not exist in the reference area appears, an alarm will be set off. FTP client alarm sending, image memory alarm recording and/or audio file playback can be performed in synchronization with this alarm.

Disappearance

When an object acknowledged by the system as a moving object in the reference area disappears, an alarm is set off. FTP client alarm sending, image memory alarm recording and/or audio file playback can be performed in synchronization with this alarm.

Volume

When the volume of moving objects in the reference area reaches definite number, an alarm is set off. FTP client alarm sending, image memory alarm recording and/or audio file playback can be performed in synchronization with this alarm.

Notes

Before actual use, perform an operation test and confirm that the motion detection function works correctly.
Even when privacy masking and/or cropping is used, the motion detection function operates based on the images before these functions are activated.
When cropping is enabled, the motion detection menu is not displayed. To use the motion detection menu, disable these functions first.

When you click Motion detection, "Security Warning" is displayed.

When you click Yes, ActiveX control is installed and the Motion detection menu is displayed.

Notes

If Automatic configuration is enabled in the Local Area Network (LAN) settings of Internet Explorer, the image may not be displayed. In that case, disable
Automatic configuration and set the Proxy server manually. For the setting of the Proxy server, consult your network administrator.
When you install ActiveX control, you should be logged in to the computer as Administrator.

- When you are using Windows XP Service Pack 2 or later, or Windows Vista, the information bar or "Security Warning" may appear as you click Motion detection. For details, see "Installing ActiveX Control" in "When using Windows XP Service Pack 2 or later" on page 8 or "Installing ActiveX Control" in "When using Windows Vista" on page 11.

Setting items for motion detection

Use the settings tab to set the conditions for the motion detection function while observing camera images. This menu is the same as the settings menu displayed when you click Detection on Alarm transmission on the e-Mail (SMTP) menu, or on Alarm recording on the Image memory menu.

Target of setting Current position Detection setting Detection area Salt Detection sense 0 Detection response 0 Detection size Minimum 0.6 Max distance 0.0 Shadow / remote Invert VMF setting Number of settings Importing method 1 2 3 Intersection size Importing speed Detection area Unlock

Preview screen

This screen is for monitoring images and configuring active/inactive windows.

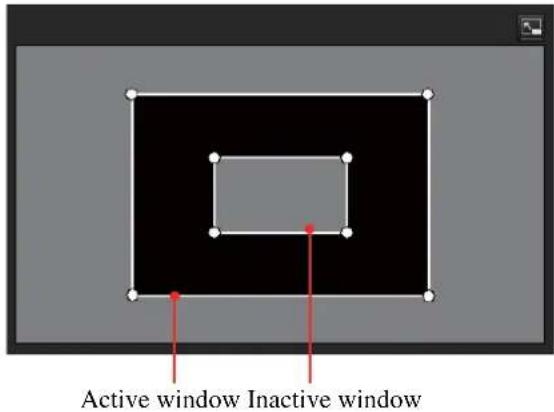

Active window Inactive window

Note

The frames shown on the monitor screen are not displayed on the image files sent or recorded with motion detection.

Target of setting

Select the camera position subject to detection settings and VMF settings from Current position or Preset. If you select Items to configure, the Current Position and Preset will be displayed. Selecting Preset will display Restore preset.

Current position: Select this option to set the current camera position as the subject of configuration.

Preset: Select this option to configure each preset. Select a preset from the list and move the camera to the preset position. The setting is enabled when the camera has moved to the set preset position.

Current position

Target of setting Current position Selected preset W T

Preset

Target of setting Current position Selected preset Restore preset No group test01 test02

Notes

Camera control can be used when the mode is "Current position" mode.
Detection settings and VMF settings should be saved independently when the and Current position and Preset is selected.

Detection settings

Detection area

Specify the effective scope of the motion detection.

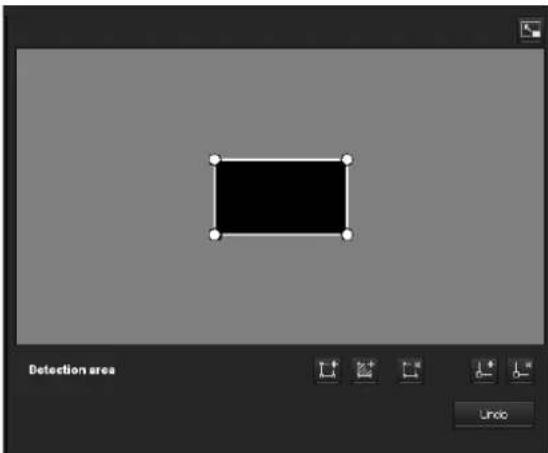

Detection area Undo

Configuring the detection area

The following procedure is used to configure the motion detection area:

1 Use the following buttons to specify the active area(s) and inactive area(s).

SONY SNTEX154 - Configuring the detection area - 1

Adding an active area

Clicking Adding an active area will add an active area window in the center of the screen.

When you place the cursor on the area, the cursor changes to a crossed arrow, which you can drag to move the area.

When you place the cursor on the vertex of the area, the cursor changes to , which you can drag to move the vertex.

SONY SNTEX154 - Adding an active area - 1

Adding an inactive area

Clicking Adding an inactive area will add an inactive area window in the center of the screen. When you place the cursor on the area, the cursor changes to a crossed arrow, which you can drag to move the area.

When you place the cursor on the vertex of the area, the cursor changes to , which you can drag to move the vertex.

SONY SNTEX154 - Adding an inactive area - 1

Deleting a region

Clicking Deleting a region will delete the selected active area or inactive area.

To select an area, click on the center or side of the area.

SONY SNTEX154 - Deleting a region - 1

Adding a vertex

Clicking Adding a vertex will change the cursor to a button. In that state, when you click on a part of the side of the area, a vertex is added to that point. After the addition, the cursor will return to move mode.

It is the same function as the button displayed in VMF settings.

SONY SNTEX154 - Adding a vertex - 1

Deleting a vertex

Clicking Deleting a vertex will change the cursor to a button. In that state, when you click on a part of the side of the area, the vertex added to that point is deleted. After the deletion, the cursor will return to move mode.

It is the same function as the button displayed in VMF settings.

Note

The vertex can be moved in an outward direction but cannot be moved toward the inside of an area.

Detection sensitivity

Set the sensitivity of motion detection.

Detection sense Low 1 50 100 High 30 Return to the default

A value from 1 to 100 can be specified.

The values of the slide bar and spin button are synchronized.

Clicking Return to the default changes the value to the default value.

Detection response

Set the response velocity of motion detection.

Detection response Slow 1 2 3 4 5 Fast 2 Return to the default

A value from 1 to 5 can be specified.

Clicking Return to the default changes the value to the default value.

Detection size

Specify the minimum detection size and maximum detection size of motion detection. To specify the detection size, you can either enter values or drag the vertexes of the area.

Detection size Minimum detection size Width 160 Height 220 Pixel Maximum detection size Width 310 Height 620 Pixel

The area size is measured in pixels.

When you place the cursor on the area, the cursor changes to a crossed arrow, which you can drag to move to the minimum detection size area and maximum detection size area.
When you place the cursor on the vertex of the area, the cursor changes to . Drag and move the vertex to adjust the detection size.

Moving shadow exemption

Set ON/OFF for the moving shadow exemption function of the motion detection.

Selecting ON will prevent the shadows of a moving object from being recognized as moving objects.

Remove the check to disable the shadow removal function of the motion detection.

VMF setting items

Up to three VMF settings (package number1 to 3) can be retained for each current camera position and preset position. You can select one of those settings for use. You can configure the inspection method and the size and speed of object to inspect individually for each package number.

Target of setting Current position Detection setting Detection area Set Detection service 0 Detection response 0 Detection size: Minimum 100x200 Minimum 300x300 Shadow removal Invalid VMF setting Number of setting Inspection notice 1 2 3 Inspection size Inspection speed Number of setting

Setting number

Select the setting number to set from 1, 2 or 3.

The following VMF setting is saved for the individual setting number selected here.

The set of the setting numbers selected here is valid for current VMF setting.

Note

package1, package2 and package3 of the VMF setting cannot be simultaneously enabled.

Inspection method

Specify the VMF inspection method.

Inspection method When any of them occurs When all occurs in order 1 Pass At least 1 seconds 2 Presence At least 1 seconds 3 Presence

Select the inspection method from When any occur or When all occur in order.

When any occur: An alarm will be set off when any one of the three conditions is met.

When all occurs in order: An alarm will be set off when the three conditions are met in the sequence specified. If the conditions occur in an order different from the sequence specified, such as 1, 3 and then 2, there will be no alarm.

Each inspection method can include up to 3 criteria.

Select the inspection method from Pass, Presence,

Appear, Disappear, Volume and None.

Enable/Disable checkbox for inspection method

Set enable/disable for individual inspection methods.

Inspection method order switching button

Clicking switches the order of inspection methods between the neighbouring methods.

e.g., If you click the button between 1 and 2, they will switch order. If you click the button between 2 and 3, they will switch order.

Specifying the time for “When all occurs in order”

Specify the reference interval in seconds between 1 and 2, or 2 and 3.

For example, if “At least 3 seconds” is specified, the state of 2 being acknowledged two seconds after 1 has been acknowledged will not validate the acknowledgment of 2.

Inspection method settings

Settings for each inspection method can be edited here. The inspection line and active window are set to default values. Edit according to use.

Tip

The buttons displayed on the edit screen for inspection method is used in the same way as those for detection setting. See page 75.

Pass

Inspection method Pass Pass inspection position Center Unase

Edit the pass inspection line according to the following procedure:

Pass inspection line

By default, one pass inspection line is displayed. The initial number of vertexes is 2 for each pass inspection line.

Placing the cursor on the line will turn the cursor into a cross, and when you drag the line, the whole line will move.

Placing the cursor on the vertex will turn the cursor into , and when you drag the line, the vertex will move.

The arrow displayed in the center of the pass inspection line shows the direction of inspection. Inspection is performed when an object passes the pass inspection position in this direction.

Inspection direction setting

Each time you click the inspection direction toggles among the directions left, right and both.

Pass inspection position

Select the pass inspection position from Center, Left side, Top side, Right side and Bottom side.

Presence
Inspection method - Presence 1 Soo Undc

Similar to a active window an inspection area can also be moved and vertexes can be moved/added or deleted. If an object is present within the window longer than the specified time, the presence is acknowledged.

Presence time

Specify the time of presence.

Appear
Inspection method - Appear Unib

This criterion is whether an object appeared in the inspection area.

Similar to an active window, an inspection area can also be moved and vertexes can be moved/added or deleted.

Disappear

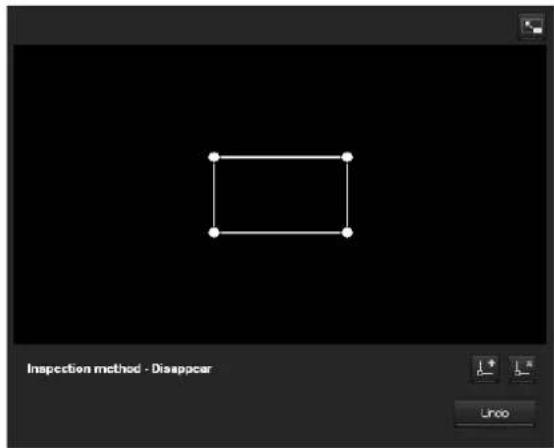

Inspection method - Disappear Unco

This criterion is whether an object disappeared in the inspection area.

Similar to an active window, an inspection area can also be moved and vertexes can be moved/added or deleted.

Volume

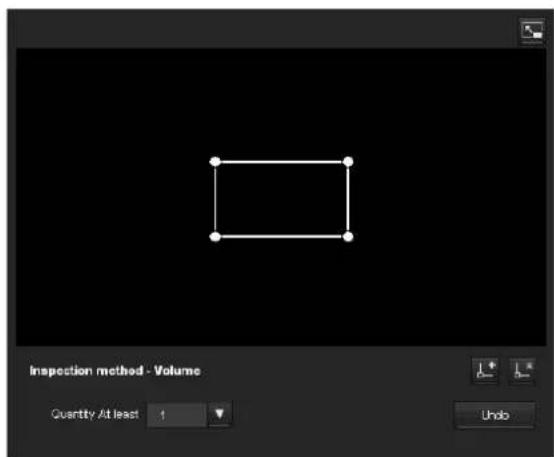

Inspection method - Volume Quantity At least 1 Unob

This criterion is the number of objects found in the inspection area.

The quantity is specified from the pull-down list. Similar to a active window, the inspection area can also be moved and its vertexes can also be moved, added or deleted.

Quantity: The quantity is specified from the "Quantity" pull-down.

Size of object to inspect

Specify the minimum inspection size and maximum inspection size of the object. To specify the detection size, you can either enter values or drag the vertexes of the area.

Inspection size Minimum detection size Width 160 Height 120 Pixel Minimum inspection size Width 160 Height 300 Pixel Maximum inspection size Width 360 Height 540 Pixel Maximum detection size Width 290 Height 720 Pixel

The size of an object is measured in pixels.

When you place the cursor on the area, the cursor changes to a crossed arrow, which you can drag to move the minimum inspection size area and maximum inspection size area.
Placing the cursor on the vertex of the minimum inspection size area or maximum inspection size area will change the cursor to , then you can drag the vertex to change the inspection size.

Tip

The minimum and maximum detection sizes configured in the detection setting are displayed, but the size of the area cannot be modified from here.

Speed of object to inspect

Specify the range of the speed of object to inspect by determining Min. speed and Max. speed.

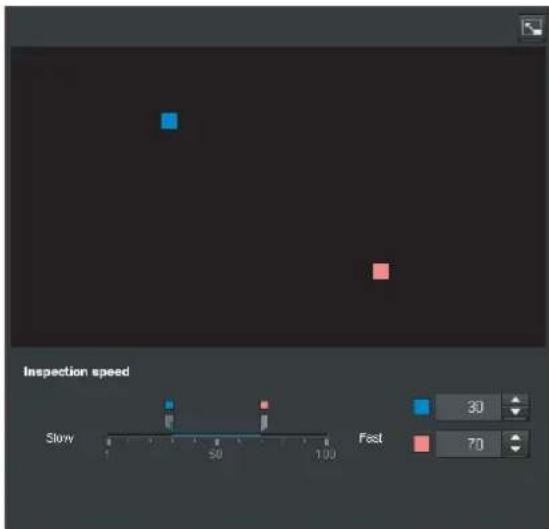

Inspection speed Slow 30 Fast 70

- Min. speed and Max. speed can be specified within a scale of 100.

The blue marker for minimum speed cannot be set to the right of the red marker for maximum speed.
The indicators indicating Min. speed and Max. speed move on the left and right side of the screen.

Note

The set value is only valid under the conditions of Pass, Appear or Disappear.

Full-screen display button

Click 📄 display the ActiveX area in full screen. Clicking again will show the normal display.

Stretch bar

Click hide the menu list on the left and enlarge the preview screen. Clicking again will show the menu list as it was before.

OK/Cancel

Click OK to finalize any changes made to the settings and send them to the system. If you click Cancel, changes made to the settings will be discarded and the screen will be reloaded with the current settings.

Simple motion detection function

The following three simple functions are provided for motion detection. The simple motion detection function is available on the SNT-EP104 and SNT-EP154.

Detection level

Set the sensitivity of the motion detection. Set a scale from [1] to [100].

Detection size

Specify the size of moving object to be detected, from three options: Large, Medium and Small.

Motion level

If a moving object is shown in full screen, you can set the degree of motion of the object to within a scale: 1 - 100 Check the current degree of motion on the level meter and set the detection level referencing that value.

Note

VMF configuration is not available when the simple motion detection function is activated.

When you click PTZ control I/F nistrator menu, the PTZ control I/F menu is displayed. Using this menu, you can input data into the system from the computer via a network and output them to the external serial interface to control a peripheral device. You can also input data from a peripheral device via an external serial interface and output them to the computer via a network.

Notes

For the SNT-EX104 and SNT-EX154, set the four video channels to the same setting, except for the camera ID, which should differ between channels. setting.
This operation is not available on the SNT-EP104 or SNT-EP154.

Interface Serial Cochron Serial setting Standard BS485 BS402 Camera ID 1 (1 to 256) Mode Normal TCP TCP port No 4000 (10x10 @05439) Protocol F40-0 Baud rate 9000 bps Panty bit F000 Character length 0 bits Stop bits bits

Interface

Select Coaxitron or Serial.

Serial setting

Standard

Select RS-485 or RS-422.

Note

RS-422 is only available on the SNT-EX101.

Camera ID

Set the connected Camera ID when Interface is selected to Serial.

Mode

Select the mode of data transmission/reception via a network: TCP port or camera control. Select Normal to not use TCP.

TCP: Select when you use the TCP port to input and output data through the external serial interface. Using this method, you can easily check data communications through the serial port by DOS command “telnet [host name] [port number].” When TCP is selected, the TCP port No. box becomes active. Type the port number corresponding to the TCP port. Specify a port number (1024 to 65535) other than Well Known port numbers.

Protocol

Pelco-D: Select when you control the camera with Pelco-D protocol.

AD: Select when you control a camera with AD protocol.

Baud rate

Select a baud rate that corresponds to the peripheral device of serial interface. Selectable baud rates are shown below.

38400, 19200, 9600, 4800, 2400, 1200 (bps)

Parity bit

Select a parity that corresponds to the peripheral device connected to the serial interface: none, odd or even.

Character length

Select the character length that corresponds to the peripheral device connected to the serial interface: 7 or 8 (bits).

Stop bits

Select the stop bit that corresponds to the peripheral device connected to the serial interface: 1 or 2 (bits).

OK/Cancel

See "Buttons common to every menu" on page 27.

Click Viewer Administrator menu to display the Viewer menu.

Using this menu, you can select the viewer to use and configure advanced settings.

Layout tab

Homepage

Set the viewer or homepage to be displayed at the time of access.

ActiveX Viewer

Plug-in free Viewer

Custom

Select the homepage to be displayed.

You can display your favorite homepage stored in the built-in flash memory or USB memory (not supplied).

To store a homepage HTML file in the built-in flash memory, use the Custom Homepage function of SNC toolbox included in the supplied CD-ROM. To learn how to use the Custom Homepage, see page 90.

To display your Custom homepage perform the following operation:

1 Select Custom.
2 Type the path of the HTML file using up to 64 characters in the text box on the right of Path.
3 In Selected memory, you can select either Flash memory or USB memory in which the homepage is stored.

The directory displayed in the text box on the right of Path changes according to the selected memory.

Tip

Even when you select Custom, the homepage inside the camera can be displayed by typing the following URL in the address box of your Web browser.

Example: When the IP address of the camera is set to 192.168.0.100

http://192.168.0.100/en/index.html

Configure the setting for the bar menu displayed at the top of the viewer screen. Select On to display the header, and Off to hide it.

Button style

Select Standard or Simple.

Logo URL

To set the logo image, click Browse and specify the URL of the logo image to display.

Background color 1, background color 2, and Text color

Specify the background colors and font color.

To specify the color, enter “#” followed by an RGB value in 6-digit hexadecimal.

The first 2 digits after # represent red, the next 2 digits green, and the last 2 digits blue. Specify the brightness for each color. 256 brightness levels are available (00-FF).

Camera list

You can register cameras in the camera list. By selecting a registered camera on the viewer screen, you can see the images from the registered camera.

Note

The camera list can be set only when Plug-in free Viewer is selected as the homepage.

On/Off

Select On to show the camera list, and Off to hide it.

Style

You can configure the camera list style.

Background color

Specify the background color of the camera list. The colors are specified in the same way as those for the header.

Registering in Cameras

Specify a number on the camera list and set the IP address, port number, and comment for each camera.

Insert: Click to register a camera in the camera list.

Modify: Click to edit a selected camera list.

Delete: Click to delete a selected camera list.

Text

Note

The camera list can be set only when Plug-in free Viewer is selected as the homepage.

Text1 text, Text2 text and Text3 text

Enter the text to be displayed on the viewer screen.

Text1 link, Text2 link and Text3 link

Specify the URL of the link to assign a link to the text.

Text color, background color 1, and background color 2

Specify the font color of the text and background colors. The colors are specified in the same way as specifying those for the header.

Display comment when camera is selected

Select this option to display comments on the viewer screen.

Setting the Monitor

Configure the setting for the camera image display part of Plug-in free Viewer.

Note

The camera list can be set only when Plug-in free Viewer is selected as the homepage.

Initial streaming

Set the display method for camera images.

Initial image size

Set the initial camera image size.

Initial PTZ

Set the pan/tilt/zoom operation modes of the camera.

Initial frame rate

Set the initial camera image frame rate.

Initial image

Set what to initially display on the camera image display area.

Initial Sound

Set the initial volume for when streaming starts. Check Mute for muting sound.

Note

This setting is valid only when SNC ActiveX viewer is selected for Streaming method from Setting of the control bar.
The initial PTZ operation is not available on the SNT-EP104 and SNT-EP154.

Set whether to have a frame or not in the camera image area.

Set whether to show or hide operation buttons at the bottom of the camera image area.

OK/Cancel

See "Buttons common to every menu" on page 27.

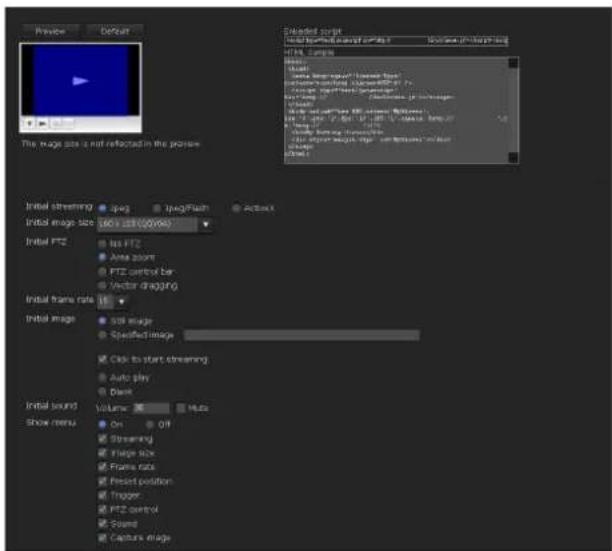

HTML output tab

If the monitor is for personal use, this tab can be used to output sample source for HTML and script.

For details on the setting, refer to "Setting the monitor" of the Layout tab.

Monitor

Displays a preview.

Embedded script

Displays the sample source for script.

HTML sample

Displays the sample source for HTML.

Others

This section explains how to use the application software and commands, including the supplied CD-ROM.

Using the Supplied SNC toolbox

Explains the functions except those of the Network tab in SNC toolbox.

To install SNC toolbox, to assign an IP address and to set the network, see "Assigning the IP Address to the unit" on page 6 in "Preparation."

Notes

SNC toolbox may not operate correctly if you use a personal firewall or antivirus software in your computer. In this case, disable the software or assign an IP address to the camera using another method. For an example, see “Assigning the IP Address to the unit using ARP Commands” on page 102.
If you are using Windows XP Service Pack 2 or later, or Windows Vista, disable the Windows Firewall function. Otherwise SNC toolbox will not operate correctly. For the setting, see “Configuring Windows Firewall” in “When using Windows XP Service Pack 2 or later” on page 9 or “Configuring Windows Firewall” in “When using Windows Vista” on page 11.
• Network camera (SNC-RH124, SNC-RS46N/SNC-RS46P, SNC-RS44N/SNC-RS44P, SNC-RH164, SNC-RS86N/RS86P, SNC-RS84N/SNC-RS84P) and video network station have a common utility. Some functions cannot be used with in the video network station.

Starting SNC toolbox

Select Program from the Start menu of Windows, then select SNC toolbox and SNC toolbox in sequence. SNC toolbox starts.

The main screen appears. SNC toolbox detects unit connected to the local network and lists them on the Network tab window.

When you are using Windows Vista, message "User Account Control – An unidentified program wants access to your computer" may appear. In this case, click Allow.

How to use SNC toolbox

Menu bar Function buttons SQL Interface View(V) Tools(T) Tasks(S) Help(H) Search Access Refresh Meeting Patterns Customs/IP Device Set Text SQL Server My device Search result Device name: MHC server3 Device address(Pack) DHOPF port (HSP) HTTP Port Window Device Device3013 00-01-04-51-04-02 TBC 196.0 192 Pixel BD DHCP SYY21 Device tree display Device list View button

All functions can be selected from here.

Import: Reads the Device list file (CSV format).

Export: Outputs the Device list in a CSV format file.

Close: Exits SNC toolbox.

Cut: Cuts off a device or folder.

Copy: Copies a device or folder.

Paste: Pastes a device or folder.

Select All: Selects all devices in the Device list.

Add Folder: Creates a folder.

Add Device Entry: Manually registers a device.

Modify Device Entry: Edits the device information.

Remove: Removes a device from a folder.

Delete: Deletes a device or folder.

Status bar: Switches show/hide of status at the bottom of the screen.

Normal: Displays detailed information on a device.

Snap shot small: Displays detailed information on a device with a small thumbnail.

Snap shot large: Lists devices with large thumbnails.

Column setting: Displays the setting screen for the items to display on the list.

Search: Searches again for devices.

Network Setting: Displays the screen for modifying the address settings for the selected device.

Device Setting: Displays the settings screen for the selected device.

Privacy Masking: Displays the Privacy Masking screen.

Panorama Image: Displays the Panorama Creator screen.

Custom Homepage: Displays the Custom Homepage screen.

Firmware Upgrade: Displays the Firmware Upgrade screen.

Initialize Device:

Reboot: Restarts the device.

Factory default: Initializes the device to factory default.

Backup setting data: Backs up setting data on a computer.

Device Homepage: Connects to the device.

Device Log:

System Log: Obtains system log for the device.

Access Log: Obtains access log for the device.

Tool Log: Obtains SNC toolbox log.

Option: Displays the screen for modifying SNC toolbox settings.

Task (K) menu

Task list: Displays the Task list screen.

Add task: Displays the Task Wizard screen.

Modify task: Displays the Task editing screen.

Delete task: Deletes task.

Help (H) menu

Version: Displays SNC toolbox version information.

Function buttons

Function buttons are used for updating lists and displaying dialog.

SONY SNTEX154 - Function buttons - 1

Search

Updates the Device list in the search result.

SONY SNTEX154 - Search - 1

Account

Sets the administrator for each device.

SONY SNTEX154 - Account - 1

Network

Displays the Network Setting dialog.

SONY SNTEX154 - Network - 1

Masking

Displays the Privacy Masking dialog.

SONY SNTEX154 - Masking - 1

Panorama

Displays the Panorama Creator dialog.

SONY SNTEX154 - Panorama - 1

Custom HP

Displays the Custom Homepage dialog.

SONY SNTEX154 - Custom HP - 1

Device setting

Displays the settings screen for the device.

SONY SNTEX154 - Device setting - 1

Task

Displays the Task List dialog.

Device tree view

This function allows you to customize folders. The registration details of My device can be displayed in tree format.

Search result folder

When this folder is selected, devices in the same segment detected at time of startup or by Search are displayed in the Device list.

Error folder

When this folder is selected, devices registered in My device folder that can not be connected are displayed in the Device list.

Also, if a registered device is not found on the network, it will also be registered in this folder.

My device folder

When this folder is selected, devices in the Search result folder or registered manually are displayed in the Device list.

Device list

Devices registered in the folder selected at Device tree view are displayed in a list.

Device name

Displays individual device names.

Status (Only for Error folder and My device folder)

You can check the current connection status.

MAC address

You can check the MAC address of the device.

Device address

You can check the IP address of the device.

Port No.

You can check the port number of the device.

DHCP/Fixed IP

Displays whether the IP address of the selected device is DHCP or fixed IP.

Model name

Displays the model name.

Serial

Displays the serial number.

Software version

Displays the version of firmware.

Admin name

Displays the administrator user name.

View button

You can change the display format of the Device list (page 87).

Registering in My device

The device tree has three folders by default: Search result, Error and My device.

The Search result folder and Error folder are fixed, so you cannot edit the content or rename the folder. The My device folder can be renamed, and you can add, delete and move folders.

Search result folder

Displays devices detected by search.

Error folder

Displays devices that are not connected.

My device folder

You can sort and manage devices using any folder.

Adding a folder

1 Select the parent folder to which you want to add a folder.
2 Right click the mouse and select Add Folder from the displayed menu.
A folder is added. Enter a folder name of your choice.

Registering a device

To register a device, follow the procedure below:

Registering by Add Device Entry dialog
Registering by drag & drop
Registering by copy & paste

Registering by Add Device Entry dialog

1 Select the folder to register the device.
2 Right click the mouse and select Add Device Entry from the displayed menu.

The Add Device Entry dialog appears.
Add Device Entry Device name Device address HTTP port No. 80 (1024 to 65535) HTTPS port No. 443 (1024 to 65535) Protocol HTTP HTTPS Client certificate Default certificate Certificate of IE: IE certificates... Device account Administrator name Administrator password OK Cancel

3

Enter the following items: Device name: Enter a device name of your choice. Device address: Enter the address of the device to register. HTTP port No.: Normally, 80 should be selected. When setting a value other than 80, select the textbox and enter a port number. HTTPS port No.: Normally select 443. When setting a value other than 443, select the textbox and enter a port number. Device account: Enter the user name and password of the administrator who will access the device in the Administrator name field and Administrator password field, respectively.

4

Click OK to finish registration.

Registering by drag & drop

To add a device, select a device from the Device list in the Search result folder, and drag & drop to the folder to register it in.

Registering by copy & paste

Select a device from the Device list in the Search result folder and right click the mouse. Select Copy from the displayed menu (or select Copy from the Edit menu). Next, select the folder to register in and right click the mouse. Select Paste from the displayed menu.

Renaming the device/folder

Select the folder or device to rename and right click the mouse. Select Rename from the displayed menu. The device/folder name is highlighted. Enter the new name.

Deleting a device/folder

Select the device/folder to be deleted from the Device list or Device tree and right click the mouse. Select Delete from the displayed menu (or select Delete from the Edit menu).

Moving a device/folder

You can move a device/folder by following either of the methods below:

Select a device/folder from the Device list or Device tree and drag & drop in the folder to move it to, which will move the device/folder.
Select a device/folder from the Device list or Device tree and right click the mouse. Select Cut from the displayed menu (or select Cut from the Edit menu). Next, select the folder to move to and select Paste.

Changing the Device list display method

Details display

Select Normal from the View menu or click ☐ to set to the details display.

Search result Device name ▲ MAC address Device address@IPv4 DHCP(Fixed IPv4) HTTP Prod No Model Serial Devtek003 89-01-4s-31-6s-62 192.168.8.102 Fixed 89 SNC*** 00101

Details display with thumbnails

Select Snapshot(S) from the View menu or click 📄 to set to the details display with thumbnails.

Switch R/W Device name ▲ MAC address Device address(DNA) CHECKFixed (HCPA) HTTP Port No PMode Set: No. Version 01 Alt DCI DevocB01 UO-01-4K ED-45-99 DHCP 80 SNC 2.30 4CC49 2.30

Display with large thumbnails

Select Snapshot(L) from the View menu or click 📄 to set to display with large thumbnails.

Search result Device Name : Deliverybox

Modifying the items to show on list

Select Column setting from the View menu to display the "Column Setting" dialog.

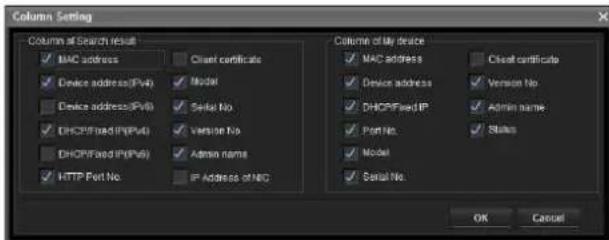

Column Setting Column of Search Result MAC address Device address(Pv4) Device address(Pv6) DHCP(Fixed IP(Pv4)) DHCP(Fixed IP(Pv6)) HTTP Port No. Chest certificate Model Serial No. Versine No. Admin name IP Address of NC Column of My device MAC address Device address DHCP(Fixed IP) Port No. Model Serial No. Chest certificate Version No. Admin name Status OK Cancel

Check the items you want to display and remove the checks from items you want to hide.

Click OK after making the changes. The new setting is reflected on the list and the display returns to the main screen.

Updating thumbnail images

When the Details display with thumbnails or Large thumbnail display is selected as the display method, clicking Reload displays the current camera images as thumbnails.

Setting SNC toolbox options

Select Option from the Tools menu to display the "Option" dialog. This dialog consists of three tabs: General, Network and Log.

General tab
$Option General Network\Log Language jp Default device account Administrator name Administrator password ✓ Show warning dialog when close main window ■ Reming me the risk when assign IP OK Cancel Apply$

Language

Set language.

Default device account

Set the initial values of user name and password for the administrator accessing the device for each device.

Show warning dialog when closing main window:

Select to display the warning message.

Remind me the risk when assigning IP: Select to display the warning message.

Network tab
$Option General Network\Log Use HTTP proxy Auto data On Off Prior address Prior port Use FTP proxy Auto data On Off Prior address Prior port IP configuration IPv4 IPv6 priority SSL Setting Default client certificate: IE certificates... How to process SSL error in scheduled task or main window Continue Cancel When SSL function of device is SSL only, allow to switch from HTTP protocol to HTTPS protocol automatically. OK Cancel Apply$

Configure the HTTP proxy and FTP proxy.

When using HTTP proxy, check Use HTTP proxy.

When using FTP proxy, check Use FTP proxy.

To auto-detect the proxy server, select On for Auto detect.

If you are not auto-detecting the proxy server, select Off for Auto detect, and enter the proxy address and proxy port number.

IP configuration

Select IPv4 or IPv6 priority for combined use of IPv6 and IPv4.

SSL setting

Configure the SSL setting.

Default client certificate: Enter the client certificate to use.

How to process SSL errors in scheduled task or main window: Select Continue or Cancel.

When SSL function of device is SSL only, allow to switch from HTTP protocol to HTTPS protocol automatically: Check this box if necessary.

Note

When you have changed the SSL setting, restart the SNC toolbox.

Log tab
$Option General Network\Log Overwrite the oldest log file Enable Free space is less than MB Log output folder Browse OK Cancel Apply$

Overwrite the oldest log file

To set the size of the log file, check Enable and specify the minimum required space for a log file.

Log output folder

Click Browse to display the folder selection dialog. Specify the folder to save the log.

Using Privacy Masking — Masking a Camera Image

The Privacy Masking function of SNC toolbox allows you to mask parts of the camera image to be transmitted.

1 Select the camera to set a privacy mask from the Device list.

2 Click Masking.

Using the Privacy Masking

The Privacy Masking screen enables you to set the privacy mask position.

Click Masking to display the Privacy Masking screen.

Privacy Masking screen

Privacy Masking Device name MAC address Device address Serial No. Model Peripherique0001 00-01-4A-ED-46-59 402749 SND*** Draw the mouse on the screen to specify a privacy mask. To arrange that is symmetrical with respect to the screen of this device. Masking No. 1(Empty) Set Call Clear Color Black PTZ Controller Wide Tele W T Clear All Cancel

Viewer

A live image of the camera is displayed. You can specify the position of the privacy mask in this area.

If you click on the image, the camera moves so that the clicked point goes to the center of the image.

Panorama image area

The panorama image created with the supplied

Panorama Creator is displayed.

The positions of the registered privacy masks are shown with numbers in this area.

If you click on the panorama image, the camera moves to the clicked point.

Note

The default image is shown when no panorama image has been created.

PTZ Controller

Allows you to pan, tilt and zoom the camera.

Pan/tilt control

Click the arrow button of the direction in which you want to move the camera. Keep it pressed to move the camera continuously.

Zoom control

Click to zoom out, and click to zoom me.

Zooming continues while the button remains pressed.

The current zoom status is shown on the zoom bar. The left end is WIDE, and the right end is TELE.

Click to move the zoom to WIDE.

Click to move the zoom to TELE.

Privacy mask setting section

Allows you to set, call or delete the privacy mask.

You can set up to thirty two privacy masks and the mask color.

Set: Register the area specified on the viewer as a privacy mask area.

Click Set and the portion of the viewer image is masked with the privacy mask. The color of the privacy mask is that selected with the Color dropdown list.

Note

If the mask area is close to the bottom of the image, the background at the bottom may still be visible.

Call: Click to face the camera at the privacy mask position.

Tip

The privacy mask positions are shown with numbers in the panorama image area.

Clear: Click to delete the privacy mask.

Color

Specify the color or mosaic of privacy masks. This setting is common to every privacy mask.

The selectable colors are as follows:

Black, White, Gray, Red, Green, Blue, Cyan, Yellow, Magenta

Clear all

Click to delete all privacy masks simultaneously.

Setting a privacy mask

To set a privacy mask in a desired position, do the following:

1 Move the camera to the position you want to set a privacy mask using the control panel.
2 Click the point where you want to set the privacy mask on the viewer. The clicked point moves to the center of the image.
3 Specify the privacy mask area by dragging the mouse on the viewer.
The privacy mask area is a rectangle that is symmetrical with respect to the center of the viewer.
4 Select the color or mosaic of the mask from the Color drop-down list.

Note

The color is common to every privacy mask. The color last selected is applied.

5 Select the desired privacy mask number in the privacy mask setting section, and then click Set of the corresponding number. The mask is displayed on the viewer.

Note

Performing the pan/tilt/zoom operation on the camera does not change the mask position.

Using the Custom Homepage

The Custom Homepage function of the supplied SNC toolox allows you to store the homepage that you have created in the camera and watch it.

Notes on creating the homepage

When you are creating the homepage, note the following points.

The file name should be typed using up to 24 characters including the extension.
The file size of the homepage should be 2.0 MB or less.
To see the created homepage, set the Homepage in the Layout tab from viewer menu.

Uploading the homepage to the camera using the Custom Homepage

1 Select the device to upload from the Device list. You can select multiple devices at the same time.

2 Click the Custom Homepage. The “Custom Homepage” dialog opens. Read the notes carefully.

Note

If you cannot establish communications with the unit using the proxy server being used, connect the camera to the local network and run the Custom Homepage without using the proxy server.

3 Type the path in which your homepage is stored.
4 Click Start uploading. Uploading of the homepage file to the unit starts.
5 Click Cancel to exit the program.

Using the Firmware Upgrade

Using the Firmware Upgrade function of the supplied SNC toolbox allows you to upgrade the firmware of the device.

Starting the Firmware Upgrade

1 Select the device to upgrade its firmware from the Device list. You can select multiple devices at the same time.

2 Right click the mouse. Click Firmware Upgrade from the displayed menu. The Firmware Upgrade screen is displayed.

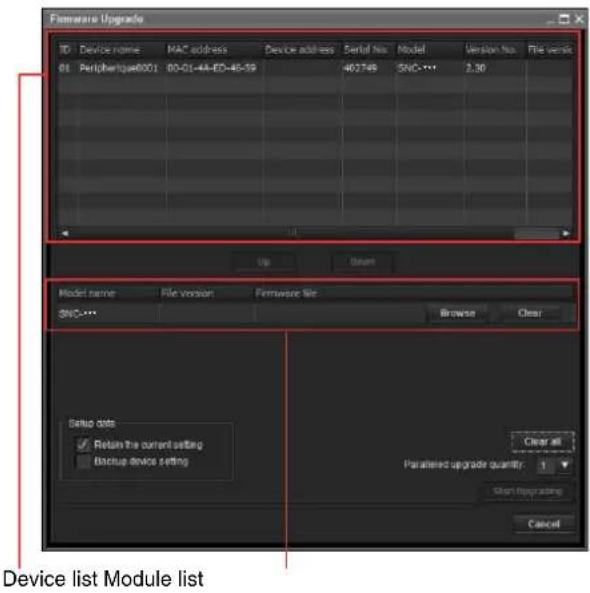

Firmware Upgrade ID Device name MAC address Device address Serial No Model Version No File Veres 01 Peripherique6001 80-01-44-ED-45-59 402749 SNO-*** 2.30 Model name File version Firmware file SNO-*** Browse Clear Setup data ✓ Retain the current setting Backup device setting Paraltered upgrade quantity: Clear all Start Upgrading Cancel Device list Module list

Tip

The Firmware Upgrade screen can also be displayed using the following method:

- Select Firmware Upgrade from the Tools menu.

Device list

Select the device to upgrade. A progress bar is displayed when updating is in process. The status field shows current status.

Module list

To display the dialog, click the Browse button on the right side of the model to update (listed in the module list). Select the target SVU file from the dialog. You can select one file for each model.

Updating

1 Set the order of devices perform update using Up and Down.

2 Click Browse and select an upgrade file for each model.

3 Select how many devices to upgrade in Paralleled upgrade quantity.

4 To back up the unit setting, check Backup device setting.

5 Click Start upgrading. Upgrading starts.

Notes

To stop upgrading, click Stop upgrading. To protect some devices, during the process of upgrading, upgrading cannot be canceled.
Do not turn off the power until the device restarts after upgrading.

Using the Schedule Task

You can specify the time or interval to change the Device setting or perform Firmware upgrade.

Click Task to display the Task List, which shows a list of scheduled executable tasks.

Task List Task name Device name Action Schedule Next run time Last run information Add Modify Delete Show Detail Start Stop Cancel

Task List

Displays the list of scheduled executable tasks.

Add

Displays the Task Wizard.

Modify

You can edit a task.

Delete

You can delete a task.

Start

This reserves a task.

Stop

You can cancel a task reservation.

Cancel

Closes the Task List.

Creating a task

1 Click Add.

Displays Task Wizard.

Task Wizard Welcome This wizard set schedule of task Select devices, running action, then schedule a time. Please click (Next) Next Next Cancel

2 Click Next.

3 Select a device to which the task is assigned.

A list of devices registered in My device is displayed. Select the device you want to assign the task to from the My device list, and register in Device(s) in task list.

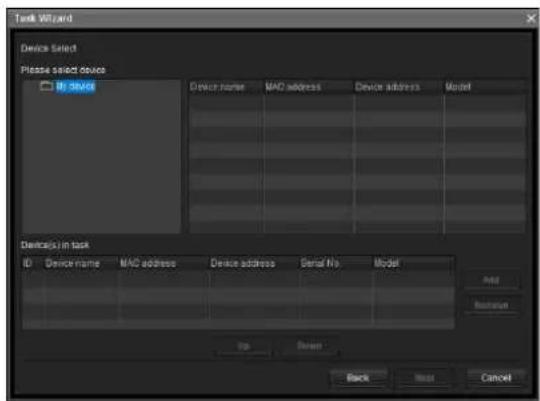

Tank Wizard Device Select Please select devices ID: 2006 Device name MAC address Device address Model Device(s) in task ID Device name MAC address Device address Serial No. Model Add Remove Up Down Back Next Cancel

My Device: Display a list of cameras registered in My devices.

Device(s) in task: Display a list of devices set to execute a task.

Add: Register a device in Device(s) in task.

Remove: Removes a device from Device(s) in task.

Up/Down: Changes the order of devices in Device(s) in task.

4 Click Next.

5 Select the task action.

Select Device Setting or Firmware Upgrade.

Task Wizard Action Select Please select action. ● Device Setting ● Firmware Upgrade Back Next Cancel

6 Click Next.

For Device Setting:

Edit the value for the setting you wish to change. See "Device Setting" on page 93 for changing the values.

Click Next to display the confirmation screen for setting change. Check to see if the setting is correct. If correction is needed, click Back to return to the previous screen to redo the setting.

For Firmware Upgrade:

Set the firmware for the device you want to upgrade.

See "Using the Firmware Upgrade" on page 91 for setting firmware.

7 Click Next.

8 Set the schedule.

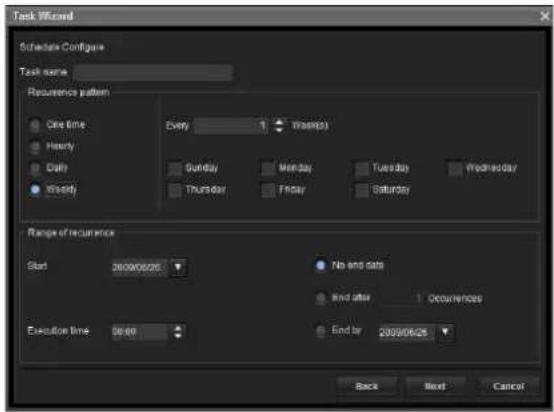

Task Wizard Schedule Configure Task name Recurrence pattern One time Every White(0) Hourly Daily Sunday Monday Tuesday Wednesday Weekly Thursday Friday Saturday Range of recurrence Start 2000/06/25 No and data End after Occurrences Execution time 30.00 End by 2000/06/25 Back Next Cancel

Task name

Name the task.

Recurrence pattern

Specify the operation interval.

Onetime: Runs the task once.

Hourly: Specify the operation frequency in units of hours. (Possible set value: 1 to 99)

Daily: Specify the operation frequency in units of days. (Possible set value: 1 to 99)

Weekly: Specify the operation frequency in units of weeks and days of the week. (Possible set value: 1 to 99)

Range of recurrence

Specify the starting date and time, and the end date and time.

Start: Set the starting date.

Execution time: Set the starting time.

No end date: This setting does not set an end date.

End after: Specify the number of times to execute the operation.

End by: Set the end date.

9 Click Next.

Check the setting when the final confirmation screen for task setting is displayed.

If correction is needed, click Back to return to the previous screen to redo the setting.

10 Click Finish.

Configuring the device setting

You can configure advanced settings for a device on the Device Setting screen.

When you select a device(s) on the Device list and select Device Setting from the Tools menu, or when you right click on the device selection screen and click Device Setting in the displayed menu, the Device Setting screen is displayed.

Setting tree

All settings are sorted into categories. Click + to display the subcategories under a category. Click - to hide the subcategories.

Select a subcategory to display setting items on the right side of the screen.

Item

Displays the setting items. Select a line to change its value.

Value

Displays the value of an item. Select or enter a value to change the value.

Explanation

Displays the range of value for setting and supplementary explanations.

OK

Apply the setting and close the Device Setting screen. The main screen of SNC Toolbox is displayed.

Cancel

Close the Device Setting screen without changing the setting. The main screen of SNC Toolbox is displayed.

Apply

Apply the setting.

Other settings

See the relevant pages in "Administrating the unit" when configuring the settings.

Setting items Pages to refer to in“Administrating the system”
System “Configuring the System —System Menu” on page 29
System “System Tab” on page 29
Day & Time “Date & time Tab” onpage 30
Camera “Setting the Camera	Imageand Audio — CameraMenu” on page 34
Common “Common Tab” on page 34
Picture “Picture Tab”	on page 35
Video codec “Video codec Tab” onpage 36
Streaming “Streaming Tab” on page 37
Security setting “Setting the	Security —Security Menu” on page 54
Setting items	Pages to refer to in “Administrating the system”
Preset position “Saving the C	CameraPosition and Action — Preset position Menu” on page 54


Tour “Position Tour	Tab — Setting a position tour” on page 56
e-Mail (SMTP) “Sending an	Image via E-mail — e-Mail (SMTP) Menu” on page 57




Common “Common	Tab — Setting the e-Mail (SMTP) Function” on page 57
Alarm sending “Alarm	sending Tab — Setting the e-mail sending mode when detecting the alarm” on page 58
Periodical sending “Periodical sending Tab — Setting the periodical e-mail sending mode” on page 59
FTP client “Sending Images to FTP
		Server — FTP client Menu” on page 60





Common “Common	Tab — Setting the FTP client function” on page 60
Alarm sending “Alarm	sending Tab — Setting the FTP client action when detecting the alarm” on page 61
Periodical sending “Periodical sending Tab — Setting the periodical FTP client activity” on page 62
Image memory “Recording Images in Memory — Image memory Menu” on page 63





Common “Common	Tab — Setting the image memory function” on page 63
Alarm sending “Alarm	recording Tab — Setting the Image memory function when detecting the alarm” on page 64
Periodical sending “Periodical recording Tab — Setting the periodical recording mode” on page 65
FTP server setting	“Downloading Images from the system — FTP server Menu” on page 67

Setting items		Pages to refer to in “Administrating the system”
Alarm Output		“Setting the Alarm Output — Alarm output Menu” on page 67




Voice Alert		“Outputting Audio Linked to Alarm Detection — Voice alert Menu” on page 69



Voice alert 1		“Voice alert 1, 2, 3 Tab” on page 69
Voice alert 2
Voice alert 3
Alarm buffer setting		“Setting the Alarm Buffer — Alarm buffer Menu” on page 73
Trigger setting		“Setting the Operations from the Viewer — Trigger Menu” on page 70

Device restart and initialization

You can restart and initialize (restore factory default) a selected device. Multiple devices can be selected simultaneously for restart and initialization.

Restarting a device

Click Tools, Initialize Device and Reboot in this order on the menu bar to restart the device.

Initializing a device

Click Tools, Initialize Device and Factory Default in this order on the menu bar to initialize the device (restore factory default).

Using the SNC audio upload tool — Transmitting Audio to unit

The supplied SNC audio upload tool allows you to transmit sound from the computer to the system via a microphone, as well as upload an audio file for Voice alert function.

Notes

This operation is not available on the SNT-EP104 or SNT-EP154.
Voice alert configuration is only available for CH1 on the SNT-EX154.

The SNC audio upload tool supports the following audio data to be transmitted.

Audio CODEC Transmission rate
G.711 (μ-LAW) 64 kbps
G.726 40 kbps
G.726 32 kbps
G.726 24 kbps
G.726 16 kbps

Note

Only one user can transmit sound to the unit. Meanwhile, another user will not be able to transmit sound to the unit.

Installing the SNC audio upload tool

1 Insert the CD-ROM in your CD-ROM drive.
A cover page appears automatically in your Web browser.
If it does not appear automatically in the Web browser, double-click on the index.htm file on the CD-ROM.
When you are using Windows Vista, pop-up "Auto Play" may appear. For details, "Installing software" in "When using Windows Vista" on page 10.

2 Click the Setup icon of SNC audio upload tool. The "File Download" dialog opens.

3 Click Open.

Note

If you click “Save this program to disk” on the “File Download” dialog, you cannot install the tool correctly. Delete the downloaded file, and click the Setup icon again.

4 Install the SNC audio upload tool following the wizard displayed. If the Software License Agreement is displayed, read it carefully and accept the agreement to continue with the installation.

Connecting the unit to the Computer

1 Connect a speaker to the line output jack on the unit.

2 Connect a microphone to the microphone input jack on the computer.

Note

If the microphone input jack of the computer is not set correctly, no sound is transmitted from the computer and nothing is output from the speaker connected to the unit. Set the microphone input jack from the control panel of Windows.

On Windows XP

1 Select Sounds and Audio Device from Control Panel.
2 Click Volume in the Sound Recording section on the Audio tab.
The Recording Control window opens.
3 Check Select in the Microphone section.

On Windows Vista

There are no settings regarding the microphone jack. If recording cannot be made, connect a microphone device to the computer and check that the recording device operates correctly, as follows:

1 Select Sound from Control Panel.

2 Open the Recording tab and check that Windows has recognized the hardware correctly.

Using the SNC audio upload tool

When you start the SNC audio upload tool, the Setting tab is displayed.

Setting tab

Use this menu to set the unit to transmit audio from a computer or upload an audio file.

$SNC audio upload tool var... Audio upload Voice alert Setting User Single sign-on UserID Password Proxy Auto detect Proxy address On Off Proxy port Codec: G.711(64kbps) Save camera setting Target camera(s) MAC address IP address Model Serl... User 00-13-a0-7d-21-1c 192168.0100 SNC-*** 00-13-a0-7d-21-47 192168.0101 SNC-*** 00-01-4a-cd-77-b5 192168.0102 SNC-*** Select all UserD:\ Psychology.D Datax Add$

User

Set the User ID and Password for the administrator. The factory setting of the User ID for the Administrator is "admin," and the Password is "admin."

Single sign-on: Select On to use the same user ID and same password for all the video network stations. Select Off to set the user ID and password individually for each unit. For details on setting with Off, see “User ID/Password” on page 97.

User ID: This item can be set when Single sign-on is set to On. The user ID specified here is applicable to all video network stations.

Password: This item can be set when Single sign-on is set to On. The administrator password specified here is applicable to all video network stations.

Proxy

Check this box when you use a proxy server for communications. When it is not checked, direct communication with the unit is performed.

Auto detect: Select On to obtain the proxy setting automatically from Internet Explorer.

Proxy address: Type the IP address or host name of the proxy server.

Proxy port: Type the port number used for communication with the proxy server.

Note

The Proxy setting is applicable to all video network stations. You cannot use individual proxy settings for each unit.

Codec

Select the audio mode (Codec) from the drop-down list.

Save camera setting

Check this box to store the current settings and camera list in the Setting tab. The same settings will be recalled when the camera is rebooted.

SONY SNTEX154 - Save camera setting - 1

Click this button repeatedly to hide/show the camera list.

Target camera(s) (Camera list)

When the SNC audio upload tool starts, it automatically detects Sony video network stations connected to the local network and displays them in the camera list. Up to 256 video network stations can be displayed in the list.

Select the check box on the left of the row to enable audio transmission and audio file uploading for that unit. You can then enable these functions simultaneously for multiple video network stations.

Notes

If you are using Windows XP Service Pack 2 or later, or Windows Vista, disable the Windows Firewall function. Otherwise the camera list may not be displayed automatically. For details, see “Configuring Windows Firewall” in “When using Windows XP Service Pack 2 or later” on page 9 or “Configuring Windows Firewall” in “When using Windows Vista” on page 11.
The SNC audio upload tool cannot detect video network stations that are subsequently connected to the local network after the program has started.
The SNC audio upload tool cannot detect video network stations that are not equipped with audio.

Camera select checkbox: The check box is located on the left end of the row. Select this check box to enable audio transmission and audio file uploading for that video network station.

MAC address: Displays the MAC address of the video network station.

IP address: Displays the IP address of the video network station. "DHCP" is shown at the end of the

IP address when the IP address is obtained with a DHCP server.

Model: Displays the model name of the video network station.

Serial: Displays the serial number of the video network station.

User: Displays the specified user ID and password. The password is shown as turned letters.

Select all

Click to select all the cameras in the camera list. This is useful, for example, when you delete all the video network stations from the list or specify the same user ID and password for all video network stations.

User ID/Password

Use this item when you specify the user ID and password to communicate with selected video network stations only. Select video network stations from the camera list and click this button. The following dialog opens.

Type the user ID and password for the administrator and click OK.

User Camera address 192.168.0.100 UserID Password OK Close

Note

If you select multiple video network stations from the camera list, the same user ID and password are set for all those selected video network stations. The factory setting for both items is “admin.”

Add

Use this item when you add a new video network station to the camera list manually. Click this button to open the following dialog.

Type the IP address and port number of the camera to be added and click OK.

Add Camera address Camera port 80 1024 (1024 to 65535) OK Close

Notes

An error dialog appears if the specified IP address in the camera list is assigned for a device other than the video network station, or does not exist in the network.
You cannot add new video network stations if the maximum of 256 video network stations has been reached.

Delete

Click this button to delete the selected video network station(s) from the camera list.

Note on switching the tab

If an error occurs when you switch from the Setting tab to the Audio upload tab or the Voice alert tab, the video network station is shown in red. In this case, check the video network station settings and the user ID and password settings.

Audio upload tab

Use this menu to transmit audio from the computer to the video network station. You can transmit audio to multiple video network stations displayed in the camera list simultaneously.

Before transmitting, set Audio upload to Enable on the Common tab of the Camera menu.

SNC audio upload tool varn.*.# Audio upload Voice alert Setting Sound Lovel Bitrate 0 kbps Target camera(s) IP address Model Serie... Status 192168.0100 SNC---- 001057 Ready 192168.0101 SNC---- 001010 Ready 192168.0102 SNC---- 001012 Ready

SONY SNTEX154 - Audio upload tab - 2

(start) /

SONY SNTEX154 - (start) / - 1

Click (start) to start audio transmission. The transmission speed is displayed in the Bitrate box during transmission. You can adjust the microphone volume and enable/disable muting, if necessary.

To stop audio transmission, click

SONY SNTEX154 - (start) / - 2

Notes

Audio transmission stops if you switch the tab during transmission.
Audio may be interrupted when the IP address is changed if Obtain an IP address automatically (DHCP) is set on IP address in the Network menu.
Audio may be interrupted if you transmit it to many video network stations simultaneously.

Sound adjustment and indicators

Adjust the microphone input volume by moving the slider bar. You can adjust the volume even during transmission.

Click enable/disable sound muting. The microphone input volume level is displayed. The transmission rate is displayed in the Bitrate box.

SONY SNTEX154 - Sound adjustment and indicators - 1

Click this button to hide the camera list. Click it again to display the camera list.

Target camera(s) (Camera list)

Displays the cameras selected with the camera select checkbox of the camera list in the Setting tab. The list shows the information and status of the selected video network stations.

IP address: Displays the IP address of the video network station. "DHCP" is shown at the end of the IP address when the IP address is obtained with a DHCP server.

Tip

During SSL communication, appears on the left side of the IP address of the video network station.

The model on sale in China does not support the SSL function.

Model: Displays the model name of the video network station.

Serial: Displays the serial number of the video network station.

Status: Displays the current status of the video network station.

Ready: The camera is ready for connection.
Connected: Camera connection was successful.
Fault: Camera connection failed.
Sending: Audio data is being transmitted.

Voice alert tab

Use this menu to record sound via a microphone connected to the computer, and upload the recorded audio file to the unit. You can upload the audio file to multiple video network stations selected from the unit list simultaneously.

SNC audio upload tool ver... Audio upload Voice alert Setting Upload 1 RecordedFile1.vof 2 RecordedFile2.vof 3 RecordedFile3.vof Target camera(s) IP address Model Serial Progress Status 192168.0.100 SNC- *** 001057 Ready 192168.0.101 SNC- *** 001010 Ready 192168.0.102 SNC- *** 001012 Ready

SONY SNTEX154 - Voice alert tab - 2

( playback)

To start playback, open the recorded file or another audio file and click this icon.

You can check the recorded sound or the contents of the selected audio file. During playback, the progress bar shows playback progress.

SONY SNTEX154 - ( playback) - 1

(stop)

Click to stop recording or playback.

When you click it during recording, recording stops, and you can review the recorded sound or upload the recording to the video network station.

When you click it during playback, playback stops and the progress bar returns to the start position.

SONY SNTEX154 - (stop) - 1

(recording)

Click to start recording of sound via the computer's microphone. Maximum recording time is 30 seconds. The codec specified in the Setting tab is used for the recording.

The recorded file is displayed as "RecordedFile.vof."

Notes

Recording or playback stops if you switch the tab during recording or playback.
• The recorded file is not stored in the computer.

Recording/playback progress bar

Remaining time 16.50

You can check recording or playback progress with this bar.

During recording, the far right of the bar represents 30 seconds, and the remaining recording time is numerically displayed below the bar.

During playback, the length of the bar depends on the recorded time.

SONY SNTEX154 - Recording/playback progress bar - 2

(file open)

Click to select a previously saved audio file. You can play the selected audio file or upload it to the system.

SONY SNTEX154 - (file open) - 1

(save)

Click to save a recorded audio file to the computer.

Voice alert number select

Upload RecordedFile1.vof Alarm.vof [ Not uploaded ]

Specify the voice alert number to which you want to upload an audio file. For example, select 1 when uploading to voice alert 1.

The name of the uploaded audio file is displayed to the right of the number.

"Not uploaded" is displayed if no audio file is uploaded to the video network station.

The audio file name will be "RecordedFile" + "Voice alert number" + ".vof" if you upload an audio file recorded using and not stored in the computer.

Note

The audio file name for the video network station selected in the camera list is displayed here. To check the uploaded file name, click on the video network station in the camera list.

SONY SNTEX154 - Note - 1

(upload)

Click to upload the recorded or selected audio file to the video network station specified in the Setting tab. Only one audio file can be uploaded to the video network station at a time.

Note

Uploading a new audio file overwrites the audio file previously uploaded to the video network station.

SONY SNTEX154 - Note - 1

Click this button to hide the camera list. Click it again to display the camera list.

Target camera(s) (Camera list)

Displays the cameras selected with the camera select checkbox of the camera list in the Setting tab.

The list shows information and status of selected video network stations.

IP address: Displays the IP address of a video network station. "DHCP" is shown at the end of the IP address when the IP address is obtained from a DHCP server.

Tip

During SSL communication, appears on the left side of the IP address of the video network station.

The model on sale in China does not support the SSL function.

Model: Displays the model name of the video network station.

Serial: Displays the serial number of the video network station.

Progress: Displays the progress of audio file transmission.

Status: Displays the current status of the camera.

Ready: The camera is ready for connection.

Inquiry: The video network station information is being requested.

No func: The camera does not support the Voice alert function.

Uploading: An audio file is being uploaded.

Fault: Audio file uploading failed.

No Privilege: The camera is not authorized to upload audio files.

Succeeded: The audio file uploaded successfully.

Uploading a recorded audio file to the video network station

Tip

Before operating, create an audio file and set the video network station to upload using the Setting tab.

1 Click (recording) in the Voice alert tab to start recording.

2 Click (stop) to stop recording. Recording will stop automatically in 30 seconds.

3 Select the voice alert number.

4 Click [upload] to transmit the audio file to the system.

Saving the recorded audio file to the computer

1 Click (recording) in the Voice alert tab to start recording.
2 Click (Stop) to stop recording. Recording will stop automatically in 30 seconds.
3 Click (save).

The Save as dialog appears. Type the file name and save it.

Uploading the saved audio file to the video network station

1 Click (file open) in the Voice alert tab and select the audio file to be uploaded.
2 Select the voice alert number.
3 Click (upload) to transmit the audio file to the video network station.

Using the SNC video player — Playing a Video/Audio File Recorded with the unit

The supplied SNC video player allows you to play video/audio data recorded with the unit on your computer.

Installing the SNC video player

When you are using Windows Vista, the pop-up “Auto Play” may appear. For details, see “Installing software” in “When using Windows Vista” on page 10.

2 Click the Setup icon of SNC video player. The "File Download" dialog opens.

When you are using Windows XP Service Pack 2 or later, or Windows Vista, a message regarding the active contents may appear. For details, see “Installing software” in “When using Windows XP Service Pack 2 or later” on page 8, or “Installing software” in “When using Windows Vista” on page 10.

3 Click File open.

Note

If you click “Save this program to disk” on the “File Download” dialog, you cannot install the player correctly. Delete the downloaded file, and click the Setup icon again.

4 Install the SNC video player following the wizard displayed. If the Software License Agreement is displayed, read it carefully and accept the agreement to continue installation.

Using the SNC video player

1 Start the SNC video player.

SONY SNTEX154 - Start the SNC video player. - 1

2 Click the (browse) icon. The Select File dialog opens.

3 Select the file you want to play. Click INFO le top of the screen to open the file information dialog.

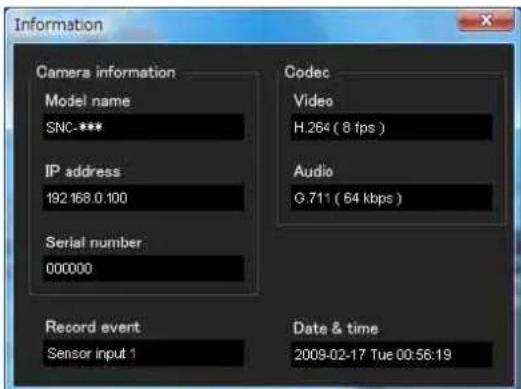

Information Camera information Model name SNC-*** IP address 192 168.0.100 Serial number 000000 Record event Sensor input 1 Codec Video H.264 ( 8 fps ) Audio G.711 ( 64 kbps ) Date & time 2009-02-17 Tue 00:56:19

File dialog

Model name: Model name of the video network station with which the file was recorded.

IP address: IP address of the video network station with which the file was recorded.

Serial number: Serial number of the video network station with which the file was recorded.

Date&time: Recording date and time

Movie: Video Codec

Audio: Audio Codec

Record event: Type of event used for the recording: Sensor input, Motion detection.

Playing a video/audio file

Click (Start) to start playback from the beginning of the selected file.

To freeze the movie temporarily, click pause).

Click again to resume playback from the freeze point.

To stop playback, click (stop).

To start playback from the beginning, click (start) again.

Playback stops when the file is played to the end.

Playing from a specified point

Move the slider bar below the image display, and playback will start from the position of the slider bar.

Adjusting the sound

Adjust the playing sound volume by moving the slider bar. Move it to the left end for minimum volume, and to the right end for maximum volume.

Click speaker) to enable/disable sound (muting).

When sound muting is on, no sound will be heard, even if you move the slider bar.

Saving an image

Click the 📄 capture) icon during playback or pause and the captured image is displayed in a pop-up dialog. To save the image, click Save on the dialog. You can specify the destination to which the image is to be stored, and select the JPEG or Bitmap format.

How to change the image display size

Click × 1/4, × 1/2, × 1, × 2 or Full at the top of the image to display the image in the selected magnification.

If you select × 1, the image is displayed in the original image display size of the file.

The × 2 button is only available when image size is 640 × 480 (VGA) or smaller.

The selected image display size is highlighted.

Assigning the IP Address to the unit using ARP Commands

This section explains how to assign an IP address to the unit using ARP (Address Resolution Protocol) commands without using the supplied SNC toolbox.

Note

When you turn on the camera, execute the ARP and PING commands within 5 minutes. Also when you restart the camera, execute the operation within 5 minutes.

1 Open the command prompt on the computer.
2 Enter the IP address and the MAC address of the video network station to assign a new IP address, using the following ARP commands.

arp -s <Camera's IP address> <Camera's MAC address>
ping -t <Camera's IP address>

Example:

arp -s 192.168.0.100 08-00-46-21-00-00
ping -t 192.168.0.100

3 When the following line is displayed on the command prompt, hold down Ctrl and press C. Display stops.

Reply from 192.168.0.100:bytes=32 time...

You will normally receive a reply after about 5 repetitions of “Request time out.”

4 Wait until the execution of PING finishes, then input the following code.

arp -d 192.168.0.100

Note

If you do not receive a reply, check the following:

– Did you enter the ARP commands within 5 minutes after it was turned on?
If not, turn off the camera and restart the operation.
- Is the NETWORK indicator on the camera flashing? If the indicator goes off, the network connection has a problem. Connect the network correctly.
– Did you enter the IP address previously used for another device?
Assign a new IP address to the camera.
- Do the computer and the unit have the same network address?
If not, set the same network address on the computer and the camera.

Using the SNMP

This unit supports SNMP (Simple Network

Management Protocol). You can read MIB-2 objects using software such as SNMP manager software. This unit also supports the coldStart trap which occurs when the power is turned on or the unit restarts, and the Authentication failure trap, which informs of any illegal access using SNMP.

Using CGI commands, you can set the community name and access limitation, host to send traps, and some MIB-2 objects. To allow these settings, you need authentication by the administrator.

1. Inquiry Commands

You can check the SNMP Agent settings using the following CGI commands.

<Method>
    GET, POST
<Command>
    http://ip_adr/snmpdconf/inquiry.cgi?inqjs=snmp
    (JavaScript parameter format)
    http://ip_adr/snmpdconf/inquiry.cgi?inq=snmp
    (standard format)

With the above inquiry, you can obtain the following setting information. The following explains the setting information using the inqjs=snmp (JavaScript parameter) format.

var sysDescr="SNT-EX101", "SNT-EX104", "SNT-EP104", "SNT-EX154", "SNT-EP154", "SNT-RS1U", "SNT-RS3U" ...①

var sysObjectID="1.3.6.1.4.1.122.8501" ...②
var sysLocation="...③

var sysContact="...④

var sysName="...⑤

var snmpEnableAuthenTraps="1" ...⑥

var community="public,0.0.0.0,read,1" ...⑦

var community="private,192.168.0.101,read,2" ...⑧

var trap="public,192.168.0.101.1" ...⑨

①describes the case of “mib-2.system.sysDescr.0”. You cannot change this parameter.
②describes the case of "mib-2.system.sysObjectID.0". You cannot change this parameter.
③describes the case of “mib-2.system.sysLocation.0”. This field is used to describe information on the location of this camera. Nothing is set at the factory.

④describes the case of "mib-2.system.sysContact.0". This field is used to describe information on the administrator of this camera. Nothing is set at the factory.
⑤describes the case of “mib-2.system.sysName.0”. This field is used to describe the administration node of this camera. Nothing is set at the factory.
⑥describes the case of “mib-2.snmpEnable AuthenTraps.0”. This example shows when “1” (enable) is set. In this setting, a trap occurs when there is an authentication failure. When “2” (disable) is set, no authentication failure trap occurs.
⑦describes the community attributes. This example shows the identification number “ID=1,” the community name “public,” and enables read from any IP address (0.0.0.0).
⑧describes the community attributes, similar to ⑦. This example shows the identification number ID=2, the community name “private,” and enables reading by SNMP request packet from the host “192.168.0.101”.
⑨describes the attributes to send a trap. This example shows the identification number “ID=1,” the community name “public,” and enables sending of traps to the host having the IP address “192.168.0.101”.

2. Setting Commands

The unit supports the following SNMP setting commands.

GET, POST

<Command>
http://ip_adr/snmpdconf/snmpdconf.cgi?
<parameter>=<value>&<parameter>=...&...

First, perform the settings of the following parameters.

1) sysLocation= Set the case of "mib-2.system.sysLocation.0" in the position. The maximum length of is 255 characters.

2) sysContact= Set the case of "mib-2.system.sysContact.0" in the position. The maximum length of is 255 characters.

3) sysName= Set the case of "mib-2.system.sysName.0" in the position. The maximum length of is 255 characters.
4) enaAuthTraps= Set the case value of "mib-2.snmp.snmp EnableAuthenTraps.0" in the position. Type "1" (enable) or "2" (disable) in the position.
5) community=,r, , Set the community attributes. describes the setting identification number (1 to 8) describes the community name to be set, and describes the IP address of the host you allow access (0.0.0.0 for any host). Example: To allow reading by any host in the “private” community and having the ID number “2”. community=2,r,private,0.0.0.0
6) trap=,, Set the attributes to send traps to. describes the setting identification number (1 to 8), describes the community name to send traps to, and describes the IP address of the host to send traps to. Example: To specify the destination of traps as the public community and the ID number "1". trap=1,public,192.168.0.101
7) delcommunity= This parameter is used to delete the previous community setting. describes the community setting identification number (1 to 8).
8) deltrap= This parameter is used to delete the previous setting of the host to send traps to. describes the trap setting identification number (1 to 8).

When you have finished changing the SNMP setting information using the above parameters 1) to 8), check the changed settings using an inquiry command. If the changed settings are OK, restart the SNMP using the following CGI command.

SNMP restart command

GET, POST http://ip_adr/snmpdconf/snmpdconf.cgi? snmpd=restart

Glossary

ActiveX control

A component program object that can be used with web pages or other application programs. The technology for creating ActiveX control is part of software developed by Microsoft.

AES

Abbreviation for Advanced Encryption Standard. This is the next-generation standard of encryption, adopted by the U.S. government.

ARP commands

The commands for checking the entry of the IP address and MAC address in a host computer, or for updating them.

Bandwidth control

To limit the amount of transmitted data.

Bit rate

The rate at which data bits are transmitted.

CA (Certificate Authority)

A private authority that issues and controls digital certificates to be used for authentication regarding network access.

Capture

To display the audio and video digital data from video devices on a computer.

Codec

Software/hardware for coding/decoding video and audio data.

Common name

A URL to be typed in the browser when you access a website employing SSL (Secure Sockets Layer) protocol with the security function. Access is successful after the URL of the website is verified as matching the server's common name.

Contrast

The difference in tone between the lightest and darkest portions of the image.

Default gateway

Device that can be used to access another network.

DHCP server

Acronym for Dynamic Host Configuration Protocol server. The IP address of a terminal without an individual IP address can be automatically distributed by the Dynamic Host Configuration Protocol (DHCP). The DHCP server assigns the IP addresses to the terminals.

Digital certificate

An electronic certificate that a CA (Certificate Authority) attests that a public key to cancel a secret code is issued by an authentic publisher.

DNS server

Acronym for Domain Name System server. As an IP address required for connecting to the device on an IP network is numerical and difficult to remember, the Domain Name System was established. A domain name is alphabetic and is easier to remember. When a client computer uses a domain name to connect to another computer, it asks a DNS server to translate the name into the corresponding IP address. The client computer can then obtain the IP address of the computer to be connected.

EAP method

Acronym for Extensible Authentication Protocol. This is a protocol extended from PPP (Point-to-Point Protocol) and having an authentication function.

EAP-TLS authentication

TLS is an authentication protocol of the EAP methods using Transport Layer Security. By using digital certificates and other methods, EAP-TLS prevents data falsification, eavesdropping and spoofing.

Frame rate

The number of frames of a moving image that can be transmitted per a second.

FTP client

Software to be used for accessing the FTP server.

FTP server

A server to be used to transfer files via a network.

HTTP port

A port used to communicate between the web server and the web client, such as a web browser.

H.264

An image compression format. The standard written by the JVT (Joint Video Team) a joint organization for standardization (composed of ISO and ITU-T. H.264), is capable of transmitting video data at a higher compression rate than that of MPEG4.

IP address

Acronym for Internet Protocol Address. An individual IP address is basically assigned to each piece of equipment connected to the Internet.

JPEG

Acronym for Joint Photographic Expert Group. The still image compression technology or standards of ISO (International Organization for Standardization) and ITU-T. Popularly used as an image compression format on the Internet, etc.

MAC address

A network address that uniquely identifies each LAN card.

MPEG4

Acronym for Moving Picture Experts Group4. One of the MPEG standards for image compression format aiming to transmit images at a high compression rate with lower picture quality.

Multicast

The class D IP address assigned between 224.0.0.0 and 239.255.255.255. Using this IP address enables you to transmit the same data to multiple equipment.

Network address

The portion that identifies the local network (subnet) in an IP address.

Network bandwidth

Bit rate that can be used for networking.

NTP server

Network time server that transmits and receives time information over the networks.

Passive mode

The mode whereby a client FTP allows TCP connection for data transmission to the FTP server.

POP server

A server for storing incoming e-mail until you have read it.

Primary DNS server

One of the DNS servers that can first reply to a request by connected devices or other DNS servers.

Proxy server

A server or software that acts as an intermediary between a local network and the Internet so that it can connect to the Internet in place of a computer on a local network.

PSK

Abbreviation for Pre-Shared Key. This is a shared key to make an encryption key, used with TKIP in WPA encryption standard. PSK sometimes means an authentication system using a key previously shared.

QoS

Enter a value in the DSCP (Differential Service Code Point) field included in the IP header to control communication service quality.

RADIUS client

RADIUS (Remote Authentication Dial-in User Service) is an authentication and accounting protocol managing network access, and a RADIUS client is a party that accesses the network.

In Internet connecting service, a Network Access Server (NAS) such as that for dial-up and broadband access server is a RADIUS client. In a wireless LAN system, a wireless LAN access point is a RADIUS client.

Saturation

The degree to which a color is pure.

Secondary DNS Server

Subsidiary DNS server used when a primary DNS server cannot be used.

Shared secret

A character string to be used for mutual authentication between a RADIUS server and RADIUS client.

Sharpness

The degree to which the boundary of two portions is clearly distinguished.

SMTP server

A server for sending or relaying e-mail messages between servers.

SNMP

A protocol for monitoring and managing network devices.

SSL

Acronym for Secure Sockets Layer. This is a protocol developed by Netscape Communications Corporation to be used for communications of encrypted data on the Internet.

Subnet mask

32-bit stream used to distinguish the subnet address from an IP address.

TCP

Acronym for Transmission Control Protocol. A standard protocol used for Internet connection. Compared with the other protocol, UDP, TCP provides reliable communication but communication speed is slower.

UDP

Acronym for User Datagram Protocol. A standard protocol used for Internet connection. Compared with the other protocol, TCP, UDP can transmit data faster, but reliable communication is not guaranteed.

Unicast

Transmission of data to specified equipment on a network by specifying a single address.

802.1X

A standard that performs user authentication and dynamic key generation and traffic on a LAN.

Index

A

Access log 33

Active Directory.... 50

ActiveX control....8, 11, 13

ActiveX Viewer.... 17, 18

Adaptive rate control.... 36

adaptive rate control.... 36

Adjust.... 30

Administrator 16,53

administrator 16

Administrator e-mail address ....41, 58, 64

Administrator menu 27

AES 104

Alarm 58,61,65,69

alarm 58,61,65,69

Alarm buffer....29, 62, 65

alarm buffer....62, 65, 73

Alarm buffer Menu 73

alarm detection.... 58, 61

Alarm duration.... 68

Alarm output 28,67,71

alarm output 23,67

Alarm output Menu.... 67

Alarm recording.... 64

Alarm sending.... 58, 61

ARP commands 102

Audio 53

audio....34

Audio codec 34

audio output 69

Audio port number.... 37

Audio upload.... 34

Authentication....41, 57, 64

authentication....41, 57, 64

authentication server 47

authenticator.... 47

Automatically adjust clock for daylight saving time changes..... 31

B

Backup setting data 32

Bandwidth control.... 37

Bit rate.... 36

bit rate 36

Brightness 35

C

CA (Certificate Authority)..... 47, 104

CA certificate 4951

CA certificate tab 44

Camera 28

camera 34

Camera list 21,82

Camera Menu.... 34

camera position 54

Cancel button 27

Capacity warning 63

Capture.... 18

capture.... 18

certificate request 48

CGI commands 102

Client certificate.... 48

client certificate.... 48

Codec 73

Common....34, 57, 60, 63

Common name.... 104

common name.... 104

Contrast.... 35

contrast.... 35

control authority.... 29

control panel.... 21

Current date & time 30

Custom Homepage Installer...... 90

D

Date & time.... 30

date and time.... 30

Date and time format 30

Date_No. 66

daylight saving time.... 31

Default gateway 38

default gateway 38

Default policy.... 54

delete 32 33

Delete custom homepage 32

Delete voice alert file 33

device setting.... 93

DHCP server 38

Digital certificate.... 104

digital certificate.... 104

DNS server.... 38

Domain suffix.... 38

downloading images....67

Dynamic IP address notification .... 40

E

EAP method 48,104

EAP-TLS authentication..... 104

Effective period.... 62

Effective period ..... 56, 59, 60, 62, 65, 66, 68, 70

e-mail 40,57

e-Mail (SMTP).... 28, 57, 70

e-Mail (SMTP) Menu.... 57

e-Mail (SMTP) notification.....40

e-mail address 41

End time 72

Exclusive control mode....29

extension 66

F

Factory default 32

factory settings 32

File 69,71

File attachment....58

file name..... 58, 59, 61, 62, 64, 65

Firmware Upgrade ....91

focus.... 19, 21

Focus mode ....34

focus mode 34

folder structure ......66

format.... 32

format of date and time 30

Format USB memory.... 32

Frame rate 36

frame rate 18,36

FTP 53

FTP client.... 28,71

FTP client function.... 60

FTP client Menu....60

FTP server 2860

FTP server function.... 67

FTP server Menu....67

FTP server name ......60

G

Glossary....104

Group preset positions....55

H

H.264....105

Home 18

Homepage 81

Host name....38

HTML output tab 83

HTTP method....41

HTTP notification ....41

HTTP port number ....39

HTTP request ....41

HTTP server ....41

|

image file....22

Image file name.....58, 61, 62, 64, 65

Image memory ...... 22, 28, 63, 71

image memory....28

Image memory Menu ....63

Image quality....37

image quality....37

Image size....36

information bar....9

Information Bar message ....8

Initialize....32

Internet Authentication Service.....50

Internet Explorer ......13

Interval 60 62, 66

IP address 638

IP Setup Program 684

IPv4 setting....38

IPv6 setting....39

J

JPEG....17

L

Layout 81

logging in ....17

M

MAC address....38

main viewer ....18

mask 89

Maximum wait number ....30

memory.... 63 67

Message.... 41,58

Method 41

Mic volume....34

Microphone 34

microphone....34

Mode.... 62, 66, 67

monitor image 20

Motion detection 29, 55, 68

motion detection....73

Motion detection Menu ....73

multicast ....37

Multicast address....37

multicast address ....37

Multicast streaming....37

multicast streaming ....37

My device....86

N

Name 55

Network.... 28,38

network....38

Network address/Subnet......54

network bandwidth....37

Network Menu....38

No. 55

0

OK button....27

Operation time....30

Overwrite....63

overwrite......63

P

pan/tilt....19, 21

Passive mode ....61

passive mode ....61

Password.....41, 53, 58, 60, 64

password.....41, 53, 58, 60, 64

PC clock 30

periodical e-mail sending ....59

Periodical recording ....65

periodical recording....65

Periodical sending ....59, 62

periodical sending....62

Picture....35

Play....69

playing audio 23

Plug-in free Viewer....20

POP server.... 41,57,64

POP server name 41,57,64

port number ....41

Portable module....82

Position....54

Position at alarm....54

Post-alarm period 73

Pre-alarm period....73

Preset 55

Preset call ....55

Preset position 28

preset position....20, 22

Preset position Menu....54

preset position name......55

Preset tour....56

Primary DNS server ....38

Privacy Masking tab ....35

Private key password ....49

Proxy port number......41

proxy server....41

Proxy server name ....41

PSK....105

Q

QoS Tab....39

R

RADIUS client ....105

Reboot 32

reboot....32

Recipient e-mail address ..... 41, 58

recipient e-mail address......41, 58

Recording capacity....73

recording capacity of the alarm buffer ....73

recording images ....22, 63

Recording time 73

Remote path.... 61, 62

remote path....62

Repeat....69

Restore setting 32

Resume time on inactivity....56

Re-type password ....53, 60

S

Saturation 35

saturation.... 35

saves the setting data.... 32

Schedule.... 29

schedule 29,72

Schedule Menu 72

Schedule Task 91

Secondary DNS server.... 38

Security 28

security....54

Security function.... 54

Security Menu.... 54

Security Warning 8, 9, 11, 74

Selected root directory ..... 63, 67

sending images.... 22

Sensor input mode 30

Sensor input 1 .... 55, 68

Sensor input 2 .... 55, 68

Sequence 56

Sequence number clear .... 58, 60, 61, 62, 65, 66

Serial number.... 29

serial number....29

Set 55

Setting 18

Shared secret 105

Sharpness 35

sharpness.... 35

Simple motion detection function....79

SMTP server 40, 57, 64

SMTP server name.....40, 57, 64

SNC audio upload tool.... 95

SNC Desktop Viewer.... 26

SNC privacy masking tool 89

SNC toolbox 84

SNC video player.... 100

SNC Viewer 24

SNMP.... 102

Software version 29

software version 29

special tags.... 42

SSL Menu 42

SSL....106

Start time....72

Stay time 56

Streaming 37

Subject 41,58

Subnet mask 38

subnet mask.... 38

Suffix.... 58, 59, 61, 62, 64, 66

suffix 58 59, 61, 62, 64, 66

Superimpose.... 31

superimpose 31

supplicant 47

System.... 28, 29

system 29

System log.... 33

System Menu 29

System Utility 24

T

TCP 23

TCP/UDP 23

Test....69

Text 82

time difference 31

Time zone.... 31

time zone....31

Timer 71

title bar 29

Title bar name 29

Toggle....71

tour 56

transmission port number...... 37

Trigger.... 28

Trigger Menu 70

U

UDP 37

UDP (Multicast).... 24

UDP (Unicast).... 23

Unicast streaming.... 37

URL....41

USB memory ....32, 63, 67

Use the same time schedule every day....72

User 1628,53

user....16,51,53

User Menu.... 53

User name ......41, 53, 58, 60, 64

user name ......41, 53, 58, 60, 64

Utility 18

V

Video codec.... 36

video codec 36,73

Video port number 37

View size 18

view size.... 18

Viewer authentication.... 53

Viewer mode 1653

viewer mode....53

Viewer Setting....81

VMF 73

Voice alert 2869,71

Voice alert Menu 69

voice alert number select.... 99

volume.... 19,34

W

warning mail 63

welcome page.... 13

Windows Firewall 9

Windows Vista 10

Windows XP Service Pack 2......8

Z

zoom.... 19,21

Numerics

802.1X....47,106

SNTEX154 - Server SONY - Free user manual and instructions

This manual is not available in your language

Frequently Asked Questions - SNTEX154 SONY

User questions about SNTEX154 SONY

USER MANUAL SNTEX154 SONY

Video Network Station

Table of Contents

Overview

Preparation

Operating the unit

Administrating the unit

Others

Overview

Features

NOTICE TO USERS

How to Use This User's Guide

Jumping to a related page

Software display examples

Printing the User's Guide

Installation Manual (printed matter)

System Requirements

CPU

Memory

os

Web Browser

Display

Preparation

Assigning the IP Address to the unit

Notes

Assigning an IP address using SNC toolbox

Note

Tip

7 Select a unit you want to assign an IP address from the list and click Network.

8 Register the name and password of the administrator and click OK.

9 Set the IP address.

To obtain the IP address automatically from a DHCP server:

Note

To specify the IP address manually:

10 Set the DNS server address.

To obtain the DNS server addresses automatically:

11 Set the HTTP port No.

Note

12 Confirm that all items are correctly set, then click OK.

13 When setting is finished, to access the unit directly, double-click the unit name in the list.

Note

When using Windows XP Service Pack 2 or later

Installing software

Note

Installing ActiveX Control

Configuring Windows Firewall

When using Windows Vista

Installing software

Note

Note

Starting the software

Installing ActiveX Control

Configuring Windows Firewall

4 Select Off in the "General" tab.

8 Click OK.

Accessing the System Using the Web Browser

Using the SSL function

Note

When Internet Explorer 6 is used

When Internet Explorer 7 is used

When "Allow HTTP connection for some clients" (page 42) is checked

For HTTP connection

For SSL connection

When the viewer of the unit is displayed for the first time

Notes

Tip

To display the viewer correctly

When using antivirus software, etc., on the computer

Basic Configuration by the Administrator

Operating the unit

Administrator and User

Logging in to System

Logging in as a user

Note

About Viewers

ActiveX Viewer
