Waffel-Flipp - Waffle Maker BEEM - Free user manual and instructions

Product Type	Waffle Maker
Brand	BEEM
Model	Waffel-Flipp
Dimensions (L x W x H)	25 x 20 x 10 cm
Weight	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power	1000 W
Coating of Plates	Non-stick
Removable Plates	Yes
Heating Indicator	Yes, indicator light
Adjustable Thermostat	Yes, from 1 to 5
Cool Touch Handle	Yes, thermal insulation
Automatic Shut-off	Yes, after prolonged use
Cleaning	Wipe with a damp cloth after cooling
Available Spare Parts	Cooking plates
Repairability	Repairability index: 7.8/10
Number of Waffles per Batch	1 thick waffle
Warranty	2 years
Included Accessories	Recipe book
Color	Black and stainless steel
Use	For Belgian, Liège waffles

Frequently Asked Questions - Waffel-Flipp BEEM

How to clean the BEEM Waffel-Flipp waffle maker?

Let the appliance cool down completely, then wipe the plates with a damp cloth. Never immerse the appliance in water.

Can I use cooking sprays on the non-stick plates?

It is not recommended to use aerosols as they can damage the coating. Prefer a brush with a little oil.

How to adjust the thermostat?

Turn the knob from 1 to 5: position 1 for light waffles, position 5 for dark waffles. The indicator light turns off when the temperature is reached.

What to do if waffles stick?

Make sure the plates are sufficiently oiled before each use. If the coating is scratched, replace the plates.

Can I use the waffle maker unattended?

No, never leave the appliance unattended while it is operating. It is equipped with automatic shut-off, but stay vigilant.

How to store the waffle maker?

Store it in a dry place away from dust. Wrap the cord around the designated base.

What is the warranty of the BEEM Waffel-Flipp?

The legal warranty is 2 years. Keep your receipt for any recourse.

Are the plates removable?

Yes, the plates can be removed for easier cleaning. Press the release button and lift them.

Can I make gluten-free waffles?

Yes, use gluten-free flour and adjust the liquid amount. The waffle maker is suitable for all batters.

Why does smoke come out during first use?

This is normal: the protective oil on the plates is heating. Heat the appliance empty for 10 minutes in a ventilated area, then let it cool and clean.

USER MANUAL Waffel-Flipp BEEM

Elements of Lifestyle

Bedienungsanleitung

User Manual

Mode d'emploi

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

^1/2 Päckchen Backpulver

200 ml Milch

General instructions ..... 15

Safety instructions ..... 17

Appliance description 19

Non-stick coating 20

Startup 20

Preparations....21

Operation and use 21

Cleaning and care 25

Storage 25

Technical Specifications 25

Troubleshooting 26

Dear Customer,

before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and pass it on to any future owners together with the appliance.

General instructions

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer re-d, dispose of the packaging materials rding to local environmental regula-

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appli-via communal collection points.

Warranty/Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages.

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid ▶ danger.

NOTE!

A note contains additional information to simplify the use of the appliance.

Symbols on the appliance

Symbol Meaning

Warning of hot surfaces

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for preparing waffles.

Use in any other way is not considered an intended use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC, 2009/125/EC and 2004/108/EC directives.

Limitation of liability

We assume no reliability for damage or follow-up damage in the case of:

failure to observe the instructions in ■ the user manual,

use for other than the intended pur- pose,

improper or unsuitable handling, ■

incorrectly performed repairs, ■

unauthorised modifications, ■

use of non-approved parts or spare ■ parts,

use of unsuitable supplementary or accessory parts.

Safety instructions

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appli- ance.

Do not use this appliance together with an external timer or a separate remote control system.

Do not leave the appliance unattended ■ during operation.

Keep the appliance out of the reach of ■ children.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. They will also invalidate the warranty/guarantee.

■Repairs to the appliance during the guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty/guarantee will become invalid in the event of damage or subsequent damage.

DANGER

Danger from electric current!

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

Never immerse the appliance or the mains plug in water or other liquids.

Pull the plug out of the mains socket, if you are not using the appliance, if a malfunction occurs during – operation, before you clean the appliance. –

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

WARNING

Danger of burns!

This electrical appliance has a heating function. Surfaces, even other than the functional surfaces can develop high temperatures. Since temperatures are experienced differently by different people, this appliance must be used CAREFULLY. Only hold the appliance by the handles provided and use gloves or pot holders to protect against heat. Surfaces not intended to be handled must be allowed enough time to cool down.

Do not touch the hotplates during ▶ operation.

Use the handle to hold the appliance while it is in operation.

Before cleaning, allow the appliance to cool down.

Hot steam may escape during baking. Keep a safe distance from the appliance.

Do not move the appliance during operation.

CAUTION

Do not pull the connecting cable to remove the plug from the mains socket.

In order not to destroy the non-stick coating, never use sharp objects or abrasive cleaners when cleaning the hotplates.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:

Place the appliance on a dry, flat, waterproof and heat-resistant surface.

The surface finishes on furniture may contain substances that can be detrimental to the rubber feet of the appliance. If necessary, place a mat under the feet of the appliance.

Do not install the appliance in a hot, ■ wet or very humid environment.

Select a location that does not allow ■ children to reach the hot surfaces of the appliance.

The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection:

Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected ■ by at least a 10 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.

The connecting cable must not be ■ strained or bent.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Appliance description

(refer to the fold-out page for illustration)

Temperature regulator1

Temperature indicator light (green), 2 top

Power indicator light (red)3

4 Lid

5 Supports

6 Handle

Temperature indicator light (green), 7 underside

8 Hotplates

9 Base

10 Clip for vertical position

11 Locking lever

12 User manual (not illustrated)

Temperature controller

Proceed as follows to set the temperature: Turn the temperature regulator (1) to the desired level:

Symbol	Meaning
0	Heating off
Min	lowest temperature
Max	highest temperature

Non-stick coating

BIO-LON® KERAMIK

The BIO-LON non-stick coating not only distinguishes itself by health and environmental awareness but also has other special features:

high scratch resistance, ■

environmental friendliness, ■

durability, ■

optimum heat distribution ■

fast heating up and long heat storage, ■

simple cleaning. ■

BIO-LON furnishes the hotplates with outstanding characteristics:

lotus beading effect, ■

low fat requirement, ■

no sticking or burning, ■

temperature resistant up to approx. ■

400 °C,

as well as hardness that withstands ■

even the strongest loads.

Startup

Unpacking

Remove the appliance and the user manual from the box.

Remove all packaging materials and protective foils from the appliance before using it for the first time.

NOTE!

Do not remove the rating plate or any warning signs on the appliance.
■f possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the warranty/guarantee.

Check the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Prior to first use

Clean the appliance as described in the section Cleaning and care (page 25).

Before using the appliance for the first time, heat it up once for approx. 10 minutes to remove any production residue (grease).

Turn the temperature regulator (1) – to the "Max" position (highest temperature).

Insert the plug into a mains socket. – The red power indicator (3) and the green temperature indicator lights (2 and 7) light up and the appliance begins heating. The operating temperature has been reached when the green temperature indicator lights extinguish.

NOTE!

Due to the materials used, a new appliance can produce light odour or smoke when it is used for the first time. This will diminish after a short period of time. Ensure sufficient ventilation.

Wait for 10 minutes. ◆

Turn the thermostat (1) to the "0" position.

Pull the plug out of the mains socket.

Allow the appliance to cool down completely.

Clean the appliance as described in the section Cleaning and care (page 25).

Preparations

Unlock the appliance

Set up the appliance vertically. ◆

Hold the handle of the (6) appliance tightly and pull the clip (10) out of the base (9) (see image A1).

Turn the appliance 90° so that the temperature regulator (1) is pointing upwards (see image A2).

Operation and use

General instructions

Use fresh ingredients only

■ The ingredients used should be at room temperature.
■ Before baking, allow the waffle mixture to rise for half an hour.
■ Do not use too much baking powder.
■ The waffle mixture should have a thick texture but still smoothly flow off the spoon.
■ To prevent the waffles from softening, do not lay the finished waffles on top of each other.
■ Waffles taste best when they are freshly prepared.
■ Only fill the lower hot plate with enough mixture so that it is just covered. Use a ladle for thin waffle mixtures and a tablespoon for thick waffle mixtures.
■ Work quickly to prevent the waffle mixture from burning onto the lower hotplate.

Making waffles

Prepare the waffle mixture.

Use a brush to oil the hotplates (8) each time before using – not before each waffle.

Fold the appliance together and place it so that the temperature regulator (1) is pointing upwards.

Set the temperature regulator (1) to the desired level (see section Regu-lating the temperature; page 19).

NOTE!

We recommend the maximum ▶ temperature for experienced cooks. A lower setting prolongs the baking time.

Insert the plug into a mains socket. The red power indicator (3) and the green temperature indicator lights (2 and 7) light up and the appliance begins the heating process. The operating temperature has been reached when the green temperature indicator lights extinguish.

NOTE!

When the lid is closed, the maximum temperature is reached in approx. 3 minutes.

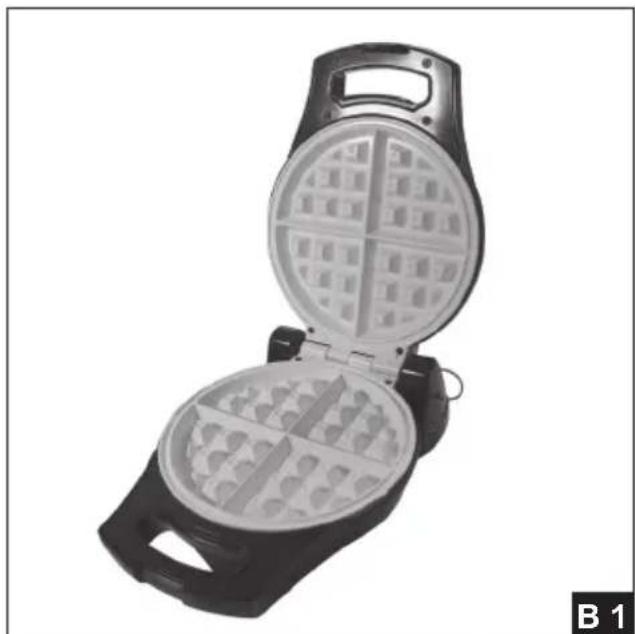

Unfold the appliance (see image B1). Release the locking lever (11) for this purpose.

Fill the middle of the lower hotplate ◆ with the waffle mixture portion.

Fold the appliance together. Ensure that the locking lever (11) closes properly.

NOTE!

If too much waffle mixture is used, it can ooze out of the side of the appliance. This particularly applies to mixtures with raising agents. Use less mixture when filling the next time.

If you fill the appliance with too little mixture, the waffles will be smaller.

After approximately 15 seconds, turn the appliance 180^ (see image B2) so that the temperature indicator light on the underside is showing upwards.

After 3 to 5 minutes, turn the appli-◆ance back again and bake the waffles until they are finished. During baking, lift the lid (4) briefly to inspect the waffle.

NOTE!

Depending the consistency of the mixture and the selected temperature setting, the baking time can be approx. 4-8 minutes.

The first waffles may stick to the ▶ upper hotplate although it was oiled. This will stop happening after a few times.

◆Remove the finished baked waffle.

NOTE!

In order not to damage the coating of the hotplates, only use heat-resistant cutlery made of plastic or wood to remove the waffles.

Recipe suggestions

Vanilla waffles (approx. 10 pieces)

Ingredients:

180 g of soft butter ■

180 g of sugar ■

2 packets of vanilla sugar ■

4 eggs ■

500 g of flour ■

1 teaspoon of baking powder ■

1 l of milk ■

Preparation:

Whip the soft butter with the sugar and vanilla sugar to a froth. Stir in the eggs one by one. Finally add the flour, baking powder and milk and stir to a smooth, thick-textured mixture.

Close the lid and heat up the appliance.

Only fill the lower hot plate with enough mixture so that it is just covered (approximately 2 ladles or 200 ml). Work quickly to prevent the waffle mixture from burning onto the lower hotplate. Close the lid.

After approximately 15 seconds, turn the appliance 180^ and after approximately 5 minutes, turn back and bake the waffles until the are finished. Depending on the taste, the overall baking time is 5-8 minutes.

Remove the waffle from the appliance and allow them to cool down on a baking grille.

Liège waffles (approx. 10 pieces)

Ingredients:

650 ml of milk ■

1 fresh yeast (42 g) ■

400 g of flour ■

1 pinch of salt ■

1 packet of vanilla sugar ■

3 eggs ■

200 g melted butter ■

200 g of sugar (large sugar crystals, ■ pearl sugar)

Preparation:

Dissolve the yeast in lukewarm milk. Add flour, salt and vanilla sugar to the bowl and mix well with the yeast-milk and the eggs. Allow the mixture to rest at a warm location for approximately 40 minutes. Finally stir in the melted but no longer hot butter and the large sugar crystals.

Close the lid and heat up the appliance.

Pour 2 tablespoons (100-150 ml) from the mixture into the middle of the lower hot-plate and close the lid. After approximately 15 seconds, turn the appliance 180°, after approximately 3 minutes turn back again and bake the waffle until it is a golden brown (overall baking time of 4-6 minutes).

Remove the waffle from the appliance and allow them to cool down on a baking grille.

Chocolate waffles (approx. 8 pieces)

Ingredients:

6 eggs ■

150 g of butter or margarine ■

120 g of sugar ■

1 pinch of salt ■

2 packets of vanilla sugar ■

150 g of flour ■

1 teaspoon of baking powder ■

300 ml of milk ■

2 teaspoons of grated chocolate ■

Preparation:

Separate the eggs. Whip the soft butter with the sugar, vanilla sugar and salt to a froth. Stir in the egg yolks one by one. Mix the flour with the baking powder alternately adding the milk and mix well. Beat the egg white until it becomes stiff, add together with the grated chocolate and then fold into the mixture.

Close the lid and heat up the appliance.

Pour approx. 2.5 tablespoons (150-200 ml) from the mixture into the middle of the lower hotplate and close the lid. After approximately 15 seconds, turn the appliance 180°, turn back after approximately 4 minutes and finish baking the waffle according to taste (overall baking time 5-6 minutes).

Remove the waffle from the appliance and allow them to cool down on a baking grille.

Brussels-Waffle (approx. 6 pieces)

Ingredients:

200 g butter ■

120 g of sugar ■

1 pinch of salt ■

1 packet of vanilla sugar ■

Grated peel from 1 lemon ■

2 eggs ■

350 g of flour ■

12 packet of baking powder ■

200 ml of milk ■

■ a little mineral water (approx. 50 ml)

Preparation:

Stir the butter with sugar, vanilla sugar and salt until it is frothy and add the eggs one by one. Add the lemon skin. Mix the baking powder with the flour and add milk alternately. Finally add a little mineral water to the mixture.

Close the lid and heat up the appliance.

Pour approximately 2.5 tablespoons (150-200 ml) of the mixture into the middle of the preheated lower hotplate and close the lid. After approximately 15 seconds, turn the appliance 180°, turn back after approximately 4 minutes and finish baking the waffle according to taste (overall baking time 5-6 minutes).

Remove the waffle from the appliance and allow them to cool down on a baking grille.

Switching off

If you do not wish to bake any more waffles, turn the temperature regulator (1) to the "0" position and pull the plug out of the mains socket.

Wait until the appliance has cooled down before cleaning and storing.

Vertical position

The appliance can be stored in a vertical position to save space.

Turn the appliance 90^ to the vertical position.

In this position, push the clip (10) into the base (9) to lock into position (see image C1).

Cleaning and care

Before beginning work, pay attention to the safety instructions in the Safety section (page.17)!

Clean the appliance after each use. ◆

Wipe all parts of the appliance with a damp cloth.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care Cleaning and care (page 25).

Put the appliance into a vertical position to save space while storing (see section Vertical position; page 25).

Store the appliance at a dry, clean and frost-free place which is protected against direct sunlight.

Technical Specifications

Model	Waffel-Flipp waffle iron
Type number B23.001
Dimensions	200 x 310 x 120 mm ^3 (H x W x D)
Approximate weight	1.85 kg
Operating voltage	230 V AC
Mains frequency	50/60 Hz
Power	875 W
Protection class I

Troubleshooting

The following table helps in localising and remedying minor faults:

Fault Possible cause Remedy
The power indicator does not light up after inserting the mains plug.	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
	Power indicator defective.	Contact customer service.
The temperature indicator lamp does not light up during heating.	Temperature indicator light defective.	Contact customer service.
The automatic circuit breaker in the electrical distribution board trips.	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected.	Contact customer service.
Waffle mixture oozes out of the sides.	Too much waffle mixture filled.	Fill with less waffle mixture.

NOTE!

If you cannot resolve the problem with the steps described above, please contact customer service.

Table des matières

Hand holding a black electronic device with a silver dome and black base (no visible text or symbols)

Close-up of hands holding a black mechanical component with a circular lens, no visible text or symbols

Open waffle grill with grid pattern and tray, no visible text or symbols

Person using a black diving device to lift a blue diving cap (no text or symbols visible)

Close-up of hands holding a black rectangular device with a metallic lid, no visible text or symbols

Elements of Lifestyle

BEEM

Subject to printing error.

For service in other countries contact your local dealer.
