Product Type	Food Processor / Stand Mixer
Model	MUM54A00
Brand	Bosch
Power Consumption	700 W
Bowl Capacity	4.2 L (stainless steel)
Weight	5.6 kg
Dimensions (W x D x H)	280 x 280 x 280 mm
Main Functions	Mixing, kneading, whisking, blending, grinding, slicing, shredding
Number of Speeds	Variable + pulse function
Included Accessories	Dough hook, whisk, beater, blender jug, slicing/shredding discs, lid, pusher
Blender Material	Glass
Safety Features	Safety interlock, bowl locking mechanism, overheat protection
Cleaning	Removable parts dishwasher safe; wipe motor unit with damp cloth
Warranty	2 years (depending on region)
Repairability Index	8.2 / 10 (highly repairable, spare parts available)
Noise Level	Approx. 75 dB(A)
Cable Length	1.2 m

Frequently Asked Questions - MUM54A00 BOSCH

Can I knead large quantities of dough in the Bosch MUM54A00?

Yes, the 4.2 L bowl can handle up to 2 kg of bread dough. Use the dough hook at low speed for best results.

Is the blender jug included suitable for hot liquids?

The glass blender jug can handle hot liquids up to 80 °C. Allow ingredients to cool slightly before blending.

How do I clean the accessories?

Most removable parts are dishwasher safe. For hand washing, use warm soapy water and a soft sponge. Wipe the motor unit with a damp cloth.

Can I use the MUM54A00 without the bowl locked?

No, the safety interlock prevents operation unless the bowl and lid are properly locked in place.

What attachments are compatible with this model?

The MUM54A00 is part of the Bosch MUM5 series. Many optional attachments like citrus press, ice cream maker, or meat grinder are available.

The appliance stops during operation. Why?

This may be due to overload protection. Reduce the quantity or switch off for a few minutes to let it cool down.

Can I blend ice cubes?

Yes, the glass blender can crush ice. Use short pulse bursts for best results. Do not overfill.

What is the maximum operating time?

For heavy dough, do not exceed 10 minutes continuously. Lighter tasks like whisking can be done for up to 20 minutes.

How do I change the slicing disc?

Unplug the appliance, remove the lid, and pull out the disc holder. Insert the desired disc with the cutting edge facing up.

Where can I find the user manual?

You can download the free PDF manual from our website notice-facile.com for detailed instructions.

USER MANUAL MUM54A00 BOSCH

Close-up of a circular hole with internal dark structures, possibly a geological or biological sample (no text or symbols visible)

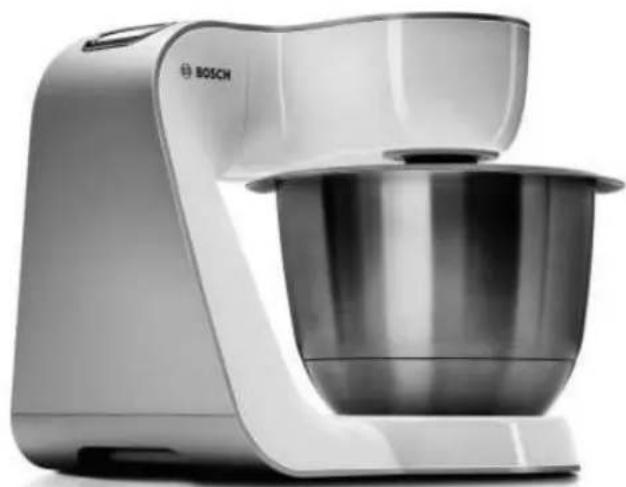

Exterior view of a Bosch brand mixer with a stainless steel bowl (no text or symbols visible)

Register your new Bosch now: www.bosch-home.com/welcome

Close-up of a textured, irregularly shaped rock or mineral surface with a central hole (no visible text or symbols)

MUM5....

BOSCH

1 Päckchen Backpulver

125 ml Milch

Congratulations on the purchase of your new BOSCH appliance. In doing so, you have opted for a modern, high-quality domestic appliance. You can find further information about our products on our web page.

Contents

For your safety .... 16
Overview .... 18
Operation .... 20
Cleaning and servicing .... 23
Storage .... 23
Troubleshooting .... 23
Application examples .... 24
Optional accessories .... 26
Disposal .... 28
Warranty conditions .... 28

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications. Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings. Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading and beating food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children. The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance. Do not leave the running appliance unattended.

Connect and operate the appliance only in accordance with the specifications on the rating plate. Only use indoors. Do not use the appliance if the power cord and/or appliance are damaged.

Before replacing accessories or additional parts, which move during operation, switch off the appliance and disconnect from the power supply. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete.

Never immerse the base unit in liquid or hold under running water.

Do not use a steam cleaner.

Do not adjust the swivel arm while the appliance is switched on.

Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

Risk of injury from the rotating tools!

Keep hands clear of rotating parts. While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance!

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move the swivel arm until the tool has come to a standstill. For reasons of safety the appliance cannot be operated unless unused drives are covered with drive guards (5, 8).

Before attaching/removing the continuous-feed shredder, wait until the drive has come to a standstill and pull out the mains plug. Do not reach into the feed tube.

Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only. Do not touch blender blades with bare hands.

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill! Operate the assembled blender only and with the lid attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing liquid.

Important!

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Use only one tool or accessory at any one time.

Explanation of the symbols on the appliance or accessory

Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools.

Do not place fingers in the feed tube.

Safety systems

Start lock-out

See "Operating positions" table.

The appliance can be switched on in pos. 1 and 3 only:

- when the bowl (11) has been inserted and turned until it locks into place and

– the blender drive cover has been attached (8).

Restart lock-out

If the power is interrupted, the appliance remains switched on but the motor does not start running again when the power is restored. To switch the appliance on again, turn the rotary switch to 0/off, then switch on.

Overload protection

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated.

A possible cause may be that too much food was processed at one time.

If a safety system is activated, see "Troubleshooting".

The operating instructions describe several models, see also overview of models Fig. M).

The appliance requires no maintenance.

Overview

Please fold out the illustrated pages. Fig. A

Base unit

1 Release button
2 Swivel arm

"Easy Armlift" function to support the upward movement of the arm (see "Work positions").

3 Rotary switch

When the appliance has been switched off (position 0/off), the appliance runs automatically to the optimum position for changing the tools.

MUM52..:

0/off = Stop

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–4, Operating speed:

1 = low speed - slow,
4 = high speed - fast.

en

MUM54../MUM55../MUM56..:

0/off = Stop

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1–7, Operating speed:

1 = low speed - slow,

7 = high speed - fast.

4 On/Off display (MUM54../55../56..)

Is lit while the appliance is operating (rotary switch on M or 1–7).

Flashes if the appliance has been operated incorrectly, the electronic fuse has tripped or the appliance is defective – see section “Troubleshooting”.

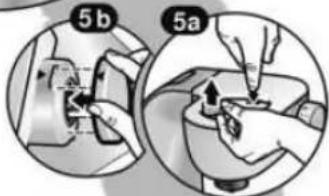

5 Drive cover

To remove the drive cover, press on the rear area and remove cover.

6 Drive for

- Continuous-feed shredder and

– Citrus press (optional accessory * ).

When not in use, attach the drive cover.

7 Drive for tools (stirrer, whisk, kneading hook) and mincer (optional accessory *)

8 Blender drive cover

9 Drive for blender (optional accessory *)

When not in use, attach the blender drive cover.

10 Cord store

MUM52../MUM54..:

Stow the cord in the cord store

MUM55../MUM56..:

Automatic cord winder

Bowl with accessories

11 Stainless steel stirring bowl

12 Lid

Tools

13 Stirrer

14 Whisk

15 Kneading hook with dough deflector

16 Accessories bag

For storage of the tools and cutting discs.

Continuous-feed shredder

17 Pusher

18 Cover with filling shaft

19 Cutting discs

19a Reversible slicing disc - thick/thin

19b Reversible shredding disc – coarse/fine

19c Grating disc - medium-fine

20 Disc holder

21 Housing with outlet opening

Blender *

22 Blender jug

23 Lid

24 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions Fig. B

Attention!

Before operating the appliance, attach the tool/accessory to the correct drive and in the correct position and place in the operating position according to this table.

The swivel arm must be engaged in every operating position.

Note:

The swivel arm features an "Easy Armlift" function which supports the upwards movement of the swivel arm.

Selecting the operating position:

- Press the Release button and move the swivel arm.

Support movement with your hand.

- Move the swivel arm until it engages in the required position.

Position	Drive MUM52..			MUM54..MUM55..MUM56..
1	7		1-4	1-7
			1-4	1-7
			1-2	1-3
2	7		-	-
3	6		2-4	3-7
			2-3	3-5
4	9		3-4	5-7
	7		3-4	5-7

* Insert/remove whisk, stirrer or kneading hook. Add large quantities of ingredients.

en

Operation

Risk of injury!

Do not insert mains plug until all preparations for working with the appliance are complete.

Attention!

Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to heat sources. Parts are not microwave-safe.

- Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

Important information

In these instructions for use the recommended reference values for the operating speed refer to appliances with a 7-setting rotary switch. For appliances with a 4-setting rotary switch you can find the values in brackets after the values for a 7-setting rotary switch.

These operating instructions contain a sticker with reference values for the operating speed of the appliance when using the tools or accessories.

We recommend attaching this sticker to the appliance (Fig. C).

Preparation

• Place the base unit on a smooth, clean surface.
• Pull out the power cord (Fig. D).

MUM52../MUM54..

Cord store:

Pull out cable to the required length.

MUM55../MUM56..

Automatic cord winder: Pull out the cord in one go to the required length (max. 100 cm) and slowly release; the cord is locked.

Reducing the cord length:

Pull gently on the cord and allow it to roll up to the required length. Then gently pull the cord again and slowly release; the cable is locked.

Warning!

Do not twist the cord when inserting it. If the appliance features an automatic cord winder, do not insert the cord manually. If the cord jams, pull out the cord all the way and then allow it to wind up.

- Insert the mains plug.

Bowl and tools

Risk of injury from rotating tools

While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance! Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move the swivel arm until the tool has come to a standstill.

For reasons of safety the appliance may only be operated when unused drives have been covered with drive guards (5, 8).

Attention!

Use bowl with this appliance only.

Stirrer (13)

for stirring dough, e.g. cake mixture

Whisk (14)

for whisking egg whites, cream and light dough, e.g. sponge mixture

Kneading hook (15)

for kneading heavy dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips)

Working with the bowl and the tools Fig. E

• Press the Release button and move the swivel arm to position 2.

• Insert the bowl:

• Tilt the bowl forwards and then set it down.

• Turn anti-clockwise until it locks into place.

- Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position.

Note:

If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position (Fig. 1-4b).

• Put the ingredients to be processed into the bowl.
• Press the Release button and move the swivel arm to position 1.
• Attach the cover.
• Set the rotary switch to the desired setting.

Our recommendation:

- Stirrer:

first stir in at setting 1 (1), then select setting 7 (4)

- Whisk:

setting 7 (4), mix in at setting 1 (1)

- Kneading hook:

first stir in at setting 1 (1), knead at setting 3 (2)

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Add more ingredients through the feed tube in the cover. or
• Remove lid.
• Press the Release button and move the swivel arm to position 2.
• Add ingredients.

After using the appliance

• Switch off the appliance with the rotary switch.
• Remove mains plug.
• Remove lid.
• Press the Release button and move the swivel arm to position 2.
  • Take the tool out of the drive.
• Remove the bowl.
• Clean all parts, see "Cleaning and servicing".

Continuous-feed shredder

Risk of injury

Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only.

Before attaching/removing the continuous-feed shredder, wait until the drive has come to a standstill and pull out the mains plug.

Do not reach into the feed tube.

Warning!

The continuous-feed shredder must be completely assembled before use. Never assemble the continuous-feed shredder on the base unit.

Operate the continuous-feed shredder in the indicated operating position only.

Predetermined breaking point Fig. F

The built-in predetermined breaking point protects the drive of the appliance. If an overload occurs, the drive shaft of the continuous-feed shredder breaks. However, the drive shaft can easily be replaced.

A new disc holder with drive shaft is available from customer service.

Reversible slicing disc – thick/thin for slicing fruit and vegetables.

Process at setting 5 (3).

Designation on the reversible slicing disc: "1" for the thick slicing side

"3" for the thin slicing side

Warning!

The reversible slicing disc is not suitable for slicing hard cheese, bread, rolls or chocolate. Slice boiled, waxy potatoes only when they are cold.

Reversible shredding disc – coarse/fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan).

Processing at setting 3 (2) or 4 (3).

Designation on the reversible shredding disc: "2" for the coarse shredding side "4" for the fine shredding side

Warning!

The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 7 (4).

Grating disc – medium-fine

for grating raw potatoes, hard cheese (e.g. Parmesan), cooled chocolate and nuts. Process at setting 7 (4).

Warning!

The grating disc is not suitable for grating soft cheese and cheese slices.

Working with the continuous-feed shredder Fig. ©

- Press the Release button and move the swivel arm to position 2.

en

- Insert the bowl:

- Tilt the bowl forwards and then set it down.

- Turn anti-clockwise until it locks into place.

• Press the Release button and move the swivel arm to position 3.
• Remove drive cover from the drive of the continuous-feed shredder (Fig. 6-5a).
• Hold disc holder at the lower end, ensuring that the two tips are face up.
• Carefully place the required slicing or shredding disc onto the tips of the disc holder (Fig. 6-6a). In the case of reversible discs, ensure that the required side is face up.
  ● Grip disc holder at the upper end and insert into the housing (Fig. G-6b).
• Attach the cover (note mark) and turn all the way in a clockwise direction.
• Place continuous-feed shredder on the drive and rotate all the way in a clockwise direction, as illustrated in Fig. C-8.
• Turn rotary switch to recommended setting.
• Put food to be processed in the feed tube and push down with the pusher.

Warning!

Prevent the cut ingredients from building up in the outlet opening.

Tip: To ensure even cutting results, process thin ingredients in bunches.

Note: If the food to be processed sticks in the continuous-feed shredder, switch food processor off, pull out mains plug, wait until the drive comes to a standstill, remove cover from the continuous-feed shredder and empty feed tube.

After using the appliance

• Switch off the appliance with the rotary switch.
• Rotate the continuous-feed shredder in an anti-clockwise direction and remove.
• Rotate the lid in an anti-clockwise direction and remove.
• Remove disc holder with disc. To do this, press finger from below against the drive shaft (Fig. H).
• Clean parts.

Blender

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender! Do not remove/attach the blender until the drive is at a standstill! Operate the assembled blender only and with the lid attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,5 litres of hot or frothing liquid.

Warning!

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty.

Working with the blender Fig. J

- Press the release button and move the swivel arm to position 4.

• Remove the blender drive cover.
• Attach blender jug (mark on the handle on mark on the base unit) and turn all the way in an anti-clockwise direction.
• Add ingredients.

Maximum amount of liquid = 1.25 litres; maximum amount of frothing or hot liquids = 0.5 litres;

Optimal processing capacity - solids = 50-100 g;

• Attach the cover and turn anti-clockwise all the way into the blender handle.
  The cover must be locked in position.
• Set the rotary switch to the desired setting.

Adding more ingredients Fig. 1-8

• Switch off the appliance with the rotary switch.
• Remove the lid and add ingredients or
• remove the funnel and gradually add solid ingredients through the refill opening

or

- pour liquid ingredients through the funnel.

en

After using the appliance

• Switch off the appliance with the rotary switch.
• Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Attention!

Do not use abrasive cleaning agents.

Surfaces may be damaged.

Cleaning the base unit

Risk of electric shock!

Never immerse the base unit in water or place under running water. Do not use a steam cleaner.

• Remove mains plug.
• Wipe the base unit and drive cover with a damp cloth. If required, use a little detergent.
• Then dry the base unit.

Cleaning the bowl and tools

The bowl and tools are dishwasher-proof. Do not wedge plastic parts in the dishwasher, as they could be permanently deformed during the washing process!

Cleaning the continuous-feed shredder All parts of the continuous-feed shredder are dishwasher-proof.

Tip: To remove the red film after processing e.g. carrots, pour a little cooking oil on a cloth and rub the film off the continuous-feed shredder (not the cutting discs). Then rinse the continuous-feed shredder.

Cleaning the blender

Risk of injury from sharp blades!

Do not touch blender blades with bare hands.

The blender jug, lid and funnel are dishwasher-proof.

Tip: After processing liquids, it is often sufficient to clean the blender without removing it from the appliance. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (setting M). Pour out the water and rinse out the blender with clear water.

Important information

If required, clean accessories bag. Follow care instructions in the bag.

Storage

Risk of injury!

When the appliance is not in use, pull out the mains plug.

Fig. K

• Store tools and cutting discs in the accessories bag.
• Keep accessories bag in the bowl.

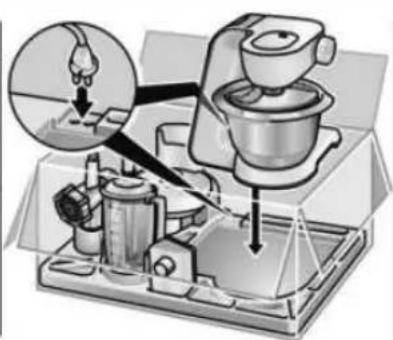

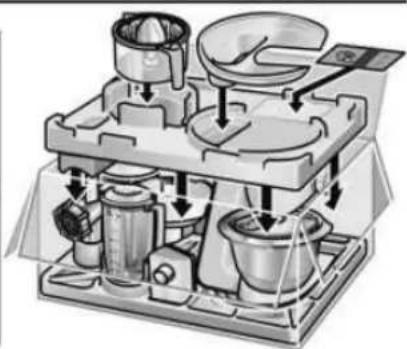

• To store in the original packaging, see Fig. L.

Troubleshooting

Risk of injury!

Before eliminating a fault, pull out the mains plug.

Important information for MUM54../MUM55../MUM56..

The Operating indicator flashes if the appliance has been operated incorrectly or the electronic fuse has tripped or the appliance is defective.

The swivel arm must be engaged in every operating position.

Initially try to eliminate the problem which has occurred with the help of the following information.

Fault

Appliance does not start.

Remedial action

• Check the power supply.
• Check the mains plug.

en

• Check swivel arm. Correct position? Engaged?
• Screw on blender or bowl as far as possible.
• Attach the blender cover and screw on as far as possible.
• Attach drive cover to unused drives.
• The safety lock is active.
  Switch appliance to 0/off and then back to the required setting.

Fault

Appliance switches off during use. The overload protection feature has been activated. Too much food was processed at one time.

Remedial action

• Switch off the appliance.
• Reduce processing quantity. Do not exceed permitted maximum quantities (see "Application examples").

Fault

While the drive was running, the release button was inadvertently pressed. The swivel arm moves up. The drive switches off, but does not stop in the tool change position.

Remedial action

• Set the rotary switch to 0/off.
• Move swivel arm to position 1.
• Switch on appliance (setting 1).
• Switch off appliance again. Tool stops in tool change position.

Fault

Blender does not start working or stops during use, the drive is "humming". Blade is blocked.

Remedial action

• Switch off the appliance and pull out the mains plug.
• Detach the blender and remove the obstruction.
• Re-attach the blender.
• Switch on the appliance.

Important information

If the fault cannot be eliminated, please contact customer service.

Application examples

Whipped cream

100 g–600 g

- Whip cream with the whisk for 1½ to 4 minutes at setting 7 (4) depending on the quantity and properties of the cream.

Egg white

1 to 8 egg whites

- Beat egg white with the whisk for 4 to 6 minutes at setting 7 (4).

Sponge mixture

Basic recipe

2 eggs

2–3 tbs. hot water

100 g sugar

1 packet of vanilla sugar

70 g flour

70 g cornflour

Baking powder if required

• Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 7 (4) until frothy.
• Rotate switch to setting 1 (1) and spoon in the sifted flour and cornflour within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

3-4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 12 lemon

200–250 g butter or margarine (room temperature)

500 g flour

1 packet of baking powder

125 ml of milk

- Mix all ingredients with the stirrer for approx. 12 minute at setting 1 (4), then for approx. 3–4 minutes at setting 7 (4).

Maximum quantity: 1,5 x basic recipe

Short pastry

Basic recipe

125 g butter (room

temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Using the stirrer, process all ingredients for approx. 12 minute at setting 1 (1), then for approx. 2–3 minutes at setting 6 (3).

From 500 g flour:

- Knead the ingredients with the kneading hook for approx. 12 minute at setting 1 (1), then for approx. 3–4 minutes at setting 3 (2).

Maximum quantity: 2 x basic recipe

Yeast dough

Basic recipe

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 12 lemon

1 pinch of salt

- Process all ingredients for approx. 12 minute at setting 1, then for approx. 3–6 minutes at setting 3 (2) using the kneading hook.

Maximum quantity: 1,5 x basic recipe

Pasta dough

Basic recipe

300 g flour

3 eggs

1–2 tbs. (10–20 g) cold water as required

- Process all ingredients for approx. 3–5 minutes at setting 3 (2) until a dough forms.

Maximum quantity: 1,5 x basic recipe

Bread dough

Basic recipe

750 g flour

2 packets of dry yeast

2 tsp. salt

450–500 ml warm water

Process all ingredients for approx. 12 minute at setting 1, then for approx. 4–5 minutes at setting 3 (2) using the kneading hook.

Mayonnaise

2 eggs

2 tsp. mustard

14 | oil

2 tbs. lemon juice or vinegar

1 pinch of salt

1 pinch of sugar

Ingredients must be at the same temperature.

- Process the ingredients (except the oil) in the blender for several seconds at setting 3 (2) or 4 (3).

- Switch the blender to setting 7 (4) and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Eat the mayonnaise immediately, do not store.

Honey bread spread

30 g butter (from refrigerator, 7 °C) 190 g honey (from refrigerator, 7 °C)

- Cut butter into small pieces and put into the blender.

- Add honey and blend for 15 seconds at setting 7 (4).

en

Optional accessories

	MUZ5ZP1Citrus press	For squeezing oranges, lemons and grapefruits.
	MUZ5CC1Dicer	For cutting fruit and vegetables into equally sized cubes
	MUZ5FW1Mincer	For cutting fresh meat for steak tartare or meat loaf.
	MUZ45LS1Perforated disc set fine (3 mm), coarse (6 mm)	For the mincer MUZ5FW1.Fine disc for pasties and spreads, coarse disc for sausages and bacon.
	MUZ45SV1Viennese whirl attachment	For the mincer MUZ5FW1.With metal template for 4 different pastry moulds.
	MUZ45RV1Grater attachment	For the mincer MUZ5FW1.For grating nuts, almonds, chocolate and dried bread rolls.
	MUZ45FV1Juicer attachment	For the mincer MUZ5FW1.For pressing soft fruit, except raspberries, tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.
	MUZ45PS1Chipper disc	For the continuous-feed shredder MUZ5DS1.For slicing raw potatoes for chips.
	MUZ45AG1Asian vegetable disc	For the continuous-feed shredder MUZ5DS1.Slices fruit and vegetables into fine strips for Asian vegetable dishes.

en

MUZ45RS1 For the continuous-feed shredder MUZ5DS1. Grating disc coarse For grating raw potatoes, e.g. for potato pancakes or dumplings.

MUZ45KP1 For the continuous-feed shredder MUZ5DS1. Potato fritter disc For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.

MUZ5ER2 Stainless steel stirring bowl Up to 750 g of flour plus ingredients can be processed in the bowl.

MUZ5KR1 Up to 750 g of flour plus ingredients can be processed in the bowl. Plastic mixing bowl

Illustration of a plastic blender with a side arm and volume markings (no text or symbols)

MUZ5MX1 Plastic blender attachment For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

MUZ5MM1 Multi-mixer For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

If an accessory is not included in the product package, it can be purchased via the trade or from customer service.

en

Disposal

This appliance is identified according to the European guideline 2012/19/EU on waste electrical and electronic equipment – WEEE.

The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.

Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

fr

Sécurité anti-surcharge

MUZ5ZP1 Presse-agrumes

450–500 ml warm water

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

Simple geometric diagram with intersecting lines and a central circle (no text or symbols)

The image contains a graphical symbol (a crosshair with a central dot and a circle) and no textual content. Therefore, the correct OCR output is an empty string.
The image contains a graphical symbol (a crosshair with a central dot and a circle) and no textual content. Therefore, the correct OCR output is an empty string.
The image contains a graphical symbol (a crosshair with a central dot and a circle) and no textual content. Therefore, the correct OCR output is an empty string.
The image contains a graphical symbol (a crosshair with a central dot and a circle) and no textual content. Therefore, the correct OCR output is an empty string.
The image contains a graphical symbol (a crosshair with a central dot and a circle) and no textual content. Therefore, the correct OCR output is an empty string.

nl

Afvoeren van afval

MUM54../MUM55../MUM56..: 0/off = stop

MUM54../MUM55../MUM56..: 0/off = Stop

MUM54../MUM55../MUM56..: 0/off = stop

• Get any you can't.

• Among all the people will be in

•

• Among all the most important job in Israel

•

:..MUM54../MUM55../MUM56

הכלה = off/0

:..MUM54../MUM55../MUM56

- onc staying Educational Privacy Policy for the United States

AE United Arab Emirates,

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

AERTECH SH.P.K.

Rruga Qemal Stafa

Pallati i ri perball Prokuroris se

Pergjithshme

Hyrja C Kati 10

Tirana

Tel.: [phone]

mailto:[e-mail]

HEATHERTON, Victoria 3202

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com.au

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Info-Line: 061 100 905

Fax: [phone]

mailto:[e-mail]

European Trade Center Building,

5th floor

1784 Sofia

Tel.: [phone]

Fax: [phone]

mailto:informacia.servis-bg@

bshg.com

www.bosch.home.bg

+ 7 snt/min (alv 23%)

+ 17 snt/min (alv 23%)

FR France

BSH Electroménager S.A.S.

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit www.bosch-home.co.uk

or call

*Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias &

Potamou 20

14564 Kifisia

Unit 1 & 2, 3rd Floor

North Block, Skyway House

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.cn

HR Hrvatska, Croatia

BSH kućni uređaji d.o.o.

Kneza Branimira 22

10000 Zagreb

Tel:. [phone]

Fax: [phone]

mailto:informacije.servis-hr@

bshg.com

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Walkinstown

Dublin 12

Service Requests,

Spares and Accessories

Tel.: [phone]

Fax: [phone]

www.bosch-home.co.uk

IL Israel, בַרָה

C/S/B Home Appliance Ltd.

Uliel Building

2, Hamelacha St.

Industrial Park North

71293 Lod

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhāratārāt

BSH Customer Service Front Office

Shop No.4, Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

Mumbai 400093

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

IP Turebekov Yerzhan

Nurmanovich

Jangeldina str. 15

Shimkent 160018

Tel.: [phone]

mailto:[e-mail]

LB Lebanon, ن لبنا

Teheni, Hana & Co.

Boulevard Dora 4043 Beyrouth

P.O. Box 90449

Jdeideh 1202 2040

Tel.: [phone]

mailto:[e-mail]

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

LU Luxembourg

General Serviss Limited

Bullu street 70c

1067 Riga

Tel.: [phone]

mailto:[e-mail]

Elkor Serviss

Brivibas gatve 201

1039 Riga

Tel.: [phone]; -36

Fax: [phone]

mailto:[e-mail]

www.servisacentrs.lv

MD Moldova

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

тел./факс: [phone]

mailto:[e-mail]

ME Crna Gora, Montenegro

Elektronika komerc

Ul. Slobode 17

84000 Bijelo Polje

Tel./Fax: [phone]

Mobil: 069 324 812

mailto:ekobosch.servis@

t-com.me

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

PL Polska, Poland

Bin Hamran Commercial Centr.

6th Floor 603B

Jeddah 21481

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/sa

SE Sverige, Sweden

www.bosch-home.com/tr

4th floor, No. 112 Sec 1

Chung Hsiao E Road

Taipei ROC 100

Tel.: [phone]

mailto:[e-mail]

UA Ukraine, Україна

gama-electronics.com

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

Milutina Milankovića 11 ^a

11070 Novi Beograd

Tel.: [phone]

Fax: [phone]

mailto:informacije.servis-sr@

bshg.com

www.bosch-home.rs

ZA South Africa

BSH Home Appliances (Pty) Ltd.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:applianceserviceza@

bshg.com

www.bosch-home.com/za

3D rendered mechanical part with curved and angular features, labeled with number 12 (no text or symbols on the object itself)

Illustration of a metallic bowl with a flared rim and label '11' on the side (no text or symbols on the bowl itself)

C

Diagram of a device component with a black arrow pointing to a white panel (no text or symbols)

D

MUM52.. MUM54..

Diagram of a door handle with arrows indicating direction (no text or symbols)

MUM55.. MUM56..

Close-up of a mechanical component with a spiral arrow indicating motion (no text or symbols)

B

E

F

Diagram of a mechanical joint or fastener with a central rod and two parallel bars, one with an arrow indicating force direction (no text or symbols)

G

Illustration of a kitchen mixer with a stand and bowl (no text or symbols)

Illustration of a mechanical assembly with hands operating a tool on a cylindrical component (no text or symbols visible)

H

Illustration of hands holding a small object with an arrow indicating upward motion (no text or symbols)

K

Illustration of a hand holding a tool next to scattered coins and a cylindrical container (no text or symbols)

Illustration of a kitchen mixer with a side arm and side bowl (no text or symbols)

L

Technical diagram of a mechanical assembly inside a transparent enclosure, showing components like gears and levers (no text or labels)

Illustration of a coffee machine setup with a hand pouring liquid into a container (no text or symbols visible)

Diagram of a food processing machine with multiple layers and control panels (no text or labels)

M	M/1...4	M/1...7
MUM 52110	√		√		√	√	√
MUM 52120	√		√		√	√	√
MUM 52131	√		√		√	√	√
MUM 54230		√	√		√	√	√
MUM 54240		√	√		√	√	√
MUM 54251		√	√		√	√
MUM 56340		√		√	√	√	√

MUM 52110
MUM 52120
MUM 52131			√
MUM 54230		√
MUM 54240		√	√
MUM 54251		√	√
MUM 56340		√	√
