RG-ES 1639 - Lawn mower EINHELL - Free user manual and instructions

Product type	Corded electric lawn mower
Brand	Einhell
Model	RG-ES 1639
Motor power	1600 W
Cutting width	39 cm
Cutting height	Centrally adjustable, 25-75 mm (6 positions)
Grass bag capacity	50 L
Bag type	Rigid bag with fill indicator
Weight	15.5 kg
Cable length	10 m
Protection class	Class II (double insulation)
Sound level	LwA = 96 dB(A)
Vibration	ah < 2.5 m/s² (uncertainty K=1.5 m/s²)
Main functions	Mowing, mulching possible with adapter (optional), bagging, side discharge
Safety	Two-hand safety bar, immediate motor stop when released
Maintenance and cleaning	Clean after each use, oil the blades, check screws
Spare parts and repairability	Replacement blade, bag, wheels, belt available via Einhell after-sales service
Warranty	2 years (legal conformity), extension possible
General information	Domestic use only, do not use in rain

Frequently Asked Questions - RG-ES 1639 EINHELL

How to start the RG-ES 1639 mower?

Plug in the power cable, then hold the safety bar pressed while pulling the start handle.

What to do if the mower does not start?

Check that the cable is properly plugged in, that the residual current circuit breaker has not tripped, and that the safety bar is fully pressed.

How to adjust the cutting height?

Use the central adjustment handle to select one of the 6 positions, from 25 mm to 75 mm, without tools.

What is the capacity of the grass bag?

The bag has a capacity of 50 liters with a level indicator to know when to empty it.

Can I use the mower without the bag for mulching?

Yes, with the mulching adapter (sold separately), you can shred the grass and leave it on the lawn as natural fertilizer.

How to maintain the blade?

After each use, clean the blade with water and a brush. Sharpen it regularly with a file or replace it if damaged.

What type of extension cable should I use?

Use a certified garden cable with a minimum cross-section of 1.5 mm² and a maximum length of 50 m to avoid power loss.

The mower makes an abnormal noise, what should I do?

Stop the machine immediately. Check that the blade is not unbalanced or that an object is not stuck. Consult the manual if the noise persists.

How to store the mower in winter?

Clean it thoroughly, empty the bag, and store it in a dry and frost-free place. Unplug the cable and coil it without twisting.

Where to find spare parts?

Parts such as blades, bag, or wheels are available from Einhell after-sales service or on the brand's website.

USER MANUAL RG-ES 1639 EINHELL

Close-up of a mechanical device with labeled parts (2a), no readable text or symbols beyond the label

Close-up of hands holding a metal frame with a cloth or paper sheet, no visible text or symbols

Close-up of a lawn mower with mesh cover and wheel rim (no visible text or symbols)

⚠️Achtung!

When using equipment, a few safety precautions must be observed to avoid injuries and damage.

Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which arise due to non-observance of these instructions and the safety information.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

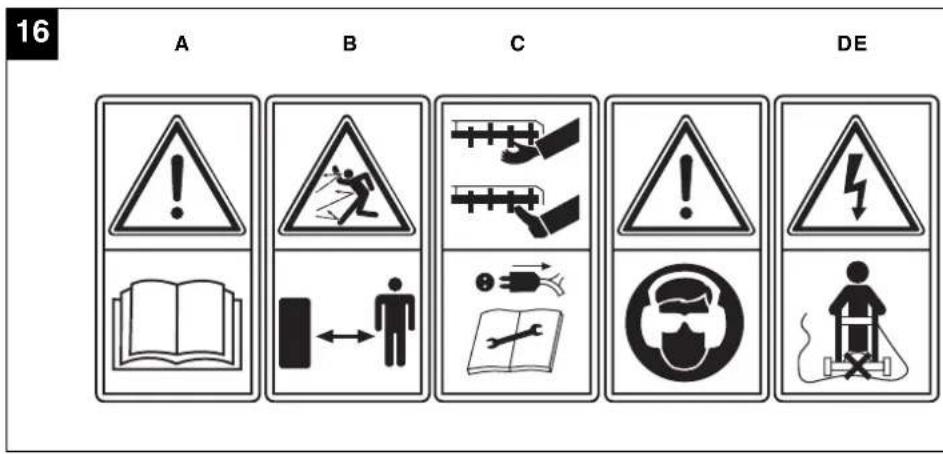

3. Description of the warning logos (see Fig. 16)

A = Important!

Read the directions for use before operating the tool.
B = Keep other persons (and animals) away from the danger zone.
C = Sharp work tools - Do not cut your fingers or toes! Switch off the device and pull the power plug before engaging in any maintenance/cleaning work or if the cable is tangled or damaged. Keep the power cable away from the cutting unit.
D = Wear hearing and eye protection.
E = Keep the power cable away from the roller.

2. Layout (Fig. 1/2)

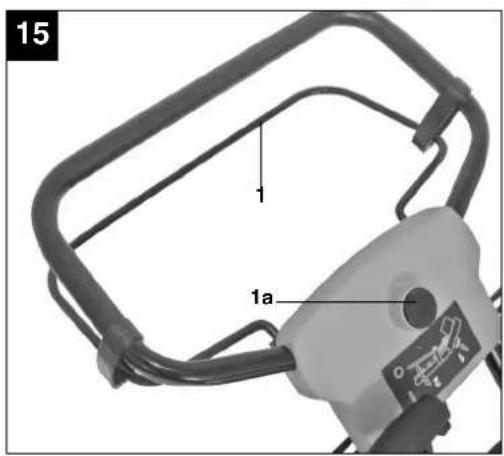

1. ON/OFF switch
   1a. Safety lock-off
2. Push bar
3. Connector plug
4. Stress-relief clip
5. Star grips
6. Operating lever
7. Ejector flap
8. Scarifying depth
9. Grass basket

3. Items supplied (Fig. 2)

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
  ●Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

IMPORTANT

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

●Original operating instructions
●Safety instructions

4. Proper use

The equipment is intended for private use i.e. for use in home and gardening environments.

Scarifiers for private use are machines whose annual operating time generally does not exceed 10 hours, during which the machine is primarily used to maintain small-scale, residential lawns and home/hobby gardens. Public facilities, sporting halls, and agricultural/forestry applications are excluded.

The operating instructions as supplied by the manufacturer must be kept and referred to in order to ensure that the equipment is properly used and maintained. The instructions contain valuable information on operating, maintenance and servicing conditions.

Important! Due to the high risk of bodily injury to the user, the equipment may not be used to grind up branch or hedge clippings. Moreover, the equipment may not be used as a power cultivator to level out high areas such as mole hills.

For safety reasons, the scarifier may not be used as a drive unit for other equipment or toolkits of any kind, unless specifically advised to do so by the manufacturer.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of

GB

misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Technical data

Voltage: 230 V \~ 50 Hz

Power consumption: 1600 W

Working width: 39 cm

Number of blades 16 pieces

Scarifying depth: Infinitely adjustable up to 10 mm

Sound and vibration

Sound and vibration values were measured in accordance with EN 13684.

L_pA sound pressure level 85 dB(A)

K_pA uncertainty 3

L_WA sound power level 98 dB(A)

K_WA uncertainty 3

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in accordance with EN 13684.

Vibration emission value a_h = 2.77 m/s^2

K uncertainty = 1.5 m/s²

Additional information for electric power tools

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

●Only use appliances which are in perfect working order.
●Service and clean the appliance regularly.
●Adapt your working style to suit the appliance.
●Do not overload the appliance.
●Have the appliance serviced whenever necessary.
●Switch the appliance off when it is not in use.
●Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

dB

6. Before starting the equipment

The scarifier is delivered as assembled. The grass basket and the complete push bar must be assembled and mounted before using the scarifier. Follow the operating instructions step-by-step and use the pictures provided as a visual guide to easily assemble the machine.

Mounting the lower push bar (see Figs. 3 and 4)

●Insert the U-shaped lower push bar into the holes in the housing (Fig. 3).
●Now you can fasten the lower push bar using the screws supplied (Fig. 4/Item 2c).

Mounting the upper push bar (see Figs. 5 and 6)

• Position the upper push bar (Fig. 5/Item 2b) such that its holes line up with the holes of the lower bar.
• Insert the screw (Fig. 5/Item 2f) with washer (Fig. 5/Item 2e) through the tubes from the outside.
  ●Screw the handlebars together using a star grip (Fig. 5/Item 5).
• Attach the handlebar opposite.
  ●Using the cable clips supplied (Fig. 6/Item 2d), attach the power cable on the inside of the tubes

GB

of the push bar, so that it is possible to open and shut the ejector flap (Fig. 1/Item 7).

Important!

Please ensure that the ejector flap can be opened and closed easily!

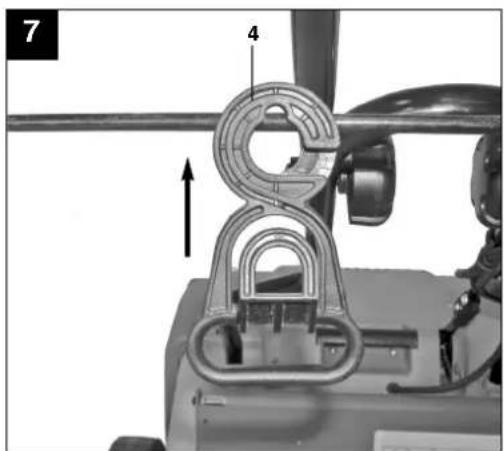

●Then fit the cable stress-relief clip (Fig. 7/Item 4) as shown in Figure 7.

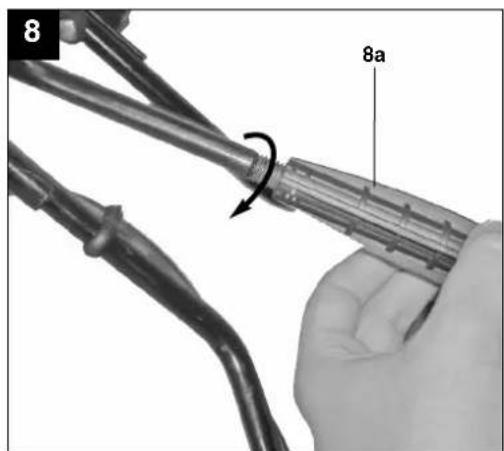

Mounting the height adjustment (see Figs. 8 and 9)

●Screw the central rod assembly together with the pre-mounted upper rod assembly as in Fig. 8.

●Important – left-handed thread!

●Then screw together with the lower rod assembly using the screw (Figure 9/Item 8b).

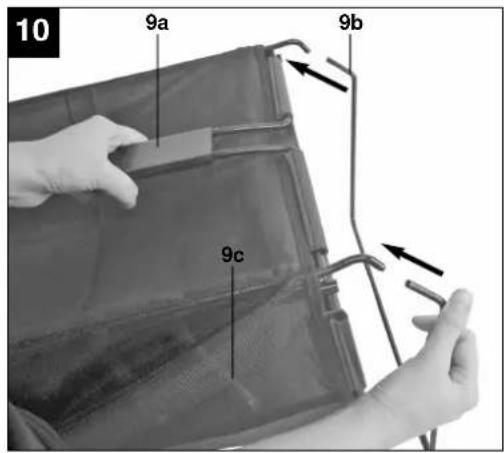

Assembling the grass basket (see Figs. 10-12)

●Fit the grass basket parts as shown in Fig. 10.
●To fasten the grass basket, pull the rubber clips over the small frame (Fig. 11).
●To hang the grass basket on the scarifier you must lift the ejector flap (Fig. 1/Item 7) with one hand and with the other hand take hold of the grass bag by the handle and hook it onto the scarifier from above (Fig. 12).

Important! Before you ever hook the grass basket to the scarifier you must ensure that the motor is switched off and the cutting unit is not rotating.

Adjusting the scarifier depth (see Fig. 13)

●The scarifier depth is set using the handle (Fig. 13/Item 8) on the rod assembly for the height adjustment.
●Push the engage handle (Fig. 13/Item 6) forward and set the desired depth (+/-).
●To test the working depth, push the operating lever back and start the machine up. Gently push the scarifier forward and slowly pull the operating lever forward. Repeat this process as many times as required until the desired working depth is achieved.

Electrical connection

The equipment can be connected to any normal socket with 230V AC. It is only acceptable to connect it to a shockproof socket with a 16A circuit breaker. Furthermore, a residual-current-operated protective device with max. 30 mA should be connected upstream.

Power cable

Please only use power cables that are not damaged. The total length of the power cable should not exceed 50 meters; going beyond this distance will reduce the power output of the electric motor. The power cable must have a cross-section of 3 x 1.5 mm2. The insulating sheath of scarifier power cables is frequently damaged.

Some of the causes for this are:

●Cracking from running over the cable
● Pinching when the power cable is dragging under doors and pulled through windows
●Cracking due to old age of the insulation
●Kinking by improperly fastening or guiding the power cable

The power cables must, at the very minimum, be of type HO5RN-F and 3-stranded. The cable type must be printed somewhere on the power cable. Only purchase power cables that are marked as such! Plugs and socket couplers for the power cables must be made from rubber and be splash-proof. There is a limit to how long power cables can be. Longer power cables require larger conductor cross-sections.

Power cables and connecting lines must be regularly checked for damage. Ensure that the lines are de-energized before checking them. Completely unwind the power cable. Also check power cable entry points, plugs and socket couplers for kinks.

7. Operation

Connect the machine's power supply cable to the plug (Fig. 14/Item 3) and secure the power cable with the stress-relief clip (Fig 14).

Important! To prevent accidental start-up of the equipment, the push-bar (Fig. 1 / Item 2) is equipped with a safety lock-off (Fig. 15 / Item 1a) which must be pressed before the lever switch (Fig. 15 / Item 1) can be pressed. If the lever switch is released, the equipment switches off.

Repeat this process several times so that you are sure that the machine functions properly. Before you perform any repair or maintenance work on the machine, ensure that the cutting unit is not rotating and that the power supply is disconnected.

Important! Never open the ejector flap when the motor is running. A rotating cutting unit can cause injuries.

Always fasten the ejector flap carefully. The flap flips back to the "Closed" position by the tension springs! Always ensure that a safe distance (provided by the long handles) is maintained between the user and the housing. Be especially careful when scarifying and changing direction on slopes and inclines.

Maintain a solid footing and wear sturdy, non-slip footwear and long trousers. Always scarify along the incline (not up and down).

GB

For safety reasons, the scarifier may not be used to scarify inclines whose gradient exceeds 15 degrees. Use special caution when backing up and pulling the scarifier (tripping hazard)!

Tips for proper working

It is recommended that you overlap scarifying paths a little.

Try to scarify in straight lines for a nice, clean look. Insodoing, the aeration swaths should always overlap each other by a few centimeters in order to avoid bare strips.

As soon as grass clippings start to trail the scarifier, it is time to empty the grass basket.

Important! Before taking off the grass basket, switch off the motor and wait until the roller has come to a stop.

To remove the grass basket, lift up the ejector flap with one hand, while unhooking the basket with the other.

How frequently you should scarify your lawn is determined primarily by the speed at which the grass grows and the hardness of the soil.

Keep the underside of the equipment clean and remove soil and grass build-up. Deposits make it more difficult to start the aerator and decrease the quality of the scarifying.

Always scarify along inclines (not up and down). Switch off the motor before doing any checks on the roller.

Important!

The roller rotates for a few seconds after the motor is switched off. Never attempt to stop the roller. In the event that the rotating roller strikes an object, immediately switch off the equipment and wait for the roller to come to a complete stop. Then inspect the condition of the roller. Replace any parts that are damaged (see section 8.4).

Lay the power cable on the ground in loops in front of the power outlet. Scarify away from the power outlet and cable, making sure that the power cable always trails in the already scarified grass so that the equipment does not travel over the cable.

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

9.1 Cleaning

- Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.

●We recommend that you clean the device immediately each time you have finished using it.

●Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

9.2 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

9.3 Maintenance

●A worn out or damaged cutting unit should be replaced by an authorised expert (see adress on the warranty certificate).
●Take care that all fastening elements (screws, nuts, etc.) are firmly tightened, so that you can work safely with the scarifier.
●Store the scarifier in a dry place.
●For longer life, all screw-fastened parts, such as wheels and axles should be cleaned and subsequently oiled.
●Regular servicing of the scarifier not only secures longer endurance and performance, but also contributes to an accurate and simple scarification of your lawn.
- At the end of the season, carry out a general check of the scarifier, and remove all residue collected. Before the start of every season, it is absolutely necessary to check the state of the scarifier. Contact our Customer Service (see address on the warranty certificate) if repair work is necessary.

9.4 Replacing the spike drum

For safety reasons, we recommend having the spike drum replaced by an authorized professional (see address on warranty certificate).

Important!

Wear work gloves!

Only replace the unit with a genuine Einhell spike drum, as this will ensure top performance and safety under all conditions.

9.5 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

●Type of machine

●Article number of the machine

●Identification number of the machine

●Replacement part number of the part required

For our latest prices and information please go to www.isc-gmbh.info

Replacement cutting unit Art. No.: 34.211.07

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging.

11. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

GB

12. Troubleshooting guide

Fault	Possible causes	Rectification
Motor does not start a) No electricity in plugb) Cable defectivec) Switch, switch/plug block defectived) Connections to motor or capacitor disconnectede) Housing clogged	a) Check line and fuseb) Checkc) Have machine checked by a customer service centerd) Have machine checked by a customer service centere) If necessary adjust working depth. Clean housing so that the roller can run freely
Engine performance drops a) Soil is too firmb) Housing cloggedc) Roller badly worn	a) Change working depthb) Clean housingc) Replace roller
Imprecise scarifying result a) roller wornb) Wrong working depth	a) Replace rollerb) Correct working depth
Motor is running, roller is not rotating	a) Toothed belt is torn a) By customer service workshop

Important notice! To protect the motor itis equipped with a thermal overload switch which cuts out when overloaded and starts again automatically after a short cooling-down period.

F

Attention!

③ explains the following conformity according to EU directives and norms for the following product

Noise: measured L_WA = 96.5 dB (A); guaranteed L_WA = 98 dB (A)

P = kW; L/∅ = cm

Notified Body:

2004/26/EC

Emission No.

Standard references: EN 60335-1; EN 60335-2-92; EN 13684; EN 50366; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Alexander Scheifl

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or numbers present)

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.
2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

F BULLETIN DE GARANTIE

Chère Cliente, Cher Client,
