Product Type	Tumble Dryer
Brand	Electrolux
Model	EDH3498RDE
Capacity	8 kg
Drying Type	Heat Pump Condenser
Energy Efficiency Class	A+++
Annual Energy Consumption	169 kWh
Noise Level	66 dB(A)
Dimensions (H x W x D)	850 x 596 x 650 mm
Weight	45 kg
Drum Volume	118 L
Number of Drying Programs	14
Sensor Drying	Yes
Reverse Tumbling	Yes
Delay Start	Yes (up to 20 h)
Anti-crease Function	Yes
Child Lock	Yes
Display	LED
Self-cleaning Condenser	Yes
Heat Pump Technology	Yes
Filter Type	Lint filter + condenser filter
Power Supply	220-240 V / 50 Hz
Energy Consumption per Cycle (Full Load)	1.70 kWh
Drying Time (Full Load)	140 min
Warranty	2 years

Frequently Asked Questions - EDH3498RDE ELECTROLUX

How do I install the tumble dryer?

Place the dryer on a stable, level surface. Ensure proper ventilation around the appliance. Connect the power cord to a grounded outlet. For heat pump models, no external venting is required. Refer to the user manual for detailed installation steps.

How often should I clean the lint filter?

Clean the lint filter after every drying cycle. Remove the filter, rinse it under running water, and dry it thoroughly before replacing. A clogged filter reduces efficiency and may pose a fire hazard.

What does the self-cleaning condenser mean?

The self-cleaning condenser automatically rinses the heat exchanger at the end of each cycle to maintain optimal drying performance. However, periodic manual cleaning is still recommended according to the user manual.

Can I dry wool or delicate fabrics in this dryer?

Yes, the EDH3498RDE includes a special wool programme for machine-washable wool items. Use a low heat setting and follow garment care labels. Do not overdry delicates.

Why is the drying cycle taking longer than expected?

Possible causes include: overloaded drum, clogged lint filter or condenser, high moisture content in clothes, or low room temperature. Check and clean filters, reduce load size, and ensure proper ventilation.

How do I activate the child lock?

Press and hold the 'Child Lock' button (or specific combination) for 3-5 seconds until the indicator light turns on. Repeat to deactivate. Refer to the user manual for exact instructions.

What should I do if the dryer displays an error code?

Common error codes include E10 (water tank full) or E40 (condenser blockage). Empty the water tank, clean the condenser, and restart. If the error persists, contact Electrolux customer service.

How can I reduce energy consumption?

Use the 'Eco' programme for optimal efficiency. Always dry full loads (but not overloaded). Clean filters regularly. Use the highest spin speed in your washing machine to remove excess water before drying.

Is the EDH3498RDE suitable for built-in installation?

Yes, this model is designed for built-in or freestanding installation. Ensure adequate air circulation around the dryer. Minimum clearance requirements are detailed in the user manual.

What spare parts are available for this dryer?

Common spare parts include lint filters, condenser filters, door seals, belts, and heating elements. Genuine Electrolux parts can be ordered from authorized distributors or the official website.

USER MANUAL EDH3498RDE ELECTROLUX

CONTENTS

1. SAFETY INFORMATION.... 3
2. SAFETY INSTRUCTIONS....5
3. PRODUCT DESCRIPTION....7
4. CONTROL PANEL....7
5. PROGRAMME TABLE....9
6. OPTIONS....10
7. SETTINGS....12
8. BEFORE FIRST USE....13
9. DAILY USE....14
10. HINTS AND TIPS.... 14
11. CARE AND CLEANING....15
12. TROUBLESHOOTING....18
13. TECHNICAL DATA....19

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com

Register your product for better service:

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Read the supplied instructions.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance. • Children of less than 3 years should be kept away unless continuously supervised.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.
• If the appliance has a child safety device, we recommend you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

1.2 General Safety

• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the

accessory. Read it carefully before installation (Refer to the Installation leaflet).

- The appliance can be installed as freestanding or below the kitchen counter with correct space (Refer to the Installation leaflet).

- Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, where the appliance door cannot be fully opened.

- The ventilation openings in the base (if applicable) must not be obstructed by a carpet.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Ensure you have good ventilation in the installation room to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. (if applicable)

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

- Obey the maximum load volume of 9kg (refer to the “Programme chart” chapter).

- Do not use the appliance if industrial chemicals have been used for cleaning.

- Wipe away lint that has accumulated around the appliance.

- Do not run the appliance without a filter. Clean the lint filter before or after each use.

- Do not dry unwashed items in the tumble dryer.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
• Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not install or use the appliance where the temperature is less than 5°C or higher than 35°C.
• Make sure that the floor where you install the appliance is flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor. • Always move the appliance vertically.
• The rear surface of the appliance must be put against the wall.
• When the appliance is put in its permanent position, check if it is fully level with the aid of a spirit level. If it is not, adjust the feet until it is.

2.2 Electrical connection

WARNING!

Risk of fire and electrical shock.

• The appliance must be earthed. - Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician. • Always use a correctly installed shockproof socket. - Do not use multi-plug adapters and extension cables. - Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. - Do not touch the mains cable or the mains plug with wet hands. - Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use a 13 amp ASTA (BS 1362) fuse. - This appliance complies with the E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electrical shock, fire, burns or damage to the appliance.

• Use this appliance in a household only.
• Do not dry the damaged items which contain padding or fillings.
• Only dry fabrics which are applicable to dry in the tumble dryer. Follow the instructions on the fabric label.
• If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door.
• Do not dry dripping wet clothes in the tumble dryer.

2.4 Internal light

WARNING!

Risk of injury.

• Visible LED radiation, do not look directly into the beam.
• The type of light bulb or halogen lamp used for this appliance is only for household appliances. Do not use it for house lighting.
• To replace the internal light, contact the Authorised Service Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

2.6 Compressor

WARNING!

Risk of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with a special agent that is free from fluoro-chlorohydrocarbons. This system must remain sealed. Damage to the system can cause a leak.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets from getting closed in the appliance.

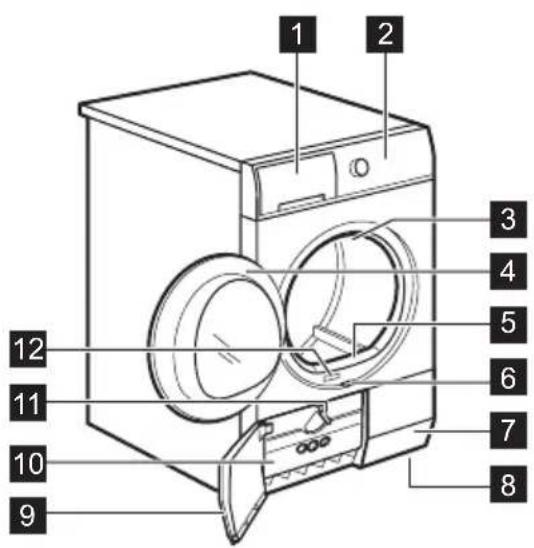

3. PRODUCT DESCRIPTION

1 Water container 2 Control panel 3 Internal light 4 Appliance door 5 Primary Filter 6 The button to open the heat exchanger door 7 Airflow slots 8 Adjustable feet 9 Heat exchanger door 10 Heat exchanger cover 11 The knob to lock the heat exchanger cover 12 Rating plate

The load door can be installed by the user on the opposite side. This can help to easily put in and remove the laundry, or if there is a limit to installing the appliance (see separate leaflet).

4. CONTROL PANEL

1 Programme knob 2 Dryness touchpad 3 Reverse Plus touchpad 4 Display

5 Time touchpad 6 Delay touchpad 7 Buzzer touchpad 8 Anti-crease touchpad

9 ▷ Start/Pause touchpad 10 Rack Time increase + touchpad 11 Rack Time decrease touchpad 12 MyFavourite+ touchpad 13 On/Off button

Touch the touchpads with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate with the control panel. Make sure that the control panel is always clean and dry.

4.1 Indicators

Indicators Description
###	Drying phase
	Cooling phase
	Crease guard phase
	Condenser
	Water container
	Filter
	Delay start
	Child lock
	Acoustic signals
	Reverse plus
dB	Extra Silent
	Drying level
Time of day	Text bar
2.00	Programme duration
10! 2.00	Time Drying duration
30! 20h	Delay start duration

5. PROGRAMME TABLE

Programmes Type of load		Load (max.)1) / Fabric mark
Cotton	Drying level: Extra Dry, CupboardDry+, Cupboard Dry 2)3), Iron Dry3)	9kg/ [IMAGE]
Synthetic	Drying level: Extra Dry, CupboardDry3), Iron Dry 3)	3,5kg/ [IMAGE]
Sports	Sportswear, thin and light fabrics, micro-fiber, polyester, which are not ironed.	2kg/ [IMAGE]
Duvets	To dry one or two duvet and pillows (with feather, down or synthetic fillings).	3kg/ [IMAGE]
Drying Rack4)	For drying sport shoes only with Drying Rack (see separate user manual provided with Drying Rack).	1kg (or 1 pair of sport shoes)
Wool5)	Wool fabrics. Gentle drying washable woollens. Remove immediately the items when the programme is completed.	1kg
Rapid	To dry cotton and synthetic fabrics, uses low temperature.	2kg/ [IMAGE]
[CZ6WK]
Cottons Extra Silent	Gently dry cottons items with the noise decreased to the minimum. The programme can be used at night.Drying level: Extra Dry, Cupboard Dry+, Cupboard Dry	9kg/
Jeans	Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).	9kg/
Silk	To dry silk with warm air and gentle movement.	1kg/
Easy Iron	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other. Shake the items before you put them in the appliance. When the programme is completed, Immediately remove the items and put them on a hang-er.	1kg (or 5 shirts)/
Time Drying	With this programme you can use the option Time and set the programme dura-tion.	9kg/
Refresh Refreshing a textiles that were in storage.		1kg

1) The maximum weight refers to dry items. 2) The Cotton Cupboard Dry programme is the "Standard cotton programme" and it is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry. 3) For test institutes only: Standard programmes for tests are specified in the EN 61121 document. 4) Only with the Drying Rack (standard accessory or optional, depending on model). 5) The wool drying cycle of this tumble drying machine has been tested and approved by The Woolmark Company. The cycle is suitable to dry wool garments, which are labelled "hand wash" provided that the garments are washed in a Woolmark endorsed hand washing cycle and tumble dried according to the instructions issued by the manufacturer. 1780SW13W. 6) Press the Others touchpad again and again until the necessary programme come into the view on the display

6. OPTIONS

6.1 Time

This option is applicable only to the Time Drying programme. You can set the programme duration, from a minimum of 10 minutes to a maximum of 2 hours. The setting of the duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

6.2 Anti-crease

Extends of 60 minutes the standard anticrease phase (30 minutes) at the end of the drying cycle. This function prevents

the laundry from creases. The laundry can be removed during the anticrease phase.

6.3 Dryness

This function helps to get the laundry more dried. There are 4 possible selections:

• Extra Dry
• Cupboard Dry+ (for Cotton only)
• Cupboard Dry
• Iron Dry

6.4 Reverse Plus

To dry more lightly the sensitive and temperature sensitive textiles (e.g. acrylic, viscose). This function helps also to

decrease the creases on the laundry. For fabrics with the symbol ☐ on the fabric label.

6.5 Rack Time Drying

This option is applicable only to the Drying Rack programme. You can set the programme duration, from a minimum of 30 minutes to a maximum of 4 hours. The setting of the duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

6.6 Buzzer

You can hear the buzzer at the:

• cycle end
• start and end of crease guard phase
• cycle interruption

The buzzer function is by default always on. You can use this function to activate or deactivate the sound.

You can activate the Buzzer option with all programmes.

6.7 MyFavourite+

The first time you activate the appliance, if you press MyFavourite+ the display shows that the memory is empty. The appliance can memorise automatically the most used programmes after some uses.

With this touchpad you can set one of the 3 most used drying programmes.

• Press MyFavourite+ one time to set My Favourite 1
• Press MyFavourite+ two time to set My Favourite 2
• Press MyFavourite+ three time to set My Favourite 3

6.8 Options table

Programmes1)
Cotton	■■
Synthetic	■■■
Sports	■
Drying Rack		■
Rapid	■
Duvets
Wool
		P Others
Cottons Extra Silent	■■
Jeans	■
Silk	■
Easy Iron	■
Time Drying	■■
Refresh ■

1) Together with the programme you can set 1 or more options. To activate or deactivate them, press the related touchpad.

7. SETTINGS

A) Time touchpad B) Delay touchpad C) Buzzer touchpad D) Anti-crease touchpad E) Start/Pause touchpad F) Rack Time increase + touchpad G) Rack Time decrease touchpad H) MyFavourite+ touchpad I) Reverse Plus 🕒 touchpad J) Dryness 🙏 touchpad

7.1 Child lock function

This option prevents children to play with the appliance while a programme operates. The programme knob and the touchpads are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touchpads (A) and (D) at the same time. The child lock indicator comes on.

The child lock indicator comes on.

It is possible to deactivate the child lock option while a programme operates. Press and hold the same touchpads until the child lock indicator goes off.

7.2 Language

To change the language:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (B) and (C) at the same time until previously selected language comes on.
4. Press the + or - touchpad to set your language.
5. To memorise the selection press the (E) touchpad.

7.3 Adjustment of the remaining laundry moisture degree

To change the default degree of the remaining moisture of the laundry:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold buttons (A) and (B) at the same time.

One of these indicators comes on:

- CO_ the maximum dry laundry - CO= the more dry laundry - CO= the standard dry laundry

1. Press button (E) again and again until the indicator of the correct level comes on.
2. To confirm the adjustment, press and hold buttons (A) and (B) at the same time for approximately 2 seconds.

7.4 The indicator of the water container

By default, the indicator of the water container is on. It comes on when the programme is completed or when it is necessary to empty the water container.

If the draining kit is installed (additional accessory), the appliance automatically drains the water from the water container. In this condition we recommend that you deactivate the indicator of the water container. Refer to the supplied information for available accessories.

Deactivating the water container indicator:

1. Press the on/off button to activate the appliance.

8. BEFORE FIRST USE

Before you use the appliance for the first time do these operations:

• Clean the tumble dryer drum with a moist cloth.
• Start a short programme (e.g. 30 minutes) with moist laundry.

At the beginning of the drying cycle (3-5 min.), there could be a slightly higher sound level. This is due to the start of the compressor, which is normal for compressor-powered appliances such as refrigerators and freezers.

8.1 Language

You can change the language at any time (see Settings chapter).

1. Wait approximately 8 seconds.
2. Press and hold touchpads (J) and (I) at the same time.

The display shows one of these 2 configurations:

• The indicator is off and the indicator is on. The indicator of the water container is off. After approximately 4 seconds, the 2 indicators go off.

• The indicator and are _ _ 1 on. The indicator of the water container is on. After approximately 4 seconds, the 2 indicators go off.

The first time you activate the appliance, the default language appears on the display. You can confirm it or set a different language. To set a different language:

1. Press the or touchpad to set your language.
2. To memorize the selection, press the Start/Pause touchpad.

9. DAILY USE

9.1 Start a programme without delay start

1. Prepare the laundry and load the appliance.

CAUTION!

Make sure that when you close the door, the laundry does not catch between the appliance door and the rubber seal.

1. Press the on/off button to activate the appliance.
2. Set the correct programme and options for the type of load.

The display shows the programme duration.

1. Press the Start/Pause touchpad. The programme starts.

9.2 Starting the programme with delay start

1. Set the correct programme and options for the type of load.
2. Press the delay start button again and again until the display shows the delay time you want to set.

You can delay the start of a programme from a minimum of 30 minutes to a maximum of 20 hours.

1. Press the Start/Pause touchpad.

The display shows the countdown of the delay start.

When the countdown is completed, the programme starts.

9.3 Change a programme

1. Press the on/off button to deactivate the appliance.
2. Press the on/off button to activate the appliance.

HINTS AND TIPS

10.1 Preparing the laundry

- Close the zippers.

1. Set the programme.

9.4 At the end of the programme

When the programme is completed:

• An intermittent acoustic signal operates.
• The indicator is on.
• The Start/Pause indicator is on.

The appliance continues to operate with the crease guard phase for approximately another 30 minutes.

The crease guard phase removes creases from your laundry.

You can remove the laundry before the crease guard phase is completed. We recommend, for better results, that you remove the laundry when the phase is almost completed or completed.

When the crease guard phase is completed:

- The indicator is on.

- Start/Pause indicator goes off.

1. Press the on/off button to deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

Always clean the filter and empty the water container when a programme is completed.

9.5 Auto Off function

To decrease the energy consumption, this function automatically deactivates the appliance:

• After 5 minutes if you do not start the programme. • After 5 minutes from the end of the programme. - Close the fasteners of the duvet covers.

• Do not keep ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from the pockets.
• If an item has the internal layer made of cotton, turn it inside out. Make sure that the cotton layer is always external. We recommend that you set the correct programme applicable for the type of fabrics that are in the appliance.
• Do not put fabrics with strong colours together with fabrics with light colours. Strong colours can bleed.
• Use an applicable programme for cotton jersey and knitwear to prevent the items from shrinking.
• Make sure that the laundry weight is not more than the maximum weight that is in the programme table.
• Dry only the laundry that is applicable for tumble dryer. Refer to the fabric label on the items.

Fabric label Description
	Laundry that is applicable for tumble drying.
	Laundry that is applicable for tumble drying and resists higher drying temperature.
	Laundry that is applicable for tumble drying but only with low drying temperature.
	Laundry that is not applicable for tumble drying.

11. CARE AND CLEANING

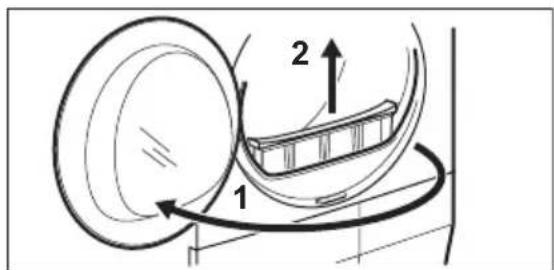

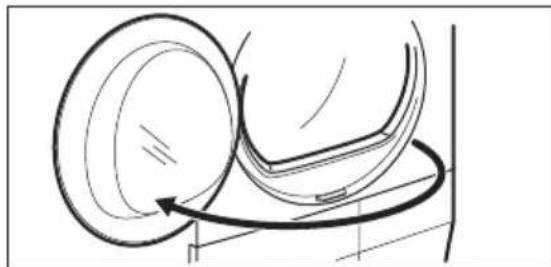

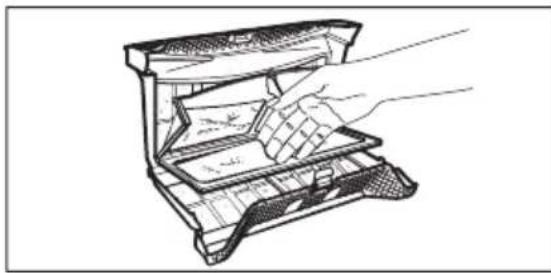

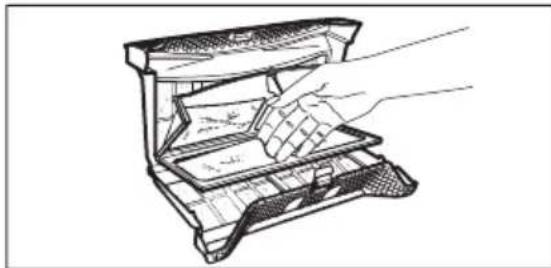

11.1 Cleaning the filter

1.2.

3.

4.

5.1)

1.

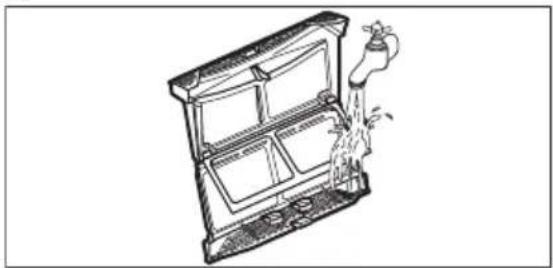

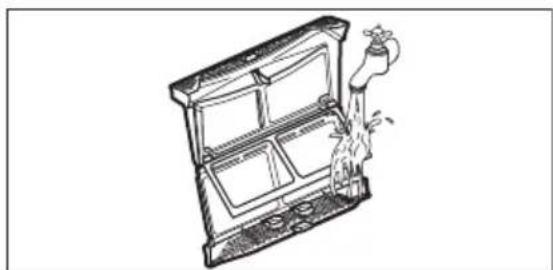

1) If necessary clean the filter with tap warm water using a brush and/or a vacuum cleaner.

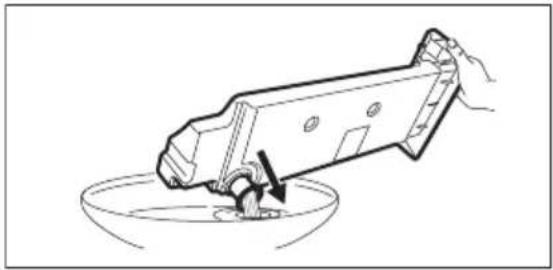

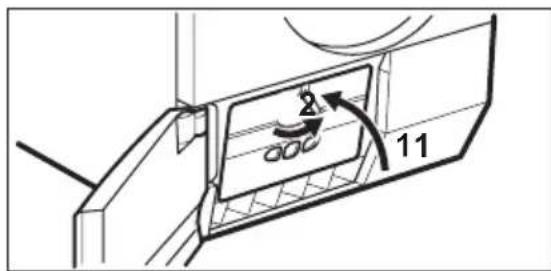

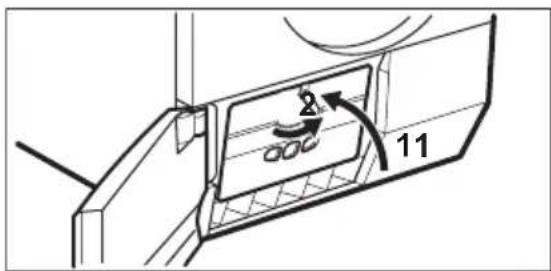

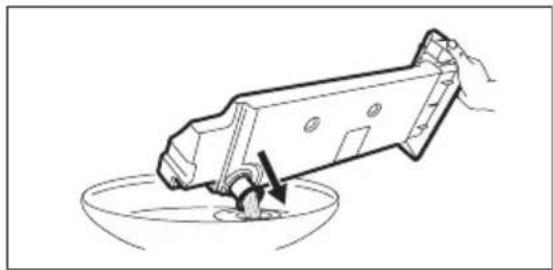

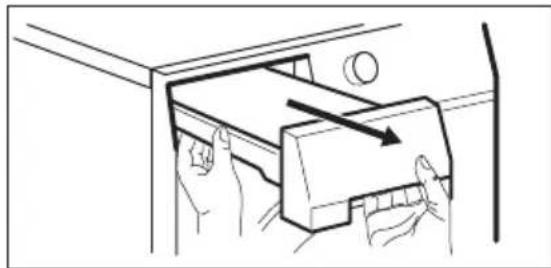

11.2 Draining the water container

You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a filter.

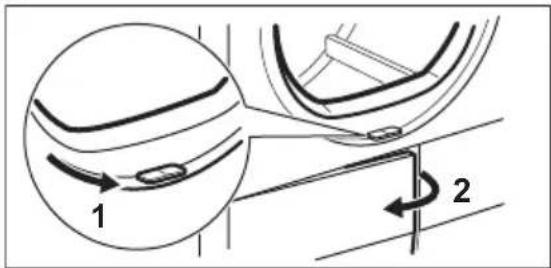

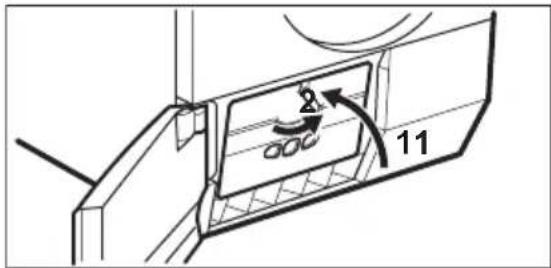

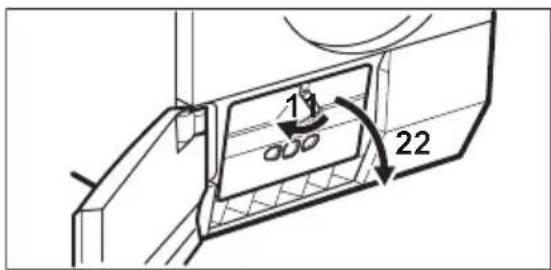

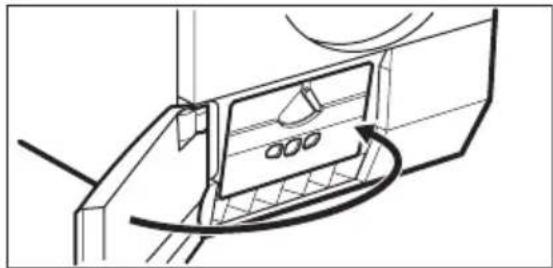

11.3 Cleaning the condenser

1.

1.

1.

11.4 Cleaning the drum

WARNING!

Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum ribs. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use abrasive materials or steel wool to clean the drum.

11.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

Do not use furniture cleaning agents or cleaning agents which can cause corrosion to clean the appliance.

11.6 Cleaning the airflow slots

Use a vacuum cleaner to remove the fluff from the airflow slots.

12. TROUBLESHOOTING

Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket.
Check fuse in fuse box (domestic installation).
The programme does not start. Press Start/Pause.
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is correct.
Make sure that the laundry does not catch between the appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty. Press Start/Pause to start the programme again.
The display shows a long programme duration. 1)	Make sure that the weight of the laundry is applicable to the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the washing machine again.
Make sure that the room temperature is not too warm.
The display shows a short programme duration.	Set the Time Drying or the Extra Dry programme.
The display shows Err. If you want to set a new programme, de-activate and activate the appliance.
Make sure that the options are applicable to the programme.
The display shows (e.g. E51). Deactivate and activate the appliance.Start a new programme. If the problem occurs again, contact the Service.

1) After maximum 5 hours, the programme ends automatically

If the drying results are not satisfactory

• The set programme was incorrect.
• The filter is clogged.
• The condenser is clogged.
• There was too much laundry in the appliance.
• The drum is dirty.
• Incorrect setting of the conductivity sensor.
• The airflow slots are clogged.

13. TECHNICAL DATA

Height x Width x Depth 850 x 600 x 600 mm (maximal 640 mm)
Max. depth with the appliance door open 1090 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 9 kg
Voltage 230 V
Frequency 50 Hz
Necessary fuse 4 A
Total power 900 W
Energy efficiency class	A++
Energy consumption1)	2,28 kWh
Annual energy consumption2)	259 kWh
Left-on mode power absorption 0,50 W
Off mode power absorption 0,50 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4

1) With reference to EN 61121. 9kg of cotton centrifuged at 1000 rpm.

2) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No 392/2012).

13.1 Consumption Data

Programme Spun at / residual humidity Drying time			Energy consumption
Cotton 9 kg
Cupboard Dry 1400 rpm / 50%	175 min.	2,00 kWh
1000 rpm / 60%	200 min.	2,28 kWh

Programme Spun at / residual humidity Drying time	Energy consumption
Iron Dry 1400 rpm / 50% 121 min. 1,31 kWh
1000 rpm / 60% 138 min. 1,49 kWh
Synthetic 3,5 kg
Cupboard Dry 1200 rpm / 40% 56 min. 0,54 kWh
800 rpm / 50% 64 min. 0,61 kWh

14. ENVIRONMENT CONCERNS

Recycle the materials with the symbol. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do

not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE OF CONTENTS

A) Time Touchpad B) Delay Touchpad C) Buzzer Touchpad D) Anti-crease Touchpad E) Start/Pause ▷II Touchpad F) Extended Drying Time Touchpad G) Reduced Drying Time Touchpad H) MyFavourite+ Touchpad I) Reverse Plus Touchpad J) Dryness Touchpad

3.

4.

1. 1)

6.

3.4.

The water from the

1.

1.

5.6.

8.

3.

4.

5.1)

6.

3.4.

1.

1.

5.6.

8.
