| Product Type | Wireless N ADSL2+ Modem Router |
| Model | TEW-722BRM |
| Wireless Standard | IEEE 802.11b/g/n (up to 150 Mbps) |
| Frequency Band | 2.4 GHz |
| WAN Port | 1 x RJ-11 (ADSL2+/Annex A) |
| LAN Ports | 4 x 10/100 Mbps RJ-45 |
| Antenna Type | Internal antenna |
| Dimensions (L x W x H) | 180 x 130 x 35 mm |
| Weight | 300 g |
| Power Supply | 12 V DC, 1 A |
| Power Consumption | ~10 W |
| Firewall | SPI, NAT, DoS prevention |
| Wireless Security | WEP, WPA/WPA2-PSK, WPA2-RADIUS |
| VPN Support | PPTP, L2TP, IPSec pass-through |
| Management | Web-based GUI, telnet, SNMP |
| Advanced Features | QoS, Port forwarding, DMZ, Dynamic DNS |
| LED Indicators | Power, DSL, Internet, WLAN, LAN (x4) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 70°C |
| Maintenance | Reset button, firmware upgrade via web |
| Spare Parts and Repairability | No user-serviceable parts; contact support for repairs |
Frequently Asked Questions - TEW-722BRM TRENDNET
User questions about TEW-722BRM TRENDNET
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Router in PDF format for free! Find your manual TEW-722BRM - TRENDNET and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TEW-722BRM by TRENDNET.
USER MANUAL TEW-722BRM TRENDNET
TEW-722BRM
TRENDnet User's Guide
Table of Contents
Contents
Product Overview ....1
Package Contents .... 1
Features 1
Product Hardware Features....2
Applicaon Diagram 4
Basic Router Setup ....5
Creang a Home Network 5
Router Installaon 6
Connect additional wired devices to your network.... 10
Wireless Networking and Security....10
How to choose the type of security for your wireless network .... 10
Secure your wireless network 11
Connect wireless devices to your router 13
Connect wireless devices using WPS 13
Basic wireless sengs 14
Guest Network....15
Steps to improve wireless connectivity 16
Advanced wireless sengs.... 17
Mulple SSID 17
Additional Wireless Sengs 17
Access Control Filters 18
Access control basics 18
Wireless MAC address Iters 18
MAC address Iters 19
URL/Keyword Blocking....19
Domain Filters 19
IP Filtering 20
Packet Filters 20
Advanced Router Setup 22
Access your router management page.... 22
Change your router login password 23
Set your router date and me 23
Manually congure your Internet connection 24
Change your router IP address 28
Set up the DHCP server on your router 29
Enable/disable UPnP on your router 30
Allow/deny VPN connecons through your router 30
Congure ALG sengs 31
Additional Security Sengs.... 31
Allow/deny mulcast streaming.... 32
ldenfy your network on the Internet 33
Allow remote access to your router management page 34
Congure remote access rules 34
Congure the router's Ethernet port sengs 35
Open a device on your network to the Internet.... 35
DMZ....35
Virtual Server 36
Port Trigger 37
Priorize trac using QoS (Quality of Service) 38
Create schedules 39
Add stac routes to your router.... 39
Enable dynamic round on your router 40
TRENDnet User's Guide
Table of Contents
Setup Port Mapping....41
Setup IPv6 on your router 41
Congure ADSL sengs....42
Router Maintenance & Monitoring......42
Reset your router to factory defaults 42
Router Default Sengs 43
Backup and restore your router conguraon sengs 44
Restart your router 46
Check connecvity using the router management page 46
Manage Inializaon Scripts 46
Check Internet connectivity using the router management page 47
Check the router system informaon....47
Check the router IPv6 status.... 49
Check the router IPv6 status.... 49
Check the router Wireless clients 49
Check the router LAN clients 50
Check the router Roung Table....50
Check the router Basic Stascs....50
Check the router DSL Stascs....50
View your router log....51
View your router trac 51
Congure your router log 52
Enable SNMP on your router....53
Enable TR-069 on your router 54
Troubleshoong 55
Appendix 56
Product Overview
Package Contents
In addition to your router, the package includes:
• Multi-Language Quick Installaon Guide
• CD-ROM (User's Guide)
• Network cable (1.5m / 5.)
• RJ-11 telephone cable (1.8m / 5.)
• Power adapter (12V DC, 0.5A)
If any package contents are missing or damaged, please contact the retail store, online retailer, or reseller/distributor from which the product was purchased.
Features
TRENDnet's N300 Wireless ADSL 2+ Modem Router, model TEW-722BRM, is a combinaon high performance modem for Internet access and powerful wireless N300 router—well suited for medium to large size homes. The modem is compatible with most ADSL Internet service provider networks and it comes with an intuitive guided setup wizard. For your convenience the wireless network is setup and pre-encrypted out of the box.
Features
Easy Setup
Get up and running in minutes with the intuitive guided setup
Internet Service
Comparable with most ADSL 2/2+ internet service provider networks
N300 Wireless
Powerful 300 Mbps Wireless N
Wireless Coverage
Whole home wireless coverage with MIMO antenna technology for medium to large size homes
Pre-Encrypted Wireless
For your convenience the wireless network arrives pre-encrypted with its own unique password
Guest Network
Create an isolated network for guest internet access only
Wireless On/O Buon
Enable or disable the wireless network with the convenient on/o wireless buon
One Touch Connecon
Connect to the router at the touch of the Wi-Fi Protected Setup (WPS) buon
Parental Controls
Control access to specific websites and manage which devices can access the router
TRENDnet User's Guide
TEW-722BRM
Advanced QoS
Classify and prioritize dierent types of data such as video and audio transmissions
Energy Savings
Embedded GREENnet technology reduces power consumption by up to 50%
Ethernet Ports
Four Ethernet ports to hardwire devices
IPv6
IPv6 network support
*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical speciaons. Actual data throughput and coverage will vary depending on interference, network trac, building materials and other conditions.
Product Hardware Features
Rear View

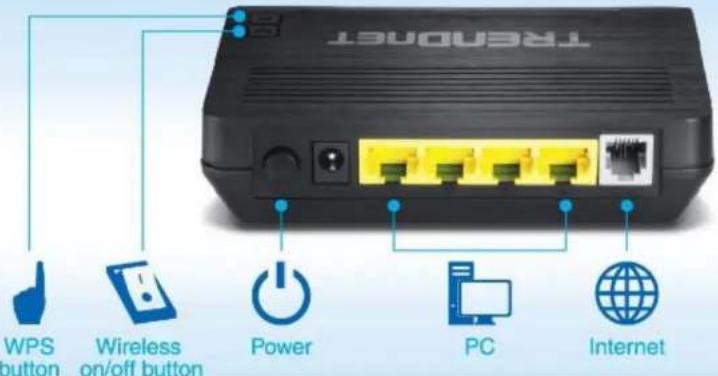

- On/O Power Buon: Push to power on or a router.
- Power Port: Connect the included power adapter from your modem router power port and to an available power outlet.
Note: Use only the adapter that came with your router.
• LAN Ports: Connect Network cables (also called network cables) from your modem router LAN ports to your wired network devices.
- ADSL WAN Port (RJ-11 telephone port): Connect an RJ-11 telephone cable from your modem router ADSL WAN port to your telephone jack/DSL line.
- Reset Buon: Push and hold this buon for 10 seconds and release to reset your router to its factory defaults.
Front View
Diagnosc LEDs
- WLAN On/O: Press buon to turn o or on wireless network.
- WPS Buon: Push buon to acvate WPS (WiFi Protected Setup) push and hold this buon for 3 seconds and release to acvate WPS. Within 2 minutes, push and hold the WPS buon on your wireless client device. WLAN LED indicator will blink rapidly to indicate that WPS has been acvated.
• Diagnosc LEDs:
o Power LED: This LED indicator is blinks green when properly connected to a power supply. When the device is malfunconed LED indicator will be red.
o LAN 1-4 (Link/Acity) LEDs – These LED indicators are solid green when the LAN ports are successfully connected to your wired network devices (which are turned on). These LED indicators will blink green while data is transmied or received through your modem router's LAN ports.
o Wireless WLAN (Link/Activity) LED: This LED indicator is solid green when the wireless is "On" and functioning properly on your modem router. This LED indicator will be blinking while data is transmied or received by your wireless clients or wireless network devices connected to your modem router. This LED indicator will be o when the wireless functionality of your modem router is disabled.
o ADSL WAN (Link/Acvity) LED: This LED indicator is blinking green when the ADSL status of the modem router is ready to establish conncon to your ISP. The LED indicator will turn solid green when the modem router has been properly congured with the sengs provided by your ISP and successful ADSL conncon has been made to your ISP. This LED indicator will be blink while data is transmied or received through the ADSL port of your modem router.
o Internet: This LED Indicator is solid green with valid internet conncon. The LD indicator blinks green during data transmission. If the indicator is red, this indicates invalid internet conncon.
- WPS LED: This LED indicator blinks green when WPS is acvated. The LED will stop blinking and remain solid when WPS is completed. When the indicator blinks red it indicates there was no WPS device connected.
TRENDnet User's Guide
TEW-722BRM
Applicaon Diagram
Music
Surfing
The router is installed near the wall telephone jack/DSL line (DSL service supplied by your ISP "Internet Service Provider") which connects to the Internet. Wireless signals from the router are broadcasted to wireless clients such as laptops (with wireless capability) thereby providing Internet access.
Basic Router Setup
Creang a Home Network
What is a network?
A network is a group of computers or devices that can communicate with each other. A home network of more than one computer or device also typically includes Internet access, which requires a router.
A typical home network may include mulple computers, a media player/server, a printer, a modem, and a router. A large home network may also have a switch, additional routers, access points, and many Internet-capable media devices such as TVs, game consoles, and Internet cameras.
- Modem: Connects a computer or router to the Internet or ISP (Internet Service Provider).
Note: The TEW-722BRM is a combinaon DSL modem and router, therefore, you do not require a separate DSL modem from your ISP when seng up this product. - Router: Connects mulple devices to the Internet.
- Switch: Connect several wired network devices to your home network. Your router has a built-in network switch (the LAN port 1-4). If you have more wired network devices than available Network ports on your router, you will need an additional switch to add more wired connexons.
How to set up a home network
- For a network that includes Internet access, you'll need:
• Computers/devices with a Network port or wireless networking capabilities. - A modem and Internet service to your home, provided by your ISP (modem typically supplied by your ISP).
- A router to connect mulple devices to the Internet.
- Set up your router. See "How to setup your router" below.
- To connect additional wired computers or wired network devices to your network, see "Connect additional wired devices to your network" on page 11.
- To set up wireless networking on your router, see "Wireless Networking and Security" on page 11.
How to setup your router
Refer to the Quick Installaon Guide or connue to the next secon "Router Installaon" on page 6 for more detailed installaon instrucons.
Where to nd more help
In addition to this User's Guide, you can nd help below:
- hp://www.trendnet.com/support (documents, downloads, and FAQs are available from this Web page))
TRENDnet User's Guide
TEW-722BRM
Router Installaon
Before you Install
Many Internet Service Providers (ISPs) allow your router to connect to the Internet without verifying the informaon elds listed below. Skip this secon for now and if your router cannot connect to the Internet using the standard installaon process, come back to this page and contact your ISP to verify required ISP specicaon elds listed below.
General ADSL Parameters
VCI: ____
VPI: ____
MTU:
Data Encapsulaon (LLC/VCMux) : ____
Schedule Type (UBR/CBR/VBR/GFR): ____
VLAN Tag (If required by your ISP): ____
ADSL Connecon Types:
1. Ethernet over ATM (RFC 1483 Bridged) with NAT
1a. Obtain IP Address Automacally (Dynamic IP Address)
Host Name (Oponal)
• 1b. Fixed IP address (Stac IP Address)
WAN IP Address: ____. ____. ____ (e.g. 215.24.24.129)
WAN Subnet Mask: ____. ____. ____
WAN Gateway IP Address: ____. ____. ____
Primary DNS Server Address: ____. ____. ____
Secondary DNS Server Address: ____. ____. ____.
2. IP over ATM (RFC 1483 Routed)
• 2a. Obtain IP Address Automacally (Dynamic IP Address)
Host Name (Oponal)
ISP registered Mac Address or Clone MAC address (Oponal)____:____:____:____:____
• 2b . Fixed IP address (Stac IP Address)
WAN IP Address: ____. ____. ____. (e.g. 215.24.24.129)
WAN Subnet Mask: ____. ____. ____
WAN Gateway IP Address: ____. ____. ____
Primary DNS Server Address: ____. ____. ____.
Secondary DNS Server Address: ____. ____. ____.
3. PPP over ATM (PPPoE)
• 3a. PPPoE to obtain IP automacally
Account/User Name: ____
Password: ____
• 3b. PPPoE with a xed IP address
User Name:
Password: ____
Verify Password: ____
IP Address: ____. ____. ____ (e.g. 215.24.24.129)
Primary DNS Server Address:
Secondary DNS Server Address: ____. ____. ____.
4. PPP over Ethernet (PPPoA)
• 4a. PPPoA to obtain IP automacally
Account/User Name:
Password:
• 4b. PPPoA with a xed IP address
User Name: ____
Password:
Verify Password:
IP Address: ____. ____. ____. (e.g. 215.24.24.129)
Primary DNS Server Address:
Secondary DNS Server Address: ____. ____. ____.
TRENDnet User's Guide
TEW-722BRM
Hardware Installaon
- Connect the detachable antenna to your modem router.
- Connect one end of the RJ-11 telephone cable to the modem router ADSL port. Connect the other end of the RJ-11 telephone cable to the telephone jack/DSL line.
- Using the Network cable, connect your computer to one of the four LAN ports on the modem router.
- Connect the power adapter to the modem router and then to a power outlet.
- Verify that the status LED indicators on the front of the modem to conrm the device is fully functional: Status (Green), ADSL (Green), WLAN (Green) and the LAN port (1,2,3,4) (Green) your computer is connected.
Setup Wizard
- Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and go to hp://192.168.10.1. Your router will prompt you for a user name and password.
- Your router will prompt you for a user name and password. For added security, the router is preconfigured with a unique password. You can nd the Password on a scker on the side of the router and on the label on the boom of the router.
- Enter your Username and Password, select your preferred language, and then click Login.
TRENDnet User's Guide
TEW-722BRM
- The Setup Wizard will automatically appear. This secon determines what method the router will use to interface with your ISP service. Select the ADSL Internet conncon type provided by your ISP and click Next.
Note: If the Setup Wizard does not automatically appear, click Setup Wizard (the top buon on the le tab).
Note: It is strongly recommended to contact your ISP to verify all required sengs for one of the opons listed on page 6. The opons listed on page 6 match the sengs opons available to choose from
- The Setup Wizard can automatically detect your VPI/VCI and Data Encapsulaon sengs of your ADSL conncon. Select Auto-detect and click Next.
Note: If you encounter any issues with the Auto-Detect feature on the wizard, you can click "Skip Scan", and congure your ADSL conneccon sengs manually.
- Once the wizard detects your VPI/VCI sengs you can verify if the values are correct and click Next to connue.
- The following screen will appear next, depending the ADSL conncon type you selected, you may need to enter additional informaon such as your PPPoE/PPPoA user name and password informaon provided by your ISP stac IP. Enter any additional informaon required by your ISP for your ADSL conncon and click Next.
TRENDnet User's Guide
TEW-722BRM
- The Summary page will allow you to quickly review the sengs you applied in the Setup Wizard. Click Save to apply sengs.
| Information | |
| WAN IP Address: | 68.167.159.22 |
| WAN DNS Server: | 64.105.132.251,64.105.172.27 |
| WAN MAC Address: | 00:18:E7:5C:42:E9 |
| IP Address | 192.168.10.1 |
| MAC Address | 00:18:E7:5C:42:E9 |
| SSID | 722 |
| Authentication Type | WPA2-AES-PSK |
- Wait for your modem router to apply the sengs.
- Click Finish to return to the router management page.
Note: If you cannot access the Internet, please verify your hardware connexons and LED status and re-run the Setup Wizard to verify you have applied the correct sengs.
- For added security, the router is pre-encrypted with its own unique wireless network security key. You can nd the unique network security key and pre-assigned network name (SSID) on a scker on the front of the router and on a label on the boom of the router. If you would like to change the wireless sengs, connue to the next page to launch the wireless setup wizard.
TRENDnet User's Guide
TEW-722BRM
Connect additional wired devices to your network
You can connect additional computers or other network enabled devices to your network by using Network cables. Connect them to one of the available LAN ports labeled 1,2,3,4 on your modem router. Check the status of the LED indicators (1, 2, 3, or 4) on the front panel of your router to ensure the physical cable conncon from your computer or device.
Note: If you encounter issues connecng to your network, there may be a problem with your computer or device network sengs. Please ensure that your computer or device network sengs (also called TCP/IP sengs) are congured to obtain IP address sengs automacally (also called dynamic IP address or DHCP) and to Obtain DNS Server address sengs automacally.
Wireless Networking and Security
How to choose the type of security for your wireless network
Seng up wireless security is very important. Leaving your wireless network open and unsecure could expose your enre network and personal les to outsiders. TRENDnet recommends reading through this enre secon and seng up wireless security on your new router.
There are a few dierent wireless security types supported in wireless networking each having its own characteristics which may be more suitable for your wireless network taking into consideraon compatibility, performance, as well as the security strength along with using older wireless networking hardware (also called legacy hardware).
It is strongly recommended to enable wireless security to prevent unwanted users from accessing your network and network resources (personal documents, media, etc.).
In general, it is recommended that you choose the security type with the highest strength and performance supported by the wireless computers and devices in your network. Please review the security types to determine which one you should use for your network.
Wireless Encrypon Types
- WEP: Legacy encrypon method supported by older 802.11b/g hardware. This is the oldest and least secure type of wireless encrypon. It is generally not recommended to use this encrypon standard, however if you have old 802.11 b or 802.11g wireless adapters or computers with old embedded wireless cards(wireless clients), you may have to set your router to WEP to allow the old adapters to connect to the router. Note: This encrypon standard will limit conneccon speeds to 54Mbps.
- WPA: This encryption is significantly more robust than the WEP technology. Much of the older 802.11g hardware was been upgraded (with rmware/driver upgrades) to support this encrypon standard. Total wireless speeds under this encrypon type however are limited to 54Mbps.
- WPA / WPA2: This seng provides the router with the ability to detect wireless devices using either WPA or WPA2 encrypon. Your wireless network will automatically change the encrypon seng based on the rst wireless device connected. For example, if the rst wireless client that connects to your wireless
TRENDnet User's Guide
TEW-722BRM
network uses WPA encrypon your wireless network will use WPA encrypon. Only when all wireless clients disconnect to the network and a wireless client with WPA2 encrypon connects your wireless network will then change to WPA2 encrypon. NOTE: WPA2 encrypon supports 802.11n speeds and WPA encrypon will limit your conneccon speeds to 54Mbps
- WPA2: This is the most secure wireless encrypon available today, similar to WPA encrypon but more robust. This encrypon standard also supports the highest conncon speeds. TRENDnet recommends seng your router to this encrypon standard. If you nd that one of your wireless network devices does not support WPA2 encrypon, then set your router to either WPA or WPA-Auto encrypon. Note: Check the specicaons of your wireless network adapters and wireless appliances to verify the highest level of encrypon supported. Below is brief comparison chart of the wireless security types and the recommended conguraon depending on which type you choose for your wireless network.
| Security Standard | WEP | WPA | WPA2 |
| Compatible Wireless Standards | IEEE 802.11a/b/g/n (802.11n devices will operate at 802.11g speeds) | IEEE 802.11a/b/g/n (802.11n devices will operate at 802.11g speeds) | IEEE 802.11a/b/g/n |
| Highest Performance Under This Seng | Up to 54Mbps | Up to 54Mbps | Up to 450Mbps* |
| Encrypon Strength | Low | Medium | High |
| Additional Opons | Open System or Shared Key, HEX or ASCII, Dierent key sizes | TKIP or AES, Preshared Key or RADIUS | TKIP or AES, Preshared Key or RADIUS |
| Recommended Conguraon | Open System ASCII 13 characters | TKIP Preshared Key 8-63 characters | AES Preshared Key 8-63 characters |
*Dependent on the maximum 802.11n data rate supported by the device (150Mbps, 300Mbps, or 450Mbps)
Secure your wireless network
Setup > Wireless Sengs
Aer you have determined which security type to use for your wireless network (see "How to choose the security type for your wireless network" on page 12), you can set up wireless security.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Wireless Sengs.
- Click on the Security Mode drop-down list to select your wireless security type.
Selecng WEP:
If selecng WEP (Wired Equivalent Privacy), please review the WEP sengs to congure and click Apply to save the changes.
- Authencaon Type: Choose Open, Shared, or Auto.
TRENDnet User's Guide
TEW-722BRM
Note: It is recommended to use Open System because it is known to be more secure than Shared Key.
• WEP Key 1-4
- Choose HEX or ASCII.
Note: It is recommended to use ASCII because of the much larger character set that can be used to create the key.
This is where you enter the password or key needed for a computer to connect to the router wirelessly - You can dene up to 4 passwords or 4 keys. Only one key can be acve at a given me. Most users simply dene one key.
- Choose a key index 1, 2, 3, or 4 and enter the key.
When connecng to the router, the client must match both the password and the Key number. (e.g. if you have acvated Key 2 with a password of 12345, then the client must select: Key 2 (entering Key 1, 3, or 4 will block the ability to connect) and enter password 12345)
Selecng WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK (WPA2-PSK recommended): If selecng WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK, (Wi-Fi Protected Access Preshared Key) please review the sengs to congure and click Apply to save the changes.
First, from the Security Mode drop-down list, select WPA-PSK, WPA-PSK / WPA2-PSK, or WPA2-PSK.
o Select the Encrypon type. When selecng WPA-PSK security, it is recommended to use TKIP.
- When selecng WPA-PSK / WPA2-PSK security, it is recommended to use AES.
- When selecng WPA2-PSK security, it is recommended to use AES.
Create your Wireless security preshared key (password or key):
- Preshare Key: Enter the preshared key.
o This is the password or key that is used to connect your computer to this router wirelessly
Note: 8-63 alphanumeric characters (a,b,C,?,*,/,1,2, etc.)
Then from the PSK/EAP row, select either PSK or EAP
• PSK stands for Preshared Key
- EAP stands for Extensive Authencaon Protocol, also called Remote Authencaon Dial-In User Service or RADIUS).
Note: EAP requires an external RADIUS server, PSK only requires you to create a passphrase.
Selecng WPA, WPA / WPA2, or WPA2:
If selecng WPA, WPA / WPA2, or WPA2 (Wi-Fi Protected Access Extensible
Authencaon Protocol) please review the sengs to congure and click Apply to save
| WEP Key Format | HEX | ASCII |
| Character set | 0-9 & A-F, a-f only | Alphanumeric (a,b,C,?,*,/,1,2, etc.) |
| 64-bit key length | 10 characters | 5 characters |
| 128-bit key length | 26 characters | 13 characters |
the changes.
EAP (Extensible Authencaon Protocol) is also called Remote Authencaon Dial-In User Service or RADIUS.
Select the Encrypon Type
- When selecng WPA security, it is recommended to use TKIP.
- When selecng WPA / WPA2 security, it is recommended to use AES.
- When selecng WPA2 security, it is recommended to use AES.
TRENDnet User's Guide
TEW-722BRM
o RADIUS Server IP: Enter the IP address of the RADIUS server. (e.g. 192.168.10.250)
o RADIUS Port: Enter the port your RADIUS server is congured to use for RADIUS authencaon.
Note: It is recommended to use port 1812.
o RADIUS Shared Key: Enter the shared key (or shared secret) used to authorize your router with your RADIUS server.
Connect wireless devices to your router
A variety of wireless network devices can connect to your wireless network such as:
• Gaming Consoles
- Internet enabled TVs
• Network media players
- Smart Phones
• Wireless Laptop computers
- Wireless IP cameras
Each device may have its own soware ulity for searching and connecng to available wireless networks, therefore, you must refer to the User's Manual/Guide of your wireless client device to determine how to search and connect to this router's wireless network.
See the "Appendix" on page 59 for general informaon on connecng to a wireless network.
Connect wireless devices using WPS
Setup > Wireless Sengs > WPS Setup
WPS (Wi-Fi Protected Setup) is a feature that makes it easy to connect devices to your wireless network. If your wireless devices support WPS, you can use this feature to easily add wireless devices to your network.
Note: You will not be able to use WPS if you set the SSID Broadcast seng to Disabled.
There are two methods the WPS feature can easily connect your wireless devices to your network.
- Push Buon Conguraon (PBC) method
- RECOMMENDED Hardware Push Buon method—with an external buon located physically on your router and on your client device
o WPS Soware/Virtual Push Buon - located in router management page
- PIN (Personal Idencaon Number) Method - located in router management page Note: Refer to your wireless device documentaon for details on the operaon of WPS.
Recommended Hardware Push Buon (PBC) Method
Note: it is recommended that a wireless key (passphrase or password) is created before connecng clients using the PBC method. If no wireless key is dened when connecng via PBC, the router will automatically create an encrypon key that is 64 characters long. This 64 character key will then have to be used if one has to connect computers to the router using the traditional connecn method.
To add a wireless device to your network, simply push the WPS buon on the wireless device you are connecng(consult client device User's Guide for length of me), then push and hold the WPS buon located on your router for 3 seconds and release it. The WLAN LED on your modem router will ash rapidly indicang that the WPS setup process has been acvated. (See "Product Hardware Features" on page 2). For connecng additional WPS supported devices, repeat this process for each additional device.
PBC (Soware/Virtual Push Buon)
Setup > Wireless Sengs > WPS Setup
TRENDnet User's Guide
TEW-722BRM
In addition to the hardware push buon located physically on your router, the router management page also has push buon which is a soware or virtual push buon you can click to acvate WPS on your router.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup and click Wireless Sengs, then click on the WPS Setup buon at the boom of the page.
- To add a wireless device to your network, simply the push the WPS buon on the wireless device (consult wireless device's User's Guide for length of me), you are connecng, then in your router management page, make sure the Cong Method is set to Push Buon (default seng) and click on the Trigger buon at the boom of the page.
- The WPS Status area will display status messages about the WPS process.
- The WPS Status area will display "Congured" message to indicate that the wireless client device successfully connected using WPS.
PIN (Personal Idencaon Number)
Setup > Wireless Sengs > WPS Setup
If your wireless device has WPS PIN (typically an 8-digit code printed on the wireless device product label or located in the wireless device wireless soware ulity), you can use this method.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup and click Wireless Sengs, then click on the WPS Setup buon at the boom of the page.
- Next to Cong Status, click Release. The status will change to Uncongured.
- Click the Cong Method drop-down list and select PIN Code. Click Apply.
- In the empty eld, enter the 8-digit WPS PIN of the wireless client device you are connecng and click Trigger.
Note: You may need to initiate the WPS PIN on your wireless device rst when using this method. Refer to your wireless device documentaon for details on the operaon of WPS.
- The WPS Status area will display "Congured" message to indicate that the wireless client device successfully connected using WPS.
Basic wireless sengs
Setup > Wireless Sengs
This secon outlines available management opons under the Wireless Sengs tab.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Wireless Sengs.
- To save changes to this secon, click Apply when nished.
TRENDnet User's Guide
TEW-722BRM

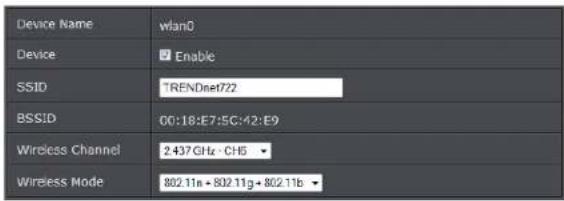

- Device
o Enable turns on the wireless networking on your router (by default it is enabled).
o Disable turns o wireless networking on your router.
Note: It is recommended to leave the wireless seng to Enable unless you do not plan on connecng any wireless computers or devices to your network.
- SSID: This acronym stands for Service Set Idener and is the name of your wireless network. It dierenates your wireless network from others around you. By default, the router broadcast TRENDnet722as the wireless network name. If you choose to change the SSID, change it to a name that you can easily remember.
- Wireless Channel: In North America, this router can broadcast on 1 of 11 Channels (13 in Europe and other countries). Selecting the Auto opon enables the router to automatically select the best Channel for wireless communicaon. To manually set the channel on which the router will broadcast, click the drop-down list and select the desired Channel for wireless communicaon. The goal is to select the Channel that is least used by neighboring wireless networks.
- Wireless Mode: Select the appropriate mode for your network.
o B/G/N mixed: Select this mode for the best compatibility. This mode allows older 802.11b and 802.11g wireless devices to connect to the router in addition to newer 802.11n devices.
o B/G mixed: This mode only allows devices to connect to the router using older and slow 802.11b or 802.11g technology and it thereby reduces the router's maximum speed to 54Mbps (typically not recommended).
- N only: This mode only allows newer 802.11n devices to connect to your router. This mode does ensure the highest speed and security for your network, however if you have older 802.11g wireless clients, they will no longer be able to connect to this router.
o G only: This mode only allows devices to connect to the router using older and slow 802.11g technology (typically not recommended).
o B only: This mode only allows devices to connect to the router using older and slow 802.11b technology (typically not recommended).
Note: Please check the specicaons on your wireless devices for the highest wireless capability supported rst before applying these sengs. If you are unsure, it is recommended that you keep the default seng (B/G/N mixed) for the best compatibility.
When applying the 802.11 mode seng, please keep in mind the following:
- Wireless devices that support 802.11n are backwards compatible and can connect wirelessly at 802.11g or 802.11b.
- Connecng at 802.11b or 802.11g will limit the capability of your 802.11n supported wireless devices from obtaining higher performance and data rates.
- Allowing 802.11b or 802.11g devices to connect to an 802.11n capable wireless network may degrade the wireless network performance below the higher performance and data rates of 802.11n.
- Wireless devices that only support 802.11b or 802.11g will not be able to connect to a wireless network that is set to 802.11n only mode.
- Wireless devices that only support 802.11b will not be able to connect to a wireless network that is set to 802.11g only mode.
Guest Network
Setup > Wireless Sengs
This secon outlines available management opons under the Wireless Sengs tab.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Guest Network.
- To save changes to this secon, click Apply when nished.
TRENDnet User's Guide
TEW-722BRM
- Radio On/O: Select to enable wireless guest network.
- Name (SSID): Enter the wireless name or SSID of your guest network.
- Security Mode: Select the wireless security or encrypon of your guest network.
Steps to improve wireless connectivity
There are a number of factors that can impact the range of wireless devices. Follow these ps to help improve your wireless connectivity:
- Keep the number of obstrucons to a minimum. Each obstrucon can reduce the range of a wireless device. Posion the wireless devices in a manner that will minimize the amount of obstrucons between them.
a. For the widest coverage area, install your router near the center of your home, and near the ceiling, if possible.
b. Avoid placing the router on or near metal objects (such as le cabinets and metal furniture), reecve surfaces (such as glass or mirrors), and masonry walls.
c. Any obstrucon can weaken the wireless signal (even non-metallic objects), so the fewer obstrucons between the router and the wireless device, the beer.
d. Place the router in a location away from other electronics, motors, and fluorescent lightng.
e. Many environmental variables can act the router's performance, so if your wireless signal is weak, place the router in several locaons and test the signal strength to determine the ideal posion. - Building materials can have a large impact on your wireless signal. In an indoor environment, try to pose the wireless devices so that the signal passes through less dense material such as dry wall. Dense materials like metal, solid wood, glass or even furniture may block or degrade the signal.
- Antenna orientaon can also have a large impact on your wireless signal. Use the wireless adapter's site survey tool to determine the best antenna orientaon for your wireless devices.
- Interference from devices that produce RF (radio frequency) noise can also impact your signal. Posion your wireless devices away from anything that generates RF noise, such as microwaves, radios and baby monitors.
If possible, upgrade wireless network interfaces (such as wireless cards in computers) from older wireless standards to 802.11n. If a wirelessly networked device uses an older standard, the performance of the enre wireless network may be slower. If you are sill experiencing low or no signal consider reposing the wireless devices or installing additional access points.
TRENDnet User's Guide
TEW-722BRM
Advanced wireless sengs
Setup > Wireless Sengs
The advanced wireless features can provide you with additional opons for seng up your wireless network such as mulple SSID, acvate/deacvate wireless according to schedule, and operaon modes such as WDS (Wireless Distribuon System) bridging or wireless bridging.
Mulple SSID
Setup > Wireless Sengs
The mulple SSID feature allows you to broadcast up to two additional SSIDs (or wireless network names). To wireless devices searching for available wireless networks to connect to, the SSIDs (or wireless network names) will appear as separate and dierent wireless networks. Since they appear as separate wireless networks, they are also referred to as virtual APs (Access Points). Each virtual AP can be congured each with a dierent SSID (or wireless network name), security type and additional sengs for wireless devices to connect. You can use the mulple SSID feature to setup guest wireless accounts with a dierent security type to keep your primary wireless network security informaon private. In addition, the SSIDs can be mapped to a specied VLAN ID. See the VLAN secon for instrucons on assigning VLAN IDs to the SSIDs.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on MBSSID.
- Review the sengs and click Apply to save sengs.
| Wireless-Guest/Virtual Access Points | |||
| Enable | SSID(VAP) | BSSID | SSID Advertise |
| ■ | TRENDnet722_24C | 00:18:E7:5C:42:EA | ✓ |
| ■ | WLAN_vap1 | 00:18:E7:5C:42:ED | ✓ |
| ■ | WLAN_vap2 | 00:18:E7:5C:42:EC | ✓ |
| ■ | WLAN_vap3 | 00:18:E7:5C:42:ED | ✓ |
- Enable: Check box to enable SSID
- SSID (VAP): Enter the SSID you would like to apply.
• BSSID: MAC address of the SSID
• SSID Adverse: Select to broadcast SSID.
4. See secon Secure your wireless network to congure wireless security sengs.
Additional Wireless Sengs
Advanced > Advanced Wireless
These sengs are advanced opons that can be congured to change advanced wireless broadcast specicaons. It is recommended that these sengs remain set to their default values unless you are knowledgeable about the eects of changing these values. Changing these sengs incorrectly can degrade performance.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on Advanced Wireless. Click Apply to save sengs.
Settings for 11n mode only

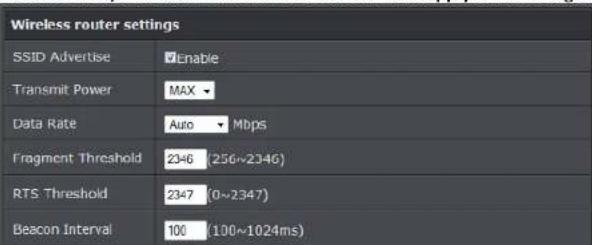

- SSID Adverse: Select enable to broadcast the SSID or wireless network name.
TRENDnet User's Guide
TEW-722BRM
- Regulatory Domain: The channel region assigned (FCC 1\~11 or ETSI 1\~13). This seng cannot be modified and is displayed for informaonal purposes.
- Transmit Power: The wireless transmit power can be modified to a lower seng such as 50%, 25%, and 12% if necessary. Lowering the wireless transmit may help to beer stabilize the wireless connectivity and reduce the eects of wireless interference in areas where there are several 2.4GHz wireless devices. (Default: 100%)
• Data Rate: Select the operang wireless data rate. - Fragment Threshold: Fragmentaon in wireless networks is the process of breaking down data communicaons into smaller data packets in order to improve data eciency when transferring or receiving data between wireless devices. The fragmentaon threshold denotes the maximum size of the data packets that are broken down.
- RTS Threshold: The Request To Send (RTS) funcon is part of the networking protocol. A wireless device that needs to send data will send a RTS before sending the data in queson. The desnaon wireless device will send a response called Clear to Send (CTS). The RTS Threshold denotes the smallest data packet size allowed to initiate the RTS/CTS funcon. Default Value: 2347 (range: 256-2346)
- Beacon Interval: A beacon is a management frame used in wireless networks that transmied periodically to announce the presence and provide informaon about the router's wireless network. The interval is the amount me between each beacon transmission. Default Value: 100 milliseconds (range: 1-1000)
- Bandwidth: This seng only applies to wireless devices connecng at 802.11n. Another term used to describe this parameter is Channel Width. Select the appropriate channel width for your wireless network.
-
20 MHz: This mode operates using a single 20MHz channel for wireless devices connecng at 802.11n. This seng may provide more stability than Auto 20/40 MHz for connectivity in busy wireless environments where there are several wireless networks in the area.
o Auto 20 MHz/40 MHz: This mode can automatically switch between using a single 20MHz channel or 40MHz (two 20MHz channels). When 40MHz is acute, this mode is capable of providing higher performance only if the wireless devices support the 40MHz channel width. Enabling 20/40MHz typically results in substanal performance increases when connecng to an 802.11n client. -
20/40MHz Coexist: Select enable to allow both 20MHz and 40MHz bandwidth connecns.
• Legacy Protecon: Select to enable legacy protecon feature.
• Control Sideband: Select the side band to use. - Aggregaon: Select to enable link aggregaon feature.
- Short GI: Select to enable short guard interval (400ns).
Access Control Filters
Access control basics
Wireless MAC address Iters
Advanced > Advanced Wireless > Wireless MAC Filter
Every network device has a unique, 12-digit MAC (Media Access Control) address. Using wireless MAC Iters, you can allow or deny specific wireless clients using this router's wireless network.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Advanced Wireless, and click on Wireless MAC Filter.
- Review the sengs and click Apply to save sengs.
- Name (SSID): Select the SSID or wireless network name you would like to apply the wireless MAC Iter rule.
• MAC Restrict Mode: Select restricon type to use. - MAC Address: Enter the MAC address to apply the rule. Click Add to add MAC address to select rule.
Note: Any unspecified MAC/IP addresses or entries without the Allow opon checked will be denied network access.
TRENDnet User's Guide
TEW-722BRM
MAC address Iters
Advanced > Firewall > MAC Filter
Every network device has a unique, 12-digit MAC (Media Access Control) address. Using MAC Iters, you can allow or deny specific computers and other devices from using this router's wired or wireless network.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on MAC Filter.
- Add the MAC addresses to the MAC Table rst before applying the MAC Iter funcon.
Note: MAC liter can be congured to allow access to the listed MAC address and deny all others unlisted or vice versa. The recommended funcon is to choose to only allow access to the MAC addresses listed and deny all others unlisted because it is easier to determine the MAC addresses of devices in your network then to determine which MAC addresses you do not want to allow access.
To simplify conguraon, click the LAN clients drop-down list to select and computer or device that is currently connected to your router. Once you have selected the computer or device, click the ID drop-down list to select which entry to copy the selected DHCP client informaon and click Clone. You can choose a DHCP client from the drop down list or you can manually enter the MAC/IP address informaon.
Note: If you are manually entering the MAC/IP address informaon, refer to your computer or device documentaon to nd the MAC address.
- Aer the MAC address (e.g. 00:11:22:AA:BB:CC) and IP address (e.g. 192.168.10.101) informaon is entered, make sure the Allow opon next to the entry to allow network access for this MAC address.
- Next to MAC Address Control at the top of the page, check the Enable opon to enable MAC Itering. Note: Please add MAC/IP address entries rst before enabling.
URL/Keyword Blocking
Advanced > Firewall > URL Filter
You may want to block computers or devices on your network access to websites using specific keywords (e.g. chat, messenger) or URLs (Uniform Resource Locators).
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on URL Filter.
- Review the sengs and click apply to save sengs.
- URL Filter: Check upon to enable feature.
-
Show Redirect Page: Check opon to redirect devices to another website when aempng to access blocked websites.
-
Enter the FQDN or Keyword to block and click Add. Select the me schedule of when to enable the rule or select Always to always block entry.
Domain Filters
Advanced > Firewall > URL Filter
You may want to allow or block computers or devices on your network access to specific websites (e.g. www.trendnet.com, etc.), also called domains.
TRENDnet User's Guide
TEW-722BRM
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on Domain Filter.
- Under Domain blocking secon select Enable.
- Enter the website URL to block and click Add. Select the me schedule of when to enable the rule or select Always to always block entry.
IP Filtering
Advanced > Firewall > IP Filter
You may want to block computers or devices on your network access to your network using IP address.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on URL Filter.
- Click Add to enter sengs.
- Review the sengs and click Apply to save sengs.

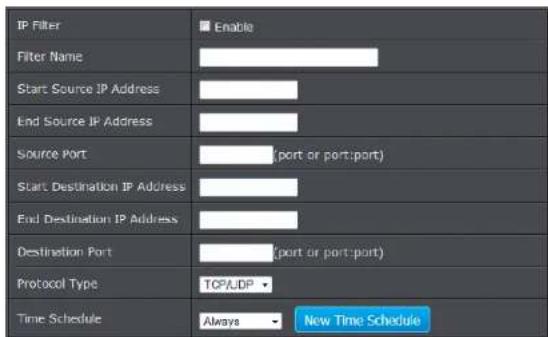

- Enable: Check to enable rule.
- Filter Name: Enter the name of the IP Iter rule.
- Start/End Desnaon IP Address: Enter the starng and ending points of the source IP address to ler.
- Source/Desnaoin Port: Enter the source and desnaon ports of the Iter IP address.
- Protocol Type: Select the protocol to iter of the IP address.
- Schedule: Select the schedule to apply the IP Iter rule or select Always.
Packet Filters
You may want specify inbound or outbound access control to allow/deny sources (or Internet IP addresses) to your network from the Internet or from computers or devices on your network to the Internet. Firewall rules may allow for more granular control of specific inbound and outbound access between your network and the Internet. It is recommended that these sengs remain set to default unless you are knowledgeable about the eects of changing the rewall rule conguraon. It is possible to have undesirable funconality from your router if these sengs are improperly modied.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced and click on Packet Filter.
TRENDnet User's Guide
TEW-722BRM
3. Under Packet Filter secon select Enable and click Apply.
Filter
1. To create a new Iter rule. Click Add in the Filters secon.
2. Review the sengs and click Apply to save.

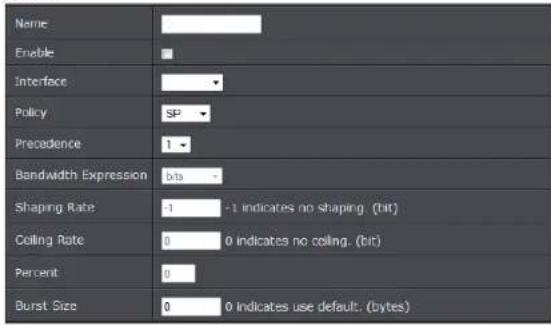

• Name: Enter the name of the Iter.
- Interface:
- Type: Select the type of packets to Iter. In for incoming packets and Out to Iter outgoing packets Select the interface used for the Iter..
- Default Acon: Select to drop or allow the packets.
Rules
1. To create a new rule. Click Add in the Rules secon.
2. Review the sengs and click Apply to save.

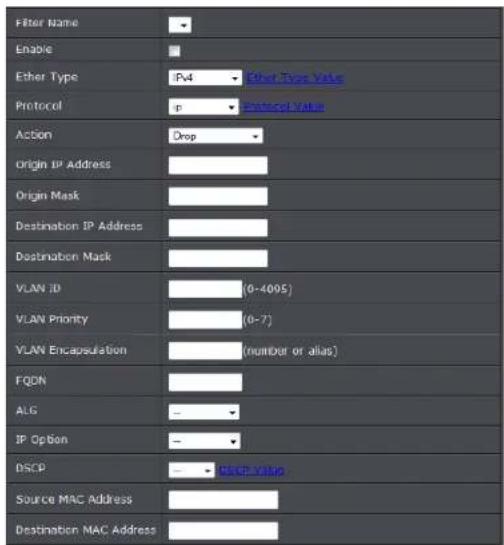

- Filter Name: Select the Iter name to apply the rule. Enter the name of the Iter.
- Enable: Check to enable rule
- Ether Type: Select the ether type to apply on the rule.
- Protocol: Select the protocol type to apply on the rule.
- Acon: Select the acon to take on the rule
- Origin/Desnaon IP: Enter the IP address of the packets origin and desnaon
- Origin/Desnaon Mask: Enter the Subnet mask of the packets origin and desnaon.
• VLAN ID: Enter the VLAN ID to apply on the rule
• VLAN Priority: Enter the VLAN priority of the packets
• VLAN Encapsulaon: Enter the encapsulaon type
• FQDN: Enter the domain name
• ALG: Select the ALG type
• IP Opon: Select IP opon type
TRENDnet User's Guide
TEW-722BRM
• DSCP: Select the DSCP value to apply
- Source/Desnaon MAC Address: Enter the source and desnaon MAC address of the rule.
Generic Rules
- To create a new rule. Click Add in the Rules secon.
- Review the sengs and click Apply to save.
- Filter Name: Select the iter name to apply the rule. Enter the name of the iter.
- Enable: Check to enable rule
- Type: Select the value type to apply on the rule.
- Proto: Select the IP Protocol data type
- Posion: Specify the location of the packet locaon
- Condion: Select the condion type of the rule
• Value: Enter the IP checksum value of the packet - Acon: Select the acon to take of the rule.
Advanced Router Setup
Access your router management page
Note: Your router management page hp://192.168.10.1 is accessed through the use of your Internet web browser (e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and will be referenced frequently in this User's Guide.
- Open your web browser (e.g. Internet Explorer, Firefox, Safari, Chrome, or Opera) and go to hp://192.168.10.1. Your router will prompt you for a user name and password.
- Enter the default user name and password and then click Login.
Default User Name: admin
Default Password: xxxxxxx
TRENDnet User's Guide
TEW-722BRM
Change your router login password
Maintenance > Password
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Password.
- Select the user name to apply changes to. In the Current Password eld, enter the current password. New Password eld, enter the new password and in the Conrm eld, retype the new password again to conrm.
- Click Apply at the boom of the page to save the changes.
Note: If you change the router login password, you will need to access the router management page using the User Name "admin" and the new password instead of the default password "admin".
Set your router date and me
Setup > Time and Date
There are two ways to set the router's date and me. NTP (Network Time Protocol) is based on me servers. You can also manually set the router's date and me.
Note: It is important that the me is congured correctly before seng any schedules. Our router management page hp://192.168.10.1 is accessed through the use of your Internet web browser (e.g. Internet Explorer, Firefox, Chrome, Safari, Opera) and will be referenced frequently in this User's Guide.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Time and Date.
- Next to Time Zone, click the drop-down list to select your me zone.

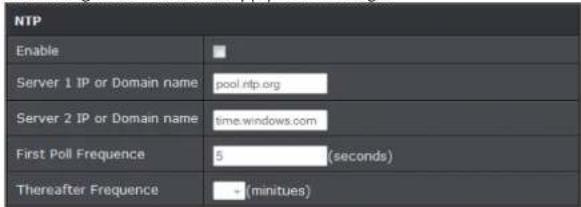

NTP
- Review the sengs below and click Apply to save sengs.
- Enable: Check opon to enable NTP feature
- Server IP: Enter the NTP server IP address or domain to use.
- First Poll Frequency: Enter the initial me to check NTP
- Thereaer Frequency: Select the me of when the router will connue to check for NTP updates.
When using NTP me sengs you may also congure Daylight Saving feature.
TRENDnet User's Guide
TEW-722BRM
- Enable: Check opon to enable daylight savings
- Start/End Time: Congure the start and end me of daylight savings.
Manual
- Manually set the date and me of the router by select the from the pull down menus. Click Sync Time to synchronize with your computer's current me.
• Year: Enter the year to Enable: Check upon to enable NTP feature
- Server IP: Enter the NTP server IP address or domain to use.
- First Poll Frequency: Enter the initial me to check NTP
- Thereaer Frequency: Select the me of when the router will connue to check for NTP updates.
Manually congregate your Internet conneccon
Setup > Internet Setup
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Internet Setup.
- Review and congregate your Internet conneccon sengs. Click Apply to save sengs. Note: Please contact your ISP to determine all conguraon sengs.
Internet Connecon Sengs
- Prole Name: Enter the prole name of your conneccon.
- WAN Link Type: Select the WAN link conncon type (ADSL)
- ATM Connecon: Select the Permanent Vitrual Circuit (PVC) that will be congured.
- Enable: Select enable to acvate internet conncon.
- Enable AutoPVC: Select whether to enable or disable AutoPVC conncon.
• VPI: Enter your ISPs VPI (Virtual Path Idener) values
• VCI: Enter your ISPs VCI (Virtual Channel Idener) values.
• Encapsulaon: Select your ISPs encapsulaon sengs. - ATMQoS: Select the type of ATM Queue of Service used by your ISP.
- Peak Cell Rate: Set the maximum rate of cells provided by your ISP
- Backuped VLAN ID: Set the backup VLAN ID
- Enable Default VLAN: Select enable to acvate VLAN
- PPPoE Passthrough: Select to enable PPPoE Passthrough.
TRENDnet User's Guide
TEW-722BRM
Internet Sengs
Internet Settings
© PPPoE (RFC-2516 PPP over Ethernet)
● PPPoA (RFC-2364 PPP over ATM)
IPoA (RFC-1483 Routed)
Dynamic IP Address (IPoEoA/MER(MAC Encapsulated Routed) with DHCP)
Static IP Address
Bridge Mode (RFC-1483 Bridged)
CIP (RFC-1577 Classic IP/ARP over ATM)
- Internet Sengs: Select your ADSL internet type. Contact your ISP for additional informaon.
PPPoE / PPPoA
If you select PPPoE (RFC-2516 PPP over Ethernet), the screen below is displayed.
• State of Connecon: Select whether to enable or disable this conneccon.
- IPMode of Connecon: Select the conncon mode, opons are:
TRENDnet User's Guide
TEW-722BRM
o Dynamic: Select this opon if the IP address can be automatically obtained from your ISP.
o Stac: Select this opon if you are required to use a permanent IP address to connect to the Internet. You must enter the IP address and subnet mask provided by your ISP.
• Name: Enter your desired conneccon name.
- NAT: Select whether to enable or disable NAT (Network Address Translaon). Enable this seng to share one WAN IP address with mulple computers on your network.
- User Name: Enter the user name provided by your ISP.
- User Password: Enter the password provided by your ISP.
- Conrm Password: Re-enter the password.
- Max MRU: Set the maximum rate of cells that you can receive. If provided by your ISP, enter the rate in the eld. Otherwise, leave this eld to its default seng.
- DNS Enabled: Select whether to enable or disable DNS (Domain Name System).
- DNS Override Allowed: Select whether to enable or disable DNS override.
- DNS Server 1 / DNS Server 2: If provided by your ISP, enter the DNS server. Otherwise, leave these elds blank.
- PPPoE Service Name: Enter a PPPoE service name.
- MAC Address: Display the cloned MAC address. Click Clone MAC to clone the MAC address of your computer.
- PPPoE AC Name: Enter the PPPoE account name provided by your ISP.
- Connecon Trigger: Congure how you want your modem router to connect and terminate the Internet conncon. Opons are:
OnDemand: Enables the modem router to cut o the Internet conncon aer being idle for a specied period of me. The device automacally re-establishes the conncon when you try to access the Internet again. In the Idle Disconnect Time eld, enter the number of seconds that you want to elapse before your modem router terminates the Internet conncon.
o AlwaysOn: Enables the modem router to be connected to the Internet at all mes. If you are disconnected, the device will automatically re-establish the conncon.
o Manual: Manually congregate this seng. Enter the user name and password to establish the Internet conncon.
- Idle Disconnect Time: View the preset idle me before the session is disconnected.
- LCP Interval: Enter the number of seconds that you want to be the interval in sending LCP (Link Control Protocol) packets.
- As system default route: Check this box to set the current seng as the default route.
- ICMP Reply Enable: Check this box to enable ICMP (Internet Control Message Protocol) messages to be sent back to the host that sent the message.
- Proxy ARP Enable: Check this box to enable proxy ARP funcon.
IPoA

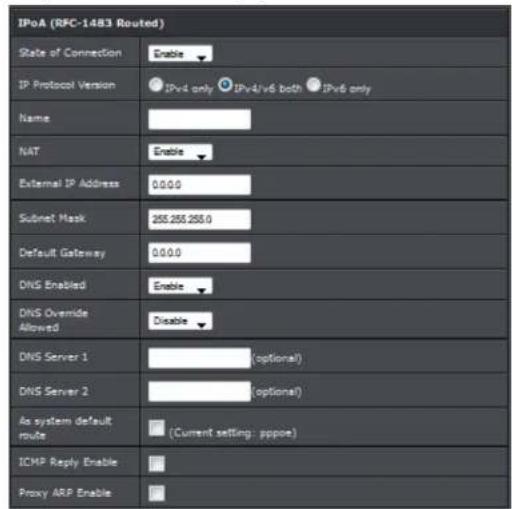

If you select IPoA, the screen below is displayed.
• State of Connecon: Select whether to enable or disable this conneccon.
• Name: Enter your desired conneccon name.
- NAT: Select whether to enable or disable NAT (Network Address Translaon). Enable this seng to share one WAN IP address with mulple computers on your network.
- External IP Address: Enter the IP address provided by your ISP.
- Subnet Mask: Enter the subnet mask provided by your ISP.
TRENDnet User's Guide
TEW-722BRM
- Default Gateway: Enter the default gateway provided by your ISP.
- DNS Enabled: Select whether to enable or disable DNS (Domain Name System).
- DNS Override Allowed: Select whether to enable or disable DNS override.
- DNS Server 1 / DNS Server 2: If provided by your ISP, enter the DNS server. Otherwise, leave these elds blank.
- As system default route: Check this box to set the current seng as the default route.
- ICMP Reply Enable: Check this box to enable ICMP (Internet Control Message Protocol) messages to be sent back to the host that sent the message.
- Proxy ARP Enable: Check this box to enable proxy ARP funcon.
Dynamic / Stac
If you select Dynamic IP, the screen below is displayed.
• State of Connecon: Select whether to enable or disable this conneccon.
• IP Protocol Version: Select the IP protocol version.
• Name: Enter your desired conneccon name.
- NAT: Select whether to enable or disable NAT (Network Address Translaon). Enable this seng to share one WAN IP address with mulple computers on your network.
- DNS Enabled: Select whether to enable or disable DNS (Domain Name System).
- DNS Override Allowed: Select whether to enable or disable DNS override.
- DNS Server 1 / DNS Server 2: If provided by your ISP, enter the DNS server. Otherwise, leave these elds blank.
- MAC Address: Displays the cloned MAC address. Click Clone MAC to clone the MAC address of your computer.
- Opon 125: Select whether to enable or disable Opon 125.
- Opon 60 Vendor ID: Enter opon 60 vendor ID.
• Opon 61 IAID: Enter opon 61 IAID.
- Opon 61 DUID: Enter opon 61 DUID.
- As system default route: Check this box to set the current seng as the default route.
- ICMP Reply Enable: Check this box to enable ICMP (Internet Control Message Protocol) messages to be sent back to the host that sent the message.
- Proxy ARP Enable: Check this box to enable proxy ARP funcon.
- Unicast DHCP-Request: Check this box to enable unicast DHCP request funcon.
Bridge Mode
If you select Bridge mode, the screen below is displayed.
• State of Connecon: Select whether to enable or disable this conneccon.
• IP Protocol Version: Select the IP protocol version.
• Name: Enter your desired conneccon name.
TRENDnet User's Guide
TEW-722BRM
CIP
If you select CIP mode, the screen below is displayed.
• State of Connecon: Select whether to enable or disable this conncon.
- IP Protocol Version: Select the IP protocol version.
• Name: Enter your desired conneccon name.
- NAT: Select whether to enable or disable NAT (Network Address Translaon). Enable this seng to share one WAN IP address with mulple computers on your network.
- External IP Address: Enter the IP address provided by your ISP.
- Subnet Mask: Enter the subnet mask provided by your ISP.
- Default Gateway: Enter the default gateway provided by your ISP.
• DNS Enabled: Select whether to enable or disable DNS (Domain Name System).
- DNS Override Allowed: Select whether to enable or disable DNS override.
- DNS Server 1 / DNS Server 2: If provided by your ISP, enter the DNS server. Otherwise, leave these elds blank.
- As system default route: Check this box to set the current seng as the default route.
- ICMP Reply Enable: Check this box to enable ICMP (Internet Control Message Protocol) messages to be sent back to the host that sent the message.
- Proxy ARP Enable: Check this box to enable proxy ARP funcon.
Change your router IP address
Setup > Local Network
In most cases, you do not need to change your router IP address sengs. Typically, the router IP address sengs only needs to be changed, if you plan to use another router in your network with the same IP address sengs, if you are connecng your router to an existing network that is already using the IP address sengs your router is using, or if you are experiencing problems establishing VPN connconns to your oce network through your router.
Note: If you are not encountering any issues or are not faced with one of the cases described above or similar, it is recommended to keep your router IP address sengs as default.
Default Router IP Address: 192.168.10.1
Default Router Network: 192.168.10.0 / 255.255.255.0
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Local Network.
- Review the sengs and click Apply to save changes.

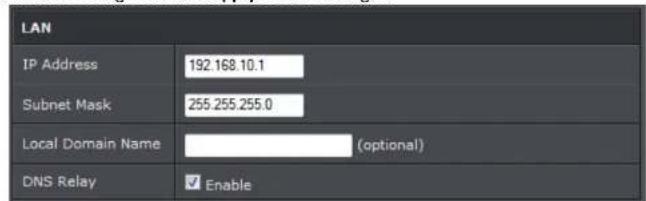

• LAN IP Address: Enter the new router IP address. (e.g. 192.168.200.1)
TRENDnet User's Guide
TEW-722BRM
Note: You will need to access your router management page using your new router IP address to access the router management page. (e.g. Instead of using the default hp://192.168.10.1 using your new router IP address will use the following format using your new router IP address hp://(new.router.ipaddress.here) to access your router management page.
- Subnet Mask: Click the Subnet Mask drop-down list to select a mask. (e.g. 255.255.255.0)
- Local Domain Name: Enter the domain name to assign your router.
• DNS Relay: Select enable to acvate DNS relay
Note: The DHCP address range will change automatically to your new router IP address sengs so you do not have to change the DHCP address range manually to match your new router IP address sengs.
Set up the DHCP server on your router
Setup > Local Network
Your router can be used as a DHCP (Dynamic Host Conguraon Protocol) server to automatically assign an IP address to each computer or device on your network. The DHCP server is enabled by default on your router. If you already have a DHCP server on your network, or if you do not want to use your router as a DHCP server, you can disable this seng. It is recommended to leave this seng enabled.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Setup, and click on Local Network.
- Review the DHCP Server sengs.
- DHCP Opon: Select the DHCP mode of your modem router. If you set the DHCP Opon to DHCP Server, congure the following sengs:
Note: If you set your modem router as the DHCP server, your modem router will automatically assign an IP address to each computer on your network. By default, the elds for DHCP sengs have predened values. It is recommended to retain these values unless specified by your ISP. - IP Pool Starng Address: Enter the lowest range of IP address to assign. The default value is 192.168.10.101.
- IP Pool Ending Address: Enter the highest range of IP address to assign. The default value is 192.168.10.200.
- Subnet Mask: Enter the subnet mask. The default value is 255.255.255.0.
- Router IP Address: Enter the IP address of your modem router. The default value is 192.168.10.1.
- Primary DNS Servers / Secondary DNS Servers: Enter a primary and a secondary DNS server if the DNS Relay opon is enabled.
- Lease Time: Enter the lease me in seconds. The lease me is the amount of me a device is allowed conneccon to your modem router using its current dynamic IP address. At the end of the lease me, the lease is either renewed or a new IP address is assigned. The default value is 86400 seconds (1 day).
TRENDnet User's Guide
TEW-722BRM
- Sub Range IP Enable: Check this box to set another range of IP address.
- Vendor Class (Opon 60): Enter a vendor class name.
o Sub-String Match: Check to enable the sub-string match funcon.
o IP Pool Starng Address: Enter the lowest sub range of IP address to assign.
o IP Pool Ending Address: Enter the highest sub range of IP address to assign.
o Subnet Mask: Enter the subnet mask.
o IPRouters: Enter the IP address of your modem router.
o Primary DNS Servers / Secondary DNS Servers: Enter a primary and a secondary DNS server of the sub range.
- Extra Opon Enable: Check this box to enable extra opons. If you set the DHCP Opon to DHCP Relay, congure the following sengs:
Note: Some ISPs funcon as the DHCP server for their clients' small oce network. In this case, you can set your modem router to act as a DHCP relay agent. When a device on your network requests Internet access, your modem router contacts the ISP to obtain the
Enable/disable UPnP on your router
Advanced > UPnP
UPnP (Universal Plug and Play) allows devices connected to a network to discover each other and automatically open the connecons or services for speci applicaons (e.g. instant messenger, online gaming applicaons, etc.) UPnP is enabled on your router by default to allow speci applicaons required by your computers or devices to allow connecons through your router as they are needed.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on UPnP.
- Review the sengs and click Apply to save sengs.
| UPnP | Enable |
| UPnP LOG | Enable |
| TR064 | Enable |
• UPnP: Select this opon to enable UPnP
- UPnP Log: Select this opon to acvate UPnP log and status
- TR064: Select this to open to enable TR064 feature.
Note: It is recommended to leave this seng enabled, otherwise, you may encounter issues with applicaons that utilize UPnP in order allow the required communicaon between your computers or devices and the Internet.
Allow/deny VPN connecons through your router
Advanced > NAT > VPN Passthrough
A Virtual Private Network (VPN) is a network that uses a public network, such as the Internet, to provide secure communications between a remote computer or network and another network. Some oces oen provide VPN access to their networks to enable employees to work from their remote oce/home oce, or while traveling. If your oce or place of work has allowed and authorized access for you to access their network through VPN, the default VPN sengs in your router have been congured to pass through the most common types of VPN protocols, which typically do not require any additional conguraon changes.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on NAT, and click on Passthrough.
- Review the sengs and click Apply to save sengs.
| IPSEC Passthrough | √ Enable | IPSEC Port: | 500 | (UDP) |
| PPTP Passthrough | √ Enable | PPTP Port: | 1723 | (TCP) |
| L2TP Passthrough | √ Enable | L2TP Port: | 1701 | (UDP) |
- IPSEC Passthrough: Internet Protocol Security (IPSec) is a protocol suite used to secure IP communicaons by authencang and encrypng IP packets. Check this box to enable this funcon to work through your modem router.
- PPTP Passthrough: Point-to-Point Tunneling Protocol (PPTP) allows Point-to-Point protocol (PPP) to be tunneled through a network. Check this box to enable this funcon to work through your modem router.
- L2TP Passthrough: Layer 2 Tunneling Protocol (L2TP) is an extension to the PPP protocol that enables ISPs to operate VPNs.
Note: It is recommended to leave these sengs unchecked to ensure VPN passthrough capability is enabled on your router.
TRENDnet User's Guide
TEW-722BRM
Congure ALG sengs
Advanced > NAT > ALG
A Virtual Private Network (VPN) is a network that uses a public network, such as the Internet, to provide secure communications between a remote computer or network and another network. Some oces oen provide VPN access to their networks to enable employees to work from their remote oce/home oce, or while traveling. If your oce or place of work has allowed and authorized access for you to access their network through VPN, the default VPN sengs in your router have been congured to pass through the most common types of VPN protocols, which typically do not require any additional conguraon changes.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on NAT, and click on ALG.
- Review the sengs and click Apply to save sengs.
| FTP | ☑ Enable | FTP Port: | 21 (TCP) | ||
| SNMP | ☑ Enable | SNMP Port: | 161 (UDP) | TRAP Port: | 162 (UDP) |
| RTSP | ☑ Enable | RTSP Port: | 554 (TCP) | ||
| SIP | ☑ Enable | SIP Port: | 5060 (UDP) | ||
| IRC | ☑ Enable | IRC Port: | 6667 (TCP) | ||
| H323 | ☑ Enable | RAS Port: | 1719 (UDP) | Q931 Port: | 1720 (TCP) |
- FTP: File Transfer Protocol (FTP) is used to transfer les between computers on a TCP/IP based network, such as the Internet. Check this box to enable this funcon to work through your modem router.
- SNMP: Simple Network Management Protocol (SNMP) is a network protocol used to monitor the devices connected to a network. Check this box to enable this funcon to work through your modem router.
- RTSP: Real Time Streaming Protocol (RTSP) is a network protocol used for entertainment and communicaon systems to control streaming media sessions. Check this box to enable this funcon to work through your modem router.
- SIP: Session Iniaon Protocol (SIP) is a signaling protocol used to control mulmedia communicaon sessions such as voice and video calls over Internet
Protocol (IP). Check this box to enable this funcon to work through your modem router.
- IRC: Internet Relay Chat (IRC) is a real-me Internet chang protocol designed for group communicaons. Check this box to enable this funcon to work through your modem router.
- H323: H.323 is a standard that provides audio-visual communicaon sessions on a network. It is widely implemented in voice and video conferencing equipments and is used within various Internet real-me applicaons such as NetMeeng. Check this box to enable this funcon to work
Additional Security Sengs
Advanced > Firewall
To provide additional security, your router oers DoS (Denial of Service) detecon and SPI mode further prevent network aacks. You may want to enable these features for additional network security.
DoS Protecon
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on DoS Protecon.
- Review the sengs below and click Apply to save sengs.
| Dos Protection | Enable |
| Dos Protection Option | Type -- Support Whole_System flood,Per-Source flood,and other Dos Protection typeEnable -- Enable/Disable this kind of Dos ProtectionCount -- Input flood count number of this kind of Dos Protection (0~65S25 packets/seconds). |
| Whole_Sys SYN Flood | Flood Count(0~65S25 packets) 100 |
| Whole_Sys FIN Flood | Flood Count(0~65S25 packets) 100 |
| Whole_Sys UDP Flood | Flood Count(0~65S25 packets) 100 |
| Whole_Sys ICMP Flood | Flood Count(0~65S35 packets) 100 |
| Per_Src IP SYN Flood | Flood Count(0~65S35 packets) 100 |
| Per_Src IP FIN Flood | Flood Count(0~65S35 packets) 100 |
TRENDnet User's Guide
TEW-722BRM
- Dos Protecon: Check this box to enable DoS protecon.
- Dos Protecon Opon: Check the appropriate boxes to enable protecon from SYN ood, FIN ood, UDP ood, ICMP ood, SMURF, IP spoong, and others. Enter the ood count numbers or retain the default values if you are unsure about them.
SPI Sengs
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on SPI Sengs.
- Review the sengs below and click Apply to save sengs.
- SPI Enable: Select whether to enable or disable the SPI funcon.
- Endpoint Filter: Select an endpoint Iter onpon:
o Independent: Forwards all incoming trac from an open port to the applicaon that opened the port.
o Restrict: Incoming trac must match the IP address of the outgoing conncon.
- Log Dropped Packet Enable: Select whether to enable or disable logging of dropped packets from your network or the Internet.
Allow/deny mulcast streaming
Setup > Internet Setup
In some cases, applicaons require mulcast communicaon (also called IP mulcast which is the delivery of informaon to a specic group of computers or devices in a single transmission) typically used in media streaming applicaons. Mulcast streaming is disabled by default on your router to deny applicaons that require mulcast communicaon through your router.
IGMP
-
Log into your router management page (see "Access your router management page" on page 22).
-
Click on Advanced, click on Mulcast and select IGMP.
- Under IGMP opon select which IGMP to acvate.
IGMP Option
Disable
Proxy
Snooping
- Review the sengs below and click Apply to save changes.

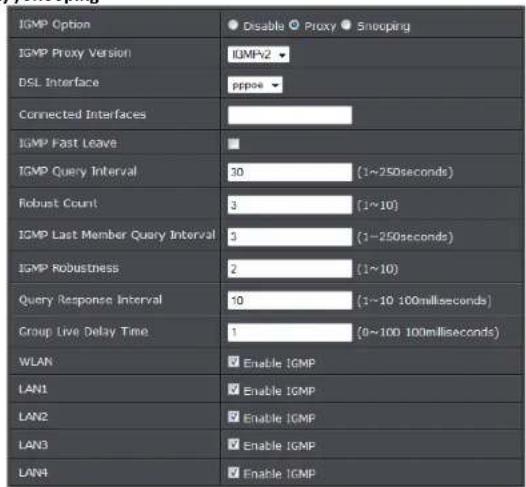

IGMP Proxy /Snooping
- IGMP Proxy Version: Select IGMP version to acvate
• DSL Interface: Select the interface to set - IGMP Fast Leave: Select opon to enable fast leave feature
- IGMP Query Interval: Enter IGMP query interval
- Robust Count: Enter robust count
- IGMP Last Member Query Interval: Enter last member query interval
• IGMP Robustness: Enter robustness value - Query Response Interval: Enter response interval
- Group Live Delay Time: Enter group live delay time
TRENDnet User's Guide
TEW-722BRM
- WLAN/LAN1-4: Select device interface to react IGMP rule.
MLD
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Mulcast and select IGMP.
- Under MLD opon select which IGMP to acvate.
MLD Option
Disable Proxy Snooping
- Review the sengs below and click Apply to save changes.
MLD Proxy /Snooping
• DSL Interface: Select the interface to set
- Fast Leave: Select upon to enable fast leave feature
- Query Interval: Enter IGMP query interval
- Robust Count: Enter robust count
- Last Member Query Interval: Enter last member query interval
- Last Member Query Count: Enter last member query count
- Query Response Interval: Enter response interval
Idenfy your network on the Internet
Advanced > Dynamic DNS
Since most ISPs constantly change your home IP address, providing access to devices on your home or small oce Local Area Network (such as IP Cameras) from the Internet requires seng up a Dynamic DNS service and entering the parameters into this management area. Dynamic DNS services allow your router to conrm its locaon to the given Dynamic DNS service, thereby providing the Dynamic DNS service with the ability to provide a virtual xed IP address for your network. This means that even though your ISP is always changing your IP address, the Dynamic DNS service will be able to identify your network using a xed address—one that can be used to view home
IP Camera and other devices on your local area network.
Note: First, you will need to sign up for one of the DDNS service providers listed in the Server Address drop-down list.

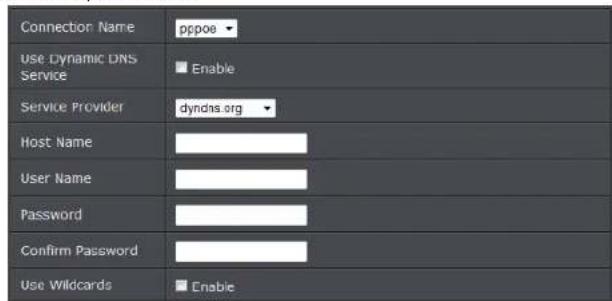

- Sign up for one of the DDNS available service providers list under Server Address. (e.g. dyndns.com, no-ip.com, etc.)
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced and click on Dynamic DNS.
- Next to DDNS, click Enable.
- In the Server Address drop-down list, select the provider you selected, and enter your informaon in the elds.
- Host Name: Personal URL provided to you by your Dynamic DNS service provider (e.g. www.trendnet.dyndns.biz)
TRENDnet User's Guide
TEW-722BRM
- User Name / E-mail: The user name needed to log in to your Dynamic DNS service account
- Password/Key: This is the password to gain access to Dynamic DNS service (NOT your router or wireless network password) for which you have signed up to.
6. To save changes, click Apply.
Allow remote access to your router management page
Maintenance > Remote Management
You may want to make changes to your router from a remote locaon such at your oce or another locaon while away from your home.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Remote Management.
- Under the Only allow administrator access from WAN secon, click Enabled and click Apply to save sengs.
Hp Management
• Hp Enable: Select to enable HTTP remote access.
- HTTP WAN Port: Enter the assigned port to use for remote management.
- Session Timeout: Enter the session meout period.
CLI Management
- Telnet Enable: Select to enable telnet remote access.
- Session Timeout: Enter the session meout period.
- Listen Port: Enter the assigned telnet listen port
- WAN Port: Enter the assigned port to use for remote management.
FTPD Management
- FTPD Enable: Select to enable FTPD remote access.
- Keep old session: Select to enable keep old session.
HTTPS Management
- HTTPS Enable: Select opon to enable HTTPS
HTTPS Management
- HTTP-Advanced Enable: Select opon to enable feature
- Listen Port: Enter the assigned listening port
Congure remote access rules
Maintenance > Access Management
This page allows you to create and edit remote access rules. You can specify the IP address or the subnet mask of devices that are allowed or denied to remotely access your modem router and set the type of management service that they can access.
TRENDnet User's Guide
TEW-722BRM
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Access Management.
- Click Add to a rule and Apply to save sengs,
Packet Layer
- Interface: Select the interface.
- Status: Select whether to enable or disable remote access of the device.
- Remote IP: Enter the IP address of the remote device.
- Remote IP Mask: Enter the IP mask of the remote device.
Note: To allow or deny all devices to remotely access your modem router, enter “*” on the Remote IP and Remote - Service: Select the type of remote management service that the device can or cannot access.
- Rule Acon: Select whether to enable or disable the access rule.

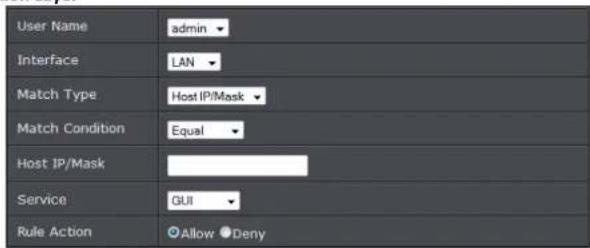

Applicaon Layer
- User Name: Select the user name who can access the control rule.
- Interface: Select the interface.
- Match Type: Select the control rule type.
- Match Condion: Select the control rule condion.
- Host IP/Mask: Enter the IP address and IP mask of the remote device.
- Service: Select the type of remote management service that the device can or cannot access.
- Rule Acon: Select whether to enable or disable the access rule.
Congure the router's Ethernet port sengs
Advanced > Ethernet Sengs
This page allows you to set the link mode and enable ow control for each of the four LAN ports of your modem router.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on Ethernet Sengs.
- Select the Interface you want to congure. Check Enable to acave interface.
- On the LinkMode pull down menu select the link speed to apply and check FlowCtrl to enable ow control.
- Click Apply to save sengs.
| Interface | Enable | LinkMode | FlowCtrl |
| LAN1 | √ | Auto | ■ |
| LAN2 | √ | Auto | ■ |
| LAN3 | √ | Auto | ■ |
| LAN4 | √ | Auto | ■ |
Open a device on your network to the Internet
This router can provide access to devices on your local area network to the Internet using the Virtual Server, Special Applicaon, method (DMZ NOT recommended).
DMZ
Advanced > Firewall > DMZ
You may want to expose a specific computer or device on your network to the Internet to allow anyone to access it. Your router includes the DMZ (Demilitarized Zone) feature
TRENDnet User's Guide
TEW-722BRM
that makes all the ports and services available on the WAN/Internet side of the router and forwards them to a single IP address (computer or network device) on your network. The DMZ feature is an easy way of allowing access from the Internet however, it is a very insecure technology and will open local area network to greater threats from Internet aacks.
It is strongly recommended to use Virtual Server (also called port forwarding, see "Virtual Server" on page 35) to allow access to your computers or network devices from the Internet.
- Make sure to congregate your computer or network device to use a stac IP address or you can use the DHCP reservation feature (see "Set up DHCP reservation" on page 53).
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on Firewall, and click on DMZ.
- Select Enable next to DMZ.
- In DMZ Host IP Address enter the IP address you assigned to the computer or network device to expose to the Internet.
- To save changes, click Apply.
Note: If using ADSL WAN with mulple PVCs, click the DMZ Mode drop-down list to select Mul Mode which will allow you which PVC to assign the DMZ Host.
Virtual Server
Advanced > NAT > Virtual Server
Virtual Server (also called port forwarding) allows you to denote specific ports (used or required by a specific applicaon) and forward them to a single IP address (a computer or device) on your network. Using this feature is more secure compared to using DMZ (see "DMZ" on page 35) in which DMZ forwards all ports instead of only specific ports used by an applicaon. An example would be forwarding a port to an network/IP camera (typically on TRENDnet IP cameras use HTTP TCP port 80 for remote access web requests) on your network for to allow remote access to it.
Since most ISPs constantly change your home IP address, to be able to access the Virtual Server port(s) from the Internet it is recommended to setup Dynamic DNS service (See DynDNS secon).
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on NAT, and click on Virtual Server opon and click Add. To simplify conguraon, there is a list of commonly used pre-dened virtual server entries to modify by clicking the drop down menu under rule name, otherwise, you can choose to manually add a new virtual server.
- Review the virtual server sengs. Click Apply to save sengs.
• Virtual Server: Select to enable rule.
- Rule Name: Enter the name of the rule or select from the predene pull down menu list.
- DSL Interface: The interface of the rule to be applied.
- Public Ports: Enter the port number required by your device from the internet. This will be the same port number used to access the device from the Internet and will include both TCP and UDP protocols.
- Private Ports: Enter the port number required by your device. This will be the same port number used to access the device from your network and will include both TCP and UDP protocols.
TRENDnet User's Guide
TEW-722BRM
Note: Please refer to the device document on to determine which ports and protocols are required.
- Protocol Type: Select the protol to assign the rule.
- Public IP: Enter the public IP that will have access to your device (you can enter 0.0.0.0 or * for all IP)
- Private IP: Enter the IP address of the device to forward the port. (e.g. 192.168.10.101).
Note: You should assign a stac IP address to the device or use DHCP reservation to ensure the IP address of the device does not change.
- Schedule - Click the drop-down list assign a pre-dened schedule when the virtual server is acvated or inactive.
Note: To denote a schedule, see the "Create schedules" secon.
- To save changes, click Apply.
Example: To forward TCP port 80 to your IP camera
- Make sure to congregate your network/IP camera to use a stac IP address or you can use the DHCP reservation feature (see "Set up DHCP reservation" on page 53).
Note: You may need to reference your camera documentaon on conguring a stac IP address. - Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on NAT, and click on Virtual Server.
- In the predene pull down list, select the entry named WEB (80). In the ID dropdown list. Click << buon.
- Under Private IP, enter the IP address assigned to the camera. (e.g. 192.168.10.101)
- Click Apply to save changes.
Port Trigger
Advanced > NAT > Port Trigger
Special applicaons (also called port triggering) is typically used for online gaming applicaons or communicaon applicaons that require a range of ports or several ports to be dynamically opened on request to a device on your network. The router will wait for a request on a specific port or range of ports (or trigger port/port range) from a device on your network and once a request is detected by your router, the router will forward a single port or multiple ports (or incoming port/port range) to the device on your network. This feature is not typically used as most devices and routers currently
use UPnP (Universal Plug and Play) to automacally congregate your router to allow access for applicants. See "Enable/disable UPnP on your router" on page 29.
Note: Please refer to the device document on to determine if your device supports UPnP rst, before conguring this feature.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, click on NAT, and click on Port Trigger opon and click Add.
- Review the port trigger sengs and click Apply to save seng.
- Port Trigger: Select to enable opon.
- Rule Name: Enter the name to assign rule.
- Trigger: Port or port range requested by the device.(e.g. 2000-2001 or 2000)
Note: Please refer to the device document on to determine which ports are required. - Use Interface: Select the interface to apply rule
- Trigger Ports: Port(s) forwarded to the device. (e.g. 2000-2038,2069,2081,2200-2210)
- Trigger Protocol: Select protocol to apply on rule
• Public Port: Enter the public port to assign on the rule - Public Protocol: Select the public protocol to apply on rule.
- Time Schedule: Select the me schedule to acvate rule. Select Always to have rule always acvated or click New Time Schedule to create a new me schedule.
Note: Please refer to the device document on to determine which ports are required.
TRENDnet User's Guide
TEW-722BRM
Priorize trac using QoS (Quality of Service)
Conguraon > Advanced Seng > Quality of Service
You may want to prioritize outbound trac for specific computers or devices on your network to have higher priority.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on Quality of Service.
- Review the sengs and click on Apply to save sengs.
Queue Management
This page allows you to enable QoS and choose Dierenated Services Code Point (DSCP) markings to automacally mark incoming trac without reference to a parcalar classifier.
- Enable QoS: Check this box to enable the QoS feature.
- Default DSCP Mark: Select a DSCP mark. The DSCP mark is used to classify and prioritize types of packets.
- Interface: Select the interface to implement this QoS queue.
- Default Rate: Check the Auto box to set the rate to its auto default or uncheck the box to enter the QoS rate manually.
Queue Cong
This page allows you to congregate a QoS queue entry and assign it to a specific network interface. Each of the queues can be conoured for a specific precedence. The queue conguraon will be used in Queue Classicaon to place ingress packets appropriately.
- Name: Enter a QoS queue entry name.
- Enable: Check this box to enable this queue.
- Interface: Select the interface to implement this QoS queue.
• Policy: Select the queue policy. Opons are:
o SP: In Strict Priority (SP), packets with a high priority are processed rst. Not unl the rst queue is empty will another queue be processed.
o WFQ: In Weighted Fair Queuing (WFQ), each queue can be given a different priority level. Each trac is assigned to a class and each class is given its own queue.
• Precedence: Select the precedence.
• Bandwidth Expression: Select one of the following opons:
o Kbits: Enter the Shaping Rate and Ceiling Rate.
o Percent: Enter the Percent. - Burst Size: Enter burst size.
TRENDnet User's Guide
TEW-722BRM
Queue Classicaon
This secon allows you to congregate classicaon rules to classify upstream trac and assign queues which denote the precedence, interface, and onponally overwrite the IP header DSCP byte. A rule consists of a class name and at least one condition. All the specified conditions in the classicaon rule must be based for the rule to take effect.
• Class Name: Enter a class name.
• Class Enable: Check this box to enable.
Classicaon Criteria
You can classify trac based on ingress interface, Ether type, packet length, source or desnaon MAC address/ MAC Mask, or a combinaon of them. Select an opon or enter the values on the elds that you want to use for the criteria. Otherwise, leave the elds empty. Depending on the selected Ether Type, the succeeding required informaon may vary. If packet length is used as a criteria, select the Packet Length Rule from the drop-down list and enter the Packet Length.
- Assign Classicaon Queue: Select the classicaon queue. Only enabled classicaon queues from the Queue Classicaon page are listed here.
- Set VLAN Priority: Select a priority.
• Mark DSCP: Select the DSCP mark. - Default VLAN ID: Check this box to use the default VLAN ID.
- VLAN ID: If Default VLAN ID is not checked, enter the preferred VLAN ID.
- Forwarding Policy Name: Select the forwarding policy name.
Create schedules
Maintenance > Time Schedule
For additional security control, your router allows you to create schedules to specify a me period when a feature on your router should be acvated and deactivated. Before you use the scheduling feature on your router, ensure that your router system me is congured correctly. See page 23 to congure the system me.
Note: You can apply a predened schedule to the following features:
- Wireless
• Virtual Server - Packet Filters
• QoS
Create a schedule to denote the days/me period when a feature should be active or inactive:
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Time Schedule.
- Review the sengs and click Add to save sengs.
• Name: Enter desired schedule name.
• Day: Check the day(s) to implement the schedule.
• Time: Specify the me period.
Add stac routes to your router
Advanced > Stac Route
You may want set up your router to route computers or devices on your network to other local networks through other routers. Generally, dierent networks can be determined by the IP addressing assigned to those networks. Generally speaking and for the case of an example, your network may have 192.168.10.x IP addressing and
TRENDnet User's Guide
TEW-722BRM
another network may have 192.168.20.x IP addressing and because the IP addressing of these two networks are dierent, they are separate networks. In order to communicate between the two separate networks, stac round needs to be congured. Below is an example diagram where round is needed for devices and computers on your network to access the other network.
Note: Conguring this feature assumes that you have some general networking knowledge.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on Stac Route.
- Review the sengs and click Apply to save sengs.
- Rule Enable: Select whether to enable or disable the rule.
- Forwarding Policy Opon: Select whether to enable or disable round.
- Rule Name: Enter desired rule name.
- Source IP: Enter the source IP address.
- Source SubMask: Enter the source subnet mask.
• Gateway: Enter the gateway IP address. - Desnaon IP: Enter the desnaon IP address.
Enable dynamic round on your router
Advanced > RIP Sengs
You may want to setup your router to route computers or devices on your network to other local networks through other routers. If other routers support dynamic round such as RIP (Roung Informaon Protocol), you can enable this feature on your router to automatically learn the required routes to reach those networks. It is required that the same dynamic round protocol and version is also enabled on the other routers in order your router and the other routers to exchange informaon about the network.
Note: Conguring this feature assumes that you have some general networking knowledge.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Conguraon at the top of the page, click on Advanced, and click on RIP Seng.
TRENDnet User's Guide
TEW-722BRM
- Select the Interface to congregate then select appropriate dynamic round protocol and version communicate with other routers. Click Add to save sengs.
- RIPv1: Enables sending and receiving or exchange of round informaon dynamically between your router and other routers to build routes to your network and other networks using the RIP version 1 protocol.
- RIPv2: Enables sending and receiving round informaon dynamically between your router and other routers to build routes to your network and other networks using the RIP version 2 protocol
- RIP 1: Receive round informaon from other routers using the RIP version 1 protocol.
Setup Port Mapping
Advanced > Port Mapping
Port mapping allows you to group interfaces for trac control. Trac is isolated from group to group. Therefore, trac coming from an interface of a group can only be owed to the interfaces in the same group.
By default, all interfaces belong to the Default group. You can create new groups and move interfaces to other groups. However, an interface can only be a member of one group.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on Port Mapping.
- Under Port Mapping secon select Enable.
- Click New to add a new group and select the interface from the Available Interfaces secon.
- Click the <- buon to add the selected interface into the group. Or click the -> buon to remove selected interface from the group.
- Click Apply to save sengs.
Setup IPv6 on your router
Advanced > IPv6
IPv6 (Internet Protocol Version 6) was developed to be the successor protocol to well known and widely used protocol IPv4 (Internet Protocol Version 4) for network addressing. The new addressing protocol is designed to minimize processing overhead by routers, significantly increase the available IP address space, provide integrated security, and open the possibility of more extensions and opons. ISP have already transition their networks to accommodate IPv6 and are starng to oer IPv6 services.
Note: The router oers nave IPv6 as well as IPv4 to IPv6 transional conncon types.
IPv6 WAN
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on IPv6 WAN.
- Select your IPv6 WAN type and complete the elds required by your ISP. Click Apply to save sengs.
TRENDnet User's Guide
TEW-722BRM
Note: If you are unsure which Internet conncon type you are using, please contact your ISP (Internet Service Provider).

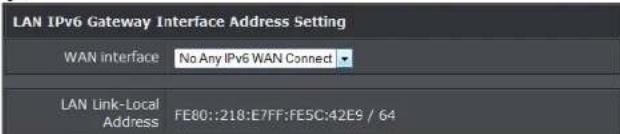

IPv6 LAN
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on IPv6 LAN.
- Select your IPv6 WAN Interface on the pull down menu and click Apply to save sengs.
Congure ADSL sengs
Advanced > ADSL
This page allows you to select ADSL modulaons, capabilities, and other opons. Consult your ISP to determine the appropriate sengs.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced, and click on ADSL.
- Select the elds required by your ISP. Click Apply to save sengs.
| ADSL modulation : | G.Lite ✓G.Dmt ✓ADSL2 ✓ADSL2+ ✓ANSI(T1.413) |
| AnnexL Option : | Enabled (Note: Only ADSL 2 supports Annex L) |
| AnnexM Option : | Enabled (Note: Only ADSL 2/2+ support Annex M) |
| G.INP Option : | Enable |
| ADSL Capability : | ✓Bitswap Enabled ✓SRA Enabled |
| ADSL Last Mode First : | Enable |
Router Maintenance & Monitoring
Reset your router to factory defaults
Maintenance > Conguraon Backup/Restore
You may want to reset your router to factory defaults if you are encountering dicules with your router and have aempted all other troublesomeong. Before you reset your router to defaults, if possible, you should backup your router conguraon rst, see "Backup and restore your router conguraon sengs" on page 43.
There are two methods that can be used to reset your router to factory defaults.
- Reset Buon: Located on the front panel of your router, see "Product Hardware Features" on page 2. Use this method if you are encountering dicules with accessing your router management page. OR
-
Router Management Page
-
Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Conguraon Backup/Restore.
- Under Restore Factory Default, click Restore. When prompted to conrm this acon, click OK.
TRENDnet User's Guide
TEW-722BRM
Router Default Sengs
| Administrator User Name | admin |
| Administrator Password | admin |
| Router IP Address | 192.168.10.1 |
| Router Subnet Mask | 255.255.255.0 |
| DHCP Server IP Range | 192.168.10.101-192.168.199 |
| Wireless | Enabled |
| SSID (wireless network name) | Please refer scker or device label |
| Wireless Security | Please refer scker or device label |
| 802.11 Mode | 2.4GHz 802.11b/g/n mixed mode |
| Channel | Auto Channel |
TRENDnet User's Guide
TEW-722BRM
Backup and restore your router conguraon sengs
Maintenance > Conguraon Backup/Restore
You may have added many customized sengs to your router and in the case that you need to reset your router to default, all your customized sengs would be lost and would require you to manually recongure all of your router sengs instead of simply restoring from a backed up router conguraon le.
To backup your router conguraon:
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Conguraon Backup/Restore.
- Click Backup Sengs.
Backup Settings
Please press the "Backup Settings" button to save the configuration to your PC
Backup Settings
- Depending on your web browser sengs, you may be prompted to save a le (specify the locaon) or the le may be downloaded automacally to the web browser sengs default download folder. (Default Filename: cong.bin)
- Save the conguraon le to locaon on your computer.
To restore your router conguraon:
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Conguraon Backup/Restore.
- Under Restore Sengs, next to Load Sengs, depending on your web browser, click on Browse or Choose File.
A separate le navigaon window should open.
- Navigate to the locaon of the router conguraon le to restore. (Default Filename: cong.bin).
- Select the router conguration le to restore and click Restore Sengs. (Default Filename: cong.bin). If prompted, click Yes or OK.
- Wait for the router to restore sengs.
TRENDnet User's Guide
TEW-722BRM
Upgrade your router rmware
Maintenance > FW Upgrade
TRENDnet may periodically release rmware upgrades that may add features or x problems associated with your TRENDnet router model and version. To check if there is a rmware upgrade available for your device, please check your TRENDnet model and version using the link. http://www.trendnet.com/downloads/
In addition, it is also important to verify if the latest rmware version is newer than the one your router is currently running. To identify the rmware that is currently loaded on your router, log in to the router, and check the version located at the top right of the router management page. If there is a newer version available, also review the release notes to check if there were any new features you may want or if any problems were xed that you may have been experiencing.
- If a rmware upgrade is available, download the rmware to your computer.
- Unzip the le to a folder on your computer.
Please note the following:
- Do not interrupt the rmware upgrade process. Do not turn o the device or press the Reset buon during the upgrade.
- If you are upgrade the rmware using a laptop computer, ensure that the laptop is connected to a power source or ensure that the baery is fully charged.
- Disable sleep mode on your computer as this may interrupt the rmware upgrade process.
- Do not upgrade the rmware using a wireless conncon, only using a wired network conncon.
-
Any interruptions during the rmware upgrade process may permanently damage your router.
-
Log into your router management page (see "Access your router management page" on page 22).
Note: You can check your router's current rmware version at the top right of the page.
- Click on Maintenance, and click on FW Upgrade.
Note: This page also displays the current rmware version of your router.
- Depending on your web browser, next to Upgrade Firmware, click Browse or Choose File.
- Navigate to the folder on your computer where the unzipped rmware le (.bin) is located and select it.
- Click Upgrade to start the rmware upgrade process. If prompted, click yes or OK.
TRENDnet User's Guide
TEW-722BRM
Restart your router
Maintenance > Reboot Device
You may want to restart your router if you are encountering dicules with your router and have aempted all other troublesomeong.
There are two methods that can be used to restart your router.
- Turn the router o disconnect the power adapter from the rear panel of your router for 10 seconds and reconnect the power adapter, see "Product Hardware Features" on page 2.
Use this method if you are encountering dicules with accessing your router management page. This is also known as a hard reboot or power cycle. OR
- Router Management Page: This is also known as a so reboot or restart.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Reboot Device. If prompted, click yes or OK.
- Click Reboot to restart the router. If prompted, click yes or OK.
In the event that the device stops responding correctly or in some way stops functioning, you can perform a reboot. Your settings will not be changed. To perform the reboot, click on the "reboot" button below. You will be asked to confirm your decision. The reboot will be complete when the system light starts blinking.
Reboot
Check connecvity using the router management page
Maintenance > Ping
For troublesome purposes, you may want to check your router connectivity using the ping (also known as a network connectivity test) test tool on your router management page.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Ping.
- Next to Host IPv4 Address, enter in the IP address (e.g. 192.168.10.101) or host name (e.g. www.trendnet.com) to test and click Ping.
- You will receive a success or fail result message of the address you entered providing a basic indicang of the router's connectivity to the Internet or devices that are connected to your network.

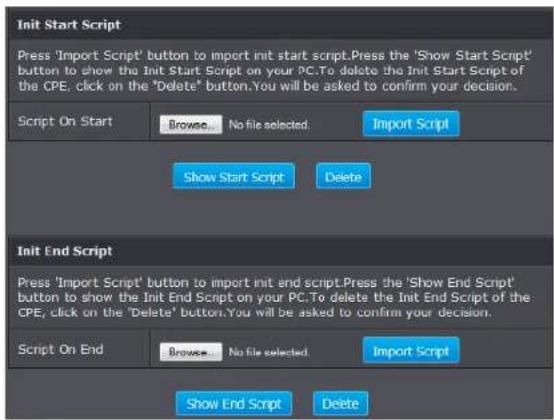

Manage Inializaon Scripts
Maintenance > Init Script
This page allows you to show, delete, and import inializaon scripts running on customer-premises equipment (CPE), such as telephones, routers, or set-top boxes, during system startup or shutdown.
Init start scripts are scripts that run before the system starts up. Init end scripts are scripts that run before the system shuts down.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Init script.
- Click Browse and select your script.
- Click Import Script to import script to router.
TRENDnet User's Guide
TEW-722BRM
- To show scripts on your computer click Show script. Press Delete to remove script.
Check Internet connecvity using the router management
page
Maintenance > Diagnosc
This page allows you to test the connectivity of the physical and protocol layers on the WAN side.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Diagnosc.
- Select your DSL interface and click test.
| ATM F4/F5 Loopback Diagnostics | ||
| DSL Interface | PVC.0/35 | test |
| ATM F4 SENGMENT | Rapetitions Count | 1 |
| Response Timeout | 1 ms | |
| Success Response Count | 0 | |
| Failure Response Count | 0 | |
| Average Response Time | 0 ms | |
| Minimum Response Time | 0 ms | |
| Maximum Response Time | 0 ms | |
| Test result | ||
| Rapetitions Count | 1 | |
| Response Timeout | 1 ms | |
Check the router system informaon
Status > Summary
You may want to check the system informaon of your router such as WAN (Internet) connectivity, wireless and wired network sengs, and router MAC address informaon.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status.
- Review the device informaon.
TRENDnet User's Guide
TEW-722BRM
System
| System | |
| New FirmWare | Without new firmware now |
| Firmware Version | V1.00.B12 |
| Modem Type | ADSL2+ Router |
| Modem Vendor | TRENDNET |
| Modem OUI | 0018E7 |
| Modem Serial Number | 0018E75C42E9 |
| Uptime | 21 hour 37 min 59 sec |
| Current Time | 2014/09/13 13:47:53 |
- Firmware Version: Displays the rmware version currently loaded on the router
- Modem Type: Displays the modem type
• Modem Vendor: Displays modem vendor
• Modem OUI: Displays modem OUI
• Modem Serial Number: Serial number of modem
• Upme: Time duraon of modem up me - Current Time: Time of router
DSL Link Status
| DSL Link Status | ||
| Modulation Type | ||
| Downstream | Upstream | |
| Current Rate(Kbps) | 0 | 0 |
- Modulaon Type: Display the modulaon applied on the router
- Current Rate: Downstream and upstream data rate
ATM PVC Status
| ATM PVC Status | |
| VPI | 0 |
| VCI | 35 |
| Link Type | EoA |
| Encapsulation | LLC |
• VPI: Current VPI sengs applied on the router
• VCI: Current VCI sengs applied on the router
- Link Type: Link type applied on the router
- Encapsulaon: Current encapsulaon applied on the router.
ATM PVC Status
| Internet Connection Status | |
| Interface | PVC:0/35 |
| Connection Status | Not Connected |
• Interface: Current router PVC interface
- Connecon Status: Current internet conneccon status
LAN Status
| LAN Status | |
| IP Address | 192.168.10.1 |
| Subnet Mask | 255.255.255.0 |
| MAC Address | 00:18:E7:5C:42:E9 |
| DHCP Server | Enabled |
• IP Address: Router's IP address
- Subnet Mask: Router's subnet mask
• MAC Address: MAC address of router
- DHCP Server: Current status of router's DHCP
TRENDnet User's Guide
TEW-722BRM
Wireless Interface
| Wireless Port | ||||
| Mode | 802.11n + 802.11g + 802.11b | |||
| Channel | 6 | |||
| SSID | Enable | MAC Address | Security Mode | |
| media722 | Yes | 00:18:E7:5C:42:E9 | WPA2-AES-PSK | |
| TRENDnet722_2.4GHz_Guest | Yes | 00:18:E7:5C:42:EA | None | |
• Mode: Current wireless mode
• Channel: Wireless channel
• SSID: Wireless network name
• MAC Address: Wireless MAC address
• Security Mode: Wireless encrypon of security
Check the router IPv6 status
Status > IPv6 Info
You may want to check the system IPv6 informaon of your router.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and IPv6 Info.
- Review the device informaon.
| LAN Status | |
| LAN Link-Local Address: | fe80::218:e7ff:fe5c:42e9 |
Check the router IPv6 status
Status > ADSL Info
You may want to check the system ADSL informaon of your router.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and ADSL Info.
- Review the device informaon.
| Rules | ||
| Status | EstablishingLink | |
| Total Time | 22 hour 2 min 29 sec | |
| Modulation Type | ||
| Standard Used | ||
| Standards Supported | ||
| Link Encapsulation Used | G.992.3_Annex_K_ATM, | |
| Link Encapsulation Supported | ||
| Link Encapsulation Requested | ||
| Line Encoding | DMT | |
| Data Path | L2 | |
| Interleave Depth | ||
| ATUR Vendor | 5245544b | |
| ATUR Country | 181 | |
| ATUC Vendor | ####### | |
| ATUC Country | 255 | |
| Downstream | Upstream | |
| Current Rate(Kbps) | 0 | 0 |
| Noise Margin(dB) | 0 | 0 |
| Attenuation(dB) | 0 | 0 |
| Output Power(dBm) | 0 | 0 |
Check the router Wireless clients
Status > Wireless Clients
This page displays all connected wireless clients.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and Wireless Clients.
- Review the device informaon.
| SSID | IP Address | MAC Address | RSSI |
TRENDnet User's Guide
TEW-722BRM
Check the router LAN clients
Status > LAN Clients
This page displays all connected clients.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and LAN Clients.
- Review the device informaon.
| Host Name | IP Address | MAC Address | Address Source | Lease Time |
| TV-IP343PI | 192.168.10.107 | 00:0F:0D:26:40:6E | DHCP | 66777 |
| TRENDnetACER-PC | 192.168.10.101 | 00:26:2D:5B:46:53 | DHCP | 86400 |
| TV-IP302PI | 192.168.10.101 | 00:14:D1:95:00:2D | DHCP | 0 |
| tew-B20ap | 192.168.10.103 | D8:FE:E3:3E:B0:4D | DHCP | 0 |
| TV-IP342PI | 192.168.10.105 | 00:0F:0D:26:9A:3E | DHCP | 0 |
| unknow | 192.168.10.11B | 1C:75:08:A4:E0:4A | Static | 0 |
| Apple-TV | 192.168.10.104 | B8:17:C2:B3:B8:91 | DHCP | 64432 |
| unknow | 192.168.10.109 | D8:EB:97:CD:4A:E8 | DHCP | 81439 |
Check the router ROUNG Table
Status > ROUNG TABLE
This page displays all connected clients.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and Round Table.
- Review the device informaon.
| Destination | Gateway | GenMask | Flags | Interface |
| 192.168.10.0 | 0.0.0.0 | 255.255.255.0 | U | br0 |
Check the router Basic Stascs
Status > Stases > Basic Stases
This page displays all connected clients.
-
Log into your router management page (see "Access your router management page" on page 22).
-
Click on Status and Basic Stascs.
- Review the device informaon.
| Internet Connections | |
| LAN Device | |
| Tx OK | 110828 Packets |
| Rx OK | 88531 Packets |
| Tx Error | 0 Packets |
| Rx Error | 0 Packets |
| Wireless Port | |
| Tx OK | 13608 Packets |
| Rx OK | 1477315 Packets |
| Tx Error | 36 Packets |
| Rx Error | 0 Packets |
| LAN Ports | ||||
| LAN1 | LAN2 | LAN3 | LAN4 | |
| Link Status | up | up | up | Auto |
| Tx OK(Packets) | 0 | 110441 | 0 | 0 |
| Rx OK(Packets) | 0 | 88379 | 0 | 0 |
| Rx Drop (Packets) | 0 | 0 | 0 | 0 |
| Rx Error(Packets) | 0 | 0 | 0 | 0 |
Check the router DSL Stascs
Status > Stascs > DSL Stascs
This page displays all connected clients.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status and DSL Stascs.
- Review the device informaon.
TRENDnet User's Guide
TEW-722BRM
• IP Address: Router's IP address
- Subnet Mask: Router's subnet mask
• MAC Address: MAC address of router
| DownstreamDownstream | Downstream | |
| Triells | ||
| SNR Margin (dB) | 0.0 | 0.0 |
| Attenuation (dB) | 0.0 | 0.0 |
| Output Power(dBm) | 0.0 | 0.0 |
| Attainable Rate (Kbps) | 0 | 0 |
| G.INP | ||
| Rate (Kbps) | 0 | 0 |
| K (number of bytes in DMT frame) | 0 | 0 |
| R (number of check bytes in RS code word) | 0 | 0 |
| N (RS codeword size) | ||
| L (number of bits in DMT frame) | ||
| S (RS code word size in DMT frame) |
View your router log
Status > Logs
Your router log can be used to obtain acvity informaon on the funconality of your router or for troublesomeng purposes.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, and click on Syslog.
- Review the device log informaon. You can iter the log view by selecng a parcular Facility, Severity, Module, or History opon.
![Facility all << >> > Clear Clear history Backup logs Page 1 of 14 Time Fac Fac Module Message 2014-09-13 user info system Renewal subscription: total Subscription [1] 12:19:28 2014-09-13 user info system HTTP REQUEST : SUBSCRIBE /upnp/event/WFAWLANConfig1 (HTTP/1.1) 12:19:28 2014-09-13 user info system Renewal subscription: total Subscription [1] 12:17:31 2014-09-13 user info system HTTP REQUEST : SUBSCRIBE /upnp/event/WFAWLANConfig1 (HTTP/1.1) 12:17:31 2014-09-13 user info system Renewal subscription: total Subscription [1]](/content/2026/06/1261267/images/3ac0a0a4a89dc1817b2b4b9383f25180a6d6093c2e9b4407ff75451d4f4e76cd.jpg)
- First Page: Displays the rst page of the log.
- Last Page: Displays the last page of the log.
- Previous Page: Display the log page previous to the current. The Page: 1/1 will display the current page.
• Next Page: Displays the log page next to the current.
• Clear Log:- Clears log entries
• Clear History: Clear all log entries - Refresh: The Page: 1/1 will display the current page.
- Backup Logs: Click to save logs to a local text le on your local hard drive.
View your router trac
Status > Trac Meter
Your router log can be used to obtain acvity informaon on the funconality of your router or for troublesomeng purposes.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Status, and click on Trac Meter.
- On the Trac Data Interface secon, check the Status box of the interface to view its trac. You may check more than one interface.
TRENDnet User's Guide
TEW-722BRM
- On the Trac Bandwidth Interval secon, enter the interval of refreshing the trac bandwidth.
Congure your router log
Maintenance > Syslog
You may want send your router log to your e-mail address or to an external log server (also known as Syslog server) so you can check it periodically while away from home.
You may also want to only see specific categories of logging.
Send router logs to an external log server
Maintenance > Syslog
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, click on Syslog.
- Next to Syslog and check Enable.
| Log Generate Enable Options | |
| SysLog | ✓ Enable |
| Kernel Common Message | ■ Enable |
- Click Add in Log Rules Sengs. Click Apply to save sengs.

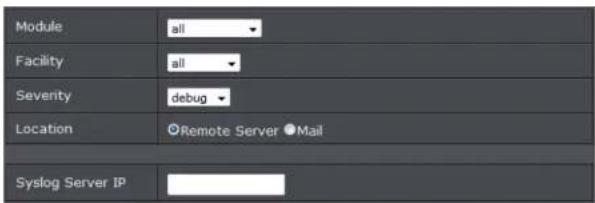

- Module: Select the module type.
• Facility: Select the facility type. - Severity: Select the severity level. Note: emerg is the highest level while debug is the lowest level.
- Locaon: Enter an assigned locaon for your log.
Note: The succeeding elds may vary depending
If the Locaon is set to Mail, congure the following sengs:
- SMTP Server IP of Domain Name: Enter the IP address (i.e. 10.10.10.10) or domain name (i.e. mail.trendnet.com) of your e-mail server.
- Source E-mail Address: Enter the sender or source mail address. You can se this to easily identify the nocaon in your email inbox. (i.e. modem_router@trendnet.com)
• Desnaon E-mail Address: Enter your e-mail address. - SMTP Authencaon: Check the box if your e-mail server requires authencaon. If enabled, enter the account name and password in the
- SMTP Username: Enter the account name required for authencaon by your SMTP mail server.
TRENDnet User's Guide
TEW-722BRM
- SMTP Password/Conrm Password: Enter the password required for authencaon by your SMTP mail server. Enter the password again in the
Send router logs to your e-mail address
Maintenance > Syslog
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Maintenance, click on Syslog.
- Review the e-mail log sengs and click Apply to save seng.
- SMTP Server: Check the box to enable the email log nocation.
- SMTP Server IP: Enter the IP address (i.e. 10.10.10.10) or domain name (i.e. mail. trendnet.com) of your e-mail server.
- Source E-mail Address: Enter the sender or source mail address. You can use this to easily identify the nocaon in your email inbox. (i.e. modem_router@trendnet.com)
• Desnaon E-mail Address: Enter your e-mail address. - SMTP Authencaon: Check the box if your e-mail server requires authencaon.
- SMTP Username: Enter the account name required for authencaon by your
- SMTP Password/Conrm Password: Enter the password required for authencaon by your SMTP mail server. Enter the password again in the
• Time Frequency: Select the frequency of logging e-mails.
Enable SNMP on your router
Advanced > SNMP
SNMP (Simple Network Management Protocol) is a network management protocol used to monitor (read) and/or manage (write) multiple network devices on a network. This precongured external SNMP server.
- Log into your router management page (see "Access your router management page" on page 22).
- Click on Advanced and click on SNMP.
- Review the opons for SNMP and click Apply to save sengs..

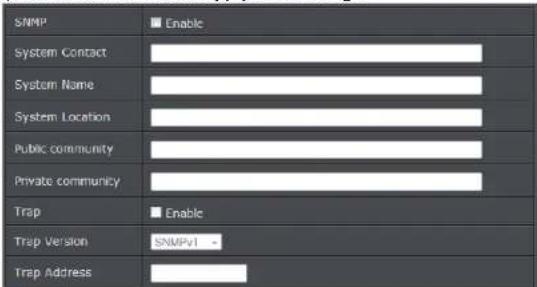

- System Contact: Enter the contact person or contact informaon for your modem router.
- System Name: Enter an assigned name for your modem router.
- System Locaon: Enter an assigned location for your modem router.
- Public Community/Private Community: Enter a public and private community name.
- Trap: Check this box to enable the Trap funcon, then provide the following informaon:
- Trap Version: Select an SNMP trap version.
- Trap Address: Enter the desnaon IP address of the SNMP trap.
TRENDnet User's Guide
TEW-722BRM
Enable TR-069 on your router
Maintenance > TR069 Seng
TR-069 is a network management protocol used to remote manage mulple network devices on a network typically by ISPs (Internet Service Providers). TR069 usually used in conjuncon with ACS (Auto Conguraon Servers) server managed by your ISP.
-
Log into your router management page (see "Access your router management page" on page 22).
-
Click on Maintenance and click on TR069 Setng.
-
Please consult your ISP for the required TR069 sengs for remote management.
Click Apply to save sengs.
-

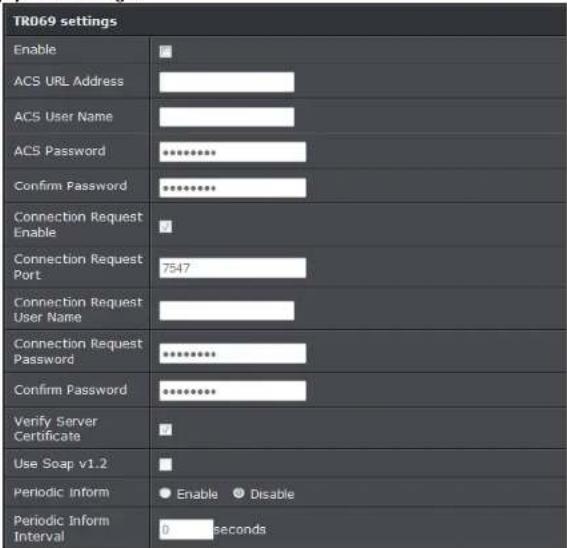

Enable: Check this box to enable TR069.
• ACS URL Address: Enter the URL of the Auto-Conguraon Server (ACS). -
ACS User Name: Enter the user name of your modem router when connecng to the ACS.
- ACS Password/Conrm Password: Enter the password that your modem router should use when connecng to the ACS. Re-enter the password on the Conrm
- Connecon Request Enable: Check the box to enable the conneccon request.
- Connecon Request Port: Enter the port that issues the request.
- Connecon Request User Name: Enter the connecon request user name.
- Connecon Request Password/Conrm Password: Enter the connecon request password. Re-enter the password on the Conrm Password eld.
- Verify Server Cercate: Check this box to verify server cercates.
- Use Soap v1.2: Check this box to enable the SOAP protocol.
- Periodic Inform: Select Enable to let your modem router to send remote procedure calls (RPC) to the ACS server at system startup and will connue sending RPCs periodically. When disabled, your modem router will send RPCs to the ACS server at system startup only.
• Periodic Inform Interval: Enter the interval me of sending RPCs.
Troubleshoong
Q: I typed hp://192.168.10.1 in my Internet Browser Address Bar, but an error message says "The page cannot be displayed." How can I access the router management page?
Answer:
- Check your hardware sengs again. See "Router Installation" on page 2.
- Make sure the LAN and WLAN lights are lit.
- Make sure your network adapter TCP/IP sengs are set to Obtain an IP address automacally or DHCP (see the steps below).
- Make sure your computer is connected to one of the router's LAN ports
- Press on the factory reset buon for 15 seconds, the release.
Windows 7
a. Go into the Control Panel, click Network and Sharing Center.
b. Click Change Adapter Sengs, right-click the Local Area Connecon icon.
c. Then click Properes and click Internet Protocol Version 4 (TCP/IPv4)
d. Then click Obtain an IP address automacally and click OK.
Windows Vista
a. Go into the Control Panel, click Network and Internet.
b. Click Manage Network Connecons, right-click the Local Area Connecon icon and click Properes.
c. Click Internet Protocol Version (TCP/IPv4) and then click Properes.
d. Then click Obtain an IP address automacally and click OK.
Windows XP/2000
a. Go into the Control Panel, double-click the Network Connecons icon
b. Right-click the Local Area Connecon icon and the click Properes.
c. Click Internet Protocol (TCP/IP) and click Properes.
d. Then click Obtain an IP address automacally and click OK.
Note: If you are experiencing dicules, please contact your computer or operating system manufacturer for assistance.
Q: I am not sure what type of Internet Account Type I have for my Cable/DSL conncon. How do I nd out?
Answer:
Contact your Internet Service Provider (ISP) for the correct informaon.
Q: The Wizard does not appear when I access the router. What should I do? Answer:
- Click on Setup Wizard on the le hand side.
- Near the top of the browser, "Pop-up blocked" message may appear. Right click on the message and select Always Allow Pop-ups from This Site.
- Disable your browser's pop up blocker.
Q: I went through the Wizard, but I cannot get onto the Internet. What should I do? Answer:
- Verify that you can get onto the Internet with a direct conncon into your ADSL modem from your ISP (meaning, plug your computer directly to the modem and verify that your single computer (without the help of the router) can access the Internet).
- Power cycle your modem router. Unplug the power to the modem router. Wait 30 seconds, and then reconnect the power to the modem router. Wait for the modem router to fully boot up, then try to re-access the Internet.
- Contact your ISP and verify all the informaon that you have in regards to your Internet connecos sengs is correct.
Q: I cannot connect wirelessly to the router. What should I do? Answer:
- Double check that the WLAN light on the router is lit.
- Power cycle the router. Unplug the power to the router. Wait 15 seconds, then plug the power back in to the router.
- Contact the manufacturer of your wireless network adapter and make sure the wireless network adapter is congured with the proper SSID. The preset SSID is TRENDnet(model_number).
- To verify whether or not wireless is enabled, login to the router management page, click on Wireless.
- Please see "Steps to improve wireless connectivity" on page 19 if you connue to have wireless connectivity problems.
Appendix
How to nd your IP address?
Note: Please note that although the following procedures provided to follow for your operang system on conguring your network sengs can be used as general guidelines, however, it is strongly recommended that you consult your computer or operang system manufacturer directly for assistance on the proper procedure for conguring network sengs.
Command Prompt Method
Windows 2000/XP/Vista/7
- On your keyboard, press Windows Logo+R keys simultaneously to bring up the Run dialog box.
- In the dialog box, type cmd to bring up the command prompt.
- In the command prompt, type ipcong /alto display your IP address sengs.
MAC OS X
- Navigate to your Applicaons folder and open Ulies.
- Double-click on Terminal to launch the command prompt.
- In the command prompt, type ipconggefaddr
to display the wired or wireless IP address sengs.
Note: en0 is typically the wired Network and en1 is typically the wireless Airport interface.
Graphical Method
MAC OS 10.6/10.5
- From the Apple menu, select System Preferences.
- In System Preferences, from the View menu, select Network.
- In the Network preference window, click a network port (e.g., Network, AirPort, modem). If you are connected, you'll see your IP address sengs under "Status:"
MAC OS 10.4
- From the Apple menu, select Locaon, and then Network Preferences.
- In the Network Preference window, next to "Show:", select Network Status. You'll see your network status and your IP address sengs displayed.
Note: If you are experiencing dicules, please contact your computer or operating system manufacturer for assistance.
How to congregate your network sengs to obtain an IP address automatically or use DHCP?
Note: Please note that although the following procedures provided to follow for your operang system on conguring your network sengs can be used as general guidelines, however, it is strongly recommended that you consult your computer or operang system manufacturer directly for assistance on the proper procedure for conguring network sengs.
Windows 7
a. Go into the Control Panel, click Network and Sharing Center.
b. Click Change Adapter Sengs, right-click the Local Area Connecon icon.
c. Then click Properes and click Internet Protocol Version 4 (TCP/IPv4).
d. Then click Obtain an IP address automacally and click OK.
Windows Vista
a. Go into the Control Panel, click Network and Internet.
b. Click Manage Network Connecons, right-click the Local Area Connecon icon and click Properes.
c. Click Internet Protocol Version (TCP/IPv4) and then click Properes.
d. Then click Obtain an IP address automacally and click OK.
Windows XP/2000
a. Go into the Control Panel, double-click the Network Connecons icon
b. Right-click the Local Area Connecon icon and the click Properes.
c. Click Internet Protocol (TCP/IP) and click Properes.
d. Then click Obtain an IP address automacally and click OK.
MAC OS 10.4/10.5/10.6
a. From the Apple, drop-down list, select System Preferences.
b. Click the Network icon.
c. From the Locaon drop-down list, select Automac.
d. Select and view your Network conncon.
In MAC OS 10.4, from the Show drop-down list, select Built-in
Network and select the TCP/IP tab.
In MAC OS 10.5/10.6, in the le column, select Network.
e. Congure TCP/IP to use DHCP.
In MAC 10.4, from the Congure IPv4, drop-down list, select Using DHCP and click the Apply Now buon.
In MAC 10.5, from the Congure drop-down list, select Using DHCP and click the Apply buon
TRENDnet User's Guide
TEW-722BRM
In MAC 10.6, from the Congure drop-down list, select Using DHCP and click the Apply buon.
f. Restart your computer.
Note: If you are experiencing dicules, please contact your computer or operating system manufacturer for assistance.
How to nd your MAC address?
In Windows 2000/XP/Vista/7,
Your computer MAC addresses are also displayed in this window, however, you can type getmac -v to display the MAC addresses only.
In MAC OS 10.4,
- Apple Menu > System Preferences > Network
- From the Show menu, select Built-in Network.
- On the Network tab, the Network ID is your MAC Address.
In MAC OS 10.5/10.6, - Apple Menu > System Preferences > Network
- Select Network from the list on the le.
- Click the Advanced buon.
- On the Network tab, the Network ID is your MAC Address.
How to connect to a wireless network using the built-in Windows utility?
Note: Please note that although the following procedures provided to follow for your operang system on conguring your network sengs can be used as general guidelines, however, it is strongly recommended that you consult your computer or operang system manufacturer directly for assistance on the proper procedure for connecng to a wireless network using the built-in utility.
Windows 7
- Open Connect to a Network by clicking the network icon (or) in the nocaaon area.
- In the list of available wireless networks, click the wireless network you would like to connect to, then click Connect.
- You may be prompted to enter a security key in order to connect to the network.
- Enter in the security key corresponding to the wireless network, and click OK.
Windows Vista
- Open Connect to a Network by clicking the Start Buon. and then click Connect To.
- In the Show list, click Wireless.
- In the list of available wireless networks, click the wireless network you would like to connect to, then click Connect.
- You may be prompted to enter a security key in order to connect to the network.
- Enter in the security key corresponding to the wireless network, and click OK.
Windows XP
- Right-click the network icon in the nocaaon area, then click View Available Wireless Networks.
- In Connect to a Network, under Available Networks, click the wireless network you would like to connect to.
- You may be prompted to enter a security key in order to connect to the network.
- Enter in the security key corresponding to the wireless network, and click Connect.
Federal Communicaon Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operaon is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that
may cause undesired operaon.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separaon between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Cauon: Any changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiaon Exposure Statement:
This equipment complies with FCC radiaon exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmier must not be co-located or operang in conjuncon with any other antenna or transmier.
Country Code selecon feature to be disabled for products marketed to the US/CANADA.
RoHS
This product is RoHS compliant.
Europe – EU Declaraon of Conformity
This device complies with the essenal requirements of the R&TTE Directive 1999/5/EC, 2006/95/EC and 2009/125/EC.
Regulaon (EC) No. 1275/2008
Regulaon (EC No. 278/2009
EN60950-1 : 2006 + A11 : 2009 + A1: 2010 + A12: 2011
Safety of Informaon Technology Equipment
EN 50385 : 2002
Product standard to demonstrate the compliance of radio base staons and xed terminal staons for wireless telecommunicaon systems with the basic restricons or the reference levels related to human exposure to radio frequency electromagnetics.
(110MHz - 40 GHz) - General public
EN 300 328 V1.7.1 : (2006-10) Class B
Electromagnec compatibility and Radio spectrum Maers (ERM); Wideband Transmission systems; Data transmission equipment operang in the 2,4 GHz ISM band and using spread spectrum modulaon techniques; Harmonized EN covering essenal requirements under arcle 3.2 of the R&TTE Direcve
EN 301 489-1 V1.9.2 : (2011-09)
Electromagnec compatibility and Radio Spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements
Electromagnec compatibility and Radio spectrum Maers (ERM); ElectroMagnec Compatibility (EMC) standard for radio equipment; Part 17: Specific condions for 2,4 GHz wideband transmission systems, 5 GHz high performance RLAN equipment and 5,8 GHz Broadband Data Transming Systems
In Italy the end-user should apply for a license at the naonal spectrum authorities in order to obtain authorizaon to use the device for seng up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
This device may not be used for seng up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed informaon the end-user should contact the naonal spectrum authority in France.
TRENDnet User's Guide
TEW-722BRM
| cs Česky [Czech] | TRENDnet mto prohlašuje, že tento TEW-722BRM je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES, 2006/95/ES, a 2009/125/ES. |
| da Dansk [Danish] | Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-722BRM overholder de væsentlige krav og øvrige relevante krav i direkv 1999/5/EF, 2006/95/EF, og 2009/125/EF. |
| de Deutsch [German] | Hiermit erklärt TRENDnet, dass sich das Gerät TEW-722BRM in Übereinsmmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Besimmungen der Richtlinie 1999/5/ EG, 2006/95/EG und 2009/125/EG bendet. |
| et Ees [Estonian] | Käesolevaga kinnitab TRENDnet seadme TEW-722BRM vastavust direkivi 1999/5/EÜ, 2006/95/EÜ ja 2009/125/EÜ põhinõuetele ja nimetatud direkivist tulenevatele teistele asjakohastele sätetele. |
| en English | Hereby, TRENDnet, declares that this TEW-722BRM is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/EC, 2006/95/EC, and 2009/125/EC. |
| es Español [Spanish] | Por medio de la presente TRENDnet declara que el TEW-722BRM cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Direcva 1999/5/CE, 2006/95/CE, 2009/125/CE γ. |
| el Eλληνική [Greek] | ME THN ΠΑΡΟΥΣΑΤRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-722BRM ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ, 2006/95/ΕΚ, 2009/125/ΕΚ καλ. |
| fr Français [French] | Par la présente TRENDnet déclare que l'appareil TEW-722BRM est conforme aux exigences essenelles et aux autres disposions permentes de la direcve 1999/5/CE, 2006/95/CE, 2009/125/CE et. |
| it Italiano[Italian] | Con la presente TRENDnet dichlara che questo TEW-722BRM è conforme ai requisi essenziali ed alle altre disposizioni pernen stabilite dalla direva 1999/5/CE, 2006/95/CE e 2009/125/CE. |
| iv Latviski [Latvian] | AršoTRENDnetdeklarē, ka TEW-722BRM atbilstDirekvas 1999/5/ EK, 2006/95/EK, un 2009/125/EK būtiskajāmprasībām un citiemar to saistajiemnoteikumiem. |
| it Lietuvių | Šluo TRENDnet deklaruoja, kad šis TEW-722BRM anka esminius reikalavimus ir kitas 1999/5/EB, 2006/95/EB ir 2009/125/EB |
| cs Česky [Czech] | TRENDnet mto prohlašuje, že tento TEW-722BRM je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES, 2006/95/ES, a 2009/125/ES. |
| da Dansk [Danish] | Undertegnede TRENDnet erklærer herved, at følgende udstyr TEW-722BRM overholder de væsentlige krav og øvrige relevante krav i direkv 1999/5/EF, 2006/95/EF, og 2009/125/EF. |
| de Deutsch [German] | Hiermit erklärt TRENDnet, dass sich das Gerät TEW-722BRM in Übereinsmmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Besimmungen der Richtlinie 1999/5/ EG, 2006/95/EG und 2009/125/EG bendet. |
| et Ees [Estonian] | Käesolevaga kinnitab TRENDnet seadme TEW-722BRM vastavust direkivi 1999/5/EÜ, 2006/95/EÜ ja 2009/125/EÜ põhinõuetele ja nimetatud direkivist tulenevatele teistele asjakohastele sätetele. |
| en English | Hereby, TRENDnet, declares that this TEW-722BRM is in compliance with the essenal requirements and other relevant provisions of Direcve 1999/5/EC, 2006/95/EC, and 2009/125/EC. |
| es Español [Spanish] | Por medio de la presente TRENDnet declara que el TEW-722BRM cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Direcva 1999/5/CE, 2006/95/CE, 2009/125/CE γ. |
| el Eλληνική [Greek] | ME THN ΠΑΡΟΥΣΑΤRENDnet ΔΗΛΩΝΕΙ ΟΤΙ TEW-722BRM ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ, 2006/95/ΕΚ, 2009/125/ΕΚ καλ. |
| fr Français [French] | Par la présente TRENDnet déclare que l'appareil TEW-722BRM est conforme aux exigences essenelles et aux autres disposions permentes de la direcve 1999/5/CE, 2006/95/CE, 2009/125/CE et. |
| it Italiano[Italian] | Con la presente TRENDnet dichlara che questo TEW-722BRM è conforme ai requisi essenziali ed alle altre disposizioni pernen stabilite dalla direva 1999/5/CE, 2006/95/CE e 2009/125/CE. |
| iv Latviski [Latvian] | AršoTRENDnetdeklarē, ka TEW-722BRM atbilstDirekvas 1999/5/ EK, 2006/95/EK, un 2009/125/EK būtiskajāmprasībām un citiemar to saistajiemnoteikumiem. |
| it Lietuvių | Šluo TRENDnet deklaruoja, kad šis TEW-722BRM anka esminius reikalavimus ir kitas 1999/5/EB, 2006/95/EB ir 2009/125/EB |
| [Lithuanian] | Direktyvos nuostatas. |
| nlNederlands[Dutch] | Hierbij verklaart TRENDnet dat het toestel TEW-722BRM in overeenstemming is met de essenële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG, 2006/95/EG, en 2009/125/EG. |
| ndMal [Maltese] | Hawnhekk, TRENDnet, jiddikjara li dan TEW-722BRM jikkonforma mal-ħgijiet essenzjali u ma provvedimen oħrajn relevan li hemmd-Dirreva 1999/5/KE, 2006/95/KE, u 2009/125/KE. |
| huMagyar[Hungarian] | Alulíro, TRENDnet nyilatkozom, hogy a TEW-722BRM megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EK irányelyv, a 2006/95/EK és a 2009/125/EK irányelyv egyéb előírásainak. |
| plPolski [Polish] | Niniejszym TRENDnet oświadcza, że TEW-722BRM jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE, 2006/95/WE i 2009/125/WE. |
| ptPortuguês[Portuguese] | TRENDnet declara que este TEW-722BRM está conforme com os requisitos essenciais e outras disposições da Direcva 1999/5/CE, 2006/95/CE e 2009/125/CE. |
| stSlovensko[Slovenian] | TRENDnet izjavlja, da je ta TEW-722BRM v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direkve 1999/5/ES, 2006/95/ES in 2009/125/ES. |
| stSlovensky[Slovak] | TRENDneýmtovyhlasuje, že TEW-722BRM spĺňazákladnépožiadavky a všetkypríslušnéustanoveniaSmernice 1999/5/ES, 2006/95/ES, a 2009/125/ES. |
| fiSuomi [Finnish] | TRENDnet vakuuaa täten eä TEW-722BRM tyyppinen laite on direkivin 1999/5/EY, 2006/95/EY ja 2009/125/EY oleellisten vaamusten ja sită koskevien direkivin muiden ehtojen mukainen. |
| svSvenska[Swedish] | Härmed intygar TRENDnet a denna TEW-722BRM står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direkv 1999/5/EG, 2006/95/EG och 2009/125/EG. |
Limited Warranty
TRENDnet warrants its products against defects in material and workmanship, under normal use and service, for the following lengths of me from the date of purchase. TEW-722BRM – 3 Years Warranty
AC/DC Power Adapter, Cooling Fan, and Power Supply carry 1 year warranty.
If a product does not operate as warranted during the applicable warranty period, TRENDnet shall reserve the right, at its expense, to repair or replace the defective product or part and deliver an equivalent product or part to the customer. The repair/replacement unit's warranty connues from the original date of purchase. All products that are replaced become the property of TRENDnet. Replacement products may be new or reconditioned. TRENDnet does not issue refunds or credit. Please contact the point-of-purchase for their return policies.
TRENDnet shall not be responsible for any soware, rmware, informaon, or memory data of customer contained in, stored on, or integrated with any products returned to TRENDnet pursuant to any warranty.
There are no user serviceable parts inside the product. Do not remove or aempt to service the product by any unauthorized service center. This warranty is voided if (i) the product has been modified or repaired by any unauthorized service center, (ii) the product was subject to accident, abuse, or improper use (iii) the product was subject to conditions more severe than those specied in the manual.
Warranty service may be obtained by contacng TRENDnet within the applicable warranty period and providing a copy of the dated proof of the purchase. Upon proper submission of required documentaon a Return Material Authorizaon (RMA) number will be issued. An RMA number is required in order to initiate warranty service support for all TRENDnet products. Products that are sent to TRENDnet for RMA service must have the RMA number marked on the outside of return packages and sent to TRENDnet prepaid, insured and packaged appropriately for safe shipment. Customers shipping from outside of the USA and Canada are responsible for return shipping fees. Customers shipping from outside of the USA are responsible for custom charges, including but not limited to, duty, tax, and other fees.
WARRANTIES EXCLUSIVE: IF THE TRENDNET PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, THE CUSTOMER'S SOLE REMEDY SHALL BE, AT TRENDNET'S OPTION, REPAIR OR REPLACE. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TRENDNET NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION MAINTENANCE OR USE OF TRENDNET'S PRODUCTS.
TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR OR MODIFY, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.
LIMITATION OF LIABILITY: TO THE FULL EXTENT ALLOWED BY LAW TRENDNET ALSO EXCLUDES FOR ITSELF AND ITS SUPPLIERS ANY LIABILITY, WHETHER BASED IN CONTRACT OR TORT (INCLUDING NEGLIGENCE), FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR DATE, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF THE POSSIBILITY OF SUCH DAMAGES, AND LIMITS ITS LIABILITY TO REPAIR, REPLACEMENT, OR REFUND OF THE PURCHASE PRICE PAID, AT TRENDNET'S OPTION. THIS DISCLAIMER OF LIABILITY FOR DAMAGES WILL NOT BE AFFECTED IF ANY REMEDY PROVIDED HEREIN SHALL FAIL OF ITS ESSENTIAL PURPOSE.
Governing Law: This Limited Warranty shall be governed by the laws of the state of California.
Some TRENDnet products include soware code written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL").
Go to hp://www.trendnet.com/gpl or hp://www.trendnet.com Download secon and look for the desired TRENDnet product to access to the GPL Code or LGPL Code. These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. Please go to hp://www.gnu.org/licenses/gpl.txt or hp://www.gnu.org/licenses/lgpl.txt for specific terms of each license.
PWP05202009v2 2014/09/8
TRENDNET®
Product Warranty Registration
Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register
TRENDnet
20675 Manhattan Place
Torrance, CA 90501. USA
Copyright ©2014. All Rights Reserved. TRENDnet.
- N300 Wireless ADSL 2+ Modem Router
- TRENDnet User's Guide
- Table of Contents
- Contents
- Product Overview ....1
- Basic Router Setup ....5
- Wireless Networking and Security....10
- Access Control Filters 18
- Advanced Router Setup 22
- Router Maintenance & Monitoring......42
- Troubleshoong 55
- Appendix 56
- Product Overview
- Package Contents
- Features
- Easy Setup
- Internet Service
- N300 Wireless
- Wireless Coverage
- Pre-Encrypted Wireless
- Guest Network
- Wireless On/O Buon
- One Touch Connecon
- Parental Controls
- TEW-722BRM
- Advanced QoS
- Energy Savings
- Ethernet Ports
- IPv6
- Product Hardware Features
- Applicaon Diagram
- Basic Router Setup
- Creang a Home Network
- How to set up a home network
- How to setup your router
- Where to nd more help
- Router Installaon
- Before you Install
- General ADSL Parameters
- ADSL Connecon Types:
- Ethernet over ATM (RFC 1483 Bridged) with NAT
- 1a. Obtain IP Address Automacally (Dynamic IP Address)
- • 1b. Fixed IP address (Stac IP Address)
- IP over ATM (RFC 1483 Routed)
- • 2a. Obtain IP Address Automacally (Dynamic IP Address)
- • 2b . Fixed IP address (Stac IP Address)
- PPP over ATM (PPPoE)
- • 3a. PPPoE to obtain IP automacally
- • 3b. PPPoE with a xed IP address
- PPP over Ethernet (PPPoA)
- • 4a. PPPoA to obtain IP automacally
- • 4b. PPPoA with a xed IP address
- Hardware Installaon
- Setup Wizard
- Connect additional wired devices to your network
- Wireless Networking and Security
- How to choose the type of security for your wireless network
- Wireless Encrypon Types
- Secure your wireless network
- Selecng WEP:
- Connect wireless devices to your router
- Connect wireless devices using WPS
- Recommended Hardware Push Buon (PBC) Method
- PBC (Soware/Virtual Push Buon)
- PIN (Personal Idencaon Number)
- Basic wireless sengs
- - Device
- Steps to improve wireless connectivity
- Advanced wireless sengs
- Mulple SSID
- Additional Wireless Sengs
- Access Control Filters
- Access control basics
- Wireless MAC address Iters
- MAC address Iters
- URL/Keyword Blocking
- Domain Filters
- IP Filtering
- Packet Filters
- Under Packet Filter secon select Enable and click Apply.
- Filter
- To create a new Iter rule. Click Add in the Filters secon.
- Review the sengs and click Apply to save.
- Rules
- To create a new rule. Click Add in the Rules secon.
- Generic Rules
- Advanced Router Setup
- Access your router management page
- Change your router login password
- Set your router date and me
- NTP
- Manual
- Manually congregate your Internet conneccon
- Internet Sengs
- Internet Settings
- PPPoE / PPPoA
- IPoA
- Dynamic / Stac
- Bridge Mode
- CIP
- Change your router IP address
- Set up the DHCP server on your router
- Enable/disable UPnP on your router
- Allow/deny VPN connecons through your router
- Congure ALG sengs
- Additional Security Sengs
- DoS Protecon
- SPI Sengs
- Allow/deny mulcast streaming
- IGMP
- MLD
- Idenfy your network on the Internet
- To save changes, click Apply.
- Allow remote access to your router management page
- Congure remote access rules
- Congure the router's Ethernet port sengs
- Open a device on your network to the Internet
- DMZ
- Virtual Server
- Example: To forward TCP port 80 to your IP camera
- Port Trigger
- Priorize trac using QoS (Quality of Service)
- Queue Management
- Queue Cong
- Queue Classicaon
- Classicaon Criteria
- Create schedules
- Add stac routes to your router
- Enable dynamic round on your router
- Setup Port Mapping
- Setup IPv6 on your router
- IPv6 WAN
- IPv6 LAN
- Congure ADSL sengs
- Router Maintenance & Monitoring
- Reset your router to factory defaults
- Backup and restore your router conguraon sengs
- To backup your router conguraon:
- To restore your router conguraon:
- Upgrade your router rmware
- Please note the following:
- Restart your router
- Check connecvity using the router management page
- Manage Inializaon Scripts
- Check Internet connecvity using the router management
- page
- Check the router system informaon
- Check the router IPv6 status
- Check the router Wireless clients
- Check the router LAN clients
- Check the router ROUNG Table
- Check the router Basic Stascs
- Check the router DSL Stascs
- View your router log
- View your router trac
- Congure your router log
- Send router logs to an external log server
- Send router logs to your e-mail address
- Enable SNMP on your router
- Enable TR-069 on your router
- Troubleshoong
- Answer:
- Windows 7
- Windows Vista
- Windows XP/2000
- Appendix
- How to nd your IP address?
- Command Prompt Method
- Windows 2000/XP/Vista/7
- MAC OS X
- Graphical Method
- MAC OS 10.6/10.5
- MAC OS 10.4
- MAC OS 10.4/10.5/10.6
- How to nd your MAC address?
- How to connect to a wireless network using the built-in Windows utility?
- Windows XP
- Federal Communicaon Commission Interference Statement
- IMPORTANT NOTE:
- FCC Radiaon Exposure Statement:
- RoHS
- Europe – EU Declaraon of Conformity
- EN 300 328 V1.7.1 : (2006-10) Class B
- EN 301 489-1 V1.9.2 : (2011-09)
- Limited Warranty
- TRENDNET®
- Product Warranty Registration
Brand : TRENDNET
Model : TEW-722BRM
Category : Router
