Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC4357
Color	Black / Red
Dimensions (L x W x H)	450 x 300 x 280 mm
Weight	5.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W
Suction Power	350 Air Watts
Dust Capacity	3.5 L (bagged)
Filtration System	Cyclonic + HEPA 13
Operating Radius	9 m
Cord Length	7 m
Noise Level	78 dB(A)
Main Functions	Variable suction control, floor/bare floor switch, crevice tool, dusting brush
Bag Replacement Indicator	Yes
Maintenance	Washable HEPA filter, replace bag when full
Safety Features	Thermal overload protection, automatic cord rewind
Accessories Included	Turbo brush, upholstery tool, combination tool, extension wand
Repairability	Spare parts available: bags, filters, belts, motor

Frequently Asked Questions - SC4357 SAMSUNG

How do I replace the dust bag in my Samsung SC4357?

Open the front cover, remove the full dust bag by pulling the cardboard tab, and insert a new Samsung dust bag (type VCA-S) until it clicks. Close the cover.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-6 months or when the filter indicator light turns red. Rinse with cold water and let it dry completely for 24 hours before reinserting.

The vacuum cleaner has reduced suction. What should I do?

Check if the dust bag is full, the filters are clogged, or the hose is blocked. Empty the bag, clean or replace filters, and remove any obstructions from the hose or wand.

Can I use the Samsung SC4357 on hardwood floors?

Yes, it has a floor/bare floor switch. Set it to 'Bare Floor' or use the included hard floor nozzle to avoid scratches. The brush roll stops rotating on that setting.

How do I rewind the power cord?

Press the cord rewind button (usually on the top or back of the canister) with one hand, while guiding the cord with the other to avoid whipping. Do not use if cord is twisted.

Where can I buy replacement bags and filters?

Replacement bags (type VCA-S) and HEPA filters are available at Samsung service centers, online retailers, or through the Samsung official website. Use genuine parts for best performance.

The vacuum makes a loud noise. What could be the problem?

Loud noise may indicate a blockage in the hose or nozzle, a full dust bag, or a faulty motor. Check for obstructions, empty the bag, and if persists, contact Samsung support.

Is the Samsung SC4357 suitable for pet hair?

Yes, it comes with a turbo brush that is effective for picking up pet hair from carpets and upholstery. Regular cleaning of the brush roll is recommended to prevent hair wrap.

How do I change the belt on the SC4357?

Unplug the vacuum, remove the bottom plate of the power nozzle, release the old belt, install a new belt (type VCA-B) around the brush roll and motor pulley, then reassemble. Check user manual for details.

What does the filter indicator light mean?

The indicator light turns red when the HEPA filter needs cleaning or replacement. After cleaning, reset the indicator by pressing the reset button (if available) or by turning the vacuum off and on.

USER MANUAL SC4357 SAMSUNG

CE

WARNING!

2) ON/OFF TYPE

2-2 POWER CABLE

!

NOTE

- DEVICE BODY (ONLY FOR MECHANICAL CONTROL TYPE)

6

NOTE

STRAHA

2) TYPE WITH SWITCH

2-2 POWER CABLE

!

NOTE

2) TYPE WITH CONTROL ON DEVICE BODY / TYPE WITH SWITCH

- HADICE

NOTE

CONTROLS ON THE HANDLE

EMC Directive: 89/336/EEC, 92/31/EEC and 93/68/EEC

Low Voltage Safety Directive: 73/23/EEC and 93/68/EEC

VACUUM CLEANER

WARNING

For storage, park the floor nozzle.

2 USING THE VACUUM CLEANER

2-1 ON/OFF SWITCH

1) MODEL WITH REMOTE CONTROL

2) ON/OFF MODEL

2-2 POWER CORD

!

NOTE

When unplugging from the electrical outlet, grasp the plug, not the cable.

2-3 POWER REGULATION

1) ONLY MODEL WITH SLIDING REGULATOR (Optional)

- SLIDE TO THE STOP POSITION

2) MODEL WITH REGULATION ON THE HANDLE / ON/OFF MODEL

- HOSE

Press the button to remove the dust container from the vacuum cleaner.

3

Empty the dust into the trash.

5

NOTE

4 CLEANING THE DUST CARTRIDGE

4-1. WHEN TO CLEAN THE DUST CARTRIDGE

REGULATOR ON HANDLE

Wash the sponge and the dust cartridge filter with water.

4

Select the motor protection filter from the vacuum cleaner. Shake and tap the dust out of it, then place it back into the vacuum cleaner.

6 CLEANING THE EXHAUST FILTER

EMC Directives: 89/336/EEC, 92/31/EEC and 93/68/EEC

* Before operating this unit, please read the instructions carefully. * Indoor use only.

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
4. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
5. Slide to the Stop (or Min) position before inserting a plug into the electrical outlet.
6. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
7. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
8. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
9. This appliance is not intended for use by young persons or infirm persons without supervision unless they are adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.
10. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
11. The use of an extension cord is not recommended.
12. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
13. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
14. Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.

1 ASSEMBLING THE CLEANER

▶Features may vary according to model.

CAUTION

Please do not press the button of dust bin handle when carrying machine.

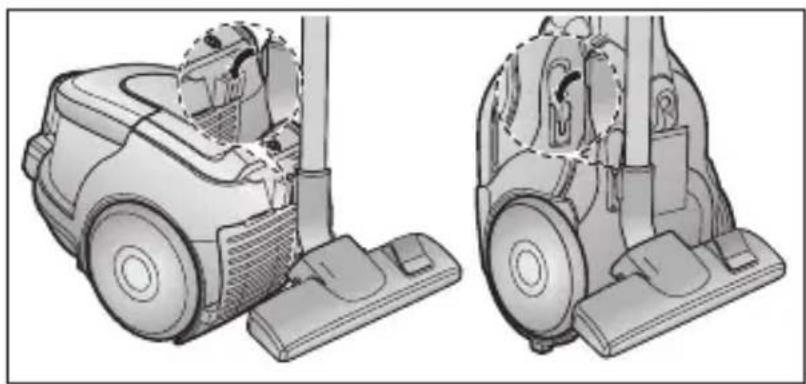

For storage, park the floor nozzle.

2) ON/OFF TYPE

2-2 POWER CORD

!

NOTE

When removing the plug from the electrical outlet, grasp the plug, not the cord.

2-3 POWER-CONTROL

1) SLIDE CONTROL TYPE ONLY (Optional)

• SLIDE TO THE STOP POSITION Vacuum-cleaner switches off (stand by mode) • SLIDE FORWARD TO MAX

Suction capacity increases smoothly up to maximum.

2) BODY-CONTROL TYPE / ON/OFF TYPE

- HOSE - BODY (BODY-CONTROL TYPE ONLY)

To reduce suction for cleaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open.

MIN = For delicate surface e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

2-4 HOW TO USE AND MAINTAIN THE ACCESSORIES

▶ Features may vary according to model.

PIPE

Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

ACCESSORY

DUSTING BRUSH CREVICE TOOL

Dusting brush for furniture, shelves, books, etc.

Crevice tool for radiators, crevices, corners, between cushions.

For efficiency, clean Floor Nozzle with Crevice Tool.

OPTION

▶ Carpet Cleaning

▶ Floor Cleaning

Adjust the inlet lever according to the floor surface.

Remove waste matter completely if the inlet is blocked.

OPTION

Brush for blanket

For picking up pet hair and fibre on upholstery and bed linen.

Clogs on turbine keep brush from turning, thus need to be unclogged as follows.

Remove waste matter completely when inlet is blocked.

Turbine

Turn the lock button to 'UNLOCK', and remove waste matter.

To reassemble, align the cover to the front of the main body and close. After closing the cover, ensure that the lock button is turned to the 'LOCK' position.

Warning: Use for bedclothes only. Be cautious not to damage brush during unclogging.

3 EMPTYING THE DUST BIN

1

Once dust reaches the dust full mark, or suction is noticeably reduced during cleaning, empty the dust bin.

2

Take the dust bin out by pressing the button.

3

Separate the dust bin cover.

4

Throw away dust into the bin.

5

Close the dust bin cover.

Before use, push the dust bin into the main body of the vacuum cleaner until you hear the "click" sound.

- Empty into a plastic bag (recommended for asthma/allergy sufferers)

NOTE

You may rinse the dust bin with cold water.

4 CLEANING THE DUST PACK

4-1. WHEN TO CLEAN THE DUST PACK

- If suction is noticeably reduced during cleaning, please check the dust pack as indicated below.

HANDLE CONTROL

Turn the vacuum power to 'MAX'

If suction is noticeably reduced with the inlet floating 10cm above flat floor, clean it.

NOTE

When suction is noticeably reduced continuously, please empty the Dust Pack (4-2) as shown in the following illustration.

4-2 CLEANING THE DUST PACK

1

Remove the dust bin and dust pack as shown.

2

Remove the sponge and filter from the dust pack

3

Wash the sponge and the filter of the dust pack with water.

4

Let the sponge and filter dry in the shade for more than 12 hours.

5

Put the sponge and filter into the dust pack.

6

Put the assembled dust pack into the main body.

NOTE

Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

5 CLEANING THE MOTOR PROTECTION FILTER

Take out both the dust bin and the dust pack.

Remove the motor protection filter from the vacuum cleaner. Shake and tap the dust from it and put back in machine.

6 CLEANING THE OUTLET FILTER

Press the fixed frame part at the back of the main body to remove.

OPTION - MICRO FILTER

Remove and replace the blocked outlet filter.

OPTION

NOTE: Replacement filters are available at your local Samsung distributor.

• IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket. Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Check for blockage and remove it.
Cord does not rewind fully.	Check that the cord is not twisted or wound unevenly.	Pull the cord out 2-3m and push the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.
Low or decreasing suction	Filter is full of dust.	Please check filter and, if necessary, clean as illustrated in the instructions.

This vacuum cleaner is approved under the following directives: EMC Directive: 89/336/EEC, 92/31/EEC, and 93/68/EEC; Low Voltage Directive: 73/23/EEC and 93/68/EEC.
