Product Type	Freestanding washing machine
Brand	Nevir
Model	NVR-4901 6K1000
Capacity	6 kg
Maximum Spin Speed	1000 rpm
Energy Efficiency Class	A (estimated)
Dimensions (H x W x D)	850 x 600 x 600 mm (approximate)
Weight	Approximately 70 kg
Power Supply	220-240 V, 50 Hz
Rated Power	2000 W (estimated)
Water Connection	Cold water inlet
Programs	Cotton, Synthetics, Delicates, Quick Wash, Rinse & Spin, Drain
Temperature Settings	Cold, 30°C, 40°C, 60°C, 90°C (estimated)
Additional Functions	Delay start, Child lock, Half load detection
Noise Level (Wash/Spin)	Approximately 58 dB / 75 dB
Drum Material	Stainless steel
Control Type	Electronic with LED display
Door Opening	Hinged left, 180° (estimated)
Hose Length (Inlet/Drain)	150 cm / 150 cm (approximate)
Features	Unbalanced load control, Foam control, Auto off
Maintenance	Clean filter regularly, Clean detergent drawer, Descaling
Spare Parts Availability	Through authorized service centers
Reparability Index	High (common parts)

Frequently Asked Questions - NVR-4901 6K1000 NEVIR

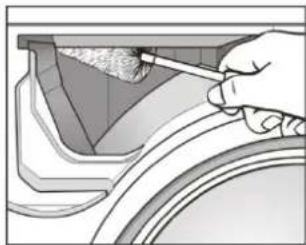

How do I clean the detergent drawer?

Remove the drawer by pressing the catch inside the compartment. Wash it under warm running water, paying attention to the siphon cap. Dry and reinsert.

What should I do if the washing machine vibrates excessively?

Check that the transport bolts are removed. Ensure the machine is level on the floor and the feet are adjusted correctly. Avoid overloading.

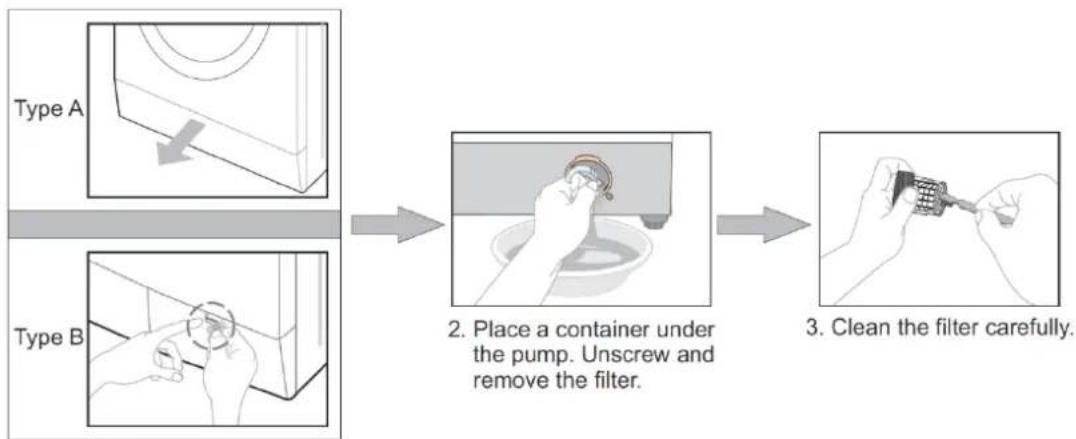

How do I clean the pump filter?

Unplug the machine. Open the lower cover, drain the water using a container, then unscrew the filter. Clean it and remove any foreign objects.

What does error code E10 mean?

E10 indicates a water supply problem. Check that the water tap is open and the inlet hose is not kinked or blocked.

How often should I descale my washing machine?

Every 3-6 months, depending on water hardness. Use a commercial descaling agent or a mixture of citric acid and water.

Can I wash a duvet in this machine?

Yes, if the duvet is machine-washable. Use the Blanket or Delicates program with a reduced spin speed.

Why does my machine not start?

Ensure the door is firmly closed. Check that the Child Lock is not activated. Verify that the water tap is open and the machine is plugged in.

How do I use the delay start function?

Select the program and press the Delay Start button repeatedly to set hours (typically 1-24). Press Start to confirm.

What is the maximum spin speed for delicate fabrics?

For delicates, use a spin speed of 400-600 rpm. The machine automatically reduces spin speed for delicate programs.

Where can I download the user manual?

You can download the manual for free from notice-facile.com in PDF format. Visit the product page for the NVR-4901 6K1000.

USER MANUAL NVR-4901 6K1000 NEVIR

White NEVIR washing machine with control panel and side panel (no visible text or symbols on the device body)

Diagram of a pipe fitting with a valve and fittings (no text or labels)

1. Función

Diagram of a washing machine with a cross mark indicating a warning or hazard (no text or symbols present)

Illustration of hands using a device to press or download a sheet, with arrows indicating motion (no text or symbols)

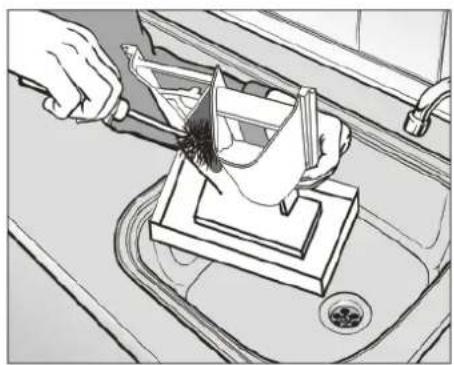

Illustration of a hand using a tool to clean or store items on a sink, with no visible text or symbols.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a device's cable connector with two connectors (no text or symbols)

Safety notices....19

Parts and Features....21

Installation....22

Functions of the control Panel....25

How to use washer....27

Cleanness and Maintenance....30

Troubleshooting guide....32

Technical parametres....33

WARNING

Read and understand thoroughly these safety instructions before use. The items indicated here are very important safety precautions, which must be followed. We cannot be held liable for damage caused by non-compliance with the warning and safety instructions or resulting from incorrect use or operation.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning used of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Illustration of a person pointing upward (no text or symbols)

Technical safety

• Before setting up the washing machine, check it for any externally visible damage. Do not install or use a damaged washing machine. Before connecting the washing machine, ensure that the connection data on the data plate (voltage and current) match the electricity supply. If in any doubt, consult a qualified electrician.
• The electrical safety of this washing machine can only be guaranteed when continuity is complete between it and an effective earthling system which complies with current local and national safety regulations. It is most important that this basic safety requirement is present and regularly tested, and where there is any doubt the
  • Household wiring system should be inspected by a qualified electrician.
• The manufacturer cannot be held liable for the consequences of an inadequate earthing system. Do not connect the washing machine to the mains electricity supply by an extension lead. Extension leads do not guarantee the required safety of the appliance.
• Unauthorized repairs could result in unforeseen dangers for the user, for which manufacturer cannot accept liability. Repairs should only be undertaken by an approved service technician. Ensure current is not supplied to the machine until after maintenance or repair work has been carried out.
• If the connection cable is damaged or broken it must only be replaced by an approved service technician to protect the user from danger.
• Faulty components must only be replaced by genuine manufacturer original spare parts. Only when these parts are fitted can the safety standards of the machine be guaranteed.

Note	THIS WASHING MACHINE MUST BE EARTHED.

Illustration of a person standing beside a large washing machine with a sad face on the front (no text or symbols)

Correct use

- To avoid the risk of personal injury or damage to the washing machine, do not install it in place where it is damp and where it suffers from rainfall.

- Do not install the washing machine in place where it suffers from the sun directly, in which plastic or components will be damaged. It will be shortened the life of your washing machine.

- Do not install the washing machine in place where temperatures below freezing may occur. Frozen hoses may burst or split. The reliability of the electronic control unit may be impaired at temperatures below freezing point.

- Do not shoot the washing machine with water when you clean it.

- Keep the washing machine away from fire or heat sources.

- Before using the washing machine for the first time, check that the transit bolts at the rear of the machine have been removed. During spinning, transit bolts which are still in place may result in damage to both the machine and adjacent furniture or appliances.

- Turn off the tap if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain (gully) in the immediate vicinity.

- Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the machine with the laundry. These may damage components of the machine (e.g. drum), which in turn can result in damage to the laundry.

- Do not wash water-repellent things (e.g. raincoats) with washing machine.

- Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a moving drum is extremely dangerous and could result in injury.

Simple line drawing of a washing machine with a sun and smoke, no text or symbols present

Safety with children

- Keep children away from the washing machine at all times. To avoid the risk of injury do not allow children to play on or near it or to play with its controls. Supervise children whilst you are using it.

- Older children may only use the washing machine if its operation has been clearly explained to them and they are able to use it safely, recognizing the dangers of misuse.

- For machines with a 'porthole' door, remember that the porthole glass will be hot when washing at very high temperatures. Don't let children touch it.

Illustration of a child washing clothes next to a washing machine with a hand emitting sound waves (no text or symbols)

Note
Unscrew the drain pump filter to let water run out when the machine is not used for a long time.

Note	The drawing of machine in the manual is only used for instruction. It may be vary from the model you buy

Backout packing

• Remove all the packing (including the foam base) or the vibration and noise may occur.
• Dispose all the wrap page safely and keep them out of the reach of children. Danger of suffocation!
• It is normal that water drops appear on the packing plastic bag and the door glass, which are resulted from the water left in the tub for checking out.

Line drawing of a cardboard box next to a washing machine (no text or symbols)

Accessories

Make sure that you have received all of the items shown below:

Accessories	Name	Qty.	Accessories	Name	Qty.
	Inlet hose	1		“U” piece	1
	Transit bolts caps	4		Manual	1

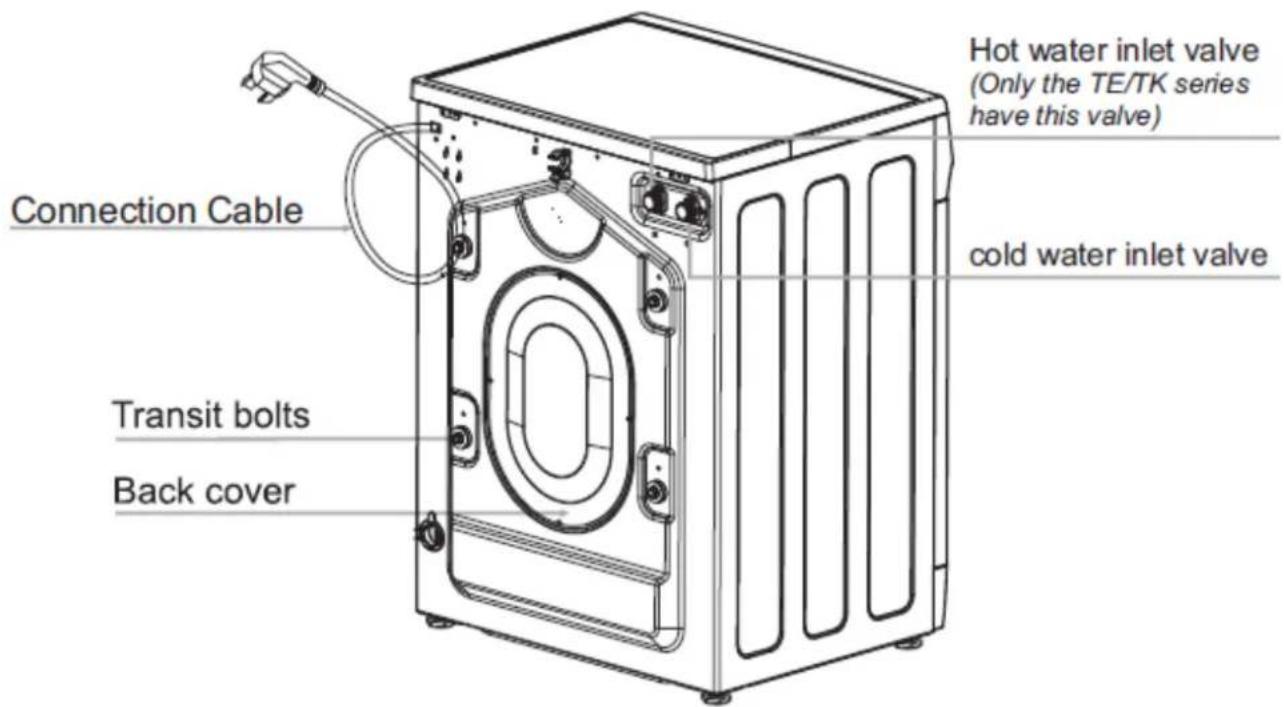

Removing transit bolts

• Remove all the transit bolts at the back of the machine with tools.
• Plug the holes with the transit bolts caps supplied.

Note	Strong vibration, noise or failures may occur if the transit bolts are not removed

- Keep the transit bolts for future transportation. Whenever the machine is transported, the transit bolts must be refitted

Installation place requirement

• A concrete floor is the most suitable installation surface for a washing machine, being far less prone to vibration during the spin cycle than wooden floorboards or a carpeted surface.
• The machine must be level and securely positioned. The distance between the machine and wall must be more than 10 cm.
• To avoid vibrations during spinning, the machine should not be installed on soft floor coverings.

Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect installation may increase electricity and water consumption and may cause the machine to move about.

To do these when the machine is not level: Using the spanner turn locknut in a clockwise direction. Then turn locknuts together with adjust feet to unscrew. Use a spirit level to check the machine is standing level. Hold adjust feet securely with a pipe wrench. Turn locknut again using the spanner until it sits firmly up against the housing

Note	Vibration and noise may occur if the locknuts do not sit firmly up against the houses

Drain hose connection

1. Direct into a sink

If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose to prevent waste from the sink entering the washing machine. If required, the drain hose can be extended to a length of 4 m.

Diagram of a pipe fitting with a valve and fittings (no text or labels)

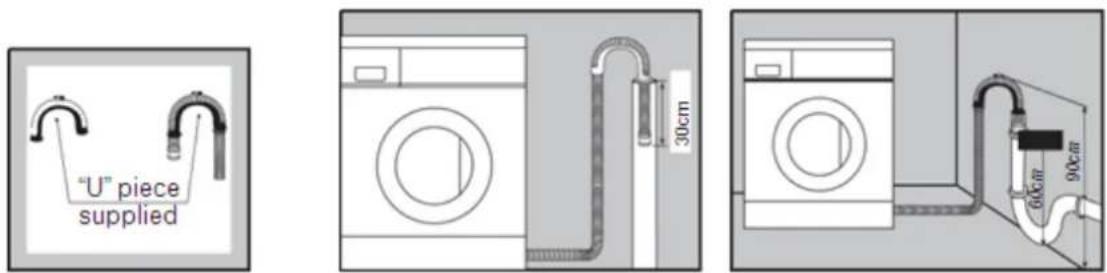

1. Connected securely to a standpipe.

Firstly form a hook in the end of the drain hose using the "U" piece supplied.

Place the drain hose into your standpipe, which should have an internal diameter of approximately 38mm thus ensuring there is an air break between the drain hose and standpipe.

When discharging into a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above floor level

Water inlet connection

Connect the inlet hose supplied with the machine to a tap with a 3/4" thread. Do not use previously employed hoses.

Installation should comply with local water authority and building regulations' requirements.

The control Panel

1. Function

Economy

Select this button to reduce energy and water consumption when washing a smaller load. Once the function is selected and the machine is running, it cannot be canceled even though it pauses. The function is not available on all programs. The detail is in Form 1 on page 8.

Anti-Ironing

Select this button to reduce the wrinkle of clothes during a wash cycle. Once this function is selected, the machine will not execute the last drain unless the "Start/Pause" button is pressed.

This function is available on all programs except spin.

(Note: The max running time of this function is 12 hours. If it exceeds 12 hours, the machine will drain and spin automatically)

Rinse+

Select this button to add an extra rinse on the program you selected. This function is available on all programs but spin.

2. Delay

Select this button to delay the starting of a wash cycle. The available options are "3h", "6h" and "12h".

3. Start / Pause

Press this button to start or pause a wash cycle. The door cannot be open when the machine pauses.

4. Knob

Turn this knob clockwise oranticlockwise to select the required wash program. Once the "Start/Pause" button is pressed and the machine is running, the program cannot be changed. The details of programs are in Form 1 on page 8.

(Note: At the end of a wash cycle, the knob must be turned to the position“ ”)

Standard 60 °C and standard 40 °C are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumptions for washing that type of cotton laundry; in addition, the actual water temperature may differ from the declared cycle temperature.

Note	For your safety, please not turn the knob to the position “ O ” and get clothes while the machine is running. Because the temperature of water may be high and it may scald you. The door lock will open automatically at the end of a wash cycle while the temperature of the drum is cool down.

Child lock ("Rinse+" + "Delay")

The function of "Child lock" is to lock the control panel to prevent the misuse by children. How to start this function:

1. Press the "Rinse+" and "Delay" buttons at the same time for 3 seconds. When there are three ticks, the function works.
2. When this function works, all keys and knob are not available. But when the knob is turned to the position“____”, the power will be off.
3. This function can be selected before or during a wash cycle.

How to cancel this function: Press the "Rinse+" and "Delay" buttons at the same time for 3 seconds. The function is canceled when there are three ticks again.

The contents and functions of different programs

Program	Time (min)	Temp (°C)	Rinse times	Tallest Spin speed (rpm)	Function Options
					Economy	Anti-Ironing	Rinse+	Delay
Cotton	69	*_	2	1000	●	●	●	●
	72	20	2	1000	●	●	●	●
40°C	179	40	2	1000	●	●	●	●
60°C	189	60	2	1000	●	●	●	●
Pre-Wash	214	60	2	1000		●	●	●
Intensive	219	60	2	1000		●	●	●
Anti-Bac	129	95	2	1000		●	●	●
Quick	15	*_	1	800		●	●	●
Spin	11	*_	0	1000				●
Rinse+Spin	16	*_	1	1000		●	●	●
Wool	38	*_	2	600		●	●	●
	56	40	2	600		●	●	●
Kids wear	119	60	4	1000	●	●	●	●
Synthetic	39	*_	2	800	●	●	●	●
	49	40	2	800	●	●	●	●

Note: “40°C” is for the standard 40 cotton program;

“”is for the standard 60 cotton program;

The running time above is only for reference. The running time is different because of different laundries and its weights. The “❄️” means the temperature of water is normal. “Economy” and “Rinse+” they cannot be selected together.

Before washing clothes for the first time, you must run a complete cycle without clothes.

To do this:

1. attach the cable and open the faucet.
2. Turn the program selection to the "standard cotton" position for 4900 series
3. Press "Start / Pause".

This will remove any remaining water from the manufacturing test still remains in the washer.

Washing preparation

1. Properly connect the inlet hoses and open the faucet.
2. After making sure that the electrical outlet is connected to earth safely, insert the plug into the outlet.
3. Attach the drain hose properly.

Preparation of clothing

1. Sort clothes by color and according to the information shown on the labels. Most garments have a tag on the recommendations of washing, they are found in the neck or on the side seam.
2. Check all pockets to make sure they are empty. Objects like nails, coins, pieces of paper, etc... can cause damage to garments and machine components.
3. Close zippers, etc... before washing.
4. Dark fabrics usually contain excess dye and should be washed separately several times before being included in a mixed load. Always wash whites and colors separately.
5. Heavily soiled areas, stains, etc... must be pre-treated with liquid detergents, stain removers, etc..
6. Reverse Put woolen garments and clothing that can be easily lint before putting them into the washing machine.

Introduction of the clothes in the washing machine

Spread the clothes and load them loosely in the drum. Mix large items with small gives better wash results and also helps the load distribution is adequate during centrifugation.

The most efficient use of energy and water washing is achieved when a full load is carried. However, do not overload the machine as this will cause wrinkles and reduces washing efficiency.

Note Make sure that no garments are caught between the door and the seal

Diagram of a washing machine with a cross mark indicating a warning or hazard (no text or symbols present)

Using the detergent drawer

$$ \text { " } \text { " } \text { " } \text { " }. \text { II } $$

1. Open the drawer and add adequate detergent into main wash compartment marked
2. Add the fabric softener into compartment marked “☐” or “☐”. Do not exceed the maximum level mark.
3. Add the detergent into the pre-wash compartment marked “⊥” or “I” according to the programme you select.
4. Close the drawer.

The right amount to dispenser will depend on the following:

• The quantity of laundry
• The soiling level of the laundry

• Lightly soiled
  No visible dirt or stains. Possibly slight body odour.
• Normally soiled
  Visibly dirty and/or just a few slight stains.
• Heavily soiled
  Visible dirt and stains and/or dried on soiling.

• The water hardness level.

Note It is recommended to use low foaming powder.

Washing steps

1. Turn on the water tap, and connect the power.
2. Open the door, and put the garments into the drum one by one.
3. Close the door, and put suitable amount of detergent and fabric softener into the dispenser, then close the drawer.
4. Choose a programme you need by turning the knob.
5. Choose a washing function by pressing the function button.
6. Press "Start/Pause" button to start the washing machine.
7. When the cycle is finished, there is a warning tone sounds.

Note When washing cycle is finished, the machine will change to a standby mode. And the power will be off after 10 minutes without any control on the control panel.

Important:

The rated voltage and frequency of E/TE series are 220-240V AC and 50Hz. The rated voltage and frequency of K/TK series are 220-240V AC and 60Hz.

Please ensure the connection data quoted on the data plate match the household mains supply.

Washing programme chart

Programme	Washing symbol	Fabric
Cotton		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Quick		Small loads of items which require freshening up and which can be washed in a Cotton programme.
Rinse+Spin		This programme can be used for rinsing items which can be washed in a Cotton programme. Do not add any detergent.
Spin		Separate spin for cotton and linen items
Intensive		Cottons, linens or cotton mix fabrics, e.g. table linen, towelling, underwear, T-shirts etc.
Synthetic		Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts.
Wool		Machine-washable or hand-washable wool or wool blend fabrics. If the care label does not specify a temperature, wash using the cold setting. Also suitable for hand-washable silks. Reduce the spin speed.

Note

The machine is fitted with a balance control device, which ensures the machine is stable during the spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 15 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually and reselect the spin programme.

Door lock

• When the machine is started, the door lock is locked though you press the "Start/Pause" button. Turn the knob to the position "O", and the door lock is unlocked in two minutes.
• When the temperature inside the drum is above 53^ , the door lock is locked.
• When the water is above a certain level, the door lock is locked.
• When the washing cycle is finished, the door lock is unlocked in two minutes.

Important:

Do not try to open the door when the washing cycle is not finished or power supply is cut off during the washing cycle, because the temperature may be high and you may be scalded.

Disconnect the machine from the mains electricity supply and withdraw the plug from the socket before cleaning the machine.

The washing machine must not be hosed down.

Cleanning the exterior

Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a well wrung-out cloth. Wipe dry with a soft cloth.

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents. These might damage plastic surfaces and other components because of the chemicals they contain.

The Washing drum

Clean the drum every 3 months by using the "Anti-Bac" programme.

Cleanning the drawer

Remove detergent residues regularly. Clear the drawer following these:

• Pull out the drawer until a resistance is felt. Press down the release catch and at the same time pull the drawer right out of the machine.
• Remove the siphon from compartment and clean it.
• Clean the dispenser using a brush and warm water.

Illustration of hands using a tool to adjust or install a rectangular object, with no visible text or symbols.

Line drawing of a hand using a tool to clean or wash food from a sink (no text or symbols)

Cleaning the drawer housing

Use a bottle brush to remove detergent residues inside the drawer housing.

Illustration of a hand using a tool to adjust or install a component, no text or symbols visible

Cleaning the water inlet filter

Use pointed nose pliers to withdraw the plastic filter. Clean, put back and secure. These filter should be checked every 6 months or so, or more often if there are frequent interruptions to the water supply.

Diagram of a device's cable connector with two connectors and a cable inserted (no text or symbols)

Note The filter must be put back in place after cleaning

Cleaning the water inlet filter

1. There are two kinds of lower covers for different models. Disconnect the machine from the mains electricity supply and open the lower cover with a screwdriver following the drawings above.

Note	The filter should be cleaned every 2 months or so, or when there is a fault that the “Rinse” and “Spin”LEDs flickers for A2 series and “E3” is lighted up on the screen for A5/A8.

Important:

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

1. Turn off the water tap.
2. Unscrew the inlet hose.
3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl. Run the spin programme.
4. Disconnect the appliance.
5. Screw the inlet hose and reposition the drain hose.
6. When you intend to start the machine up again, make sure that the room temperature is above 0^ C.

Problem	Error Code	Possible Cause	Solutions
The machine fills overtime.	"Spin"LEDflickers.	1. The water tap is not open.2. The drain hose is put down.3. The water inlet valve is damaged.	1. Open the water tap.2. hook up the hose.3. Change the water inlet valve.
There is a Door lock alarm.	"Rinse"LEDflickers.	1. The door is not locked well.2. garment is caught between the door and the seal.3. The door lock is damaged.	1. Lock the door well.2. Put the garment into the drum.3. Change the door lock.
The machine drains overtime.	"Rinse"and "Spin"LEDs flicker.	1. The drain hose is squashed or kinked.2. The drain pump filter is block.3. The drainage system pipes are blocked.	1. Check the drain hose.2. Clean the filter.3. Check the drainage system and clean it.
Water overflows the machine./ Water sensor works abnormal.	"Washing"LEDflickers.	1. The water inlet valve is damaged.2. The connection between the water sensor and wire is not secure.3. The water sensor is damaged.	1. Change the water inlet.2. Check the connection and ensure it is secure.3. Change the water sensor.
The motor does not work.	"Washing"and "Spin"LEDs flicker.	1. The connection between the motor and wire is not secure.2. The motor is protected because of over-heat.3. The motor is damaged.	1. Check the connection and ensure it is secure.2. Check if the machine is overloaded.Switch off the machine, and retry when the motor becomes cool.3. Change the motor.
There is a heating tube fault.	"Washing"and "Rinse"LEDs flicker.	1. The connection between the heating tube and wire is not secure.2. The heating tube is damaged.	1. Check the connection and ensure it is secure.2. Change the heating tube.
There is a temperature sensor fault.	"Washing", "Rinse"and "Spin"LEDs flicker.	1. The connection between the temperature sensor and wire is not secure.2. The temperature sensor is damaged.	1. Check the connection and ensure it is secure.2. Change the temperature sensor.

Model Parameter	NVR-4901-6K-1000
Power	220V–240V~, 50Hz
Washing / spin capacity	7.0kg
Rated power	2100W
Water pressure	0.02–0.8MPa
Power of off-mode	0.39W
Power of left-on mode	0.39W
Program time (min)	187
Remaining moisture content	Class B
Average Energy consumption	0.947kWh
Average Water consumption	45L
Net weight / gross weight	66kg/72kg
Outer dimension (W x D x H) mm	595X640X845

Note:
Data can vary from the nominal values given depending on water pressure, water hardness, water inlet temperature, room temperature, type and volume of load, fluctuations in the electricity supply and any extra options selected.

Symbol explanation

V	Volt	~	Alternating current
W	Watt	Hz	Hertz
	Safe test		CE symbol

Environmental protection

Correct Disposal of this product

This marking indicates that this product should not be disposed with other house hold wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Electric Diagram

