Product Type	Universal Remote Control
Brand	TELE System
Model	All in One
Category	Remote Control
Compatibility	TV, DVD, SAT, and other IR devices
Battery Type	AAA (alkaline recommended)
Number of Batteries	2
Wireless Technology	Infrared (IR)
Range	Up to 10 meters
Dimensions (approx.)	20 x 5 x 2.5 cm
Weight (with batteries)	Approx. 150 g
Color	Black
Material	ABS plastic
Number of Buttons	40+ including numeric, volume, channel, and function keys
Programming Method	Code search or direct code entry
Functions	Power, volume, mute, channel, input source, menu, navigation, numeric
Cleaning	Wipe with a soft dry cloth; do not use liquids
Storage	Room temperature; avoid direct sunlight and moisture
Safety	Keep away from water and heat sources; do not disassemble
Spare Parts & Repairability	Batteries are user-replaceable; other repairs by authorized service
Manual Language	English (PDF available)

Frequently Asked Questions - All in One TELE System

How do I program the All in One remote to my TV?

Turn on your TV. Press and hold the SETUP button until the LED stays on. Enter the 4-digit code for your TV brand (see code list in manual). The LED will turn off if successful. Press POWER to test.

What type of batteries does the remote use and how do I replace them?

It uses 2 AAA alkaline batteries. Slide the battery cover off, insert batteries matching polarity (+/-), and replace the cover.

The remote is not responding. What should I check?

First, ensure batteries are fresh and installed correctly. Check if there's an obstacle between remote and device. Try reprogramming the remote. If still not working, reset by removing batteries for 30 seconds.

Can I control multiple devices with this remote?

Yes, the TELE System All in One remote can control up to 4 devices (e.g., TV, DVD, SAT, audio). Press the corresponding device key (TV, DVD, etc.) before using.

How do I clean the remote control?

Unplug batteries. Wipe the remote with a soft, lint-free cloth slightly dampened with water. Do not use chemical cleaners or immerse in water. Let it dry completely before reinserting batteries.

What is the range of the remote?

The infrared signal works up to about 10 meters (33 feet) in a direct line of sight with the device.

The remote controls some functions but not others. Why?

Some device functions may require a different code or advanced programming. Refer to the manual for additional codes or try the code search method: press and hold SETUP, then press POWER repeatedly until the device turns off.

How can I find the correct code for my device?

The manual includes a list of codes by brand. You can also use the automatic code search: press SETUP, then press DEVICE (e.g., TV) and POWER repeatedly until the device responds.

Is there a reset function to restore factory settings?

Yes, to reset, remove the batteries and press any button for 3 seconds. Reinsert batteries. The remote should revert to factory defaults and forget all programmed codes.

What should I do if the remote gets wet?

Immediately remove batteries. Dry the remote with a soft cloth and let it air dry for at least 24 hours. Do not use heat. Reinsert batteries only after completely dry. If it doesn't work, contact support.

USER MANUAL All in One TELE System

Remote control unit: User manual

Indice

1 Safety regulations....2
2 Basic info....3
3 How to use the remote control .... 3
4 Remote control programming.... 3

4.1 TV button programming 3

4.1.1 Setup by TV brand code 3
4.1.2 Setup by manual search....3
4.1.3 Display the TV brand code 3
4.1.4 Setup by learning function.... 4
4.1.5 TV codes deleting (Reset) 4

4.2 STB button programming.... 4

4.2.1 Setup by STB brand code 4
4.2.2 Setup by manual search.... 4
4.2.3 Display the STB brand code 5
4.2.4 Setup by learning function.... 5
4.2.5 STB codes deleting (Reset)...... 5

5 QSG....6
6 Problem solver 8

NOTE

Please refer to the online web guide www.telesystem.it/allinone to check the correspondence between the keys of universal remote unit and the keys of your TV or Set top box TELE System.

1 Safety regulations

We advise you to read the following advice concerning the safety regulations carefully in order to ensure safe use of the appliance.

LIQUIDS

• Keep the appliance far from any liquids. Do not place any objects containing liquids on the appliance, such as vases, humidifiers etc. The appliance must not be installed in areas where it could come into contact with sprays or drops of water or in an environment with a high level of humidity where condensation could occur.
  • If the remote control should accidentally come into contact with liquids, remove immediately the batteries.

CLEANING

- To clean the outside of the remote control use a soft and dry or slightly damp cloth. Avoid using products which contain chemicals or solvents.

WARNING!

• Avoid leaning the receiver close to any heat sources (i.e. radiators, stoves etc) or on top of any other appliances which omit heat (video players, DVD etc).
• Keep the appliance out of reach of children.
• The plastic bags used for packaging can be dangerous. To avoid suffocating keep the bags out of reach of children.
• Do not expose the remote control to direct sunlight.
• Remove the batteries from the remote control if they will not be used for a long period of time. The remote control could be damaged by any eventual battery leakages.
• Dispose of the product correctly so as to avoid damage to the environment and human health as well as to facilitate recycling of the components/materials used in the appliance. If the product is not disposed of properly this could be punishable according to the involved law.
• The manufacturers recommend that the parts are recycled separately and are taken to sites which conform to current regulations.

- Take the product, including its accessories and batteries, when no longer usable to a collection point which is authorised to handle waste from electrical or electronic appliances that should be kept separate from regular household waste.

NOTE

Because of mistakes or updates aimed at continuous improvement of the product, some features described in this manual may not match the product inside the packaging.

2 Basic info

After completing the programming process of the universal remote All.in.one, you can operate a maximum of 2 different devices: TV and decoder (or, in lieu of one of the two and using the learning function, a DVD / HDD / recorder or VCR).

After having properly programmed the remote control unit for controlling the STB or TV set, it will work like the original remote control of the TV set, limited to main functions, such as On/Standby switching, audio volume adjustment and channel change.

NOTE

In the following chapter we use the acronym STB that means Set Top Box to indicate the receiver equipment.

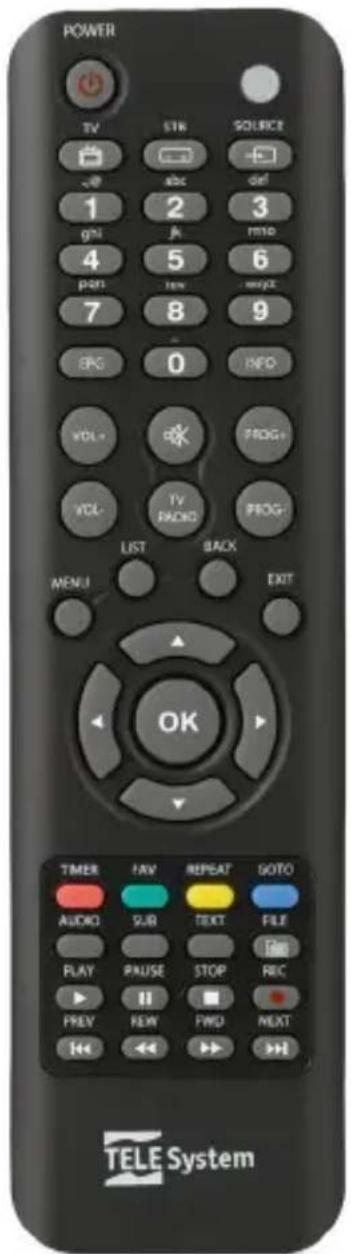

3 How to use the remote control

Press the proper function button STB or TV to control respectively the receiver or the TV set, then point the remote control at the IR sensor of the target device. At each IR transmission, the LED indicator will blink.

1. LED: Led marker used during the setup

2. 3. TV press shortly to enter to TV control mode press more than 3 sec to enter to setup mode

1. STB: press shortly to enter to STB control mode
2. press more than 3 sec to enter to setup mode
3. SOURCE: reserved to the setup mode

4 Remote control programming

4.1 TV button programming

4.1.1 Setup by TV brand code

The default TV brand codes are listed in the (see the attachment TV/STB List). Detect the brand of your TV set, then follow these steps:

1. Switch on the TV set.
2. Press and hold the TV button for 3 second. Release it as soon as the LED indicator is lighted up.
3. Enter the 4-digit TV brand code by using the numeric buttons 0÷9.
4. The LED will turn off if the remote control accepts the code.

CAUTION

If the code is wrong, the LED will flash 3 times and turn off; in this last case, repeat the procedure.

1. Check the functions of the buttons of the remote control. If it does not function correctly, try another 4-digit TV set code from the list under the same brand by repeating the steps from 1 to 5 until all basic functions operate correctly.

If the TV brand is not present in the list or the setup is unsuccessful, try the next method.

4.1.2 Setup by manual search

1. Switch on the TV set.
2. Keep pointed the remote control at your TV set for all the procedure.
3. Press and hold the TV button for 3 seconds until the LED lights up.
4. Press the PROG + button progressively.
5. If necessary, press PROG- to recall the previous code.
6. As soon as the TV set responds to the command, by going in stand-by or changing channel, press the OK button to save the code. The LED will turn OFF.
7. Check whether the other buttons of the remote control function properly. If the majority of the buttons does not function correctly, repeat the procedure starting from the first step.

4.1.3 Display the TV brand code

To identify the TV brand code in use by the remote control, follow these steps:

1. Press and hold the TV button for 3 seconds until the LED lights up.

2. Press and hold the STB button for 3 second, then release it.

3. To get the first digit of the code, press singularly the numeric button from 0 to 9 until the LED flashes once. The number that lights up the LED corresponds with the searched digit.

4. Repeat the above step 3 times in order to find the remaining three digits of the code.
5. After having the last digit of the code, the LED will turns OFF.

NOTE

When the TV button is not programmed or after a reset (par. 4.1.5), the code is 0000.

4.1.4 Setup by learning function

The learning function is used to extend the default programs of the standard TV code list (see the attachment TV/STB List), thanks to the Learning function. A fully functional original remote control of the TV set is required. Please also use new batteries for both the original TV remote control and the Learning remote control.

1. Press and hold the TV button of the Learning remote control. Release it when the LED turns on.
2. Press and hold the SOURCE button until the LED starts flashing: now the remote control is in learning mode.
3. Align the IR sensors of both remote control units and keep them so at a closed distance (around 3 cm) for all the procedure.
4. Press and release the target button on the Learning remote control which you want to program: the LED will light up.
5. Press the button of the original remote control that match with the button mentioned on previous step. If the command is accepted, the LED of the Learning remote control will restarts flashing.

CAUTION

The capturing is not immediate, it may take some seconds.

1. Repeat the steps 4 and 5 for all the other buttons to learn from the original remote control.

2. When you finish learning all needed buttons, press the TV button to save all commands you have learnt from original remote control and exit the learning mode.

CAUTIONS

• Every button keeps the learned function even after changing the TV program code. For restoring the original function of the buttons, perform a reset (see 4.1.5).
• The buttons TV, STB, LED and SOURCE are not programmable.

4.1.5 TV codes deleting (Reset)

To delete all the codes set for the TV button, proceed as follows:

1. Press and hold the TV button of the Learning remote control. Release it when the LED turns on.
2. Press and hold the SOURCE button until the LED starts flashing.
3. Press and hold again the SOURCE button until the LED turns OFF: the reset is done.

CAUTION

A reset will cancel any learned function and restore the TV code to 0000. In this condition, the RCU doesn't emit any signal

4.2 STB button programming

4.2.1 Setup by STB brand code

The default STB brand codes are listed in the attachment TV/STB List. Detect the brand of your STB set, then follow these steps:

1. Switch on the STB.
2. Press and hold the STB button for 3 second. Release it as soon as the LED indicator is lighted up.
3. Enter the 4-digit STB brand code by using the numeric buttons 0÷9.
4. The LED will turn off if the remote control accepts the code.

CAUTION

If the code is wrong, the LED will flash 3 times and turn off; in this last case, repeat the procedure.

1. Check the functions of the buttons of the remote control. If it does not function correctly, try another 4-digit STB code from the list under the same brand by repeating the steps from 1 to 5 until all basic functions operate correctly.

If the STB brand is not present in the list or the setup is unsuccessful, try the next method.

4.2.2 Setup by manual search

1. Switch on the STB.
2. Keep pointed the remote control at your STB for all the procedure.
3. Press and hold the STB button for 3 seconds until the LED lights up.

4. Press the PROG + button progressively.

5. If necessary, press PROG- to recall the previous code.

6. As soon as the STB responds to the command, by going in stand-by or changing channel, press the OK button to save the code. The LED will turn OFF.
7. Check whether the other buttons of the remote control function properly. If the majority of the buttons does not function correctly, repeat the procedure starting from the first step.

4.2.3 Display the STB brand code

To identify the STB brand code in use by the remote control, follow these steps:

1. Press and hold the STB button for 3 seconds until the LED lights up.
2. Press and hold the STB button for 3 second, then release it.
3. To get the first digit of the code, press singularly the numeric button from 0 to 9 until the LED flashes once. The number that lights up the LED corresponds with the searched digit.
4. Repeat the above step 3 times in order to find the remaining three digits of the code.
5. After having the last digit of the code, the LED will turns OFF.

NOTE

When the STB button is not programmed or after a reset 4.2.5, the code is 0000.

4.2.4 Setup by learning function

The learning function is used to extend the default programs of the standard STB code list (see the attachment TV/STB List), thanks to the Learning function. A fully functional original remote control of the STB is required. Please also use new batteries for both the original STB remote control and the Learning remote control.

1. Press and hold the STB button of the Learning remote control. Release it when the LED turns on.
2. Press and hold the SOURCE button until the LED starts flashing: now the remote control is in learning mode.
3. Align the IR sensors of both remote control units and keep them so at a closed distance (around 3 cm) for all the procedure.
4. Press and release the target button on the Learning remote control which you want to program: the LED will light up.
5. Press the button of the original remote control that match with the button mentioned on previous step. If the command is accepted, the LED of the Learning remote control will restarts flashing.

CAUTION

The capturing is not immediate, it may take some seconds.

1. Repeat the steps 4 and 5 for all the other buttons to learn from the original remote control.
2. When you finish learning all needed buttons, press the TV button to save all commands you have learnt from original remote control and exit the learning mode.

CAUTIONS

• Every button keeps the learned function even after changing the STB program code. For restoring the original function of the buttons, perform a reset (see par.4.2.5).
• The buttons TV, STB and SOURCE are not programmable.

4.2.5 STB codes deleting (Reset)

To delete all the codes set for the STB button, proceed as follows:

1. Press and hold the STB button of the Learning remote control. Release it when the LED turns on.
2. Press and hold the SOURCE button until the LED starts flashing.
3. Press and hold again the SOURCE button until the LED turns OFF: the reset is done.

CAUTION

A reset will cancel any learned function and restore the STB code to 0000. In this condition, the RCU doesn't emit any signal

5 QSG

Setup by TV brand code

Setup by STB brand code

TV code deleting

STB code deleting

Display TV code

Display STB code

Setup by manual search (TV code)

Setup by manual search (STB code)


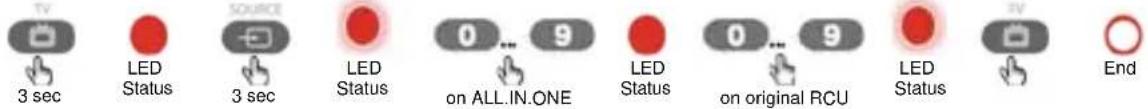

Setup by learning function (TV)

Setup by learning function (STB)

6 Problem solver

PROBLEM POSSIBLE CAUSE REMEDY

The remote control does not work. -The appliance is in Stand-by.-The remote control is not being directed towards the receiver.-The remote control batteries are flat.-The batteries have been inserted in the wrong direction.-The remote control has been dropped and its internal components have been damaged.-Wrong remote control mode in use.	-Press the STAND-BY button on the appliance to check if the device is working properly.-Make sure nothing is obstructing the front panel.-Change batteries.-Check the battery polarities.-Contact the local dealer and buy a new remote control.-Press STB or TV button and check the response of the box.
Some buttons do not work -Buttons are not pre-programmed- Buttons has been programmed by learning function and later an TV or STB code has been set	-Programme the buttons by using the learning function (ref. 4.1.4 and/or 4.2.4)- Perform a reset of the TV and/or STB code (ref. 4.1.5 and/or 4.2.5)

CAUTION

• TV, LED, STB, SOURCE keys are no programmable during Auto learning mode.
• Because of the large number of TV equipment available in the market, it is not possible to guarantee the compatibility with all devices.

TV/STB

TV
TELESYSTEM	1001	1021	1003	1004	1005	1006	1007	1008	1009	1010	1011	1012
TELESYSTEM	1013	1014	1015	1016	1017	1018	1022	1023	1024	1025
STB
TELESYSTEM	2002	2003	2004	2005	2006	2007	2008	2009	2010	2011	2012	2013
TELESYSTEM	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023	2024	2025
TELESYSTEM	2026	2027	2028	2029	2030	2031	2032	2033	2034	2035	2036	2037
TELESYSTEM	2038	2039	2040	2041
OTHERS
TELESYSTEM	2042	2043	2044	2045	2046	2047	2048	2049	2050	2051	2052	2053
TELESYSTEM	2054	2055	2056
A.R.SYSTEMS	1170	1222	1224
ACCENT	1235			1252
ACTION	1235
ADMIRAL	1201	1235	1282	1296	1297	1309	1311
ADURA	1169	1170	1235	1243	1252	1291	1293
AGASHI	1170				1173
AIKO	1223	1235	1243
AIM	1169	1170	1171	1173	1224	1237	1253	1300
AIOSTAY	1235				1294
AIWA	1354	1396	1422	1084
AKAI	1170	1171	1173	1178	1198	1223	1232	1235	1237	1242	1243	1253
AKAI	1271	1273	1280	1291	1293	1294	1295	1310	1313	1371	1381
AKAI	1403					1082
AKI	1223
AKIRA	1169					1172
ALBA	1170	1243	1294	1351
ALBIRAL	1170	1173	1217	1222	1224	1247	1248	1252	1269	1274	1294
ALHORI	1223
ALLOGRAN	1223	1284	1287	1375
AMPLIVISION	1223	1224
AMSTRAD	1173	1235	1252	1253	1297	1347
ANEX	1170
ANGLO	1252
ANITECH	1170	1173	1195	1235	1269	1274	1298
ANSONIC	1170
ANTECNO	1243
ARCELIK	1023	1024	1118	1119	1134	1138	1065	1170	1183	1256	1264	1294
ARCELIK	1303	1306	1325	1340	1392	1062
ARDEM	1325
ART TECH	1170	1235	1273
ASA	1182	1192	1193	1199	1200	1204	1282	1295
ASTHON	1170
ASTON	1333
ASTRA	1170	1173	1224	1232	1235	1294	1330	1336	1401	1402	1415
ASTRO SOUND	1170	1224	1269	1274	1294
ASUKA	1243	1294
ATAKI	1330
ATLANTIC ATORO	1170	1175	1183	1298	1375	1235
AUDIO STAR	1243	1330
AUDIOSONIC	1170	1173	1183	1217	1222	1223	1235	1243	1252	1269	1279	1285
AUDIOSONIC	1325	1382	1437
AUDIOSTAR	1243	1330
AUDIOTON	1223	1235	1243	1298	1330
AURORA	1201	1223	1235	1237
AUSIND	1189
AUTOVOX	1170	1192	1197	1198	1219	1223	1235	1237	1273	1284	1287	1353
AUTOVOX	1375	1376	1400
AUVISAT	1438
AWA	1170	1173	1223	1229	1235	1237	1273
BAIRD	1273	1300
BANG&OLUFSEN	1170	1173	1201
BARCO	1201	1212	1213	1215	1247	1248	1250	1294	1300
BASIC LINE	1170	1243	1284	1287	1288	1330
BAUR	1169	1170	1172	1173	1178	1179	1180	1226	1227	1235	1284	1286
BAUR	1287	1291	1310	1428
BAZIN	1206	1223	1285
BEKO	1170	1173	1183	1256	1264	1285	1294	1303	1306	1308	1313	1325
BEKO	1337	1340	1392	1425	1437	1098	1166	1062
BEKO DVDII	1072
BEKOTEKNIK	1174
BENQ	1164
BEON	1271
BIFONIC	1223			1235
BIGSTON	1235	1237	1252
BLAUPUNKT	1178	1179	1180	1181	1185	1187	1222	1229	1239	1242	1329	1348
BLAUPUNKT		1382
BLAUSONIC		1223
BLUE STAR 1294
BLUESKY		1170		1438
BRENDSTAR		1235
BRIONVEGA	1170	1171	1201	1203	1204	1212	1220	1221	1266	1296	1297	1353
BRIONVEGA		1359		1426
BRITANNIA	1170	1223	1292
BROTHER	1252	1336	1413
BRUNS	1201	1267	1269	1274	1291
BSR	1285	1290	1347	1351	1377
BUSH(ATAKI)	1286	1293	1294	1330
CAMPER		1285
CAPSONIC		1170		1252
CARTEL		1064		1096
CASIO		1170		1171
CBM		1195
CENTURY		1201		1217
CGE	1170	1173	1183	1195	1211	1217	1235	1240	1243	1271	1285	1293
CGE	1294	1298	1311
CGM		1170	1174	1183	1235	1252	1325	1330	1369
CHANG HONG		1147
CIE		1235	1237	1243	1377
CIHAN		1170	1173	1285	1294
CLARIVOX		1170	1173	1196	1201	1217	1222	1224	1267	1278	1279
CLATRONIC		1341
COCA COLA 1159
COFADEL		1215	1256	1261	1265
COMPUTRON		1170	1173	1235	1253	1295	1362
CONCORDE		1235
CONDOR	1170	1173	1195	1235	1252	1269	1271	1274	1298
CONIC		1232
CONTEC		1223	1225	1229	1235	1252	1377
CONTI		1170	1173	1061
CONTIN.EDISON		1205	1214	1215	1241	1256	1261	1264	1265	1374
CONTIN.FR		1170	1362
COSMEL		1235	1279
COSMOS		1123
COSMOS 84 EKRAN		1067
COSMOS/TOKAI		1170	1235
CREA		1149	1157	1060
CROSLEY		1184	1195	1201	1211	1217	1240	1299
CROWN/ONWA SAKY		1170	1174	1183	1184	1195	1235	1243	1252	1253	1271	1325	1330
CROWN/ONWA SAKY		1369
CRYSTAL		1170
CS ELECTR		1243
CTC CLATRONIC.		1170	1183	1195	1217	1223	1243	1252	1269	1271	1274	1341
CURTIS		1173
CYMATIC	1222	1223	1285	1294
DAEWOO	1170	1171	1173	1217	1219	1223	1235	1237	1243	1273	1280	1331
DAEWOO	1382	1409	1410	1140
DANSAI		1232	1252
DAWA		1170			1173
DE GRAAF		1286
DECCA	1170	1172	1173	1222	1223	1228	1268	1273
DENVER		1170	1235
DESMET		1170	1173	1222	1235	1294	1298
DIAMOND		1235	1237
DIGILINE		1170
DIXI		1235
DOMEOS		1170	1407
DOMOH		1170
DORIC		1189	1299
DUAL		1169	1170	1173	1176	1182	1217	1223	1235	1284	1287	1291	1293
DUAL		1294	1297	1320	1347
DUAL-TEC		1169	1170	1173	1176	1182	1217	1223	1235	1284	1287	1291	1293
DUAL-TEC		1294	1297	1347	1382	1406	1407	1428
DUMONT		1170	1173	1182	1193	1195	1199	1200	1201	1239	1269	1271	1274
DUMONT		1299
DUX		1170	1173
D-VISION		1170
DYNAMIC		1235
DYNATECH DYNISTY		1170	1237
EDAN LINE		1170	1300
ELBE		1177	1222	1223	1224	1229	1261	1266	1294	1296	1297	1299	1309
ELBE		1311	1386	1431
ELECTRO TECH		1235
ELEKTRONSKA		1222		1294
ELIN	1170	1173	1182	1223	1235	1291	1295
ELITE			1239			1298
ELMAN	1269	1274	1294	1347
ELTA			1246
EMERSON	1170	1173	1174	1183	1193	1195	1199	1201	1217	1223	1252	1269
EMERSON	1274	1294	1298
ENGEL			1267			1294
EPSON			1104
ETRON	1235	1253	1363
EUROCOM			1294
EUROLINE			1436
EUROMAN	1170	1173	1184	1223
EUROPHON	1217	1222	1223	1269	1274	1277	1294
EXPERT	1175	1262	1284
FAGOR			1294			1332
FALCON			1235
FENNER	1170	1173	1235	1237
FIDELIS	1170	1173	1223	1232	1235
FIDELITY	1214	1217	1223	1232	1243	1253	1264	1284	1287	1292	1294
FILSAI			1223			1235
FINLANDIA			1285			1286
FINLUX	1170	1173	1182	1189	1192	1193	1199	1200	1219	1222	1235	1269
FINLUX	1271	1273	1274	1291	1295	1299	1361	1381	1403
FIRST LINE			1170	1171	1173	1196	1217	1223	1224	1225	1235	1237	1273
FIRST LINE			1287	1288	1291	1293	1294	1296	1298
FISHER			1174	1182	1201	1223	1225	1229	1230	1231	1234	1267	1284
FISHER			1299	1300	1310	1428
FLINT			1170	1280	1431
FORMENTI			1170	1173	1183	1189	1195	1201	1222	1223	1235	1239	1252
FORMENTI			1271	1274	1285	1294	1298	1299	1347
FORTRESS			1201
FRABA			1170
FRONTECH			1170	1217	1219	1223	1232	1235	1286	1294	1347
FUJITEC			1170
FUJITSU	1170	1176	1200	1223	1232	1243	1269	1274	1290	1297	1375	1376
FUJITSU			1400
FUMEO			1290
FUNAI			1229	1235	1252	1377
GALACTEX			1223			1252
GALAXI			1170			1193
GALAXIS			1170	1183	1193	1271
GALAXY	1178	1183	1193	1195	1223	1269	1271	1274
GALERIA			1235
GBC	1170	1173	1217	1229	1235	1237	1243	1253	1273	1282	1294	1299
GBC			1330
GE			1264
GEBER	1284	1287	1288
GEC	1209	1222	1223	1229	1273	1284	1285	1286	1299	1378
GELESO	1217	1222	1235	1237	1243	1282	1294	1299
GENERAL STAR			1328
GENERAL TECHNIC			1235
GIANT			1170	1173	1223	1259	1345
GITEM			1170	1173	1179	1180	1256	1264	1288	1289
GM			1170	1235	1252
GMG			1170	1235	1252	1271
GOLDFUNK			1369
GOLDSTAR			1170	1173	1176	1185	1191	1219	1223	1232	1235	1270	1275
GOLDSTAR			1290	1294	1328	1370	1407	1434	1439
GOODING			1362
GOODMAN			1025
GOODMANS			1170	1171	1173	1223	1229	1235	1237	1243	1253	1264	1294
GOODMANS			1369	1382
GORENJE			1170	1174	1183	1184	1284	1287
GPM			1243	1235
GRAETZ(ITT)			1337	1404	1433	1437
GRANADA			1170	1173	1196	1222	1223	1229	1242	1250	1259	1285	1286
GRANADA			1299	1303	1312	1321	1345	1384	1417
GRANDIN			1170	1262	1284	1294	1298	1299	1431
GREAT WALL			1252	1279	1280
GRENADIER			1170	1235	1294	1328
GRONIC	1170	1173	1223	1235	1267	1269	1274	1294
GRUNDIG			1170	1171	1173	1178	1179	1180	1181	1185	1194	1196	1235
GRUNDIG			1362	1380	1382	1427	1089	1117	1141
GTT			1170	1235	1271	1330
HAMERSTEIN			1223	1236	1252	1254
HAMPTON			1223	1299
HANIMEX			1243
HANSEATIC	1169	1170	1179	1180	1222	1223	1229	1235	1284	1286	1287	1291
HANSEATIC	1298	1299	1377	1382	1410	1434
HANTAREX	1170	1222	1235
HCM	1223	1235	1246	1294	1330
HEMMERMANN		1223	1263	1269	1274	1284	1287
HEXA		1278			1294
HIGASHI		1223
HILINE	1235	1252	1253
HINARI	1170	1228	1232	1235
HISENSE	1286	1300	1054
HISONIC		1234
HITACHI	1171	1223	1229	1232	1261	1270	1284	1285	1286	1287	1294	1295
HITACHI	1299	1306	1307	1308	1346	1356	1378	1379	1381	1382	1410	1429
HITACHI		1075			1097
HOSHAI		1330
HUMAX		1042			1043
HUNTER		1393
HYPER	1170	1219	1223	1235	1238	1243	1253	1285	1294	1330	1346
HYPSON	1170	1173	1235	1252
HYUNDAI	1170	1173	1368	1414	1100	1127
IBERVISAO	1284	1287	1294
ICE	1243	1252	1253
IEG		1223
IMPER	1170	1171	1173	1235	1243	1252	1336
IMPERIAL		1170	1173	1183	1195	1211	1217	1240	1252	1271	1285	1293	1294
IMPERIAL		1311
INDESIT		1257
INF.REM.CONTR		1361
INNO HIT	1170	1173	1191	1217	1222	1223	1232	1235	1243	1253	1273	1299
INNO HIT		1330	1126
INTERBUY		1219
INTERDISCOUNT		1170	1226	1256	1264
INTERFUNK	1169	1170	1173	1191	1204	1217	1222	1223	1232	1235	1243
INTERFUNK	1250	1253	1256	1271	1273	1284	1287	1288	1291	1299
INTERVISION		1170	1217	1219	1223	1269	1274	1275	1276	1294
IRRADIO	1170	1173	1189	1191	1196	1219	1232	1235	1243	1252	1253	1294
IRRADIO		1369	1382
ISKRA		1222	1223	1269	1274	1294	1325
ITC		1223	1294
ITL		1170	1235
ITT		1068	1069	1070	1091
ITT SCHAUB LORENZ		1170	1235	1284	1287	1294	1299	1337	1403	1067	1165	1183	1237
ITT SCHAUB LORENZ		1243	1291	1295	1300	1330
ITT/NOKIA		1169	1170	1173	1175	1182	1183	1199	1235	1237	1243	1271	1281
ITT/NOKIA		1284	1285	1286	1287	1288	1291	1292	1294	1295	1296	1299	1300
ITT/NOKIA		1310	1330	1342	1361	1369	1375	1381	1403
JET POINT		1170	1254
JINALIPU		1235
JOHNSON		1223
JVC		1029	1077	1229	1253	1254	1364	1365	1382	1411	1204
KORTING		1081
KAISER		1170
KAISUI	1170	1223	1235	1243	1271	1280	1330	1403	1431
KALRMAX		1222	1223	1224	1247	1248	1250	1285	1294
KAMAR		1234
KAMBROOK	1170	1223	1252	1275
KAMOSONIC		1223
KAPSCH		1175	1182	1299	1375
KARCHER		1170	1173	1174	1183	1200	1223	1224	1235	1277	1285	1286	1330
KARDON	1375	1376	1400
KAUASONIC		1393
KELVINATOR		1270
KENDO		1170	1173	1176	1217	1223	1235	1266	1269	1274	1282	1290	1296
KENDO		1299	1311	1375	1376	1400
KENNEDY		1176	1217	1256	1266	1290	1297	1299	1311	1375	1376	1400
KENNEX		1170			1369
KERION	1170	1173
KIC		1223
KIOTA		1252
KITT		1223	1252
KIYOGIN		1170
KNEISSEL		1170	1177	1225	1311	1370	1382	1431
KOBIC		1235
KOENIG		1298	1299
KOERTING		1170	1174	1201	1209	1284	1287	1288
KOLSTER		1170	1173	1217	1219	1223	1224	1269	1274	1294
KONDA		1094
KONKA		1388	1391
KONTAKT		1362
KOTRON		1252
KRONNE		1223			1294
KUBA ELETRONIC 1428
KYOTO	1222	1223	1294
LAVIS		1222
LEADER		1235			1421
LEGEND	1170	1173	1223	1235	1252	1279
LENCO	1170	1173	1237	1269	1274	1291	1369
LENOIR	1170	1173	1223	1235	1237	1284	1287	1330
LEYCO	1170	1252	1273	1347	1377
LG	1425	1439	1407	1434	1083	1135	1155	1063
LIESENKOTTER			1170		1239
LIFE			1235
LLOYD'S	1196	1223	1235	1252	1299
LOEWE		1284			1143
LOEWE OPTA		1169	1170	1172	1182	1201	1203	1204	1222	1223
LOEWE.		1168
LOGIK		1216			1228
LUMA	1282	1290	1297	1375
LUMATRON		1170			1113
LUXOR	1191	1219	1223	1270	1285	1286	1289	1291	1295	1299	1300	1357
LUXOR		1403
M.ELECTRONIC		1169	1170	1173	1182	1185	1191	1193	1199	1200	1201	1217	1219
M.ELECTRONIC		1222	1235	1237	1241	1266	1269	1271	1274	1282	1284	1287	1294
M.ELECTRONIC		1295	1299	1381	1382	1407	1428	1434	1436
MAAZ	1247	1248	1250
MACTH-ITALIA		1170
MAGNADYNE		1170	1173	1178	1201	1217	1222	1235	1269	1271	1274	1282	1284
MAGNADYNE		1287	1294	1299
MAGNAFON		1170	1189	1193	1222	1223	1269	1274	1299
MAGNASONIC		1170	1173
MAGNEX		1170
MANESTH		1170	1285	1288	1291	1294	1298	1303
MANHATTAN		1369
MARANTZ		1170	1173
MARECH		1298
MARK		1325
MASCOT		1217
MATCH ITALIA		1170	1235
MATSUI	1170	1201	1223	1228	1235	1252	1284	1285	1286	1287	1294	1299
MATSUI	1301	1347	1351	1362	1373
MATSUKA		1223	1252	1351
MAXAM	1223	1235	1252
MAXELL		1235
MAXWELL		1170	1222	1248	1250	1269	1274
MCE		1235
MEDIACOM		1124
MEDION		1046
MEGA		1170			1171
MEMPHIS		1279
MERCURY		1223	1235	1252	1321
METZ	1178	1179	1180	1185	1186	1187	1204	1207	1208	1369
MGA		1169	1237	1243	1252
MICRON		1223
MINERVA		1178	1179	1180	1185	1196	1241	1362
MITRONIC		1232
MITSUBISHI		1102	1178	1201	1204	1228	1229	1235	1237	1259	1345	1349	1382
MITSUBISHI		1169
MIVAR		1177	1188	1190	1191	1218	1222	1223	1323
MTC		1183	1294
MULTITECH		1169	1170	1174	1217	1219	1222	1223	1228	1229	1235	1243	1246
MULTITECH		1252	1269	1274	1294	1330	1337
MURPHY		1189	1223	1285	1293	1294	1299
NAGEL		1210
NAGOTA		1285
NAKASHI		1170
NAMSONIC		1235
NAMSUNC		1235
NARITA		1237
NEC		1224	1228	1229	1235	1237	1280	1329
NECKERMANN		1170	1171	1173	1179	1180	1183	1185	1204	1223	1226	1227	1239
NECKERMANN		1266	1282	1285	1286	1298	1370	1377	1382	1436
NECSTAR		1393
NEI		1170	1173	1279	1285	1294
NEWMAR		1223	1285	1294
NEWTECH		1170	1223
NIKKAI		1223	1232	1252	1270
NIKKEI		1170	1173	1369	523
NIKKO		1170	1173	1279
NIPPON		1146

NOBLEX	1229	1230	1231	1234	1235	1236	1237
NOBLIKO	1189	1193	1195	1196	1217	1223	1269	1274
NORDMENDE		1202	1214	1215	1256	1261	1264	1283	1299	1352	1433
NORDWAY		1293
NORTEK		1170			1382
NOVATRONIC		1170	1235	1237	1252
O.GENERAL		1229			1235
OCEANIC(ITT)		1258	1262	1281	1284	1285	1286	1288	1289	1291	1295	1299	1300
OCEANIC(ITT)		1381
OCTAL		1223
OKANO		1183
OLYMPIC		1235
ONCEAS	1217	1223	1235
ONIDA		1173
ONWA	1252	1253	1271	1403
ORAVA	SLOV	1170	1201	1294
ORAVA/OTF		1170			1235
ORIENT	1170	1235	1335	1090
ORION	1170	1171	1228	1232	1235	1236	1252	1263	1281	1284	1285	1287
ORION	1304	1305	1308	1317	1347	1351	1360	1370	1373	1377
ORION	HUNGARY		1170	1173	1281	1285	1357	1358
ORMOND	1170	1222	1369
OR-ON		1330
ORSOW'E		1170	1173	1222	1252
OSAKI	1170	1173	1252	1276
OTHER LINE	1173	1222
OTHERS		1101	1105	1106	1107	1108	1133	1396	1324	1343	1367	1148	1158
OTHERS		1116
OTTO	VERSAND		1169	1170	1171	1172	1173	1178	1179	1180	1185	1219	1223	1226
OTTO	VERSAND		1227	1229	1235	1242	1246	1264	1285	1286	1287	1291	1298	1299
OTTO VERSAND	1325	1428
PAEL		1189	1196	1223
PALLADIUM		1183	1204	1266
PALSONIC		1170	1173	1223	1232	1243	1252
PANAMA	1170	1173	1217	1252
PANASHIBA		1235
PANASONIC		1139	1294	1299	1344	1348	1366	1399	1179	1180	1242
PANAVOX		1170	1235	1299
PANAVSION		1252
PANORAMA		1223	1235	1243
PANORAMIC		1256
PATHE	CINEMA		1183	1222	1223	1224	1278	1294	1298
PAUSA		1235
PCM		1170	1173
PEGASUS		1099
PERSHIN		1196	1278
PHILARMONIC		1223
PHILCO	1170	1173	1183	1195	1201	1211	1217	1224	1229	1235	1240	1271
PHILCO	1284	1285	1287	1293	1294	1299	1311
PHILIPS	1041	1145	1150	1151	1156	1170	1171	1173	1179	1180	1201	1204
PHILIPS	1223	1224	1249	1250	1251	1271	1334	1355	1372	1382	1407	1412
PHILIPS		1428	1435	1436
PHOENIX>FORMENTI		1318	1321
PHONOLA>PHILIPS		1314		1315
PILOT		1408	1433
PIONEER	1170	1173	1291	1370	1418	1073	1058
PLANTRON		1217	1222	1235	1282	1285	1299
PORTLAND		1170
PRANDONI	PRINCE		1189	1217	1222	1269	1274	1282	1285	1299
PREMIER	1028	1052	1086	1128	1129	1142	1080	1170	1171	1327	1336	1393
PREMIER		1421
PRIMA	1223	1232	1235	1252
PRINCESS		1232	1235
PROFEX		1195	1235	1239	1291
PROFILO		1131
PROIFLO	1170	1173	1222	1264	1294	1370	1397
PROLINE		1304
PROSONIC		1170
PROTECH		1170	1173	1235	1271	1294	1304	1325	1369	1436
PYE		1170	1171	1173	1237	1250
QUAL CRAFT		1189	1232	1243	1269	1274	1347
QUASAR	1189	1232	1269	1274	1299	1347
QUELLE		1169	1170	1173	1178	1182	1189	1191	1192	1193	1196	1199	1200
QUELLE		1219	1223	1226	1228	1231	1232	1239	1240	1252	1284	1287	1291
RADIOLA		1170	1171	1173	1250
RADIONETTE	1182	1200	1284	1299
RADIOTONE		1325	1341
RANK/RBM		1189	1286	1293	1299	1316
RC 903A		1115
RECOR	1169	1170	1173	1252
REDIFFUSION		1291		1299
REFLEX		1170			1369
REGENTE		1235
RFT		1201			1325
RITAR		1295
RIZ		1294
RM		1369
RM2000		1170
ROADMASTER		1050
ROADSTAR	1170	1173	1232	1235	1243	1330	1369	1370	1371	1440
ROB.ELECTR.		1201		1267
ROWA	1223	1235	1252
ROWIDO/KONIG		1189		1294
ROWSONIC		1223
ROYAL	1173	1223	1235	1243	1252	1271
RTF		1201
S.LORENZ	1170	1183	1235	1237	1243	1284	1287	1291	1295	1299	1300	1330
SABA	1170	1204	1205	1214	1215	1222	1235	1237	1256	1259	1261	1264
SABA	1285	1288	1294	1299	1335	1338	1341	1352	1370	1374	1397	1405
SABA		1112			1137
SABERG	1170	1173	1195	1271
SAGEM		1431
SAISHO	1223	1224	1228	1237	1243	1303	1347	1351
SAKURA		1235
SALORA	1170	1199	1270	1282	1285	1286	1288	1291	1292	1295	1300	1361
SALORA	1381	1385	1403	1423
SAMBERS		1189	1191	1193	1195	1196	1222	1224	1269	1274
SAMSUNG	1170	1171	1173	1174	1183	1191	1204	1223	1228	1232	1234	1235
SAMSUNG	1236	1254	1273	1276	1327	1334	1347	1378	1382	1383	1419	1432
SAMSUNG	1435	1144	1059
SANDRA COLOR		1222	1223
SANG		1170	1337	1437
SANKYO		1233	1384
SANSUI	1170	1235	1253	1300	1330	1430
SANYO		1174	1182	1201	1223	1225	1228	1229	1230	1231	1235	1267	1273
SANYO		1276	1299	1300	1310	1312	1319	1346	1384	1417
SAR		1170	1223	1294
SCHAUPLORENTZ		1337
SCHAUPT LORENZ		1067	1165
SCHNEIDER		1170	1171	1173	1176	1197	1219	1223	1235	1243	1250	1253	1284
SCHNEIDER		1285	1286	1287	1293	1294	1297	1299	1347	1370	1382	1406
SCOTT		1170	1298
SEG		1170	1173	1195	1217	1223	1269	1274	1294	1369
SEIKON		1026	1160
SELECO	1170	1171	1173	1175	1176	1219	1229	1264	1266	1282	1283	1290
SELECO	1294	1296	1297	1311	1375	1376	1400
SEMP		1313
SENDAY		1170
SENTRA		1303	1321
SEPHIM		1027
SET		1170			1294
SHARP		1229	1244	1245	1246	1321
SHIVAKI		1170	1171
SHOV		1085	1088	1091	1092	1069	1070	1398	1416
SHOV		1170	1171	1173	1235	1252
SHOW		1390	1393
SIAREM	1201	1222	1269	1274	1299
SICATEL		1224	1294
SICE		1178
SIDEC		1294
SIEL		1195
SIEMENS		1170	1173	1178	1179	1180	1181	1185	1196	1222	1231	1232	1239
SIEMENS		1344	1384	1417	1074
SILMA		1170
SILVA		1235
SILVER		1243	1252
SIMTEL	1170	1243	1252	1330	1428
SINGER	1170	1173	1201	1217	1222	1223	1235	1253	1262	1269	1274	1299
SINGER		1311			1347
SINUDYNE		1170	1171	1201	1243	1263	1266	1269	1274	1284	1287	1297	1299
SINUDYNE		1304	1305	1317	1347	1351	1364	1370	1377
SIREL		1222
SKAY		1330
SLAVA		1223
SOLAVOX		1270	1284	1292	1295
SONITRON		1201	1223
SONOKO		1170	1173	1223	1235	1243	1252	1330
SONTEC	1170	1183	1219
SONY	1229	1322	1066	1103	1152	1154	1163	1424
SONY	1226	1227	1228
SOUND COLOR 1170
SOUND MASTER 1235
SOUTHERN CROSS 1219
SOWTECH		1169			1219
SPECTRA(ASTRA)		1170	1336	1401	1402	1413	1420
STANDARD	1217	1223	1235	1243	1298
STAR		1173
STAR LINE 1170
STARLITE		1235
STARLUX		1235
STERN	1175	1176	1256	1266	1282	1290	1296	1297	1375
STVI		1223				1294
STZ SUNKAI		1170	1305	1330
SUNNY	1022	1044	1122	1125	1130	1253	1387	1389	1393
SUNSTAR		1170
SUNWATT		1170			1173
SUPERLA		1222			1294
SUPERSONIC	1169	1253	1300	1330
SUPERTEC	1170	1173	1235	1243
SUPRA	1170	1234	1235	1237	1328
SUPREME		1193
SYC LINE		1235
SYDNEY		1222
TADISTAR		1271
TALENT		1178
TANDBERG	1186	1192	1203	1204	1208	1222	1256	1261	1297
TANDY	1262	1285	1286
TASHIKO		1223	1286	1378	1384	1417
TATUNG		1172	1178	1222	1223	1228	1268	1273
TCL		1413
TEAK		1169	1170	1173	1223	1235
TEC		1170	1176	1217	1223	1235	1293	1294	1347	1407
TECHLINE		1170
TECHNICA		1243
TECHNICS		1242	1348	1167
TECHNISAT		1170	1370
TECHNOL		1169	1223	1235	1237	1252
TEDELEX		1170	1173	1223	1235	1285	1294
TEINEL		1170	1294
TEKNANT		1170			1235
TELE+		1170	1235	1326
TELECHROM		1243	1330
TELEFAC		1235
TELEFUNKEN		1095	1111	1114	1137	1294	1335	1341	1350	1370	1397	1405	1170
TELEFUNKEN		1216	1217	1222	1235	1236	1237	1240	1256	1257	1259	1260	1264
TELEFUNKEN		1265
TELEOPTA		1235
TELEPOINT		1170
TELESTAR		1170	1235	1252
TELETECH		1170	1217
TELEVIDEON		1170	1173	1189	1223	1285	1298	1299
TELKOM		1170	1294
TELRA		1170	1264	1294	1112	1137
TEMPEST		1223	1235	1243
TENSAI		1170	1173	1182	1200	1217	1223	1232	1235	1237	1243	1269	1274
TENSAI		1275	1277	1294	1298	1369
TESLA		1224
TESLASLOV		1170	1201	1250	1294
TETRAN		1294	1298
THOMSON		1170	1189	1196	1201	1214	1215	1241	1250	1255	1256	1261	1264
THOMSON		1265	1285	1294	1354	1358	1362	1374	1395	1405	1071
THORN		1303	1361
THORN FERGUSON		1169	1170	1171	1173	1178	1179	1180	1182	1195	1196	1199	1200
THORN FERGUSON		1216	1222	1223	1224	1226	1227	1229	1231	1252	1254	1256	1262
THORN FERGUSON		1264	1268	1272	1273	1276	1284	1285	1287	1288	1291	1292	1297
THORN FERGUSON		1299	1300	1301	1303	1310	1312	1319	1320	1322	1345	1346	1350
THORN FERGUSON		1361	1365	1379	1382	1405	1434
TIBISHI	1223	1235	1243	1252
TLFNKN		1074
TOBO		1235
TOKAI		1170	1173	1235	1252
TOKYO		1330
TOMITA		1223
TOPVISION	1170	1285	1294	1325
TOSHIBA		1169	1223	1229	1301	1302	1303	1311	1313	1076	1093	1153
TR CONTINENTS		1170	1222	1282
TRANSONIC	1170	1173	1252	1271

TREVI	1235	1243	1330
TRIAD	1170	1173	1224
TRIDENT	1045	1047	1048	1049	1051	1053	1055	1056	1393	1421	1170	1033
TRIDENT	1034	1035	1036	1037	1038	1039	1040	1057	1031	1032
TRILUX		1170			1325
TRIMAX		1161
TRIMAX-SIERRA-
GRUNBERG-SOFTLINE		1079
TRIUMPH		1193			1347
TRIVISION		1235
TTR		1175
TV STAR 1285
TVD		1375
UHER	1175	1197	1285	1298	1375	1428
ULTRAVISION		1214			1224
ULTRAVOX	1169	1170	1173	1178	1201	1217	1223	1269	1274	1282	1299	1313
ULTRAVOX		1372
UNIC RADIO		1174	1222	1223	1291	1294
UNIVERSUM	1169	1170	1173	1178	1179	1180	1182	1184	1189	1191	1192	1193
UNIVERSUM	1196	1199	1200	1219	1223	1226	1228	1229	1231	1232	1235	1239
UNIVERSUM	1240	1252	1284	1287	1288	1291		1294	1295	1384	1417
UNIVOX	1170	1173	1201	1217	1224	1284	1294
UNK		1170
URANYA	1170	1189	1222	1235	1237	1269	1274	1298
UTAX		1223	1235
UYDULU		1132
VANGUARD		1223	1235	1286
VECO	1170	1173	1235
VESTEL	1077	1120	1121	1136	1162	1078	1170	1171	1173	1183	1195	1217
VESTEL	1233	1286	1293	1294	1369	1394	1436
VEXA		1170	1171	1223	1235	1243	1286	1330
VICEROY		1223	1232	1252
VIDEOCON		1173
VIDEOLOGIC		1223	1243
VIDEOMAC		1223	1252
VIDEOTON		1170	1219	1222	1223	1271	1281	1285	1286	1293	1294	1357
VIDIKRON		1298
VIDION		1235
VISA		1189	1282
VISAELECT		1195	1223	1294
VISION 2000		1170	1235
VISIOREX		1222
VISTAR		1288			1295
VOXSON		1189	1201	1269	1274	1282
WALKIE		1176
WALTHAM		1217	1285	1294
WATSON	1170	1173	1239	1252	1282	1294	1298	1299	1347	1369
WATT RADIO		1223	1224	1269	1271	1274	1277	1284	1287	1299	1347	1369
WEGA COLOR		1229
WEGA VISION 1229
WEGAVOX		1170	1217	1235	1271	1293	1369
WELTBLICK		1170	1298
WESTON		1294
WHITE WESTING
HOUSE		1169	1170	1175	1183	1193	1195	1223	1235	1266	1269	1271	1294
WHITE WESTING
HOUSE		1298			1375
WINERSAT		1235	1330
WINSTON		1170	1235	1330
WINTERNITZ		1235	1237	1238	1346
WORLD TECH 1170
YOKO	1170	1223	1235	1252	1256	1285
YORK		1243
YU-MA-TU		1170	1235	1252	1271	1339	1030	1080	1087	1109	1110
ZAMPA		1283
ZIRWATEL ZODIAC		1235	1405

TELE System TV/STB

Code	1003	1004	1005	1006	1007	1008
	TS010AD(28000022)TS110 AD(28000034)	TS010A(28000023)	PALCO19/L04(28000052)PALCO22/L04(28000053)	PALCO22/L02COMBO(28003002)PALCO19/L02COMBO - MB25(28003004)PALCO19/L02 16:9COMBO(28003007)	PALCO19/L02 (28000037)PALCO22/L02 (28000038)PALCO32/L02 (28000039)PALCO16/L02 - MB25 (28000042)PALCO15/L02 - MB25 (28000048)PALCO19/L02 - MB25 (28000049)PALCO22/L02 - MB25 (28000050)PALCO32/L02 MB35 (28000051)PALCO19/L02 16:9 (28000054)PALCO24/L02 FULL HD16:9 (28000055)	PALCO19/L05COMBO(28003008)PALCO22/L05COMBO(28003009)PALCO22 LED01 B01FCOMBO(28003015)PALCO24 LED01 B01FCOMBO(28003016)PALCO26LED01 B01FCOMBO(28003017)
POWER	POWER	POWER	POWER	POWER	POWER	POWER
SOURCE		TV/VGA/AV		SOURCE	AV SOURCE	AV SOURCE
1	1	1	1	1	1	1
2	2	2	2	2	2	2
3	3	3	3	3	3	3
4	4	4	4	4	4	4
5	5	5	5	5	5	5
6	6	6	6	6	6	6
7	7	7	7	7	7	7
8	8	8	8	8	8	8
9	9	9	9	9	9	9
0	0	0	FAV / 0	0	0	0
EPG	EPG		EPG / ? / A-B	EPG	GUIDE [IMAGE]	EPG > ||
INFO	INFO		i	INFO	INFO	INFO
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	TV/RADIO	TV/VGA/AV		SWAP	TV/DTV	TV/RADIO
VOL+	VOL+	VOL+	V+	V+	VOL+	VOL+
VOL-	VOL-	VOL-	V-	V-	VOL-	VOL-
PROG+	CH+	CH+	P+	P+	PCH+	CH+
PROG-MENU	CH-MENU	CH-MENU	P-M	P-MENU	PCH-MENU	CH-TV MENU
LIST	PR LIST	CALL	OK	SEARCH MODE	PP	LIST
BACK	RETURN		REPEAT	RETURN	P < PSWAP [IMAGE]	RECALL/GOTO
EXIT	EXIT			PRESETS	-/-- EXIT [IMAGE]	EXIT
LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	LEFT
RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
UP	UP	UP	UP	UP	UP	UP
DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN
OK	OK	MENU	OK	OK Select	OK	OK
TIMER/RED	SLEEP	TIMER	>|| / red	ZOOM/red	red	DVD/USB + RED
FAV/GREEN	FAVORITE PR	AUTO	<< / green	REPEAT/green	green	TITLE + GREEN
REPEAT/YELLOW	MEMORY	MODE	o / yellow	ROOT/yellow	yellow	PBC + YELLOW
GOTO/BLUE	SEARCH	-/-	>> / blue	TITLE/blue	blue	ANGLE + BLUE
AUDIO	LANG	LANG		LANG	| - || [IMAGE]	TV AUDIO / eject
SUB	SUBTITLE			SUBTITLE		SUBTITLE
TEXT	TELETEXT		TXT / |<<			TXT
FILE	no function			C		DVD MENU
PLAY	GAME	CALL	>|| / red	PLAY		EPG > || pause
PAUSE	PAUSE		16:9	PAUSE		INDEX
STOP	P.ADJ		o / yellow	STOP		FAV / STOP
REC	P/N			REC		DVD SETUP
PREV	AUDIO		TXT / |<<	|<<		|<<
REW	GUIDE		<< / green	>>		<<
FWD	-	COLOR SYS	>> / blue	<<		>>
NEXT	+	SOUND SYS	R / >>|	>>|		>>|
Code	1009	1010	1011	1012	1013	1014
	PALCO19 LED03 C01 (28000072)	PALCO 32(28000032)	TS07A(28000020)	TS19 WIDE(28000028)	YOUNG 30"(28000006)	TS32 HD ready(28000030)
	PALCO22 LED03 C01F (28000073)	PALCO15(28000035)			YOUNG 27"(28000007)
	PALCO24 LED03 C01F (28000074)	PALCO19(28000036)		PALCO 20(28000033)	YOUNG 23"(28000008)	TS37 full HD(28000031)
	PALCO32L07 HD READY(28000075)	PALCO32/L03(28000040)			ORUM 37"(28000010)
	PALCO32LED05 FHD (28000080)	PALCO19/L03(28000041)			ORUM 32"(28000011)
	PALCO19LED05 HD (28000085)	PALCO22/L03(28000047)			ORUM 27"(28000014)
	PALCO22LED05 FHD (28000086)
	PALCO24LED05 FHD (28000087)	PALCO22/L03(28000047)
POWER	POWER	STAND BY	POWER	POWER	POWER	POWER
SOURCE	AV	AV	AV	AV	INPUT	SOURCE AV
1	1	1	1	1	1	1
2	2	2	2	2	2	2
3	3	3	3	3	3	3
4	4	4	4	4	4	4
5	5	5	5	5	5	5
6	6	6	6	6	6	6
7	7	7	7	7	7	7
8	8	8	8	8	8	8
9	9	9	9	9	9	9
0	0	0	0	0	0	0
EPG	EPG	Goto/EPG
INFO	INFO	Display/INFO				INFO
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	RADIO	Setup/Freeze		TUNER/blue
VOL+	VOL+	VOL+	VOL+	VOL+	VOL+	V+
VOL-	VOL-	VOL-	VOL-	VOL-	VOL-	V-
PROG+	CH+	PR+	CH+	CH+	PR+	P+
PROG-	CH-	PR-	CH-	CH-	PR-	P-
MENU	MENU	MENU		MENU	MENU	M
LIST	LIST	program/FAV	CALL	CH.EDIT / yellow	LIST	SWAP P
BACK		SWAP		RECALL	EXIT	PP
EXIT	EXIT	EXIT/Clear		CANCEL	EXIT	EXIT / --
LEFT	LEFT	LEFT	VOL+	LEFT	VOL+	LEFT
RIGHT	RIGHT	RIGHT	VOL-	RIGHT	VOL-	RIGHT
UP	UP	UP	CH+	UP	PR+	UP
DOWN	DOWN	DOWN	CH-	DOWN	PR-	DOWN
OK	ENTER	OK	MENU	MENU	OK	Select/OK
TIMER/RED	SLEEP	title/red	TIMER	SOUND / red	PIP PR+ /red	red
FAV/GREEN	FAV	root/green	MODE	PICTURE/green	PIP PR- /green	green
REPEAT/YELLOW	INDEX	repeat/yellow	CALL	CH.EDIT / yellow	SWAP/yellow	yellow
GOTO/BLUE		A-B/blue	"-/-"	TUNER/blue	PIP INPUT/blue	blue
AUDIO	AUDIO	AUDIO	LANG	SOUND / red	A.SWAP	| - | |
SUB	SUB	SUBT	AUTO	SUBTITLE/Index
TEXT		TXT	CALE	TV/txt	TEXT
FILE	FILE	16.9
PLAY	>||	Pos
PAUSE	SLEEP	zoom		SLEEP	SLEEP
STOP	STILL
REC	REC	Size			Q.VIEW
PREV	|<< /yellow	TXT			PSM
REW	<< / red	Oval circle			ARC	WIDE
FWD	>> / green	BACK			I - II
NEXT	>>| / blue	Music Note			SSM

Code	1015	1016	1017	1018	1019	1020	1021
	PALCO19/L07 B (28000058)PALCO22/L07 FHD B (28000059)PALCO19/L07 W (28000060)PALCO22/L07 F W (28000061)PALCO32L07 HD READY C01(28000065)PALCO22L07 HD READY C01(28000066)PALCO24L07 FULL HD C01F(28000067)PALCO32L07 FULL HD C01F(28000068)	PALCO19/L02 COMBO(28003001)PALCO16/L02 COMBO-MB25(28003005)PALCO26/L02 COMBO(28003006)	TS."VENTI"(28000013)TS20 LCD(28000029)	PALCO22 LED02F(28000081)	20" YOUNG(28000009)	20	PALCO19LED04(28000083)PALCO22LED04(28000084)PALCO19LED04COMBO(28003018)
POWER	POWER	POWER	POWER	STAND BY	POWER	POWER	POWER
SOURCE	AV	AV		AV / INPUT	AV	TV/VIDEO	SOURCE AV
1	1	1	1	1	1	1	1
2	2	2	2	2	2	2	2
3	3	3	3	3	3	3	3
4	4	4	4	4	4	4	4
5	5	5	5	5	5	5	5
6	6	6	6	6	6	6	6
7	7	7	7	7	7	7	7
8	8	8	8	8	8	8	8
9	9	9	9	9	9	9	9
0	0	0	0	0	0	0	0
EPG EPG		GUIDE		EPG			GUIDE
INFO	INFO	INFO		INFO		100	INFO
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	RADIO	SWAP		TV/RADIO			DTV/Radio
VOL+	VOL+	V+	V+	VOL+	V+	VOL+	V+
VOL-	VOL-	V-	V-	VOL-	V-	VOL-	V-
PROG+	CH+	P+	P+	CH+	P+	CH+	P+
PROG-	CH-	P-	P-	CH-	P-	CH-	P-
MENU	MENU	MENU	smart/red/<<	MENU	MENU	MENU	MENU
LIST	LIST	RETURN-red	pip F1	ch--	TV	TV	USB
BACK	RECALL	I-II		<--->>	PC	PRE.CH	JUMP
EXIT	EXIT	EXIT I/II	Exit	EXIT		EXIT	EXIT
LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	LEFT
RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT
UP	UP	UP	UP	UP	UP	UP	UP
DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN
OK	ENTER	OK Select	OK	OK	OK	Enter	OK
TIMER/RED	red	TV		RED			D.SETUP/red
FAV/GREEN	green	DTV		GREEN			REPEAT/green
REPEAT/YELLOW	yellow	DVD		YELLOW			ZOOM/yellow
GOTO/BLUE	blue	TIME PP		BLUE			GOTO/blue
AUDIO	AUDIO/I-Hi	AUDIO / yellow		AUDIO			AUDIO
SUB	SUBTITLE	SUBTITLE/ green		SUBTITLE		SLEEP	SUBTITLE
TEXT	TXT	REPEAT	vga/audio/blue	TEXT	TXT		TXT
FILE		D.MENU		MEDIA		RECALL	PVR LIST
PLAY		>|| PLAY/PAUSE		PLAY/PAUSE >||			>|
PAUSE		TV		SLEEP			TIMESHIFT
STOP	STILL	STOP		STOP □			□
REC		OPEN/CLOSE		REC o			REC
PREV	FAV+	|<< PREV		PREV |<<			|<<
REW		<< REW		REW <<			<<
FWD		>> FWD		FWD >>			>>
NEXT	FAV-	>>| NEXT		NEXT >>|			>>|

Code	1022	1024	1025	2002	2003	2004	2005
	PALCO16L08 HD READY B01 (28000044)PALCO19L08 HD READY B01 (28000045)PALCO22L08 HD READY B01 (28000046)PALCO19/L05 (28000056)PALCO22/L05 (28000057)PALCO24L08 FULL HD B01F (28000064)PALCO19 LED01 B01 (28000069)PALCO22 LED01 B01F (28000070)PALCO24 LED01 B01F (28000071)PALCO16 LED01 B01 (28000082)	PALCO46LED FULLHD(28090002)	PALCO40LED02 FULLHD(28090003)	TS6281(21005175)ODE708(21005176)TS6291(21005177)ODE760(21005178)	BLOBBOX(21005180)	TS3.1F(21005081)TS4.1F(21005076)TS4.3C(21005090)	TS6000(21005103)
POWER	POWER	POWER	POWER	STAND BY		ON/STD.BY	POWER
SOURCE	AV SOURCE	AV	AV	AV	BLOB	TV	TV
1	1			1	1	1	1
2	2			2	2	2 abc	2 abc
3	3			3	3	3 def	3 def
4	4			4	4	4 ghi	4 ghi
5	5			5	5	5 jkl	5 jkl
6	6			6	6	6 mno	6 mno
7	7			7	7	7 pqrs	7 pqrs
8	8			8	8	8 tuv	8 tuv
9	9			9	9	9 wxyz	9 wxyz
0	0			0	0	0	0
EPG	EPG			EPG	EPG	EPG	EPG
INFO	INFO			INFO		I	I
MUTE	MUTE			MUTE		MUTE	MUTE
TV/RADIO	TV/RADIO			TV/RADIO	FRIENDS	TV/RADIO	TV/RAD
VOL+	VOL+			VOL+		VOL+/RIGHT	VOL+/RIGHT
VOL-	VOL-			VOL-		VOL-/LEFT	VOL-/LEFT
PROG+	CH+			CH+		PAGE+	PAGE+
PROG-	CH-			CH-		PAGE-	PAGE-
MENU	TV MENU	MENU	MENU	MENU	MENU	MENU	MENU
LIST		AV.RATIO	AV.RATIO	OK		BROWSE	BROWSE
BACK	RECALL			BACK	BACK	ALT	ALT
EXIT	EXIT			EXIT	CANC	EXIT	EXIT
LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	VOL-/LEFT	VOL-/LEFT
RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	VOL+/RIGHT	VOL+/RIGHT
UP	UP	UP	UP	UP	UP	CH+/UP	CH+
DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	CH+/DOWN	CH-
OK	OK	OK	OK	OK	OK	OK	OK
TIMER/RED	RED			RED	RED	RED	RED
FAV/GREEN	GREEN			GREEN	GREEN	GREEN	GREEN
REPEAT/YELLOW	YELLOW			YELLOW	YELLOW	YELLOW	YELLOW
GOTO/BLUE	BLUE			BLUE	BLUE	BLUE	BLUE
AUDIO	AUDIO			AUDIO	TV	AUDIO	AUDIO
SUB	SUBTITLE			SUB	VOTE	SUB	SUB
TEXT TEXT				TEXT		TEXT TEXT
FILE				FILE			CH.SURF
PLAY	>			PLAY/PAUSE	>| |
PAUSE	||			PLAY/PAUSE	LOCK	FREEZE	FREEZE
STOP	STOP □			STOP	STOP		SLEEP
REC	REC/REP			REC	REC
PREV	PREV |<<			PREV	>>|	PAGE-	FAV-
REW	REW <<			REW	<<	CH+/DOWN	PAGE-
FWD	FWD >>			FWD	>>	CH+/UP	PAGE+
NEXT	NEXT >>|			NEXT	|<<	PAGE+	FAV+

Code	2006	2007	2008	2009	2010	2011
	TS6201 DT(21005111)TS6203(21005144)TS6211DT(21005127)TS6100DT(21005122)	TS6200 DT(21005109)	TS4.5HD-CI(21005102)TS4600HD-CI(21005114)ODE820(21005101)	TS6206DT BLACK (21005123)TS6206DT WHITE (21005131)TS6207DT BLACK (21005134)TS6207DT WHITE (21005135)TS6002 (21005142)TS6005 (21005163)ODE706 BLACK (21005136)ODE706 WHITE (21005137)ODE702 (21005159)ODE703 (21005164)ODE707 (21005151)21005147 TS6208	TS9000TIVÙ B (21005121)TS9010HD TIVÙ (21005181)ODE710 TIVU (21005154)ODE712HD TIVÙ (21005182)TS9001 TIVÙ (21005239)ODE711/01 TIVÙ (21005240)	TS7900HD B(21005126)TS7900HD WHITE(21005138)TS6600HD(21005170)TS7800HD(21005161)ODE790HD(21005171)ODE780 (21005155)ODE781 (21005173)
POWER	ON/ST.BY	ON/ST.BY	STANDBY	POWER	STANDBY	POWER
SOURCE	FAV	TV	-	OK	AV	AV
1	1	1	1	1	1	1
2	2	2	2 abc	2	2 abc	2 abc
3	3	3	3 def	3	3 def	3 def
4	4	4	4 ghi	4	4 ghi	4 ghi
5	5	5	5 jkl	5	5 jkl	5 jkl
6	6	6	6 mno	6	6 mno	6 mno
7	7	7	7 pqrs	7	7 pqrs	7 pqrs
8	8	8	8 tuv	8	8 tuv	8 tuv
9	9	9	9 wxyz	9	9 wxyz	9 wxyz
0	0	0	0	0	0	0
EPG	EPG	GUIDE	EPG /RED	EPG	EPG	GUIDA
INFO	INFO	INFO	INFO	I	INFO	INFO
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	TV/RADIO	TV/RADIO	TV/RADIO	TV/RAD	TV/RAD	TV/RAD
VOL+	VOL+	VOL+ / LEFT	VOL+	VOL+ / RIGHT	VOL+	VOL+
VOL-	VOL-	VOL- / RIGHT	VOL-	VOL- / LEFT	VOL-	VOL-
PROG+	CH+	UP <<	CH+	P+	CH+	P+
PROG-	CH-	DOWN >>	CH-	P-	CH-	P-
MENU	MENU	MENU	MENU	MENU	MENU	MENU
LIST	OK	OK	LIST	OK	LIST	LISTA
BACK	RECALL	EXIT	PP	BACK	BACK	BACK
EXIT	EXIT	EXIT	EXIT	EXIT	EXIT	EXIT
LEFT	LEFT	VOL- / RIGHT	LEFT	VOL- / LEFT	LEFT	LEFT
RIGHT	RIGHT	VOL+ / LEFT	RIGHT	VOL+ / RIGHT	RIGHT	RIGHT
UP	UP	CH+ / UP	UP	CH+ / UP	UP	UP
DOWN	DOWN	CH- / DOWN	DOWN	CH- / DOWN	DOWN	DOWN
OK	OK	OK	OK	OK	OK	OK
TIMER/RED	RED	LANG/RED	PICTURE	RED	RED	RED
FAV/GREEN	GREEN	AUDIO/GREEN	GREEN	GREEN	GREEN	GREEN
REPEAT/YELLOW	YELLOW	PAUSE/YELL	YELLOW	YELLOW	YELLOW	YELLOW
GOTO/BLUE	BLUE	TEXT/BLUE	BLUE	BLUE	BLUE	BLUE
AUDIO	AUDIO	AUDIO/GREEN	AUDIO	AUDIO	AUDIO	AUDIO
SUB	SUBTITLE	SUBTITLE	SUBT	SUBT	SUB	SUB
TEXT	TTX	TEXT/BLUE	TTX	TEXT	TXT	TXT
FILE	FAV	FAV	FILE		APP	FILE
PLAY	OK	OK	PLAY >			PLAY/PAUSE
PAUSE	PAUSE	PAUSE/YELL	PAUSE			APP
STOP	PAUSE	PAUSE/YELL	STOP			STOP
REC	LANG	LANG/RED	FAV			REC
PREV	PAGE-	DOWN >>	V.FORMAT			PREV |<<
REW	PAGE-	DOWN >>	REW <<			REW <<
FWD	PAGE+	UP <<	FWD >>			FWD >>
NEXT	PAGE+	UP <<	A.RATIO			NEXT >>|

Code	2012	2013	2014	2015	2016	2017	2018	2019	2020
	TS4500HD(21005130)	TS6003(21005141)	TS6510HD(21005116)	TS6280(21005146)	TS6290(21005148)	TS6511 HD(21005160)	TS6210(21005174)	TS6006(21005165)ODE704(21005191)	TS6209(21005156)
POWER	POWER	STAND BY	POWER	STANDBY	STANDBY	STANDBY	POWER	STANDBY	STANDBY
SOURCE	A/V+	FAV	FAV	DEVICE	AV	DTV/VCR	TV/AV	OK	AV
1	1	1	1	1	1	1	1	1	1
2	2	2	2 abc	2	2	2	2	2	2 abc
3	3	3	3 def	3	3	3	3	3	3 def
4	4	4	4 ghl	4	4	4	4	4	4 ghl
5	5	5	5 jkl	5	5	5	5	5	5 jkl
6	6	6	6 mno	6	6	6	6	6	6 mno
7	7	7	7 pqrs	7	7	7	7	7	7 pqrs
8	8	8	8 tuv	8	8	8	8	8	8 tuv
9	9	9	9 wxyz	9	9	9	9	9	9 wxyz
0	0	0	0	0	0	0	0	0	0
EPG	EPG	EPG	EPG	EPG	AUDIO	EPG	EPG	EPG	EPG
INFO	I	INFO	INFO	INFO	INFO	INFO	I	INFO	INFO
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	TV/Rad	TV/RADIO	<- RADIO	TV/RADIO	TV/RADIO	TV/RADIO	TV/RADIO	TV/RADIO	TV/Radio
VOL+	V+ / RIGHT	VOL+	RIGHT	VOL+/RIGHT	VOL+/RIGHT	VOL+/RIGHT	VOL+	VOL+	VOL+
VOL-	V- / LEFT	VOL-	LEFT	VOL-/LEFT	VOL-/LEFT	VOL-/LEFT	VOL-	VOL-	VOL-
PROG+		PAGE+		CH+/UP	PAGE+	GOTO	CH+	CH+	CH+
PROG-		PAGE-		CH-/DOWN	PAGE-	REPEAT	CH-	CH-	CH-
MENU	MENU	MENU	MENU	MENU	MENU	MENU	MENU	MENU	MENU
LIST	OK	OK	FILTER	FAVORITE	GOTO	FAV	LIST	OK	OK
BACK		RECALL	RECALL	RECALL	RECALL	RECALL	BACK	BACK	BACK
EXIT		EXIT	EXIT	EXIT	EXIT	EXIT	EXIT	EXIT	EXIT
LEFT	V- / LEFT	LEFT	LEFT	VOL-/LEFT	VOL-/LEFT	VOL-/LEFT	LEFT	LEFT	LEFT
RIGHT	V+ / RIGHT	RIGHT	RIGHT	VOL+/RIGHT	VOL+/RIGHT	VOL+/RIGHT	RIGHT	RIGHT	RIGHT
UP	P+ / UP	UP	UP	CH+/UP	CH+/UP	CH+/UP	UP	UP	UP
DOWN	P- / DOWN	DOWN	DOWN	CH-/DOWN	CH-/DOWN	CH-/DOWN	DOWN	DOWN	DOWN
OK	OK	OK	OK	OK	OK	OK	OK	OK	OK
TIMER/RED		RED	LANG/RED	RED	RED	RED	RED	RED / STOP	RED
FAV/GREEN		GREEN	PAUSE/GREEN	GREEN	GREEN	GREEN	GREEN	GREEN / PLAY	GREEN
REPEAT/YELLOW		YELLOW	A/V / YELLOW	YELLOW	YELLOW	YELLOW	YELLOW	YELLOW/ | >	YELLOW
GOTO/BLUE		BLUE	TV-STB / BLUE	BLUE	BLUE	BLUE	BLUE	BLUE/TIMESHIF	BLUE
AUDIO	OPT	LANG	LANG	AUDIO	LANG	AUDIO	AUDIO	AUDIO	OPTION
SUB	OPT	SUB-T	TV	SUBTITLE	SUBTITLE	SUB	SUB	SUB-T	OPTION
TEXT	TXT	TTX	TTX	TELETEXT	TTX	TTX	TTX	TEXT	TEXT
FILE	FAV	FAV	QUICK FIND	FILE	FILE	PVR LIST		BLUE/TIMESHIF
PLAY	A-Z	AUDIO	F1	PLAY/PAUSE	PLAY/PAUSE	PLAY		GREEN / PLAY
PAUSE	SLEEP/TV/STB	PAUSE	F2	REPEAT	SLOW	PAUSE		GREEN / PLAY
STOP		PAUSE	F3	STOP	STOP	STOP		RED / STOP
REC			F4	RECORD	RECORD	PVR REC		REC
PREV				|<<	|<<	PREV |<<		<<
REW				<<	<<	REW <<		<<
FWD				>>	>>	FWD >>		>>
NEXT				>>|	>>|	NEXT >>|		>>

Code	2021	2022	2023	2024	2025	2026	2027	2028
	TS6215 (21005199)TS6212 (21005200)TS6004 (21005201)TS6007 (21005202)ODE7010 (21005203)TS6282 (21005183)ODE7030 (21005204)	TS7500HDTS7510HDTS7520HD	TS3000(21005190)	TS6520HD(21005196)TS6512HD(21005197)ODE8120HD(21005205)	TS6513HD (21005214)TS6010HD (21005215)TS6515HD tu (21005226)TS6283 (21005227)TS6214 (21005223)ODE7031 (21005228)TS7901HD (21005231)	TS3001(21005206)ODE7050(21005207)	TS6101(21005216)TS6001(21005198)	TS6213(21005219)ODE7020(21005213)
POWER	POWER	POWER	POWER	ON/ST.BY	POWER	POWER	POWER	POWER
SOURCE	VCR/STOP	PREM.PLAY	FAV	FAV	SOURCE	FAV		DTV/VCR
1	1	1	1	1	1	1	1	1
2	2	2 abc	2	2 abc	2 abc	2 abc	2	2
3	3	3 def	3	3 def	3 def	3 def	3	3
4	4	4 ghi	4	4 ghi	4 ghi	4 ghi	4	4
5	5	5 jkl	5	5 jkl	5 jkl	5 jkl	5	5
6	6	6 mno	6	6 mno	6 mno	6 mno	6	6
7	7	7 pqrs	7	7 pqrs	7 pqrs	7 pqrs	7	7
8	8	8 tuv	8	8 tuv	8 tuv	8 tuv	8	8
9	9	9 wxyz	9	9 wxyz	9 wxyz	9 wxyz	9	9
0	0	0	0	0	0	0	0	0
EPG	EPG	Gulda	EPG	EPG	EPG	EPG		EPG
INFO	INFO	Info	I	INFO	INFO	INFO	INFO	INFO
MUTE	MUTE	APP	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	TV/RADIO	TV/RAD	TV/RAD	TV/RADIO	TV/RADIO	TV/RAD	TV/RADIO	TV/RADIO
VOL+	VOL+	VOL+	VOL+ / RIGHT	VOL++	VOL+	VOL+ / RIGHT	VOL+ /RIGHT	VOL+
VOL-	VOL-	VOL-	VOL- / LEFT	VOL--	VOL-	VOL- / LEFT	VOL- / LEFT	VOL-
PROG+	CH+	CH+	P+ / REC	PROG++	PROG+	PAGE+ / REC	PAGE+	CH+
PROG-	CH-	CH-	P- / STOP	PROG--	PROG-	PAGE- / STOP	PAGE-	CH-
MENU	MENU	Menu	MENU	MENU	MENU	MENU	MENU	MENU
LIST	OK	Lista	OK	OK	LIST / FAV	OK	OK	OK
BACK	RECALL	Back	BACK	BACK	BACK	BACK	RECALL	BACK
EXIT	EXIT	EXIT / Stop	EXIT	EXIT	EXIT	EXIT	EXIT	EXIT
LEFT	LEFT / |<<	LEFT	VOL- / LEFT	LEFT	LEFT	VOL- / LEFT	VOL- / LEFT	LEFT
RIGHT	RIGHT / >>|	RIGHT	VOL+ / RIGHT	RIGHT	RIGHT	VOL+ / RIGHT	VOL+ /RIGHT	RIGHT
UP	UP	UP	CH+ / UP	UP	UP	CH+ / UP	CH+ / UP	UP
DOWN	DOWN	DOWN	CH- / DOWN	DOWN	DOWN	CH- / DOWN	CH- /DOWN	DOWN
OK	OK	OK	OK	OK	OK	OK	OK	OK
TIMER/RED	RED/AUDIO	RED	RED	RED	TIMER/RED/DTV-VCR	RED	RED	RED
FAV/GREEN	GREEN/SUB	GREEN	GREEN / SUB	GREEN	FAV/GREEN	GREEN / SUB	GREEN	GREEN
REPEAT/YELLOW	YELLOW/TEXT	YELLOW	YELLOW / TEXT	YELLOW	REPEAT/YELLOW	YELLOW/TEXT	YELLOW	YELLOW
GOTO/BLUE	BLUE/TIMESHIFT	BLUE	BLUE	BLUE	GOTO/BLUE	BLUE	BLUE	BLUE
AUDIO	RED/AUDIO	Opzioni	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO
SUB	GREEN/SUB	Opzioni	GREEN / SUB	SUB	SUB	GREEN / SUB	SUBTITLE	SUBTITLE
TEXT	YELLOW/TEXT	TEXT	YELLOW / TEXT	TEXT	TEXT	YELLOW/TEXT	TTX	TTX
FILE	FILE / >>	FILE		FILE	FILE	FAV
PLAY	>| |	>| |	| |	PLAY/PAUSE	PLAY	| |
PAUSE	| |	| |	| |	SLEEP	PAUSE	| |	PAUSE
STOP	VCR/STOP	EXIT / Stop	P- / STOP	STOP	STOP	PAGE- / STOP
REC		REC	P+ / REC	REC	REC	PAGE+ / REC
PREV	FAV/ <<	PREV | <<	ZOOM	PREV	PREV	ZOOM
REW	FAV/ <<	REW	<<	REW	REW	<<
FWD	FILE / >>	FWD	>>	FW	FWD	>>
NEXT	FILE / >>	NEXT >>|	FAV	NEXT	NEXT

Code	2029	2030	2032	2033	2034	2035	2036
	ODE750D (21005096)ODE750I-(21005098)ODE750A (21005087)ODE700I (21005100)ODE720I (21005097)ODE730D (21005095)ODE720D (21005094)ODE700D (21005093)ODE700A (21005084)ODE705 (21005085)ODE720A (21005083)ODE730A (21005082)	HDR20(21005047)	TS 7.0DT(21005072)	TS 7.2DT(21005069)TS 7.4DT(21005070)ODE846(21005065)	TS 7.7DT(21005077)ODE849(21005079)	TS4501CI+ HD(21005210)ODE821CI+ HD(21005211)	TS6001(21005198)
POWER	STAND.BY	POWER	STANDBY	POWER	STANDBY	POWER	POWER
SOURCE	TUNER or T<>S	TV/SAT		TV		FAV / A-B
1	1	1	1	1	1	1	1
2	2	2 abc	2	2 abc	2	2 abc	2
3	3	3 def	3	3 def	3	3 def	3
4	4	4 ghi	4	4 ghi	4	4 ghi	4
5	5	5 jkl	5	5 jkl	5	5 jkl	5
6	6	6 mno	6	6 mno	6	6 mno	6
7	7	7 pqrs	7	7 pqrs	7	7 pqrs	7
8	8	8 tuv	8	8 tuv	8	8 tuv	8
9	9	9 wxyz	9	9 wxyz	9	9 wxyz	9
0	0	0	0	0	0	0	0
EPG	GUIDE	GUIDE	EPG	EPG	EPG	EPG	EPG
INFO	BLUE/INFO	INFO	Info	I	Info	INFO	INFO
MUTE	MUTE	MUTE	Mute	MUTE	Mute	MUTE	MUTE
TV/RADIO	TV/RADIO	TV/RADIO	TV/Radio	TV/RAD	TV/Radio		TV/RADIO
VOL+	VOL+	VOL+/RIGHT	VOL+	VOL+	VOL+	VOL+/RIGHT	VOL+
VOL-	VOL-	VOL-/LEFT	VOL-	VOL-	VOL-	VOL-/LEFT	VOL-
PROG+	CH+	CH+/UP	CH+	PROG+	CH+	P++	CH+
PROG-	CH-	CH-/DOWN	CH-	PROG-	CH-	P--	CH-
MENU	MENU	MENU	Menu	MENU	Menu	MENU	MENU
LIST	OK	CH.LIST	List	LIST	List	OK	OK
BACK	RECALL	RECALL	Recall	BACK	Recall		BACK
EXIT	EXIT	EXIT	Exit	EXIT	Exit	EXIT	EXIT
LEFT	LEFT	VOL-/LEFT	LEFT	LEFT	LEFT	VOL-/LEFT	LEFT
RIGHT	RIGHT	VOL+/RIGHT	RIGHT	RIGHT	RIGHT	VOL+/RIGHT	RIGHT
UP	UP	CH+/UP	UP	UP	UP	CH+	UP
DOWN	DOWN	CH-/DOWN	DOWN	DOWN	DOWN	CH-	DOWN
OK	OK	OK	OK	OK	OK	OK	OK
TIMER/RED	RED/SUB-T	ORANGE/ARCHIVES	RED	RED	RED	RED/FIND	RED
FAV/GREEN	GREEN/SORT	GREEN/RECTIMER	GREEN	GREEN	GREEN	GREEN	GREEN
REPEAT/YELLOW	YELLOW/TIMER	YELLOW/>>	YELLOW	YELLOW	YELLOW	YELLOW/MARK	YELLOW
GOTO/BLUE	BLUE/INFO	>| | / BLUE/TTX	BLUE	BLUE	BLUE	BLUE/JUMP	BLUE
AUDIO	A.LANG	AUDIO	Audio	AUDIO	Audio	AUDIO	AUDIO
SUB	RED/SUB-T	SUBTITLE	SUB		SUB	SWAP/SUB	SUBTITLE
TEXT	TEXT		TTX	TEXT	TTX	TXT	TTX
FILE	TV/STB	ORANGE/ARCHIVES	A.ratio		A.ratio	USB
PLAY	A.L/R	| | / BLUE/TTX				>PLAY
PAUSE	PAUSE	SLEEP				||STEP
STOP	SLEEP	STOP/IVORY				STOP
REC	FAV	REC				REC
PREV	V.FORMAT or M.PIG	AUX IN	Back		Back	|<
REW	P.SIZE	<</REC TIMER	Back		Back	<<
FWD	ZOOM	>>	APP		APP	>>
NEXT	OPTION or P.STD	FAV	APP		APP	>|

Code	2037	2038	2039	2040	2042
	TS6284(21005229)	TS6515HD(21005224)	TS7000MHP (21005104)TS7200MHP B (21005107)TS7200MHP S (21005105)TS7700MHP B (21005108)ODE848 (21005120)	TS3002(21005222)TS3002 GN(21005236)	TS5102(28010026)TS5602(28010027)
POWER	STANDBY	STANDBY	POWER	STANDBY	POWER
SOURCE	DTV/VCR	FILE or USB	TV/STB	DTV/VCR	DVD/USB
1	1	1	1	1	1
2	2	2	2 abc	2	2
3	3	3	3 def	3	3
4	4	4	4 ghi	4	4
5	5	5	5 jkl	5	5
6	6	6	6 mno	6	6
7	7	7	7 pqrs	7	7
8	8	8	8 tuv	8	8
9	9	9	9 wxyz	9	9
0	0	0	0	0	0
EPG	EPG	EPG	EPG	EPG	10+
INFO	INFO	INFO	I INFO	INFO	RETURN
MUTE	MUTE	MUTE	Mute	MUTE	MUTE
TV/RADIO	YELLOW / TV-RADIO	TV/RADIO	TV/Radio	YELLOW/TVRADIO	STEP
VOL+	VOL+ / RIGHT	VOL+	Vol+	RIGHT/VOL+	VOL+
VOL-	VOL- / LEFT	VOL-	Vol-	LEFT/VOL-	VOL-
PROG+	CH+ / UP	CH+	CH+	CH+/UP	L/R
PROG-	CH- / DOWN	CH-	CH-	CH-/DOWN	N/P
MENU	MENU	MENU	Menu	MENU	SETUP
LIST	OK	FAV	List	OK	GOTO
BACK	RECALL	RECALL	Back	EXIT	TITLE
EXIT	EXIT	EXIT	Exit	BACK	MENU
LEFT	VOL- / LEFT	LEFT	LEFT	LEFT/VOL-	LEFT
RIGHT	VOL+ / RIGHT	RIGHT	RIGHT	RIGHT/VOL+	RIGHT
UP	CH+ / UP	UP	UP	CH+/UP	UP
DOWN	CH- / DOWN	DOWN	DOWN	CH-/DOWN	DOWN
OK	OK	OK	OK	OK	ENTER
TIMER/RED	RED	RED	RED	RED	PROG
FAV/GREEN	GREEN/REC/LIST	GREEN	GREEN	GREEN / RECLIST	CLEAR
REPEAT/YELLOW	YELLOW / TV-RADIO	YELLOW	YELLOW	YELLOW/TVRADIO	REPEAT
GOTO/BLUE	BLUE / STOP	BLUE	BLUE	BLUE	SLOW
AUDIO	AUDIO	AUDIO	Audio	AUDIO	AUDIO
SUB	SUBTITLE	SUBTITLE	SUB	SUBTITLE	SUBTITLE
TEXT	TEXT	TTX or TEXT	Text	TEXT	OSD
FILE	GREEN/REC/LIST	MEDIA or REC LIST	A.ratio	GREEN / RECLIST	OPEN/CLOSE
PLAY	PAUSE	PLAY		PLAY/PAUSE	PLAY/PAUSE
PAUSE	PAUSE	PAUSE		PLAY/PAUSE	A-B
STOP	BLUE / STOP	STOP		BLUE/STOP	STOP
REC	RECORD	REC		RECORD	PBC
PREV		PREV	Back		PREV
REW	REV	REV	Back	REV <<	REV
FWD	FWD	FWD	APP	FWD >>	FWD
NEXT	FAV	NEXT	APP		NEXT

Code	2043	2044	2045	2046	2047	2048	2049
	TS5011 PX(28015014)	TS5051(28015015)	TS5600(28010023)TS5601(28010024)	TS5.7RX(28010005)	TS5.6HDMI(28010012)TS5.6HDMI(28010013)	TS5101(28010025)	TS5100(28010021)
POWER	LCD ON/OFF	USB	STANDBY	STAND BY	STAND BY	POWER	STAND BY
SOURCE	USB	DVD/TV/AV	USB	SOURCE	OPEN/CLOSE	USB	SOURCE
1	1	1	1	1	1	1	1
2	2	2	2	2	2	2	2
3	3	3	3	3	3	3	3
4	4	4	4	4	4	4	4
5	5	5	5	5	5	5	5
6	6	6	6	6	6	6	6
7	7	7	7	7	7	7	7
8	8	8	8	8	8	8	8
9	9	9	9	9	9	9	9
0	0	0	0	0	0	0/10	0
EPG	Q-PLAY	MENU/EPG	SEARCH	GOTO	GOTO	10+	10+
INFO	RETURN	INFO	RETURN	DISPLAY	OSD	A-B	ANGLE
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	STEP	TVRADIO/REPEAT	STEP	DIGEST	STEP	GOTO	GOTO
VOL+	VOL+	LEFT/VOL-	VOL+	LEFT/VOL-	VOL+	VOL+	VOL+
VOL-	VOL-	RIGHT/VOL+	VOL-	RIGHT/VOL+	VOL-	VOL-	VOL-
PROG+	MARK	PgUp	L/R	EDIT	V-MODE	PBC	MENU/PBC
PROG-	SLOW	PgDn	N/P	RETURN	RETURN	RETURN	RETURN
MENU	SETUP	SETUP	SETUP	SETUP	SETUP	SETUP	SETUP
LIST	SEARCH	OK	DISPLAY	ZOOM	ZOOM	OSD	OSD
BACK	TITLE	TITLE	TITLE	TITLE	TITLE	TITLE	TITLE
EXIT	MENU	EXIT	MENU	MENU/PBC	MENU/PBC	MENU	MENU
LEFT	LEFT	LEFT/VOL-	LEFT	LEFT/VOL-	LEFT	LEFT	LEFT
RIGHT	RIGHT	RIGHT/VOL+	RIGHT	RIGHT/VOL+	RIGHT	RIGHT	RIGHT
UP	UP	UP/CH+	UP	UP/CH+	UP	UP	UP
DOWN	DOWN	DOWN/CH-	DOWN	DOWN/CH-	DOWN	DOWN	DOWN
OK	OK	OK	ENTER	ENTER	ENTER	ENTER	ENTER
TIMER/RED	PROG	RED/<<	PROGRAM	TIMER	PROG	PROG	PROG
FAV/GREEN	CLEAR	GREEN/>>	CLEAR	BOOKMARK	CLEAR	CLEAR	CLEAR
REPEAT/YELLOW	REPEAT	YELLOW/ |<<	REPEAT	CLEAR	REPEAT	REPEAT	REPEAT
GOTO/BLUE	COPY/DELETE	BLUE/>>|	ZOOM	REC MODE	ANGLE	ZOOM	ZOOM
AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	LANGUAGE	AUDIO
SUB	SUB-T	SUB-T	SUBTITLE	SUBTITLE	SUB-T	SUBTITLE	SUBTITLE
TEXT	DISPLAY	TTX/ZOOM	SLOW	REPEAT/1ALL	HDMI	STEP	STEP
FILE	DVD/AV	GOTO/FAV	OPEN/CLOSE	OPEN/CLOSE	STEP	OPEN/CLOSE	OPEN/CLOSE
PLAY	PLAY/PAUSE	PLAY/PAUSE	PLAY/PAUSE	PLAY/PAUSE	PLAY/PAUSE	PLAY	PLAY/PAUSE
PAUSE	A-B	PLAY/PAUSE	A-B	A-B REP	A-B	PAUSE	A-B
STOP	STOP	STOP	STOP	STOP	STOP	STOP	STOP
REC	PBC	REC/COPY/DELET E	PBC	REC	SLOW	SLOW	SLOW
PREV	PREV	YELLOW/ |<<	PREV	PREV	PREV	PREV	PREV
REW	REV	RED/<<	REV	REV	REV	REV	REV
FWD	FWD	GREEN/>>	FWD	FWD	FWD	FWD	FWD
NEXT	NEXT	BLUE/ >>|	NEXT	NEXT	NEXT	NEXT	NEXT
Code	2050	2051	2052	2053	2054	2055	2056
	TS5.3VX(28010011)TS5200VX(28010017)	TS5.5SX(28010003)TS5.2VX(28010004)TS5.2 BLCK(28010009)	TS5.5SX(28010018)HDMI SLVR BOOK(28010019)	TS5.1VX(28010001)	TS5.9RX BLCK(28010014)TS5.8HDMI28010015	TS5810 R-HDMI(28010020)	TS5.8RX(28010008)TS5.8RX(28010010)
POWER	POWER	STANDBY	POWER	ON	STAND BY	POWER	STAND BY
SOURCE	EJECT	OPEN/CLOSE	EJECT	OPEN/CLOSE	SOURCE	SOURCE	OPEN/CLOSE
1	1	1	1	1	1	1	1
2	2	2	2	2	2	2	2
3	3	3	3	3	3	3	3
4	4	4	4	4	4	4	4
5	5	5	5	5	5	5	5
6	6	6	6	6	6	6	6
7	7	7	7	7	7	7	7
8	8	8	8	8	8	8	8
9	9	9	9	9	9	9	9
0	0	0	0	0	0	0	0
EPG	10+	PROGRAM	INTRO		MENU	DISC	DISC
INFO	RESUME	ANGLE	SEARCH		DVD	INTRO	SCART
MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE	MUTE
TV/RADIO	GOTO	GOTO	HD		GOTO	BOOKMARK	TV
VOL+	VOLUME+	RIGHT	VOL+	RIGHT	RIGHT	VOL+	AV
VOL-	VOLUME-	LEFT	VOL-	LEFT	LEFT	VOL-	DVD
PROG+	ROOT	UP	SLOW+		FINALIZE	CH+	DV
PROG-	RETURN	DOWN	SLOW-		RETURN	CH-	GOTO
MENU	SETUP	SETUP	SETUP	SETUP	SETUP	SETUP	SETUP
LIST	DISPLAY	DISPLAY	DISPLAY	DISPLAY	OSD	OSD	FINALIZE
BACK	TITLE	TITLE/RETURN	TITLE/PBC	TITLE	DISC	TITLE/PBC	RETURN
EXIT	TV MODE	MENU/PCB	MENU	MENU/PBC	MENU/PBC	MENU	MENU
LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	LEFT	LEFT/VOL-
RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT	RIGHT/VOL+
UP	UP	UP	UP	UP	UP	UP	UP/CH+
DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN	DOWN/CH-
OK	ENTER	ENTER	ENTER	OK	OK	OK	ENTER
TIMER/RED	PROGRAM	PROGRAM	DISPLAY	ANGLE	TIMER	TIMER	TIMER
FAV/GREEN	CLEAR	SETUP	CLEAR	PROG	PROG	PROG	PROG
REPEAT/YELLOW	REPEAT	REPEAT	REPEAT	REPEAT	REPEAT	REPEAT	REPEAT
GOTO/BLUE	ZOOM	ZOOM	ZOOM	ZOOM	ZOOM	ZOOM	ZOOM
AUDIO	AUDIO	AUDIO	AUDIO		AUDIO	AUDIO	AUDIO
SUB	SUBTITLE	SUBTITLE	SUBTITLE		SUB-T	SUBTITLE	SUB-T
TEXT	STEP	STEP	>		ERASE	QUALITY	REC MODE
FILE	OPEN/CLOSE	RANDOM	MENU		OPEN/CLOSE	EJECT	EJECT
PLAY	PLAY	PLAY/PAUSE	|| / || >	>| | |	PLAY/PAUSE/>|| |	|| / || >	PLAY/PAUSE
PAUSE	PAUSE	A-B	A-B RPT	A-B	REC MODE	A-B RPT	ERASE
STOP	STOP	STOP	STOP	STOP	STOP	STOP	STOP
REC	SLOW	SLOW	ANGLE	SLOW	REC	REC	REC
PREV	PREV / <<|	<<|	PREV / <<|	<< / <<|	PREV / |<<	|<<	PREV / |<<
REW	REV / FB	<<	F.REV / <<	<< / <<|	REV / <<	<<	REV / <<
FWD	FWD / FF	>>	F.FWD / >>	>> / >>|	FWD / >>	>>	FWD / >>
NEXT	NEXT / >>|	>>|	NEXT / >>|	>> / >>|	NEXT / >>|	>>|	NEXT / >>|

21080124 TLC UNIVERS ALE 2X1 TV STB "ALLinONE"

58040107 BLISTER TEL.UNIV. 2X1 TV STB "ALLinONE"

Declaration of conformity CE

Tele System Electronic states that this product meets the basic European requirements of 2004/108/EC (EMC - Electromagnetic Compatibility).

Bressanvido, il 30/06/2013

Flavio De Poli

General management.

ITALY

TELE System Electronic Srl,

Customer Care: 199 214 444 (only Italy)

System
