Product Type	Freestanding Refrigerator-Freezer
Dimensions (HxWxD)	1800 x 595 x 650 mm
Net Weight	62 kg
Energy Class	A+
Total Gross Capacity	290 L
Refrigerator Capacity	200 L
Freezer Capacity	90 L
Cooling System	Static with automatic defrost (No Frost for freezer)
Defrost Type	Frost-free (freezer), automatic (refrigerator)
Number of Shelves	4 adjustable glass shelves
Door Balconies	4 door balconies (refrigerator) + 2 freezer balconies
Led Lighting	Yes
Climate Class	SN, N, ST, T
Noise Level	41 dB(A)
Power Supply	220-240 V ~ 50 Hz
Color	White (or Stainless Steel depending on variant)
Door Reversibility	Yes, reversible door hinges
Freezer Star Rating	4 stars
Extra Features	Hygiene Active antibacterial protection, Quick Cool function

Frequently Asked Questions - CN 228223 T BEKO

How to adjust the temperature settings?

Turn the thermostat dial inside the refrigerator compartment. Higher numbers (e.g., 5) mean colder temperatures. For the freezer, use the separate slider (if available). Recommended settings: fridge at 4°C, freezer at -18°C.

Why is my fridge making a clicking noise?

Clicking sounds are normal when the compressor starts or stops. If it persists, check that the fridge is level and not touching the wall or cabinets. Also ensure the condenser coils are clean.

How often should I defrost the freezer?

This model has a frost-free freezer, so manual defrosting is not required. However, if ice builds up (rare), you can defrost manually by unplugging and leaving the door open.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need to remove the hinges and reposition the door handles.

What is the total capacity of the fridge?

The total gross capacity is 290 liters, with approximately 200 L for the refrigerator and 90 L for the freezer.

How do I clean the condenser coils?

Unplug the fridge. Use a vacuum cleaner with a brush attachment to gently remove dust from the coils located at the back or bottom front. Clean every 6 months for optimal efficiency.

What power supply does this model require?

It requires a standard household outlet: 220-240 V AC at 50 Hz. Ensure the outlet is grounded and not shared with other high-power appliances.

How long is the warranty period?

Beko typically offers a 2-year parts and labor warranty. Some regions may have extended warranties. Check your purchase receipt and register online for coverage details.

What should I do if the fridge is not cooling enough?

First, check the thermostat setting. Then, ensure the door is closing properly and the seal is not damaged. Clean the condenser coils and allow good air circulation around the appliance.

Is the refrigerator energy-efficient?

Yes, this model has an A+ energy class, which is energy efficient. It consumes approximately 280 kWh per year. To save more, avoid frequent door openings and set temperatures correctly.

USER MANUAL CN 228223 T BEKO

To ensure normal operation of your refrigerating appliance, which uses the environmentally friendly refrigerant R600a (flammable only under certain conditions), you must observe the following rules:

• Do not hinder the free circulation of air around the appliance. Do not use mechanical devices to accelerate defrosting, other than those recommended by the manufacturer.
• Do not damage the refrigerating circuit. Do not use electrical appliances inside the food storage compartment, other than those that may have been recommended by the manufacturer.

WARNING!

This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Safety comes first! /1

Transport instructions; Device Setup /2

Electrical connections /2

Get to know your device /3

Prior to startup /3

Setting the operating temperature /3

Cooling /5

Freezing /6

Defrosting of the device /6

Changing the illumination lamp /7

Cleaning and care /7

Practical tips and notes /8

Examples of use; Placing the food /9

Setting recommendation /9

Normal operating noises /10

Practical advice concerning the reduction of the electricity consumption /10

What, if.... /11

Reversing the doors /12

Technical data /12

PL Table of contents

1

2

11

12

Congratulations on your choice of our product, which will certainly provide you with many years of good service.

Safety comes first!

Please read the operating manual carefully. It contains important information on how to use your device. If instructions are not adhered to, you may lose your right to service at no charge during the warranty period. Please keep this manual in a safe place and pass it on to later users if applicable.

• Do not connect your appliance to the power supply until all packing and transit protectors have been removed.
• Leave to stand upright for at least 12 hours before switching on to allow the system to settle if transported horizontally.
• This appliance must only be used for its intended purpose, i.e. the storing and freezing of edible foodstuff.
• We do not recommend use of this appliance in an unheated, cold room e.g. garage, conservatory, annex, shed, outdoors, etc. See 'Location'.
• On delivery, check to make sure that the product is not damaged and that all the parts and accessories are in perfect condition.
• Do not operate a damaged appliance; if in doubt, check with your dealer.
• Do not allow children to play with the appliance.
• Do not sit or stand on or let the children sit or stand on the appliance or on the pull-out parts.
• Do not hang on the appliance door.
• Your device contains no fluoridated coolants (CFC/HFC), but contains the coolant isobutane (R600a), a natural gas which is highly compatible with the environment.

(R600a) is easily flammable. Therefore, be sure that the cooling circuit is not damaged either during transport or during operations.

In the event of damage;

- Avoid any open flame, sources of sparks and flammable substances.

• Immediately air the room in which the appliance is located. • In case the coolant spraying out contacts your eyes it may cause eye injuries.

- The space in the room where the appliance is installed must not be smaller than 10 cubic metres.

• Do not dispose of the appliance in a fire. Your appliance contains non CFC substances in the insulation which are flammable.
• Please contact the local authority in your region for information on disposal methods and facilities available.

Warning - Keep ventilation openings on the appliance enclosure or in the built-in structure, clear of obstruction.

Warning - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Warning - Do not damage the refrigerant circuit.

Warning - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Avoid touching the metal condenser wiring on the backside of the appliance; there is risk of injury. • In the event of a possible malfunction, disconnect the appliance from the power supply first.
• Prior to cleaning the device always unplug the power supply or shut off the fuse. Do not pull from the cable - pull from the plug.
• Repairs to the electrical equipment may only be made by qualified experts. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Transport instructions

The appliance should be transported only in upright position.

Before the performance of the working test in the shop, the packing of the appliance must be intact. After a transport in the horizontal position, the device may only be taken into operation 12 hours after being stood up vertically again.

The appliance must be protected against rain, moisture and other atmospheric influences.

The manufacturer assumes no liability if safety instructions are disregarded.

Disposal

Make the device unusable immediately.

Pull out the mains plug and cut the power cable.

Remove or destroy snap or latch locks before disposing of the device. In this manner you prevent children from locking themselves in and endangering their lives.

Device setup

• Do not operate your appliance in a room where the temperature is likely to fall below 10°C at night and/or especially in winter. At lower temperatures the appliance may not operate, resulting in a reduction in the storage life of the food.
• The climate class rate of your appliance is given in Technical Features leaflet and written on the rating label inside the appliance. It specifies the appropriate operating ambient temperatures as explained below.

Climatic class Ambient temperatures

SN......	+10 °C to 32 °C
N......	+16 °C to 32 °C
ST......	+16 °C to 38 °C
T......	+16 °C to 43 °C
SN-ST......	+10 °C to 38 °C
SN-T......	+10 °C to 43 °C

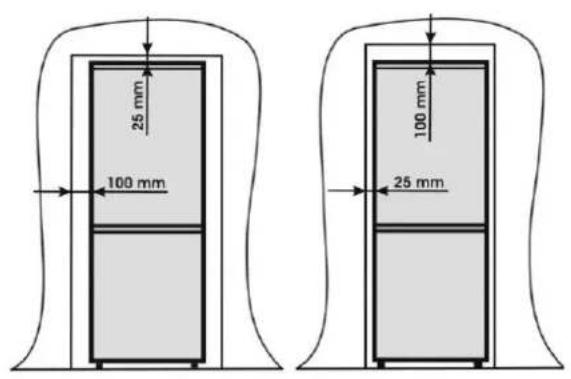

Location

Only place the appliance, as shown in the illustration in dry rooms which can be aired.

Avoid direct sunlight or direct heat sources such as a stove or a heater.

If this cannot be avoided, the following minimum distances should be maintained:

Electric stoves: 3,00 cm

Heater: 3.00 cm

Cooling devices: 2.50 cm

• Ensure sufficient air circulation for your device.

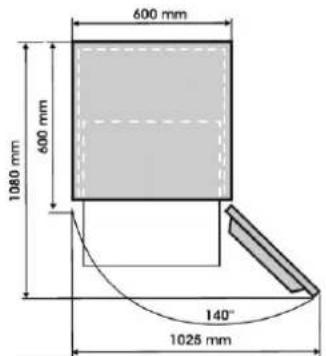

• Make sure that sufficient room is provided around the appliance to ensure free air circulation (Item 3).

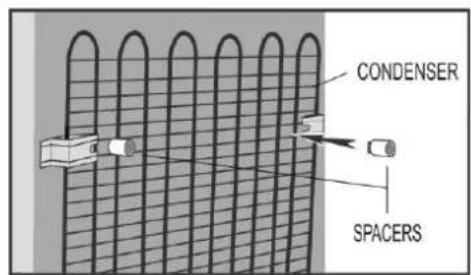

Fit the two plastic wall spacers supplied with the appliance, rotating 1/4 turn, to the condenser at the back of the appliance (Item 4).

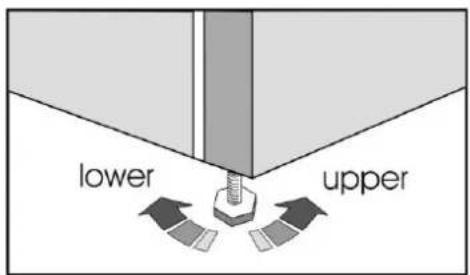

- The appliance should be located on a smooth surface. The two front feet can be adjusted as required (Item 5). To ensure that your appliance is standing upright, adjust the two front feet by turning clockwise or counter-clockwise, until the product is in firm contact with the floor.

Correct adjustment of feet avoids excessive vibration and noise.

Electrical connections

Warning

This appliance must be grounded.

• Check whether the power type and voltage in your region corresponds to the one stated on the rating label inside the appliance.
• The electrical safety of the appliance is only assured when the grounding system in the house is installed in accordance with regulations.
• When placing the appliance, do not let the power cable get stuck under it; otherwise the cable will be damaged.
• Ensure that the plug remains readily accessible. Do not use a multiple adapter bar or an extension cable.

Get to know your device

Warning

The following information about accessories is provided for reference only. The accessories may not be exactly the same as those of your appliance.

Item 1

1. Control panel
2. Interior light
3. Fresh Food fan
4. Wine bottle support
5. Adjustable cabinet shelves
6. Crisper cover
7. Fresh zone compartment/crispers
8. Ice tray support & ice tray
9. Compartment for quick freezing
10. Compartments for keeping frozen foods
11. Adjustable front feet
12. Dairy compartment
13. Shelf for jars
14. Shelf for bottles
15. Freezer fan

The fans have the purpose of providing the circulation of the air in the compartment.

Prior to startup

Before you begin operating your device, the following points should be re-checked for safety:

• Is the device standing properly on the floor?
• Is there sufficient space for good air circulation?
• Is the interior clean? (Also see the section "Cleaning and care")
• Now connect the appliance to the mains.

The compressor is turned on; the interior light comes on when the Fridge door is opened.

Do not place foodstuff into the refrigerator until the temperature has reached the desired level.

Setting the operating temperature

Fresh Food and Freezer Compartment Temperature can be adjusted by the electronic display (Item 2)

Dual cooling system:

Your refrigerator is equipped with two separate cooling systems to cool the fresh food compartment and freezer compartment. Thus, air in the fresh food compartment and freezer compartment do not get mixed.

Thanks to these two separate cooling systems, cooling speed is much higher than other type refrigerators.

Odors in the compartments do not get mixed. Also additional power saving is provided since the defrosting is performed individually.

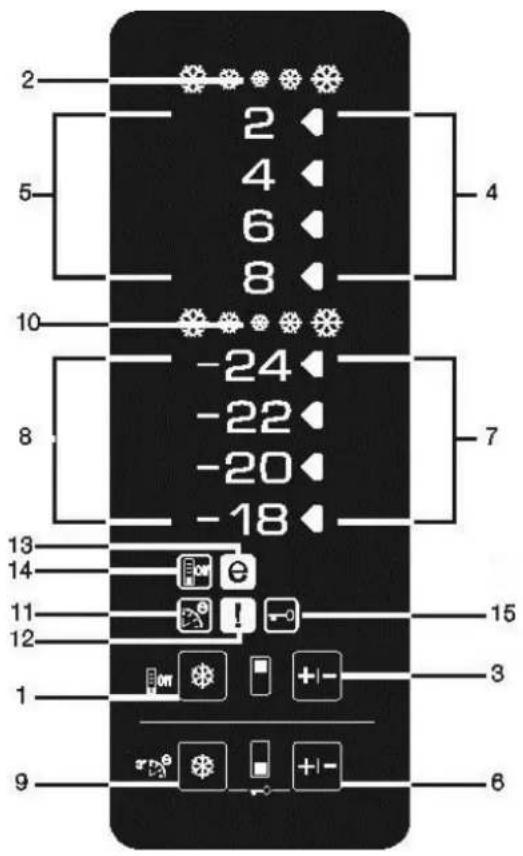

Description of the Control Functions

1- Quick Fridge Function

When you press Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge. Quick Fridge indicator will remain lit when the Quick Fridge function is enabled. To cancel this function press Quick Fridge button again. Quick Fridge indicator will turn off and return to its normal settings. If you do not cancel it, Quick Fridge will cancel itself automatically after 2 hours or when the fridge compartment reaches to the required temperature. This function is not recalled when power restores after a power failure.

2- Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

3- Fridge Set Function

This function allows you to make the fridge compartment temperature setting.

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 respectively.

4- Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

5-Fridge Compartment Temperature Indicator

8, 6, 4 and 2 indicators light up continuously.

6- Freezer Set Function

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.

7- Freezer Compartment

Temperature Setting Indicator Indicates the temperature set for the Freezer Compartment.

8- Freezer Compartment Temperature Indicators

-24, -22, -20 and -18 indicators light up continuously.

9- Quick Freeze Function

Quick Freeze indicator turns on when the Quick Freeze function is on. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 4 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment. If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

10- Quick Freeze Indicator

This icon flashes in an animated style when the Quick Freeze function is active.

11- Eco-Fuzzy (Special Economic Usage) Function

Press the Quick Freeze button for 3 seconds to activate the Eco Fuzzy Function. The refrigerator will start operating in the most economical mode at least 6 hours later, and the economic usage indicator will turn on when the function is active. Press the Quick Freeze button for 3 seconds again to deactivate the Eco Fuzzy Function.

12- High Temperature/ Error Warning Indicator

This light comes on during high temperature failures and error warnings.

13- Economic Usage Indicator

The Economic Usage Indicator turns on when the Freezer Compartment is set to -18°C. It turns off when the Quick Fridge or Quick Freeze function is selected.

14- Energy Saving Mode

Press the Quick Fridge button for 3 seconds, and the Energy Saving icon will light up. If no button on the display is pressed for 10 minutes and the door is not opened, Energy Saving Mode will be activated. In Energy Saving Mode, all icons on the display other than the Energy Saving icon will turn off. When Energy Saving Mode is active, if any button is pressed or the door is opened, Energy Saving Mode will be exited and the icons on the display will return to normal. If the Quick Fridge button is pressed for 3 seconds again, the Energy Saving icon will turn off and Energy Saving Mode will not be active.

15- Key Lock Mode

Press the Quick Freeze and FRZ Set buttons concurrently for 3 seconds. The Key Lock icon will light up and Key Lock Mode will be activated. Buttons will not function if Key Lock Mode is active. Press the Quick Freeze and FRZ Set buttons concurrently for 3 seconds again. The Key Lock icon will turn off and Key Lock Mode will be exited.

Cooling

Food storage

The fridge compartment is for the short-term storage of fresh food and drinks.

Store milk products in the intended compartment in the refrigerator.

Bottles can be stored in the bottle holder or in the bottle shelf of the door.

Raw meat is best kept in a polyethylene bag on the second shelf from the top of the refrigerator.

Allow hot foods and beverages to cool to room temperature before placing them in the refrigerator.

It is suggested not to keep frozen food over the crisper cover for thawing purposes.

The other shelves can be used for thawing purposes.

Attention

Store concentrated alcohol only standing upright and tightly closed.

Attention

Do not store explosive substances or containers with flammable propellant gases (canned cream, spray cans, etc.) in the appliance. There is a danger of explosion.

Attention

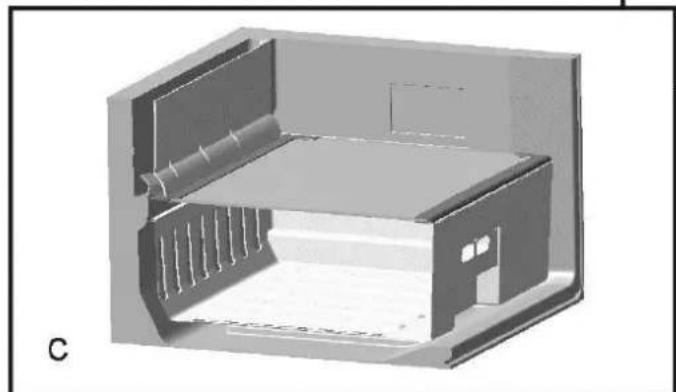

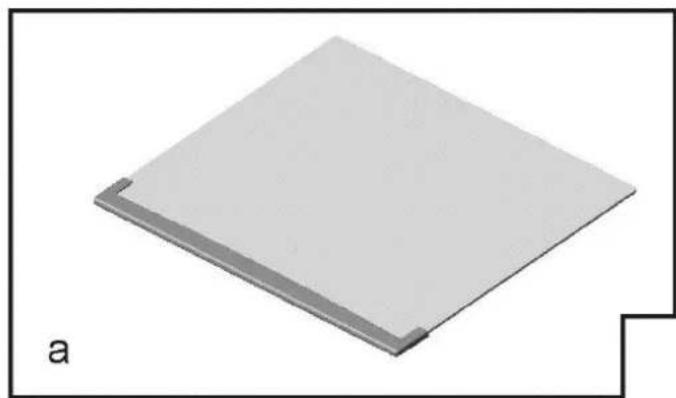

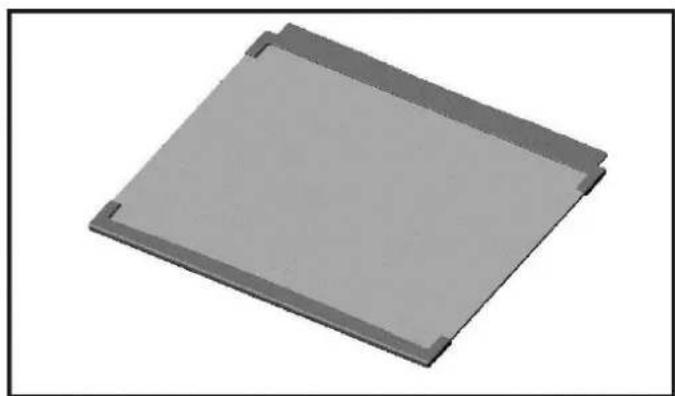

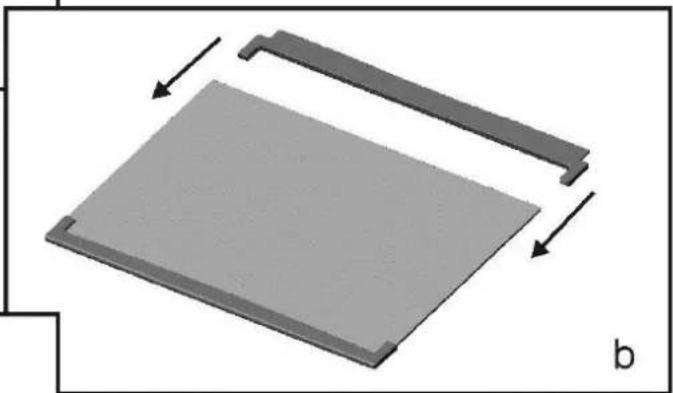

In order to transform the chill compartment (used for easy perishable products - Item 1, point 6) into a vegetable box, it is necessary to assemble on the rear side of the bottom glass shelf the ornament (Item 11) delivered as an accessory, according to the picture Item 12 (points a-c).

If the ornament is not assembled, the compartment (Item 1, point 6) will have biofresh functionality.

Freezing

Freezing food

The freezing area is marked with a symbol.

You can use the appliance for freezing fresh food as well as for storing pre-frozen food. Please refer to the recommendations given on the packaging of your food.

Attention

Do not freeze fizzy drinks, as the bottle may burst when the liquid in it is frozen.

Be careful with frozen products such as coloured ice-cubes.

Do not exceed the freezing capacity of your appliance in 24 hours. See Technical Features leaflet.

In order to maintain the quality of the food, the freezing must be effected as rapidly as possible. Thus, the freezing capacity will not be exceeded, and the temperature inside the freezer will not rise.

Attention

Keep the already deep-frozen food always separated with freshly placed food.

When deep-freezing hot food, the cooling compressor will work until the food is completely frozen. This can temporarily cause excessive cooling of the refrigeration compartment.

If you find the freezer or fresh food door difficult to open just after you have closed it, don't worry.

This is due to the pressure difference which will equalize and allow the door to open normally after a few minutes.

You will hear a vacuum sound just after closing the door. This is quite normal.

Making ice cubes

Fill the ice-cube tray 3/4 full with water and place it in the freezer.

As soon as the water has turned into ice, you can take out the ice cubes.

Never use sharp objects such as knives or forks to remove the ice cubes. There is a risk of injury!

Let the ice cubes slightly thaw instead, or put the bottom of the tray in water for a short moment.

Defrosting of the device

The appliance is a frost-free refrigerator. Therefore, there will be no frost accumulation inside the food storage area.

However, an automatic defrost will occur at the evaporation area of the appliance when needed. The water drains into a reservoir at the back of the appliance and evaporates automatically through the compressor heat.

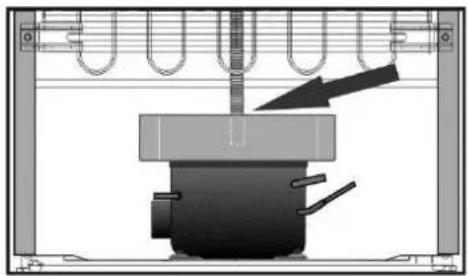

Ensure that the reservoir is fixed properly above the compressor.

Warnings!

The fans inside the freezer and fresh food compartments circulate cold air. Never insert any object through the guard. Do not allow children to play with the fresh food and freezer fan.

Never store products that contain inflammable propellant gas (e.g., dispensers, spray cans, etc.) or explosive substances.

Do not cover the shelves with any protective materials that may obstruct air circulation.

Do not allow children to play with the appliance or tamper with the controls.

Do not obstruct the fan guards to ensure that you obtain the best possible performance from your appliance. (Item 9 and Item 10)

Warning!

Your appliance is fitted with 2 circulating fans that are essential for the performance of the refrigerator. Please ensure the fans are not blocked (stopped) or impaired by food or packaging. Blocking (stopping) or impairing the fan can result in an increase of the internal freezer temperature (thawing).

Changing the illumination lamp

To change the lamp used for illumination of your refrigerator, please call your Authorized Service.

Cleaning and care

Interior and Exterior Surfaces

Attention

Always unplug the power cable or switch off the circuit breaker before cleaning.

Clean the exterior using lukewarm water and a mild detergent.

Never use detergents, abrasive or acidic agents.

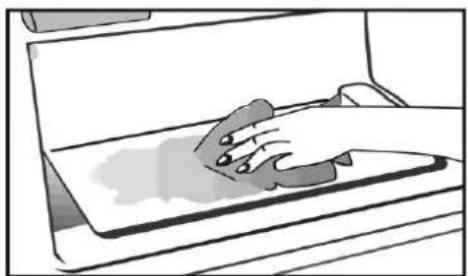

Wipe the inside compartment dry.

Be careful to prevent water from getting into contact with the electrical connections of the temperature control or the interior light.

If the device is not going to be used for a long period of time, unplug the power cable and remove all food. Clean the appliance and keep the door open.

To preserve the appearance of your appliance, you can polish the exterior and the door accessories with a silicone wax.

Clean the condenser at the back of the appliance once a year using a brush or a vacuum cleaner.

Dust build-up leads to increased energy consumption.

Inspect the door gasket at regular intervals.

Clean with water only, and wipe totally dry.

Cleaning of the accessories

Door shelves:

Remove all food from the door shelves.

Lift the cover of the shelf upwards and pull it off sideward.

Remove the bottom of the door shelf by pushing it upwards.

Collecting container (Pan):

Make sure that the pan at the back of the appliance is always clean.

Gently release the snap of the pan from the compressor by pushing it using a tool (like screwdriver), so that the pan can be removed.

Lift the pan, clean it and wipe it dry.

Re-assemble in reverse order.

Crisper or Drawers:

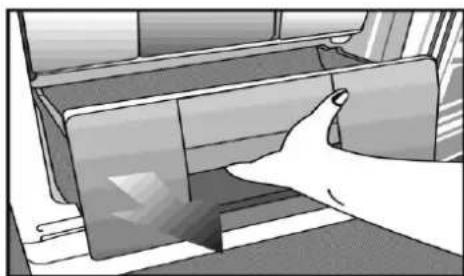

To clean a drawer, pull it out as far as possible, tilt it upwards and then pull it out completely (Item 7-8).

Practical tips and notes

Cooling

• Always pack or wrap food, or put it in a suitable container, before storing it in the appliance. - Wrap food which is not suitable for storage at cold temperatures in polyethylene bags (pineapple, melons, cucumbers, tomatoes etc.). - Food with strong odour or apt to acquire odour should be wrapped in airtight or smellproof packaging material. - Keep fresh food separate from cooked food, to avoid bacteria contamination. - Never keep fresh meat in the fridge for more than 2 or 3 days. - Remove any left-over canned food from the can and store it in a suitable container. - Refer to the shelf life indicated on the food packaging. - Do not obstruct the air circulation inside the device by covering the shelves. - Never keep any dangerous or poisonous substances inside your device. • Always check food that has been stored for a long period of time for its suitability for consumption. - Do not store fresh and cooked food together in the same container. - Close the door immediately after opening, to avoid unnecessary energy consumption. - Do not use hard or sharp objects to remove the ice build-up. - Do not load hot food into your appliance.

Freezing

• Always leave food to thaw in a container that allows the thawing water to run off. - Do not exceed the maximum allowable freezing capacity when freezing fresh food (see the section "Freezing") - Do not give children ice-cream and water ices direct from the freezer. The low temperature may cause freeze burns on lips. - Never re-freeze defrosted food; defrosted food must be consumed within 24 hours. Only food that has been cooked can be refrozen. - Do not take out frozen food with wet hands. - Store only fresh and impeccable food. • Always use appropriate packaging material to avoid odour penetration or degradation of the food. - Store commercially frozen food in accordance with the instructions given on the packaging. - Freeze cooked food in small quantities. This ensures rapid freezing and maintains the quality of the food. - Do not freeze liquid in tightly closed bottles or containers. The bottles/containers may burst at low temperatures. - Carry pre-frozen food in suitable bags and place it in your freezer as soon as possible. Always defrost food in the fridge compartment.

Examples of Use

White wine, beer and mineral water	chill before use
Bananas	do not store in a fridge
Fish or offal	store in polyethylene bags only
Cheese	use airtight containers or polyethylene bags; for best results, take out from the fridge an hour before consumption.
Melons	store only for a short period of time, use airtight packaging/wrapping
Raw meat and poultry	do not store together with delicate food such as cooked food or milk

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg holder	Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper	Vegetables and fruits
Fresh zone compartment	Delicatessen products (cheese, butter, salami and etc.)

Setting recommendation

Freezer Compartment Adjustment	Fridge Compartment Adjustment	Explanations
-18 or -20°C	4°C	This is the normal recommended setting.
-22 or -24°C	4°C	These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze	4°C	Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18°C or colder	2°C	If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18°C or colder	Quick Fridge	You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Information concerning the noise and vibrations that may occur during operation of the appliance

1. The operating noise may increase during operation.
2. To maintain the set temperatures, the compressor starts periodically. The noise produced by the compressor becomes louder when it starts, and a click can be heard when it stops.
3. The performance and operating characteristics of the appliance may vary with changes in ambient temperature. These variations are normal.
4. Noises like liquids flowing or being sprayed
5. These noises are caused by the flow of refrigerant in the appliance's circuit and are consistent with its operating principle.
6. Noise similar to wind blowing.
7. This is generated by the fan(s) with which your appliance is equipped. These fans help cool the appliance efficiently. This noise is normal and not a defect.
8. Other vibrations and noises.
9. The level of noise and vibrations can be influenced by the type and condition of the floor on which the appliance is placed. Ensure the floor is level and can support the weight of the appliance without flexing.
10. Another source of noise and vibrations is objects placed on top of the appliance. These objects should be removed.
11. Bottles and containers in the refrigerator touching each other. In such cases, move them so there is a small gap between them.

Practical advice concerning the reduction of the electricity consumption

1. Make sure that the appliance is located in well-ventilated areas, far from any source of heat (cooker, radiator, etc.). At the same time, the location of the appliance must be such that it prevents it from being under the direct incidence of the sunbeams.
2. Make sure that the food purchased in refrigerated/frozen condition is placed into the appliance as soon as possible, especially during summertime. It is recommended to use thermal insulated bags to transport the food home.
3. We recommend the thawing of the packets taken out from the freezer compartment be done in the refrigerator compartment. For this purpose, the packet which is going to be thawed will be placed in a vessel so that the water resulting from the thawing does not leak in the refrigerator compartment. We recommend you to start the thawing at least 24 hours before the use of the frozen food.
4. We recommend reducing the number of door openings to the minimum.
5. Do not keep the door of the appliance open more than necessary and make sure that after each opening the door is well closed. When doors are open, warm air enters the fridge/freezer cabinets and the appliance consumes more energy to cool down the foodstuffs. Thus please do not open doors frequently in order to save energy and to keep food at ideal storage temperature.
6. Maximum frozen food storage volume is achieved without using the middle and upper drawer provided in the freezer compartment. Energy consumption of your appliance is declared while the freezer compartment is fully loaded without using the middle and upper drawer.
7. Do not block the freezer fan grill by placing foods in front. There must always be left minimum 3 cm open distance in front of the freezer fan grill to allow necessary air flow to freeze the compartment efficiently.
8. If you do not plan to store foodstuff in freshfood compartment, please activate Eco Fuzzy function for energy saving. Freezer compartment keeps freezing normally.
9. Activate "Energy Saving Function". When Energy Saving Function is active, all icons on the display will turn off except energy saving icon. All icons will be lightened, if freshfood door is opened or display is touched.
10. Recommended temperature settings are +4°C and -20°C for freshfood and freezer compartments respectively.

What, if....

1- The appliance will not work, even though it is switched on.

• Check if the power cable is properly connected!
• Check if the mains supply is in order, or if a circuit breaker has been tripped!
• Check the temperature control for correct setting!

2- There is a power failure.

Keep the doors of your device closed. Frozen food will not be affected if the power failure lasts less than the 'Conservation Time From Failure' (hours) declaration mentioned in the Technical Features leaflet. If the power failure lasts longer, check the food and consume it immediately.

You can also cook the defrosted food and then re-freeze it.

3- The interior light does not work.

Check the power supply!

Check the installation of the light bulb! Unplug the power cable before checking the light bulb. (Also see the section "Replacing the interior light")

4- There is high temperature alarm

If the actual temperature of the freezer compartment is warm then the alarm icon on the display (Fig. 2/12) lights on. The alarm icon lights off when the actual temperature of the freezer compartment cools down.

The high temperature alarm may rise up due following situations.

a) Warm food storage b) Warm air in the freezer compartment c) Freezer door is left open for a long time

If the high temperature alarm remains on for more than 24 hours then contact with the customer service.

The high temperature alarm is not active in 24 hours after plugging the appliance into the electricity.

5- There is error messages and alarm

Incase any failure condition due wiring connection of the appliance occurs, and then the alarm icon on the display (Fig. 2/12) starts blinking together with the relevant error message.

If certain characters (E0, E3, etc.) appear on the display, contact customer service.

The alarm icon turns off immediately after the failure is resolved.

6- There is an actual fridge temperature failure.

The appliance cools according to the fridge set temperature. The actual fridge temperature shown on the display will reach the adjusted set temperature once the packages are cold enough.

There may be some fluctuations in the actual fridge temperature shown on the display due to: a) Frequent opening/closing of the fridge door, b) Loading warm packages inside the fridge, c) Leaving the fridge door open for a long period.

7- Other possible malfunctions

Not every malfunction requires customer service. Often, you can easily resolve the problem yourself.

Before requesting service, please check if the malfunction is due to an operating error. If so, and a service call is made, a service charge will apply even if the device is under warranty.

If the problem persists, please contact your dealer or customer service.

Please have the type and serial number of your device ready when calling. The rating label is located inside.

Door Open Alarm

The appliance has a built-in buzzer that alerts the customer if the fridge door is left open for a minute. This is a periodic alarm reminding the customer that the fridge door is open.

There is no buzzer alarm for the freezer door.

To stop the door open alarm, simply press any button on the display or close the door. The alarm will stop until the next occurrence.

Reversing the doors

The door of your refrigerator is designed to operate towards both sides at your convenience. If you want the door to open towards the other side, please call the nearest authorized maintenance service for assistance.

Technical data

Brand	BEKO
Model	CN228223T
Appliance type	FROST FREE REFRIGERATOR-FREEZER type II * ***
Total gross volume (l.)	298
Total usable volume (l.)	266
Freezer usable volume (l.)	90
Refrigerator useful volume	176
Freezing capacity (kg/24 h)	5
Energy class (1)	A+
Power consumption (kWh/year) (2)	324
Autonomy (h)	17
Noise [dB(A) re 1 pW]	43
Ecological refrigerating agent R600a
(1) Energy class: A+++ ... D (A+++ = economical ... D = less economical)(2) The real power consumption depends on using conditions and appliance location.

The symbol ■ on the product or on packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Transport instructions
