Product Type	High Pressure Washer
Model	E 140.3-9 PCAR X-TRA
Brand	Nilfisk
Rated Voltage	220-240 V
Rated Frequency	50/60 Hz
Rated Power Consumption	2.1 kW
Current	9.5 A
Protection Class	Class II
Protection Degree	IPX5
Rated Pressure	13.5 MPa / 135 bar
Max Pressure	14.0 MPa / 140 bar
Rated Water Flow	7.0 L/min (420 L/h)
Max Water Flow	8.3 L/min (500 L/h)
Max Water Inlet Pressure	1 MPa / 10 bar
Max Water Inlet Temperature	60 °C
Weight	18.6 kg
Nozzle System	Click&Clean with TORNADO PR and Powerspeed nozzles
Handle	Telescopic trolley handle
Hose Reel	Available on some models (not standard on this model)
Detergent Application	Foam sprayer included
Safety Features	Automatic stop when trigger released, thermal protection, safety lock on spray handle
Maintenance	Clean water inlet filter monthly, clean nozzle with provided tool, grease O-rings
Spare Parts	Use only original Nilfisk parts
Warranty	2 years for domestic use

Frequently Asked Questions - E 140.3-9 PCAR X-TRA NILFISK

How do I start the Nilfisk E 140.3-9 pressure washer?

First, connect the water hose and turn on the water. Release the trigger lock on the spray handle. Plug the machine into a power outlet. Turn the start/stop switch to "I". Then activate the trigger to start cleaning.

What type of detergent should I use?

Only use detergents supplied or recommended by Nilfisk. Other chemicals may damage the machine. The foam sprayer is used to apply detergent to dry surfaces.

How do I clean the nozzle if it is clogged?

Stop the machine and disconnect the nozzle. Use the provided nozzle cleaning tool to clean the opening. Then flush the nozzle backwards with water.

Why does the pressure washer pulsate?

Pulsation can be caused by air in the inlet hose, inadequate water supply, partially blocked nozzle, blocked water filter, or a kinked hose. Check and resolve these issues.

Can I use an extension cord?

Yes, but it must be suitable for outdoor use and kept dry. Use a cable drum with the socket at least 60 mm above ground. Fully unwind the cable. Maximum lengths: 1.0 mm²: 12.5 m, 1.5 mm²: 20 m, 2.5 mm²: 30 m.

What does the TORNADO PR nozzle do?

The TORNADO PR nozzle allows you to regulate the water pressure. It is a rotating nozzle that provides efficient cleaning for a variety of surfaces.

How should I store the pressure washer?

Store in a frost-free room. After use, shut off water, let the machine run until no water comes out, then switch off and unplug. Wind the cable and hose carefully. Rinse the lance and nozzles before storing.

What safety precautions should I take?

Wear goggles, ear protection, and non-slip shoes. Never direct the jet at people, animals, or electrical equipment. Always unplug before maintenance. Use a residual current device (RCD) for electrical safety.

How do I maintain the water inlet filter?

Clean the water inlet filter regularly (once a month or more often). Unscrew the filter using a screwdriver, clean it with water, check for damage, and reinstall.

What should I do if the machine does not start?

Check if the machine is plugged in, try another socket, replace the fuse, or try without an extension cord. If the problem persists, contact your Nilfisk distributor.

USER MANUAL E 140.3-9 PCAR X-TRA NILFISK

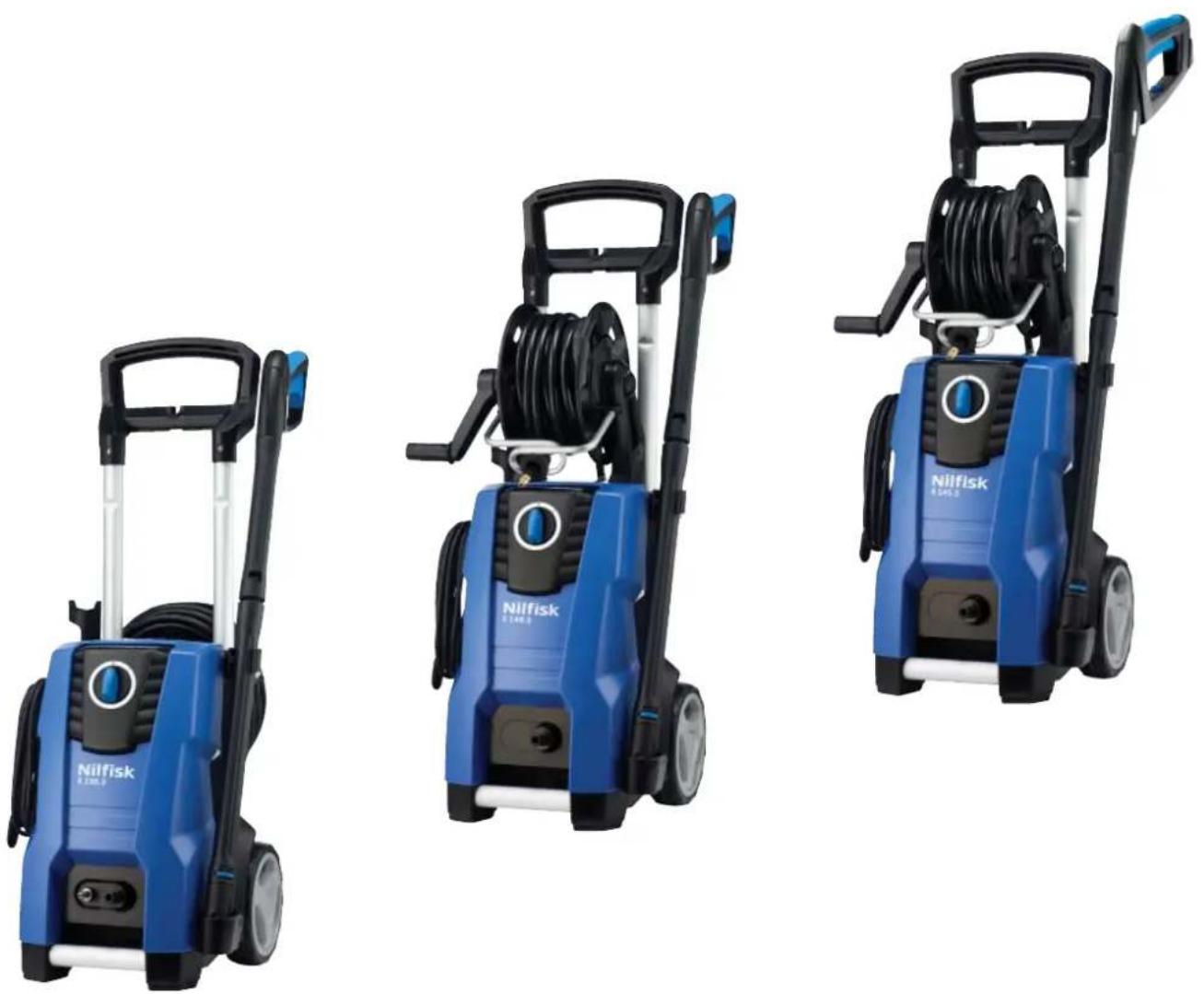

€ 130.3, € 140.3, € 145.3

User Manual

Three blue Nilfisk 4.540.0 power cookers with black hoses and coiled cable, displayed against a white background (no text or symbols visible on the devices themselves).

EN User Manual 3 - 18

DA Instruktionsbog 19 - 34

1.1 Symbols used to mark instruction....4

2 Safety precautions and working techniques ....4

3 Before you start using your high pressure washer 10

3.1 Mounting of trolley handle, hose hook and hose reel 10

3.2 Mounting of quick coupling ....10

3.3 Telescopic handle 10

4 Operating your high pressure washer .... 11

4.1 Connection of high pressure hose 11

4.2 Mounting of spray lance and Click&Clean nozzles 11

4.3 Water Connection ....11

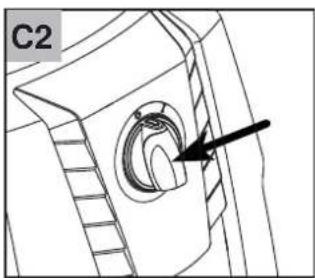

4.4 Starting the high pressure washer 12

4.5 Pressure regulation on the TORNADO® PR- nozzle....12

4.6 Stationary use 12

5 Fields of application and working methods 13

5.1 General....13

5.2 Typical fi elds of application .....14

6 After using the pressure washer 15

6.1 Stopping the high pressure washer ....15

7 Maintenance 15

8 Troubleshooting 16

9 Accessories and detergents 17

10 Warranty Conditions 17

11 Main technical Data .... 17

12 Declaration of Conformity 18

1 Introduction

1.1 Symbols used to mark instruction

All pictograms attached to the high pressure washer and its components are shown and explained in this manual.

Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property.

Caution where there is a risk of damaging the machine or its individual components.

This symbol indicates tips and instructions to simplify work and to ensure a safe operation of the high pressure washer.

2 Safety precautions and working techniques

Before starting up your machine for the first time, this instruction manual must be read through carefully. Save the instructions for later use.

WARNING!

• Inhalation of aerosols can be hazardous to health. Where applicable use a device in order to avoid or reduce aerosols production, e.g., a shield covering the nozzle. For protection against aerosols use a respiratory mask of class FFP 2 or higher.
• The high water pressure generated by the machine and the power connection are particular sources of danger.
• Children should be supervised to ensure that they do not play with the machine.
• Before starting up your machine please check it carefully for any defects. If you find any, do not start up your machine, contact your Nilfi sk distributor. The insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, an authorized Nilfi sk di tributor should replace it.
• The operator and anyone in the immediate vicinity of the site of cleaning should take action to protect themselves from being struck by debris dislodged during operation.
  • Always unplug the power plug before cleaning or maintenance and when replacing parts or converting

the machine to another function.

- Observe the national safety regulations issued, for example, by the employers liability insurance association, social security institutions, occupational safety and health authorities or other organizations.

Accessories and spare parts

• To ensure the machine safety only use original spare parts from Nilfi sk or approved by Nilfi sk.
• High pressure hoses, fi ttings and couplings are important for the safety of the machine. Only use hoses, fi ttings and couplings recommended by Nilfi sk.

Physical, sensory or mental conditions

• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge.
• Anyone who has consumed alcohol, medicines or drugs affecting their ability to react must not operate the machine.

Applications

This machine has been developed for domestic use such as:

- Car, motorbike, boat, caravan, trailer, patio/drive/fl agstones, woodwork, brickwork, barbecue, garden furniture, lawn mower.

Any other use is considered as improper use. Nilfi sk accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user.

Proper use also includes proper operation, servicing and repairs as specified in this instruction.

Clothing and equipment

Always take action to protect yourself when operating the machine.

• Wear shoes with non-slip soles.
• Wear goggles, ear protection and protective clothes during operation.

Transporting the high pressure washer

• When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over.
• Nilfi sk recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.

Detergents

- This machine has been designed for use with cleaning agents supplied or recommended by Nilfi sk. The use of other cleaning agents or chemicals may adversely affect the function of the machine.

efore starting the work Inspecting the machine

• Do not use the machine if a supply cord or important parts of the machine are damaged, e.g., safety device, high pressure hose, and spray handle and spray attachments.
• The trigger of the spray handle must move easily and automatically return to its starting position when released.
• Always keep high pressure hose and spray attachment in good condition (clean, moving easily) and correctly assembled.

Electrical connection

WARNING!

Minimize the risk for electrical shock:

• Voltage and frequency of the machine (see rating plate) must match the voltage of and frequency of the mains supply.
• Only connect the machine to electrical installation made by a certified electrician and com ply with IEC 60364-1.
• It is recommended that the electrical supply to the machine should include a residual current device that will interrupt the supply if the leakage current to earth

exceeds 30 mA for 30 ms.

- Inadequate extension cables can be dangerous. If an extension cable is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground

- Nilfi sk recommends use of an extension cable drum when cable extension is needed which keeps the socket at least 60 mm above the ground.

- Cables on extension cable drums should always be completely unwound to prevent overheating. Extension cables must comply with the below-mentioned requirements for length and cable dimensions:

1.0 mm ^2 Max. 12.5 m

1.5 mm ^2 Max. 20.0 m

2.5 mm ^4 Max. 30.0 m

- If the electric cable is damaged, it must be replaced by an authorized Nilfi sk distributor or similar qualified person in order to avoid a hazard.

Water connection

• This high pressure washer is only allowed to be connected with the drinking water mains, when an appropriate backflow preventer has been installed, Type BA according to EN 60335-2-79.
• The backflow preventer can be ordered under number 106411177.
• As soon as drinking water has fl own through the back-flow preventer, it is no longer regarded as drinking water.
• Operation by suction (e.g. a rainwater vessel) is carried out without a backflow preventer – see “Connecting to a pressureless water supply”.

IMPORTANT

!

• Only use water without any impurities.
• If there is a risk of running sands in the inlet water (i.e. from your own well), an additional fi Iter should be mounted.

During work

WARNING!

• Never use the machine in an environment where there could be a danger of explosions. If any doubt arises contact the local authorities.
• It is not allowed to clean asbestos-containing surfaces with high pressure.
• Never draw in fluids containing solvents (e.g., gasoline, heating oil, paint thinner or acetone) These substances damage the materials used in the machine. Their spray is highly combustible, explosive and poisonous.
• Never direct the water jet at yourself, other persons, = not even to clean clothing or footwear - risk of injury.
• Never direct the water jet at pets or other animals.
• Never direct the water jet at live electrical equipment or the machine itself - danger of short-circuiting.
• Hold the spray lance firmly with both hands. The spray lance is affected by a thrust of up to 16.4 N during operation.
• This high pressure washer machine must not be operated at temperatures below 0°C.
• Never start up a frozen machine. Frost damages are not covered by the guarantee!
  • Always ensure fi rm and safe footing.
• Keep the machine as far away as possible from the object being cleaned.
  • Always adjust the distance and thus the pressure of the nozzle to the surface, which is to be cleaned to avoid any damage to the surface being cleaned.
• The machine shall be operated in an upright position.
• Do not cover the machine or use it in a room without adequate ventilation.
• If the machine is left or not used for 5 minutes, it must be switched off on the start/stop switch "O" (1).

After fi nishing the work

WARNING!

• Always switch off the machine and unplug the power plug from the socket after work and when leaving the machine unattended.
• Disconnect water inlet hose between machine and water supply.
• Wind up electrical cable and high pressure hose – to avoid damage of cable, plug, high pressure hose and fi ttings.
• Always empty pump, hose and accessories of water after use of the machine and prior to storing.

Maintenance and repairs

WARNING!

• Always disconnect the electrical plug from the socket prior to maintenance, cleaning and repair.
• Any repair should always be made in Nilfi sk authorized workshop with original Nilfi sk spare parts.
• Do not attempt any maintenance not described in the instructions.
• If the machine refuses to start, stops, pulsates, pressure fluctuates, motor busses, fuse blows or no water comes out, check the trouble shooting diagram in these instructions. In case other problems occur, please contact your local Nilfi sk distributor.

ling the high pressure washer

Make the old machine unusable immediately.

• Unplug the machine.
• Cut the electric cable.

Do not discard electrical appliances with household waste. As specified in WEEE Directive 2012/19/EC on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically. Contact your local authorities or your nearest dealer for further information.

3 Before you start using your high pressure washer

See the pictorial quick reference guide – unpacking. Illustration shows the operation elements and how to prepare your machine for use.

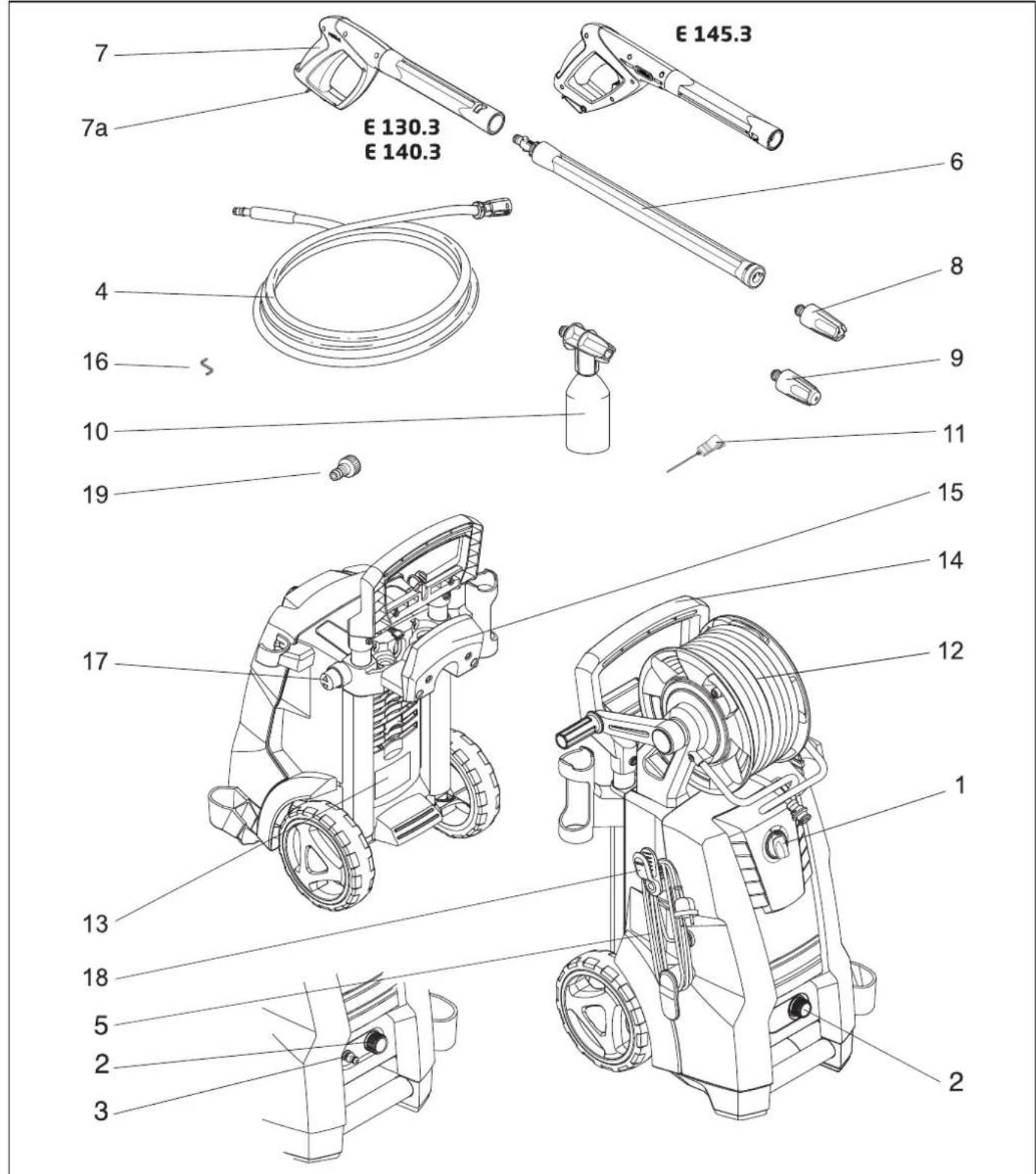

Operation elements

1. Start/stop switch
2. Water inlet with fi Iter
3. High pressure connection (models without hose reel)
4. High pressure hose
5. Electric cable
6. Click&Clean spray lance

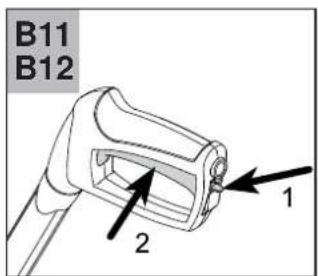

7. Spray handle with lock (7a)
8. Click&Clean Tornado PR nozzle
9. Click&Clean Powerspeed nozzle
10. Foam sprayer
11. Nozzle cleaning tool
12. Hose reel (not standard)
13. Model tag
14. Trolley handle (telescopic handle)
15. Hose hook
16. Hexagon key for handle and bracket mounting
17. Button for telescopic handle

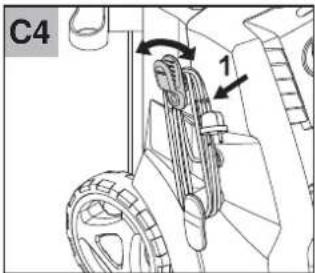

18. Turnable cable hook
19. Quick coupling

3.1 Mounting of trolley handle, hose hook and hose reel

Mounting of trolley handle and hose hook (standard models)

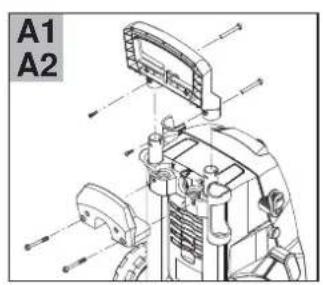

A1 Push down the trolley handle (14) over the two metal tubes. Make sure that the handle is mounted as illustrated. Mount screws with nuts (make sure that the screws go through handle as well as tube).

A2 Mount the hose hook (15) on the handle (2 screws).

Mounting of hose reel handle (models with hose reel)

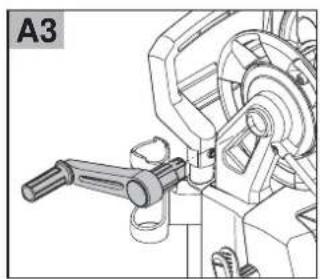

A3 Click the hose reel handle on to the trolley handle (no screws).

3.2 Mounting of quick coupling

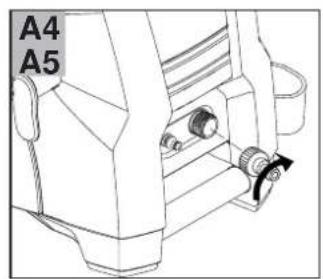

A4 When mounting the quick coupling for the first time, check that the factory fitted filter is positioned in the water inlet pipe.

A5 Screw the quick coupling tight on to the water inlet (2).

IMPORTANT!

The inlet fi lter must always be fi tted in the water inlet pipe to fi lter out sand, lime stone and other impurities as these will damage the pump valves. The fi lter is factory fi tted. If the fi lter is removed this will invalidate the guarantee.

3.3 Telescopic handle

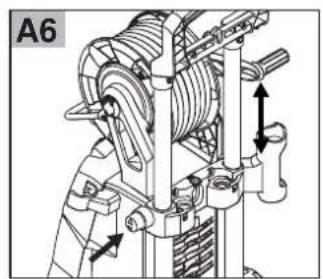

A6 The machine features a telescopic handle. To raise or lower the handle, press the button (17) and move the handle upwards or downwards. When a click is heard, the handle is in right position.

4 Operating your high pressure washer

B

See the pictorial quick reference guide – operating your high pressure washer.

4.1 Connection of high pressure hose

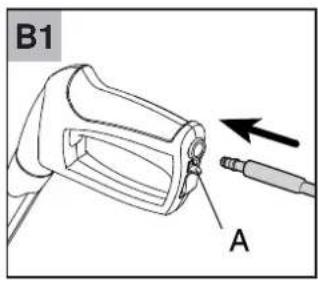

B1 Attach the high pressure hose (4) to the spray handle (7). Detach the high pressure hose by pressing the pawl (A).

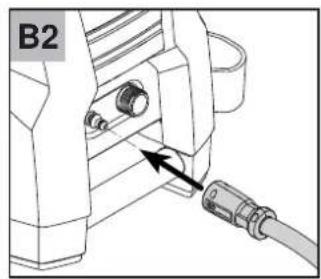

B2 Mount the high pressure hose on the outlet (3).

4.2 Mounting of spray lance and Click&Clean nozzles

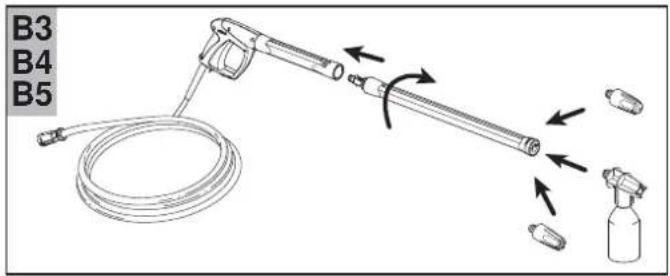

B3 Push the spray lance (6) into the spray handle (7), twist and release.

NOTE!

The spray lance has a built-in low pressure nozzle that can be used for flushing away dirt.

B4 When attaching the nozzles (8, 9), press the nozzles into the spray lance.

IMPORTANT!

When attaching the click & Clean nozzles, the pawl on the side of the spray lance should come out again. The nozzle should stay in position when pulling it.

B5 Push the foam sprayer (10) into the spray lance (6).

NOTE!

The foam sprayer features a swivel lock, which must be positioned in the hole in the Click & Clean spray lance. Press the pawl to detach the Click & clean nozzles and the foam sprayer.

IMPORTANT!

Before starting the cleaning job, check that the machine is in an upright position and placed on an even surface. Do not place the machine in long grass!

4.3 Water Connection

IMPORTANT!

Connecting to pressurized water supply

The inlet water max. pressure is 1 MPa/10 bar and the max. temperature is 60^ C – see rating plate. An ordinary 12 " garden hose of min. 10 m and max. 25 m will be suitable.

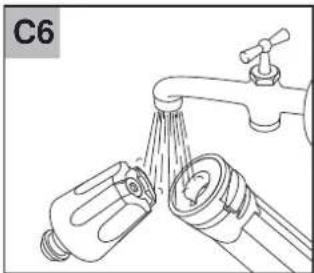

B6 Check that the filter is fitted in the water inlet pipe and that it is not clogged up.

B7 Connect the water hose to the water supply by means of the quick connector. Turn on the water.

Connection to the drinking water mains according to national and local regulations.

Let the water run through the water hose before connecting it to the machine to prevent sand and dirt from penetrating the machine.

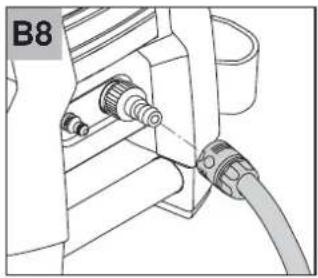

B8 Turn off the water and connect the water hose by means of the quick coupling to the water inlet.

Connecting to pressure less water supply

The machine can also operate in suction mode, meaning that you can connect the machine to e.g. rainwater vessels, rivers, lakes and cisterns etc. When taking in water from non drinking water mains the backflow preventer is not needed.

When connecting the machine to operate from pressure less water supplies – always use additional fi ltering to secure that impurities are not sucked in. Hose length should be max. 3 meter and of minimum 12 ".

To meet these requirements, Nilfi sk recommends that you use the original Nilfi sk suction hose kit.

The Machine is designed for suction up to 100 cm above water surface.

• Position the machine at max. 1.0 meter above the water surface. Detach the high pressure hose from the outlet.
• Ensure that the inlet filter is in position and attach the suction hose kit, secure tight connection to the inlet.
• Turn on the machine, turning the start/stop switch (1) to position "I".
• Wait until a steady jet exits the outlet.
• Switch off the machine and attach high pressure hose (4), spray handle, lance and nozzle.
• Start the machine again and activate the spray handle.

4.4 Starting the high pressure washer

IMPORTANT!

Connecting to mains power supply

The voltage and frequency of the machine (see model tag (13)) must match the voltage and frequency of the power supply.

Connecting the high pressure washer to a supply system, the max allowed impedance is = 0,29+j0,18Ω (Zmax). Consult with the supply authority that the equipment is connected only to a supply of that impedance or less.

B9 Insert the power plug into power supply socket.
B10 Turn on the water.
B11 Release the trigger lock (7a). Remember to unplug, turn off the high pressure washer and lock the trigger, when leaving the high pressure washer unattended
B12 Activate the trigger of the spray handle and let the water run until all air has escaped from the water hose.

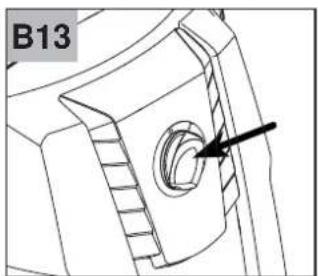

B13 Turn on the machine, turning the start/stop switch to position "I".
B14 Activate the trigger of the spray handle. When releasing the trigger of the spray handle, the machine automatically stops. The machine will start again when you reactivate the trigger of the spray handle.

4.5 Pressure regulation on the TORNADO® PR- nozzle

B15 The pressure can be regulated on the TORNADO ^® PR nozzle.

4.6 Stationary use

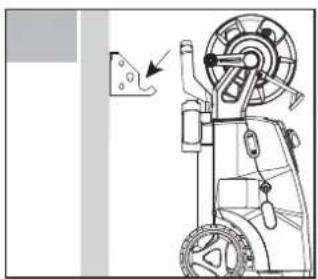

B16 If mounting a special wall hook (not standard), the pressure washer can be used as a stationary solution meaning that it can be operated while hanging on the wall.

Only mount the wall hook on a sturdy wall. Adjust the length of the screws and size of rawlplugs to the type of wall.

B17 On the wall hook garden/rim brush (a) foam sprayer (b), Click & Clean brush (c) and Click & Clean nozzles (d) can be stored.

IMPORTANT!

The bearing capacity of the wall hook is max. 30 kg.

5 Fields of application and working methods

5.1 General

Effi cient high presure cleaning is achieved by following a few guidelines, combined with your own personal experience of specifi c cleaning tasks. Accessories and detergents, when correctly chosen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning.

5.1.1 Detergent and foam

Foam or detergent should be applied onto dry surfaces so that the chemical product is in direct contact with the dirt. Detergents are applied from bottom to top, for example on a car bodywork, in order to avoid "super clean" areas, where the detergent collects in higher concentration and streams downwards. Let the detergent work for several minutes before rinsing but never let it dry on the surface being cleaned. Note: It is important that the detergents do not dry up. Otherwise the surface that has to be cleaned can be da maged.

5.1.2 Mechanical effect

In order to break down tough layers of dirt, additional mechanical effect may be required. Special wash brushes offer this supplementary effect that cuts through dirt (especially by car washing).

5.2 Typical fi elds of application

Below you will find a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents.

Task Accessories ‘Click & Clean’		Cleaning method
Car	Car nozzle, auto brush, underchassis nozzle, Foam sprayer, Car Combi Cleaner	1. Apply Car Combi Cleaner with the foam sprayer. Always start from the bottom and work upwards. Let Car Combi Cleaner act for at least 5 min.2. Wash the car with the car nozzle, which has been optimized for quick and gentle cleaning of enamelled surfaces (the jet is wider and not so sharp). Start at the front of the car and work backwards to avoid water from penetrating by the door mouldings.3. Use the brush for removal of traffic film which is not removed by the nozzle. If the car is very dirty, apply Car Combi Cleaner again.4. Attach the undercarriage nozzle and clean undercarriage and wheel arches.5. Remove water from the surface of the car with the scraper on the car brush.Make sure that all grains of sand etc. have been removed before using the scraper. Wipe with a wash leather where the scraper cannot reach.
Rims, aluminium	Rim brush, auto nozzle, atomizer, Alu Cleaner	Apply Alu Cleaner with an automizer. Let it act for approx. 5 min. and wash with the rim brush. For steel rims, use Car Combi Cleaner. Use the foam sprayer and wash with rim brush.Be careful! The high pressure jet may damage the tyres.
Flagstones, concrete fl oors and other hard surfaces	Powerspeed® nozzle, Stone & Wood Cleaner, Patio Cleaner	Wash towards outlets or the like. On surfaces with foulings you may start by applying Stone & Wood Cleaner with the foam sprayer. Wash before the soap dries. Another more effective and quicker method is to use the Patio Cleaner. Thus you will also avoid splashes.
Garden furniture, wood	Wood Cleaner Garden brush	Apply Wood Cleaner and wash before the soap dries.NOTE: Use the garden brush to clean off the dirt.
Brickwork, Wood work	Powerspeed® nozzle, Stone & Wood Cleaner, Patio Cleaner	Same method as for flagstones, but be careful - bad joints and wood may be damaged by high pressure. You may choose only to use the Tornado® nozzle. Adjust the distance (pressure) to the quality of the joints and the wood. Patio Cleaner can also be used on vertical surfaces.
Gutter	Underchassis spray lance	Wash the gutter with the nozzle. Always wash towards downpipes.Beware not to spray under the roofi ng.
Cleaning of drain pipes, outlets, down pipes etc.	Tube cleaner	Push the tube cleaner approx. 12 m (to mark) into a tube or drain and activate the trigger of the spray handle. The nozzle opening turning backwards will pull the cleaner through the tube. The nozzle will break down the „plug“ and fl ush the dirt backwards.
Rust, paint	Water/sandblasting equipment	Mount the water/sand blasting equipment and rust and paint is effi ciently and quickly removed. Beware not to damage the surface to be sandblasted.
Greenhouse	Tornado® PR nozzle brush, Stone & Wood Cleaner	Wash with high pressure and maybe a brush. You may use Stone & Wood Cleaner to remove moss and algae.
Garden tools, lawn mover	Tornado® PR nozzle, Power-speed® nozzle, multiangle adaptor, Metal Cleaner	Rinse the worst dirt off with the nozzle. Apply Metal Cleaner with the foam sprayer and let it act for approx. 5 min. Wash with the nozzle. You may use the multiangle adaptor for hard to get at areas to avoid splashing.

6 After using the pressure washer

See the pictorial quick reference guide – storing the high pressure washer.

The high pressure washer should be stored in a frost free room! Should the machine by a mistake be frozen, it will be necessary to check it for damages.

6.1 Stopping the high pressure washer

C1 Shut off the water supply and activate the trigger of the spray handle and let the machine run until no more water runs out of the nozzle. This will wash out water hose, high pressure hose, spray lance and nozzles.
C2 Stop the machine, turning the start/stop switch to position "0".
C3 Unplug the machine from the power supply socket.

IMPORTANT!

To avoid accidents, the electric cable and the high pressure hose should always be wound up carefully.

C4 Wind up the electric cable on the dedicated cable hook (18). The upper hook can be turned to release the electric cable. The upper hook has a built-in clip for good holding of the electrical cable.

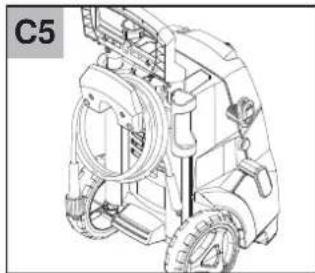

C5 The high pressure washer comes in two models: A) with hook for storage of high pressure hose (15) - B) with a hose reel (12).
C6 Rinse the spray lance, nozzles and the foam sprayer after use.

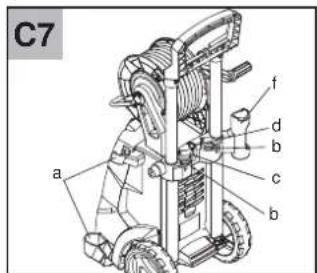

C7 Place spray handle (f), lance (a), nozzles (b), foam sprayer (c) in the holders on the high pressure washer. The nozzle cleaning tool (d) and a Click & Clean brush (e) can also be stored on the product.

7 Maintenance

See the pictorial quick reference guide - maintenance.

To ensure a long and problem free working life of the high pressure washer, please take the following advices:

• Wash out water hose, high pressure hose, spray lance and accessory before mounting
• Clean the connectors of dust and sand
• Rinse the detergent bottle and the detergent nozzle
• Clean the nozzle
• Keep the water inlet fi Iter clean and unclogged

Cleaning of the water inlet fi Iter

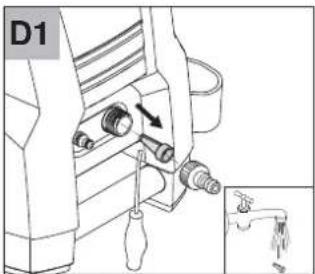

D1 Clean the water inlet filter regularly once a month or more frequently according to use. Carefully loosen the filter with a screwdriver and clean it. Check that it is intact before remounting it.

Cleaning of nozzle

A clogging up in the nozzle causes a pump pressure which is too high, why cleaning is required immediately.

IMPORTANT!

The nozzle cleaning tool (11) should only be used when the nozzle is detached and the machine is stopped!

D2 Stop the machine and disconnect the nozzle. Clean the nozzle.

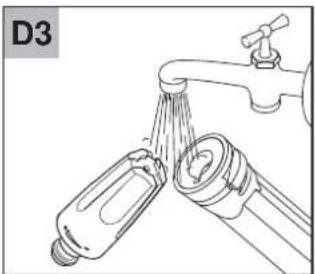

D3 Flush the nozzle backwards with water.

Cleaning of machine vents

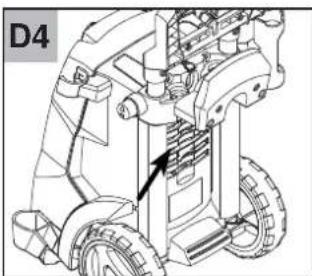

D4 The machine should be kept clean so as to let cooling air pass freely through the machine vents.

Greasing of O-rings

D5 To ensure an easy connection and that O-rings do not dry up the couplings should be greased regularly.

8 Troubleshooting

To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization.

Symptom Cause	Recommended action
Machine refuses to start	Machine not plugged in Defective socketFuse has blownDefective extension cable	Plug in machineTry another socket.Replace fuse. Switch off other machines.Try without the extension cable.
Fluctuating pressure	Pump sucking airValves dirty, worn out or stuckPump seals worn out	Check that hoses and connections are air-tight.Clean and replace or refer to local Nilfi sk-distributor.Clean and replace or refer to local Nilfi sk-distributor.
Machine stops	Fuse has blownIncorrect mains voltageThermal sensor activatedNozzle partially blocked	Replace fuse. Switch off other machines.Check that the mains voltage corresponds to specifi cation on the model tag.Leave the washer for 5 minutes to cool down.Clean the nozzle (see section 7)
Fuse blows	Fuse too small Change to an installation higher than the amp. consumption of the machine.You may try without the extension cable.
Machine pulsating	Air in inlet hose/pumpInadequate supply of mains waterNozzle partially blockedWater fi lter blockedHose kinked	Allow machine to run with open trigger until regular working pressure resumes.Check that the water supply corresponds to specifi cations required (see model tag)NB! Avoid using long, thin hoses (min. 1/2")Clean the nozzle (see section 7)Clean the fi lter (see section 7)Straighten out hose.
Machine often starts and stops by itself	Pump/spray handle is leaking	Contact your nearest Nilfi sk Service Centre.
Machine starts, but no water comes out	Pump/hoses or accessory frozenNo water supplyWater fi lter blockedNozzle blocked	Wait for pump/hoses or accessory to thaw.Connect inlet water.Clean the fi lter (see section 7)Clean the nozzle (see section 7)

In case problems other than the above occur, please contact your local Nilfi sk distributor. Local Nilfi sk distributors are listed on the back cover of this instruction.

Customer Service at Penrith - 01768 868995

9 Accessories and detergents

Only use original accessories and detergents. For further information, see www.nilfi sk.com.

10 Warranty Conditions

Nilfi sk guarantees high pressure washers for domestic use for 2 years. If your high pressure washer or acces so ries are handed in for repair, a copy of the receipt must be enclosed.

Guarantee repairs are being made on the following con dit ions:

• that defects are attributable to flaws or defects in materials or workmanship. (wear and tear as well as misuse are not covered by the gu a ran tee).
• that the directions of this instruction manual have been thoroughly observed.
• that repair has not been carried out or attempted by other than Nilfi sk-trained service staff.
• that only original accessories have been applied.
• that the product has not been exposed to abuse such as knocks, bumps or frost.
• that only water without any impurities has been used.
• that the high pressure washer has not been used for rental nor used com mer cial ly in any other way.

Repairs under this guarantee include replacement of defective parts, exclusive of packing and postage/carriage. Besides, we refer to your national law of sale.

The machine should be forwarded to one of the service centres of the Nilfi sk organisation with description/spe ci fi ca ti on of the fault.

Repairs not covered by the guarantee conditions will be invoiced. (I.e. malfunctions due to Causes mentioned in section Troubleshooting Chart of the instruction manual).

11 Main technical Data

Type		E 130.3 E 140.3 E 145.3
Electric specifications
Rated voltage V 220-240 220-240 220-240
Rated frequency Hz 50/60 50/60 50/60
Rated power consumption	kW	2.0	2.1	2.1
Current	A	9.0	9.5	10
Protection class	Class I/Class II	Class II	Class II	Class II
Protection degree	IP xx	IPX5	IPX5	IPX5
Hydraulic specifications
Rated pressure	MPa/bar	12.5/125	13.5/135	14.0/140
Max. pressure	MPa/bar	13.0/130	14.0/140	14.5/145
Rated water flow	l/min/l/h	7.5/450	7.0/420	6.6/400
Max. water flow	l/min/l/h	8.3/500	8.3/500	8.3/500
Max. water inlet pressure	Mpa/bar	1/10	1/10	1/10
Max. water inlet temperature	°C	60	60	60
Max. water inlet temp. suction mode	°C	20	20	20
Weight	kg	17.8	18.6	19.8
Hand-arm vibration according to ISO 5349-1: Standard nozzle	m/s2	< 2.5 ±1 <	2.5 ±1 < 2.5	±1
Machines without hose reel:Sound pressure level LpA in accordance with ISO 3744Guaranteed sound power level LWA in accordance with 2000/14/EC	dB(A)	66.8 ±282	66.8 ±282	--
Machines with hose reel:Sound pressure level LpA in accordance with ISO 3744Guaranteed sound power level LWA in accordance with 2000/14/EC	dB(A)	71.8 ±286	71.8 ±286	--86

We reserve the right to make alterations.

12 Declaration of Conformity

CE Declaration of Conformity
Product:	High Pressure Washer
Type:	Nilfi sk E 130.3 / E 140.3 / E 145.3and accessory variants of above-mentioned types
Description:	220-240 V 1~, 50/60 Hz - IP X5
The design of the unit corre sponds to the following pertinent regulations:	EC Machine Directive 2006/42/ECEC Low-voltage Directive 2006/95/ECEC EMC Directive 2004/108/ECRoHS Directive 2011/65/ECEC Noise Emission Directive 2000/14/EC
Applied harmonised standards:	EN 60335-2-79:2012EN 62233:2008EN 55014-1:2006 +A1:2009+A2:2011EN 61000-3-2:2006+A1:2009+A2:2009EN 61000-3-11:2000EN55014-2:1997+A1:2001+A2:2009
Applied international standards and technical specifi ca-tions:	IEC 60335-1:2012IEC 60335-2-79:2012
Name and address of the person autho rised to compile the technical fi le:	Anton SørensenGeneral Manager, Technical Operations EAPCNilfi sk-Advance A/SSognevej 25DK-2605 Brøndby
Identity and signature of the person empowered to draw up the declaration on behalf of the manufacturer:	Anton SørensenGeneral Manager, Technical Operations EAPCNilfi sk-Advance A/SSognevej 25DK-2605 Brøndby
Place and date of the declaration	Hadsund, 01.10.2013

A

Mechanical assembly diagram showing a shaft and gear mechanism (no text or symbols)

Mechanical assembly diagram showing a motor with rotating components and directional arrows (no text or labels)

B

Mechanical assembly diagram showing a connector with a cable and bolted joint (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a pipe connection with gears and a container (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow pointing to it (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a gear and wheel assembly (no text or symbols)

C

Illustration of a robotic arm interacting with a door, showing motion direction (no text or symbols)

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and an arrow pointing to it (no text or symbols present)

Technical line drawing of a vehicle chassis with visible components and no text or symbols

Line drawing of a faucet spraying water onto a spray bottle (no text or symbols)

D

Technical line drawing of a mechanical component with a connector (no text or symbols)

Line drawing of a faucet spraying water onto a bottle (no text or symbols)

Technical line drawing of a mechanical assembly with labeled component D4 (no readable text or symbols)

Diagram showing two mechanical components with arrows pointing to them, labeled D5 (no text or symbols on the components themselves)

HEAD QUARTER

DENMARK

Nilfi sk-Advance Group

Sognevej 25

DK-2605 Brøndby

Tel.: [phone]

E-mail: mail.com@nilfi sk-advance.com

SALES COMPANIES

AUSTRALIA

Nilfi sk-Advance Pty Ltd

Unit 1/13 Bessemer Street

Blacktown NSW 2148

Website: www.nilfi sk.com.au

AUSTRIA

Website: www.nilfi sk.at

BELGIUM

Nilfi sk-Advance n.v-s.a.

Riverside Business Park

Boulevard Internationalelaan 55

Building 18, Suchun Industrial Estate

Suzhou Industrial Park

215021 Suzhou

Website: www.nilfi sk-cs.com

CZECH REPUBLIC

Nilfi sk-Advance

Pramukh Plaza, 'B' Wing, 4th floor, Unit No. 403

Cardinal Gracious Road, Chakala

Andheri (East) Mumbai 400 099

Website: www.nilfi sk.com

IRELAND

Nilfi sk-Advance

1 Stokes Place

St. Stephen's Green

Dublin 2

Website: www.nilfi sk.com

ITALY

Nilfi sk-Advance SpA

Sintra Business Park

Zona Industrial Da Abrunheira

Edifi cio 1, 1° A

P2710-089 Sintra

Website: www.nilfi sk.pt

RUSSIA

Нилфиск-Эдванс

127015 Москва

Seongdong-gu, Seoul, Korea

www.nilfi sk.co.kr

SPAIN

Nilfi sk-Advance S.A.

Torre d'Ara, Planta 9

08302 Mataró

Barcelona

Website: www.nilfi sk.es

SWEDEN

Nilfi sk-Advance AB

Taljegårdsgatan 4

431 53 Mölndal

Website: www.nilfi sk-alto.se

SWITZERLAND

Nilfi sk-Advance

Ringstrasse 19

1F, No. 193, sec. 2, Xing Long Rd.

Taipei

Tel.: [phone]

Website: www.nilfi sk-alto.tw

THAILAND

Nilfi sk-Advance Co. Ltd.

89 Soi Chokechai-Ruammitr

Viphavadee-Rangsit Road

Ladyao, Jatuchak, Bangkok 10900

Website: www.nilfi sk.co.th

TURKEY

Nilfi sk-Advance A.S.

Serifali Mh. Bayraktar Bulv. Sehit Sk. No:7

Umraniye

Istanbul

Website: www.nilfi sk.com.tr

UNITED KINGDOM

Nilfi sk Advance Ltd.

Nilfi sk House

Bowerbank Way

Gilwilly Industrial Estate, Penrith

Cumbria CA11 9BQ

Tel: [phone]

Website: www.nilfi sk.co.uk

UNITED ARAB EMIRATES

Nilfi sk-Advance Middle East Branch

SAIF-Zone

P.O. Box 122298

Sharjah

Website: www.nilfi sk.com

VIETNAM

Nilfi sk-Advance Representative Office

No. 51 Doc Ngu Str.

Ba Dinh Dist

Hanoi

Website: www.nilfi sk.com
