EFC60151X - Range hood ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	EFC60151X
Product Type	Range Hood
Width	60 cm
Installation Type	Built-in / Under-cabinet
Finish	Stainless Steel
Max Extraction Rate	381 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Controls	Push buttons
Lighting	2 x 40W halogen (incandescent)
Filter Type	Aluminum grease filter (washable)
Ducted / Recirculation	Ducted (recirculation possible with charcoal filter)
Energy Class	C (EU 2019)
Annual Energy Consumption	61 kWh
Grease Filter Efficiency Class	C
Fluid Dynamic Efficiency Class	D
Lighting Efficiency Class	C
Weight	~8.5 kg
Power Consumption (off mode)	0.0 W
Width of Duct Outlet	120 mm
Recommended Height Above Hob	65-75 cm

Frequently Asked Questions - EFC60151X ELECTROLUX

How to install the Electrolux EFC60151X hood?

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65-75 cm above the hob, and connect the duct to an external outlet. Follow the included manual for exact steps.

Can I use the hood in recirculation mode?

Yes, the EFC60151X can be used in recirculation mode by installing an optional charcoal filter (not included). This filters the air and returns it to the kitchen.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every 2-3 months, or more frequently if used heavily. It can be washed by hand with mild detergent or in a dishwasher at low temperature.

How to replace the halogen bulbs?

First, disconnect the hood from power. Gently pry out the old halogen bulb (G4, 40W max) and replace with a new one of the same type. Ensure the bulb is securely in place before restoring power.

Why is my hood making noise?

Normal operational noise ranges from 45 to 65 dB depending on speed. If abnormal noise occurs, check for loose parts, a blocked filter, or improper installation. Contact support if needed.

What size duct is required?

The duct outlet diameter is 120 mm. Use a rigid or flexible duct of the same diameter for optimal airflow. Ensure the duct is as short and straight as possible.

How do I reset the filter alarm?

Some models have a filter saturation indicator. After cleaning or replacing filters, press and hold the speed button (or specific reset button) for a few seconds until the indicator turns off. Refer to manual.

Can I install the hood over an island?

The EFC60151X is designed for under-cabinet installation. For island installation, a different model or a special kit may be required. Check compatibility with the manufacturer.

What is the warranty period?

Electrolux typically offers a 2-year warranty for parts and labor, but it may vary by country. Register your product online to activate warranty.

Where can I buy spare parts?

Spare parts like filters and bulbs can be purchased from authorized Electrolux dealers, online stores, or the Electrolux website. Use the model number EFC60151X for exact matches.

USER MANUAL EFC60151X ELECTROLUX

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux

ACCESSORIES AND CONSUMABLES

In the Electrolux webshop, you'll find everything you need to keep all your Electrolux appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at:

www.electrolux.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol ☑ Put the packaging in applicable containers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available. The information can be found on the rating plate.

Model

PNC ____

Serial Number ____

RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the

bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambé under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• CAUTION: Accessible parts may become hot when used with cooking appliances.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the filters after the specified time period (fire hazard).

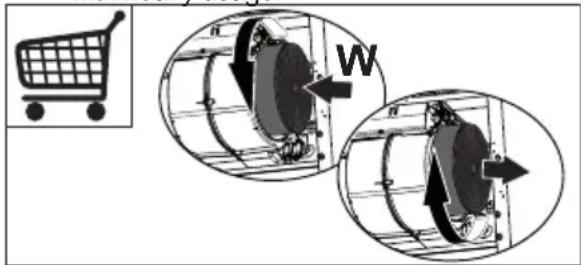

Activated charcoal filter W: These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

Grease filters Z: The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

Control lights, if present.

Clean the hood using a damp cloth and a neutral liquid detergent.

CONTROLS

L	Light Switches the lighting system on and off
V	Speed Sets the operating speed of the extractor:0. Motor Off.1. Low speed, used for a continuous and silent air change in the presence of light cooking vapour.2. Medium speed, suitable for most operating conditions given the optimum treated air flow/noise level ratio.3. Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

LIGHTING
