Powershred 72Ct - Shredder FELLOWES - Free user manual and instructions

Product Type	Cross-cut paper shredder
Brand	Fellowes
Model	Powershred 72Ct
Sheet Capacity	Up to 14 sheets per pass (75 gsm)
Shred Size	5/32" x 1-1/2" (4 x 38 mm) cross-cut
Shred Speed	9 ft/min (2.7 m/min)
Bin Capacity	9 gallons (34 liters)
Dimensions (H x W x D)	18.5" x 13.5" x 24" (47 x 34 x 61 cm)
Weight	20 lbs (9.1 kg)
Power Supply	120 V AC, 60 Hz, 5A
Motors	Single motor with thermal overload protection
Feed Opening Width	9" (22.9 cm)
Shreddable Items	Paper, credit cards, staples, paper clips
Run Cycle	Up to 10 minutes continuous
Cool Down Period	30 minutes after continuous run
Safety Features	SafeSense® Technology stops shredder when hands touch the paper opening
Controls	Auto start, reverse, manual forward
Noise Level	Approx. 62 dB
Maintenance	Lubricate with Fellowes Shredder Oil every 2 bins or monthly
Warranty	5-year limited warranty on machine, 1-year on cutting blades

Frequently Asked Questions - Powershred 72Ct FELLOWES

What is the sheet capacity of the Fellowes Powershred 72Ct?

The Fellowes Powershred 72Ct can shred up to 14 sheets of 75 gsm paper per pass.

Can it shred credit cards and staples?

Yes, the 72Ct can safely shred credit cards, staples, and paper clips without damage.

What is the shred size?

The shred size is 5/32" x 1-1/2" (4 x 38 mm) cross-cut, providing high security.

How do I lubricate the shredder?

Use Fellowes Shredder Oil every 2 bin empties or monthly. Run a few drops across the paper entry and shred a few sheets to distribute.

What should I do if the shredder jams?

Press the reverse button to clear jam. If persistent, unplug and remove jammed paper manually. Avoid forcing.

How long can it run continuously?

The Powershred 72Ct can run for up to 10 minutes continuously, then needs a 30-minute cool down.

What is SafeSense Technology?

SafeSense automatically stops the shredder when your hands touch the paper opening, enhancing user safety.

What is the bin capacity?

The pull-out bin holds 9 gallons (34 liters) of shredded material.

What is the warranty coverage?

It comes with a 5-year limited warranty on the machine and 1-year warranty on cutting blades.

Can I shred junk mail and envelopes?

Yes, it handles junk mail and regular envelopes (without plastic windows) easily.

USER MANUAL Powershred 72Ct FELLOWES

Exterior view of a black industrial waste sorting device (no visible text or symbols)

Please read these instructions before use.

Do not discard: keep for future reference.

Fellowes

Quality Office Products Since 1917

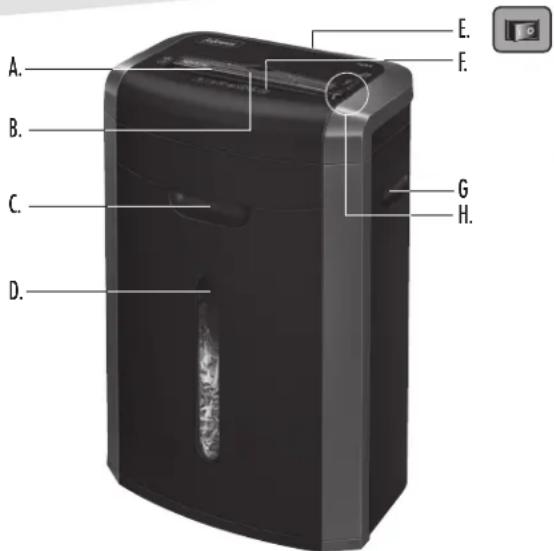

KEY

A. Paper entry
B. CD/Credit card safety flap
C. Pull-out Bin

D. Window

E. Disconnect power switch

○ 1.0FF

1 2.ON

F. See safety instructions

G. Handle

H. Control Switch and Indicator lights

R 1. Reverse

0 2. OFF

I 3. Auto-On (green)

urbo Jam Release™ (red)

Door Open(red)

Overheat(red)

CAPABILITIES

Will shred: Paper, credit cards, staples, paper clips, CD/DVDs and junk mail.

Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper, cardboard, laminates, file folders, X-rays or plastic other than noted above

Paper shred size:

Cross-Cut 4mm x 38mm

Maximum:

Sheets per pass 12*

*A4 (70g), paper at 220-240V, 50/60 Hz, 2.2Amps; heavier paper, humidity or other than rated voltage may reduce capacity. Maximum recommended daily usage rates: 800 sheets; 25 credit cards; 10 CDs. 12 sheets per pass.

WARNING: IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

• Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.
• Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.
• Keep foreign objects — gloves, jewelry, clothing, hair, etc. — away from shredder openings. If object enters top opening, switch to Reverse (R) to back out object.
• Never use aerosol products, petroleum based lubricants or other flammable products on or near shredder. Do not use canned air on shredder.

• Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.

• This shredder has a Disconnect Power Switch (E) that must be in the ON (I) position to operate shredder. In case of emergency, move switch to OFF (O) position. This action will stop shredder immediately.

• Avoid touching exposed cutting blades under shredder head.
• Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
• FIRE HAZARD — Do NOT shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.

Continuous operation: Up to 20 minutes maximum

NOTE: Shredder runs briefly after each pass to clear entry. Continuous operation beyond 20 minutes will trigger 40-minute cool down period.

PAPER, CARD or CD

Plug in and put disconnect power switch in ON (I) position

Set to Auto-On (I)

Feed paper straight into paper entry and release

To shred CDs or credit cards rotate safety flap into place

Hold card/CD at edge, feed into card/CD flap entry and release

When finished shredding set to OFF (0)

ADVANCED PRODUCT FEATURE

Turbo Jam Release™

Exclusive Turbo Jam Release™ button

powers through jams

For more information about all of Fellowes Advanced Product Features go to www.fellowes.com

PRODUCT MAINTENANCE

OILING SHREDDER

All cross-cut shredders require oil for peak performance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding, and could ultimately stop running. To avoid these problems, we recommend you oil your shredder each time you empty your waste bin.

FOLLOW OILING PROCEDURE BELOW AND REPEAT TWICE

Set to Off (0)

*Applyoil across entry

Set to Reverse (R) 2-3 seconds

CLEANING AUTO-START INFRARED SENSORS

Paper detection sensors are designed for maintenance free operation. However, on rare occasions, the sensors may become blocked by paper dust causing the motor to run even if there is no paper present. (Note: two paper detection sensors are located in the center of the paper entry).

TO CLEAN THE SENSORS

Turn off and unplug shredder

Locate Auto-start infrared sensor

Dip cotton swab in rubbing alcohol

Using cotton swab, wipe away any contamination from the paper sensors

CAUTION

* Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250

TROUBLESHOOTING

Paper jam: Either press Reverse (R) and remove paper or follow Turbo Jam Release™ instructions below

Door open: Make sure bin is pushed in

Overheat: Wait 40 minutes for motor to cool down

Paper jam: Set to Off (0) and empty bin. Replace bin and follow the procedures below.

Press and hold Turbo Jam Release™ Button

If jam has not cleared, press and hold Reverse (R) for 1 second

Reduce paper quantity to an acceptable amount and refeed into paper entry

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 2 years from the date of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects in material and workmanship for 5 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, shredder operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs

incurred by Fellowes to provide parts or services outside of the country where the shredder is initially sold by an authorized reseller. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.

Australia Residents Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits under Fellowes' Warranty are in addition to other rights and remedies under a law in relation to the shredder.

Declaration of Conformity

Fellowes Manufacturing Company

Yorkshire Way, West Moor Park, Doncaster, South Yorkshire, DN3 3FB, England declares that the product Model 69Cb conforms with the requirements of the Restriction of Hazardous Substances Directive (2011/65/EU), the Low Voltage Directive (2006/95/EC), the Electromagnetic Compatibility Directive (2004/108/EC), the WEEE directive (2002/96/EC), and below harmonized European EN Standards.

Safety: EN 60950-1

EMC Standard: EN55014-1 EN55014-2 EN61000-3-2 EN61000-3-3

Year Affixed: 12

Itasca, Illinois, USA

January 1, 2013

W.E.E.E.

This product is classified as Electrical and Electronic Equipment. Should the time come for you to dispose of this product please ensure that you do so in accordance with the European Waste of Electrical and Electronic Equipment (WEEE) Directive and in compliance with local laws relating to this directive.

For more information on the WEEE Directive please visit www.fellowesinternational.com/WEEE
