Product Type	Tumble Dryer
Brand	Indesit
Model	IDCE 845 A ECO
Capacity	8 kg
Energy Class	A
Drying Type	Condenser (ventless)
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	Approx. 40 kg
Power Supply	230 V ~ 50 Hz
Power Consumption (Full Load)	~ 4.5 kWh/cycle
Noise Level	~ 65 dB(A)
Drying Programs	Cotton, Synthetics, Delicates, Eco, Rapid, Iron Dry, Cupboard Dry, Extra Dry
Display	LED digital display with cycle selection and progress indicators
Lint Filter	Removable, clean after each cycle
Condenser Unit	Self-cleaning condenser (some models) or manual cleaning indicator
Water Tank	Collects condensed water; easy to empty
Anti-Crease Function	Yes, up to 6 hours after cycle
Child Lock	Yes, option to disable controls
Delay Timer	Up to 24 hours
Spare Parts Availability	Through Indesit authorized service centers
Repair Index (France)	Typically 6.5/10 (check official rating)
Energy Consumption (Annual)	~ 270 kWh (based on 160 cycles)

Frequently Asked Questions - IDCE 845 A ECO INDESIT

How do I clean the lint filter on my Indesit IDCE 845 A ECO?

Open the door, pull the lint filter upward from the door recess, open it, and remove the lint by hand or with a vacuum cleaner. Rinse the filter under water if needed, dry it, and reinsert. Clean after every cycle.

What does the 'Eco' program do on this dryer?

The Eco program is designed for energy efficiency, drying smaller loads (up to 4 kg) at a lower temperature, reducing power consumption while still achieving good drying results for cotton items.

Why does my dryer stop before clothes are dry?

Possible causes: overload, wet lint filter, blocked condenser, or incorrect program selected. Check the lint filter and condenser, reduce load size, and ensure you are using the appropriate program for the fabric type.

How do I empty the water tank?

Slide out the water tank located at the bottom right or behind the door (depending on model). Pour the water out, rinse the tank if necessary, and slide it back in until it clicks. Do this after each cycle or when the indicator lights up.

Can I install the dryer in a cupboard or small space?

Yes, as a condenser dryer, it does not require external venting. However, ensure adequate ventilation and that the room temperature does not exceed 35°C. Leave at least 5 cm clearance around the dryer for airflow.

How do I activate the child lock?

Press and hold the 'Child Lock' button (usually marked with a key icon) for 3-5 seconds until a lock symbol appears on the display. Repeat to deactivate. This prevents accidental program changes during a cycle.

What does the 'Anti-Crease' function do?

After the drying cycle ends, the drum rotates intermittently for up to 6 hours without heat to prevent wrinkles from settling. You can remove clothes anytime during this period.

How often should I clean the condenser?

Clean the condenser unit every 1-2 months or when the 'Clean Condenser' indicator lights up. Remove the condenser from its housing (usually behind a flap), rinse with water, and dry before reinserting.

The dryer displays an error code. What should I do?

Common error codes include: F01 (electronics issue) - unplug and wait 1 minute; F02 (motor problem) - check drum for obstruction; F03 (heating issue) - clean filter and condenser; F05 (drain problem) - empty water tank. If persists, contact Indesit service.

Can I dry wool or silk items in this dryer?

No, wool and silk should not be tumble dried unless specifically labeled 'tumble dry safe'. Use a flat drying rack or line dry these delicate items to avoid shrinkage or damage.

USER MANUAL IDCE 845 A ECO INDESIT

Line drawing of a hand pressing down on a washing machine with an arrow indicating the motion (no text or symbols)

Line drawing of a two-wheeler washing machine with open doors (no text or symbols)

Illustration of a hand pressing down on a curved mechanical component with an upward arrow (no text or symbols)

Technical illustration of a curved mechanical component with internal grooves and mounting holes (no text or symbols)

Illustration of a hand pressing down on a curved surface with a downward arrow (no text or symbols)

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Illustration of hands holding a device with cables and connectors (no text or symbols visible)

Hand inserting a device into a control panel with an arrow indicating direction (no text or symbols)

Diagram of a hand pressing down on a circular button inside a washing machine (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle front panel with no visible text or symbols

Technical line drawing of two mechanical housing compartments with mounting holes (no text or symbols)

Technical line drawing of a vehicle rear panel with ventilation ducts and doorways (no text or symbols)

Diagram of an open refrigerator interior showing internal components and airflow direction (no text or labels)

Fig. A

Fig. B

Conexión eléctrica

Line drawing of a battery casing with two side-mounted connectors and rotation arrows indicating clockwise motion (no text or symbols)

Diagram showing a mechanical component with an inset close-up of a circular component (no text or symbols)

Programa Sport Intensive

3D technical illustration of a curved mechanical component with internal brackets and mounting holes (no text or symbols)

Technical line drawing of a mechanical housing assembly (no text or symbols)

Illustration of a hand pressing down on a washing machine with an arrow indicating motion (no text or symbols)

Line drawing of an open refrigerator with two doors open (no text or symbols)

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

3D rendering of a curved mechanical component with internal ribs and mounting holes (no text or symbols)

Illustration of a hand pressing down on a curved mechanical component with a downward arrow (no text or symbols)

Illustration of hands holding a mechanical component with no visible text or symbols

Hand inserting a device into a slot, showing an arrow indicating direction (no text or symbols present)

Hand pressing down on a circular device with a black arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a vehicle front panel with ventilation grilles (no text or symbols)

Technical line drawing of two mechanical components with mounting holes and wheels (no text or symbols)

Technical line drawing of a mechanical component with internal structure and mounting bracket (no text or symbols)

Fig. A
Fig. B

Ligação eléctrica

Antes de introduzir a ficha na tomada eléctrica, verifique o seguinte:

Diagram of a battery casing with two side-mounted sensors, showing rotation arrows (no text or symbols)

Diagram showing a mechanical component with an inset close-up of a circular component (no text or symbols)

Programa Sport Intensive

Technical line drawing of a curved mechanical component with internal brackets and mounting holes (no text or symbols)

Technical line drawing of two mechanical components with internal compartments and wheels (no text or symbols)

! This symbol reminds you to read this instruction manual.
! Keep this manual at hand for immediate reference whenever necessary. Always store this manual close to the tumble dryer and remember to pass it on to any new owners when selling or transferring the appliance, so they may familiarise with the warnings and suggestions herein contained.
! Read these instructions carefully: the following pages contain important information on installation and useful suggestions for operating the appliance.

Contents

Important information, 34-35

Installation, 36

Where to install the tumble dryer

Ventilation

Electrical connections

Levelling the tumble dryer

Preliminary information

Description of the tumble dryer, 37-38

Features

Control panel

How to carry out a drying cycle, 39

Starting and selecting a programme

Programmes and options, 40-41-42

Programme chart

Special programmes

Options

Opening the door

Laundry, 43-44

Sorting laundry

Care labels

Special garments

Drying times

Warnings and suggestions, 45

General safety

Information on recycling and disposal

Saving energy and respecting the environment

Care and maintenance, 46

Disconnecting the power supply

Cleaning the filter after each cycle

Checking the drum after each cycle

Emptying the water container after each cycle

Cleaning the Heat Pump Filter

Cleaning the tumble dryer

Troubleshooting, 47

Assistance, 48

indesit

EN

Important information

EN

To ensure that the condenser dryer functions efficiently, the following routine maintenance procedures must be carried out:

Fluff filter – CLEAN off any fluff build-up on the filter after each drying cycle.

Line drawing of a hand pressing down on a washing machine (no text or symbols)

Step 1

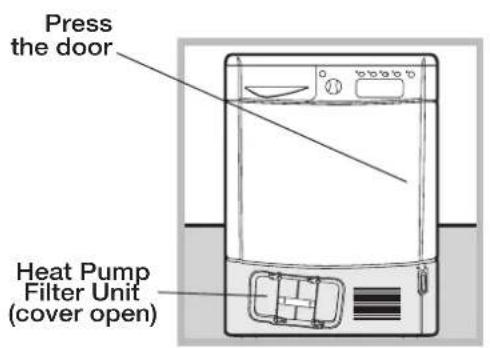

Open the dryer door by pressing it as shown in the picture.

Line drawing of an open refrigerator with two doors open (no text or symbols)

Failure to clean the filter after each drying cycle can undermine drying performance as the machine takes longer to dry and thus consumes more energy.

Water container – empty the water container after each drying cycle.

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Step 1

Pull the water container towards you and remove it completely from the dryer.

Illustration of hands holding a device with wires and components (no text or symbols visible)

Step 2

Empty all the water in the water container.

Illustration of a hand pressing down on a curved surface with an upward arrow (no text or symbols)

Step 2

Pull out the filter (using two fingers).

3D rendering of a curved mechanical component with internal grooves and mounting holes (no text or symbols)

Step 3

Clean off any fluff build-up on the internal surface of the filter.

Illustration of a hand pressing down on a curved mechanical component with a downward arrow (no text or symbols)

Step 4

Replace the filter – never operate the dryer without the filter in place.

Illustration of a hand inserting a device into a tray with an upward arrow (no text or symbols)

Step 3

Replace the water container making sure that it is securely fixed.

Failure to empty the water container may cause the following:

- The dryer stops heating (thus the load may still be damp at the end of the drying cycle).

- The "Empty water container" LED activates to show that the water container is full.

Filling of the Water Container

When the dryer is first used water will not immediately enter the water container as the pump needs to be primed. This is done automatically and will take a few minutes, during this period the efficiency of the drying process is not affected.

Heat Pump Filter Unit - You must clean the fluff from the filter every five drying cycles to maintain the correct functioning of your dryer! However for optimum performance and to save energy we recommend that it is cleaned before each drying cycle.

Hand pressing down of a computer tower with a black arrow indicating compression (no text or symbols)

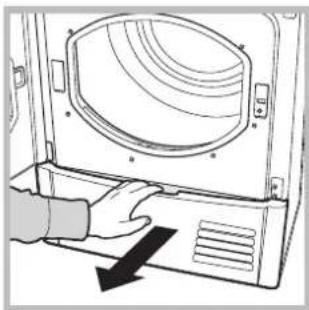

Step 1

Open the heat pump filter Cover.

- hold the handle and pull towards you.

Technical line drawing of a vehicle door frame with handlebars and mounting brackets (no text or symbols)

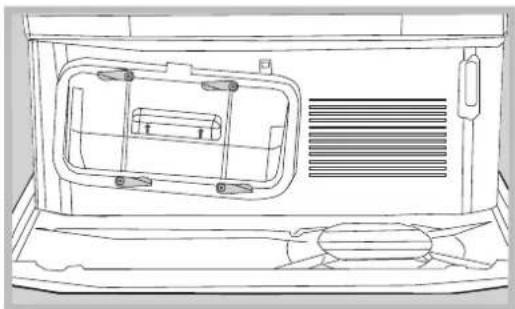

Step 2

Remove the filter unit by rotating the 4 clips to the vertical position then pulling the filter unit towards you. (There may be some water in the filter this is normal).

! Warning: The front of the heat pump is made from thin metal plates.

Take care that you do not damage these or cut yourself when cleaning, removing or replacing the filter unit.

Technical line drawing of a vehicle front panel with no visible text or symbols

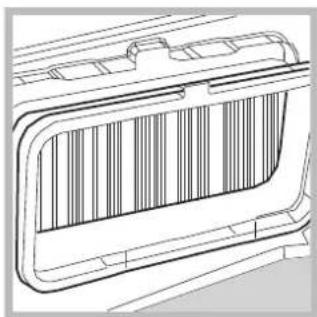

Step 3

If there is any build up of fluff on the plates Carefully clean this off with a damp cloth, sponge or vacuum cleaner.

Never use your Fingers.

Technical line drawing of two mechanical housing compartments with mounting brackets (no text or symbols)

Step 4

Seperate the two parts of the filter unit, clean any fluff deposits from the inside surface of the filter mesh. Clean the seals.

Assemble the two parts.

Technical line drawing of a vehicle rear panel showing internal components and ventilation duct (no text or symbols)

Step 5

Refit the filter unit - ensure that the unit is pushed in fully, then turn all 4 clips into the horizontal position to lock the cover.

Failure to clean Heat Pump Filter will reduce the drying performance and could cause premature failure of your dryer.

To maintain optimum drying performance we recommend you clean this filter after every drying cycle.

Where to install the tumble dryer

• Install the dryer far from gas ranges, stoves, radiators or hobs, as flames may damage it. If the dryer is installed below a worktop, ensure there are 10 mm between the upper panel of the dryer and any objects above it, and 15 mm between the sides of the machine and the walls or furniture units adjacent to it. This ensures adequate air circulation.

Ventilation

• The room must be adequately ventilated while the dryer is running. Make sure that the dryer is installed in a room free of humidity and with adequate air circulation. The flow of air around the dryer is essential to allow water to condense during drying; the dryer will not function properly if it is placed in an enclosed space or inside a cabinet.
  ! Some condensation may form if the dryer is used in a small or cold room.
  ! We do not recommend that the dryer is installed in a cupboard but the dryer must never be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the dryer door.

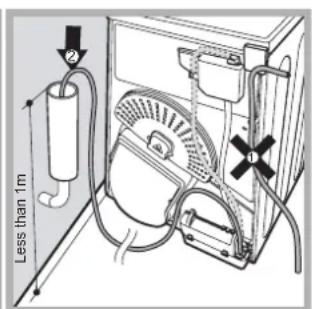

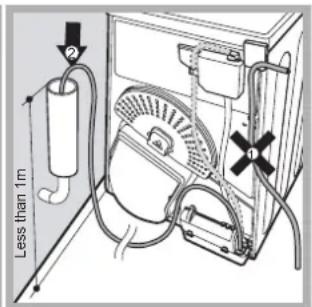

Water drain

If your dryer is installed next to a drain the water can be plumbed into this drain. This does away with the need to empty the water container. If the dryer is stacked onto or installed next to a washing machine it can share the same drain. The height of the drain must be less than 3' (1 m) from the bottom of the dryer. Remove existing hose from position shown in picture A and fit a suitable length of hose and connect as shown in picture B.
! Make sure that the hose is not squashed or kinked when the dryer is in its final location.

Diagram of an appliance interior showing internal components and airflow paths (no text or labels)

Picture A

Picture B

Electrical connections

Before plugging the appliance into the socket, check the following:

• Make sure your hands are dry.
- The socket must have an earth connection.
- The socket must be able to withstand the machine's maximum power output as indicated on the data plate (see Description of the tumble dryer).
- The power supply voltage must fall within the values indicated on the data plate (see Description of the tumble dryer). - The socket must be compatible with the machine's plug. If not, either the socket or the plug must be replaced.
! Do not use extension cords.
! The tumble dryer must not be installed in outdoor spaces, even if sheltered. It may be very dangerous to expose this appliance to rain and thunderstorms.
! Once dryer installation is complete, the electric cord and plug must be at hand.
! The electric cord must not be bent or crushed.
! If the plug to be replaced is of the moulded-on type, it must be disposed of in a safe way. DO NOT leave it where it can be plugged into a socket and cause electric shocks.{}
! The electric cord must be regularly checked and replaced with a cord specifically designed for this dryer; it must then be installed by an authorised technician only (see Assistance). New or longer electric cords are supplied by authorised dealers at a supplementary cost.
! The manufacturer declines all responsibility for failure to observe these instructions.
! When in doubt about the above indications, contact a qualified electrician.

Levelling the tumble dryer

The dryer must be installed level for correct operation.

Line drawing of a battery with two side-mounted components and rotation arrows indicating clockwise motion (no text or symbols)

Diagram showing a mechanical component with a magnified inset of its base detail (no text or symbols)

When you have installed your dryer in its final location check that it is level first side-to-side, then front to back. If the dryer is not level, adjust the two legs up or down until your dryer is level.

Preliminary information

Once the tumble dryer is installed, clean the inside of the drum before operating it and remove any dirt accumulated during transportation.

Warning! Before you use your dryer ensure that its has been in a upright position for at least 6 hours.

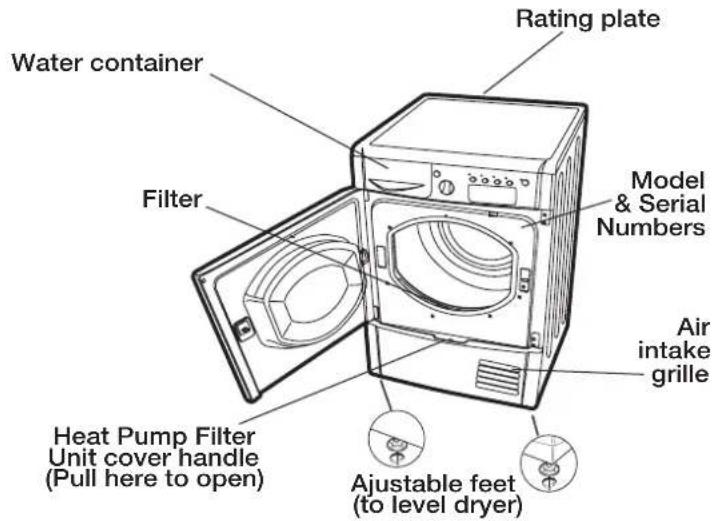

Description of the tumble dryer

Opening the door

Features

Control panel

ON/OFF/Reset button

Pressing the button normally will cause the machine to switch on or off. If the button is pressed for 3 seconds while the dryer is in use, the machine will switch off and the running cycle will reset.

Programme selection knob

Allows for setting the programme: turn until the indicator points towards the desired programme (see Starting and selecting a programme).

Options buttons

Allows selection of the options available for the selected programme. The respective indicator lights turn on when the option has been selected (see Programmes and options).

START/PAUSE button and indicator light

When the green light flashes slowly, press the button to start the programme. When the cycle is under way, the indicator light remains on. Press the button again to put the programme in the pause mode; the indicator light turns orange and starts flashing again. Press the button again to resume the programme from the point it was interrupted (see Starting and selecting a programme).

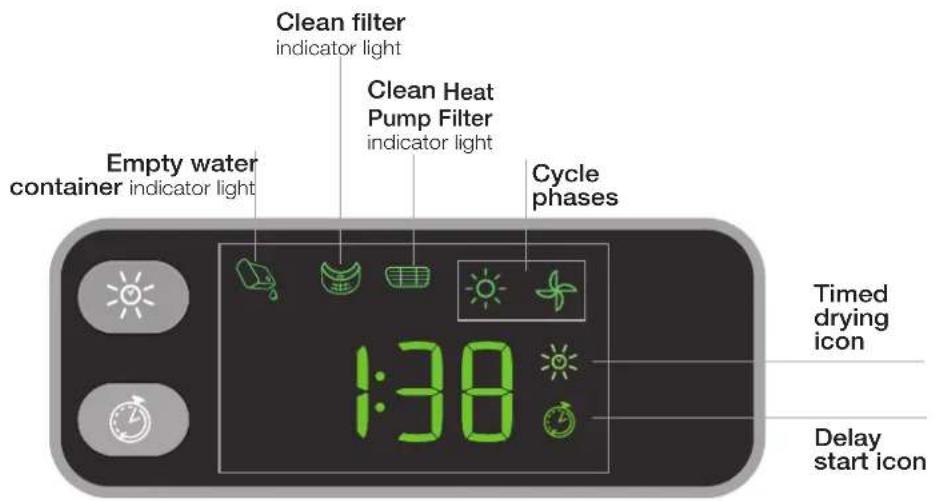

Display

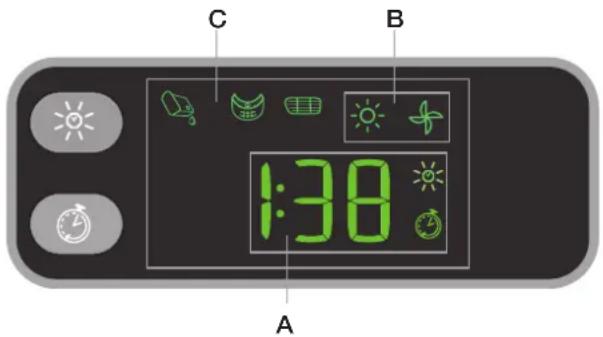

In section A, the selected “Timed drying” value is displayed; if the “Delay start” function was set, the time remaining to the start of the selected programme will appear.

The duration of the selected programme is also displayed in this section.

In section B, the phase of the running programme is displayed:

Sun icon >Drying cycle

Fan icon Cold air cycle

In section C, the maintenance indicator lights are displayed (Empty water container indicator light ☐, Clean filter indicator light ☐, Clean Heat pump filter unit indicator light) ☐ see Indicator lights.

Indicator lights

The indicator lights provide important information. They indicate the following:

The "Empty water container" indicator light signals that the water container must be emptied.

If the water container fills during the course of the programme, the LED lights up. The dryer automatically starts a cold air cycle and the START/PAUSE LED flashes orange. Press the START/PAUSE button to resume the cycle from the point it was interrupted.

In order to avoid this procedure, always empty the water container after using the tumble dryer (see Maintenance).

Before each programme, the "Clean filter" indicator light 🤔 signals the fundamental importance of cleaning the filter before each load (see Maintenance).

The “Clean Heat pump filter unit” indicator light 📋 indicates that you must clean the Heat pump filter every 5 cycles (however, we recommend you clean it after each cycle).

Starting and selecting a programme

1. Plug the dryer into the power supply socket.
2. Select the programme according to the type of laundry (see Laundry).
3. Open the door, ensure that the filter is clean and securely placed and that the water container is empty and correctly slotted (see Maintenance).

4. Load the machine, making sure that no piece of laundry gets between the door and the relative seal. Close the door.

5. Press the ON/OFF button to start the machine.

6. After consulting the programme chart and the indications for each type of fabric (see Laundry), turn the Programme selection knob towards the programme corresponding to the type of laundry to be dried (see Programmes and options).

! Warning: If the position of the programme selection knob changes after pressing the START/PAUSE button, the selected programme will NOT be modified. To modify the programme, press the START/PAUSE button to put the programme in pause mode (the indicator light flashes orange), then select a new programme and the relative options. Press the START/PAUSE button to start the new programme.

1. Select the "Timed Drying" function by pressing the timed drying button until the required time is displayed (see Programmes and options).

2. If necessary, set the time of the delayed start and any other options (see Programmes and options).

3. Press the ALARM button to sound a buzzer signalling the end of the programme.

4. Press the START/PAUSE button to start the drying cycle. The display will show the approximate time remaining. Laundry can be checked while the drying programme runs and any garments already dry can be removed, while drying continues for the remaining items. After closing the door, press the START/PAUSE button to resume machine operation. If you open the door to check your laundry you will extend the drying time as the heat pump compressor will not start until 5 minutes after you close the door and pressed the start Button.

5. The final COLD DRYING phase (i.e. the fabrics are cooled) activates during the last few minutes of the drying programme; always allow this phase to terminate.

6. A buzzer signals when the programme ends (provided the option was selected). The word "End" will appear on the display. Open the door, remove the laundry then clean the filter and replace it. Empty the water container and put it back in its slot (see Maintenance).

If the "Post anti-crease" option was selected and laundry is not removed immediately, the drum will rotate garments at intervals for 10 hours or until the door is opened.

1. Disconnect the dryer from the power supply.

Standby mode

This tumble dryer, in compliance with new energy saving regulations, is fitted with an automatic standby system which is enabled after about 30 minutes if no activity is detected. Press the On/Off button briefly and wait for the machine to start up again.

Programmes and options

EN

Programme chart

	Programme	Max. load (kg)	Compatible options	Cycle duration
Energy Saver				The duration of the wash cycles can be checked on the display.
1	Eco Cotton	1 Alarm – Pre anti-crease – Post anti-crease – Delay start
2	Eco Shirts	1 Alarm – Pre anti-crease – Post anti-crease – Delay start
3	Eco Synthetics	1 Alarm – Pre anti-crease – Post anti-crease – Delay start
Cotton
4	Ready to Wear	Max. Alarm – Pre anti-crease – Post anti-crease – High heat – Timed drying – Delay start
5	Cotton Cupboard	Max. Alarm – Pre anti-crease – Post anti-crease – High heat – Timed drying – Delay start
6	Cotton Hanger	Max. Alarm – Pre anti-crease – Post anti-crease – High heat – Timed drying – Delay start
7	Cotton Iron	Max. Alarm – Pre anti-crease – Post anti-crease – High heat – Timed drying – Delay start
Special
8	Synthetics	3 Alarm – Pre anti-crease – Post anti-crease – High heat – Timed drying – Delay start
9	Delicates	2 Alarm – Pre anti-crease – Post anti-crease – Timed drying – Delay start
10	Wool	1 Alarm
11	Jeans	3 Alarm – Pre anti-crease – Post anti-crease – Delay start
Sport
12	Special Shoes	1 pairs	Alarm
13	Sportwear	4 Alarm – Pre anti-crease – Post anti-crease – Delay start
14	Outwear	2 Alarm – Pre anti-crease – Post anti-crease – Delay start
Partial
	Easy iron 2,5 Alarm
	Refresh - Alarm

Energy Saver Cycles

The Energy Saver Cycles reduce energy consumption and so they not only help the environment, they also cut your energy bill!

Energy Saver Cycles are available for several different types of fabric, there is one you can use with cottons, there is one specially for shirts and there is one for use with synthetic fabrics. They have all been designed to guarantee excellent drying performance for small loads.

Energy Saver Cycles give the best drying results thanks to perfect temperature regulation and to accurate humidity detection which is optimized to obtain the best result on small load.

Delicates

• This is a programme for drying your Delicate Clothes i.e. Acrylics.
• It can be used for load sizes up to 2.0 kg.
• This programme will take about 2:00 (hrs:mins), but may take longer depending on the size and density of the load and the spin speed used in your washer.
• Loads dried using this programme are usually ready to use, but on some garments may be slightly damp. If this is found try removing the load and open them out or turn inside out then run the programme again for a short period.

Wool Programme

This programme is specific for items that withstand tumble drying and are labelled with the ☐ symbol. It is suitable for loads of up to 1 kg (about 3 jerseys). We recommend turning the garments inside out before drying them. This programme lasts about 1:00 (hrs:mins), although it may last longer depending on the size and density of the load and on the spin speed used during the wash cycle. Garments dried with this programme are usually ready to be worn, although the edges of heavier garments may be slightly damp. Leave them to dry naturally, as an additional drying process may damage them.

Unlike other materials, the shrinking process in wool is irreversible, i.e. the garment does not resume its original dimension and shape.

This programme is not suited for acrylic items.

Jeans Programme

This programme is suited to washing cotton denim jeans. Turn the front pockets inside out before drying the jeans. It is suitable for loads of up to 3 kg (about 4 pairs).

This programme lasts about 1:25 (hrs:mins), although it may last longer depending on the size and of the load and on the spin speed used in the wash cycle. Garments dried using this programme are usually ready to be worn, though edges and seams may be slightly damp. In this occurs, turn the jeans inside out and reactivate the programme for a short while.

Use this cycle for 100% cotton garments only; do not mix dark and light colours and avoid using this programme for garments with embroidery and accessories (elastic strings around the waist area, brooches, etc.); turn pockets inside out.

Special Shoes Programme

This programme is specific for drying sports shoes of sizes 37-46. The shoes must have been previously washed and spun at a minimum spin speed of 400 revolutions.

A specific shoe rack is provided and must be used, otherwise the dryer will be damaged if shoes are dried in the drum. Remove the filter from its holder on the front part of the dryer and position the shoe rack.

Place shoelaces inside the shoes then load with the tips of the shoes facing downwards and the soles frontwards.

Drying times vary according to the shape and type of the shoe. If the shoes are not completely dry at the end of the programme, restart the programme.

Do not dry shoes that have gel or flashing lights inside them. Only dry shoes made of synthetic material or rope. Once the programme ends, remove the shoe rack and replace the filter into its holder.

Sportwear Programme

This programme is studied for safely drying garments such as tracksuits and shorts bearing the □ symbol. It is ideal for clothes which do not need to be dried fully. Suitable for loads of up to 4 kg, it lasts about 1:20 (hrs:mins), although it may last longer depending on the size and density of the load and of the spin speed used during the wash cycle. We suggest turning garments inside out before drying them.

Outwear Programme

This programme is specific for drying water-repellent fabrics and sports jackets (e.g. Gore-Tex, polyester, nylon). Drying the garment after a wash cycle has a beneficial effect as it reactivates the garment's water-repellent treatment.

It can be used for loads of up to 2 kg. The programme lasts about 2:00 (hrs:mins), although it may last longer depending on the size and density of the load and on the spin speed used during the wash cycle.

Easy Iron

A short 10-minute programme that relaxes the garment's fibres in order to facilitate ironing and folding.

This programme is particularly recommended for cotton or mixed cotton fabrics.

For optimal results, do not overload the drum (the following values refer to the weight of dry garments):

Fabric: maximum load

Cotton and mixed cotton: 2.5 kg

Synthetic garments: 2 kg

Jeans: 2 kg

Empty the dryer as soon as the programme ends; hang, fold or iron garments then place them in the wardrobe. If this is not possible, repeat the programme.

As this is not a drying programme, it is not to be used for garments that are still wet.

The effect produced by the programme varies according to the characteristics of the each fabric: fabrics such as acrylic fibres or

Tencel® do not give the same results as traditional fibres (e.g. cotton).

Refresh

A short programme suitable for refreshing fibres and garments. It lasts about 20 minutes.

! As this is not a drying programme, it is not to be used for garments that are still wet.

Options

The options allow for customising the selected programme according to one's own needs.

Timed drying

After selecting a programme, press the "Timed drying" button to enter a drying time. Every time this button is pressed, the duration of the selected drying cycle appears on the display. When pressed the first time, the highest allowed value for the selected cycle appears on the display. When pressed each of the following times, the set time is reduced until OFF appears.

The buzzer will activate if the timed drying option is not available.

The selected time is displayed after the start of the programme and cannot be modified after pressing the START/PAUSE button.

Delay Start

The start of some programmes (see Programmes and options) may be delayed up to 24 hours. Press the button repeatedly to enter the desired delay time. Before setting a delayed start, make sure that the water container is empty and that the filter is clean.

Pre Anti-Crease

When this option is selected in addition to the “Delay start” option, the drum rotates garments at intervals during the delay period to avoid creases forming.

Post Anti-Crease

When this option is selected, the drum rotates garments at intervals after the cold drying cycle has ended, in order to avoid creases forming on garments if they cannot be immediately removed at the end of the programme. During this phase, the indicator light is turned on.

High Heat

When a drying time is selected, pressing this button sets a high heat drying and the indicator light above the button lights up. The timed programmes are pre-set to low heat.

Alarm

A buzzer sounds at the end of the drying cycle to signal that the programme has ended and the garments are ready to be removed.

Not all options are available on all programmes (see Programmes and options). If the button of an unavailable option is pressed, the buzzer emits three signals. If an option is available, a single buzzer signal sounds and the option indicator light next to the button lights up to confirm the selected option.

Opening the door

If the door is opened (or the START/PAUSE button is pressed) while a programme is running, the dryer stops and the following may occur:

• The START/PAUSE button flashes orange.
• When a delayed start is running, the delay countdown continues. It is necessary to press the START/PAUSE button to resume the “Delay start” programme. The “Delay start” indicator light flashes and the display visualises the time remaining to the start of the selected programme.
• It is necessary to press the START/PAUSE button to resume the programme. The progress indicator lights signal the running phase and the START/PAUSE indicator light stops flashing and turns green.
• During the post anti-crease phase, the programme ends. Pressing the START/PAUSE button reactivates a new programme from the beginning.
• By turning the Programme selection knob, a new programme is selected and the START/PAUSE indicator light flashes green. This procedure can be used to select the Cold drying programme to cool garments if they are judged to be dry enough.

Press the START/PAUSE button to start the new programme.

Heat Pump Protection System

The heat pump sytem has a compressor protection feature, that operates if you open the door or there is a power disruption or you turn off the dryer. This system will prevent the heat pump compressor from starting for 5 minutes after the door is closed and the programme started.

Note: In the event of a power cut, turn the power switch off and remove the plug; when the electricity supply returns, press the START/PAUSE button to resume the programme.

Sorting laundry

• Check the symbols on the care labels of the various garments to verify whether the garments can be safely tumble dried.
• Sort laundry according to the type of fabric.
  • Empty all pockets and check for loose buttons.
• Close zips and hooks and fasten belts and strings without tightening them.
• Wring out garments to remove the maximum amount of water possible.

! Do not load the dryer when garments are dripping wet.

Maximum load sizes

Do not overload the drum.

The following values indicate the weight of dry garments:

Natural fibres: maximum 7.5 kg

Synthetic fibres: maximum 3 kg

! Do not overload the dryer as this may result is reduced drying performance.

Typical weights

Note: 1 kg = 1000 g

Garments
Blouse	CottonOther	150 g100 g
Dress	CottonOther	500 g350 g
Jeans		700 g
10 nappies		1,000 g
Shirt	CottonOther	300 g200 g
T-shirt		125 g

Household linen
Duvet cover (double bed)	Cotton Other	1,500 g 1,000 g
Large tablecloth		700 g
Small tablecloth		250 g
Tea cloth		100 g
Bath towel		700 g
Hand towel		350 g
Double bed sheet		500 g
Single bed sheet		350 g

When mixing synthetic fibres with cotton garments, the latter may still be damp at the end of the drying cycle. If this happens, simply put them through a short drying cycle.

Note: when setting the duration of the drying cycle, remember that the cold drying phase runs during the last 3 minutes, during which the dryer does not dry the garments.

Care labels

Always check the care labels, especially when placing garments in the tumble dryer for the first time. Below are the most commonly used symbols:

May be tumble dried.

Do not tumble dry.

Tumblr dry – high heat.

Tumble dry - low heat.

Items not suitable for tumble drying:

• Items containing rubber parts or similar materials, or plastic film covering (pillows, cushions or PVC sports jackets), any type of inflammable object or objects containing inflammable substances (used towels containing hairspray).
  • Glass fibres (certain types of draperies).
• Items which have been previously dry cleaned.
• Items marked with the ITLC symbol ("Special garments") ☒, which may be washed using special household products. Follow instructions carefully.
• Large bulky items (duvets, sleeping bags, pillows, cushions, large bedcovers, etc.) that expand when dried and hamper air circulation inside the tumble dryer.

Special garments

Blankets and bedcovers: acrylic items (Acilian, Courtelle, Orion, Dralon) must be dried with great care at low heat. Avoid drying for long periods.

Creased or pleated garments: read the drying instructions supplied by the manufacturer.

Starched garments: do not dry together with non-starched items. Remove the maximum amount of starch solution possible before placing these items in the dryer. Do not over-dry: starch turns powdery leaving garments limp – this defeats its purpose.

Drying times

Drying times are approximate and may vary depending on the following:

• Amount of water retained by items after the spin cycle: towels and delicate items retain a lot of water.

• Fabrics: items of the same fabric, but with different texture and thickness may have different drying times.

• Amount of laundry: single items and small loads may take longer to dry.

• Drying: if items are to be ironed, they can be removed from the dryer while still slightly damp. Items that require complete drying can be left longer.
• Heat setting.
• Temperature of the room: the lower the temperature of the room, the longer it will take for the dryer to dry clothing.
• Bulk: certain bulky items require special care during the drying process. We suggest removing these items and replacing them in the dryer once they have been shaken out: repeat this procedure several times during the course of the drying cycle.

! Do not over-dry items.

All fabrics contain natural dampness which helps to keep them soft and fluffy.

The drying times provided refer to the automatic Cupboard dry programmes.

The Timed drying settings are also indicated to enable you to select the most suitable timed option.

The weight refers to dry items.

Automatic drying times

CottonsHigh Heat
Drying times after 800-1000 rpm wash cycles
	1 kg	2 kg 3 kg	4 kg 5 kg 6 kg	7 kg 7.5 kg
Automatic (hrs:mins)	0:40-0:60	1:00-1:30	1:30-1:40 1:40	2:10 2:10-2:40	2:40-3:00 3:00	00-3:10 3:00-3:20
Timed (hrs:mins)	0:40 or 1:00	1:00 or 1:30	1:30	1:30 or 2:00	2:00 or 2:30	2:30 or 3:00	3:00	3:00 or 3:40
SyntheticsLow Heat
Drying times on reduced spin in washing machine
	1 kg		2 kg			3 kg
Automatic (hrs:mins)	0:40 - 0:50		0:50 - 1:00			1:00 - 1:30
Timed (hrs:mins)	0:40 or 1:00		0:40 or 1:00			0:40 or 1:00 or 1:30
AcrylicsLow Heat
Drying times on reduced spin in washing machine
	1 kg				2 kg
Automatic (hrs:mins)	0:40 - 1:20				1:20 - 2:20
Timed (hrs:mins)	0:40 or 1:00 or 1:30				1:30 or 2:00 or 2:30

! This appliance was designed and manufactured in compliance with current international safety standards. The following information is provided for safety reasons and must be read carefully.

General safety

- The final part of a tumble dryer cycle occurs without heat (cooling cycle) to ensure that the laundry is not damaged due to excessive temperatures.

- This tumble dryer must not be used by persons (including children) with physical, sensory or mental impairments or with little experience and knowledge of the appliance, unless they are supervised or have been adequately instructed on its use by the person responsible for their safety.

- This tumble dryer is designed for domestic and non-professional use.

- Do not touch the appliance while barefoot or with wet hands or feet.

- Unplug the appliance by pulling on the plug, not the cord.

- Do not allow children near the appliance while it is in function. After use, switch the appliance off and unplug it. Keep the appliance door closed to prevent children using it as a toy.

- Children must be supervised to ensure that they do not play with the appliance.

- The appliance must be correctly installed and receive adequate ventilation. The air intake on the front part of the dryer and the air vents on the rear must never be obstructed (see Installation).

- Never use the dryer on carpeting with high pile as this may prevent air from entering the dryer from the base.

- Check whether the dryer is empty before loading it.

- The rear part of the dryer may become very hot: do not touch it while the appliance is in function.

- Do not use the dryer unless the filter, Water Container and Heat Pump filter units are securely in place (see Maintenance).

- Do not use liquid fabric softener in the dryer; add it to the final rinse of the wash cycle.

- Do not overload the dryer (see Laundry for the maximum load sizes).

- Do not add items that are dripping wet.

- Tumble dry items only if they have been washed with water and detergent, and have been rinsed and put through a spin cycle. Drying items that have NOT been washed with water may cause the risk of fire.

- Always read the instructions on the care label carefully (see Laundry).

- Do not tumble dry items that have been treated with chemical products.

- Never tumble dry items that are contaminated with inflammable substances (cooking oil, acetone, alcohol, petrol, kerosene, stain removers, turpentine, waxes, wax removers and hairspray), unless they have been washed in hot water with an extra amount of detergent.

- Do not tumble dry rubber, rubber-backed articles and garments, cushions with foam rubber padding, latex foam, rubber, plastic, shower caps, water-resistant fabrics, nappy pants or liners, polyethylene and paper.

- Remove all objects from pockets, particularly lighters (risk of explosion).

- Do not tumble dry large, excessively bulky items.

- Do not tumble dry acrylic fibres at high temperatures.

• Complete each programme with the relative cold drying phase.
• Do not switch the tumble dryer off if items that are still warm are inside it.
• Clean the filter after each use (see Care and maintenance).
• Empty the water container and put it back in place after each use (see Care and maintenance).
• Clean the Heat Pump filter unit at regular intervals (see Care and maintenance).
• Do not allow lint to build up around the tumble dryer.
• Avoid climbing on the top of the dryer as this may damage the appliance.
• Always comply with electrical regulations and requirements (see Installation).
• Always purchase original accessories and spare parts (see Assistance).

! WARNING: Never stop the dryer before the end of the drying cycle unless all items have been quickly removed and hung in order to dispel heat.

Information on recycling and disposal

As part of our continual commitment towards environmental protection, we reserve the right to use recycled quality components to reduce costs for our customers and to minimise materials wastage.

• Disposing of the packaging materials: follow local regulations to allow for recycling of packaging materials.
• In order to minimise the risk of injury to children, remove the door and plug, then cut the power supply cord flush with the appliance. Dispose of these parts separately to prevent the appliance from being connected to a power supply socket.
• This dryer has as a sealed heat pump unit containing F gases which must recover and destroyed.

Disposal of old household appliances

The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste

stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

This dryer has as a sealed heat pump unit containing F gases which must recover and destroyed.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

(In UK this is your Civic Amenity Household Waste Recycling Centre).

Saving energy and respecting the environment

• Wring out items before tumble drying them to remove the maximum amount of water possible (if they are previously washed in a washing machine, select a spin cycle). This ensures that energy is saved during tumble drying.
• Always use the tumble dryer at full load to save energy: single items and small loads may take longer to dry.
• Clean the filter at the end of each cycle to reduce energy consumption costs (see Care and maintenance).

Care and maintenance

EN

Disconnecting the power supply

! Disconnect the dryer when not in use or during cleaning and maintenance operations.

Cleaning the filter after each cycle

The filter is a fundamental component of the dryer: its function is to collect lint and fluff that form during drying. Clean the filter once drying is completed, by rinsing it under running water or cleaning it with a vacuum cleaner. Should the filter become clogged, the flow of air inside the dryer will be seriously hampered: drying times becomes longer and more energy is consumed. Moreover, the dryer may become damaged. The filter is located in front of the dryer seal (see Picture). Removing the filter:

Technical line drawing of a curved mechanical component with internal ribs and mounting holes (no text or symbols)

1. Pull the filter's plastic handle upwards (see Picture).
2. Clean the fluff off the filter and replace it correctly. Ensure that the filter is pushed fully home.

! Do not use the dryer unless the filter has been replaced in its holder.

Checking the drum after each cycle

Rotate the drum manually to remove smaller items (handkerchiefs) that could have been left inside the dryer.

Cleaning the drum

! Avoid using abrasives, steel wool or stainless steel cleaning agents to clean the drum. A coloured film may appear on the stainless steel drum surface: it may be caused by a combination of water and/or cleaning agents such as wash-softeners. This coloured film does not affect the dryer's performance.

Emptying the water container after each cycle

Remove the water container and empty it into a sink or other suitable drain outlet, then replace it correctly. Always check the water container and empty it before starting a new drying cycle.

Cleaning the Heat Pump Filter Unit

- Periodically (every 5 drying cycles) remove Heat pump filter unit and clean any build up of fluff from the surface of the filter by rinsing it under running water or with your vacuum cleaner. We however recommend that you clean this filter after every drying cycle to optimize the dryers performance.

To remove Heat pump filter unit:

1. Unplug the dryer and open the door.
2. Remove the filter unit by rotating the 4 clips to the vertical position then pulling the filter unit towards you.
3. Separate the two parts of the filter unit and clean the surface of the filter.

! Warning: The front of the heat pump is made from thin metal plates.

Take care that you do not damage these or cut yourself when cleaning, removing or replacing the filter unit.

1. If there is any build up of fluff on the plates Carefully clean this off with a damp cloth, sponge or vacuum cleaner. Never use your Fingers.

2. Assemble the two parts of the filter clean the surface of the seals and replace with the 4 clips into the horizontal position, sure that the catches have been secured.

Technical line drawing of two mechanical housing components with internal compartments (no text or symbols)

Cleaning the tumble dryer

- The external metal, plastic and rubber parts can be cleaned with a damp cloth. - Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the front part of the condenser and from the filter area, using a vacuum cleaner every so often.

! Do not use solvents or abrasives.

! Have the dryer checked regularly by authorised technical personnel in order to ensure that the electrical and mechanical parts work safely (see Assistance).

If you feel that the dryer is not working properly, consult the following troubleshooting suggestions before contacting the Technical Assistance Centre (see Assistance).

Problem:

The dryer does not start.

Possible causes / Solutions:

• The plug has not been inserted far enough into the socket to make contact.
  • There has been a power cut.
• The fuse has blown. Try connecting another appliance to the same socket.
• If an extension cord is used, try connecting the dryer plug directly into the socket.
• The door has not been closed properly.
• The programme has not been set correctly (see How to carry out a drying cycle).
• The START/PAUSE button has not been pressed (see How to carry out a drying cycle).

The drying cycle does not start.

• A delayed start time has been set (see Programmes and options).
• The START/PAUSE button has been pressed; a short delay follows before the dryer starts running. Wait for the drying cycle to start; do not press the START/PAUSE button otherwise the dryer switches to the pause mode and the drying cycle will not start.

Drying times are too long.

• The filter has not been cleaned (see Maintenance).
• The water container must be emptied? The "Empty water container" indicator light flashes and the message appears "H2O" (see Maintenance).
• The Heat Pump Filter needs cleaning (see Maintenance).
• The heat setting is not suited to the type of fabric to be dried (see Programmes and options).
• An incorrect drying time was selected for the type of load (see Laundry).
• The items are too wet (see Laundry).
• The air intake grille are clogged up (see "Installation" and "Care and Maintenance").
• The dryer is overloaded (see Laundry).

The “Empty water container” indicator light flashes, but the dryer has been running for a short time.

- The water container was probably not emptied before starting the programme. Do not wait for the signal for emptying the water container, but always check and empty it before starting a new drying programme (see Description of the tumble dryer).

The "Empty water container" indicator light is on but the water container is not full.

- It is normal: the “Empty water container” indicator light flashes when the water container is full. If the indicator light is on but is not flashing, it is just a reminder to empty the container (see Description of the tumble dryer).

The programme is finished but the items are damper than expected.

For safety reasons, the dryer programmes last a maximum of 4 hours. If an automatic programme has not detected the final dampness level required in this interval, the dryer completes the programme and stops. Check the above points and repeat the programme; if the items are still damp, contact the Technical Assistance Centre (see Assistance).

The code "F" appears on the display followed by one or two numbers, the options indicator lights and the pause indicator light flash.

- If the display visualises F10 or F15, switch the appliance off and unplug it, then clean the filter and the Heat Pump Filter unit (see Maintenance). Reinsert the plug, switch the appliance on and start another programme. If the display still visualises F10 or F15, contact the Technical Assistance Centre (see Assistance). If the display still visualises other numbers, mark the code and contact the Technical Assistance Centre (see Assistance).

"dOn" briefly appears on the display every 6 seconds.

- The appliance is in “Demo” mode. Press the ON/OFF and START/PAUSE buttons and keep them pressed for 3 seconds. The display visualises “dOn” for 3 seconds, then the dryer starts functioning normally.

The "Remaining time" indicator changes during the drying cycle.

- The remaining time is constantly monitored during the drying cycle and is updated to show the best forecast. It is normal for the displayed time to increase during the cycle.

The dryer is noisy during the first few minutes of operation.

- This is normal, especially if the dryer has not been used for a long time. If the noise persists during the entire cycle, contact the Technical Assistance Centre.

The lights on the dryer control panel are off although the dryer is switched on.

- The dryer has gone into standby mode to save power. This occurs if you have left the dryer on or have had a power cut. It occurs after 30 minutes: - if you leave the dryer without starting a programme; - after your drying programme has finished. Press the On/Off button and the lights will come on again.

Heat Pump System

This dryer is fitted with a sealed heat pump system to dry your clothes. To operate, the heat pump contains fluorinated greenhouse gases (F gases) which are covered by the Kyoto Protocol. These F gases are contained in a hermetically sealed unit. This sealed unit contains 0.34 kg of the F gas R134a which acts as a refrigerant.

If the sealed unit fails then it must be replaced by a new sealed unit. Contact your nearest service centre for advise.

Note: The gases contained in the sealed unit are not hazardous to health, but if they escape they will have an impact on global warming.

Before calling the Technical Assistance Centre:

• Follow the troubleshooting guide to check whether problems can be solved personally (see Troubleshooting).
• If not, switch the dryer off and contact the Technical Assistance Centre closest to you.

Provide the following data when contacting the Technical Assistance Centre:

• name, address and postal code
- telephone number
- type of malfunction
- date of purchase
• the appliance model (Mod.)
- the dryer's serial number (S/N)

This information can be found on the data plate located behind the door.

Comparative programmes

- recommended programmes for the EN61121 comparative test.

Programme (EN61121) Programme to be selected Load size

Cotton drying cycle Cotton Cupboard dry 7.5 kg

Cotton drying ironing Cotton Iron dry 7.5 kg

Easy care fabric Synthetic Cupboard dry 3 kg

! Note: this is not a complete list of the programme options.

This appliance conforms to the following EEC directives:

• 2006/95/EC (Low Voltage Directive)
• 89/336/EEC, 92/31/EEC, 93/68/EEC (Electromagnetic Compatibility Directive).

Spare parts

This dryer is a complex machine. Attempting to repair it personally or with the aid unqualified personnel may put the safety of people at risk, damage the machine or invalidate the spare parts guarantee.

Always contact a qualified technician when experiencing problems with this machine.

Please note that it is an offence for an unqualified person to undertaken any servicing or repair work that involves breaking into the sealed heat pump unit.

The spare parts were designed exclusively for this machine and should not be used for any other purpose.

Türkçe

Indeks

Line drawing of a hand pressing down on a washing machine with an arrow indicating the motion (no text or symbols)

Aşama 1

Line drawing of a two-wheeler washing machine with open doors (no text or symbols)

Aşama 2

Illustration of a hand pressing down on a textured surface with an upward arrow (no text or symbols)

Technical line drawing of a curved mechanical component or bracket (no text or symbols)

Aşama 3

Illustration of a hand pressing down on a curved mechanical component with a downward arrow (no text or symbols)

Aşama 4

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

Aşama 1

Illustration of hands holding a mechanical component with no visible text or symbols

Aşama 2

Illustration of a hand inserting a device into a tray with an arrow indicating direction (no text or symbols)

Aşama 3

Hand placing a button into a computer monitor with a curved screen on the cover (no text or symbols visible)

Technical line drawing of a vehicle interior frame with no visible text or symbols

Technical line drawing of a vehicle front panel with no visible text or symbols

Technical line drawing of two mechanical housing compartments with mounting holes (no text or symbols)

Technical line drawing of a front view of a device casing with internal components and ventilation slots (no text or symbols)

Technical line drawing of a refrigerator with fan and door components (no text or symbols)

Şekil. A

Technical line drawing of an air conditioner unit with cooling pipes and fan (no text or symbols)

Şekil. B

Elektrik bağlantısı

Line drawing of a battery casing with two side-mounted sensors and rotation arrows indicating clockwise motion (no text or symbols)

Diagram showing a mechanical component with an inset close-up of a circular component (no text or symbols)

Technical line drawing of a curved mechanical component (no text or symbols)

Technical line drawing of two mechanical housing components with internal compartments (no text or symbols)

INDESIT COMPANY BEYAZ PAZARLAMA A.S.

Karahasan Sok. No:11 Balmumcu 34349 Besiktas / ISTANBUL

Tel: [phone]
