Product Type	Home Theater System (DVD Receiver)
Model	DVD 4625 HC HDMI/USB
Dimensions (W x H x D)	400 x 70 x 330 mm
Weight	10 kg
Power Supply	230 V, 50 Hz
Power Output (Total)	500 W PMPO (40 W RMS)
Subwoofer Output	200 W PMPO
Speaker Output (Center/Front/Rear)	60 W each (PMPO)
Playback Media	DVD-Video, DVD±R/RW, MPEG-4, Audio CD, Video CD, MP3, JPEG
Video Outputs	HDMI, SCART, Component, S-Video, Composite
Audio Outputs	Stereo, 5.1 Channel, Digital Coaxial
Radio Tuner	FM/AM with automatic and manual tuning
USB Playback	Yes (supports MP3, JPEG, MPEG-4)
Karaoke Function	Microphone input with echo control
Region Code	2 (Europe, Middle East, Japan, etc.)
Screen Saver	Yes (adjustable On/Off)
Child Lock	Parental control with password
Laser Class	Class 1
Safety Features	Automatic shutdown, D.R.C. volume limiter
Maintenance	Clean lens with blower; do not use liquids
Spare Parts	Contact authorized AEG service center
Repairability	Service only by qualified personnel
Warranty	Refer to included warranty card

Frequently Asked Questions - DVD 4625 HC AEG

Why is there no power and the display does not light up?

Check that the power cord is firmly connected and the mains switch on the back is set to ON. Ensure the wall socket is working by testing with another device.

No image appears on the TV screen. What should I do?

Verify the video cable (HDMI, SCART, etc.) is correctly connected to both the DVD player and TV. Make sure the TV is set to the correct input source. If using component or composite, ensure the Video Output setting matches the connection (e.g., YUV for component). Also check that a compatible disc is inserted and the child lock is not active.

There is no sound from the speakers.

Confirm the audio cables are properly connected. If using an external amplifier, ensure it is powered on and set to the correct input. Check the Audio Setup menu (e.g., Digital Output set to SPDIF/RAW or SPDIF/PCM depending on your equipment). Also verify that the volume is turned up and not muted.

The remote control does not work.

Point the remote directly at the sensor on the front of the unit, within 7 meters and at an angle less than 30°. Replace the batteries with two new AAA/R03 cells, observing correct polarity. If the problem persists, static discharge may have occurred; unplug the unit for a few minutes and try again.

A DVD will not play or is not recognized.

Ensure the disc is inserted with the label facing up. Clean the disc with a soft cloth from center to edge. Check that the disc is compatible (DVD-Video, DVD±R/RW, etc.) and finalized if burned. The region code must be 2 for this player. Try a different disc to rule out damage.

Radio reception is poor or no stations found.

Connect the FM antenna firmly to the FM socket and the AM loop antenna to the AM terminals. For FM, you can try a simple wire antenna if needed. If stations are weak, press the MENU/MO/ST button to switch to mono mode. For manual tuning, use the ▶▶/◀◀ buttons.

How do I set up the surround sound speakers?

Place the front left/right and center speakers at ear level in front of you, pointing toward the listening area. Rear speakers should be behind and above ear level. The subwoofer can be placed anywhere. Connect each speaker to the corresponding SPEAKERS OUTPUT terminals on the back, ensuring correct polarity (marked conductor is +). Then go to the Audio Setup menu to set speaker sizes and delays.

How do I change the audio language during a DVD?

Press the AUDIO/MEMORY button on the remote control repeatedly to cycle through available audio languages (the number depends on the DVD). This also works for switching between stereo and mono on CDs.

Can I play music or videos from a USB stick?

Yes, insert a USB storage device into the front USB port. Press the USB button on the remote to enter file mode. Use the cursor keys to browse folders and select files. Supported formats include MP3, JPEG, and MPEG-4. Note: Some large capacity or non-standard devices may not be compatible.

How do I reset the DVD player to factory settings?

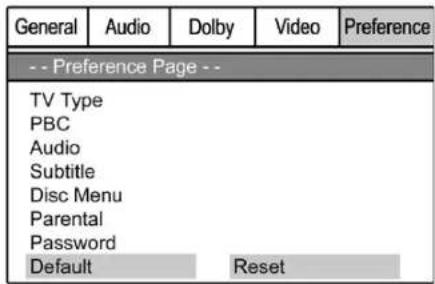

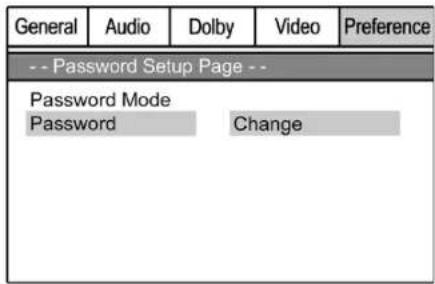

Press SETUP on the remote, navigate to the Preference Page, select Default, and press ENTER. Confirm the reset. This will erase all custom settings including radio presets and parental password.

USER MANUAL DVD 4625 HC AEG

Black AEG audio streaming setup with multiple speakers, a CD, and a large speaker (no visible text or symbols)

PERFECT IN FORM AND FUNCTION

AEG

Deutsch

Inhalt

Overview of the Components ......Page 3

Instruction Manual Page 46

Technical Data Page 48

Overview of the Components

Abb./Fig. 1

Abb./Fig. 2

Abb./Fig. 3

4 Deutsch

Line drawing of a rectangular electronic device with ports and control buttons (no text or symbols)

Abb. 2/15

Komponenten-Video

Abb. 2/16

Abb. 2/13

Antennenanschluss

Abb. 2/17

Abb. 2/11

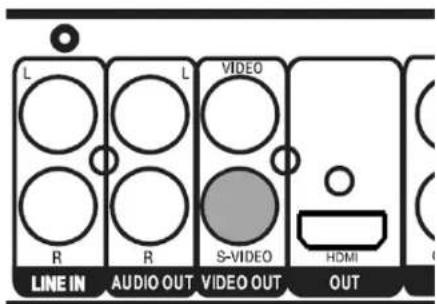

Mikrofon-Eingang

CD RIP
Ripping	Selected Track
Track Progress	track01 43% track05 05:30
Total Progress
Cancel
SUMMARY
Now ripping
Track 01/02

D-47906 Kempen/Germany

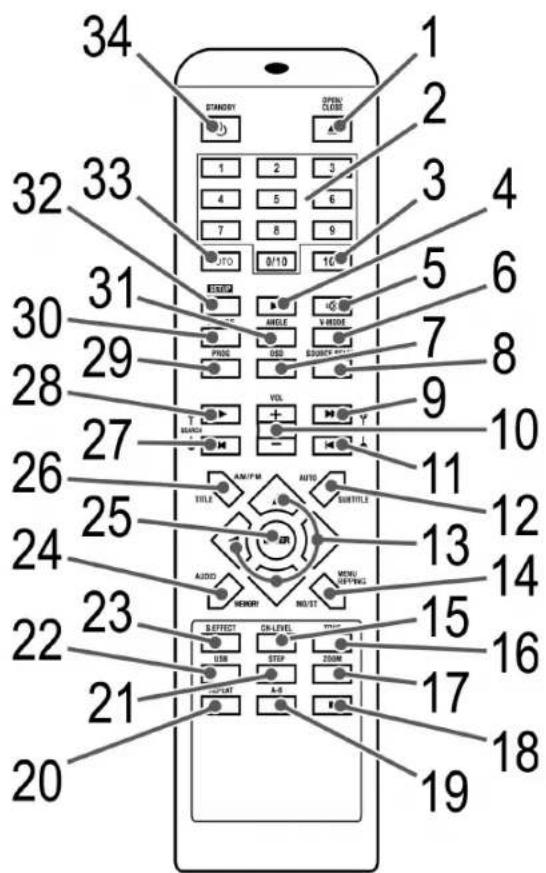

1 "▲" OPEN/CLOSE: To open or close the CD/DVD tray.
2 Numerical buttons: For direct selection of chapter or song number.
3 10+: For selecting the chapters/tracks above 9. Pressing again increases by a further 10.
4 „▶II“: Start playback. To freeze the picture. Press the „▶II“ button to continue the fi lm.
5 "": To switch of the sound.
6 V-MODE: Progressive scan/interlace switching.
7 OSD: To display the play status on screen.
8 SOURCE SELECT: For selecting between DVD/ TUNER and LINE.
9 ▶▶I/RADIO+: To jump to the next chapter or song. In radio mode: for running through the stored radio stations.
10 VOL+/-: To increase the volume/To reduce the volume.
11 I◄◄/RADIO-: To return to the previous chapter or song. In radio mode: for running through the stored radio stations.
12 SUBTITLE/AUTO: To show/hide subtitles. In radio mode: for activating the automatic station search.
13 Cursor buttons: Navigation in screen menu.
14 MENU/RIPPING / MO/ST: To display the main menu of the DVD/VCD. Displays the ripping menu. / In radio mode: for switching between stereo and mono.
15 CH-LEVEL: Set the loudspeaker level. Press the button several times to set the volume of the individual loudspeakers. The adjustments are made with the VOL+/- buttons (10).

16 TONE: Set the bass and treble levels. The adjustments are made with the VOL+/- buttons (10).

17 ZOOM: To zoom in or out.

18 „■“: Stop play.

19 A-B: To select the section to be repeated.

20 REPEAT: To repeat title, chapters, etc.

21 STEP: To freeze the picture. Press the „▶II“ button to continue the film.

22 USB: USB / DVD switching.

23 S.EFFECT: Set the reverb mode.

24 AUDIO/MEMORY: To change the Audio settings. In radio mode: for storing radio stations.

25 ENTER: Confirm the input.

26 TITEL / AM/FM: To show the Playback-Control for VCD. In radio mode: for switching between FM and AM.

27 ◀: Fast reverse. In radio mode: for tuning in to /searching for a radio station.

28 ▶: Fast forward. In radio mode: for tuning in to /searching for a radio station.

29 PROG: Calling up the play list.

30 A-MODE: 5.1CH/2CH switching.

31 ANGLE: To select the viewing angle.

32 SETUP: To start the setup menu.

33 GOTO: For direct accessing of a section on the CD/DVD.

34 "O" STANDBY: To activate standby mode.

Technical data

Type of equipment DVD Receiver
Model DVD 4625 HC HDMI/USB
Voltage 230 V, 50 Hz
Output	40 W
Dimensions (W x H x D) 400 x 70 x 330 mm
Weight	10 kg
Laser	Semiconductor laser
Signal format PAL/NTSC
Signal noise distance >=80 dB
Video output 1,0 V (P-P) 75 Ω
Analogue Audio output 2,0 V (rms)
Y/Cb/Cr output	(Y) 1,0 V (P-P), 75 Ω(Pb)/(Pr) 0,7 V (P-P), 75 Ω
S-Video output (Y) 1,0 V (P-P), 75 Ω(C) 286 mV (P-P), 75 Ω
Operating environment	0°C to 40°C, level base
Compatible media	DVD-Video (DVD Disc, DVD ±R/RW)MPEG-4 Video (from CD/DVD Disc, DVD±R/RW, CD-R/RW)Audio CD (from CD Disc, CD-R/RW)Video CD (from CD Disc, CD-R/RW)MP3 fi les (from CD/DVD Disc, DVD±R/RW, CD-R/RW)
Regional	2 (= Europe, Greenland, South Africa, Egypt and Middle East, Japan)
Total Surround Sound	500 W (PMPO)
Subwoofer	200 W (PMPO)
Center loudspeaker	60 W (PMPO)
Front loudspeaker	2 x 60 W (PMPO)
Rear loudspeaker	2 x 60 W (PMPO)

English

49

Table of Contents

Device parts 46

Remote control 47

Technical data 48

Safety instructions 51

Setting up and connecting 53

Starting up....55

About the DVD-Player 60

Playing media 61

Working in file mode 65

Changing the default settings....68

Radio Station Set-up 79

LINE IN (R/L) Input Sockets 79

Troubleshooting....80

Disposal 81

Declaration of conformity 81

OSD Menu overview 82

English

Many thanks!

Congratulations on your decision to purchase the DVD receiver DVD 4625 HC HDMI/USB!

We would like to wish you much joy with your machine and thank you for your purchase!

Symbols in this operating manual

Important instructions for your safety are especially marked. You must follow these instructions to avoid accidents and damage to the machine:

WARNING:

Warns against dangers to your health and indicates potential risks of injury.

ATTENTION:

Indicates potential hazards for the player or other objects.

NOTE: Highlights tips and information for you.

Manufacturer address

ETV

We reserve the right to make technical and design-related changes in the course of ongoing product improvements.

Safety instructions

Operating manual

Read the complete operating manual before using the player.

Keep the manual in a safe place. If you pass the player on to a third party, pass on the operating manual as well.

Non-compliance with this manual can lead to severe injuries or damage to the machine.

We assume no liability for damage caused as a result of non-compliance with this operating manual.

The player may only be used in households for private use. It is not suitable for commercial use.

Children

Do not leave the machine unattended, and do not use it if children or persons who cannot assess the risk are nearby.
Children or persons who cannot assess the risks are not allowed to use the player. Keep the player out of reach.
Packaging material must not be used to play with. There is a risk of suffocation.

Power supply

The machine is operated with electrical current, which means there is in principle a risk of electric shock. For this reason, pay particular attention to the following:

• Never touch the plug with wet hands.
  If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.
  Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.
  Never place the machine on the power cable while it is being operated.
  Only use extension cables that are designed for the power consumption level of the machine.
• Keep the appliance away from rain and any moisture.
  Only operate the machine if the electrical voltage stated on the type plate agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.
  Do not stand vases etc. on the appliance. Water could seep into the appliance.
  Do not open the appliance.
  Pull out the mains plug if the appliance is not to be used over a longer period of time.
  Take care that nobody can trip over the power supply cable.

52

English

Laser

This appliance is classified as laser appliance of class 1 (CLASS 1 LASER). The associated label is attached to the outside of the appliance.

Laser beams can damage the eyes. Therefore observe the following:

Do not open the appliance. Do not attempt to dismantle the appliance.
In order to avoid any danger: Have service work only carried out by the manufacturer or an authorized service workshop.

Transport

In order to avoid damage to the DVD, you should remove it before transporting the appliance.
Never move the machine when it is in operation.

Where to position the appliance

Safe operation of the appliance presupposes that it is positioned in an appropriate place. Therefore observe the following:

• Protect the appliance against the influence of weather. Never use it in the open-air.
• Protect the appliance against moisture.
  Do not place liquid filled vessels, e.g. vases, on the device.
  Never place the appliance on or in direct vicinity of heat sources, such as e.g. hobs, ovens, etc.
  Do not expose the appliance to direct sunlight.
  Place the appliance so that a sufficient air supply is assured. This is to avoid a build up of heat inside the appliance. Make sure that the ventilation slots are not blocked.
• Protect the appliance against the mechanical vibrations.
  Stand the appliance on a solid base so that it cannot drop down.
• Protect the remote control against weather influences, moisture and high temperatures (e.g. by direct sunlight).

Operation

The player is able to show a still image on the TV-screen/monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver → Page 71, "General Setup".
Do not increase the volume when the player is just playing very quiet sections. This could damage the speaker if very loud passages start all of a sudden after the quiet section.
Do not move the player with a DVD inserted. This could damage the DVD.
Do not put your hands into the DVD-slot. You could be injured.
Place only DVDs or CDs on the DVD-tray, as otherwise the player may be damaged.
Switch the player off by the On/Off -switch if it is not going to be used for a longer period of time.
Please disconnect the mains plug during thunderstorms.

English

Intended use

The DVD-Player is solely intended for the following tasks:

Playing of Video DVD/Video CD.
Playing of Audio-CD,
■ Reception of radio programmes.

Any other use is considered non-intended use and is prohibited.

Defect

If the machine should become defective at some point:

If the power supply cable for this appliance is damaged, it must be replaced by the manufacturer or his customer services, in order to avoid hazards.
Should fluid have seeped into the player or if the player has been dropped down or damaged in any other way, the player must be examined by an authorized dealer. Disconnect the player from the power supply and consult an authorized dealer.

Setting up and connecting

Unpacking

Unpack the appliance and all accessories and check that the contents are complete.

ATTENTION:

Always transport/send the player in its original packaging to prevent it from being damaged. Keep the packaging for this purpose. Dispose of unnecessary packaging material in accordance with the regulations applicable in your country.

NOTE:

Get in touch with your dealer immediately if you notice damage caused by transport.

Setting up

1. Place the player on a stable, heat resistant, horizontal and level surface. Keep a distance of at least 10 cm from walls and objects.
2. Connect the device to a properly installed power socket.

54 English

Setting up the Loudspeakers

Arranging the Loudspeakers

NOTE: Do not insert the plug of the DVD player into the socket until all loudspeakers and connections have been correctly made!

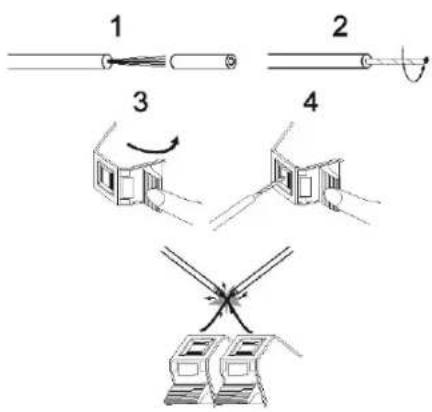

1. Remove approximately 1,5 cm of the cable insulation.
2. Turn over the cable end.
3. Open the cable clamp by pressing the lug.
4. Now connect the loudspeaker cable supplied to the subwoofer. Ensure the correct polarity (the marked conductor (white line) is +).
5. Now connect the other cable ends of the loudspeakers accordingly to the SPEAKERS OUTPUT of the DVD player.

i NOTE:

Please ensure that exposed wires do not touch or cross each other. Danger of short-circuiting!

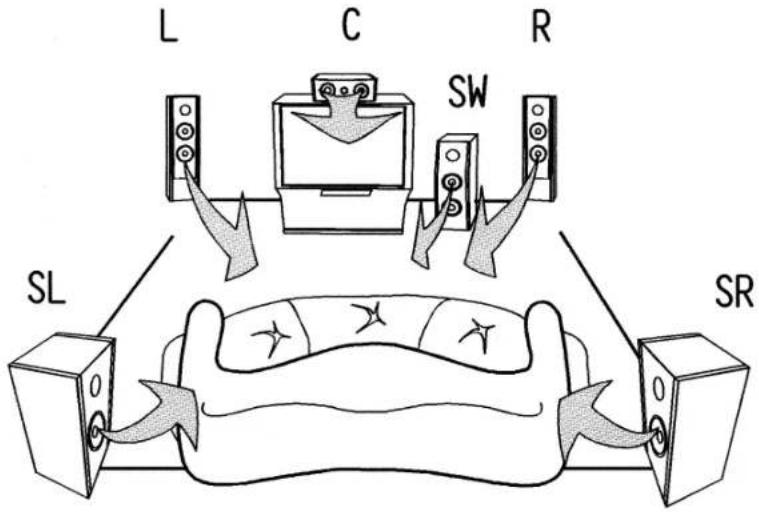

The correct configuration and arrangement of a surround sound system is decisive for the sound that is produced. In order to achieve the best possible sound, the instructions concerning the arrangement of the loudspeakers should be followed before they are connected.

Front/Main Loudspeakers (Right and Left, Centre Loudspeakers)

These three loudspeakers produce excellent sound characteristics and increase the dynamic effect of audio playback. The main dialogue of a film is heard through these loudspeakers.

Rear or Surround Loudspeakers

These two loudspeakers off er dynamic 3-D sound eff ects and create spa-tial sound playback as they add background noises to the main speakers.

Subwoofer Loudspeaker

The subwoofer is a powerful bass loudspeaker which gives the sound even more realistic characteristics.

i NOTE:

In order to achieve an optimum 3-D sound effect, the output from the centre and subwoofer loudspeaker is also heard through the front and rear loudspeakers.
The surround and centre loudspeakers only work when the system is turned to surround sound.

The ideal configuration of the surroundsound system depends on the size of the room and the wall materials. The illustration below shows a typical arrangement of the various loudspeakers.

i NOTE:

Front/main loudspeakers and centre loudspeakers should be placed at the same height. They are pointed in the direction of the listeners.
3-D surround and rear loudspeakers should be attached to the wall behind the listeners above the level of their ears.
The subwoofer can be set up anywhere in the room as the bass sounds cannot be localised by the human ear.

For optimum installation of the loudspeakers, please follow the instructions below:

Starting up

Remote control battery installation

WARNING:

Leaking out battery acid can damage your health. Remove the battery from the battery compartment as soon as it is exhausted or if the remote control is not going to be used for a longer period of time. Wipe up leaked out battery acid with a cloth. In case of skin contact immediately wash the affected area. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

ATTENTION:

Mismatching battery types or new and used batteries must never be used together. Different battery types have different properties. Do not use old and new batteries together. The mutual use of old and new batteries can shorten the lifetime of the new batteries and possibly result in leakage of the old batteries. When disposing of old batteries you should strictly comply with the legal and environmental regulations applicable in your country. Do not throw batteries into fire!

i NOTE:

The lifetime of the enclosed batteries may be shortened because of storage.

1. Open and remove the battery compartment cover.
2. Insert two batteries of type AAA/R03 (1.5 V), ensure correct polarity (+ and -). Start with the negative pole (-).
3. Attach and close the battery compartment cover.

NOTE:

The signals from the remote control are transmitted to the DVD-Player by infrared light. You should therefore take care that the DVD-Player is not exposed to the direct sunlight. This could make the transmission of signals from the remote control to the DVD-Player impossible.

Effective range of the remote control

If you want to use the remote control it has to be pointed at the remote control sensor on the front of the device. The distance between remote control and sensor should not exceed 7m. The angle of the remote control to the remote control sensor to right, left, top and bottom should not exceed 30°.

Audio-/Video cords

NOTE:

An undisturbed operation can be guaranteed only with Audio/Video lines up to 1.5 m length.

Connecting the Video cable

The video cable transmits the video data from your DVD-Player to the TV or the Video-Projector.

There are fi ve dif erent ways of connecting the DVD-Player with your TV/Video-Projector. Select one of these possibilities to suit your replay unit.

NOTE:

If you are not using a SCART or HDMI connection you must always establish an additional audio connection for transmitting the audio data (i.e. the sound).

Fig. 2/18

SCART

SCART is used to transmit both Video and Audio data.

1. Plug the SCART jack firmly into the socket on the back of the player.
2. Plug the SCART jack into the corresponding socket on your playback device.

Fig. 2/19

HDMI

Connection using a HDMI cable ensures a very high replay quality.

HDMI is used to transmit both Video and Audio data.

1. Plug the HDMI jack into the socket on the back of the player.
2. Plug the HDMI jack into the corresponding socket on your playback device.

NOTE:

In the „Video Settings" menu select the submenu „HDMI Setup". Then select the „On" option in the „HDMI" menu.

Fig. 2/15

Component Video

Connection using a Component Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug each of the three jacks into the corresponding sockets on the DVD-Player.
2. Plug the jacks into the corresponding socket on your playback device.

Select "Video Output" from the menu "Video Setup Page". Here you can change the settings "Off", "YUV and RGB" on the playback device that you have connected. Please see the operating instructions of the connected device for the correct setting.

Fig. 2/20

S-Video

Connection using a S-Video cable ensures a very high replay quality.

Component Video transmits only Video signals.

1. Plug the S-Video jack into the socket on the back of the player.
2. Plug the S-Video jack into the corresponding socket on your play-back device.

Fig. 2/14

Composite-Video

Composite-Video is used to transmit both Video data.

1. Plug the Composite-Video jack into the socket on the back of the player.
2. Plug the Composite-Video jack into the corresponding socket on your playback device.

58 English

Connecting the Audio cable

You can choose from three transmission methods for audio signals.

You must generally choose first whether you would like to have the sound coming from your TV, or through a Stereo or 5.1-Amplifi er. The Audio cable must then be connected to the TV or an amplifi er accordingly.

i NOTE:

If your amplifi er is equipped with a digital output, you should use the amplifi er. You will experience a much better audio quality, and the installation is much easier.

Fig. 2/21

Fig. 2/12

Stereo

Connect both Audio cables for the right and the left speakers to your playback device or your amplifier.

1. Plug the Audio jacks into the sockets on the back of the player.
2. Plug the Audio jacks into the corresponding sockets on your play-back device or your amplifier.

5.1-Audio signal (Connecting the Loudspeakers Supplied)

If you would like to achieve a replay of almost original quality you should use an Audio output by means of a 5.1-Audio signal.

Here you should use the 6 loudspeakers supplied. Four of these speakers are placed in the four corners of the room. One speaker is positioned close to the playback device. The sixth speaker serves the output of very low tones. With this arrangement of speakers a very natural stere-ophonic sound is achieved.

Connect the SPEAKERS OUT connection on the rear of the DVD player to the corresponding connections on the rear of the individual loudspeakers.

Proceed as follows:

1. Connect the end of the cable to the socket on the rear of the device. Please ensure the correct configuration:

2. (1) Connection for Subwoofer: Bass

3. (2) Connection for Center speaker
4. (3) Speaker rear right
5. (4) Speaker rear left
6. (5) Speaker front right

7. (6) Speaker front left

8. Connect the other end of the cable to the corresponding sockets of your playback device or amplifier.

Fig. 2/16

Digital

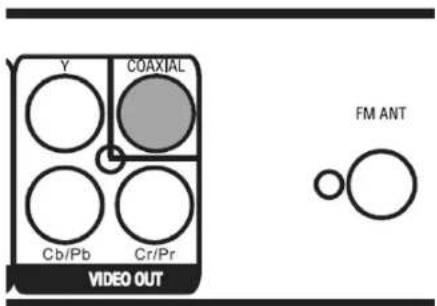

Connect the Coaxial cable for transmission of digital Audio signals to your playback device or your amplifier.

1. Plug the Audio jack into the socket on the back of the player.
2. Plug the Audio jack into the corresponding socket on your playback device or your amplifier.

Fig. 2/13

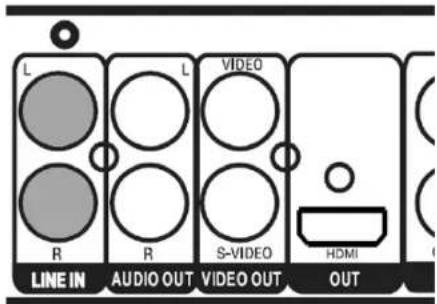

LINE IN - Input

Connect the two audio leads for the right-hand and left-hand sound channel to your output device.

1. Insert the audio plugs into the socket on the rear of the device.
2. Insert the audio plugs into the corresponding sockets of your output device.

Antenna connections

Fig. 2/17

Antenna Input

This device has a built-in FM/AM radio receiver.

FM reception:
Connect the cable of your antenna system to the FM socket on the rear of the device.
AM reception:
Connect a medium wave aerial to the AM sockets on the back of the device.

Inputs on the Front

Fig. 1/10

USB Input

Insert a USB storage medium directly into the corresponding socket of the device.

Fig. 1/6

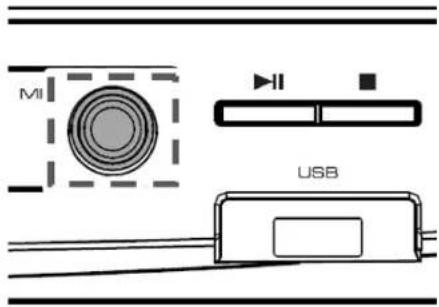

Microphone Input

If you would like to use the DVD player for karaoke, please insert a microphone into the corresponding socket.

Switching on the receiver

Fig. 2/11

Turn on the main switch of the DVD player by moving the „POWER“ on/off switch on the back of the device to „ON“. If the device is then in standby mode, press the STANDBY button on the device (Fig. 1/1) or on the remote control (Fig. 3/34) in order to switch the device on.

About the DVD-Player

With this DVD-Player you can play a vast variety of DVD-formats → Page 48, „Technical data“.

However, you must be aware that in many cases DVDs are encrypted with a so-called "Regional Code". This specifies for which region in the world the DVD is intended. As an example, the DVDs marked with regional code "1" are intended for the USA and Canada. DVDs with regional code "2" are for use in Europe.

i NOTE:

With your DVD-Player you can only play DVDs with regional code "2". There are both lots of burning and compressing methods as well as high quality differences in (burned) CDs/DVDs. Moreover, the music industry has not yet agreed on a fixed standard for copy protection. This may, in very isolated cases, result in problems when relaying CDs, DVDs and MP3 CDs. This is no malfunction of the player.

Furthermore, there may be isolated problems when playing CDs or DVDs which were created on a PC (e.g. holiday photographs). In case of problems check the settings of the DVD writing program on your computer. You should in particular make sure that the DVD has been finalized. For further information on this matter please refer to the operating manual of your recorder.

Input Not Possible

If a function or input selected by you is not possible, the adjacent symbol is shown on the screen.

English

61

Terminology

Track: "Track" is the designation for sections on an Audio-CD. This may be a song, the set of a symphony, etc.
Title/Chapter: Video-DVDs are divided into "Title" and „Chapters": A "Title" may be e.g. a particular fi Im, the „Chapters" may be subsections of this fi Im.
HDMI: High Definition Multimedia Interface is an interface for transmitting high-resolution digital video data and digital audio data.
MPEG4: Your DVD player is also suitable for playing back files that have been compressed using the MPEG-4 system (short for Moving Picture Experts Group-4). MPEG-4 is a compression method by means of which large quantities of data can be reduced without any noticeable loss of picture and sound quality.

i NOTE:

It is not possible to guarantee full compatibility with all of the compression methods used worldwide, particularly when more than one soundtrack or subtitles are involved. Also MPEG 4 fi les with integrated special functions such as a menu, subtitles etc. are not always supported. This is no malfunction of the player.

Playing media

Using the remote control

You transmit commands to the DVD-Player via remote control. It is thus important to point the end of the remote control towards the DVD-Player.

i NOTE:

If the device is not yet in DVD mode, press the SOURCE SELECT (Fig. 3/8) button on the remote control repeatedly until „DVD“ appears in the display.

Loading a CD/DVD

1. Press the remote control button OPEN/CLOSE (Fig. 3/1). The CD/DVD tray opens.
2. Place the CD/DVD on the tray.
3. Press the remote control button OPEN/CLOSE (Fig. 3/1) again. The CD/DVD tray closes. The display (Fig. 1/5) fi rst shows „LOAd”. After a short while the type of the loaded medium is displayed (e.g. „DVD”).

Understanding the onscreen CD-menu

When playing CDs the following status information is displayed on screen:

Current track/total number of tracks (1).
Time (2): This provides information about the duration and the remaining play time. By standard the play time expired of the current track is displayed. The display is in hours, minutes and seconds. Press the OSD-button (Fig. 3/7) once or several times to have further times displayed.

The following possibilities are available for selection

• time remaining to the end of the track,
• playback time of the CD so far,
• time remaining to the end of the CD.

62 English

Understanding the onscreen DVD-menu

When playing DVDs you can view the on-screen menu by pressing the OSD-button (Fig. 3/7).

DVD-menu

Current title/total number of titles (1).
Current chapter/total number of chapters (2).
Time (3): This provides information about the duration and the remaining play time. By standard the play time expired of the current title is displayed. The display is in hours, minutes and seconds. Press the OSD-button (Fig. 3/7) once or several times to have further times displayed. The following possibilities are available for selection

• time remaining to the end of the title,
• expired playing time of the chapter,
• time remaining to the end of the chapter.

Starting the replay

1. Place the CD/DVD on the CD/DVD-tray Page 61, "Loading a CD/DVD".
2. Press the "▶II"-button (Fig. 3/4) on the remote control.

i NOTE:

If the replay does not start or the replay is of poor quality, you should check the default settings of the DVD-Player.

Interrupting the replay

1. Press the "▶II"-button (Fig. 3/4) on the remote control. The replay is interrupted, the currently visible image is "frozen".
2. Press the "▶II"-button (Fig. 3/4) on the remote control to restart the "normal" replay.

Changing Audio-Language/Audio-Mode

Press the AUDIO/MEMORY-button (Fig. 3/24) several times to change the Audio language. The available audio languages depend on the DVD.

i NOTE:

If the medium does not support this function (e.g. a CD), you can use this button to change the Audio mode and set it e.g. to „Mono" or „Stereo".

Showing subtitles

Press the SUBTITLE/AUTO-button (Fig. 3/12) to display the current subtitle status. Press the button several times if you would like to activate or deactivate the subtitle function or if you want to choose a different subtitle language. The available subtitle languages depend on the DVD.

Stopping the replay

Press the „■“-button (Fig. 3/18) during replay. The replay stops.
Press the „▶II“-button (Fig. 3/4) again, to continue the replay from the last position.
Press the „■“-button (Fig. 3/18) twice to stop the replay completely. Press the „▶II“-button (Fig. 3/4) again, to replay the CD/DVD from the beginning.

English

Selecting previous chapter/track

Press the I◀◀ button (Fig 3/11) to jump to the start of the previous chapter or track.

Selecting next chapter/track

Press the ▶▶1 button (Fig 3/9) to jump to the start of the next chapter or track.

Selecting track directly

Enter the number of the desired chapter/track with the Numerical Buttons on the remote control (Fig. 3/2).

Replay of the chapter/track starts after a short while.

Accessing a section via menu

The on-screen menu enables comfortable access to any sections of a medium. To do this, proceed as follows:

1. Press the GOTO button (Fig.3/33). The GOTO menu appears on the screen.

2. Use the Cursor Buttons (Fig. 3/13) to move it to the desired subject (e.g. "Chapter"). Then press the ENTER button (Fig. 3/25).

3. Now move to the point from which the replay should start. Depending on the type of medium this may be a track number, a chapter or even a point in time. The input must be made with the Numerical Buttons (Fig. 3/2). Playback begins after a short time.

4. Press the GOTO button again to hide the menu.

Repeating DVD-title/chapter

1. Choose the chapter or title to be repeated.

2. Press the REPEAT-button (Fig. 3/20). The message "Chapter" appears on the screen.

3. Press the REPEAT-button again, until the message "Title" or "All" is displayed.

Repeating track on CD

1. Select the track to be repeated.

2. Press the REPEAT-button (Fig. 3/20). The message "Track" appears on the screen.

Repeating CD

Keep pressing the REPEAT-button (Fig. 3/20), until the message „All“ is displayed on screen.

Stopping repeat

Press the REPEAT (Fig. 3/20) repeatedly until the message disappears from the screen.

Selecting a section to be repeated

You can define a freely selected section to be automatically repeated.

To do this, proceed as follows:

1. Mark the beginning of the section to be repeated. During repetition press the button A-B (Fig. 3/19) on the remote control once. The message „A“ appears on the screen.

2. Mark the end of the section to be repeated by pressing the A-B-button on the remote control once again. The message „A B" appears on the screen. The previously marked section is now repeated.

Press the A-B-button again to stop the repetition.

NOTE:

On MP3 CDs the section to be repeated must be within a track.

Using the DVD-menu

Normally each DVD has its own menu. Here you can choose chapters, make settings, etc. This menu is specific for the DVD and can thus not be explained in detail.

Press the MENU/RIPPING / MO/ST-button (Fig. 3/14) to access the DVD-menu. Use the Cursor Buttons (Fig. 3/13) to navigate in the Menu. Press the ENTER-button (Fig. 3/25) to confirm.

If you are in a menu area for direct chapter selection, you can enter the number of this chapter with the Numerical Buttons (Fig. 3/2) on the remote control.

Using fast forward or reverse

The DVD-Player has a fast forward and a fast reverse feature.

1. Press the ▶▶ (Fig. 3/28) or ◀◀-button (Fig. 3/27) to start fast forward or fast reverse. The current replay direction and the speed, e.g. „▶▶ x 2" is now displayed on screen.

2. Press the ▶▶ or ◀◀-button several times in order to change the speed. The speed can be accelerated by factor 2, 4, 8, 16 or 32.

3. Press the "▶II"-button (Fig. 3/4) to restart the "normal" replay when the desired section is reached.

Enlarging a screen section

You can change the screen section when viewing DVDs, VCDs or images.

Press the ZOOM-button (Fig. 3/17) to change the screen section.

For DVDs: Press the button several times to select the suitable zoom factor or to return to the original zoom factor.

For JPEGs: Press the ▶/◀◀ buttons (Fig. 3/28, 27) repeatedly in order to select the desired zoom factor.

Changing the viewing angle

Some DVDs offer the possibility to select the viewing angle.

Press the ANGLE-button (Fig. 3/31) to change the viewing angle.

NOTE:

If changing the Viewing Angle is not possible, the message „©” will be displayed.

Repeat pressing the button to choose a different viewing angle, or to return to the original viewing angle.

Adjusting the volume

Press the VOL + button (Fig. 3/10) to increase the volume.

Press the VOL - button (Fig. 3/10) to reduce the volume.

NOTE:

Please remember, that this will only change the output volume of the DVD-Player. In order to adjust the volume to your requirements you may also have to change the volume of the playback device.

English

Creating a playlist (CD/DVD)

CD:

EXIT

START

DVD:

EXIT

START

Deleting a playlist (CD/DVD)

Using CD/DVD

You may want to replay the titles, e.g. on a CD, in a different order to the order determined by the producer. The function „Create Playlist“ you can create your own playing order.

To do this, proceed as follows:

1. Press the PROG-button (Fig. 3/29). A table is displayed. Here you can enter the desired order of the tracks (in the case of CDs) or chapters/titles (for DVDs).

i NOTE:

However, your playlist will be lost when switching off the DVD-Players or when inserting a new CD/DVD.

1. Use the Cursor Buttons (Fig. 3/13) to navigate in the table.
2. Enter the desired track (in the case of CDs) or the desired title and chapter (for DVDs) at the appropriate position in the table. Use the Numerical Buttons (Fig. 3/2) for this purpose. If you want to enter numbers higher than 9, first press the 10+ button (Fig. 2/3).
3. Use the Cursor Buttons (Fig. 3/13) to select the command "Start" at the bottom of the screen to save the input.

4. Press the ENTER-button (Fig. 3/25) on the remote control to confirm this command.

5. Press the PROG-button. You will now see a table (Fig. CD or Fig. DVD).

6. Use the Cursor Buttons (Fig. 3/13) to manoeuvre to the command "Stop" at the bottom of the table.
7. Press the ENTER-button (Fig. 3/25) on the remote control to confirm this command.
8. Press the PROG button to terminate this procedure.

Working in fi le mode

As well as being able to play back "normal" fi lms or music from CDs/DVDs, this DVD player is also able to play back video or audio fi les from CDs or DVDs which are stored in the fi le system. Such media are frequently available if you create CDs of digital photographs or MP3 music on your computer.

i NOTE:

If the device is not yet in DVD mode, press the SOURCE SELECT (Fig. 3/8) button on the remote control repeatedly until „DVD“ appears in the display.

1. Place the CD or DVD on the tray Page 61, "Loading a CD/DVD".
2. Select the desired file(s) and start the replay Page 66, „Selecting fi le/directory and starting replay".

Using a USB medium

By means of the USB connection you can connect numerous devices to the DVD Player. Examples of such devices are USB memory sticks or digital cameras.

This device has been developed in accordance with the latest technical developments in the USB field. Unfortunately the large number of different types of USB storage media on offer today makes it impossible to guarantee full compatibility with all USB storage media. For this reason there may be problems in rare cases with playing back from USB storage media. This is not a malfunction of the device.

1. Insert a USB storage medium into the corresponding connection of the DVD player (Fig. 1/10).
2. Press the USB button (Fig. 3/22) on the remote control in order to switch the DVD player to the file mode.

NOTE:

In order to find out which files can be played back the DVD player now reads the contents of the storage medium. In the case of large storage media this procedure may take a long time. During this time you will see the words „WAITING" on the screen.
The file mode can only be selected if the device is in DVD mode.

1. Select the desired file(s) and start playback Page 66, "Selecting a file/directory and starting playback".

2. If you would like to return to DVD mode, press the USB button (Fig. 3/22) again.

Selecting fi le/directory and starting replay

Media may contain numerous data/fi les and directories. You must therefore fi rst determine the data to be played.

1. If necessary, insert the CD or DVD into the drive or connect a USB storage medium.
2. A menu window appears in which the directories (if directories are available) or the fi les are listed.
3. Use the Cursor buttons (Fig. 3/13) to select the desired directory or file from the list.
4. Select this by pressing the ENTER button (Fig. 3/25).

File: Once you have selected a file, this is now displayed directly or played back.

Directory: If you have called up a directory, a list of files now opens.

Here too you can select the desired fi le with the Cursor buttons and the ENTER button (Fig. 3/25). If you have selected a fi le, this is now displayed or played back.

Please note:

There are both lots of burning and compressing methods as well as high quality differences in CDs/DVDs and burned CDs/DVDs.

For this reason there may occasionally be problems when fi les are played back (for example fi les are displayed but cannot be played back). This is no malfunction of the player.

NOTE:

With the "◀" button (Fig. 3/13) you can return from the files to the directories.
By pressing the PROG (Fig. 3/29) button you can move between the file list and the directory view.
In the directory view only the titles in the selected directory are played.

Stopping the replay

Ripping (CD-MP3 Conversion)

Press the „■“-button (Fig. 3/18) on the remote control to stop the replay.

If an audio CD is inserted you can activate the ripping function. This function allows you to convert the data on the audio CD into MP3 format and store it on your connected MP3 player.

NOTE:

You can move through the ripping menu with the Cursor buttons (Fig. 3/13) and change the settings with the ENTER button (Fig. 3/25).

CD RIP
Options		Track
Speed	Normal	√ track01	03:19
Bitrate	128Kbps	track02	03:52
Create ID3	Yes	√ track03	05:30
Device	USB 1	track04	03:06
SUMMARY		track05	03:51
Selected Track	2	track06	03:18
Selected Time	08:49
Start	Exit	Select all	Select none

1. Press the MENU/RIPPING / MO/ST button (Fig. 3/14) to call up the ripping menu.
2. Perform the required adjustments under "Options". The settings are changed with the ENTER button.
   Speed: Here you can select the speed with which the tracks are to be converted. The options available are Normal = real time and Fast.

Bitrate: Here you can select the desired bit rate.

Create ID3: Select whether ID3 information should be created.

NOTE:

This is only possible in the case of CDs which contain file information.

Device: Here the connected storage medium is displayed.

1. Now select the tracks to be converted in the right-hand column with the Cursor buttons and the ENTER button.
2. In the overview (SUMMARY) the number of selected tracks and the total track length are shown.

NOTE:

If you would like to convert all the tracks, select the field "Select all".

- With "Select none" you can delete your selection.

CD RIP
Ripping	Selected Track
Track Progress	track01 43% track05 05:30
Total Progress
Cancel
SUMMARY
Now ripping Track 01/02

1. Now select the "Start" fi eld press the ENTER button (Fig. 3/25).
2. The conversion begins. Progress is shown on the screen.

In order to exit from the ripping menu, select the "Exit" fi eld and press the ENTER button.

Viewing pictures

NOTE:

You can stop the conversion process by pressing "Cancel". Press the ENTER button to do so. The tracks already converted are nevertheless stored.
- Interrupted tracks and those already present can only be deleted on the PC.

The DVD player is suitable for displaying your digital photographs. These photos may be stored only any medium (DVD, CD, etc.) supported by the DVD player.

NOTE:

Please ensure a suitable size of the photos. Large size photos may take some time to be displayed or may not be displayed at all. It is of advantage if the size of the photo corresponds with the screen size of the playback device. For TVs this is normally 1024x576 pixel (TV-aspect 16:9) or 768x576 (TV-aspect 4:3).
Please note that any conversion generally involves a loss of data with respect to the original format.

Start the replay of photos by selecting the file from which the replay shall start Page 66, "Selecting file/directory and starting replay".

NOTE:

After a few seconds a preview picture appears on the right-hand side in the two-column menu window.

Scrolling

Manual: Press the ◀◀◀ (Fig. 3/11) or ▶▶I -button (Fig. 3/9) on the remote control to scroll forward or back.
Interrupt scrolling: Press the ▶II button (Fig. 3/4) in order to interrupt the automatic picture change. Press the ▶II button again in order to resume picture playback.

Rotating a photo

You can use the Cursor buttons to rotate a photo during replay:

Mirror vertically: Cursor Button "▲"
Mirror horizontally: Cursor Button "▼"
Rotate clockwise for 90°: Cursor Button „▶“
Rotate counter-clockwise for 90°: Cursor Button „◀”

Changing the default settings

A large number of default settings can be comfortably changed via the screen menu.

Press the SETUP-button (Fig. 3/32) on the remote control to start the menu for changing the default settings.

NOTE: Many of these default settings can be changed via both the remote control and the menu. The difference is: If you change the default settings via the remote control, these changes will only be valid until the DVD-Player is switched off or the DVD is changed. However, any changes made in the menu are permanent.

Understanding the menu structure

The Setup menu has two menu levels:

■ Main menu: The main level is shown at the top edge of the screen by means of generic terms.
Sub-menu: The corresponding sub-menu options can be found under each of the main menu options.

Using the menu

General	Audio	Dolby	Video	Preference
-- Preference Page --
TV Type		PAL
PBC		Auto
Audio		NTSC
Subtitle
Disc Menu
Parental
Password
Default

Overview of the main menu

Navigation and selection

Use the Cursor Buttons (Fig. 3/13) (▶/◀) on the remote control to browse through the main menu.
In contrast to this, you must use the Cursor Buttons (▼/▲) to move in the sub-menu.
Select a menu option with the ENTER-button (Fig. 3/25).
Use the ENTER-button also to select an option (e.g. "PAL" in the illustration on the left). The selected option (in the example „PAL") is now highlighted.
To return to the submenu or main menu, press the Cursor Button ◀.

Slide control

In some menus you will find slide controls with which you can adjust the volume or picture brightness, for example. The slide control is used as follows:

1. Select with the ENTER-button.
2. Move the control with the Cursor Buttons (▼/▲).
3. Confirm the entry with the ENTER-button.

GENERAL = General Setup
AUDIO = Audio Setup Page
DOLBY = Digital Setup Page
VIDEO = Video Setup Page
PREFERENCE = Preference Page

i NOTE:

Some of the menu settings are only available in stop mode (depending on the DVD).

70

English

System settings

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV Display		4:3 Panscan
Angle Mark		4:3 Letterbox
OSD Language		16:9
Closed Captions		Wide Squeeze
Screen Saver
HDCD
Last Memory

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle Mark OnOSD Language OffClosed CaptionsScreen SaverHDCDLast Memory

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle MarkOSD LanguageEnglishClosed CaptionsFrenchScreen SaverGermanHDCDLast Memory

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle MarkOSD LanguageClosed CaptionsOnScreen SaverOffHDCDLast Memory

TV Display

Here you can adapt the output of the DVD-Player to the TV-aspect.

Concerning the background: If you do not have a wide screen TV the TV-aspect will be 4:3. However, most feature fi lms have an aspect of 16:9, the image is therefore too wide for the TV-screen.

Here you can specify how the replay of the film is to be adapted to the playback device:

4:3 Panscan: You will only see the middle section of the film. The borders will be cut off.
4:3 Letterbox: You will see the complete width of the film. The film is thus reduced in size, whereby black bars appear below and above the film
16:9: Select this option if you use a wide screen TV for replay. Please note that fi lms, that have been recorded with TV-aspect 4:3 can still be replayed using aspect 4:3. This means, that replaying this fi lm will not require the complete wide screen area of the television.
Wide Squeeze: Select this option if you use a wide screen TV for replay. This setting is used to adapt films in 4:3 format to the aspect ratio of the widescreen television set.

NOTE: The setting "4:3 Panscan" is not supported by all DVDs.

Angle Mark (Camera Angle)

If the DVD contains sequences recorded from different camera angles you can use the ANGLE button (Fig. 3/31) to select the various camera angles. This function is only available if the DVD contains scenes with various camera angles.

Before you can use this function it has to be activated.

On: The angle symbol is shown on the screen.
Off: No angle symbol is shown on the screen.

OSD Language

Here you can select the language of the on-screen displays.

Closed Captions

Some DVDs contain commentaries that accompany the film, e.g. subtitles for the hard of hearing.

On: The commentary is displayed.
Off: No commentaries are displayed.

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle MarkOSD LanguageClosed CaptionsScreen Saver OnHDCD OffLast Memory

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle MarkOSD LanguageClosed CaptionsScreen SaverHDCDOffLast Memory1X2X

General	Audio	Dolby	Video	Preference
-- General Setup Page --
TV DisplayAngle MarkOSD LanguageClosed CaptionsScreen SaverHDCDLast Memory		OnOff

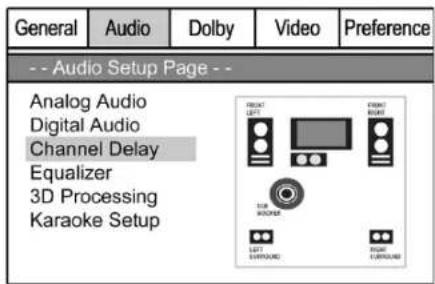

Audio Setup

General	Audio	Dolby	Video	Preference
-- Analog Audio Setup Page --
Downmix		LT/RT
Front Speaker		Stereo
Center Speaker		3D Surround
Rear Speaker		5.1CH
Subwoofer
Dialog
D.R.C

Screen saver

The player is able to display a still image for any time on the screen. This can cause damage to the screen. It is therefore recommended to activate the screen saver.

The following options are available:

On: The screen saver is activated (default setting).
Off: The screen saver is deactivated.

HDCD

It is possible to play back HDCD-encoded CDs and DVDs with this device. With the „HDCD" function you can then listen to high-quality sound with a greater degree of detail. Generally speaking, the greater the level of HDCD fi Itering, the better the quality of the sound.

Last Memory

This feature activates the recognition function of the DVD player.

On: if the device is switched off during playback, or if the DVD is changed, the device stores the position at which playback was interrupted.
Off: playback begins again at the beginning of the medium.

i NOTE: This feature is not supported by all DVDs.

Analog Audio Setup

Downmix

Change the characteristics of the speaker output:

LT/RT: Choose this setting if you want to play the DVD with the Pro Logic Dolby stereo effect. This produces a almost real 2-channel replay effect.
Stereo: Choose this setting if you want to play a DVD, that has been produced in the 5.1-Audio format, as 2-channel stereo sound.
3D SURROUND: You may probably not have a 5.1-Audio system. In this case you can use the „3D SURROUND“-setting to simulate a similar sound effect.
5.1 CH: Select this setting to transmit the Audio signal to the output device without changes.

72 English

General	Audio	Dolby	Video	Preference
-- Analog Audio Setup Page --
Downmix
Front Speaker		Large
Center Speaker		Small
Rear Speaker
Subwoofer
Dialog
D.R.C

General	Audio	Dolby	Video	Preference
-- Analog Audio Setup Page --
DownmixFront SpeakerCenter SpeakerRear SpeakerSubwooferDialogD.R.C

General	Audio	Dolby	Video	Preference
-- Analog Audio Setup Page --
DownmixFront SpeakerCenter SpeakerRear SpeakerSubwooferDialogOnD.R.COffAuto

General	Audio	Dolby	Video	Preference
-- Digital Audio Setup Page --
Digital Output		SPDIF/OFF
LPCM Output		SPDIF/RAW
		SPDIF/PCM

Front Speaker; Center Speaker; Rear Speaker; Subwoofer

i NOTE:

The „Center Speaker" and "Rear Speaker" menus can only be selected if the "5.1 CH" option is activated in the "Downmix" menu.

Here you can set the characteristics of the loudspeakers.

Large: The loudspeaker produces bass and treble sounds.
Small: The bass is filtered out and routed to the subwoofer.
Off: The loudspeaker does not produce any audio signals.

Dialog

i NOTE:

The „Dialog“ menu is only available if the „LT/RT“ option or the „Stereo“ option is activated in the „Downmix“ menu.

In the „Dialog" menu it is possible to adjust the loudspeakers of the dialogs. Increase the volume of the dialogs with the Cursor button „▲” or reduce the volume with the Cursor button „▼”.

D.R.C.

With this function you can limit the maximum volume that can be set in order to prevent damage to your loudspeakers.

On: The maximum volume that can be set is limited.
Off: The limit for the maximum volume that can be set is switched off.

ATTENTION:

If „DRC" is switched off it is possible to turn up the volume to such an extent that the loudspeakers may be damaged.

Auto: Automatic restriction of the maximum volume that can be set.

Digital Audio Setup

Digital Output

Here you specify the settings for the digital Audio output.

■ SPDIF/OFF: Output of an analogue Audio signal, but no digital signal.
- SPDIF/RAW: Output of a digital Audio signal. Use this setting if your amplifi er is no two-channel stereo amplifi er.
- SPDIF/PCM: Output of a digital Audio signal that is converted to a 2-channel signal. Use this setting if your amplifi er is a two-channel stereo amplifi er.

i NOTE:

If there is no Audio output, even though you connected the DVD-Player to an amplifier, you will most likely have chosen an incorrect setting for the Audio output.

General	Audio	Dolby	Video	Preference
-- Digital Audio Setup Page --
Digital Output
LPCM Output		48K
		96K

LPCM Output

NOTE:

The „LPCM Output“ menu is only available if the „Dialog Output“ option is activated in the „SPDIF/PCM“ menu.

Here you can set the sampling rate of the audio signal. Generally speaking, a higher sampling frequency produces a better audio signal.

Channel Delay

If you use a 5.1 audio system, runtime differences to the sound can occur due to the varying distances of the loudspeaker groups from the listener. Sounds that should be heard by the listener at the same time arrive successively.

Here you can delay the sound produced by the central and rear loudspeakers or subwoofer in order to produce a more balanced sound for the listener.

Select the individual loudspeakers with the Cursor buttons (▼/▲).
Use the Cursor buttons (▶ / ◀) to perform the adjustments.

General	Audio	Dolby	Video	Preference
-- Equalizer Page --
Sound Mode		Normal
Bass Boost		Rock
Super Bass		Pop
Treble Boost		Live
		Dance
		Techno
		Classic
		Soft

Equalizer

In these menus you can adjust various sound options to suit your own personal taste. The optimum setting depends on the consumer and therefore cannot be stated here.

General	Audio	Dolby	Video	Preference
Pro Logic II Config
Pro Logic II		On
Mode		Off
Panorama		Auto
Dimension
Center Width

3D Processing Page

Pro Logic II

The „Pro Logic II“ function converts stereo signals such as those on audio CDs, MP3, VCD or SVCDs into a realistic three-dimensional fi ve-channel sound experience.

NOTE:

The „Pro Logic II“ menu is only available if the "5.1 CH" option is activated in the "Downmix" menu.

On: Pro Logic II is activated and you can enjoy the five-channel sound experience.
Off: Pro Logic II is deactivated.
Auto: Pro Logic II is activated automatically if the properties of the medium to be played back permit Pro Logic II conversion.

NOTE:

The „Mode“, „Panorama“, „Dimension“, „Center Width“ menu is only available if the „On“ option or the „Auto“ option is activated in the „Pro Logic II“ menu.

English

General	Audio	Dolby	Video	Preference
Pro Logic II Config
Pro Logic II
Mode		Music
Panorama		Movie
Dimension		Pro Logic
Center Width		Auto

General	Audio	Dolby	Video	Preference
-- 3D Processing Page --
Pro Logic IIReverb Mode			NormalConcertLiving RoomHallBathroomCaveArenaChurch

General	Audio	Dolby	Video	Preference
-- Micphone Setup Page --
Mic		On
Mic Vol		Off
Echo Level

Mode

Music: The music mode is particularly suitable for the natural surround playback of music programmes.
Movie: The film mode is particularly suitable for the natural surround playback of films.
Pro Logic: This mode is particularly suitable for decoding films and music recordings in Original Dolby Surround.
Auto: If the „Pro Logic II" function is switched on a suitable mode is activated automatically.

Panorama

The panorama mode provides a spacious surround effect. The panorama mode can be switched on or off.

Dimension

With the "Dimension" function you can set the bass sounds of the surround sound acoustics.

Center Width

With "Center Width" you can adjust the balance between the central and front loudspeakers.

Reverb Mode

With the „Reverb Mode" function it is possible to produce surrounding acoustics similar to those found in a concert hall or church.

Karaoke Setting

Mic Setup

Here you can adjust the microphone settings.

Mic

On: The microphone input is enabled.
Off: The microphone input is disabled.

Mic Vol

Here you can adjust the volume of the microphone.

Echo Level

Here you can adapt the echo of the audio output. Turn the control to "00" if you do not wish to hear any echo.

Dolby Digital Setup

General	Audio	Dolby	Video	Preference
-- Dolby Digital Setup --
Dual Mono Dynamic			Stereo L-Mono R-Mono Mix-Mono

Dual Mono

The Audio output is normally in stereo. Here you have the possibility to choose Mono-output instead of Stereo-output.

Stereo: The Audio output is in Stereo (default).
L-Mono: The Audio output is in Mono. In this case the signal of the "left" stereo channel is transmitted to all speakers.
R-Mono: The Audio output is in Mono. In this case the signal of the "right" stereo channel is transmitted to all speakers.
Mix Mono: The Audio output is in Mono. In this case the signal of the "both" stereo channel is transmitted to all speakers.

Dynamic

The term „Dynamic“ (Dynamic Range) describes the ratio of quietest and loudest sound. If the dynamic range is very large, you will experience very quiet and very loud sounds.

This may cause replay problems. Let us assume that you are watching a DVD in a relatively loud environment. You can now increase the volume to be able to hear also the very quiet passages, however with the disadvantage that loud passages will be unacceptably loud. In this case it would make sense to compress the dynamic range (i.e. reduce) and increase the output volume at the same time.

FULL - 1/8: The dynamic range is compressed slightly (1/8) to full (FULL).
OFF: The dynamic range is not compressed at all (default).

Video Setup

Video Output

Select the video output option for the playback device that is connected and which you wish to use. Choosing the right signal format depends on the type of connection and the playback device (see also the operating manual of the replay unit).

Off: Select this option if your playback device is connected to the DVD player via the composite video and/or S-video connection.
YUV: Select this option if your playback device is connected to the DVD player via the component video connection.
RGB: Select this option if your playback device is connected to the DVD player via the SCART connection.

General	Audio	Dolby	Video	Preference
-- Video Setup Page --
Video Output		480i
Resolution		576i
Color Setting		720p (50Hz)
HDMI Setup		1080i (50Hz)
		1080p (50Hz)
		720p (60Hz)
		1080i (60Hz)
		1080p (60Hz)

General	Audio	Dolby	Video	Preference
Color Setting Setup
Sharpness		High
Brightness		Medium
Contrast		Low
Gamma
Hue
Tint
Luma Delay

General	Audio	Dolby	Video	Preference
HDMI Setup
HDMI		OnOff

Preference Page

General	Audio	Dolby	Video	Preference
-- Preference Page --
TV Type		PAL
PBC		Auto
Audio		NTSC
Subtitle
Disc Menu
Parental
Password
Default

i NOTE:

If you would like to select the „RGB" setting, please ensure that your playback device supports this setting.
By pressing the V-MODE button (Fig. 3/6) you can also switch between the video output options.

Resolution

Select the HDMI resolution for the connected playback device that is to be used. Choosing the right signal format depends on the type of connection and the playback device (see also the operating manual of the replay unit).

Color Setting (Video Setup)

In this menu it is possible to perform various settings to adapt the video signal.

HDMI Setup

HDMI

Here you can switch the HDMI output on and off.

TV Type

Match the output of the DVD-Player to the colour transfer system of your playback device.

The following options are available:

PAL: A system commonly used in Europe.
AUTO: Select this setting if your playback device is a multi-system unit.
NTSC: A system primarily used in North America.

General	Audio	Dolby	Video	Preference
-- Preference Page --
TV Type
PBC		On
Audio		Off
Subtitle
Disc Menu
Parental
Password
Default

General	Audio	Dolby	Video	Preference
-- Preference Page --
TV Type		English
PBC		French
Audio		Spanish
Subtitle		Chinese
Disc Menu		Japanese
Parental		Korean
Password		Russian
Default		German

General	Audio	Dolby	Video	Preference
-- Preference Page --
TV Type		1 Kid Safe
PBC		2 G
Audio		3 PG
Subtitle		4 PG 13
Disc Menu		5 PGR
Parental		6 R
Password		7 NC17
Default		8 Adult

PBC

By means of the PBC (Playback Control) function the interactive menus specified by the manufacturer on the DVDs or VCDs are started automatically. If you turn the PBC option to "Off" the tracks are played automatically in order from the DVD or VCD.

NOTE:

If the DVD or VCD is not PBC-compatible no selection menu is displayed even if the „PBC“ function is switched on.

Audio; Subtitle; Disc Menu

Audio: Here you can select the preferred audio language.
Subtitle: Here you can select the preferred language for the film subtitles.
Disc Menu: Here you can select the preferred language for the DVD menus.

Parental

Some DVD contain information concerning the target group. This method is comparable with the rating of cinema films („Suitable only for persons of 12 years and over“ e.g.).

If you have the child lock option activated a probably existing corresponding information is read from the DVD and compared with the value pre-set by you. If a DVD is intended for an older age group than the one pre-set by you, the DVD cannot be played.

The following child lock options are available:

Kid Saf: Suitable for children.
G: Suitable for all age groups.
PG: The presence of parents is recommended. Some scenes may be unsuitable for children.
PG 13: The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.
PGR: The presence of parents is strictly necessary.
R: Young persons under the age of 17 may only view this film in the presence of an adult.
NC17: Children and juveniles under the age of 17 are not allowed to watch this fi Im.
Adult: The film must only be watched by adults.

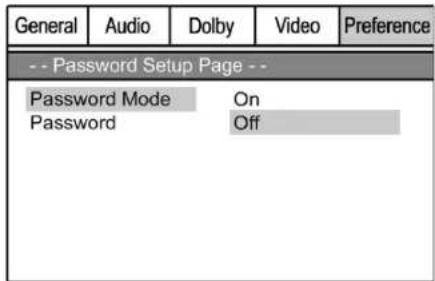

Password Setup

If you want to operate the DVD-Player with a child lock system, you must first enter a password. This password safeguards the settings for the child lock system, so that it can only be changed by yourself.

78 English

Password Mode

On: A password has to be entered whenever an attempt is made to modify the child lock function.
O : The child lock system can be changed without a password being required.

Password

In this menu you can change the password for the child lock system. In order to change the password, you must first enter the current password. The master password is „136900”.

i NOTE:

If you forgot your password, you can deactivate the child lock system with this password.

Proceed as follows to change the password:

1. Enter the present password in the "Old Password" line with the Numerical buttons (Fig. 3/2) of the remote control. To prevent the password from being read by unauthorized persons only the characters "XXXXX" will appear on the screen.
2. Enter the new password in the "New Password" line with the Numerical buttons of the remote control.
3. Confirm the new password by entering it again in the "Confirm" line. Confirm your entry with the ENTER button (Fig. 3/25).

Default

Select the command „Default/Reset" if you want to reset the player to the factory implemented default settings.

Any settings you have made will be lost.

Radio Station Set-up

This device has a built-in FM/AM radio receiver. There are 2 different ways to search for radio stations: automatic station fi nding and manual station fi nding.

1. Use the SOURCE SELECT (Fig. 3/8) button to select the "TUNER" mode.
2. Select with the TITLE / FM/AM button (Fig. 3/26) the desired frequency band.
3. Press the SUBTITLE/AUTO (Fig. 3/12) button. The device searches the current frequency band for stations and stores them automatically.

i NOTE: It is not possible to change the order of the stations.

Manual Station Finding

1. Use the SOURCE SELECT (Fig. 3/8) button to select the TUNER mode.
2. Press the „▶▶/◀◀” buttons (Fig. 3/28, 27) to search for a station. Press the corresponding button repeatedly until you have found the desired radio station.
3. In order to store the radio station press the AUDIO/MEMORY (Fig. 3/24) button; “- -” appears in the display.
4. Then enter the desired storage location by means of the Numerical buttons (Fig. 3/2).

In order to select the stored radio stations press the „▶▶1/1◀◀” (Fig. 3/9, 11) button or enter the storage location with the Numerical buttons (Fig. 3/2).

LINE IN (R/L) Input Sockets

To connect analogue replay devices. With these sockets you can also hear the sound from other playback devices such MP3 players, CD players etc through the loudspeakers.

1. Please connect the external device with an appropriate cinch cable (2x RCA) to the LINE IN sockets (Fig. 2/17).
2. Press the SOURCE SELECT button (Fig. 3/8) repeatedly until "LINE" appears in the display.
3. For the remaining procedure please see the operating instructions of the external sound source.
4. Through the loudspeakers you now hear the sound from the external device; with the VOL+/- buttons (Fig. 3/10) you can change the volume.

i NOTE:

Adjust the volume of the external device to a comfortable level.

Before sending the machine to the Customer Services, use the following table to check whether you can rectify the fault yourself.

Fault	Possible cause	Solution
The power supply light does not light	No power supply	⚠ WARNING: Before troubleshooting, switch the player off. Put the mains plug in correctly, if necessary, check the socket is working with another appliance.
	no power supply/ mains switch switched off	Switch the player on by the mains switch (Fig. 2/11).
No image displayed on screen	Video cable not correctly connected	⚠ WARNING: Before troubleshooting, switch the player off. Check the correct fit of the Video cable ⇒ „Connecting the Video cable“. Make sure that the jacks are tightly in the sockets.
	no DVD/CD inserted Insert a CD/DVD.
	DVD/CD not compatible	Use only compatible media (see ⇒ „Technical data“).
	DVD/CD incorrectly placed in CD/DVD-tray	Turn the CD/DVD around.
	CD/DVD is dirty	Clean the CD/DVD around ⇒ „Handling CD/DVD“.
	CD/DVD is damaged Use a diff	erent CD/DVD.
	Incorrect settings Check the settings of your DVD-Player.
	The child lock system is activated	Deactivate the child lock ⇒ „Parental“.
	The wrong TV mode has been selected (no P-SCAN-capable playback device).	Press the V-Mode button (Fig. 3/6) to change the TV mode (interlace).
No response when pressing button	Power supply problem or static charging of appliance	Switch off the main switch and pull out the mains plug. Insert the mains plug into the socket and switch the player on again.
No sound Audio cable	not connected	⚠ WARNING: Before troubleshooting, switch the player off. Video plug for transmission of the Video signal, you must use and Audio cable in addition to the Video cable ⇒ „Connecting the Audio cable“.
	Amplifi er switched off If you	use an amplifi er for Audio output: check whether the amplifi er is switched on.
	Incorrect settings Check the settings of your DVD-Player.
Sound is distorted Presets incorrect Change the settings in the audio menu.
The remote control does not work	wrong direction	The remote control is not pointed towards the DVD-Player.
	too far away	Make sure that the remote control is not further than 7 m away from the player.
	Batteries empty	Replace the batteries in the remote control ⇒ „Remote control battery installation”.
Titles are played in wrong order	Playlist is used	Delete the playlist ⇒ „Deleting a Playlist“.
DVD cannot be played	DVD has not been fi nalized	Use a fi nalized DVD.
No radio reception. The antenna cable is not connected.		Insert the antenna cable firmly into the antenna socket of the device.
Poor radio reception.	The received radio station is too weak for a stereo operation.	Adjust the device to mono operation by pressing the MENU / MO/ST button (fi g. 3/14).
In automatic search mode the radio does not stop at a transmitting station.	The transmission signals are too weak.	Tune in to a radio station manually.

Disposal

At the end of the service life of the appliance, in particular if it is malfunctioning, make the appliance unusable by pulling the mains plug out of the socket and separating the power cable. Dispose of the appliance according to the environmental regulations applicable in your country. Electrical waste may not be disposed of together with household waste. For any advice regarding recycling, contact your local municipal authorities or your dealer.

Declaration of conformity

ETV Elektro-technische Vertriebsgesellschaft mbH hereby declares that the device DVD 4625 HC HDMI/USB is in conformity with the basic requirements of the European guideline for electromagnetic compatibility (2004/108/EG) and the low voltage guideline (2006/95/EG).

82 English

OSD Menu Overview

GENERAL AUDIO
-- GENERAL SETUP PAGE -- - - AUDIO SETUP PAGE --
TV DISPLAY 4:3 PAN SCAAN ANALOG AUDIO DOWNMIX L/R
ANGLE MARK ON FRONT SPEAKER LARGEOFF SMALL
OSD LANGUAGE CENTER SPEAKER LARGE
CLOSED CAPTIONS ON	LARGE
SCREEN SAVER	OFF OFF
	ON REAR SPEAKEROFF SMALL
HDCD	OFF OFF1X2X
LAST MEMORY	ON DIALOGOFF

DOLBY
-- DOLBY DIGITAL SETUP --
DUAL MONO	STEREO L-MONO R-MONO MIX-MONO
DYNAMIC

VIDEO
-- VIDEO SETUP PAGE --
VIDEO OUTPUT	OFF LIVEYUVRGB
RESOLUTION	480i CLASSIC576i SOFT720p (50Hz)1080i (50Hz)1080p (50Hz)720p (60Hz)1080i (60Hz)1080p (60Hz)
COLOR SETTING	SHARPNESS	HIGHMEDIUMLOW
	BRIGHTNESS
	CONTRAST
	GAMMA	HIGHMEDIUMLOWNONE
	HUE
	TINT
	LUMA DELAY	0 T1 T
HDMI SETUP	HDMI	ONOFF

PREFERENCE
-- PREFERENCE PAGE --
TV TYP	PAL CHURCHAUTONTSC
PBC	ONOFF ECHO LEVEL
AUDIO
SUBTITLE
DISC MENU
PARENTAL	1 KID SAFE2 G3 PG4 PG 135 PGR6 R7 NC178 ADULT
PASSWORD	PASSWORD MODE	ONOFF
	PASSWORD	CHANGE
DEFAULT	RESET

	SMALL
	SUBWOOFER	ONOFF
	D.R.C	ONOFFAUTO
DIGITAL AUDIO	DIGITAL OUTPUT	SPDIF/OFFSPDIF/RAWSPDIF/PCM
	LPCM OUTPUT	48K96K
CHANNEL DELAY
EQUALIZER SOUND MODE	NORMAL	ROCKPOPDANCETECHNO
	BASS BOOST	ONOFF
	SUPER BASS	ONOFF
	TREBLE BOOST	ONOFF
3D PROCESSING	PRO LOGIC II	PRO LOGIC II ONOFFAUTO
		MODE MUSICMOVIEPRO LOGICAUTO
		PANORAMA ONOFF
		DIMENSIONCENTER WIDTH
	REVERB MODE	NORMALCONCERTLIVING ROOMHALLEBATHROOMCAVEARENA
KARAOKE SETUP MIC SETUP MIC		ONOFF
		MIC VOL

GARANTIE-KARTE
