Product type	Combined fridge-freezer
Brand	Beko
Model	CN153220X
Dimensions (W x D x H)	54 x 60 x 185 cm
Net weight	65 kg
Electrical supply	220-240 V, 50 Hz
Energy class	E
Total net capacity	300 L
Refrigerator capacity	220 L
Freezer capacity	80 L
Cooling type	Ventilated (No Frost)
Noise level	40 dB(A)
Interior lighting	LED
Refrigerator shelves	3 removable glass shelves
Vegetable drawer	1 humidity-controlled drawer
Freezer	3 drawers
Water dispenser	No
Temperature control	Electronic with display
Special options	Holiday, Eco, Super Cool
Maintenance and cleaning	Clean with a soft cloth and warm soapy water. Automatic defrosting for the refrigerator, manual for the freezer.
Safety instructions	Use on a grounded outlet. Do not immerse in water. Observe installation clearances.
Spare parts	Available from Beko customer service or authorized dealers.
Repairability	Repairability index: 7.5/10 (estimate)

Frequently Asked Questions - CN153220X BEKO

How to adjust the temperature of my Beko CN153220X refrigerator?

Use the electronic control panel. Press the adjustment key to change the refrigerator and freezer temperature. The recommended temperature is 4°C for the refrigerator and -18°C for the freezer.

Why is my refrigerator making noise?

A slight noise is normal (compressor, fan). Make sure the appliance is level and there are no objects on top. Unusual noise may indicate a technical problem, contact customer service.

How to clean the inside of the refrigerator?

Unplug the appliance. Remove shelves and drawers. Clean with a soft cloth moistened with warm water and mild soap. Rinse and dry. Do not use abrasive products.

What to do if ice forms in the freezer?

The CN153220X model is equipped with the No Frost system for the refrigerator, but the freezer may require manual defrosting. Defrost when the ice layer reaches 3-5 mm. Follow the instructions in the manual.

How long does it take for the refrigerator to reach temperature after first start-up?

Allow about 4 to 6 hours to reach operating temperature. Avoid opening the door frequently during this time.

Can I install my refrigerator in an unheated garage?

The recommended ambient temperature is 5°C to 35°C. Below 5°C, the refrigerator may not work properly. Check the specifications in the manual.

How to reverse the door opening direction?

Yes, the door is reversible. Follow the steps detailed in the manual: disassemble the hinges, swap the handles, and reassemble on the other side. Be careful with parts and screws.

What does the alarm light mean?

The alarm may indicate a door open too long, a power failure, or too high temperature. Check the door and consult the manual to identify the error code.

Where to find spare parts for my Beko CN153220X?

Contact Beko customer service or visit the official brand website. Parts such as shelves, door gaskets, LED bulbs are available.

How to activate Holiday mode?

Press the Mode key until the Holiday icon lights up. This mode reduces energy consumption while maintaining a safe temperature for non-perishable foods.

USER MANUAL CN153220X BEKO

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful tips.

⚠ Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

1 Refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

General safety 4

For products with a water dispenser; .6

Child safety 6

Compliance with the AEEE Regulation and Disposing of the Waste Product ..6

Package information ....7

HCA warning ....7

Things to be done for energy saving ..7

Recommendations for the fresh food compartment ....8

3 Installation 9

Points to be paid attention to when the relocation of the refrigerator .....9

Before you start the refrigerator, .....

Electrical connection .....9

Disposing of the packaging .....10

Disposing of your old refrigerator .....10

Placing and Installation ....10

Adjusting the legs 11

Changing the illumination lamp .....11

4 Preparation 12

5 Using your refrigerator 13

Indicator Panel 13

Freezing fresh food ....18

Door Open Warning ......18

Recommendations for preservation of frozen food ....19

Placing the food 19

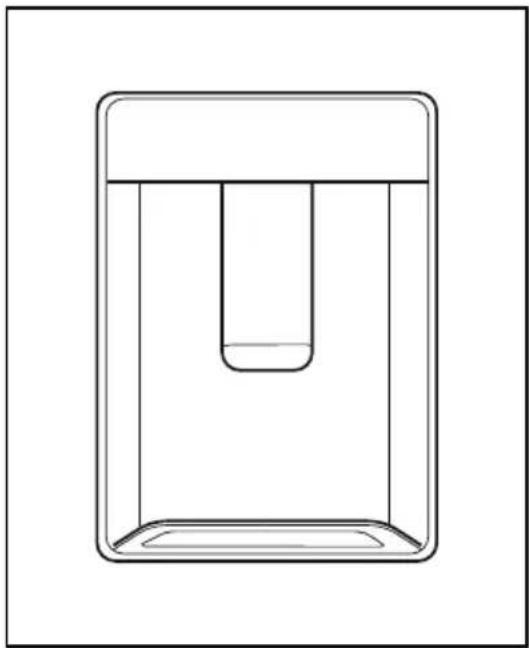

Water Dispenser 20

Egg holder 22

Blue light 22

Deep-freeze information .....23

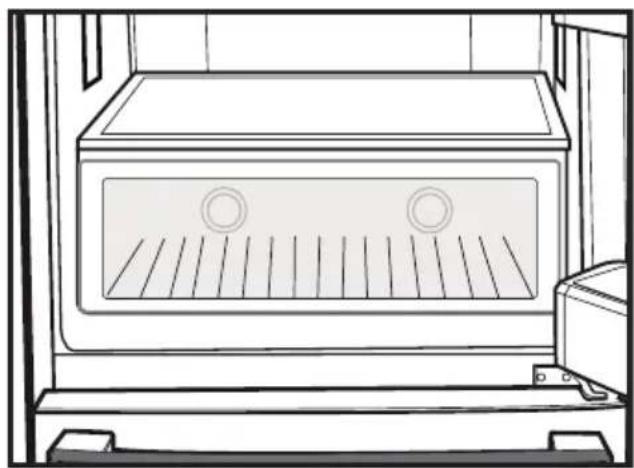

Multi Zone Storage Compartment ..23

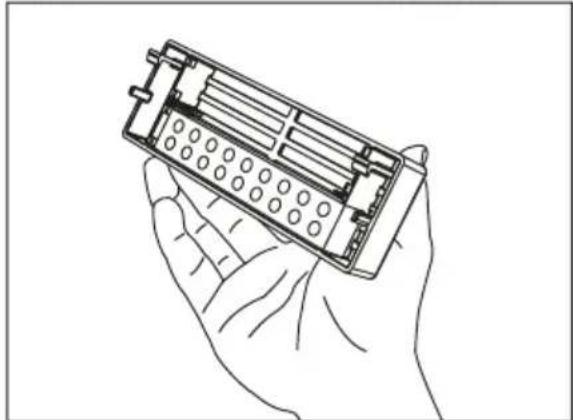

Description and cleaning of odor filter: 24

6 Maintenance and cleaning 25

Protection of plastic surfaces .....25

7 Troubleshooting 26

1 Refrigerator

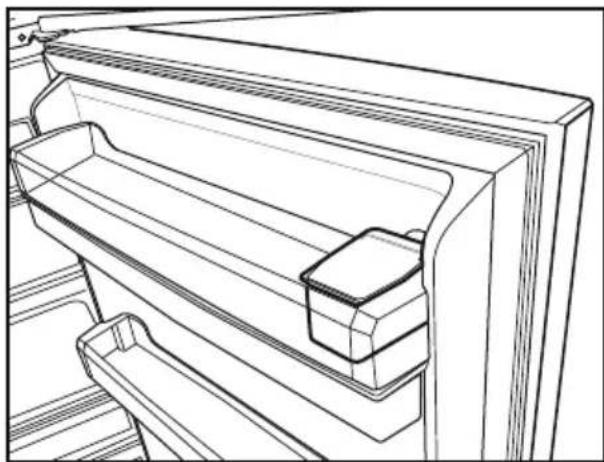

1. Egg holder

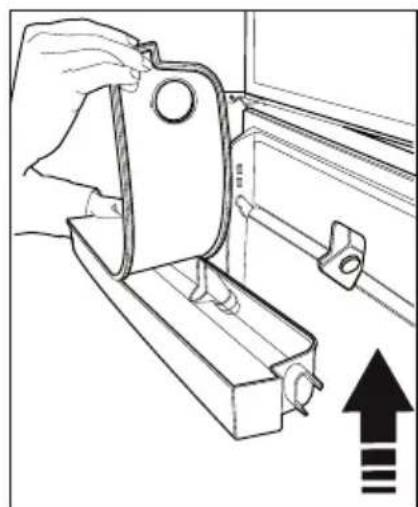

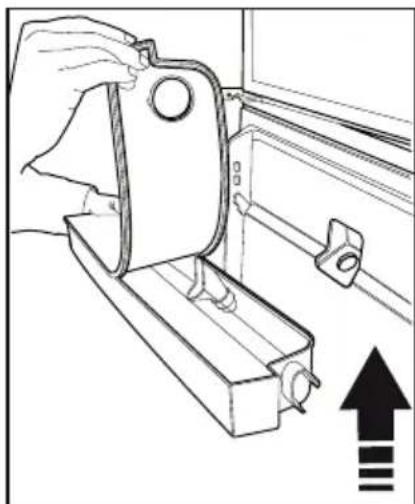

2. Water dispenser filling container
3. Water dispenser tank
4. Fridge compartment shelf
5. Sliding and Rotary storage containers
6. Freezer compartment drawers
7. Ice container
8. Multizone compartment's drawer
9. Crisper (Snack Compartment)

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1. Adjustable glass shelves
2. Bottle holder
3. Illumination lens
4. Fan
5. Fridge compartment
6. Multizone compartment
7. Freezer compartment

*OPTIONAL

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

The service life of your product is 10 years. During this period, original spare parts will be available to operate the product properly.

Intended use

This product is intended to be used

• indoors and in closed areas such as homes;
• in closed working environments such as stores and offices;
• in closed accommodation areas such as farm houses, hotels, pensions.
• It should not be used outdoors.

General safety

• When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the required information and authorized bodies.
• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food by hand; they may stick to your hand.
• Unplug your refrigerator before cleaning or defrosting.
• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.
• Never use parts of your refrigerator, such as the door, as a support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the parts where the refrigerant circulates with drilling or cutting tools. The refrigerant that might escape when the gas channels of the evaporator, pipe extensions, or surface coatings are punctured can cause skin irritation and eye injuries.
• Do not cover or block the ventilation holes on your refrigerator with any material.
• Electrical devices must be repaired only by authorized persons. Repairs performed by incompetent persons create a risk for the user.
• In case of any failure or during maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull the cable when unplugging the appliance.
• Place beverages with higher alcohol content tightly closed and upright.
• Never store spray cans containing flammable or explosive substances in the refrigerator.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• This product is not intended for use by persons with physical, sensory, or mental disabilities, or by unlearned or inexperienced people (including children) unless they are supervised by a person responsible for their safety or who will instruct them in the use of the product.
• Do not operate a damaged refrigerator. Consult the service agent if you have any concerns.
• The electrical safety of your refrigerator is guaranteed only if the grounding system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.
• Contact authorized service when there is a power cable damage to avoid danger.
• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.
• This refrigerator is intended for only storing food items. It must not be used for any other purpose.
• Label of technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.
• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.
• Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable.
• Do not touch the plug with wet hands when plugging the product.

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator; in the event of spillages, this may cause electric shock

or fire.

• Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.
• Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.
• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.
• The plug's tip should be cleaned regularly with a dry cloth; otherwise, it may cause fire.
• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the refrigerator to move.
• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.
• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.

For products with a water dispenser;

Pressure of water mains should be minimum 1 bar. Pressure of water mains should be maximum 8 bars.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
• Children must be supervised to prevent them from tampering with the product.

Compliance with the AEEE Regulation and Disposing of the Waste Product

This product does not contain harmful and forbidden materials described in the "Regulation on the Control of the Waste Electrical and Electronic Equipment" issued by the T.R. Ministry of Environment and City Planning. Complies with the AEEE Regulation.

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal

domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HCA warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.
• Do not overload your refrigerator so that the air circulation inside of it is not prevented.
• Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.
• Pay attention to keep your food in closed containers.
• For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.
• Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

Recommendations for the fresh food compartment

*optional

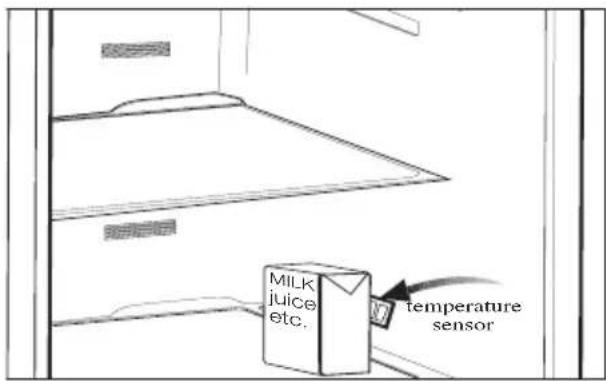

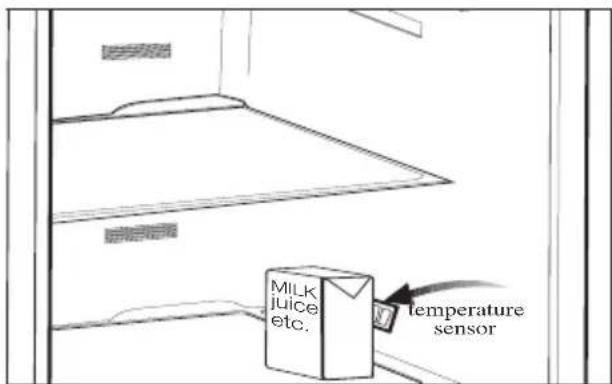

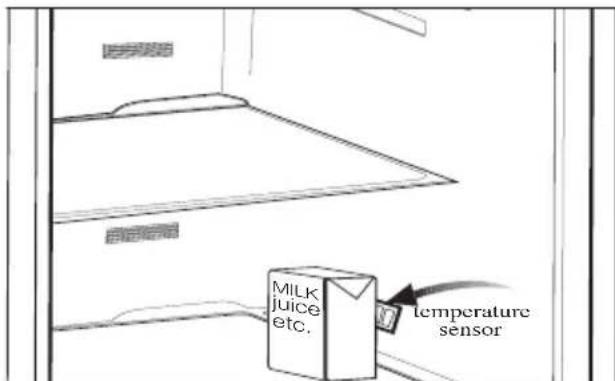

- Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.

- Do not place hot foods in the product.

3 Installation

In case the information given in the user manual is not taken into account, the manufacturer will not assume any liability.

Points to pay attention to when relocating the refrigerator

1. Your refrigerator should be unplugged. Before transportation, it should be emptied and cleaned.
2. Before re-packaging, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. The package should be bound with thick tape or strong ropes, and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator,

Check the following before you start to use your refrigerator:

1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance that will ensure air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and is not identical with your product.)

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
2. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, the internal lamp will turn on.
3. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running, and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket that is protected by a fuse with the appropriate capacity. Important:

The connection must be in compliance with national regulations.

- The power plug must be easily accessible after installation.

• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
• Extension cables and multi plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator in a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places, and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator to ensure efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance from the ceiling and at least 5 cm from the wall. Do not place your product on materials such as rugs or carpets.
4. Place your refrigerator on an even floor surface to prevent jolts.

Adjusting the legs

If your refrigerator is unbalanced:

You can balance your refrigerator by turning its front legs as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of the black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Changing the illumination lamp

To change the bulb/LED used for illumination of your refrigerator, call your Authorized Service.

4 Preparation

• Your cooler/freezer should be installed at least 30 cm away from heat sources such as hobs, ovens, central heaters, and stoves, and at least 5 cm away from electrical ovens, and should not be located under direct sunlight.
• The ambient temperature of the room where you install your cooler/freezer should be at least 10°C. Operating your cooler/freezer under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your cooler/freezer is cleaned thoroughly.
• If two cooler/freezers are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your cooler/freezer for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your cooler/freezer. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.

5 Using your refrigerator

Indicator Panel

Indicator panels may vary depending on your product's model.

Indicator panel aids in using your refrigerator with its audio and visual functions.

1. Ioniser Indicator
2. Fridge Compartment Indicator
3. Error Status Indicator
4. Temperature Indicator
5. Temperature Setting / Vacation Button

1. Ioniser Indicator

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

2. Fridge Compartment Indicator

The fridge compartment light illuminates when adjusting the fridge compartment temperature.

1. Refrigerator Compartment Selection Button
2. Multizone Compartment Indicator
3. Freezer Compartment Indicator
4. Economy Mode Indicator

3. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, the temperature indicator will display "e" and the numbers 1, 2, 3... These numbers on the indicator provide information about the error to the service personnel.

Figures in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

4. Temperature Indicator

Indicates the temperatures of the fridge, freezer, and multizone compartments.

5. Temperature Setting / Vacation Button

After selecting the compartment for which you will set the temperature, perform the temperature setting by pressing this button.

Press and hold the same button for 3 seconds to activate the Vacation function for the fridge compartment. Press this button again to deactivate the selected function.

If this function is active, "-" appears on the temperature indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

6. Refrigerator Compartment Selection Button

Press the Refrigerator Compartment Selection Button to switch between the fridge, freezer, and multizone compartments.

7. Multizone Compartment Indicator

The multizone compartment light illuminates when adjusting the multizone compartment temperature.

8. Freezer Compartment Indicator

The freezer compartment light illuminates when adjusting the freezer compartment temperature.

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. This indicator will be active if the temperature of the Freezer Compartment is set to -18 and energy-efficient cooling is being performed.

1. Freezer compartment setting button
2. Multizone compartment setting button
3. Fridge compartment setting button
4. Error status indicator
5. Key lock indicator
6. Eco Extra Function indicator
7. Eco Extra / Vacation Button
8. Vacation function indicator
9. Economic usage indicator
10. Quick fridge function indicator
11. Quick fridge function button
12. Freezer compartment temperature setting indicator
13. Multizone compartment temperature setting indicator
14. Fast freeze function button
15. Fridge compartment temperature setting indicator
16. Fast Freeze Function Indicator

Figures in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

1. Setting the freezer compartment

This function allows you to set the freezer compartment temperature. Press this button to set the temperature of the freezer compartment to -18, -19, -20, -21, -22, -23, and -24, respectively.

2. Multi Zone Storage Compartment Temperature Setting Button

You can set the Multi Zone Storage Compartment either as a Freezer or a Cooler. Press and hold this button for 3 seconds to set the Multi Zone Storage Compartment either as a Freezer or a Cooler. This compartment is set as a Freezer Compartment at factory.

If the Multi Zone Storage Compartment is set as a Freezer, then the temperature of the Multi Zone Storage Compartment will change as -18, -19, -20, -21, -22, -23, -24, -18... respectively each time you press this button. If the Multi Zone Compartment is set as a Fridge, then the temperature of the Multi Zone Compartment will change as 10, 8, 6, 4, 2, 0, -6, ... respectively each time you press this button.

3. Fridge Compartment Setting Button

This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8, 7, 6, 5, 4, 3, 2, respectively.

4. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3...". These numbers on the indicator provide information about the error to the service personnel. When you place hot food into the freezer compartment or if you leave the door open for a long time, exclamation mark can illuminate for some time. This is not a failure; this warning will disappear when the food cools down.

5. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed.

To activate this function, you should press and hold Fast Freeze and Quick Fridge buttons together for 3 seconds.

6. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active.

If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to deactivate this function.

7. Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

8. Vacation Function Indicator

Indicates that the vacation function is active.

If this function is active, "-" appears on the temperature indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature

This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

10. Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

11. Quick Fridge Function

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to activate this feature before putting the food into the fridge.

Quick Fridge indicator turns on when the Quick Fridge function is on. To cancel this function, press Quick Fridge button again.

If you do not cancel it, Quick Fridge will cancel itself automatically after 2 hours or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

12. Freezer Compartment Temperature Setting Indicator

Indicates the temperature set for the Freezer Compartment.

13. Multi Zone Storage Compartment Temperature Indicator

Indicates the temperature set for Multi Zone storage compartment.

14. Quick Freeze Function

Fast Freeze indicator turns on when the Fast Freeze function is active. To cancel this function, press Fast Freeze button again. Fast Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Fast Freeze will cancel itself automatically after 8 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Fast Freeze button before putting the food into the freezer compartment.

If you press the Fast Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

15. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

16. Quick Freeze Indicator

This icon flashes in an animated style when the Fast Freeze function is active.

Door Open Warning

(This feature may vary depending on the door of the product and may not exist in some models.)

An audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Freezing fresh food

• Wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.
• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.
• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.
• Frozen food must be used immediately after they are thawed and they should never be re-frozen.
• Please observe the following instructions to obtain the best results.
• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
• Take special care not to mix already frozen food and fresh food.

Freezer Compartment Setting	Fridge Compartment Setting	Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18°C or colder 2°C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18°C or colder Quick Fridge		You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a (star) frozen food storage compartment.
• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:
• Put packages in the freezer as quickly as possible after purchase.
• Ensure that contents are labeled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg holder Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Water Dispenser

(in some models)

The water dispenser is a very useful feature that provides cold water without opening the refrigerator door. Since you won't have to open the door frequently, you will save energy.

Using the water dispenser

Push the arm of the water dispenser with your glass. The dispenser will stop operating once you release the arm.

When operating the water dispenser, maximum flow can be obtained by pressing the arm fully. Please remember that the amount of flow from the dispenser depends on how far you press the arm.

As the water level in your glass/container rises, slightly lessen the pressure on the arm to prevent overflow. If you press the arm lightly, the water will drip; this is quite normal and not a malfunction.

Filling the water dispenser's tank

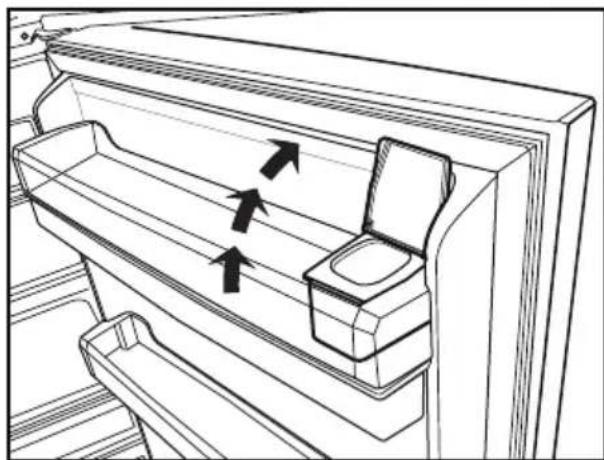

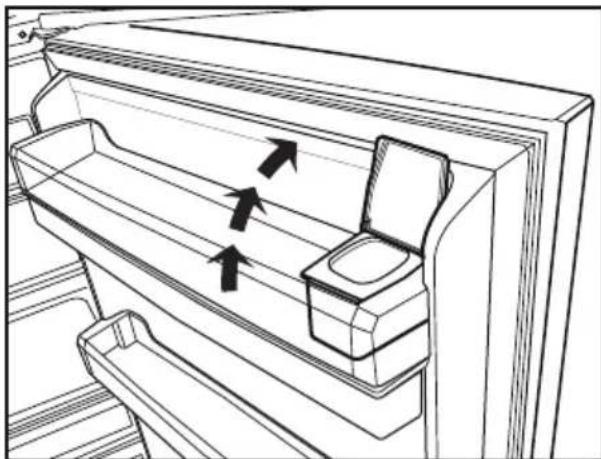

The water tank filling reservoir is located inside the door rack. Open the reservoir cover and fill it with clean, potable water. Then close the lid.

Warning!

- Do not fill the water reservoir with any liquid other than water, such as fruit juices, carbonated beverages, or alcoholic drinks, which are not suitable for use in the water dispenser. The water dispenser will be irreparably damaged if these kinds of liquids are used. The warranty does not cover such usage. Some chemical substances and additives contained in these drinks/liquids may damage the water tank.

• Use clean and pure drinking water only.

• The capacity of the water tank is 3 liters; do not overfill.
• Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.

Cleaning the water tank

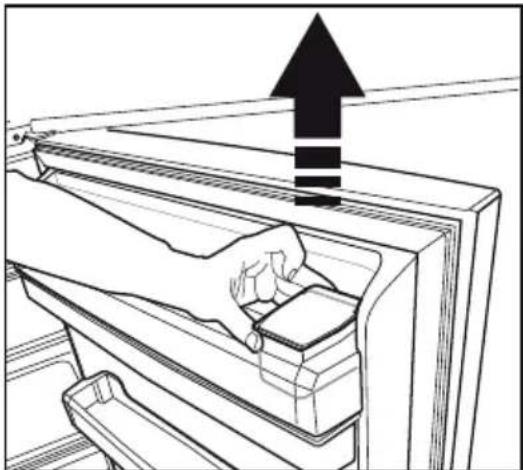

• Remove the water filling reservoir inside the door rack.

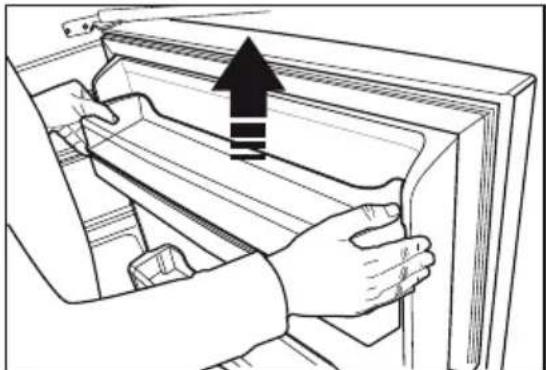

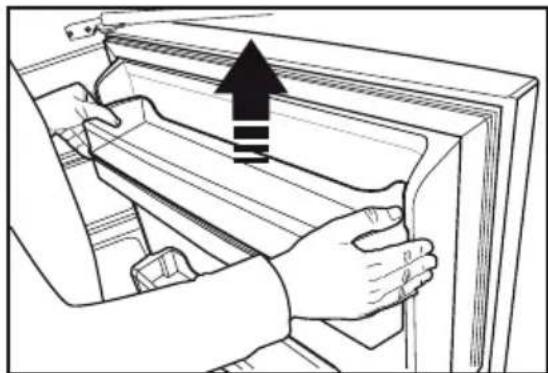

• Remove the door rack by holding from both sides.

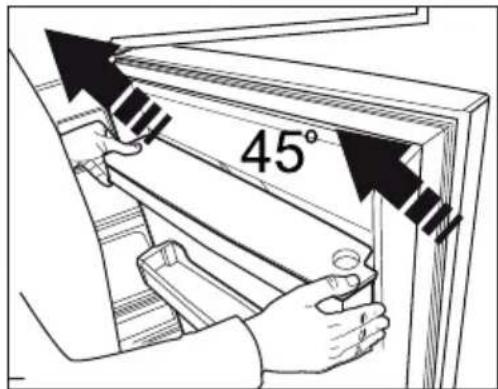

• Grab the water tank from both sides and remove it with an angle of 46.
• Clean the water tank by removing its lid.

Important:

Components of the water tank and water dispenser should not be washed in dishwasher.

Water tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

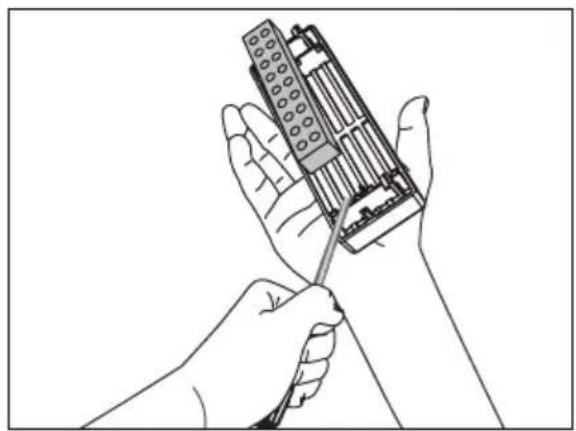

Take out the plastic strainer as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated

CAUTION: Connect only to a potable water line.

Egg holder

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment

Blue light

(in some models)

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Rotary storage container

Sliding body shelf can be moved to left or right in order to allow you place the tall bottles, jars or boxes to the lower shelf (Fig. 1)

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

The TSE norm requires (according to certain measurement conditions) the refrigerator to freeze at least 4.5 kg of foodstuff at 32°C ambient temperature to -18°C or lower within 24 hours for every 100-liters of freezer volume.

It is possible to keep the food for a long time only at -18°C or lower temperatures.

You can keep the freshness of food for many months (at -18°C or lower temperatures in the deep freeze).

WARNING!

- Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.

- Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape - Self adhesive label - Rubber rings - Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

Multi Zone Storage Compartment

The Multi Zone Storage Compartment of your refrigerator may be used in any desired mode by adjusting it to fridge (2/4/6/8 °C) or freezer (-18/-19/-20/-21/-22/-23/-24) temperatures. You can keep the compartment in the desired temperature with the Multi Zone Storage Compartment Temperature Setting Button. The temperature of Multi Zone Storage Compartment can be adjusted to -6, -2, 0 and 10 in addition to fridge compartment temperatures. "0" degree is used to store the deli products longer, and -6 degrees is used to keep the meats up to 2 weeks in an easily cuttable condition.

Description and cleaning of odor filter:

Odor filter prevents unpleasant odor build-up in your refrigerator.

Pull the cover, into which the odor filter is installed, downwards and remove as illustrated. Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

6 Maintenance and cleaning

⚠️ Never use gasoline, benzene or similar substances for cleaning purposes. ⚠️ We recommend that you unplug the appliance before cleaning. ⚠️ Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning. Use lukewarm water to clean the cabinet of your cooler/freezer and wipe it dry. Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry. ⚠️ Make sure that no water enters the lamp housing and other electrical items. ⚠️ If your cooler/freezer is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar. Check door seals regularly to ensure they are clean and free from food particles. ⚠️ To remove door racks, remove all the contents and then simply push the door rack upwards from the base.

⚠️ Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.

Protection of plastic surfaces

Do not put liquid oils or oil-cooked meals in your cooler/freezer in unsealed containers, as they damage the plastic surfaces of your cooler/freezer. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The cooler/freezer does not operate.

The plug is not inserted into the socket correctly. >>>Insert the plug into the socket securely.The fuse of the socket which your cooler/freezer is connected to or the main fuse have blown out. >>>Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Ambient is very cold. >>>Do not install the cooler/freezer in places where the temperature falls below 10 °C.Door has been opened frequently. >>>Do not open and close the door of cooler/freezer frequently.Ambient is very humid. >>>Do not install your cooler/freezer into highly humid places.Food containing liquid is stored in open containers. >>>Do not store food with liquid content in open containers.Door of the cooler/freezer is left ajar. >>>Close the door of the cooler/freezer.Thermostat is set to a very cold level. >>>Set the thermostat to a suitable level.

Compressor is not runningProtective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the cooler/freezer has not been balanced yet. The cooler/freezer will start running approximately after 6 minutes. Please call the service if the cooler/freezer does not startup at the end of this period.The fridge is in defrost cycle. >>>This is normal for a full-automatically defrosting cooler/freezer. Defrosting cycle occurs periodically.The cooler/freezer is not plugged into the socket. >>>Make sure that the plug is fit into the socket.Temperature settings are not made correctly. >>>Select the suitable temperature value.There is a power outage. >>>Cooler/freezer returns to normal operation when the power restores.

The operation noise increases when the cooler/freezer is running.

The operating performance of the cooler/freezer may change due to the changes in the ambient temperature. It is normal and not a fault.

The cooler/freezer is running frequently or for a long time.

• New product may be wider than the previous one. Larger cooler/freezers operate for a longer period of time.
• The room temperature may be high. >>>It is normal that the product operates for longer periods in hot ambient.
• The cooler/freezer might be plugged in recently or might be loaded with food. When the cooler/freezer is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.
• Large amounts of hot food might be put in the cooler/freezer recently. >>>Do not put hot food into the cooler/freezer.
• Doors might be opened frequently or left ajar for a long time. >>>The warm air that has entered into the cooler/freezer causes the cooler/freezer to run for longer periods. Do not open the doors frequently.
• Freezer or fridge compartment door might be left ajar. >>>Check if the doors are closed completely.
• The cooler/freezer is adjusted to a very low temperature. >>>Adjust the cooler/freezer temperature to a warmer degree and wait until the temperature is achieved.
• Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>>Clean or replace the seal. Damaged/broken seal causes the cooler/freezer to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.

- The freezer temperature is adjusted to a very low value. >>>Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.

- The fridge temperature is adjusted to a very low value. >>>Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers is frozen.

- The fridge temperature is adjusted to a very high value. >>>Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

• The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer. Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.
• Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently.
• Door is ajar. >>>Close the door completely.
• The cooler/freezer is plugged in or loaded with food recently. >>>This is normal. When the cooler/freezer is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.
• Large amounts of hot food might be put in the cooler/freezer recently. >>>Do not put hot food into the cooler/freezer.
• Vibrations or noise.
• The floor is not level or stable. >>> If the cooler/freezer rocks when moved slowly, balance it by adjusting its feet. Also make sure that the floor is strong enough to carry the cooler/freezer, and level.
• The items put onto the cooler/freezer may cause noise. >>>Remove the items on top of the cooler/freezer. There are noises coming from the cooler/freezer like liquid flowing, spraying, etc.
• Liquid and gas flows occur in accordance with the operating principles of your cooler/freezer. It is normal and not a fault. Whistle comes from the cooler/freezer.
• Fans are used in order to cool the cooler/freezer. It is normal and not a fault. Condensation on the inner walls of cooler/freezer.
• Hot and humid weather increases icing and condensation. It is normal and not a fault.
• Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. Close them if they are open.
• Door is ajar. >>>Close the door completely. Humidity occurs on the outside of the cooler/freezer or between the doors.
• There might be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear. Bad odour inside the cooler/freezer.

No regular cleaning is performed. >>>Clean the inside of the cooler/freezer regularly with a sponge, lukewarm water or carbonate dissolved in water.Some containers or package materials may cause the smell. >>>Use a different container or different brand packaging material.Food is put into the cooler/freezer in uncovered containers. >>>Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odours.Remove the foods that have expired best before dates and spoiled from the cooler/freezer.

The door is not closing.

Food packages are preventing the door from closing. >>>Replace the packages that are obstructing the door.The cooler/freezer is not completely even on the floor. >>>Adjust the feet to balance the cooler/freezer.The floor is not level or strong. >>>Make sure that the floor is level and capable to carry the cooler/freezer.

Crispers are stuck.

The food is touching the ceiling of the drawer. >>>Rearrange food in the drawer.

3 Installation

4 Preparation

Warning!

Egg holder

Blue light

Rotating container

Multi Zone Compartment 23

3 Installation

4 Preparation

Warning!

Egg holder

Blue light

Multi Zone Compartment

3 Installation

4 Preparation

Egg rack

Blue light

Freezer information

• Not airtight.

• Or external

Packaging data

Electrical connection

Using the water tap

Blue lamp

(on some models)

Electrical connections

ACKPAA!

Rotating storage container

Blue light

(on some models)

Deep freeze information

Do not plug the refrigerator into the outlet if the wall outlet is loose.

EU (2012/19/E)

3 Installation

4 Preparation

Warning!

Egg tray

Blue light

(on some models)

3 Installation

4 Preparation

Warning!

Egg tray

Blue light

(on some models)

3 Installation

4 Preparation

Water dispenser

Warning!

Water tray

Blue light

Egg tray

Warning

Egg tray

Blue light

3 Installation

Electrical connection

4 Preparation

Warning!

Egg holder

Blue light

(on certain models)

Rotatable storage container

Information about deep freezing

3 Installation

4 Preparation

7. Eco-extra/Vacation button

Warning!

Egg holder

Blue light

(on certain models)

Deep freezing information

3 Installation

Using the water source

Warning!

Egg tray

Blue light

(OPTIONAL)

Rotating storage container

Odor filter

3 Installation

4 Preparation

Using the water source

Egg tray

Blue light

(OPTIONAL)

Multi-zone compartment
