Restio ISX-B820 - Hi-Fi System YAMAHA - Free user manual and instructions

Product Type	Hi-Fi System
Brand	Yamaha
Model	Restio ISX-B820
Dimensions (W x H x D)	430 mm x 120 mm x 300 mm
Weight	5.0 kg
Power Consumption	40 W
Power Supply	AC 220-240 V, 50/60 Hz
Main Functions	CD Player, FM/AM Tuner, Bluetooth, USB, AUX Input, Headphone Jack
Number of Speakers	2 (Stereo)
Output Power	2 x 20 W RMS
Remote Control	Included
Display	LCD Display with Clock
Supported Media	CD, CD-R/RW, MP3 CD
Radio Bands	FM (87.5-108 MHz), AM (531-1611 kHz)
Bluetooth Version	4.0
Inputs	AUX (3.5 mm), USB (Type A)
Outputs	Headphone (3.5 mm)
Clean and Maintenance	Wipe with a soft, dry cloth. Do not use solvents.
Safety Instructions	Unplug before cleaning. Keep away from moisture and heat sources.
Spare Parts and Repairability	Contact Yamaha authorized service centers. Repairability score: 6/10

Frequently Asked Questions - Restio ISX-B820 YAMAHA

How do I reset the Yamaha Restio ISX-B820 to factory settings?

Press and hold the Power button for 5 seconds while the unit is on. Then select 'Factory Reset' using the Source knob and confirm by pressing the Enter button.

How can I connect my phone via Bluetooth?

Press the Bluetooth button on the remote or the unit. The display will show 'Pairing'. On your phone, select 'Yamaha ISX-B820' from the Bluetooth list. If prompted, enter PIN 0000.

How do I set the clock on the Restio ISX-B820?

Press the Clock button on the remote. Use the +/- buttons to adjust the hour and minute. Press Enter to confirm. The clock is set automatically if RDS signal is received.

What is the best way to clean the system?

Unplug the unit. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, slightly dampen the cloth with water. Do not use alcohol or abrasive cleaners. Clean the CD lens with a lens cleaner disc.

What is the power consumption of this Hi-Fi system?

The Yamaha Restio ISX-B820 consumes approximately 40 W during normal operation and less than 0.5 W in standby mode.

What are the dimensions and weight of the ISX-B820?

The main unit measures 430 mm (W) x 120 mm (H) x 300 mm (D) and weighs 5.0 kg. Speaker dimensions: 150 mm (W) x 240 mm (H) x 200 mm (D) each, weight 2.5 kg each.

Can I play music from a USB flash drive?

Yes, insert a USB flash drive into the USB port on the front. Use the Source button to select USB. Supported formats: MP3, WMA, AAC and WAV. The USB port supports drives up to 32 GB.

What should I do if there is no sound?

Check that the speakers are properly connected to the main unit. Ensure the volume is not set to minimum or mute. Verify the correct source is selected. Try resetting the unit by unplugging it for 30 seconds.

Is the warranty transferable?

The standard Yamaha warranty is valid for the original purchaser only and is not transferable. However, some regions allow transfer within the warranty period. Contact your local Yamaha dealer for details.

How do I replace the remote control battery?

Slide the back cover of the remote control downwards. Replace the CR2025 lithium battery with a new one, ensuring the positive (+) side faces up. Slide the cover back on until it clicks.

USER MANUAL Restio ISX-B820 YAMAHA

1 To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
2 Install this unit in a well ventilated, cool, dry, clean place – away from direct sunlight, heat sources, vibration, dust, moisture and cold. For proper ventilation, allow the following minimum clearances.
Top: 15 cm (6 in)
Rear: 2.5 cm (1 in)
Sides: 10 cm (4 in)

3 Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.

4 Do not expose this unit to sudden temperature changes from cold to hot (or vice versa), and do not locate this unit in an environment with high humidity (i.e., a room with a humidifier) to prevent condensation inside this unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.

5 Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to liquid dripping or splashing. On the top of this unit, do not place:

• Other components, as they may cause damage and/or discoloration on the surface of this unit.
  – Burning objects (i.e., candles), as they may cause fire, damage to this unit, and/or personal injury.
• Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user and/or damage to this unit.

6 Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation. If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.

7 Do not plug in this unit to a wall outlet until all connections are complete.

8 Do not operate this unit upside-down. It may overheat, possibly causing damage.

9 Do not use force on switches, knobs and/or cords.

10 When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable.

11 Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

12 Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is dangerous and may cause fire, damage to this unit, and/or personal injury. Yamaha will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

13 To prevent damage by lightning, keep the power cable and outdoor antennas disconnected from a wall outlet or this unit during a lightning storm.

14 Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service is needed. The cabinet should never be opened for any reasons.

15 When not planning to use this unit for long periods of time (i.e., vacation), disconnect the AC power plug from the wall outlet.

16 Be sure to read the “TROUBLESHOOTING” section on common operating errors before concluding that this unit is faulty.

17 Before moving this unit, press ⏻ set the system to off, and disconnect the AC power plug from the wall outlet.

18 Condensation will form when the surrounding temperature changes suddenly. Disconnect the power cable from the outlet, then leave this unit alone.
19 When using this unit for a long time, this unit may become warm. Turn the system off, then leave this unit alone for cooling.
20 Install this unit near the wall outlet and where the AC power plug can be reached easily.
21 The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
- Keep the batteries in a location out of reach of children. Batteries can be dangerous if a child were to put in his or her mouth.
- If the batteries grow old, the effective operation range of the remote control decreases considerably. If this happens, replace the batteries with two new ones as soon as possible.
- Do not use old batteries together with new ones.
- Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.
- Exhausted batteries may leak. If the batteries have leaked, dispose of them immediately. Avoid touching the leaked material or letting it come into contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
- If you plan not to use the unit for a long period of time, remove the batteries from the unit. Otherwise, the batteries will wear out, possibly resulting in a leakage of battery liquid that may damage the unit.
- Do not throw away batteries with general house waste. Dispose of them correctly in accordance with your local regulations.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off by ⚠In this state, this unit is designed to consume a very small quantity of power.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

There is a chance that placing this unit too close to a CRT-based (Braun tube) TV set might impair picture color.

Should this happen, move this unit away from the TV set.

CONTENTS

NAMES OF PARTS AND THEIR FUNCTIONS....2

ADJUSTING THE CLOCK....5

LISTENING TO iPod....6

LISTENING TO CD AND USB DEVICES....7

LISTENING TO MUSIC

FROM YOUR Bluetooth COMPONENT ....10

LISTENING TO FM STATIONS....12

LISTENING TO EXTERNAL SOURCES ....13

USING THE ALARM FUNCTION ....14

USING THE SLEEP TIMER....17

TONE CONTROL....17

ADJUST BRIGHTNESS OF FRONT PANEL DISPLAY .....17

TROUBLESHOOTING....18

NOTES ON DISCS AND USB DEVICES....21

SPECIFICATIONS 22

Features

• Play back music on external devices such as iPod/iPhone models, audio/data CDs and USB devices, and tune in to the FM radio.
• By the Bluetooth technology, you can enjoy clear sound without wired connections.
• Use your favorite music or set of beeps as an alarm. The music you select is played at a volume of your own choice at the set alarm time, giving you the best possible start to the day (IntelliAlarm function) (P. 14).
• Store/call up to five of your favorite FM stations easily.
• The 3-band equalizer (bass, middle, treble) can be set so that music sounds exactly how you want it.
• Two types of clocks (with hour hands) that match the design of the unit can be shown.

◆ About this manual

• The phrase "iPod" used throughout this manual also includes the "iPhone".
• If both the unit and remote control buttons can be used to operate a feature, the manual will describe steps using the buttons on the unit.
• Note indicates precautions for use of the unit and its feature limitations.
  • indicates supplementary explanations for better use.

Supplied accessories

Power cable

Remote control

Batteries x 2 (AA, LR6, UM-3)

Dock cover

FM antenna

USB cap

Note

Keep the USB cap out of reach of children so as to ensure that it is not mistakenly swallowed.

Owner's Manual (this manual)

Assembly Guide

Bracket
Pole
Base
Support
Cable clamp
Screw set
Note

Use these items to assemble the stand. Read the separate Assembly Guide for information on how to assemble the stand.

How to use the remote control

Insert the batteries into the remote control in the correct direction (+ and -).

Point the remote control at the remote control signal receiver (on the front panel) and use within the range shown below.

NAMES OF PARTS AND THEIR FUNCTIONS

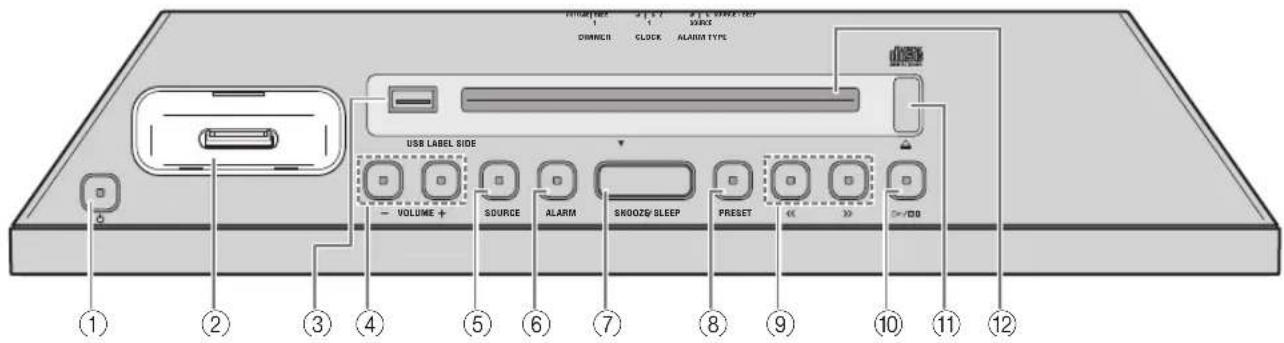

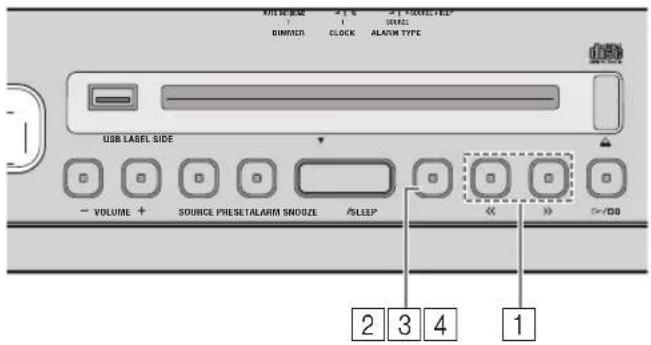

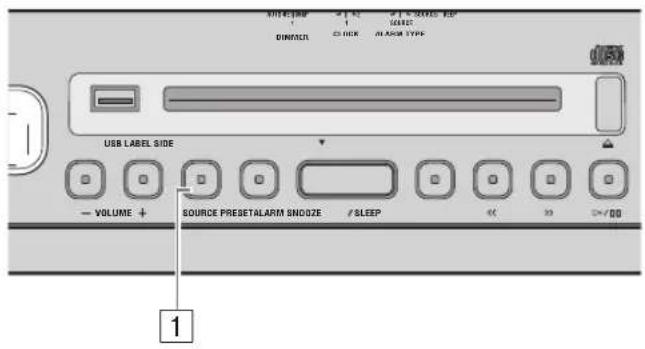

Top panel

① (Power)

Press to turn the system on/off. Time is displayed on the front panel even when the system is off.

图

- Press and hold ⬆ the top of the unit for more than 3 seconds to set the system to power save mode. No information on the front panel is displayed in power save mode. This can reduce power consumption. To cancel power save mode, press again.

- Even in system off/power save mode, the alarm function is available.

②iPod dock

Connect an iPod.

③USB port

Connect a USB device (P. 9).

④VOLUME - /+

Adjust the volume.

⑤SOURCE

Switch the source to be played.

⑥ALARM

Turns the alarm on/off, and allows various alarm settings to be adjusted (P. 15, 16).

⑦SNOOZE/SLEEP

Set the sleep timer or switch the alarm to snooze mode (P. 16, 17).

⑧PRESET

Store/call up FM stations, or switch the playback folder (when playing music on data CDs or USB devices).

⑨K<< >>

Skip the playback track/file, or tune the radio. Holding the button down while playing a track/file will search backward/forward the track/file.

⑩/

Play/pause the track being played.

⑪

Eject the CD.

⑫Disc slot

Insert a CD.

◆ Connecting an iPod to the iPod dock

#

• An iPod will be recharged while it is connected to the dock. The iPod will not be recharged when the unit is in power save mode.
• Be sure to use a dock adaptor that is compatible with your iPod. If you do not use the adaptor or the adaptor is not compatible, the connection could be loose or poor, which could cause damage to the connector. For details on dock adaptor information, please visit official Apple's website.
• If an iPod in protective case is connected by force, the connector may be damaged. Remove the protective case before connection.
• When the iPod is not in use, set the iPod dock cover to protect the connector.

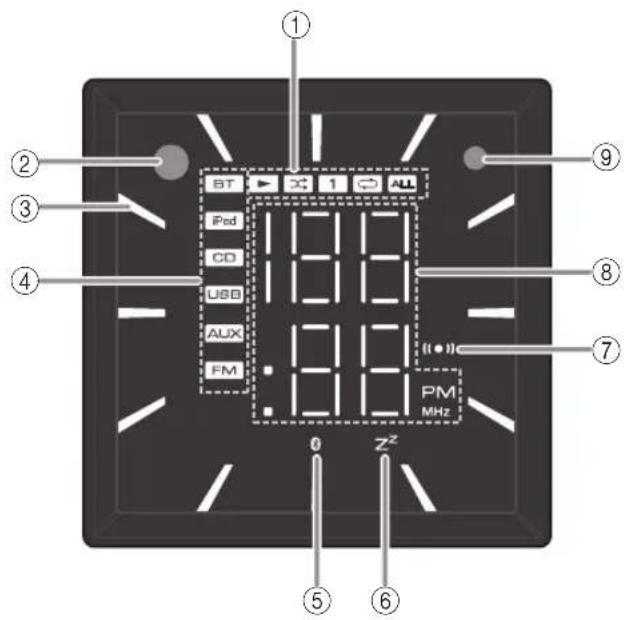

Front panel display

①Play/shuffle/repeat indicator Displays the playback mode (P. 6, 9).
② Remote control signal receiver
③Clock indicator Shows the clock hour hand (P. 5).
④Source indicator Shows selected source.
⑤Bluetooth indicator Turns on if this unit is connecting via Bluetooth (P. 10, 11).
⑥Sleep indicator Turns on if the sleep timer has been set (P. 17).
⑦Alarm indicator Turns on if the alarm has been set (P. 14).
⑧Multi-function indicator Displays various information, including the clock time, track number being played or FM station.
⑨Illumination sensor Detects ambient lighting. Do not cover this sensor.

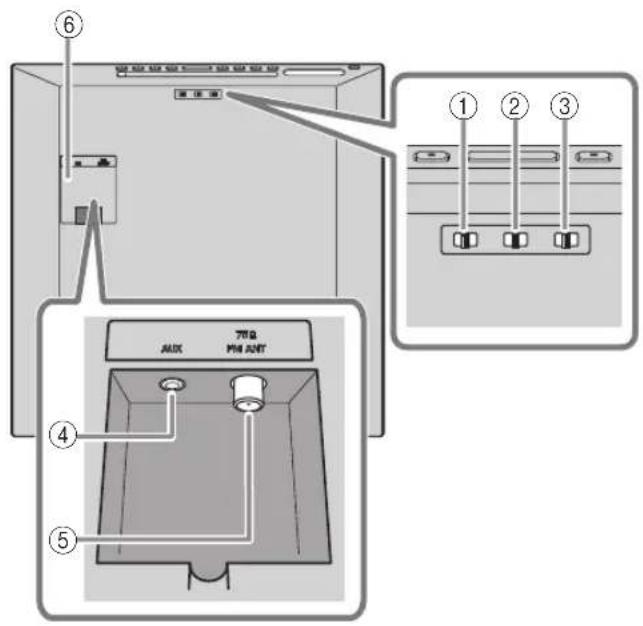

Rear panel

① ALARM TYPE Switches the alarm type (P. 15).

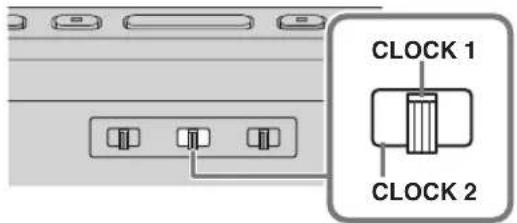

②CLOCK Switches the type of clock display or allows the time to be set (P. 5).
③DIMMER Adjusts the brightness of the front panel display (P. 17).

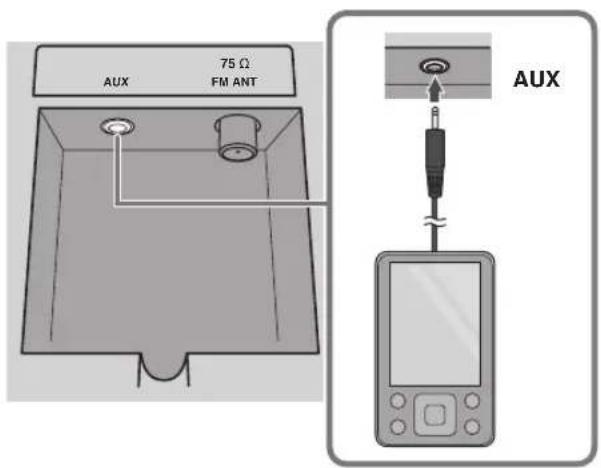

④AUX Connects an external device.
⑤FM antenna terminal Connects the supplied FM antenna or an outdoor antenna.

Notes

• The antenna should be stretched out. If radio reception is poor, change the height, direction, or placement of the antenna.
• If you use a commercially available outdoor antenna instead of the supplied FM antenna, reception may be better.

⑥Terminal cover

Remove the terminal cover before connecting external devices to AUX, and/or connecting the FM antenna to antenna terminal.

If you pass the outdoor antenna cable and/or external device cable through the pole of the stand, read the separate Assembly Guide.

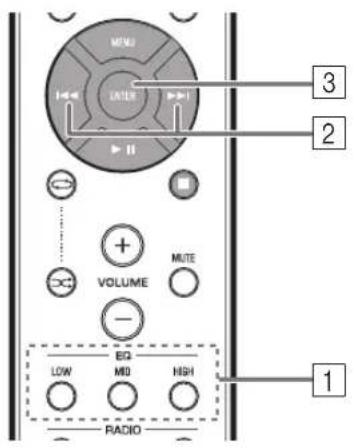

Remote control

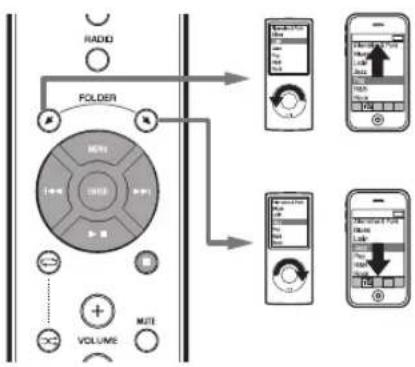

◆ iPod control buttons

①Remote control signal transmitter

② (Power)

Press to turn the system on/off.

③ALARM

Switches the alarm on/off.

④SNOOZE/SLEEP

Set the sleep timer or switch the alarm to snooze mode (P. 16, 17).

⑤Source button

Switch the source to be played.

⑥FOLDER

Switch the playback folder when playing music on data CDs or USB devices.

⑦

Skip the playback track/file.

Holding the button down while playing a track/file will search backward/forward the track/file.

⑧ ▶ II

Play/pause.

⑨

Stop playback.

⑩ (Repeat)/ (Shuffle)

Play music on an iPod, audio/data CD or USB device in repeat/shuffle (P. 6, 9).

⑪ EQ LOW/MID/HIGH

Adjust the bass, middle or treble sound quality (P. 17).

⑫PRESET ^/

Select a preset FM station.

⑬MEMORY

Store the FM station (P. 12).

⑭TUNING ≈/ ≈

Tune the radio.

⑮VOLUME + /-

Adjust the volume.

⑯MUTE

Mute/resume the sound.

ADJUSTING THE CLOCK

Setting the time

Top panel

1 Move the CLOCK switch on the rear panel to SET.

Rear panel

2 Set the time with << >>

3 Move the CLOCK switch on the rear panel to CLOCK1 or CLOCK2.

[Non-Text]

• Connecting an iPod to the iPod dock in step 2 will copy the time on the iPod to the unit. If the iPod is already connected to the iPod dock when CLOCK is set to SET, the time in the iPod will not be copied.
• Pressing SNOOZE/SLEEP in step 2 will switch between the 12 and 24 hour clock display.
• The "PM" indicator will be shown only when you select the 12 hour clock display.

Note

The time settings will be reset if the unit is not powered for more than one week.

Switching the clock type

Move the CLOCK switch on the rear panel to switch the clock type.

Rear panel

◆ Clock display mode 1 (CLOCK 1)

Eg: 10:50

◆ Clock display mode 2 (CLOCK 2)

Eg: 10:50

LISTENING TO iPod

Playing the iPod

For details on compatible iPod models, refer to "SPECIFICATIONS" (P. 22).

Top panel

Remote control

1 Connect an iPod to the iPod dock.
2 Press SOURCE and set iPod as the playback source.
3 Play the iPod by pressing ▷

Playback can be controlled with either the remote control, iPod or the top panel on this unit.

Button		Function
Top Panel	▷/□□	Play/Pause
	<</>>	SkipSearch backward/forward (press and hold down)
Remote control	▶II	Play/Pause
	|◀◀/▶▶|	SkipSearch backward/forward (press and hold down)
	FOLDER/MENU/ENTER	iPod menu control

[Non-Text]

• You can remove the iPod during playback.
• If the system is turned off, it will turn on automatically when music/video on the iPod is played.
• If iPod is selected as the playback source, the system will automatically turn off when 60 minutes have elapsed without a device being connected to the iPod dock nor any operation performed.

Repeat/shuffle playback

The playback mode can be checked with the play/shuffle/repeat indicator on the front panel display.

Remote control

Notes

• Repeat/shuffle may not operate correctly depending on the type of iPod used.
• The repeat/shuffle playback order may differ depending on the type of iPod used.

◆ Repeat playback

Press REPEAT on the remote control to select a playback mode from the following.

1: One

ALL: All

No display: Off

◆ Shuffle playback

Press SHUFFLE on the remote control to select a playback mode from the following.

: Songs

: A l b u m s

No display: Off

LISTENING TO CD AND USB DEVICES

The unit will operate as follows when playing back tracks/files on CD/USB devices.

• If the CD/USB device being played back is stopped, the track that was being played back will start playing from the beginning of the track the next time playback begins.
• If you press ■ on the remote control while playback is stopped, the next time playback begins, the unit will play tracks as follows:
• For audio CD : from the first track of the CD.

- For data CD/USB device: from the first track of the folder that contains the track that was played last.

- This system turns off automatically if no operation has been performed for 60 minutes after CD/USB device playback is stopped.

[Non-Text]

For details on playable discs and files, refer to "NOTES ON DISCS AND USB DEVICES" (P. 21).

Listening to an audio CD

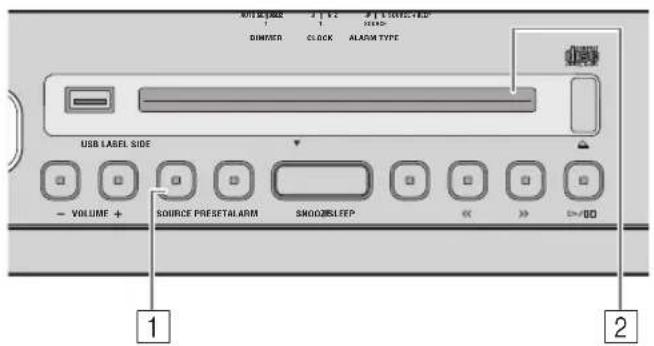

Top panel

1 Press SOURCE to set CD as the playback source.
2 Insert the audio CD into the Disc slot with the label side facing toward the front of the unit.

Playback starts automatically. The track number is shown for a while when starting playback or skipping tracks.

Use the following buttons to control the unit while playing back tracks on audio CDs.

Button		Function
Top Panel	▷/□□	Play/Pause
	<</>>	SkipSearch backward/forward (press and hold down)
	△	Eject the CD
Remote control	▶II	Play/Pause
	|◀◀/▶▶|	SkipSearch backward/forward (press and hold down)
	■	Stop

Note

CDs cannot be inserted or ejected when the system is in power save mode (P.2).

Listening to a data CD

Top panel

1 Press SOURCE to set CD as the playback source.
2 Insert the data CD into the Disc slot with the label side facing toward the front of the unit.

Playback starts automatically. The folder/file number is shown for a while when starting playback or skipping tracks.

Use the following buttons to control the unit while playing back tracks on data CDs.

Button Function
Top Panel	▷/□□	Play/Pause
	<</>>	SkipSearch backward/forward(press and hold down)
	PRESET Change the playback folder
	△	Eject the CD
Remote control	▶II	Play/Pause
	|◀◀/▶▶|	SkipSearch backward/forward(press and hold down)
	■	Stop
	FOLDER Change the playback folder

Listening to a USB device

Top panel

Note

When a USB device is connected, tracks are played back in the following order:

• Folder playback order: folders are played in alphabetical order of the first 3 characters of the folder name. Folder containing characters other than the alphabet are played after alphabet character folders.
• File playback order: files will be played back in order from files with the oldest wrote date.

1 Press SOURCE and set USB as the playback source.
2 Connect a USB device to the USB port.

Playback starts automatically. The folder/file number is shown for a while when starting playback or skipping tracks.

Use the following buttons to control the unit while playing back tracks on USB devices.

Button Function
Top Panel	▷/□□	Play/Pause
	<</>>	SkipSearch backward/forward (press and hold down)
	PRESET	Change the playback folder
Remote control	▶II	Play/Pause
	|◀◀/▶▶|	SkipSearch backward/forward (press and hold down)
	■	Stop
	FOLDER	Change the playback folder

Stop playback before removing the USB device.

Repeat/shuffle playback

The playback mode can be checked with the play/shuffle/repeat indicator on the front panel display.

Remote control

If the selected source contains folders, each folder will be played in repeat/shuffle mode.

◆ Repeat playback

Press REPEAT on the remote control to select a playback mode from the following.

All tracks within the folder (data CD/USB device only)

ALL: All tracks

: 1 track

No display: Repeat mode off

◆ Shuffle playback

Press SHUFFLE on the remote control to select a playback mode from the following.

All tracks within the folder (data CD/USB device only)

ALL : All tracks

No display: Shuffle mode off

LISTENING TO MUSIC FROM YOUR Bluetooth COMPONENT

This unit provides Bluetooth functionality. You can enjoy wireless music playback from your Bluetooth component (mobile phone, digital audio player, etc.). Please also refer to the owner's manual of your Bluetooth component.

Pairing this unit with your Bluetooth component

Pairing is an operation that registers the communicating component (subsequently called “the other component”) with this unit. You’ll need to perform the pairing operation the first time you use your Bluetooth component with this unit, or if the pairing settings have been deleted. Once pairing has been completed, subsequent reconnection will be easy even after the Bluetooth connection is disconnected. If pairing is not successful, refer to the item “Bluetooth” in “TROUBLESHOOTING” (P. 20).

• This unit can be paired with up to eight other components. When pairing with the ninth component has succeeded, pairing data for the component with the oldest connection date will be deleted.
• If this unit is connected via Bluetooth to another component, hold down SOURCE button on this unit or Bluetooth on the remote control to disconnect the Bluetooth connection before you perform the pairing operation.

◆ If using an iPod touch/iPhone/iPad

Top panel

1 Press the SOURCE button to switch the playback source to Bluetooth.
2 On your iPod touch/iPhone/iPad, turn [Settings] → [General] → Bluetooth on.
The Bluetooth connection list will appear in [Devices]. (This procedure or display may differ depending on the type of your iPod touch/iPhone/iPad.)
3 From the Bluetooth connection list of the other component, choose this unit (ISX-B820 Yamaha).
When pairing has been completed, your iPod touch/iPhone/iPad will indicate "Connected".
The Bluetooth indicator on the front panel display of this unit will light.

◆ If using other than an iPod touch/iPhone/iPad

Top panel

1 Press the SOURCE button to switch the playback source to Bluetooth.
2 Perform Bluetooth pairing on the other component.
For details refer to the owner's manual of the other component.
3 From the Bluetooth connection list of the other component, choose this unit (ISX-B820 Yamaha).
When pairing has been completed, the Bluetooth indicator on the front panel display of this unit will light for about 1 second.
If you are asked to enter a password, enter the numerals "0000".

Listening to a Bluetooth component

Top panel

1 Press the SOURCE button to switch the playback source to Bluetooth.
2 Connect this unit and your other component via Bluetooth.
3 Play back music from your Bluetooth component.

Note

Take care that the volume setting of this unit is not too high. We recommend that you adjust the volume on the other component.

[Symbol]

• If you connect via Bluetooth from your other component and play back music while this unit is turned off the system, this unit will automatically turn on the system.
• If you disconnect the Bluetooth connection from your other component while the playback source is set to Bluetooth, this unit will automatically turn off the system.
• If Bluetooth is selected as the playback source, this unit will automatically turn off the system when 60 minutes have elapsed without any Bluetooth connection nor any operation performed.

Connecting an already-paired component via Bluetooth

Once pairing has been completed, connecting a Bluetooth will be easy the next time.

◆ Connecting from this unit

Top panel

1 Press the SOURCE button to switch the playback source to Bluetooth.

The Bluetooth indicator will blink on the front panel display; this unit will search for the other component that was most recently connected via Bluetooth, and will then establish a connection (You must first turn on the Bluetooth setting of the other component).

When the Bluetooth connection has been established, the Bluetooth indicator will light.

Note

Yamaha does not guarantee all connections between this unit and Bluetooth component.

◆ Connecting from the other component

1 In the Bluetooth settings of the other component, turn Bluetooth on.
2 From the Bluetooth connection list of the other component, choose this unit (ISX-B820 Yamaha).

The Bluetooth connection will be established, and the Bluetooth indicator on the front panel display of this unit will light.

Note

Bluetooth connections cannot be established from the other component when this unit is in power save mode. Turn the system on.

Disconnecting a Bluetooth connection

If any of the following operations are performed while a Bluetooth connection is being used, the Bluetooth connection will be disconnected.

• Turn the system off.
• Turn off the Bluetooth setting of the other component.

- Hold down SOURCE button on this unit or Bluetooth on the remote control.

#

When you connect an iPod touch/iPhone/iPad via Bluetooth, the Bluetooth connection may be disconnected if you switch the playback source to iPod while another iPod is connected to the iPod dock.

LISTENING TO FM STATIONS

Selecting the FM station

Top panel

Note

If you tune to an FM station manually, the sound will be in monaural.

1 Press SOURCE and set FM as the playback source.

2 Press ✕ to tune the FM station.

Tuning type Operation
Top panel	Automatic tuning	Press and hold down<< or >>
	Manual tuning	Press << or >> repeatedly.
Remote control	Automatic tuning	Press and hold down TUNING ∧ or ≧.
	Manual tuning	Press TUNING ∧ or ≧ repeatedly.

Storing FM stations (preset)

Use the preset function to store your favorite 5 stations.

Top panel

1 Press une into your favorite FM station.
2 Press and hold down PRESET.

Using the remote control

Press and hold down MEMORY.

3 Press PRESET and select the preset number to store the FM station.

Using the remote control

Press PRESET ^/√.

4 Press and hold down PRESET to store the preset station.

This stores the FM station.

Using the remote control

Press MEMORY.

Selecting a preset FM station

Top panel

1 Press SOURCE and set FM as the playback source.
2 Press PRESET repeatedly to select the preset FM station.

Using the remote control

Press PRESET ^/√.

LISTENING TO EXTERNAL SOURCES

Top panel

Turn the system off before connecting audio cables. Remove the terminal cover before connecting external devices.

1 Connect external audio device to AUX on the rear panel using a commercially available 3.5 mm (1/8 in) stereo mini plug cable.

Note

Turn down the volume of the unit and your external audio device before connection.

2 Press ⏻ to turn the system on.
3 Press SOURCE and set AUX as the playback source.
4 Start playback on the connected external audio device.

USING THE ALARM FUNCTION

The unit includes an alarm function (IntelliAlarm) that plays back music sources or set of beeps at the set time in a variety of different methods. The alarm function has following features.

◆ 3 types of alarms

Select from 3 alarm types, combining music and beep sounds.

SOURCE + BEEP	The selected audio source and beep sound are played at the set time. This mode is recommended for the best possible start to the day.3 minutes before the set time: the source music begins to fade in and the volume gradually increases as the alarm time approaches.Alarm time: a beeping sound also begins playing.
SOURCE	The selected audio source is played at the set time. The volume fades in gradually and increases to the set volume.
BEEP Only beep sound is played back at the set time.

◆ Various music sources

The iPod, audio CD, data CD, USB device and radio can be selected. The following can also be selected depending on the audio source:

Source Playback method Function
iPod Resume		The unit resumes play from the last track you played.If you've created a playlist* with the name “ALARM Yamaha DTA” in advance, the playlist stored on the iPod can be played back repeatedly.When entering the playlist name, use single-byte spaces to separate words, and enter single-byte characters, taking care that uppercase/ lowercase letters are used correctly.
Audio CD	Selected track The selected track is played repeatedly.
	Resume The track you listened to last time is played back.
Data CD/USB	Folder The selected folder is played repeatedly.
	Resume The track you listened to last time is played back.
FM	Preset station The selected preset FM station is played.
	Resume The FM station you listened to last time is played back.

* For information on creating a playlist, refer to the instructions for your iPod or iTunes.

Snooze

The snooze function can be enabled to replay the alarm after 5 minutes.

Set the alarm time and alarm type

Top panel

Note

The alarm setting will be erased if the system is turned off without properly completing it.

1 Press and hold ALARM.

The alarm indicator (H) and set alarm time will flash

2 Press <</>> to set the alarm time.

Using the remote control

Press |◀◀/▶▶|.

3 Select the alarm type with the ALARM TYPE switch on the rear panel.

For details on alarm types, refer to P. 14.

4 (when alarm types other than BEEP are selected) Press SOURCE to select music source.

Sources other than AUX and Bluetooth can be selected.

Using the remote control

Press Source button to select music source.

Notes

• If iPod/CD/USB has been selected, connect/insert the audio source (iPod, audio/data CD, USB device) to the unit.
• If source cannot be played back at the time set for the alarm (eg. iPod is not connected), the beep sound is played back.

5 (when alarm types other than BEEP are selected)

Specify the track, folder or FM station to be played.

If iPod is set as the source:

No settings required.

If CD/USB/FM is selected as the source:

Press PRESET to select the track (audio CD), folder (data CD/USB devise) or FM station to be played.

Using the remote control

Press PRESET ^/√.

[Non-Text]

• When iPod is set as the source, the unit plays back the "ALARM Yamaha DTA" playlist at the set alarm time. If this playlist cannot be found within the iPod, the unit resumes play from the last track you played (resume).
• When CD/USB/FM is selected as the source and "0" is set, the playback resumes from the track/FM station you listened to last time (resume).

6 Set the alarm volume by pressing VOLUME -/+ .

7 Press ALARM to complete setting the alarm.

The alarm will be set, and the alarm indicator ( [1 1] ) light up.

Turning the alarm on/off

Top panel

1 Press ALARM.

When the alarm is on, the alarm indicator (1) is shown, and the alarm time is shown for a while. If you press ALARM again, the alarm indicator (2) and the alarm will turn off.

The alarm setting will be saved even if the alarm is turned off. If the alarm is turned on again by pressing ALARM, the alarm will sound with the previously alarm settings.

Operations while playing back alarm sound

At the set time, the alarm sound is played back. During playback, the following operations are available.

Top panel

1 (if you want to stop the alarm for a short time) Press SNOOZE/SLEEP.

SNOOZE will stop the alarm and resume again in 5 minutes.

• When SOURCE + BEEP is set, press SNOOZE/SLEEP once to stop the beep sound, and twice to stop the audio source. 5 minutes after the audio source is stopped, it will start fading in again and the beep sound will resume.
  • The alarm indicator will flash when the snooze function is activated.

2 (if you want to turn the alarm off) Press ALARM or

The alarm stops automatically after 60 minutes unless you stop the alarm.

USING THE SLEEP TIMER

You can set the time to turn off the system automatically.

Top panel

1 Press SNOOZE/SLEEP a number of times to set the time until the system turns off.

The sleep timer can be set to 30, 60, 90 and 120 minutes. When the time is set, the sleep indicator (z) shown on the front panel display.

#

If you press SNOOZE/SLEEP while the sleep timer is activated, the sleep timer setting will be canceled.

TONE CONTROL

Remote control

1 Press one of the LOW/MID/HIGH EQ buttons on the remote control while playing back.

Select the tone to be adjusted (LOW, MID, HIGH).

2 Press ◀◀◀/▶▶ to adjust the tone.

Each tone can be adjusted from -5 to +5.

3 Press ENTER to complete settings.

You can also press the EQ button that you pressed in Step 1 to complete the settings.

To change the tone of other frequency band, return to step 1 and press the EQ button to adjust the desired frequency.

ADJUST BRIGHTNESS OF FRONT PANEL DISPLAY

Rear panel

1 Adjust the brightness with the DIMMER switch on the rear panel.

AUTO: adjusts the brightness automatically to match the surroundings.

1: brighter.

2: darker.

Note

When AUTO is set, the brightness of the front panel display is adjusted automatically with the illumination sensor (P. 3). Ensure that the sensor is not covered.

TROUBLESHOOTING

If there is a problem with the unit, check the following list first. If you cannot resolve the problem with the suggested solutions or if the problem is not listed below, turn off and unplug the system, and consult the nearest authorized Yamaha dealer or service center.

General

Problem Cause Solution
Can’t turn on the unit.	The power cable is not connect firmly. Reconnect the power cable into the wall outlet and the unit firmly.
The speakers make no sound.	The volume may be set to the minimum level. Adjust the volume level.
	The source may be incorrect. Select the correct source.
Sound suddenly turns off.	The sleep (P. 17) may be set.	Turn on the system and play the source again.
Sound is cracked/distorted or there is abnormal noise.	Input source volume is excessive, or volume of this unit is excessive (especially Bass).	Adjust volume with VOLUME, or adjust Bass with EQ (P. 17).
The unit does not operate properly.	The unit may have received a strong electrical shock such as lightning or excessive static electricity, or power supply may have dropped.	Turn the system off, and disconnect the power cable. Wait about 30 seconds, reconnect the power cable, and turn the system on.
The system turns on but immediately shuts off.
A digital or high-frequency equipment produces noises.	The unit may be placed too close to the digital or high-frequency equipment.	Place the unit further away from the equipment.
The clock setting has been cleared.	The unit is left more than one week after you disconnect the power cable from the wall outlet.	Plug the power cable into the wall outlet firmly, and set the clock again (P. 5).
iPod does not play back at the alarm time even if SOURCE is set to iPod.	The iPod is not connect in the iPod dock firmly.	Remove an iPod from the unit, and then connect it in the iPod dock again (P. 2).
	ALARM TYPE switch is set to BEEP.	Set ALARM TYPE to SOURCE + BEEP or SOURCE (P. 15).
Clock flashes and the unit cannot be operated.	CLOCK switch on the rear panel is set to SET, and this unit is in clock setting mode.	Set CLOCK switch to CLOCK1 or CLOCK2 (P. 5).

iPod

Problem Cause Solution
No sound.	The iPod is not connect in the iPod dock firmly.	Remove an iPod from the unit, and then connect it in the iPod dock again (P. 2).
	The iPod software version has not been updated.	Download the latest iTunes version from the Apple website, and update the iPod software to the latest version.
The iPod does not charge up.	The iPod is not connect in the iPod dock firmly.	Remove an iPod from the unit, and then connect it in the iPod dock again (P. 2).
	The system is set to power save mode (P. 2).	Press cancel the power save mode.
The iPod indicator flashes twice, and repeated 3 times, after connecting the iPod.	The iPod being used is not supported by the unit.	Use a supported iPod (P. 22).

CD playback

Problem Cause Solution
Disc cannot be inserted.	The system is set to power save mode.	Press ⏻ to cancel the power save mode (RAS P. 2).
Some button operations do not work.	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (RAS P. 21).
Playback does not start immediately after pressing ▷/□□ .	The disc may be dirty. Wipe the disc clean.
	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (RAS P. 21).
	If the unit was moved from a cold to warm place, condensation may have formed on the disc reading lens.	Wait for an hour or two until the unit adjusts to the room temperature, and try again.
The CD indicator flashes twice, and repeated 3 times, and the disc is ejected.	The disc loaded into the unit may not be compatible.	Use a disc supported by the unit (RAS P. 21).
	The disc may be dirty. Wipe the disc clean.
	The disc does not contain playable files.	Use a disc contains playable files (RAS P. 21, 22).
	The disc is loaded back to front. Insert a disc facing the label side to near side.
“Err” is displayed in the front panel display after loading a disc.	An error occurs in the unit.	Eject the disc with △

USB device playback

Problem Cause Solution
MP3/WMA file on the USB device does not play.	The USB device is not recognized. Turn off the system	and reconnect the USB device to the unit.
		Connect an AC adapter if supplied with the device.
		If the solutions above do not resolve the problem, the USB device is not playable on the unit.
The USB indicator flashes twice, and repeated 3 times, after connecting a USB device.	An incompatible USB device is connected to the unit.	Turn off the system and reconnect the USB device to the unit. If it does not resolve the problem, the USB device is not playable on the unit.
	The USB device does not contain playable files. Use	a USB device contains playable files (P. 21, 22).
“Err” is displayed in the front panel display after connecting a USB device.	An incompatible USB device is connected to the unit.	Turn off the system and reconnect the USB device to the unit. If it does not resolve the problem, the USB device is not playable on the unit.
	An overcurrent is detected.

Bluetooth

Problem Cause Solution
Cannot make this unit paired with the other component.	The other component does not support A2DP. Perform pairing operations with a component which supports A2DP.
	A Bluetooth adaptor, etc. that you want to pair with this unit has a password other than “0000”.	Use a Bluetooth adaptor, etc. whose password is “0000”.
	This unit and the other component are too far apart.	Move the other component closer to this unit.
	There is a device (microwave oven, wireless LAN, etc.) outputs signals in the 2.4 GHz frequency band nearby.	Move this unit away from the device that is emitting radio-frequency signals.
Can’t establish a Bluetooth connection.	This unit is not registered on the other component’s Bluetooth connection list.	Perform pairing operations again (P. 10).
No sound is produced or the sound is interrupted during playback.	The Bluetooth connection of this unit with the other component is disconnected.	Perform Bluetooth connection operations again (P. 11).
	This unit and the other component are too far apart.	Move the other component closer to this unit.
	There is a device (microwave oven, wireless LAN, etc.) outputs signals in the 2.4 GHz frequency band nearby.	Move this unit away from the device that is emitting radio-frequency signals.
	The other component’s Bluetooth function is off.	Turn on the Bluetooth function of the other component.
	The other component is not set to send Bluetooth audio signals to this unit.	Check that the Bluetooth function of the other component is set properly.
	The pairing setting of the other component is not set to this unit.	Set the pairing setting of the other component to this unit.
	The other component’s volume is set to the minimum.	Increase the volume level.

FM radio reception

Problem Cause Solution
Too much noise.	The antenna may be connected improperly. Make sure the antenna is connected properly (P. 3) or use a commercially available outdoor antenna.
Too much noise during stereo broadcast.	The radio station you selected may be far from your area, or the radio wave reception is weak in your area.	Try manual tuning to improve the signal quality (P. 12) or use a commercially available outdoor antenna.
Even with an outdoor antenna, radio wave reception is weak. (Sound is distorted.)	Multipath reflection or other radio interferences may have occurred.	Change the height, direction, or placement of the antenna.

Remote control

Problem Cause Solution
The remote control does not work properly.	The remote control may be operated outside its operation range.	For information on the remote control operation range, refer to “How to use the remote control” (P. 1).
	The remote control signal receiver on the unit (P. 3) may be exposed to direct sunlight or lighting (inverted fluorescent lamps).	Change the lighting or orientation of the unit.
	The battery may be worn out. Replace the batteries with two new ones.
	There are obstacles between the remote control signal receiver on the unit and the remote control.	Remove the obstacles.

NOTES ON DISCS AND USB DEVICES

CD information

This unit is designed for use with audio CD, CD-R*, and CD-RW* with the logos followings.

* ISO 9660 format CD-R/RW

The image contains a graphical symbol (a sun with rays) and no textual content. Therefore, the correct OCR output is an empty string.

This unit can play back discs bearing any of the logo marks above. A disc logo mark is printed on the disc and the disc jacket.

Notes

• Do not load any other type of disc into this unit. Doing so may damage this unit.
• CD-R/RW cannot be played back unless finalized.
• Some discs cannot be played back depending on the disc characteristics or recording conditions.
• Do not use any non-standard shaped discs such as a heart-shaped disc.
• Do not use discs with many scratches on their surface.
• Do not load a cracked, warped, or glued disc.
• Do not use 8-cm discs.

Handling a disc

• Do not touch the surface of the disc. Hold a disc by its edge (and the center hole).
• Do not use a pencil or pointed marker to write on the disc.
• Do not put a tape, seal, glue, etc., on a disc.
• Do not use a protective cover to prevent scratches.
• Do not load more than one disc into this unit at one time. This can cause damage to both this unit and the discs.
• Do not insert any foreign objects into the disc slot.
• Do not expose a disc to direct sunlight, high temperature, high humidity, or a lot of dust.

- If a disc becomes dirty, wipe it with a clean, dry cloth from the center out to the edge. Do not use record cleaner or paint thinner.

• To avoid malfunction, do not use a commercially available lens cleaner.

Caution

Line drawing of hands holding a cloth over a circular object with an arrow indicating direction (no text or symbols)

USB device information

This unit supports USB mass storage class devices (e.g., flash memories or portable audio players) using FAT16 or FAT32 format.

Notes

• Some devices may not work properly even if they meet the requirements.
• Do not connect devices other than USB mass storage class devices (such as USB chargers or USB hubs), PCs, card readers, an external HDD, etc.
• Yamaha will not be held responsible for any damage to or data loss on the USB device occurring while the device is connected to this unit.
• Playability of and power supply to all kind of USB devices are not guaranteed.
• USB devices with encryption cannot be used.

About MP3 or WMA files

Notes

• The unit can play back:

File Bitrate (kbps)	Sampling frequency (kHz)
MP3 8 - 320** 16 - 48
WMA 16 - 320** 22.05 - 48

** Both constant and variable bitrates are supported.

- The maximum numbers of files/folders that can be played on the unit are as follows.

	Data CD USB
Maximum total number of file 512	9999
Maximum folder number 255 128
Maximum file number per folder 5	11 255

• Copyright-protected files cannot be played back.

SPECIFICATIONS

◆ PLAYER SECTION

iPod (Digital connection) [As of July, 2012]

• Compatible iPod models .... iPod touch (1st, 2nd, 3rd and 4th generations) iPod classic iPod nano (2nd, 3rd, 4th, 5th and 6th generations)
• Compatible iPhone models ....iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone An iPod may not be detected by the unit or some features may not be compatible, depending on the model or software version of the iPod.

CD

• Media ....CD, CD-R/RW
- Audio format ......Audio CD, MP3, WMA

Laser

• Type Semiconductor laser GaAs/GaAlAs
• Wave length 790 nm
• Output power.... 7 mW

USB

• Audio format ...... MP3, WMA
  AUX
• Input connector 3.5 mm (1/8 in) STEREO mini jack

Bluetooth SECTION

• Bluetooth version ....Ver. 2.1+EDR
  • Supported protocols ....A2DP, AVRCP
  • Supported codecs .... SBC, AAC
• Wireless output .... Bluetooth Class 2
  • Maximum communication distance .....10 m (without obstructions)

TUNER

- Tuning range FM 87.50 to 108.00 MHz

GENERAL

• Power supply......AC 230 V, 50 Hz
• Power consumption.... 20 W
- System off consumption 1.5 W
- Power save consumption....0.5 W or less
- Dimensions

Specifications are subject to change without notice.

LASER SAFETY

This unit employs a laser. Due to possible eye injury, only a qualified service person should remove the cover or attempt to service this device.

DANGER

This unit emits visible laser radiation when open. Avoid direct eye exposure to beam. When this unit is plugged into the wall outlet, do not look inside the unit through the disc slot and other openings.

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

iPod, iPhone

"Made for iPod" and "Made for iPhone" mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

iPad, iPhone, iPod, iPod touch, iPod classic, iPod nano and iTunes are trademarks of Apple Inc., registered in the U.S. and other countries.

Information for Users on Collection and Disposal of Old Equipment and Used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Bluetooth

• Bluetooth is a technology for wireless communication between devices within an area of about 10 meters (33 ft) employing the 2.4 GHz frequency band, a band which can be used without a license.
• Bluetooth is a registered trademark of the Bluetooth SIG and is used by Yamaha in accordance with a license agreement.

Handling Bluetooth communications

• The 2.4 GHz band used by Bluetooth compatible devices is a radio band shared by many types of equipment. While Bluetooth compatible devices use a technology minimizing the influence of other components using the same radio band, such influence may reduce the speed or distance of communications and in some cases interrupt communications.
• The speed of signal transfer and the distance at which communication is possible differs according to the distance between the communicating devices, the presence of obstacles, radio wave conditions and the type of equipment.
• Yamaha does not guarantee all wireless connections between this unit and devices compatible with Bluetooth function.

If there should be color blotching or noise when used near a TV, move this unit away from the TV when using it.

Do not use this unit within 22 cm (9 inches) of persons with a heart pacemaker implant or defibrillator implant.

Radio waves may affect electro-medical devices. Do not use this unit near medical devices or inside medical facilities.

The user shall not reverse engineer, decompile, alter, translate or disassemble the software used in this unit, whether in part or in whole. For corporate users, employees of the corporation itself as well as its business partners shall observe the contractual bans stipulated within this clause. If the stipulations of this clause and this contract cannot be observed, the user shall immediately discontinue using the software.

We, Yamaha Music Europe GmbH hereby declare that this unit is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Yamaha Music Europe GmbH

Siemensstr. 22-34 25462 Rellingen, Germany Tel: [phone]

CE

ATTENTION : VEUILLEZ LIRE CE QUI SUIT AVANT D'UTILISER L'APPAREIL.

Piles x 2 (type AA, LR6, UM-3)

NOM ET FONCTIONS DES ÉLÉMENTS

Panneau supérieur

① (Alimentation)

Mémorise la station FM (P. 12).

⑭TUNING ≈/ ≈

Télécommande

