Product type	Electric deep fryer
Brand	Zanussi
Model	ZER325X
Capacity	2.5 liters (about 1 kg of fries)
Power	1800 W
Power supply voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	38 x 22 x 28 cm
Net weight	3.5 kg
Tank material	Non-stick stainless steel
Handle	Cool-touch
Adjustable thermostat	Yes, from 150°C to 190°C
Heating indicator light	Yes
Safety	Automatic shut-off, overheat protection
Odor filter	Removable and washable
Removable tank	Yes, for easy cleaning
Dishwasher-safe removable parts	Tank, basket, filter
Repairability index	7.8/10
Included accessories	Metal basket, removable lid
Cable length	1.2 m
Warranty	2 years

Frequently Asked Questions - ZER325X ZANUSSI

What is the capacity of the Zanussi ZER325X deep fryer?

The ZER325X deep fryer has a capacity of 2.5 liters, i.e. about 1 kg of fries.Use a suitable amount of oil not to exceed the max line.

How to adjust the temperature on this model?

Turn the thermostat knob to set the temperature from 150°C to 190°C. The indicator light turns off when the temperature is reached.

What types of oil to use?

Use a frying oil stable at high temperature, like peanut, sunflower or rapeseed oil. Avoid extra virgin olive oil which burns easily.

Is the basket removable and dishwasher safe?

Yes, the metal basket is removable and dishwasher safe. Let it dry completely before reuse.

How to clean the tank?

Unplug the appliance and wait for it to cool. Remove the tank and wash it with hot soapy water or in the dishwasher. Do not use abrasives to preserve the non-stick coating.

Why does the indicator light turn on and off during cooking?

This is normal: the light indicates that the heating element maintains the temperature. It turns on when the element heats and turns off when the temperature is reached.

What to do if the deep fryer smokes abnormally?

Stop the appliance and drain the used oil. Oil that is too old or a temperature that is too high can cause smoke. Change the oil after 8 to 10 uses.

Can I use the deep fryer without oil?

No, this model is designed for traditional frying with oil. Do not fill the tank with water or other liquids to avoid any electrical risk.

Where can I buy spare parts?

Contact Zanussi after-sales service or visit the website notice-facile.com for compatible spare part references.

How to use the child safety?

The appliance does not have a child lock. Always supervise the deep fryer during use and place it out of reach of children.

USER MANUAL ZER325X ZANUSSI

INBOUWFRITEUSE MET KOUDE ZONE, MET BEDIENINGSTHERMOSTAAT EN VEILIGHEIDSTHERMOSTAAT

EINBAUFRITEUSE "MIT KÄLTEZONE", BEDIENTHERMOSTAT UND SICHERHEITSTHERMOSTAT

FITTED ELECTRIC FRYER WITH A COLD ZONE WITH THERMOSTATIC CONTROL AND SAFETY THERMOSTAT

FRIGGITRICE DA INCASSO A ZONA FREDDA CON TERMOSTATO DI COMANDO E TERMOSTATO DI SICUREZZA

Simple line drawing of a human hand with five fingers (no text or symbols)

A LIRE ATTENTIVEMENT AVANT UTILISATION

Pure electrical circuit lines without any symbols

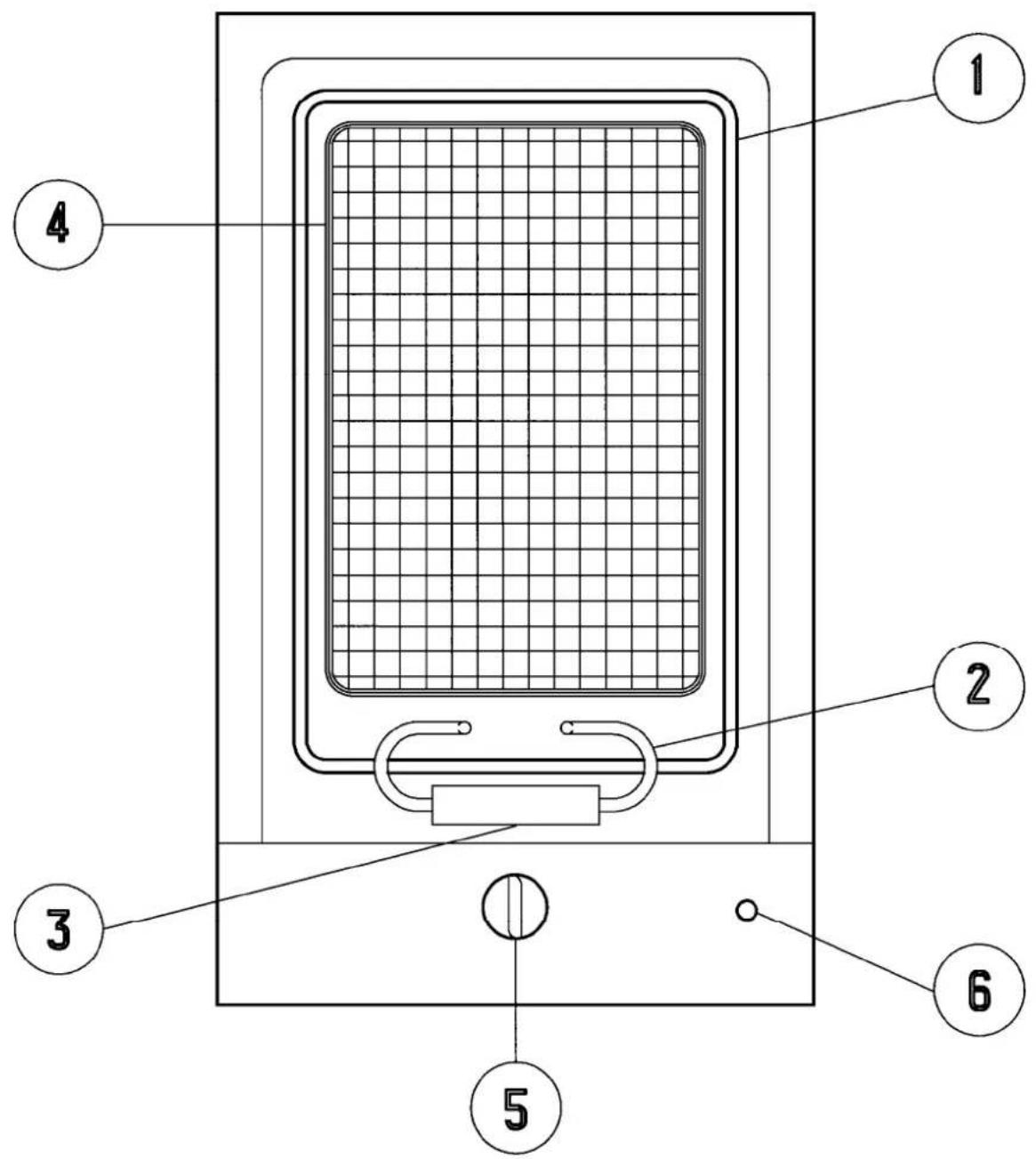

FIG. 1

1. cuve à huile - de kuip met olie - Ölbehälter - the oil bowl - vasca dell'olio
2. résistance de chauffe - weerstand – Heizwiderstand - heating element – resistenza di riscaldamento
3. charnière - scharnier - Scharnier - hinge - cerniera
4. panier - mand - Korb - basket - cestello
5. sélecteur de température - temperatuurkeuzeschakelaar - Temperaturwahlschalter - thermostat - selettore temperatura
6. lampe de mise en chauffe - verwarminslampje - Aufheizanzeige - heater control light - lampada di riscaldamento

FIG.3

Pure technical line drawing of a mechanical assembly or structural detail without any text, numbers, or symbols

FRANÇAIS

beignets, vis 170° * *

kippeboutof -vleugels 160° * *

You have just purchased an electric fryer "with a cold zone". Since the temperature under the heating element does not exceed 80^irc in normal use, frying waste falls into the cold zone and does not flow back into the frying bowl when it is used later on.

PUTTING INTO SERVICE

The fitted top is fixed into the work surface. The protective blue plastic must next be carefully removed. It is then ready to receive in order:

1. the oil bowl;
2. the heating element which you swivel downwards on its hinge to position it in the bowl (Fig. 2);
3. the basket.

This electric fryer absorbs 2,200 watts. It is therefore absolutely necessary for your electric wiring system to be able to supply that power without danger.

10-amp fuses are necessary.

The fryer must be compulsorily connected to an earth.

A two-pole, cutting-off device must be provided of which the contact opening is greater than 3 mm.

The plug must be accessible after installation.

If the supply lead is damaged, it must be replaced by an equivalent lead (H05RNF 3x1mm ⁴ ) available from the after-sales department.

It is imperative to raise the glass cover when the electricity supply to the apparatus is on, in order to avoid an oven effect.

Please do not put hot pans on the cover.

Please let the apparatus to become cold before closing.

This cover is only a decorative element.

IT IS ABSOLUTELY IMPERATIVE THAT A SPACE OF AT LEAST 5 CM BE LEFT BETWEEN THE BOTTOM OF THE FRYER AND THE FIRST SHELF OF THE CUPBOARD.

The symbol ■ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

IMPORTANT RECOMMENDATIONS

The element of such an electric fryer with a cold zone cannot operate in the open air: it must always be dipped in oil or fat. Consequently, blocks of fat must never be melted directly onto the element. CAUTION: IF YOU USE A SOLID VEGETABLE OR ANIMAL FAT, IT IS ABSOLUTELY NECESSARY TO EMPTY IT INTO THE FRYING BOWL MELTED BEFOREHAND. You thus avoid burning out the element.

1. The level to which the bowl is filled must be between the minimum and maximum marks engraved on the vertical side wall of the bowl for an optimal result. You can fill till the maximum mark.
2. If you use deep-frozen foods or foods containing a lot of humidity, keep a close eye on your fryer. When it comes into contact with water, oil boils heavily and sometimes risks spilling over.
3. If you use fat and not oil in your fryer, it is advisable (using a knife or a fork) to make holes in the fat before starting the fryer. That will avoid splashing if air bubbles are caught inside. Do it delicately so as not to strike the probes placed on the heating element

The safety thermostat is a 2nd temperature measurement. Should any problems arise, it automatically cuts off the electric supply to the fryer. It can be automatically restarted by hand under the housing by pushing the small red button (Fig. 3).

SOME HINTS

The ideal frying temperature is between 150^irc C and 180^irc C. Above those temperatures, oil quickly deteriorates.

If you use too low a temperature, food is not sealed on the surface and becomes impregnated with grease.

It goes without saying that the thicker the pieces to be cooked are, the longer they must stay in the frying bath. It is therefore advisable to choose a cooking temperature which allows food to be cooked in depth without burning it on the outside.

The temperature you have chosen is reached when the heater control light goes out.

Some indicative temperatures:

Optimum

Maximum

quantities

quantities

French fried potatoes (blanching) 150° 500 gr 750 gr

French fried potatoes (frying) 180° 500 gr 750 gr

croquettes, cheese fondue 180° 250 gr 350 gr

rissoles, fish 170° * *

chicken legs, wings

160° * *

* These values depend essentially on volume. Please ensure that food is full immersed in the frying bath.

MAINTENANCE

Prior to any maintenance, disconnect the appliance and let it cool.

The electric fryer can be completely taken to pieces (work in reverse order to the fitting instructions). Part maintenance can be quickly carried out.

The fitted top: clean it with products intended for stainless steel. If you want it to stay beautiful, avoid abrasive pads and detergents.

The bowl and the basket are cleaned like regular dishes. Do not hesitate to put them in your dishwasher.

The electric element and housing: clean them with a damp cloth.

The glass cover: clean it regularly with a damp cloth on which you may spray a little of a product intended for glass-cleaning. Do not spray cleaning products directly onto the cover above the oil bath.
