SE122 - Heart Rate Monitor OREGON SCIENTIFIC - Free user manual and instructions

Product Type	Heart Rate Monitor
Brand	Oregon Scientific
Model	SE122
Display Type	LCD Digital
Dimensions (approx.)	6.5 x 7.0 x 2.0 cm (receiver)
Weight (approx.)	50 g (receiver with battery)
Power Source	1 x CR2032 battery (receiver); 2 x LR41 or similar (chest strap)
Heart Rate Range	30 to 240 bpm
Accuracy	±1% or ±1 bpm
Wireless Transmission	5.3 kHz / 5.4 kHz coded transmission
Range (transmitter to receiver)	Up to 80 cm
Functions	Current heart rate, average heart rate, maximum heart rate, alarm zone, stopwatch, time
User Profiles	1 user
Water Resistance	Splash resistant (receiver); water resistant (chest strap)
Care & Cleaning	Wipe with dry cloth; remove batteries if not in use for long periods
Safety Warnings	Not for medical use; consult physician before starting exercise; keep away from children
Spare Parts / Repairability	Chest strap and battery replacements available; no user-serviceable parts
General Information	Includes wrist receiver and chest strap transmitter; manual included in PDF

Frequently Asked Questions - SE122 OREGON SCIENTIFIC

How do I set the time on my Oregon Scientific SE122 heart rate monitor?

Press and hold the MODE button for 3 seconds until the hour digits flash. Use the SET button to adjust, then press MODE to confirm and move to minutes.

Why is my heart rate monitor not detecting my heart rate?

Ensure the chest strap is worn snugly below the chest muscles and the electrodes are moist. Replace the chest strap battery if the signal is weak.

How do I replace the battery in the chest strap?

Open the battery compartment on the back of the chest strap using a coin. Replace with two LR41 or AG3 batteries, observing polarity.

Can I use the SE122 while swimming?

The wrist receiver is splash resistant but not suitable for swimming. The chest strap is water resistant but avoid prolonged submersion.

What is the heart rate alarm zone and how do I set it?

The alarm zone alerts you when your heart rate exceeds a preset limit. Press SET repeatedly until ZONE appears, then use MODE to adjust the upper limit.

How do I reset the stopwatch?

Press MODE until CHRONO appears. Press START/STOP to start/stop, and press SET to reset to zero.

Does the SE122 store workout data?

No, the SE122 displays real-time data only (current, average, and max heart rate) during an exercise session. It does not have memory storage.

What is the transmission range between chest strap and wrist receiver?

The wireless range is approximately 80 centimeters. Keep the wrist receiver close to the chest strap for reliable signal.

How do I clean the chest strap?

Remove the battery. Wash the strap by hand in mild soapy water, rinse, and air dry. Do not use bleach or machine wash.

What kind of battery does the wrist receiver use?

The wrist receiver uses one CR2032 3V lithium coin battery. Remove the old battery and insert a new one with the positive side facing up.

USER MANUAL SE122 OREGON SCIENTIFIC

Receiver / wrist watch control buttons .... 3

The transmitter 4

The receiver 4

Effective range 5

Use in the water 5

Operation 5

The backlight 5

Activating keypad lock 5

Operating modes 5

HR / kcal mode 6

Heart rate limits 6

Time and date ....7

Stopwatch 8

User data 8

Additional information 8

否

Battery 8

Energy saving feature 9

Specifications 9

Precautions 9

About Oregon Scientific ....10

EU-Declaration of Conformity 10

1

西

INTRODUCTION

Thank you for selecting the Oregon Scientific "Heart Rate Monitor (SE122). The SE122 is a very useful sports & fitness product that can help you achieve and maintain your optimum exercise zone by monitoring your heart rate while exercising. The SE122 bundles a heart rate transmitter and receiver watch complete with real-time clock, stopwatch, and backlight functions.

KNOW YOUR DATA

To help achieve the maximum health benefits from your workout program, it is important to know your:

• Maximum heart rate (MHR) training zone
• Upper heart rate limit
• Lower heart rate limit

MHR is expressed in beats per minute. You can get your MHR from a MHR test, or you can estimate it using the following formula:

220 - age = MHR

There are several training zones that are relevant to a fitness program. The most popular zone range is from 50% to 80% of your maximum heart rate. This is where you achieve cardiovascular benefits, burn fat, and become fitter. When programming your watch, the lower % of the zone you choose becomes your lower heart rate limit and the higher % becomes the upper heart rate limit.

50%	Moderate Activity
60%	Weight Management
70%	Aerobic Zone
80%	Anaerobic Threshold Zone
90%	Red Line Zone ( maximum capacity )
100%

The upper and lower heart rate limits are calculated by multiplying your MHR by the percentages of the selected training zone.

For example:

A 40-year-old user training for basic health maintenance:

• His Upper Heart Rate Limit [220 - 40(age)] x 78%
• His Lower Heart Rate Limit [220 - 40(age)] x 65%

TRAINING ZONES

Always warm up before exercising and select the training zone that best suits your physique. Exercise regularly, 20 to 30 minutes per session, three to four times a week for a healthier cardiovascular system.

There are three training zones, as described below:

TRAINING ZONE	MHR% DESCRIPTION
Health Maintenance	65-78%	This is the lowest training intensity level. It is good for beginners and those who want to strengthen their cardiovascular systems.
Aerobic Exercise	65-85%	Increases strength and endurance. It works within the body's oxygen intake capability, burns more calories and can be maintained for a long period of time.
Anaerobic Exercise	78-90%	Generates speed and power. It works at or above the body's oxygen intake capability, builds muscle, and cannot be maintained for a long period of time.

WARNING Determining your individual training zone is a critical step in the process towards an efficient and safe training program. Please consult your doctor or

而

health professional to help you determine your maximum heart rate, upper and lower limits, exercise frequency and duration appropriate for your age, condition and specific goals.

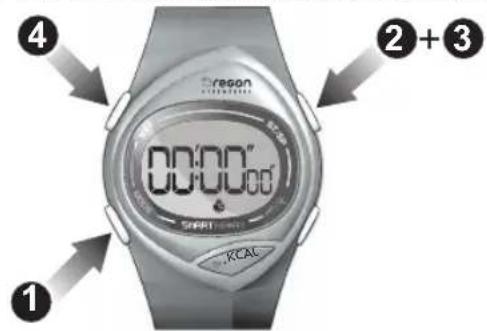

RECEIVER / WRIST WATCH CONTROL BUTTONS

1. SET : Change values in settings mode; turns the alarm ON/OFF in Alarm mode; reset stopwatch
2. PM2 hour clock
3. Weight unit
4. Displays stopwatch / alarm / clock / heart rate / weight

西

and mode banners

1. Indicates battery power is low
2. : indicates alarm in On
3. MODE: Toggle between modes; enter settings mode
4. ST/SP: Start / stop stopwatch
5. Calorie unit
6. Indicates a heart rate reading is detected
7. ▼▲: Upper / Lower heart rate limits reached
8. ● indicates keypad is locked
9. 📁 Indicates stopwatch is running
10. Activate backlight; lock / unlock keypad
11. ♥-KCAL : Display heart rate; activate high/low heart rate alert

THE TRANSMITTER

The transmitter is used to count your heartbeat and transmit the data to the receiver. To put it on:

1. Wet the conductive pads on the underside of the transmitter with water or a conductive gel to help establish a solid contact.

1. Strap the transmitter across the chest. Adjust the strap until the transmitter sits snugly below the pectoral muscles for an accurate heart rate signal.

Side profile illustration of a human torso with a bandage (no text or symbols)

HINTS

• The position of the transmitter affects its performance. Move the transmitter along the strap for the best transmission. Avoid areas with dense chest hair.
• In dry, cold climates, it takes the transmitter a while to function steadily. This is normal, as the conductive pads need a film of sweat to improve contact with the skin.

NOTE To maintain the best performance of your chest belt, please handle it with care according to the following:

• Do not wrap the chest belt in a wet towel nor with other wet materials.
• Do not store the chest belt in a hot (about 50°C) and humid (about 90%) environment.
• Do not place or wash the chest belt under running water, instead clean it with a wet cloth.
• Do not place the conductive rubber face down on a metal table or surface.
  • Properly dry the chest belt immediately after use.

THE RECEIVER

The receiver comes in the format of a wristwatch.

Line drawing of a wristwatch with hand gesture (no text or symbols)

EFFECTIVE RANGE

The transmitter and receiver will start transmitting and receiving signals after the batteries are in place. When the battery is full, both units can be worn or mounted up to 76 cm (30 inches) apart.

If signals become unsteady:

• Shorten the distance between the transmitter and receiver.
  • Re-adjust the position of the transmitter.
• Check the batteries. Replace them when necessary.

USE IN THE WATER

The SE122 wristwatch is water-resistant up to 50 meters (164 feet).

	RAIN SPLASHES ETC	SHOWERING (WARM/ COOL WATER ONLY)	LIGHT SWIMMING / SHALLOW WATER	SHALLOW DIVING/ SURFING/ WATER SPORTS	SNORKELING / DEEP WATER DIVING
50M / 164 FEET OK	OK OK OK NO

NOTE Set the unit before exposing it to excessive water. Pressing the keys while in the water or during heavy rainstorms may cause water to enter the unit.

OPERATION

THE BACKLIGHT

Press 📁 to turn backlight ON for 5 seconds.

Press and hold 📋 for 2 seconds. 🙏 indicates keypad is locked.

百

OPERATING MODES

Press MODE to switch between:

• Time mode
• Alarm mode
• Chrono (Stopwatch) mode

HR / KCAL MODE

HEART RATE MEASUREMENT

Press ♥ KCAL to enter HR Measurement mode. Press MODE to return to previous mode.

NOTE When no signals are received or the measurement is out of range for five minutes, the receiver will automatically return to the previous operating mode.

HEART RATE LIMITS

The heart rate limits help you determine if you are exercising within your training zone.

• If you go above your limits
will flash will flash
• If you go below your limits

To set the heart rate limits:

1. Press ♥ / KCAL to navigate to HR Measurement mode.
2. Press and hold MODE until appears.
3. Press SET to choose the lower limit, then press MODE to confirm.
4. Press SET to choose the upper limit, then press MODE to confirm.

NOTE The upper limit must exceed the lower limit. The transmitter will adjust the ranges automatically according to the data entered. You can also activate the heart rate limit alert function, so the transmitter will emit a beeping sound when the limits are exceeded.

6

To activate the heart rate limits alarm:

1. Press ♥ / KCAL to Navigate to HR Measurement Mode.
2. Press and hold ♥ KCAL.

ICON HIGH / LOW ALARM

	On
No Icon Off

TIME AND DATE

To set the time and date:

1. Press MODE to navigate to Time mode.
2. Press and hold MODE to enter settings.
3. Press SET to increase / change values of the setting.
4. Press MODE to confirm.

The setting sequence is as follows: 12 / 24-hour time; hour; minute; day-month / month-day; month; day; day of the week.

TIP Press and hold SET to rapidly scroll through value settings.

To display the date:

而

Press SET in Time mode.

NOTE If no key is pressed for ten seconds, the display will return to Time mode.

To set the alarm:

1. Press MODE to navigate to Alarm mode.

1. Press and hold MODE to enter settings.
2. Press SET to increase / change values of the setting.
3. Press MODE to confirm.

The setting sequence is as follows: hour; minute.

To activate or deactivate the alarm:

1. Press MODE to navigate to Alarm mode.
2. Press SET to turn the alarm on or off. A will indicate that the alarm has been activated.

百

NOTE When the alarm clock is activated, it will sound at the set time every day. Press any button to stop the alarm for that day. The alarm clock is still active and will set off again the following day.

STOPWATCH

To use the stopwatch:

1. Press MODE to Navigate to Chrono (stopwatch) mode.

1. Press ST/SP to start the stopwatch.
2. Press ST/SP to stop the stopwatch.
3. Press and hold SET to reset.

NOTE Unless you stop the stopwatch, "will blink in all modes to remind you that the stopwatch is still timing.

USER DATA

To access the full benefits of this product, set up your user data

8

before you exercise. This will automatically enable the watch to calculate the level of calories burned when exercising. This information helps you track your progress over time.

To set user data:

1. Press ♥ / KCAL to navigate to HR measurement mode.
2. Press and hold to MODE to enter User Data mode.
3. Press SET to change values of the setting.
4. Press MODE to confirm.

The setting sequence is as follows: set Lower limit; set Upper limit; set Age; set Weight unit; set Weight.

NOTE You must enter your user data to enable the calorie count function.

To view the amount of calories burnt:

• Press /CAL to navigate to HR mode.
• Press /CAL to view calories burnt.

NOTE The calorie display will only appear for approximately 3 seconds.

ADDITIONAL INFORMATION

BATTERY

The SE122 uses a CR2032 lithium battery for the transmitter and a CR2032 for the receiver. Both are included with the unit. When the receiver battery is running low, the low battery indicator will light up on the watch display.

If the heart rate readings become erratic or stop, your transmitter battery may need replacing.

To change the battery:

1. Open the transmitter battery lid with a coin by turning it counterclockwise.
2. Insert a new CR2032, 3V lithium battery.
3. Replace the battery compartment door.

Close-up of a metallic object with a circular recess, possibly a lens or dial (no visible text or symbols)

Close-up of a metallic mechanical component with a circular hole and two circular features (no text or symbols visible)

NOTE Take care not to touch the two contacts otherwise the battery can discharge. If you are unsure about the procedure consult your dealer.

ENERGY SAVING FEATURE

If the watch receives no transmitter signal after 5 minutes, the SE122 will switch back to the previous display mode.

SPECIFICATIONS

Real time clock	12/24 hour with hour / minute / second
Stopwatch	00:00:00 to 29:59:59 (hrs: min: sec)

而

Heart rate 30 - 240 bpm
Upper limit 80 - 240 bpm
Lower limit 30 - 220 bpm
Calorie range 0 - 9999 kcal
Power	Watch 1 x CR2032 3V batteryChest belt 1 x CR2032 3V battery
Operating temp -10°C to +50°C (14°F to 122°F)
Storage temp -20°C to +60°C (-4°F to 140°F)
Water resistant	Up to 50 meters (164 feet)without pressing keys

PRECAUTIONS

• Do not subject the unit to excessive force, shock, dust, temperature or humidity.
• Do not cover the ventilation holes with any items such as newspapers, curtains etc.
• Do not immerse the unit in water. If you spill liquid over it, dry it immediately with a soft, lint-free cloth.
• Do not clean the unit with abrasive or corrosive materials.
• Do not tamper with the unit's internal components. This invalidates the warranty.
• Only use fresh batteries. Do not mix new and old batteries.
• Images shown in this manual may differ from the actual display.

否

• When disposing of this product, ensure it is collected separately for special treatment and not as normal household waste.
• Placement of this product on certain types of wood may result in damage to its finish for which Oregon Scientific will not be responsible. Consult the furniture manufacturer's care instructions for information.
• The contents of this manual may not be reproduced without the permission of the manufacturer.
• Do not dispose old batteries as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
• Please note that some units are equipped with a battery safety strip. Remove the strip from the battery compartment before first use.

NOTE The technical specifications for this product and the contents of the user manual are subject to change without notice.

NOTE Features and accessories will not be available in all countries. For more information, please contact your local retailer.

ABOUT OREGON SCIENTIFIC

Visit our website (www.oregonscientific.com) to learn more about Oregon Scientific products.

If you're in the US and would like to contact our Customer Care department directly, please visit:

www2.oregonscientific.com/service/support.asp

For international inquiries, please visit:

www2.oregonscientific.com/about/international.asp.

EU-DECLARATION OF CONFORMITY

Hereby, Oregon Scientific, declares that this Heart Rate Monitor (model: SE122) is in compliance with EMC directive 2004/108/EC. A copy of the signed and dated Declaration of Conformity is available on request via our Oregon Scientific Customer Service.
