USER MANUAL CAM110 PHILIPS

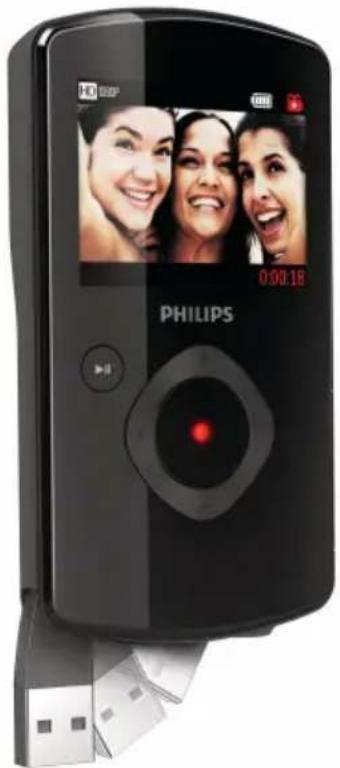

Black Philips VR camera with a red LED display showing three smiling people, attached to a USB port (no text or symbols on device body)

EN User manual

Contents

1 Important 4

Safety 4

Notice 4

2 Your camcorder 5

Introduction 5

What's in the box 5

Functional overview 6

3 Get started 7

Load the Micro SD card 7

Turn on 7

First-time setup 8

Charge the built-in battery 8

4 Use your camcorder 9

Record video 9

Take pictures 9

Play 10

Options during video play 11

Adjust settings 11

5 Use more of your camcorder 12

View video or pictures on TV 12

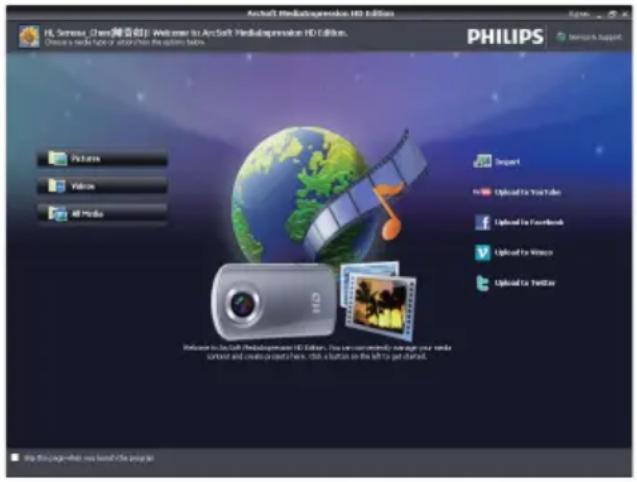

Install and use the camcorder software 12

6 Technical specifications 13

7 Frequently asked questions (FAQ) 14

1 Important

Safety

① Read these instructions.
② Keep these instructions.
③ Heed all warnings.
④ Follow all instructions.
⑤ Do not use this apparatus near water.
⑥ Clean only with dry cloth.
⑦ Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
⑧ Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
⑨ Only use attachments/accessories specified by the manufacturer.
⑩ Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
⑪ Apparatus shall not be exposed to dripping or splashing.
⑫ Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Notice

CE

This product complies with the radio interference requirements of the European Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Note

The safety logo and power rating information are located at the USB arm of the camcorder.

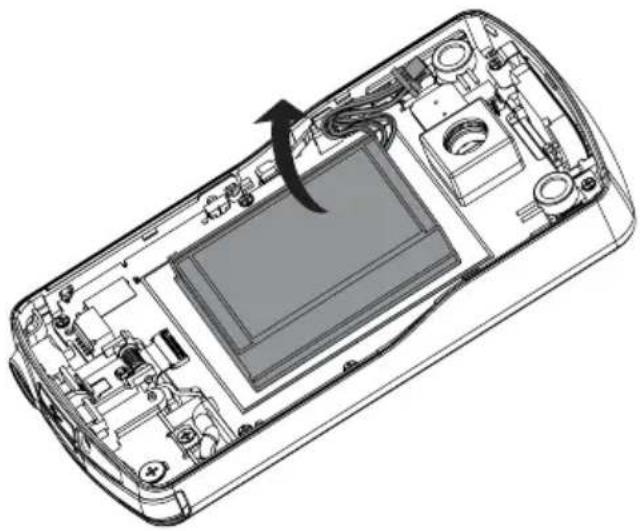

Always bring your product to a professional to remove the built-in battery.

Technical line drawing of a mobile phone casing showing internal components and a central screen (no text or symbols)

2 Your camcorder

Introduction

With this portable camcorder, you can:

take full HD (1080P) or VGA movies • take pictures• play recorded movies or pictures either • directly or on the large screen of a connected TV upload the recorded movies or pictures • to the Internet directly via your PC/Mac

What's in the box

Make sure that the following items are packed in the box:

Camcorder• Quick start guide• Pouch• Hand strap•

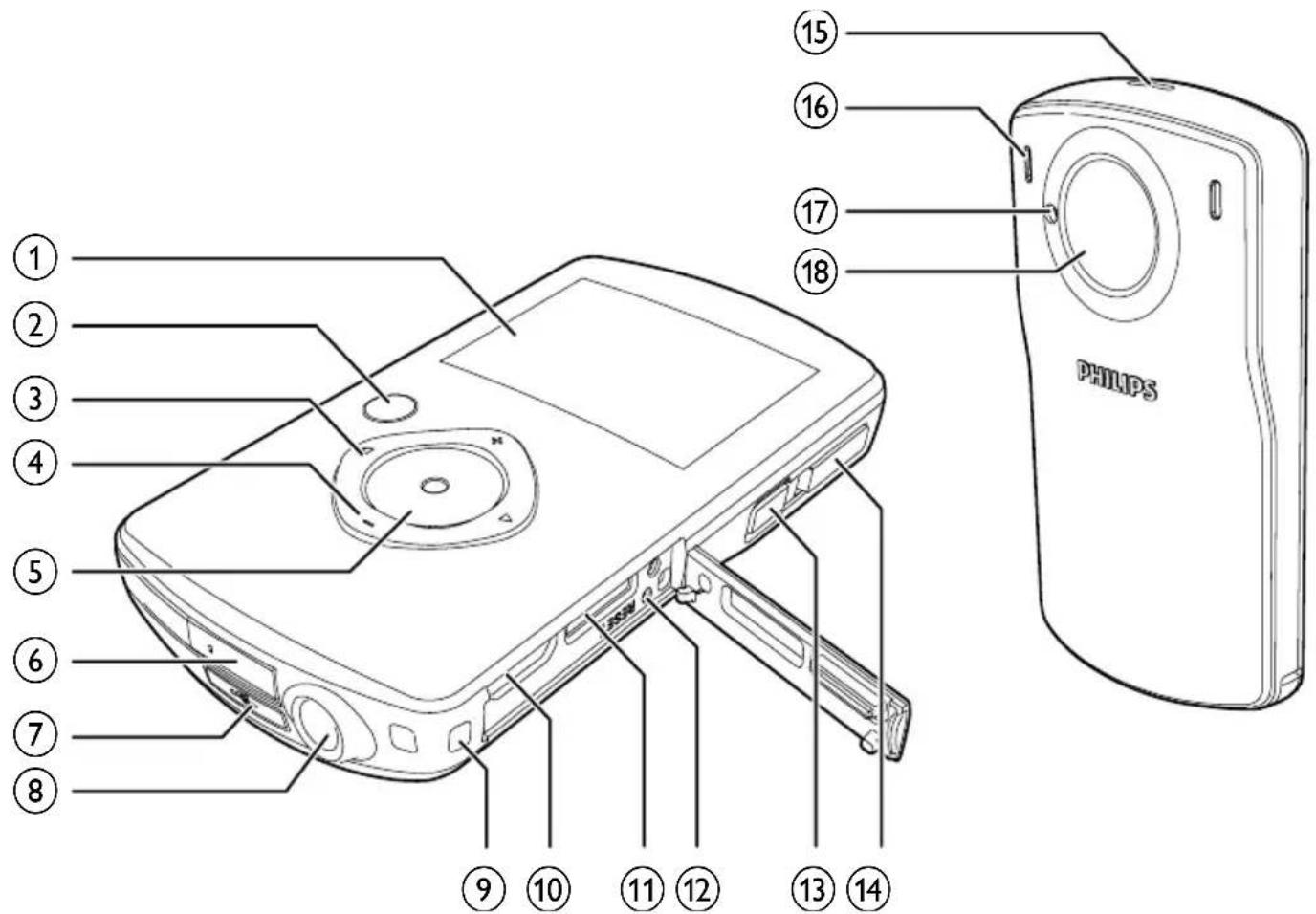

Functional overview

① Display panel
② ▶ II

In viewfinder mode, switch to play • mode.

In play mode, play a selected video • clip.

Confirm settings.

③ ◀/▶

Navigate left/right in a menu.

Select a menu option.

In play mode, turn to the previous/• next picture/video clip.

• (◀) In viewfinder mode, switch to the scene selection window.
  • (▶) In viewfinder mode, switch to the settings menu.

④ +/-

• In viewfinder mode, zoom in/out.

Navigate up/down in a menu.

Change a value in the settings menu.

During video play, change the • volume.

Perform the specific function as • shown on the display panel.

⑤ Shutter button

In viewfinder mode, take a picture or • start/stop video recording.

In play mode, switch to viewfinder • mode.

⑥ USB connector
⑦
Eject the USB connector.
⑧ Tripod socket
⑨ Hand strap hole

⑩ HDMI

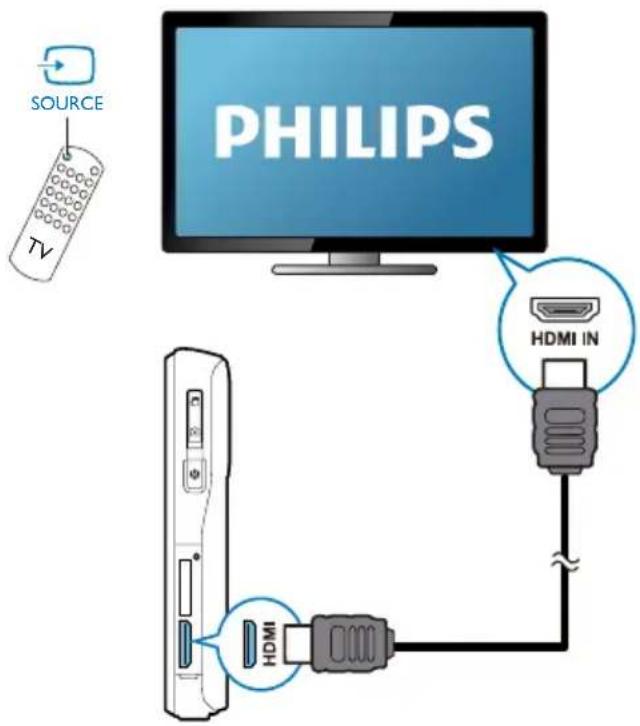

Connect to a TV through an HDMI • cable with a mini HDMI connector (type C).

⑪ MICRO SD

Connect a Micro SD card.

⑫ RESET

• Turn on/off the camcorder.

⑭ Mode switch button

- Switch between picture and video recording modes.

⑮ Built-in speaker

⑯ Built-in microphones

⑰ Flashlight

⑱ Lens

3 Get started

Load the Micro SD card

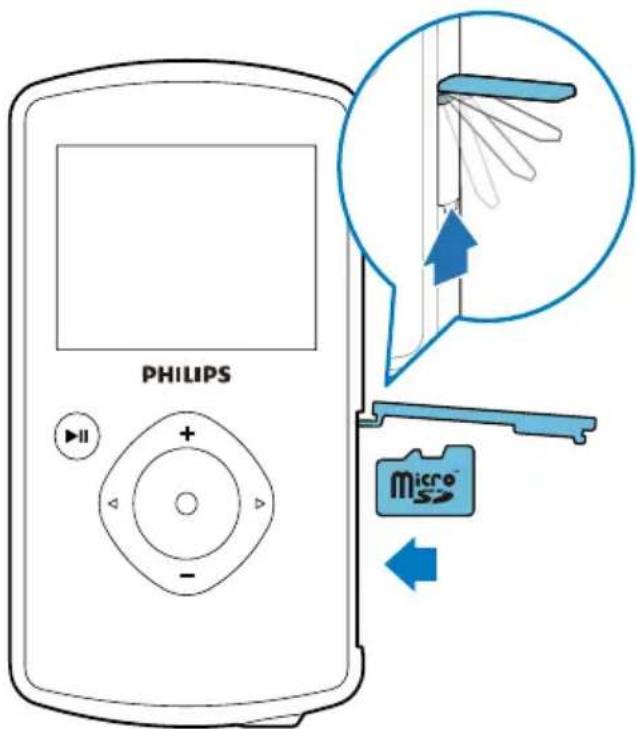

1 Flap open the protective cover on the Micro SD card socket.

2 Insert a Micro SD card (not supplied) into the socket.

Make sure that the the Micro SD • card is not write-protected.

Make sure that the metal contact of • the card faces down.

3 Close the protective cover securely.

Turn on

Press 🔊.

For first-time users, a menu for OSD → language selection is displayed (See "Get started - Set the OSD language).

The camcorder switches to viewfinder mode.

To turn off the camcorder:

Press and hold ⏻.

→The backlight on the display panel turns off.

Tip

• To save energy, the camcorder turns off automatically after being idle for 3 minutes.

First-time setup

When you turn on the camcorder for the first time, a menu for OSD language selection is displayed.

1 Press +/- to select a language.
2 Press ▶tonfirm.

A welcome message is displayed briefly.
An inquiry box for date and time setting is displayed.

3 Press to highlight [Yes].

→A date setting menu is displayed.

4 Press 🔊 to select the day, month and year fields successively.
5 Press +/- to change the value of each field.
6 Press ▶ confirm the date setting.

A time setting menu is displayed.

7 Press 🔔 to select the hour and minute fields successively.
8 Press +/- to change the value of each field.
9 Press ▶ confirm the time setting.

→The first-time setup is complete.

→The camcorder enters viewfinder mode.

Tip

See 'Use your camcorder - Adjust settings' for more settings.

Select a scene

1 In viewfinder mode, press to enter the window for scene selection.
2 Press +/- to select a scene.
3 Press ▶onfirm and go back to viewfinder mode.

Or press ▶ to cancel and go back to viewfinder mode.

Charge the built-in battery

Illustration of a laptop connected to a remote via a device, with an inset showing a blue USB drive (no text or symbols present)

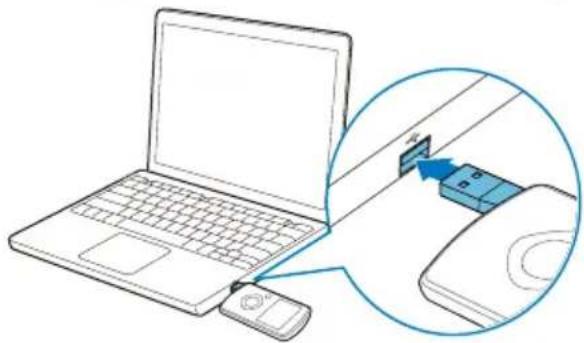

1 Press at the bottom of the camcorder to eject the USB connector.
2 Connect the USB connector to a USB socket on a PC.

The status indicator on the shutter ↩ button starts flashing in orange.

3 Wait until the status indicator stops

flashing and turns to green steadily.

The built-in battery is fully charged.

Tip

The camcorder is fully charged for first-time use. It takes about 3 hours to fully charge the built-in battery via the PC.

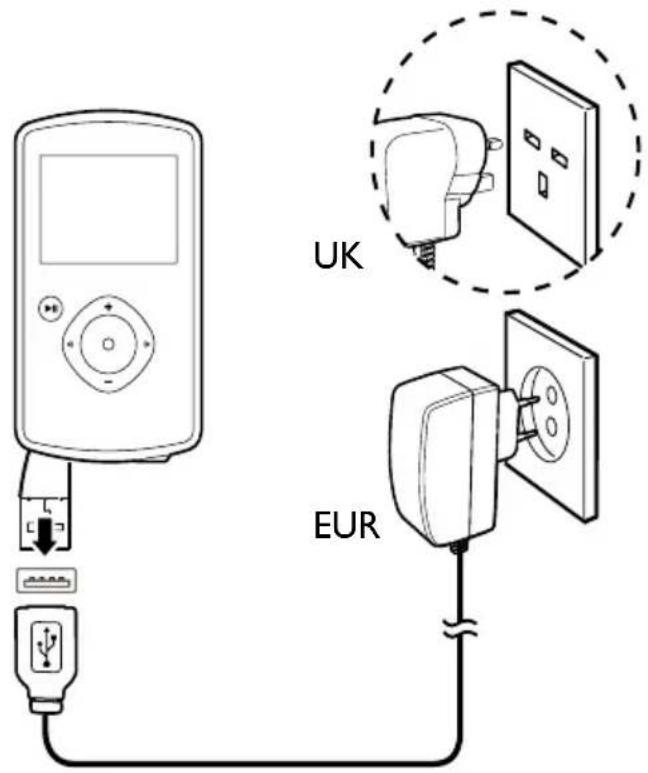

You can also charge the camcorder via a USB adaptor (not supplied) connected to mains power. The charge time is about 2 hours.

4 Use your camcorder

Record video

1 Switch the mode switch button to .

The selected resolution and ↗

remaining recording time are

displayed on the display panel.

2 Hold the camcorder steadily and aim the lens as needed.

3 Press the shutter button to start

recording.

A red time indicator is displayed on ↗

the display panel.

The status indicator on the shutter ↩

button starts flashing in red.

4 Press the shutter button again to end recording.

→[Recording saved!] is displayed briefly.

Take pictures

1 Switch the mode switch button to .

The file size and remaining number ↩

of pictures that can be taken are

displayed on the display panel.

2 Hold the camcorder steadily and aim the lens as needed.

3 Press the shutter button down halfway to adjust the focus.

4 Press the shutter button down

completely to take a picture.

→[Picture saved!] is displayed briefly.

Play

1 In viewfinder mode, press ▶ tb enter play mode.
→The last recorded media is played automatically.
2 Press ◀ to select a picture or video clip for play.
3 If the selected file is a video clip, press to start play.

Delete a file

1 In play mode, press /◀ to▶ select a file.
2 Press + to enter the edit window.
3 Press + again to enter the window for deletion confirmation.
4 Press ◀ to highlight [Yes] and confirm the deletion operation.

→[Deleted!] is displayed briefly.

To exit the operation, press to highlight [No].

Zoom in a picture

1 In play mode, press /◀ to select a picture.
2 Press + to enter the edit window.
3 Press to zoom in the picture.
4 Press +/-/ 🔊 to pan through the enlarged picture.

• To return to normal view, press ▶II.

Trim a video clip

Note

• Only video files not recorded with 'Dual recording' can be edited (trimmed) on the camcorder.
  1 In play mode, press /◀ to▶ select a recorded video clip.

2 Press + to enter the edit window.
3 Press to enter the trim window. A bar for video trimming is displayed at the top of the window.
4 Press to set the starting point you want.
5 Press ▶onfirm.
6 Press to set the ending point you want.
7 Press to confirm. A video trim menu is displayed.
8 Press +/- to select an option, then press ▶II to confirm.

Menu option Description

[Go back] Go back to the trim window.

[Preview edit] Preview the trimmed video clip.

[Save as new file] Save the trimmed video clip as a new file.

[Cancel and exit] Cancel the trim operation and exit.

Tag a file

1 In play mode, press /◀ to select a file.
2 Press + to enter the edit window.
3 Press - to tag the file. To untag the file, press • - again.
4 Repeat steps 1 to 3 to tag other files.

Preview

- In play mode, press -. →The thumbnails of 6 files are displayed on each page. → To select a file, press +/- / ◀/ ▶

Play tagged files

1 During preview, hold .▶II A tag operation menu is displayed.

2 Press +/- to select an option, then press ◀/▶ to highlight [Yes] for confirmation.

Menu option	Description
[Play all]	Play all files.
[Play tagged] Play tagged files only.
[Quick impression]	Play excerpts of tagged files.
[Clear all tags]	Untag all files.

Options during video play

Fast forward/reverse

- During video play, press and hold ◀/▶. - To return to the normal speed, release ◀/▶.

Adjust volume level

• During video play, press +/-

Adjust settings

1 In viewfinder mode, press ▶ → A settings menu is displayed.

2 Press +/- to highlight an option.

3 Press ◀ ▶ to select a setting.

4 Press to confirm the setting and return to viewfinder mode.

Settings menu option	Description
[Flash] Select a flashlight mode: [On], [Off] or [Auto].
[Resolution] Select a video resolution: [Full HD] (for best video quality), [Sports HD] (for filming of fast moving objects), or [Standard] (for reduced video file size).
[Photo Size] Select the size of the photos to be saved (the higher the photo size, the higher the resolution).
[Scene] Select an automatic exposure mode that matches your shot for easy shooting.
[F/S Detect] Enable/disable face smile detection.
[Dual recording] Record full HD and compressed QVGA videos at the same time.
[Autoplay] Start automatic play when the camcorder is connected to a PC.
[Pre-record] Enable/disable 3-second pre-record mode.
[Capture sound] Turn on/off the capture sound.
[Date] Set the date.
[Time] Set the time.
[Language] Select your desired menu language.
[Format SD card] Clear contents from the micro SD card.
[TV system] Change this setting if the output video does not appear correctly on your TV.

5 Use more of your camcorder

View video or pictures on TV

1 Connect an HDMI cable (not supplied) to:

the • HDMI socket on the camcorder (requiring a mini HDMI connector) the HDMI input socket on an HDTV• An inquiry box for output mode • selection is displayed.

2 To output the exact camcorder display with menu options to the TV screen, select [TV].

To output the camcorder display • without menu options to the TV screen, select [Live CAM].

3 On the camcorder, select a file and start play.

Install and use the camcorder software

With the software (ArcSoft MedialImpression HD Edition) available in the internal memory of the camcorder, you can import, edit, archive or upload your pictures/videos to the Internet easily.

Note

The software supplied only works on PCs that operate Microsoft ^ Windows ^ XP, Vista and Windows 7.

- When you connect the camcorder to a Mac, use the iMovie software to import and edit your pictures/videos directly.

Install the camcorder software

1 Connect the camcorder to a PC (see 'Get started' > 'Charge the built-in battery').

2 If the software does not install automatically, find and click the Setup icon at My Computer\CAM110.

3 Follow the on-screen instructions to finish installation of the software.

Install and use the camcorder software

1 On your PC, click Start\All Programs\ArcSoft MediaImpression HD Edition.

→ The main screen of the software is displayed.

2 Click an option to select the corresponding operation.
3 Follow the on-screen instructions to complete the operation.

Transfer video/pictures to a PC/Mac

1 Connect the camcorder to a PC/Mac (see 'Get started' > 'Charge the built-in battery').
It may take some time for the PC/Mac to recognize the camcorder.
2 Find your video/pictures at My Computer\CAM110\DCIM\100MEDIA or My Computer\CAM110 SD\DCIM\100MEDIA.
3 Copy any video/pictures you want to your designated folder in the PC/Mac.

Tip

- You can also import the video/picture files with the camcorder software (for PC) or iMovie (for Mac).

6 Technical specifications

Product information is subject to change without prior notice.

Image sensor 1/3.2" 8MP CMOS sensor

Operation modes Movie record, picture record

Lens (focusing) Auto focus f=4.76mm

Focus mode Auto focus

Focus range 0.1m to Infinity

Aperture F4.8

Digital zoom 5X

Exposure control Auto

Exposure compensation -2.0\~2.0EV

White balance Auto

Auto power off 3 minutes

Memory 64MB (512Mbit) DDR2 + 128MB SLC (96MB for AP) + Micro-SD card Slot

Shutter type Electronic Shutter speed 1/2\~1/4000 second

Picture file JPEG format

Video *.MP4 (H.264) compression format

Video resolution Full HD (1080p 30) 1920 X1080 (30fps) Sports HD (720p 60) 1280X720 (60fps) VGA (4:3) 640X480 (30fps)

Audio file format AAC

Battery 1100mAh Li-ion (built-in); 120-minute battery life time based on 720P recording
PC interface	Mini USB 2.0 port
System support Windows XP/Vista/Windows 7, Mac (mass storage only)
TV out	NTSC/PAL selectable, Mini HDMI (type C)
Power rating	DC 5V, 500mA
Weight	0.06kg
Dimensions(W × H × D)	55.5 × 99.5 × 19 mm

7 Frequently asked questions (FAQ)

Why is there no response when I use the camcorder?

The camcorder is in power-off mode. • Turn on the camcorder (see 'Get started' > 'Turn on').

The built-in battery may be drained. • Charge the battery (see 'Get started' > 'Charge the built-in battery').

Why is [Memory full!] displayed when I try to record?

Ensure that the Micro SD card has been • inserted correctly (see 'Get started' > 'Load the Micro SD card').

The memory is used up. Save your • video/pictures to a computer (see 'Use more of your camcorder' > 'Transfer video/pictures to a PC/Mac'). Then delete files from your camcorder or clear the memory.

Why do I have no access to folders on the camcorder from my computer?

Ensure that the USB connection is correct.

The camcorder turns off automatically • 15 minutes after it is connected to a computer. You can press ▶II to turn it on again.

Why do my video/pictures look blurry?

Hold the camcorder steady in your hands • during shooting.

During video capture, do not move the camcorder too fast.

Use a tripod (not supplied) if necessary. •

Why do my video/pictures look distorted on a TV screen?

Select the correct TV system. •

How do I charge the camcorder?

You can charge the camcorder via the USB pop-out connector. When you connect it to your PC/laptop it will automatically charge. You can also plug the camcorder via the pop-out USB into a USB charger.

How long do I have to charge the camcorder?

The camcorder is fully charged for first • usage. The camcorder charge time when connected to your PC/laptop is 3 hours. When you charge it via USB adaptor, the charge time is 2 hours.

How do I fast-forward or rewind on the camcorder?

You can fast-forward during play of a • movie by pressing the right-button for 2 seconds. You can rewind during play of a movie by pressing the left-button for 2 seconds.

Camcorder stopped responding?

In the unlikely event that your camcorder stops responding, you can manually reset it. The reset button is located under the HDMI cover. There you see a small opening above the HDMI connection. Please use a small prying object (like a pen) to insert and press gently for resetting. After you have reset the camcorder, please turn on the camcorder again, and set-up will start again.

Why does the camcorder sometimes not record the right color?

To record both indoors and outdoors, • and not having to change any settings, the camcorder has an automatic white-balance correction. This enables you to record both indoors and outdoors where the amount of light in the environment changes. If you move fast from outdoors to indoors, the camcorder might need some time to correct that, and in extreme cases the colors might seem a bit unnatural. However, after

a few seconds this will be corrected automatically by the camcorder.

Can I connect the camcorder directly to TV, DVD/Blu-ray player or Home Cinema set via their USB-port?

The USB plug is designed to share your • videos/pictures to your PC or Laptop. You can plug the CAM110 directly into your TV, DVD/Blu-ray player or Home cinema set (called the host from this point on), and it will play the pictures that are stored on the CAM110. To play the videos from the CAM110, it depends if your host supports the file format H.264 of the CAM110. Most Blu-ray enabled players are able to play this format.

How do I connect it to a Windows PC/laptop?

Connect the camcorder to your PC/ • laptop via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the PC's USB port. For easy sharing and editing, install the software program (Media Impression HD) that comes with the camcorder.

How do I connect it to a Mac?

The camcorder works with the Mac via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the USB port. The camcorder works great with the iMovie software, which is part of the iLife package that comes with your Mac. To transfer videos using iMovie, simply connect the camcorder to your Mac via USB, launch iMovie and start importing by clicking the camcorder icon. Select 'Use original quality' to ensure the best quality, and to maintain file sizes at an optimum.

What is HD?

HD stands for High Definition. The camcorder captures videos in high definition (720p), which is also the

resolution that HD TV programs are broadcast in. “720” refers to the display resolution, in terms of the number of horizontal lines onscreen. “p” stands for progressive scan, or the sequential appearance of the lines in each frame. HD 720p gives video quality that is superior to that found in typical mobile phones and digital cameras.

How do I play my videos on TV?

To play back on TV, please use an HDMI • connector (mini HDMI to standard HDMI) if your TV accepts HDMI input, or use the video-out cable provided.

Why is there no lens cover?

The camcorder comes without a lens • cover, keeping it simple to use and fuss-free. It is made of robust material that doesn't scratch under normal usage. A travel pouch and a lens cloth are provided, allowing you to keep the camcorder clean.

What format does the camcorder record in?

The camcorder uses the same video • format as Blu-ray players and discs – H.264. This highly sophisticated format delivers superb HD picture quality.

What does pre-record mean that is in the setting?

The pre-record button is designed to • let you never miss a moment. When you enable the pre-record function, the camcorder will record video 3 seconds before you have pressed the record button. So when you play-back the recorded film, you will automatically see the first 3 seconds before you have pressed the record button. This can be useful when filming unexpected moments. The pre-record function will not drain battery life, it will operate as normal.

Some video files cannot be edited. Why is that?

Video files recorded with dual recording cannot be edited. To edit video files on the camcorder, set [Dual recording] to [Off] before you record video (see 'Use your camcorder' > 'Adjust settings').

Tips on video making

You can easily look back on fun moments and relive them with the camcorder. To enjoy these memories to the fullest, here are some simple video tips:

When capturing videos, hold your camcorder steady in your hand Don't move too fast when panning (i.e. moving the camera horizontally) as it will be hard to follow what is captured when you review the video Try shooting from different angles – for example, from the side, from the front, or even from below. You can easily join the different video segments together with the PC software included
