CAM295BL - Camcorder PHILIPS - Free user manual and instructions

Product Type	Camcorder
Brand	Philips
Model	CAM295BL
Image Sensor	1/3.2" 8MP CMOS
Lens	f=4.76mm, F2.8, Auto Focus
Digital Zoom	5x
Video Resolution	Full HD (1920x1080 @30fps), Sports HD (1280x720 @60fps), VGA (640x480 @30fps)
Photo Resolution	Up to 8 megapixels
Video Format	H.264 (MP4)
Audio Format	AAC
Memory	Micro SD card slot (not included), 64MB DDR2 + 128MB SLC internal
Battery	Built-in 1100mAh Li-ion, ~120 minutes (720p recording)
Charging Time	~3.5 hours via PC USB, ~2 hours via USB adapter
Dimensions (WxHxD)	54 x 110 x 21.5 mm
Weight	0.06 kg (60 g)
Interfaces	Mini USB 2.0, Mini HDMI (Type C), Tripod socket
TV Output	NTSC/PAL selectable via HDMI
Power Supply	DC 5V, 500mA
Software	ArcSoft MediaImpression HD (PC), iMovie (Mac)
Included Accessories	Camcorder, Quick Start Guide
Safety	Read instructions, keep away from water, use dry cloth for cleaning, professional battery removal only
Reparability	Built-in battery replaceable by professional, reset button under HDMI cover
Compliance	CE, RoHS, WEEE

Frequently Asked Questions - CAM295BL PHILIPS

Why is there no response when I use the camcorder?

Ensure the camcorder is turned on (flip open the screen). If not, press and hold the power button. If still unresponsive, the battery may be drained; charge via USB for at least 2-3.5 hours.

Why is 'Memory full!' displayed when trying to record?

Make sure a Micro SD card is inserted correctly (metal contacts down) and not write-protected. If the memory is full, transfer files to a computer using the USB connection, then delete files from the camcorder or format the card via settings.

How much memory is needed for 1 hour of Full HD recording?

The CAM295 uses about 4GB per hour for Full HD video. Complex scenes with lots of motion may use more memory to maintain quality.

Why do my videos/pictures look blurry?

Hold the camcorder steadily and avoid fast panning. For stable shots, use a tripod (not included). Ensure the lens is clean of fingerprints.

Why do videos look distorted on my TV?

Select the correct TV system (NTSC or PAL) in the settings menu. Also ensure the HDMI cable is properly connected and the TV input is set to the correct HDMI port.

How do I charge the camcorder?

Eject the USB connector from the camcorder and plug it into a computer USB port or a USB charger (e.g., iPhone 4 adapter). The status light flashes orange during charging and turns green when fully charged.

What is the pre-record function and how does it work?

When enabled, the camcorder continuously buffers the last 3 seconds before you press the record button. This ensures you don't miss spontaneous moments. It does not significantly drain battery.

Why can't I edit some video files on the camcorder?

Videos recorded with 'Dual Recording' (simultaneous Full HD and QVGA) cannot be trimmed on the device. Set 'Dual Recording' to 'Off' in settings before recording to enable editing.

Does the camcorder come with a lens cover?

No lens cover is included. The camcorder is made of robust, scratch-resistant material. A travel pouch and lens cloth are provided for protection and cleaning.

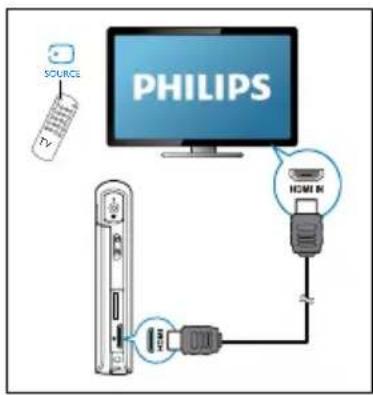

How do I connect the camcorder to a TV?

Use an HDMI cable with a mini HDMI connector (Type C) to connect to the TV's HDMI input. Turn on the camcorder and select either 'TV' (displays menu) or 'Live CAM' (displays without menus) on the touch screen.

USER MANUAL CAM295BL PHILIPS

Register your product and get support at

www.philips.com/welcome

CAM295

White and black GAITUA portable electronic device with USB port (no visible text or symbols on body)

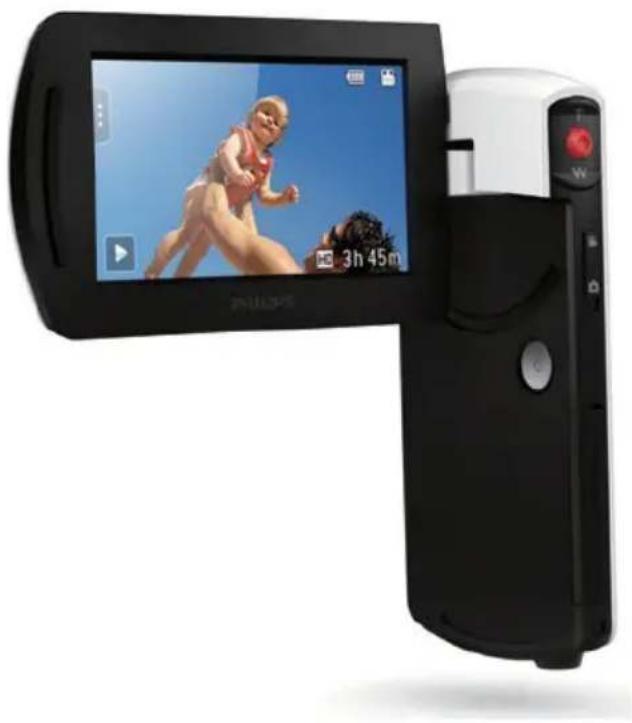

Black and white photo of a digital camera displaying a child's photo on screen, with no visible text or symbols on the device itself.

EN User manual

Contents

1 Important 4

Safety 4

Notice 4

2 Your camcorder 5

Introduction 5

What's in the box 5

Functional overview 6

3 Get started 8

Load the Micro SD card 8

Turn on 8

First-time setup 8

Charge the built-in battery 9

4 Use your camcorder 10

Record video 10

Take pictures 10

Play 10

Adjust settings 12

5 Use more of your camcorder 13

View video or pictures on TV 13

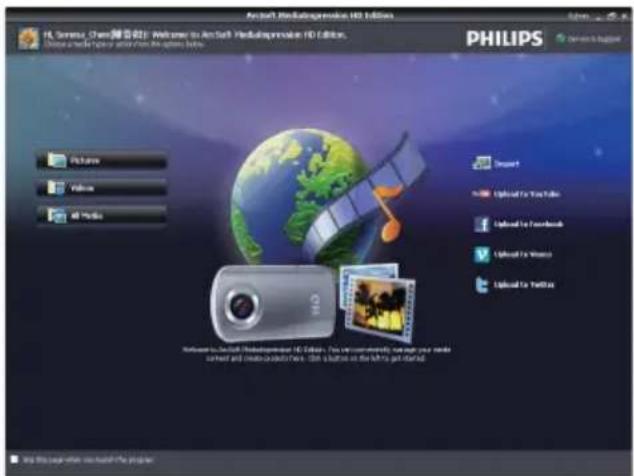

Install and use the camcorder software 13

6 Technical specifications 15

7 Frequently asked questions (FAQ) 16

1 Important

Safety

① Read these instructions.
② Keep these instructions.
③ Heed all warnings.
④ Follow all instructions.
⑤ Do not use this apparatus near water.
⑥ Clean only with dry cloth.
⑦ Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
⑧ Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
⑨ Only use attachments/accessories specified by the manufacturer.
⑩ Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
⑪ Apparatus shall not be exposed to dripping or splashing.
⑫ Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Notice

CE

This product complies with the radio interference requirements of the European Community.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Note

•The safety logo and power rating information are located at the USB arm of the camcorder.

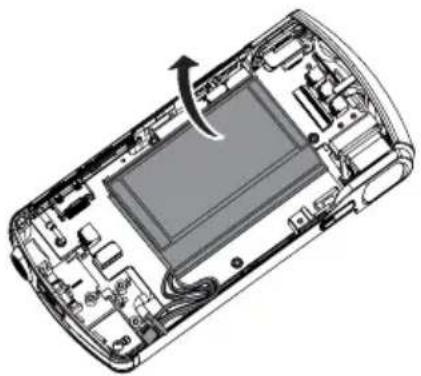

Always bring your product to a professional to remove the built-in battery.

Exploded view diagram of a smartphone showing internal components and a central screen (no text or labels)

2 Your camcorder

Introduction

With this portable camcorder, you can:

• take full HD (1080P) or VGA movies
- take pictures
- play recorded movies or pictures either directly or on the large screen of a connected TV
- upload the recorded movies or pictures to the Internet directly via your PC/Mac

What's in the box

Make sure that the following items are packed in the box:

• Camcorder
• Quick start guide

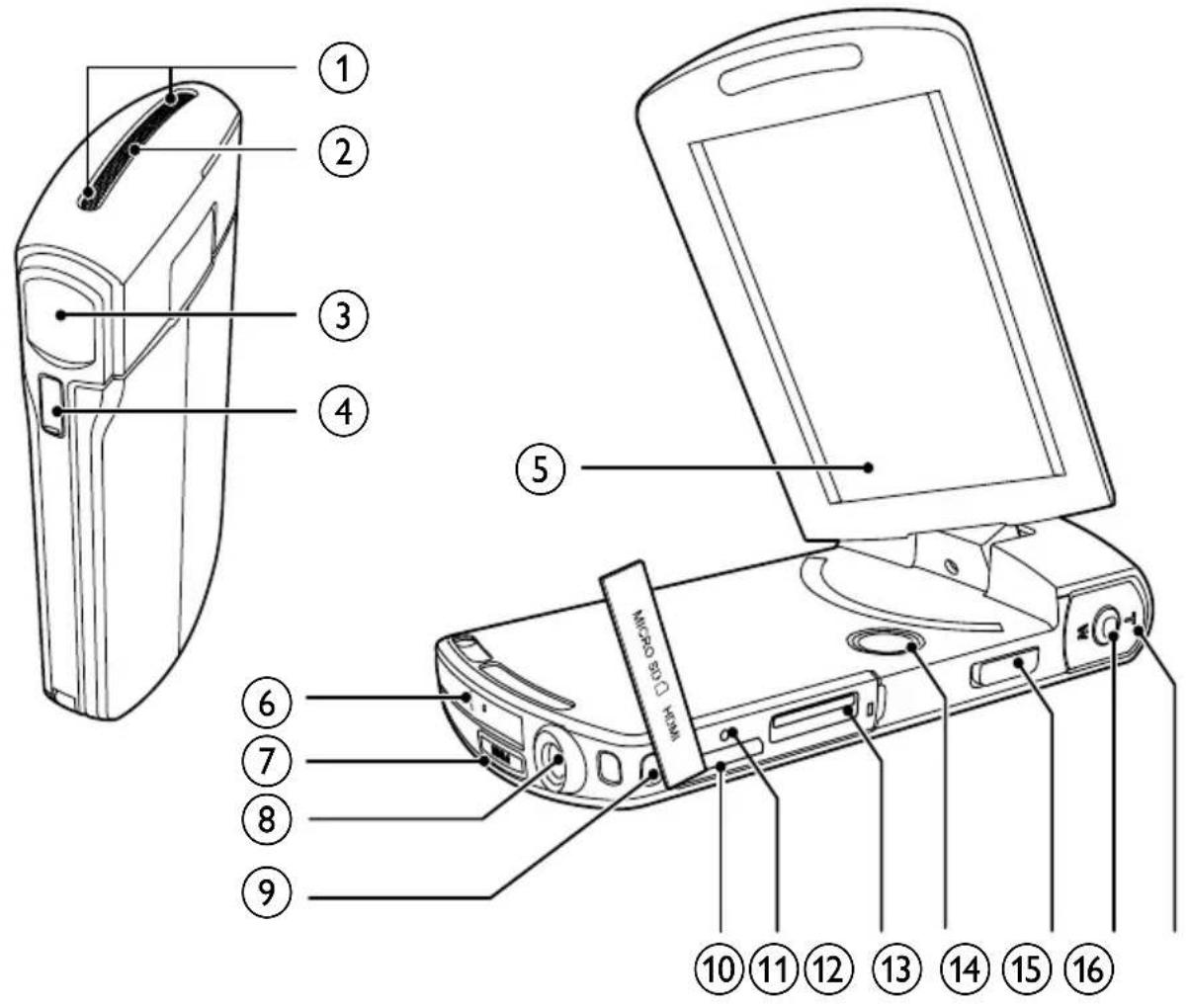

Functional overview

① Built-in microphones
② Built-in speaker
③ Lens
④ Flashlight
⑤ Swivel touch screen
⑥ USB connector
⑦

- Eject the USB connector.

⑧ Tripod socket
⑨ Hand strap hole

⑩ HDMI

- Connect to a TV through an HDMI cable with a mini HDMI connector (type C).

⑪ RESET

- Load a Micro SD card.

⑬

- Turn on/off the camcorder.

⑭ Mode switch button

- Switch between picture and video recording modes.

⑮ Shutter button

• In viewfinder mode, take a picture or start/stop video recording.
• In play mode, switch to viewfinder mode.

⑯ T/W

• In viewfinder mode, zoom in/out.
• During video play, change the volume.

3 Get started

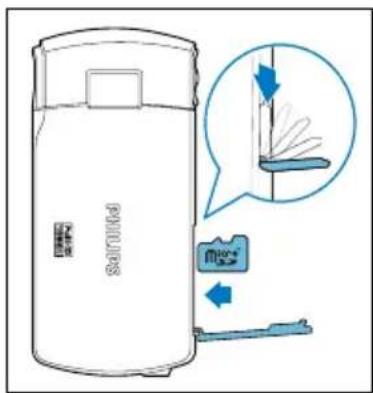

Load the Micro SD card

1 Flap open the protective cover on the Micro SD card socket.
2 Insert a Micro SD card (not supplied) into the socket.

• Make sure that the the Micro SD card is not write-protected.
• Make sure that the metal contact of the card faces down.

3 Close the protective cover securely.

Turn on

- Flip open the swivel touch screen.

For first-time users, a menu for OSD language selection is displayed (See "Get started - First-time setup).

Tip

• To save energy, the camcorder turns off automatically after being idle for 3 minutes. To turn on the camcorder again, press ⏻.

To turn off the camcorder:

- Press and hold ⏻.

• Or close the swivel touch screen.
  • The backlight on the swivel touch screen turns off.

First-time setup

When you turn on the camcorder for the first time, a menu for OSD language selection is displayed.

1 On the swivel touch screen, tap ▲ to select a language.
2 Tap [OK] to confirm.

→A welcome message is displayed briefly.
→An inquiry box for date and time setting is displayed.

3 Tap [Yes] to confirm.

→A date setting menu is displayed.

4 Tap ▲ /▼ to set the day, month and year successively.
5 Tap [OK] to confirm the date setting.

→A time setting menu is displayed.

6 Tap ▲ /▼ to set the hour and minute successively.
7 Tap [OK] to confirm the time setting.

→The first-time setup is complete.

→The camcorder enters viewfinder mode.

Tip

• See 'Use your camcorder - Adjust settings' for more settings.

Select a scene

1 In viewfinder mode, tap to show the system setting menu.
2 Tap [Scene] to enter scene setting.
3 Tap◀ ▶ to select a scene you like.
4 Tap [OK] to confirm the setting.

Select a special effect

1 In viewfinder mode, tap to show the system setting menu.
2 Tap [Effects] to enter scene setting.
3 Tap◀ ▶ to select a special effect you like.
4 Tap [OK] to confirm the setting.

Charge the built-in battery

Note

•The USB connector of the camcorder is primarily intended for charging and mass storage purposes.
- You can also connect the USB connector of the camcorder to another device (for example, a TV, DVD/Blu-ray player or Home cinema set) for media play. In this case, make sure that the device supports the H.264 file format.
- Not all devices that support H.264 file format can play media files in the camcorder through direct USB connection.
- Rechargeable batteries have a limited number of charge cycles. Battery life and number of charge cycles vary by use and settings.

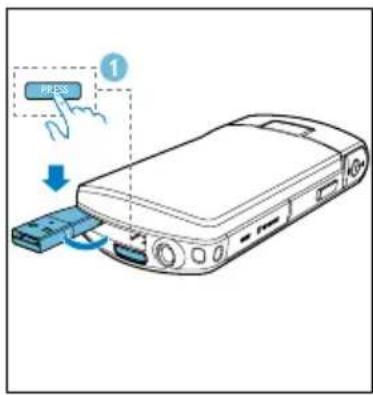

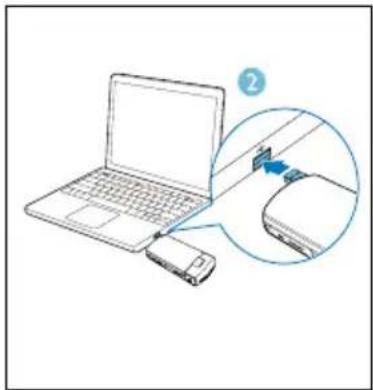

1 Press at the bottom of the camcorder to eject the USB connector.

2 Connect the USB connector to a USB socket on a PC.

→The status indicator on the shutter button starts flashing in orange.

Line drawing of a laptop connected to a smartphone, with an inset showing a close-up of the device (no text or symbols present)

3 Wait until the status indicator stops flashing and turns to green steadily. →The built-in battery is fully charged.

Tip

•The camcorder is fully charged for first-time use.
- It takes about 3.5 hours to fully charge the built-in battery via the PC.

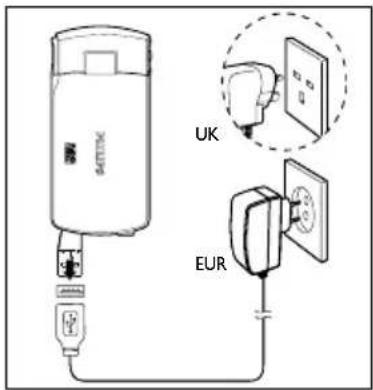

You can also charge the camcorder via a USB adaptor (not supplied) connected to mains power. The charge time is about 2 hours.

4 Use your camcorder

Record video

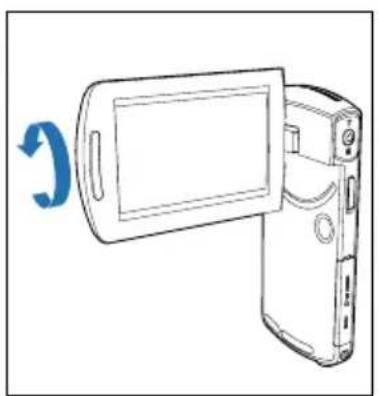

1 Adjust the swivel touch screen to an appropriate position.

Line drawing of a digital camera with an open screen and blue circular arrow indicating rotation (no text or symbols)

2 Switch the mode switch button to .→The selected resolution and remaining recording time are displayed on the swivel touch screen.
3 Hold the camcorder steadily and aim the lens as needed.
4 Press the shutter button to start recording. →A red time indicator is displayed on the display panel. →The status indicator on the shutter button starts flashing in red.
5 Press T/W to zoom in/out if necessary. 6 Press the shutter button again to end recording. →[Recording saved!] is displayed briefly.

Take pictures

1 Switch the mode switch button to .→The file size and remaining number of pictures that can be taken are displayed on the swivel touch screen.
2 Hold the camcorder steadily and aim the lens as needed.
3 Press T/W to zoom in/out if necessary.
4 Press the shutter button down halfway to adjust the focus.
5 Press the shutter button down completely to take a picture. →[Picture saved!] is displayed briefly.

Play

1 In viewfinder mode, tap ▶ on the swivel touch screen to enter play mode. →The last recorded media is played automatically.
2 Swipe to the left/rights to select a picture or video clip for play.
3 If the selected file is a video clip, tap in the middle of the screen to start play. • To pause play, tap any place of the swivel touch screen.

Preview

- In play mode, tap . The thumbnails of 9 files are displayed on each page. To select a file, tap the file directly. Tap/ to view the previous/next page.

Delete a file

1 In play mode, swipe to the left/right on the swivel touch screen to to select a file.
2 Tap 📄 to enter the window for deletion confirmation.
3 Tap [Yes] to confirm the deletion operation.

→[Deleted!] is displayed briefly.

→To exit the operation, tap [No].

You can also delete files in batches.

1 During preview, tap 📄 →A small square box is displayed at the bottom right corner of each file.
2 Tap a square box to select the file. →A check mark is displayed in the square box.
3 Repeat step 2 to select more files.
4 Tap [Confirm] to confirm deletion of all the selected files.

Tag a file

1 Tap the left ruler and move to the right to set the starting point you want.
2 Tap ♦ to tag the file. • To untag the file, tap ♦ again.
3 Repeat steps 1 to 2 to tag more files.

You can also tag files during preview.

1 During preview, tap →A small square box is displayed at the bottom right corner of each file.
2 Tap a square box to tag the file. →A check mark is displayed in the square box. →To untag the file, tap again.
3 Repeat steps 1 to 2 to tag more files.

Play tagged files

1 During preview, tap again. →A tag operation menu is displayed.
2 Tap an option to highlight it, then tap [Yes] for confirmation.

Menu option Description

[Play all] Play all files.

[Play tagged] Play tagged files only.

[Quick impression] Play excerpts of tagged files.

[Clear all tags] Untag all files.

Trim a video clip

Note

- Only video files not recorded with 'Dual recording' can be edited (trimmed) on the camcorder.

1 In play mode, swipe to the left/right on the swivel touch screen to select a recorded video clip.
2 Tap to enter the trim window. →A bar for video trimming is displayed at the top of the window.
3 Tap the left ruler and move to the right to set the starting point you want.
4 Tap the right ruler and move to the left to set the starting point you want.
5 Tap [Preview] to preview the edited video clip.
6 After confirmation, tap[Save] to save the edited video clip as a new file.

Zoom in a picture

1 In play mode, swipe to the left/right on the swivel touch screen to select a picture.
2 Press T to zoom in the picture.
3 Tap the screen to pan through the enlarged picture.
• To return to normal view, press W.

Adjust volume level during video play

• During video play, press T/W.

Adjust settings

1 In viewfinder mode, tap to show the system setting menu.
2 Tap [Settings] to enter the settings sub-menu.
3 Tap ▲ / ▼ to find an item.
4 Tap the item to show the options available.
5 Tap the option you prefer.
6 Tap [OK] to confirm the selection.
7 Tap x to hide the system setting menu.

Settings menu option	Description
[Flash]	Select a flashlight mode: [On], [Off] or [Auto].
[Resolution]	Select a video resolution: [Full HD] (for best video quality), [Sports HD] (for filming of fast moving objects), or [Standard] (for reduced video file size).
[Photo Size]	Select the size of the photos to be saved (the higher the photo size, the higher the resolution).
[Scene]	Select an automatic exposure mode that matches your shot for easy shooting.
[Dual recording]	Record full HD and compressed QVGA videos at the same time.
[Date]	Set the date.
[Time]	Set the time.
[Autoplay]	Start automatic play when the camcorder is connected to a PC.
[Capture sound]	Turn on/off the capture sound.
[Language]	Select your desired menu language.
[Pre-record]	Enable/disable 3-second pre-record mode.
[Format SD card]	Clear contents from the micro SD card.
[TV system]	Change this setting if the output video does not appear correctly on your TV.
[F/S Detect]	Enable/disable face smile detection.

5 Use more of your camcorder

View video or pictures on TV

1 Connect an HDMI cable (not supplied) to:

- the HDMI socket on the camcorder (requiring a mini HDMI connector)

• the HDMI input socket on an HDTV

- An inquiry box for output mode selection is displayed.

2 To output the exact camcorder display with menu options to the TV screen, tap [TV] on the swivel touch screen.

• To output the camcorder display without menu options to the TV screen, tap [Live CAM] on the swivel touch screen.

3 On the camcorder, select a file and start play.

Install and use the camcorder software

With the software (ArcSoft MedialImpression HD Edition) available in the internal memory of the camcorder, you can import, edit, archive or upload your pictures/videos to the Internet easily.

Note

•The software supplied only works on PCs that operate Microsoft® Windows® XP, Vista and Windows 7.

- When you connect the camcorder to a Mac, use the iMovie software to import and edit your pictures/videos directly.

Install the camcorder software

1 Connect the camcorder to a PC (see 'Get started' > 'Charge the built-in battery').
2 If the software does not install automatically, find and click the Setup icon at My Computer\CAM295.
3 Follow the on-screen instructions to finish installation of the software.

Install and use the camcorder software

1 On your PC, click Start\All Programs\ArcSoft MediaImpression HD Edition.

→The main screen of the software is displayed.

2 Click an option to select the corresponding operation.
3 Follow the on-screen instructions to complete the operation.

Transfer video/pictures to a PC/Mac

1 Connect the camcorder to a PC/Mac (see 'Get started' > 'Charge the built-in battery').
→It may take some time for the PC/Mac to recognize the camcorder.
2 Find your video/pictures at My Computer\CAM295\DCIM\100MEDIA or My Computer\CAM295 SD\ DCIM\100MEDIA.
3 Copy any video/pictures you want to your designated folder in the PC/Mac.

Tip

• You can also import the video/picture files with the camcorder software (for PC) or iMovie (for Mac).

6 Technical specifications

Product information is subject to change without prior notice.

Image sensor 1/3.2" 8MP CMOS sensor
Operation modes Movie record, picture record
Lens (focusing) Auto focus f=4.76mm
Focus mode Auto focus
Focus range 0.1m to Infinity
Aperture F2.8
Digital zoom	5X
Exposure control	Auto
Exposure compensation	-2.0~2.0EV
White balance	Auto
Auto power off	3 minutes
Memory	64MB (512Mbit) DDR2 + 128MB SLC (96MB for AP) + Micro-SD card Slot
Shutter type	Electronic
Shutter speed	1/2~1/4000 second
Picture file format JPEG
Video compression format	*.MP4 (H.264 )
Video resolution	Full HD (1080p 30) 1920 X1080 (30fps)Sports HD (720p 60) 1280X720 (60fps)VGA (4:3) 640X480 (30fps)
Audio file format	AAC
Battery 1100mAh	Li-ion (built-in); *120-minute battery life time based on 720P recording
PC interface Mini USB 2.0 port

System support Windows XP/Vista/Windows 7, Mac (mass storage only)
TV out NTSC/PAL selectable, Mini HDMI (type C)
Power rating DC 5V, 500mA
Weight 0.06kg
Dimensions(W x H x D)	54 x 110 x 21.5 mm

Note

*Rechargeable batteries have a limited number of charge cycles. Battery life and number of charge cycles vary by use and settings.

7 Frequently asked questions (FAQ)

Why is there no response when I use the camcorder?

• The camcorder is in power-off mode. Turn on the camcorder (see 'Get started' > 'Turn on').
• The built-in battery may be drained. Charge the battery (see 'Get started' > 'Charge the built-in battery').

Why is [Memory full!] displayed when I try to record?

• Ensure that the Micro SD card has been inserted correctly (see 'Get started' > 'Load the Micro SD card').
• The memory is used up. Save your video/pictures to a computer (see 'Use more of your camcorder' > 'Transfer video/pictures to a PC/Mac'). Then delete files from your camcorder or clear the memory.

How much memory is needed for 1 hour of Full HD recording?

- The CAM295 uses 4GB on average for 1 hour of Full HD video. For a more complex video recording (e.g. with lots of motions in the video, or a lot of panning), the CAM295 will use more memory. This is done to maintain the video quality, but will increase the usage of memory.

Why do I have no access to folders on the camcorder from my computer?

• Ensure that the USB connection is correct.
• The camcorder turns off automatically 15 minutes after it is connected to a computer. You can press ▶ to turn it on again.

Why do my video/pictures look blurry?

• Hold the camcorder steady in your hands during shooting.
• During video capture, do not move the camcorder too fast.
  • Use a tripod (not supplied) if necessary.

Why do my video/pictures look distorted on a TV screen?

- Select the correct TV system.

How do I charge the camcorder?

- You can charge the camcorder via the USB pop-out connector. When you connect it to your PC/laptop it will automatically charge. You can also plug the camcorder via the pop-out USB into a USB charger.

How long do I have to charge the camcorder?

- The camcorder is fully charged for first usage. The camcorder charge time when connected to your PC/laptop is 3.5 hours. When you charge it via USB adaptor, the charge time is 2 hours.

Where can I find an adaptor for CAM295 to charge the battery?

- CAM295 can be charged via regular USB adaptors, which are readily available in electronic stores. The CAM295 is compliant to the iPhone 4 adapter.

Camcorder stopped responding?

- In the unlikely event that your camcorder stops responding, you can manually reset it. The reset button is located under the HDMI cover. There you see a small opening above the HDMI connection. Please use a small prying object (like a pen) to insert and press gently for resetting. After you have reset the camcorder, please turn on the camcorder again, and set-up will start again.

Why does the camcorder sometimes not record the right color?

- To record both indoors and outdoors, and not having to change any settings, the camcorder has an automatic white-balance correction. This enables you to

record both indoors and outdoors where the amount of light in the environment changes. If you move fast from outdoors to indoors, the camcorder might need some time to correct that, and in extreme cases the colors might seem a bit unnatural. However, after a few seconds this will be corrected automatically by the camcorder.

How do I connect it to a Windows PC/laptop?

- Connect the camcorder to your PC/laptop via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the PC's USB port. For easy sharing and editing, install the software program (Media Impression HD) that comes with the camcorder.

How do I connect it to a Mac?

- The camcorder works with the Mac via USB. The USB pop-out connector is strong enough to support the camcorder when it is plugged into the USB port. The camcorder works great with the iMovie software, which is part of the iLife package that comes with your Mac. To transfer videos using iMovie, simply connect the camcorder to your Mac via USB, launch iMovie and start importing by clicking the camcorder icon. Select 'Use original quality' to ensure the best quality, and to maintain file sizes at an optimum.

Can I connect the camcorder directly to TV, DVD/Blu-ray player or Home Cinema set via their USB-port?

- The USB plug is designed to share your videos/pictures to your PC or Laptop. You can plug the CAM295 directly into your TV, DVD/Blu-ray player or Home cinema set (called the host from this point on), and it will play the pictures that are stored on the CAM295. To play the videos from the CAM295, it depends if your host supports the file format H.264 of the CAM295. Most Blu-ray enabled players are able to play this format.

How do I play my videos on TV?

- To play back on TV, please use an HDMI connector (mini HDMI to standard HDMI) if your TV accepts HDMI input, or use the video-out cable provided.

Why is there no lens cover?

- The camcorder comes without a lens cover, keeping it simple to use and fuss-free. It is made of robust material that doesn't scratch under normal usage. A travel pouch and a lens cloth are provided, allowing you to keep the camcorder clean.

What format does the camcorder record in?

- The camcorder uses the same video format as Blu-ray players and discs – H.264. This highly sophisticated format delivers superb HD picture quality.

What does pre-record mean that is in the setting?

- The pre-record button is designed to let you never miss a moment. When you enable the pre-record function, the camcorder will record video 3 seconds before you have pressed the record button. So when you play-back the recorded film, you will automatically see the first 3 seconds before you have pressed the record button. This can be useful when filming unexpected moments. The pre-record function will not drain battery life, it will operate as normal.

Some video files cannot be edited. Why is that?

- Video files recorded with dual recording cannot be edited. To edit video files on the camcorder, set [Dual recording] to [Off] before you record video (see 'Use your camcorder' > 'Adjust settings').

Tips on video making

- You can easily look back on fun moments and relive them with the camcorder. To enjoy these memories to the fullest, here are some simple video tips:

• When capturing videos, hold your camcorder steady in your hand
• Don't move too fast when panning (i.e. moving the camera horizontally) as it will be hard to follow what is captured when you review the video

- Try shooting from different angles – for example, from the side, from the front, or even from below. You can easily join the different video segments together with the PC software included
