Product Type	Solo Microwave
Brand	LG
Model	MH6883AAF
Capacity	23 Liters
Microwave Power	1000 W
Power Levels	10 Levels
Control Type	Electronic Touch
Display Type	LED
Dimensions (W x D x H)	476 x 380 x 272 mm
Weight	12 kg
Power Source	230 V, 50 Hz
Auto Cook Functions	Yes, 8 Auto Programs
Defrost Function	Yes, by Weight/Time
Child Lock	Yes
Timer	Up to 99 Minutes
Interior Light	Yes
Turntable	Yes, 270 mm
Door Type	Drop Down
Interior Material	Stainless Steel
Cleaning	Easy-Clean Coating
Safety Features	Overheat Protection, Door Interlock
Spare Parts Availability	Yes, via LG Service
Repairability Index	8.5/10
Manual Languages	EN, BG, HU (PDF)

Frequently Asked Questions - MH6883AAF LG

How do I set the clock on my LG microwave MH6883AAF?

Press the Clock button (usually labeled 'CLOCK' or 'TIME'). Use the number pad to enter the current time in 24-hour format (e.g., 14:30). Press Clock again to confirm. If your model has a separate AM/PM setting, see the manual.

What should I do if the microwave doesn't heat?

Check that the door is fully closed and the child lock is off. Ensure the power cord is plugged in and the circuit breaker is not tripped. If still not heating, do not attempt to repair yourself; contact LG service.

How do I clean the microwave interior?

Use a damp cloth with mild soap or a vinegar-water solution. Avoid abrasive cleaners. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes to loosen residue. Wipe dry with a soft cloth.

Can I use metal containers in this microwave?

No, metal or aluminum foil can cause arcing and damage. Use microwave-safe glass, ceramic, or plastic. If foil is recommended (e.g., shielding), use small pieces and keep at least 2.5 cm away from walls.

How do I use the auto cook functions?

Press the Auto Cook button repeatedly to select a program (e.g., 'Auto Cook 1' for popcorn). Follow the display prompts to enter weight or quantity. The microwave will set power and time automatically.

What does the child lock do and how to activate it?

Child lock prevents unintended operation by disabling the control panel. To activate, press and hold the Stop/Cancel button for 3 seconds (or as specified in manual). Deactivate by holding again.

How to defrost food using the defrost function?

Press the Defrost button. Enter the weight of the food using the number pad (e.g., 500 g). The microwave will set the time and power level for even thawing. Turn food halfway if needed.

Why is my microwave making noise?

Some noise is normal: the turntable motor and cooling fan operate during use. If you hear grinding or rattling, check the turntable is seated correctly. Loud humming may indicate a malfunction; contact support.

How do I replace the turntable glass tray?

Remove the old tray carefully. Place the new tray onto the turntable hub (the rotating coupler). Ensure it sits flat. You can purchase the replacement tray (part number: MH6883AAF-GT) from LG or authorized retailers.

What is the warranty period for this microwave?

LG typically offers a 1-year limited warranty for parts and labor. Check your purchase receipt or contact LG customer service for details. Extended warranty may be available.

USER MANUAL MH6883AAF LG

Precautions to avoid possible exposure to excessive microwave energy.

Precautions

You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. These safety interlocks automatically switch off any cooking activity when the door is opened; which in the case of a microwave oven could result in harmful exposure to microwave energy. It is important not to tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces.

Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

Your oven should not be adjusted or repaired by anyone except qualified service personnel.

Warning

Please ensure cooking times are correctly set as over cooking may result in the FOOD catching fire and subsequent damage to your oven.

When heating liquids, e.g. soups, sauces and beverages in your microwave oven, delayed eruptive boiling can occur without evidence of bubbling. This could result in a sudden boil over of the hot liquid. To prevent this possibility the following steps should be taken:

1 Avoid using straight sided containers with narrow necks.
2 Do not overheat.
3 Stir the liquid before placing the container in the oven and again halfway through the heating time.
4 After heating, allow to stand in the oven for a short time, stir or shake them (especially the contents of feeding bottles and baby food jars) again carefully and check the temperature of them before consumption to avoid burns (especially, contents of feeding bottles and baby food jars). Be careful when handling the container.

Warning

Always allow food to stand after being cooked by microwaves and check the temperature of them before consumption. Especially contents of feeding bottles and baby food jars.

Contents

How the Microwave Oven Works

Microwaves are a form of energy similar to radio and television waves and ordinary daylight. Normally, microwaves spread outwards as they travel through the atmosphere and disappear without effect. Microwave ovens, however, have a magnetron which is designed to make use of the energy in microwaves. Electricity, supplied to the magnetron tube, is used to created microwave energy.

These microwaves enter the cooking area through openings inside the oven. A turntable or tray is located at the bottom of the oven. Microwaves cannot pass through metal walls of the oven, but they can penetrate such materials as glass, porcelain and paper, the materials out of which microwave-safe cooking dishes are constructed.

Microwaves do not heat cookware, though cooking vessels will eventually get hot from the heat generated by the food.

A very safe appliance

Your microwave oven is one of the safest of all home appliances. When the door is opened, the oven automatically stops producing microwaves. Microwave energy is converted completely to heat when it enters food, leaving no "left over" energy to harm you when you eat your food.

Precautions 3

Contents 4

Important safety instructions ____ 5 \~ 9

Unpacking & Installing 10\~11

Setting the Clock 12

Child lock 13

Micro Power Cooking 14

Micro Power Level 15

Two Stage Cooking 16

Quick Start 17

Energy Saving 18

Grill Cooking 19

Combination Cooking 20

Auto Cook 21 \~ 23

Auto Defrost 24 \~ 25

Quick Defrost 26 \~ 27

Defrost & Grill 28 \~ 29

Taste Saver 30

Microwave - safe Utensils 31

Food characteristics & Microwave cooking ____ 32 \~ 33

Questions & Answers 34

Technical Specifications 35

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Important Safety Instructions

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "WARNING" or "CAUTION". These word means :

WARNING

This symbol will alert you to hazards or unsafe practices which could cause serious bodily harm or death.

CAUTION

This symbol will alert you to hazards or unsafe practices which could cause bodily injury or property damage.

WARNING

1. Do not attempt to tamper with, or make any adjustments or repairs to the door, door seals, control panel, safety interlock switches or any other part of the oven which would involve the removal of any cover protecting against exposure to of the microwave oven are faulty. Repairs should only be undertaken by a qualified service technician.
2. Unlike other appliances, the microwave oven is a high-voltage and a high-electrical-current piece of equipment. Improper use or repair could result in harmful exposure to excessive microwave energy or in electric shock.

3. Do not use the oven for the purpose of dehumidification. (ex. Operating the microwave oven with wet newspapers, clothes, toys, electric devices, pet or child etc.)
   It can be the cause of serious damage to safety such as a fire, a burn or a sudden death due to an electric shock.
   3.T his appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

4. Improper use may cause damage such as a fire, electric shock or burn.

5. Accessible parts may become hot during use. Young children should be kept away.
   They may get a burn.
6. Liquids or other foods must not be heated in sealed containers since they are liable to explode. Remove the plastic wrapping from food before cooking or defrosting. Note though that in some cases food should be covered with plastic film, for heating or cooking.
   They could burst.
   6.Be certain to use proper accessories on each operation mode.
7. Improper use could result in damage to your oven and accessories, or could make spark and a fire.
8. The children should not allow to play with accessories or hang down from the door handle.
   They may get hurt.

Important Safety Instructions

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

WARNING

1. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
2. It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
3. When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

CAUTION

1. You cannot operate your oven with the door open due to the safety interlocks built into the door mechanism. It is important not to tamper with the safety interlocks.
   It could result in harmful exposure to excessive microwave energy. (Safety interlocks automatically switch off any cooking activity when the door is opened.)

2. Do not place any object (such as kitchen towels, napkins, etc.) between the oven front face and the door or allow food or cleaner residue to accumulate on sealing surfaces.
   It could result in harmful exposure to excessive microwave energy.

3. Do not operate your oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the: (1) door(bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.

4. It could result in harmful exposure to excessive microwave energy.
5. Please ensure cooking times are correctly set, Small amounts of food require shorter cooking or heating time.
   Over cooking may result in the food catching on fire and subsequent damage to your oven.

6. When heating liquids, e.g. soups, sauces and beverages in your microwave oven,
   * Avoid using straight sided containers with narrow necks.
   * Do not overheat.
   * Stir the liquid before placing the container in the oven and again halfway through the heating time.
   * After heating, let it stand in the oven for a short time; stir or shake it again carefully and check the temperature of it before consuming to avoid burns (especially, contents of feeding bottles and baby food jars).
   * Microwave heating of beverages can result in delayed eruptive boiling, therefore care has to be taken when handling the container.

7. An exhaust outlet is located on the top, bottom or side of the oven. Don't block the outlet.

- It could result in damage to your oven and poor cooking results.

1. Do not operate the oven when empty. It is best to leave a glass of water in the oven when not in use. The water will safely absorb all microwave energy, if the oven is accidentally started.

Improper use could result in damage to your oven.

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Important Safety Instructions

CAUTION

1. Do not cook food wrapped in paper towels, unless your cook book contains instructions for the food you are cooking. And do not use newspaper in place of paper towels for cooking.
   Improper use can cause an explosion or a fire.
2. Do not use wooden containers and ceramic containers that have metallic (e.g. gold or silver) inlays. Always remove metal twist ties. Check that the utensils are suitable for use in microwave ovens before use. Metallic containers for food and beverages are not allowed during microwave cooking.
   They may heat-up and char. Metal objects in particular may arc in the oven, which can cause serious damage.
3. Do not use recycled paper products.
   They may contain impurities which may cause sparks and/or fires when used in cooking.
4. Do not rinse the tray and rack by placing it in water just after cooking. This may cause breakage or damage.
   Improper use could result in damage to your oven.
5. Be certain to place the oven so the front of the door is 8 cm or more behind the edge of the surface on which it is placed, to avoid accidental tipping of the appliance.
   Improper use could result in bodily injury and oven damage.

6. Before cooking, pierce the skin of potatoes, apples or any such fruit or vegetable.
   They could burst.

7. Do not cook eggs in their shell. Eggs in their shell and whole hardboiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
   Pressure will build up inside the egg which will burst.

8. Do not attempt deep fat frying in your oven.
   This could result in a sudden boil over of the hot liquid.
9. If smoke is observed (or emitted), switch off or unplug the appliance and keep the door closed in order to stifle any flame.
   It can cause serious damage such as a fire or electric shock.
10. When food is heated or cooked in disposable containers made of plastic, paper or other combustible materials, keep an eye on the oven and check it frequently.
11. Your food may be poured due to the possibility of container deterioration, which also can cause a fire.
12. The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the oven door, outer cabinet, rear cabinet, oven cavity, accessories and dishes during grill mode, convection mode and auto cook operations, before clearing make sure they are not hot.
    As they will become hot, there is the danger of a burn unless wearing thick culinary gloves.
13. The oven should be cleaned regularly and any food deposits should be removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Important Safety Instructions

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

CAUTION

1. Only use the temperature probe recommended for this oven.
2. You can not ascertain that the temperature is accurate with an unsuitable temperature probe.
3. Follow exact directions given by each manufacturer for their popcorn product. Do not leave the oven unattended while the corn is being popped. If corn fails to pop after the suggested times, discontinue cooking. Never use a brown paper bag for popping corn. Never attempt to pop leftover kernels.
   Overcooking could result in the corn catching a fire.
4. This appliance must be earthed.

The wires in the mains lead are colored in accordance with the following codes

BLUE \~ Neutral

BROWN \~ Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is colored BLUE must be connected to the terminal which is marked with the letter N or Colored BLACK. The wire which is colored BROWN must be connected to the terminal which is marked with the letter L or colored RED. The wire which is colored GREEN & YELLOW or GREEN must be connected to the terminal which is marked with the letter E or 12 .

If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to avoid potential hazards.

• Improper use may cause serious electric damage.
• This oven should not be used for commercial catering purposes.
  Improper use could result in damage to your oven.
• T he connection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
  Using improper plug or switch can cause an electric shock or a fire.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• The devices are not intended to be operated by an external timer or by a separate control.
• Only use utensils that are suitable for use in microwave ovens.
• This microwave oven must not be placed in a cabinet.
• This microwave oven is intended to be used freestanding.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The door or the outer surface may get hot when the appliance is operating.

Please keep for future reference. Read and follow all instructions before using your oven to prevent the risk of fire, electric shock, personal injury, or damage when using the oven. This guide does not cover all possible conditions that may occur. Always contact your service agent or manufacturer about problems that you do not understand.

Important Safety Instructions

CAUTION

1. This appliance is intended to be used in household and similar applications such as

2. staff kitchen areas in shops, offices and other working environments

3. farm houses
4. by clients in hotels, motels and other residential environments

5. bed and breakfast type environments

6. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

7. he contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
8. According to the installation requirements set, otherwise the impact of heat, prone to danger.

Unpacking & Installing

By following the basic steps on these two pages you will be able to quickly check that your oven is operating correctly. Please pay particular attention to the guidance on where to install your oven. When unpacking your oven make sure you remove all accessories and packing. Check to make sure that your oven has not been damaged during delivery.

1

Unpack your oven and place it on a flat level surface.

GLASS TRAY

ROTATING RING

RACK

2

Place the oven in the level location of your choice with more than 85cm height but make sure there is at least

30cm of space on the top and 10cm at the rear for proper ventilation. The front of the oven should be at least 8cm from the edge of the surface to prevent tipping.

An exhaust outlet is located on top or side of the oven. Blocking the outlet can damage the oven.

Illustration of a microwave oven with airflow arrows indicating heat or airflow direction (no text or symbols)

THIS OVEN SHOULD NOT BE USED FOR COMMERCIAL CATERING PURPOSES

Plug your oven into a standard household socket.

Make sure your oven is the only appliance connected to the socket. If your oven does not operate properly, unplug it from the electrical socket and then plug it back in.

Open your oven door by pulling the DOOR HANDLE. Place the ROLLER REST inside the oven and place the GLASS TRAY on top.

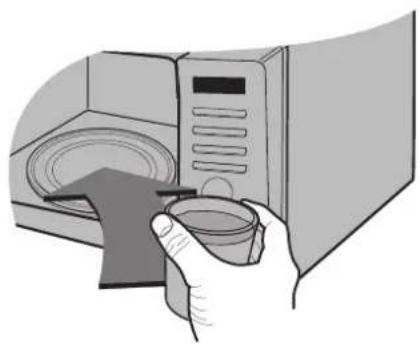

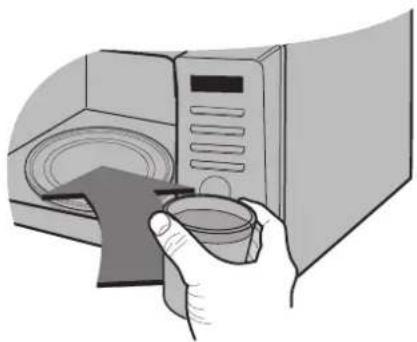

Fill a microwave safe container with 300 ml (1/2 pint) of water. Place on

the GLASS TRAY and close the oven door. If you have any doubts about what type of container to use please refer to page 31.

Illustration of a hand holding a cup next to a microwave oven (no text or symbols visible)

Press the START button once

to set 30 seconds of cooking time.

The DISPLAY will count down from 30 seconds. When it reaches 0, BEEP sounds. Open the oven door and test the temperature of the water. If your oven is operating the water should be warm. Be careful when removing the container it may be hot.

Illustration of two hands holding a steaming cup (no text or symbols)

YOUR OVEN IS NOW INSTALLED

Setting the

Clock

You can set either 12 hour clock or 24 hour clock.

In the following example I will show you how to set the time for 14:35 when using the 24 clock.

Make sure that you have removed all packaging from your oven.

When your oven is plugged in for the first time or when power resumes after a power cut, a '24H' will be shown in the display; you can reset the clock.

If the clock (or display) shows any strange looking symbols, unplug your oven from the electrical socket and plug it back in and reset the clock.

Make sure that you have correctly installed your oven as described earlier in this book.

Plug in your oven for the first time.

"24H" appears on the display.

(If you want to use different option, Press taste saver.

If you want to change different option after setting clock,

you have to unplug and plug it back in.)

Turn DIAL until display shows "14:".

Press STARTour confirmation.

Turn DIAL until display shows "14:35".

Press START

The clock starts counting.

Your oven has a safety feature that prevents accidental running of the oven. Once the child lock is set, you will be unable to use any functions and no cooking can take place. However your child can still open the oven door.

Press STOP/CLEAR.

Press and hold STOP/CLEAR until "L" appears on the display and BEEP sounds.

The CHILD LOCK is now set.

The time will disappear on the display if you have set the clock.

"L" remains on the display to let you know that CHILD LOCK is set.

To cancel CHILD LOCK press and hold STOP/CLEAR until "L" disappears. You will hear BEEP when it's released.

Micro Power Cooking

In the following example I will show you how to cook some food on 80% power for 5 minutes and 30 seconds.

Your oven has five microwave Power settings.

POWER	%	Power Output
HIGH MAX	100%	900W
MEDIUM HIGH	80%	720W
MEDIUM	60%	540W
MEDIUM LOW	40%	360W
LOW	20%	180W

Make sure that you have correctly installed your oven as described earlier in this book.

Press STOP/CLEAR.

Press MICRO twice to select 720 power. "720" appears on the display.

Turn DIAL until display shows "5:30".

Press START.

Simple line drawing of a horizontal bar with icons at both ends (no text or symbols)

Your microwave oven is equipped with 5 power levels to give you maximum flexibility and control over cooking. The table below shows the examples of food and their recommended cooking power levels for use with this microwave oven.

Micro Power

Level

POWER LEVEL	USE	POWER LEVEL(%)	POWER OUTPUT
HIGH * Boil Water	* Brown minced beef* Cook poultry pieces, fish, vegetables* Cook tender cuts of meat	100%	900W
MEDIUM HIGH * All	reheating* Roast meat and poultry* Cook mushrooms and shellfish* Cook foods containing cheese and eggs	80%	720W
MEDIUM * Bake cakes and scones* Prepare eggs* Cook custard* Prepare rice, soup		60%	540W
MEDIUM LOW	* Melt butter and chocolate* Cook less tender cuts of meat	40%	360W
LOW * Soften butter	* All thawing & cheese* Soften ice cream* Raise yeast dough	20%	180W

Two stage Cooking

In the following example I will show you how to cook some food in two stages. The first stages will cook your food for 11 minutes on HIGH; the second will cook for 35 minutes on 360

During two stage cooking the oven door can be opened and food checked. Close the oven door and press START and the cooking stage will continue.

At the end of stage 1, BEEP sounds and stage 2 commences.

Should you wish to clear the programme press STOP/CLEAR twice.

Press STOP/CLEAR.

Set the power and the cooking time for stage1.

Press MICRO once to select HIGH power.

Turn DIAL until display shows "11:00".

Set the power and the cooking time for stage2.

Press MICRO four times to select power.

Turn DIAL until display shows "35:00".

Press START.

In the following example I will show you how to set 2 minutes of cooking on high power.

Quick

Start

The QUICK START feature allows you to set 30 seconds intervals of HIGH power cooking with a touch of the START button.

Press STOP/CLEAR.

Press START four times to select 2 minutes on HIGH power. Your oven will start before you have finished the fourth press.

During QUICK START cooking, you can extend the cooking time by repeatedly pressing the START button.

Energy

Saving

ECO ON feature saves energy by turning off the display. The display will also turn off when the unit is not active for 5 minutes.

Press STOP/CLEAR(ECO ON).

"O" appears on the display.

Press STOP/CLEAR(ECO ON).

Press any key to turn the display back on.

In the following example I will show you how to use the grill to cook some food for 12 minutes and 30 seconds.

Grill

Cooking

This feature will allow you to brown and crisp food quickly.

Press STOP/CLEAR.

Press GRILL.

Simple diagram of a horizontal bar with icons for water, storage, and heating (no text or labels)

Set the cooking time.

Turn DIAL until display shows "12:30".

Press START.

Combination Cooking

In the following example I will show you how to programme your oven with combi mode Co-3 for a cooking time of 25 minutes.

Your oven has a combination cooking feature which allows you to cook food with heater and microwave at the same time or alternately. This generally means it takes less time to cook your food.

The sheath heater grills the surface of the food while microwave heats inside. Moreover, preheating your oven is not necessary.

Press STOP/CLEAR.

Press Combi three times.

"Co-3" appears on the display.

Simple line drawing of three horizontal bars with icons, no text or symbols present

Set the cooking time.

Turn DIAL until display shows "25:00".

Press START.

Be careful when removing your food because the container will be hot!

Combination Cooking Mode

CATEGORY MICRO POWER (%) HEATER POWER (%)
Co-1 20 80
Co-2 40 60
Co-3 60 40

Auto Cook

AUTO COOK allows you to cook most of your favorite food easily by selecting the food type and entering the weight of the food.

Category	Press AUTO COOK
Jacket potato	1 time
Fresh vegetable	2 times
Frozen vegetable	3 times
Rice	4 times
Fish	5 times
Roast beef	6 times
Roast pork	7 times
Chicken legs	8 times

Press STOP/CLEAR.

Press AUTO COOK twice to select Fresh vegetable.

Turn DIAL until display shows "0.6".

Press START.

FOOD CATEGORY	FOOD TEMP. UTENSILS		WEIGHT LIMIT	INSTRUCTIONS
1. Jacket potato(Ac-1)	Room	On Glass tray	0.2 kg ~ 1.0 kg	Choose medium sized potatoes 170-200g.Wash and dry potatoes. Pierce the potatoes several times with fork. Place the potatoes on the glass try. Adjust weight and press start. After cooking, remove the potatoes from the oven. Let stand covered with foil for 5 min-utes.
2. Fresh vegetable(Ac-2)	Room	Microwave-safe bowl	0.2 kg ~ 0.8 kg	Place vegetables in a microwave-safe bowl. Add water.Cover with wrap. After cooking, stir and allow to stand for 2 minutes.Add amount of water according to the quantity.** 0.2kg - 0.4kg : 2 Tablespoon** 0.5kg - 0.8kg : 4 Tablespoon
3. Frozen vegetable(Ac-3)	Frozen	Microwave-safe bowl	0.2 kg ~ 0.8 kg	Place vegetables in a microwave-safe bowl. Add water.Cover with wrap. After cooking, stir and allow to stand for 2 minutes.Add amount of water according to the quantity.** 0.2kg - 0.4kg : 2 Tablespoon** 0.5kg - 0.8kg : 4 Tablespoon
4. Rice(Ac-4)	Room	Microwave-safe bowl	0.1 kg ~ 0.3 kg	Wash rice. Darin water.Plase rice & boiling water in a deep and large bowl.
				Weight	100g	200g	300g	Cover
				Boiling water	200ml	400ml	600ml	Yes/Vent corner
				** Rice -- After cooking, stand covered for 5 minutes or until water is absorbed.

Weight	100g	200g	300g	Cover
Boiling water	200ml	400ml	600ml	Yes/Vent corner

FOOD CATEGORY	FOOD TEMP.	UTENSILS	WEIGHT LIMIT	INSTRUCTIONS
5. Fish(Ac-5)	Refrigerated	Microwave-safe flan dish	0.2 kg ~ 0.6 kg	Whole fish, steaks- Oily fish : salmon, mackerel- White fish : cod, haddockArrange in a single layer in a large microwave-safe flan dish.Cover dish tightly with plastic wrap and pierce in several places.Place on the glass turntable. Adjust weight and press start.After cooking, remove the dish from the oven. Allow to stand for 3 minutes before serving.
6. Roast beef(Ac-6)	Refrigerated	rack	0.5 kg ~ 1.5 kg	Brush the beef with melted margarine or butter. Place on the rack.The oven will beep, turn food over and press start to continue.After cooking, stand covered with foil for 10 minutes before serving.
7. Roast pork(Ac-7)	Refrigerated	rack	0.5 kg ~ 1.5 kg	Brush the with melted margarine or butter. Place on the rack.The oven will beep, turn food over and press start to continue.After cooking, stand covered with foil for 10 minutes before serving.
8. Chicken legs(Ac-8)	Refrigerated	rack	0.2 kg ~ 0.8 kg	Wash and dry skin. Brush the chicken legs with melted margarine or butter.Place on the food with the glass standtable.container for dropping meat juice under the rack. When BEEP, turn food over.And then press start to continue cooking.After cooking, stand covered with foil for 2-5 minutes.

Auto Defrost

The temperature and density of food varies, I would recommend that the food is checked before cooking commences. Pay particular attention to large joints of meat and chicken, some foods should not be completely thawed before cooking. The BREAD programme is suitable for defrosting small items such as rolls or a small loaf. These will require a standing time to allow the centre to thaw. In the following example I will show you how to defrost 1.4 Kg of frozen poultry.

Your oven has four microwave defrost settings:- MEAT, POULTRY, FISH and BREAD; each defrost category has different power settings. Repeated presses of the AUTO DEFROST button will select a different setting.

Press STOP/CLEAR.

Weight the food that you are about to defrost. Be certain to remove any metallic ties or wraps; then place the food in your oven and close the oven door.

Press AUTO DEFROST twice to select the POULTRY defrosting programme.

Enter the weight of the frozen food that you are about to defrost.

Turn DIAL until display shows "1.4".

Press START.

During defrosting your oven will "BEEP", at which point open the oven door, turn food over and separate to ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After checking close the oven door and press START to resume defrosting. Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.

AUTO WEIGHT DEFROST GUIDE

* Food to be defrosted should be in a suitable microwave proof container and place uncovered on the glass turntable.
* If necessary, shield small areas of meat or poultry with flat pieces of aluminum foil. This will prevent thin areas becoming warm during defrosting. Ensure the foil does not touch the oven walls.
* Separate items like minced meat, chops, sausages and bacon as soon as possible.

When BEEP, at this piont remove the food from the microwave oven, turn the food over and return to the microwave oven. Press start to continue. At the end of the program, remove the food from the microwave oven, cover with foil and allow to stand until completely thawed.

To thaw completely, for example joints of meat and whole chickens should STAND for a minimum of 1 hour before cooking.

Category	Weight Limit	Utensil	Food
Meat(dEF1)	0.1 ~ 4.0 kg	Microwave ware(Flat plate)	MeatMinced beef, Fillet steak, Cubes for stew, Sirloin steak, Pot roast, Rump roast, Beef burgerPork chops, Lamp chops, Rolled roast, Sausage, Cutlets(.2cm)
Poultry(dEF2)			Turn food over at beep.After defrosting, let stand for 5-15 minutes.
Fish(dEF3)			PoultryWhole chicken, Legs, Breasts, Turkey breasts(under 2.0kg)Turn food over at beep.After defrosting, let stand for 20-30 minutes.FishFillets, Steaks, Whole fish, Sea foodsTurn food over at beep.After defrosting, let stand for 10-20 minutes.
Bread(dEF4)	0.1 ~ 0.5 kg	Paper towelor flat plate	Sliced bread, Buns, Baguette, etc.Separate slices and place between paper towel or flat plate.Turn food over at beep.After defrosting, let stand for 1-2 minutes.

Quick Defrost

Use this function to thaw only 0.5kg of Minced meat very quickly. This will require a standing time to allow the center to thaw. In the following example will show you how to defrost 0.5kg of frozen minced meat.

Your oven has a microwave quick defrost setting (MEAT).

Press STOP/CLEAR.

Weight the food that you are about to defrost. Be certain to remove any metallic ties or wraps; then place the food in your oven and close the oven door.

Press QUICK DEFROST.

The oven will start automatically.

During defrosting your oven will "BEEP", at which point open the oven door, turn food over and separate to ensure even thawing. Remove any portions that have thawed or shield them to help slow down thawing. After checking close the oven door and press START to resume defrosting. Your oven will not stop defrosting (even when the beep sounded) unless the door is opened.

AUTO WEIGHT DEFROST GUIDE

Use this function to defrost quickly for minced meat.

Remove the meat completely from it's wrapping. Place the mince onto a microwave-safe plate. When BEEP, at this point remove the mince from the microwave oven, turn the mince over and return to the microwave oven. Press start to continue. At the end of the program remove the mince from the microwave oven, cover with foil and allow to stand 5-15 minutes or until completely thawed.

CATEGORY WEIGHT		UTENSIL INSTRUCTIONS
Minced meat	0.5kg	Microwave ware (Flat plate)	Minced meatTurn food over at beepAfter defrosting, let stand for 5-15 minutes

Defrost & Grill

In the following example I will show you how to cook 0.3kg of "Salmon Fillet".

Defrost & Grill allows you to cook most of your favorite food easily by selecting the food type and entering the weight of food by turn the wheel dial.

Category	Press Defrost & Grill
Salmon Fillet	1	time
Shrimp	2	times
Hamburger Patties	3	times
Sausage	4	times

Press Defrost & Grill once.

Turn DIAL until display shows "0.3kg".

Press START.

Category	Quantity	Utensil	FOOD TEMP.	Instructions
Salmon fillet 0.2-0.6kg (dG-1)	Frozen	Rack		Choose salmon fillet of 200gl weight and 2.5cm thickness each. Frozen it. Place food on UDFN Choose the menu and weight, press start. After cooking, remove from the oven and stand.
Shrimp 0.1-0.4kg Frozen (dG-2)				Clean and de-vein shrimps. Place on the rack. When beep, turn food over.
Hamburger Patties (dG-3)	1-4 piece Frozen		Choose the menu and weight, press start. After cooking, remove from the oven and stand.
Sausage (dG-4)	0.2-0.6kg		Frozen	Remove all packages and slit on the surface. Place on the rack. When beep, turn food over.

Taste saver

In the following example I will show you how to use the taste saver function to warm food at high level in 90 min.

If you want to warm your food when using the AUTO COOK programme, you can get the warming food by pressing the key.

When the food without Auto function need warming you can set warming at any point by pressing the key.

Taste saver function has only one time level-90 minutes. But the function will stop when you open the door.

LEVEL	Press keep warming		Display
Low level	1	time	HILL
High level	2	times	HIFF

Taste saver manually

Put some food into the micro-wave oven, press

"taste saver" two times, "HO-H" appears on the display.

Press "start".

Two horizontal bar icons with icons: one with a document and megaphone, the other with a flame symbol (no text or labels)

Taste saver after AUTO COOK

1. Set the required AUTO COOK programme.

Press "start". And after the AUTO COOK programme, it will automatically run Taste saver function when five minutes later after AUTO COOK is over.

1. When the AUTO COOK is over, you can also press "taste saver", and "HO-H" appears on the display.

Press "start".

\*TIME display

When Taste saver is running, it will display

And then you press "taste saver" again, left time of

Taste saver will appear on the display.

Simple geometric shape: a dashed rectangle outline on a gray background (no text or symbols)

Microwave-safe Utensils

Never use metal or metal trimmed utensils in your

microwave oven

Microwaves cannot penetrate metal. They will bounce off any metal object in the oven and cause arcing, an alarming phenomenon that resembles lightning.

Most heat resistant non metallic cooking utensils are safe for use in your microwave oven. However, some may contain materials that render them unsuitable as microwave cookware. If you have any doubts about a particular utensil, there's a simple way to find out if it can be used in your microwave oven.

Place the utensil in question next to a glass bowl filled with water in the microwave oven. Microwave at power HIGH for 1 minute. If the water heats up but the utensil remains cool to the touch, the utensil is microwave\~safe. However, if the water does not change temperature but the utensil becomes warm, microwaves are being absorbed by the utensil and it is not safe for use in the microwave oven. You probably have many items on hand in your kitchen right now that can be used as cooking equipment in your microwave oven. Just read through the following checklist.

Dinner plates

Many kinds of dinner-ware are microwave-safe. If in doubt consult the manufacturer's literature or perform the microwave test.

Glassware

Glassware that is heat-resistant is microwave-safe. This would include all brands of oven tempered glass cookware. However, do not use delicate glassware, such as tumblers or wine glasses, as these might shatter as the food warms.

Plastic storage containers

These can be used to hold foods that are to be quickly reheated. However, they should not be used to hold foods that will need considerable time in the oven as hot foods will eventually warp or melt plastic containers.

Paper

Paper plates and containers are convenient and safe to use in your microwave oven, provided that the cooking time is short and foods to be cooked are low in fat and moisture. Paper towels are also very useful for wrapping foods and for lining baking trays in which greasy foods such as bacon are cooked. In general, avoid coloured paper products as the colour may run. Some recycled paper products may contain impurities which could cause arcing or fires when used in the microwave oven.

Plastic cooking bags

Provided they are made specially for cooking, cooking bags are microwave safe. However, be sure to make a slit in the bag so that steam can escape. Never use ordinary plastic bags for cooking in your microwave oven, as they will melt and rupture.

Plastic microwave cookware

A variety of shapes and sizes of microwave cookware are available. For the most part, you can probably use items you already have on hand rather than investing in new kitchen equipment.

Pottery, stoneware and ceramic

Containers made of these materials are usually fine for use in your microwave oven, but they should be tested to be sure.

CAUTION

Some items with high lead or iron content are not suitable for cooking utensils.

Utensils should be checked to ensure that they are suitable for use in microwave ovens.

Food characteristics & Microwave cooking

Keeping an eye on things

The recipes in the book have been formulated with great care, but your success in preparing them depends on how much attention you pay to the food as it cooks. Always watch your food while it cooks. Your microwave oven is equipped with a light that turns on automatically when the oven is in operation so that you can see inside and check the progress of your food. Directions given in recipes to elevate, stir, and the like should be thought of as the minimum steps recommended. If the food seems to be cooking unevenly, simply make the necessary adjustments you think appropriate to correct the problem.

Factors affecting microwave cooking times

Many factors affect cooking times. The temperature of ingredients used in a recipe makes a big difference in cooking times. For example, a cake made with ice-cold butter, milk, and eggs will take considerably longer to bake than one made with ingredients that are at room temperature. All of the recipes in this book give a range of cooking times. In general, you will find that the food remains under-cooked at the lower end of the time range, and you may sometimes want to cook your food beyond the maximum time given, according to personal preference. The governing philosophy of this book is that it is best for a recipe to be conservative in giving cooking times. While overcooked food is ruined for good. Some of the recipes, particularly those for bread, cake, and custards, recommend that food be removed from the oven when they are slightly undercooked. This is not a mistake. When allowed to stand, usually covered, these foods will continue to cook outside of the oven as the heat trapped within the outer portions of the food gradually travels inward. If the food is left in the oven until it is cooked all the way through, the outer portions will become overcooked or even burnt. You will become increasingly skilful in estimating both cooking and standing times for various foods.

Density of food

Light, porous food such as cakes and breads cook more quickly than heavy, dense foods such as roasts and casseroles. You must take care when microwaving porous food that the outer edges do not become dry and brittle.

Height of food

The upper portion of tall food, particularly roasts, will cook more quickly than the lower portion. Therefore, it is wise to turn tall food during cooking, sometimes several times.

Moisture content of food

Since the heat generated from microwaves tends to evaporate moisture, relatively dry food such as roasts and some vegetables should either be sprinkled with water prior to cooking or covered to retain moisture.

Bone and fat content of food

Bones conduct heat and fat cooks more quickly than meat. Care must be taken when cooking bony or fatty cuts of meat that they do not cook unevenly and do not become overcooked.

Quantity of food

The number of microwaves in your oven remains constant regardless of how much food is being cooked. Therefore, the more food you place in the oven, the longer the cooking time. Remember to decrease cooking times by at least one third when halving a recipe.

Shape of food

Microwaves penetrate only about 2.cm into food, the interior portion of thick foods are cooked as the heat generated on the outside travels inward. Only the outer edge of food in cooked by microwave energy; the rest is cooked by conduction. The worst possible shape for a food that is to be microwaved is a thick square. The corners will burn long before the centre is even warm. Round thin foods and ring shaped foods cook successfully in the microwave.

Covering

A cover traps heat and steam which causes food to cook more quickly. Use a lid or microwave cling film with a corner folded back to prevent splitting.

Browning

Meats and poultry that are cooked fifteen minutes or longer will brown lightly in their own fat. Foods that are cooked for a shorter period of time may be brushed with a browning sauce such as worcestershire sauce, soy sauce or barbecue sauce to achieve an appetizing colour. Since relatively small amounts of browning sauces are added to food the original flavour of the recipe is not altered.

Covering with greaseproof paper

Greaseproofing effectively prevents spattering and helps food retain some heat. But because it makes a looser cover than a lid or clingfilm, it allows the food to dry out slightly.

Arranging and spacing

Individual foods such as baked potatoes, small cakes and hors d'oeuvres will heat more evenly if placed in the oven an equal distance apart, preferably in a circular pattern. Never stack foods on top of one another.

Food characteristics & Microwave cooking

Stirring

Stirring is one of the most important of all microwaving techniques. In conventional cooking, food is stirred for the purpose of blending. Microwaved food, however, is stirred in order to spread and redistribute heat. Always stir from the outside towards the centre as the outside of the food heats first.

Turning over

Large, tall foods such as roasts and whole chickens should be turned so that the top and bottom will cook evenly. It is also a good idea to turn cut up chicken and chops.

Placing thicker portions facing outwards

Since microwaves are attracted to the outside portion of food, it makes sense to place thicker portions of meat, poultry and fish to the outer edge of the baking dish. This way, thicker portions will receive the most microwave energy and the food will cook evenly.

Shielding

Strips of aluminium foil (which block microwaves) can be placed over the corners or edges of square and rectangular foods to prevent those portions from overcooking. Never use too much foil and make sure the foil is secured to the dish or it may cause 'arcing' in the oven.

Elevating

Thick or dense foods can be elevated so that microwaves can be absorbed by the underside and centre of the foods.

Piercing

Foods enclosed in a shell, skin or membrane are likely to burst in the oven unless they are pierced prior to cooking. Such foods include yolks and whites of eggs, clams and oysters and whole vegetables and fruits.

Testing if cooked

Food cooks so quickly in a microwave oven, it is necessary to test it frequently. Some foods are left in the microwave until completely cooked, but most foods, including meats and poultry, are removed from the oven while still slightly undercooked and allowed to finish cooking during standing time. The internal temperature of foods will rise between 5°F (3°C) and 15°F (8°C) during standing time.

Standing time

Foods are often allowed to stand for 3 to 10 minutes after being removed from the microwave oven. Usually the foods are covered during standing time to retain heat unless they are supposed to be dry in texture (some cakes and biscuits, for example). Standing allows foods to finish cooking and also helps flavour blend and develop.

To Clean Your Oven

1 Keep the inside of the oven clean

Food spatters or spilled liquids stick to oven walls and between seal and door surface. It is best to wipe up spillovers with a damp cloth right away. Crumbs and spillovers will absorb microwave energy and lengthen cooking times. Use a damp cloth to wipe out crumbs that fall between the door and the frame. It is important to keep this area clean to assure a tight seal. Remove greasy spatters with a soapy cloth then rinse and dry. Do not use harsh detergent or abrasive cleaners. The glass tray can be washed by hand or in the dishwasher.

2 Keep the outside of the oven clean

Clean the outside of your oven with soap and water then with clean water and dry with a soft cloth or paper towel. To prevent damage to the operating parts inside the oven, the water should not be allowed to seep into the ventilation openings. To clean control panel, open the door to prevent oven from accidentally starting, and wipe a damp cloth followed immediately by a dry cloth. Press STOP/CLEAR after cleaning.

3 If steam accumulates inside or around the outside of the oven door, wipe the panels with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.

4 The door and door seals should be kept clean. Use only warm, soapy water, rinse then dry thoroughly.

DO NOT USE ABRASIVE MATERIALS, SUCH AS CLEANING POWDERS OR STEEL AND PLASTIC PADS.

Metal parts will be easier to maintain if wiped frequently with a damp cloth.

5 Do not use any steam cleaner.

Questions & Answers

Q What's wrong when the oven light will not glow?

A There may be several reasons why the oven light will not glow. Light bulb has blown Door is not closed

Q Does microwave energy pass through the viewing screen in the door?

A No. The holes, or ports, are made to allow light to pass; they do not let microwave energy through.

Q Why does the beep tone sound when a pad on the Control Panel is touched?

A The beep tone sounds to assure that the setting is being properly entered.

Q Will the microwave oven be damaged if it operates empty?

A Yes Never run it empty or without the glass tray.

Q Why do eggs sometimes pop?

A When baking, frying, or poaching eggs, the yolk may pop due to steam build up inside the yolk membrane. To prevent this, simply pierce the yolk before cooking. Never microwave eggs in the shell.

Q Why is standing time recommended after microwave cooking is over?

A After microwave cooking is finished, food keeps on cooking during standing time. This standing time finishes cooking evenly throughout the food. The amount of standing time depends on the density of the food.

Q Is it possible to pop corn in a microwave oven?

A Yes, if using one of the two methods described below 1 Popcorn-popping utensils designed specifically for microwave cooking. 2 Prepackaged commercial microwave popcorn that contains specific times and power outputs needed for an acceptable final product.

FOLLOW EXACT DIRECTIONS GIVEN BY EACH MANUFACTURER FOR THEIR POPCORN PRODUCT. DO NOT LEAVE THE OVEN UNATTENDED WHILE THE CORN IS BEING POPPED. IF CORN FAILS TO POP AFTER THE SUGGESTED TIMES, DISCONTINUE COOKING. OVERCOOKING COULD RESULT IN THE CORN CATCHING FIRE.

CAUTION

NEVER USE A BROWN PAPER BAG FOR POPPING CORN. NEVER ATTEMPT TO POP LEFTOVER KERNELS.

Q Why doesn't my oven always cook as fast as the cooking guide says?

A Check your cooking guide again to make sure you've followed directions correctly, and to see what might cause variations in cooking time. Cooking guide times and heat settings are suggestions, chosen to help prevent overcooking, the most common problem in getting used to a microwave oven. Variations in the size, shape, weight and dimensions of the food require longer cooking time. Use your own judgement along with the cooking guide suggestions to test food condition, just as you would do with a conventional cooker.

Technical Specifications

Technical Specification

	MH6883AAF
Power Input	230 V AC /50Hz
Output	900 W (IEC60705 rating standard)
Microwave Frequency	2,450 MHz +/- 50MHz(Group 2/Class B)
Outside Dimension	510 mm(W) X 286mm(H) X 444mm(D)
Power Consumption	1,300 Watts
Microwave
Grill	1,000 Watts
Combination	1,450 Watts

Group 2 equipment: group 2 contains all ISM RF equipment in which radio-frequency energy in the frequency range 9 kHz to 400GHz is intentionally generated and used or only sed, in the form of uelectromagnetic radiation, inductive and / or capacitive coupling, for the treatment of material or inspection/analysis purposes.

Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Disposal of your old appliance

1 This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2 Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3 You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

LG

Life's Good

TÍPUSÚ GRILLEZŐ MIKROHULLÁMÚ SÜTŐHÖZ MIKROHULLÁMÚ SÜTŐ

MIELÖTT HASZNÁLATBA VENNÉ A KÉSZÜLÉKET, A SZAKSZERÜ HASZNÁLAT ÉRDEKÉBEN KÉRJÜK, SZÍVESKEDJEN ELOLVASNI A KEZELÉSI ÚTMUTATÓT. A GYÁRTÓK NEM TEHETŐK FELELÖSSÉ AZ ALÁBBI UTASÍTÁSOK BE NEM TARTÁSÁBÓL EREDŐ PROBLÉMÁKÉRT.

MH6883AAF

www.lg.com

Illustration of a microwave oven with airflow arrows indicating direction (no text or symbols)

EZT A MIKROHULLÁMÚ SÜTŐT TILOS KERESKEDELMI JELLEGÜ CÉLOKRA HASZNÁLNI.

Illustration of a hand holding a cup next to a microwave oven (no text or symbols visible)

Illustration of hands holding a cup with steam rising from the side (no text or symbols)

A SÜTŐ TELEPÍTÉSE BEFEJEZÓDÖTT.

Simple line drawing of a horizontal bar with icons at both ends (no text or symbols)

Gyors indítás

Simple diagram of a horizontal bar with icons for water, items, and a thermometer (no text or labels)

Simple diagram of two horizontal bars with icons and a small water drop, no text or symbols present

Kombinált üzemmódok

Aromatartó program AUTOMATIKUS

Two horizontal bar designs with icons: one with a document and megaphone, the other with a speaker icon (no text or symbols)

Simple black dashed rectangular outline on a gray background (no text or symbols)

Illustration of a microwave oven with open door and closed lid, showing internal air gap (no text or symbols)

СТЪКЛЕНА ПОДСТАВКА

ВЪРТЯЩ СЕ ПРЪСТЕН

ВИСОКА СКАРА

Illustration of a microwave oven with airflow arrows indicating air flow (no text or symbols)

Illustration of a hand holding a cup near a microwave oven (no text or symbols)

Illustration of two hands holding a cup with steam rising from the cup (no text or symbols)

Simple diagram showing three horizontal bars with icons: a wavy bar, a rectangular bar, and a thermometer (no text or labels)

МИКРОВЪЛНОВА

ЕНЕРГИЯ СТЕПЕНИ

Натиснете СТОП/ЗАНУЛЯВАНЕ(ECO ON).

Натиснете GRILL.

Simple diagram of a horizontal bar with icons for water, steam, and a plug (no text or labels)

Simple diagram of two horizontal bars with icons, no text or symbols present

Two horizontal bar icons with symbols: a water drop and a car with steam, both without any text or labels.

Two horizontal bar designs with icons: one with a water drop and another with a flame symbol (no text or labels)

Simple dashed rectangular outline on a gray background (no text or symbols)

СЪДОВЕ, БЕЗОПАСНИ ЗА УПОТРЕБА В МИКРОВЬЛНОВА ФУРНА

Illustration of a microwave oven with open door and digital display, showing internal air gap (no text or symbols)

STAKLENI POSLUŽAVNIK

OBRTNI PRSTEN

VISOKA MREŽA ZA PEČENJE
2

Postavite pećnicu na ravan položaj po svom izboru na visinu veću od 85cm, ali budite sigurni da ima više od 30cm prostora na vrhu i 10 cm pozadi za potrebnu ventilaciju.

Prednja strana pećnice mora biti barem 8cm od ruba površine da bi se spriječilo prevrtanje i rušenje.

Na vrhu i sa strane pećnice nalaze se ispušni otvori. Blokiranje otvora može ošteti pećnicu.

Illustration of a microwave oven with upward airflow arrows (no text or symbols)

OVA SE PEĆNICA NE SMIJE KORISTITI U SVRHU KOMERCIJALNOG POSLUŽIVANJA HRANE.

Priključite mikrovalnu peć u zidni konektor (utičnicu). Pazite da na datu mrežnu podlogu ne bude priključen neki drugi uređaj.

Ako aparat ne funkcionira na odgovarajući način, izvucite mrežni vodič iz zidne utičnice, a potom ga nakon kraćeg vremena ponovno utaknite natrag u utikač.

Držeći ručku DOOR HANDLE otvorite vrata prostora za pečenje. Postavite u prostor za pečenje PRSTEN ZA VÓĐENJE TANJURA, a na njega OKRETNI STAKLENI

TANJUR.

U jednu posudu pogodnu za korištenje u mikrovalnoj peći napunite 300 ml vode. Stavite posudu na OKRETNI STAKLENI TANJUR, a potom zatvorite vrata pećnice.

Ako niste sigurni glede vrsta posuda koje se mogu koristiti u mikrovalnim pećima, pogledajte napisano na 105nici.

Illustration of a hand holding a cup next to a microwave oven (no text or symbols visible)

Za podešavanje vremena kuhanja od 30 sekunda pritisnite gumb

STOP/CLEAR, a potom jedan puta pritisnite

gumb START.

Signalna pločica aparata pokrečući se od 30 sekundi počinje odbrojavanje unatrag. Pri dostizanju vrijednosti 0 čuje se signalni zvižduk. Otvorite vrata pećnice i provjerite

temperaturu vode. Ako mikrovalna peć funkcionira na odgovarajući način, voda će biti topla. Oprezno izvadite posudu, jer njegova površina može biti vrela.

Illustration of two hands cupping a cup with steam rising from the cup (no text or symbols)

POSTAVLJANJE PEĆI JE ZAVRŠENO.

Pritisnite tipku STOP/CLEAR.

Pritisnite i držite tipku STOP/CLEAR dok se na display-u ne prikaže "L" i dok se ne začuje zvuk. Sada je postavljena opcija CHILD LOCK.

Simple diagram of a horizontal bar with icons at both ends, no text or symbols present

POWER (SNAGA) % Strujni izlaz

NAJ VIŠA (HIGH MAX)	100%	900W
SREDNJE VISOKA (MEDIUM HIGH)	80%	720W
SREDNJA (MEDIUM)	60%	540W
SREDNJE NISKA (MEDIUM LOW)	40%	360W
NISKA (LOW)	20%	180W

Nivo

Mikro snage

Vaš mikrovalna pećnica je opremljena s 5 nivoa snage kako bi vam pružila maksimalnu fleksibilnost i kontrolu nada pečenjem. Donja tabela Mikro snage prikazuje primjere hrane i za njih preporučene nivoe snage pečenja koji se koriste za ovu pećnicu.

NIVO SNAGE	UPOTREBA	NIVO SNAGE (%)	IZLAZNA SNAGA
NAJ VIŠA (HIGH MAX)	Kuhanje vodeSmeđa sjeckana govedinaPečena perad, riba, povrćePečeni maleni komadi mesa	100%	900W
SREDNJE VISOKA (MEDIUM HIGH)	Svako podgrijavanjePečeno meso i peradPečene gljive i školjkePečena hrana koja sadrži sir i jaja	80%	720W
SREDNJA (MEDIUM)	Pečeni kolači i pecivaPripremanje jajaKuhani desertiPripremanje riže, juha	60%	540W
SREDNJE NISKA (MEDIUM LOW)	Rastopljeni maslac i čokoladaPečenje većih komada mesa	40%	360W
NISKA (LOW)	Sve odmrznutoOmekšani maslac i sirOmekšani sladoledDizanje tijesta	20%	180W

Pritisnite STOP/CLEAR.

Podesite snagu i vrijeme kuhanja za 1. stupanj. (ovo možete ispustiti ako kuhate na stupnju snage HIGH). Da biste odabrali stupanj snage HIGH jedanput pritisnite MICRO.

Brzi Start

Pritisnite tipku STOP/CLEAR.

Pritisnite tipku START četiri puta da izaberete 2 minute na visokoj snazi

Za vrijeme QUICK START pečenja, vi možete produžiti vrijeme pečenja ponavljajući pritiskanje START tipke.

Ušteda Energije

Pritisnite tipku STOP/CLEAR.

Pritisnite GRILL.

Simple diagram of a horizontal bar with icons at both ends, no text or symbols present

Odaberite vrijeme kuhanja.

Pritisnite tipku START.

Pritisnite tipku STOP/CLEAR.

Pritisnite tipku COMBI tri puta

Na display-u će se pojaviti "Co-3"

Simple diagram of a horizontal bar with icons for water, storage, and heating elements (no text or labels)

Modus kombiniranog spravljanja hrane

KATEGORIJA	MIKRO SNAGA (%)	SNAGA GRIJAČA (%)
Co-1	20	80
Co-2	40	60
Co-3	60	40

Automatsko

kuhanje

Pritisnite tipku STOP/CLEAR.

Pritisnite AUTO COOK dva puta da odaberete svježe povrće.

FUNKCIJA	KATEGORIJA	DOZVOLJENA TEŽINA	PRIBOR	TEMP. HRANE	UPUTE
AUTOMATSKO KUHANJE	1. KRUMPIR U LJUSCI (Ac-1)	0,2 kg – 1,0 kg	-	Sobna temperatura	Odaberite krumpire srednje veličine od 170 – 200 g. Operite i posušite krumpir. Probušite viljuškom na nekoliko mjesta. Krumpir poslažite na stakleni rotirajući pladanj. Ugodite težinu i pritisnite start. Nakon kuhanja uklonite krumpire iz pećnice. Ostavite ih da odstoje pokriveni folijom 5 minuta.
	2. SVJEŽE POVRĆE (Ac-2)	0,2 kg – 0,8 kg	Zdjela za kuhanje u mikrovalnoj pećnici	Sobna temperatura	Povrće stavite u zdjelu za mikrovalnu pećnicu. Dodajte vodu. Pokrijte. Nakon kuhanja, promiješajte i pustite da odstoji 2 minute.Dodajte količinu vode koja odgovara količini povrća. ** 0,2 kg - 0,4 kg : 2 jušne žlice** 0,5 kg – 0,8 kg : 4 jušne žlice
	3. SMRZNUTO POVRĆE (Ac-3)	0,2 kg – 0,8 kg	Zdjela za kuhanje u mikrovalnoj pećnici	Smrznuto	Povrće stavite u zdjelu za mikrovalnu pećnicu. Dodajte vodu. Pokrijte. Nakon kuhanja, promiješajte i pustite da odstoji 2 minute.Dodajte količinu vode koja odgovara količini povrća. ** 0,2 kg - 0,4 kg : 2 jušne žlice**0,5 kg – 0,8 kg : 4 jušne žlice
	4. RIŽA (Ac-4)	0,1 kg – 0,3 kg	Zdjela za kuhanje u mikrovalnoj pećnici	Sobna temperatura	Operite rižu i stavite je u ključalu vodu sa 1⁄4 do 1 čajne žlice soli u duboku i veliku zdjelu.
						Težina 1	00 g 200 g	300g	Poklopac
					Voda	Riža 18	0 ml	330 ml	480 ml Da
						Tjestenina	400 ml	800 ml	1200 ml Ne
					**Riža – nakon kuhanja neka odstoji pokrivena oko 5 minuta ili dok se voda nije upila.
	5. RIBA 0,2 kg (Ac-5)	- 0,6 kg	Posuda za kuhanje u mikrovalnoj pećnici	Ohlađena u hladnjaku	Cijela riba, odresci- Masna riba: losos, pastrva- Bijela riba: bakalar, koljakRasporedite u jednom sloju na posudu u mikrovalnoj pećniciČvrsto prekrijte plastičnom folijom i probušite na nekoliko mjesta. Postavite na stakleni rotirajući pladanj. Namjestite težinu i pritisnite start. Nakon pripreme izvadite posudu iz pećnice.Ostavite da 3 minute prije posluživanja.
AUTOMATSKO KUHANJE	6. Juneće pečenje (Ac-6)	0.5 kg ~ 1.5 kg	Rešetka	Iz hladnjaka	Premažite meso rastopljenim margarinom ili maslacem. Stavite na rešetku, Kad se čuje zvučni signal, preokrenite meso i pritisnite tipku za uključenje.Nakon kuhanja, neka odstoji ispod folije 10 minuta prije posluživanja.
	7. Svinjsko pečenje (Ac-7)	0.5 kg ~ 1.5 kg	Iz hladnjaka		Premažite meso rastopljenim margarinom ili maslacem. Stavite na rešetku, Kad se čuje zvučni signal, preokrenite meso i pritisnite tipku za uključenje.Nakon kuhanja, neka odstoji ispod folije 10 minuta prije posluživanja.
	8. Komadi piletine (Ac-8)	0.2 kg ~ 0.8 kg	Iz hladnjaka		Operite i obrišite. Namažite batke rastopljenim margarinom ili maslacem. Stavite na rešetku.Kad se čuje zvučni signal, preokrenite meso

Pritisnite tipku STOP/CLEAR.

Izvažite hranu koju želite odmrznuti. Provjerite da li ste uklonili sve metalne vezice ili omotače; tada stavite hranu u pećnicu i zatvorite vrata pećnice.

Pritisnite tipku AUTO DEFROST dva puta da izaberete tipku PERAD (POULTRY) odmrzavajući program

Unesite težinu smrznute hrane koju želite odmrznuti.

Pritisnite tipku STOP/CLEAR.

Izvažite hranu koju želite odmrznuti. Provjerite da li ste uklonili sve metalne vezice ili omotače; tada stavite hranu u pećnicu i zatvorite vrata pećnice.

Pritisnite tipku QUICK DEFROST,

Odmrzavanje i grill

Kategorija	Količina Posuda	TEMP.HRANE	Upute
Odrezak lososa (dG-1)	0.2-0.6kg	Nosač	Zamrznuto	Odaberite odreske lososa težine 200g i debljine 2,5 cm svaki.Zamrznite odreske. Stavite hranu u pečenje i na nosač.Odaberite izbornik i težinu, pritisnite start.Poslije pečenja, izvadite iz pećnice i ostavite da stoji.
Račići (dG-2)	0.1-0.4kg		Zamrznuto	1. Očistite račiće. Stavite ih na nosač.2. Kada začujete bip, okrenite račiće.
Hamburger pljeskavice (dG-3)	1-4 komada		Zamrznuto	Stavite hamburger pljeskavice u pečenje i na nosač.Odaberite izbornik i težinu, pritisnite start.Poslije pečenja, izvadite iz pećnice i ostavite da stoji.
Kobasica (dG-4)	0.2-0.6kg		Zamrznuto	1. Izvadite iz pakiranja i zarežite na površini.Stavite na nosač.2. Kada začujete bip, okrenite kobasice.

Čuvanje okusa

Ako kod korištenje AUTO COOK programa želite podgrijati hranu, hranu možete podgrijati ako pritisnete tipku.

\*Prikaz VREMENA

Kada je pokrenuto čuvanje okusa (Taste saver), prikazat će se Zatim ponovo pritisnite "Taste saver" i na zaslonu će se prikazati preostalo vrijeme za Taste saver.

Simple dashed rectangular outline on a gray background (no text or symbols)

Mikrovalno sigurno

Posuđe

Nikada ne koristite metalno posuđe ili posuđe s metalnim rubom u vašoj mikrovalnoj pećnici.

Mikrovalovi ne mogu prodrijeti u metal. Odbijaju se od metalnih predmeta u pećnicu i stvaraju elektricitet, uznemirujuću pojavu koja nalikuje bljeskanju munje.

Većina posuđa koje nije od metala ali je otporno na toplinu može se upotrebljavati u mikrovalnoj pećnici. Ipak, neko posuđe može sadržavati materijale koji nisu pogodni za mikrovalnu pećnicu. Ukoliko niste sigurni je li neko posuđe odgovarajuće za upotrebu u mikrovalnoj pećnici, postoji jednostavan način kako da to saznate.

Spornu posudu stavite u mikrovalnu pećnicu, a do nje stavite čašu vode. Podesite mikrovalove na JAKO na 1 minutu. Ukoliko se voda zagrije a posuda ostane hladna, znači da je odgovarajuća za upotrebu u mikrovalnoj pećnici. Ukoliko se, pak, voda ne zagrije, ali se zato posuda zagrije, znači da posuda upija mikrovalove i nije odgovarajuća za upotrebu u mikrovalnoj pećnici. Sigurno kao dio svoje kuhinjske opreme imate mnogo posuda koje su odgovarajuće za upotrebu u mikrovalnoj pećnici. Samo pročitajte sljedeći popis.

Tanjuri

Mnogo vrsta tanjura je odgovarajuće za upotrebu u mikrovalnoj pećnici. Ukoliko niste sigurni, pročitajte dio priručnika koji vam opisuje mikrovalni test.

Staklene posude
