Product type	Piston compressor
Brand	Güde
Model	Airpower 180/08
Maximum pressure	8 bar
Air flow (at 8 bar)	180 L/min
Tank capacity	24 L
Power supply	230 V / 50 Hz
Motor power	1.5 kW
Weight	20 kg
Dimensions (W x D x H)	50 x 30 x 50 cm
Main functions	Inflation, spray painting, cleaning
Maintenance and cleaning	Oil change every 50 h, daily tank purge
Safety	Safety valve, automatic shutdown on overpressure
Spare parts	Available from manufacturer
Repairability	Easy access to main components
Warranty	2 years

Frequently Asked Questions - Airpower 180/08 GUDE

What type of oil to use for the Güde Airpower 180/08 compressor?

Use a specific compressor oil (SAE 30 or equivalent). Check the level before each use.

How to drain the compressor tank?

Open the drain valve located at the bottom of the tank after each use to remove condensation.

What is the maximum pressure of the compressor?

The maximum pressure is 8 bar. Never exceed this value.

The compressor does not start, what to do?

Check the power supply, cable, and pressure switch. If the tank is under pressure, the motor will not start.

How to clean the air filter?

Remove the filter and clean it with compressed air or soapy water. Replace it if it is clogged.

What is the noise level of the compressor?

The noise level is approximately 85 dB(A). Wear hearing protection.

Can you paint with this compressor?

Yes, it is suitable for spray painting with a sufficient air flow of 180 L/min.

How to adjust the outlet pressure?

Use the pressure regulator and integrated pressure gauge. Turn the knob to adjust.

What is the tank capacity?

The tank has a capacity of 24 litres.

Where to find spare parts?

Contact Güde customer service or an authorized dealer. Parts are available.

USER MANUAL Airpower 180/08 GUDE

Translation of the original instructions

KOMPRESSOR-KOMPAKT-SET-180/08/11-TLG

50121

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY ____ 13

Français CARACTÉRISTIQUES TECHNIQUES | UTILISATION CONFORME À LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE ____ 17

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

1

2

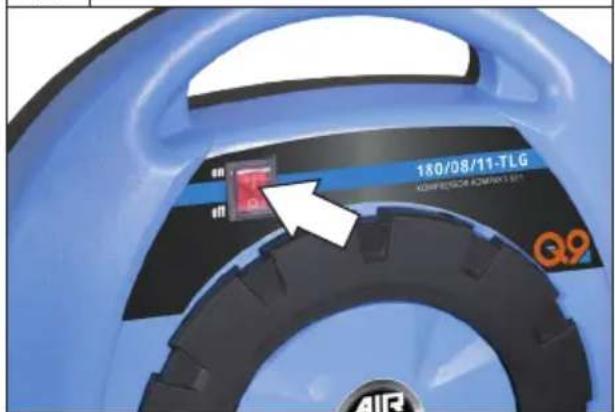

START

3

4
STOP

Technische Daten

Artikel-Nr. 50121

Service connection....230V\~50Hz

Motor output S3/15%....1,1 kW

Idle speed 3550 min ^-1

Suction capacity 180 l/min

Free air delivery....110 l/min

Max. working pressure....8 bar

Read and understand the operating instructions before using the appliance. Abide by all

the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Preserve all the documentation so that anyone who uses the compressor can consult this beforehand.

Specified Conditions Of Use

The compressor can only be used for the production of compressed air to be used at home and by handymen. – Respecting technical data and safety precautions.

The compressed air produced by the pressor cannot not be used for pharmaceuti- food or medical purposes or to fill the air tiles of scuba divers.

The compressor must be used in a suitable environment (well ventilated with an ambient temperature of between +5°C and +40°C) and cover in places with dust, acids, vapors, explosive flammable gases.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Safety instructions

WARNING! Electric shock! There is a risk of injury caused by electric shock!

Weight....5,64 kg

Degree of protection IP 20

Protection class....I

Sound power level L_WA^* 97 dB(A)

*Measured according to 2005/88/EC

Operation is only allowed with a safety tch against stray current (RCD max. stray rent of 30mA).

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Use extension cables with a maximum length of 5 meters and with a cable cross-section of not less than 1.5 mm ² . Use of extension cables of different length and cross-section and also of adapters and multiple sockets should be avoided.

Check the cable and/or socket for damages before the appliance putting into operation.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Never let the compressor come into contact with water or other liquids and never direct the jet of liquids sprayed by tools connected to the compressor towards the compressor: as the appliance is live, this could cause electrocution or short-circuits.

Never use the appliance with bare feet or wet hands or feet.

Never yank the power cable to disconnect the plug from the power outlet or to move the compressor.

Warning: the compressor may restart when power is restored following a blackout.

Compressed air is a potentially dangerous m of energy; always take great care when ng the compressor and its accessories.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed

by that person in how to use the device.

Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.

Never use the compressor without being supervised.

Never direct the jet of air towards persons, animals or your body.

Never keep the air flow in body holes as that could lead to fatal injuries!

Keep the work area free.

When operating, the compressor must be placed on a stable surface.

The compressor must be used in the horizontal position only, resting on its rubber feet.

Safety goggles should be worn when using the compressor in order to protect the eyes against any foreign bodies lifted by the jet of air.

If possible, when using air-powered accessories, wear safety clothing.

Always maintain a safety distance of at least 4 meters between the compressor and the work area.

Caution! The pneumatic hose may lash you when the quick-acting coupling is opened! The pneumatic hose should be held by hand.

Always use the handle to move the compressor.

When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).

When using compressed air, you must know and comply with the safety precautions to be adopted for each type of application (inflation, airpowered tools, painting, washing with water-based detergents only, clinching, etc.).

Caution! Never switch the compressor on or off using the plug. Pressure switch to be pressed at all times.

Do not leave the compressor on over night as it could become a source of danger.

Never leave the appliance exposed to adverse weather conditions (rain, sun, fog, snow).

If this compressor is used outdoors, always remember to stow it after use in a covered or closed place.

Never use the compressor outdoors in rain or bad weather.

Do not place flammable or nylon/fabric objects close to and/or on the compressor.

Do not cover the air inlets on the compressor.

The compressor must not be fitted in a vehicle for in-

dustrial purposes without an inspection by an expert! If the compressor is used for industrial purposes, it must be checked by an expert before putting into operation for the first time. Such check must be ordered by the operator (under BetrSichV Section 17 No. 25 – operation safety regulation)

Caution! When fitted in automatic equipment, it is necessary to install appropriate alarm or warning devices in case of power outage or malfunction or compressor (e.g. feed line, etc.) failure.

To guarantee perfect and reliable operation of the rotary and percussive pneumatic tools such as impact wrenches, staplers or nailers, etc., the compressed air must be supplied filtered - with oil via the lubricator or maintenance unit

A filtered water separator should be used for varnishing in any case.

To select a suitable pneumatic tool, the tool air consumption and the compressor effective amount delivered must necessarily be considered.

(Pneumatic tools and accessory equipment can be found at www.guede.com)

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Before carrying out any work on the machine, connect the plug from the socket.

Run the accessory connected dry until there is no more air in the receiver.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

Safety valve Functional check

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Use only original accessories and original spare parts.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Oil-free

No need to add oil for operation

Only a regularly maintained and treated

appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Symbols

Read the Operating Instructions!

Before carrying out any work on the machine, disconnect the plug from the socket.

Wear eye protective goggles! Wear ear protectors!

Protect against humidity Never expose tool to rain.

Cable pulling / transport prohibited

Warning/caution!

Dangerous voltage

Caution - hot surface! Warning, hot surfaces!

Danger - automatic control (closed loop)

Warning against thrown-off items

Keep distance of persons! Observe to keep out of dangerous zone

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Failure removal

Defect Causes Measure
Compressor not starting after being switched on	Defective supply Have the current supply checked by an authorised person
	Worn carbons Replace the carbons
Compressor getting warm too much	Air supply is not sufficient Make sure sufficient air supply and outlet (minimum distance from wall is 40 cm) is provided
	Too long time of appliance operation	Switch the compressor off
Compressor being overheated and keeps switching off	Compressor is overloaded Contact the Güde service centre
	Compressor is defective Contact the Güde service centre
	Compressor under undervoltage Contact the Güde service centre
	Outdoor temperature of 35°C
