Product Type	Blu-ray player
Model Number	BDP2982 (also BDP2980)
Dimensions (W x H x D)	310 x 40 x 203 mm
Net Weight	1.1 kg
Power Supply	AC 220-240 V, 50/60 Hz
Power Consumption	11 W (typical), <1 W standby
Region Code (DVD)	2 (Europe, UK)
Region Code (Blu-ray)	B (Europe, UK)
Playable Discs	BD-Video, BD 3D; DVD-Video, DVD±R/±RW, DVD+R/-R DL; VCD/SVCD; Audio CD, CD-R/RW; MP3, WMA, JPEG, DivX, DivX Plus HD, MKV
Video Output	PAL/NTSC; HDMI: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p/24Hz
Audio Output	HDMI (up to 7.1), coaxial digital
HDMI Version	High-Definition Multimedia Interface (HDCP compliant)
Connectivity	HDMI out, coaxial out, LAN (Ethernet), USB (front)
USB Port	Hi-Speed USB 2.0, FAT16/32, up to 5V/500mA
File Formats (Video)	.avi, .divx, .mp4, .mkv
File Formats (Audio)	.mp3, .wma, .wav
File Formats (Picture)	.jpg, .gif, .png
3D Playback	Blu-ray 3D support (requires 3D TV and HDMI)
BonusView / BD-Live	Picture-in-picture & online content (requires USB storage for BD-Live)
EasyLink (HDMI CEC)	Yes, one-touch play and standby
Software Update	Via USB or Internet (Ethernet or optional Wi-Fi)

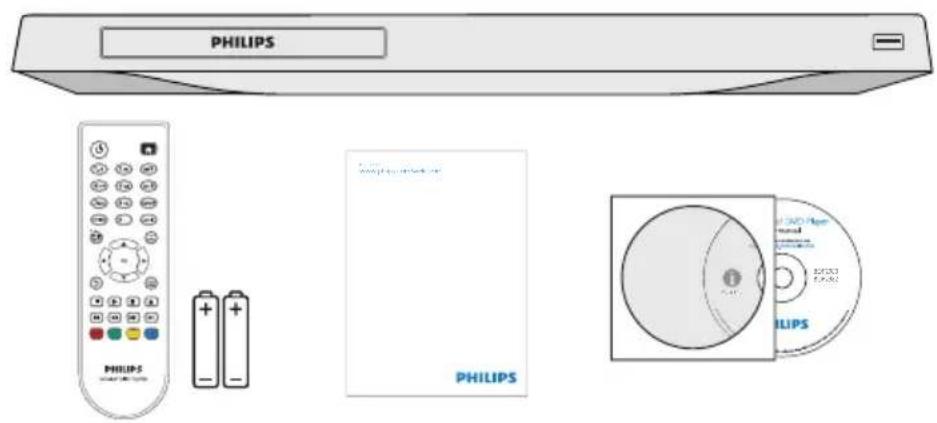

Accessories Included	Remote control, 2x AAA batteries, quick start guide, CD-ROM manual
Optional Accessory	Philips Wi-Fi USB adapter (WUB1110)
Maintenance	Wipe with soft, dry cloth; avoid liquids
Safety	Do not remove casing; refer to manual for servicing

Frequently Asked Questions - BDP2982 PHILIPS

How to update the firmware on the Philips BDP2982?

You can update via Internet or USB. For Internet, connect to a network, go to [Setup] > [Advanced] > [Software update] > [Network]. For USB, download the latest firmware from www.philips.com/support, unzip to a folder named "UPG_ALL" on a USB drive, insert into the player, and select [Setup] > [Advanced] > [Software update] > [USB]. Do not power off during update.

Does the BDP2982 support 3D Blu-ray playback?

Yes, it supports Blu-ray 3D. You need a 3D-compatible TV connected via HDMI. Ensure 3D output is set to [Auto] in [Setup] > [Video] > [Watch 3D video]. Put on 3D glasses to see the effect. You can also disable 3D to play in 2D.

How to connect the BDP2982 to Wi-Fi?

The player does not have built-in Wi-Fi. You need the optional Philips Wi-Fi USB adapter (model WUB1110, sold separately). Plug it into the USB port on the front, then go to [Setup] > [Network] > [Network installation] and select wireless. Follow on-screen instructions to connect.

Can I play DivX videos on this player?

Yes, the BDP2982 is DivX Certified and can play DivX videos (including DivX Plus HD) from disc or USB. For purchased DivX VOD movies, you must register the player using the DivX VOD code found in [Setup] > [Advanced] > [DivX® VOD Code]. Ensure subtitle files have the same name as the video and are in .srt, .sub, .txt, .ssa, or .smi format.

How to use Philips EasyLink?

Connect the player to an HDMI CEC-compatible TV via HDMI. Enable EasyLink in [Setup] > [EasyLink] > [On] for both [EasyLink], [One Touch Play], and [One Touch Standby]. Then, when you play a disc, the TV automatically switches to the correct input; when you put the TV to standby, the player also goes to standby.

What should I do if there is no picture from the BDP2982?

Check that the TV is set to the correct HDMI input. Ensure the HDMI cable is not faulty. Try pressing the remote control's source button and then enter "731" using numeric buttons to recover picture. Wait 10 seconds for auto recovery. Also verify that the connected display device is HDCP-compliant.

How to create a musical slideshow?

First, start playing a music file from a disc or USB. While music plays, press [Top Menu] to go to the picture folder, select a picture and press OK to start slideshow. The music continues in the background. Press [Stop] to end slideshow, then press [Stop] again to stop music.

What are the region codes for the BDP2982?

The DVD region code is 2 (Europe, UK). The Blu-ray region code is B (Europe, UK). The player can only play discs with matching region codes or region-free discs.

How to access BD-Live features?

Connect the player to the Internet (via Ethernet or optional Wi-Fi). Insert a BD-Live enabled disc. Connect a USB storage device (at least 1GB free) to the USB port for downloading content. In the disc menu, select the BD-Live icon. Loading time depends on your Internet connection. Note that services vary by disc and country.

How to reset the player to factory settings?

Go to [Setup] > [Advanced] > [Restore default settings]. This resets all settings except password and parental control level. Confirm the action. The player will restart with factory defaults.

USER MANUAL BDP2982 PHILIPS

Register your product and get support at

www.philips.com/welcome

BDP2980

BDP2982

User manual

PHILIPS

Before you connect this Blu-ray disc/ DVD player, read and understand all accompanying instructions.

This product incorporates proprietary technology under license from Verance Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation. Copyright 2004-2010 Verance Corporation. All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

1

2

HDMI

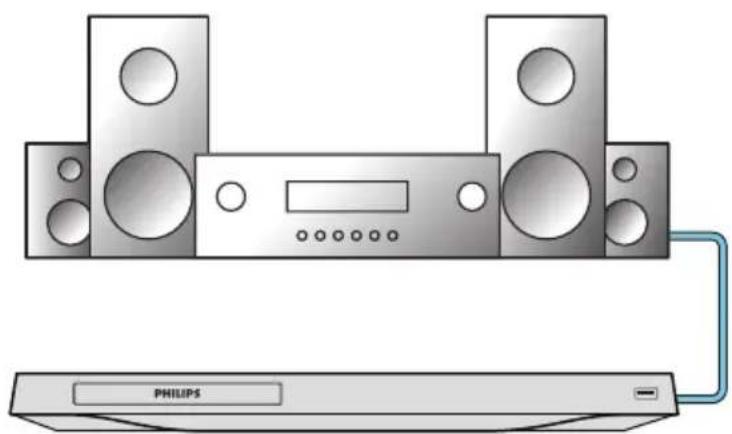

COAXIAL

3

4

5

6

2

Contents

1 Hookup and play 2-6

2 Use your Blu-ray disc/ DVD player 2

Basic play control 2

Video, audio and picture options 3

DivX videos 4

Play a musical slideshow 4

BonusView on Blu-ray 4

BD-Live on Blu-ray 5

Play a Blu-ray 3D video 5

Set up a network 5

Use Philips EasyLink 6

3 Change settings 7

Picture 7

Sound 7

Network (installation, status...) 7

Preference (languages, parental control...) 8

Advanced options (clear memory...) 8

4 Update software 10

Update software via the Internet 10

Update software via USB 10

5 Specifications 11

6 Troubleshooting 12

2 Use your Blu-ray disc/ DVD player

Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers (e.g. product software upgrade), register your product at www.philips.com/welcome.

Basic play control

During play, press the following buttons to control.

Button Action
⏻	Turn on the player, or switch to standby.
	Access the home menu.
SUBTITLE Select a subtitle language.
AUDIO Select an audio language or channel.
DISC MENU / POP-UP MENU	Access or exit the disc menu.
TOP MENU	Access the main menu of a video disc.
▲▼ Navigate the menus. Press ▲▼to rotate a picture clockwise or counter-clockwise during slideshow.
OK Confirm a selection or entry.
	Return to a previous display menu.
≡	Access more options during play.
■	Stop play.
▶	Start or resume play.
||	Pause play. Press repeatedly to slow forward frame by frame.
▲	Open or close the disc compartment.
◀/▶Skip to the previous or next track, chapter or file.
◀◀/▶Past backward or forward. Press repeatedly to change the search speed. Press || once, and then press▶▶ to slow forward.
Color buttons	Select tasks or options for Blu-ray discs.

Video, audio and picture options

More options are available for video or picture play from a disc or USB storage device.

Video options

Access more options during video play.

• [Audio language]: Select an audio language.

- [Subtitle Language]: Select a subtitle language.

- [Subtitle shift]: Change the subtitle position on the screen. Press ▲▼to change the subtitle position.

• [Info]: Display play information.

- [Character set]: Select a character set that supports the DivX video subtitle (only for DivX videos).

- [Time search]: Skip to a specific time via the numeric buttons on the remote control.

• [2nd audio language]: Select the second audio language (only for Blu-ray discs that support BonusView).

• [2nd Subtitle Language]: Select the second subtitle language (only for Blu-ray discs that support BonusView).

• [Titles]: Select a title.

• [Chapters]: Select a chapter.

• [Angle list]: Select a camera angle.

• [Menus]: Display a disc menu.

- [PIP selection]: Display a picture-in-picture window (only for Blu-ray discs that support BonusView).

- [Zoom]: Zoom into a video picture. Press ◀▶ to select a zoom factor.

• [Repeat]: Repeat a chapter or title.

- [Repeat A-B]: Mark two points within a chapter for repeat play, or turn off repeat mode.

• [Picture settings]: Select a predefined color setting.

Note

• Available video options depend on the video source.

Picture options

Access more options during slideshow.

- [Rotate +90]: Rotate a picture 90 degrees clockwise.

• [Rotate -90]: Rotate a picture 90 degrees counter-clockwise.

- [Zoom]: Zoom into a picture. Press to select a zoom factor.

• [Info]: Display picture information.

• [Duration per slide]: Set a display interval for a slideshow.

- [Slide animation]: Select a transition effect for a slideshow.

• [Picture settings]: Select a predefined color setting.

• [Repeat]: Repeat a selected folder.

Audio options

Press : repeatedly to cycle through the following options.

- Repeat the current track.

• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.

DivX videos

You can play DivX videos from a disc, or a USB storage device.

VOD code for DivX

• Before you purchase DivX videos and play them on this player, register this player on www.divx.com using the DivX VOD code.
• Display the DivX VOD code: press, and select [Setup] > [Advanced] > [DivX® VOD Code].

DivX subtitles

• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly, change the character set that supports the DivX subtitle. Select a character set: press ≡, and select [Character set].

Character set	Languages
[Standard]	English, Albanian, Danish,Dutch, Finnish, French, Gaelic,German, Italian, Kurdish (Latin),Norwegian, Portuguese, Spanish,Swedish, and Turkish
[Central Europe]	Albanian, Croat, Czech, Dutch,English, German, Hungarian, Irish,Polish, Romanian, Slovak, Slovene,and Serbian
[Cyrillic]	Bulgarian, Belorussian, English,Macedonian, Moldavian, Russian,Serbian, and Ukrainian
[Greek]	Greek
[Baltic]	Northern Europe

Note

• To use the subtitles, make sure that the subtitle file has the same name as the DivX video file name. For example, if the DivX video file is named "movie.avi", save the subtitle file as "movie.srt", or "movie.sub".
• This player can play subtitle files in the following formats: .srt, .sub, .txt, .ssa, and .smi.

Play a musical slideshow

Play music and pictures simultaneously to create a musical slideshow.

1 From a disc or connected USB storage device, play a music file.
2 Press ➤ and go to the picture folder.
3 Select a picture from the same disc or USB, and press OK to start slideshow.
4 Press ■o stop slideshow.
5 Press ■gain to stop music play.

BonusView on Blu-ray

View special content (such as commentaries) in a small screen window.

This feature is only applicable to Blu-ray discs compatible with BonusView (also known as picture in picture).

1 During play, press :≡
→ The options menu is displayed.

2 Select [PIP selection] > [PIP], and press OK.

→ PIP options [1]/[2] depend on the video contents.

→ The secondary video window is displayed.

3 Select [2nd audio language] or [2nd Subtitle Language], and press OK.

BD-Live on Blu-ray

Access exclusive online services, such as movie trailers, games, ringtones and other bonus contents.

This feature is only applicable to Blu-ray discs that are BD-Live enabled.

1 Prepare the Internet connection and set up a network (see "Set up a network").
2 Connect a USB storage device to the (USB) connector on this player.
- A USB storage device is used to store the downloaded BD-Live content.
- If you connect this player to the Internet through a Wi-Fi USB adapter (sold separately), connect a USB hub (not supplied) to this player to make multiple USB ports available.
- To delete the BD-Live previously downloaded on the USB storage device for memory release, press ↑ and select [Setup] > [Advanced] > [Clear memory].

3 Play a disc that is BD-Live enabled.

4 On the disc menu, select the BD-Live icon, and press OK.

→ BD-Live starts to load. The loading time depends on the disc and the Internet connection.

5 On the BD-Live interface, select an item to access.

Note

• BD-Live services vary from discs and countries.
- When you use BD-Live, data on the disc and this player are accessed by the content provider
- Use a USB storage device with at least 1GB of free space to store the download.
- If a USB hub is used with this player, do not overload the USB hub with many USB devices to avoid insufficient USB power.

Play a Blu-ray 3D video

What you need

• A 3D compliant TV
- This player is connected to the TV through HDMI
• 3D glasses compatible with the TV

1 Make sure that 3D output is turned on: press ⬇, and select [Setup] > [Video] > [Watch 3D video] > [Auto].

2 Play a Blu-ray 3D video.

3 Put on the 3D glasses for 3D effects. • To play 3D video in 2D, turn off Blu-ray 3D output (press ⬆, and select [Setup] > [Video] > [Watch 3D video] > [Off]).

Set up a network

Connect this player to the Internet to access the services:

- BD-Live: access online bonus features (applicable to Blu-ray discs that are BD-Live enabled)

- Update software: update the software of this player via the Internet.

Note

• For wireless connection, you need to use an optional Philips Wi-Fi USB adapter (named WUB1110).
• The Wi-Fi USB Adapter (WUB1110) is not included. To purchase this adapter, visit shop.philips.com. If the Philips online shop is not available in your country, please contact Philips customer service. For contact details, go to www.philips.com/support.

1 Connect this player to the Internet through wired (Ethernet) or wireless connection.

- For wired connection, connect a network cable (not supplied) to the LAN port on the back panel of this player.

- For Wi-Fi, connect a Philips Wi-Fi USB adapter (named WUB1110) to the ⇔ (USB) connector on the front panel of this player.

2 Perform the network installation.

1) Press

2) Select [Setup], and press OK.
3) Select [Network] > [Network installation], and press OK.
4) Follow the instructions on the TV screen to complete the installation. If necessary, use the alphanumeric buttons on the remote control to enter a password.

Caution

- Before you connect to a network, familiarize yourself with the network router, and networking principles. If necessary, read documentation accompanying network components. Philips is not responsible for lost, damaged or corrupt data.

Use Philips EasyLink

This player supports Philips EasyLink which uses the HDMI CEC (Consumer Electronics Control) protocol. You can use a single remote control to control EasyLink compliant devices that are connected through HDMI. Philips does not guarantee 100% interoperability with all HDMI CEC devices.

1 Connect the HDMI CEC compliant devices through HDMI, and turn on the HDMI CEC operations on the TV and other connected devices (see the user manual of the TV or other devices for details).
2 Press
3 Select [Setup]> [EasyLink].
4 Select [On] under the options: [EasyLink], [One Touch Play] and [One Touch Standby].

→ EasyLink function is turned on.

One Touch Play

When you play a disc on this player, the TV automatically switches to the correct video input source.

One Touch Standby

When a connected device (for example TV) is put to standby with its own remote control, this player is put to standby automatically.

3 Change settings

This section helps you change the settings of this player.

Note

• You cannot change a menu option that is grayed out.
  • To return to the previous menu, press. To exit the menu, press


1 Press
2 Select [Setup] > [Video] to access the video setup options.

• [TV display]: Select a picture display format to fit the TV screen.

• [HDMI video]: Select an HDMI video resolution.

- [HDMI Deep Color]: Display colors with more shades and hues when the video content is recorded in Deep Color and the TV supports this feature.

• [Picture settings]: Select a predefined color setting.

- [Watch 3D video]: Set to 3D or 2D output when playing a Blu-ray 3D disc. The player must be connected to a 3D TV through HDMI.

Note

- If you change a setting, make sure that the TV supports the new setting.

Sound

1 Press
2 Select [Setup] > [Audio] to access the audio setup options.

• [Night mode]: Select quiet or full dynamic sound. Night mode decreases the volume of loud sound and increases the volume of soft sound (such as speech).

• [HDMI Audio]: Set an HDMI audio format when this player is connected through HDMI.

- [Digital Audio]: Select an audio format for the sound output when this player is connected through a digital connector (coaxial).

• [PCM Downsampling]: Set the sampling rate for PCM audio output when this player is connected through a digital connector (coaxial).

Note

- Night mode is only available for Dolby encoded DVD and Blu-ray discs.

Network (installation, status...)

1 Press
2 Select [Setup] > [Network] to access the network setup options.

• [Network installation]: Start a wired or wireless installation to make the network work.

• [View network settings]: Display the current network status.
• [View wireless settings]: Display the current Wi-Fi status.

Preference (languages, parental control...)

1 Press

2 Select [Setup] > [Preference] to access the preference setup options.

• [Menu language]: Select an onscreen display menu language.
  • [Audio]: Select an audio language for video.
• [Subtitle]: Select a subtitle language for video.
• [Disc menu]: Select a menu language for a video disc.
• [Parental control]: Restrict access to discs that are encoded with ratings. Input "0000" to access the restriction options. To play all discs irrespective of the rating, select level "8".
• [Screen saver]: Enable or disable screen saver mode. If enabled, the screen enters idle mode after 10 minutes of inactivity (for example, in pause or stop mode).
• [Auto subtitle shift]: Enable or disable subtitle shift. If enabled, the subtitle position is changed automatically to fit the TV screen (this feature works with some Philips TVs only).
• [Change password]: Set or change a password to play a restricted disc. Input "0000" if you do not have a password or if you have forgotten your password.
  • [Display panel]: Change the brightness of the display panel of the player.

- [Auto standby]: Enable or disable auto standby. If enabled, the player switches to standby after 30 minutes of inactivity (for example, in pause or stop mode).

• [VCD PBC]: Display or skip the content menu for VCD and SVCD.

Note

• If your preferred language is not available for disc language, audio or subtitle, you can select [Others] from the menu options and input 4-digit language code which can be found at the back of this user manual.
• If you select a language which is not available on a disc, this player uses the default language of the disc.

Advanced options (clear memory...)

1 Press

2 Select [Setup] > [Advanced] to access the advanced setup options.

• [BD-Live security]: Restrict or allow access to BD-Live (only for non-commercial, user-created BD-Live discs).
• [Downmix mode]: Control 2-channel stereo audio output.
• [Software update]: Select to update software from a network or from USB storage device.
• [Clear memory]: Delete the previous BD-Live download on the USB storage device. A "BUDA" folder is automatically created to store the BD-Live download.
• [DivX VOD Code]: Display the DivX registration code or the deregistration code for this player.
  • [Version information]: Display the software version of this player.

- [Restore default settings]: Reset this player to the default settings made at the factory, except for password and parental control level.

Note

• You cannot restrict Internet access on commercial Blu-ray discs.
• Before you purchase DivX videos and play them on this player, register this player on www.divx.com with the DivXVOD code.

4 Update software

Before you update the software of this player, check the current software version:

- Press, and then select [Setup] > [Advanced] > [Version information], and press OK.

Update software via the Internet

1 Connect the player to the Internet (see "Set up a network").
2 Press and select [Setup].
3 Select [Advanced] > [Software update] > [Network].
→ If an upgrade media is detected, you are prompted to start the update.
4 Follow the instructions on the TV screen to update the software.
When the update is complete, this player automatically turns off and on again.

Update software via USB

1 Check the latest software version on www.philips.com/support.

- Search for your model and click on "Software and drivers".

2 Download the software into a USB storage device.

① Unzip the download, and make sure that the unzipped folder is named "UPG_ALL".
② Put the "UPG_ALL" folder in the root directory.

3 Connect the USB storage device to the ✉ (USB) connector on this player.

4 Press and select [Setup].

5 Select [Advanced] > [Software update] > [USB].

→ If an upgrade media is detected, you are prompted to start the update.

6 Follow the instructions on the TV screen to update the software.

When the update is complete, this player automatically turns off and on again.

Caution

- Do not turn off the power or remove the USB storage device when the software update is in progress because you might damage this player.

5 Specifications

Note

- Specifications are subject to change without notice

Region code

This player can play discs with the following region codes.

DVD Blu-ray Countries

Europe, United Kingdom

playable media

• BD-Video, BD 3D
• DVD-Video, DVD+R/+RW, DVD-R/-RW, DVD+R/-R DL (Dual Layer)
• VCD/SVCD
  • Audio CD, CD-R/CD-RW, MP3 media, WMA media, JPEG files
• DivX (Ultra)/DivX Plus HD media, MKV media
• USB storage device

File format

• Video: .avi, .divx, .mp4, .mkv
• Audio: .mp3, .wma, .wav
• Picture: jpg, .gif, .png

Video

• Signal system: PAL / NTSC
- HDMI output: 480i/576i, 480p/576p, 720p, 1080i, 1080p, 1080p/24Hz

Audio

• HDMI output
  • Digital output: 0.5 Vp-p (75 ohm)
• Coaxial
• Sampling frequency:
  • MP3: 32 kHz, 44.1 kHz, 48 kHz
  • WMA: 44.1 kHz, 48 kHz

- Constant bit rate:

• MP3: 112 kbps - 320 kpbs
• WMA: 48 kpbs - 192 kpbs

USB

• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
- File system: FAT16, FAT32
• USB port: 5V, 500mA
- Support HDD (a portable hard disc drive): an external power source may be needed.

Main unit

• Power supply rating: AC 220-240V\~, 50/60Hz
• Power consumption: 11 W
• Power consumption in standby mode: < 1 W
- Dimensions (w × h × d): 310 × 40 × 203 (mm)
- Net Weight: 1.1 kg

Accessories supplied

• Remote control and 2 AAA batteries
- Quick start guide
- CD-ROM built in multi-lingual user manual (Continental Europe only)

Optional accessory

• A wireless Philips USB adapter(named WUB1110, sold separately)
• Multimedia connections: Wi-Fi 802.11b/g/n
- Connectivity: USB
- Ambient temperature: 5 deg C to 40 deg C.
- Dongle dimensions (W × H × D): 28.4 × 82 × 13.4 mm

Laser Specification

• Laser Type (Diode): AlGaInN (BD), AlGaInP (DVD/CD)
• Wave length: 405+7nm/-7nm (BD), 660+4nm/-10nm (DVD), 790+6/-6nm (CD)
  • Output power: 1mW (BD), 0.3mW (DVD), 0.28mW (CD)

6 Troubleshooting

Warning

- Risk of electric shock. Never remove the casing of the player.

To keep the warranty valid, never try to repair the player yourself.

If you have problems using this player, check the following points before you request service. If you still have a problem, register your player and get support at www.philips.com/support. If you contact Philips, you will be asked for the model and serial number of this player. The model number and serial number are on the back of this player. Write the numbers here: Model No. ____ Serial No. ____

Main unit

The buttons on this player do not work.

- Disconnect this player from the power supply for a few minutes, and then reconnect.


No picture.

• Make sure that the TV is switched to the correct source input for this player.

No picture on HDMI connection.

• Make sure that the HDMI cable is not faulty. If it is faulty, replace with a new HDMI cable.
• On the remote control, press and then press "731" (numeric buttons) to recover picture display. Or wait for 10 seconds for auto recovery.
• If this player is connected to an unauthorized display device with an HDMI cable, the audio and video signals may not be output.

The disc does not play high-definition video.

- Make sure that the disc contains high-definition video.

Sound

No audio output from the TV.

- Make sure that the TV is switched to the correct source input for this player.

No audio output from the loudspeakers of the external audio device (home theater or amplifier).

- Switch the external audio device to the correct audio source input.

No sound on HDMI connection.

- You may not hear any sound from the HDMI output if the connected device is non-HDCP compliant or only DVI-compatible.

No secondary audio output for Picture-in-Picture feature.

- When [Bitstream] under the [HDMI Audio] or [Digital Audio] menu is selected, interactive sound like secondary sound for Picture-in-Picture feature is muted. De-select [Bitstream].

Play

Cannot play a disc.

• Clean the disc.
  • Make sure that the disc is correctly loaded.
• Make sure that this player supports the disc. See "Specifications".
  • Make sure that this player supports the region code of the DVD or BD.
• For DVD±RW or DVD±R, make sure that the disc is finalized.

Cannot play DivX video files.

• Make sure that the DivX video file is complete.
• Make sure that the video file name extension is correct.

DivX subtitles do not display correctly.

• Make sure that the subtitle file has the same name as the DivX video file.
- Make sure that the subtitle file has an extension name supported by this player (.srt, sub, .txt, .ssa, or smi).

Cannot read the contents of a connected USB storage.

• Make sure that the format of the USB storage device is compatible with this player.
• Make sure that the file system on the USB storage device is supported by this player.
• For a USB HDD (a portable hard disc drive), an external power source may be needed.

'No entry' or 'x' sign is displayed on the TV.

• The operation is not possible.

EasyLink feature does not work.

- Make sure that this player is connected to the Philips brand EasyLink TV, and the EasyLink option is turned on (see "Use your Blu-ray disc/ DVD player" > "Use Philips EasyLink").

Cannot access BD-Live features.

• Make sure that this player is connected to the network (see "Use your Blu-ray disc/DVD player" > "Set up a network").
• Make sure that the network installation is made (see "Use your Blu-ray disc/ DVD player" > "Set up a network").
• Make sure that the Blu-ray disc supports BD-Live features.
• Clear memory storage (see "Change settings" > "Advanced options (BD-Live security, clear memory...)").

Network

Wireless network is not found or distorted.

- Make sure that the network is correctly connected (see "Use your Blu-ray disc/DVD player" > "Set up a network").

• Make sure that the network installation is made (see "Use your Blu-ray disc/ DVD player" > "Set up a network").
• Make sure that the wireless network is not disturbed by microwave ovens, DECT phones, or other neighboring Wi-Fi devices.
• If the wireless network does not work properly, try a wired network installation (see "Use your Blu-ray disc/ DVD player" > "Set up a network").

3D videos

Cannot see 3D effects

• Make sure that 3D output is turned on(see "Use your Blu-ray disc/ DVD player" > "Play a Blu-ray 3D video").
• Make sure that the disc title being played is Blu-ray 3D compliant.
• Make sure that the TV is 3D and HDMI compliant, and the TV is set to 3D mode (refer to the TV's user manual).
• Make sure that the 3D glasses are activated (refer to the TV's user manual).

'Blu-ray™', 'Blu-ray Disc™', 'Blu-ray Disc™' logo, 'Blu-ray 3D™' and 'Blu-ray 3D™' logo are the trademarks of Blu-ray Disc Association.

HDMI, and HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVXVIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your

registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified ^® to play DivX ^® and DivX Plus ^® HD (H.264/MKV) video up to 1080p HD including premium content.

DivX ^® , DivX Certified ^® , DivX Plus ^® HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

BONUSVIEW™

'BD LIVE™' and 'BONUSVIEW™' are trademarks of Blu-ray Disc Association.

'DVD Video' is a trademark of DVD Format/Logo Licensing Corporation.

Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and/or other countries.

Abkhazian	6566
Afar	6565
Afrikaans	6570
Amharic	6577
Arabic	6582
Armenian	7289
Assamese	6583
Avestan	6569
Aymara	6589
Azerhaijani	6590
Bahasa Melayu	7783
Bashkir	6665
Belarusian	6669
Bengali	6678
Bihari	6672
Bislama	6673
Bokmål, Norwegian	7866
Bosanski	6683
Brezhoneg	6682
Bulgarian	6671
Burmese	7789
Castellano, Español	6983
Catalán	6765
Chamorro		6772
Chechen	6769
Chewa; Chichewa; Nyanja	7889
中文	9072
Chuang; Zhuang		9065
Church Slavic; Slavonic	6785
Chuvash	6786
Corsican	6779
Česky		6783
Dansk	6865
Deutsch	6869
Dzongkha	6890
English	6978
Esperanto	6979
Estonian	6984
Euskara	6985
Ελληνικά		6976
Faroese	7079
Français	7082
Frysk	7089
Fijian	7074
Gaelic; Scottish Gaelic	7168
Gallegan	7176
Georgian	7565
Gikuyu; Kikuyu		7573
Guarani	7178
Gujarati	7185
Hausa	7265
Herero	7290
Hindi	7273
Hiri Motu	7279
Hrwatski	6779
Ido	7379
Interlingua (International)	7365
Interlingue	7365
Inuktitut	7385

Inupiaq	7375
Irish	7165
Íslenska	7383
Italiano	7384
Ivrit	7269
Japanese	7465
Javanese	7486
Kalaallisut	7576
Kannada	7578
Kashmiri	7583
Kazakh	7575
Kernewek	7587
Khmer	7577
Kinyarwanda		8287
Kirghiz	7589
Komi	7586
Korean	7579
Kuanyama; Kwanyama		7574
Kurdish	7585
Lao	7679
Latina	7665
Latvian	7686
Letzeburgesch;		7666
Limburgan; Limburger		7673
Lingala	7678
Lithuanian	7684
Luxembourgish; 7666
Macedonian	7775
Malagasy	7771
Magyar	7285
Malayalam	7776
Maltese	7784
Manx	7186
Maori	7773
Marathi	7782
Marshallese	7772
Moldavian	7779
Mongolian	7778
Nauru	7865
Navaho; Navajo		7886
Ndebele, North		7868
Ndebele, South		7882
Ndonga	7871
Nederlands	7876
Nepali	7869
Norsk	7879
Northern Sami		8369
North Ndebele		7868
Norwegian Nynorsk; 7878
Occitan; Provencal		7967
Old Bulgarian; Old Slavonic		6785
Oriya	7982
Oromo	7977
Ossetian; Ossetic		7983
Pali	8073
Panjabi	8065
Persian	7065
Polski	8076
Português	8084

Pushto	8083
Russian	8285
Quechua	8185
Raeto-Romance		8277
Romanian	8279
Rundi	8278
Samoan	8377
Sango	8371
Sanskrit	8365
Sardinian	8367
Serbian	8382
Shona	8378
Shqip	8381
Sindhi	8368
Sinhalese	8373
Slovensky	8373
Slovenian	8376
Somali	8379
Sotho; Southern		8384
South Ndebele		7882
Sundanese	8385
Suomi	7073
Swahili	8387
Swati	8383
Svenska	8386
Tagalog	8476
Tahitian	8489
Tajik	8471
Tamil	8465
Tatar	8484
Telugu	8469
Thai	8472
Tibetan	6679
Tigrinya	8473
Tonga (Tonga Islands)		8479
Tsonga	8483
Tswana	8478
Türkçe	8482
Turkmen	8475
Twi	8487
Uighur	8571
Ukrainian	8575
Urdu	8582
Uzbek	8590
Vietnamese	8673
Volapuk	8679
Walloon	8765
Welsh	6789
Wolof	8779
Xhosa	8872
Yiddish	8973
Yoruba	8979
Zulu	9085

Specifications are subject to change without notice

All rights reserved.

BDP2980/2982_12_UM_V1.0
