Product Type	KVM Switch
Brand	Smart-AVI
Model	SM-DVN-44X
Number of Computers Supported	4
Video Interface	DVI-I (dual-link)
Max Resolution	1920 x 1200 at 60 Hz
USB Connectivity	4 x USB 2.0 downstream ports
Audio Support	Yes, 3.5mm jacks
Switching Method	Front panel buttons, hotkeys, or serial control
Dimensions (W x D x H)	220 x 130 x 44 mm (8.7 x 5.1 x 1.7 in)
Weight	0.7 kg (1.5 lbs)
Power Supply	5 V DC, 2 A via USB or AC adapter (included)
Power Consumption	10 W max
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Material	Metal housing
LED Indicators	Port selection and power
Supported Operating Systems	Windows, macOS, Linux
Included Accessories	Power adapter, USB cable, 4 DVI cables, manual
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Keep away from moisture and heat sources
Spare Parts & Repairability	No user-serviceable parts; contact support
Warranty	1 year limited warranty

Frequently Asked Questions - SM-DVN-44X Smart-AVI

How do I switch between computers on the SM-DVN-44X?

You can switch using the front panel buttons, keyboard hotkeys (e.g., Scroll Lock + Scroll Lock + 1-4), or via RS-232 serial control. Refer to the manual for custom hotkey settings.

Does this KVM support dual monitors?

No, the SM-DVN-44X is a single-monitor DVI KVM switch. For dual monitor setups, consider a model like Smart-AVI's DVI-Dual series.

What video resolutions are supported?

It supports up to 1920x1200 at 60 Hz. It also supports lower standard resolutions such as 1080p and 1680x1050.

Can I use the USB ports for peripherals like a keyboard and mouse?

Yes, the four USB 2.0 ports are for shared peripherals like keyboard, mouse, or USB drives. They emulate dynamically to the selected computer.

Is audio supported through this KVM?

Yes, it has audio input/output jacks (3.5mm) that can be switched along with the video and USB. Use the included audio cables.

How do I reset the KVM if it freezes?

Unplug the power adapter and all USB/audio cables from the switch, wait 30 seconds, then reconnect power first, then cables one by one. This typically resolves most issues.

Can I daisy-chain multiple SM-DVN-44X units?

No, daisy-chaining is not supported. Each unit is standalone for 4 computers. For more computers, consider a larger model.

Does it work with USB 3.0 devices?

The USB ports are USB 2.0 (480 Mbps). USB 3.0 devices will work but at USB 2.0 speeds. For full USB 3.0, look for a KVM with USB 3.0.

What is the maximum cable length for DVI connections?

For reliable signal quality, use DVI cables up to 5 meters (16 feet). Longer cables may cause signal degradation.

How do I update the firmware?

Firmware updates are not typically required for this model. If needed, contact Smart-AVI support for instructions and firmware files.

USER MANUAL SM-DVN-44X Smart-AVI

SM-DVN-44X	4-Port DVI-D KVM Matrix, 4 Users
SM-DVN-82X	8-Port DVI-D KVM Matrix, 2 Users
SM-DVN-84X	8-Port DVI-D KVM Matrix, 4 Users

TABLE OF CONTENTS

TECHNICAL SPECIFICATIONS 3

WHAT'S IN THE BOX? 4

SM-DVN FRONT AND REAR 4

INSTALLATION 5-8

LED's BEHAVIOR 11

SYSTEM OPERATION 12

TROUBLESHOOTING 12

TECHNICAL SUPPORT 12

LIMITED WARRANTY STATEMENT 13

TECHNICAL SPECIFICATIONS

VIDEO
Format DVI-I Dual Link
Host Interface	SM-DVN-44X	(4) DVI-I 29-pin (female) / DVI-D
	SM-DVN-82X / SM-DVN-84X	(8) DVI-I 29-pin (female) / DVI-D
User Console Interface	SM-DVN-82X	(2) DVI-I 29-pin (female) / DVI-D
	SM-DVN-44X / SM-DVN-84X	(4) DVI-I 29-pin (female) / DVI-D
Max Resolution	2560 x 1600 @ 60Hz; 3840x2160 @ 30Hz (w/HDMI-to-DVI adapter)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to	20 ft.
Output Cable Length Up to	20 ft.
USB
Signal Type	USB 2.0, 1.1, and 1.0 w/ internal hub
Type A to B	SM-DVN-44X	(4)
	SM-DVN-82X / SM-DVN-84X	(8)
User Console Interface	(2) USB Type-A for keyboard and mouse connection only
AUDIO
Input (4) / (8) Connector Stereo 3.5mm Female
Output (2) / (4) Connector Stereo 3.5mm Female
CONTROL
Front Panel	Push Buttons with LED indicators
RS232	Via Serial @ 115200 bps
Hot Keys	Via Keyboard
POWER
Power Requirements	12V DC, 3A (minimum) power adapter with center-pin positive polarity.
ENVIRONMENT
Operating Temp	32° to 104° F (0° to 40° C)
Storage Temp	-4° to 140° F (-20° to 60° C)
Humidity	0-80% RH, non-condensing
OTHER
Emulation	Keyboard, Mouse and Video
Control	Front Panel Buttons

WHAT'S IN THE BOX?

SM-DVN Unit	4/8-port DVI-D Matrix KVM
PS12VDC3A	12V DC, 3A (minimum) power adapter with center-pin positive polarity.
User Manual

SM-DVN-84X REAR

Back view of a black electronic device rack with multiple ports and connectors (no visible text or labels)

SM-DVN-84X FRONT

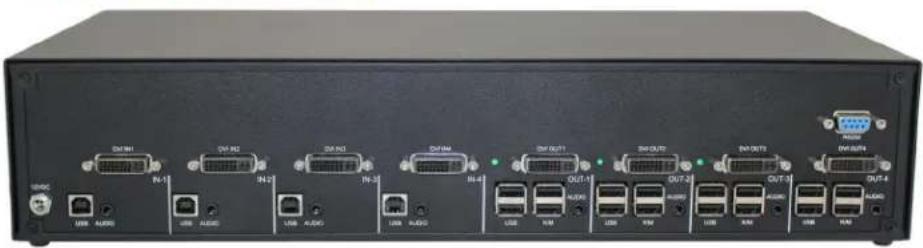

SM-DVN-44X REAR

Back view of a black electronic device rear panel with multiple ports and connectors (no visible text or labels)

SM-DVN-44X FRONT

INSTALLATION

1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVI-D IN ports of the unit.
3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit.
4. Optionally, connect a stereo audio cable (3.5mm to 3.5mm) to the audio output of each computer to the AUDIO IN ports of the unit.
5. For each user, connect a monitor to each DVI-D OUT console port of the unit using DVI cables.
6. For each user, connect a USB keyboard and mouse to the two USB console ports.
7. Optionally, for each user, connect stereo speakers to the AUDIO OUT ports of the unit.
8. Finally, power on the KVM by connecting a 12VDC power supply to the power connector, and then turn on all the computers.

Note: You can connect up to 8 computers to the 8 port KVM and up to 4 computers to the 4 port KVM.

SM-DVN-44X Shown

INSTALLATION (CONTINUED)

SM-DVN-84X Shown

INSTALLATION (CONTINUED)

EDID Learn:

The KVM is designed to learn the connected monitor's EDID upon power up. In the event of connecting a new monitor to the KVM, a power recycle is required.

The KVM will indicate to the user that the EDID learn process is ongoing by flashing the LED next to DVI OUT port 1. When the LEDs stop flashing, the EDID learn process is done.

The monitor must be connected to the video output connector located in the console space at the back of the KVM during the EDID learn process.

If the read EDID from the connected monitor is identical to the current stored EDID in the KVM then the EDID learn function will be skipped unless the force learn EDID process is used. To force learn the EDID, hold down the First and Last CAC buttons of Front Panel for 3 seconds to force Learn

SYSTEM OPERATION

There are three ways to control the SM-DVN: Keyboard Hotkeys, RS-232 Serial Commands, and Front Panel Buttons. All modes of control will allow the user to set their desired configurations.

FRONT PANEL CONTROL

To switch to an input port for a given console, push the UP or DOWN buttons as many times as needed to navigate to the desired channel. The channel number indicator will display to selected channel for each console.

By default, the unit will start in View Mode, indicated by a red LED above the CAC button on the front panel. In View Mode, keyboard and mouse functionality are disabled. Control Mode enables full keyboard and mouse functionality.

HOTKEY AND RS232 SERIAL CONTROL

The SM-DVN may also be controlled via RS-232 commands. To use these commands, you must use HyperTerminal or an alternative terminal application. The settings for the connection are as follows: Baudrate 115200; Data Bits 8; Parity None; Stop Bits 1; Flow Control None.

Once you have connected to the SM-DVN via Serial, you will see the SM-DVN information when the device starts up.

The following commands can be used for RS-232 with available keyboard hotkeys:

Command Description	HotKey	RS-232 Command
Switch all USB devices and Main video	[CTRL] [CTRL] c [port #] [ENTER]	//c [user #] [port #] [ENTER]
Switch Channel View Only	[CTRL] [CTRL] v [port #] [ENTER]	//v [user #] [port #] [ENTER]
Learn EDID	[CTRL] [CTRL] e [ENTER]	//e [ENTER]
Trigger Hotplug	[CTRL] [CTRL] h [ENTER]	//h [ENTER]
Reset Software	[CTRL] [CTRL] r [ENTER]	//r [ENTER]
View Current Hotkey	N/A	//hk [ENTER]

CUSTOM HOTKEY TRIGGERS

Users are able to customize the keys that trigger Hotkeys. The default trigger for hot key function on the Keyboard is Ctrl +Ctrl. The trigger function can be used to change to double Ctrl, Shift, or Scroll Lock.

To view hotkey trigger setting:

Type on Keyboard: Alt + Alt + Alt + k + 0 + [Enter]

The LED Light on the user's keyboard will Flash indicating which trigger is currently active

Num Lock LED flash indicates CTRL

Caps Lock LED flash indicates Shift

Scroll Lock LED flash indicates Scroll Lock

To change the hotkey trigger setting:

Hotkey trigger twice + x + [1 | 2 | 3]

1 - Ctrl

2 - Shift

3 - Scroll Lock

Example: If the hotkey trigger is Shift and would like to change to Scroll Lock,

Type: Shift + Shift + x + 3

LED'S BEHAVIOR

User Console Interface – Display LED:

#	Status Description
1	Off	Monitor is not connected
2	On Monitor is connected
3	Flashing (back panel)	EDID problem – Learn EDID to fix the problem

Front Panel – Port Selection LED's:

# Status Description
1 Red View Mode
2 Green Control Mode

EDID Learn - Front Panel LED's:

All LED's are turned on for 1 second. Then:

- Port 1 LED's will flash until the end of the process.

SYSTEM OPERATION

Front Panel Control

Below is a list of commands sent through button presses on the front panel. Refer to diagram below for the names of buttons:

• Press CAC button - Toggle between Control and View mode
• Press UP button - Increment current channel, loop back to 1 after ch. 8
• Press DOWN button - Decrement current channel, loop back to 8 after ch. 1
• Press and hold the CAC button, then press the UP button - enables CAC mode only when user is already in control mode
• Press and hold the CAC button, then press the DOWN button - disables the display and KM control for that user.

Close-up of the Front Panel controls for the matrix series.

TROUBLESHOOTING

No Power

• Make sure that the power adapter is securely connected to the power connector of the unit.
• Check the output voltage of the power supply and make sure that the voltage value is around 12VDC.
• Replace the power supply.

No Video

• Check if all the video cables are connected properly.
• Connect the computer directly to the monitor to verify that your monitor and computer are functioning properly.
• Restart the computers

Keyboard is not working

• Check if the keyboard is properly connected to the unit.
• Check if the USB cables connecting the unit and the computers are properly connected.
• Try connecting the USB on the computer to a different port.
• Make sure that the keyboard works when directly connected to the computer.
• Replace the keyboard.

Mouse is not working

• Check if the mouse is properly connected to the unit.
• Try connecting the USB on the computer to a different port.
• Make sure that the mouse works when directly connected to the computer.
• Replace the mouse.

No Audio

• Check if all the audio cables are connected properly.
• Connect the speakers directly to the computer to verify that the speakers and the computer audio are functioning properly.
• Check the audio settings of the computer and verify that the audio output is through the speakers.

TECHNICAL SUPPORT

For product inquiries, warranty questions, or technical questions, please contact [e-mail].

LIMITED WARRANTY STATEMENT

A. Extent of limited warranty

SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.

SmartAVI limited warranty covers only those defects which arise as a result of normal use of the product, and do not apply to any:

a. Improper or inadequate maintenance or modifications
b. Operations outside product specifications
c. Mechanical abuse and exposure to severe conditions

If SmartAVI receives, during applicable warranty period, a notice of defect, SmartAVI will at its discretion replace or repair defective product. If SmartAVI is unable to replace or repair defective product covered by the SmartAVI warranty within reasonable period of time, SmartAVI shall refund the cost of the product.

SmartAVI shall have no obligation to repair, replace or refund unit until customer returns defective product to SmartAVI.

Any replacement product could be new or like new, provided that it has functionality at least equal to that of the product being replaced.

SmartAVI limited warranty is valid in any country where the covered product is distributed by SmartAVI.

B. Limitations of warranty

To the extant allowed by local law, neither SmartAVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the SmartAVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.

C. Limitations of liability

To the extent allowed by local law the remedies provided in this warranty statement are the customers sole and exclusive remedies.

To the extant allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event will SmartAVI or its third party suppliers be liable for direct, indirect, special, incidental, or consequential damages whether based on contract, tort or any other legal theory and whether advised of the possibility of such damages.

D. Local law

To the extent that this warranty statement is inconsistent with local law, this warranty statement shall be considered modified to be consistent with such law.

Smart-AM

SMART AUDIO VIDEO INNOVATION

NOTICE

The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material. No part of this document may be photocopied, reproduced, or translated into another language without prior written consent from SmartAVI, Inc.

20180109

Designed and Manufactured in the USA

Tel: (800) AVI-2131 • [phone]

2455 W Cheyenne Ave, Suite 112

North Las Vegas, NV 89032

www.smartavi.com
