Product Type	Kids Mini DSLR Camera with Selfie Mode
Brand	Kogan
Model	KAUNCAMPINA
Image Sensor	GC0308
Display	2-inch 720x320 colour display
Lens	Fixed lens, 100-degree angle
Storage Media	Mini SD card, up to 32GB (not included)
Photo Resolution	1080P, 720P, VGA
Photo Format	JPEG
Video Resolution	1080P, 720P, VGA
Modes	Photo, Video, Gallery, Games, Music, Settings
Front/Back Camera	Switchable via right button
Selfie Mode	Yes
Timer	5-second delay
Photo Borders	44 available
Charging Voltage	DC-5V
Charging Methods	Power adapter (not included), computer USB, car charger (not included)
Battery	Rechargeable (capacity not specified)
Safety Warning	Not suitable for children under 3 years; adult supervision required
Water Resistance	Not waterproof; keep dry
Supported Systems	Windows Me, 2000, 2003, XP, Vista, Windows 7, macOS, Linux
Languages	English, Traditional Chinese, Simplified Chinese, Japanese, French, German, Korean, Italian, Portuguese, Russian, Spanish, Hebrew
Frequencies Supported	50Hz, 60Hz
Loop Recording	Off, 3 minutes
Time Stamp	On/Off

Frequently Asked Questions - KAUNCAMPINA Kogan

How do I turn the camera on or off?

Press and hold the power button to turn the camera on or off. The indicator will illuminate when on and turn off when powered down.

How do I insert a Mini SD card?

Insert a Mini SD card (up to 32GB, not included) into the Mini SD card slot located on the side of the camera. Ensure the card is properly oriented.

How do I take a photo?

In Photo mode, press the shutter button to capture a photo. The indicator will flash to confirm. You can switch between front and back cameras using the right button.

How do I switch between front and back cameras?

While in Photo or Video mode, press the right button to toggle between the front and back cameras.

How do I record a video?

Select Video mode from the main menu. Press the shutter button to start recording, and press again to stop. The video resolution is shown in the top right.

How do I use the timer?

In Photo mode, press the timer button (left button) to activate a 5-second delay. Press it again to deactivate. The timer icon will appear on the display.

How do I transfer files to a computer?

Connect the Micro-USB cable to the camera and a computer. The camera will appear as a removable drive. Drag and drop files to transfer. Ensure the computer is turned on.

How do I charge the camera?

You can charge via a power adapter (not included), computer USB, or car charger (not included). Connect the Micro-USB cable and the indicator will illuminate during charging.

How do I reset the camera if it freezes?

If the camera crashes, use a paperclip to press the reset button located near the Micro-USB port. Then restart the camera normally.

What size SD card does the camera support?

The camera supports Mini SD cards up to 32GB. It is recommended to use high-quality cards for best performance.

USER MANUAL KAUNCAMPINA Kogan

KIDS MINI DSLR CAMERA WITH SELFIE MODE

KAUNCAMPINA, KAUNCAMBLUA

SAFETY & WARNINGS

Ensure to read all instructions in this user guide prior to first use. Retain this user guide for future reference.

• This camera is not suitable for children under 3 years.
• Adult supervision is required when children are using this camera.
• To prevent any shock, do not drop or allow the camera to fall.
• Avoid exposing the camera directly to high temperatures and strong sunlight.
• Do not expose the camera to any heat sources.
• Keep the camera out of reach from children while charging.
• Do not allow water or any other liquid to touch the camera.
• Keep the camera and its accessories dry.
• Do not use the camera in humid environments.
• It is recommended to use high-quality Mini SD cards for the best results.
• Keep the camera away from any sources of strong magnetic interference.
• Keep Mini SD cards away from strong magnetic objects to avoid data errors.

COMPONENTS LIST

• Camera
• Strap
• Micro-USB cable
• User guide

No. Name

1 Microphone
2 Back camera
3 Front camera
4 Display
5 Indicator
6 Shutter button
7 Power button

No. Name

8 Micro-USB port
9 Reset button
10 Up button
11 Mini SD card slot
12 Right button
13 Left/timer button
14 Down button

OPERATION

Powering on/off

Press and hold the power button to turn the camera on, then the indicator will be illuminated.

Press and hold the power button again to turn the camera off. The indicator will then turn off.

Mini SD card

To store photos and videos, insert a Mini SD card (up to 32GB, not included) into the Mini SD card slot.

Main menu

When powered on, the camera will enter the main menu. Use the up, down, left, and right buttons to navigate between the modes. Press the shutter button to enter the highlighted mode.

Mode Description
Photo	Used to take photosA photo icon and the photo resolution will appear in the top right corner of the displayPress the shutter button to take a photo. The indicator will flash to confirm the photo was taken.Press the right button to switch between the front and back camerasPress the timer button to activate/deactivate a 5 second timerVarious photo borders are also available. Press the up and down buttons to cycle through the borders.
Video	Used to record videosA video icon and the video resolution will appear in the top right corner of the displayPress the shutter button to start and stop recording footagePress the right button to switch between the front and back cameras
Gallery	Used to view captured photos and videosUse the left and right buttons to browse
Settings	Contains various parameters that can be adjusted (for example, language, photo and video resolution, turning timestamps and autofocus on/off, and loop recordings).Press the up and down buttons to cycle between the various settings.Highlight the desired setting you would like to change, then press the shutter button.Change the desired setting, then press the shutter button again to confirm the setting.Press the power button to exit the settings.
Games	Contains various games available to playUse the left and right buttons to browse through the games, then press the shutter button to start the chosen game
Music	MP3 files can be uploaded onto the Mini SD card. In this mode, this allows users to play music through the Mini SD card.

Transferring files to a computer

Connect one end of the Micro-USB cable to the Micro-USB port on the camera. Connect the other end to the USB port on your computer.

Battery and charging

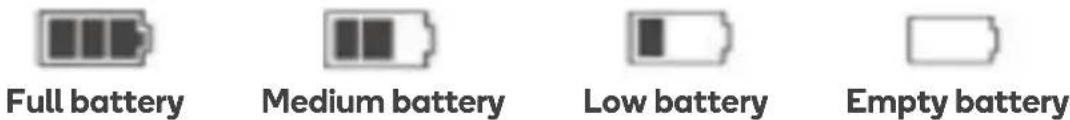

The display will show the remaining battery charge left on the camera.

There are three ways to charge the camera:

Charging method Steps
Power adapter (not included)	1. Connect the power adapter to the Micro-USB port on the camera.2. Plug the power adapter into a socket, then turn on the socket. The camera will begin charging and the indicator will be illuminated.
Micro-USB cable	1. Connect one end of the Micro-USB cable to the Micro-USB port on the camera.2. Ensure your computer is turned on, then connect the other end to your computer's USB port. The camera will begin charging and the indicator will be illuminated.
Car charger (not included)	1. Connect one end of the Micro-USB cable to the Micro-USB port on the camera.2. Connect the other end of the cable to the car charger's USB port.3. Ensure the car engine is turned on, then plug the car charger into the car's cigarette lighter socket. The camera will begin charging and the indicator will be illuminated.

Reformatting the SD card

1. To reformat the Mini SD card, enter the settings.
2. Press the up and down buttons and highlight 'Format'. Press the shutter button then press 'Execute'.

Reset button

If the camera crashes, press the reset button and restart the camera.

SPECIFICATIONS

Image sensor GC0308

Display 2-inch 720 x 320, colour display

Lens Fixed lens, 100-degree angle

Storage media Mini SD card, up to 32GB

Photo format JPG

Language English, Traditional Chinese, Simplified Chinese, Japanese, French, German, Korean, Italian, Portuguese, Russian, Spanish, Hebrew

Frequencies supported 50Hz, 60Hz

Camera format JPEG

Camera resolution 1080P, 720P, VGA

Time mark On, Off

Loop recording Off, 3 minutes

Photo borders available 44

Charging voltage DC-5V

Systems supported Windows Me, 2000, 2003, XP, Vista, Windows 7, macOS, Linux

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
