USER MANUAL AT-OPUS-70C-KIT Atlona

4K/UHD HDMI® Over HDBaseT TX with Control and PoE

AT-OPUS-70C-KIT

The Atlona AT-OPUS-70C-KIT is an HDBaseT™ transmitter/receiver kit for HDMI transmission up to 230 feet (70 meters) over category cable with RS-232 and IR control plus Power over Ethernet capability. The kit transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio and remote 48V power for the receiver. HDCP 2.2 compliance ensures compatibility with the latest copy protection requirements and EDID communication is supported. Included brackets allow the devices to be surface mounted on furniture or behind a display. For higher density applications, the transmitter's compact enclosure allows four to be mounted in a single 1U rack tray, and they support power chaining for powering multiple units from one power supply. The AT-OPUS-70C-KIT is ideal for use in residential or commercial point to point applications that require HDBaseT signal transmission over greater distances than HDMI® can support.

Package Contents

AT-UHD-EX-70C-TX

1 x AT-UHD-EX-70C-TX

2 x Mounting brackets

4 x Mounting screws

1 x 3-pin captive screw connector

1 x 4-pin captive screw connector

1 x 2-pin captive screw connector

1 x 48 V / 0.83 A DC power supply

AT-OPUS-RX

1 x AT-OPUS-RX

2 x Mounting brackets

4 x Mounting screws

1 x IR Emitter

1 x 3-pin captive screw connector

1 x 5-pin captive screw connector

IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-70C-KIT for the latest firmware updates and Installation Guide.

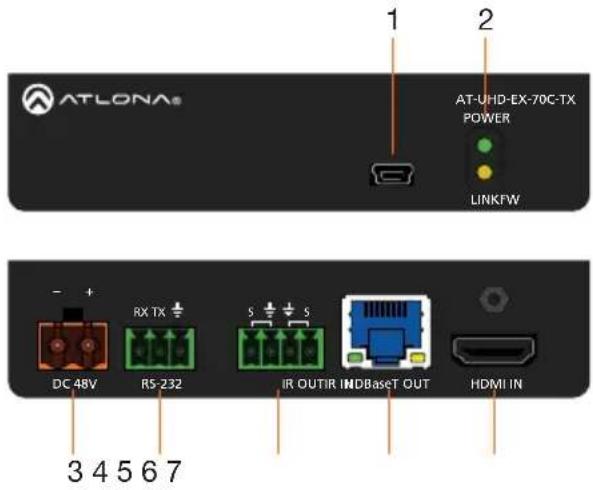

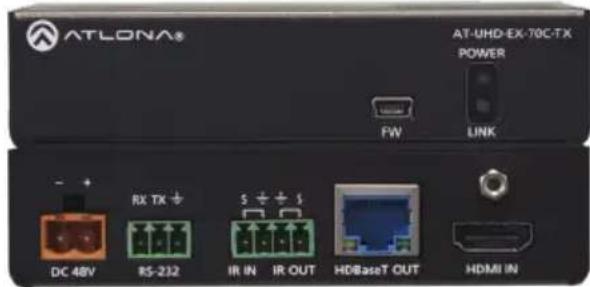

Panel Descriptions (AT-UHD-EX-70C-TX)

1 FW

Connect a mini-USB to USB-A type cable from this port to a computer, to update the firmware.

2 POWER / LINK

The power LED will illuminate green when receiving power. The link LED will glow yellow when signal is being sent/received between the transmitter and the receiver.

3 DC 48V

Connect the included power supply to this port.

4 RS-232

Bidirectional control port, used for pass through of commands to or from the receiver.

5 IR IN / IR OUT

Connect an IR receiver to the IR IN port. Connect an IR emitter from the IR OUT port to the included 4-pin captive screw connector.

6 HDBaseT OUT

Connect an HDBaseT cable from this port to the HDBaseT IN port on the receiver.

7 HDMI IN

Connect an HDMI cable from a source to this port.

Panel Descriptions (AT-OPUS-RX)

1 POWER

This LED indicator glows solid green when the unit is powered.

2 LINK

This LED indicator glows solid amber when an HDMI output is connected and a solid link is established between the transmitter and receiver.

3 AUDIO IN

This port is not supported.

4 RS-232

Connect the included 3-pin captive screw connector to this port for bidirectional RS-232.

5 IR

Connect the included 5-pin captive screw connector to this port for IR pass through.

6 Ethernet

Connect a LAN cable from this port to either a network switch or Ethernet capable display.

7 HDMI OUT

Connect an HDMI cable from this port to a display.

8 HDBaseT IN

Connect to an OPUS series matrix switcher output, using a 568B terminated cable.

9 LINK

This LED indicator glows solid amber when an HDMI output is connected and a solid link is established between the transmitter and receiver.

10 POWER

This LED indicator glows solid green when the unit is receiving power from the transmitter.

11 DEBUG

Connect this port to a PC for troubleshooting.

RS-232 (AT-UHD-EX-70C-TX)

A 3-pin captive screw connector for RS-232 is included.

Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and ± (Ground).

IR (AT-UHD-EX-70C-TX)

A 4-pin captive screw connector for IR is included.

IR IN is connected by a signal and ground wire. Use a 12V IR receiver with it (e.g. AT-IR-CS-RX purchasable through atlona.com).

IR OUT is connected by a ground and signal wire. Use an IR emitter with this port.

POWER (AT-UHD-EX-70C-TX)

A single 2-pin captive screw connector is provided to connect the power supply to the unit.

Mounting Instructions (AT-UHD-EX-70C-TX)

The AT-UHD-EX-70C-TX includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface.

1. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.

2. Use the enclosure screws to secure the mounting bracket to the enclosure.

3. Repeat the above steps to attach the second mounting bracket to the opposite side of the unit.

1. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.

NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface.

IR (AT-OPUS-RX)

A 5-pin captive screw connector for IR control has been included. The first three terminals are IR inputs to be used with an IR receiver (AT-IR-CS-RX purchased separately through atlona.com), the last two terminals are for IR outputs to be used with the included IR emitter.

IR IN IR OUT

IR IN is connected by a power, signal, and ground wire. Use with IR receivers to pass IR signals back to the transmitter.

IR OUT is connected by a ground and signal wire. Use with the included IR emitter to pass signals to the display from a control system.

RS-232 (AT-OPUS-RX)

A 3-pin captive screw connector has been included for RS-232.

Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and 1/2 (Ground).

Mounting Instructions (AT-OPUS-RX)

The AT-OPUS-RX includes two mounting brackets and four mounting screws, which can be used to attach the units to any flat surface.

1. Remove the top 2 case screws on the side of the unit.
2. Align the mounting brackets to the side of the units.
3. Use the previously removed case screws to secure the mounting bracket to the enclosure.
4. Repeat the steps for the other side of the unit.

Installation

1. Connect a source to the HDMI IN port on the AT-UHD-EX-70C-TX.
2. Connect a display to the HDMI OUT port on the AT-OPUS-RX.
3. Connect an HDBaseT cable, from the HDBaseT OUT port on the AT-UHD-EX-70C-TX to the HDBaseT IN port on the AT-OPUS-RX.
4. OPTIONAL: Connect a 3rd party controller to the transmitter using either the 3-pin RS-232 or the 2-pin IR IN ports.
5. OPTIONAL: Connect an IR receiver to the IR IN port of the AT-UHD-EX-70C-TX.
6. OPTIONAL: Connect an IR emitter to the IR OUT port of the AT-UHD-EX-70C-TX or AT-OPUX-RX.
7. Connect the included 48V power supply from an AC outlet to the DC 48V port on the AT-UHD-EX-70C-TX.

Cable Recommendation Guidelines

Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The orange bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.

Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
		STP (shielded)
Performance Rating (MHz) 350 500 600		800

IMPORTANT: Stranded or patch cables are not recommended due to performance issues.

Cable* Max. Distance @ 4K Max. Distance @ 1080p
CAT5e / CAT6 115 feet (35 meters) 200 feet (60 meters)
CAT6a / CAT7 130 feet (40 meters) 230 feet (70 meters)

*Atlona recommends TIA/EIA 568-B termination for optimal performance.

Requirements:

• AT-UHD-EX-70C-TX
• AT-OPUS-RX
  • Computer with rmware le
  • USB-A to USB mini-B cable

Updating Firmware (AT-OPUS-RX)

1. Download the update tool from http://www.atlona.com/at-opus-70c-kit.
2. Extract the contents of the le to a location on your computer.

IMPORTANT: Do not use Windows Explorer to extract the le, containing the rmware. Winzip, 7-Zip, or other le decompression programs must be used.

1. Connect a category cable from the HDBaseT IN port on the AT-OPUS-RX and the HDBaseT OUT port on the AT-UHD-EX-70C-TX.
2. Connect the 48 V DC power supply to the AT-UHD-EX-70C-TX.
3. Connect a USB-A to USB mini-B cable from the DEBUG port on the AT-OPUS-RX to an available USB-A port on the PC.
4. Go to the folder containing the contents of the compressed le (Step 2) and double-click the ProgRun.bat le to execute it.

If the following error message is received, double check that the PC is connected to the DEBUG port on the AT-OPUS-RX and that the AT-OPUS-RX is powered.

COM6: starting discovery...
COM6: nothing detected
No local VS2K device detected. Please make sure that only one such device is connected
Press any key to continue . . .

1. Press the ENTER key when prompted, to begin the rmware update.
2. Press the ENTER or "Y" key when prompted Do you want to continue with programming (Y/N).

1. When the message FW upgrade Done Successfully has been displayed, power cycle the AT-OPUS-RX by disconnecting/reconnected the HDBaseT cable.

Notes

Notes

Warranty

To view the product warranty, use the following link or QR code: https://atlona.com/warranty/.
