Product Type	Undercounter Direct Flow RO Water Filter
Model	HBRO5H01-3
Product Dimensions (mm)	167 x 346 x 460
Packaging Dimensions (mm)	470 x 290 x 380
Net Weight	9.85 kg
Gross Weight	12.00 kg
Flow Rate	1.35 L/min
Nominal Power	96 W
Nominal Voltage / Frequency	220 V ~ 50 Hz
Working Pressure	0.5 - 0.6 MPa
Water Supply Pressure	0.1 - 0.3 MPa
Water Temperature Range	5 - 30 °C
Ambient Temperature Range	5 - 40 °C
Water Supply	Tap Water
Electric Protection Type	Class II
Purified Water Quality	In Accordance With Sanitary Standard for Hygienic Safety and Function Evaluation on Treatment Devices of Drinking Water - RO Device (2001)
Filter Stages	4 (Including PP, UDF, RO, and Post Carbon/Resin)
Included Filters	HBPPC-10Y-PA01, HBRO-2810-500-PA01, HBUDF-10Y-PA01, HBMG-10Y-PA01
Filter Replacement Cycle	3-6 months for PP/Carbon; 12 months for RO
Warranty	2 years free warranty from installation date (non-artificial damage)
Installation	Undercounter, requires drilling hole for faucet, drain within 2 meters
Safety Features	Automatic shut-off when not in use; child supervision recommended; keep away from heat sources
Maintenance	Replace filters as scheduled; contact service center for cleaning and repairs

Frequently Asked Questions - HBRO5H01-3 HAIER

What is the flow rate of the Haier HBRO5H01-3?

The flow rate is 1.35 L/min under standard test conditions.

What are the dimensions of the HBRO5H01-3?

The product dimensions are 167 x 346 x 460 mm (width x depth x height).

How often should I replace the filters?

Filter replacement cycles vary: PP and carbon filters every 3-6 months, RO membrane every 12 months. Actual frequency depends on water quality and usage.

What is the warranty period?

Haier provides a 2-year free warranty from the installation date for non-artificial damage. Keep the warranty card and purchase invoice.

Can I install the system myself?

Installation requires drilling a hole for the faucet and connecting to water supply and drain. It is recommended to have a professional technician install it to ensure proper operation.

What should I do if there is a leak?

Immediately turn off the water supply and unplug the device. Check pipe connections. If the leak persists, contact customer service for assistance.

What are the power requirements?

The system requires 220 V ~ 50 Hz and a dedicated socket. Do not use extension cords or adapters.

Is the system safe for drinking water?

Yes. The purified water meets the Sanitary Standard for Hygienic Safety and is safe for drinking. All filters are made from food-grade materials.

How do I clean the system?

For limescale removal or internal cleaning, contact the service center. Do not disassemble or clean internal parts yourself.

What should I do if I will not use the system for a long time?

Unplug the device and turn off the water supply. Before resuming use, contact customer service for maintenance and filter replacement to ensure water quality.

USER MANUAL HBRO5H01-3 HAIER

White cylindrical water heater with a black lid and blue label (no visible text or symbols)

White cylindrical device with a black base and top label (no visible text or symbols)

White cylindrical device with a blue logo and 'D' label, no visible text or symbols on the body.

Line drawing of a kitchen faucet with a water level sensor and numbered component (no text or symbols)

Diagram of a kitchen faucet with a submerged mechanical component (no text or labels)

Line drawing of a 3D box with two compartments and a labeled arrow pointing to the top-right corner (no text or symbols present)

Line drawing of a kitchen sink with a circular component and an inset close-up showing the interior faucet (no text or symbols)

安装完成

滤芯型号	HBPP5-10Y-PA01	HBUDF-10Y-PA01	HBPPC-10Y-PA01	HBMG-10Y-PA01	HBRO-1810-75Y-PA01	HBRO-2810-500-PA01
材质	聚丙烯滤芯	GAC活性炭折叠滤芯	聚丙烯活性炭复合滤芯	阳离子交换树脂滤芯	75GPDRO膜	500GPDRO膜
建议更换周期	3个月 6-12个月	3-6个月	3-6个月 12个月	12个月

Technical line drawing of a mechanical device with red directional arrows indicating motion or force (no text or symbols)

装入滤芯旋转方向

滤芯更换

Safety Precautions 1

Product Description 3

Installation 7

Filter Replacement 8

Check List 9

Technical Specifications 10

Record of Product Maintenance & Repair 11

Product Warranty Card 12

Environmental Protection

Please recycle all viable materials (ex. cardboard, plastic bags, adhesive tape and Styrofoam) and take care to discard packaging safely. To prevent injuries or suffocation, packaging materials should be kept out of reach from babies and infants.

Before Discarding Previous Device

Please follow either the instructions for discardment from either the manufacturer of your previous device or regulations from your local waste treatment facility. If these methods are not applicable, please refer to the three steps below:

1. Unplug device from the power socket
2. Cut the power cable before leaving the device at a safe location
3. Prior to discardment, please check that the device is out of reach from babies and infants at all times

Safety Precautions

To prevent any risks of fire, short-circuiting, injuries (both personal and for third parties) or property loss, please comply with the following safety instructions.

WARNING: Indicates a potential hazard for people or objects that could result in serious harm or fatality

• This appliance is not intended for use by persons (Including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance
• Please keep device indoors at all times to avoid damage from direct sunlight or rain.
• Keep the appliance away from electromagnetic waves, heat sources, combustibles, chemicals
• Do not attempt to disassemble, repair or modify this appliance.
• Do not install the system in a non-potable water supply system.
• Do not use device when the power cable or plug is damaged.
• Do not operate the power plug or this product with wet hands.
  • To avoid damaging the power cable, the following are prohibited:

□ Placing the power cable near heat sources
☐ Forceful transformation of the power cable (ex. bending, twisting, or lengthening)
☐ Placing heavy objects on or bunching together the power cable

- If the power cable is damaged, it must be replaced by an authorized service center or a qualified professional to avoid any dangers that may arise.

- Please only use individual power socket that comply by local voltage requirements. Avoid using power strips and adapters to prevent overheating, fires, or short circuiting.

CAUTION: Indicates that deviation from such suggestions could result in minor or moderately harmful situations

• This appliance is intended to be used in household and similar applications.
• In the case that the device will be either unused or not in the presence of an operating individual for more than 2 days, please unplug the power plug and turn off the water source. This is to prevent rats form biting the pipeline and other risks such as water hammer or pipe bursts from excessive water pressure.
• Drains should be present within two meters of the appliance to ensure successful drainage in case of leakages.
• Please keep clear of the vents on the left, right and back sides of the product. Avoid placing any objects within 15cm distance from device for heat dissipation.
• The functioning of the iced water system will be reduced when the ambient temperature is higher than 35 degrees celcius. Long-term use in such environments may result in product damage.
• Please check whether the power supply voltage conforms to the marked voltage of the product. The system operation must meet the minimum working water pressure requirements (refer to the technical specifications).
• Please turn power off before unplugging, and do not forcefully tug on power cable while doing so.

Safety Precautions

NOTICES

• Please turn off power when the device is not used for a time. To resume use, contact customer service for the maintenance and replacements of tank water and filters to ensure water quality
• Please check its working status every month. If it is unable to cut off power, please turn off the device and inform our service center to arrange professional technicians for home maintenance.

Maintenances Notice

• Please follow with our company’s recommended product use duration, or contact our service center between six to twelve months after warranty begins. Our professional technicians will maintain, repair or replace any parts of the device to ensure proper operation.
• Filter replacement dates may be found on the filters. These times are mere recommendations and may vary according to the water quality of each location. Please follow the advisement of our service center in regards to filter and OEM parts replacements.
• Different degrees of limescale will accumulate and vary over long-term use of hot water. In the case that cleaning is needed, please contact our service center for such services (at an additional cost even under warranty)
  If the power cable is damaged, please prevent any risks by contacting the service center for a replacement
• Device parts that come in regular contact with hot water may have shorter lifespans. If signs of deterioration appear, please immediately contact the service center
• Our company will not bear the responsibilities for any liabilities that may arise should users deviate from our OEM recommendations or use parts or accept services from a third party.

Replacement for Parts and Consumables

• Depending on water quality or level of use, this lifetime may vary.
- Please use materials that comply with the standards of potable water for all filters.

Application Field of Product

- Undercounter drinking devices can remove odor, remove bacteria from water, improve taste, reduce limescale, and remove harmful substances to provide pure and hygiene drinking water.

Installation Conditions

• Please refer to all related installation regulations, common standards, hygiene requirements, and the instruction manual.
• Please do not install this system by non-potable water system.
• Avoid installing product in areas with severely cold temperatures, solvent evaporation, oil and gas, chemical substances, UV rays or temperatures above 40 degrees celcius.
• The pipeline pressure must not exceed the maximum working pressure limit of the system (please refer to technical specifications). If exceeded, a pressure relief valve must be installed.
• The system operation must meet the minimum working water pressure requirements (refer to the technical specifications).

Slim Undercounter Drinking Water Systems
HBRO7501-3 HBRO	5H01-2 HBRO5H01-3

Filters included in each product model
Product Model Filter Model
HBRO7501-3	HBPP5-10Y-PA01
	HBUDF-10Y-PA01
	HBRO-1810-75Y-PA01
	HBMG-10Y-PA01
HBRO5H01-2	HBPPC-10Y-PA01
	HBRO-2810-500-PA01
HBRO5H01-3	HBPPC-10Y-PA01
	HBRO-2810-500-PA01
	HBUDF-10Y-PA01
	HBMG-10Y-PA01

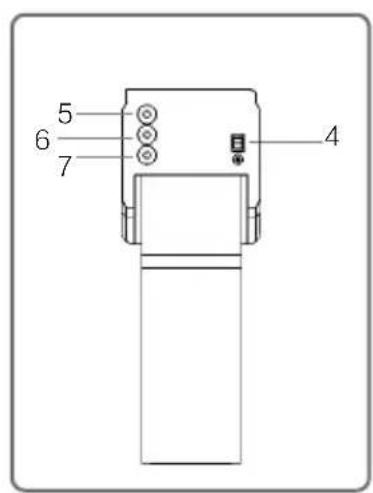

HBRO7501-3 is composed of:

Main body

1	Filter head
2	Water tank
3	Filter cartridge(Please see the filters list)
4	Power switch
5	Waste water outlet
6	Water outlet
7	Water inlet
8	Stainless and leadless faucet

HBRO5H01-2 (undersink direct flow model) is composed of:

Main body

1	Filter head
2	500 GDP RO Filter
3	Filter cartridge(Please see the filters list)
4	Power Switch
5	Waste water outlet
6	Water outlet
7	Water inlet
8	Stainless and leadless faucet

HBRO5H01-3(undersink direct flow model) is composed of: Main body

1	Filter head
2	500 GDP RO Filter
3	Filter cartridge(Please see the filters list)
4	Power Switch
5	Waste water outlet
6	Water outlet
7	Water inlet
8	Stainless and leadless faucet

1

Line drawing of a 3D box with two compartments and a pointer labeled '1' pointing to the top section (no text or symbols on the diagram itself)

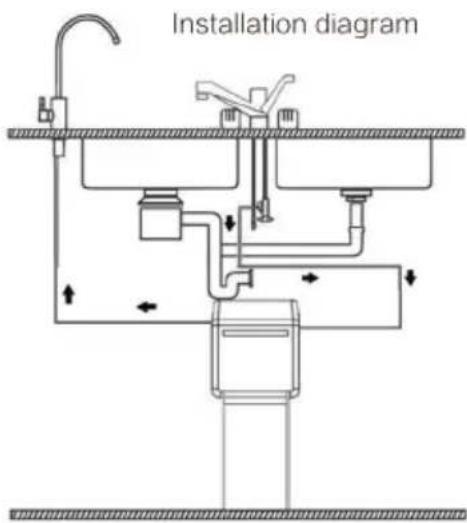

Confirm installation location for system and faucet. Drill a hole in this specific point.

3

Faucet Tightening

1. Insert screw from the base of the faucet
2. Place in mounting plate ring gasket
3. Place in mounting plate
4. Use the locknut to fix the faucet in place

2

1. Insert o-ring
2. Place the faucet base ring on O-ring
3. Insert the faucet into the center of the rings

4

Technical line drawing of a mechanical device with a circular component and an inset close-up showing internal components (no text or symbols)

Completed installation

Filter Model	HBPP5-10Y-PA01	HBUDF-10Y-PA01	HBPPC-10Y-PA01	HBMG-10Y-PA01	HBRO-1810-75Y-PA01	HBRO-2810-500-PA01
Material	PP	High Efficiency Activated Carbon	PP Long-lasting Multi Activated Carbon Filter	Cation exchange resin	75GPD RO Membrane	500GPD RO Membrane
Recommended replacement cycle		6-12 months	3-6 months3	months 3-6 months	12 months	12 months

Note: According to different water quality, temperature and water consumption, the replacement cycle of filter is only for reference.

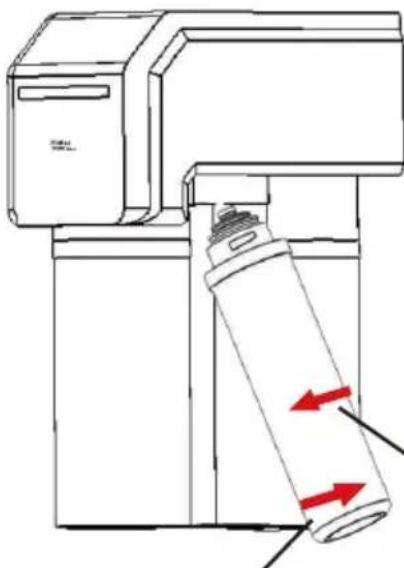

Technical line drawing of a mechanical device with red directional arrows indicating movement or force (no text or symbols present)

1. Twist filter left and pull down for removal
2. Insert the new filter and rotate to the right for reinstallation
3. After replacing the filter, please open the faucet of the filter system and leave the water running for 5 minutes before use.

Direction of rotation when removing the cartridge

Direction of rotation when installing the cartridge

Check list

To ensure the technician's correct installation of the unit, please check that:

☐ All parts have been successfully removed from the packaging box
☐ Pipes are correctly connected (please check direction flow)
☐ Water and electricity can be constantly supplied throughout the installation
□ Water inlet valve is open
□ Customers have left their contact information for future convenient maintenance arrangements
□ Customers have been notified that the unit requires maintenance every six months to ensure its proper operation
☐ Please check for any leakages between or from pipes.
☐ If not immediately used after installation, the system must be checked again prior to its first official use

Technical Specifications

Product Name	Haier HBRO7501-3 RO Water Filter	Haier HBRO5H01-2 RO Water Filter	Haier HBRO5H01-3 RO Water Filter
Product Type	HBRO7501-3	HBRO5H01-2	HBRO5H01-3
Flow Rate	0.2L/min	1.35L/min	1.35L/min
Product Size(mm)	167x346x460	167x346x460	167x346x460
Packaging Size(mm)	560x430x255	470x290x380	470x290x380
Net Weight	7.00kg	8.50kg	9.85kg
Gross Weight	9.10kg	11.00kg	12.00kg
Working Pressure	0.5-0.6MPa	0.5-0.6MPa	0.5-0.6MPa
Nominal Power	28.8W	72W	96W
Nominal Capacity	1.5m^3	8m^3	1.5m^3
MOH No.	鲁卫水进字【2019】第B025号	鲁卫水进字【2019】第B027号	鲁卫水进字【2019】第B026号
Nominal Voltage/Frequency	220V~50Hz
Type of Electric Protection	Kind II
Place of Origin	Taiwan,China
Water Temperature	5-30°C
Ambient Temperature	5-40°C
Water Pressure	0.1-0.3MPa
Water Supply	Tap Water
Implementation Standard	GB4706.1-2005 GB/T30307-2013
Purified Water Quality	In Accordance With Sanitary Standard for Hygienic Safety and Function Evaluation on Treatment Devices of Drinking Water - RO Device (2001)
Actual Manufacturer	BWT Taiwan Ltd.
Actual Production Address	No.141, Guangde Rd., Taiping Dist, Taichung 411, Taiwan
Responsible Company in China	BWT Haier Drinking Water Technology Co., LTD
Address	Qingdao Sino-German Eco Park, Beta Space, Room 216,172 Taibaishan Rd., Huangdao District, Qingdao, Shandong, China

NOTE: The capacity under the condition of standard addition test

Record of Product Maintenance & Repair

Product type: Purchase date:

Record of Product Maintenance

Maintenance Date Maintenance Content Service Person Signature

In order to ensure the product can be operated properly and filter out high-quality purified water, please carefully read the instruction manual and replace the filter cartridge on time.

Record of Product Repair

Repair Date Repair Content Service Person Signature

NOTE: Pease keep this record page carefully and show to the technician during maintenance and repair.

Product Warranty Card

Thank you so much for purchasing Haier BWT INSIDE products!

If the products purchased through regular channels are non-artificially damaged, we will provide a 2-year free warranty service from the date of installation.

For installation, please call the service hotline: [phone], from 9:00 to 17:00 Monday to Friday (except for legal holidays).

Product category: ____ Purchase venue: ____

Product Type: ____ Sales person: ____

Purchase date: ____

Empty rectangular frame with dashed border and solid bottom line (no text or symbols)

I. Please read the following warranty terms carefully

1. Please check that the serial numbers on product package and on this card are consistent and valid, and please completely, correctly and truly fill this acknowledgement of receipt together with the installation person.

2. Please keep the warranty card and purchase invoice properly.

3. Please show the original warranty card or invoice (warranty card and invoice shall not be rewritten, otherwise invalid).

II. Any of the following problems during the warranty period can be fixed free of charge:

1. The product has quality problems such as leaking on tank or natural break of package box, the company is responsible for warranty; however, damage due to collision or poisonous gas and liquid is not covered by the warranty.

2. Product failure when use it under the condition of nominal power supply voltage and water supply pressure.

III. Any one of the following circumstances is not covered by the warranty. The company or its authorization service center will charge a reasonable fee for the card is re-written.

1. The user cannot show warranty card or invoice;

2. The product warranty card is inconsistent with the actual warranty goods or altered;

3. Damage or other losses caused by improper use or human activities:

4. Product failure when use not under the nominal power supply voltage, water supply pressure, ambient temperature as shown in the technical specifications.

Acknowledgement of Receipt (Distributor's)

User name: ____

User phone no.:

Address:

Postcode: ____

Email: ____

Purchase date: ____

Product type: ____

Dealer name: ____

Installer name: ____

Installation date: ____

User signature: ____

Acknowledgement of Receipt (Manufacturer's)

User name: ____

User phone no.: ____

Address: ____

Postcode: ____

Email: ____

Purchase date: ____

Product type: ____

Dealer name: ____

Installaer name: ____

Installation date: ____

User signature: ____

Haier

BWT INSIDE
