USER MANUAL C3 PLURIEL CITROEN

Silver Citroën C3 Pluriel car parked on a rural road with grassy background (no visible text or symbols beyond branding)

CITROËN C3 PLURIEL

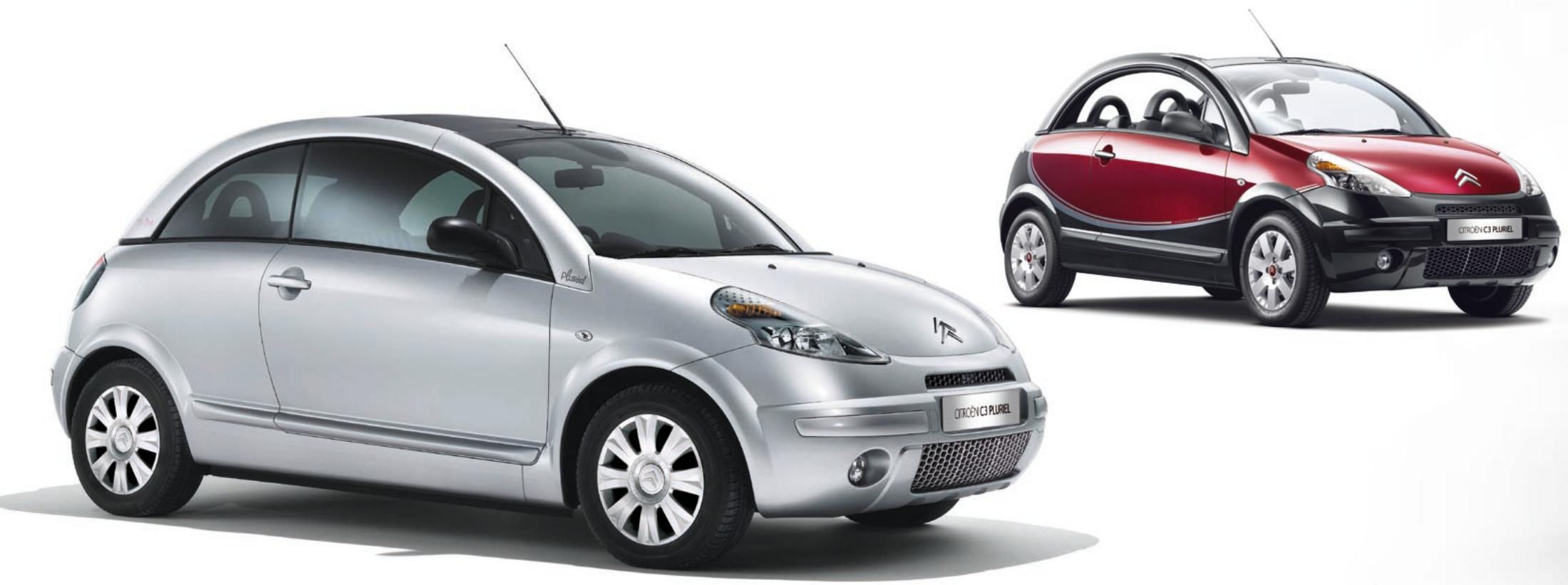

Exterior and back view of two Citroën C3 Plurel cars, one silver and one red, displayed side by side (no signage or text overlays)

IMAGINATION ON WHEELS. IMAGINATION DOESN'T CARE ABOUT RULES AND IT STEERS CLEAR OF THE ORDINARY. JUST LIKE THE CITROËN C3 PLURIEL.

UTTERLY INDIVIDUAL AND UNIQUELY FLEXIBLE, THIS IS THE CAR THAT CELEBRATES SPONTANEITY AND CHANGES WITH YOUR MOOD: FROM 3 DOOR SALOON TO SALOON WITH PANORAMIC ROOF TO CABRIOLET TO FULL OPEN TOP SPIDER AND EVEN TO A SPIDER PICK-UP! A REAL HEAD TURNING CHAMELEON, CITROËN C3 PLURIEL IS PACKED WITH ALL THE EQUIPMENT, SAFETY FEATURES AND LUXURY TOUCHES YOU COULD WISH FOR AND IS NOW AVAILABLE IN TWO DISTINCTIVE SPECIAL EDITIONS: CÔTE D'AZUR AND CHARLESTON. SO THE WORLD'S ONLY FIVE-IN-ONE CAR GIVES YOU A DOUBLE HELPING OF EXCITING CHOICES; JUST IMAGINE...

CONTENTS: 3 IMAGINATION ON WHEELS 4 INSPIRED VERSATILITY 6 RANGE OVERVIEW 8 COLOURS, TRIMS, WHEELS & OPTION 9 EQUIPMENT SPECIFICATION 10 TECHNICAL SPECIFICATION 11 ACCESSORIES 12 ENVIRONMENTAL COMMITMENT 13 CARE, FINANCE & INSURANCE 14 GLOSSARY 15 DIMENSIONS

CITROËN

C3 PLURIEL

IMAGINATION

ON WHEELS

CITROËN

C3 PLURIEL

INSPIRED

VERSATILITY

FIVE-INTO-ONE VERSATILITY. UNDILUTED FUN, AMAZING PRACTICALITY, EFFORTLESS STYLE, REASSURING SAFETY, INGENIOUS VERSATILITY...

IT'S THE UNIQUE FORMULA FOR THE CITROËN C3 PLURIEL THAT CREATES FIVE CARS IN ONE. AND THE CLOSER YOU LOOK, THE MORE IT ADDS UP.

Image shown for illustrative purposes only.

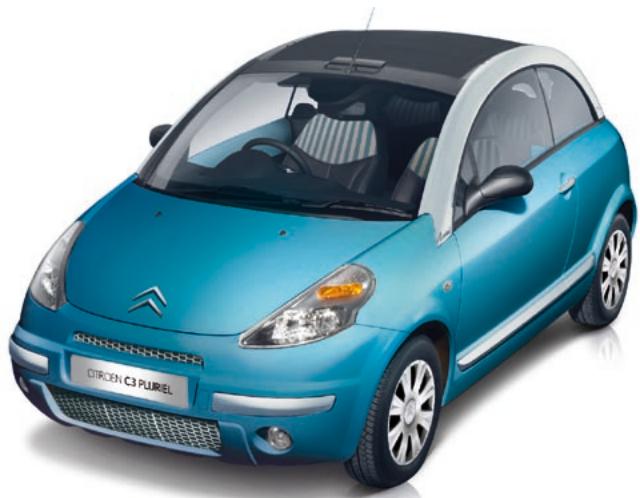

Exterior view of a blue Citroën C3 Plurel car (no signage or text on body)

> ROOM FOR INDIVIDUALS

The first nice surprise when you get into a Citroën C3 Pluriel is just how spacious it is – a true 4-seater, but that's just the start. Is it to be the panoramic saloon today or the cabriolet? Or perhaps the full on fresh air spider? Who cares, you can change your mind because the Citroën C3 Pluriel is happy to change with you.

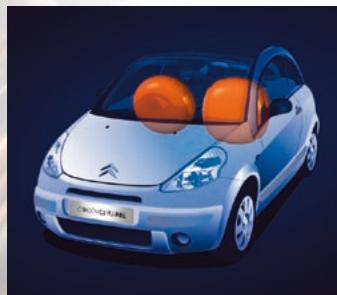

> BE FREE, BE SAFE

Citroën C3 Pluriel is packed with active and passive safety features. Complementing its responsive, sure-footed handling is ABS with Electronic Brakeforce Distribution (EBD) and Emergency Braking Assistance (EBA). Then there's accurate, speed sensitive power steering and automatic hazard warning lights that activate when the car decelerates suddenly. A reinforced body shell, protective roof arches and four airbags surround you should the worst happen.

Illustration of a blue convertible car with orange wheels, shown from front and perspective angles (no text or symbols)

Rear view of a silver Citroën C3 Plurel sedan (no visible text or symbols on the car body)

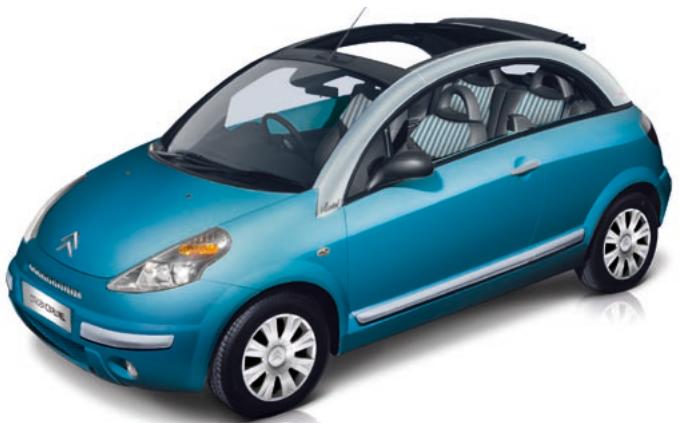

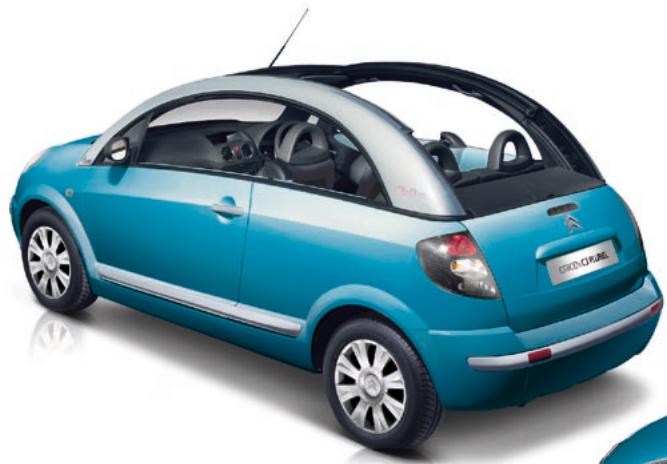

Side view of a blue compact car with silver trim and roof, no visible text or symbols

Side view of a blue compact car with open lid and silver alloy wheels (no visible text or symbols)

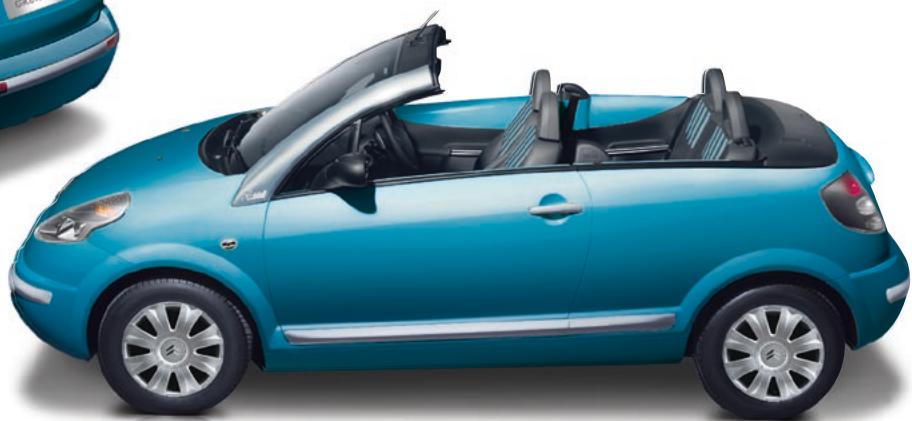

Side profile of a blue convertible car with open lid and alloy wheels (no visible text or symbols)

CITROËN

C3 PLURIEL

INSPIRED

VERSATILITY

> SENSATIONAL SENSODRIVE

It feels good to relax and let an automatic do the gear shifting... but then it's great to get involved and make fingertip gear selections with a manual. Well forget the either/or, because with Citroën C3 Pluriel 1.6i 16V, there's no dilemma. The SensoDrive paddle shift, five speed sequential gearbox brings both. So whether you're in the urban stop and start or out on the open road, you've always got the perfect change – versatility in a box? Oh yes.

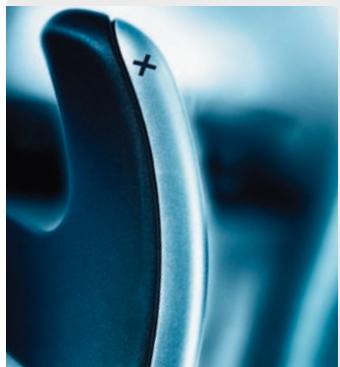

Close-up of a blue mechanical knob with a cross mark on the knob surface (no text or symbols visible)

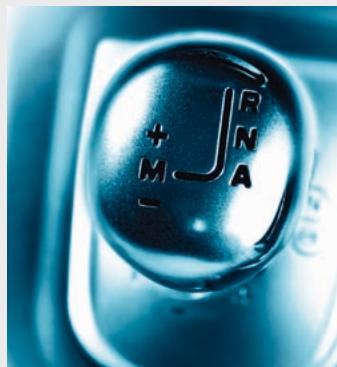

Close-up of a metallic switch with 'RNA' and 'M' labels, set in blue monochrome (no additional text or symbols)

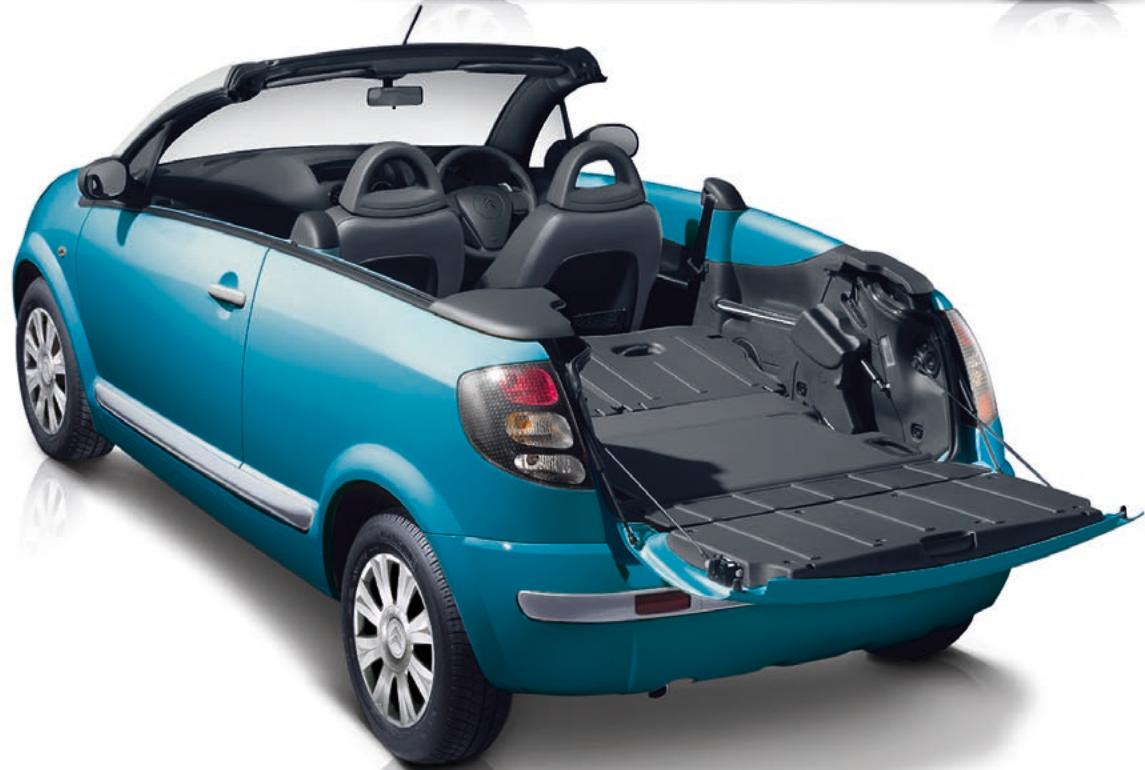

Exterior view of a blue convertible car with open trunk and rear seats (no visible text or symbols)

CITROËN C3 PLURIEL CÔTE D'AZUR: THE SUN KING. HERE'S A CAR THAT BRINGS A LITTLE OF THE HIGH LIFE TO EVERY JOURNEY.

THE CÔTE D'AZUR IS A SPECIAL EDITION WITH STYLE TO SPARE, BOTH INSIDE AND OUT. FROM THE UNIQUE BLUE 'BAYADERE' WOVEN CLOTH UPHOLSTERY, TO THE SUITABLY STUNNING NO EXTRA COST METALLIC BODY COLOUR, CÔTE D'AZUR IS A TRUE CELEBRATION OF THE CITROËN C3 PLURIEL'S VERSATILE PERSONALITY. FOR THE FULL STRENGTH EYE CATCHING EFFECT, JUST ADD SUNSHINE...

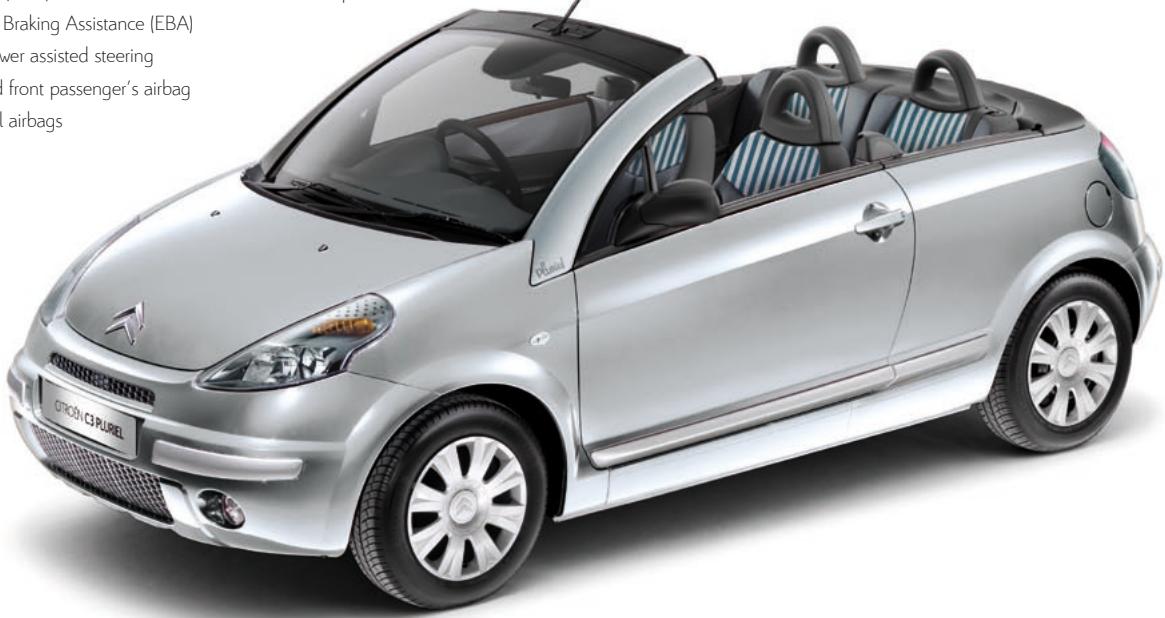

> CITROËN C3 PLURIEL CÔTE D'AZUR SPECIFICATION INCLUDES:

• Electric full length sliding and fully retractable roof
• Removable reinforced roof arches
• Multi-function on-board trip computer
• ABS with Electronic Brakeforce Distribution (EBD)
• Emergency Braking Assistance (EBA)
• Variable power assisted steering
- Driver's and front passenger's airbag
- Front lateral airbags

• Front and rear electric windows
• Electrically adjustable door mirrors
- Metallic paint
- RDS stereo radio/MP3 compatible CD player with steering mounted controls and 6 speakers

• Height and reach adjustable steering wheel
• High-frequency remote control central locking with deadlocks
- Front fog lights

• Cruise control with speed limiter
- Rear split/folding seats
- Aluminium Effect Look Pack - aluminium effect bumper inserts, rubbing strips, door handles and roof arches

Braking Assistance (EBA) ver assisted steering front passenger's airbag airbags citroën C3 PLURIEL

CÔTE D'AZUR

BODY TYPE

Saloon 3-door

Panoramic saloon 3-door

Cabriolet 3-door

Spider 3-door

Spider pick-up 3-door

•
•
•
•
•

PETROL ENGINE AVAILABILITY

1.4i 8V 75hp

1.6i 16V 110hp SensoDrive

•
•

DIESEL ENGINE AVAILABILITY

1.4HDi 8V 70hp

•

CITROËN C3 PLURIEL CHARLESTON: OLD SCHOOL CHARM, CUTTING EDGE STYLE. THIS STORY BEGAN 60 YEARS AGO WITH A CAR THE WORLD FELL IN LOVE WITH.

THE CITROËN C3 PLURIEL CHARLESTON IS A CELEBRATION OF THE ICONIC 2CV – A FITTING TRIBUTE TO A DESIGN WITH PERSONALITY AND INNOVATION IN SPADES. LIKE THE CLASSIC 2CV CHARLESTON, THE SPECIAL EDITION HAS VIBRANT TWO-TONE BODYWORK IN BURLAT RED AND OBSIDIAN BLACK, WITH A SWOOPING COACHLINE BETWEEN THE TWO THAT ENHANCES AND ECHOES ITS ARCHING ROOFLINE. CITROËN C3 PLURIEL CHARLESTON IS QUITE A COMBINATION: TIMELESS CHARISMA AND UP TO THE MINUTE TECHNOLOGY.

> CITROËN C3 PLURIEL CHARLESTON SPECIFICATION INCLUDES:

• Electric full length sliding and fully retractable roof
- Removable reinforced roof arches
• Multi-function on-board trip computer
• ABS with Electronic Brakeforce Distribution (EBD)

• Emergency Braking Assistance (EBA)
• Variable power assisted steering
- Driver's and front passenger's airbag
- Front lateral airbags
- Front and rear electric windows

• Two-tone Charleston design

• RDS stereo radio/MP3 compatible CD player with steering mounted controls and 6 speakers
  • Height and reach adjustable steering wheel
  • High-frequency remote control central locking with deadlocks

• Front fog lights
  • Cruise control with speed limiter

• Rear split/folding seats
• Air conditioning
  • Electrically adjustable, heated and folding door mirrors
  • 15" 'Coyote' alloy wheels (set of four)
• Grey Tramontane perforated 'Claudia' leather upholstery

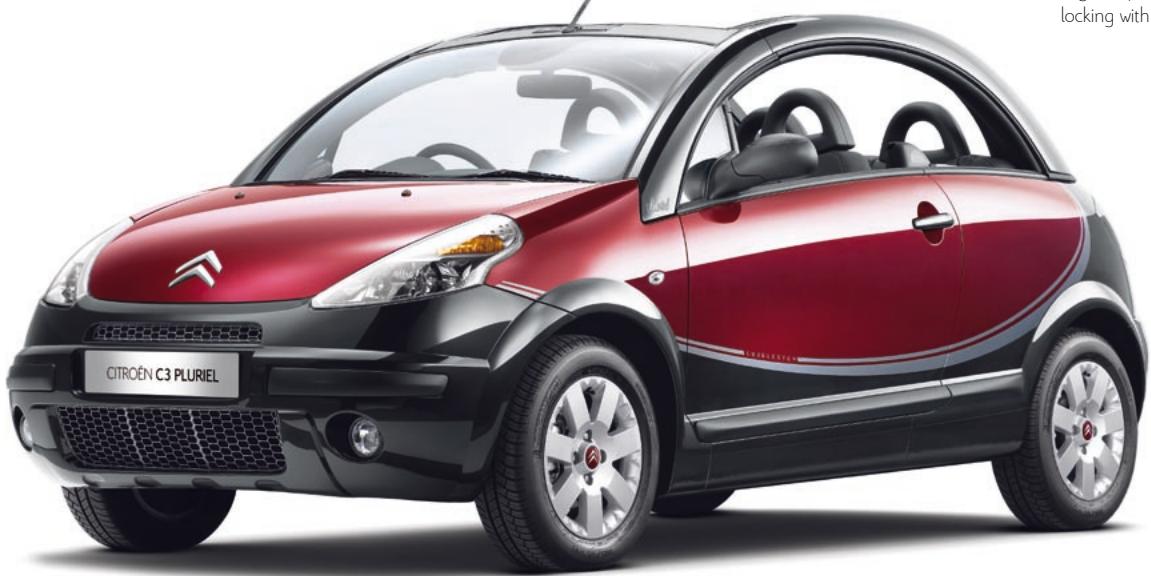

Red Citroën C3 PLURIEL compact car with black body and silver alloy wheels (no visible text or symbols on the car body)

BODY TYPE

Saloon 3-door

Panoramic saloon 3-door

Cabriolet 3-door

Spider 3-door

Spider pick-up 3-door

PETROL ENGINE AVAILABILITY

1.4i 8V 75hp

Standard on Côte d'Azur models with vertical color bands (no text or symbols)

Abstract blue gradient background with soft linear blur effect (no text or symbols)

Belle Ile Blue (metallic)

Abstract grayscale gradient background with diagonal light streaks (no text or symbols)

Arctic Steel (metallic)

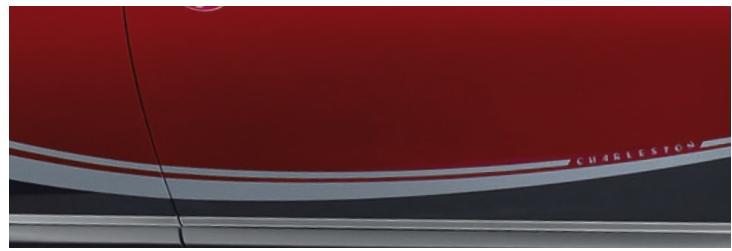

Close-up of a red car's side panel with 'CHURLESTON' branding on the front wheel (no other text or symbols)

Two-tone Charleston design Burlat (pearlescent) & Obsidian black (pearlescent)

Close-up of a car tire and silver alloy wheel (no text or symbols visible)

Close-up of a car tire with silver alloy rim and black outer rim, featuring a red logo on the wheel (no text or symbols visible)

Blue 'Bayadere' woven cloth

Close-up of a textured fabric surface with no visible text or symbols, labeled 'Standard on Charleston models' at the bottom.

BODY COLOURS

• Standard equipment
• Optional factory fitted equipment

Please note: Colours and pictures shown in this brochure are for illustration purposes only. Please consult your Dealer for definitive colour and trim/upholstery details.

Grey Tramontane perforated 'Claudia' leather

	CÔTE D'AZUR	CHARLESTON
BODY COLOURS
Arctic Steel	●
Belle Ile Blue	●
Two-tone Charleston design		●
OPTION SUMMARY
Air conditioning	○	●

	CÔTE D'AZUR	CHARLESTON		CÔTE D'AZUR	CHARLESTON
SAFETY & SECURITY			STYLE
ABS with Electronic Brakeforce Distribution (EBD) and Emergency Braking Assistance (EBA)	●	●	EXTERIOR
Four 3-point inertia reel seat belts	●	●	Aluminium Effect Look Pack - aluminium effect bumper inserts, rubbing strips,door handles and roof arches
Front seat belt pre-tensioners with force-limiters	●	●
Two rear seats Isofix child seat anchorage points	●	●	Metallic paint
Fuel cut-off device	●	●	Two-tone Charleston design with separating stickers
Driver's airbag	●	●	15" steel wheels with 'Inca' wheel covers (set of four)
Front passenger's airbag with cut-off device	●	●	15" 'Coyote' alloy wheels (set of four)
Front lateral airbags	●	●	INTERIOR
Transponder immobiliser	●	●	Leather steering wheel
High-frequency remote control central locking for doors, rear windows and tailgate	●	●	Aluminium effect front vents
Automatic re-locking after 30 seconds	●	●	Translucent ruby gear knob
(when using the plip – if the doors and boot remain unopened)			Front and rear 'Wishbone' style armrests
Automatic activation of hazard warning lights (in case of rapid deceleration or impact)	●	●	Front doors and rear panels with body colour inserts
Dashboard mounted locks control for doors and electric rear windows	●	●	Polished chrome effect door pull handles
Automatic door and boot locking (when car in motion)	●	●	Carpet mats
Energy absorbing side impact protection	●	●
Front high strength steel pillars	●	●	DRIVER INFORMATION
Removable reinforced roof arches	●	●	Multi-function on-board trip computer
Rear head restraints with reinforced safety cage	●	●	Audible lights-on and key-in-ignition warning
Deadlocks	●	●	'Black panel' night-time instrument lighting
Boot security cover	●	●	Rev counter
			Digital clock
LIGHTING & VISIBILITY			Digital dashboard display
Front fog lights	●	●	Coolant temperature gauge
High level third brake light	●	●	Programmable audible over-speed warning
Height-adjustable headlamps	●	●	Space saver spare wheel
Twin rear fog and reversing lights	●	●
Two-speed intermittent windscreen wipers	●	●	SEATING
			Height-adjustable driver's seat
COMFORT & CONVENIENCE			Height-adjustable front head restraints
Cruise control with speed limiter	●	●	Rear split/folding seats with reinforced head restraints
Variable power assisted steering	●	●
Air recirculation and pollen filter	●	●	STORAGE
Air conditioning	○	●	Front door pockets
Front electric windows with 'one-touch' operation on driver's side only	●	●	Front passenger's lockable lower glove box
Rear electric windows	●	●	Removable rear parcel shelf
Rear heated window	●	●	Removable boot floor
Height and reach adjustable steering wheel	●	●	Cup holders in centre console
Driver's and front passenger's sunvisor with covered courtesy mirror and map holder	●
Electrically adjustable door mirrors	●		IN-CAR ENTERTAINMENT
Electrically adjustable, heated and folding door mirrors		●	RDS stereo radio/MP3 compatible CD player with steering mounted controls
Full length electric sliding and fully retractable roof with eight pre-programmed opening positions	●	●	Six speakers
Driver's and front passenger's reading light	●	●
Cigarette lighter	●	●

CITROËN C3 PLURIEL EQUIPMENT SPECIFICATION

Interior view of a car showing four seats with gray seating and a central touchscreen (no visible text or symbols)

Close-up of a car gear shift lever with red caliper and gasket (no text or symbols visible)

• Standard equipment
• Optional factory fitted equipment

CITROËN

C3 PLURIEL

TECHNICAL

SPECIFICATION

60.1mpg

on 1.4HDi 8V

70hp model

125g/km CO _2

on 1.4HDi 8V

70hp model

	PETROL MODELS		DIESEL MODEL
	1.4i 8V 75hp	1.6i 16V 110hp SensoDrive	1.4HDi 8V 70hp
ENGINE
Capacity (cc)	1360	1587	1398
Cylinders	4 in line	4 in line	4 in line
Max power CEE (kW/rpm)	54/5400	80/5750	50/4000
Max torque CEE (Nm/rpm)	118/3300	147/4000	160/2000
Fuel system	Multi-point electronic fuel injection		High pressure direct diesel injection
TRANSMISSION
Five speed manual	●		●
Five speed SensoDrive		●
Clutch type	Dry single plate		Dry single plate
(All figures driver alone) PERFORMANCE
Max speed (mph)	99	117	98
0-62mph (secs)	13.9	13.0	16.1
Standing 1000m (secs)	35.6	33.8	37.2
(Official Government test fuel consumption figures) ECONOMY Litres/100km (mpg)
Urban cycle	9.1 (31.0)	8.6 (32.8)	5.7 (49.6)
Extra urban	5.4 (52.3)	5.6 (50.4)	4.2 (67.3)
Combined	6.8 (41.5)	6.7 (42.2)	4.7 (60.1)
CO2 EMISSIONS (g/km)	160	160	125
Please note: the maximum plated weights must not be exceeded WEIGHTS (kg)
Kerb weight	1158	1205	1185
Max laden weight	1513	1556	1544
Max towing weight braked	800	800	800
Max tow hitch download	34	34	34
BRAKES	Front ventilated discs, rear drums	Front ventilated discs, rear discs	Front ventilated discs, rear drums
STEERING
Number of turns lock to lock		2.8
Turning circle between kerbs (m)		11.29
SUSPENSION	Anti-roll bars front and rear. Front: MacPherson strut/coil springs. Rear: independent trailing arms/coil springs.
FUEL TANK CAPACITY Litres (gallons)	47 (10.3)

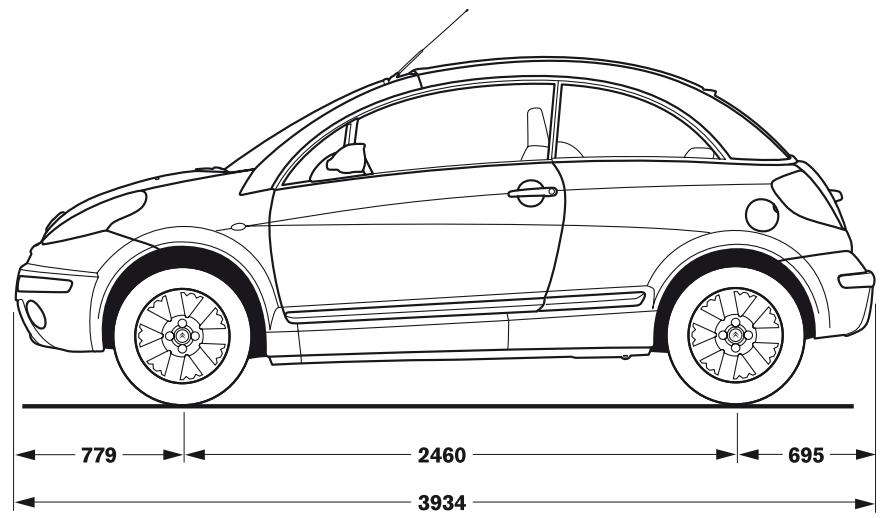

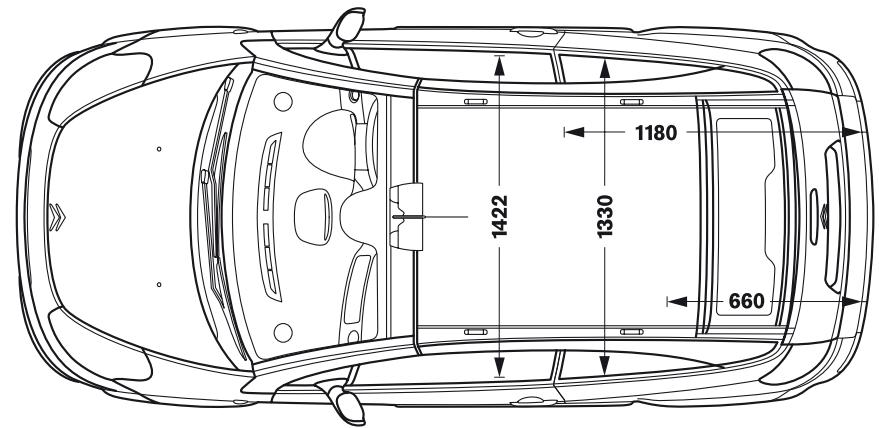

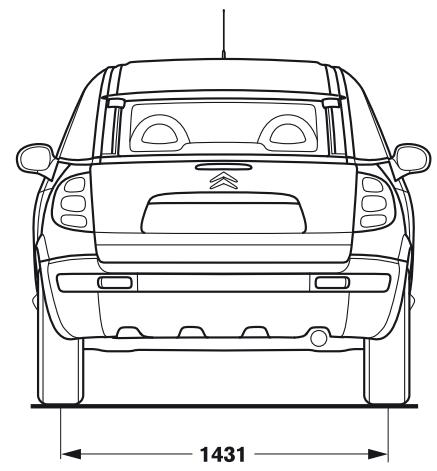

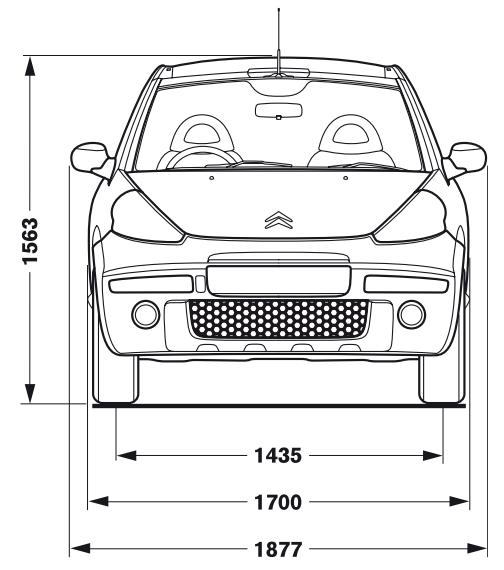

EXTERIOR DIMENSIONS (mm)
Length/Width/Height		3934/1700/1563
Wheelbase		2460
BOOT VOLUMES & DIMENSIONS
Rear seats up - below parcel shelf (litres/VDA)		266
Rear seats up - below parcel shelf cabriolet and spider (litres/VDA)		137
Depth under security cover - cabriolet and spider (mm)		400
Length of boot - rear seats up (mm)		670
Length of boot - rear seats down (mm)		1350
Length of boot - rear seats down and rear tailgate open - Pick-up (mm)		1940

ACCESSORIES YOU WON'T WANT TO BE WITHOUT.

ENHANCE YOUR CITROËN C3 PLURIEL WITH CITROËN'S WIDE RANGE OF ACCESSORIES, DESIGNED SPECIFICALLY FOR YOUR VEHICLE. ENJOY HIGH-QUALITY IN-CAR ENTERTAINMENT, PERSONALISE YOUR CITROËN C3 PLURIEL'S APPEARANCE, OR ADD TO ITS CONVENIENCE, STORAGE AND SAFETY FEATURES.

Contact your local dealer or visit www.citroen.co.uk for further information and more accessory options.

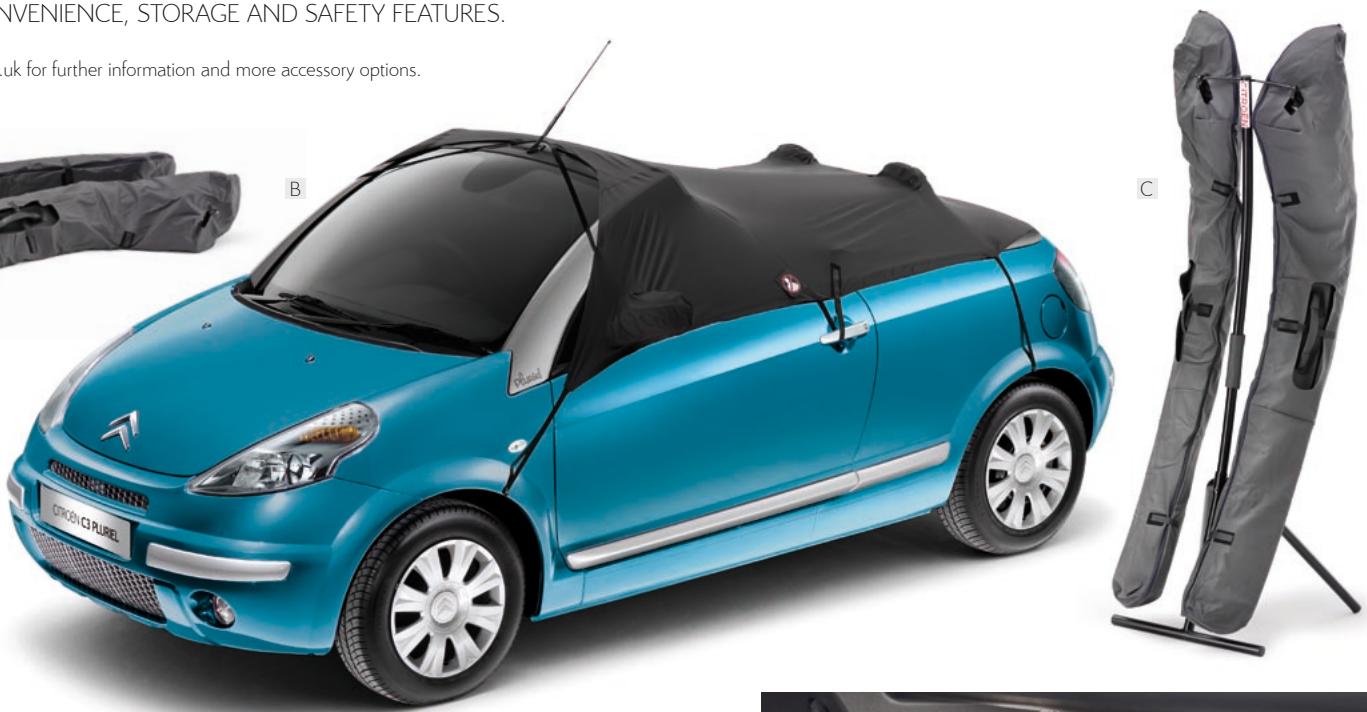

> SPIDER KITS

Two spider kits are available for your Citroën C3 Pluriel. Both kits include protective bags for the roof arches (A) plus a rain cover (B) - providing essential protection against sudden downpours. The second kit option also includes a roof arch stand (C) to optimise the storage space required.

LEICESTER SQUARE Cockspur Street Strand 3 min A3212 Whitehall 15 yards 17.7 M 0:25 h 11:01 am 11:26 am 50 mph A308 Northumberland Avenue tomtom

LECESTER SQUARE Strandt The Mall A321 Whitehall 25 27.3" 13:45 18" 14:27 tomtom

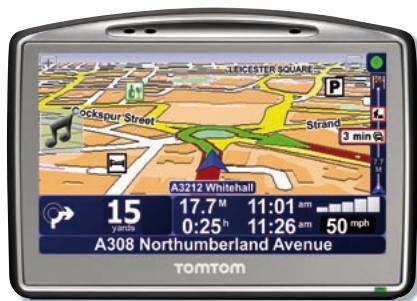

> TOMTOM SATELLITE NAVIGATION

Probably the in-car accessory of the decade, satnav has transformed the way we use the roads today. A range of easy-to-use TomTom systems are available and make driving virtually stress-free.

Bluetooth Messages

> BLUETOOTH HANDS-FREE KIT

Designed for GSM-compatible equipment with wireless Bluetooth® technology, the hands-free kit ensures greater comfort and safety.

INVENIENCE, STORAGE AND SAFETY FEATURES. uk for further information and more accessory options. B Citrody C3 PUREL C

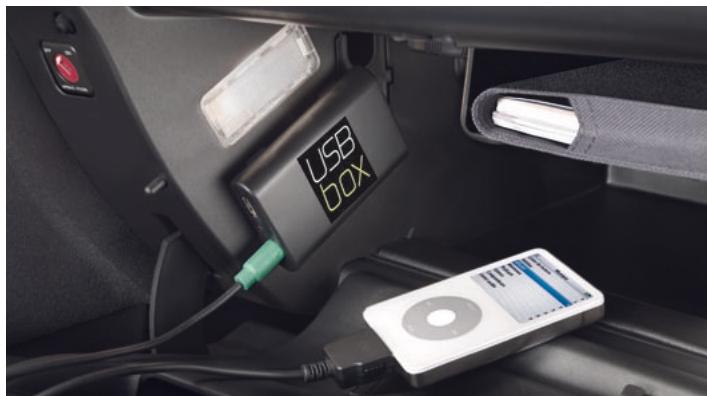

Interior view of a car showing an USB box connected to an iPod's front panel (no visible text or symbols)

> MP3 ADAPTOR

Enjoy music from your own MP3 player and control your song selection through the dashboard stereo thanks to this clever little MP3 adaptor.

MP3 player not included.

CITROËN C3 PLURIEL ACCESSORIES

Close-up of a car wheel switch and tire assembly (no visible text or symbols)

Car body with a mesh net and colorful spherical object on the back (no text or symbols visible)

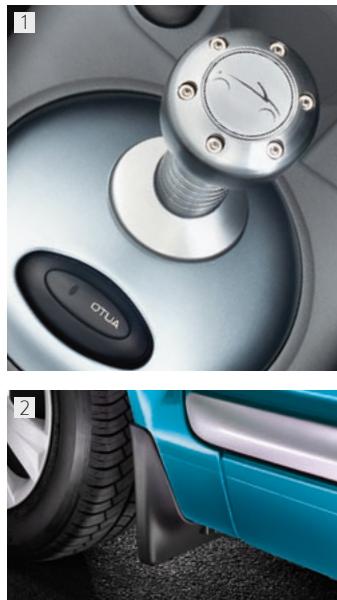

Aluminium gear levers are available for both manual and SensoDrive models.

> 2. CONTOURED MUDFLAPS

Reduce the effects of road spray and prevent damage to paintwork.

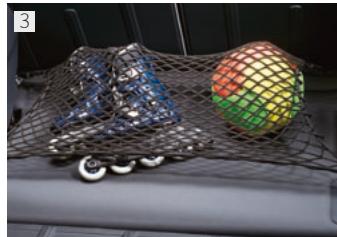

> 3. STORAGE

Check online for a range of ingenious storage accessories like the boot net shown.

GREEN EFFICIENCY. CITROËN HAS BEEN PIONEERING CLEANER, MORE FUEL-EFFICIENT MOTORING, SUCH AS THE COMMON RAIL HDi ENGINES NOW FITTED IN ALL NEW CITROËN DIESELS, LONG BEFORE ALL THE HYPE...

CITROËN HAS ALWAYS BEEN AT THE FOREFRONT OF GREENER TECHNOLOGY AND THE CITROËN C3 PLURIEL IS NO EXCEPTION. TODAY, WE HAVE ONE OF THE UK'S WIDEST RANGES OF LOW EMISSION VEHICLES – THREE OF WHICH ARE IN THE TOP FOUR FOR LOW CO₂ AND FUEL-EFFICIENCY. WE ALSO PRODUCE THE UK'S MOST ECONOMICAL LIGHT COMMERCIAL VEHICLE, THE CITROËN NEMO VAN.

Side profile of a white compact car with blue accents and 'MICHelin' branding, parked on a paved surface (no visible text or symbols beyond branding)

> INTRODUCING A MORE ECOLOGICAL CAR

The Citroën C-Cactus concept, a car designed on ecological principles. It includes a significant proportion of recycled or recyclable materials and, like the plant it is named after, it is low on liquid consumption. At the same time, Citroën C-Cactus is designed to be no more expensive than a mid-range family car. This can be attributed to the use of new materials and to a rational design process using a smaller number of parts. Citroën C-Cactus is an essential vehicle reflecting a new vision of the car, many of its thoughts and themes will appear in modern Citroën vehicles to come.

> AIRDREAM - A BENCHMARK

When it comes to the environment we wanted to show our genuine commitment as well as our profound expertise, so we have devised a benchmarking scheme with the signature 'Airdream' reserved exclusively for the cleanest vehicles in our range. To qualify for the Airdream signature, vehicles must meet three standards:

1. a) CO_2 emissions of 120g/km or less b) fitted with DPFS with CO_2 below 158g/km.
2. Manufacturing quality of ISO14001.
3. 95% of recoverable materials.

>ESSENTIAL CARE.

CITROËNS ARE RENOWNED FOR THEIR RELIABILITY – AND THE CITROËN C3 PLURIEL IS NO EXCEPTION. WITH THE ADDED REASSURANCE OF A WARRANTY, ROUTINE SERVICING AND MAINTENANCE, AS WELL AS 24-HOUR ROADSIDE ASSISTANCE, YOU ARE PROTECTED AT EVERY TURN.

CITROËN ADVANTAGE

Enjoy your Citroën for years to come with Citroën Advantage. This extended warranty gives you long-term cover if you're planning to keep your new Citroën for more than three years, or anticipate your mileage to be more than 60,000 miles over this time.

To find out more, contact your Citroën Dealer or call the Customer Contact Centre on 0844 463 3500.

CITROËN MAINTENANCE

From roadside assistance to replacing wear and tear parts or regular servicing, with Citroën Maintenance you have total peace of mind. For a one-off fee or low monthly payment, our experienced engineers will take care of your Citroën, whatever happens.

To find out more, contact your Citroën Dealer or Citroën Authorised Repairer.

CITROËN ASSISTANCE

For all models except Citroën C6: In response to a free telephone call, Citroën Assistance brings rapid expert roadside assistance to you in an emergency. It comes free of charge for a full year and operates 24 hours a day in all parts of the UK and Europe. Services include nationwide recovery for both car and passengers, a home call service, replacement vehicle, hotel accommodation and vehicle storage if required. Please note, Citroën Assistance only applies to incidents covered by the new vehicle warranty, and excludes non-vehicle faults, such as running out of fuel, mis-fuelling, loss of keys, lock-ins, road traffic accidents and punctures/wheel changes. Citroën C6: Citroën Assistance covers all incidents and for a period of 3 years.

Full details are available on request from Citroën UK via [e-mail]

CITROËN WARRANTY

Every new Citroën car has the benefit of a 3 year* warranty package, plus a 12 year anti-perforation** warranty and a 3 year paint warranty.

DRIVE YOUR WAY.

GET BEHIND THE WHEEL OF YOUR NEW CITROËN C3 PLURIEL, WITH CITROËN'S RANGE OF FINANCE AND CAR INSURANCE PRODUCTS. HERE YOU CAN FIND EVERYTHING YOU NEED FOR AN ENJOYABLE MOTORING EXPERIENCE. LET YOUR JOURNEY BEGIN...

CITROËN FINANCIAL SERVICES PURCHASE PLAN

Own your vehicle with this flexible package designed to fit your budget.

CITROËN FINANCIAL SERVICES PERSONAL LEASE

Enjoy the convenience of a new car without the stress and hassle of ownership.

CITROËN FINANCIAL SERVICES ELECT 3

A new Citroën car every two or three years with monthly payments structured to suit your budget.

TO FIND OUT MORE ABOUT CITROËN PRODUCTS AND SERVICES, GO TO WWW.CITROEN.CO.UK OR CONTACT YOUR CITROËN DEALER.

...AND FOR BUSINESS USERS

CITROËN CONTRACT MOTORING HIRE PURCHASE

A tried and tested finance package that allows you to own your vehicle.

CITROËN CONTRACT MOTORING BUSINESS LEASE

An alternative to vehicle ownership that allows you to control your business cash flow and gain tax efficiencies.

CITROËN CONTRACT MOTORING LEASE PURCHASE

Own a vehicle with a finance solution that offers ultimate flexibility to complement your business cash flow.

CITROËN CONTRACT MOTORING CONTRACT HIRE

A non-ownership finance solution that keeps costs fixed and risks low.

FOR MORE INFORMATION ON CITROËN FLEET AND BUSINESS SALES, PLEASE CALL CITROËN FLEET CONNECT ON 08457 940 940 OR LOOK US UP AT WWW.CITROEN.CO.UK/FLEET

CITROËN INSURANCE\*\*\*

THE ONLY MOTOR INSURANCE DESIGNED SPECIFICALLY FOR CITROËN DRIVERS, WITH COVER DESIGNED AROUND YOUR PARTICULAR NEEDS.

CITROËN INSURANCE INSTANT COVER

To help you drive away your new car without delay, we offer Instant Cover insurance, providing you with 7 days comprehensive car insurance, for free!

CITROËN INSURANCE MOTOR INSURANCE

Simply put, Citroën Insurance offers real benefits, quality support and the usual high standards you can expect from a big name brand.

CALL US TODAY ON 0870 024 2725 AND DISCOVER MOTOR INSURANCE DESIGNED EXCLUSIVELY FOR CITROËN DRIVERS.

Lines open 8am - 8pm weekdays, 9am - 5pm Saturdays. Max call charge from a BT landline is 8p per minute. Calls from other networks may vary. Citroën Insurance is underwritten by UK Insurance Ltd. Conditions apply.

...AND EVEN MORE!

Whether you want protection against unforeseen circumstances that may affect your ability to make your monthly payment, or financial protection against a 'total loss' insurance claim, we will have a product to suit your needs. And you have the confidence of knowing it's all backed up by the brand you know and love, Citroën!

CITROËN C3 PLURIEL GLOSSARY

> HIGH-PRESSURE DIRECT INJECTION DIESEL ENGINE

Our HDi diesel engines operate with the fuel under extremely high pressure, enabling microscopically precise injection control. With this level of management it's possible to inject at different times during the same engine stroke allowing total control over the combustion process. This has allowed our engineers to reduce carbon monoxide emissions by 40%, unburned hydrocarbons by 50% and engine particulates by 60%. Fuel consumption is 20% lower than a prechamber diesel engine, resulting in an equivalent reduction in CO_2 emissions and thanks to the torque available at low engine speed it could be argued that driveability is now better than in petrol engine cars.

>SENSODRIVE

A revolutionary alternative to conventional gearboxes, Citroën's innovative SensoDrive allows you to operate in either 'manual' or 'automatic' modes. 'Manual' gear shifts are made using the paddles by the steering wheel, or the sequential lever. In 'automatic' mode the gearbox will control gear changes for you, maximising your drive comfort and optimising fuel consumption – to the order of 3 to 5% lower than a conventional manual gearbox, also helped by a sixth gear.

> ANTI-LOCK BRAKING SYSTEM (ABS)

Computer-controlled braking assistance designed to prevent the wheels from locking under extreme braking. This enables the car to continue being steered and therefore controlled during this braking incident. Citroën C3 Pluriel's ABS system is further enhanced with EBA and EBD (see below).

> EMERGENCY BRAKING ASSISTANCE (EBA)

As drivers we find it difficult to instinctively brake very hard, but this is often what is needed in those rare emergency situations. The EBA system recognises our ‘attempt’ to brake hard and in combination with the ABS and EBD systems instantly applies the maximum stopping power possible.

> ELECTRONIC BRAKEFORCE DISTRIBUTION (EBD)

A conventional ABS system cannot account for any of the four wheels wanting to lock more quickly than the others (for example, two of the wheels may be on snow and two on tarmac). EBD reads the deceleration rate of each wheel individually and applies the ABS principles accordingly.

> ISOFIX

A standardised and more simple method for installing child seats, each seat is 'clicked' into place via a three point system. On Citroën C3 Pluriel, Isofix is installed on the two rear seats.

> ON-BOARD TRIP COMPUTER

Citroën C3 Pluriel's multi-function on-board trip computer provides you with information at your fingertips. At the touch of a button you can view a range of data like fuel consumption, average speed and mileage possible at your current fuel level.

1563 1435 1700 1877

779 2460 695 3934

Front view line drawing of a car with height dimension labeled 1431 (no text or symbols on the car itself)

1180 1422 1330 660

All measurements are in millimetres.

Mixed Sources

Product group from well-managed forests and other controlled sources www.fsc.org Cert no. SGS-COC-005 © 1996 Forest Stewardship Council

This brochure is made from paper from a well-managed forest. Citroën support responsible use of forest resources.

Please don't throw me away, give me to a friend or recycle me.

NOTE: Every endeavour has been made to ensure that the information and details contained in this brochure were accurate at the time of going to press June 2009. However the company reserves the right, whilst preserving the essential characteristics of the models described, to introduce at any time modifications, changes of details, equipment or accessories. Every effort will be made to bring this brochure up to date, but in order to avoid any misunderstandings please consult your Dealer. For full details of Citroën Care for Van and Driver, please see the full manufacturer's price list. The Citroën Website contains full information on all Citroën products and offers available in the UK, together with details of our environmental and recycling policies. The site address is: www.citroen.co.uk or you can contact Citroën directly via [e-mail]

CITROËN prefers TOTAL

CITROËN UK Ltd. 221 Bath Road, Slough SL1 4BA.

www.citroen.co.uk

CRÉATIVE TECHNOLOGIE

CITROËN
