Product Type	Memory Module (RAM)
Brand	Crucial
Model	BL2K8G32C16S4B
Capacity	16 GB (2 x 8 GB)
Form Factor	SO-DIMM
Memory Type	DDR4
Speed	3200 MHz (PC4-25600)
CAS Latency	CL16
Voltage	1.2 V
Dimensions (each module)	Approx. 67.6 mm x 30 mm
Weight (total)	Approx. 20 g
Key Features	Dual rank, XMP 2.0 support, limited lifetime warranty
Installation	Insert module at 45° angle and press down until clips snap; ensure notch alignment
Safety Precautions	Work in static-safe environment, touch unpainted metal surface before handling
Cleaning	Use compressed air to remove dust; avoid liquids and abrasive materials
Warranty	Limited lifetime warranty (see manufacturer website for details)
Compatible Devices	Laptops and small form factor PCs with DDR4 SO-DIMM slots
Certifications	RoHS, CE, FCC
Country of Origin	Manufactured in multiple countries (see product label)

Frequently Asked Questions - BL2K8G32C16S4B Crucial

What is the capacity of the Crucial BL2K8G32C16S4B memory kit?

The kit provides 16 GB total, consisting of two 8 GB modules.

What type of memory is this?

It is DDR4 SO-DIMM memory, designed for laptops and small form factor computers.

What speed and latency does this memory have?

It runs at 3200 MHz with a CAS latency of CL16 (PC4-25600).

How do I install the memory modules?

Align the notch on the module with the slot, insert at a 45° angle, then press down until the side clips snap into place. Apply firm, even pressure (20-30 lbs).

Is this memory compatible with my laptop?

It is compatible with laptops that have DDR4 SO-DIMM slots and support 3200 MHz speed. Check your system's specifications or use Crucial's compatibility tool.

Does this memory support XMP?

Yes, it supports Intel XMP 2.0 for easy overclocking to rated speeds.

What voltage does it require?

It operates at standard DDR4 voltage of 1.2 V.

How should I clean the memory modules?

Use compressed air to blow away dust. Do not use liquids or abrasive cleaners. Handle by the edges to avoid static discharge.

What is the warranty for this product?

Crucial provides a limited lifetime warranty. See their website for full terms and conditions.

What if my system does not boot after installation?

Check that modules are fully seated and clips are locked. Reseat the modules. Verify compatibility. If problems persist, contact Crucial Technical Support.

USER MANUAL BL2K8G32C16S4B Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

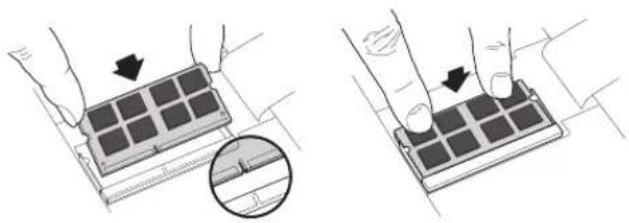

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.
