Ballistix Elite - Mémoire Crucial - Free user manual and instructions

Product Type	DDR4 RAM Module
Form Factor	288-pin DIMM
Capacity	8GB, 16GB, or 32GB per module
Speed	3200 MHz, 3600 MHz, or 4000 MHz (depending on SKU)
CAS Latency	CL16-18-18-36 or CL18-22-22-42 (varies)
Voltage	1.35V (XMP) or 1.2V (default)
Heat Spreader	Aluminum anodized heatsink with black/white design
LED Lighting	RGB LEDs with customizable effects (via software)
XMP Support	Intel XMP 2.0 (one-click overclocking)
Compatibility	Intel and AMD motherboards (DDR4)
Dimensions	133.35 mm x 31.25 mm x 7.5 mm
Weight	Approx. 45 g per module
Operating Temperature	0°C to 85°C
Warranty	Limited lifetime warranty
Installation	Plug into DIMM slots, push down until clips lock
Maintenance	Keep contacts clean; avoid static discharge
Safety	Handle with care; install in anti-static environment
Repairability	Not user-serviceable; replace entire module if faulty
Spare Parts	Not applicable (integrated unit)
General Info	High-performance gaming and overclocking RAM

Frequently Asked Questions - Ballistix Elite Crucial

How do I install the Ballistix Elite RAM?

Power off your PC, ground yourself, open the DIMM slot clips, align the notch, and press firmly until the clips lock. Refer to your motherboard manual for optimal slot pairing.

Is this RAM compatible with AMD Ryzen processors?

Yes, the Ballistix Elite is compatible with both Intel and AMD DDR4-based motherboards, including Ryzen. For best performance, enable XMP/DOCP in BIOS.

What does XMP do and how do I enable it?

XMP (Extreme Memory Profile) automatically configures your RAM to run at its rated speed and timings. Enter BIOS, locate XMP/DOCP, set to Profile 1, and save/exit.

Can I mix different capacities or speeds of Ballistix Elite?

Mixing is possible but may cause stability issues or run at lower speeds. For best performance, use identical modules from the same kit.

How do I control the RGB lighting?

Use Ballistix M.O.D. Utility or third-party software like ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, or ASRock Polychrome.

What is the default voltage and does it change with XMP?

Default voltage is 1.2V. With XMP enabled, voltage typically increases to 1.35V for higher speeds. Ensure adequate cooling.

My PC doesn't boot after installing new RAM. What should I do?

Check that modules are fully seated. Clear CMOS (remove battery for 30s). Try one module at a time. Update motherboard BIOS if needed.

Is the Ballistix Elite compatible with Intel 12th/13th gen (LGA1700) motherboards?

Yes, as long as the motherboard supports DDR4 memory. Note that some newer platforms may require DDR5; check your motherboard specifications.

How can I check my RAM speed and timings in Windows?

Use CPU-Z or Task Manager (Performance > Memory). CPU-Z provides detailed timings. For the rated speed, check the XMP profile in BIOS.

Does this RAM have a lifetime warranty?

Yes, Crucial offers a limited lifetime warranty for Ballistix Elite memory. Retain your purchase receipt for claims.

USER MANUAL Ballistix Elite Crucial

Isometric illustration of a dual-chamber RAM module with multiple square slots and mounting holes (no text or symbols)

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Hold the power button for 3–5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

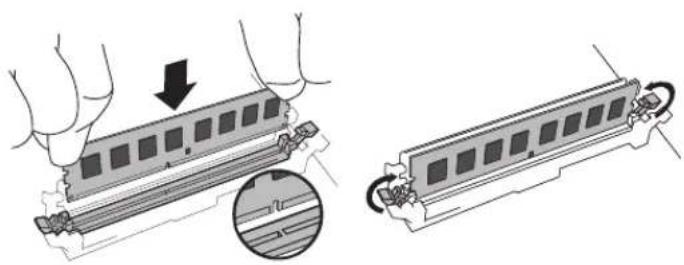

DIMM installation

Diagram showing a hand pressing down on a computer RAM module, with a magnified inset illustrating the internal structure (no text or symbols present)

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

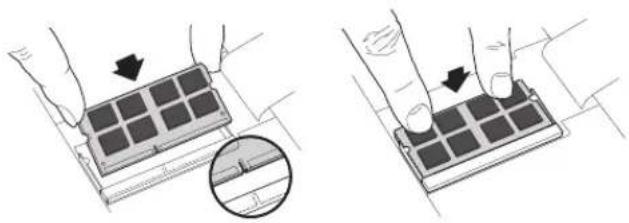

SODIMM installation

Two-step diagram showing hands installing a grid device on a base, with an arrow indicating the process (no text or symbols present)

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.
