Product Type	Memory Module (RAM)
Brand	Crucial
Model	PC4-19200
Memory Type	DDR4
Speed	2400 MHz
Form Factor	SO-DIMM (laptop) or DIMM (desktop)
Capacity	Varies (e.g., 4GB, 8GB, 16GB)
Voltage	1.2 V
CAS Latency	CL 17 (typical)
Dimensions (SO-DIMM)	Approx. 30 x 67.6 mm
Dimensions (DIMM)	Approx. 31.75 x 133.35 mm
Weight (SO-DIMM)	Approx. 7 g
Weight (DIMM)	Approx. 15 g
Pin Count	260-pin (SO-DIMM) or 288-pin (DIMM)
Memory Bandwidth	19200 MB/s
ECC Support	Non-ECC (usually)
Maintenance	Keep dust-free; avoid static discharge
Safety	Handle by edges; use anti-static precautions
Spare Parts & Repairability	Not applicable; RAM is not user-repairable
General Information	DDR4 memory for laptops or desktops; designed for reliable performance

Frequently Asked Questions - PC4-19200 Crucial

Is this memory compatible with my laptop?

It depends on your laptop's specifications. Check if your system supports DDR4 SO-DIMM modules. Crucial's compatibility tool can help.

What is the speed of PC4-19200?

PC4-19200 operates at 2400 MHz effective speed, which is a common DDR4 standard.

Can I mix different RAM speeds?

Yes, but the system will run at the speed of the slowest module. For best performance, use identical modules.

Do I need to configure BIOS for this RAM?

Usually not. The RAM will run at default JEDEC speeds. For XMP or overclocking, you may need to enable it in BIOS.

What voltage does this RAM require?

It operates at standard 1.2 V as per DDR4 specifications.

Is this RAM ECC or non-ECC?

Crucial PC4-19200 is typically non-ECC (unbuffered). Check the specific part number for confirmation.

Can I install this in a desktop?

If it's a DIMM version, yes. SO-DIMM is for laptops. Ensure your desktop motherboard supports DDR4 and the correct form factor.

How do I install the RAM safely?

Power off, unplug, ground yourself, align the notch, and press firmly until the clips lock. Avoid touching the gold contacts.

What is the CAS latency of this module?

Typical latency is CL17 (17 clock cycles). Use CPU-Z to verify.

Does this RAM come with a warranty?

Crucial offers a limited lifetime warranty on memory modules. Check the product documentation for details.

USER MANUAL PC4-19200 Crucial

Technical line drawing of a multi-layered electronic component with multiple square slots and mounting holes (no text or symbols)

Install Guide

General Memory Module Installation

Equipment needed

• Memory module(s)
• Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Discharge residual power by pressing the power button.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.
7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).
8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

Desktop, server, and printer memory installation (DIMM modules)

Diagram showing a hand pressing down on a RAM module with a magnified inset illustrating the internal structure (no text or symbols present)

Using firm, even pressure, push DIMM into socket until clips snap into place. Do not assist clips.

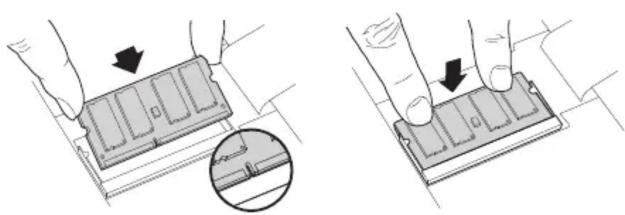

Laptop memory installation (SODIMM modules)

Two-step diagram showing hands holding a device with a magnified inset highlighting a component (no text or symbols present)

Firmly push SODIMM in at 45^irc angle, and then push down until clips snap into place.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the sockets.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you encounter any of the following problems, please contact Crucial Technical Support:

1. Your module doesn't seem to fit; do not force it into the socket.
2. Your system is recognizing only half of the new module's memory.

Customer Service and Technical Support

For technical support, customer service or returns, contact us using your preferred method below.

North and South America

Email: [e-mail]

Phone: [phone]

Toll free phone: [phone] (US and Canada only)

Europe

Email: [e-mail]

Phone: [phone]

Freephone: 0800 013 0330 (UK only)

Phone: [phone] (France only)

Freephone: 0805 10 29 63 (France only)

Asia, Australia, and New Zealand

Email: [e-mail]

Phone: [phone]

Freephone: 1 (800) 142982 (Australia and New Zealand only)
