AMP-HD2SIC62 - Loudspeaker OWI - Free user manual and instructions

Product Type	In-ceiling Speaker
Brand	OWI
Model	AMP-HD2SIC62
Speaker Diameter	6.5 inches
Impedance	8 ohms
Power Handling (RMS)	60 watts
Peak Power	120 watts
Frequency Response	60 Hz – 20 kHz
Sensitivity	88 dB @ 1W/1m
Cone Material	Polypropylene
Surround Material	Rubber
Weight (each)	1.5 lbs (0.68 kg)
Cutout Dimensions	7.5 inches diameter (190 mm)
Overall Dimensions	8.8 inches diameter x 3.5 inches depth (224 x 89 mm)
Color	White (paintable)
Mounting Type	Ceiling mount with spring-loaded dog ears
Terminal Type	Spring-loaded push terminals
Warranty	5 years limited

Frequently Asked Questions - AMP-HD2SIC62 OWI

What cutout size is required for the OWI AMP-HD2SIC62?

The required cutout diameter is 7.5 inches (190 mm). Ensure the ceiling hole is clean and free of obstructions.

How do I install the speaker in a ceiling?

First, trace and cut a 7.5-inch hole. Connect speaker wires to the spring-loaded terminals (observing polarity). Insert the speaker into the hole and tighten the four dog ears by turning the screws clockwise until snug. Do not overtighten.

Can I paint the speaker grille?

Yes, the grille is paintable. Remove the grille before painting. Use thin coats of latex paint to avoid clogging the perforations. Allow to dry fully before reinstalling.

What type of speaker wire should I use?

Use 16 to 14 AWG stranded speaker wire. Strip about 1/4 inch (6 mm) of insulation and insert into the spring-loaded terminals. Ensure correct polarity: red to positive (+), black to negative (-).

Is the AMP-HD2SIC62 suitable for outdoor or damp locations?

No, this speaker is designed for indoor use only. It is not weatherproof or moisture-resistant. Do not install in bathrooms, kitchens, or covered patios without additional protection.

Can I use this speaker with a 70V distributed audio system?

The AMP-HD2SIC62 is an 8-ohm, low-impedance speaker. It is not compatible with 70V systems unless you add an external step-down transformer (not included). For 70V use, consider OWI's 70V series.

What amplifier power is recommended for these speakers?

An amplifier delivering 30 to 120 watts per channel into 8 ohms is ideal. Match the amplifier RMS power to the speaker's 60-watt RMS rating for best performance and longevity.

Does the speaker come with a mounting template?

The packaging includes a cardboard cutout template for marking the 7.5-inch hole. If missing, use a compass or trace the inner ring of the speaker frame.

How do I connect the speaker wires to the terminals?

Press down on the spring-loaded terminal tab to open the hole. Insert the stripped wire end and release the tab. Gently tug the wire to confirm it is secure.

Are mounting screws included?

Yes, the speaker comes with four mounting screws for the dog ears. Additional screws for securing the grille are not needed as it snaps into place.

USER MANUAL AMP-HD2SIC62 OWI

NOTE: This manual applies also to all the model names listed above.

OWI User Manual: Model AMP-HD Amplified Speaker Series

PROPRIETARY NOTICE

The OWI Inc. product information and design disclosed herein were originated by and are the property of OWI Inc. OWI Inc. reserves all patent, proprietary design, manufacturing, reproduction, use and sales rights thereto, and to any article disclosed therein, except to the extent right(s) are expressly granted to others.

COPYRIGHT NOTICE

This manual is Copyright 2014 by OWI Inc. All rights reserved. Reproduction in whole or in part without written prior permission from OWI, Inc. is prohibited.

UNPACKING AND INSPECTION NOTICE

Immediately upon receipt of the equipment, inspect the shipping container and the contents carefully for any discrepancies or damage. Should there be any, notify the freight company and OWI, Inc. or the dealer where purchased at once.

LIMITED WARRANTY

1. This product has been thoroughly tested and inspected at the factory. It is warranted for one year from the date of purchase.
   IT IS THE OWNERS' RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT.
2. Any unit, which in the judgment of OWI INC, is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period.
3. This warranty will be considered void if the unit is dropped, misused, abused and altered in any manner, overdriven with excess amplification exceeding manufacturer's specification, improperly serviced or accidentally damaged.
4. OWI Inc. shall have no liability whatsoever for consequential damages. The sole responsibility at the discretion of OWI Inc. under this warranty shall be limited to the repair of the product or replacement thereof. Any and all implied warranties including the implied warranty of merchantability are limited to the duration of this express limited warranty.
   OWI, Inc. is NOT liable for incidental or consequential damages of any kind.
5. IMPORTANT: This warranty is void unless the attached card is completed and mailed to OWI Inc. within 10 days following the date of purchase. Units must be sent to OWI Inc. or to the dealer where purchased.

RETURN SHIPPING INSTRUCTIONS, Obtain a RETURN AUTHORIZATION from: OWI Inc., 17141 Kingsview Ave, Carson, CA 90746.

Table of Contents

Description	Page
Proprietary, Copyright Notices	2
Unpacking and Inspection	2
Warranty Information	2
Return Shipping Instructions	2
Table of Contents	3
Important Safety Instructions	4 - 5
Introduction	6
Specifications	7 - 8
Illustration: Connection and Control	9
Chained Self Amplified Speakers Wiring	10
One, Two, Four Speaker Combination Wiring	11
Input Connectors Wiring	12
AMP-HD Wiring Diagram	13
2X2FG-HDER3S61 Integration	14
Volume Control Wiring Diagram	15
Installation	16 – 19
Warranty	20

OWI User Manual: Model AMP-HD Amplified Speaker Series

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK - DO NOT OPEN

NOTE: Installation is to be completed by a qualified electrical technician according to NEC/CEC code and applicable local codes.

CAUTION: The power supply is not to be used in air handling spaces.

CAUTION: To reduce the risk of electric shock: Do not remove the cover or back: No user-serviceable parts inside: refer servicing to qualified personnel.

The lighting flash with arrowhead within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions. All the safety and operation instructions should be read before this OWI product is operated.
2. Keep these instructions - The safety and operating instructions should be kept for future reference.
3. Heed all warnings - All warnings on this product and in these operating instructions should be

OWI User Manual: Model AMP-HD Amplified Speaker Series

1. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
2. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit the apparatus.
3. Only use attachment/accessories specified by the manufacturers.

Portable Cart Warning

1. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
2. Unplug this apparatus during lightning storms or when unused for long periods of time.
3. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. The user should not attempt to service this OWI product beyond those means described in this operating manual. All other servicing should be referred to the OWI Service Department.
4. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
5. To prevent electric shock, do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can fully be inserted to prevent blade exposure.
6. Exposure to extremely high noise levels may cause permanent hearing loss. Individuals vary

OWI User Manual: Model AMP-HD Amplified Speaker Series

Introduction

The OWI AMP-HD2SIC6 is a three source integratable self powered speaker/amplifier. This speaker can drive up three additional speakers connected series parallel to have a net impedance of 8 ohms. With an included UL Listed, Level 5 (Energy Star), 15 volt, 3.5 ampere power supply, the amplifier can output 40 watts, or 10 watts per speaker in a four speaker hook-up.

Special features of the OWI Model AMP-HD2SIC6 include:

Three (3) audio inputs: Stereo 3.5 Mini Jack Line Input, Balanced Line Input, proprietary Cat 5 Input for OWI Products only

Input # 1 Stereo 3.5 Mini Jack Line Input - The JACK LINE IN accepts unbalanced input via 3.5 mini jack. The stereo channels are summed together. This input is muted when the Priority Override is in use.

Input # 2 Balanced Line Input - The LINE IN inputs accepts a balanced input via a Phoenix style screw terminal plug.

Input # 2 has the Priority Override Feature connected to it. - The Priority input accepts balanced input levels 1 volt (approximately line level) audio and Speaker level at 1 watt or less. Audio on the Priority input suspends audio on the 3.5 mini jack and Cat 5 Inputs and switches the speaker amplifier to pass the Priority audio. After the Priority audio stops, the unit waits before returning to the Line In and Jack Line In audio input.

Input # 3 Cat 5 input - Proprietary Cat 5 input for OWI Products only. Use only with OWI MC4. Future models will work with the OWI AMPSTVCW volume control.

Priority Override Paging (POP) – The POP controls are the POP Trigger level and the POP Volume level

POP Volume Level – The POP Volume level is the level at which the speaker will play the POP Message. This level can be set from Zero to MAX

POP Trigger Level – Adjust this by rotating if from more to less sensitive. If this is too low it will not trigger the controller to switch. If it is set too high it will constantly stay on and not go back to the needed settling.

Switches

POP / ALL SOURCES MIXED SWITCH – When the amplifier is going to be used in a Priority Override mode place the switch to the Priority Override

OWI User Manual: Model AMP-HD Amplified Speaker Series

SPECIFICATIONS (MODEL AMP-HD2SIC6)
Mechanical "UL rating is dependent upon use of the Backcan and Tile Bridge"

	SPECIFICATIONS
	AMP-HD2SIC6
Speaker Diameter	6.5 inches
Weight of Amplifier/Speaker Assembly	3.15 pounds
Height of Amplifier/Speaker Assembly	4.5 inches
Backcan "Suitable for use in air handling spaces"	UL Listed Enclosure
Tile Bridge "Suitable for use in air handling spaces"	UL Listed Support Truss

ELECTRICAL AMPLIFIER	SPECIFICATIONS
	AMP-HD2SIC6
Input voltage, nominal	(25 watts) 15 volts DC
Input current, operating (15VDC)	1.45 amperes peak
Input volt-amperes, peak (15VDC)	22 volt-amperes
Input voltage, maximum	16.5 volts, DC
Frequency Response,
EQ set to flat	20Hz to 20 kHz
Bass	± 10dB@50Hz
Treble	± 10dB@10kHz
THD + Noise	<1% at 13.5 watts, “A” weighted
S/N	>82 dB
Max Power Output (28V in)	40 watts
DC Power, Standby	1.4 watts
AC Power, Sleep Mode	1.4 watts
DC Power,
Short Circuit protected	Yes
Over current protected	Yes

OWI User Manual: Model AMP-HD Amplified Speaker Series

CAUTION: The Power Supply is not to be used in air handling spaces.

*Note: Maximum power requires the replacement of the 15 volt supply with a 22 volt supply and Energy Star and UL approvals no longer apply.

Power Supply Wire Gauge and Length - Minimum 18 gauge up to 40 feet maximum length

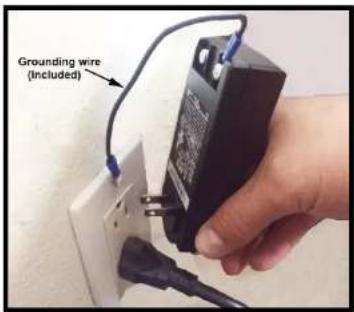

PS15VDC35AL5 Grounding Illustration

NON-AMPLIFIED SPEAKER	SPECIFICATIONS
	IC6
DESCRIPTION:	6.5", 2-way, coaxial
IMPEDANCE:	8 ohms
SENSITIVITY (1W/1M):	86dB
DISPERSION:	120 degrees
MAX POWER (8 Ohms)	50 watts
NOMINAL POWER (8 Ohms)	25 watts
FREQUENCY RESPONSE:	65Hz ~ 20 kHz
WOOFER SIZE:	6.5"
WOOFER MATERIAL:	Paper, PP coated
TWEETER SIZE:	0.5"
TWEETER MATERIAL:	PEI
GBILL MATERIAL :	Aluminum

OWI User Manual: Model AMP-HD Amplified Speaker Series

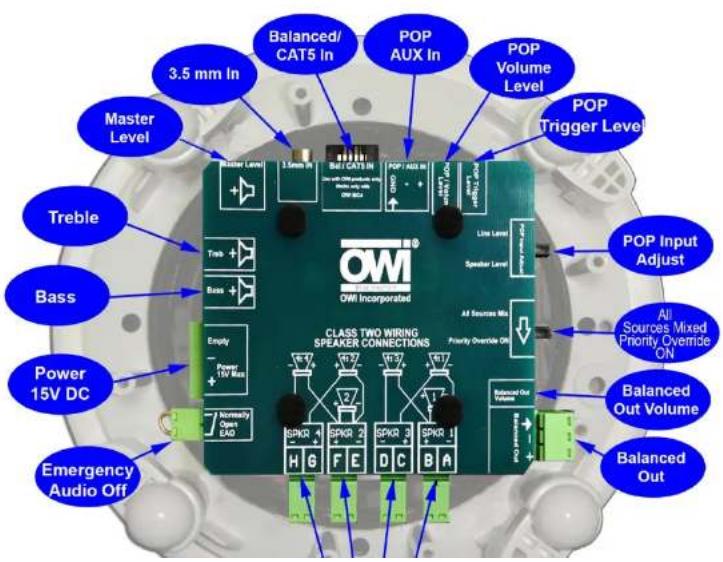

Illustration: Connection and Control

OWI User Manual: Model AMP-HD Amplified Speaker Series

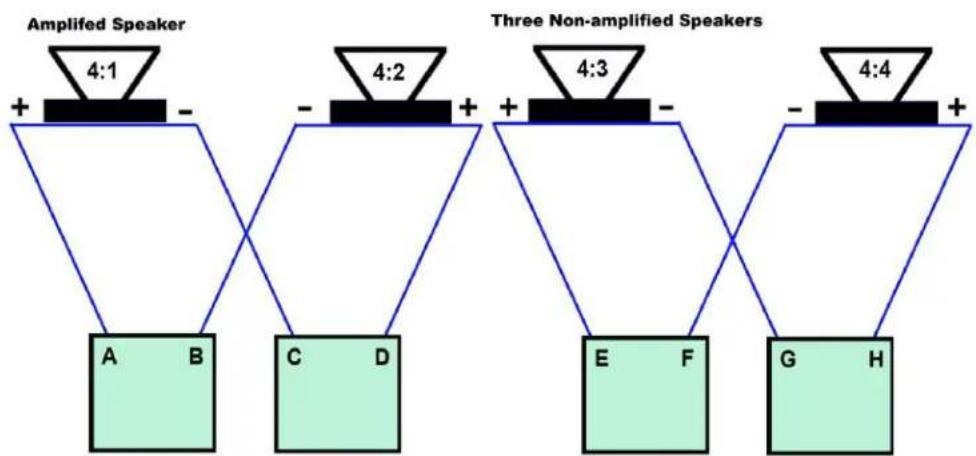

AMP-HD TO ANOTHER AMP-HD SPEAKER WIRING SINGLE LINE DIAGRAM

Chained Self Amplified Speakers Wiring

To add more Amplified Speakers, connect the output of the Amplified Speakers to the input of the next Amplified Speaker

OWI User Manual: Model AMP-HD Amplified Speaker Series

One, Two, Four Speaker Combination Wiring

AMPLIFIED SPEAKER TO NON-AMPLIFIED SPEAKER HOOK UPS

ONE (1) SPEAKER HOOK UP

TWO (2) SPEAKER HOOK UP

FOUR (4) SPEAKER HOOK UP

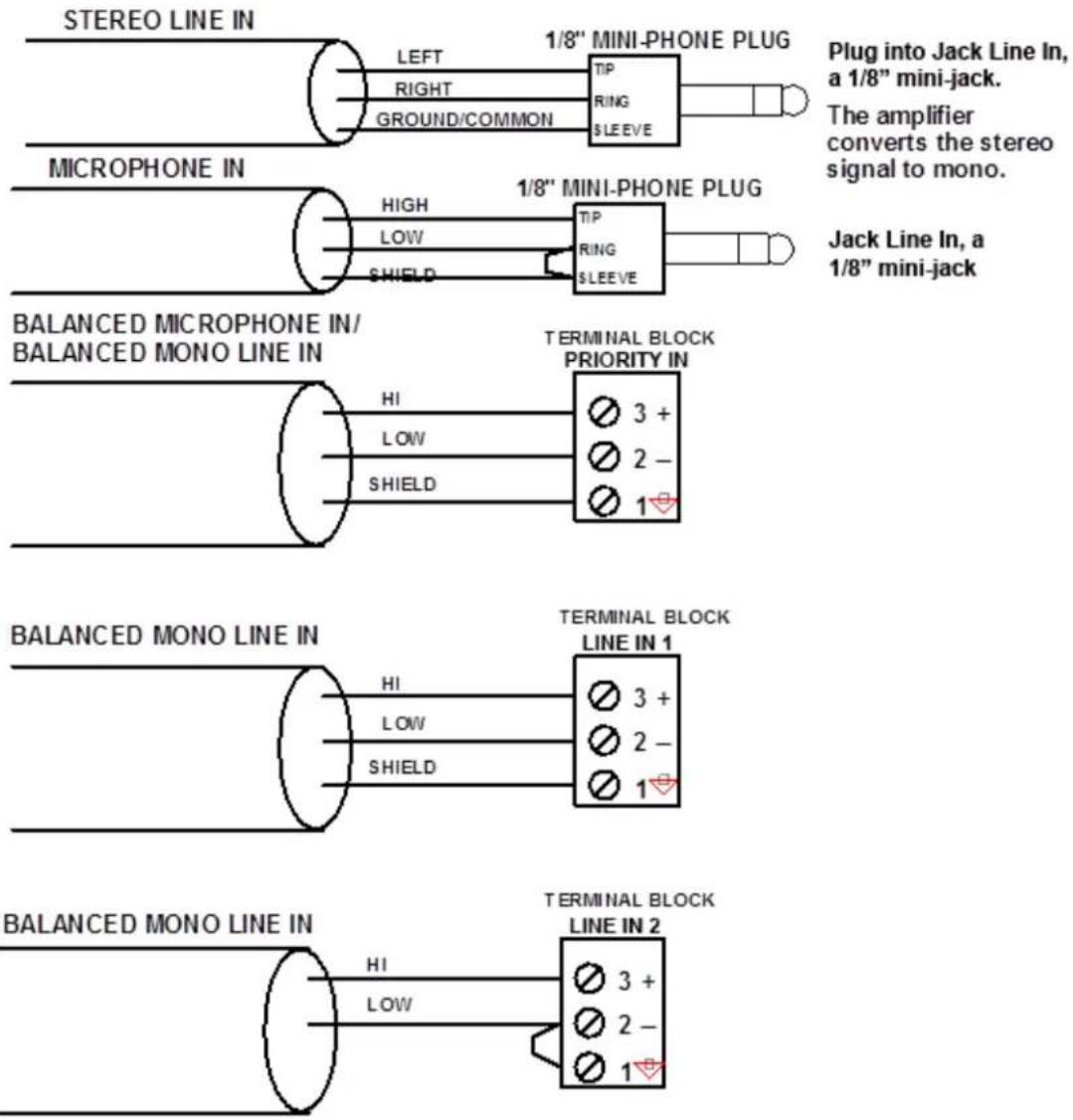

INPUT CONNECTORS WIRING

Note: Jack Line In is the same as STEREO LINE IN, immediately below.

OWI AMP-HD WIRING DIAGRAM

2X2FG-HDER3S61 BACK VIEW

Two electronic components: a green circuit board labeled 'CLASS TWO WIND SPRESS CONNECTIONS' and a black circular disc with wires and wires, both placed on a dark surface (no visible text or symbols)

AMP-HD SPEAKER
IC670V10

The model 2X2FG-HDER3S61 has one AMP-HD speaker which can be integrated with one IC670V10. These two speakers are installed on the same full grill as shown in the photo above.

VOLUME CONTROL WIRING DIAGRAM

Note: To avoid ground loops, use only plastic single gang boxes.

STEREO/MONO VOLUME CONTROL WIRING DIAGRAM

09/17/15

OWI User Manual: Model AMP-HD Amplified Speaker Series

INSTALLATION

NOTE: Installation is to be completed by a qualified electrical technician according to NEC/CEC code and applicable local codes.

Speaker Placement

Before installing your OWI speakers, consider the placement carefully, taking into effect the location of electrical, plumbing and other fixtures.

Placement in Ceiling

OWI speakers should be located above the primary listening area.

Mounting your OWI speakers

Determine the best area to mount your OWI speakers. It will be necessary to run your speaker wires to that location. This location must be free of obstructions, such as electrical conduits, HVAC ducts, or water lines.

Be sure the mounting surface is between 3/8 and 1 14 inches thick and that there is at least a 3 inch clearance behind the mounting surface (5 inch if using an OWI backcan). Make sure that no objects block the back of the speaker.

Remove the round cardboard disc from the template supplied and keep it for later use as a paint mask, if you decide to paint your speakers.

Use the template to mark the position for the mounting hole at the selected location. If you are not certain that no obstruction exists (electrical wiring, plumbing, etc.), you should start by cutting a small hole in the center of your penciled mounting hole with a drywall or keyhole saw, cutting at a 45 degree angle towards the inside of the hole. Cutting a small hole at this angle will make drywall repair much easier. Once you have determined there are no obstructions in your desired mounting location, start cutting the finished hole at a 90 degree angle to the ceiling surface.

Route the speaker wires from your amplifier to your opening. Avoid routing the speaker wire near electrical wires. If you have to run them parallel, make certain to space the speaker wires at least 2 feet from the AC line. Do not nail or staple the speaker wire.

Prepare Your OWI Speakers for Mounting

Insert a paper clip into one of the grille openings, then pull upwards to remove the grille. Turn the mounting tab 90° and push toward the grill. The grill will safely pop off.

Be sure to position the four Mounting Tabs on your OWI speaker inward then insert the four (4) screws (supplied) from the front of the speaker into the screw opening.

OWI User Manual: Model AMP-HD Amplified Speaker Series

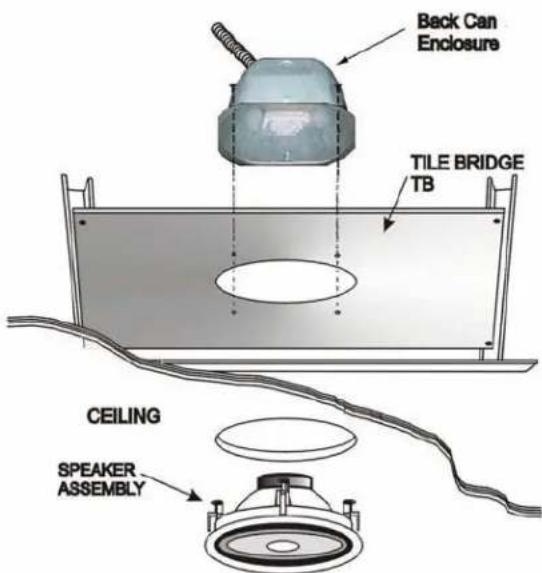

The Quick and Easy Way to Install the OWI TB (Tile Bridge) and the

Backcan Enclosure with a 6-1/2" or 5-1/4" OWI In-Ceiling Speaker.

1. Position the enclosure over the speaker hole and align it with the screw holes in the tile bridge. Insert and tighten

4 screws through the enclosure into the holes on top of the tile bridge.

1. Insert and tighten four screws

to attach the tile bridge to the beam.

Simple line drawing of a rectangular device with a circular opening and a top hat (no text or symbols)

1. After hole is cut in the ceiling, connect the wires and install the speaker by tightening the screws of the four clamps.

Illustration of a hand holding a circular object above a sloped surface, with no visible text or symbols.

OWI INCORPORATED

17141 Kingsview Avenue, Carson, CA 90746-1207 USA

Tel: [phone] Fax: [phone]

Email: [e-mail] Website: www.owi-inc.com

The Quick and Easy Way to Install the OWI TB (Tile Bridge) and the Backcan Enclosure with a 6-1/2" or 5-1/4" OWI In-Ceiling Speaker.

The TB will work on a 2' X 4', 2' X 2' lay-in type ceilings.

1. Use one tile bridge (TB) as a template to make cut outs for all the ceiling tiles.		5. Remove the template saw out the circle (hole). Set ceiling tile aside.
2. To save time, cut 2 ceiling tiles at the same time.Lay the ceiling tile face to face.		6. Place one ceiling tile face down on the floor or on top of a table. Position the TB tile bridge across the tile with the speaker holes coinciding with each other.
3. After finding the center of the ceiling tile, position the tile bridge template across the tile.		7. Position the enclosure over hole and align it with the screen in the tile bridge. Insert and tighten 4 screws through the enclosure into the holes on top of the tile bridge through the ceiling tile.
4. Draw a circle using the speaker hole of the template (tile bridge).		8. After connecting the speaker assembly through the hole and tighten the screws of the 4 clamps. The 4 clamps will hold the and the ceiling tile together

TEE BAR CEILING ASSEMBLY

OWI User Manual: Model AMP-HD Amplified Speaker Series

(Save this portion for your records)

1. Your OWI Speaker System has been thoroughly tested and inspected at the factory.

It is warranted for 1 year from date of purchase.

IT IS THE OWNERS' RESPONSIBILITY TO ESTABLISH THE DATE OF PURCHASE BY ACCEPTABLE EVIDENCE AT TIME SERVICE IS SOUGHT.

1. WHAT WE WILL PAY FOR AND WHAT YOU MUST PAY FOR:

OWI INC. will repair or replace unit(s) covered by this warranty, without charge to the consumer for labor or materials. YOU ARE RESPONSIBLE FOR ANY INSTALLATION OR REMOVAL CHARGES AND FOR ANY INITIAL SHIPPING CHARGES if the unit(s) must be shipped for warranty service. However, we will pay the return shipping charges to any destination within the U.S.A. if the repairs are covered by the warranty.

1. Any unit which in the judgment of OWI Inc. is defective or develops defects under normal use will be replaced or repaired without cost within the warranty period.

2. This warranty will be considered void if unit has been dropped, misused, abused, altered in any manner, overdriven with excessive amplification exceeding manufacturer's specification, improperly serviced or accidental damage.

3. OWI Inc. shall have no liability whatsoever for consequential damage. The sole responsibility and discretion of OWI Inc. under this warranty shall be limited to the repair of the product or replacement thereof.

4. IMPORTANT: This warranty is void unless the attached card is completed and mailed to OWI Inc. within 10 days following the date of purchase. Units must be sent to OWI Inc. or to the dealer where purchased.

OWI INCORPORATED

17141 Kingsview Ave

Carson, CA 90746-1207 USA

Date Purchased:

Model Number:

Serial Number:

-

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

-

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

OWI INCORPORATED

17141 Kingsview Ave

Carson, CA 90746-1207 USA

LIMITED WARRANTY

Model Number:

Model Name:

Serial No.

Date of Purchase: Month: ____ Day ____ Year ____

Owner's Name:

Address:

City: ____

State

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background elements (like ruled paper), the OCR result must ignore them. The OCR content provided is "____", which consists of four underscores. This is incorrect because underscores are not equivalent to a solid line and are not permitted under the “Stylistic/Background Lines (Ignore)” rule. The OCR has hallucinated underscores where none should exist in the GT, violating the rule to ignore stylistic lines. Therefore, the OCR result is inconsistent with the Ground Truth.

Zip

Dealer's Name: ____ City ____ State ____

Purchased from (please check one):

Video ____, Electronic ____, Mailorder ____, Mass Merchandiser ____, Installer ____

Others (please specify)

Remarks:

OWI User Manual: Model AMP-HD Amplified Speaker Series

OWI Incorporated

Established 1978

OWI Incorporated

17141Kingsview Ave. Carson CA 90746-1207 USA

Tel. [phone] Fax [phone]

www.owi-inc.com

060917
