Product Type	AV Switch (VGA + Audio)
Brand	ATEN
Model	VE806
Number of Input Ports	6
Number of Output Ports	1
Video Input	VGA (DB-15) x6
Video Output	VGA (DB-15) x1
Audio Support	3.5mm stereo audio per input, mixed output
Maximum Resolution	1920 x 1440 @ 60Hz
Switching Method	Front panel push buttons or IR remote (optional)
Power Supply	DC 5V, 2A (external adapter)
Dimensions (W x D x H)	260 x 75 x 45 mm
Weight	0.8 kg
Housing Material	Metal (steel)
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	0-80% RH, non-condensing
Included Accessories	Power adapter, user manual
Maintenance	Wipe with dry cloth; avoid liquids
Safety Certifications	CE, FCC
Spare Parts and Repairability	Contact ATEN support for parts; no user-serviceable internal components

Frequently Asked Questions - VE806 ATEN

How do I connect multiple computers to a single monitor using the VE806?

Connect each computer's VGA and audio output to one of the six input ports on the VE806. Then connect your monitor and speakers to the output ports. Use the front panel buttons or IR remote to select the desired input.

What is the maximum resolution supported by the VE806?

The VE806 supports resolutions up to 1920 x 1440 at 60Hz. For optimal performance, ensure your cables and sources support this resolution.

Does the VE806 support audio switching?

Yes, each input has a 3.5mm audio jack that is switched along with the video. The audio is mixed to a single output, so only the selected source's audio is heard.

Can I use the VE806 with a laptop that has only HDMI output?

You will need an HDMI-to-VGA adapter to convert the laptop's HDMI signal to VGA. Note that audio may need separate handling if the adapter does not extract audio.

How do I switch between inputs?

You can switch by pressing the corresponding button on the front panel or using the optional IR remote control. The selected input LED will light up.

Why is there no video output?

Check that all cables are securely connected and the correct input is selected. Ensure the power adapter is plugged in and the LED on the front panel is lit. Also verify the source device is powered on.

Can I extend the cable length from the VE806 to the monitor?

Standard VGA cables up to 5m work well. For longer runs, use an active VGA extender or signal booster to avoid signal degradation.

How do I clean and maintain the VE806?

Disconnect power and use a soft, dry cloth to wipe the exterior. Do not use liquids or sprays. Ensure vents are free of dust to prevent overheating.

What is the warranty period for the ATEN VE806?

ATEN typically offers a 2-year limited warranty. Check with your retailer or ATEN support for specific terms and conditions.

Can the VE806 be rack-mounted?

The VE806 is not designed for rack mounting. It is a desktop unit. For rack-mount solutions, consider ATEN's rack-mount switches or use a shelf.

USER MANUAL VE806 ATEN

Simply Better Connections

VE156 / VE606 / VE806

VGA / DVI / HDMI over Cat 5

Extender Wall Plate

User Manual

Compliance Statements

FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Caution

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

Warning

Operation of this equipment in a residential environment could cause radio interference.

Achtung

Shielded twisted pair (STP) cables must be used with the unit to ensure compliance with FCC & CE standards.

KCC Statement

VE156 / VE606 / VE806 User Manual

HDMI Trademark Statement

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

RoHS

This product is RoHS compliant.

VE156 / VE606 / VE806 User Manual

User Information

Online Registration

Be sure to register your product at our online support center:

International http://eservice.aten.com

Telephone Support

For telephone support, call this number:

International 886-2-8692-6959

China 86-400-810-0-810

Japan 81-3-5615-5811

Korea 82-2-467-6789

North America 1-888-999-ATEN ext 4988

1-949-428-1111

User Notice

All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. Any of the manufacturer's software described in this manual is sold or licensed as is. Should the programs prove defective following their purchase, the buyer (and not the manufacturer, its distributor, or its dealer), assumes the entire cost of all necessary servicing, repair and any incidental or consequential damages resulting from any defect in the software.

The manufacturer of this system is not responsible for any radio and/or TV interference caused by unauthorized modifications to this device. It is the responsibility of the user to correct such interference.

The manufacturer is not responsible for any damage incurred in the operation of this system if the correct operational voltage setting was not selected prior

VE156 / VE606 / VE806 User Manual

Product Information

For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers:

International http://www.aten.com

North America http://www.aten-usa.com

Package Contents

Check to make sure that all the components are in working order. If you encounter any problem, please contact your dealer.

The VGA/DVI/HDMI over Cat 5 Extender Wall Plate package contains the following items:

• 1 VE156T / VE606T / VE806T VGA/DVI/HDMI over Cat 5 Extender Wall Plate
  1 VE156R / VE606R / VE806R VGA/DVI/HDMI over Cat 5 Extender Wall Plate
  ♦ 1 terminal block
  ♦ 1 power adapter
• I user instructions*

VE156 / VE606 / VE806 User Manual

Contents

Compliance Statements ...... li

User Information iv

Online Registration IV

Telephone Support IV

User Notice IV

Product Information v

Package Contents vi

Contents vii

About this Manual ......viii

Conventions ix

1. Introduction

Overview

Features 2

Requirements 3

Console 3

Computer....3

Cables 3

Components 4

Front View (Transmitter) 4

Front View (Receiver) 4

Rear View (Transmitter / Receiver) 5

2. Hardware Setup

Overview

Before Mounting 7

Wall Box Dimensions....7

How to Supply Power 8

Wall Mounting 10

Hardware Installation 11

3. Basic Operation

Overview 13

Picture Adjustment 13

Appendix

Safety Instructions....15

General 15

Technical Support 17

About this Manual

This User Manual is provided to help you get the most from your system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.

Chapter 1, Introduction, introduces you to the VE156 / VE606 / VE806 system. Its purpose, features and benefits are presented, and its front and back panel components are described.

Chapter 2, Hardware Setup, describes how to set up your installation. All necessary steps to prepare for operation are provided.

Chapter 3, Basic Operation, describes how to adjust the picture quality.

Appendix, provides specifications and other technical information regarding the VE156 / VE606 / VE806.

Note:

Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit or any connected devices.
The product may be updated, with features and functions added, improved, or removed since the release of this manual. For an up-to-date user manual, visit http://www.aten.com/global/en/

Conventions

This manual uses the following conventions:

Monospaced Indicates text that you should key in.

[] Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt].

1. Numbered lists represent procedures with sequential steps.

◆ Bullet lists provide information, but do not involve sequential steps.

Indicates selecting the option (on a menu or dialog box, for example), that comes next. For example, Start > Run means to open the Start menu, and then select Run.

Indicates critical information.

This Page Intentionally Left Blank

Chapter 1 Introduction

Overview

The VGA/DVI/HDMI over Cat 5 Extender Wall Plate extends VGA/DVI/HDMI and audio signals up to 150m (for VE156) / 60 m (for VE606 / VE806) using Cat 5c cables. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE156 / VE606 / VE806, in combination with other ATEN devices such as VGA/DVI/HDMI extenders and MDS solutions, can further extend the distance or multiply A/V sources/displays.

The VE156 / VE606 / VE806 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5c cable to transmit the power signal to the other unit. The compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Features

• Uses two Cat 5c cables to connect the local and remote units one to transmit video and audio; and another for power*
  ♦ Remotely powered from either the Transmitter or Receiver side**
  • Extends the distance between VGA/DVI/HDMI source and VGA/DVI/HDMI display
  ♦ Superior video quality – VE156: up to 1920 x 1200 @60Hz (30 m), 1280 x 1024 @ 60Hz (150m); VE606 / VE806: 1080p @ 60Hz (40m), 1080i @ 60Hz (60m)
• Adjustable Video Compensation Control – manually adjusts signal strength to compensate for distance (VE156)
• 8-segment equalization adjustment switch optimizes display quality (VE606 / VE806)
• Compatible with existing ATEN VGA/DVI/HDMI extenders – see page 17 for more information
  ◆ Supports wide screen formats
• Supports hot-plugging
  • Decora type design is easily configurable to fit various wall plates
  ♦ HDMI (3D, Deep Color); HDCP compatible (VE806)
• LED indication of power sources / connection status
  • Supports stereo audio
  Built-in 8KV/15KV ESD protection
• A neat and cleaner installation via easy wall-mounting
• Plug-and-play – no software installation required

Note: * The second Cat 5c cable connection is required to remotely power on either the Transmitter or Receiver. For VE606 / VE806, it is also required for real EDID Bypass and HDCP key authentication.

** A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit. See How to Supply Power, page 8.

Introduction

Requirements

Console

• A display with an HDB-15 male connector (for VE156)
• A display with an DVI male connector (for VE606)
• A display with an HDMI male connector (for VE806)
Speakers (optional)

Computer

• Video source with an HDB-15 male connector (for VE156)
• Video source with an DVI male connector (for VE606)
• Video source with an HDMI male connector (for VE806)
• Audio port (optional)

Cables

• Cat 5c cables
  • VGA / DVI / HDMI cable(s)
  • Audio cable (optional)

Note: No cables are included in this package. It is strongly recommended that you purchase high-quality cables of the required lengths to ensure the quality of the audio and video display. Contact your dealer for more information about the correct cable sets.

VE156 / VE606 / VE806 User Manual

Components

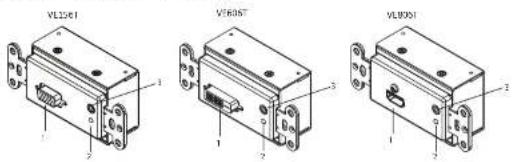

Front View (Transmitter)

No. Component Description

1 video input port The cable from your VGA / DVI / HDMI source device is plugged in here.
2 power LED The power LED lights green to indicate that the unit is receiving power.
3 audio input port	The cable from your audio source device is plugged in here.

Front View (Receiver)

No. Component Description

1 video output port The cable from your VGA / DVI / HDMI monitor plugs in here.

2 power / link LEDs The power LED lights green to indicate that the unit is receiving power.The link LED lights orange to indicate that the connection to the Transmitter unit has been established.

3 audio output port The cable from your speakers plugs in here.

Introduction

Rear View (Transmitter / Receiver)

No.	Component Description
1	line in / out (VE156)TMDS port (VE606 / VE806)	The Cat 5e cable that connects the transmitter and receiver units plugs in here. The Cat 5e connection between these ports transmits video and audio signals.For VE156:Transmitter (line out)Receiver (line in)
2	power (terminal block) The power	adapter wires (+9V and GND) plug in here.See How to Supply Power, page 8 for the steps on how to connect the terminal block to a power source.
3	power port (VE156)DDC port (VE606 / VE806)	Use a Cat 5e cable to connect the transmitter and receiver units through this port.The second Cat 5e cable connection transmits the power signal to either the transmitter or receiver when only one of the units is supplied power via the terminal block.For VE606 / VE806, in addition to transmitting the power signal, the second Cat 5e cable is used for real EDID Bypass and HDCP key authentication.
4	grounding terminal The grounding	wire is attached here.Note:The grounding wire is not included in this package.

This Page Intentionally Left Blank

Chapter 2

Hardware Setup

1. Important safety information regarding the placement of this device is provided on page 15. Please review it before proceeding.
2. Make sure that the power to all devices connected to the installation is turned off. You must unplug the power cords of any computers that have the Keyboard Power On function.

Overview

For convenience and flexibility, the VE156 / VE606 / VE806 can be mounted on the wall, ceiling, floor or any surface of your preference.

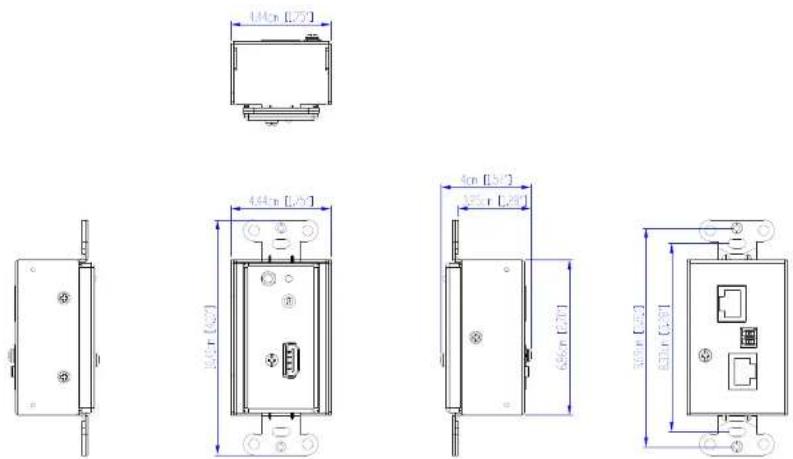

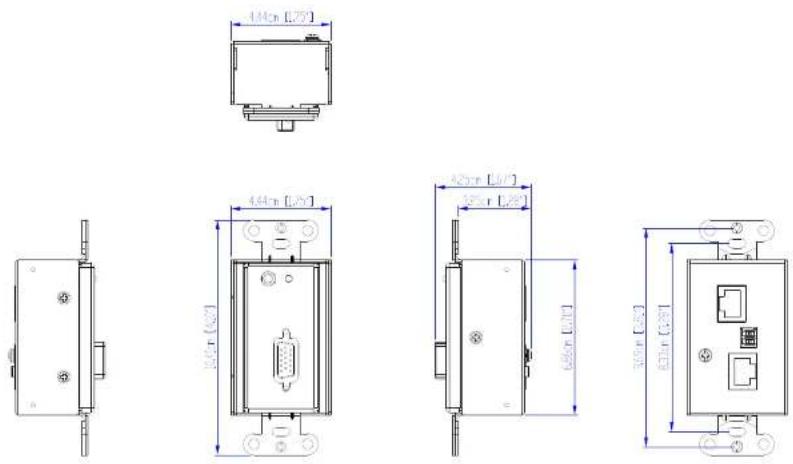

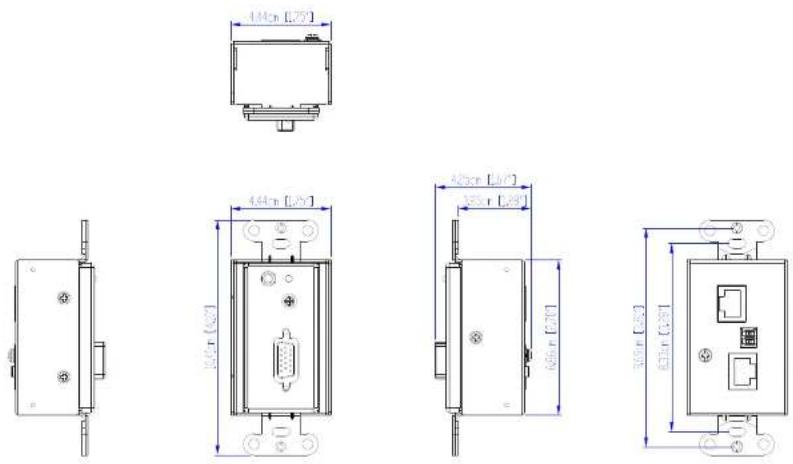

The dimensions of the VE156 / VE606 / VE806 are made to fit both a standard one-gang wall box and a single-gang mud ring, which can be purchased at a hardware store.

For a neat finish, use a wall plate as a cover. For more information on the dimensions of the VE156 / VF606 / VE806 fitted to a wall plate, see page 21.

Note: This chapter uses the VE156 panels for illustrating the installation steps.

Before Mounting

In order to mount the VE156 / VE606 / VE806, you first need to purchase: a standard single-gang Decora Face Plate, and either one of the following:

• Single-gang Mud Ring
• One-gang Wall Box

Note: The VE156 / VE606 / VE806 package does not include a mounting kit.

Prepare two installation sites (for the Transmitter and Receiver units) with the proper dimensions (see image below) to accommodate the Mud Ring or Wall Box.

Make sure proper cabling (unit-to-unit via Cat 5e; unit-to-power) can be supplied to both sites.

How to Supply Power

One pair of power adapter and terminal block is provided in this package, and can be used on either the transmitter or receiver side. The second Cat 5e cable connection transmits the power signal.

Note: To supply power to each unit separately, you must purchase another set of power adapter (within a voltage range of +9V\~12V) and terminal block connector. In this case, there is no need to connect the second Cat 5c cable.

The provided power adapter and terminal block must be combined. You can then use the modified power adapter to connect - first, to the terminal block on either the VE156T / VE606T / VE806T or VE156R / VE606R / VE806R rear panel; and then, to a power outlet to supply power to your VE156 / VE606 / VE806. Follow the steps described below:

1. Cut off the connector end of the power adapter.

2. Strip 5mm (0.5 cm) off the insulation cover of the power adapter cable to expose two wires: a +9V wire and a GND (grounding) wire.

The exposed wires must constantly be separated from each other to prevent any unexpected damage (including short-circuits, electric shocks, and so on.)

1. Insert the exposed +9V wire and GND wire tightly into the provided 2-pin terminal block. The connector is properly labeled – the +9V and GND wires should be plugged into

Hardware Setup

Note: The device can be damaged if incorrectly paired wires are inserted into the terminal block. A voltmeter is one of the tools used to measure an exposed wire's polarity (i.e., 9V or GND).

1. Connect and snap the terminal block into the 2-pin terminals located on either the transmitter or receiver unit's rear panel.

2. Connect the other end of the power adapter to a power socket.

Note: If you wish to use another external power supply, ensure that it stays within a voltage range of +9V\~12V.

VE156 / VE606 / VE806 User Manual

Wall Mounting

At this point, the site(s) for wall-mounting the VE156/VE606/VE806 should be ready. Note that there are cable connections to be made at the rear panel of the units – see Hardware Installation.

1. Screw the Mud Ring or the Wall Box to the installation site (wall, ceiling, and so on).
2. Attach the VE156 / VE606 / VE806 unit to the Mud Ring or Wall Box. Screw the units accordingly.

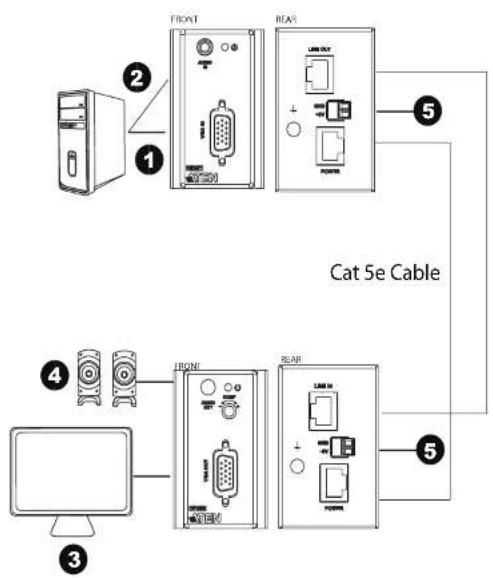

Hardware Installation

After mounting the VE156 / VE606 / VE806 transmitter and receiver units, you can conveniently connect the VE156 / VE606 / VE806 decora face plate installation to your input/output equipment. Refer to the installation diagram on the following page (the numbers in the diagrams correspond to the steps below), and do the following:

1. Connect the video input port on the VE156T / VE606T / VE806T (Transmitter) to the video output port on your video source device.
2. Connect one end of the audio cable to the audio input port of the VE156T / VE606T / VE806T and connect the other end to the audio output port of the source device.
3. Connect the video output port on the VE156R / VE606R / VE806R (Receiver) to the video input port on your video display device using the VGA/DVI/HDMI cable that came with your display device.
4. Connect your speakers to the audio output port on the VE156R / VE606R / VE806R.
5. Connect the transmitter or receiver to a power outlet using the provided terminal block connector / power adapter - see How to Supply Power, page 8.
6. Connect one end of the Cat 5e cable to the line out port (VE156T) / TMDS port (VE606T / VE806T) on the transmitter unit. Connect the other end of the Cat 5e cable to the line in port (VE156R) / TMDS port (VE606R / VE806R) on the receiver unit.
7. (Optional) Use a second Cat 5c cable to connect the power ports (VE156T / VE156R) / DDC ports (VE606T / VE606R / VE806T / VE806R).

Note: 1. A second Cat 5c cable connection is required only if you need to transmit power to either Transmitter or Receiver.
2. For VE606 / VE806, in addition to the above, a second Cat 5e cable is only required if you need to use real EDID Bypass and HDCP key authentication.

VE156 / VE606 / VE806 User Manual

Chapter 3

Basic Operation

Overview

This chapter describes the Manual Gain Control / EQ switch located on the front panel of the Remote Unit that adjusts the VGA / DVI / HDMI display to obtain the best video quality.

Picture Adjustment

The quality of the video signal can decrease with distance. To adjust the video quality, do the following:

• VE156 – Use the Manual Gain Control switch by turning the knob clockwise to increase the video signal, or turning the knob counterclockwise to decrease the video signal until you obtain the desired picture quality.
• VE606 / VE806 – Use the EQ switch to adjust the equalization strength and improve a blinking image.

The Equalization values range from 0-7 where:

7: strongest equalization
• 0: weakest equalization

This Page Intentionally Left Blank

Appendix

Safety Instructions

General

- Read all of these instructions. Save them for future reference.

• Follow all warnings and instructions marked on the device.

• This product is for indoor use only.

- Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.

- Do not use the device near water.

- Do not place the device near, or over, radiators or heat registers.

- The device cabinet is provided with slots and openings to allow for adequate ventilation. To ensure reliable operation, and to protect against overheating, these openings must never be blocked or covered.

- The device should never be placed on a soft surface (bed, sofa, rug, etc.) as this will block its ventilation openings. Likewise, the device should not be placed in a built-in enclosure unless adequate ventilation has been provided

• Never spill liquid of any kind on the device.

- Unplug the device from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

- The device should be operated from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

- To prevent damage to your installation it is important that all devices are properly grounded.

- Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over.

- Position system cables and power cables carefully; Be sure that nothing rests on any cables.

- Never push objects of any kind into or through cabinet slots. They may touch dangerous voltage points or short-out parts resulting in a risk of fire

- If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair.

• The power cord or plug has become damaged or frayed.

- Liquid has been spilled into the device.

• The device has been exposed to rain or water.

- The device has been dropped, or the cabinet has been damaged.

- The device exhibits a distinct change in performance, indicating a need for service.

- The device does not operate normally when the operating instructions are followed.

Only adjust those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage that will require extensive work by a qualified technician to repair.

Appendix

Technical Support

International

• For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com
  • For telephone support, see Telephone Support, page iv:

North America

Email Support [e-mail]
Online Technical Support	Troubleshooting Documentation Software Updates	http://www.aten-usa.com/support
Telephone Support 1-888-999-ATEN ext 4988

When you contact us, please have the following information ready beforehand:

• Product model number, serial number, and date of purchase.
- Your computer configuration, including operating system, revision level, expansion cards, and software.
• Any error messages displayed at the time the error occurred.
• The sequence of operations that led up to the error.
• Any other information you feel may be of help.

Specifications

Function VE156T VE196R
Connectors Video In 1 x HDB-15 Female			N/A
			(Blue)
			Impedance 100 Ω N/A
			Video Out N/A 1 x HDB-15 Female
			Impedance N/A 100 Ω
			Audio In 1 x Mini Stereo Jack Female (Green)
			Audio Out N/A 1 x Mini Stereo Jack Female (Green)
			Power 1 x RJ-45 Female (Silver)
			Power 1 x Terminal Block (Green)
			Line In
			N/A
			1 x RJ-45 Female (Silver)
			Line Out
			1 x RJ-45 Female (Silver)
LED	Power		1 (Green)
	Link		N/A
Switch	Manual Gain Control		N/A
Video	Max. Bandwidth		300 MHz
	Max. Resolutions / Distance		1920 x 1200 @ 60 Hz (30 m)1280 x 1024 @ 60 Hz (150 m)
Power Consumption			DC 9V:3.2W
Environment	Operating Temp.		0–50°C
	Storage Temp.		-20–60°C
	Humidity		0–80% RH, Non-condensing
Physical Properties	Housing		Metal
	Weight		0.18 kg (0.4 lb)
	Dimensions (L x W x H)		10.41 x 4.44 x 4.28 cm(4.1 x 1.75 x 1.69 in)

Appendix

Function VE606T VE606R
Connectors Video In 1 x DVI-D Female		(White)	N/A
	Impedance 100 Ω N/A
	Video Out N/A 1 x DVI-D Female		(White)
	Impedance N/A 100 Ω
	Audio In 1 x Mini Stereo Jack Female (Green)		N/A
	Audio Out N/A 1 x Mini Stereo Jack		Female (Green)
	DDC 1 x RJ-45 Female (Silver)
	Power 1 x Terminal Block (Green)
	TMDS	1 x RJ-45 Female (Silver)
LED	Power / Link	1 (Green / Amber)
Switch	EQ Switch	N/A	1 x Knob
Video	Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
	Max. Pixel Clock	225 MHz
	Compliance	HDCP Compatible
	Max. Resolutions / Distance	1080p @ 60 Hz (40m)1080i @ 60 Hz (60m)
Power Consumption		DC 9V:2.31W:11BTU
Environment	Operating Temp.	0–50°C
	Storage Temp.	-20–60°C
	Humidity	0–80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	0.18 kg (0.4 LB)
	Dimensions (L x W x H)	10.41 x 4.44 x 4.34 cm(4.1 x 1.75 x 1.71 in)

VE156 / VE606 / VE806 User Manual

Function VE806T VE806R
Connectors Video In 1 x HDMI Type-A		Female (Black)	N/A
		Audio In	1 x HDMI Type-A Female (Black)	N/A
		Audio Out N/A		1 x HDMI Type-A Female (Black)
		DDC 1 x RJ-45 Female (Silver)
		Power	1 x Terminal Block (Green)
		TMDS	1 x RJ-45 Female (Silver)
LED	Power / Link	1 (Green / Amber)
Switch	EQ Switch	N/A	1 x Knob
Video	Max. Data Rate	6.75 Gbps (2.25 Gbps Per Lane)
	Max. Pixel Clock	225 MHz
	Compliance	HDMI (3D, Deep Color) HDCP Compatible
	Max. Resolutions / Distance	1080p @ 60 Hz (40m) 1080i @ 60 Hz (80m)
Power Consumption		DC 9V:2.33W:11BTU
Environment	Operating Temp.	0-50°C
	Storage Temp.	-20-60°C
	Humidity	0-80% RH, Non-condensing
Physical Properties	Housing	Metal
	Weight	0.17 kg (0.37 lb)
	Dimensions (L x W x H)	10.41 x 4.44 x 4.00 cm (4.1 x 1.75 x 1.57 in)

CAD Drawings

ATEN

CAD Drawings

ATEN

CAD Drawings

ATEN

CAD Drawings

ATEN

CAD Drawings

ATEN

CAD Drawings

ATEN

Panel Mount Cutout

Note: ATEN recommends a 1-gang wall box with a depth of at least 5 cm (1.97 inches) to accommodate the connectors and cables.

Limited Warranty

ATEN warrants its hardware in the country of purchase against flaws in materials and workmanship for a Warranty Period of two [2] years (warranty period may vary in certain regions/countries) commencing on the date of original purchase. This warranty period includes the LCD panel of ATEN LCD KVM switches. Select products are warranted for an additional year (see A-Warranty for further details). Cables and accessories are not covered by the Standard Warranty.

What is covered by the Limited Hardware Warranty

ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product. Replaced products assume the warranty of the original product for the remaining period or a period of 90 days, whichever is longer. When the products or components are replaced, the replacing articles shall become customer property and the replaced articles shall become the property of ATEN.

To learn more about our warranty policies, please visit our website: http://www.aten.com/global/en/legal/policies/warranty-policy/
